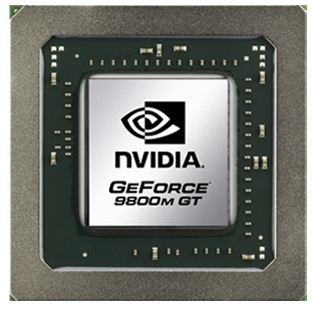

NVIDIA GeForce 9800M GT

NVIDIA GeForce 9800M GT

-

GeForce 9800M Rodzina

GeForce 9800M GT SLI 192 @ 0.5 GHz256 bit @ 800 MHz
GeForce 9800M GTS SLI 128 @ 0.6 GHz256 bit @ 800 MHz
GeForce 9800M GTX 112 @ 0.5 GHz256 bit @ 800 MHz
GeForce 9800M GT 96 @ 0.5 GHz256 bit @ 800 MHz
GeForce 9800M GTS 64 @ 0.6 GHz256 bit @ 800 MHz
GeForce 9800M GS 64 @ 0.53 GHz256 bit @ 800 MHz
Nazwa roboczaNB9E-GT2
ArchitekturaG9x
Potoki96 - ZJC
Zegar rdzenia500 MHz
Zegar jednostek cieniujących1250 MHz
Zegar pamięci800 MHz
Magistrala256 bit
Typ pamięciGDDR3
Maks. pamięci512 MB
Pamięć współdzielonanie
APIDirectX 10, Shader 4.0
Pobór prądu65 W
Liczba tranzystorów754 mln
Technologia65 nm
TechnologiePureVideo HD, CUDA, PhysX
Wielkość laptopaduży
Data premiery15.07.2008
InneMXM 3
Witryna producentawww.nvidia.com

Testy

3DMark Vantage
3DM Vant. Perf. total +
3DMark Vantage - 3DM Vant. Perf. total
4011 Points (1%)
3DM Vant. Perf. GPU no PhysX +
3DMark 2001SE - 3DMark 2001 - Standard
min: 34871     avg: 35285     median: 35284.5 (37%)     max: 35698 Points
3DMark 03 - 3DMark 03 - Standard
min: 30129     avg: 30224     median: 30223.5 (16%)     max: 30318 Points
3DMark 05 - 3DMark 05 - Standard
min: 14713     avg: 14869     median: 14869 (16%)     max: 15025 Points
3DMark 06 3DMark 06 - Standard 1280x1024 +
3DMark 06
min: 9228     avg: 9416     median: 9258 (12%)     max: 9762 Points
Cinebench R10 Cinebench R10 Shading (32bit) +
Cinebench R10 - Cinebench R10 Shading (32bit)
min: 4460     avg: 4527     median: 4526.5 (3%)     max: 4593 pkt.
- Zakres wyników testów referencyjnych dla tej karty graficznej
- Średnia wartość wyników testów referencyjnych dla tej karty graficzne
* Smaller numbers mean a higher performance

Testy gier

Zamieszczone niżej wyniki pochodzą z testów zrecenzowanych laptopów. Należy pamiętać, że osiągi poszczególnych konfiguracji zależą od zastosowanej pamięci własnej karty (VRAM), zegarów karty (mogą być różne), procesora, ustawień systemu, sterowników i wersji systemu operacyjnego. Tym samym uzyskane wyniki nie muszą być reprezentatywne dla wszystkich laptopów wyposażonych w daną kartę graficzną. By uzyskać szczegółowe informacje o wynikach testów, należy kliknąć na podaną wartość liczbową (fps, czyli kl/s).

Crysis - GPU Benchmark

Crysis - GPU Benchmark

2007
low 1024x768
67.3 98.4 ~ 83 fps    + Porównaj
med. 1024x768
49.8 55.6 ~ 53 fps    + Porównaj
high 1024x768
33.1 35.5 ~ 34 fps    + Porównaj
» Na wszystkich testowanych laptopach grywalna przy ustawieniach med..
Additional Benchmarks
Low 0xAF 0xAA 1280x800
56
Medium 0xAF 0xAA 1280x800
40.7
Low 0xAF 0xAA 1440x900
55.4
Medium 0xAF 0xAA 1440x900
37.3
High 1280x800
27.4
High 800x600
41.5
High 1440x900
24
High 1680x1050
19.2
Medium 1680x1050
31
Low 1680x1050
51.5
Low 0xAF 0xAA 800x600
67.9
Med 0xAF 0xAA 800x600
53.9
Very High 1024x768
20.7
Crysis - CPU Benchmark

Crysis - CPU Benchmark

2007
low 1024x768
75.3 115.9 ~ 96 fps    + Porównaj
med. 1024x768
46.1 52.2 ~ 49 fps    + Porównaj
high 1024x768
30.9 33.1 ~ 32 fps    + Porównaj
» Na wszystkich testowanych laptopach grywalna przy ustawieniach med..
Additional Benchmarks
Low 0xAF 0xAA 1280x800
61.7
Medium 0xAF 0xAA 1280x800
39.5
Low 0xAF 0xAA 1440x900
59.1
Medium 0xAF 0xAA 1440x900
36.9
High 1440x900
22.8
Low 1680x1050
55
Medium 1680x1050
31.5
High 1680x1050
18.6
High 0xAF 0xAA 1280x800
26.1
Med 0xAF 0xAA 800x600
51.5
Low 0xAF 0xAA 800x600
78.1
High 0xAF 0xAA 800x600
39.3
Very High 1024x768
19
World in Conflict - Benchmark

World in Conflict - Benchmark

2007
med. 1024x768
66  fps    + Porównaj
high 1024x768
37  fps    + Porównaj
» Na wszystkich testowanych laptopach grywalna przy ustawieniach high.
Additional Benchmarks
Medium 0xAF 0xAA 1280x800
64
High 2xAF 2xAA 1280x800
36
Medium 0xAF 0xAA 1440x900
62
High 2xAF 2xAA 1440x900
32
F.E.A.R.

F.E.A.R.

2005
low 640x480
551 558 ~ 555 fps    + Porównaj
med. 800x600
273 274 ~ 274 fps    + Porównaj
high 1024x768
117 118 ~ 118 fps    + Porównaj
» Na wszystkich testowanych laptopach grywalna przy ustawieniach high.
Doom 3

Doom 3

2004
low 640x480
150.9  fps    + Porównaj
med. 640x480
146.2  fps    + Porównaj
high 800x600
144.9  fps    + Porównaj
ultra 1024x768
141.1  fps    + Porównaj
» Na wszystkich testowanych laptopach grywalna przy ustawieniach ultra.
Quake 3 Arena - Timedemo

Quake 3 Arena - Timedemo

1999
lowmed.highultraQHD4K
Crysis - GPU Benchmark835334
Crysis - CPU Benchmark964932
World in Conflict - Benchmark6637
F.E.A.R.555274118
Doom 3150.9146.2144.9141.1
Quake 3 Arena - Timedemo624
< 30 fps
< 60 fps
< 120 fps
≥ 120 fps


2
2

2
1
2

3
1
2



1






Więcej informacji w rankingu płynności w grach
