Intel Core i5-520M

Intel 520M

Core i5-520M to dwurdzeniowy procesor do laptopów z początku 2010 roku. Jest on najsłabszą jednostką spośród standardowych i5 pierwszej generacji z serii 500.

Od najwolniejszego dwurdzeniowego Core i7, i7-620M, różni się niższym taktowaniem bazowym i w trybie Turbo oraz posiadaniem 3 a nie 4 MB pamięci podręcznej). Z kolei od jednostek i5 z serii 400 różni się zaimplementowaniem instrukcji AES, technologii TET i VT-d, których tamte nie posiadają. W testach syntetycznych procesor ten wykazuje wydajność zbliżoną do i5-450M.

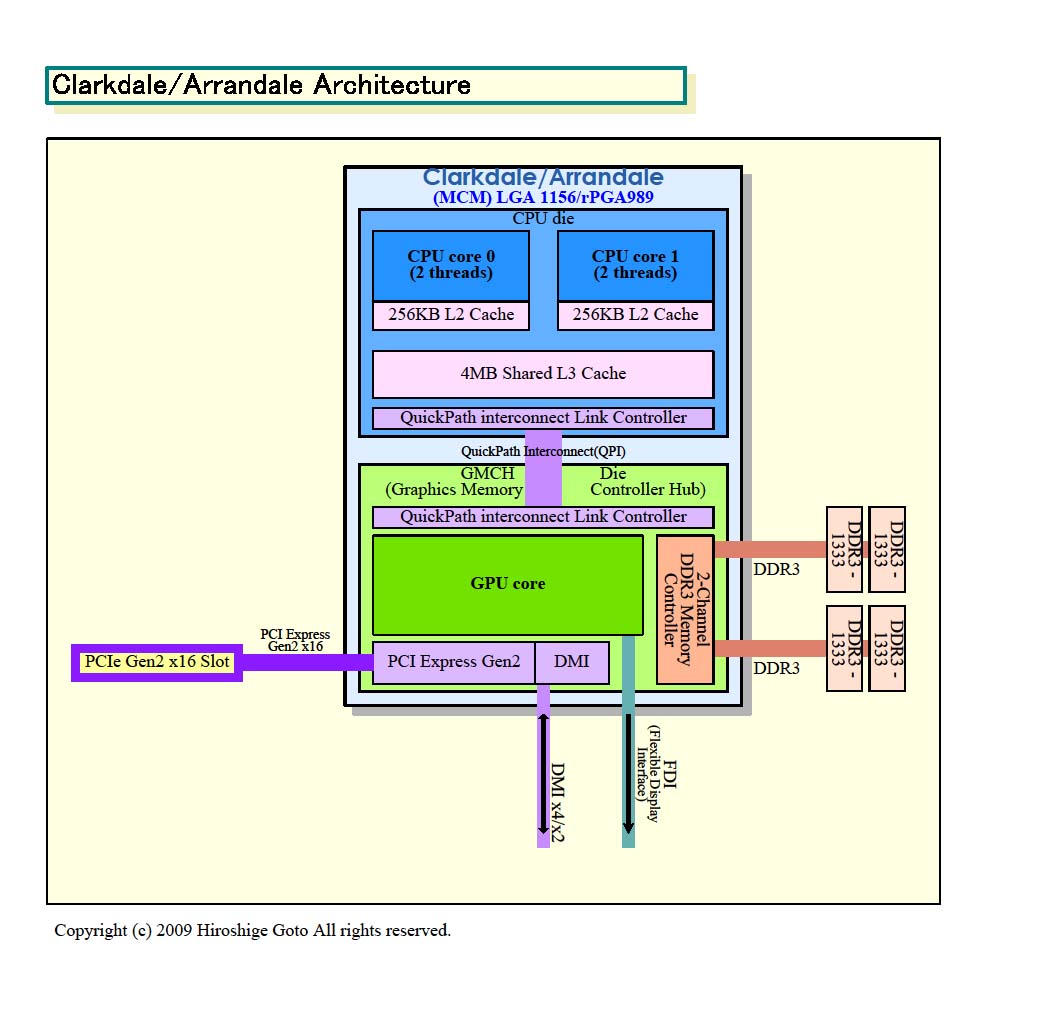

Procesor ten jest oparty na mikroarchitekturze Westmere (jego rdzenie są wykonane w technologii 32 nm) i posiada zintegrowany rdzeń graficzny GMA HD (wykonany w procesie 45 nm). Za sprawą technologii Hyper-Threading może wykonywać do czterech wątków jednocześnie. Zintegrowany kontroler pamięci obsługuje do 8 GB RAM DDR3-1066.

SeriaIntel Core i5
Nazwa roboczaArrandale

Rodzina: Core i5 Arrandale

Intel Core i5-580M2.67 - 3.33 GHz2 / 4 cores3 MB L3
Intel Core i5-560M2.67 - 3.2 GHz2 / 4 cores3 MB L3
Intel Core i5-480M2.67 - 2.93 GHz2 / 4 cores3 MB L3
Intel Core i5-540M2.53 - 3.07 GHz2 / 4 cores3 MB L3
Intel Core i5-460M2.53 - 2.8 GHz2 / 4 cores3 MB L3
Intel Core i5-520M « 2.4 - 2.93 GHz2 / 4 cores3 MB L3
Intel Core i5-450M2.4 - 2.66 GHz2 / 4 cores3 MB L3
Intel Core i5-430M2.26 - 2.53 GHz2 / 4 cores3 MB L3
Intel Core i5-560UM1.33 - 2.13 GHz2 / 4 cores3 MB L3
Intel Core i5-470UM1.33 - 1.87 GHz2 / 4 cores3 MB L3
Intel Core i5-540UM1.2 - 2 GHz2 / 4 cores3 MB L3
Intel Core i5-520UM1.06 - 1.87 GHz2 / 4 cores3 MB L3
Intel Core i5-430UM1.2 - 1.73 GHz2 / 4 cores3 MB L3
Taktowanie2400 - 2933 MHz
Magistrala2500
Pamięć 1. poziomu128 KB
Pamięć 2. poziomu512 KB
Pamięć 3. poziomu3 MB
Liczba rdzeni / wątków2 / 4
TDP (Thermal Design Power)35 W
Liczba tranzystorów382+177 mln
Technologia wytwarzania32 nm
Rozmiar procesora81+114 mm2
Maks. temperatura105 °C
GniazdoBGA1288, PGA988
CechyTurbo Boost, Hyper Threading, Enhanced Speedstep, zintegrowana karta GMA HD 733 MHz
64-bityobsługa 64-bitów
Architecturex86
Najniższa cena$225 U.S.
Data premiery04/01/2010
Odnośnik do produktu (zewn.)ark.intel.com

Testy

Cinebench R11.5 - Cinebench R11.5 CPU Multi 64 Bit
min: 1.97     avg: 2.1     median: 2.2 (3%)     max: 2.19 Points
Cinebench R10 - Cinebench R10 Rend. Single (32bit)
min: 2789     avg: 3017     median: 3046 (18%)     max: 3102 pkt.
Cinebench R10 - Cinebench R10 Rend. Multi (32bit)
min: 6114     avg: 6661     median: 6753 (5%)     max: 6925 pkt.
Cinebench R10 - Cinebench R10 Rend. Multi (64bit)
min: 7129     avg: 8022     median: 8165 (6%)     max: 8342 Points
Cinebench R10 - Cinebench R10 Rend. Single (64bit)
min: 1799     avg: 3636     median: 3732 (5%)     max: 3957 Points
wPrime 2.10 - wPrime 2.0 1024m *
min: 599     avg: 814     median: 623.5 (7%)     max: 1428 s
wPrime 2.10 - wPrime 2.0 32m *
min: 19     avg: 26.6     median: 20 (4%)     max: 44.63 s
3DMark 06 - CPU - 3DMark 06 - CPU
min: 2602     avg: 2728     median: 2728.5 (6%)     max: 2817 Points
Super Pi mod 1.5 XS 1M - Super Pi mod 1.5 XS 1M *
min: 15     avg: 16.7     median: 16 (3%)     max: 24 s
Super Pi mod 1.5 XS 2M - Super Pi mod 1.5 XS 2M *
min: 36     avg: 38.4     median: 38 (2%)     max: 44 s
Super Pi Mod 1.5 XS 32M - Super Pi mod 1.5 XS 32M *
min: 848     avg: 899     median: 871 (4%)     max: 1182 s
SiSoft Sandra Dhrystone (MIPS) - SiSoft Sandra Dhrystone (MIPS)
min: 31600     avg: 34553     median: 33240 (16%)     max: 39000 MIPS
SiSoft Sandra Whetstone (MFLOPS) - SiSoft Sandra Whetstone (MFLOPS)
min: 25360     avg: 28514     median: 28250 (22%)     max: 35320 MFLOPS
Windows 7 Experience Index - Win7 CPU
min: 5.2     avg: 6.6     median: 6.7 (86%)     max: 6.8 Points
3DMark Vantage - 3DM Vant. Perf. CPU no Physx
min: 7304     avg: 7540     median: 7560 (7%)     max: 7658 Points
- Zakres wyników testów referencyjnych dla tej karty graficznej
- Średnia wartość wyników testów referencyjnych dla tej karty graficzne
* Smaller numbers mean a higher performance
