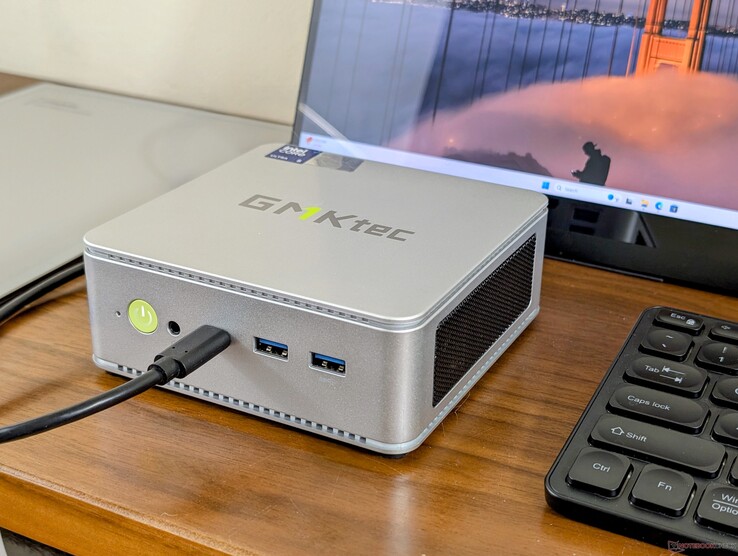

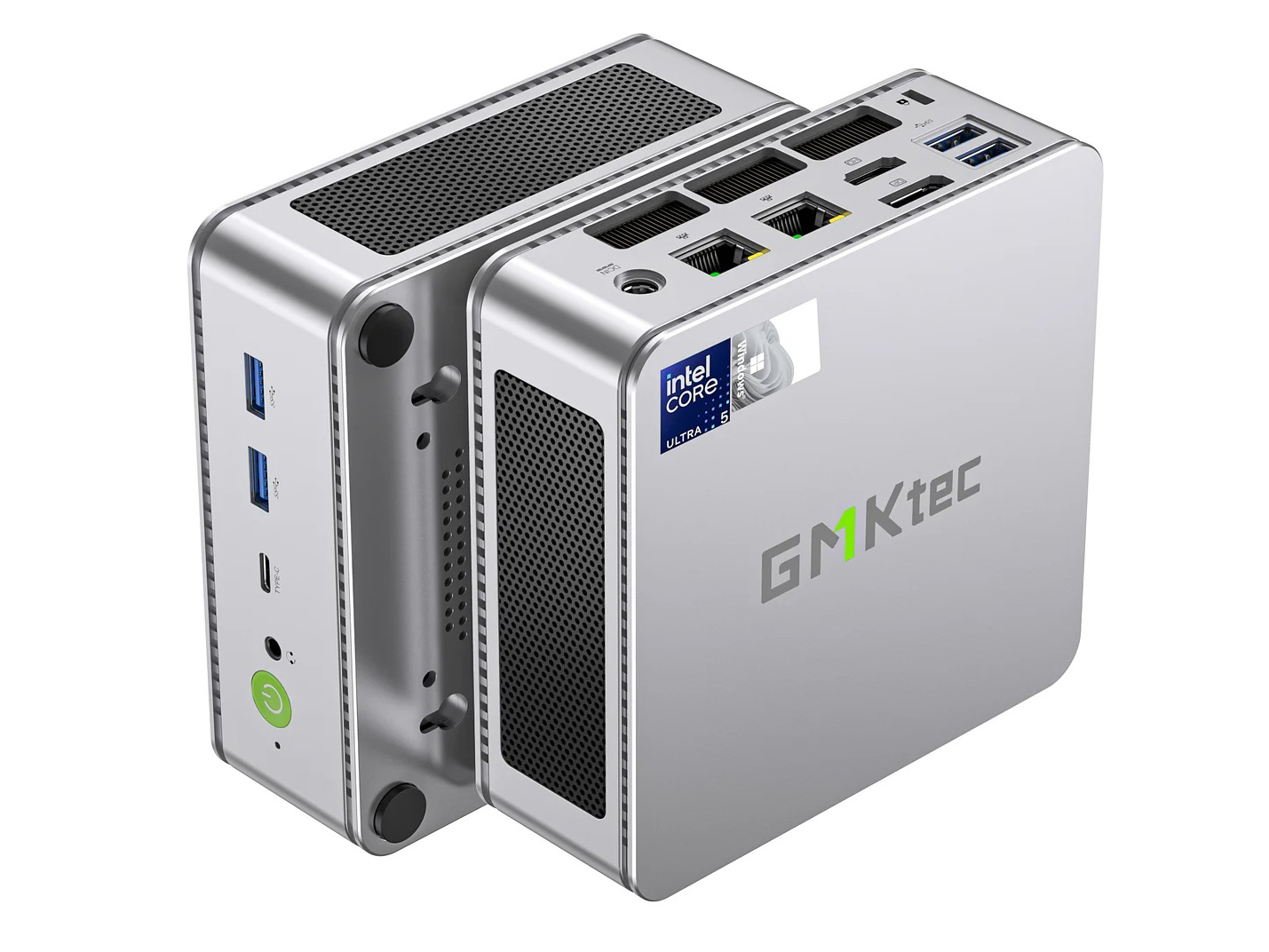

Recenzja mini PC GMK NucBox K9: Core Ultra 5 125H z grafiką Arc 7

Po recenzji GMK NucBox K6 kilka miesięcy temu, jesteśmy teraz gotowi zmierzyć się z NucBox K9 z nowszym procesorem Meteor Lake-H obsługującym sztuczną inteligencję. Jednak poza wymianą procesora z AMD na Intel, obudowa pozostaje identyczna między tymi dwoma modelami, dlatego zalecamy zapoznanie się z naszą recenzją na temat NucBox K6 aby dowiedzieć się więcej o fizycznych cechach systemu.

Nasza jednostka testowa została wyposażona w procesor Core Ultra 5 125H, dysk SSD o pojemności 1 TB i 32 GB pamięci RAM w cenie około 860 USD lub 570 USD w przypadku wyprzedaży. Użytkownicy mogą skonfigurować bez pamięci RAM lub dysku SSD, aby uzyskać konfigurację barebones, ale procesor Core Ultra 5 jest stały we wszystkich opcjach.

Alternatywy obejmują inne wydajne mini PC, takie jak Beelink SER8, Bosgame M1lub Geekom AX8 Pro.

Więcej recenzji GMKtec:

Rating	Version	Date	Model	Weight	Height	Resolution
58.7 %	v8	09/2024	GMK NucBox K9 Ultra 5 125H, Arc 7-Core	528 g	47 mm	x
83.6 %	v7 ^(old)	04/2024	GMK NucBox K6 R7 7840HS, Radeon 780M	514 g	47 mm	x
63.6 %	v8	07/2024	GMK NucBox M6 R5 6600H, Radeon 660M	526 g	48 mm	x
74.9 %	v8	07/2024	Beelink SER8 R7 8845HS, Radeon 780M	776 g	50 mm	x
		12/2022	Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs	465 g	42 mm	x
84.5 %	v7 ^(old)	05/2024	BOSGAME M1 R7 7840HS, Radeon 780M	766 g	51 mm	x

Uwaga: Niedawno zaktualizowaliśmy nasz system oceny i wyniki wersji 8 nie są porównywalne z wynikami wersji 7. Więcej informacji znajdą Państwo tutaj .

Przypadek - zmiana koloru

Plastikowa i metalowa obudowa pozostaje identyczna jak w napędzanym przez AMD NucBox K6, aczkolwiek w matowym szarym/srebrnym kolorze.

Porównanie rozmiarów

Łączność - szybsze porty USB

Podczas gdy opcje portów i ich rozmieszczenie nie zmieniły się w porównaniu do NucBox K6, porty USB zostały ulepszone. Wszystkie porty USB-A są teraz USB4 zamiast 2.0 lub 3.2. Tymczasem port USB-C oficjalnie obsługuje Thunderbolt 4.

Zasilacze sieciowe USB-C innych firm mogą zasilać system zamiast zasilacza sieciowego, jeśli są w stanie zapewnić wystarczającą moc. Wydajność i kompatybilność ze wszystkimi adapterami USB-C nie są jednak gwarantowane.

Komunikacja

Intel AX201 jest standardem zamiast MediaTek RZ616 dla łączności Wi-Fi 6 i Bluetooth 5.2. Wi-Fi 6E i Wi-Fi 7 nie są dołączone, aby zaoszczędzić na kosztach.

Networking
iperf3 transmit AXE11000
GMK NucBox M6 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1531 (1372^min - 1639^max) MBit/s +86%
Beelink SEi12 Core i5-1235U Intel Wi-Fi 6 AX201	1491 (1413^min - 1572^max) MBit/s +81%
BOSGAME M1 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1470 (1310^min - 1625^max) MBit/s +79%
GMK NucBox K9 Intel Wi-Fi 6 AX201	823 (607^min - 901^max) MBit/s
Beelink SER8 Intel Wi-Fi 6 AX200	812 (641^min - 888^max) MBit/s -1%
GMK NucBox K6 MediaTek RZ616	634 (574^min - 685^max) MBit/s -23%
iperf3 receive AXE11000
BOSGAME M1 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1479 (1255^min - 1539^max) MBit/s +94%
GMK NucBox M6 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1449 (1247^min - 1560^max) MBit/s +90%
Beelink SEi12 Core i5-1235U Intel Wi-Fi 6 AX201	1384 (1200^min - 1495^max) MBit/s +81%
GMK NucBox K6 MediaTek RZ616	1222 (1074^min - 1368^max) MBit/s +60%
Beelink SER8 Intel Wi-Fi 6 AX200	784 (679^min - 845^max) MBit/s +3%
GMK NucBox K9 Intel Wi-Fi 6 AX201	764 (635^min - 829^max) MBit/s
iperf3 transmit AXE11000 6GHz
BOSGAME M1 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1324 (1090^min - 1580^max) MBit/s
GMK NucBox K6 MediaTek RZ616	432 (212^min - 471^max) MBit/s
GMK NucBox M6 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	394 (359^min - 432^max) MBit/s
iperf3 receive AXE11000 6GHz
BOSGAME M1 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1321 (1233^min - 1393^max) MBit/s
GMK NucBox K6 MediaTek RZ616	984 (937^min - 1048^max) MBit/s
GMK NucBox M6 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	684 (650^min - 718^max) MBit/s

GMK NucBox K9; iperf3 transmit AXE11000; iperf 3.1.3: Ø824 (607-901)

GMK NucBox K9; iperf3 receive AXE11000; iperf 3.1.3: Ø763 (635-829)

Konserwacja

Rozbudowywane komponenty są identyczne jak w NucBox K6.

Zrównoważony rozwój

Producent reklamuje system "wyprodukowany w sposób zrównoważony", nie wdając się w szczegóły na temat tego, co to oznacza. Samo opakowanie jest w większości kartonowe z odrobiną plastikowego opakowania.

Akcesoria i gwarancja

Pudełko detaliczne zawiera uchwyt montażowy VESA i kabel HDMI, a także zwykłą dokumentację i zasilacz sieciowy. W przypadku zakupu w Stanach Zjednoczonych obowiązuje roczna gwarancja producenta.

Wydajność - Meteor Lake Standard

Warunki testowania

Przed uruchomieniem poniższych testów porównawczych ustawiliśmy system Windows w tryb wydajności.

Procesor

Wydajność procesora jest taka, jakiej oczekujemy w stosunku do innych komputerów w naszej bazie danych z tym samym Core Ultra 5 125H procesorem. Procesor Meteor Lake dorównuje ostatniej generacji procesorów Core i9-13900H co brzmi świetnie na papierze, dopóki nie przypomnimy sobie, że zasilany przez AMD NucBox K6 ze starszym procesorem Ryzen 7 7840HS jest nawet szybszy od obu rozwiązań Intela. Dlatego też brak opcji Core Ultra 7 jest dziwny, biorąc pod uwagę, że NucBox K9 jest nowszym pudełkiem.

Chociaż zintegrowana sztuczna inteligencja jest dołączona, nie jest kompatybilna z Co-Pilot+.

Cinebench R15 Multi Loop

GMK NucBox K9 Intel Core Ultra 5 125H: Ø1902 (1827.4-1965.8)

GMK NucBox K6 AMD Ryzen 7 7840HS: Ø2520 (2510.2-2537.27)

GMK NucBox M6 AMD Ryzen 5 6600H: Ø1720 (1708.16-1737.02)

Beelink SER8 AMD Ryzen 7 8845HS: Ø2607 (2586.82-2626.57)

Beelink SEi12 Core i5-1235U Intel Core i5-1235U: Ø1219 (1203.04-1409.15)

BOSGAME M1 AMD Ryzen 7 7840HS: Ø2554 (2501.09-2597.23)

CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 6.2: Multi-Core | Single-Core
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

CPU Performance Rating
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	91.5 pt
Minisforum G7 PT AMD Ryzen 9 7945HX	91.4 pt
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	90 pt
Beelink SER8 AMD Ryzen 7 8845HS	70.5 pt
GMK NucBox K6 AMD Ryzen 7 7840HS	69.6 pt
Asus ROG NUC 14-90AS0051 Intel Core Ultra 9 185H	69.6 pt
Geekom AE7 AMD Ryzen 9 7940HS	69.6 pt
Geekom AX8 Pro AMD Ryzen 9 8945H	69.1 pt
Acemagic F2A Intel Core Ultra 7 155H	67.6 pt
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	65.9 pt
Geekom XT13 Pro Intel Core i9-13900H	61.8 pt
GMK NucBox K9 ^-1! Intel Core Ultra 5 125H	61.2 pt
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	60.2 pt
Asus NUC 14 Pro Intel Core Ultra 5 125H	58.1 pt
Average Intel Core Ultra 5 125H	55.8 pt
GMK NucBox M6 AMD Ryzen 5 6600H	54.7 pt
Beelink SEi12 Core i5-1235U ^-2! Intel Core i5-1235U	50.7 pt
Newsmay AC8F-POE Intel Processor N100	19.4 pt

Cinebench R23 / Multi Core
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	31070 Points +139%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	30989 Points +139%
Minisforum G7 PT AMD Ryzen 9 7945HX	30799 Points +137%
Asus ROG NUC 14-90AS0051 Intel Core Ultra 9 185H	19249 Points +48%
Acemagic F2A Intel Core Ultra 7 155H	18497 Points +42%
Beelink SER8 AMD Ryzen 7 8845HS	16661 (16363.9^min - 16661^max) Points +28%
Geekom AE7 AMD Ryzen 9 7940HS	16099 Points +24%
GMK NucBox K6 AMD Ryzen 7 7840HS	15947 (9378.75^min - 15947.3^max) Points +23%
Geekom AX8 Pro AMD Ryzen 9 8945H	15516 Points +19%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	15012 Points +16%
Asus NUC 14 Pro Intel Core Ultra 5 125H	14516 Points +12%
GMK NucBox K9 Intel Core Ultra 5 125H	12989 (12625.3^min - 12989.4^max) Points
Average Intel Core Ultra 5 125H (9194 - 14564, n=6)	12308 Points -5%
Geekom XT13 Pro Intel Core i9-13900H	11997 Points -8%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	11790 Points -9%
GMK NucBox M6 AMD Ryzen 5 6600H	10418 (10142.8^min - 10418^max) Points -20%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	8128 (7685.59^min - 8128.32^max) Points -37%
Newsmay AC8F-POE Intel Processor N100	1946 Points -85%

Cinebench R23 / Single Core
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	2212 Points +27%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	2167 Points +25%
Minisforum G7 PT AMD Ryzen 9 7945HX	1957 Points +13%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	1917 Points +10%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	1838 Points +6%
Asus ROG NUC 14-90AS0051 Intel Core Ultra 9 185H	1825 Points +5%
Geekom AX8 Pro AMD Ryzen 9 8945H	1808 Points +4%
Geekom AE7 AMD Ryzen 9 7940HS	1788 Points +3%
Beelink SER8 AMD Ryzen 7 8845HS	1783 Points +3%
Acemagic F2A Intel Core Ultra 7 155H	1771 Points +2%
GMK NucBox K6 AMD Ryzen 7 7840HS	1770 Points +2%
GMK NucBox K9 Intel Core Ultra 5 125H	1735 Points
Asus NUC 14 Pro Intel Core Ultra 5 125H	1721 Points -1%
Geekom XT13 Pro Intel Core i9-13900H	1719 Points -1%
Average Intel Core Ultra 5 125H (1549 - 1735, n=6)	1668 Points -4%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	1610 Points -7%
GMK NucBox M6 AMD Ryzen 5 6600H	1486 Points -14%
Newsmay AC8F-POE Intel Processor N100	843 Points -51%

Cinebench R20 / CPU (Multi Core)
Minisforum G7 PT AMD Ryzen 9 7945HX	12210 Points +147%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	11814 Points +139%
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	11291 Points +128%
Asus ROG NUC 14-90AS0051 Intel Core Ultra 9 185H	7513 Points +52%
Acemagic F2A Intel Core Ultra 7 155H	7188 Points +45%
Beelink SER8 AMD Ryzen 7 8845HS	6431 Points +30%
Geekom AE7 AMD Ryzen 9 7940HS	6321 Points +28%
GMK NucBox K6 AMD Ryzen 7 7840HS	6250 Points +26%
Geekom AX8 Pro AMD Ryzen 9 8945H	6153 Points +24%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	5811 Points +17%
Asus NUC 14 Pro Intel Core Ultra 5 125H	5617 Points +14%
GMK NucBox K9 Intel Core Ultra 5 125H	4948 Points
Geekom XT13 Pro Intel Core i9-13900H	4935 Points 0%
Average Intel Core Ultra 5 125H (3673 - 5618, n=6)	4766 Points -4%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	4319 Points -13%
GMK NucBox M6 AMD Ryzen 5 6600H	4106 Points -17%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	3111 Points -37%
Newsmay AC8F-POE Intel Processor N100	748 Points -85%

Cinebench R20 / CPU (Single Core)
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	846 Points +27%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	840 Points +27%
Minisforum G7 PT AMD Ryzen 9 7945HX	754 Points +14%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	736 Points +11%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	706 Points +6%
Geekom AX8 Pro AMD Ryzen 9 8945H	703 Points +6%
Geekom AE7 AMD Ryzen 9 7940HS	700 Points +5%
Asus ROG NUC 14-90AS0051 Intel Core Ultra 9 185H	699 Points +5%
Beelink SER8 AMD Ryzen 7 8845HS	698 Points +5%
GMK NucBox K6 AMD Ryzen 7 7840HS	688 Points +4%
Acemagic F2A Intel Core Ultra 7 155H	679 Points +2%
GMK NucBox K9 Intel Core Ultra 5 125H	664 Points
Geekom XT13 Pro Intel Core i9-13900H	649 Points -2%
Average Intel Core Ultra 5 125H (622 - 664, n=6)	643 Points -3%
Asus NUC 14 Pro Intel Core Ultra 5 125H	622 Points -6%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	620 Points -7%
GMK NucBox M6 AMD Ryzen 5 6600H	584 Points -12%
Newsmay AC8F-POE Intel Processor N100	326 Points -51%

Cinebench R15 / CPU Multi 64Bit
Minisforum G7 PT AMD Ryzen 9 7945HX	4998 Points +154%
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	4793 Points +144%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	4611 Points +135%
Asus ROG NUC 14-90AS0051 Intel Core Ultra 9 185H	2948 Points +50%
Acemagic F2A Intel Core Ultra 7 155H	2738 Points +39%
Beelink SER8 AMD Ryzen 7 8845HS	2627 (2586.82^min - 2626.57^max) Points +34%
Geekom AE7 AMD Ryzen 9 7940HS	2544 Points +29%
GMK NucBox K6 AMD Ryzen 7 7840HS	2537 (2510.2^min - 2537.27^max) Points +29%
Geekom AX8 Pro AMD Ryzen 9 8945H	2521 Points +28%
Geekom XT13 Pro Intel Core i9-13900H	2448 Points +25%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	2435 Points +24%
Asus NUC 14 Pro Intel Core Ultra 5 125H	2141 Points +9%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	2022 Points +3%
Average Intel Core Ultra 5 125H (1700 - 2245, n=6)	1983 Points +1%
GMK NucBox K9 Intel Core Ultra 5 125H	1966 (1827.4^min - 1965.8^max) Points
GMK NucBox M6 AMD Ryzen 5 6600H	1737 (1708.16^min - 1737.02^max) Points -12%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	1409 (1203.04^min - 1409.15^max) Points -28%
Newsmay AC8F-POE Intel Processor N100	298 Points -85%

Cinebench R15 / CPU Single 64Bit
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	315 Points +25%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	313 Points +25%
Minisforum G7 PT AMD Ryzen 9 7945HX	309 Points +23%
Geekom AX8 Pro AMD Ryzen 9 8945H	284 Points +13%
Beelink SER8 AMD Ryzen 7 8845HS	283 Points +13%
Geekom AE7 AMD Ryzen 9 7940HS	281 Points +12%
GMK NucBox K6 AMD Ryzen 7 7840HS	280 Points +12%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	273 Points +9%
Asus ROG NUC 14-90AS0051 Intel Core Ultra 9 185H	263 Points +5%
Acemagic F2A Intel Core Ultra 7 155H	258 Points +3%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	252 Points 0%
GMK NucBox K9 Intel Core Ultra 5 125H	251 Points
Asus NUC 14 Pro Intel Core Ultra 5 125H	248 Points -1%
Geekom XT13 Pro Intel Core i9-13900H	245 Points -2%
Average Intel Core Ultra 5 125H (235 - 251, n=6)	244 Points -3%
GMK NucBox M6 AMD Ryzen 5 6600H	243 Points -3%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	231 Points -8%
Newsmay AC8F-POE Intel Processor N100	138 Points -45%

Blender / v2.79 BMW27 CPU
Newsmay AC8F-POE Intel Processor N100	1522 Seconds * -514%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	390 Seconds * -57%
GMK NucBox M6 AMD Ryzen 5 6600H	293 Seconds * -18%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	288 Seconds * -16%
Average Intel Core Ultra 5 125H (228 - 364, n=6)	285 Seconds * -15%
Geekom XT13 Pro Intel Core i9-13900H	261 Seconds * -5%
GMK NucBox K9 Intel Core Ultra 5 125H	248 Seconds *
Asus NUC 14 Pro Intel Core Ultra 5 125H	228 Seconds * +8%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	223 Seconds * +10%
Geekom AX8 Pro AMD Ryzen 9 8945H	206 Seconds * +17%
GMK NucBox K6 AMD Ryzen 7 7840HS	199 Seconds * +20%
Geekom AE7 AMD Ryzen 9 7940HS	197 Seconds * +21%
Beelink SER8 AMD Ryzen 7 8845HS	191 Seconds * +23%
Acemagic F2A Intel Core Ultra 7 155H	178 Seconds * +28%
Asus ROG NUC 14-90AS0051 Intel Core Ultra 9 185H	165 Seconds * +33%
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	131 Seconds * +47%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	109 Seconds * +56%
Minisforum G7 PT AMD Ryzen 9 7945HX	99 Seconds * +60%

7-Zip 18.03 / 7z b 4
Minisforum G7 PT AMD Ryzen 9 7945HX	131378 MIPS
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	117224 MIPS
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	101652 MIPS
Asus ROG NUC 14-90AS0051 Intel Core Ultra 9 185H	72894 MIPS
Geekom AE7 AMD Ryzen 9 7940HS	71631 MIPS
Beelink SER8 AMD Ryzen 7 8845HS	70937 MIPS
GMK NucBox K6 AMD Ryzen 7 7840HS	70782 MIPS
Geekom AX8 Pro AMD Ryzen 9 8945H	66557 MIPS
Acemagic F2A Intel Core Ultra 7 155H	66438 MIPS
Geekom XT13 Pro Intel Core i9-13900H	56068 MIPS
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	54851 MIPS
GMK NucBox M6 AMD Ryzen 5 6600H	49353 MIPS
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	45820 MIPS
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	35580 MIPS
Newsmay AC8F-POE Intel Processor N100	8725 MIPS
Asus NUC 14 Pro Intel Core Ultra 5 125H	0 MIPS
Average Intel Core Ultra 5 125H (0 - 0, n=2)	0 MIPS

7-Zip 18.03 / 7z b 4 -mmt1
Minisforum G7 PT AMD Ryzen 9 7945HX	7609 MIPS +52%
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	7276 MIPS +45%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	7040 MIPS +41%
Beelink SER8 AMD Ryzen 7 8845HS	6714 MIPS +34%
Geekom AX8 Pro AMD Ryzen 9 8945H	6691 MIPS +34%
GMK NucBox K6 AMD Ryzen 7 7840HS	6676 MIPS +33%
Geekom AE7 AMD Ryzen 9 7940HS	6661 MIPS +33%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	6198 MIPS +24%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	5980 MIPS +20%
Geekom XT13 Pro Intel Core i9-13900H	5828 MIPS +16%
GMK NucBox M6 AMD Ryzen 5 6600H	5720 MIPS +14%
Acemagic F2A Intel Core Ultra 7 155H	5485 MIPS +10%
Asus ROG NUC 14-90AS0051 Intel Core Ultra 9 185H	5333 MIPS +7%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	5192 MIPS +4%
Asus NUC 14 Pro Intel Core Ultra 5 125H	5136 MIPS +3%
GMK NucBox K9 Intel Core Ultra 5 125H	5004 MIPS
Average Intel Core Ultra 5 125H (4663 - 5136, n=6)	4948 MIPS -1%
Newsmay AC8F-POE Intel Processor N100	3583 MIPS -28%

Geekbench 6.2 / Multi-Core
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	18504 Points +67%
Minisforum G7 PT AMD Ryzen 9 7945HX	16765 Points +51%
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	15962 Points +44%
Geekom AE7 AMD Ryzen 9 7940HS	13369 Points +21%
Beelink SER8 AMD Ryzen 7 8845HS	13362 Points +21%
Asus ROG NUC 14-90AS0051 Intel Core Ultra 9 185H	13232 Points +19%
GMK NucBox K6 AMD Ryzen 7 7840HS	13184 Points +19%
Geekom AX8 Pro AMD Ryzen 9 8945H	13162 Points +19%
Acemagic F2A Intel Core Ultra 7 155H	12385 Points +12%
Asus NUC 14 Pro Intel Core Ultra 5 125H	11749 Points +6%
Geekom XT13 Pro Intel Core i9-13900H	11541 Points +4%
Average Intel Core Ultra 5 125H (11087 - 11749, n=6)	11404 Points +3%
GMK NucBox K9 Intel Core Ultra 5 125H	11087 Points
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	10644 Points -4%
GMK NucBox M6 AMD Ryzen 5 6600H	9240 Points -17%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	9225 Points -17%
Newsmay AC8F-POE Intel Processor N100	2780 Points -75%

Geekbench 6.2 / Single-Core
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	3022 Points +32%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	2942 Points +28%
Minisforum G7 PT AMD Ryzen 9 7945HX	2880 Points +25%
Beelink SER8 AMD Ryzen 7 8845HS	2694 Points +17%
Geekom AE7 AMD Ryzen 9 7940HS	2693 Points +17%
GMK NucBox K6 AMD Ryzen 7 7840HS	2687 Points +17%
Geekom AX8 Pro AMD Ryzen 9 8945H	2651 Points +15%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	2583 Points +12%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	2546 Points +11%
Asus ROG NUC 14-90AS0051 Intel Core Ultra 9 185H	2485 Points +8%
Geekom XT13 Pro Intel Core i9-13900H	2415 Points +5%
Acemagic F2A Intel Core Ultra 7 155H	2410 Points +5%
Asus NUC 14 Pro Intel Core Ultra 5 125H	2316 Points +1%
GMK NucBox K9 Intel Core Ultra 5 125H	2297 Points
Average Intel Core Ultra 5 125H (2199 - 2316, n=6)	2277 Points -1%
GMK NucBox M6 AMD Ryzen 5 6600H	2042 Points -11%
Newsmay AC8F-POE Intel Processor N100	1209 Points -47%

Geekbench 5.5 / Multi-Core
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	19971 Points +99%
Minisforum G7 PT AMD Ryzen 9 7945HX	19836 Points +98%
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	17395 Points +74%
Asus ROG NUC 14-90AS0051 Intel Core Ultra 9 185H	13339 Points +33%
Acemagic F2A Intel Core Ultra 7 155H	12662 Points +26%
Geekom AE7 AMD Ryzen 9 7940HS	12228 Points +22%
Beelink SER8 AMD Ryzen 7 8845HS	12196 Points +22%
Geekom AX8 Pro AMD Ryzen 9 8945H	11980 Points +20%
GMK NucBox K6 AMD Ryzen 7 7840HS	11769 Points +17%
Geekom XT13 Pro Intel Core i9-13900H	11536 Points +15%
Asus NUC 14 Pro Intel Core Ultra 5 125H	10856 Points +8%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	10543 Points +5%
Average Intel Core Ultra 5 125H (9696 - 10856, n=6)	10408 Points +4%
GMK NucBox K9 Intel Core Ultra 5 125H	10025 Points
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	9122 Points -9%
GMK NucBox M6 AMD Ryzen 5 6600H	8195 Points -18%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	7804 Points -22%
Newsmay AC8F-POE Intel Processor N100	2332 Points -77%

Geekbench 5.5 / Single-Core
Minisforum G7 PT AMD Ryzen 9 7945HX	2147 Points +29%
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	2140 Points +28%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	2092 Points +25%
Beelink SER8 AMD Ryzen 7 8845HS	2004 Points +20%
Geekom AX8 Pro AMD Ryzen 9 8945H	1994 Points +20%
GMK NucBox K6 AMD Ryzen 7 7840HS	1986 Points +19%
Geekom AE7 AMD Ryzen 9 7940HS	1986 Points +19%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	1898 Points +14%
Asus ROG NUC 14-90AS0051 Intel Core Ultra 9 185H	1858 Points +11%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	1838 Points +10%
Acemagic F2A Intel Core Ultra 7 155H	1746 Points +5%
Geekom XT13 Pro Intel Core i9-13900H	1708 Points +2%
Asus NUC 14 Pro Intel Core Ultra 5 125H	1685 Points +1%
GMK NucBox K9 Intel Core Ultra 5 125H	1668 Points
Average Intel Core Ultra 5 125H (1593 - 1699, n=6)	1660 Points 0%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	1633 Points -2%
GMK NucBox M6 AMD Ryzen 5 6600H	1513 Points -9%
Newsmay AC8F-POE Intel Processor N100	975 Points -42%

HWBOT x265 Benchmark v2.2 / 4k Preset
Minisforum G7 PT AMD Ryzen 9 7945HX	34.6 fps +151%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	32.3 fps +134%
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	31.6 fps +129%
Asus ROG NUC 14-90AS0051 Intel Core Ultra 9 185H	21.8 fps +58%
Beelink SER8 AMD Ryzen 7 8845HS	21.1 fps +53%
Geekom AE7 AMD Ryzen 9 7940HS	20.9 fps +51%
Geekom AX8 Pro AMD Ryzen 9 8945H	20.6 fps +49%
GMK NucBox K6 AMD Ryzen 7 7840HS	20.5 fps +49%
Acemagic F2A Intel Core Ultra 7 155H	19.6 fps +42%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	16.4 fps +19%
Asus NUC 14 Pro Intel Core Ultra 5 125H	15.7 fps +14%
Geekom XT13 Pro Intel Core i9-13900H	14.7 fps +7%
GMK NucBox M6 AMD Ryzen 5 6600H	13.9 fps +1%
GMK NucBox K9 Intel Core Ultra 5 125H	13.8 fps
Average Intel Core Ultra 5 125H (9.7 - 16.7, n=6)	13.4 fps -3%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	12.7 fps -8%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	9.43 fps -32%
Newsmay AC8F-POE Intel Processor N100	2.12 fps -85%

LibreOffice / 20 Documents To PDF
Newsmay AC8F-POE Intel Processor N100	100.2 s * -128%
Asus ROG NUC 14-90AS0051 Intel Core Ultra 9 185H	56.2 s * -28%
Asus NUC 14 Pro Intel Core Ultra 5 125H	55.7 s * -27%
Geekom AE7 AMD Ryzen 9 7940HS	53.7 s * -22%
Average Intel Core Ultra 5 125H (42.7 - 70.9, n=6)	53.4 s * -21%
GMK NucBox M6 AMD Ryzen 5 6600H	52.4 s * -19%
Geekom AX8 Pro AMD Ryzen 9 8945H	49.8 s * -13%
Minisforum G7 PT AMD Ryzen 9 7945HX	49.7 s * -13%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	48.7 s * -11%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	48.4 s * -10%
Geekom XT13 Pro Intel Core i9-13900H	46.8 s * -6%
Beelink SER8 AMD Ryzen 7 8845HS	46.1 s * -5%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	46 s * -5%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	44.7 s * -2%
Acemagic F2A Intel Core Ultra 7 155H	44.5 s * -1%
GMK NucBox K6 AMD Ryzen 7 7840HS	44.1 s * -0%
GMK NucBox K9 Intel Core Ultra 5 125H	44 s *
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	38.2 s * +13%

R Benchmark 2.5 / Overall mean
Newsmay AC8F-POE Intel Processor N100	0.975 sec * -99%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	0.512 sec * -5%
Average Intel Core Ultra 5 125H (0.4898 - 0.53, n=6)	0.506 sec * -3%
GMK NucBox M6 AMD Ryzen 5 6600H	0.4995 sec * -2%
Asus NUC 14 Pro Intel Core Ultra 5 125H	0.4982 sec * -2%
GMK NucBox K9 Intel Core Ultra 5 125H	0.4898 sec *
Geekom XT13 Pro Intel Core i9-13900H	0.4693 sec * +4%
Acemagic F2A Intel Core Ultra 7 155H	0.4652 sec * +5%
Geekom AX8 Pro AMD Ryzen 9 8945H	0.4576 sec * +7%
Asus ROG NUC 14-90AS0051 Intel Core Ultra 9 185H	0.4489 sec * +8%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	0.4457 sec * +9%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	0.4356 sec * +11%
Geekom AE7 AMD Ryzen 9 7940HS	0.4346 sec * +11%
GMK NucBox K6 AMD Ryzen 7 7840HS	0.4343 sec * +11%
Beelink SER8 AMD Ryzen 7 8845HS	0.4336 sec * +11%
Minisforum G7 PT AMD Ryzen 9 7945HX	0.406 sec * +17%
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	0.3803 sec * +22%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	0.3788 sec * +23%

CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 6.2: Multi-Core | Single-Core
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

* ... im mniej tym lepiej

Performance Rating
Beelink SER8 AMD Ryzen 7 8845HS, Radeon 780M	98.4 pt
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	97.4 pt
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	95.2 pt
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	60.5 pt
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	59.7 pt
Average Intel Core Ultra 5 125H	56.3 pt
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	38.9 pt

AIDA64 / FP32 Ray-Trace
Beelink SER8 AMD Ryzen 7 8845HS, Radeon 780M	26305 KRay/s +145%
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	26022 KRay/s +142%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	25360 KRay/s +136%
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	12274 KRay/s +14%
Average Intel Core Ultra 5 125H (8430 - 13639, n=6)	10907 KRay/s +1%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	10755 KRay/s
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	6784 KRay/s -37%

AIDA64 / FPU Julia
Beelink SER8 AMD Ryzen 7 8845HS, Radeon 780M	111508 Points +91%
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	110752 Points +90%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	107805 Points +85%
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	76931 Points +32%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	58422 Points
Average Intel Core Ultra 5 125H (43652 - 70880, n=6)	57140 Points -2%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	34444 Points -41%

AIDA64 / CPU SHA3
Beelink SER8 AMD Ryzen 7 8845HS, Radeon 780M	4933 MB/s +69%
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	4854 MB/s +66%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	4763 MB/s +63%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	2922 MB/s
Average Intel Core Ultra 5 125H (2047 - 3404, n=6)	2752 MB/s -6%
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	2650 MB/s -9%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	1884 MB/s -36%

AIDA64 / CPU Queen
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	117809 Points +50%
Beelink SER8 AMD Ryzen 7 8845HS, Radeon 780M	115546 Points +47%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	111803 Points +42%
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	82119 Points +4%
Average Intel Core Ultra 5 125H (77892 - 79986, n=6)	78805 Points 0%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	78797 Points
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	59756 Points -24%

AIDA64 / FPU SinJulia
Beelink SER8 AMD Ryzen 7 8845HS, Radeon 780M	15420 Points +98%
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	14915 Points +92%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	14721 Points +89%
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	9739 Points +25%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	7780 Points
Average Intel Core Ultra 5 125H (6588 - 7851, n=6)	7398 Points -5%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	4644 Points -40%

AIDA64 / FPU Mandel
Beelink SER8 AMD Ryzen 7 8845HS, Radeon 780M	59522 Points +113%
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	59072 Points +111%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	57534 Points +106%
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	42406 Points +52%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	27972 Points
Average Intel Core Ultra 5 125H (21210 - 35321, n=6)	27928 Points 0%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	16394 Points -41%

AIDA64 / CPU AES
Beelink SER8 AMD Ryzen 7 8845HS, Radeon 780M	172642 MB/s +59%
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	166944 MB/s +54%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	164041 MB/s +51%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	108402 MB/s
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	104138 MB/s -4%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	67140 MB/s -38%
Average Intel Core Ultra 5 125H (45524 - 108402, n=6)	64990 MB/s -40%

AIDA64 / CPU ZLib
Beelink SER8 AMD Ryzen 7 8845HS, Radeon 780M	1073 MB/s +27%
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	1051 MB/s +25%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	1031 MB/s +22%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	844 MB/s
Average Intel Core Ultra 5 125H (594 - 994, n=6)	806 MB/s -5%
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	660 MB/s -22%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	633 MB/s -25%

AIDA64 / FP64 Ray-Trace
Beelink SER8 AMD Ryzen 7 8845HS, Radeon 780M	14041 KRay/s +148%
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	13897 KRay/s +146%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	13642 KRay/s +141%
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	6588 KRay/s +16%
Average Intel Core Ultra 5 125H (4345 - 7221, n=6)	5677 KRay/s 0%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	5657 KRay/s
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	3532 KRay/s -38%

AIDA64 / CPU PhotoWorxx
Average Intel Core Ultra 5 125H (45724 - 49844, n=6)	47064 MPixel/s +2%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	46296 MPixel/s
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	41516 MPixel/s -10%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	40760 MPixel/s -12%
Beelink SER8 AMD Ryzen 7 8845HS, Radeon 780M	40489 MPixel/s -13%
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	29621 MPixel/s -36%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	29523 MPixel/s -36%

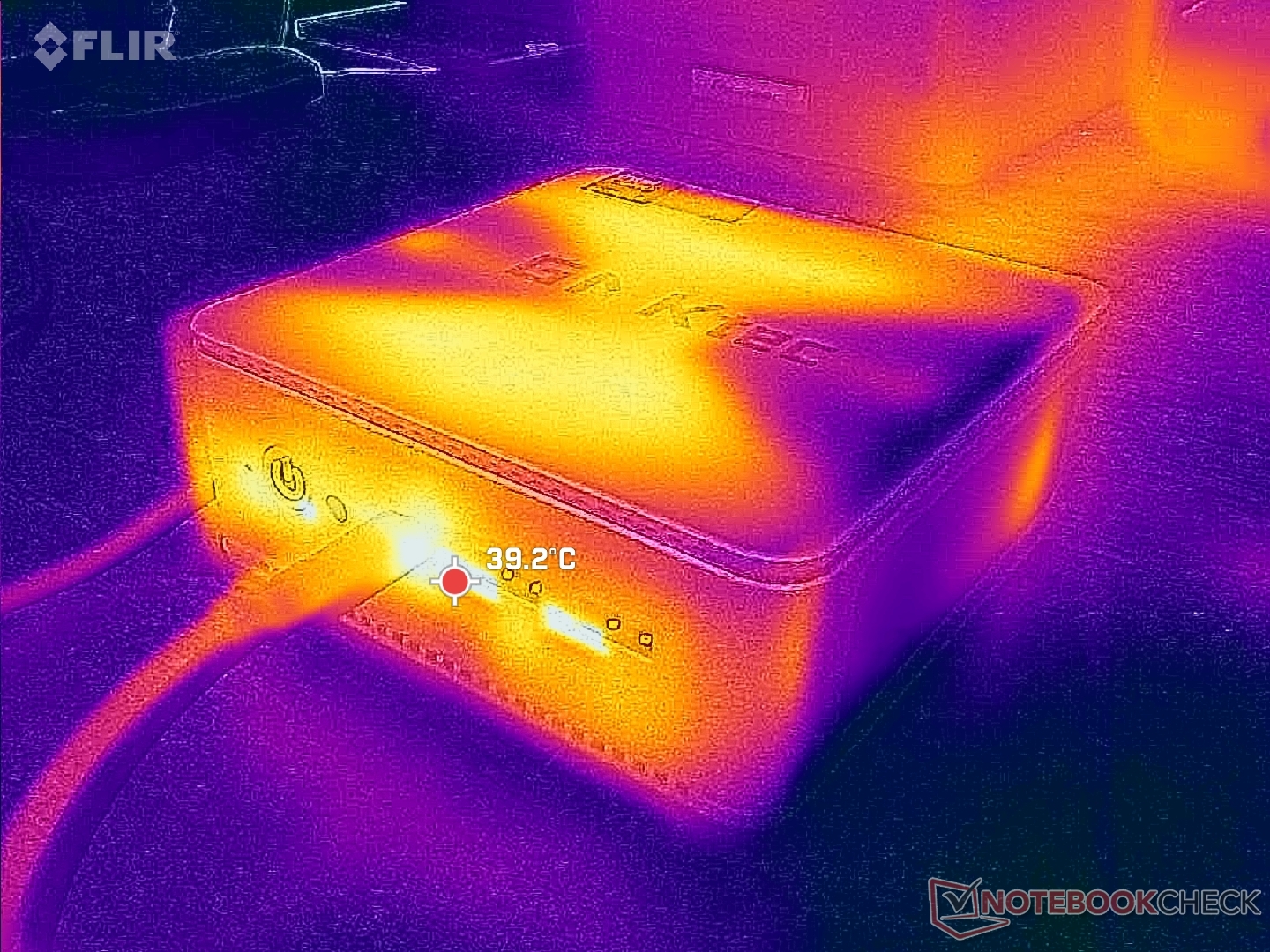

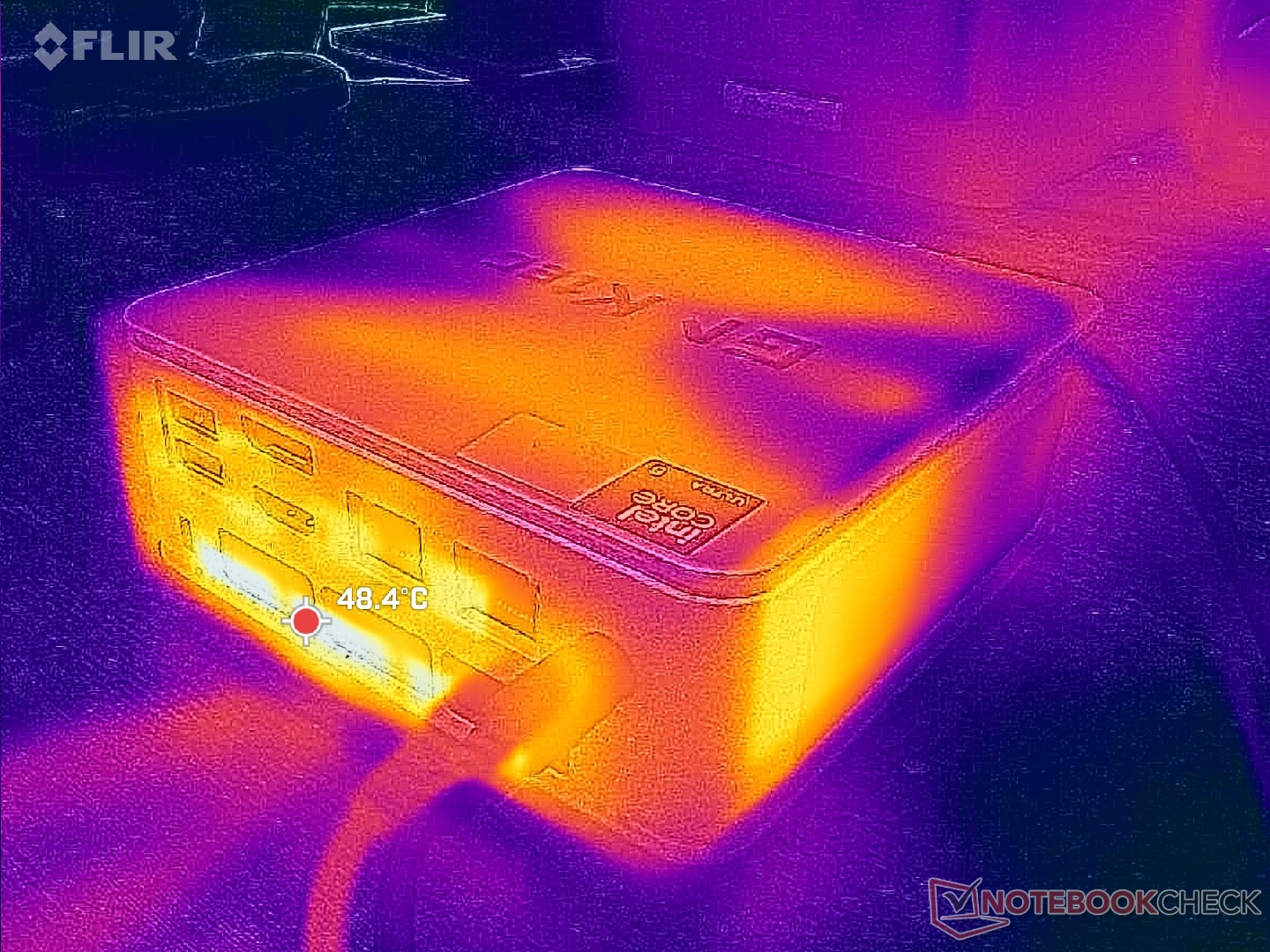

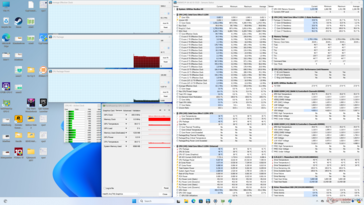

Test warunków skrajnych

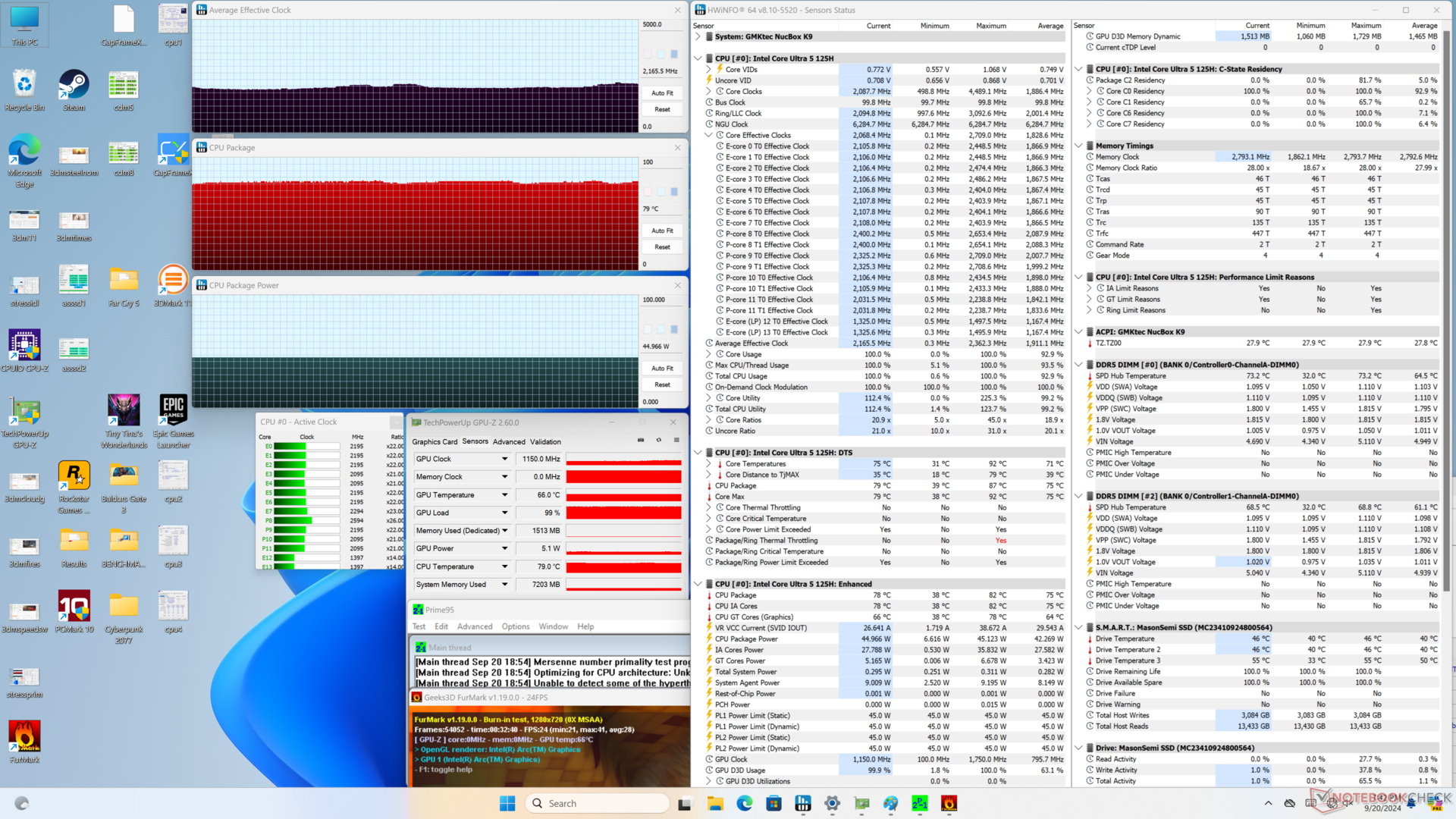

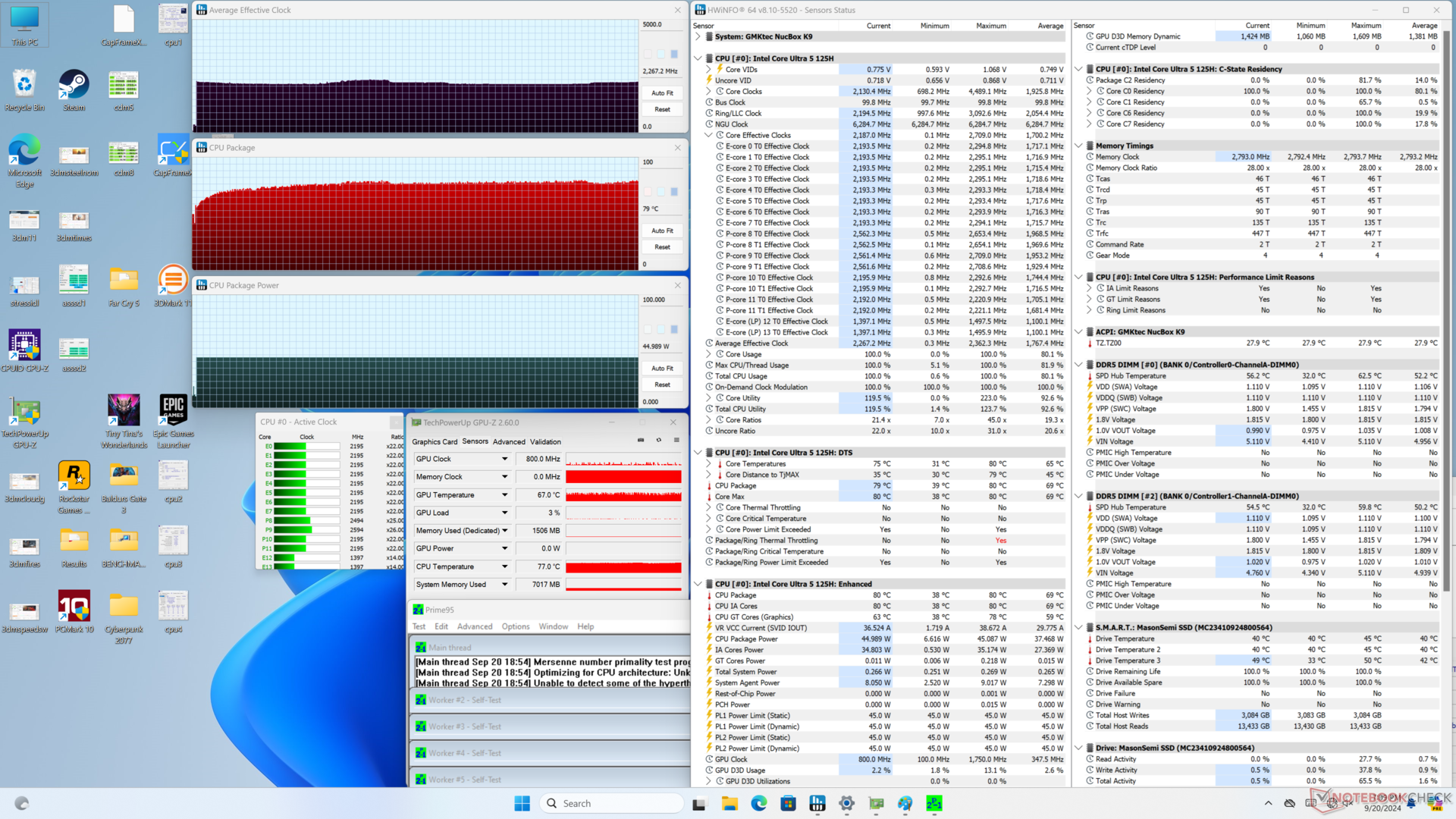

Podczas inicjowania testu obciążeniowego Prime95, procesor zwiększał taktowanie do 2,3 GHz i 45 W, a następnie utrzymywał te wartości przez cały czas trwania testu obciążeniowego. Temperatura rdzenia ustabilizowała się na poziomie 80 C, co jest nieco niższą wartością niż ta, którą odnotowaliśmy na szybszym NucBox K6 z procesorem AMD.

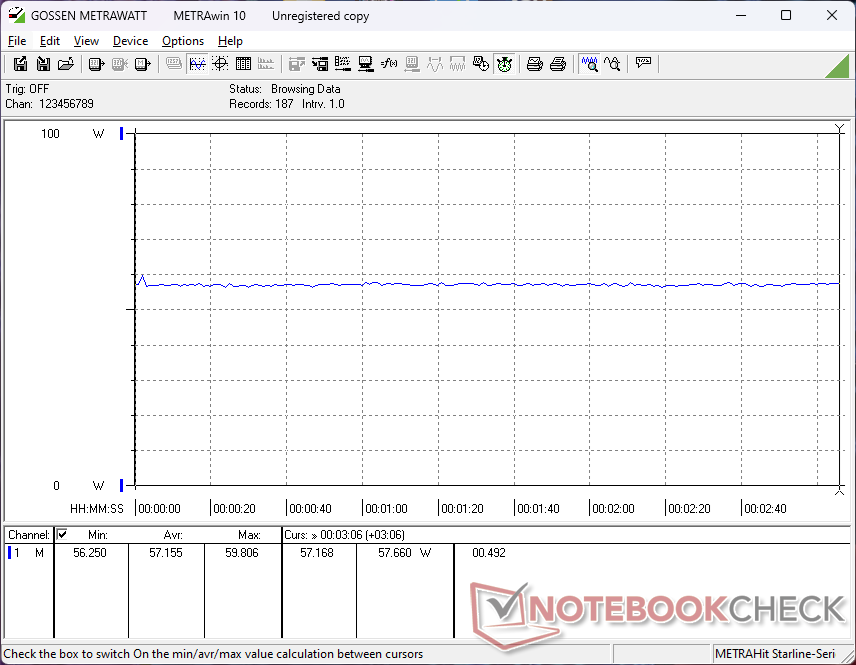

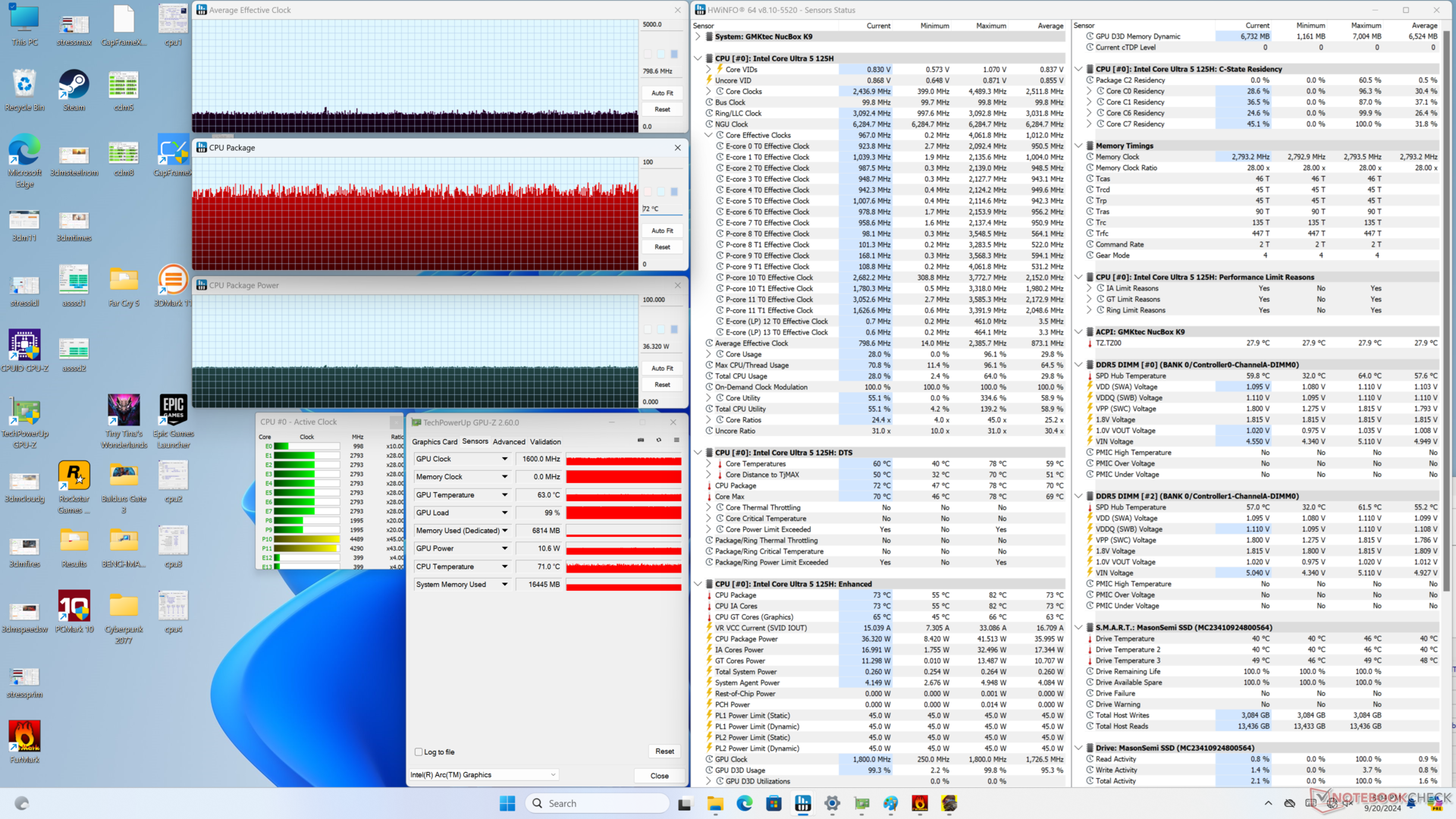

Podczas uruchamiania Cyberpunk 2077 w celu reprezentowania stresu w grach, temperatura rdzenia ustabilizowała się na poziomie 72 C, podobnie jak w przypadku NucBox K6, mimo że NucBox K9 uruchamia gry wolniej, jak pokaże nasza sekcja Wydajność w grach poniżej.

Wydajność systemu

Wyniki PCMark 10 są generalnie niższe niż na NucBox K6, zwłaszcza w podteście produktywności, gdzie preferowana jest wydajność wielordzeniowa

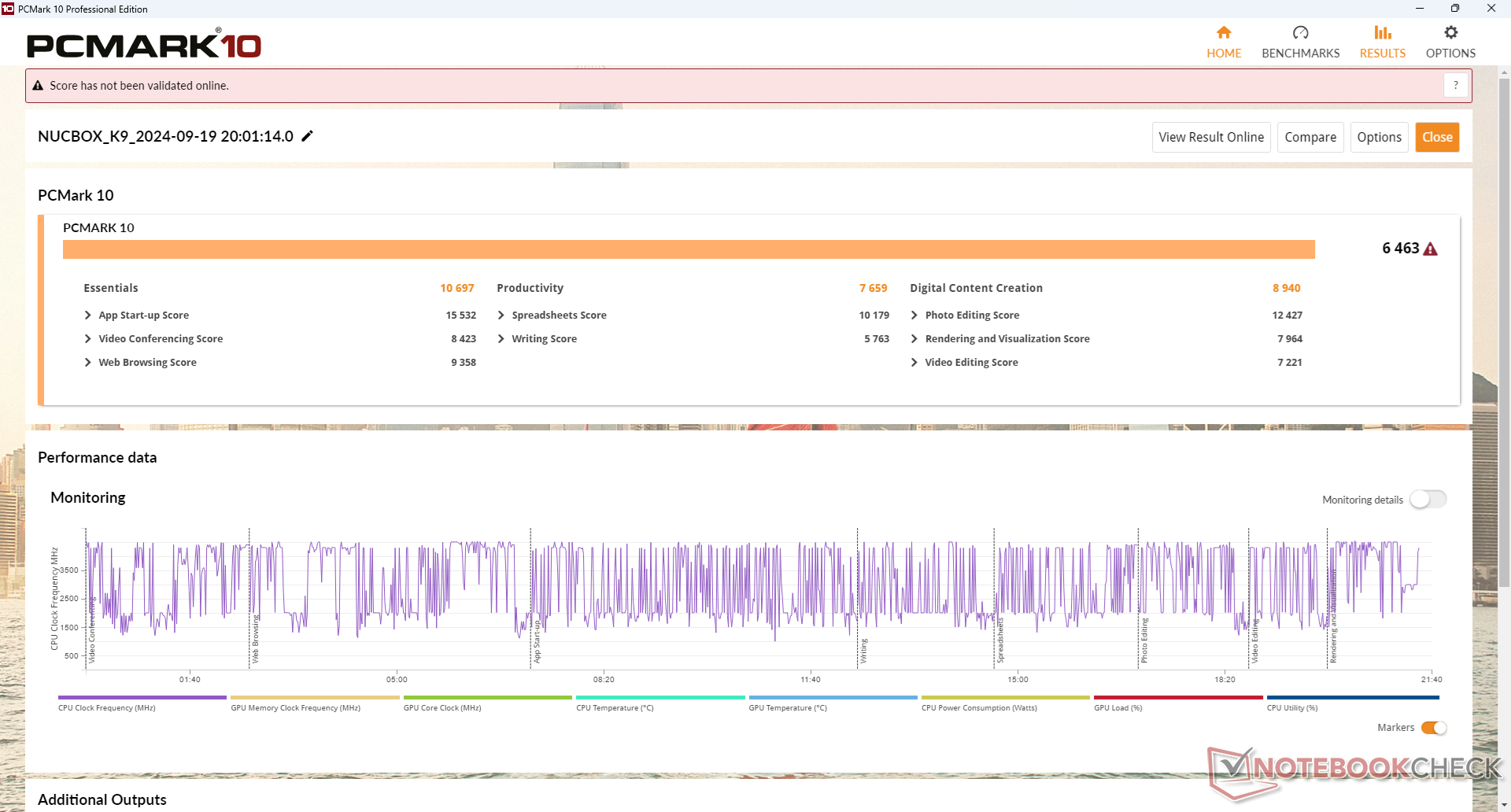

PCMark 10 / Score
Beelink SER8 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	7641 Points +18%
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	7529 Points +16%
BOSGAME M1 Radeon 780M, R7 7840HS	7198 Points +11%
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	6463 Points
Average Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU (6194 - 6463, n=6)	6320 Points -2%
GMK NucBox M6 Radeon 660M, R5 6600H, AirDisk APF 10-512G	6220 Points -4%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	5543 Points -14%

PCMark 10 / Essentials
Beelink SER8 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	11570 Points +8%
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	11214 Points +5%
BOSGAME M1 Radeon 780M, R7 7840HS	11211 Points +5%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	10845 Points +1%
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	10697 Points
GMK NucBox M6 Radeon 660M, R5 6600H, AirDisk APF 10-512G	10360 Points -3%
Average Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU (9427 - 10697, n=6)	10178 Points -5%

PCMark 10 / Productivity
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	10591 Points +38%
Beelink SER8 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	10457 Points +37%
BOSGAME M1 Radeon 780M, R7 7840HS	9075 Points +18%
GMK NucBox M6 Radeon 660M, R5 6600H, AirDisk APF 10-512G	9059 Points +18%
Average Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU (7042 - 8000, n=6)	7691 Points 0%
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	7659 Points
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	7354 Points -4%

PCMark 10 / Digital Content Creation
Beelink SER8 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	10009 Points +12%
BOSGAME M1 Radeon 780M, R7 7840HS	9948 Points +11%
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	9752 Points +9%
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	8940 Points
Average Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU (8198 - 9506, n=6)	8775 Points -2%
GMK NucBox M6 Radeon 660M, R5 6600H, AirDisk APF 10-512G	6959 Points -22%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	5798 Points -35%

CrossMark / Overall
BOSGAME M1 Radeon 780M, R7 7840HS	1891 Points +16%
Beelink SER8 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	1875 Points +15%
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	1873 Points +15%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	1644 Points +1%
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	1633 Points
Average Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU (1522 - 1633, n=5)	1574 Points -4%
GMK NucBox M6 Radeon 660M, R5 6600H, AirDisk APF 10-512G	1521 Points -7%

CrossMark / Productivity
BOSGAME M1 Radeon 780M, R7 7840HS	1823 Points +14%
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	1816 Points +14%
Beelink SER8 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	1802 Points +13%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	1676 Points +5%
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	1594 Points
GMK NucBox M6 Radeon 660M, R5 6600H, AirDisk APF 10-512G	1517 Points -5%
Average Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU (1432 - 1594, n=5)	1510 Points -5%

CrossMark / Creativity
BOSGAME M1 Radeon 780M, R7 7840HS	2013 Points +17%
Beelink SER8 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	2009 Points +17%
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	1994 Points +16%
Average Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU (1683 - 1765, n=5)	1729 Points +1%
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	1714 Points
GMK NucBox M6 Radeon 660M, R5 6600H, AirDisk APF 10-512G	1567 Points -9%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	1546 Points -10%

CrossMark / Responsiveness
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	1867 Points +23%
BOSGAME M1 Radeon 780M, R7 7840HS	1749 Points +15%
Beelink SER8 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	1718 Points +13%
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	1706 Points +12%
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	1520 Points
GMK NucBox M6 Radeon 660M, R5 6600H, AirDisk APF 10-512G	1407 Points -7%
Average Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU (1171 - 1520, n=5)	1350 Points -11%

WebXPRT 3 / Overall
Beelink SER8 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	334 Points +27%
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	328 Points +25%
BOSGAME M1 Radeon 780M, R7 7840HS	319 Points +22%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	288 Points +10%
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	262 Points
Average Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU (245 - 263, n=6)	255 Points -3%
GMK NucBox M6 Radeon 660M, R5 6600H, AirDisk APF 10-512G	244 Points -7%

WebXPRT 4 / Overall
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	266 Points +15%
Beelink SER8 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	266 Points +15%
BOSGAME M1 Radeon 780M, R7 7840HS	258 Points +12%
Average Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU (227 - 240, n=5)	233 Points +1%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	231 Points 0%
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	231 Points
GMK NucBox M6 Radeon 660M, R5 6600H, AirDisk APF 10-512G	193.4 Points -16%

Mozilla Kraken 1.1 / Total
GMK NucBox M6 Radeon 660M, R5 6600H, AirDisk APF 10-512G	604 ms * -7%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	586 ms * -4%
Average Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU (560 - 595, n=6)	575 ms * -2%
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	566 ms *
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	534 ms * +6%
BOSGAME M1 Radeon 780M, R7 7840HS	526 ms * +7%
Beelink SER8 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	501 ms * +11%

* ... im mniej tym lepiej

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Average Intel Core Ultra 5 125H (67482 - 87473, n=6)	77947 MB/s +16%
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	69508 MB/s +3%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	69281 MB/s +3%
Beelink SER8 AMD Ryzen 7 8845HS, Radeon 780M	68283 MB/s +1%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	67482 MB/s
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	50886 MB/s -25%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	43215 MB/s -36%

AIDA64 / Memory Read
Average Intel Core Ultra 5 125H (70520 - 76803, n=6)	74300 MB/s +5%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	70520 MB/s
Beelink SER8 AMD Ryzen 7 8845HS, Radeon 780M	61976 MB/s -12%
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	61765 MB/s -12%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	61708 MB/s -12%
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	51684 MB/s -27%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	46616 MB/s -34%

AIDA64 / Memory Write
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	86719 MB/s +22%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	86528 MB/s +21%
Beelink SER8 AMD Ryzen 7 8845HS, Radeon 780M	85464 MB/s +20%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	71218 MB/s
Average Intel Core Ultra 5 125H (63162 - 72443, n=6)	70040 MB/s -2%
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	55160 MB/s -23%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	46475 MB/s -35%

AIDA64 / Memory Latency
Average Intel Core Ultra 5 125H (127.3 - 184.8, n=6)	145.5 ns * -4%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	140.2 ns *
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	91.6 ns * +35%
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	89.8 ns * +36%
Beelink SER8 AMD Ryzen 7 8845HS, Radeon 780M	88.9 ns * +37%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	88.1 ns * +37%
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	85.8 ns * +39%

* ... im mniej tym lepiej

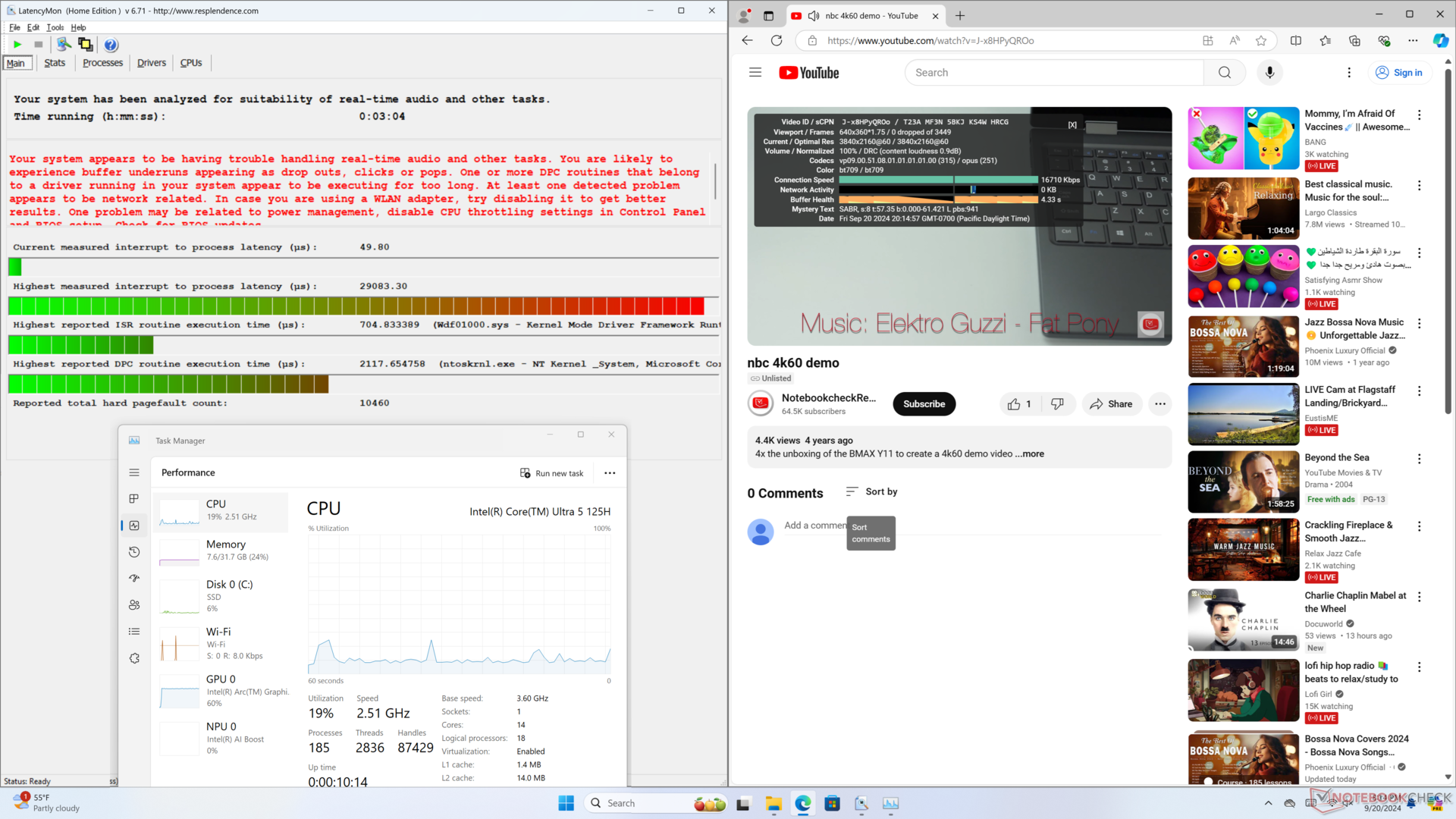

Opóźnienie DPC

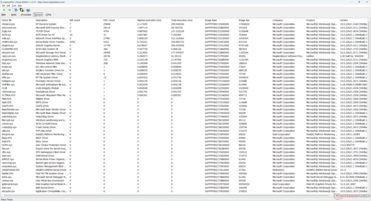

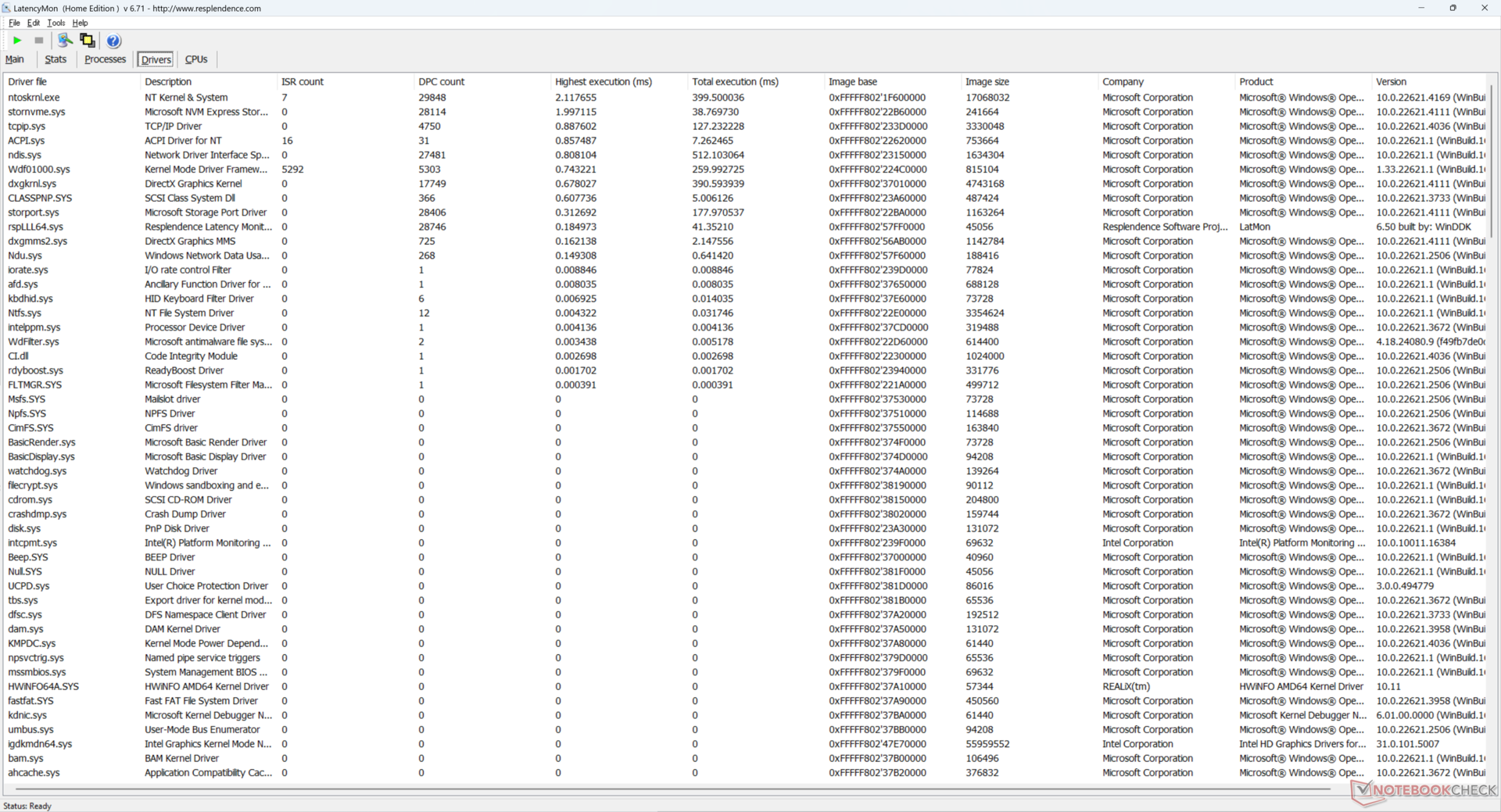

LatencyMon ujawnia problemy DPC związane z ntoskrnl.exe podczas otwierania wielu kart naszej strony głównej. odtwarzanie wideo 4K przy 60 FPS jest poza tym idealne i nie odnotowano żadnych spadków klatek.

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	29083.3 μs *
GMK NucBox M6 Radeon 660M, R5 6600H, AirDisk APF 10-512G	15043.9 μs * +48%
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	10561.5 μs * +64%
BOSGAME M1 Radeon 780M, R7 7840HS	1179.5 μs * +96%
Beelink SER8 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	1071.2 μs * +96%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	830.3 μs * +97%

* ... im mniej tym lepiej

Urządzenia pamięci masowej

GMK wykorzystuje ten sam 1 TB MasonSemi MC7000 PCIe4 x4 NVMe SSD zarówno w modelach NucBox K6, jak i K9. Wydajność jest szybka i porównywalna z serią Samsung PM9A1 powszechnie spotykaną w wysokiej klasy komputerach PC, pomimo mniej znanej marki. Nie zaobserwowaliśmy żadnego zauważalnego dławienia wydajności podczas uruchamiania DiskSpd w pętli.

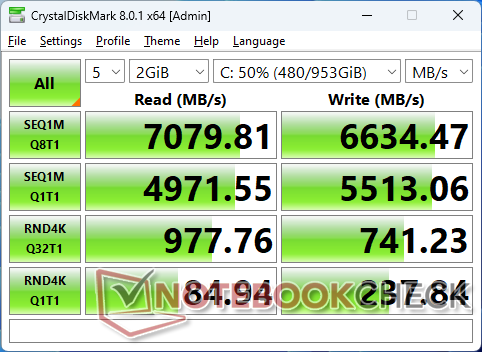

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

MasonSemi 1TB MC7000

CDM 5/6 Read Seq Q32T1: 7068 MB/s

CDM 5/6 Write Seq Q32T1: 6625 MB/s

CDM 5/6 Read 4K Q32T1: 972.6 MB/s

CDM 5/6 Write 4K Q32T1: 755.4 MB/s

CDM 5 Read Seq: 4954 MB/s

CDM 5 Write Seq: 5591 MB/s

CDM 5/6 Read 4K: 86.48 MB/s

CDM 5/6 Write 4K: 230.1 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
GMK NucBox K6 MasonSemi 1TB MC7000	86.2 pt
GMK NucBox K9 MasonSemi 1TB MC7000	83.6 pt
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	64.2 pt
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	62.4 pt
BOSGAME M1	56.8 pt
GMK NucBox M6 AirDisk APF 10-512G	38.8 pt

DiskSpd
seq read
GMK NucBox K9 MasonSemi 1TB MC7000	3783 (3597.81^min - 3782.84^max) MB/s
GMK NucBox K6 MasonSemi 1TB MC7000	3703 (3243.89^min - 3702.94^max) MB/s -2%
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	3106 (3062.47^min - 3106.43^max) MB/s -18%
BOSGAME M1	2533 (2518.88^min - 2532.52^max) MB/s -33%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	2512 (2493.51^min - 2511.76^max) MB/s -34%
GMK NucBox M6 AirDisk APF 10-512G	2113 (2099.24^min - 2112.85^max) MB/s -44%
seq write
GMK NucBox K6 MasonSemi 1TB MC7000	5595 (1443.73^min - 5595.13^max) MB/s +1%
GMK NucBox K9 MasonSemi 1TB MC7000	5556 (1352.45^min - 5556.19^max) MB/s
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	4604 (4532.99^min - 4603.88^max) MB/s -17%
BOSGAME M1	3176 (2921.36^min - 3176.08^max) MB/s -43%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	2848 (2821.72^min - 2847.93^max) MB/s -49%
GMK NucBox M6 AirDisk APF 10-512G	1852 (1762.49^min - 1851.99^max) MB/s -67%
seq q8 t1 read
GMK NucBox K6 MasonSemi 1TB MC7000	7069 (6459.52^min - 7068.99^max) MB/s 0%
GMK NucBox K9 MasonSemi 1TB MC7000	7066 (6607.49^min - 7066.35^max) MB/s
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	5195 (4594.02^min - 5195.39^max) MB/s -26%
BOSGAME M1	4109 (3651.18^min - 4108.53^max) MB/s -42%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	3632 (3373.44^min - 3632.06^max) MB/s -49%
GMK NucBox M6 AirDisk APF 10-512G	2536 (2272.68^min - 2536.26^max) MB/s -64%
seq q8 t1 write
GMK NucBox K6 MasonSemi 1TB MC7000	6669 (1251.16^min - 6668.61^max) MB/s 0%
GMK NucBox K9 MasonSemi 1TB MC7000	6647 (1260.59^min - 6647.13^max) MB/s
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	4725 (4657.36^min - 4724.88^max) MB/s -29%
BOSGAME M1	3187 (3142.8^min - 3187.38^max) MB/s -52%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	2841 (2828.64^min - 2841.01^max) MB/s -57%
GMK NucBox M6 AirDisk APF 10-512G	1842 (1840.35^min - 1842.35^max) MB/s -72%
4k q1 t1 read
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	79.7 (77.93^min - 79.74^max) MB/s 0%
GMK NucBox K9 MasonSemi 1TB MC7000	79.5 (78.92^min - 79.5^max) MB/s
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	79.3 (78.06^min - 79.29^max) MB/s 0%
GMK NucBox K6 MasonSemi 1TB MC7000	71 (70.41^min - 71.02^max) MB/s -11%
BOSGAME M1	64.4 (64.2^min - 64.35^max) MB/s -19%
GMK NucBox M6 AirDisk APF 10-512G	54.8 (52.56^min - 54.76^max) MB/s -31%
4k q1 t1 write
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	391 (374.32^min - 390.86^max) MB/s +91%
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	289 (283.17^min - 289.07^max) MB/s +41%
BOSGAME M1	261 (258.95^min - 260.75^max) MB/s +27%
GMK NucBox K6 MasonSemi 1TB MC7000	239 (237.67^min - 239.17^max) MB/s +17%
GMK NucBox M6 AirDisk APF 10-512G	228 (215.43^min - 228.32^max) MB/s +11%
GMK NucBox K9 MasonSemi 1TB MC7000	205 (173.87^min - 205.2^max) MB/s
4k q32 t16 read
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	3139 (3067^min - 3138.94^max) MB/s +40%
GMK NucBox K6 MasonSemi 1TB MC7000	2463 (2040.37^min - 2463.15^max) MB/s +10%
GMK NucBox K9 MasonSemi 1TB MC7000	2243 (1941.91^min - 2243.48^max) MB/s
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	1942 (1940.61^min - 1941.63^max) MB/s -13%
GMK NucBox M6 AirDisk APF 10-512G	968 (965.06^min - 967.94^max) MB/s -57%
BOSGAME M1	791 (751.42^min - 791.35^max) MB/s -65%
4k q32 t16 write
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	4288 (4275.2^min - 4287.55^max) MB/s +33%
GMK NucBox K6 MasonSemi 1TB MC7000	3983 (3232.63^min - 3982.67^max) MB/s +23%
GMK NucBox K9 MasonSemi 1TB MC7000	3232 (3002.64^min - 3232.41^max) MB/s
BOSGAME M1	3112 (3068.44^min - 3111.56^max) MB/s -4%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	2219 (2197.25^min - 2218.83^max) MB/s -31%
GMK NucBox M6 AirDisk APF 10-512G	795 (753.98^min - 794.81^max) MB/s -75%

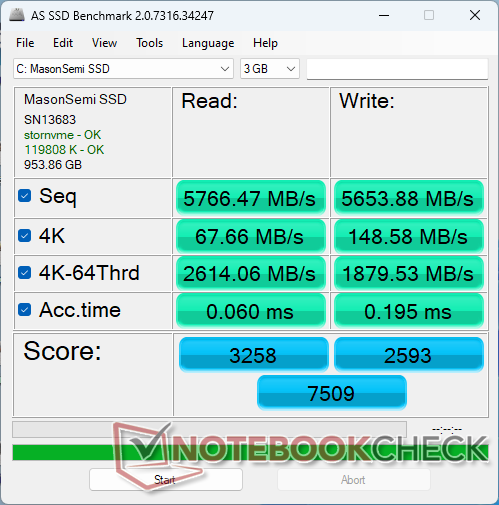

AS SSD
Score Total
GMK NucBox K6 MasonSemi 1TB MC7000	7918 Points +5%
GMK NucBox K9 MasonSemi 1TB MC7000	7509 Points
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	4619 Points -38%
BOSGAME M1	4263 Points -43%
GMK NucBox M6 AirDisk APF 10-512G	2956 Points -61%
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	2646 Points -65%
Score Read
GMK NucBox K6 MasonSemi 1TB MC7000	3258 Points 0%
GMK NucBox K9 MasonSemi 1TB MC7000	3258 Points
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	1633 Points -50%
GMK NucBox M6 AirDisk APF 10-512G	1170 Points -64%
BOSGAME M1	1146 Points -65%
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	1108 Points -66%
Score Write
GMK NucBox K6 MasonSemi 1TB MC7000	3000 Points +16%
GMK NucBox K9 MasonSemi 1TB MC7000	2593 Points
BOSGAME M1	2547 Points -2%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	2278 Points -12%
GMK NucBox M6 AirDisk APF 10-512G	1205 Points -54%
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	1057 Points -59%
Seq Read
GMK NucBox K6 MasonSemi 1TB MC7000	5825.09 MB/s +1%
GMK NucBox K9 MasonSemi 1TB MC7000	5766.47 MB/s
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	3913.46 MB/s -32%
BOSGAME M1	3438.69 MB/s -40%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	3206.84 MB/s -44%
GMK NucBox M6 AirDisk APF 10-512G	2261.02 MB/s -61%
Seq Write
GMK NucBox K6 MasonSemi 1TB MC7000	5783.3 MB/s +2%
GMK NucBox K9 MasonSemi 1TB MC7000	5653.88 MB/s
BOSGAME M1	2877.44 MB/s -49%
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	1944.73 MB/s -66%
GMK NucBox M6 AirDisk APF 10-512G	1730.13 MB/s -69%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	463.76 MB/s -92%
4K Read
GMK NucBox K9 MasonSemi 1TB MC7000	67.66 MB/s
GMK NucBox K6 MasonSemi 1TB MC7000	65.5 MB/s -3%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	59.54 MB/s -12%
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	51.6 MB/s -24%
BOSGAME M1	48.27 MB/s -29%
GMK NucBox M6 AirDisk APF 10-512G	47.34 MB/s -30%
4K Write
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	280.94 MB/s +89%
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	219.02 MB/s +47%
GMK NucBox M6 AirDisk APF 10-512G	200.73 MB/s +35%
GMK NucBox K6 MasonSemi 1TB MC7000	190.06 MB/s +28%
GMK NucBox K9 MasonSemi 1TB MC7000	148.58 MB/s
BOSGAME M1	114.69 MB/s -23%
4K-64 Read
GMK NucBox K9 MasonSemi 1TB MC7000	2614.06 MB/s
GMK NucBox K6 MasonSemi 1TB MC7000	2610.4 MB/s 0%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	1252.33 MB/s -52%
GMK NucBox M6 AirDisk APF 10-512G	896.13 MB/s -66%
BOSGAME M1	754.28 MB/s -71%
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	664.76 MB/s -75%
4K-64 Write
GMK NucBox K6 MasonSemi 1TB MC7000	2231.47 MB/s +19%
BOSGAME M1	2144.62 MB/s +14%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	1950.21 MB/s +4%
GMK NucBox K9 MasonSemi 1TB MC7000	1879.53 MB/s
GMK NucBox M6 AirDisk APF 10-512G	831.16 MB/s -56%
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	643.31 MB/s -66%
Access Time Read
BOSGAME M1	0.088 ms * -47%
GMK NucBox K6 MasonSemi 1TB MC7000	0.079 ms * -32%
GMK NucBox M6 AirDisk APF 10-512G	0.077 ms * -28%
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	0.077 ms * -28%
GMK NucBox K9 MasonSemi 1TB MC7000	0.06 ms *
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	0.049 ms * +18%
Access Time Write
GMK NucBox M6 AirDisk APF 10-512G	0.351 ms * -80%
GMK NucBox K6 MasonSemi 1TB MC7000	0.196 ms * -1%
GMK NucBox K9 MasonSemi 1TB MC7000	0.195 ms *
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	0.075 ms * +62%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	0.07 ms * +64%
BOSGAME M1	0.058 ms * +70%

* ... im mniej tym lepiej

Cinebench R15 CPU Multi 64 Bit porównanie
HP Pavilion 11-n070eg x360 (min) N2820, HD Graphics (Bay Trail)	46
...
Huawei MateBook X Pro 2022 i7-1260P, Iris Xe G7 96EUs	1954
SCHENKER Vision 14 M23 RTX 3050 i7-13700H, GeForce RTX 3050 6GB Laptop GPU	1955
HP Pavilion Plus 14-ey0095cl R7 7840U, Radeon 780M	1962
GMK NucBox K9 Ultra 5 125H, Arc 7-Core	1966
Beelink GTR6 R9 6900HX, Radeon 680M	1969
Lenovo ThinkBook Plus Gen3 i7-12700H, Iris Xe G7 96EUs	1972
GMK NucBox K2 R7 7735HS, Radeon 680M	1972
...
(max) TR Pro 7995WX, RTX 6000 Ada Generation	15842

	Średnie taktowanie CPU (GHz)	Taktowanie GPU (MHz)	Średnia temperatura CPU (°C)
System bezczynności	--	--	40
Prime95 Stress	2.3	--	79
Prime95 + FurMark Stress	2.2	1150	79
Cyberpunk 2077 Stress	0.9	1600	72

Recenzja mini PC GMK NucBox K9: Core Ultra 5 125H z grafiką Arc 7

Potencjalni konkurenci w porównaniu

Przypadek - zmiana koloru

Porównanie rozmiarów

Łączność - szybsze porty USB

Komunikacja

Konserwacja

Zrównoważony rozwój

Akcesoria i gwarancja

Wydajność - Meteor Lake Standard

Warunki testowania

Procesor

Cinebench R15 Multi Loop

Test warunków skrajnych

Wydajność systemu

Opóźnienie DPC

Urządzenia pamięci masowej

Disk Throttling: DiskSpd Read Loop, Queue Depth 8
