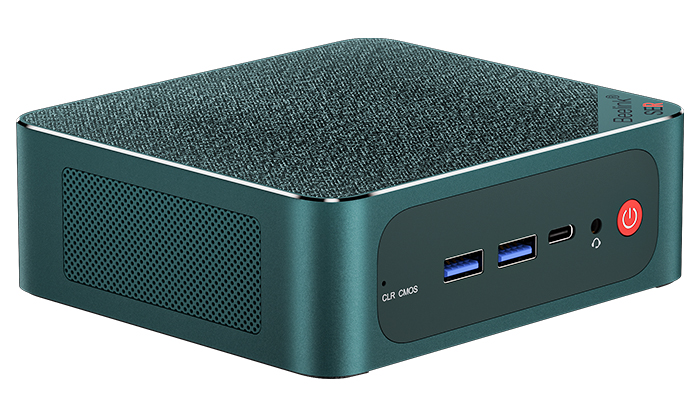

Recenzja mini PC Beelink SER6 Pro Ryzen 7 7735HS: Teraz z wbudowanym DisplayPort

Beelink SER6 Pro 2023 to aktualizacja modelu SER6 Pro 2022. Zastępuje on starsze opcje Ryzen 7 6800 lub Ryzen 9 6900HS w zeszłorocznym modelu nowszym Ryzen 7 7735HS. Poza aktualizacją procesora obudowa pozostaje jednak identyczna, z jedną tylko zauważalną zmianą.

Naszą jednostkę recenzyjną z procesorem Ryzen 7 7735HS, 32 GB RAM, 500 GB NVMe SSD i preinstalowanym systemem Windows 10 Pro można znaleźć w sieci za około 650 USD lub 550 USD, jeśli jest w sprzedaży. Model ten konkuruje bezpośrednio z innymi mini PC najbardziej godną uwagi serią Intel NUC.

Więcej recenzji Beelink:

SEi12
SEi11
SER5 Pro
GTR6
U59

Rating	Date	Model	Weight	Height	Resolution
84.8 %	04/2023	Beelink SER6 Pro Ryzen 7 7735HS R7 7735HS, Radeon 680M	506 g	42 mm	x
	01/2023	Beelink SER6 Pro R7 6800H, Radeon 680M	511 g	42 mm	x
	11/2022	Beelink GTR6 R9 6900HX, Radeon 680M	815 g	43 mm	x
81.1 %	04/2023	Intel NUC 13 Pro Kit NUC13ANK i7-1360P, Iris Xe G7 96EUs	538 g	37 mm	x
	03/2023	Intel NUC 12 Pro Kit NUC12WSBi5 i5-1240P, Iris Xe G7 80EUs	549 g	45.6 mm	x
86.1 %	02/2023	Minisforum Venus Series UM690 (6900HX) R9 6900HX, Radeon 680M	621 g	48 mm	x

Sprawa

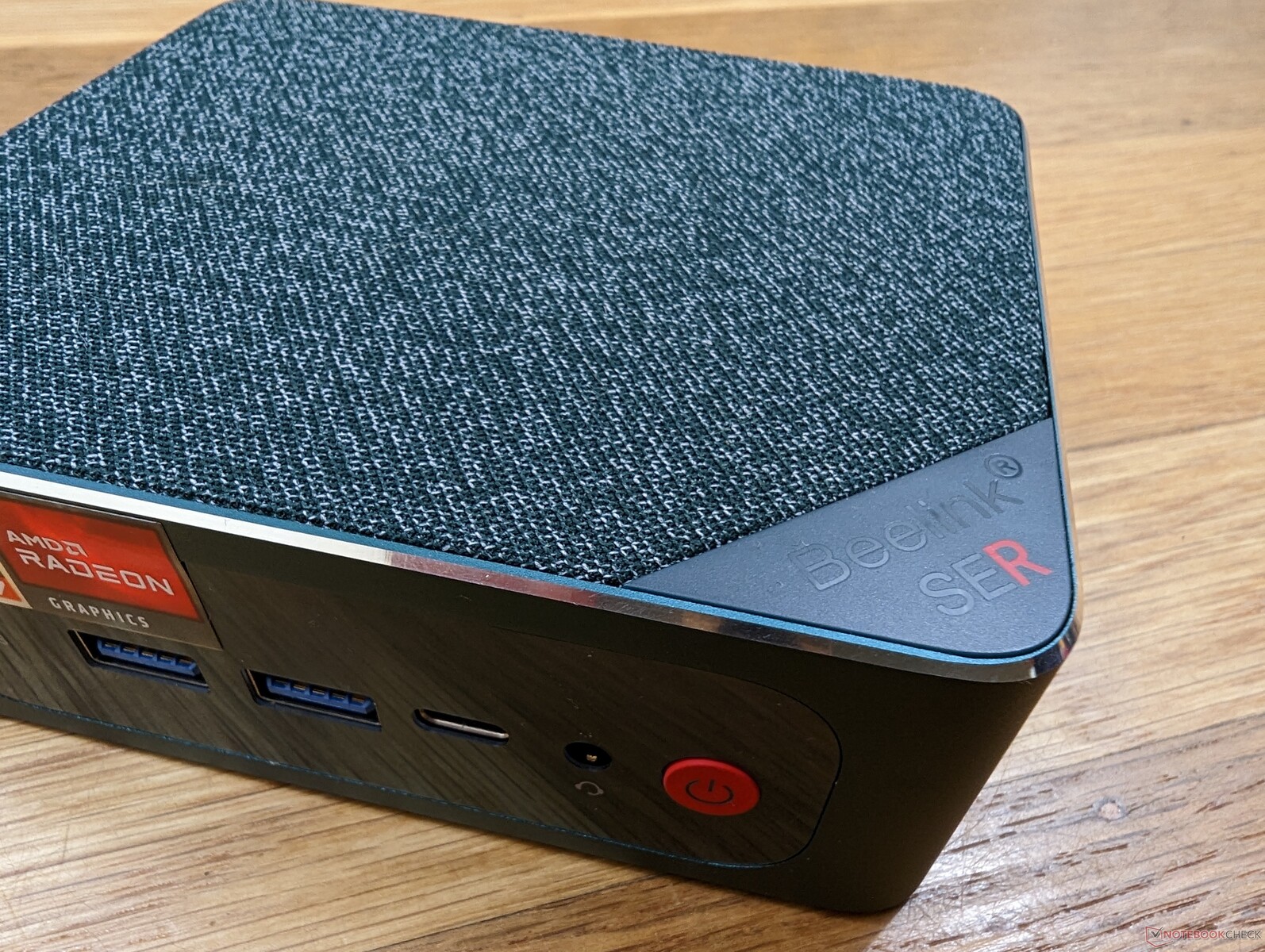

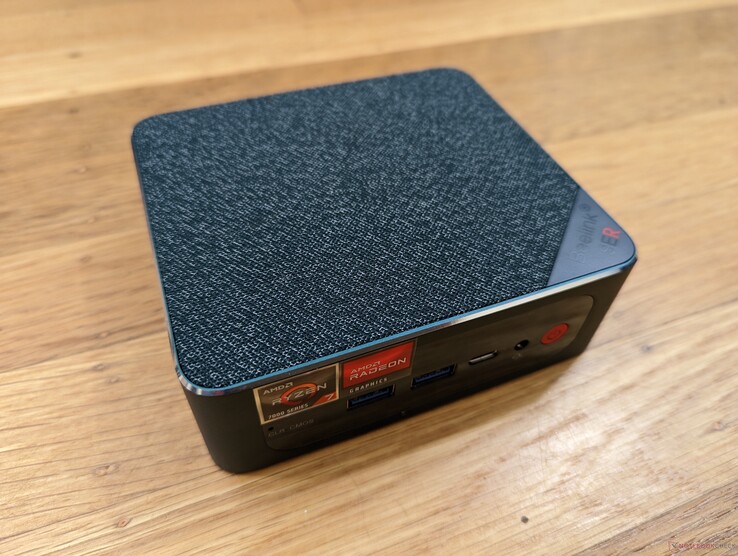

W obudowie nie ma większych zmian poza jednym wyjątkiem: drugi port HDMI z zeszłorocznego modelu został zamieniony na pełnowymiarowy DisplayPort. Jest to właściwie lepsze rozwiązanie, ponieważ DisplayPort jest lepiej kompatybilny z monitorami o wyższej częstotliwości odświeżania i adaptacyjnej synchronizacji niż HDMI.

Oddychający materiał powraca, aby umożliwić dwa indywidualne wentylatory na górnej i dolnej stronie urządzenia

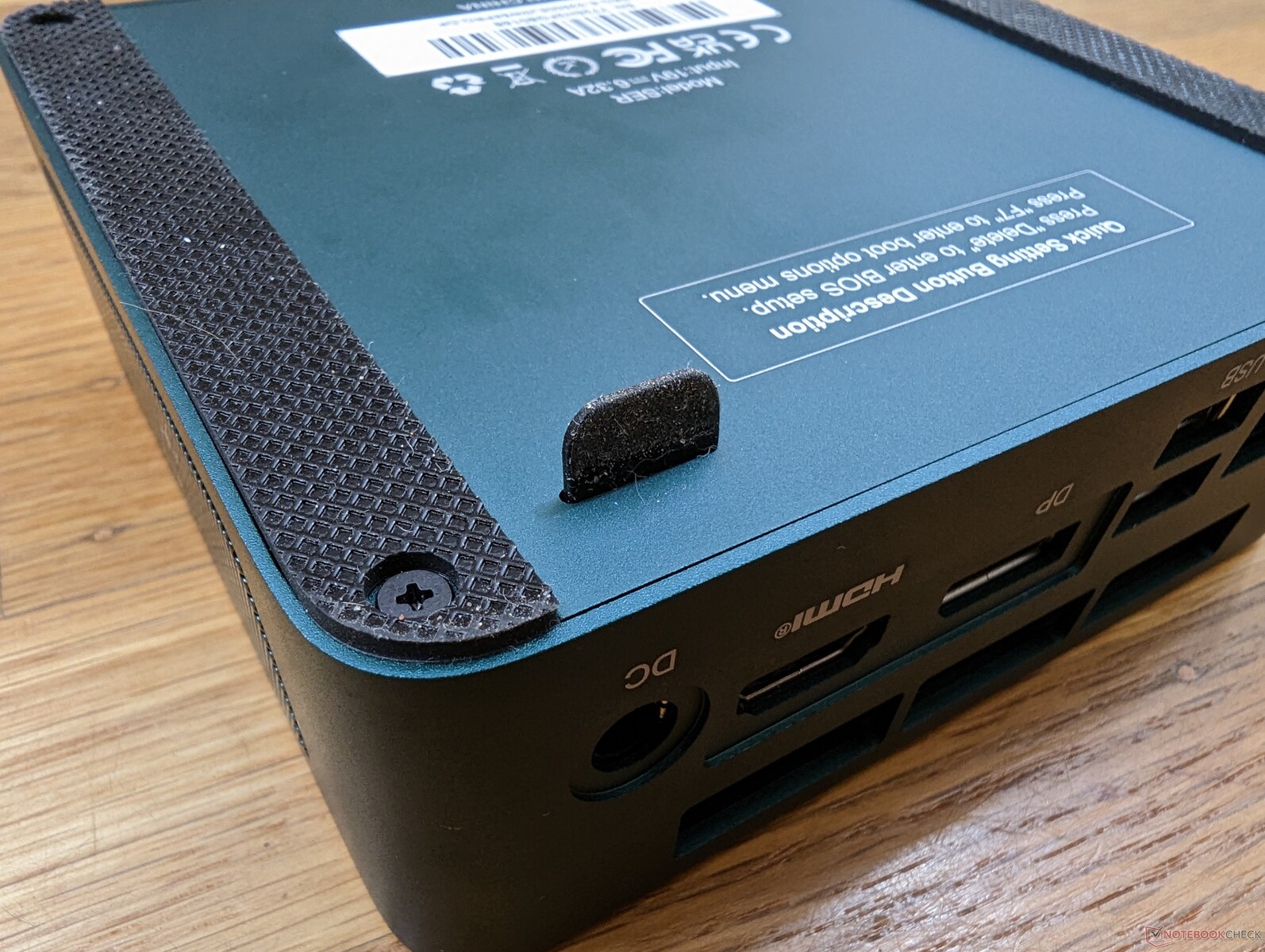

Gumowa klapka ułatwia chwytanie i zdejmowanie dolnego panelu

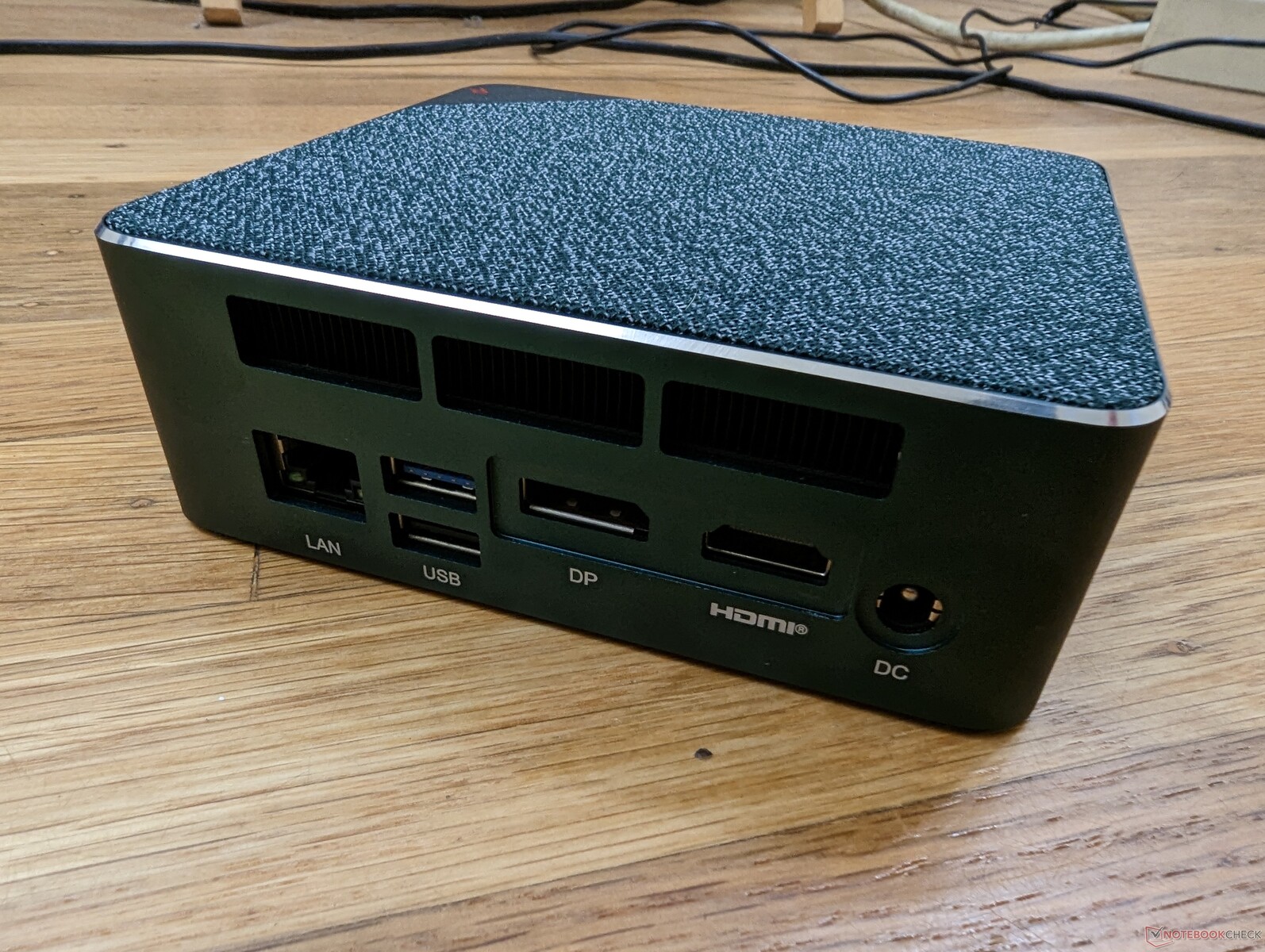

Porty z tyłu. Zwróć uwagę na nowy port DP, który zastąpił jeden z portów HDMI w zeszłorocznym modelu

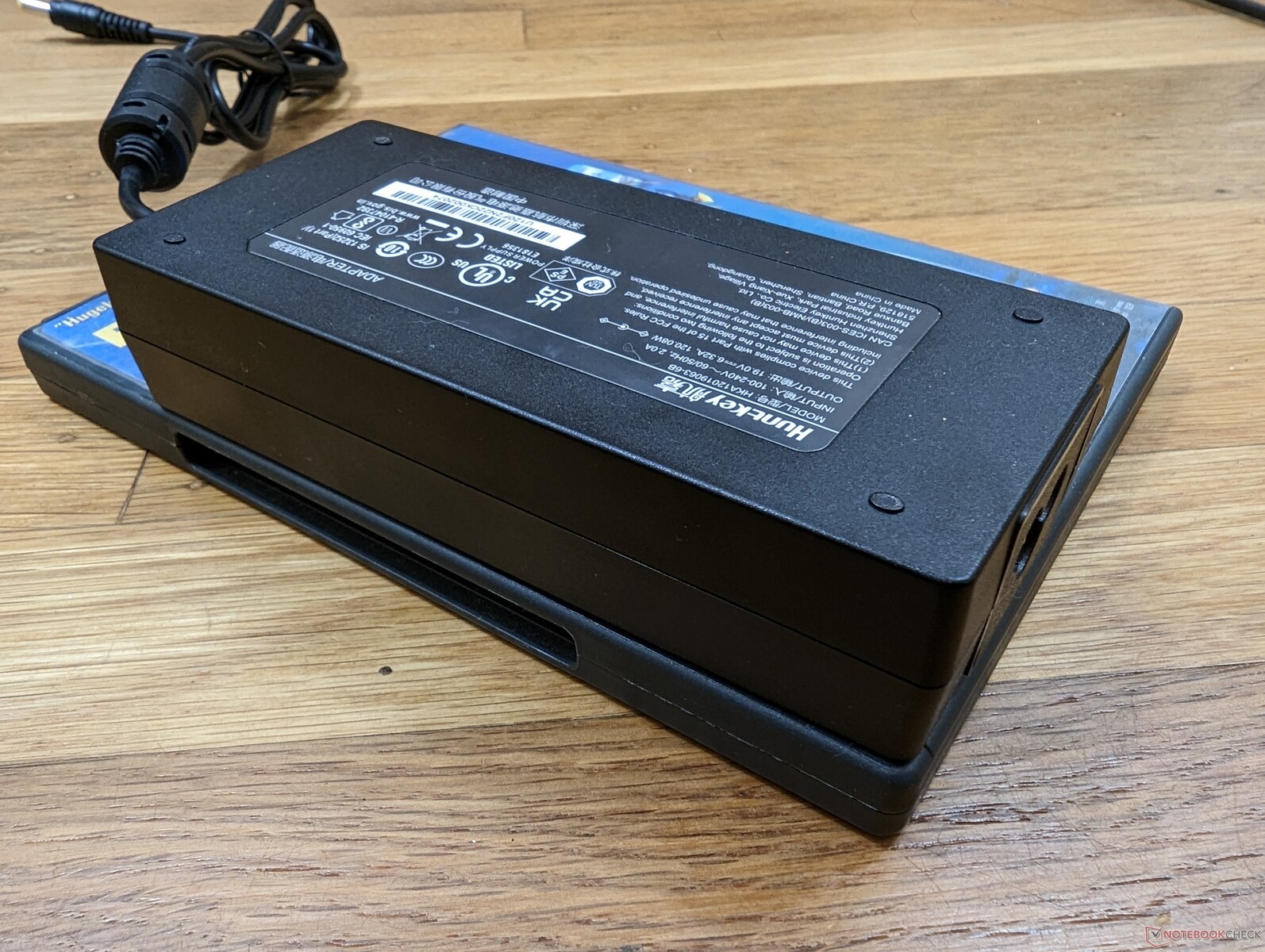

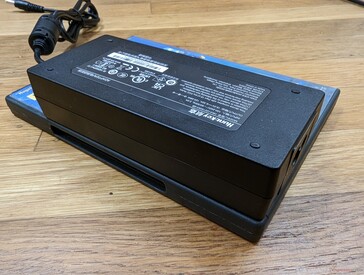

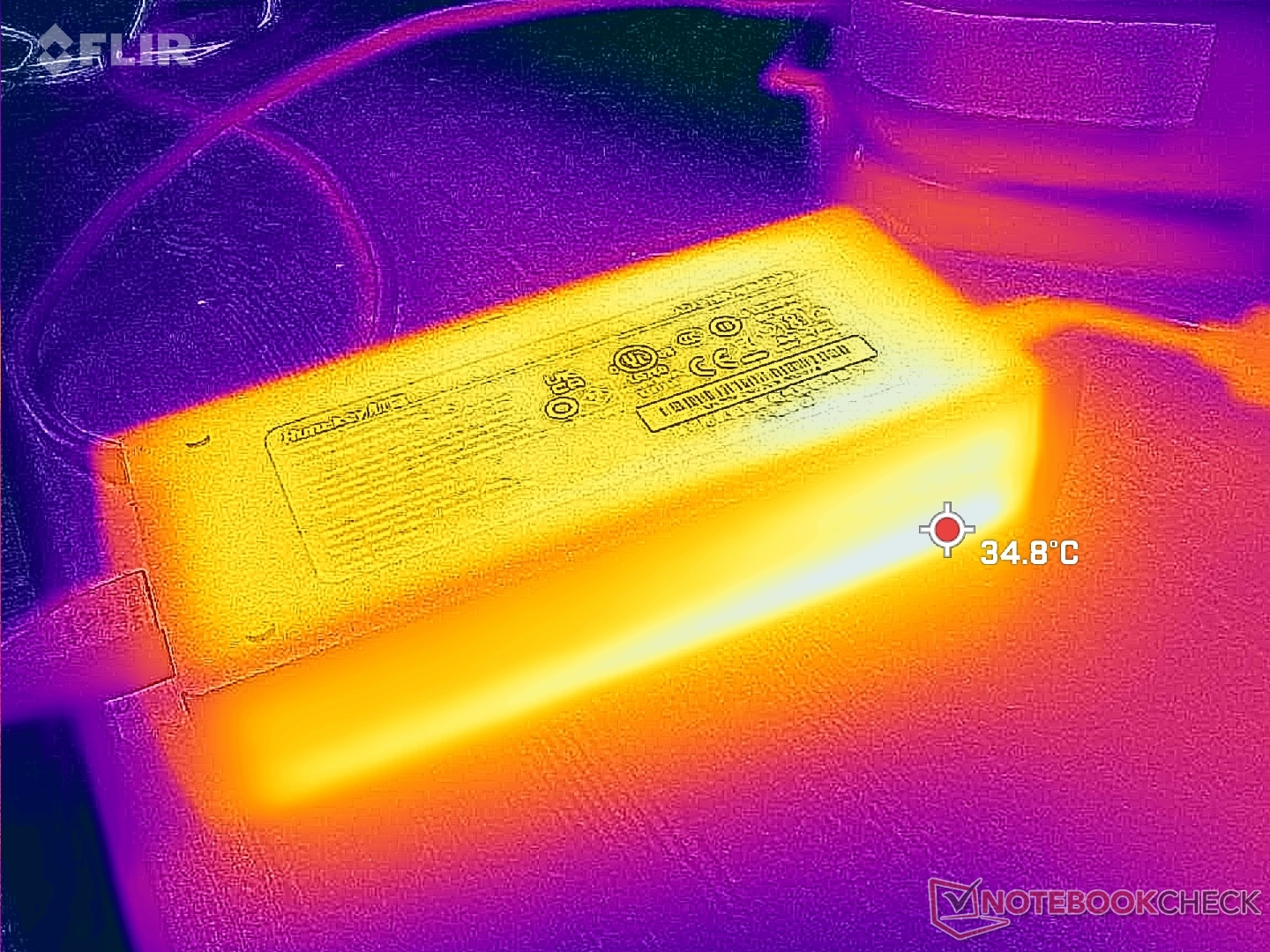

Mały-średni (14,5 x 6,3 x 3 cm) Zasilacz sieciowy 120 W

Porównanie wielkości

Beelink GTR6 Minisforum Venus Series UM690 (6900HX) Beelink SER6 Pro Ryzen 7 7735HS Beelink SER6 Pro Intel NUC 12 Pro Kit NUC12WSBi5 Intel NUC 13 Pro Kit NUC13ANK DIN A5 ❌

Komunikacja

Wbudowane moduły komunikacji przewodowej i bezprzewodowej, porównanie danych z testów sieciowych z konkurencją, dostępne rozwiązania alternatywne (5G/LTE)?, Nieprawidłowości (odbiór radiowy)?

Networking
iperf3 transmit AXE11000
Beelink SER6 Pro Intel Wi-Fi 6 AX200	1273 (1063^min - 1401^max) MBit/s ∼100% +19%
Beelink SER6 Pro Ryzen 7 7735HS Intel Wi-Fi 6 AX200	1069 (800^min - 1158^max) MBit/s ∼84%
Minisforum Venus Series UM690 (6900HX) MediaTek RZ608	943 (477^min - 981^max) MBit/s ∼74% -12%
Beelink GTR6 MediaTek RZ608	909 (429^min - 966^max) MBit/s ∼71% -15%
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	833 (805^min - 866^max) MBit/s ∼65% -22%
iperf3 receive AXE11000
Beelink SER6 Pro Ryzen 7 7735HS Intel Wi-Fi 6 AX200	1356 (1119^min - 1463^max) MBit/s ∼100%
Beelink SER6 Pro Intel Wi-Fi 6 AX200	1282 (247^min - 1409^max) MBit/s ∼95% -5%
Minisforum Venus Series UM690 (6900HX) MediaTek RZ608	956 (944^min - 963^max) MBit/s ∼71% -29%
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	939 (921^min - 952^max) MBit/s ∼69% -31%
Beelink GTR6 MediaTek RZ608	860 (440^min - 882^max) MBit/s ∼63% -37%
iperf3 transmit AXE11000 6GHz
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	1445 (736^min - 1476^max) MBit/s ∼100%
Beelink GTR6 MediaTek RZ608	948 (476^min - 1030^max) MBit/s ∼66%
Minisforum Venus Series UM690 (6900HX) MediaTek RZ608	787 (638^min - 865^max) MBit/s ∼54%
iperf3 receive AXE11000 6GHz
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	1668 (1467^min - 1725^max) MBit/s ∼100%
Minisforum Venus Series UM690 (6900HX) MediaTek RZ608	961 (954^min - 967^max) MBit/s ∼58%
Beelink GTR6 MediaTek RZ608	886 (867^min - 900^max) MBit/s ∼53%

Beelink SER6 Pro Ryzen 7 7735HS; iperf3 transmit AXE11000; iperf 3.1.3: Ø1069 (800-1158)

Beelink SER6 Pro Ryzen 7 7735HS; iperf3 receive AXE11000; iperf 3.1.3: Ø1356 (1119-1463)

Konserwacja

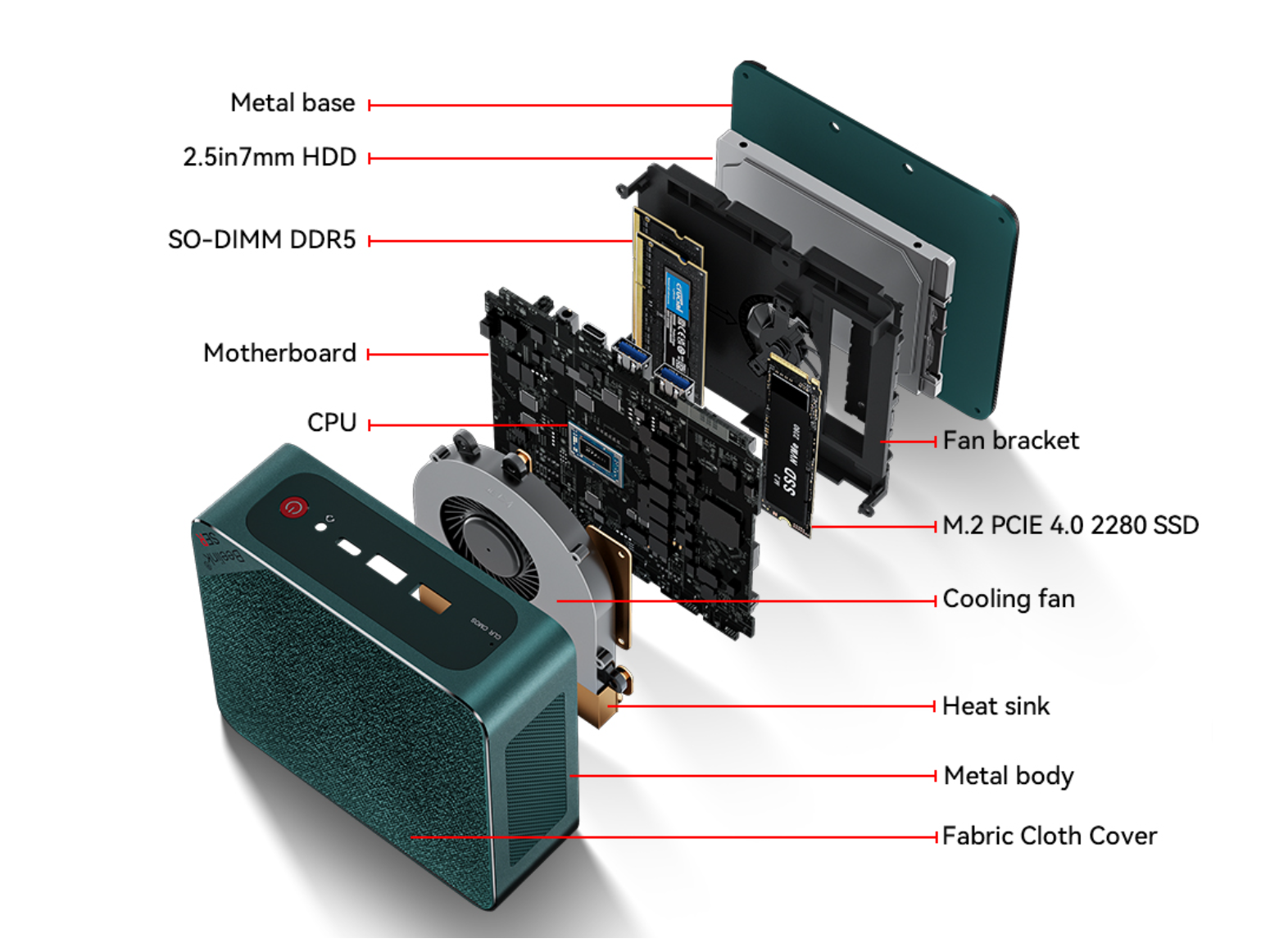

Możliwości serwisowe pozostają takie same jak w zeszłorocznym modelu. Użytkownicy mają do dyspozycji 2x zatoki pamięci masowej (1x PCIe4 x4 M.2 2280, 1x 2,5-calowy SATA III) oraz 2x gniazda DDR5 SODIMM do rozbudowy.

Akcesoria i gwarancja

W przypadku zakupu w USA obowiązuje standardowa roczna ograniczona gwarancja. W pudełku detalicznym znajduje się instrukcja obsługi, zdejmowany uchwyt ścienny VESA, dwa kable HDMI oraz zasilacz sieciowy.

Wydajność

Warunki badania

Przed przeprowadzeniem poniższych benchmarków ustawiliśmy nasze urządzenie w trybie Performance za pośrednictwem systemu Windows. Nie ma preinstalowanej aplikacji typu "Command Center" w przeciwieństwie do wielu innych laptopów i komputerów PC głównych marek.

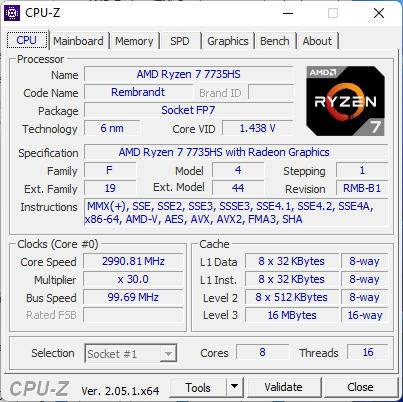

Procesor

Podobnie jak w przypadku niedawno recenzowanego Lenovo Slim 7 Pro, Ryzen 7 7735HS 2023 działa niemal identycznie jak starsze Ryzen 7 6800H czy Ryzen 9 6900HS. Dzieje się tak dlatego, że Ryzen 7 7735HS jest w dużej mierze rebrandingiem starszej serii Zen 3+, pomimo jego niedawnej premiery na początku zeszłego miesiąca. W rezultacie nawet starszy Core i7-12700H 12. generacji może przewyższać Ryzena 7 7735HS w niemal wszystkim poza wydajnością zintegrowanej grafiki.

Aby uzyskać "prawdziwy" procesor AMD obecnej generacji, trzeba by zamiast niego nabyć Zen 4 Ryzen 9 7945HX. Niestety, taka opcja nie jest dostępna w SER6 Pro.

Cinebench R15 Multi Loop

Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS: Ø1891 (1862.98-1952.55)

Beelink SER6 Pro AMD Ryzen 7 6800H: Ø1854 (1821.83-1930.5)

Beelink GTR6 AMD Ryzen 9 6900HX: Ø1922 (1894.3-1968.5)

Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P: Ø1825 (1794.93-2181.38)

Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P: Ø1681 (1638.81-2006.82)

Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX: Ø2111 (2087.36-2211.78)

CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.4: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

CPU Performance Rating
Intel NUC13 Raptor Canyon Intel Core i9-13900K	86.2 pt ∼86%
Asus ROG Strix Scar 17 G733PY-XS96 AMD Ryzen 9 7945HX	85.2 pt ∼85%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	56 pt ∼56%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	53.5 pt ∼54%
Beelink GTR6 AMD Ryzen 9 6900HX	50.1 pt ∼50%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	48.3 pt ∼48%
Average AMD Ryzen 7 7735HS	47.8 pt ∼48%
Beelink SER6 Pro AMD Ryzen 7 6800H	47.1 pt ∼47%
Intel NUC 12 Pro Kit NUC12WSBi5 ^-2! Intel Core i5-1240P	44 pt ∼44%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	43 pt ∼43%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U	41.9 pt ∼42%
Trigkey Speed S Intel Core i5-11320H	33.2 pt ∼33%

Cinebench R23 / Multi Core
Asus ROG Strix Scar 17 G733PY-XS96 AMD Ryzen 9 7945HX	34087 (33104.5^min - 34086.9^max) Points ∼100% +193%
Intel NUC13 Raptor Canyon Intel Core i9-13900K	32592 Points ∼96% +180%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	16674 Points ∼49% +43%
Average AMD Ryzen 7 7735HS (11626 - 13995, n=5)	13150 Points ∼39% +13%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	12637 Points ∼37% +9%
Beelink GTR6 AMD Ryzen 9 6900HX	11862 (11361.7^min - 11862.4^max) Points ∼35% +2%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	11626 (11015.5^min - 11625.6^max) Points ∼34%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P	11556 (23.57^min - 11556.2^max) Points ∼34% -1%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P	11494 Points ∼34% -1%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P	277 Points ∼1% -98%
Beelink SER6 Pro AMD Ryzen 7 6800H	11481 (10813.7^min - 11481.3^max) Points ∼34% -1%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	8342 Points ∼24% -28%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U	8199 Points ∼24% -29%
Trigkey Speed S Intel Core i5-11320H	5724 (5641.98^min - 5723.64^max) Points ∼17% -51%

Cinebench R23 / Single Core
Intel NUC13 Raptor Canyon Intel Core i9-13900K	2203 Points ∼100% +43%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	1909 Points ∼87% +24%
Asus ROG Strix Scar 17 G733PY-XS96 AMD Ryzen 9 7945HX	1873 Points ∼85% +22%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	1801 Points ∼82% +17%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	1713 Points ∼78% +11%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U	1690 Points ∼77% +10%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P	1689 Points ∼77% +10%
Beelink GTR6 AMD Ryzen 9 6900HX	1608 Points ∼73% +5%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	1537 Points ∼70%
Beelink SER6 Pro AMD Ryzen 7 6800H	1506 Points ∼68% -2%
Average AMD Ryzen 7 7735HS (1288 - 1561, n=5)	1497 Points ∼68% -3%
Trigkey Speed S Intel Core i5-11320H	1465 Points ∼67% -5%

Cinebench R20 / CPU (Multi Core)
Intel NUC13 Raptor Canyon Intel Core i9-13900K	13415 Points ∼100% +197%
Asus ROG Strix Scar 17 G733PY-XS96 AMD Ryzen 9 7945HX	13208 Points ∼98% +192%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	6459 Points ∼48% +43%
Average AMD Ryzen 7 7735HS (4524 - 5441, n=5)	5107 Points ∼38% +13%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	4887 Points ∼36% +8%
Beelink GTR6 AMD Ryzen 9 6900HX	4619 Points ∼34% +2%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	4524 Points ∼34%
Beelink SER6 Pro AMD Ryzen 7 6800H	4460 Points ∼33% -1%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P	4456 Points ∼33% -2%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	3234 Points ∼24% -29%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U	3153 Points ∼24% -30%
Trigkey Speed S Intel Core i5-11320H	2216 Points ∼17% -51%

Cinebench R20 / CPU (Single Core)
Intel NUC13 Raptor Canyon Intel Core i9-13900K	853 Points ∼100% +43%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	736 Points ∼86% +23%
Asus ROG Strix Scar 17 G733PY-XS96 AMD Ryzen 9 7945HX	720 Points ∼84% +20%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	692 Points ∼81% +16%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	654 Points ∼77% +9%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P	653 Points ∼77% +9%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U	649 Points ∼76% +9%
Beelink GTR6 AMD Ryzen 9 6900HX	631 Points ∼74% +6%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	598 Points ∼70%
Average AMD Ryzen 7 7735HS (502 - 612, n=5)	585 Points ∼69% -2%
Beelink SER6 Pro AMD Ryzen 7 6800H	584 Points ∼68% -2%
Trigkey Speed S Intel Core i5-11320H	567 Points ∼66% -5%

Cinebench R15 / CPU Multi 64Bit
Asus ROG Strix Scar 17 G733PY-XS96 AMD Ryzen 9 7945HX	5521 (5355.47^min - 5521.05^max) Points ∼100% +183%
Intel NUC13 Raptor Canyon Intel Core i9-13900K	5321 Points ∼96% +172%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	2632 Points ∼48% +35%
Average AMD Ryzen 7 7735HS (1953 - 2355, n=7)	2188 Points ∼40% +12%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	2030 Points ∼37% +4%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P	2007 (1638.81^min - 2006.82^max) Points ∼36% +3%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P	2005 Points ∼36% +3%
Beelink GTR6 AMD Ryzen 9 6900HX	1969 (1894.3^min - 1968.5^max) Points ∼36% +1%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	1953 (1862.98^min - 1952.55^max) Points ∼35%
Beelink SER6 Pro AMD Ryzen 7 6800H	1931 (1821.83^min - 1930.5^max) Points ∼35% -1%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	1320 Points ∼24% -32%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U	1311 Points ∼24% -33%
Trigkey Speed S Intel Core i5-11320H	861 (839.91^min - 860.88^max) Points ∼16% -56%

Cinebench R15 / CPU Single 64Bit
Intel NUC13 Raptor Canyon Intel Core i9-13900K	319 Points ∼100% +29%
Asus ROG Strix Scar 17 G733PY-XS96 AMD Ryzen 9 7945HX	308 Points ∼97% +25%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	271 Points ∼85% +10%
Beelink GTR6 AMD Ryzen 9 6900HX	260 Points ∼82% +5%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	259 Points ∼81% +5%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	247 Points ∼77%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	245 Points ∼77% -1%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U	242 Points ∼76% -2%
Beelink SER6 Pro AMD Ryzen 7 6800H	242 Points ∼76% -2%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P	242 Points ∼76% -2%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P	242 Points ∼76% -2%
Average AMD Ryzen 7 7735HS (206 - 252, n=6)	242 Points ∼76% -2%
Trigkey Speed S Intel Core i5-11320H	215 Points ∼67% -13%

Blender / v2.79 BMW27 CPU
Trigkey Speed S Intel Core i5-11320H	543 Seconds * ∼100% -106%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U	388 Seconds * ∼71% -48%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	380 Seconds * ∼70% -44%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P	285 Seconds * ∼52% -8%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	275 Seconds * ∼51% -5%
Beelink SER6 Pro AMD Ryzen 7 6800H	268 Seconds * ∼49% -2%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	263 Seconds * ∼48%
Beelink GTR6 AMD Ryzen 9 6900HX	257 Seconds * ∼47% +2%
Average AMD Ryzen 7 7735HS (223 - 263, n=5)	237 Seconds * ∼44% +10%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	198 Seconds * ∼36% +25%
Intel NUC13 Raptor Canyon Intel Core i9-13900K	101 Seconds * ∼19% +62%
Asus ROG Strix Scar 17 G733PY-XS96 AMD Ryzen 9 7945HX	91 Seconds * ∼17% +65%

7-Zip 18.03 / 7z b 4
Asus ROG Strix Scar 17 G733PY-XS96 AMD Ryzen 9 7945HX	140932 MIPS ∼100% +144%
Intel NUC13 Raptor Canyon Intel Core i9-13900K	127201 MIPS ∼90% +120%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	64403 MIPS ∼46% +12%
Average AMD Ryzen 7 7735HS (55502 - 61292, n=5)	58781 MIPS ∼42% +2%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	57693 MIPS ∼41%
Beelink GTR6 AMD Ryzen 9 6900HX	57261 MIPS ∼41% -1%
Beelink SER6 Pro AMD Ryzen 7 6800H	55963 MIPS ∼40% -3%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	52959 MIPS ∼38% -8%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P	45947 MIPS ∼33% -20%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	36343 MIPS ∼26% -37%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U	35918 MIPS ∼25% -38%
Trigkey Speed S Intel Core i5-11320H	24718 MIPS ∼18% -57%

7-Zip 18.03 / 7z b 4 -mmt1
Asus ROG Strix Scar 17 G733PY-XS96 AMD Ryzen 9 7945HX	7581 MIPS ∼100% +31%
Intel NUC13 Raptor Canyon Intel Core i9-13900K	7255 MIPS ∼96% +25%
Beelink GTR6 AMD Ryzen 9 6900HX	6005 MIPS ∼79% +3%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	5972 MIPS ∼79% +3%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	5961 MIPS ∼79% +3%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	5809 MIPS ∼77%
Beelink SER6 Pro AMD Ryzen 7 6800H	5768 MIPS ∼76% -1%
Average AMD Ryzen 7 7735HS (4779 - 5809, n=5)	5539 MIPS ∼73% -5%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	5353 MIPS ∼71% -8%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P	5262 MIPS ∼69% -9%
Trigkey Speed S Intel Core i5-11320H	5119 MIPS ∼68% -12%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U	5097 MIPS ∼67% -12%

Geekbench 5.4 / Multi-Core
Intel NUC13 Raptor Canyon Intel Core i9-13900K	22448 Points ∼100% +140%
Asus ROG Strix Scar 17 G733PY-XS96 AMD Ryzen 9 7945HX	19325 Points ∼86% +107%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	10574 Points ∼47% +13%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	10126 Points ∼45% +8%
Average AMD Ryzen 7 7735HS (9021 - 9836, n=5)	9361 Points ∼42% 0%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	9357 Points ∼42%
Beelink GTR6 AMD Ryzen 9 6900HX	9350 Points ∼42% 0%
Beelink SER6 Pro AMD Ryzen 7 6800H	9218 Points ∼41% -1%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U	9065 Points ∼40% -3%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	8772 Points ∼39% -6%
Trigkey Speed S Intel Core i5-11320H	4927 Points ∼22% -47%

Geekbench 5.4 / Single-Core
Intel NUC13 Raptor Canyon Intel Core i9-13900K	2106 Points ∼100% +33%
Asus ROG Strix Scar 17 G733PY-XS96 AMD Ryzen 9 7945HX	2047 Points ∼97% +30%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	1850 Points ∼88% +17%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	1714 Points ∼81% +8%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U	1675 Points ∼80% +6%
Beelink GTR6 AMD Ryzen 9 6900HX	1652 Points ∼78% +5%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	1590 Points ∼75% +1%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	1580 Points ∼75%
Beelink SER6 Pro AMD Ryzen 7 6800H	1554 Points ∼74% -2%
Trigkey Speed S Intel Core i5-11320H	1523 Points ∼72% -4%
Average AMD Ryzen 7 7735HS (1327 - 1580, n=5)	1502 Points ∼71% -5%

HWBOT x265 Benchmark v2.2 / 4k Preset
Asus ROG Strix Scar 17 G733PY-XS96 AMD Ryzen 9 7945HX	37.6 fps ∼100% +149%
Intel NUC13 Raptor Canyon Intel Core i9-13900K	34.5 fps ∼92% +128%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	18.7 fps ∼50% +24%
Average AMD Ryzen 7 7735HS (15.1 - 17.5, n=5)	16.5 fps ∼44% +9%
Beelink GTR6 AMD Ryzen 9 6900HX	15.4 fps ∼41% +2%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	15.1 fps ∼40%
Beelink SER6 Pro AMD Ryzen 7 6800H	15 fps ∼40% -1%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	14.2 fps ∼38% -6%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P	12.9 fps ∼34% -15%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	9.7 fps ∼26% -36%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U	9.47 fps ∼25% -37%
Trigkey Speed S Intel Core i5-11320H	7.25 fps ∼19% -52%

LibreOffice / 20 Documents To PDF
Average AMD Ryzen 7 7735HS (44.3 - 59.1, n=5)	52.9 s * ∼100% -19%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U	49.4 s * ∼93% -12%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P	49.1 s * ∼93% -11%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	48.9 s * ∼92% -10%
Beelink SER6 Pro AMD Ryzen 7 6800H	48.8 s * ∼92% -10%
Beelink GTR6 AMD Ryzen 9 6900HX	46 s * ∼87% -4%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	44.9 s * ∼85% -1%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	44.3 s * ∼84%
Trigkey Speed S Intel Core i5-11320H	44 s * ∼83% +1%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	43.7 s * ∼83% +1%
Intel NUC13 Raptor Canyon Intel Core i9-13900K	41.6 s * ∼79% +6%
Asus ROG Strix Scar 17 G733PY-XS96 AMD Ryzen 9 7945HX	36.8 s * ∼70% +17%

R Benchmark 2.5 / Overall mean
Trigkey Speed S Intel Core i5-11320H	0.591 sec * ∼100% -15%
Average AMD Ryzen 7 7735HS (0.4964 - 0.585, n=5)	0.519 sec * ∼88% -1%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	0.512 sec * ∼87%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U	0.511 sec * ∼86% -0%
Beelink SER6 Pro AMD Ryzen 7 6800H	0.4989 sec * ∼84% +3%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P	0.4987 sec * ∼84% +3%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	0.4856 sec * ∼82% +5%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	0.4643 sec * ∼79% +9%
Beelink GTR6 AMD Ryzen 9 6900HX	0.4627 sec * ∼78% +10%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	0.445 sec * ∼75% +13%
Asus ROG Strix Scar 17 G733PY-XS96 AMD Ryzen 9 7945HX	0.4059 sec * ∼69% +21%
Intel NUC13 Raptor Canyon Intel Core i9-13900K	0.3911 sec * ∼66% +24%

* ... im mniej tym lepiej

Blender
v3.3 Classroom HIP/AMD
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	356 Seconds * ∼100% -13%
Minisforum Venus Series UM690 (6900HX) AMD Radeon 680M, AMD Ryzen 9 6900HX	340 Seconds * ∼96% -8%
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	318 Seconds * ∼89% -1%
Beelink SER6 Pro Ryzen 7 7735HS AMD Radeon 680M, AMD Ryzen 7 7735HS	314 Seconds * ∼88%
v3.3 Classroom CPU
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1240P	590 Seconds * ∼100% -33%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	464 Seconds * ∼79% -4%
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	453 Seconds * ∼77% -2%
Beelink SER6 Pro Ryzen 7 7735HS AMD Radeon 680M, AMD Ryzen 7 7735HS	445 Seconds * ∼75%
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	436 Seconds * ∼74% +2%
Minisforum Venus Series UM690 (6900HX) AMD Radeon 680M, AMD Ryzen 9 6900HX	394 Seconds * ∼67% +11%

* ... im mniej tym lepiej

Performance Rating
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, Radeon 680M	99.1 pt ∼99%
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	90.8 pt ∼91%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, Radeon 680M	88.3 pt ∼88%
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	87.8 pt ∼88%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	73.6 pt ∼74%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Iris Xe G7 80EUs	55.8 pt ∼56%

AIDA64 / FP32 Ray-Trace
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, Radeon 680M	15102 KRay/s ∼100% +15%
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	13630 KRay/s ∼90% +4%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, Radeon 680M	13148 KRay/s ∼87%
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	12876 KRay/s ∼85% -2%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	11040 KRay/s ∼73% -16%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Iris Xe G7 80EUs	6011 KRay/s ∼40% -54%

AIDA64 / FPU Julia
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, Radeon 680M	98980 Points ∼100% +18%
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	86563 Points ∼87% +3%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, Radeon 680M	83889 Points ∼85%
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	82673 Points ∼84% -1%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	55557 Points ∼56% -34%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Iris Xe G7 80EUs	27835 Points ∼28% -67%

AIDA64 / CPU SHA3
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, Radeon 680M	3452 MB/s ∼100% +20%
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	3033 MB/s ∼88% +5%
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	2886 MB/s ∼84% 0%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, Radeon 680M	2885 MB/s ∼84%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	2728 MB/s ∼79% -5%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Iris Xe G7 80EUs	2019 MB/s ∼58% -30%

AIDA64 / CPU Queen
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, Radeon 680M	103686 Points ∼100% +8%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, Radeon 680M	95566 Points ∼92%
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	94363 Points ∼91% -1%
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	93785 Points ∼90% -2%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	86691 Points ∼84% -9%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Iris Xe G7 80EUs	75592 Points ∼73% -21%

AIDA64 / FPU SinJulia
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, Radeon 680M	13101 Points ∼100% +8%
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	12291 Points ∼94% +2%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, Radeon 680M	12094 Points ∼92%
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	11981 Points ∼91% -1%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	7269 Points ∼55% -40%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Iris Xe G7 80EUs	6540 Points ∼50% -46%

AIDA64 / FPU Mandel
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, Radeon 680M	52710 Points ∼100% +15%
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	47561 Points ∼90% +3%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, Radeon 680M	45982 Points ∼87%
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	45287 Points ∼86% -2%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	27772 Points ∼53% -40%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Iris Xe G7 80EUs	16325 Points ∼31% -64%

AIDA64 / CPU AES
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, Radeon 680M	136723 MB/s ∼100% +16%
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	122402 MB/s ∼90% +4%
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	118383 MB/s ∼87% +1%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, Radeon 680M	117400 MB/s ∼86%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	99244 MB/s ∼73% -15%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Iris Xe G7 80EUs	67922 MB/s ∼50% -42%

AIDA64 / CPU ZLib
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, Radeon 680M	863 MB/s ∼100% +21%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Iris Xe G7 80EUs	812 MB/s ∼94% +14%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	807 MB/s ∼94% +13%
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	757 MB/s ∼88% +6%
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	732 MB/s ∼85% +3%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, Radeon 680M	712 MB/s ∼83%

AIDA64 / FP64 Ray-Trace
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, Radeon 680M	7973 KRay/s ∼100% +13%
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	7214 KRay/s ∼90% +3%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, Radeon 680M	7032 KRay/s ∼88%
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	6917 KRay/s ∼87% -2%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	5920 KRay/s ∼74% -16%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Iris Xe G7 80EUs	3442 KRay/s ∼43% -51%

AIDA64 / CPU PhotoWorxx
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	30600 MPixel/s ∼100% 0%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, Radeon 680M	30542 MPixel/s ∼100%
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	30360 MPixel/s ∼99% -1%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	29108 MPixel/s ∼95% -5%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Iris Xe G7 80EUs	27809 MPixel/s ∼91% -9%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, Radeon 680M	27720 MPixel/s ∼91% -9%

Wydajność systemu

Benchmarki PCMark znów są w zasadzie identyczne z tym, co zarejestrowaliśmy na 2022 SER6 Pro, skoro ich procesory są tak podobne.

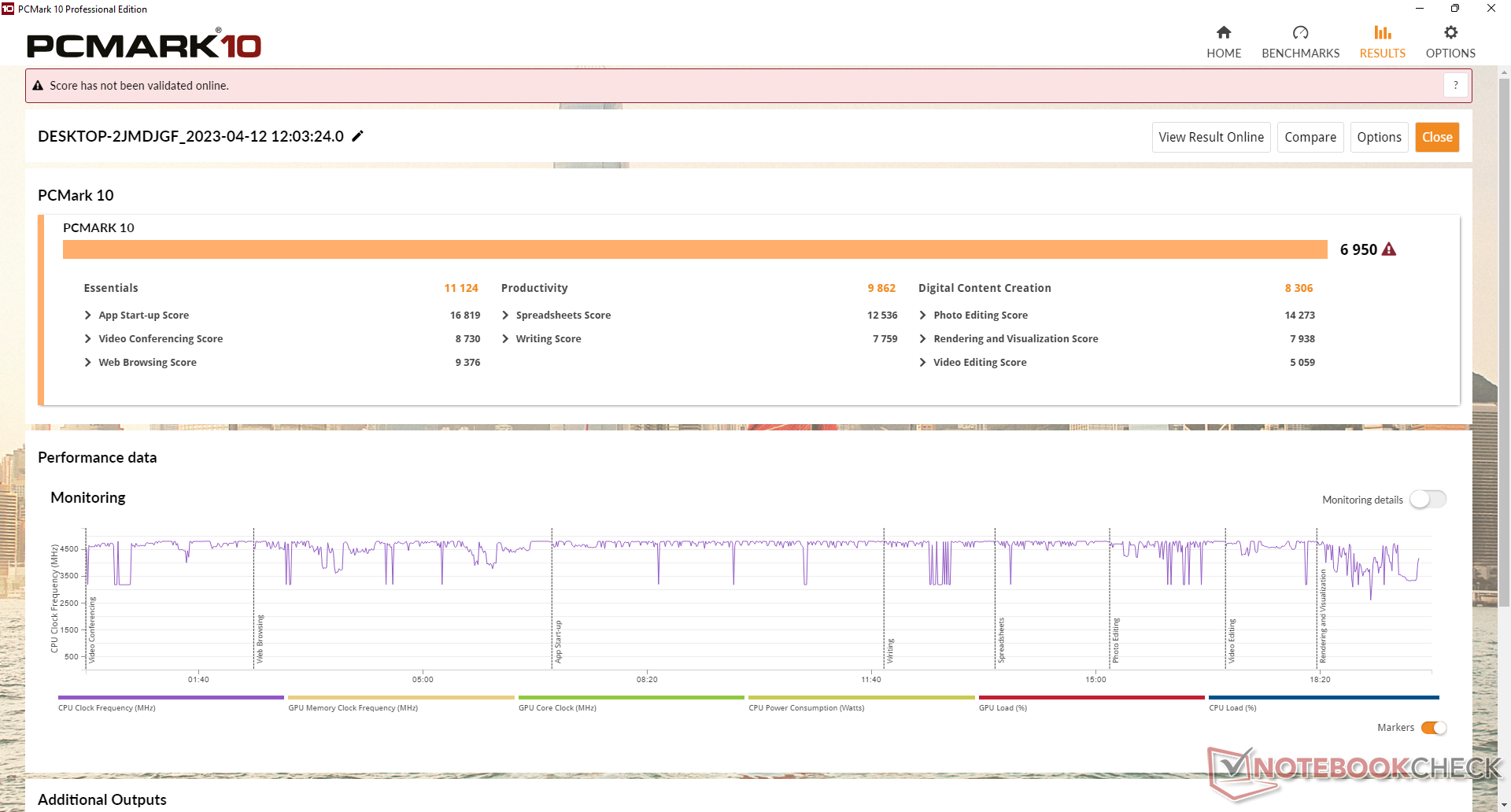

PCMark 10 / Score
Beelink GTR6 Radeon 680M, R9 6900HX, Kingston KC3000 512G SKC3000S512G	7109 Points ∼100% +2%
Minisforum Venus Series UM690 (6900HX) Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	7045 Points ∼99% +1%
Beelink SER6 Pro Ryzen 7 7735HS Radeon 680M, R7 7735HS, Kingston NV2 500GB SNV2S/500G	6950 Points ∼98%
Beelink SER6 Pro Radeon 680M, R7 6800H, Kingston NV2 500GB SNV2S/500G	6936 Points ∼98% 0%
Average AMD Ryzen 7 7735HS, AMD Radeon 680M (6767 - 6950, n=2)	6859 Points ∼96% -1%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	6281 Points ∼88% -10%
Intel NUC 12 Pro Kit NUC12WSBi5 Iris Xe G7 80EUs, i5-1240P, Lexar 512GB NM6A1 LNM6A1X512G-HNNG	5331 Points ∼75% -23%

PCMark 10 / Essentials
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	11596 Points ∼100% +4%
Beelink GTR6 Radeon 680M, R9 6900HX, Kingston KC3000 512G SKC3000S512G	11323 Points ∼98% +2%
Beelink SER6 Pro Radeon 680M, R7 6800H, Kingston NV2 500GB SNV2S/500G	11158 Points ∼96% 0%
Beelink SER6 Pro Ryzen 7 7735HS Radeon 680M, R7 7735HS, Kingston NV2 500GB SNV2S/500G	11124 Points ∼96%
Average AMD Ryzen 7 7735HS, AMD Radeon 680M (10726 - 11124, n=2)	10925 Points ∼94% -2%
Minisforum Venus Series UM690 (6900HX) Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	10838 Points ∼93% -3%
Intel NUC 12 Pro Kit NUC12WSBi5 Iris Xe G7 80EUs, i5-1240P, Lexar 512GB NM6A1 LNM6A1X512G-HNNG	10652 Points ∼92% -4%

PCMark 10 / Productivity
Beelink GTR6 Radeon 680M, R9 6900HX, Kingston KC3000 512G SKC3000S512G	10210 Points ∼100% +4%
Minisforum Venus Series UM690 (6900HX) Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	10060 Points ∼99% +2%
Beelink SER6 Pro Ryzen 7 7735HS Radeon 680M, R7 7735HS, Kingston NV2 500GB SNV2S/500G	9862 Points ∼97%
Beelink SER6 Pro Radeon 680M, R7 6800H, Kingston NV2 500GB SNV2S/500G	9759 Points ∼96% -1%
Average AMD Ryzen 7 7735HS, AMD Radeon 680M (9270 - 9862, n=2)	9566 Points ∼94% -3%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	7893 Points ∼77% -20%
Intel NUC 12 Pro Kit NUC12WSBi5 Iris Xe G7 80EUs, i5-1240P, Lexar 512GB NM6A1 LNM6A1X512G-HNNG	7058 Points ∼69% -28%

PCMark 10 / Digital Content Creation
Minisforum Venus Series UM690 (6900HX) Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	8703 Points ∼100% +5%
Beelink GTR6 Radeon 680M, R9 6900HX, Kingston KC3000 512G SKC3000S512G	8432 Points ∼97% +2%
Average AMD Ryzen 7 7735HS, AMD Radeon 680M (8306 - 8460, n=2)	8383 Points ∼96% +1%
Beelink SER6 Pro Radeon 680M, R7 6800H, Kingston NV2 500GB SNV2S/500G	8319 Points ∼96% 0%
Beelink SER6 Pro Ryzen 7 7735HS Radeon 680M, R7 7735HS, Kingston NV2 500GB SNV2S/500G	8306 Points ∼95%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	7348 Points ∼84% -12%
Intel NUC 12 Pro Kit NUC12WSBi5 Iris Xe G7 80EUs, i5-1240P, Lexar 512GB NM6A1 LNM6A1X512G-HNNG	5469 Points ∼63% -34%

CrossMark / Overall
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1810 Points ∼100% +4%
Beelink SER6 Pro Ryzen 7 7735HS Radeon 680M, R7 7735HS, Kingston NV2 500GB SNV2S/500G	1736 Points ∼96%
Minisforum Venus Series UM690 (6900HX) Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	1731 Points ∼96% 0%
Beelink SER6 Pro Radeon 680M, R7 6800H, Kingston NV2 500GB SNV2S/500G	1704 Points ∼94% -2%
Beelink GTR6 Radeon 680M, R9 6900HX, Kingston KC3000 512G SKC3000S512G	1691 Points ∼93% -3%
Average AMD Ryzen 7 7735HS, AMD Radeon 680M (1514 - 1736, n=2)	1625 Points ∼90% -6%

CrossMark / Productivity
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1740 Points ∼100% +1%
Minisforum Venus Series UM690 (6900HX) Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	1738 Points ∼100% +1%
Beelink SER6 Pro Ryzen 7 7735HS Radeon 680M, R7 7735HS, Kingston NV2 500GB SNV2S/500G	1721 Points ∼99%
Beelink GTR6 Radeon 680M, R9 6900HX, Kingston KC3000 512G SKC3000S512G	1701 Points ∼98% -1%
Beelink SER6 Pro Radeon 680M, R7 6800H, Kingston NV2 500GB SNV2S/500G	1674 Points ∼96% -3%
Average AMD Ryzen 7 7735HS, AMD Radeon 680M (1502 - 1721, n=2)	1612 Points ∼93% -6%

CrossMark / Creativity
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1970 Points ∼100% +10%
Beelink SER6 Pro Ryzen 7 7735HS Radeon 680M, R7 7735HS, Kingston NV2 500GB SNV2S/500G	1785 Points ∼91%
Beelink SER6 Pro Radeon 680M, R7 6800H, Kingston NV2 500GB SNV2S/500G	1763 Points ∼89% -1%
Minisforum Venus Series UM690 (6900HX) Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	1745 Points ∼89% -2%
Average AMD Ryzen 7 7735HS, AMD Radeon 680M (1629 - 1785, n=2)	1707 Points ∼87% -4%
Beelink GTR6 Radeon 680M, R9 6900HX, Kingston KC3000 512G SKC3000S512G	1698 Points ∼86% -5%

CrossMark / Responsiveness
Minisforum Venus Series UM690 (6900HX) Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	1671 Points ∼100% +2%
Beelink SER6 Pro Ryzen 7 7735HS Radeon 680M, R7 7735HS, Kingston NV2 500GB SNV2S/500G	1640 Points ∼98%
Beelink GTR6 Radeon 680M, R9 6900HX, Kingston KC3000 512G SKC3000S512G	1639 Points ∼98% 0%
Beelink SER6 Pro Radeon 680M, R7 6800H, Kingston NV2 500GB SNV2S/500G	1625 Points ∼97% -1%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1578 Points ∼94% -4%
Average AMD Ryzen 7 7735HS, AMD Radeon 680M (1247 - 1640, n=2)	1444 Points ∼86% -12%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, Radeon 680M	51235 MB/s ∼100%
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	51186 MB/s ∼100% 0%
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	50935 MB/s ∼99% -1%
Average AMD Ryzen 7 7735HS (48432 - 52012, n=5)	50440 MB/s ∼98% -2%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, Radeon 680M	47938 MB/s ∼94% -6%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	44892 MB/s ∼88% -12%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Iris Xe G7 80EUs	43747 MB/s ∼85% -15%

AIDA64 / Memory Read
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	51869 MB/s ∼100% 0%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, Radeon 680M	51856 MB/s ∼100%
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	51679 MB/s ∼100% 0%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, Radeon 680M	49936 MB/s ∼96% -4%
Average AMD Ryzen 7 7735HS (44837 - 51856, n=5)	48433 MB/s ∼93% -7%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Iris Xe G7 80EUs	47347 MB/s ∼91% -9%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	45196 MB/s ∼87% -13%

AIDA64 / Memory Write
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	55316 MB/s ∼100% 0%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, Radeon 680M	55284 MB/s ∼100%
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	55238 MB/s ∼100% 0%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, Radeon 680M	54750 MB/s ∼99% -1%
Average AMD Ryzen 7 7735HS (51089 - 55284, n=5)	53495 MB/s ∼97% -3%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Iris Xe G7 80EUs	46768 MB/s ∼85% -15%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	46179 MB/s ∼83% -16%

AIDA64 / Memory Latency
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	96.1 ns * ∼100% -16%
Average AMD Ryzen 7 7735HS (82.2 - 109.7, n=5)	92.2 ns * ∼96% -12%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Iris Xe G7 80EUs	90.3 ns * ∼94% -9%
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	83.5 ns * ∼87% -1%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, Radeon 680M	83 ns * ∼86% -1%
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	82.9 ns * ∼86% -0%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, Radeon 680M	82.5 ns * ∼86%

* ... im mniej tym lepiej

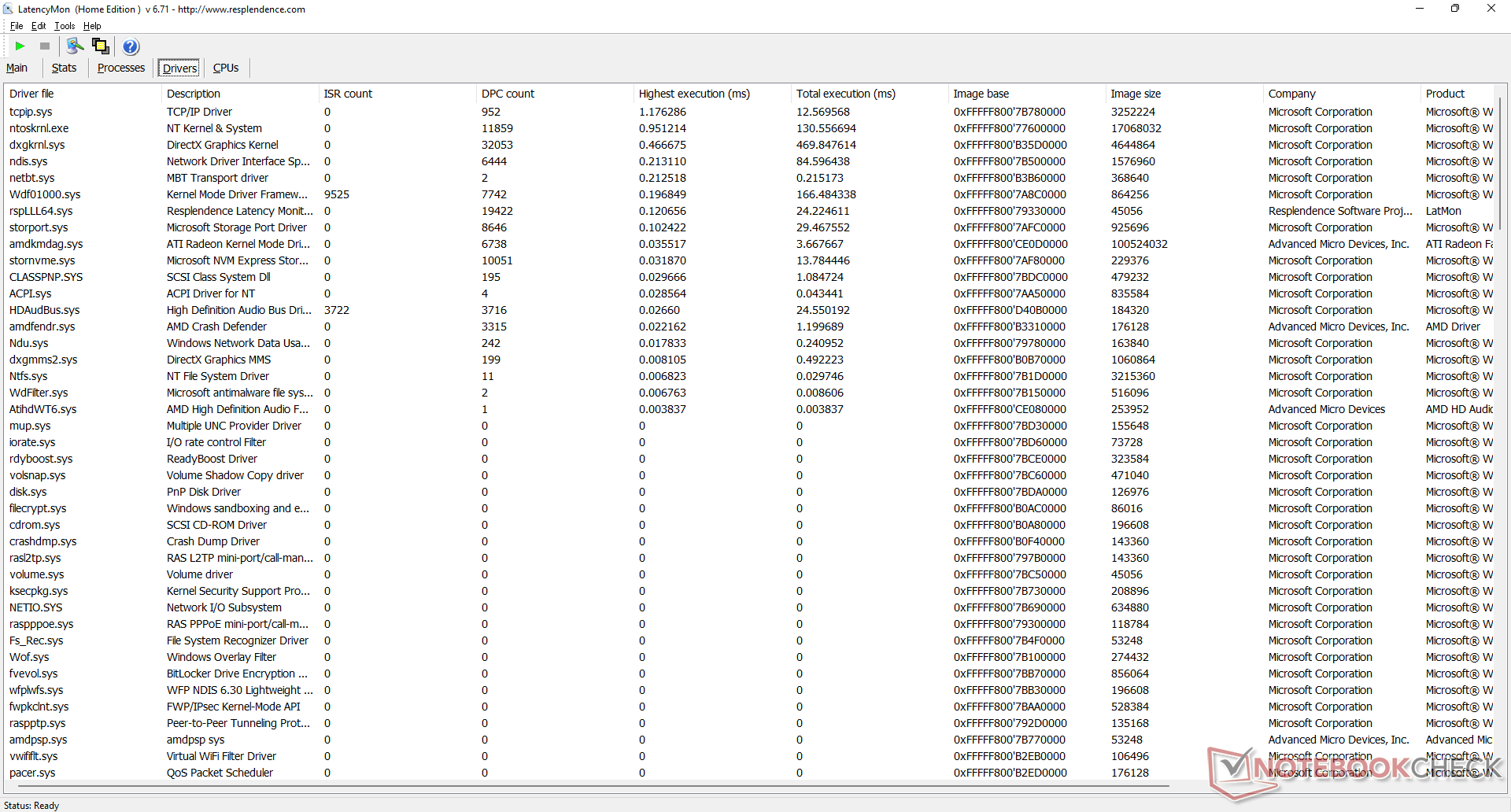

Opóźnienie DPC

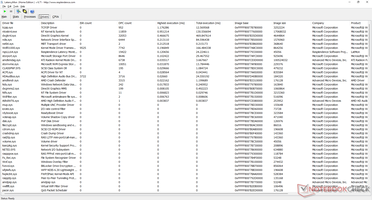

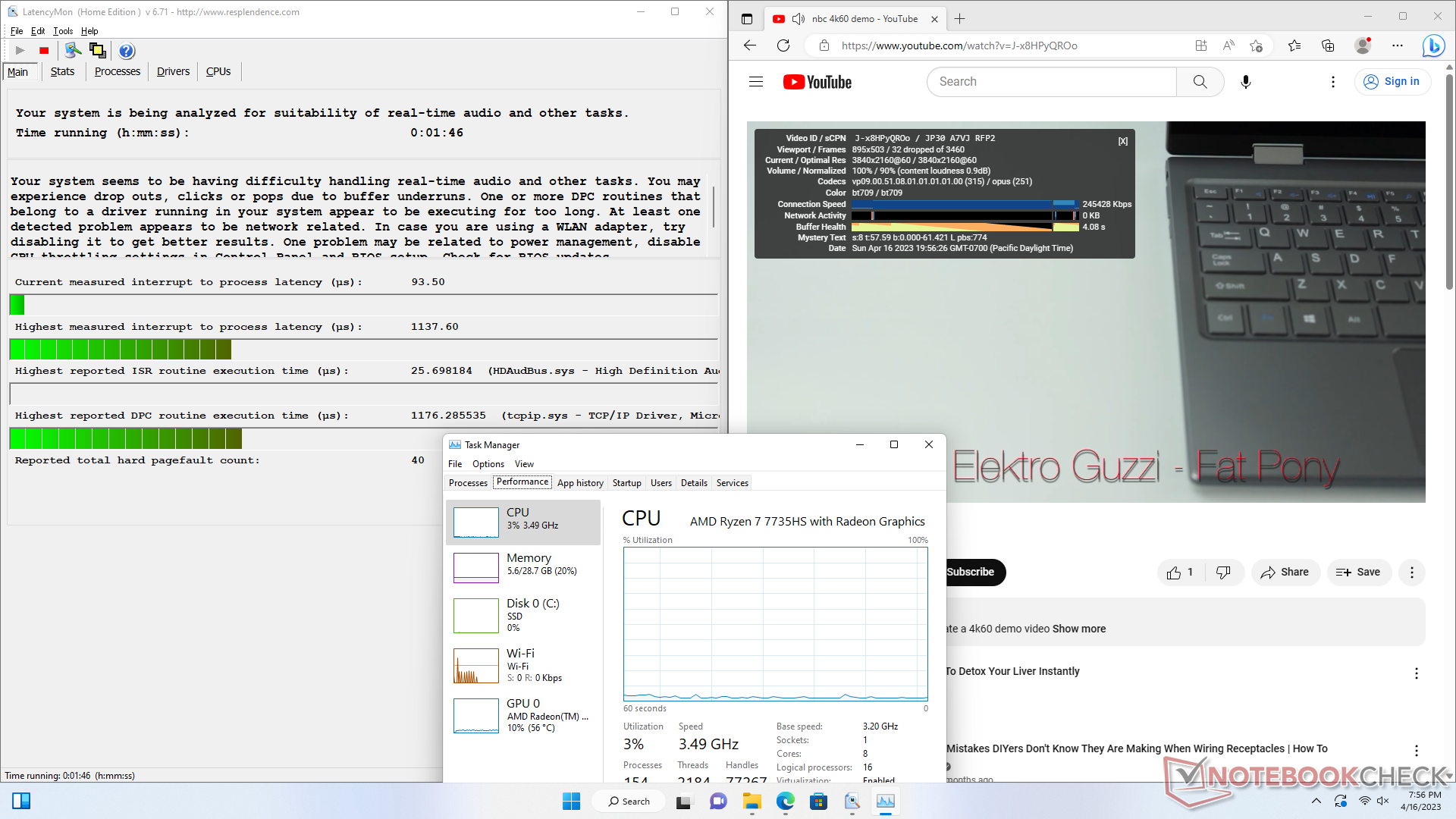

LatencyMon ujawnia problemy z DPC podczas otwierania wielu kart przeglądarki na naszej stronie głównej. Dodatkowo, nasze urządzenie wykazywało problemy z odtwarzaniem wideo 4K60 z 32 opuszczonymi klatkami podczas naszego minutowego filmu testowego.

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minisforum Venus Series UM690 (6900HX) Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	1488 μs * ∼100% -31%
Beelink SER6 Pro Radeon 680M, R7 6800H, Kingston NV2 500GB SNV2S/500G	1329 μs * ∼89% -17%
Beelink SER6 Pro Ryzen 7 7735HS Radeon 680M, R7 7735HS, Kingston NV2 500GB SNV2S/500G	1137.6 μs * ∼76%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1087 μs * ∼73% +4%
Intel NUC 12 Pro Kit NUC12WSBi5 Iris Xe G7 80EUs, i5-1240P, Lexar 512GB NM6A1 LNM6A1X512G-HNNG	883.4 μs * ∼59% +22%
Beelink GTR6 Radeon 680M, R9 6900HX, Kingston KC3000 512G SKC3000S512G	509.9 μs * ∼34% +55%

* ... im mniej tym lepiej

Urządzenia do przechowywania danych

Nasza jednostka 2023 SER6 Pro jest wyposażona w ten sam Kingston NV2 500GB SNV2S/500G, który znajduje się w zeszłorocznym modelu.

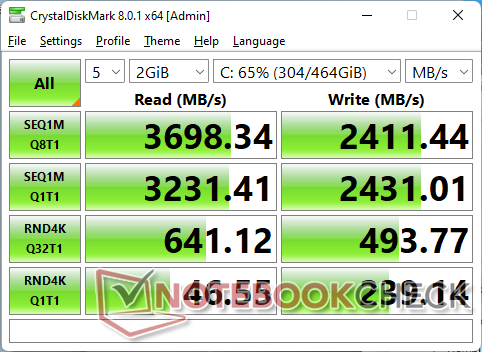

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

Kingston NV2 500GB SNV2S/500G

CDM 5/6 Read Seq Q32T1: 3621 MB/s

CDM 5/6 Write Seq Q32T1: 2456 MB/s

CDM 5/6 Read 4K Q32T1: 634.9 MB/s

CDM 5/6 Write 4K Q32T1: 494.3 MB/s

CDM 5 Read Seq: 2906 MB/s

CDM 5 Write Seq: 2465 MB/s

CDM 5/6 Read 4K: 44.56 MB/s

CDM 5/6 Write 4K: 237.5 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	93.3 pt ∼93%
Minisforum Venus Series UM690 (6900HX) Kingston OM8PGP4512Q-A0	86.2 pt ∼86%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	75.1 pt ∼75%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	57.4 pt ∼57%
Beelink SER6 Pro Ryzen 7 7735HS Kingston NV2 500GB SNV2S/500G	51.5 pt ∼52%
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	48.9 pt ∼49%

DiskSpd
seq read
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	4168 (3579.63^min - 4168.09^max) MB/s ∼100% +80%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3375 (3310.44^min - 3375.33^max) MB/s ∼81% +46%
Minisforum Venus Series UM690 (6900HX) Kingston OM8PGP4512Q-A0	3195 (3147.62^min - 3194.91^max) MB/s ∼77% +38%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	3074 (3056.63^min - 3074.49^max) MB/s ∼74% +33%
Beelink SER6 Pro Ryzen 7 7735HS Kingston NV2 500GB SNV2S/500G	2312 (2299.53^min - 2312.11^max) MB/s ∼55%
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	938 (893.07^min - 938.27^max) MB/s ∼23% -59%
seq write
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	3938 (3783.49^min - 3937.52^max) MB/s ∼100% +76%
Minisforum Venus Series UM690 (6900HX) Kingston OM8PGP4512Q-A0	3539 (3516.6^min - 3538.94^max) MB/s ∼90% +58%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3360 (1416.73^min - 3360.47^max) MB/s ∼85% +50%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	2277 (2253.07^min - 2277.24^max) MB/s ∼58% +2%
Beelink SER6 Pro Ryzen 7 7735HS Kingston NV2 500GB SNV2S/500G	2243 (2200.96^min - 2243.2^max) MB/s ∼57%
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	1128 (693.82^min - 1128.11^max) MB/s ∼29% -50%
seq q8 t1 read
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	7061 (6122.84^min - 7060.97^max) MB/s ∼100% +148%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	6729 (6134.8^min - 6728.5^max) MB/s ∼95% +136%
Minisforum Venus Series UM690 (6900HX) Kingston OM8PGP4512Q-A0	4820 (3819.87^min - 4820.3^max) MB/s ∼68% +69%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	3553 (3164.22^min - 3552.99^max) MB/s ∼50% +25%
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	3508 (3328.18^min - 3507.7^max) MB/s ∼50% +23%
Beelink SER6 Pro Ryzen 7 7735HS Kingston NV2 500GB SNV2S/500G	2849 (2731.13^min - 2849.44^max) MB/s ∼40%
seq q8 t1 write
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	3938 (3914.12^min - 3937.52^max) MB/s ∼100% +79%
Minisforum Venus Series UM690 (6900HX) Kingston OM8PGP4512Q-A0	3536 (3475.82^min - 3536.01^max) MB/s ∼90% +61%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	2830 (1138.15^min - 2830.32^max) MB/s ∼72% +29%
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	2615 (711.82^min - 2614.74^max) MB/s ∼66% +19%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	2271 (2252.65^min - 2271.35^max) MB/s ∼58% +3%
Beelink SER6 Pro Ryzen 7 7735HS Kingston NV2 500GB SNV2S/500G	2195 (2178.89^min - 2194.65^max) MB/s ∼56%
4k q1 t1 read
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	80.4 (79.66^min - 80.38^max) MB/s ∼100% +101%
Minisforum Venus Series UM690 (6900HX) Kingston OM8PGP4512Q-A0	70.8 (63.28^min - 70.81^max) MB/s ∼88% +77%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	51.8 (51.62^min - 51.84^max) MB/s ∼64% +30%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	42.6 (42.44^min - 42.57^max) MB/s ∼53% +7%
Beelink SER6 Pro Ryzen 7 7735HS Kingston NV2 500GB SNV2S/500G	40 (39.84^min - 39.95^max) MB/s ∼50%
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	38.7 (22.67^min - 38.7^max) MB/s ∼48% -3%
4k q1 t1 write
Minisforum Venus Series UM690 (6900HX) Kingston OM8PGP4512Q-A0	288 (287.39^min - 288.47^max) MB/s ∼100% +15%
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	284 (282.24^min - 284.12^max) MB/s ∼99% +14%
Beelink SER6 Pro Ryzen 7 7735HS Kingston NV2 500GB SNV2S/500G	250 (246.86^min - 249.77^max) MB/s ∼87%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	239 (236.27^min - 238.58^max) MB/s ∼83% -4%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	177.7 (176.17^min - 177.7^max) MB/s ∼62% -29%
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	160.7 (123.92^min - 160.73^max) MB/s ∼56% -36%
4k q32 t16 read
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	1942 (1940.94^min - 1941.94^max) MB/s ∼100% +58%
Minisforum Venus Series UM690 (6900HX) Kingston OM8PGP4512Q-A0	1933 (1926.8^min - 1932.75^max) MB/s ∼100% +58%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	1568 (1565.33^min - 1568.49^max) MB/s ∼81% +28%
Beelink SER6 Pro Ryzen 7 7735HS Kingston NV2 500GB SNV2S/500G	1227 (1221.9^min - 1227.11^max) MB/s ∼63%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	1225 (1194.7^min - 1224.8^max) MB/s ∼63% 0%
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	569 (455.25^min - 568.93^max) MB/s ∼29% -54%
4k q32 t16 write
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	3741 (3667.09^min - 3740.76^max) MB/s ∼100% +175%
Minisforum Venus Series UM690 (6900HX) Kingston OM8PGP4512Q-A0	3331 (2068.43^min - 3331.41^max) MB/s ∼89% +145%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	1391 (1351.44^min - 1391.2^max) MB/s ∼37% +2%
Beelink SER6 Pro Ryzen 7 7735HS Kingston NV2 500GB SNV2S/500G	1362 (1327.37^min - 1362.29^max) MB/s ∼36%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	626 (605.6^min - 625.63^max) MB/s ∼17% -54%
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	446 (240.36^min - 445.56^max) MB/s ∼12% -67%

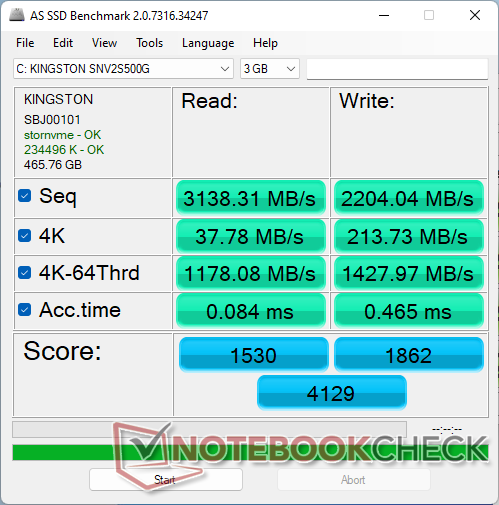

AS SSD
Score Total
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	6722 Points ∼100% +63%
Minisforum Venus Series UM690 (6900HX) Kingston OM8PGP4512Q-A0	6665 Points ∼99% +61%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	6005 Points ∼89% +45%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	4218 Points ∼63% +2%
Beelink SER6 Pro Ryzen 7 7735HS Kingston NV2 500GB SNV2S/500G	4129 Points ∼61%
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	3592 Points ∼53% -13%
Score Read
Minisforum Venus Series UM690 (6900HX) Kingston OM8PGP4512Q-A0	2352 Points ∼100% +54%
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	2207 Points ∼94% +44%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	1673 Points ∼71% +9%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	1643 Points ∼70% +7%
Beelink SER6 Pro Ryzen 7 7735HS Kingston NV2 500GB SNV2S/500G	1530 Points ∼65%
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	1233 Points ∼52% -19%
Score Write
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3574 Points ∼100% +92%
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	3477 Points ∼97% +87%
Minisforum Venus Series UM690 (6900HX) Kingston OM8PGP4512Q-A0	3145 Points ∼88% +69%
Beelink SER6 Pro Ryzen 7 7735HS Kingston NV2 500GB SNV2S/500G	1862 Points ∼52%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	1792 Points ∼50% -4%
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	1784 Points ∼50% -4%
Seq Read
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	5799.1 MB/s ∼100% +85%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	4767 MB/s ∼82% +52%
Minisforum Venus Series UM690 (6900HX) Kingston OM8PGP4512Q-A0	4050 MB/s ∼70% +29%
Beelink SER6 Pro Ryzen 7 7735HS Kingston NV2 500GB SNV2S/500G	3138.31 MB/s ∼54%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	3079.48 MB/s ∼53% -2%
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	2902.75 MB/s ∼50% -8%
Seq Write
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	3737.17 MB/s ∼100% +70%
Minisforum Venus Series UM690 (6900HX) Kingston OM8PGP4512Q-A0	3025 MB/s ∼81% +37%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	2442 MB/s ∼65% +11%
Beelink SER6 Pro Ryzen 7 7735HS Kingston NV2 500GB SNV2S/500G	2204.04 MB/s ∼59%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	1926.48 MB/s ∼52% -13%
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	1486.78 MB/s ∼40% -33%
4K Read
Minisforum Venus Series UM690 (6900HX) Kingston OM8PGP4512Q-A0	86.05 MB/s ∼100% +128%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	78.3 MB/s ∼91% +107%
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	75.39 MB/s ∼88% +100%
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	59.71 MB/s ∼69% +58%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	38.62 MB/s ∼45% +2%
Beelink SER6 Pro Ryzen 7 7735HS Kingston NV2 500GB SNV2S/500G	37.78 MB/s ∼44%
4K Write
Minisforum Venus Series UM690 (6900HX) Kingston OM8PGP4512Q-A0	240.66 MB/s ∼100% +13%
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	237.79 MB/s ∼99% +11%
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	216.44 MB/s ∼90% +1%
Beelink SER6 Pro Ryzen 7 7735HS Kingston NV2 500GB SNV2S/500G	213.73 MB/s ∼89%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	209 MB/s ∼87% -2%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	206.56 MB/s ∼86% -3%
4K-64 Read
Minisforum Venus Series UM690 (6900HX) Kingston OM8PGP4512Q-A0	1860.96 MB/s ∼100% +58%
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	1551.47 MB/s ∼83% +32%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	1296.75 MB/s ∼70% +10%
Beelink SER6 Pro Ryzen 7 7735HS Kingston NV2 500GB SNV2S/500G	1178.08 MB/s ∼63%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	1118 MB/s ∼60% -5%
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	883.18 MB/s ∼47% -25%
4K-64 Write
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3120 MB/s ∼100% +118%
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	2865.66 MB/s ∼92% +101%
Minisforum Venus Series UM690 (6900HX) Kingston OM8PGP4512Q-A0	2602.12 MB/s ∼83% +82%
Beelink SER6 Pro Ryzen 7 7735HS Kingston NV2 500GB SNV2S/500G	1427.97 MB/s ∼46%
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	1418.48 MB/s ∼45% -1%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	1392.49 MB/s ∼45% -2%
Access Time Read
Beelink SER6 Pro Ryzen 7 7735HS Kingston NV2 500GB SNV2S/500G	0.084 ms * ∼100%
Minisforum Venus Series UM690 (6900HX) Kingston OM8PGP4512Q-A0	0.065 ms * ∼77% +23%
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	0.057 ms * ∼68% +32%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	0.048 ms * ∼57% +43%
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	0.045 ms * ∼54% +46%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	0.045 ms * ∼54% +46%
Access Time Write
Beelink SER6 Pro Ryzen 7 7735HS Kingston NV2 500GB SNV2S/500G	0.465 ms * ∼100%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	0.362 ms * ∼78% +22%
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	0.129 ms * ∼28% +72%
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	0.047 ms * ∼10% +90%
Minisforum Venus Series UM690 (6900HX) Kingston OM8PGP4512Q-A0	0.031 ms * ∼7% +93%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	0.02 ms * ∼4% +96%

* ... im mniej tym lepiej

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

Beelink SER6 Pro Ryzen 7 7735HS Kingston NV2 500GB SNV2S/500G: Ø2669 (2438.83-2700.03)

Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G: Ø3043 (2655.48-3280.21)

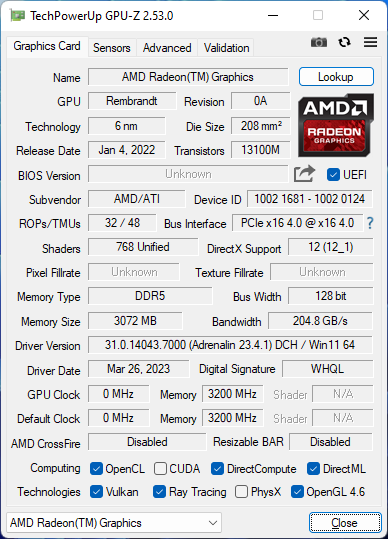

Wydajność GPU

Wydajność graficzna jest taka sama jak w zeszłorocznych procesorach Ryzen 7 6800H lub Ryzen 9 6900HX, ponieważ wszystkie te procesory wyposażone są w ten sam zintegrowany procesor graficzny Radeon 680M. Nie jest to koniecznie zła rzecz, ponieważ Radeon 680M już teraz wyprzedza Intel Iris Xe 96 EU o 40-60%, ale użytkownicy, którzy oczekiwali w tym roku jakiejś poprawy, będą zawiedzeni.

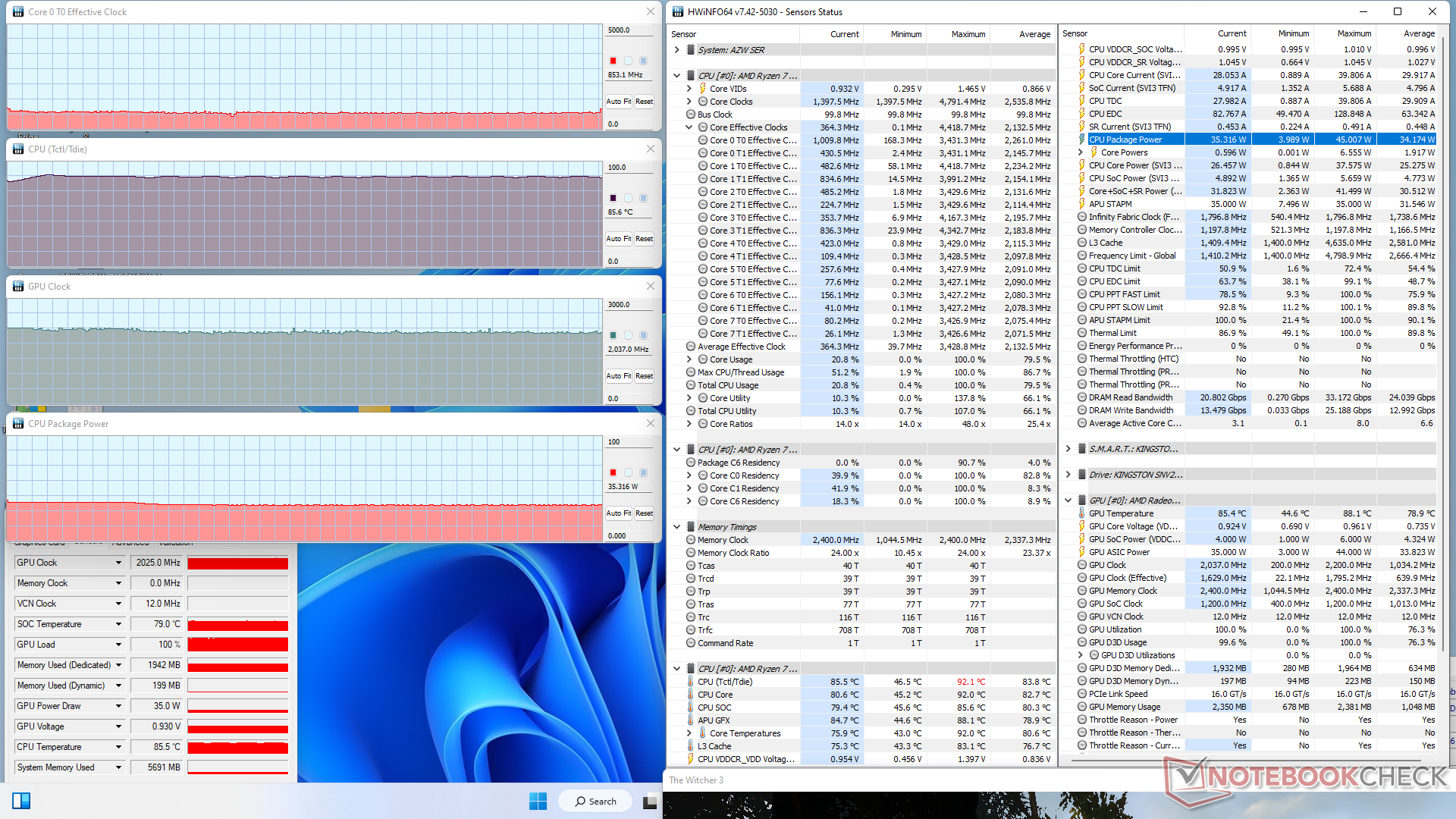

Idling na stronie Witcher 3 ujawnia problemy ze stabilnością wydajności, ponieważ liczba klatek na sekundę często spadała bez powodu, jak pokazuje nasz poniższy wykres. Takie zachowanie sugeruje, że czynności wykonywane w tle mają niewłaściwe priorytety lub że zintegrowany układ GPU ma problemy ze sterownikami. W dniu publikacji zaktualizowaliśmy nasze sterowniki Radeon do najnowszych wersji.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	99.5 pt ∼100%
Beelink SER6 Pro Ryzen 7 7735HS AMD Radeon 680M, AMD Ryzen 7 7735HS	98.7 pt ∼99%
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	98.4 pt ∼98%
Average AMD Radeon 680M	92.1 pt ∼92%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	69.1 pt ∼69%
Intel NUC Pro Chassis_i7_1265U Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	63.2 pt ∼63%
Trigkey Speed S Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	61.4 pt ∼61%
Intel NUC 12 Pro Kit NUC12WSBi5 ^-2! Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1240P	55.5 pt ∼56%
Intel NUC Pro Chassis_i5_1245U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1245U	52.6 pt ∼53%

3DMark 11 - 1280x720 Performance GPU
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	10807 Points ∼100% +1%
Beelink SER6 Pro Ryzen 7 7735HS AMD Radeon 680M, AMD Ryzen 7 7735HS	10734 Points ∼99%
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	10566 Points ∼98% -2%
Average AMD Radeon 680M (6969 - 11605, n=22)	10132 Points ∼94% -6%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	7143 Points ∼66% -33%
Trigkey Speed S Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	6423 Points ∼59% -40%
Intel NUC Pro Chassis_i7_1265U Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	6210 Points ∼57% -42%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1240P	5631 Points ∼52% -48%
Intel NUC Pro Chassis_i5_1245U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1245U	5378 Points ∼50% -50%

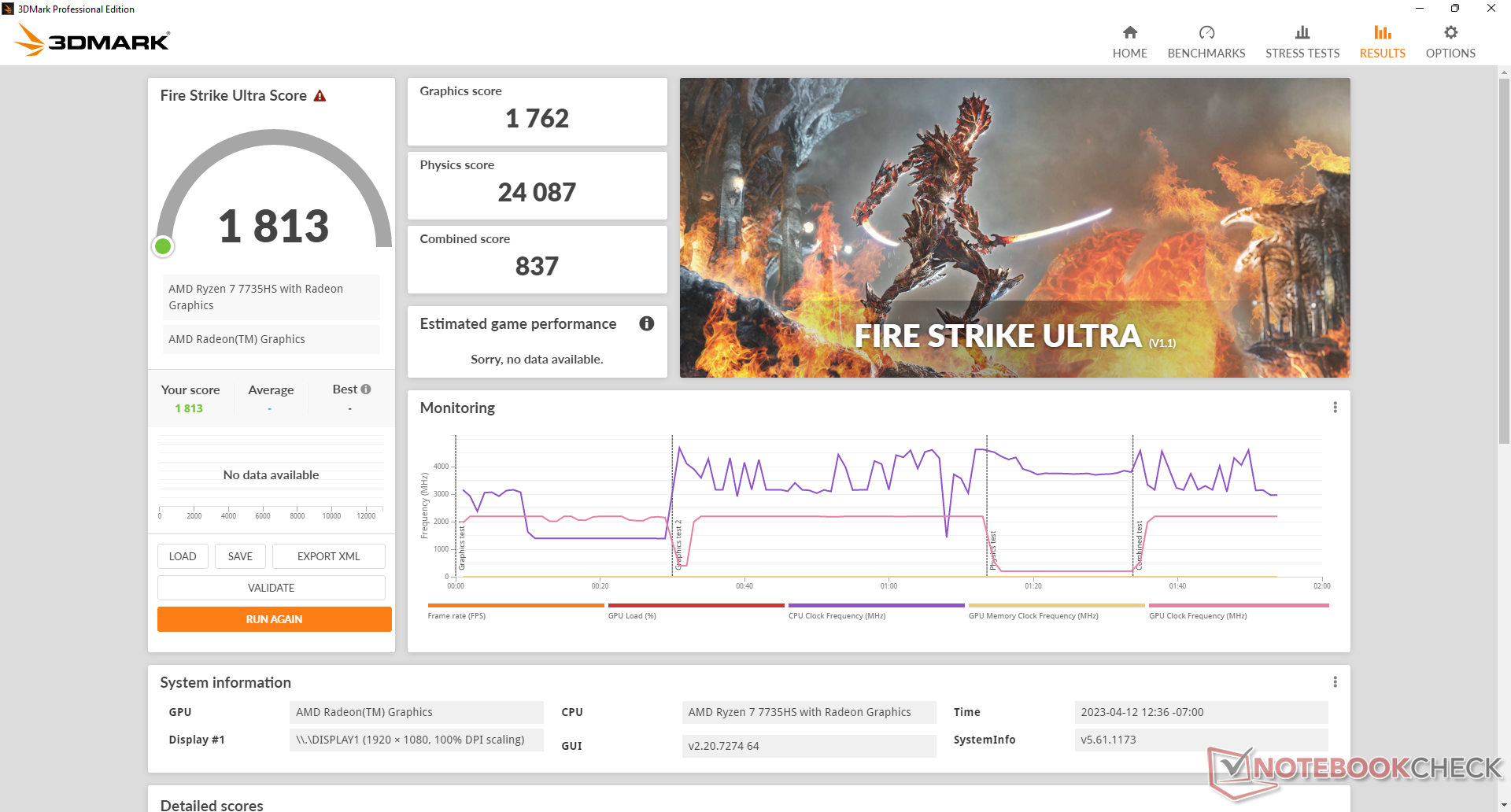

3DMark
1920x1080 Fire Strike Graphics
Beelink SER6 Pro Ryzen 7 7735HS AMD Radeon 680M, AMD Ryzen 7 7735HS	7180 Points ∼100%
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	7026 Points ∼98% -2%
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	6962 Points ∼97% -3%
Average AMD Radeon 680M (3791 - 7593, n=23)	6649 Points ∼93% -7%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	5229 Points ∼73% -27%
Intel NUC Pro Chassis_i7_1265U Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	4902 Points ∼68% -32%
Trigkey Speed S Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	4568 Points ∼64% -36%
Intel NUC Pro Chassis_i5_1245U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1245U	4249 Points ∼59% -41%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1240P	4227 Points ∼59% -41%
2560x1440 Time Spy Graphics
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	2452 Points ∼100% +2%
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	2437 Points ∼99% +2%
Beelink SER6 Pro Ryzen 7 7735HS AMD Radeon 680M, AMD Ryzen 7 7735HS	2395 Points ∼98%
Average AMD Radeon 680M (1359 - 2607, n=23)	2232 Points ∼91% -7%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1673 Points ∼68% -30%
Intel NUC Pro Chassis_i7_1265U Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	1556 Points ∼63% -35%
Trigkey Speed S Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	1508 Points ∼62% -37%
Intel NUC Pro Chassis_i5_1245U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1245U	1234 Points ∼50% -48%
2560x1440 Time Spy Score
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	2751 Points ∼100% +2%
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	2735 Points ∼99% +2%
Beelink SER6 Pro Ryzen 7 7735HS AMD Radeon 680M, AMD Ryzen 7 7735HS	2693 Points ∼98%
Average AMD Radeon 680M (1546 - 2914, n=23)	2500 Points ∼91% -7%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1907 Points ∼69% -29%
Intel NUC Pro Chassis_i7_1265U Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	1754 Points ∼64% -35%
Trigkey Speed S Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	1680 Points ∼61% -38%
Intel NUC Pro Chassis_i5_1245U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1245U	1402 Points ∼51% -48%

Performance Rating - Percent
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	99.6 pt ∼100%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	98.4 pt ∼98%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	97.3 pt ∼97%
Intel NUC Pro Chassis_i7_1265U ^-1! Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	78 pt ∼78%
Intel NUC 13 Pro Kit NUC13ANK ^-2! Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	68.2 pt ∼68%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	65.2 pt ∼65%
Intel NUC Pro Chassis_i5_1245U ^-1! Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	59.4 pt ∼59%
Intel NUC 12 Pro Kit NUC12WSBi5 ^-4! Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	46.5 pt ∼47%

The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	27.1 (24^min) fps ∼100% +8%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	27 (25^min) fps ∼100% +7%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	25.2 (23^min) fps ∼93%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	16.3 fps ∼60% -35%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	13.1 (11^min) fps ∼48% -48%

Final Fantasy XV Benchmark - 1920x1080 High Quality
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	25 fps ∼100% +1%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	24.7 fps ∼99%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	24.6 fps ∼98% 0%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	24.5 fps ∼98% -1%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	15.4 fps ∼62% -38%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	15.2 fps ∼61% -38%

Dota 2 Reborn - 1920x1080 ultra (3/3) best looking
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	73.1 (64^min) fps ∼100% 0%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, A

Cinebench R15 CPU Multi 64 Bit porównanie
HP Pavilion 11-n070eg x360 (min) N2820, HD Graphics (Bay Trail)	46
...
Beelink SER6 Pro R7 6800H, Radeon 680M	1931
Acer TravelMate P4 TMP416-51-55KN i5-1240P, Iris Xe G7 80EUs	1938
Lenovo IdeaPad Flex 5 16ABR G8 R7 7730U, Vega 8	1942
Beelink SER6 Pro Ryzen 7 7735HS R7 7735HS, Radeon 680M	1953
Huawei MateBook X Pro 2022 i7-1260P, Iris Xe G7 96EUs	1954
Beelink GTR6 R9 6900HX, Radeon 680M	1969
Lenovo ThinkBook Plus Gen3 i7-12700H, Iris Xe G7 96EUs	1972
...
AMD Ryzen 9 7950X (max) R9 7950X, NVIDIA GeForce RTX 3090	6236

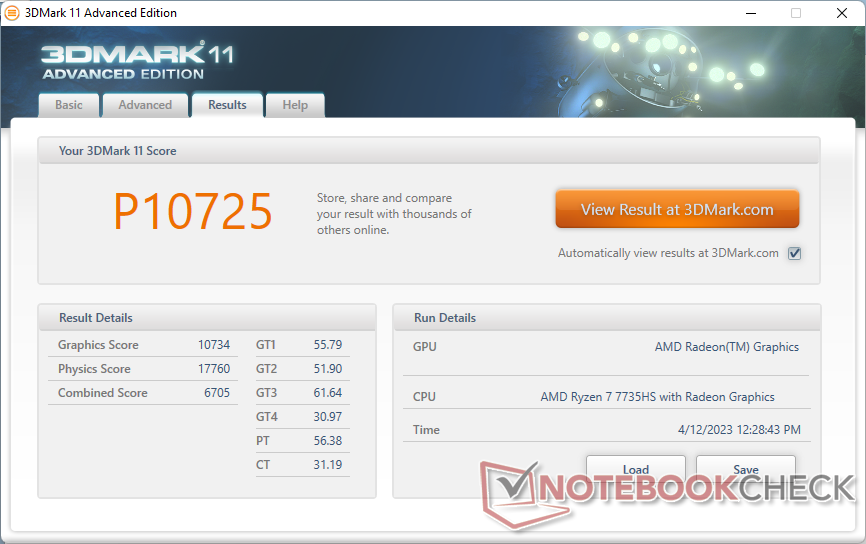

3DMark 11 Performance		10725 pkt.

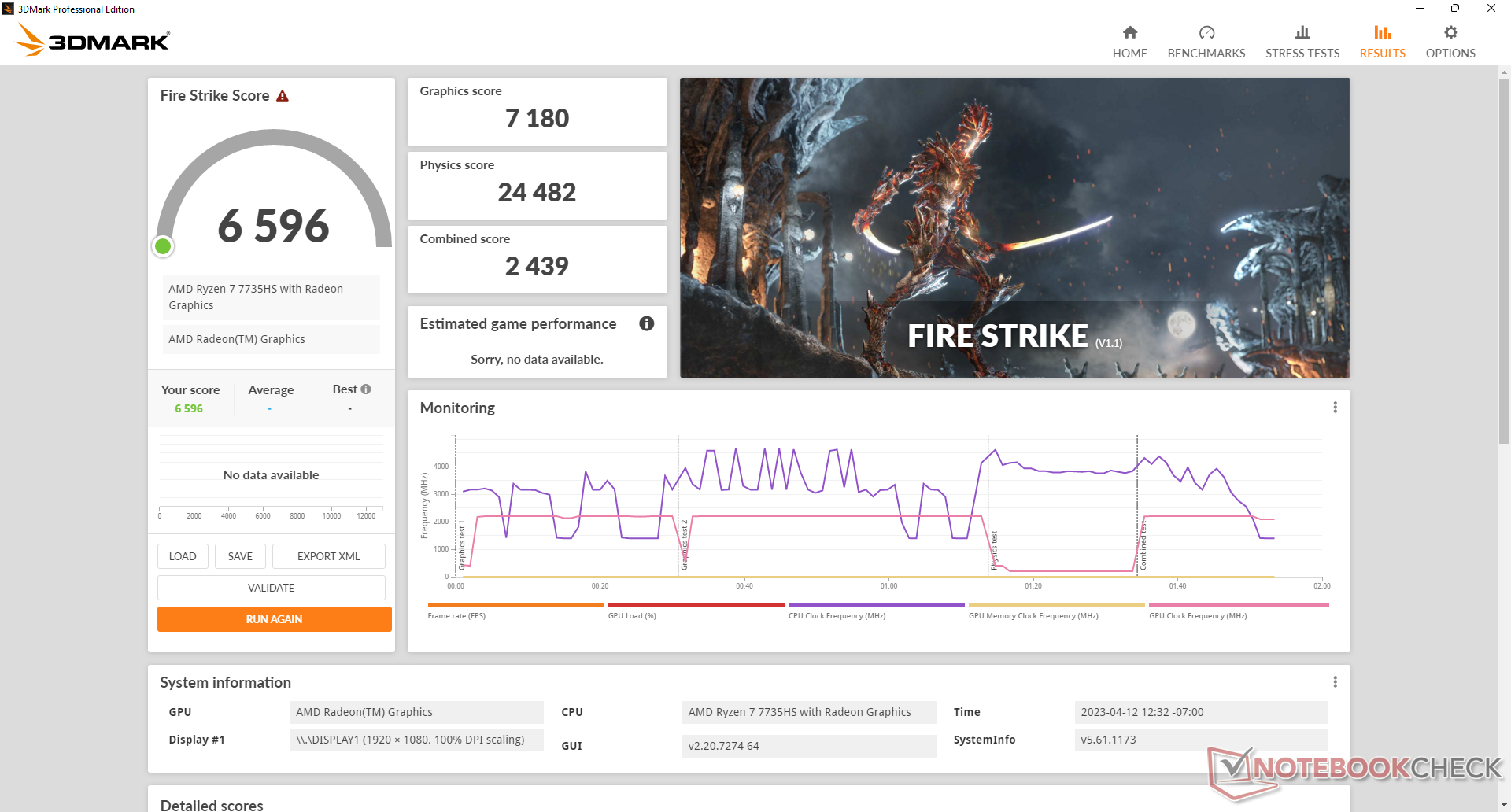

3DMark Fire Strike Score		6596 pkt.

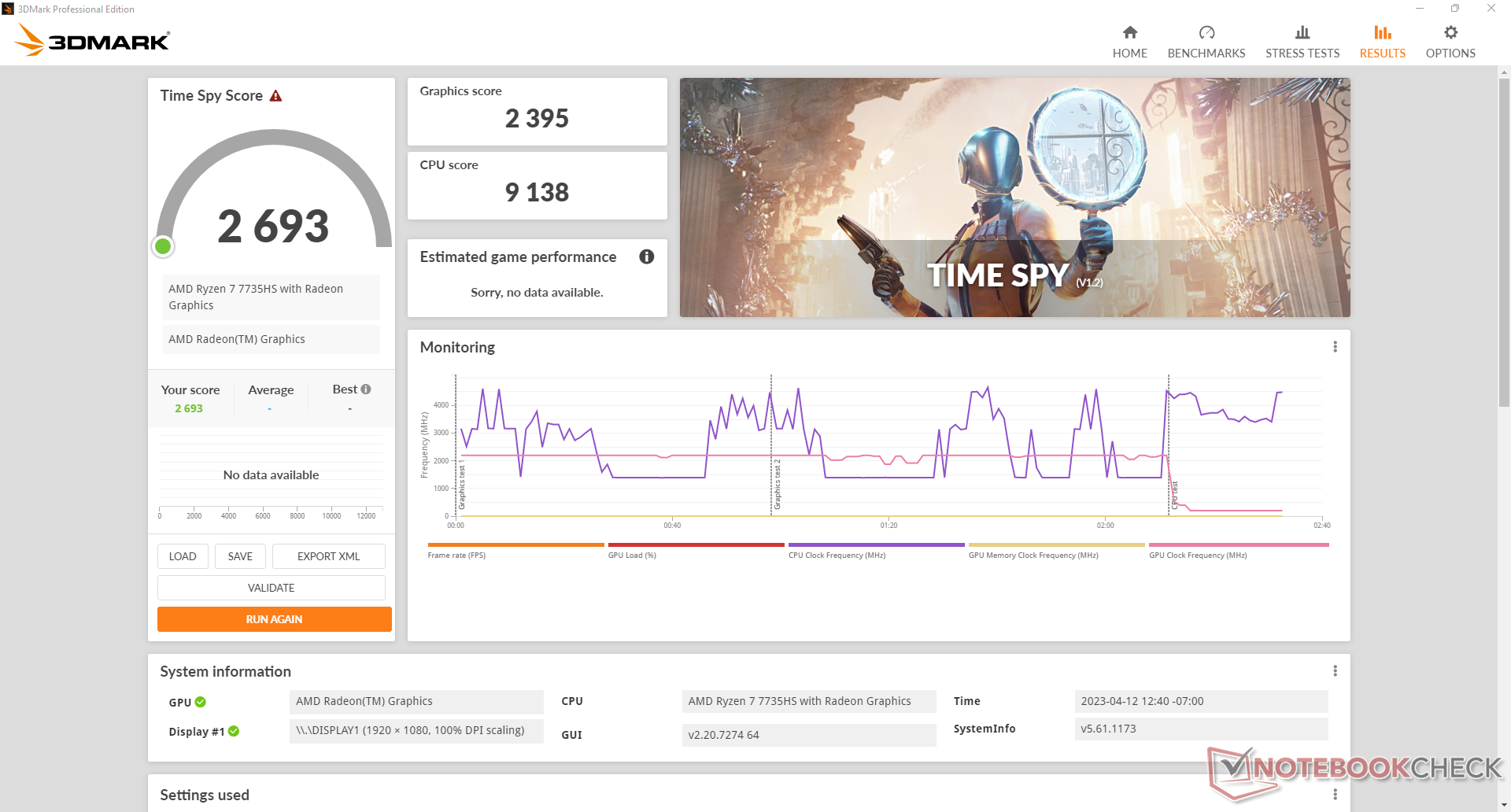

3DMark Time Spy Score		2693 pkt.
Pomoc

3DMark 11 porównanie
Asus Eee PC 1015B (min) C-50, Radeon HD 6250	187
...
Acer Aspire V17 Nitro BE VN7-793G-52XN i5-7300HQ, GeForce GTX 1060 Mobile	10386
Lenovo ThinkPad Z13 G1-21D20016GE R7 PRO 6860Z, Radeon 680M	10387
Beelink GTR6 R9 6900HX, Radeon 680M	10640
Beelink SER6 Pro Ryzen 7 7735HS R7 7735HS, Radeon 680M	10725
Beelink SER6 Pro R7 6800H, Radeon 680M	10825
Minisforum Venus Series UM690 (6900HX) R9 6900HX, Radeon 680M	10844
Gigabyte P37X 4720HQ, GeForce GTX 980M	10864
...
(max) R9 7950X, NVIDIA GeForce RTX 4090	69323

Recenzja mini PC Beelink SER6 Pro Ryzen 7 7735HS: Teraz z wbudowanym DisplayPort

Potencjalni konkurenci w porównaniu

Sprawa

Porównanie wielkości

Komunikacja

Konserwacja

Akcesoria i gwarancja

Wydajność

Warunki badania

Procesor

Cinebench R15 Multi Loop

Wydajność systemu

Opóźnienie DPC

Urządzenia do przechowywania danych

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

Wydajność GPU
