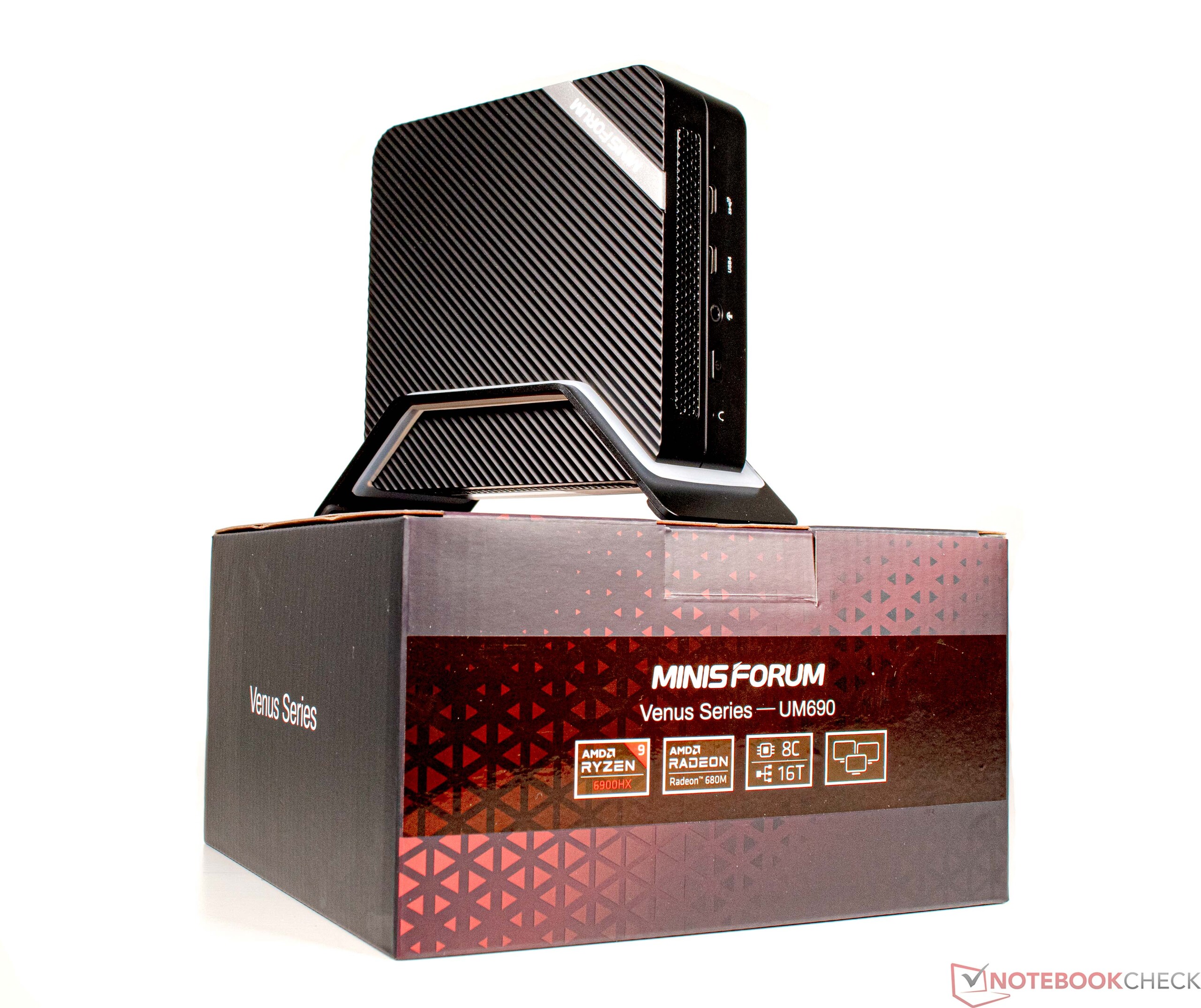

Recenzja desktopa Minisforum Venus Series UM690: mały komputer biurowy z Ryzenem 9 6900HX i USB4

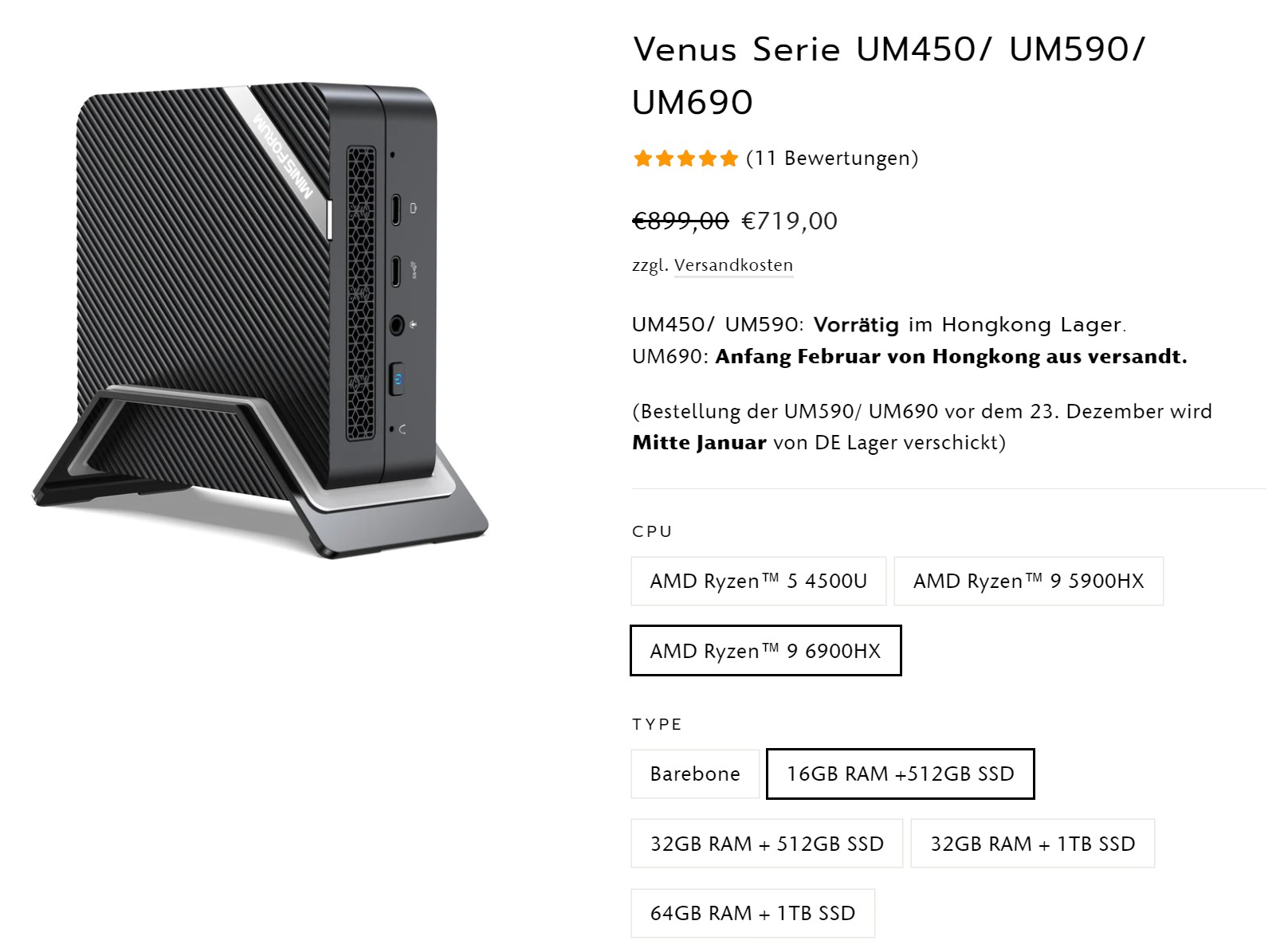

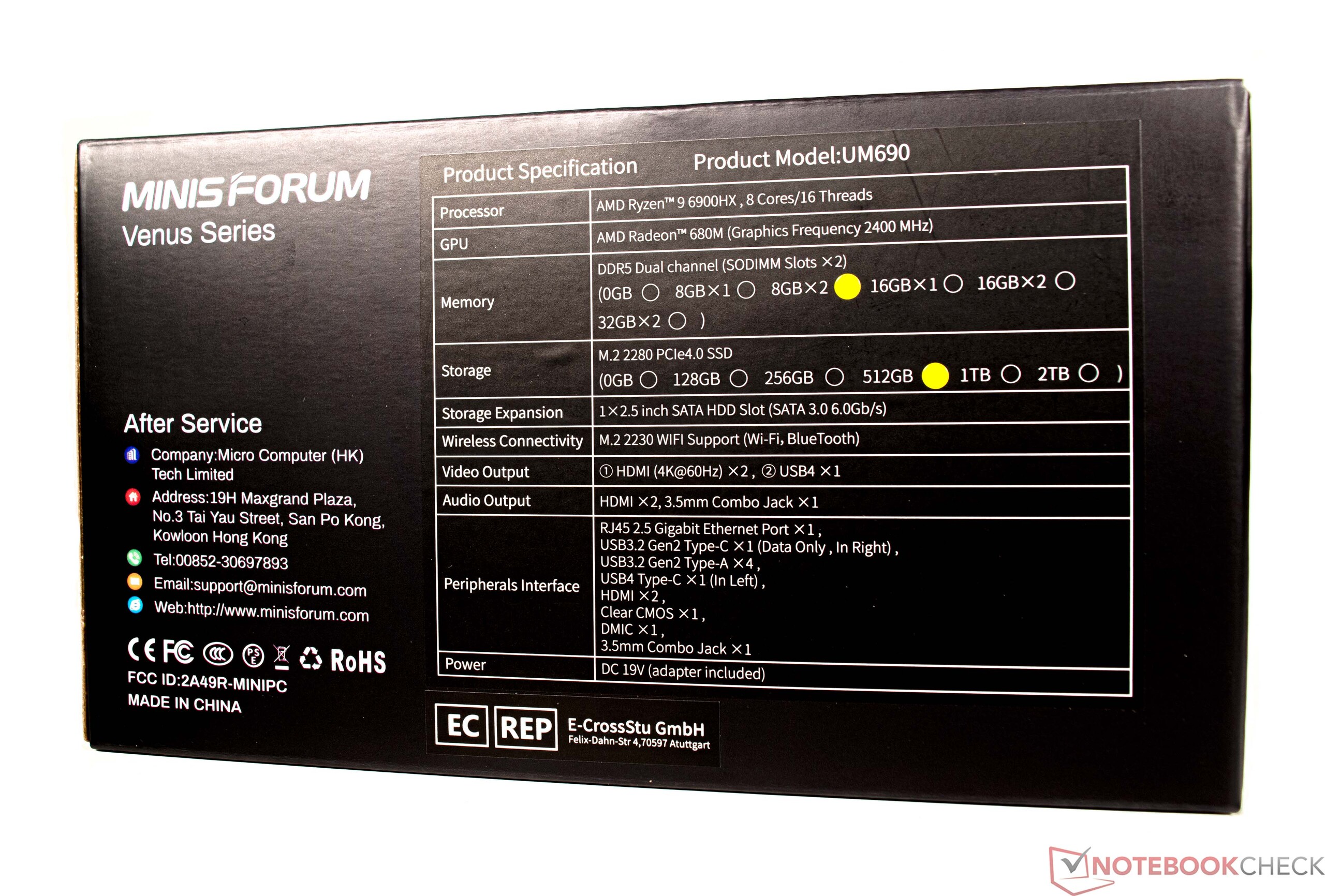

Konfiguracje Minisforum Venus Series UM690 (źródło: Minisforum)

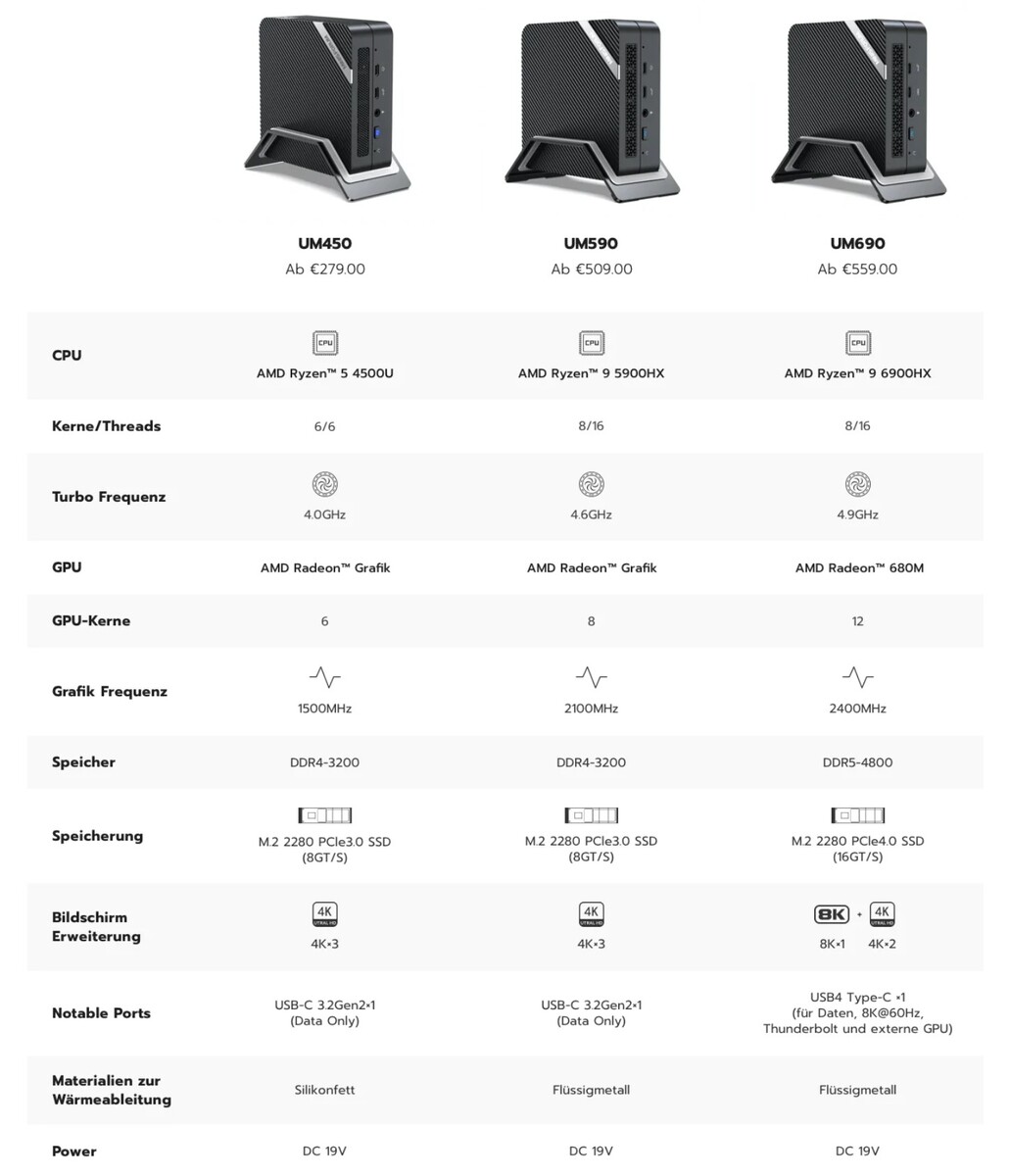

Minisforum Venus Series UM450, UM590, UM690 (źródło: Minisforum)

Miniforum ma już dobrą pozycję jako producent bardzo kompaktowych systemów desktopowych. W tej chwili w serii Venus znajdują się bardzo wydajne mini PC z najnowszymi SoC AMD Rembrandt. UM690 jest obecnie flagowym modelem w linii, ale są też nieco tańsze i mniej wydajne urządzenia, takie jak UM450 i UM590. Spoiler: już teraz możemy powiedzieć, że jesteśmy pod wrażeniem wydajności i wszechstronności UM690.

Komputer oparty jest na układzie AMD Ryzen 9 6900HX, który jest wydajnym, a zarazem bardzo szybkim procesorem z wydajną zintegrowaną grafiką - a konkretnie układem AMD Radeon 680M. APU jest flankowane przez 16 GB pamięci DDR5, czyli najnowszy standard, oraz dysk SSD o pojemności 512 GB. Minisforum Venus Series UM690 jest również dostępny jako zestaw barebones bez pamięci RAM i pamięci masowej. Użytkownicy będą musieli osobno dokupić licencję na system Windows. Ceny UM690 zaczynają się obecnie od 559 euro (499 dolarów), a nasz model recenzencki kosztuje 719 euro (649 dolarów). Minisforum Venus Series UM690 można skonfigurować z maksymalnie 64 GB pamięci RAM i dyskiem SSD o pojemności 1 TB.

W niniejszej recenzji zamierzamy porównać UM690 z innymi bardzo kompaktowymi komputerami stacjonarnymi. Poniższa tabela pozwoli Wam zapoznać się z urządzeniami w zestawieniu.

Rating	Date	Model	Weight	Height
86.1 %	02/2023	Minisforum Venus Series UM690 (6900HX) R9 6900HX, Radeon 680M	621 g	48 mm
		Morefine S500+ R9 5900HX, Vega 8	697 g	40 mm
		Minisforum EliteMini B550 R7 5700G, Vega 8	1.1 kg	67 mm
	10/2022	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs	586 g	53 mm
	10/2022	Morefine S600-Apex Engineer i9-12900HK, Iris Xe G7 96EUs	795 g	63.5 mm
86.6 %	01/2023	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	1.2 kg	66 mm
78.9 %	11/2022	Intel NUC 12 Pro Kit NUC12WSKi7 i7-1260P, Iris Xe G7 96EUs	511 g	37 mm

Sprawa

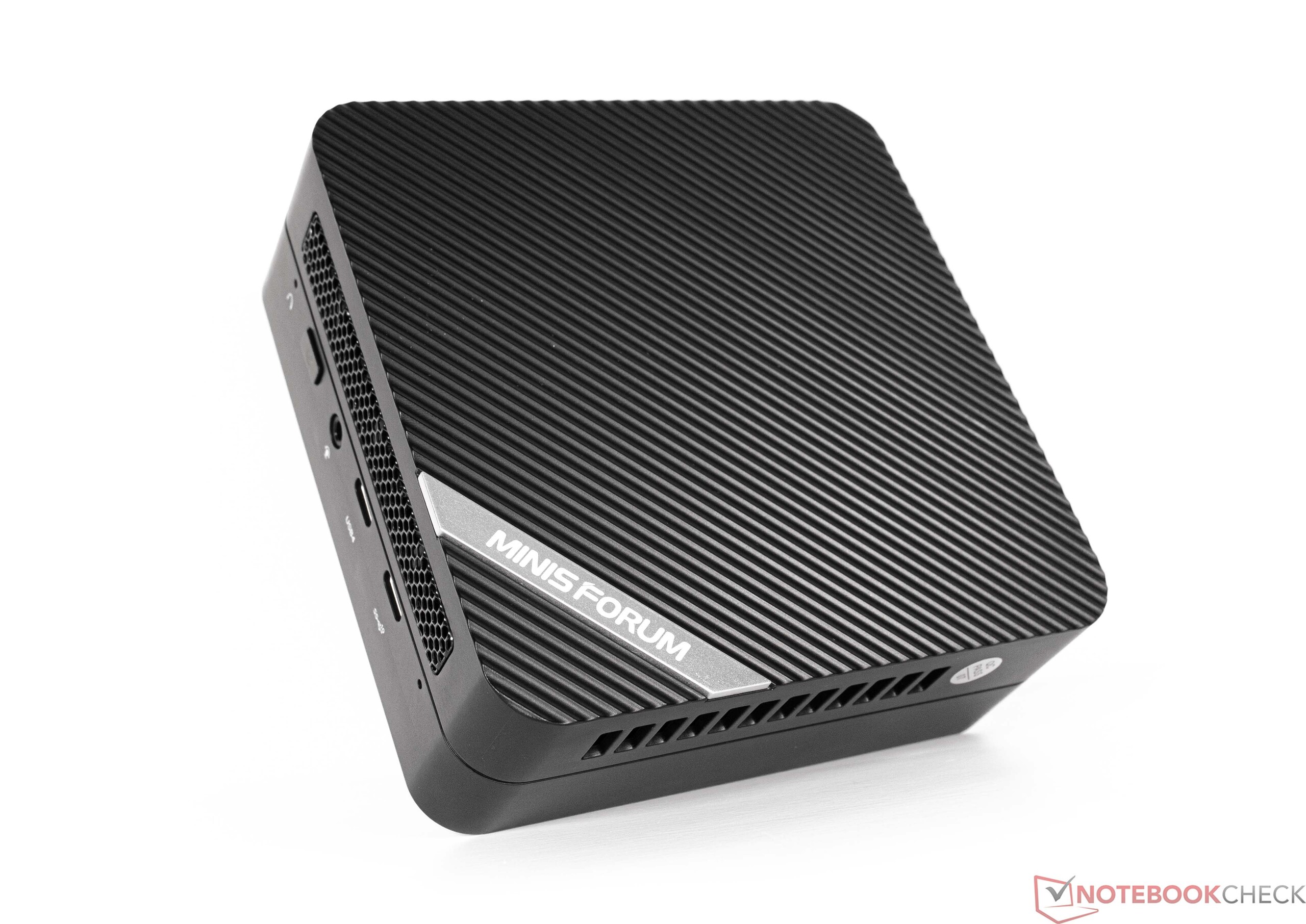

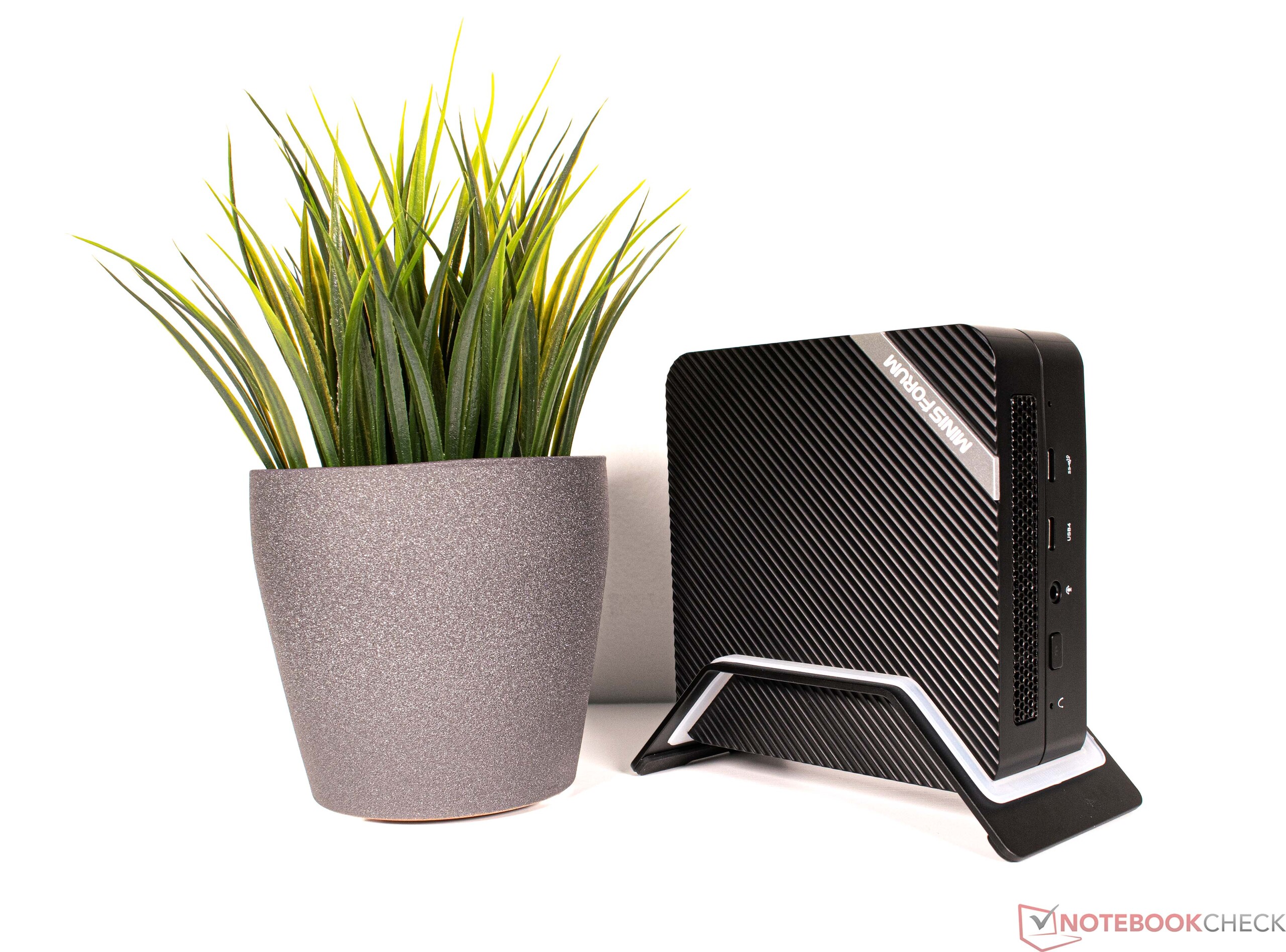

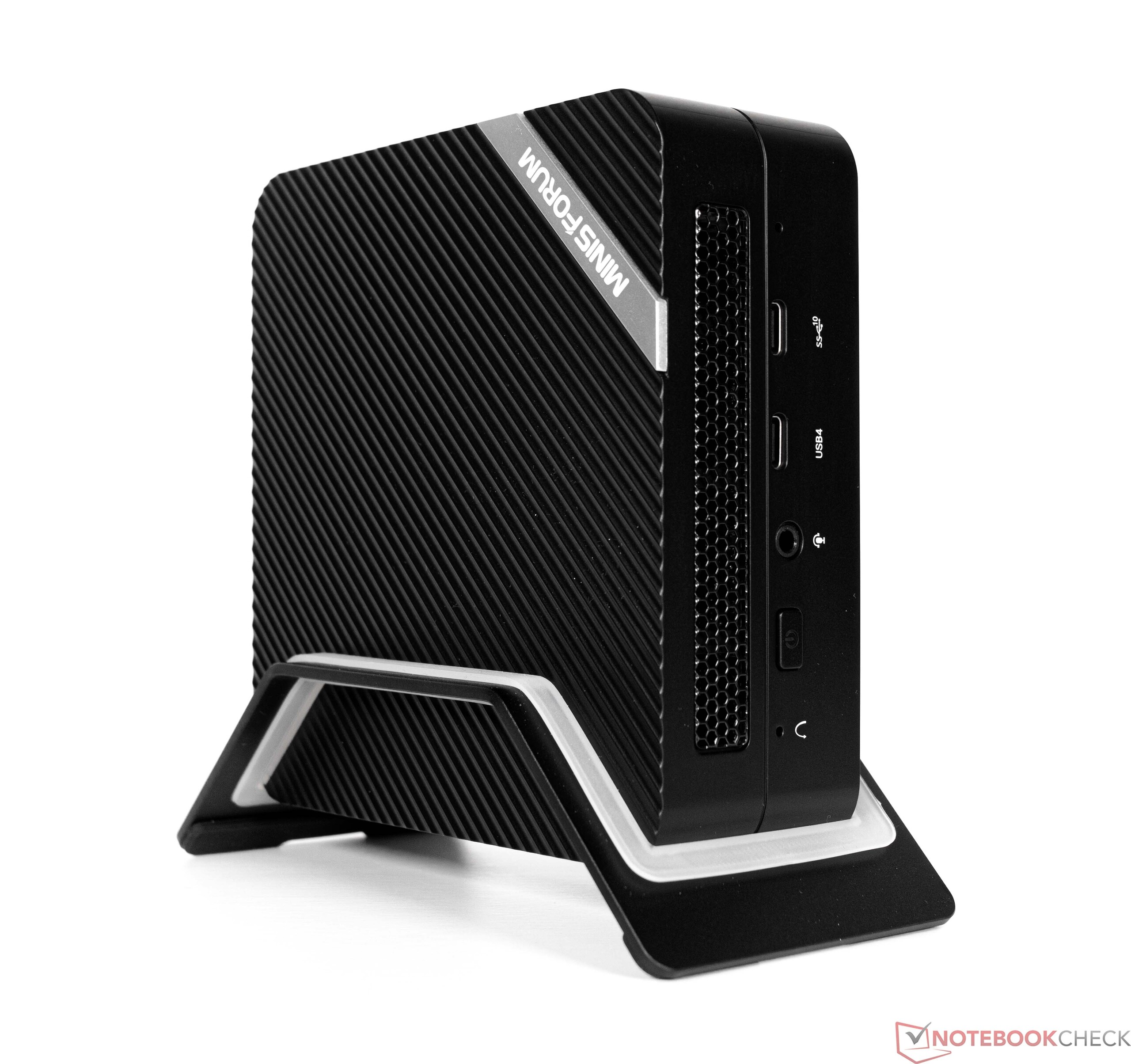

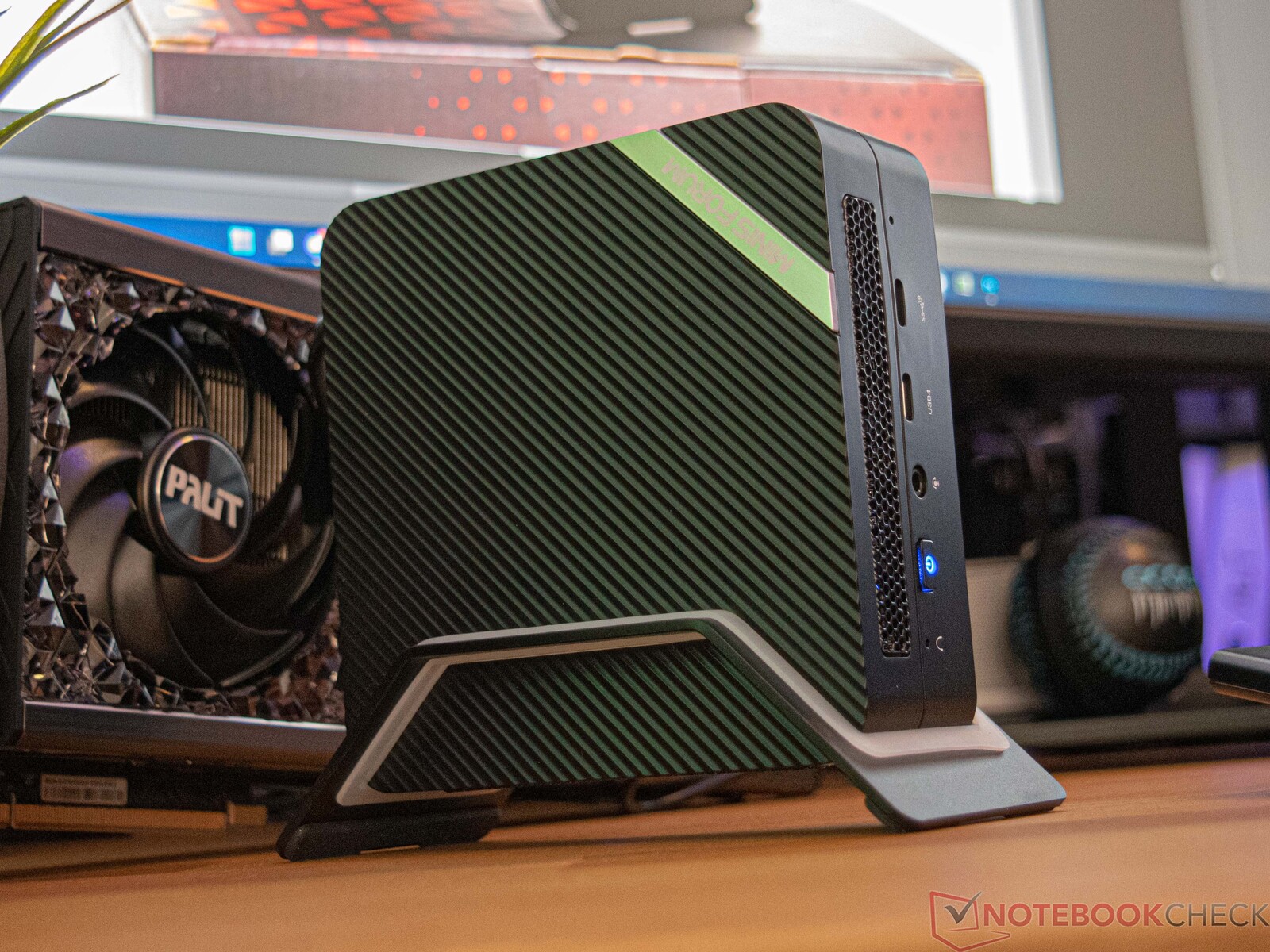

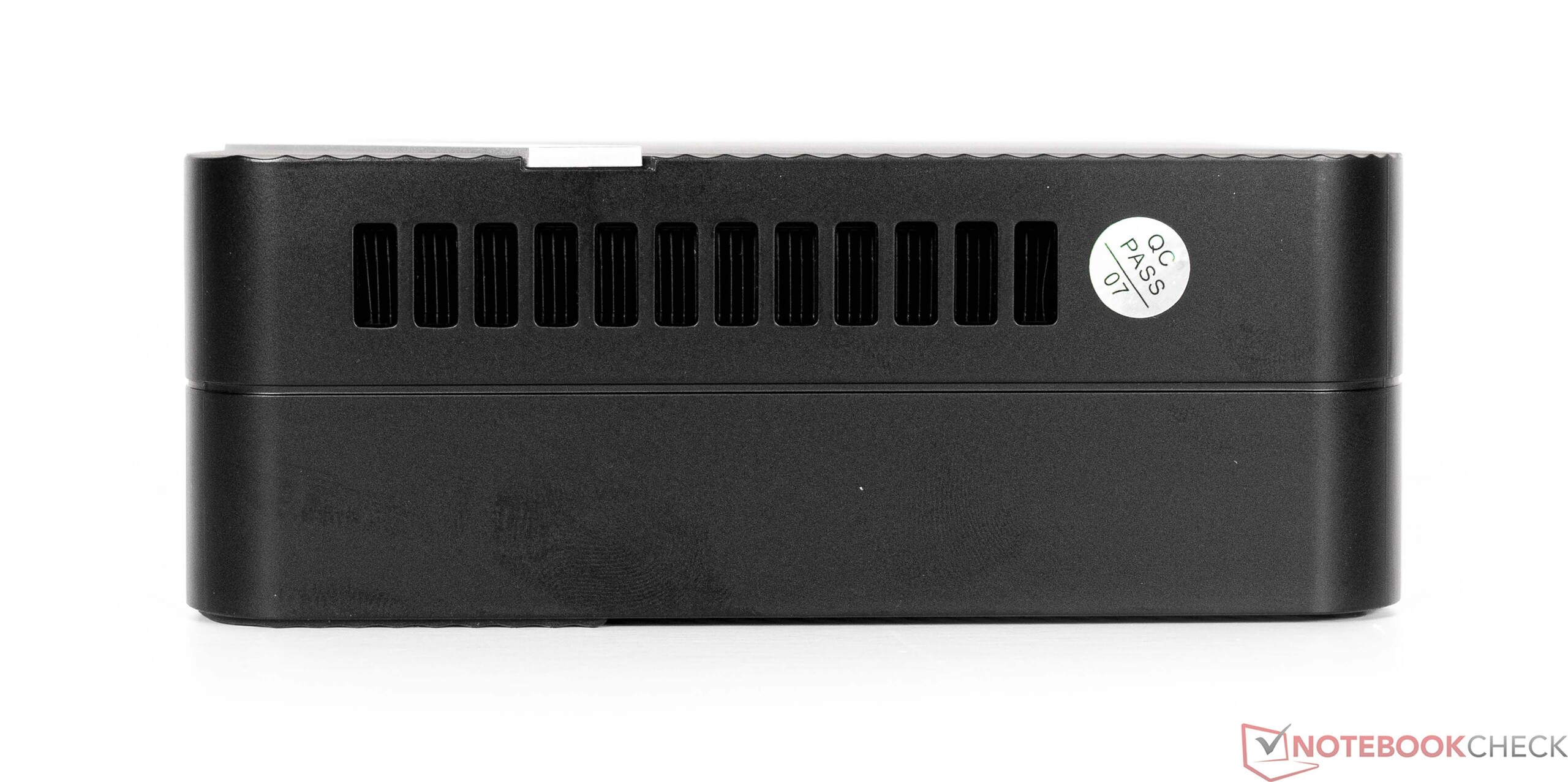

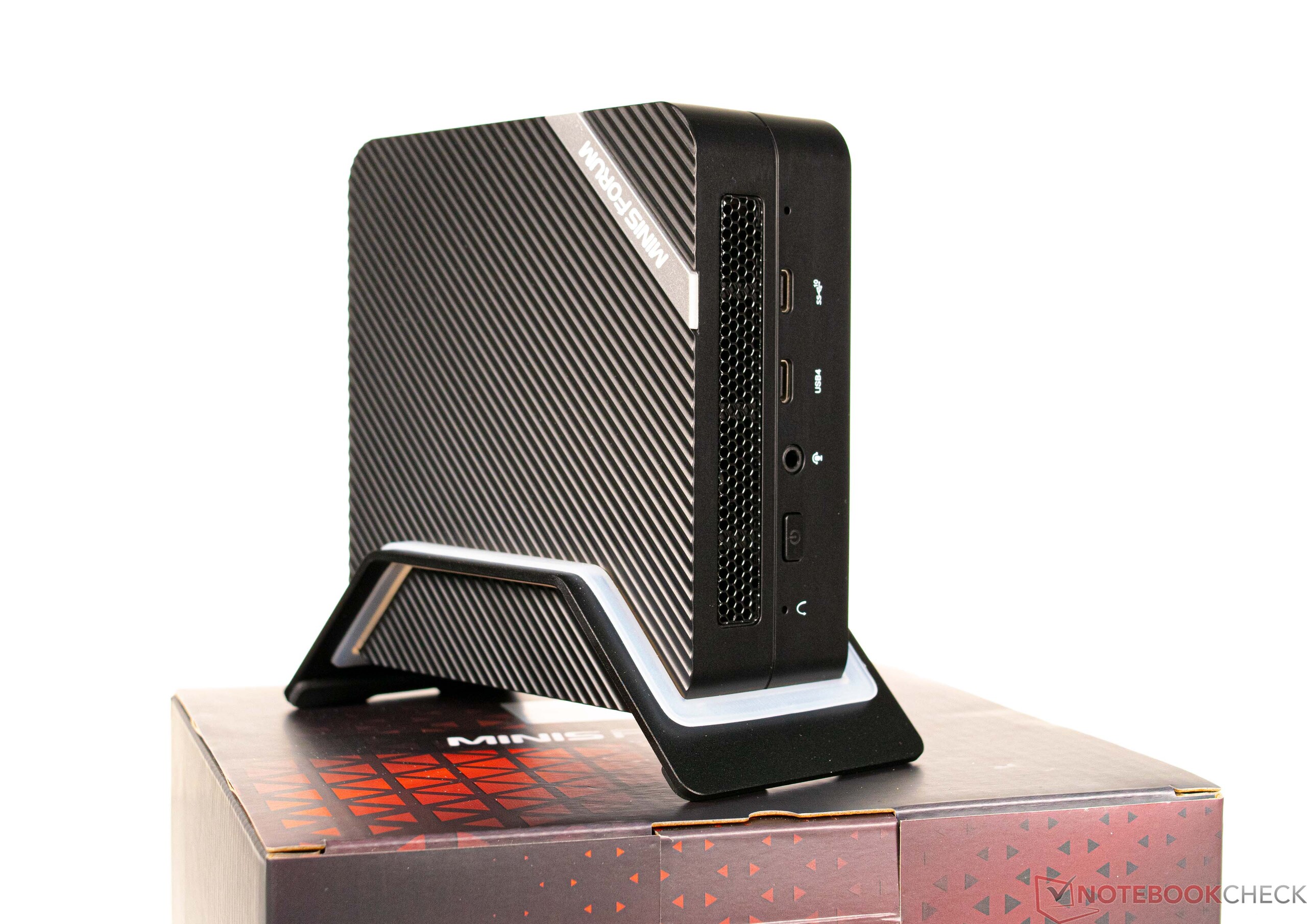

Minisforum Venus Series UM690 jest z zewnątrz wykonany głównie z plastiku. Wewnątrz znajdziemy jednak metal wbudowany w system, który zwiększa ogólną wytrzymałość obudowy. Urządzenie sprawia wrażenie premium i nie ma co narzekać na jego jakość wykonania. W naszym egzemplarzu recenzenckim nie znaleźliśmy żadnych niedokładnych szczelin czy ostrych krawędzi. Urządzenie można postawić płasko na biurku lub zamontować w pionie na dołączonej podstawce. Nie potrzeba żadnych narzędzi, aby umieścić UM690 w solidnej podstawce, która (w przeciwieństwie do obudowy) jest wykonana z aluminium i doskonale uzupełnia kolorystycznie ogólny wygląd UM690.

Dzięki swoim kompaktowym wymiarom Minisforum Venus Series UM690 nie zajmuje dużo miejsca na biurku. Urządzenie można na przykład zainstalować również z tyłu monitora za pomocą dołączonego zestawu montażowego (VESA). Co więcej, UM690 jest niesamowicie lekki - waży zaledwie 621 g (1,36"). Ważący 449 g (0,99 lb) zasilacz jest tak samo ciężki jak te dołączane do konkurencyjnych urządzeń.

Porównanie wielkości

Minisforum Neptune Series NAD9 Minisforum EliteMini B550 Morefine S600-Apex Engineer Minipc Union Ace Magician TK11-A0 Morefine S500+ Minisforum Venus Series UM690 (6900HX) DIN A4 ❌

Specyfikacje

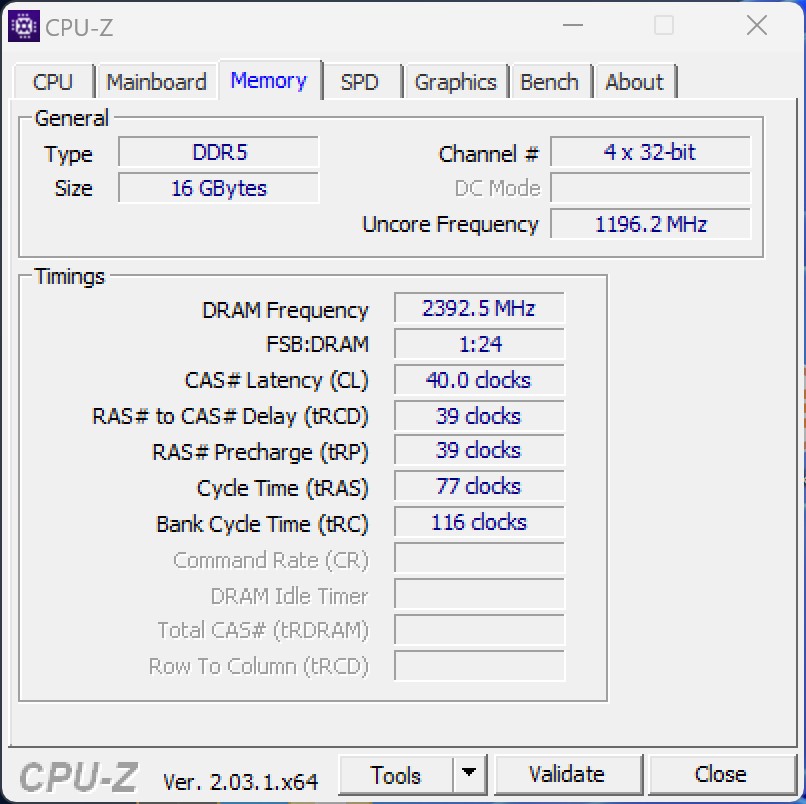

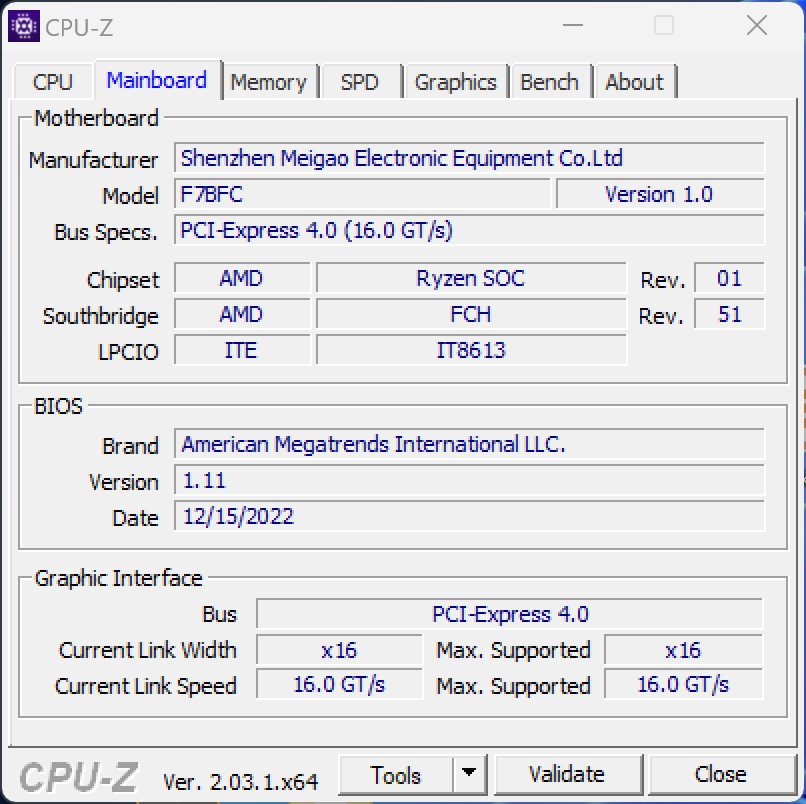

Mimo tak niewielkich rozmiarów, Minisforum Venus Series UM690 posiada wszystkie niezbędne interfejsy. Łącznie sześć portów USB powinno wystarczyć większości użytkowników, nawet jeśli dwa z nich to porty USB-C. Co więcej, jedno z wyjść USB-C obsługuje Thunderbolt, co masowo poszerza potencjalne zastosowania tego malutkiego komputera. Do UM690 można podłączyć jednocześnie nawet trzy monitory - dwa przez porty HDMI z tyłu i jeden przez USB-C z przodu.

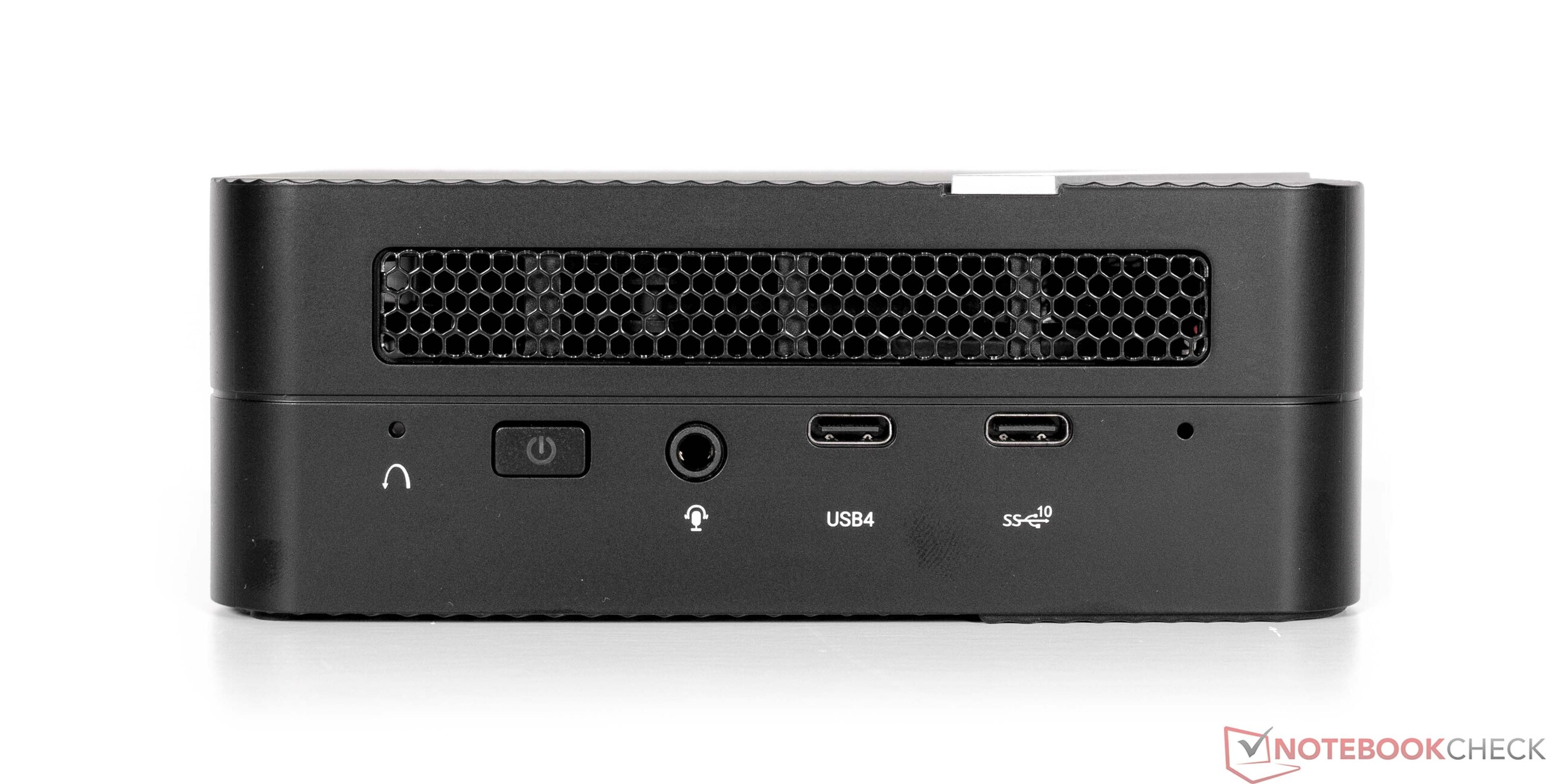

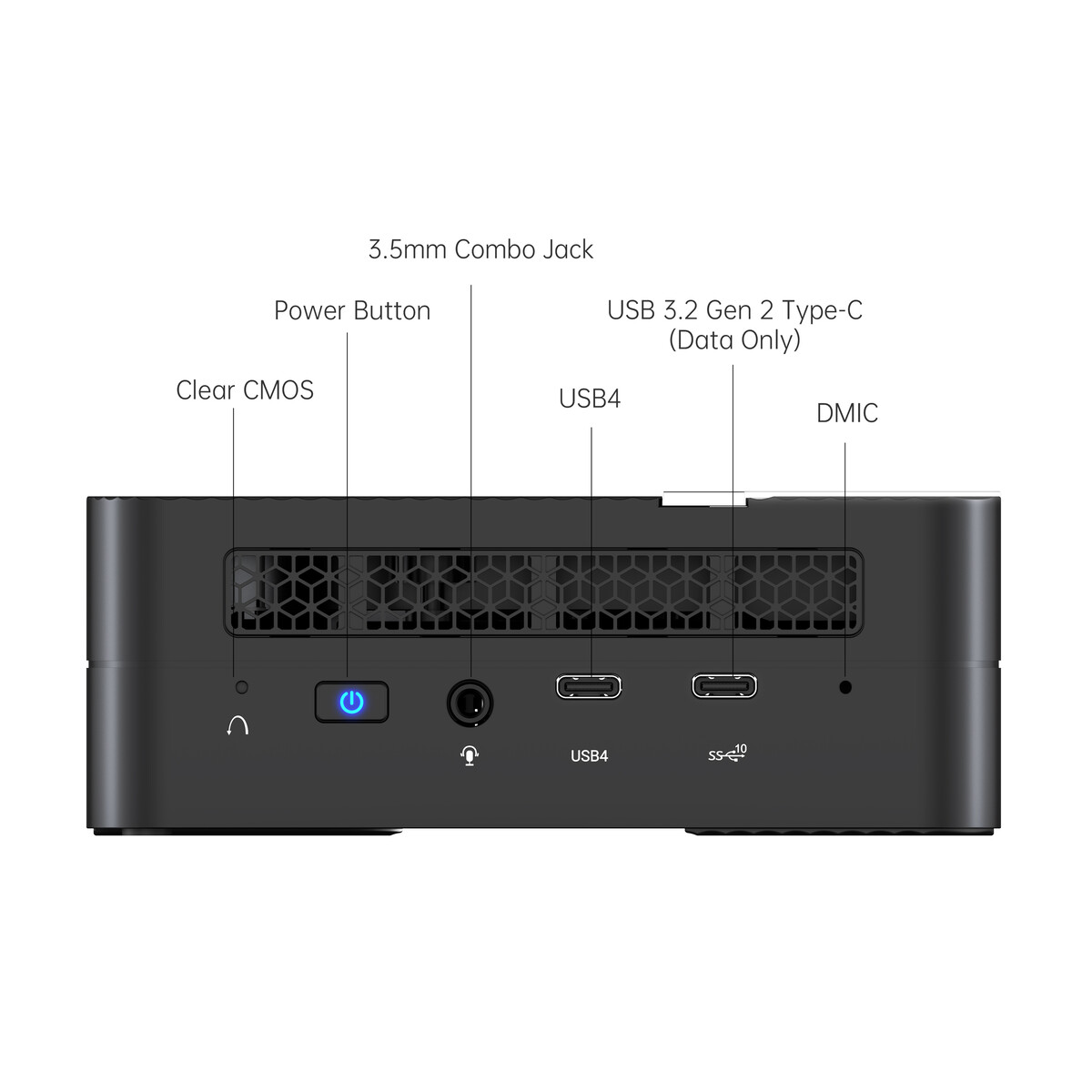

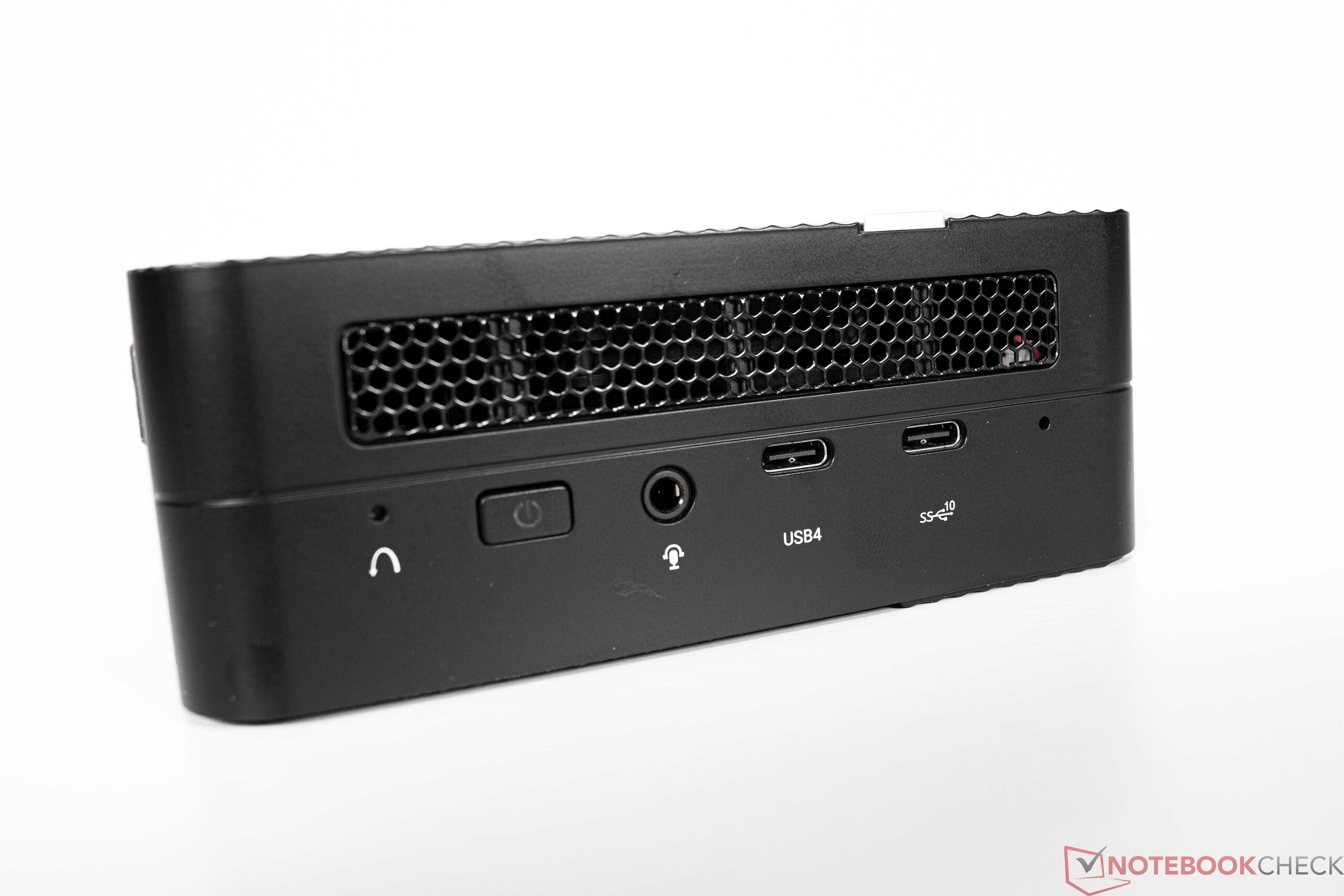

Zewnętrzne wejścia/wyjścia na froncie (źródło: Minisforum)

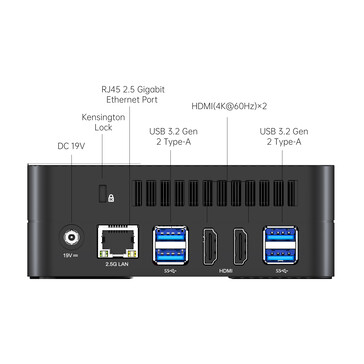

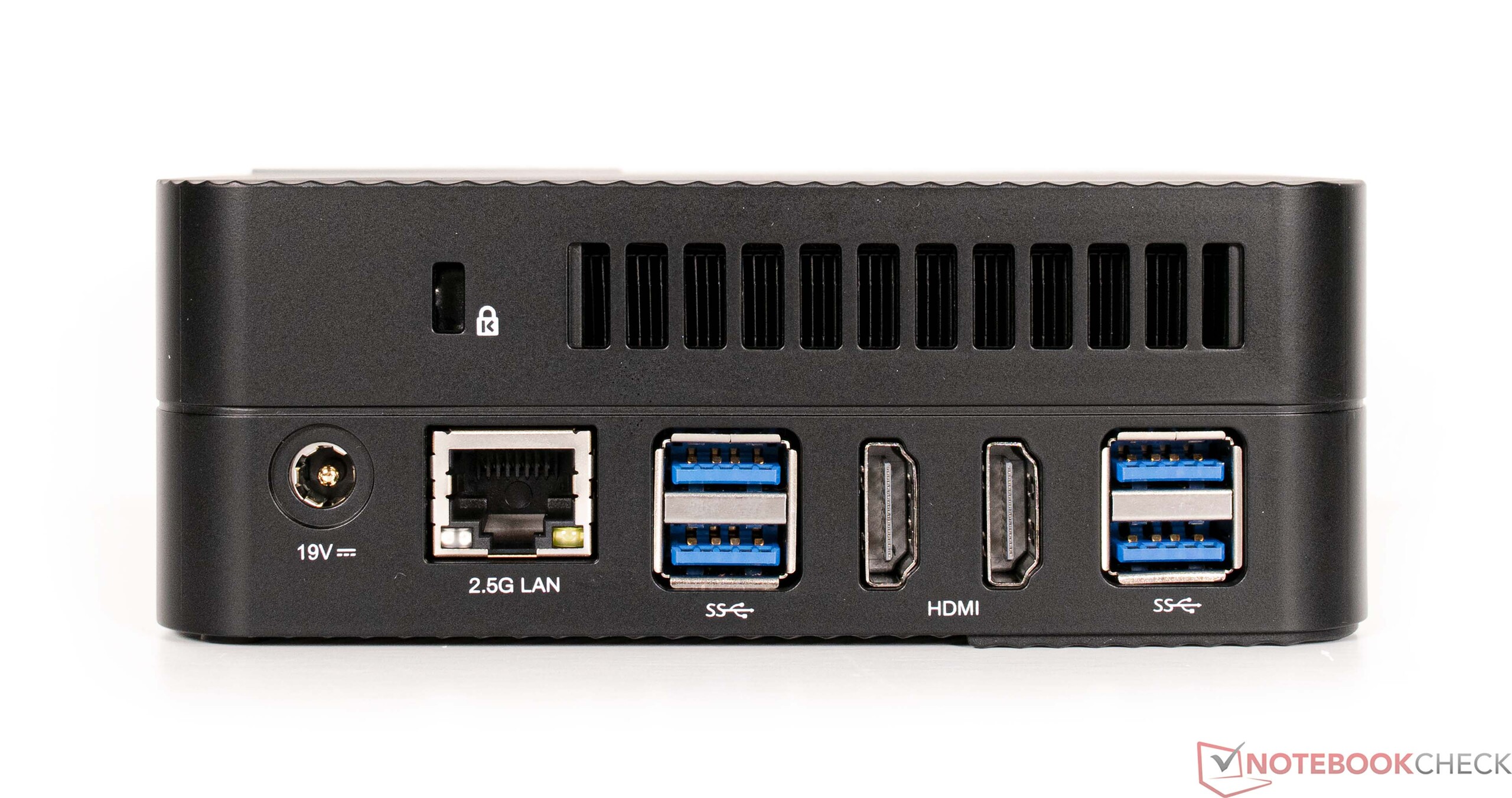

Zewnętrzne wejścia/wyjścia z tyłu UM690 (źródło: Minisforum)

Łączność

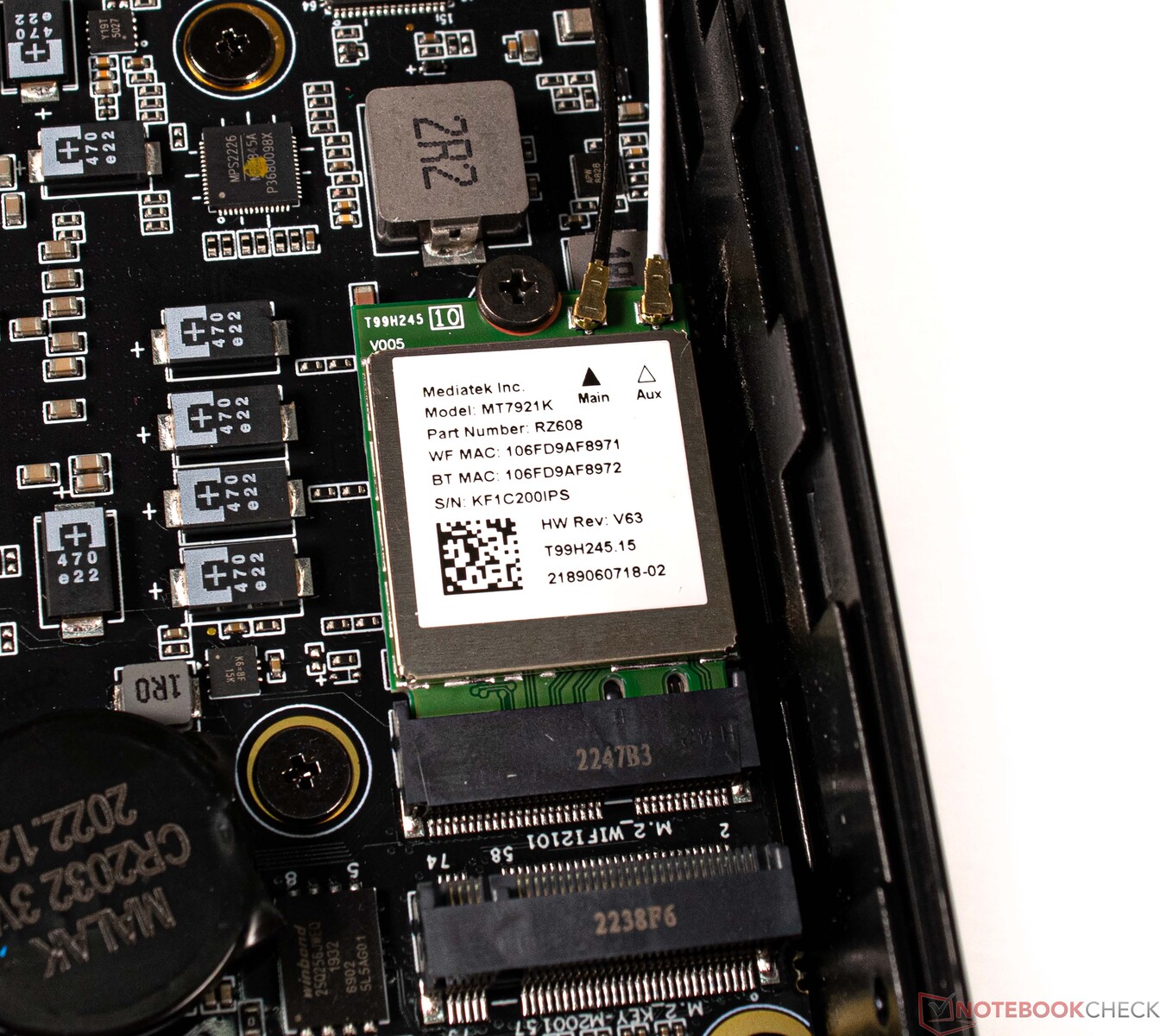

Moduł Wi-Fi w Minisforum Venus Series UM690

Minisforum umieściło w UM690 moduł Mediatek Wi-Fi 6E. W teście rzeczywistym z naszym routerem referencyjnym (Asus ROG Rapture GT-AXE11000) komputerowi udało się osiągnąć dobre i stabilne prędkości transferu. Układ Mediatek nie jest jednak w stanie dorównać wydajności Intel Wi-Fi 6E AX210, choć w codziennym użytkowaniu nie będzie to zauważalne. Alternatywnie do nawiązania szybszego połączenia sieciowego można wykorzystać port LAN. Może on przesyłać dane z prędkością do 2,5 Gbit/s.

Networking
iperf3 receive AXE11000 6GHz
Average of class Mini PC (390 - 1762, n=15, last 2 years)	1069 MBit/s ∼100% +11%
Morefine S600-Apex Engineer Intel Wi-Fi 6E AX211	1044 (1009^min - 1058^max) MBit/s ∼98% +9%
Minisforum Venus Series UM690 (6900HX) MediaTek RZ608	961 (954^min - 967^max) MBit/s ∼90%
Average MediaTek RZ608 (430 - 961, n=10)	837 MBit/s ∼78% -13%
Minisforum EliteMini B550 MediaTek RZ608	430 (379^min - 451^max) MBit/s ∼40% -55%
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	390 (322^min - 478^max) MBit/s ∼36% -59%
iperf3 transmit AXE11000 6GHz
Morefine S600-Apex Engineer Intel Wi-Fi 6E AX211	1658 (1514^min - 1706^max) MBit/s ∼100% +111%
Average of class Mini PC (722 - 1745, n=16, last 2 years)	1039 MBit/s ∼63% +32%
Average MediaTek RZ608 (572 - 980, n=10)	830 MBit/s ∼50% +5%
Minisforum Venus Series UM690 (6900HX) MediaTek RZ608	787 (638^min - 865^max) MBit/s ∼47%
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	745 (381^min - 876^max) MBit/s ∼45% -5%
Minisforum EliteMini B550 MediaTek RZ608	572 (532^min - 680^max) MBit/s ∼34% -27%
iperf3 receive AXE11000
Minisforum Neptune Series NAD9 Intel Wi-Fi 6E AX210	1318 (663^min - 1363^max) MBit/s ∼100% +38%
Minisforum Venus Series UM690 (6900HX) MediaTek RZ608	956 (944^min - 963^max) MBit/s ∼73%
Average MediaTek RZ608 (430 - 975, n=10)	888 MBit/s ∼67% -7%
Average of class Mini PC (192.9 - 1688, n=23, last 2 years)	842 MBit/s ∼64% -12%
Minisforum EliteMini B550 MediaTek RZ608	430 MBit/s ∼33% -55%
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	390 MBit/s ∼30% -59%
iperf3 transmit AXE11000
Minisforum Neptune Series NAD9 Intel Wi-Fi 6E AX210	1320 (1165^min - 1353^max) MBit/s ∼100% +40%
Minisforum Venus Series UM690 (6900HX) MediaTek RZ608	943 (477^min - 981^max) MBit/s ∼71%
Average MediaTek RZ608 (572 - 979, n=10)	897 MBit/s ∼68% -5%
Average of class Mini PC (184.1 - 1491, n=23, last 2 years)	783 MBit/s ∼59% -17%
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	745 MBit/s ∼56% -21%
Minisforum EliteMini B550 MediaTek RZ608	572 MBit/s ∼43% -39%

Minisforum Venus Series UM690 (6900HX); iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø787 (638-865)

Minisforum Venus Series UM690 (6900HX); iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø960 (954-967)

Minisforum Venus Series UM690 (6900HX); iperf3 receive AXE11000; iperf 3.1.3: Ø956 (944-963)

Minisforum Venus Series UM690 (6900HX); iperf3 transmit AXE11000; iperf 3.1.3: Ø928 (477-981)

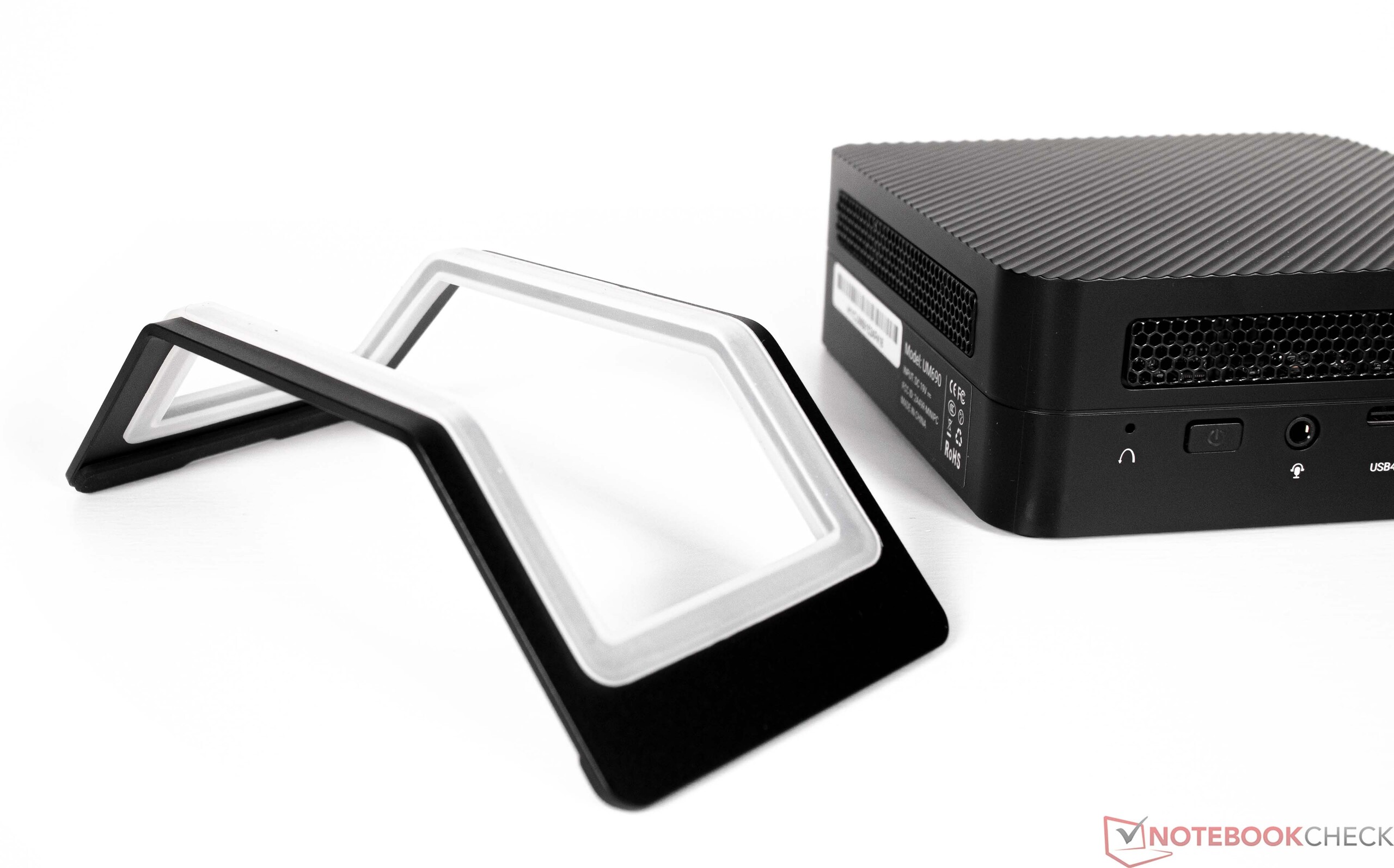

Akcesoria

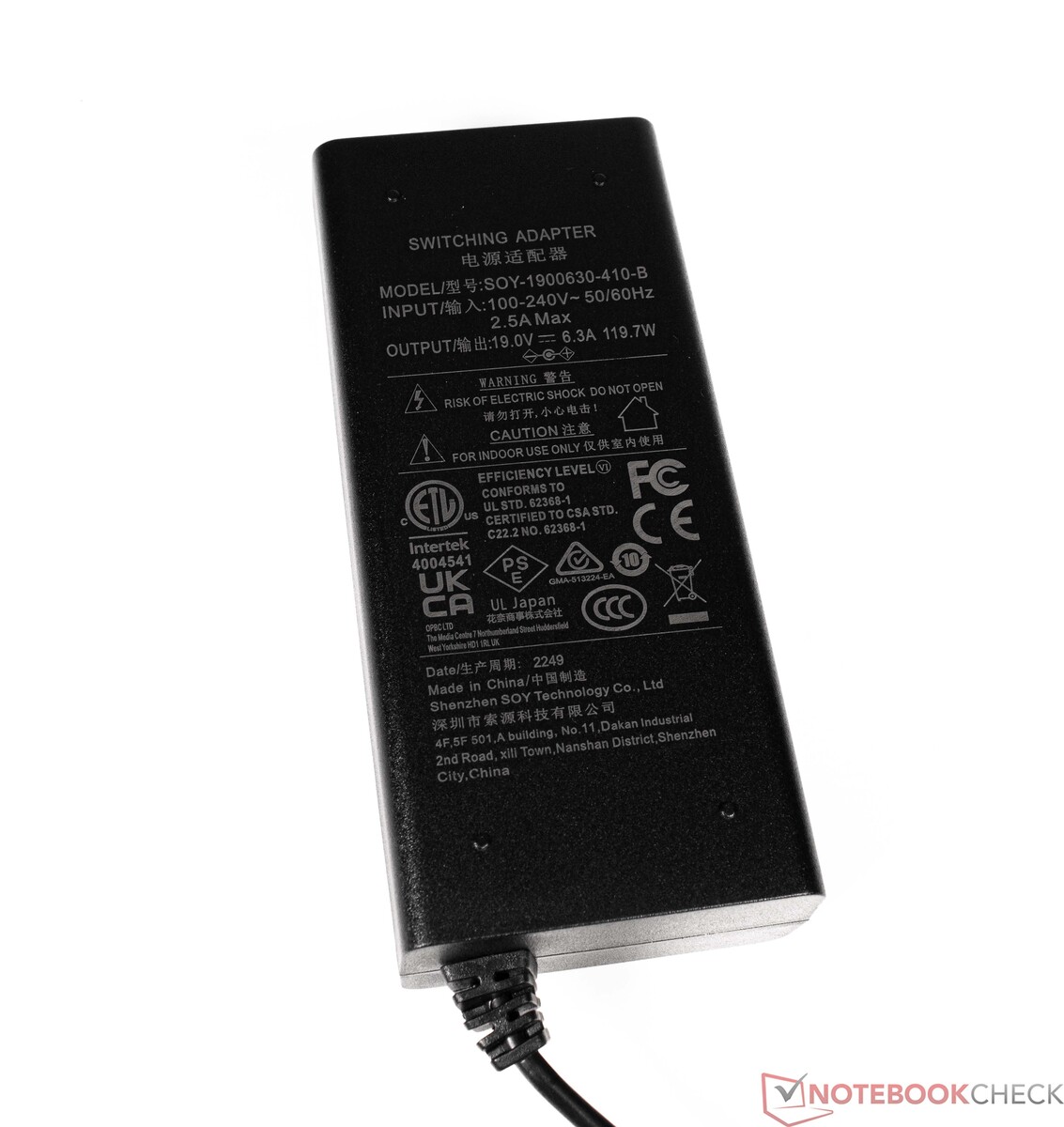

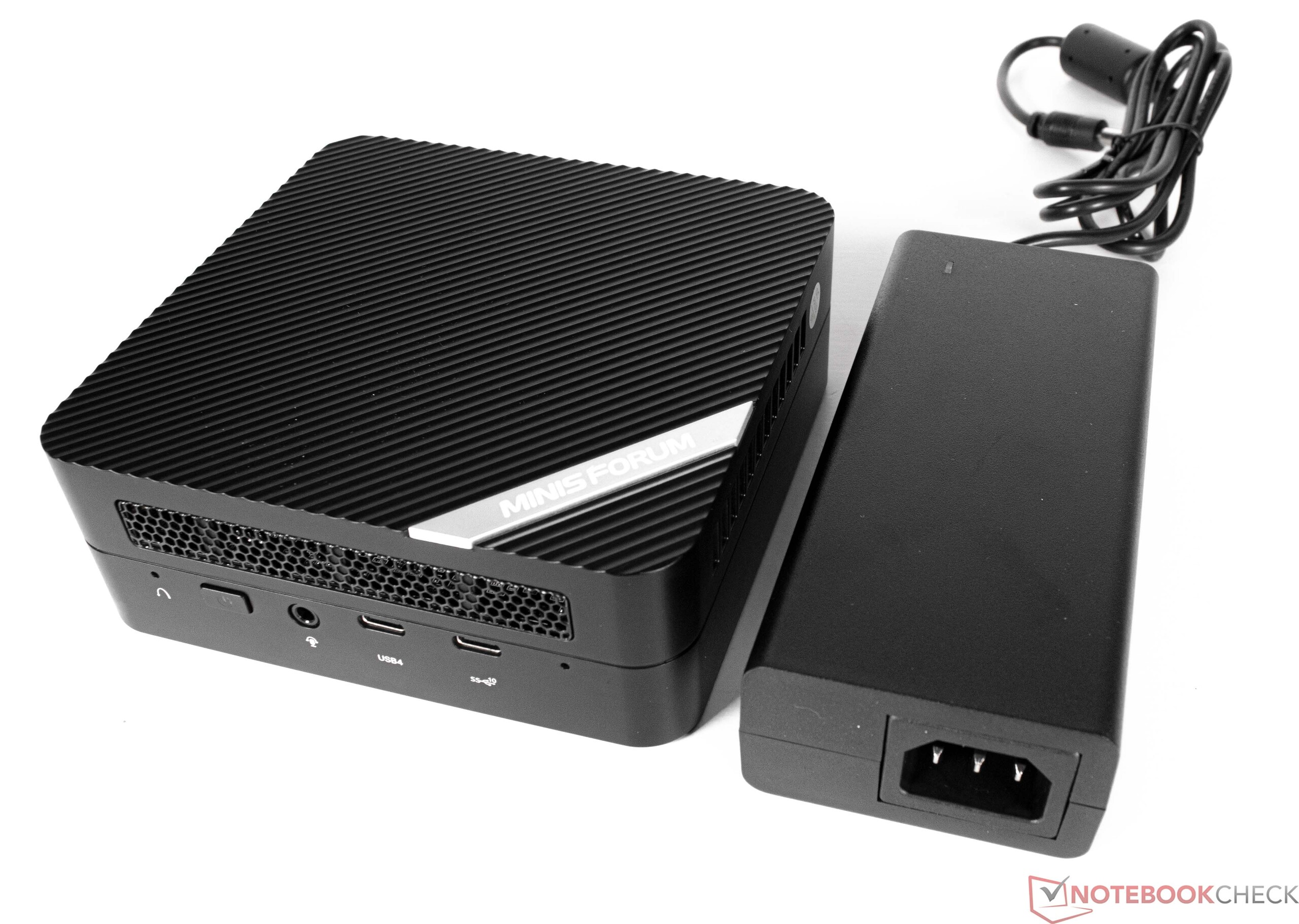

Oprócz samego urządzenia, w pudełku znajdziemy jeszcze inne elementy, takie jak solidna podstawka, 120-watowy adapter oraz uchwyt VESA do mocowania UM690 bezpośrednio do monitora.

Konserwacja

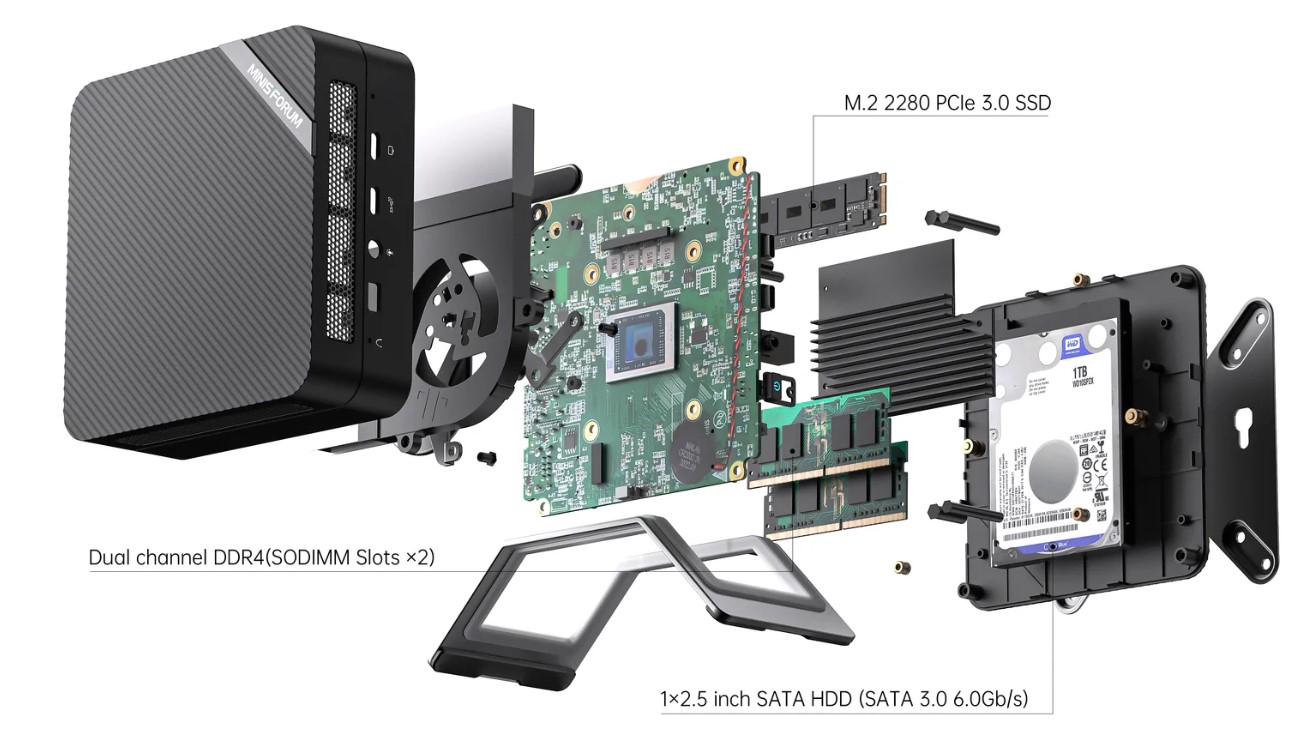

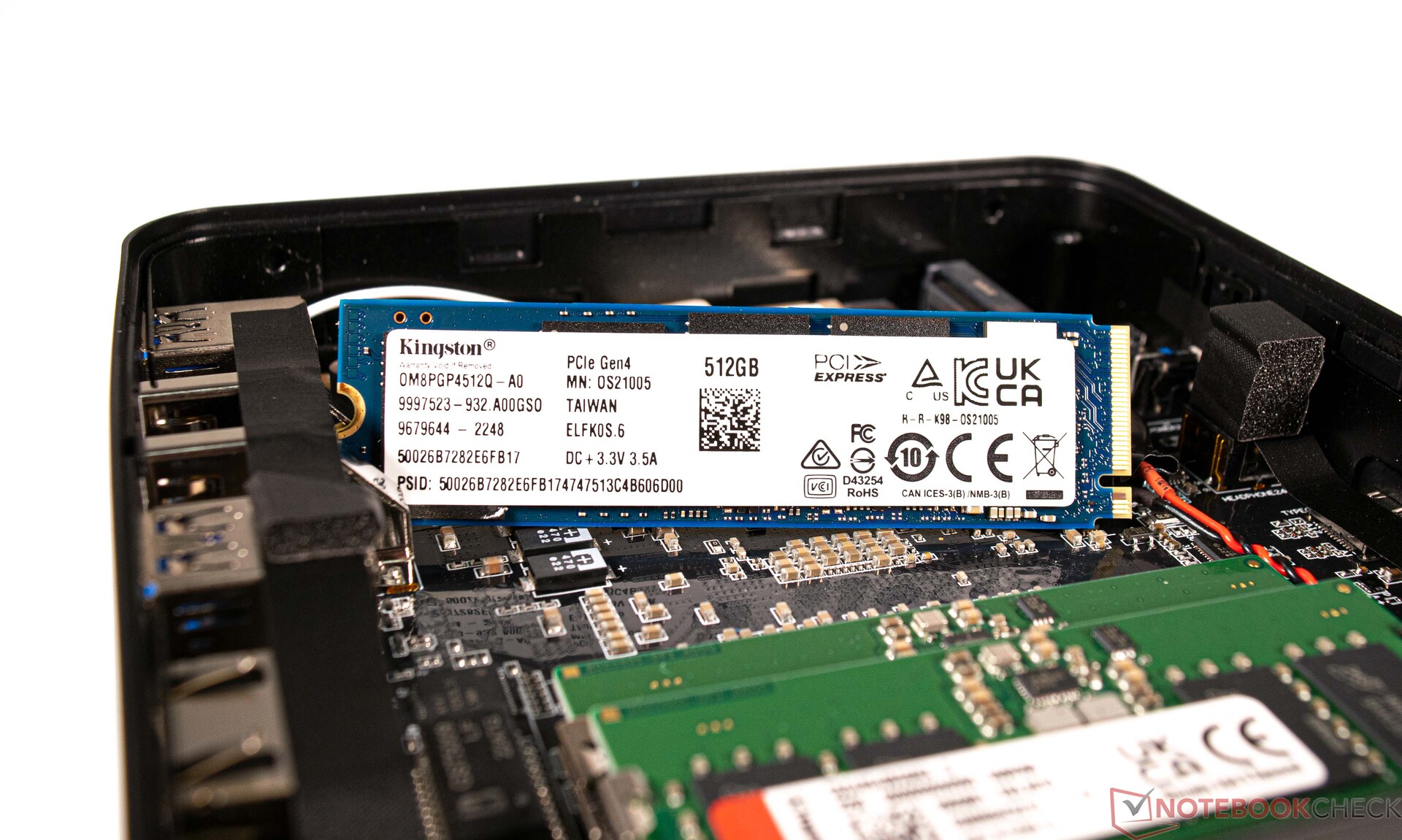

Ogólnie rzecz biorąc, Minisforum Venus Series UM690 można otworzyć, by umożliwić użytkownikom instalację lub wymianę różnych komponentów, takich jak pamięć RAM i dysk SSD. Śruby są jednak ukryte pod gumowymi stopkami, które trzeba najpierw usunąć. Wewnątrz urządzenie wygląda bardzo schludnie, a dostęp do wszystkich ważnych komponentów jest szybki. Jeśli jednak jednostka chłodząca wymaga czyszczenia, trzeba będzie dalej rozebrać urządzenie. Minisforum zamieściło jednak wyraźne ostrzeżenie odradzające użytkownikom demontaż coolera, ponieważ układ wykorzystuje płynny metal jako pastę termiczną.

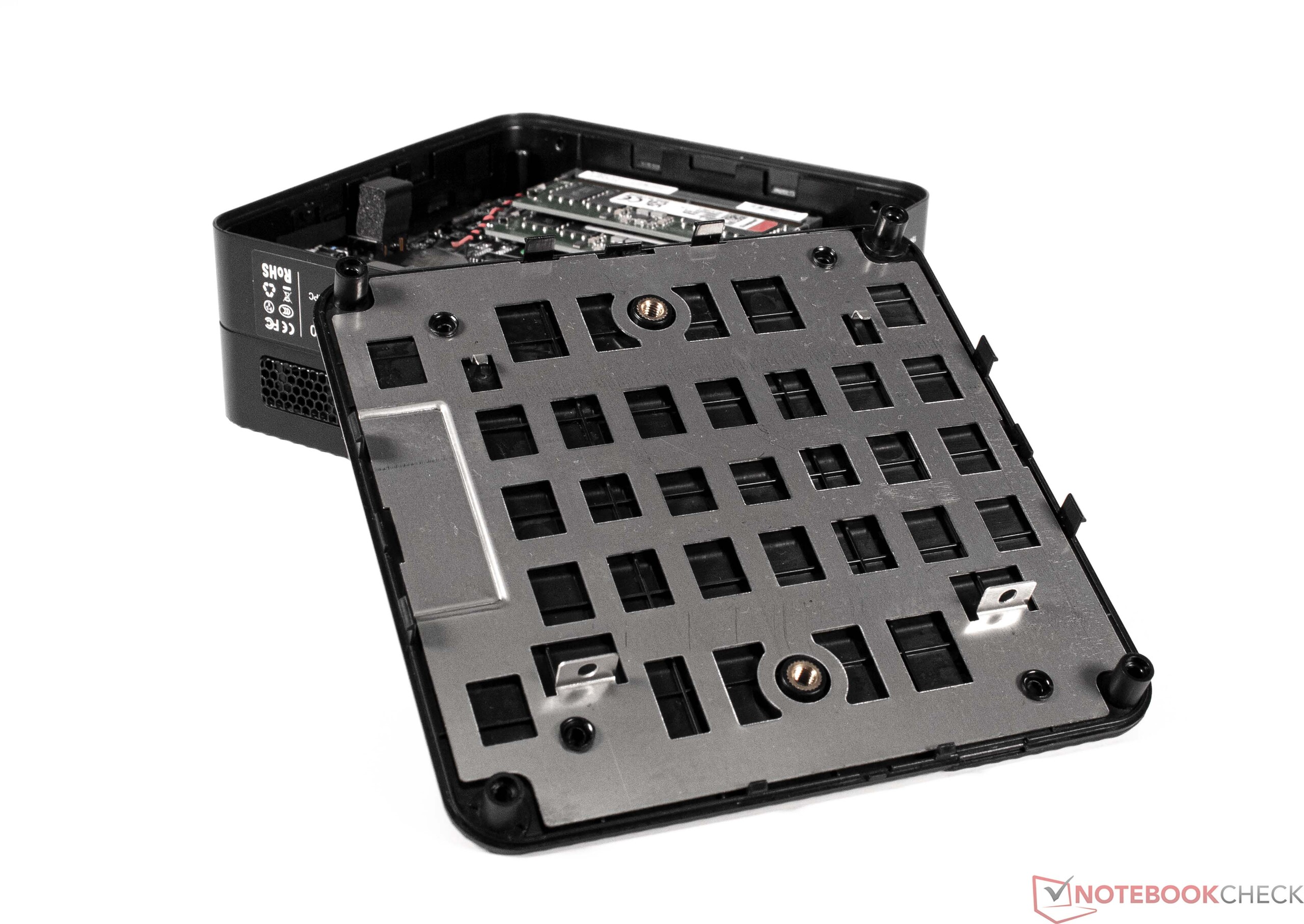

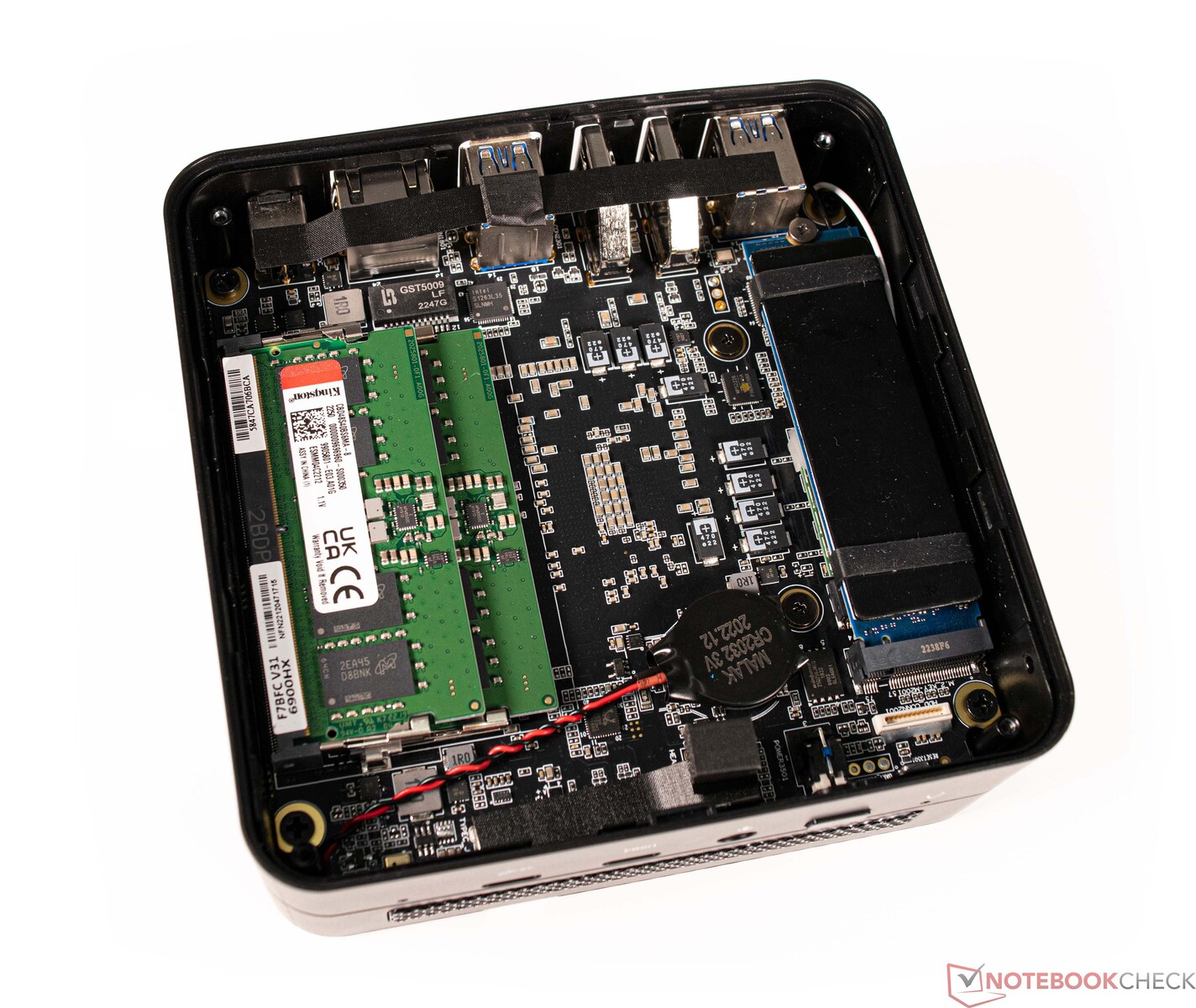

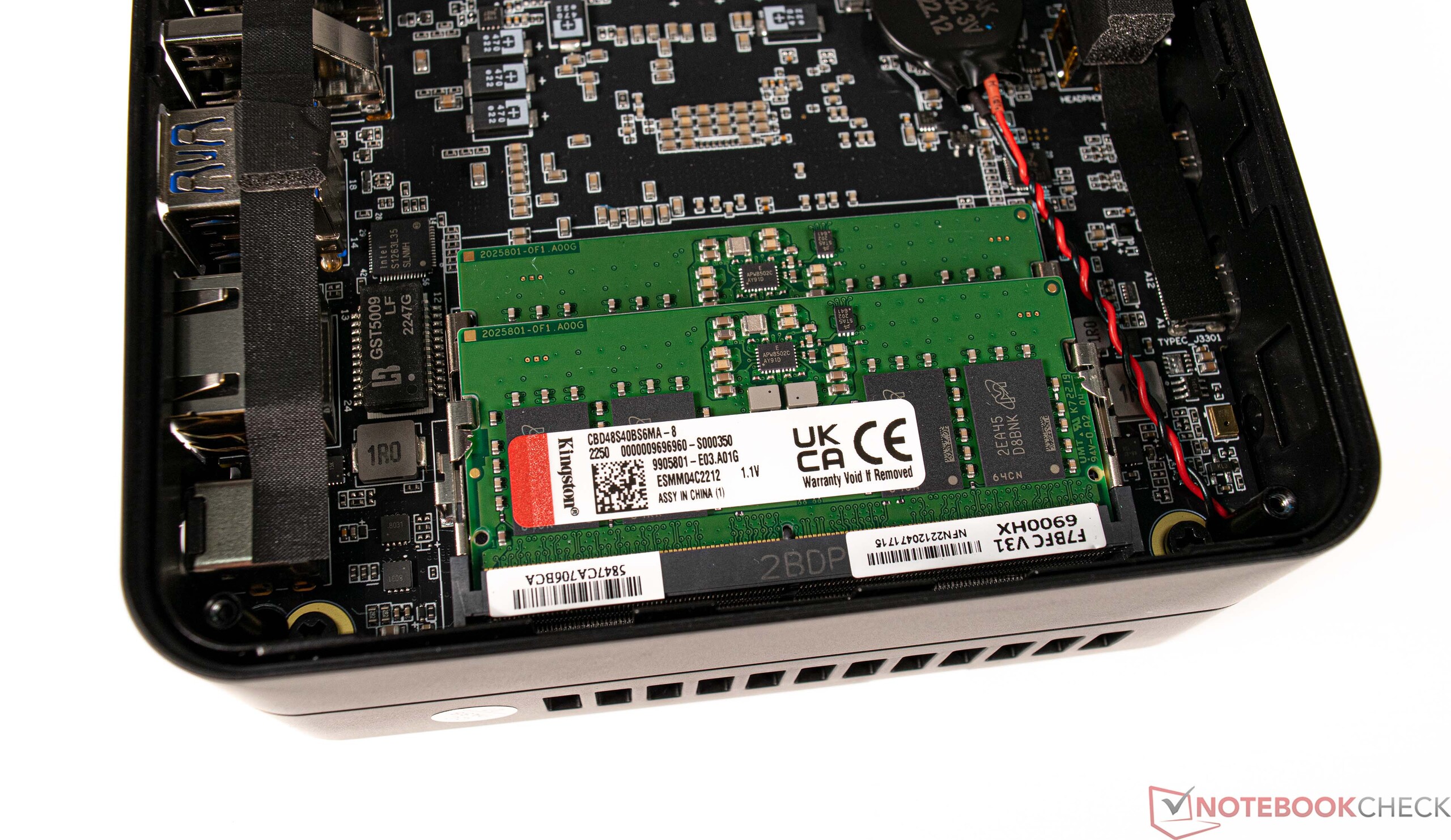

Minisforum Venus Series UM690 bez panelu dolnego

Wydajność - SoC Rembrandt od AMD oferuje świetną wydajność

Minisforum wyposażyło UM690 w nowy układ AMD Ryzen 9 6900HX procesor. To dobry wybór, bo urządzenie korzysta ogólnie z wydajności zapewnianej przez nowy SoC we wszystkich rodzajach aplikacji. Ponadto SoC posiada szybki układ graficzny iGPU (Radeon 680M). Firma oferuje również ten model serii Venus z mniej wydajnymi SoC pod nazwami UM590 (Ryzen 9 5900HX) i UM450 (Ryzen 5 4500U).

Warunki badania

Do wszystkich testów wydajnościowych w tej recenzji użyliśmy planu zasilania "Wysoka wydajność" i odeszliśmy od niego tylko podczas pomiaru zużycia energii i poziomu hałasu, zgodnie z naszymi kryteriami testowymi. Wydajność procesora i chłodzenia pozostała niezmieniona w BIOSie.

Procesor

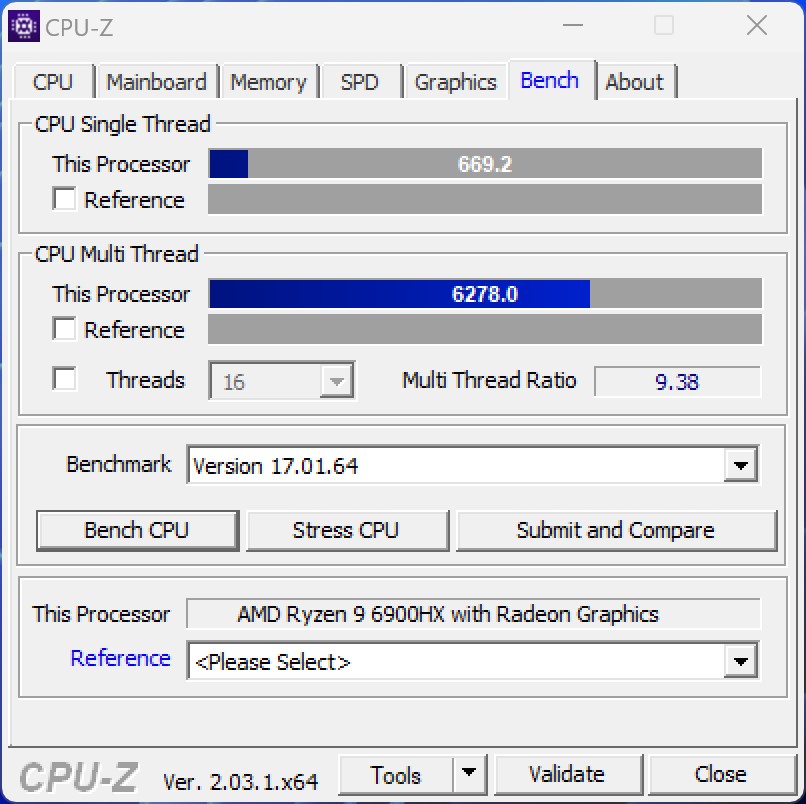

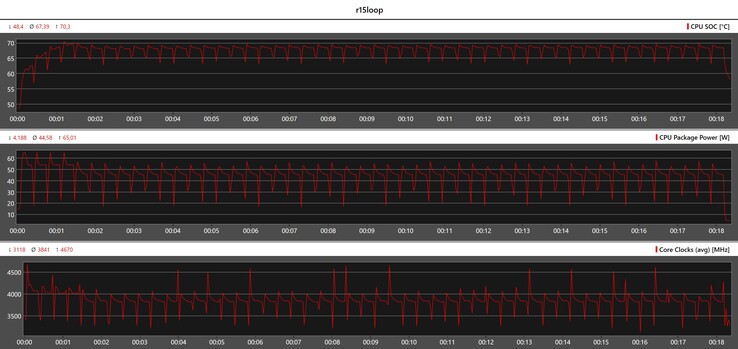

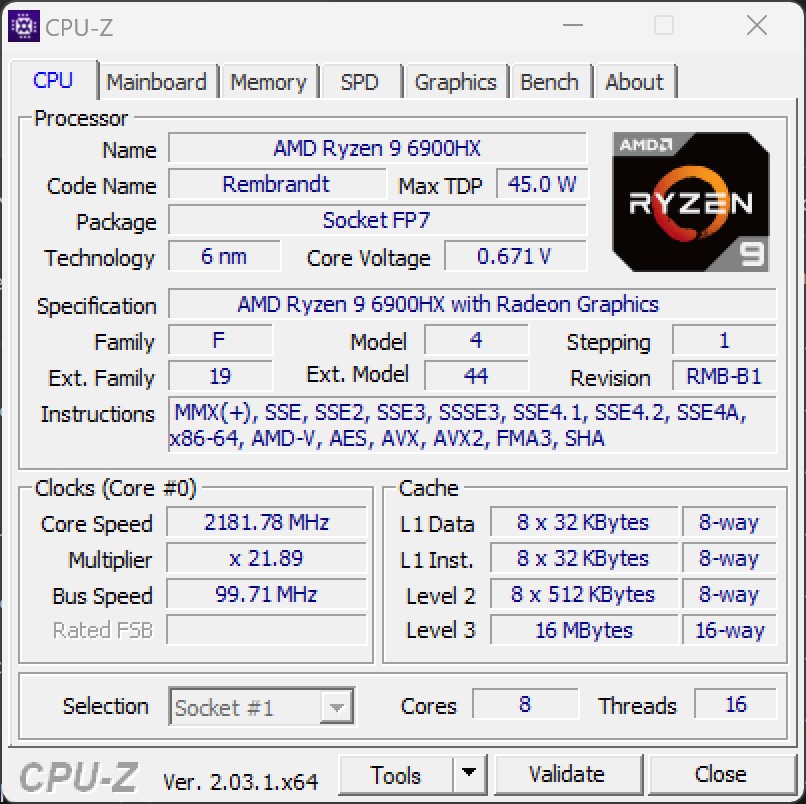

Na stronie AMD Ryzen 9 6900HX jest ośmiordzeniowym procesorem Rembrandt i może wykonywać równolegle łącznie 16 wątków. SoC w UM690 może pobierać do 65 W mocy przez krótki zryw, zanim wkroczy limit 45 W. Niemniej jednak nasz egzemplarz recenzencki wypadł bardzo dobrze w naszym porównaniu i jest na równi z Intel Core i9-12900H, który znajduje się w Minisforum Neptune Series NAD9. Aby dać wam ogólne pojęcie o wydajności Venus Series UM450 i UM590, dodaliśmy ich odpowiednie SoC w naszej tabeli porównawczej.

Możesz odnieść się do tej strony aby uzyskać więcej benchmarków procesorów.

Performance Rating - Percent
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	51.8 pt ∼52%
Morefine S600-Apex Engineer ^-6! Intel Core i9-12900HK, 1800 MHz	51.7 pt ∼52%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	51.6 pt ∼52%
Average AMD Ryzen 9 6900HX	51.1 pt ∼51%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	50.5 pt ∼51%
Average AMD Ryzen 9 5900HX	49.2 pt ∼49%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	48.7 pt ∼49%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	48.6 pt ∼49%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	36.7 pt ∼37%
Average AMD Ryzen 5 4500U	36.4 pt ∼36%

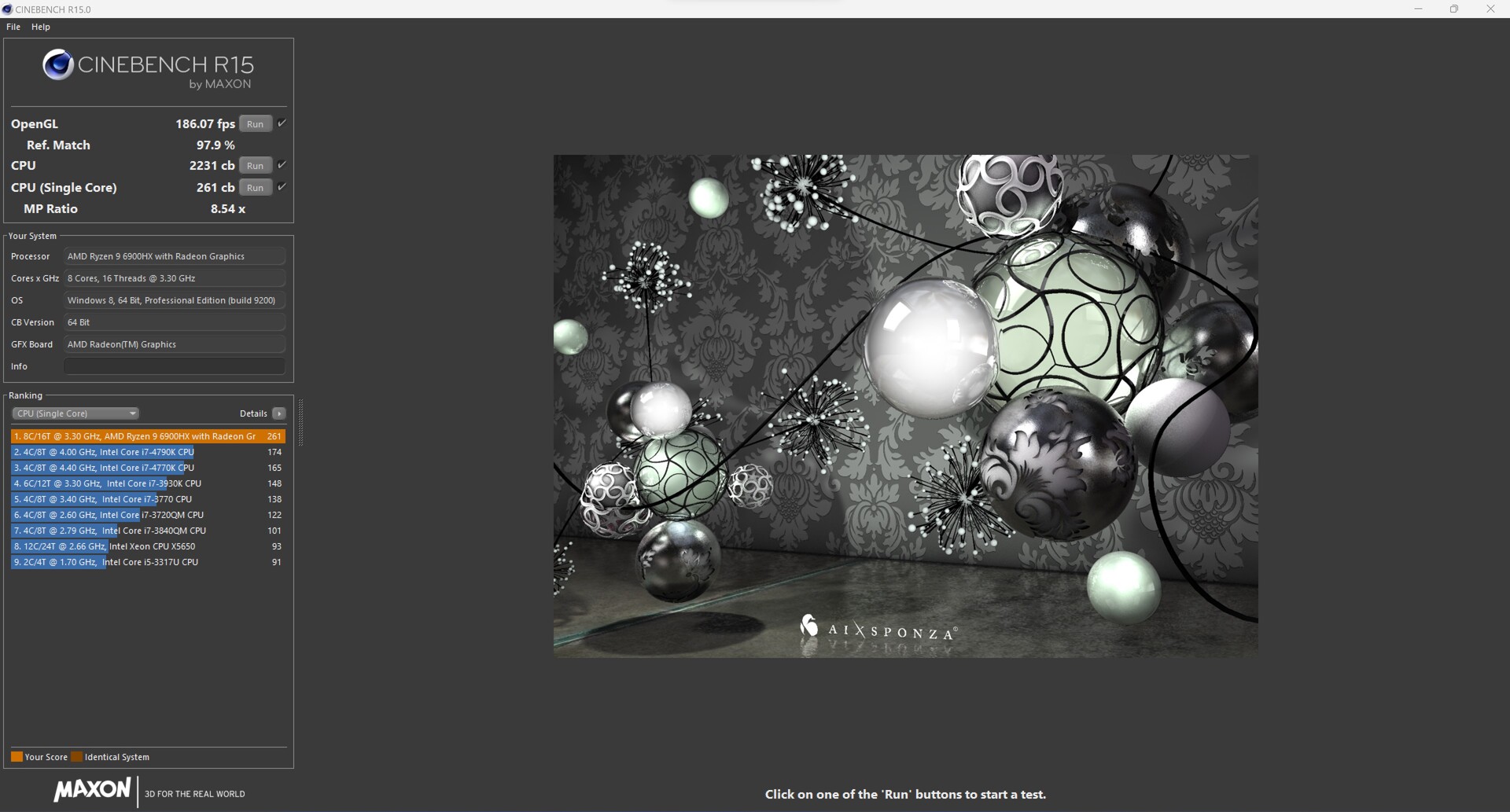

Cinebench R15
CPU Single 64Bit
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	261 Points ∼80%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	260 Points ∼79% 0%
Average AMD Ryzen 9 6900HX (241 - 261, n=15)	251 Points ∼77% -4%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	247 Points ∼75% -5%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	243 Points ∼74% -7%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	240 Points ∼73% -8%
Average AMD Ryzen 9 5900HX (197 - 243, n=24)	238 Points ∼73% -9%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	226 Points ∼69% -13%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	197 Points ∼60% -25%
Average AMD Ryzen 5 4500U (156 - 177, n=13)	172.8 Points ∼53% -34%
CPU Multi 64Bit
Average AMD Ryzen 9 6900HX (1920 - 2411, n=15)	2235 Points ∼23% 0%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	2231 Points ∼23%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2067 Points ∼21% -7%
Average AMD Ryzen 9 5900HX (1076 - 2267, n=28)	2054 Points ∼21% -8%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1980 Points ∼20% -11%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	1975 Points ∼20% -11%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1919 (1862.02^min - 1893.4^max) Points ∼20% -14%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1879 Points ∼19% -16%
Average AMD Ryzen 5 4500U (715 - 1007, n=18)	896 Points ∼9% -60%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	560 Points ∼6% -75%

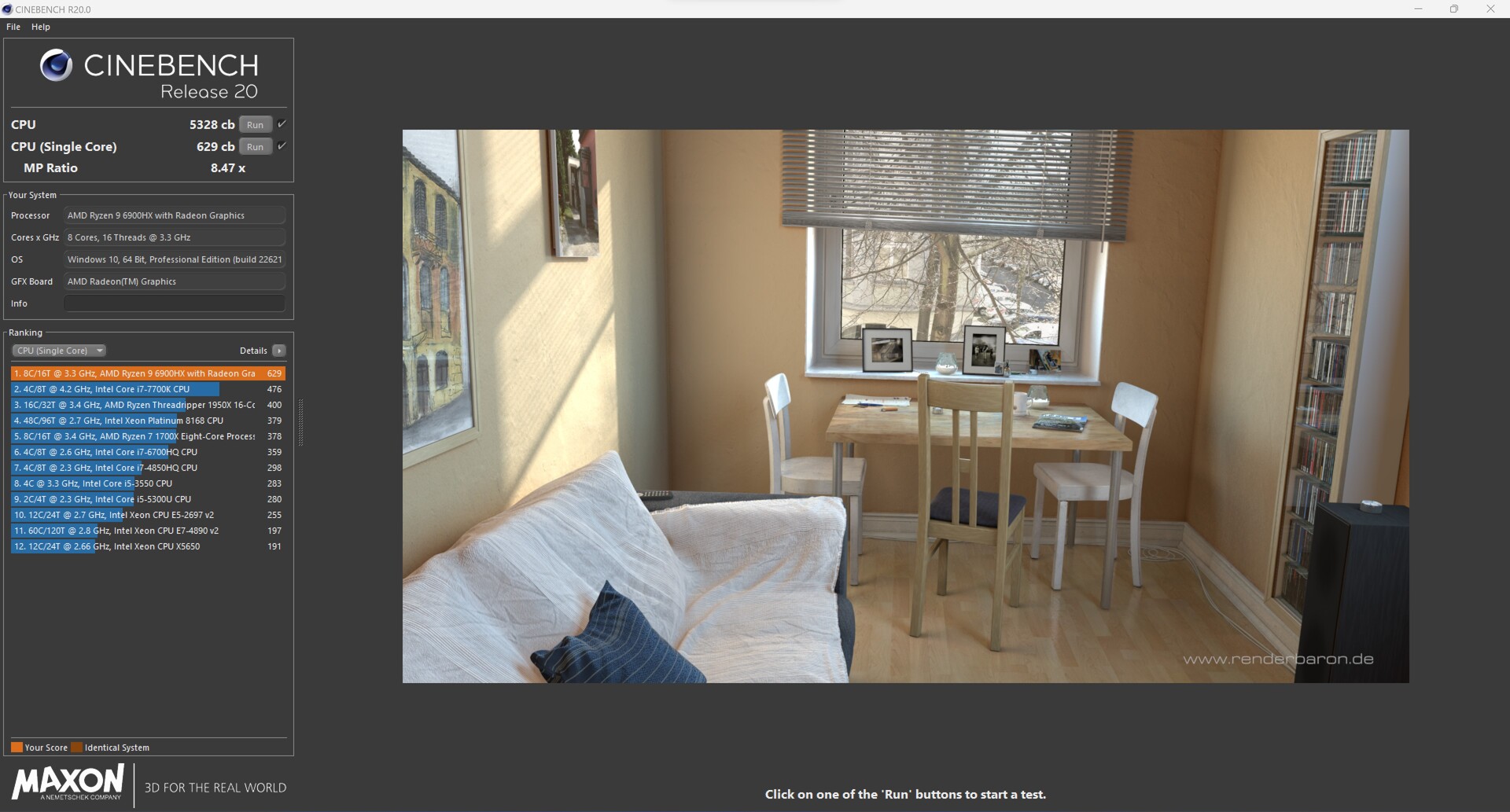

Cinebench R20
CPU (Single Core)
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	698 Points ∼80% +11%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	682 Points ∼78% +8%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	629 Points ∼72%
Average AMD Ryzen 9 6900HX (595 - 631, n=15)	612 Points ∼70% -3%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	608 Points ∼70% -3%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	585 Points ∼67% -7%
Average AMD Ryzen 9 5900HX (471 - 584, n=28)	572 Points ∼66% -9%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	567 Points ∼65% -10%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	517 Points ∼59% -18%
Average AMD Ryzen 5 4500U (424 - 453, n=12)	446 Points ∼51% -29%
CPU (Multi Core)
Average AMD Ryzen 9 6900HX (4619 - 5813, n=15)	5345 Points ∼23% 0%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	5328 Points ∼23%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	5168 Points ∼22% -3%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	4941 Points ∼21% -7%
Average AMD Ryzen 9 5900HX (2242 - 5476, n=29)	4856 Points ∼21% -9%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	4660 Points ∼20% -13%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	4578 Points ∼19% -14%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	4495 Points ∼19% -16%
Average AMD Ryzen 5 4500U (1843 - 2530, n=13)	2236 Points ∼9% -58%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1440 Points ∼6% -73%

Cinebench R11.5
CPU Single 64Bit
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	3.15 Points ∼10% +3%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	3.07 Points ∼10%
Average AMD Ryzen 9 6900HX (2.88 - 3.07, n=4)	2.98 Points ∼9% -3%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	2.87 Points ∼9% -7%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2.86 Points ∼9% -7%
Average AMD Ryzen 9 5900HX (2.8 - 2.86, n=4)	2.84 Points ∼9% -7%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	2.8 Points ∼9% -9%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	2.69 Points ∼9% -12%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	2.31 Points ∼7% -25%
Average AMD Ryzen 5 4500U (2.02 - 2.04, n=2)	2.03 Points ∼6% -34%
CPU Multi 64Bit
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	26.35 Points ∼37%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	25.96 Points ∼37% -1%
Average AMD Ryzen 9 6900HX (23.7 - 26.4, n=4)	25.6 Points ∼36% -3%
Average AMD Ryzen 9 5900HX (22 - 25.6, n=4)	24.3 Points ∼34% -8%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	23.6 Points ∼33% -10%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	23.44 Points ∼33% -11%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	22.79 Points ∼32% -14%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	22 Points ∼31% -17%
Average AMD Ryzen 5 4500U (10.2 - 11.6, n=2)	10.9 Points ∼15% -59%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	6.37 Points ∼9% -76%

Cinebench R10
Rendering Single CPUs 64Bit
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	14504 Points ∼79% +12%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	12943 Points ∼71%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	12846 Points ∼70% -1%
Average AMD Ryzen 9 6900HX (12185 - 12943, n=4)	12548 Points ∼68% -3%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	12378 Points ∼67% -4%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	12113 Points ∼66% -6%
Average AMD Ryzen 9 5900HX (11811 - 12152, n=4)	12019 Points ∼65% -7%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	11811 Points ∼64% -9%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	10395 Points ∼57% -20%
Average AMD Ryzen 5 4500U	9139 Points ∼50% -29%
Rendering Multiple CPUs 64Bit
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	77409 Points ∼56% +1%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	76758 Points ∼55%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	75223 Points ∼54% -2%
Average AMD Ryzen 9 6900HX (69797 - 77450, n=4)	74580 Points ∼54% -3%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	73492 Points ∼53% -4%
Average AMD Ryzen 9 5900HX (64320 - 74772, n=4)	71249 Points ∼51% -7%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	66237 Points ∼48% -14%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	64320 Points ∼46% -16%
Average AMD Ryzen 5 4500U	38477 Points ∼28% -50%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	24499 Points ∼18% -68%

Blender - v2.79 BMW27 CPU
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	750 Seconds * ∼5% -221%
Average AMD Ryzen 5 4500U (533 - 748, n=11)	603 Seconds * ∼4% -158%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	280 Seconds * ∼2% -20%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	273 Seconds * ∼2% -17%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	265 Seconds * ∼2% -13%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	252.1 Seconds * ∼2% -8%
Average AMD Ryzen 9 5900HX (219 - 442, n=28)	249 Seconds * ∼2% -6%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	234 Seconds * ∼2%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	232 Seconds * ∼2% +1%
Average AMD Ryzen 9 6900HX (212 - 257, n=16)	227 Seconds * ∼2% +3%

wPrime 2.10
32m
Average AMD Ryzen 5 4500U (5.7 - 9.48, n=3)	7.83 s * ∼2% -126%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	6.799 s * ∼1% -96%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	4.4 s * ∼1% -27%
Average AMD Ryzen 9 6900HX (3.46 - 4.03, n=3)	3.71 s * ∼1% -7%
Average AMD Ryzen 9 5900HX (3.31 - 4.4, n=3)	3.68 s * ∼1% -6%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	3.641 s * ∼1% -5%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	3.595 s * ∼1% -4%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	3.461 s * ∼1%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	3.421 s * ∼1% +1%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	3.375 s * ∼1% +2%
1024m
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	286.835 s * ∼3% -208%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	235.874 s * ∼3% -153%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	201.062 s * ∼2% -116%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	189.07 s * ∼2% -103%
Average AMD Ryzen 5 4500U (170.4 - 173.4, n=2)	171.9 s * ∼2% -84%
Average AMD Ryzen 9 6900HX (93.2 - 149.4, n=3)	115.3 s * ∼1% -24%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	106.7 s * ∼1% -14%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	98.635 s * ∼1% -6%
Average AMD Ryzen 9 5900HX (91.6 - 106.7, n=3)	97.1 s * ∼1% -4%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	93.19 s * ∼1%

X264 HD Benchmark 4.0
Pass 1
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	276.5 (274^min - 278^max) fps ∼65% +5%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	276 (273^min - 294^max) fps ∼65% +5%
Average AMD Ryzen 9 5900HX (272 - 278, n=3)	275 fps ∼65% +5%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	266 (264^min - 271^max) fps ∼63% +1%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	263.5 (262^min - 266^max) fps ∼62% 0%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	262.5 (262^min - 266^max) fps ∼62%
Average AMD Ryzen 9 6900HX (259 - 263, n=3)	261 fps ∼61% -1%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	245 (239^min - 261^max) fps ∼58% -7%
Average AMD Ryzen 5 4500U	210 fps ∼49% -20%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	165.55 (163.6^min - 204^max) fps ∼39% -37%
Pass 2
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	127.8 (127.3^min - 129.1^max) fps ∼47%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	125.25 (105.2^min - 130^max) fps ∼46% -2%
Average AMD Ryzen 9 6900HX (114 - 127.8, n=3)	122.9 fps ∼45% -4%
Average AMD Ryzen 9 5900HX (112 - 128.4, n=3)	122.8 fps ∼45% -4%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	116.8 (116.8^min - 117.3^max) fps ∼43% -9%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	113.7 (113.5^min - 122.2^max) fps ∼41% -11%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	112 (112^min - 112^max) fps ∼41% -12%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	110.5 (101.7^min - 125.3^max) fps ∼40% -14%
Average AMD Ryzen 5 4500U	59.3 fps ∼22% -54%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	36.7 (36.7^min - 37.6^max) fps ∼13% -71%

WinRAR - Result
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	7937 KB/s ∼46% +15%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7722 KB/s ∼45% +12%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	7387 KB/s ∼43% +7%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	7200 KB/s ∼42% +5%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	6960 KB/s ∼40% +1%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	6882 KB/s ∼40%
Average AMD Ryzen 9 6900HX (6795 - 6882, n=3)	6825 KB/s ∼40% -1%
Average AMD Ryzen 9 5900HX (4297 - 7722, n=3)	6514 KB/s ∼38% -5%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4185 KB/s ∼24% -39%
Average AMD Ryzen 5 4500U (3420 - 3566, n=2)	3493 KB/s ∼20% -49%

TrueCrypt
AES Mean 100MB
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	14.1 GB/s ∼0% +5%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	13.4 GB/s ∼0%
Average AMD Ryzen 9 6900HX (12.1 - 13.5, n=3)	13 GB/s ∼0% -3%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	11.6 GB/s ∼0% -13%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	10.8 GB/s ∼0% -19%
Average AMD Ryzen 9 5900HX (7.4 - 11.4, n=3)	9.87 GB/s ∼0% -26%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	8.6 GB/s ∼0% -36%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7.6 GB/s ∼0% -43%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5.3 GB/s ∼0% -60%
Average AMD Ryzen 5 4500U (4.9 - 4.9, n=2)	4.9 GB/s ∼0% -63%
Twofish Mean 100MB
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	2.3 GB/s ∼0% +28%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2 GB/s ∼0% +11%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1.9 GB/s ∼0% +6%
Average AMD Ryzen 9 5900HX (1.6 - 2, n=3)	1.833 GB/s ∼0% +2%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	1.8 GB/s ∼0%
Average AMD Ryzen 9 6900HX (1.6 - 1.8, n=3)	1.733 GB/s ∼0% -4%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1.6 GB/s ∼0% -11%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1.5 GB/s ∼0% -17%
Average AMD Ryzen 5 4500U (0.865 - 0.922, n=2)	0.894 GB/s ∼0% -50%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.755 GB/s ∼0% -58%
Serpent Mean 100MB
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	1.3 GB/s ∼0% +8%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	1.2 GB/s ∼0%
Average AMD Ryzen 9 6900HX (1.1 - 1.2, n=3)	1.167 GB/s ∼0% -3%
Average AMD Ryzen 9 5900HX (1.1 - 1.2, n=3)	1.167 GB/s ∼0% -3%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1.1 GB/s ∼0% -8%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1.1 GB/s ∼0% -8%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1.1 GB/s ∼0% -8%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	0.974 GB/s ∼0% -19%
Average AMD Ryzen 5 4500U (0.511 - 0.541, n=2)	0.526 GB/s ∼0% -56%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.448 GB/s ∼0% -63%

Geekbench 5.4
Multi-Core
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	9935 Points ∼34% +2%
Average AMD Ryzen 9 6900HX (9151 - 10490, n=15)	9825 Points ∼34% +1%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	9706 Points ∼34%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	9695 Points ∼34% 0%
Average AMD Ryzen 9 5900HX (5057 - 9294, n=26)	8164 Points ∼28% -16%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7855 Points ∼27% -19%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7818 Points ∼27% -19%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4898 Points ∼17% -50%
Average AMD Ryzen 5 4500U (4352 - 6234, n=10)	4774 Points ∼17% -51%
Single-Core
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	1861 Points ∼81% +14%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1715 Points ∼74% +5%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	1634 Points ∼71%
Average AMD Ryzen 9 6900HX (1523 - 1652, n=15)	1589 Points ∼69% -3%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1560 Points ∼68% -5%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1552 Points ∼67% -5%
Average AMD Ryzen 9 5900HX (1271 - 1561, n=26)	1514 Points ∼66% -7%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1391 Points ∼60% -15%
Average AMD Ryzen 5 4500U (1082 - 1220, n=10)	1109 Points ∼48% -32%

Geekbench 5.0
5.0 Multi-Core
Average AMD Ryzen 9 6900HX (9220 - 10426, n=9)	9833 Points ∼31% +2%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	9817 Points ∼31% +2%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	9663 Points ∼30% 0%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	9638 Points ∼30%
Average AMD Ryzen 9 5900HX (7327 - 9053, n=8)	8207 Points ∼26% -15%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7847 Points ∼25% -19%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7806 Points ∼25% -19%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4841 Points ∼15% -50%
Average AMD Ryzen 5 4500U	4282 Points ∼14% -56%
5.0 Single-Core
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	1838 Points ∼8% +15%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1694 Points ∼7% +6%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	1593 Points ∼7%
Average AMD Ryzen 9 6900HX (1531 - 1603, n=9)	1568 Points ∼7% -2%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1518 Points ∼7% -5%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1504 Points ∼7% -6%
Average AMD Ryzen 9 5900HX (1233 - 1504, n=8)	1453 Points ∼6% -9%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1385 Points ∼6% -13%
Average AMD Ryzen 5 4500U	1074 Points ∼5% -33%

Geekbench 4.1 - 4.4
64 Bit Single-Core Score
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	8015 Points ∼83% +18%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	7554 Points ∼78% +11%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	6804 Points ∼70%
Average AMD Ryzen 9 6900HX (6191 - 6804, n=5)	6595 Points ∼68% -3%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	6517 Points ∼67% -4%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	6434 Points ∼66% -5%
Average AMD Ryzen 9 5900HX (5249 - 6572, n=7)	6190 Points ∼64% -9%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5911 Points ∼61% -13%
Average AMD Ryzen 5 4500U (4486 - 4762, n=2)	4624 Points ∼48% -32%
64 Bit Multi-Core Score
Average AMD Ryzen 9 6900HX (38370 - 39852, n=5)	39268 Points ∼44% +2%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	38566 Points ∼43%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	36974 Points ∼41% -4%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	36692 Points ∼41% -5%
Average AMD Ryzen 9 5900HX (30451 - 35465, n=7)	32901 Points ∼37% -15%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	31835 Points ∼35% -17%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	31724 Points ∼35% -18%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	19288 Points ∼22% -50%
Average AMD Ryzen 5 4500U (17798 - 19324, n=2)	18561 Points ∼21% -52%

3DMark 11 - 1280x720 Performance Physics
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	18382 Points ∼50% +1%
Average AMD Ryzen 9 6900HX (15855 - 21036, n=18)	18368 Points ∼50% 0%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	18277 Points ∼49%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	18044 Points ∼49% -1%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	17378 Points ∼47% -5%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	16783 Points ∼45% -8%
Average AMD Ryzen 9 5900HX (13940 - 18790, n=27)	16640 Points ∼45% -9%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	14277 Points ∼39% -22%
Average AMD Ryzen 5 4500U (7061 - 8704, n=12)	8121 Points ∼22% -56%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	7792 Points ∼21% -57%

7-Zip 18.03
7z b 4
Average AMD Ryzen 9 6900HX (55816 - 65336, n=15)	61544 MIPS ∼38% 0%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	61401 MIPS ∼38%
Average AMD Ryzen 9 5900HX (36011 - 62503, n=28)	57502 MIPS ∼36% -6%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	56455 MIPS ∼35% -8%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	55046 MIPS ∼34% -10%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	54998 MIPS ∼34% -10%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	51151 MIPS ∼32% -17%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	47064 MIPS ∼29% -23%
Average AMD Ryzen 5 4500U (22466 - 25891, n=11)	24384 MIPS ∼15% -60%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	17636 MIPS ∼11% -71%
7z b 4 -mmt1
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	6067 MIPS ∼73%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	6019 MIPS ∼72% -1%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	5905 MIPS ∼71% -3%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	5809 MIPS ∼69% -4%
Average AMD Ryzen 9 6900HX (5090 - 6070, n=15)	5807 MIPS ∼69% -4%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	5738 MIPS ∼69% -5%
Average AMD Ryzen 9 5900HX (4791 - 5905, n=28)	5703 MIPS ∼68% -6%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	5347 MIPS ∼64% -12%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4788 MIPS ∼57% -21%
Average AMD Ryzen 5 4500U (4235 - 4338, n=11)	4290 MIPS ∼51% -29%

HWBOT x265 Benchmark v2.2 - 4k Preset
Average AMD Ryzen 9 6900HX (15.4 - 18.7, n=15)	17.3 fps ∼37% +1%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	17.1 fps ∼37%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	15.7 fps ∼34% -8%
Average AMD Ryzen 9 5900HX (8.26 - 17.1, n=28)	15.2 fps ∼33% -11%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	14.8 fps ∼32% -13%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	14.5 fps ∼31% -15%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	14.1 fps ∼30% -18%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	13.2 fps ∼28% -23%
Average AMD Ryzen 5 4500U (5.86 - 7.33, n=10)	6.8 fps ∼15% -60%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5.26 fps ∼11% -69%

R Benchmark 2.5 - Overall mean
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.639 sec * ∼14% -34%
Average AMD Ryzen 5 4500U (0.614 - 0.654, n=10)	0.636 sec * ∼14% -34%
Average AMD Ryzen 9 5900HX (0.48 - 0.599, n=28)	0.507 sec * ∼11% -7%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	0.4997 sec * ∼11% -5%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	0.4975 sec * ∼11% -5%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	0.493 sec * ∼11% -4%
Average AMD Ryzen 9 6900HX (0.4627 - 0.4974, n=15)	0.4805 sec * ∼10% -1%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	0.4787 sec * ∼10% -1%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	0.4757 sec * ∼10%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	0.4641 sec * ∼10% +2%

LibreOffice - 20 Documents To PDF
Average AMD Ryzen 5 4500U (58.2 - 78, n=11)	66.4 s * ∼17% -36%
Average AMD Ryzen 9 6900HX (44.8 - 81.7, n=15)	53.9 s * ∼14% -10%
Average AMD Ryzen 9 5900HX (44.1 - 87.4, n=28)	53.4 s * ∼13% -9%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	52 s * ∼13% -7%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	50.7 s * ∼13% -4%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	50.4 s * ∼13% -3%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	48.8 s * ∼12%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	45 s * ∼11% +8%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	41.9 s * ∼11% +14%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	38 s * ∼10% +22%

WebXPRT 3 - ---
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	311 Points ∼76% +8%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	287 Points ∼71%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	285 Points ∼70% -1%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	285 Points ∼70% -1%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	284 Points ∼70% -1%
Average AMD Ryzen 9 6900HX (260 - 304, n=12)	282 Points ∼69% -2%
Average AMD Ryzen 9 5900HX (230 - 291, n=27)	275 Points ∼68% -4%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	274 Points ∼67% -5%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	236 Points ∼58% -18%
Average AMD Ryzen 5 4500U (191 - 202, n=8)	196.5 Points ∼48% -32%

Mozilla Kraken 1.1 - Total Score
Average AMD Ryzen 5 4500U (819 - 871, n=11)	851 ms * ∼1% -49%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	724 ms * ∼1% -27%
Average AMD Ryzen 9 5900HX (595 - 728, n=28)	617 ms * ∼1% -8%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	604 ms * ∼1% -6%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	602 ms * ∼1% -5%
Average AMD Ryzen 9 6900HX (564 - 605, n=13)	583 ms * ∼1% -2%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	582 ms * ∼1% -2%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	577 ms * ∼1% -1%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	571 ms * ∼1%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	534 ms * ∼1% +6%

3DMark
3840x2160 Fire Strike Ultra Physics
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	25456 Points ∼47%
Average AMD Ryzen 9 6900HX (22441 - 26684, n=13)	25279 Points ∼47% -1%
Average AMD Ryzen 9 5900HX (22976 - 26958, n=18)	25211 Points ∼47% -1%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	23939 Points ∼44% -6%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	23269 Points ∼43% -9%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	22101 Points ∼41% -13%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	21422 Points ∼40% -16%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	19357 Points ∼36% -24%
Average AMD Ryzen 5 4500U	11843 Points ∼22% -53%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	9561 Points ∼18% -62%
1920x1080 Fire Strike Physics
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	25915 Points ∼48%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	25160 Points ∼46% -3%
Average AMD Ryzen 9 6900HX (18901 - 27338, n=18)	25104 Points ∼46% -3%
Average AMD Ryzen 9 5900HX (17714 - 27288, n=30)	24914 Points ∼46% -4%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	23903 Points ∼44% -8%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	23308 Points ∼43% -10%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	22244 Points ∼41% -14%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	20684 Points ∼38% -20%
Average AMD Ryzen 5 4500U (9800 - 12259, n=11)	11318 Points ∼21% -56%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	9354 Points ∼17% -64%
2560x1440 Time Spy CPU
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	10539 Points ∼52% +13%
Average AMD Ryzen 9 6900HX (8487 - 11039, n=18)	9842 Points ∼49% +5%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	9449 Points ∼47% +1%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	9354 Points ∼46%
Average AMD Ryzen 9 5900HX (6932 - 10603, n=30)	9243 Points ∼46% -1%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	8393 Points ∼41% -10%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	8191 Points ∼40% -12%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7087 Points ∼35% -24%
Average AMD Ryzen 5 4500U (3316 - 4187, n=9)	3759 Points ∼19% -60%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	2867 Points ∼14% -69%

* ... im mniej tym lepiej

Geekbench 5.4 | Geekbench 5.0 | Geekbench 4.1 - 4.4

Geekbench 5.4
Multi-Core
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	9935 Points ∼34% +2%
Average AMD Ryzen 9 6900HX (9151 - 10490, n=15)	9825 Points ∼34% +1%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	9706 Points ∼34%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	9695 Points ∼34% 0%
Average AMD Ryzen 9 5900HX (5057 - 9294, n=26)	8164 Points ∼28% -16%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7855 Points ∼27% -19%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7818 Points ∼27% -19%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4898 Points ∼17% -50%
Average AMD Ryzen 5 4500U (4352 - 6234, n=10)	4774 Points ∼17% -51%
Single-Core
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	1861 Points ∼81% +14%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1715 Points ∼74% +5%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	1634 Points ∼71%
Average AMD Ryzen 9 6900HX (1523 - 1652, n=15)	1589 Points ∼69% -3%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1560 Points ∼68% -5%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1552 Points ∼67% -5%
Average AMD Ryzen 9 5900HX (1271 - 1561, n=26)	1514 Points ∼66% -7%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1391 Points ∼60% -15%
Average AMD Ryzen 5 4500U (1082 - 1220, n=10)	1109 Points ∼48% -32%

Geekbench 5.0
5.0 Multi-Core
Average AMD Ryzen 9 6900HX (9220 - 10426, n=9)	9833 Points ∼31% +2%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	9817 Points ∼31% +2%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	9663 Points ∼30% 0%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	9638 Points ∼30%
Average AMD Ryzen 9 5900HX (7327 - 9053, n=8)	8207 Points ∼26% -15%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7847 Points ∼25% -19%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7806 Points ∼25% -19%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4841 Points ∼15% -50%
Average AMD Ryzen 5 4500U	4282 Points ∼14% -56%
5.0 Single-Core
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	1838 Points ∼8% +15%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1694 Points ∼7% +6%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	1593 Points ∼7%
Average AMD Ryzen 9 6900HX (1531 - 1603, n=9)	1568 Points ∼7% -2%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1518 Points ∼7% -5%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1504 Points ∼7% -6%
Average AMD Ryzen 9 5900HX (1233 - 1504, n=8)	1453 Points ∼6% -9%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1385 Points ∼6% -13%
Average AMD Ryzen 5 4500U	1074 Points ∼5% -33%

Geekbench 4.1 - 4.4
64 Bit Single-Core Score
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	8015 Points ∼83% +18%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	7554 Points ∼78% +11%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	6804 Points ∼70%
Average AMD Ryzen 9 6900HX (6191 - 6804, n=5)	6595 Points ∼68% -3%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	6517 Points ∼67% -4%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	6434 Points ∼66% -5%
Average AMD Ryzen 9 5900HX (5249 - 6572, n=7)	6190 Points ∼64% -9%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5911 Points ∼61% -13%
Average AMD Ryzen 5 4500U (4486 - 4762, n=2)	4624 Points ∼48% -32%
64 Bit Multi-Core Score
Average AMD Ryzen 9 6900HX (38370 - 39852, n=5)	39268 Points ∼44% +2%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	38566 Points ∼43%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	36974 Points ∼41% -4%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	36692 Points ∼41% -5%
Average AMD Ryzen 9 5900HX (30451 - 35465, n=7)	32901 Points ∼37% -15%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	31835 Points ∼35% -17%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	31724 Points ∼35% -18%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	19288 Points ∼22% -50%
Average AMD Ryzen 5 4500U (17798 - 19324, n=2)	18561 Points ∼21% -52%

Performance Rating
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, Radeon 680M	99.2 pt ∼99%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	85.9 pt ∼86%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	85.8 pt ∼86%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	76.1 pt ∼76%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	70.7 pt ∼71%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	69.2 pt ∼69%
Average of class Mini PC	54.7 pt ∼55%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	41.4 pt ∼41%

AIDA64 / FP32 Ray-Trace
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, Radeon 680M	15102 KRay/s ∼100%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	13631 KRay/s ∼90% -10%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	13460 KRay/s ∼89% -11%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	12208 KRay/s ∼81% -19%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	10952 KRay/s ∼73% -27%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	10351 KRay/s ∼69% -31%
Average of class Mini PC (561 - 15814, n=31, last 2 years)	8043 KRay/s ∼53% -47%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	5612 KRay/s ∼37% -63%

AIDA64 / FPU Julia
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, Radeon 680M	98980 Points ∼100%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	86825 Points ∼88% -12%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	85294 Points ∼86% -14%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	61600 Points ∼62% -38%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	55221 Points ∼56% -44%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	52136 Points ∼53% -47%
Average of class Mini PC (3604 - 99936, n=31, last 2 years)	45067 Points ∼46% -54%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	24138 Points ∼24% -76%

AIDA64 / CPU SHA3
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, Radeon 680M	3452 MB/s ∼100%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	2953 MB/s ∼86% -14%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	2924 MB/s ∼85% -15%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	2844 MB/s ∼82% -18%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	2590 MB/s ∼75% -25%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	2558 MB/s ∼74% -26%
Average of class Mini PC (225 - 3570, n=31, last 2 years)	1950 MB/s ∼56% -44%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	1649 MB/s ∼48% -52%

AIDA64 / CPU Queen
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, Radeon 680M	103686 Points ∼100%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	97720 Points ∼94% -6%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	95602 Points ∼92% -8%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	94655 Points ∼91% -9%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	85240 Points ∼82% -18%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	82493 Points ∼80% -20%
Average of class Mini PC (8178 - 104437, n=31, last 2 years)	62902 Points ∼61% -39%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	46646 Points ∼45% -55%

AIDA64 / FPU SinJulia
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, Radeon 680M	13101 Points ∼100%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	12202 Points ∼93% -7%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	11929 Points ∼91% -9%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	8213 Points ∼63% -37%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	7548 Points ∼58% -42%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	6728 Points ∼51% -49%
Average of class Mini PC (408 - 13164, n=31, last 2 years)	6398 Points ∼49% -51%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	3964 Points ∼30% -70%

AIDA64 / FPU Mandel
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, Radeon 680M	52710 Points ∼100%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	47597 Points ∼90% -10%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	47010 Points ∼89% -11%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	30804 Points ∼58% -42%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	28159 Points ∼53% -47%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	25996 Points ∼49% -51%
Average of class Mini PC (1958 - 55002, n=31, last 2 years)	23908 Points ∼45% -55%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	14905 Points ∼28% -72%

AIDA64 / CPU AES
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, Radeon 680M	136723 MB/s ∼100%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	119844 MB/s ∼88% -12%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	115382 MB/s ∼84% -16%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	99521 MB/s ∼73% -27%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	92356 MB/s ∼68% -32%
Average of class Mini PC (3778 - 136723, n=31, last 2 years)	63407 MB/s ∼46% -54%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	59882 MB/s ∼44% -56%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	58910 MB/s ∼43% -57%

AIDA64 / CPU ZLib
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, Radeon 680M	863 MB/s ∼100%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	828 MB/s ∼96% -4%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	774 MB/s ∼90% -10%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	747 MB/s ∼87% -13%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	732 MB/s ∼85% -15%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	722 MB/s ∼84% -16%
Average of class Mini PC (74.8 - 982, n=31, last 2 years)	506 MB/s ∼59% -41%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	265 MB/s ∼31% -69%

AIDA64 / FP64 Ray-Trace
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, Radeon 680M	7973 KRay/s ∼100%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	7193 KRay/s ∼90% -10%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	7184 KRay/s ∼90% -10%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	6612 KRay/s ∼83% -17%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	5777 KRay/s ∼72% -28%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	5613 KRay/s ∼70% -30%
Average of class Mini PC (308 - 8447, n=31, last 2 years)	4293 KRay/s ∼54% -46%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	2997 KRay/s ∼38% -62%

AIDA64 / CPU PhotoWorxx
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	30098 MPixel/s ∼100% +9%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	28377 MPixel/s ∼94% +2%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, Radeon 680M	27720 MPixel/s ∼92%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	26959 MPixel/s ∼90% -3%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	24323 MPixel/s ∼81% -12%
Average of class Mini PC (4408 - 44347, n=31, last 2 years)	23582 MPixel/s ∼78% -15%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	19885 MPixel/s ∼66% -28%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	14810 MPixel/s ∼49% -47%

Minisforum Venus Series UM690 z uruchomioną pętlą Cinebench R15 Multi

Uruchomienie Cinebench R15 w pętli przez dłuższy czas dało nam dobry pogląd na to, jak skuteczne jest rozwiązanie chłodzące w UM690. Po czwartym uruchomieniu rzeczywiście nastąpił niewielki spadek wydajności, ale nie był on tak dotkliwy jak np. w przypadku Minisforum Neptun Series NAD9. Naszemu egzemplarzowi recenzenckiemu udało się zająć pierwsze miejsce ze średnim wynikiem 2,111.

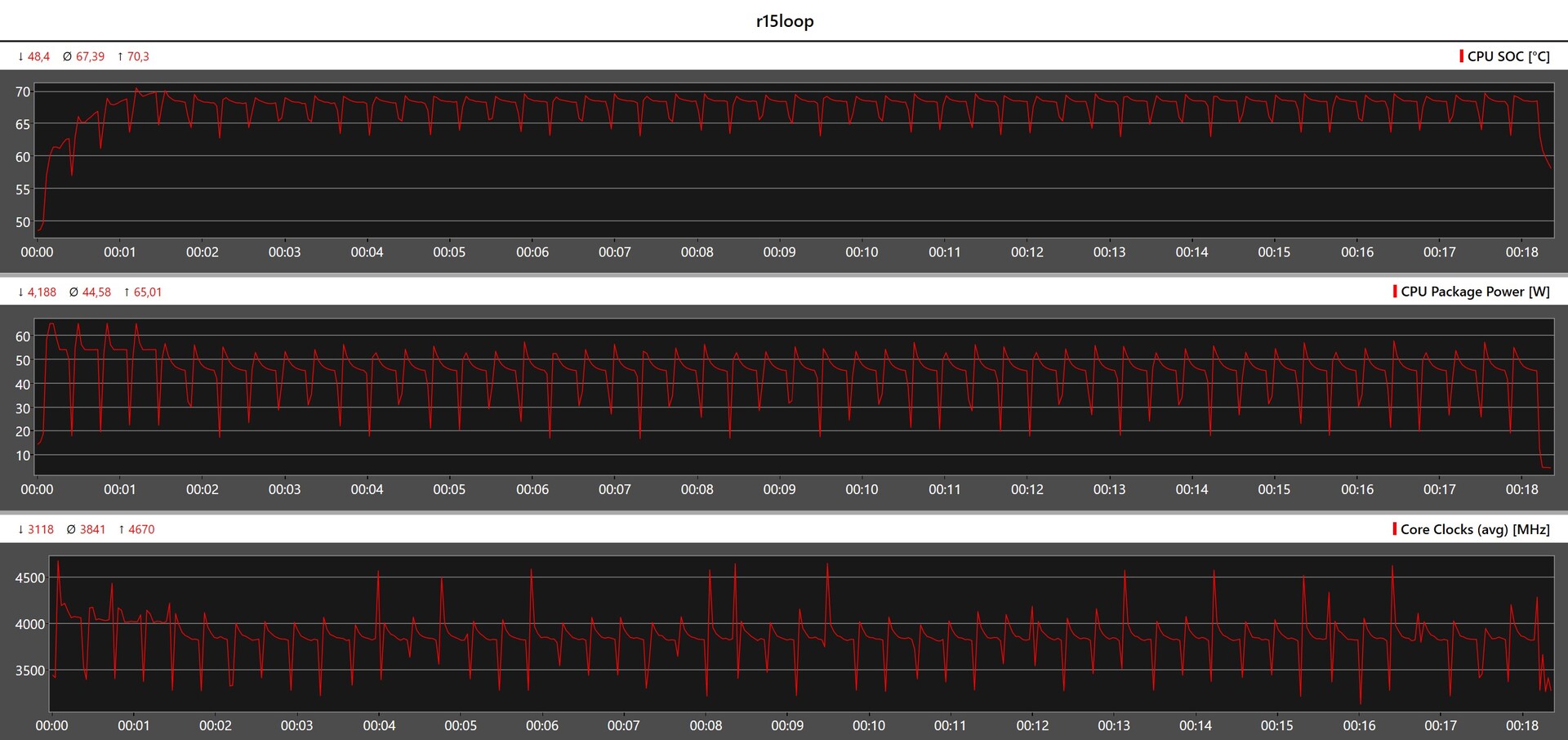

Metryka procesora podczas pętli Cinebench R15

Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, AMD Ryzen 9 6900HX: Ø2111 (2087.36-2211.78)

Morefine S500+ AMD Ryzen 9 5900HX, AMD Ryzen 9 5900HX: Ø1892 (1879.35-1907.49)

Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Ryzen 7 5700G: Ø1980 (1960.21-1996.81)

Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Core i5-1135G7: Ø574 (568.03-615.59)

Morefine S600-Apex Engineer Intel Core i9-12900HK, Intel Core i9-12900HK: Ø1986 (1882.53-2086.59)

Minisforum Neptune Series NAD9 Intel Core i9-12900H, Intel Core i9-12900H: Ø1703 (1657.14-2261.04)

Wydajność systemu

Cały system korzysta z zalet szybkiego SoC sparowanego z pamięcią DDR5. Venus Series UM690 radzi sobie z codzienną pracą wyjątkowo dobrze. Większa szybkość transmisji danych pamięci stała się widoczna w testach AIDA64, w których konkurenci nie mogli dotrzymać kroku UM690. Mimo to opóźnienie dołączonej pamięci RAM nie należy do najkrótszych. Minisforum Venus Series UM690 wypadł pod tym względem nieco gorzej, ale w codziennym użytkowaniu raczej nie da się tego zauważyć.

Performance Rating | PCMark 10

Performance Rating - Percent
Minisforum Venus Series UM690 (6900HX), AMD Ryzen 9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston OM8PGP4512Q-A0	98.9 pt ∼99%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	92.5 pt ∼93%
Morefine S500+, AMD Ryzen 9 5900HX AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	92.4 pt ∼92%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Core i9-12900H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	88 pt ∼88%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	84.9 pt ∼85%
Morefine S600-Apex Engineer, Intel Core i9-12900HK Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8	81.9 pt ∼82%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	68.9 pt ∼69%

PCMark 10
Score
Minisforum Venus Series UM690 (6900HX), AMD Ryzen 9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston OM8PGP4512Q-A0	7045 Points ∼100%
Morefine S500+, AMD Ryzen 9 5900HX AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	6290 Points ∼89% -11%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	6214 Points ∼88% -12%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Core i9-12900H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	6187 Points ∼88% -12%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	5915 Points ∼84% -16%
Morefine S600-Apex Engineer, Intel Core i9-12900HK Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8	5658 Points ∼80% -20%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	4521 Points ∼64% -36%
Essentials
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Core i9-12900H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	11217 Points ∼100% +3%
Minisforum Venus Series UM690 (6900HX), AMD Ryzen 9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston OM8PGP4512Q-A0	10838 Points ∼97%
Morefine S600-Apex Engineer, Intel Core i9-12900HK Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8	10700 Points ∼95% -1%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	10661 Points ∼95% -2%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	10148 Points ∼90% -6%
Morefine S500+, AMD Ryzen 9 5900HX AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	10087 Points ∼90% -7%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	8910 Points ∼79% -18%
Productivity
Minisforum Venus Series UM690 (6900HX), AMD Ryzen 9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston OM8PGP4512Q-A0	10060 Points ∼100%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	9941 Points ∼99% -1%
Morefine S500+, AMD Ryzen 9 5900HX AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	9856 Points ∼98% -2%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Core i9-12900H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	7673 Points ∼76% -24%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	7626 Points ∼76% -24%
Morefine S600-Apex Engineer, Intel Core i9-12900HK Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8	7041 Points ∼70% -30%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	6357 Points ∼63% -37%

CrossMark: Overall | Productivity | Creativity | Responsiveness

CrossMark / Overall
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1894 Points ∼100% +9%
Morefine S600-Apex Engineer, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8	1804 Points ∼95% +4%
Minisforum Venus Series UM690 (6900HX), AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston OM8PGP4512Q-A0	1731 Points ∼91%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	1679 Points ∼89% -3%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1424 Points ∼75% -18%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1245 Points ∼66%
