Recenzja Intel Serpent Canyon NUC 12: Szybki mini PC z Intel Core i7-12700H i Intel Arc A770M
Intel NUC 12 Enthusiast Kit to kompaktowy i wydajny komputer stacjonarny. Producentem procesora, jak i układu graficznego jest firma Intel. Taki rozwój sytuacji okazuje się bardzo ekscytujący dla klientów końcowych - konkurencja jest przecież świetna dla biznesu. Procesor, Intel Core i7-12700H, to najnowocześniejszy model Alder Lake P. Dodatkowo komputer posiada dedykowaną kartę graficzną z 16 GB VRAM, 32 GB RAM oraz dysk SSD o pojemności 500 GB. Według specyfikacji, Intel NUC 16 Enthusiast Kit występuje jako model barebone lub z 16 GB RAM i 1-TB SSD. Wersja barebone kosztuje około 1 591,99 dolarów, a wersja z pamięcią RAM, dyskiem SSD i systemem operacyjnym nieco więcej, bo około 1 647,64 dolarów.

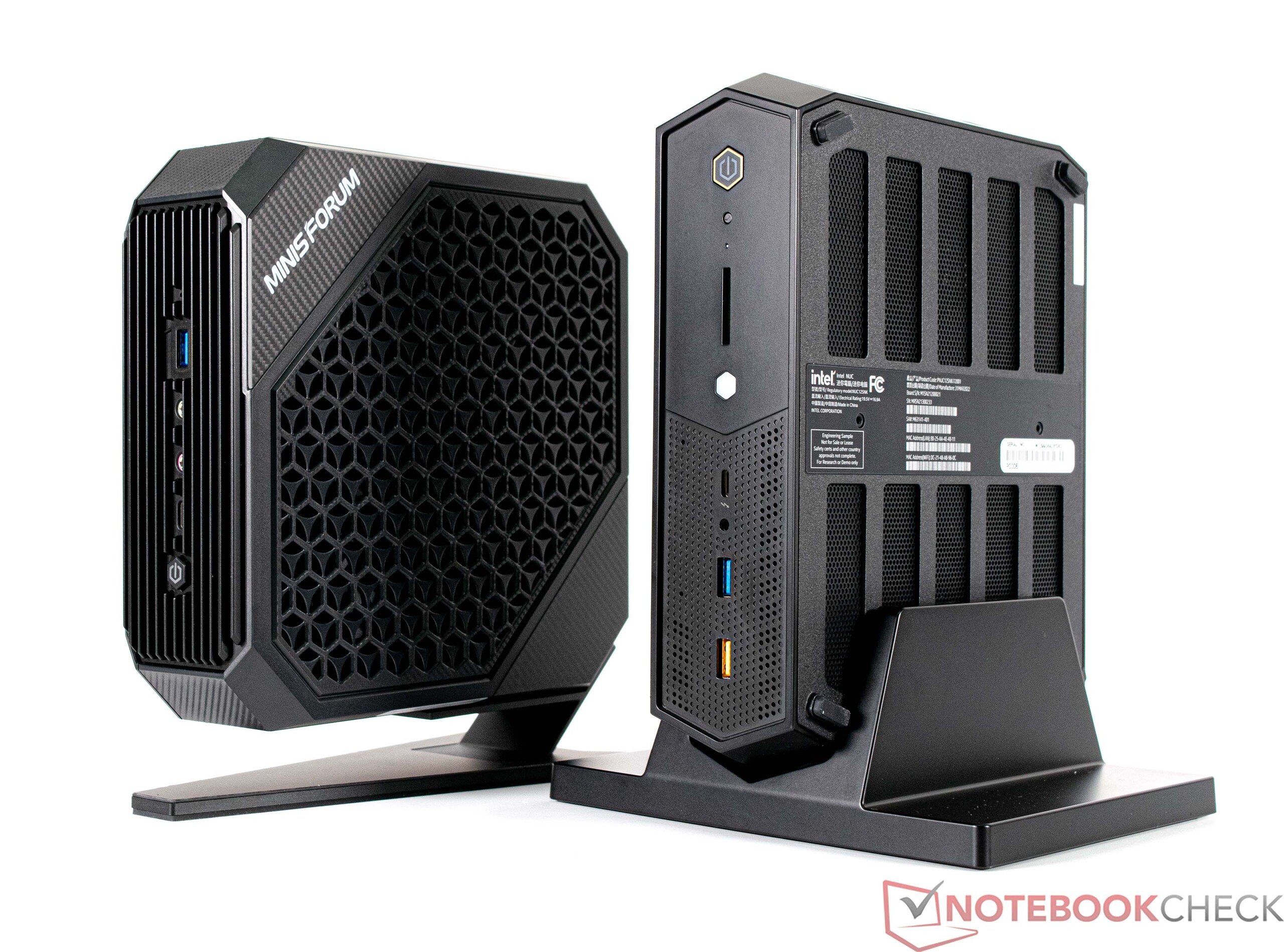

W niniejszej recenzji do porównania wykorzystaliśmy różne kompaktowe komputery stacjonarne z dedykowanymi kartami graficznymi. Na stronie Minisforum Neptune Series HX99Gwygląda na jego największego rywala.
Posibles contendientes en la comparación
Rating | Date | Model | Weight | Height | Best Price |
---|---|---|---|---|---|
88.4 % | 03/2023 | Intel NUC 12, NUC12SNKi72_Serpent Canyon i7-12700H, A770M | 2 kg | 60 mm | |
Intel Beast Canyon NUC i9-11900KB, NVIDIA GeForce RTX 3060 | 189 mm | ||||
Zotac Magnus One (ECM73070C) i7-10700, NVIDIA GeForce RTX 3070 | |||||
Zotac ZBOX Magnus EN173070C i7-11800H, GeForce RTX 3070 Laptop GPU | 1.8 kg | 62.2 mm | |||
Intel Dragon Canyon NUC - RTX 3060 i9-12900, NVIDIA GeForce RTX 3060 | 189 mm | ||||
82.6 % | Lenovo Legion 5 15ACH6A-82NW0010GE R5 5600H, Radeon RX 6600M | 2.5 kg | 25.75 mm | ||
10/2022 | Minisforum NUCX i7 i7-11800H, GeForce RTX 3070 Laptop GPU | 2.4 kg | 393 mm | ||
89.9 % | 02/2023 | Minisforum Neptune Series HX99G R9 6900HX, Radeon RX 6600M | 1.6 kg | 69.3 mm |
Sprawa

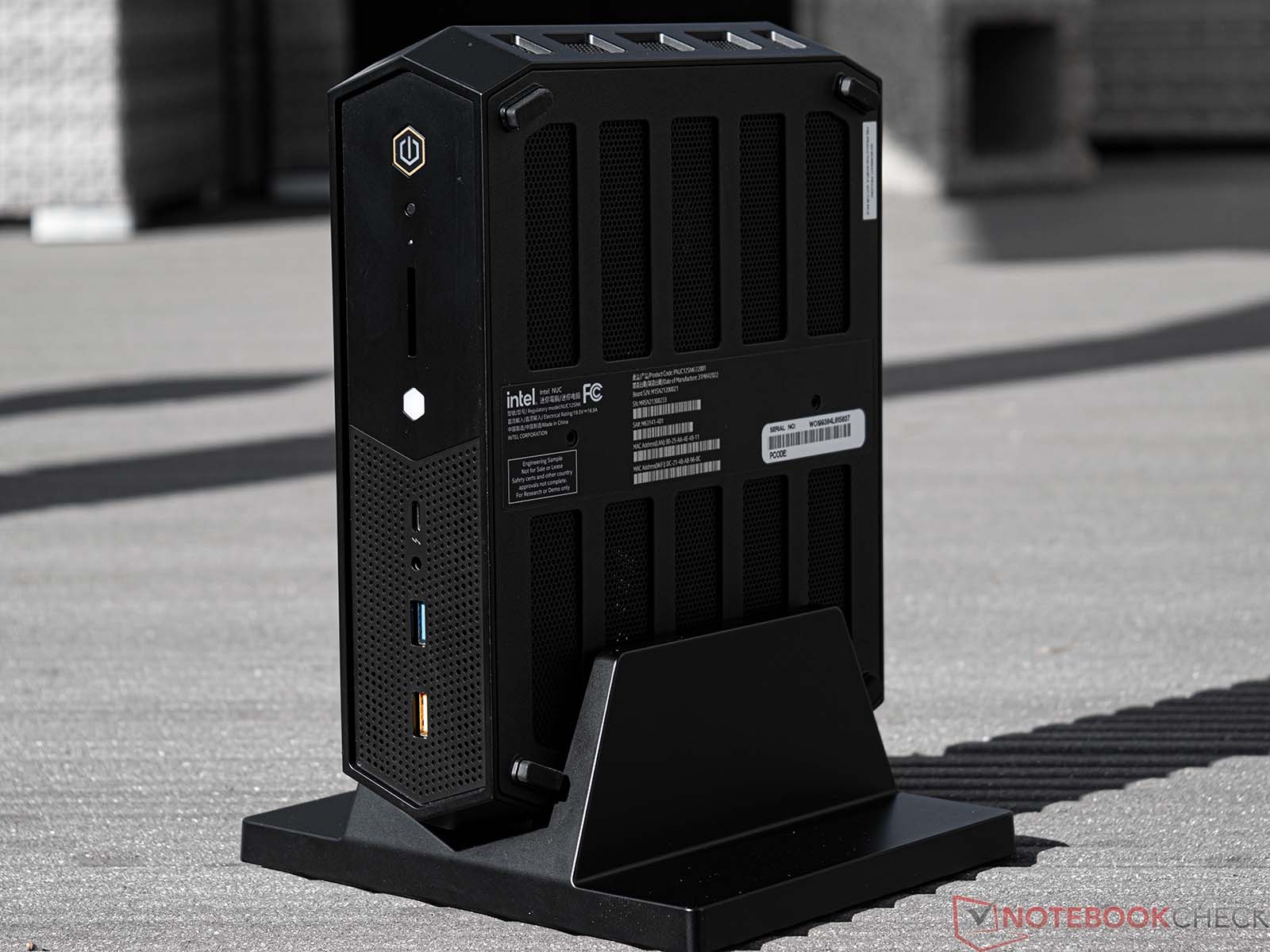

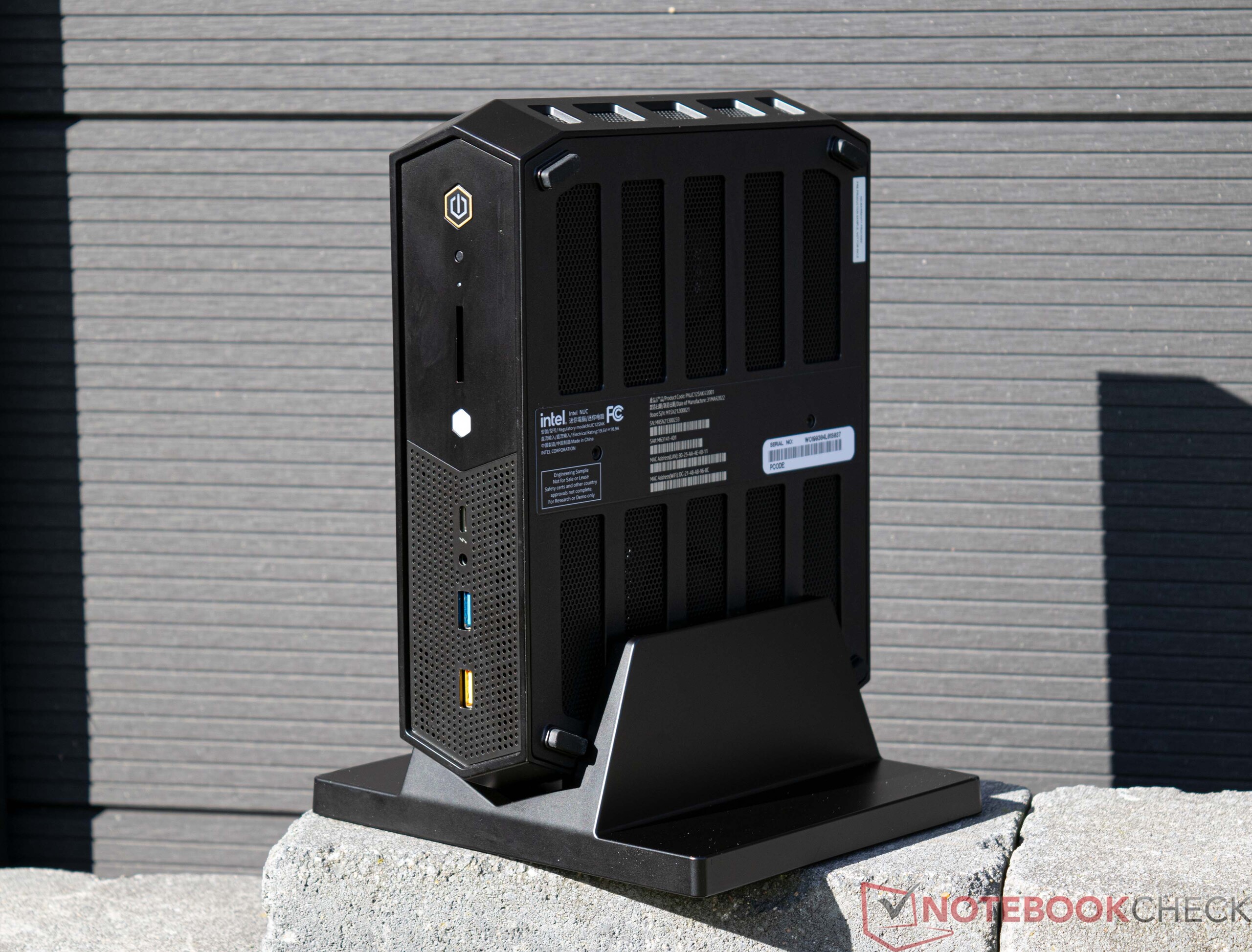

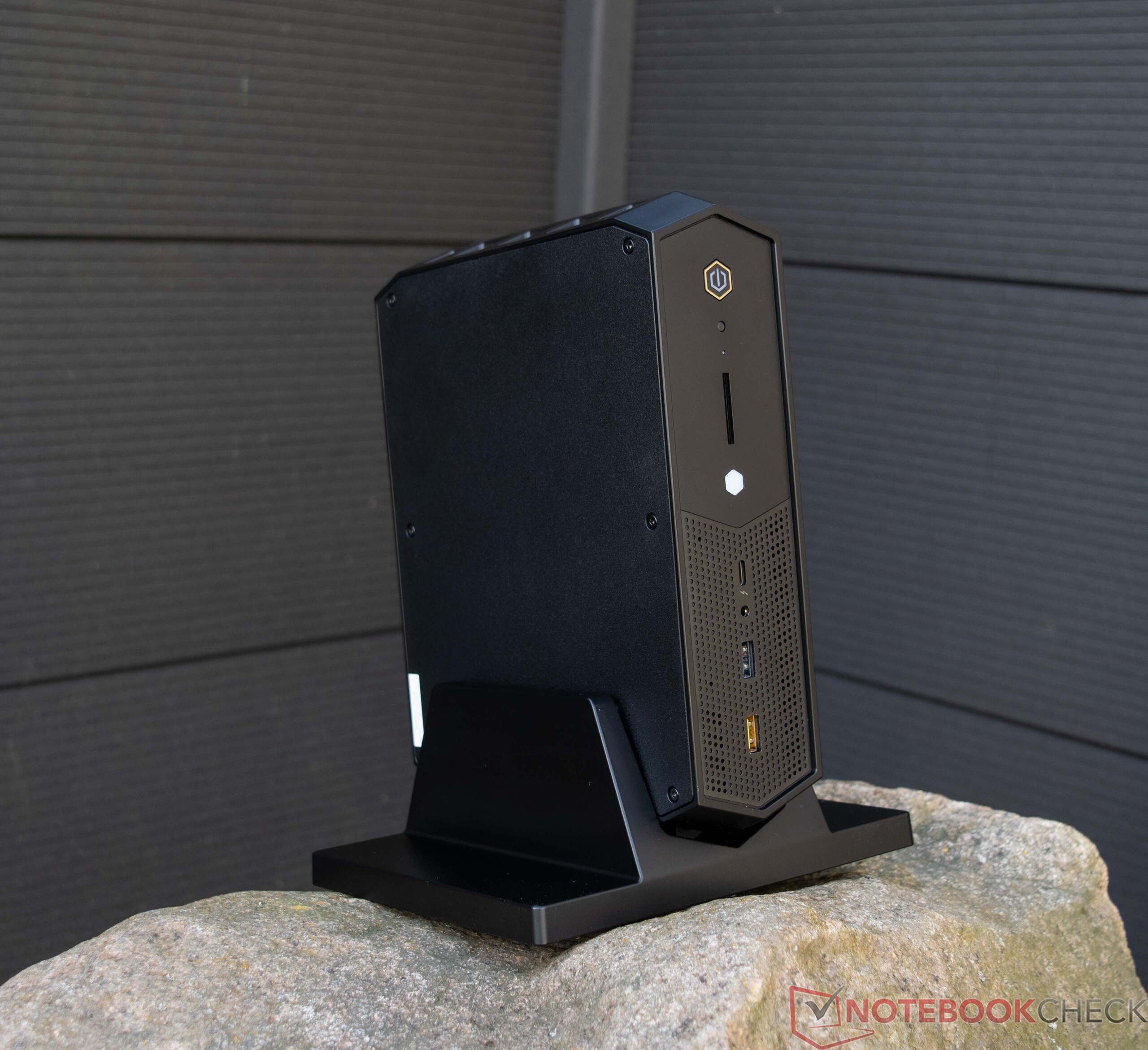

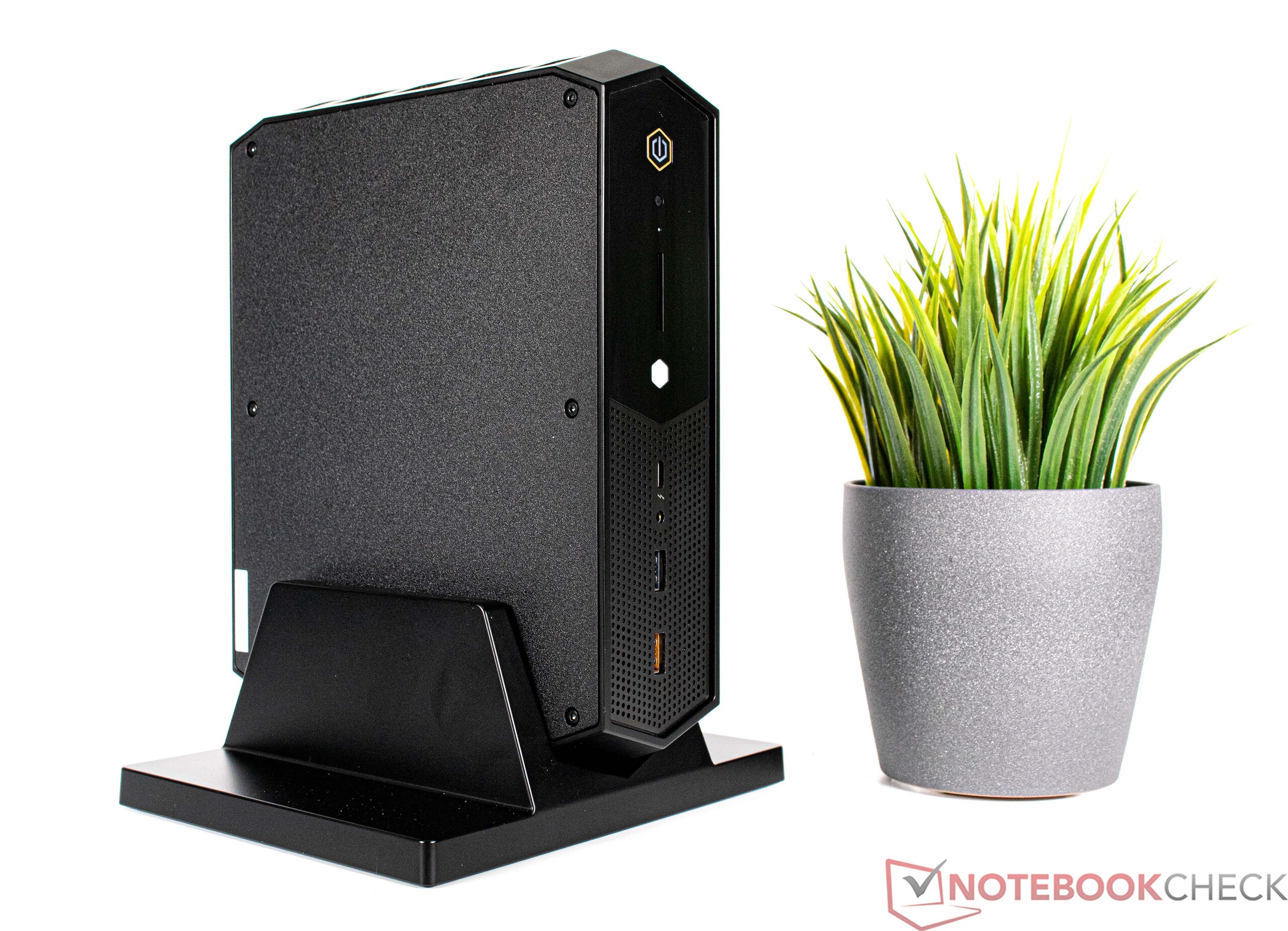

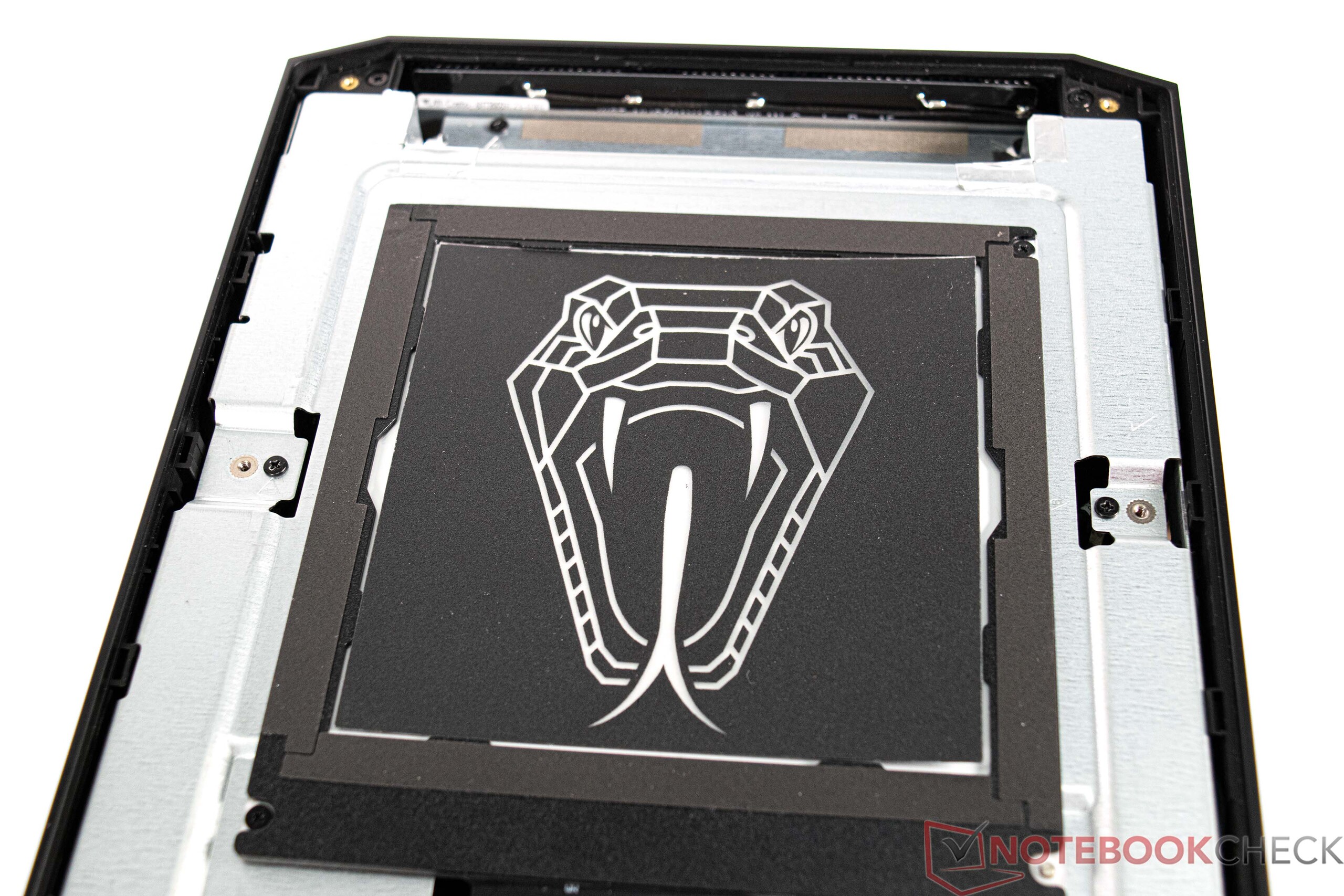

Z zewnątrz NUC 12 Enthusiast Kit wygląda na bardzo dobrze wykonany i siedzi pewnie, gdy jest ustawiony poziomo lub pionowo. Jest to również zasługa wagi komputera, która wynosi 1,97 kg. Opcjonalna stopka, którą można przymocować, gdy komputer stoi w pozycji pionowej, dodaje kolejne 443 gramy do wagi - a masywny 330-watowy zasilacz dodaje kolejne 1,3 kg. W praktyce wolimy siedzieć NUC 12 Enthusiast Kit w pozycji pionowej, aby świeże powietrze mogło być zasysane bez przeszkód. Kolorystycznie komputer wygląda elegancko - tylko podczas użytkowania widać podświetlane logo na górze urządzenia (w pozycji pionowej po lewej stronie urządzenia). PC jest również obrandowany czaszką, co jest działającym elementem stylistycznym serii NUC. Alternatywnie można ją zamienić na głowę węża lub inne obrazy.
Łączność

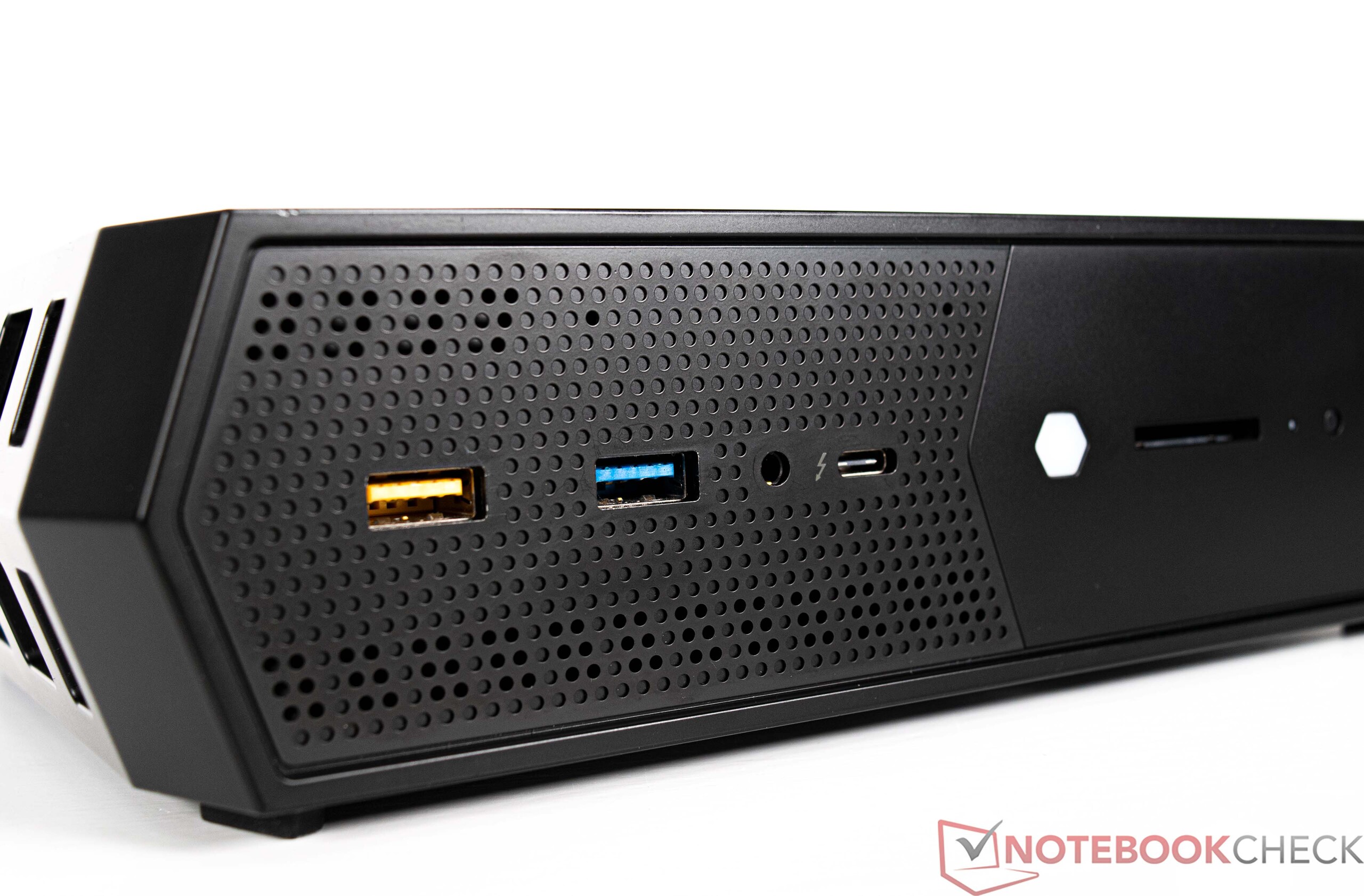

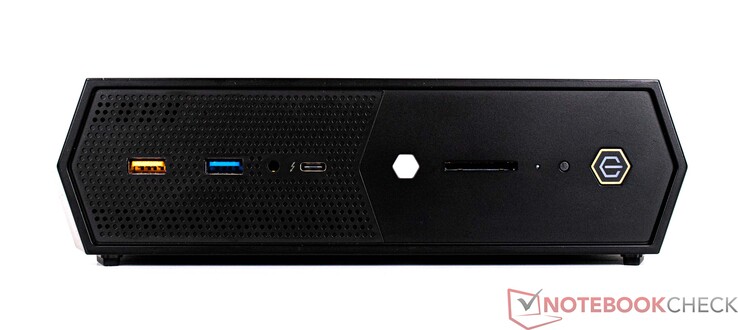

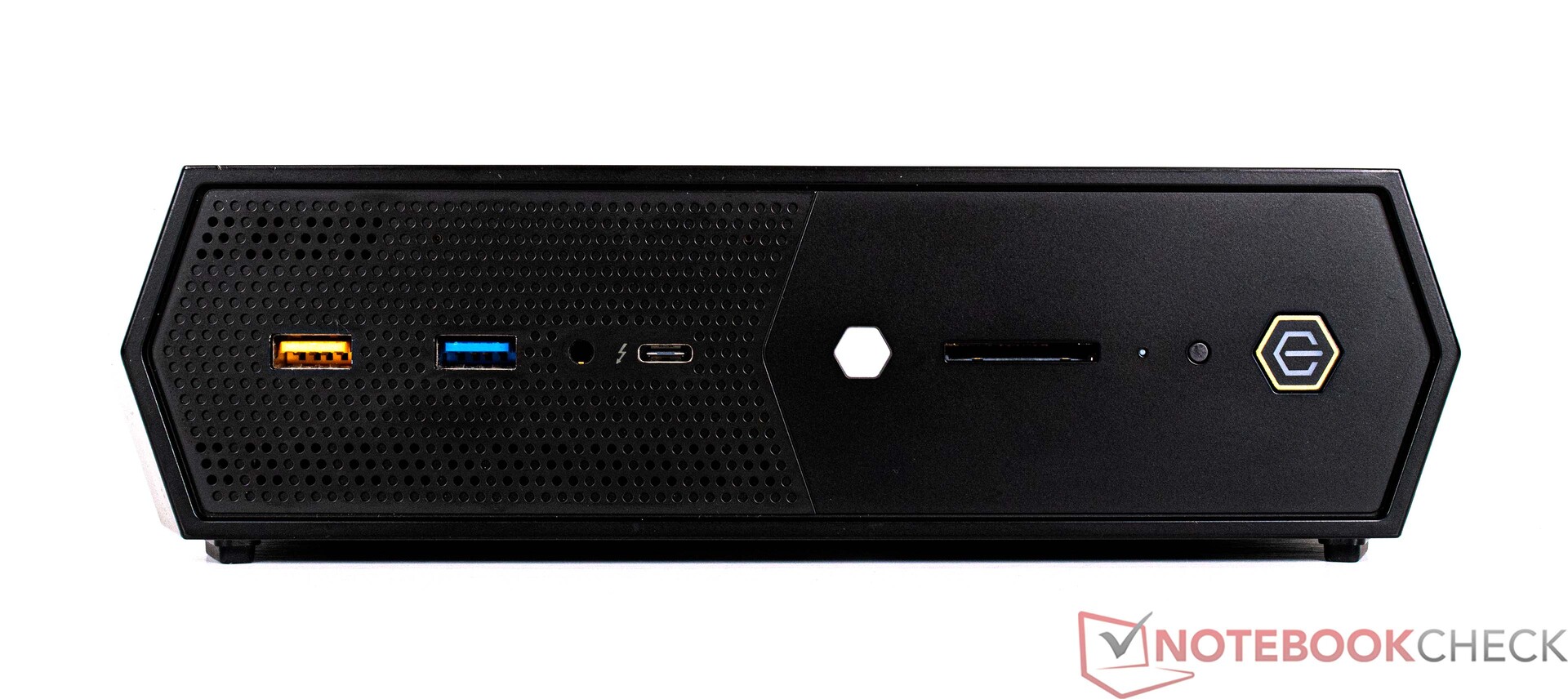

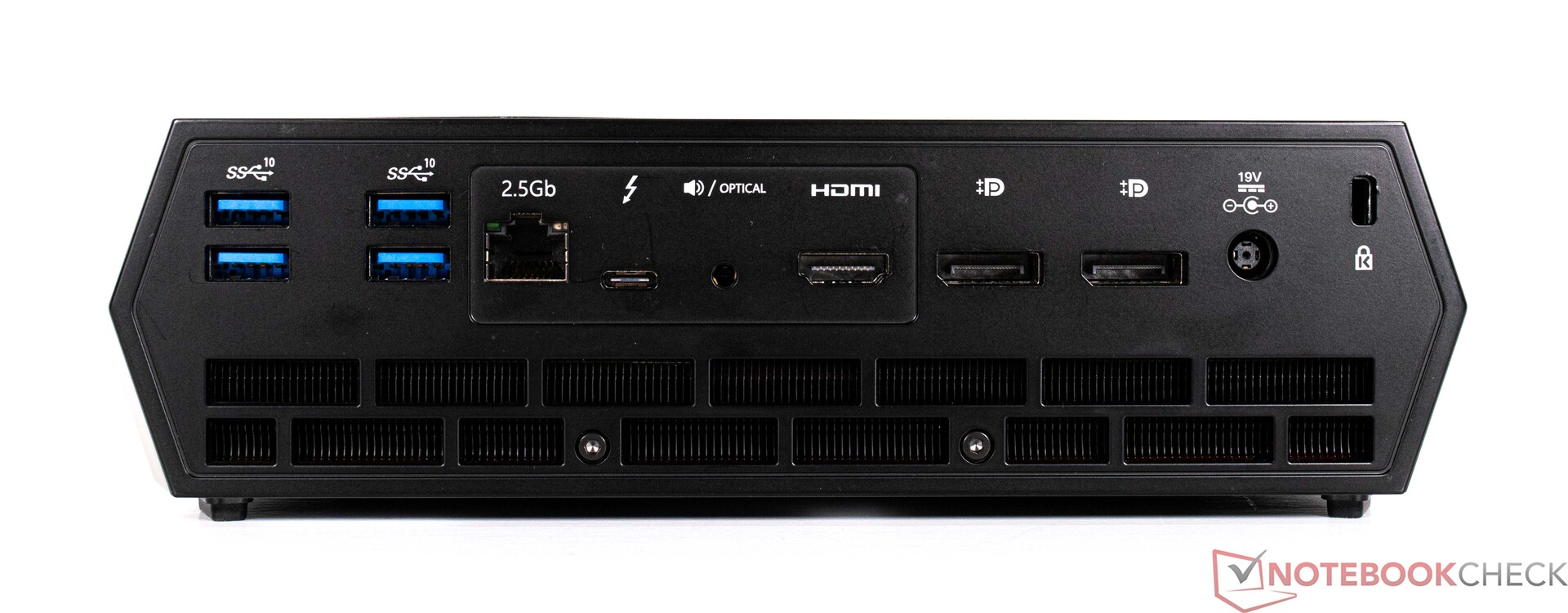

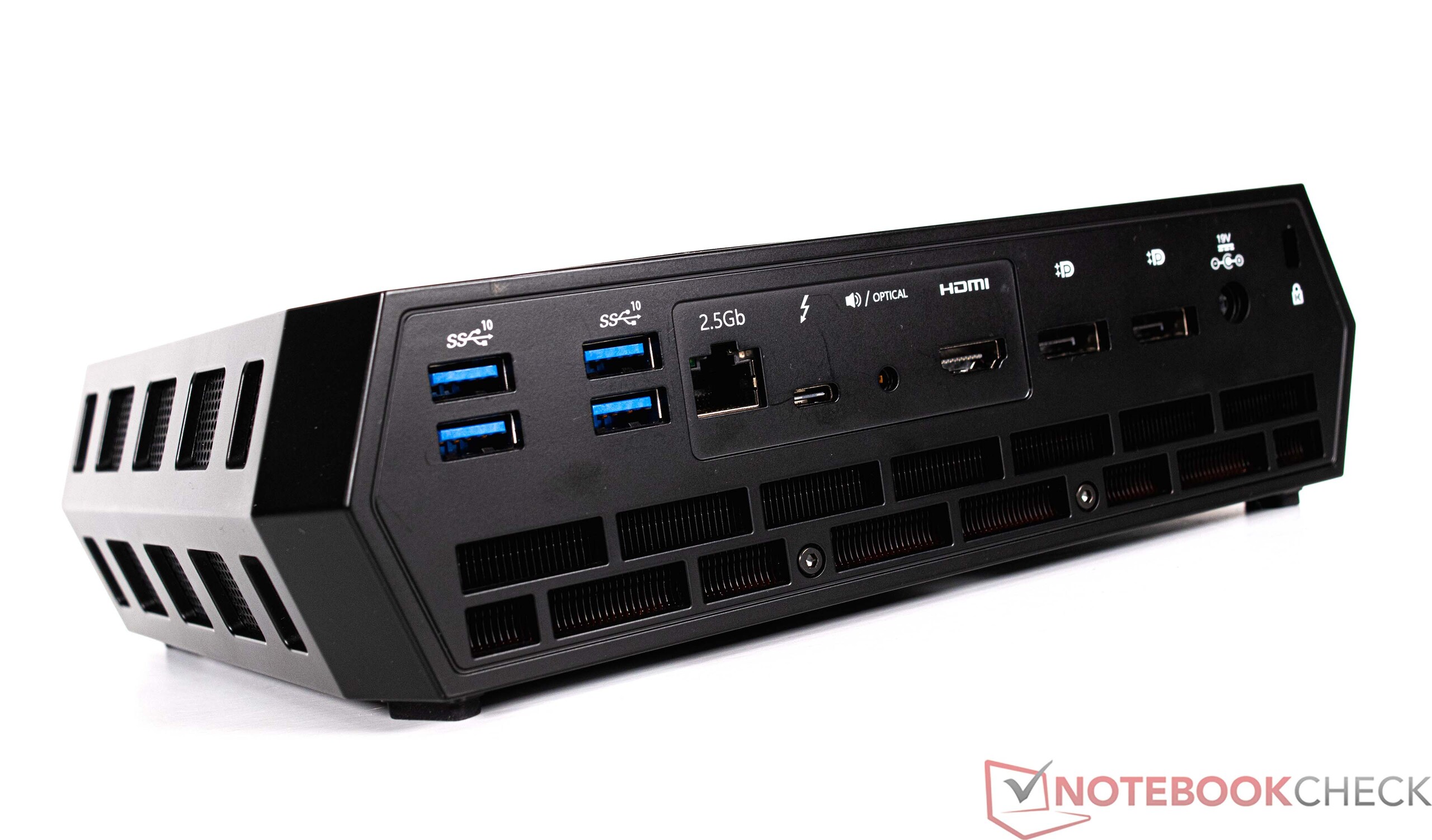

Intel wyposażył NUC 12 Enthusiast Kit w mnóstwo portów zewnętrznych. Uwzględniono nawet Thunderbolt - i to dwukrotnie. Dodatkowo znajdziemy tu sześć portów USB typu A, co z dużym prawdopodobieństwem zadowoli większość użytkowników. Na froncie znajduje się czytnik kart SD - funkcja często pomijana przez konkurencję. Rozmieszczenie portów jest w naszych oczach dobrze przemyślane - w poziomie i w pionie nie powinniście mieć problemu z poprowadzeniem kabli.

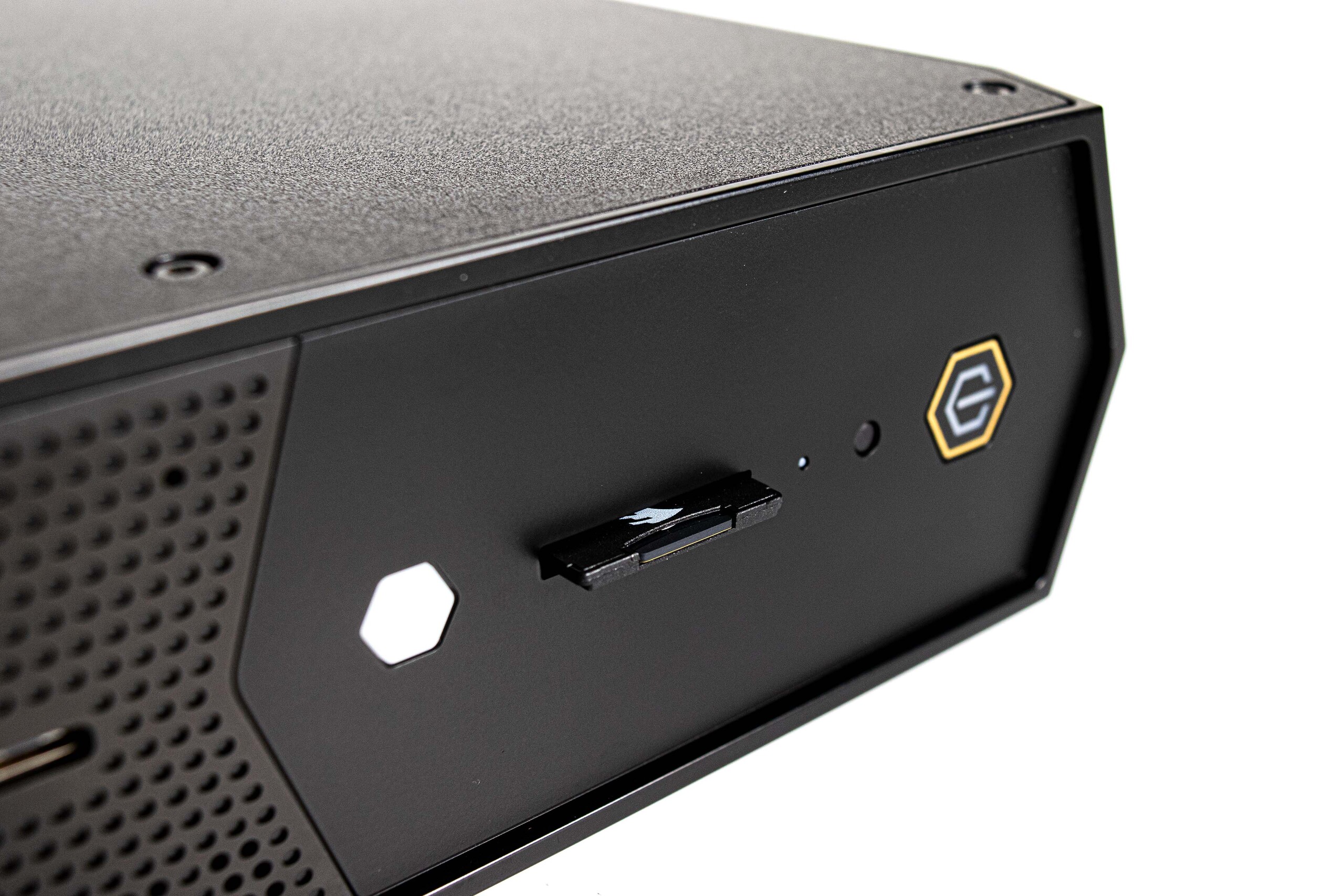

Wbudowany czytnik kart SD oferuje prędkość USB-3, ale nie jest w stanie wykorzystać naszej testowej karty AV Pro SD microSD 128 GB V60. Zarówno Intel Dragon Canyon NUCiIntel Beast Canyon NUC pokazują, co jest możliwe dzięki obsłudze UHS-II.
SD Card Reader | |
average JPG Copy Test (av. of 3 runs) | |
Intel Beast Canyon NUC (AV Pro SD microSD 128 GB V60) | |
Intel Dragon Canyon NUC | |
Average of class Mini PC (16.9 - 181.8, n=8, last 2 years) | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon (AV Pro SD microSD 128 GB V60) | |
Zotac ZBOX Magnus EN173070C (AV Pro SD microSD 128 GB V60) | |
maximum AS SSD Seq Read Test (1GB) | |
Intel Beast Canyon NUC (AV Pro SD microSD 128 GB V60) | |
Intel Dragon Canyon NUC | |
Average of class Mini PC (26.2 - 200, n=8, last 2 years) | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon (AV Pro SD microSD 128 GB V60) | |
Zotac ZBOX Magnus EN173070C (AV Pro SD microSD 128 GB V60) |
Komunikacja

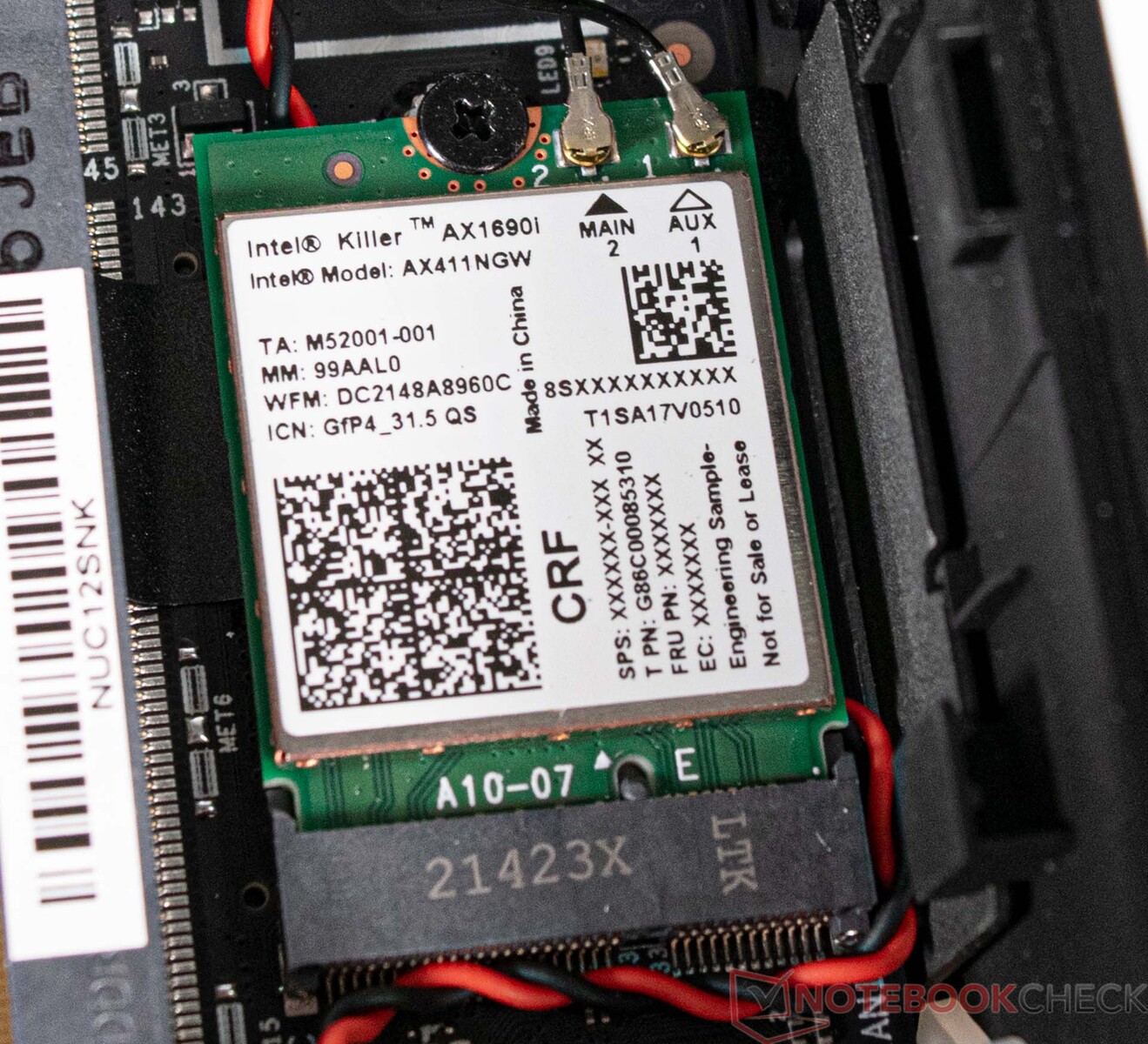

Intel NUC 12 Enthusiast Kit posiada moduł Killer AX1690i Wi-Fi 6E z własnej linii produkcyjnej. Wykorzystując Asus ROG Rapture GT-AXE11000 jako router testowy, zmierzyliśmy szybkie i spójne prędkości transmisji przy użyciu połączeń 5 GHz i 6 GHz. Dla szybszej transmisji danych można również skorzystać z gniazda LAN, które obsługuje do 2,5 Gbit/s.
Akcesoria

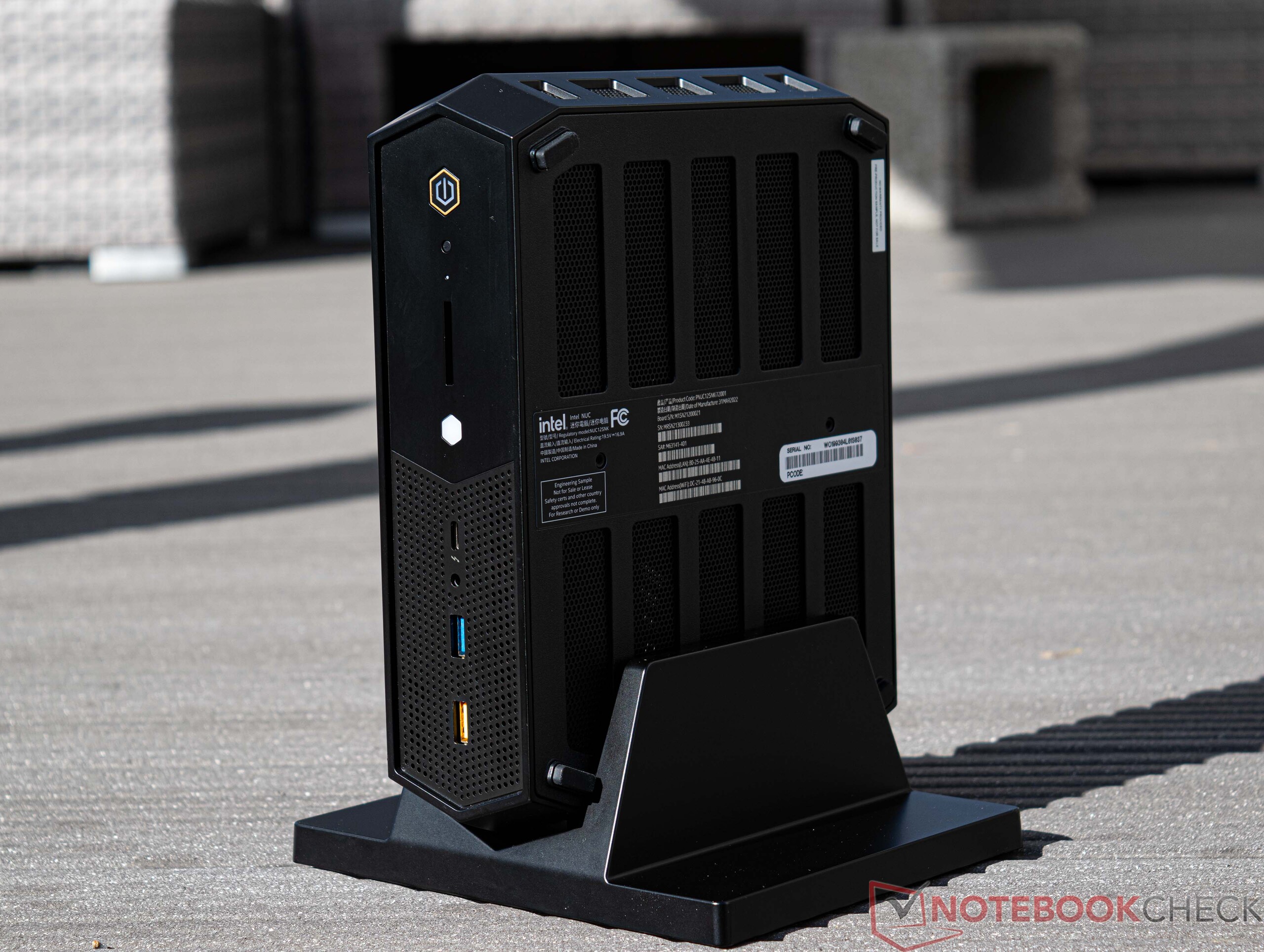

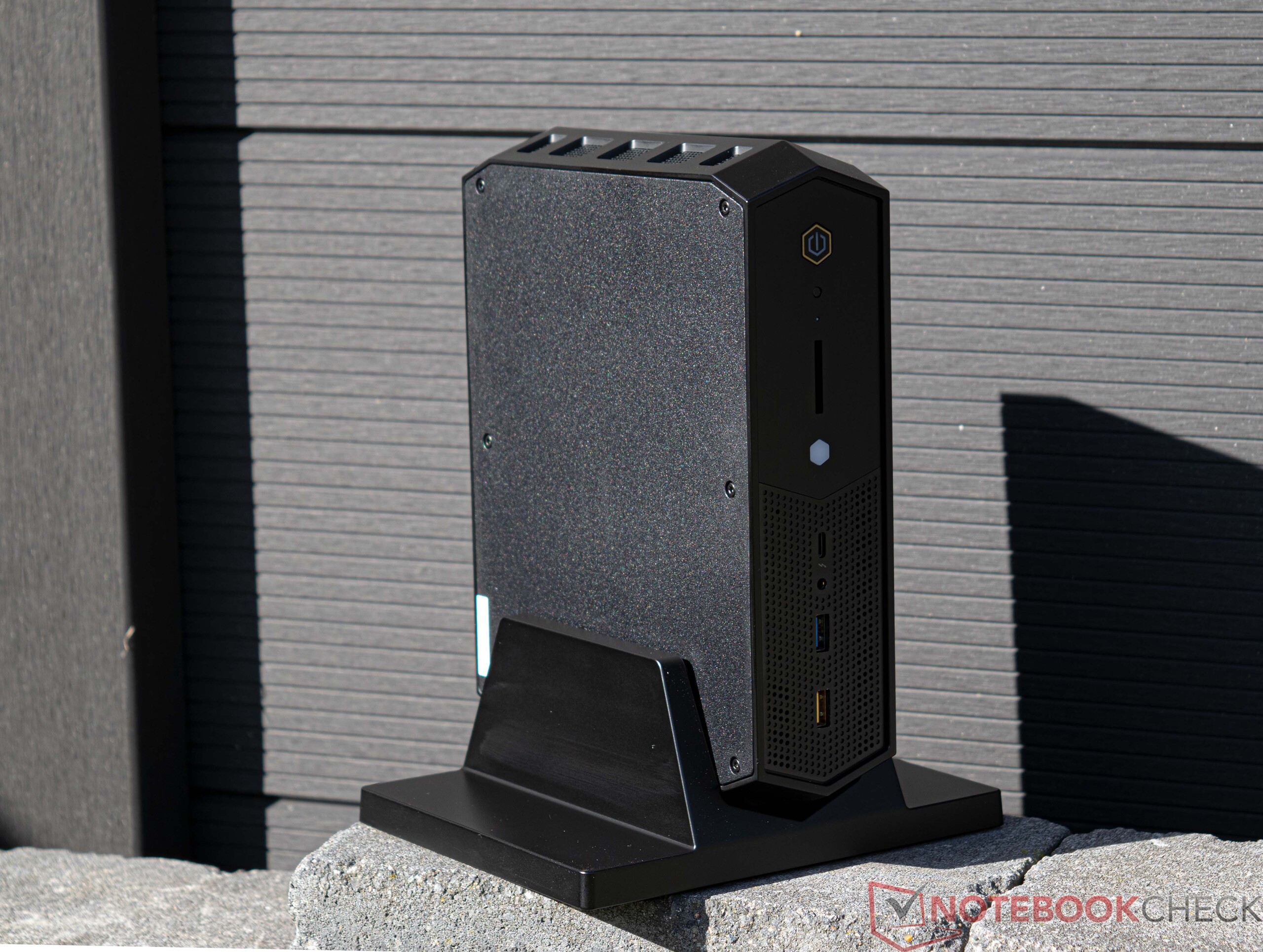

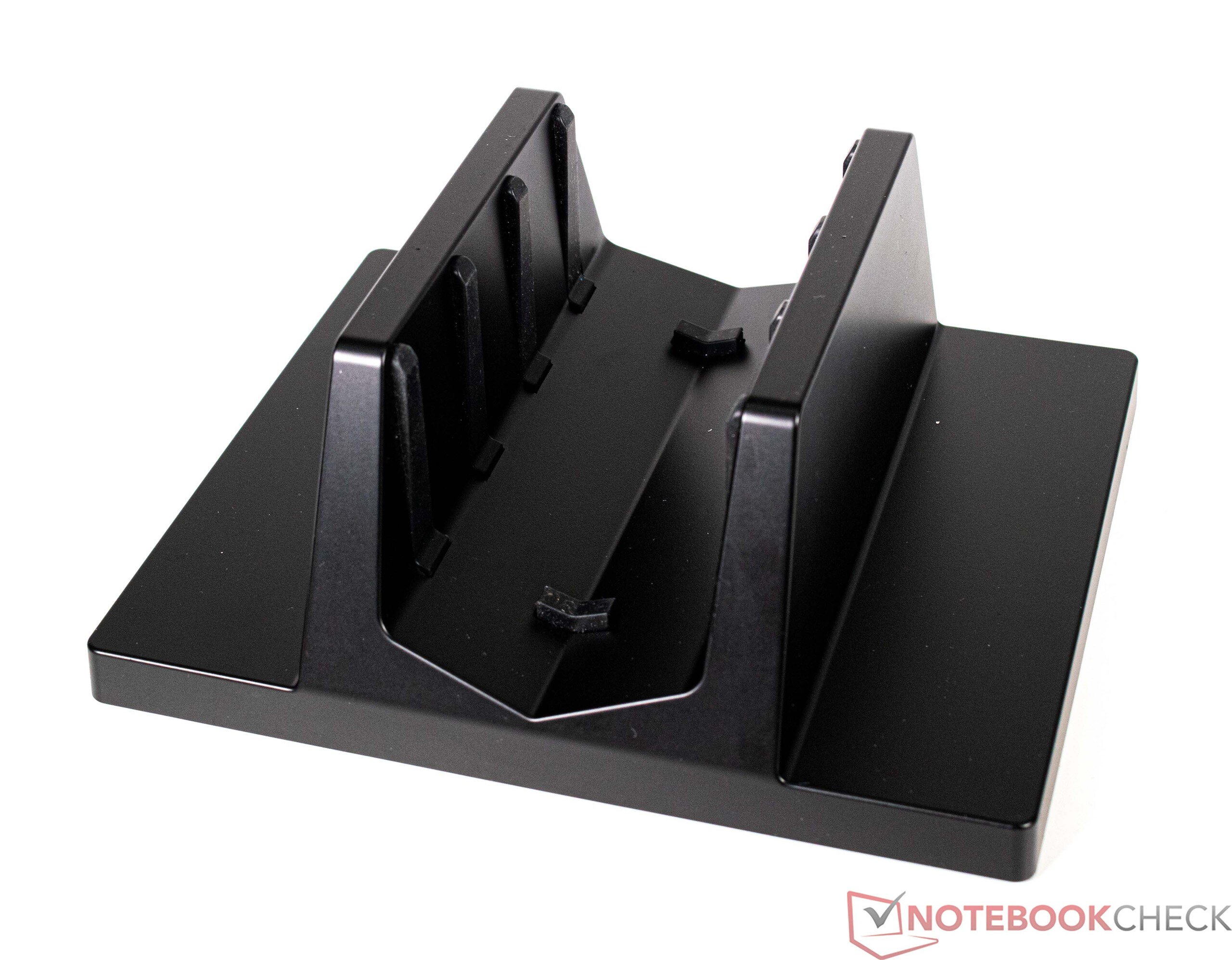

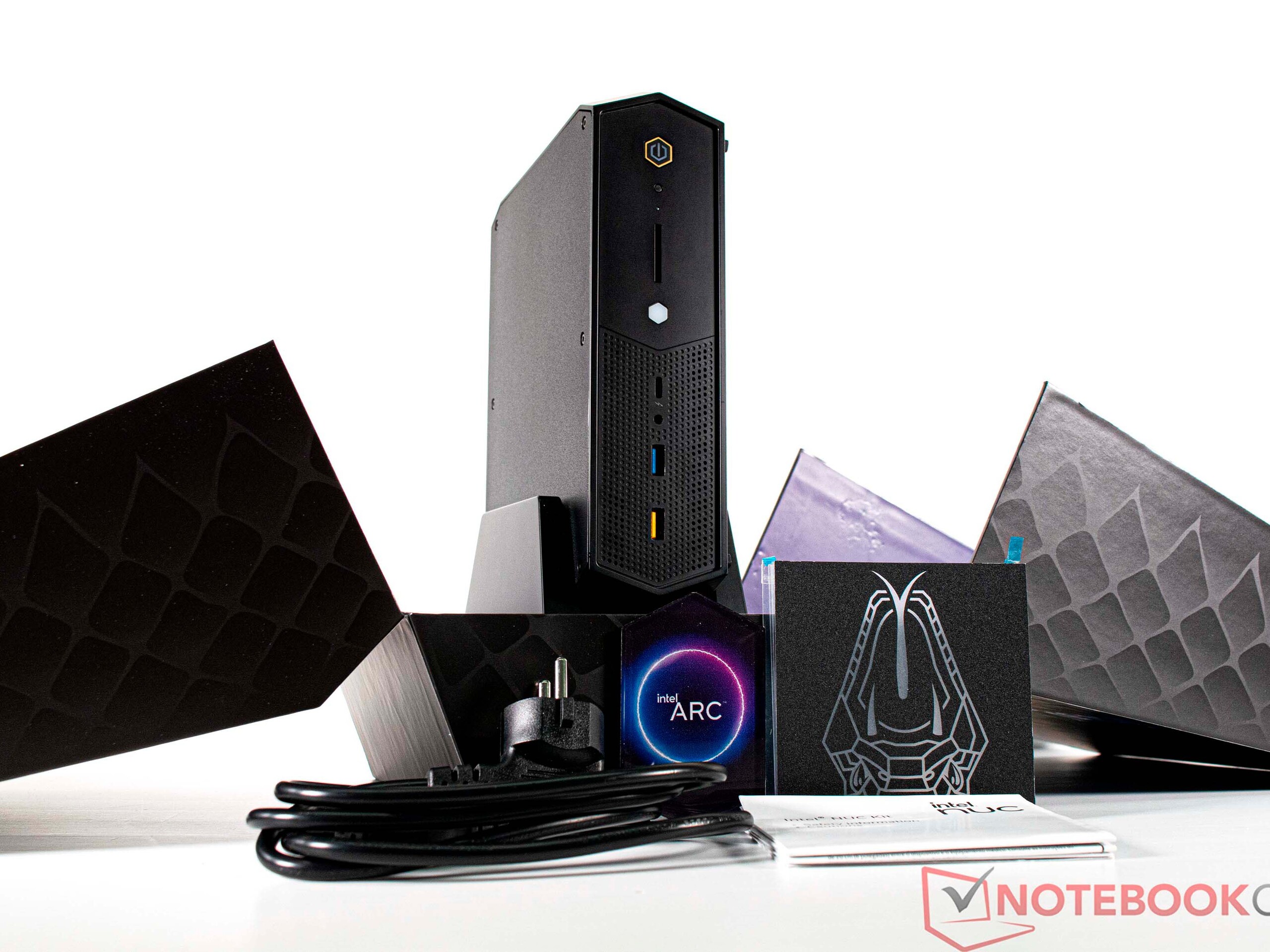

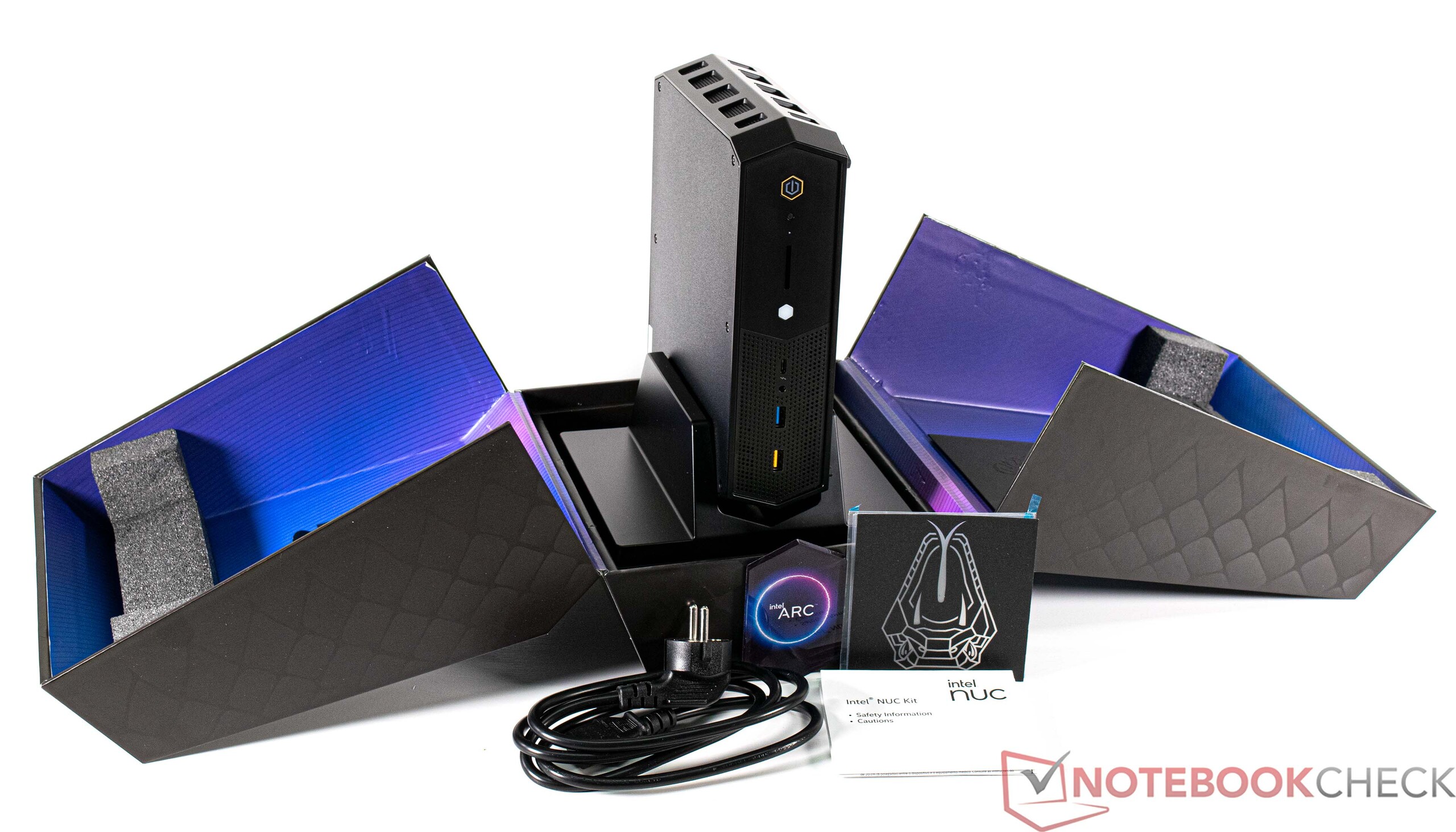

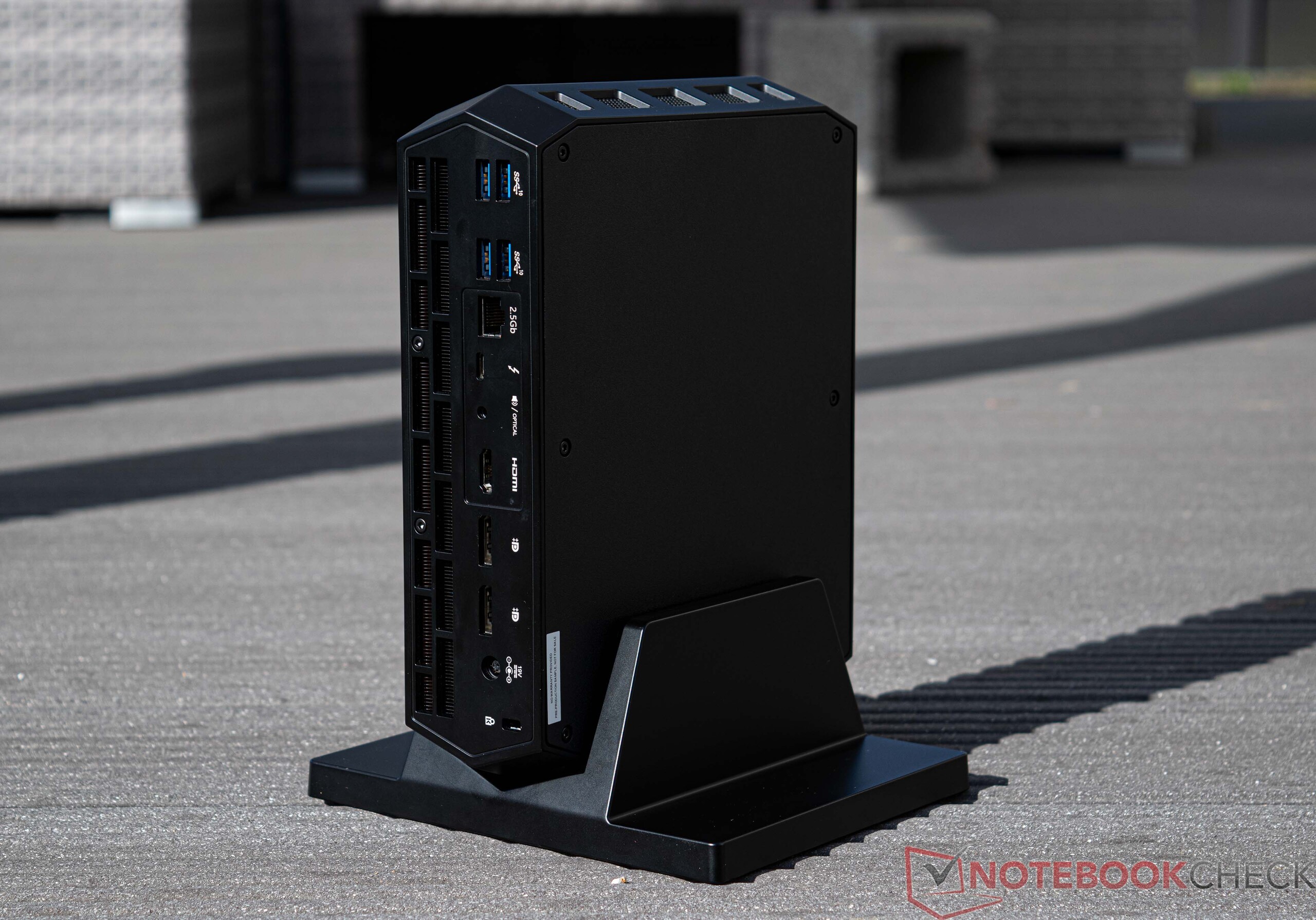

Obok samego mini PC Intel dołącza także nóżkę, którą można przymocować do komputera, gdy stoi on w pozycji pionowej. Oprócz tego w zestawie znajduje się również 330-watowy zasilacz oraz dodatkowe szablony, za pomocą których można dostosować podświetlane logo na górze urządzenia.
Konserwacja

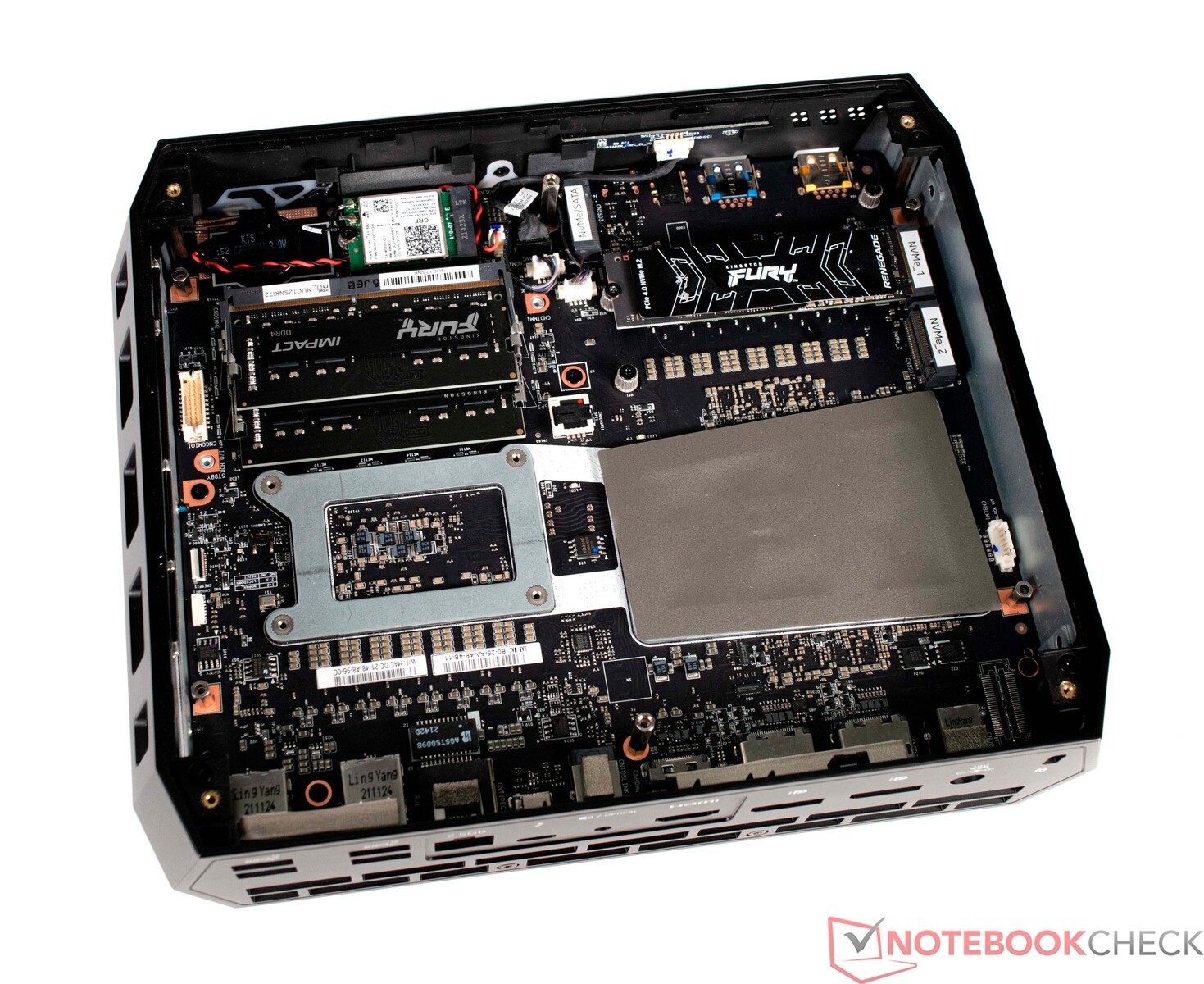

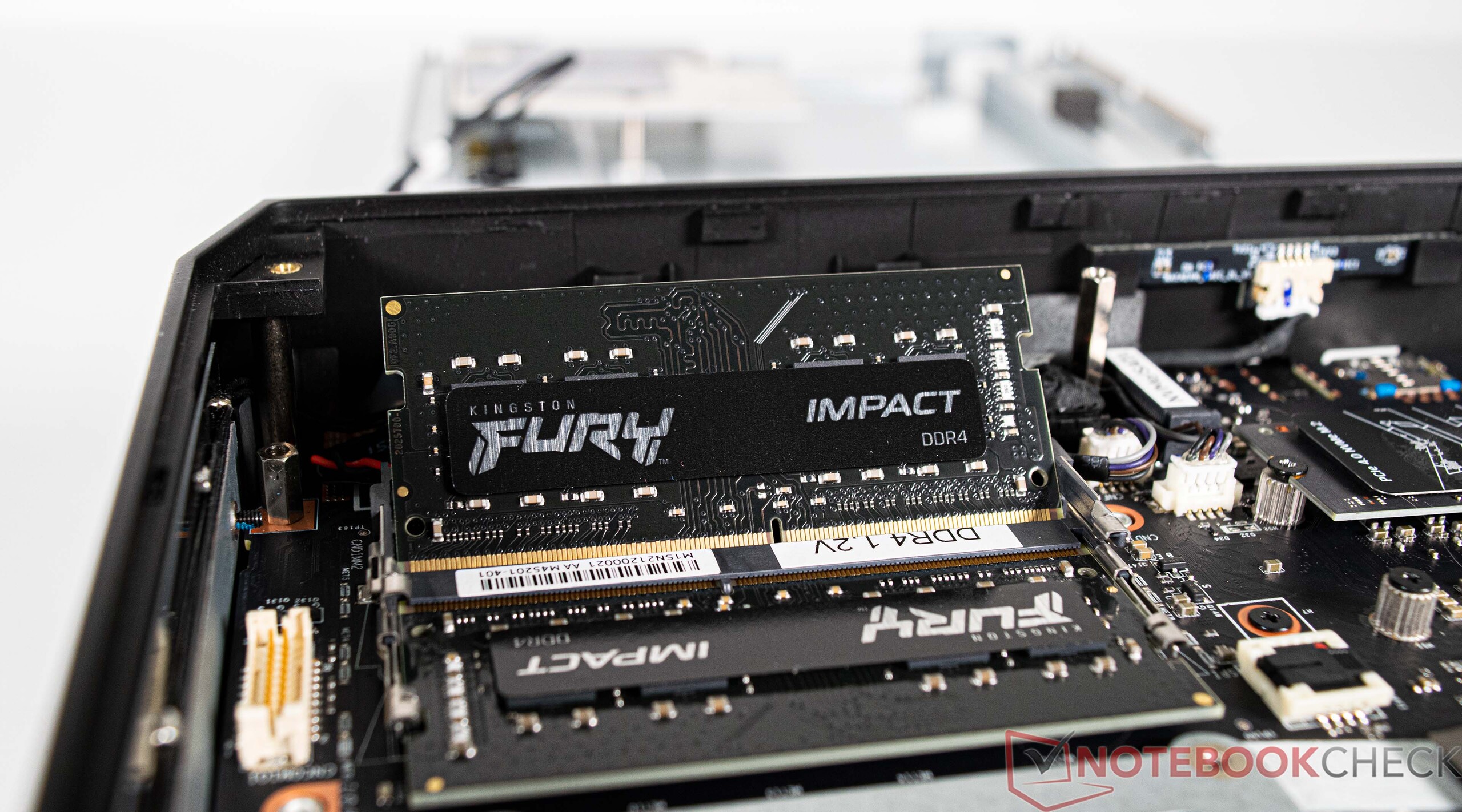

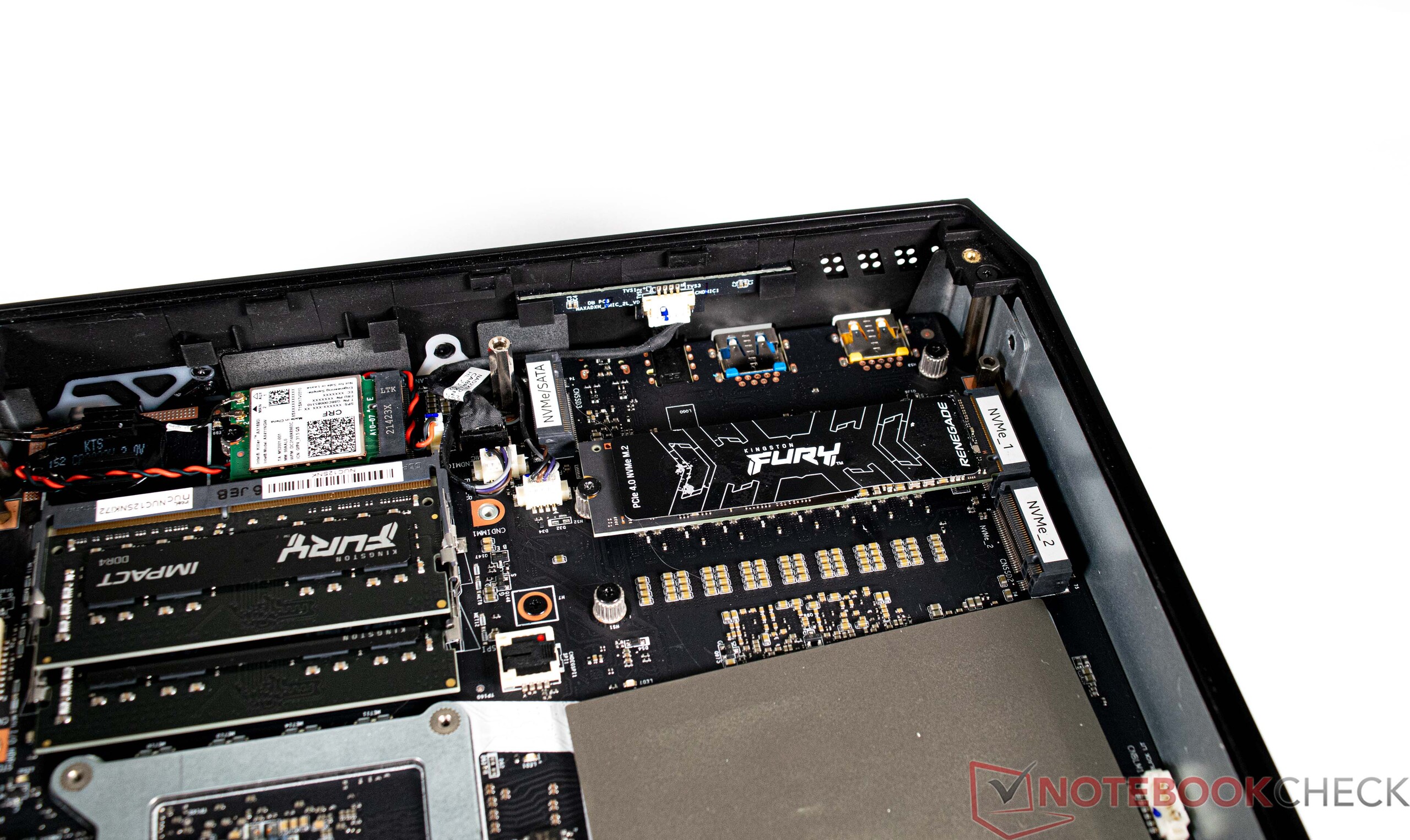

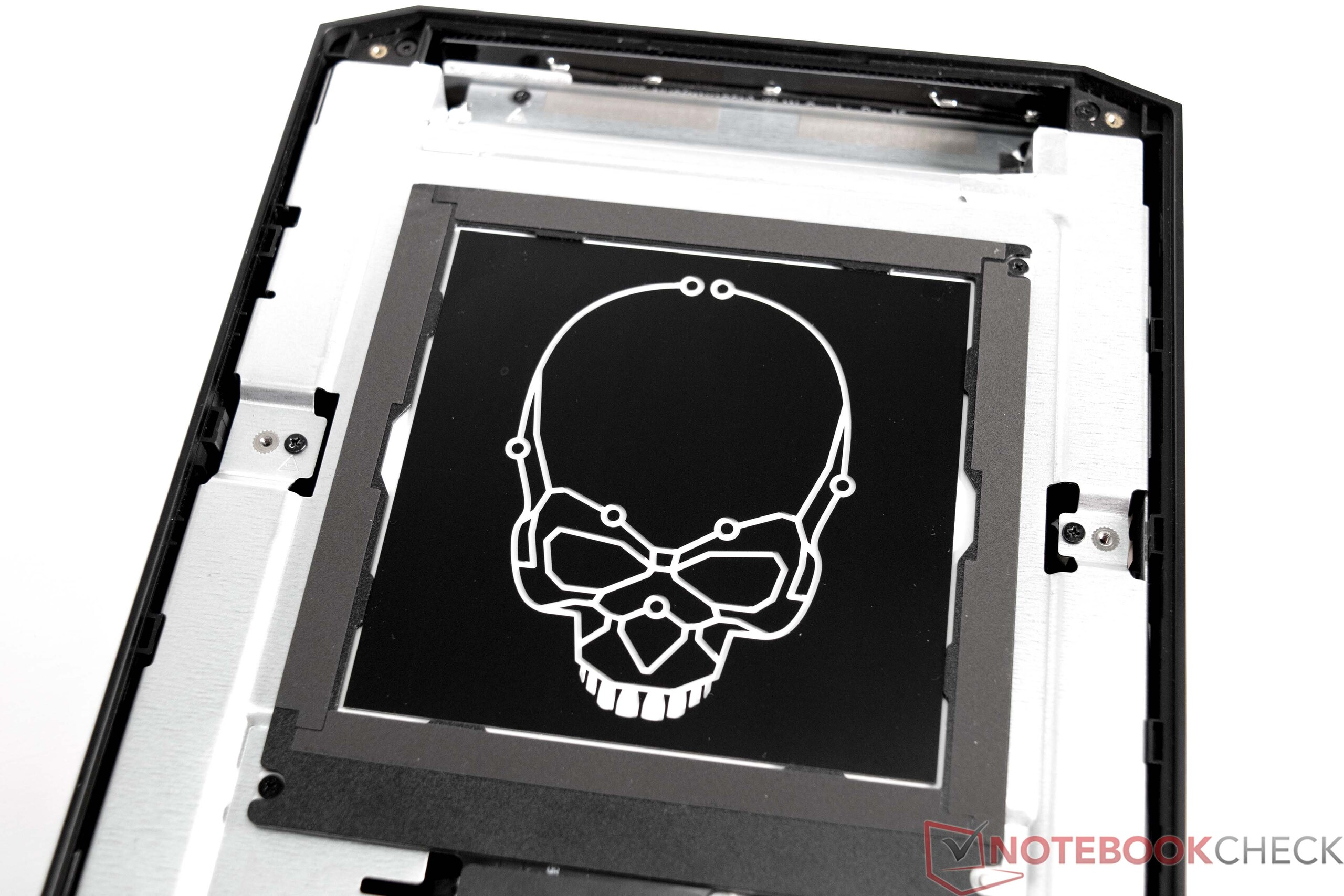

Przeprowadzenie konserwacji Intel NUC 12 Enthusiast Kit jest możliwe tylko częściowo - przynajmniej jeśli chodzi o czyszczenie wentylatorów. Top można dość łatwo zdjąć, podobnie jak dodatkowe osłony służące do odprowadzania ciepła z wbudowanego dysku SSD. Niestety, chcąc wyczyścić wentylatory, trzeba dalej rozebrać urządzenie. W naszym teście powstrzymaliśmy się od tego. Wbudowane komponenty, takie jak pamięć RAM i dysk SSD, można łatwo wymienić lub uaktualnić. W naszym przypadku Intel NUC 12 Enthusiast Kit ma miejsce na dwa kolejne dyski SSD o współczynniku kształtu M.2-2280.

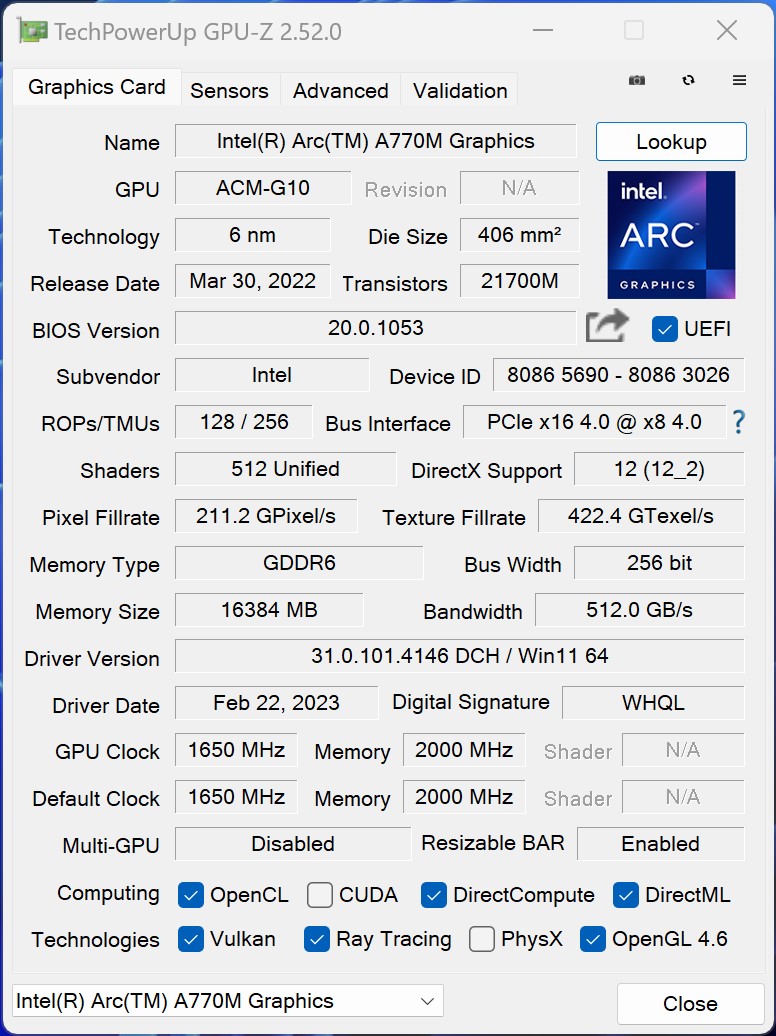

Wydajność - układ SoC firmy Intel w połączeniu z dedykowanym układem GPU firmy Intel
Intel NUC 12 Enthusiast Kit został wyposażony w Intel Core i7-12700H orazIntel Arc A770M- dedykowaną kartę graficzną również wyprodukowaną przez Intela. Nie oferują alternatywnego wyposażenia w postaci innych SoC czy opcji GPU.
Warunki badania
Wszystkie testy wydajnościowe przeprowadziliśmy z wykorzystaniem profilu energetycznego "balanced". Nie zmienialiśmy wydajności procesora - zamiast tego pozostawiliśmy go w trybie auto zgodnie z ustawieniami BIOS-u.
Procesor

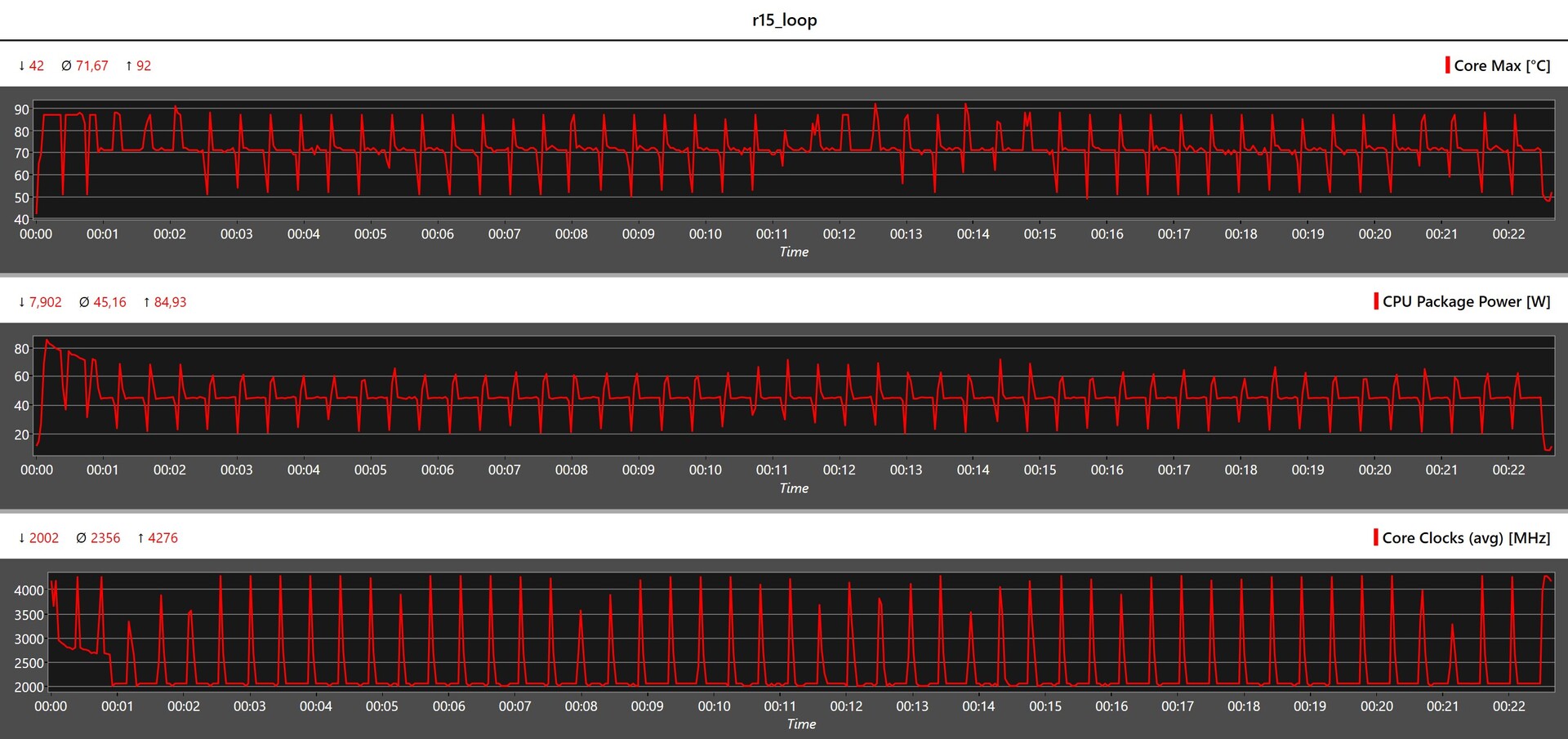

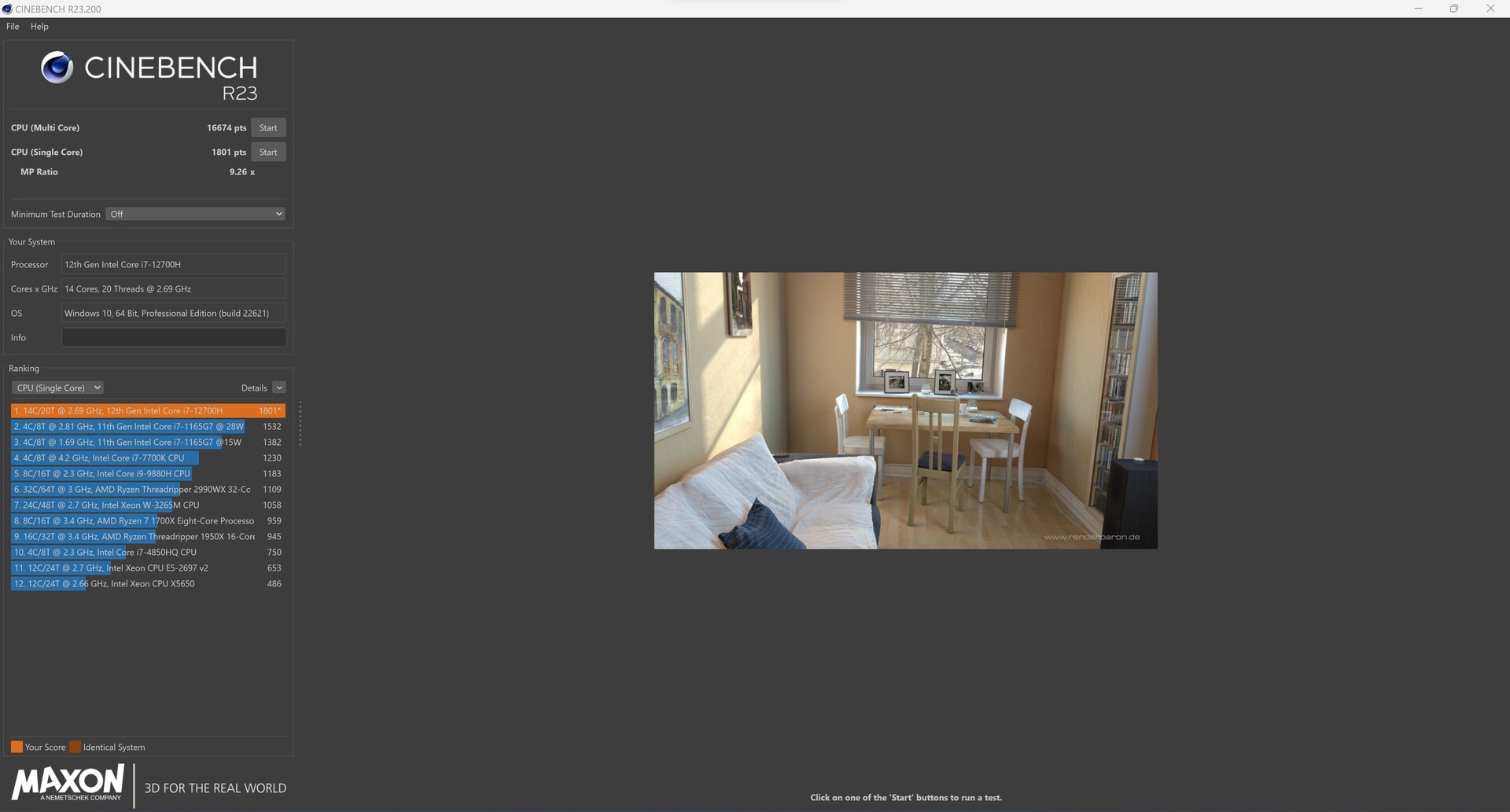

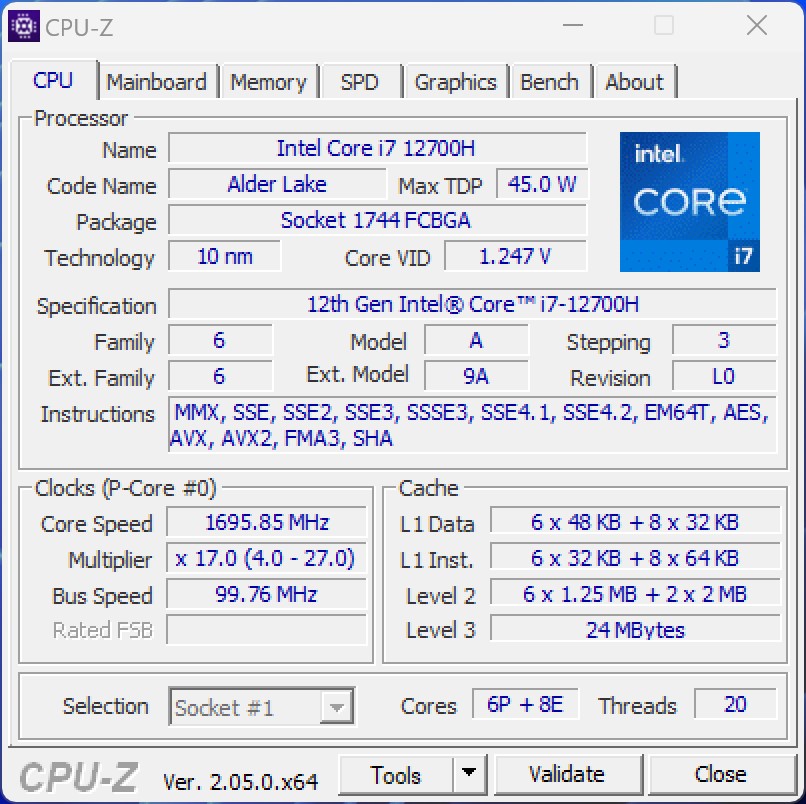

Strona Intel Core i7-12700Hto nowoczesny procesor wyposażony w 14 rdzeni i 20 wątków. 6 rdzeni P może pracować z częstotliwością do 4,7 GHz pod obciążeniem. Przy maksymalnej wydajności jego układ Alder Lake jest zasilany maksymalnie 100 watami - jednak ze względu na wysokie temperatury może to być utrzymane tylko przez krótki czas. Mimo to, ocena wydajności w benchmarku procesora wypada nieco powyżej średniej. zestaw Intel NUC 12 Enthusiast Kit może sam zadecydować o tym, kto wygra w swojej walce zMinisforum Neptune Series HX99G. Dzięki większej liczbie rdzeni, tj Intel Core i7-12700Hzapewnia lepszą wydajność procesora niż AMD Ryzen 9 6900HX. Różnica w wydajności jest jednak mało zauważalna.
Więcej benchmarków procesorów można znaleźć tutaj.
Performance Rating - Percent | |
Intel Dragon Canyon NUC - RTX 3060 | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Average Intel Core i7-12700H | |
Minisforum Neptune Series HX99G | |
Intel Beast Canyon NUC | |
Minisforum NUCX i7 | |
Zotac ZBOX Magnus EN173070C | |
Lenovo Legion 5 15ACH6A-82NW0010GE -8! | |
Zotac Magnus One (ECM73070C) -2! |

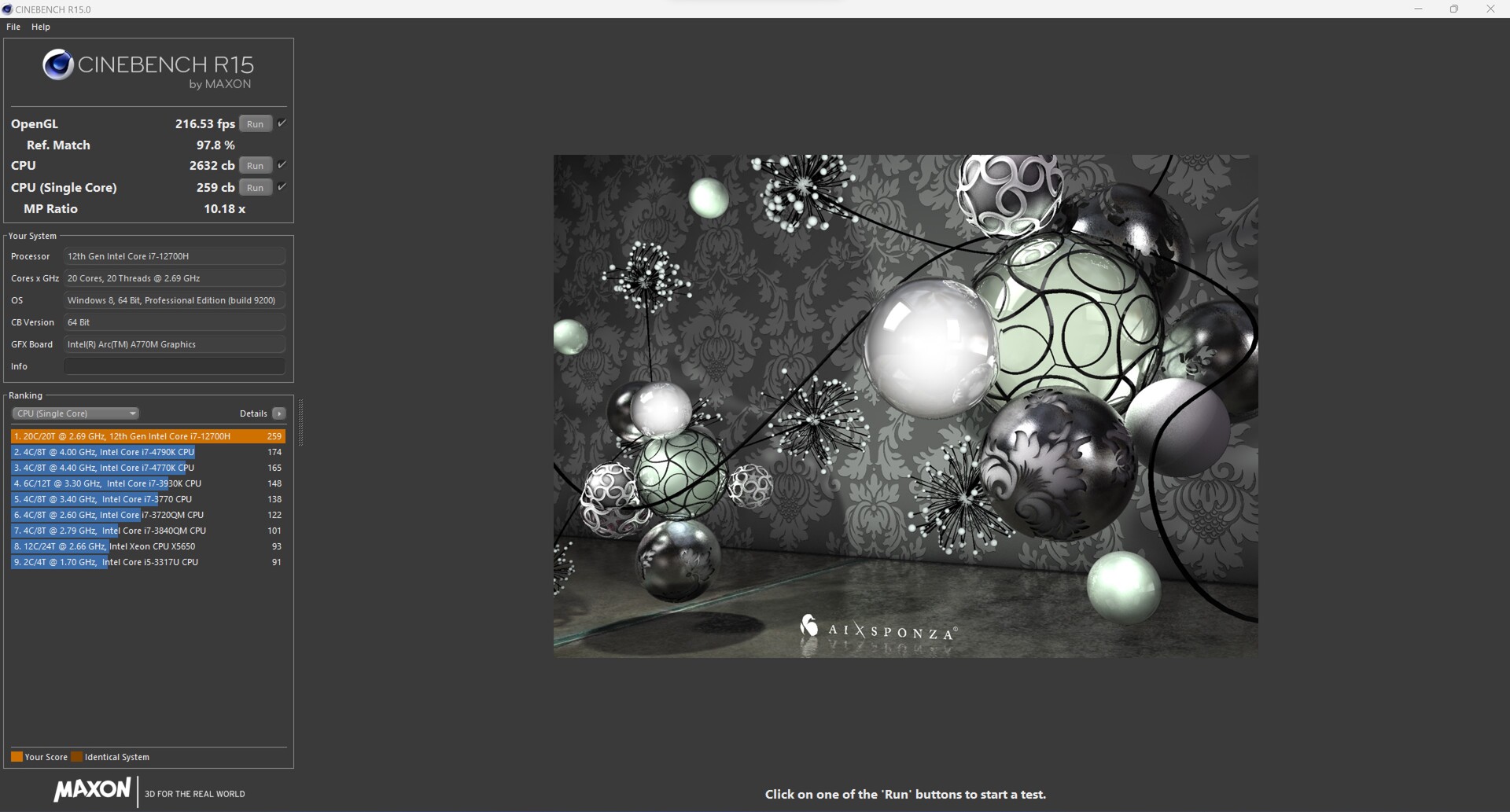

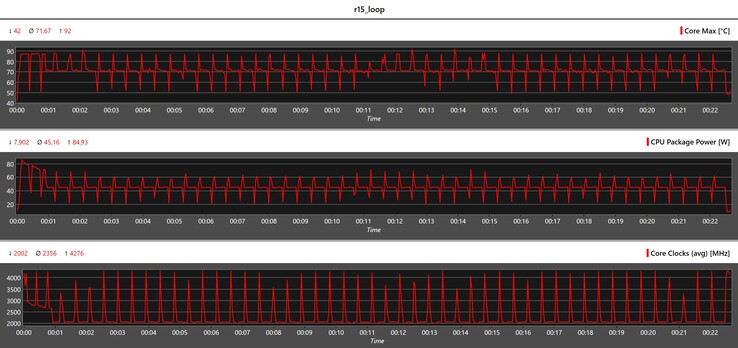

Cinebench R15 | |
CPU Single 64Bit | |
Intel Dragon Canyon NUC - RTX 3060 | |
Minisforum Neptune Series HX99G | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Average Intel Core i7-12700H (113 - 263, n=63) | |
Intel Beast Canyon NUC | |
Minisforum NUCX i7 | |
Zotac ZBOX Magnus EN173070C | |
Lenovo Legion 5 15ACH6A-82NW0010GE | |
Zotac Magnus One (ECM73070C) | |
CPU Multi 64Bit | |
Intel Dragon Canyon NUC - RTX 3060 | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Average Intel Core i7-12700H (1379 - 2916, n=68) | |
Minisforum Neptune Series HX99G | |
Minisforum NUCX i7 | |
Intel Beast Canyon NUC | |
Lenovo Legion 5 15ACH6A-82NW0010GE | |
Zotac ZBOX Magnus EN173070C | |
Zotac Magnus One (ECM73070C) |

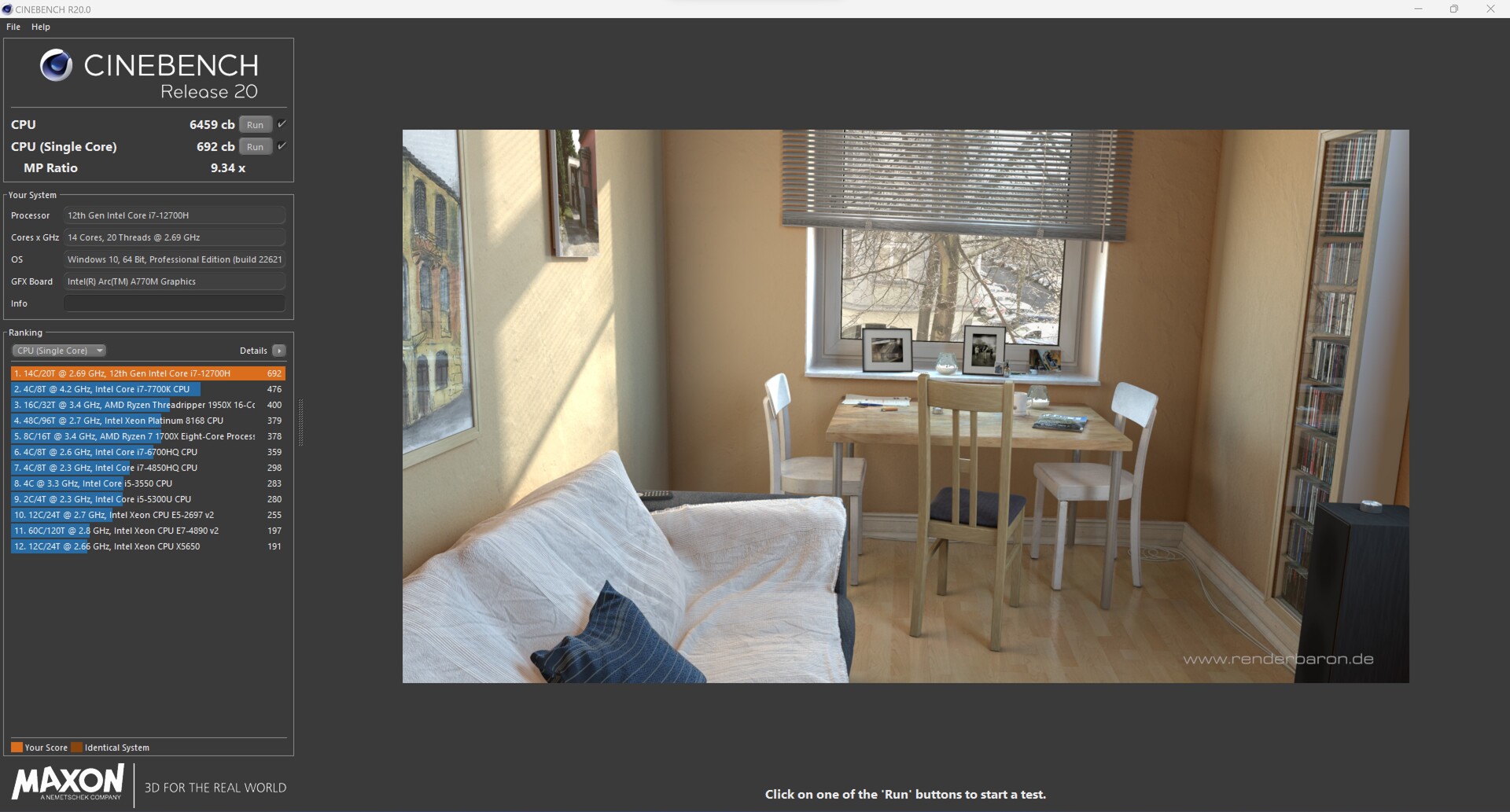

Cinebench R20 | |
CPU (Single Core) | |
Intel Dragon Canyon NUC - RTX 3060 | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Average Intel Core i7-12700H (300 - 704, n=62) | |
Intel Beast Canyon NUC | |
Minisforum Neptune Series HX99G | |
Minisforum NUCX i7 | |
Zotac ZBOX Magnus EN173070C | |
Lenovo Legion 5 15ACH6A-82NW0010GE | |
CPU (Multi Core) | |
Intel Dragon Canyon NUC - RTX 3060 | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Average Intel Core i7-12700H (1576 - 7407, n=62) | |
Minisforum Neptune Series HX99G | |
Minisforum NUCX i7 | |
Intel Beast Canyon NUC | |
Lenovo Legion 5 15ACH6A-82NW0010GE | |
Zotac ZBOX Magnus EN173070C |
Cinebench R11.5 | |
CPU Single 64Bit | |
Intel Dragon Canyon NUC - RTX 3060 | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Average Intel Core i7-12700H (2.98 - 3.13, n=2) | |
Minisforum Neptune Series HX99G | |
Intel Beast Canyon NUC | |
Lenovo Legion 5 15ACH6A-82NW0010GE | |
Minisforum NUCX i7 | |
Zotac ZBOX Magnus EN173070C | |
Zotac Magnus One (ECM73070C) | |
CPU Multi 64Bit | |
Intel Dragon Canyon NUC - RTX 3060 | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Average Intel Core i7-12700H (23.7 - 31.5, n=2) | |
Minisforum Neptune Series HX99G | |
Intel Beast Canyon NUC | |
Minisforum NUCX i7 | |
Lenovo Legion 5 15ACH6A-82NW0010GE | |
Zotac ZBOX Magnus EN173070C | |
Zotac Magnus One (ECM73070C) |
Cinebench R10 | |
Rendering Single CPUs 64Bit | |
Intel Dragon Canyon NUC - RTX 3060 | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Average Intel Core i7-12700H (14342 - 14478, n=2) | |
Minisforum Neptune Series HX99G | |
Intel Beast Canyon NUC | |
Minisforum NUCX i7 | |
Zotac ZBOX Magnus EN173070C | |
Lenovo Legion 5 15ACH6A-82NW0010GE | |
Zotac Magnus One (ECM73070C) | |
Rendering Multiple CPUs 64Bit | |
Intel Dragon Canyon NUC - RTX 3060 | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Average Intel Core i7-12700H (75147 - 91600, n=2) | |
Minisforum Neptune Series HX99G | |
Minisforum NUCX i7 | |
Intel Beast Canyon NUC | |
Lenovo Legion 5 15ACH6A-82NW0010GE | |
Zotac ZBOX Magnus EN173070C | |
Zotac Magnus One (ECM73070C) |
Blender - v2.79 BMW27 CPU | |
Zotac Magnus One (ECM73070C) | |
Lenovo Legion 5 15ACH6A-82NW0010GE | |
Zotac ZBOX Magnus EN173070C | |
Intel Beast Canyon NUC | |
Intel Dragon Canyon NUC - RTX 3060 | |
Minisforum NUCX i7 | |
Minisforum Neptune Series HX99G | |
Average Intel Core i7-12700H (168 - 732, n=61) | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon |
wPrime 2.10 | |
32m | |
Zotac ZBOX Magnus EN173070C | |
Minisforum Neptune Series HX99G | |
Intel Beast Canyon NUC | |
Minisforum NUCX i7 | |
Average Intel Core i7-12700H | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Zotac Magnus One (ECM73070C) | |
Intel Dragon Canyon NUC - RTX 3060 | |
1024m | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Average Intel Core i7-12700H | |
Intel Dragon Canyon NUC - RTX 3060 | |
Minisforum Neptune Series HX99G | |
Zotac ZBOX Magnus EN173070C | |
Zotac Magnus One (ECM73070C) | |
Intel Beast Canyon NUC | |
Minisforum NUCX i7 |
X264 HD Benchmark 4.0 | |
Pass 1 | |
Intel Dragon Canyon NUC - RTX 3060 | |
Average Intel Core i7-12700H | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Intel Beast Canyon NUC | |
Minisforum Neptune Series HX99G | |
Minisforum NUCX i7 | |
Zotac ZBOX Magnus EN173070C | |
Zotac Magnus One (ECM73070C) | |
Pass 2 | |
Intel Dragon Canyon NUC - RTX 3060 | |
Average Intel Core i7-12700H | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Minisforum Neptune Series HX99G | |
Minisforum NUCX i7 | |
Intel Beast Canyon NUC | |
Zotac ZBOX Magnus EN173070C | |
Zotac Magnus One (ECM73070C) |
WinRAR - Result | |
Intel Dragon Canyon NUC - RTX 3060 | |
Intel Beast Canyon NUC | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Average Intel Core i7-12700H | |
Minisforum NUCX i7 | |
Zotac ZBOX Magnus EN173070C | |
Minisforum Neptune Series HX99G | |
Zotac Magnus One (ECM73070C) |
TrueCrypt | |
AES Mean 100MB | |
Intel Dragon Canyon NUC - RTX 3060 | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Average Intel Core i7-12700H | |
Minisforum Neptune Series HX99G | |
Intel Beast Canyon NUC | |
Minisforum NUCX i7 | |
Zotac Magnus One (ECM73070C) | |
Zotac ZBOX Magnus EN173070C | |
Twofish Mean 100MB | |
Intel Dragon Canyon NUC - RTX 3060 | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Average Intel Core i7-12700H | |
Zotac Magnus One (ECM73070C) | |
Minisforum Neptune Series HX99G | |
Intel Beast Canyon NUC | |
Minisforum NUCX i7 | |
Zotac ZBOX Magnus EN173070C | |
Serpent Mean 100MB | |
Intel Dragon Canyon NUC - RTX 3060 | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Average Intel Core i7-12700H | |
Minisforum Neptune Series HX99G | |
Zotac Magnus One (ECM73070C) | |
Intel Beast Canyon NUC | |
Minisforum NUCX i7 | |
Zotac ZBOX Magnus EN173070C |
Geekbench 5.2 - 5.5 | |
Multi-Core | |
Average Intel Core i7-12700H (5144 - 13745, n=62) | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Minisforum Neptune Series HX99G | |
Minisforum NUCX i7 | |
Intel Beast Canyon NUC | |
Intel Dragon Canyon NUC - RTX 3060 | |
Zotac ZBOX Magnus EN173070C | |
Zotac Magnus One (ECM73070C) | |
Lenovo Legion 5 15ACH6A-82NW0010GE | |
Single-Core | |
Average Intel Core i7-12700H (803 - 1851, n=62) | |
Intel Beast Canyon NUC | |
Intel Dragon Canyon NUC - RTX 3060 | |
Minisforum Neptune Series HX99G | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Zotac ZBOX Magnus EN173070C | |
Minisforum NUCX i7 | |
Lenovo Legion 5 15ACH6A-82NW0010GE | |
Zotac Magnus One (ECM73070C) |
Geekbench 5.0 | |
5.0 Multi-Core | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Average Intel Core i7-12700H (6784 - 12831, n=19) | |
Minisforum Neptune Series HX99G | |
Minisforum NUCX i7 | |
Intel Beast Canyon NUC | |
Intel Dragon Canyon NUC - RTX 3060 | |
Zotac Magnus One (ECM73070C) | |
Zotac ZBOX Magnus EN173070C | |
Lenovo Legion 5 15ACH6A-82NW0010GE | |
Lenovo Legion 5 15ACH6A-82NW0010GE | |
5.0 Single-Core | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Average Intel Core i7-12700H (1603 - 1762, n=19) | |
Intel Beast Canyon NUC | |
Intel Dragon Canyon NUC - RTX 3060 | |
Minisforum Neptune Series HX99G | |
Zotac ZBOX Magnus EN173070C | |
Minisforum NUCX i7 | |
Lenovo Legion 5 15ACH6A-82NW0010GE | |
Lenovo Legion 5 15ACH6A-82NW0010GE | |
Zotac Magnus One (ECM73070C) |
Geekbench 4.1 - 4.4 | |
64 Bit Single-Core Score | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Average Intel Core i7-12700H (7058 - 7608, n=4) | |
Intel Beast Canyon NUC | |
Intel Dragon Canyon NUC - RTX 3060 | |
Zotac ZBOX Magnus EN173070C | |
Minisforum NUCX i7 | |
Minisforum Neptune Series HX99G | |
Lenovo Legion 5 15ACH6A-82NW0010GE | |
Zotac Magnus One (ECM73070C) | |
64 Bit Multi-Core Score | |
Average Intel Core i7-12700H (44386 - 53199, n=4) | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Minisforum Neptune Series HX99G | |
Minisforum NUCX i7 | |
Intel Beast Canyon NUC | |
Intel Dragon Canyon NUC - RTX 3060 | |
Zotac ZBOX Magnus EN173070C | |
Zotac Magnus One (ECM73070C) | |
Lenovo Legion 5 15ACH6A-82NW0010GE |
3DMark 11 - 1280x720 Performance Physics | |
Intel Dragon Canyon NUC - RTX 3060 | |
Average Intel Core i7-12700H (6917 - 24999, n=61) | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Minisforum Neptune Series HX99G | |
Intel Beast Canyon NUC | |
Minisforum NUCX i7 | |
Zotac ZBOX Magnus EN173070C | |
Zotac Magnus One (ECM73070C) | |
Lenovo Legion 5 15ACH6A-82NW0010GE |
7-Zip 18.03 | |
7z b 4 | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Minisforum Neptune Series HX99G | |
Average Intel Core i7-12700H (22844 - 73067, n=61) | |
Minisforum NUCX i7 | |
Intel Beast Canyon NUC | |
Intel Dragon Canyon NUC - RTX 3060 | |
Zotac ZBOX Magnus EN173070C | |
Lenovo Legion 5 15ACH6A-82NW0010GE | |
Zotac Magnus One (ECM73070C) | |
7z b 4 -mmt1 | |
Minisforum Neptune Series HX99G | |
Intel Beast Canyon NUC | |
Intel Dragon Canyon NUC - RTX 3060 | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Average Intel Core i7-12700H (2743 - 5972, n=61) | |
Zotac ZBOX Magnus EN173070C | |
Minisforum NUCX i7 | |
Lenovo Legion 5 15ACH6A-82NW0010GE | |
Zotac Magnus One (ECM73070C) |
HWBOT x265 Benchmark v2.2 - 4k Preset | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Minisforum Neptune Series HX99G | |
Average Intel Core i7-12700H (4.67 - 21.8, n=62) | |
Minisforum NUCX i7 | |
Intel Beast Canyon NUC | |
Intel Dragon Canyon NUC - RTX 3060 | |
Zotac ZBOX Magnus EN173070C | |
Lenovo Legion 5 15ACH6A-82NW0010GE | |
Zotac Magnus One (ECM73070C) |
R Benchmark 2.5 - Overall mean | |
Zotac Magnus One (ECM73070C) | |
Minisforum NUCX i7 | |
Zotac ZBOX Magnus EN173070C | |
Lenovo Legion 5 15ACH6A-82NW0010GE | |
Intel Beast Canyon NUC | |
Intel Dragon Canyon NUC - RTX 3060 | |
Average Intel Core i7-12700H (0.4441 - 1.052, n=61) | |
Minisforum Neptune Series HX99G | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon |
LibreOffice - 20 Documents To PDF | |
Zotac Magnus One (ECM73070C) | |
Lenovo Legion 5 15ACH6A-82NW0010GE | |
Minisforum Neptune Series HX99G | |
Minisforum NUCX i7 | |
Zotac ZBOX Magnus EN173070C | |
Average Intel Core i7-12700H (34.2 - 95.3, n=61) | |
Intel Beast Canyon NUC | |
Intel Dragon Canyon NUC - RTX 3060 | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon |
WebXPRT 3 - --- | |
Average Intel Core i7-12700H (253 - 324, n=51) | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Intel Beast Canyon NUC | |
Intel Dragon Canyon NUC - RTX 3060 | |
Lenovo Legion 5 15ACH6A-82NW0010GE | |
Lenovo Legion 5 15ACH6A-82NW0010GE | |
Zotac ZBOX Magnus EN173070C | |
Minisforum NUCX i7 | |
Minisforum Neptune Series HX99G | |
Zotac Magnus One (ECM73070C) |
Mozilla Kraken 1.1 - Total Score | |
Zotac Magnus One (ECM73070C) | |
Lenovo Legion 5 15ACH6A-82NW0010GE | |
Zotac ZBOX Magnus EN173070C | |
Minisforum NUCX i7 | |
Intel Beast Canyon NUC | |
Intel Dragon Canyon NUC - RTX 3060 | |
Minisforum Neptune Series HX99G | |
Average Intel Core i7-12700H (515 - 585, n=56) | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon |
3DMark | |
3840x2160 Fire Strike Ultra Physics | |
Intel Dragon Canyon NUC - RTX 3060 | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Average Intel Core i7-12700H (14680 - 30542, n=23) | |
Minisforum Neptune Series HX99G | |
Intel Beast Canyon NUC | |
Minisforum NUCX i7 | |
Zotac ZBOX Magnus EN173070C | |
Zotac Magnus One (ECM73070C) | |
Lenovo Legion 5 15ACH6A-82NW0010GE | |
1920x1080 Fire Strike Physics | |
Intel Dragon Canyon NUC - RTX 3060 | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Average Intel Core i7-12700H (2523 - 30931, n=62) | |
Minisforum Neptune Series HX99G | |
Minisforum NUCX i7 | |
Intel Beast Canyon NUC | |
Zotac ZBOX Magnus EN173070C | |
Lenovo Legion 5 15ACH6A-82NW0010GE | |
Zotac Magnus One (ECM73070C) | |
2560x1440 Time Spy CPU | |
Intel Dragon Canyon NUC - RTX 3060 | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Average Intel Core i7-12700H (3220 - 14415, n=62) | |
Minisforum NUCX i7 | |
Intel Beast Canyon NUC | |
Minisforum Neptune Series HX99G | |
Zotac ZBOX Magnus EN173070C | |
Zotac Magnus One (ECM73070C) | |
Lenovo Legion 5 15ACH6A-82NW0010GE |
* ... im mniej tym lepiej
Geekbench 5.2 - 5.5 | |
Multi-Core | |
Average Intel Core i7-12700H (5144 - 13745, n=62) | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Minisforum Venus Series UM690 | |
Minisforum Neptune Series HX99G | |
Minisforum NUCX i7 | |
Intel Beast Canyon NUC | |
Intel Dragon Canyon NUC - RTX 3060 | |
Zotac ZBOX Magnus EN173070C | |
Zotac Magnus One (ECM73070C) | |
Lenovo Legion 5 15ACH6A-82NW0010GE | |
Single-Core | |
Average Intel Core i7-12700H (803 - 1851, n=62) | |
Intel Beast Canyon NUC | |
Intel Dragon Canyon NUC - RTX 3060 | |
Minisforum Venus Series UM690 | |
Minisforum Neptune Series HX99G | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Zotac ZBOX Magnus EN173070C | |
Minisforum NUCX i7 | |
Lenovo Legion 5 15ACH6A-82NW0010GE | |
Zotac Magnus One (ECM73070C) |
Geekbench 5.0 | |
5.0 Multi-Core | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Average Intel Core i7-12700H (6784 - 12831, n=19) | |
Minisforum Venus Series UM690 | |
Minisforum Neptune Series HX99G | |
Minisforum NUCX i7 | |
Intel Beast Canyon NUC | |
Intel Dragon Canyon NUC - RTX 3060 | |
Zotac Magnus One (ECM73070C) | |
Zotac ZBOX Magnus EN173070C | |
Lenovo Legion 5 15ACH6A-82NW0010GE | |
Lenovo Legion 5 15ACH6A-82NW0010GE | |
5.0 Single-Core | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Average Intel Core i7-12700H (1603 - 1762, n=19) | |
Intel Beast Canyon NUC | |
Intel Dragon Canyon NUC - RTX 3060 | |
Minisforum Venus Series UM690 | |
Minisforum Neptune Series HX99G | |
Zotac ZBOX Magnus EN173070C | |
Minisforum NUCX i7 | |
Lenovo Legion 5 15ACH6A-82NW0010GE | |
Lenovo Legion 5 15ACH6A-82NW0010GE | |
Zotac Magnus One (ECM73070C) |
Geekbench 4.1 - 4.4 | |
64 Bit Single-Core Score | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Average Intel Core i7-12700H (7058 - 7608, n=4) | |
Intel Beast Canyon NUC | |
Intel Dragon Canyon NUC - RTX 3060 | |
Minisforum Venus Series UM690 | |
Zotac ZBOX Magnus EN173070C | |
Minisforum NUCX i7 | |
Minisforum Neptune Series HX99G | |
Lenovo Legion 5 15ACH6A-82NW0010GE | |
Zotac Magnus One (ECM73070C) | |
64 Bit Multi-Core Score | |
Average Intel Core i7-12700H (44386 - 53199, n=4) | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Minisforum Venus Series UM690 | |
Minisforum Neptune Series HX99G | |
Minisforum NUCX i7 | |
Intel Beast Canyon NUC | |
Intel Dragon Canyon NUC - RTX 3060 | |
Zotac ZBOX Magnus EN173070C | |
Zotac Magnus One (ECM73070C) | |
Lenovo Legion 5 15ACH6A-82NW0010GE |
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
Performance Rating | |
Minisforum Neptune Series HX99G | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Intel Beast Canyon NUC | |
Intel Dragon Canyon NUC - RTX 3060 | |
Zotac ZBOX Magnus EN173070C | |
Minisforum NUCX i7 | |
Lenovo Legion 5 15ACH6A-82NW0010GE | |
Average of class Mini PC |
AIDA64 / FP32 Ray-Trace | |
Minisforum Neptune Series HX99G | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Intel Beast Canyon NUC | |
Intel Dragon Canyon NUC - RTX 3060 | |
Zotac ZBOX Magnus EN173070C | |
Minisforum NUCX i7 | |
Lenovo Legion 5 15ACH6A-82NW0010GE | |
Average of class Mini PC (561 - 27538, n=59, last 2 years) |
AIDA64 / FPU Julia | |
Minisforum Neptune Series HX99G | |
Lenovo Legion 5 15ACH6A-82NW0010GE | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Intel Beast Canyon NUC | |
Intel Dragon Canyon NUC - RTX 3060 | |
Zotac ZBOX Magnus EN173070C | |
Minisforum NUCX i7 | |
Average of class Mini PC (3604 - 116903, n=59, last 2 years) |
AIDA64 / CPU SHA3 | |
Intel Beast Canyon NUC | |
Intel Dragon Canyon NUC - RTX 3060 | |
Zotac ZBOX Magnus EN173070C | |
Minisforum NUCX i7 | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Minisforum Neptune Series HX99G | |
Lenovo Legion 5 15ACH6A-82NW0010GE | |
Average of class Mini PC (225 - 5096, n=59, last 2 years) |
AIDA64 / CPU Queen | |
Minisforum Neptune Series HX99G | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Intel Beast Canyon NUC | |
Intel Dragon Canyon NUC - RTX 3060 | |
Minisforum NUCX i7 | |
Zotac ZBOX Magnus EN173070C | |
Lenovo Legion 5 15ACH6A-82NW0010GE | |
Average of class Mini PC (8172 - 119569, n=59, last 2 years) |
AIDA64 / FPU SinJulia | |
Minisforum Neptune Series HX99G | |
Intel Beast Canyon NUC | |
Intel Dragon Canyon NUC - RTX 3060 | |
Minisforum NUCX i7 | |
Zotac ZBOX Magnus EN173070C | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Lenovo Legion 5 15ACH6A-82NW0010GE | |
Average of class Mini PC (408 - 15525, n=59, last 2 years) |
AIDA64 / FPU Mandel | |
Minisforum Neptune Series HX99G | |
Lenovo Legion 5 15ACH6A-82NW0010GE | |
Intel Beast Canyon NUC | |
Intel Dragon Canyon NUC - RTX 3060 | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Zotac ZBOX Magnus EN173070C | |
Minisforum NUCX i7 | |
Average of class Mini PC (1958 - 62378, n=59, last 2 years) |
AIDA64 / CPU AES | |
Intel Beast Canyon NUC | |
Intel Dragon Canyon NUC - RTX 3060 | |
Minisforum Neptune Series HX99G | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Minisforum NUCX i7 | |
Zotac ZBOX Magnus EN173070C | |
Lenovo Legion 5 15ACH6A-82NW0010GE | |
Average of class Mini PC (5504 - 177158, n=59, last 2 years) |
AIDA64 / CPU ZLib | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Minisforum Neptune Series HX99G | |
Minisforum NUCX i7 | |
Intel Beast Canyon NUC | |
Intel Dragon Canyon NUC - RTX 3060 | |
Zotac ZBOX Magnus EN173070C | |
Lenovo Legion 5 15ACH6A-82NW0010GE | |
Average of class Mini PC (74.8 - 1114, n=59, last 2 years) |
AIDA64 / FP64 Ray-Trace | |
Minisforum Neptune Series HX99G | |
Intel Beast Canyon NUC | |
Intel Dragon Canyon NUC - RTX 3060 | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Zotac ZBOX Magnus EN173070C | |
Minisforum NUCX i7 | |
Lenovo Legion 5 15ACH6A-82NW0010GE | |
Average of class Mini PC (308 - 14722, n=59, last 2 years) |
AIDA64 / CPU PhotoWorxx | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Minisforum Neptune Series HX99G | |
Average of class Mini PC (4408 - 44347, n=59, last 2 years) | |
Zotac ZBOX Magnus EN173070C | |
Minisforum NUCX i7 | |
Intel Beast Canyon NUC | |
Intel Dragon Canyon NUC - RTX 3060 | |
Lenovo Legion 5 15ACH6A-82NW0010GE |
Intel NUC 12 Enthusiast Kit w pętli Cinebench R15 Multi
Po trzecim uruchomieniu Intel Core i7-12700Huzyskał bardzo stabilną wydajność w ciągłej pętli Cinebench R15. Jego spadek wydajności o zaledwie 200 punktów w porównaniu z pierwszym przebiegiem jest dość niski. Znacznie większy spadek wydajności zaobserwowaliśmy w przypadku Intel Dragon Canyon NUC. Intel NUC 12 Enthusiast Kit zdecydowanie plasuje się na drugim miejscu w zestawieniu, uzyskując 2,410 punktów.
Wydajność systemu
W testach syntetycznych systemu Intel NUC 12 Enthusiast Kit nieco osłabł. Jego dobra wydajność procesora po prostu nie wystarczyła do osiągnięcia dobrego wyniku w teście PCMark 10. W testach Crossmark i pamięci RAM nasz testowany egzemplarz ponownie wypadł znacznie lepiej.
Performance Rating - Percent | |
Intel Dragon Canyon NUC - RTX 3060, Intel Core i9-12900 | |
Intel Beast Canyon NUC, Intel Core i9-11900KB | |
Lenovo Legion 5 15ACH6A-82NW0010GE, AMD Ryzen 5 5600H | |
Minisforum Neptune Series HX99G, AMD Ryzen 9 6900HX | |
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H | |
Minisforum NUCX i7, Intel Core i7-11800H | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon, Intel Core i7-12700H | |
Zotac Magnus One (ECM73070C), Intel Core i7-10700 |
PCMark 10 | |
Score | |
Intel Dragon Canyon NUC - RTX 3060, Intel Core i9-12900 | |
Intel Beast Canyon NUC, Intel Core i9-11900KB | |
Minisforum Neptune Series HX99G, AMD Ryzen 9 6900HX | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon, Intel Core i7-12700H | |
Lenovo Legion 5 15ACH6A-82NW0010GE, AMD Ryzen 5 5600H | |
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H | |
Minisforum NUCX i7, Intel Core i7-11800H | |
Zotac Magnus One (ECM73070C), Intel Core i7-10700 | |
Essentials | |
Intel Dragon Canyon NUC - RTX 3060, Intel Core i9-12900 | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon, Intel Core i7-12700H | |
Lenovo Legion 5 15ACH6A-82NW0010GE, AMD Ryzen 5 5600H | |
Intel Beast Canyon NUC, Intel Core i9-11900KB | |
Minisforum Neptune Series HX99G, AMD Ryzen 9 6900HX | |
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H | |
Minisforum NUCX i7, Intel Core i7-11800H | |
Zotac Magnus One (ECM73070C), Intel Core i7-10700 | |
Productivity | |
Intel Dragon Canyon NUC - RTX 3060, Intel Core i9-12900 | |
Intel Beast Canyon NUC, Intel Core i9-11900KB | |
Lenovo Legion 5 15ACH6A-82NW0010GE, AMD Ryzen 5 5600H | |
Minisforum Neptune Series HX99G, AMD Ryzen 9 6900HX | |
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H | |
Minisforum NUCX i7, Intel Core i7-11800H | |
Zotac Magnus One (ECM73070C), Intel Core i7-10700 | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon, Intel Core i7-12700H |
CrossMark / Overall | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon, Intel Core i7-12700H | |
Intel Beast Canyon NUC, Intel Core i9-11900KB | |
Intel Dragon Canyon NUC - RTX 3060, Intel Core i9-12900 | |
Minisforum Neptune Series HX99G, AMD Ryzen 9 6900HX | |
Minisforum NUCX i7, Intel Core i7-11800H | |
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H |
CrossMark / Productivity | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon, Intel Core i7-12700H | |
Intel Beast Canyon NUC, Intel Core i9-11900KB | |
Intel Dragon Canyon NUC - RTX 3060, Intel Core i9-12900 | |
Minisforum Neptune Series HX99G, AMD Ryzen 9 6900HX | |
Minisforum NUCX i7, Intel Core i7-11800H | |
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H |
CrossMark / Creativity | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon, Intel Core i7-12700H | |
Intel Beast Canyon NUC, Intel Core i9-11900KB | |
Intel Dragon Canyon NUC - RTX 3060, Intel Core i9-12900 | |
Minisforum Neptune Series HX99G, AMD Ryzen 9 6900HX | |
Minisforum NUCX i7, Intel Core i7-11800H | |
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H |
CrossMark / Responsiveness | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon, Intel Core i7-12700H | |
Intel Beast Canyon NUC, Intel Core i9-11900KB | |
Intel Dragon Canyon NUC - RTX 3060, Intel Core i9-12900 | |
Minisforum Neptune Series HX99G, AMD Ryzen 9 6900HX | |
Minisforum NUCX i7, Intel Core i7-11800H | |
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H |
AIDA64 / Memory Copy | |
Minisforum Neptune Series HX99G | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Intel Beast Canyon NUC | |
Intel Dragon Canyon NUC - RTX 3060 | |
Minisforum NUCX i7 | |
Zotac ZBOX Magnus EN173070C | |
Average of class Mini PC (6481 - 70620, n=59, last 2 years) | |
Lenovo Legion 5 15ACH6A-82NW0010GE |
AIDA64 / Memory Read | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Zotac ZBOX Magnus EN173070C | |
Minisforum Neptune Series HX99G | |
Intel Beast Canyon NUC | |
Intel Dragon Canyon NUC - RTX 3060 | |
Minisforum NUCX i7 | |
Average of class Mini PC (6914 - 65856, n=59, last 2 years) | |
Lenovo Legion 5 15ACH6A-82NW0010GE |
AIDA64 / Memory Write | |
Minisforum Neptune Series HX99G | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Zotac ZBOX Magnus EN173070C | |
Minisforum NUCX i7 | |
Intel Beast Canyon NUC | |
Intel Dragon Canyon NUC - RTX 3060 | |
Average of class Mini PC (6862 - 87358, n=59, last 2 years) | |
Lenovo Legion 5 15ACH6A-82NW0010GE |
AIDA64 / Memory Latency | |
Minisforum NUCX i7 | |
Intel NUC 12, NUC12SNKi72_Serpent Canyon | |
Lenovo Legion 5 15ACH6A-82NW0010GE | |
Intel Beast Canyon NUC | |
Intel Dragon Canyon NUC - RTX 3060 | |
Average of class Mini PC (55.3 - 146, n=59, last 2 years) | |
Minisforum Neptune Series HX99G | |
Zotac ZBOX Magnus EN173070C |
* ... im mniej tym lepiej

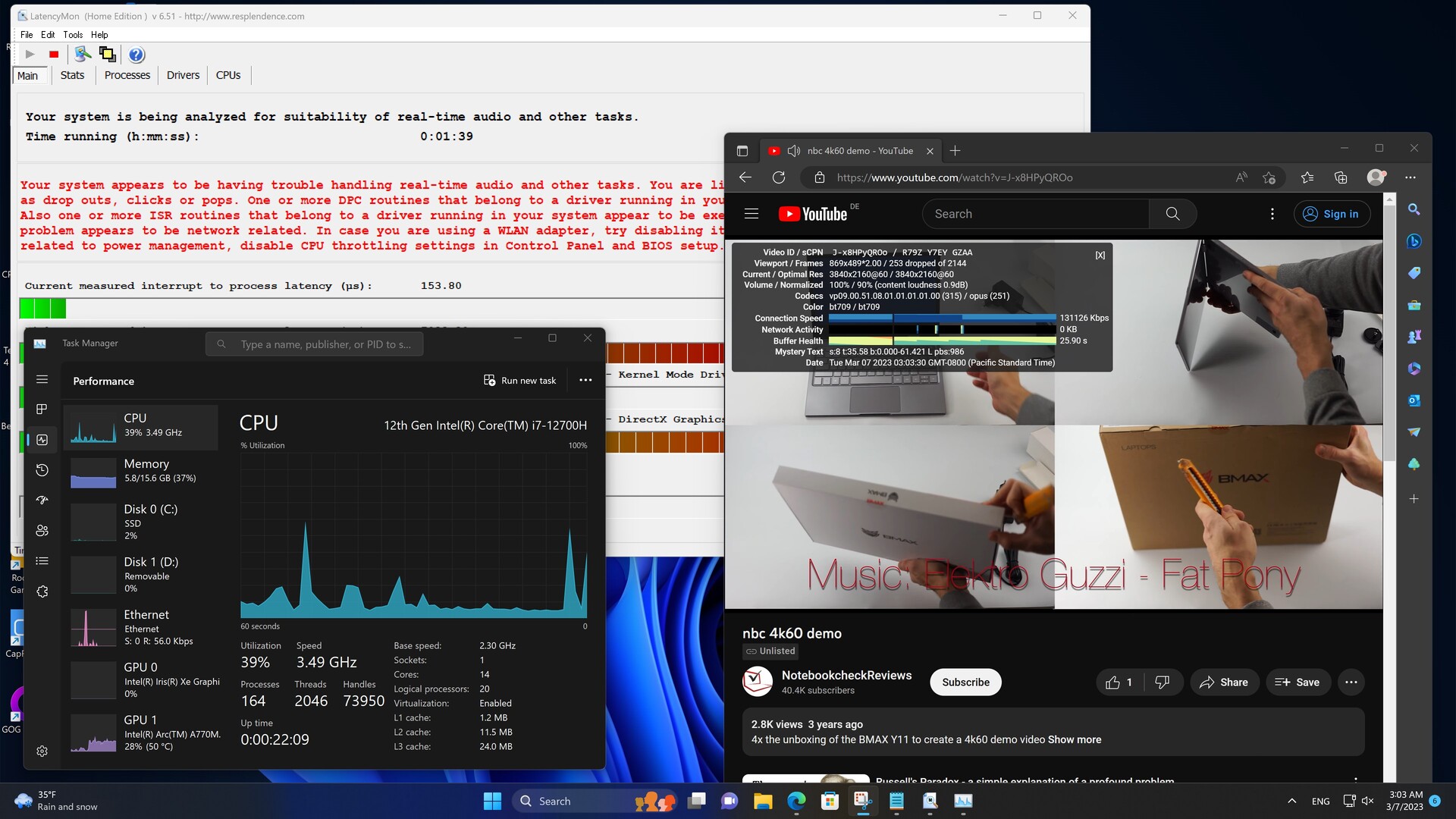

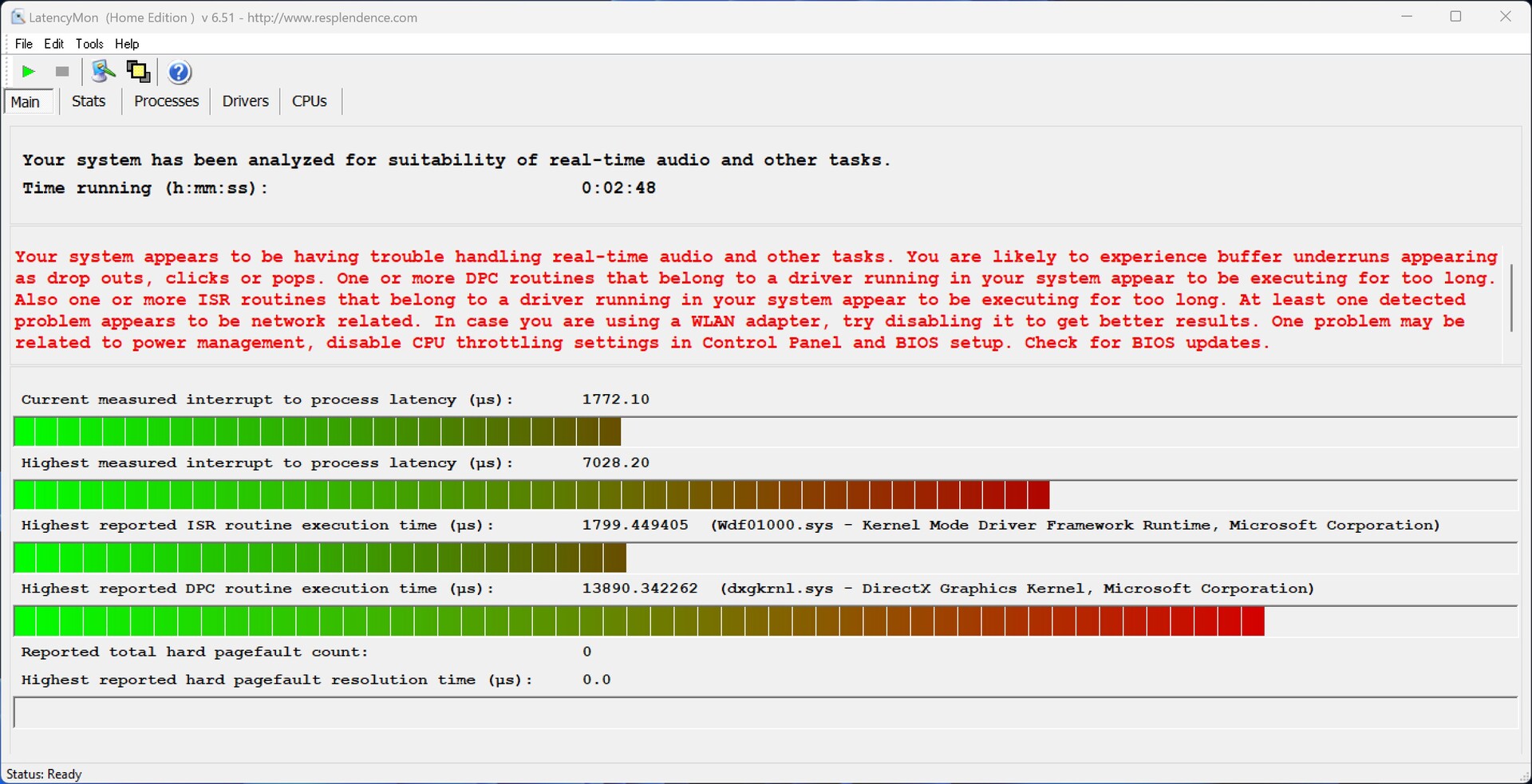

Opóźnienie DPC
Gdy tylko otworzyliśmy wiele kart przeglądarki za pomocą Edge, mogliśmy zauważyć wyższe latencje. Podczas odtwarzania filmów 4K z YouTube Intel Arc A770Mbył wykorzystywany w około 30 procentach.

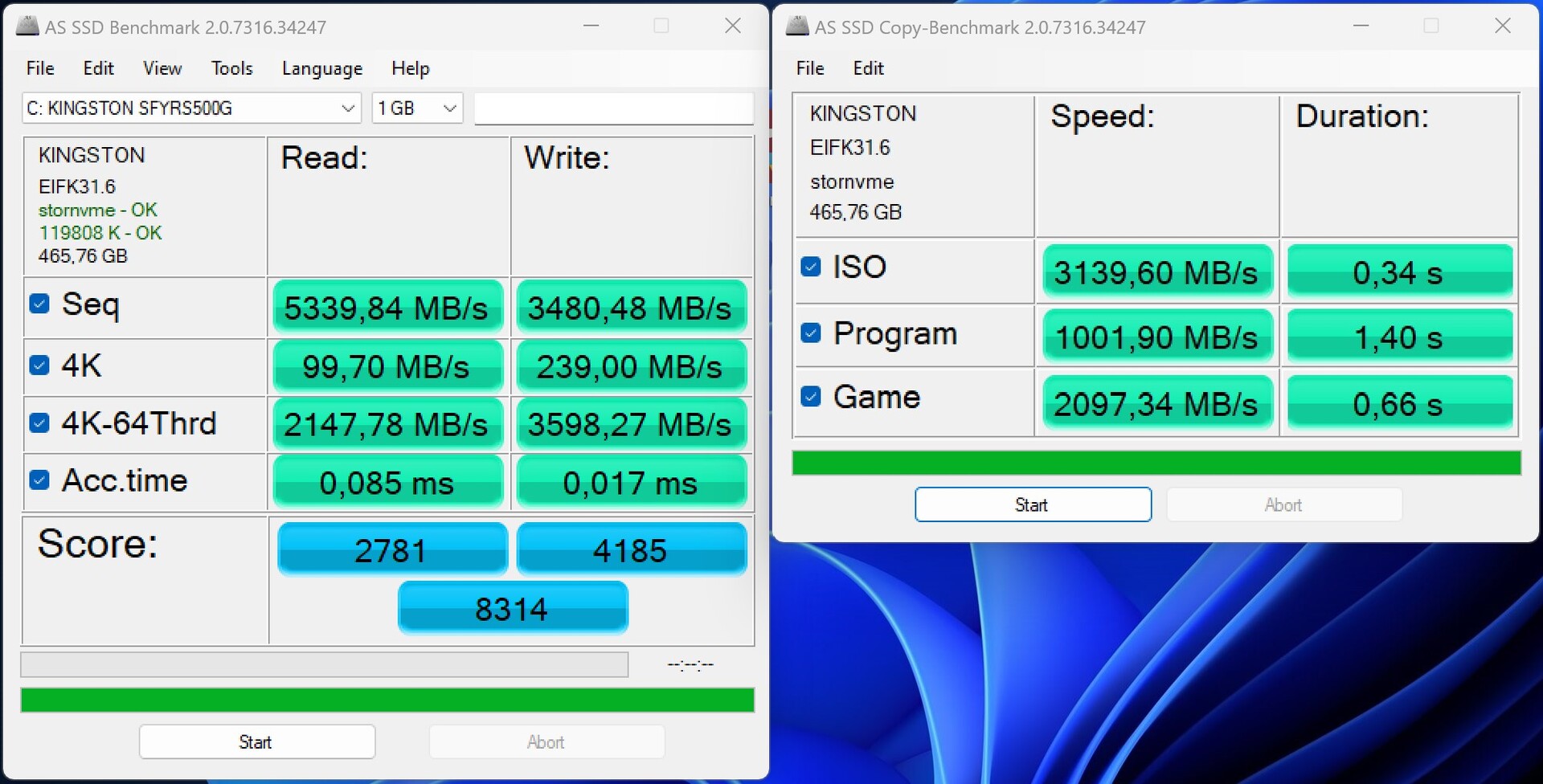

Urządzenia pamięci masowej

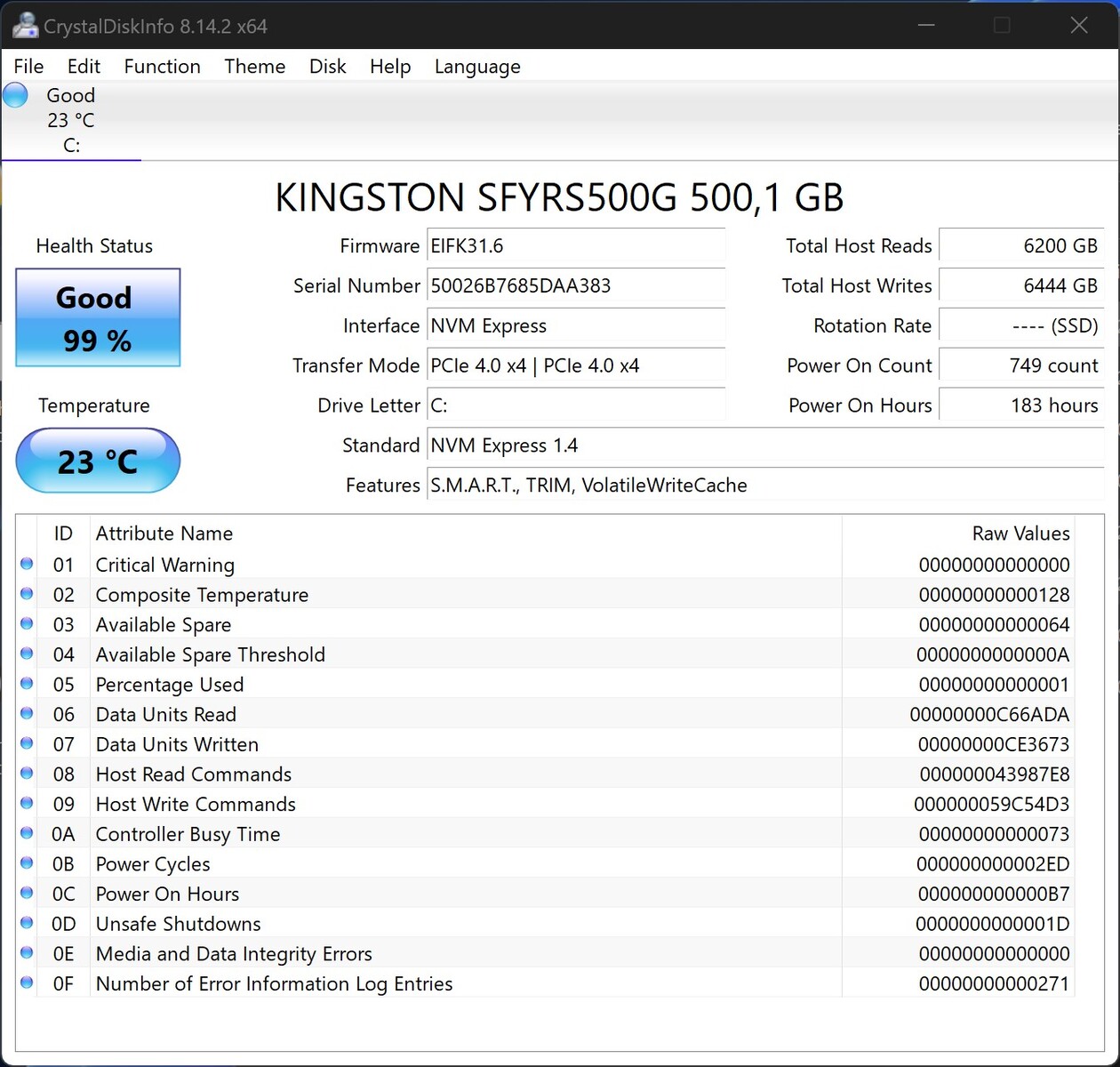

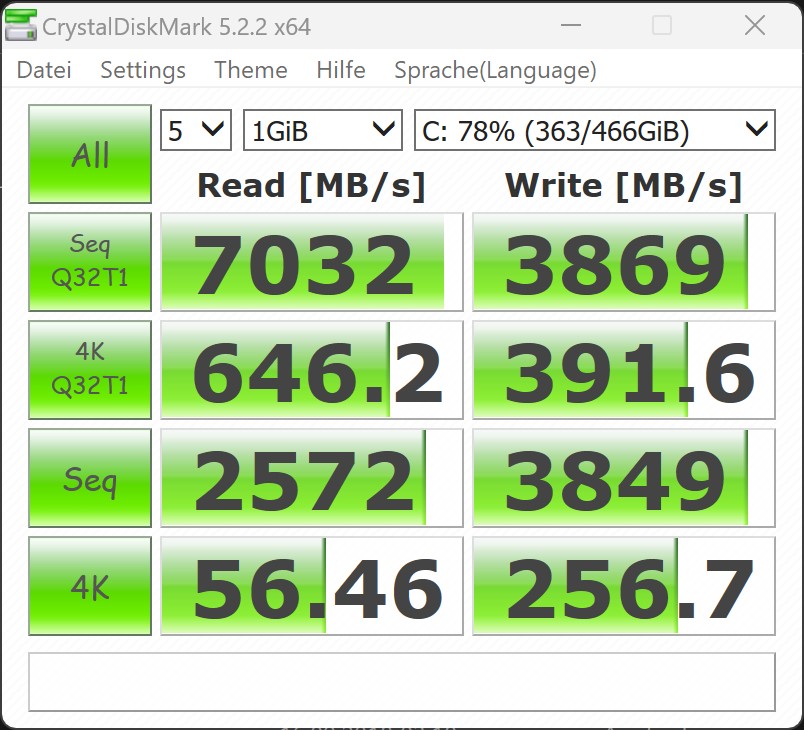

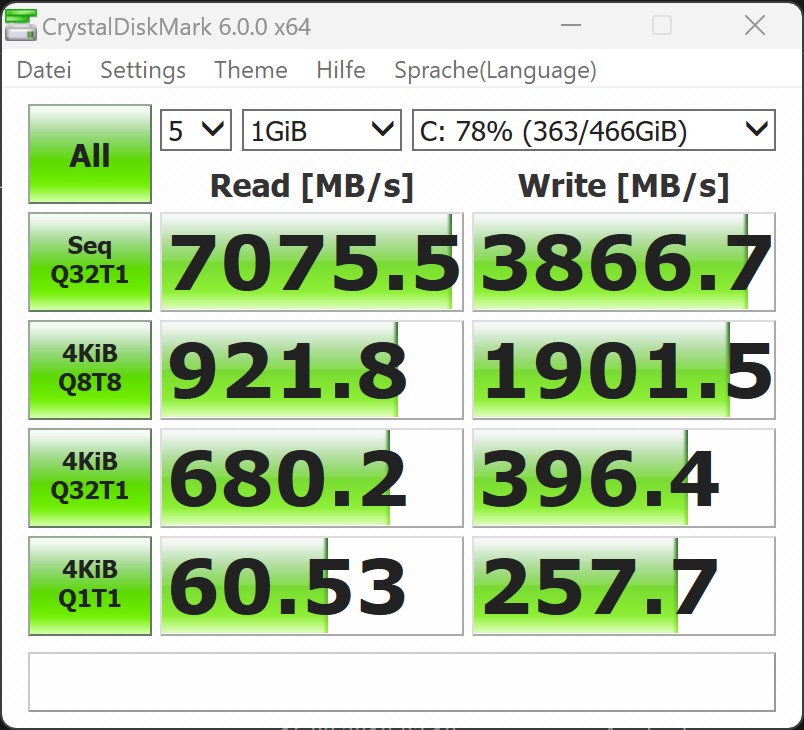

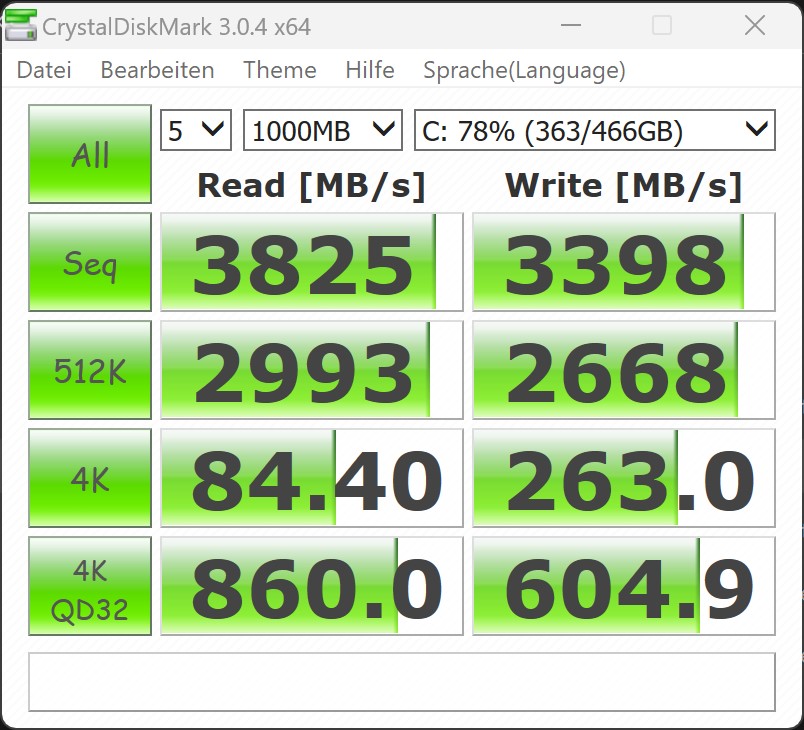

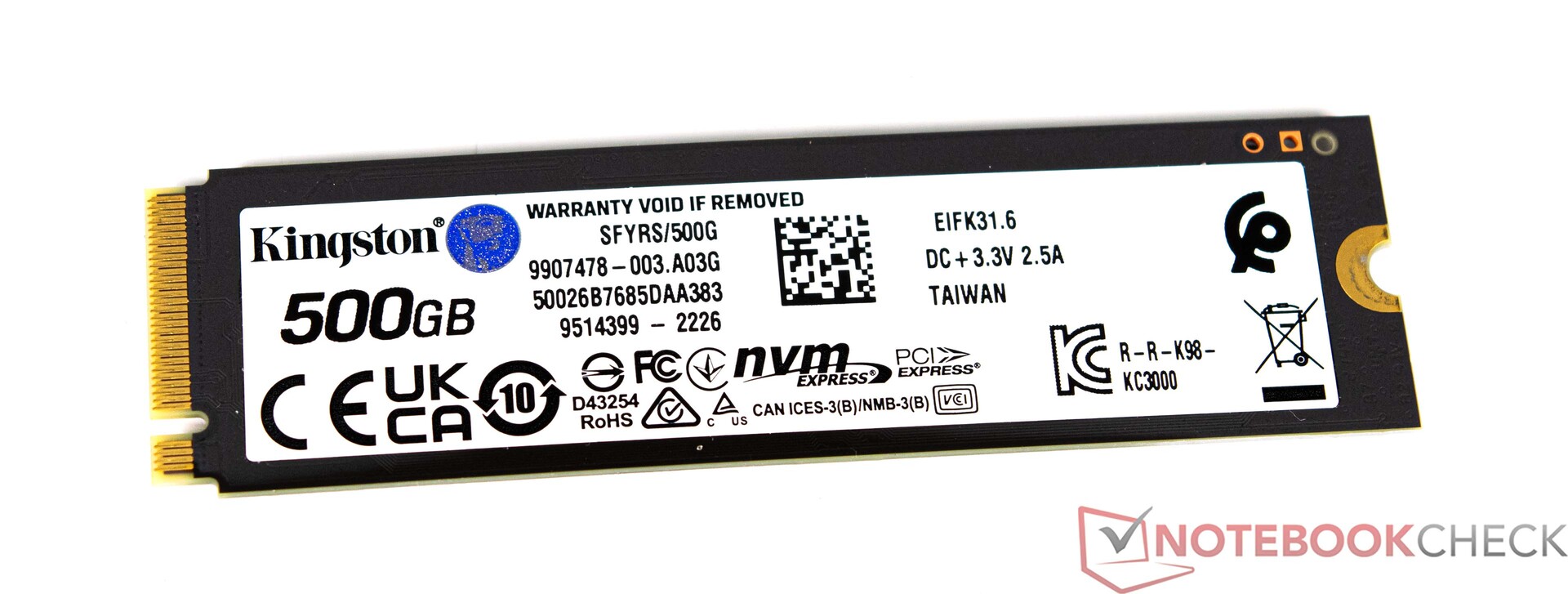

Intel NUC 12 Enthusiast Kit został wyposażony w niezwykle szybki dysk SSD NVMe firmy Kingston. Co prawda Kingston Fury Renegade oferuje jedynie 500 GB pamięci masowej, która szybko się zapełnia w przypadku zainstalowania dwóch lub trzech większych gier. Jednak jego wydajność jest zdecydowanie imponująca. Żaden z jego konkurentów nie jest w stanie dotrzymać kroku na milę, jeśli o to chodzi. Przy mniej więcej 100 MB/s możemy zauważyć świetne wyniki w wartościach odczytu 4K, co pozytywnie wpływa na ładowanie dużej ilości małych plików. Ponadto Intel opanował chłodzenie dysku SSD, co można zobaczyć patrząc na wartości odczytu ciągłego. Niektóre krytyki dotyczące pamięci masowej można wybaczyć, ponieważ Intel NUC 12 Enthusiast Kit może być wyposażony w maksymalnie trzy dyski SSD w formacie M.2-2280.
Spójrz na naszą tabela porównawczaaby zobaczyć więcej porównań i benchmarków.
