Intel NUC Pro Chassis Element w recenzji - modułowy barebone do wielu zastosowań

W przeciwieństwie do konwencjonalnych systemów Intel NUC, które czasami są dostarczane jako wersje barebone bez pamięci RAM i dysku SSD, Intel NUC Pro Chassis Element nie jest dostarczany z SoC w podstawowej konfiguracji. Jest on zainstalowany na osobnym elemencie obliczeniowym i jest instalowany jako dodatkowa karta plug-in w systemie.

NUC Pro Chassis Element kosztuje obecnie około 340 euro, co nie jest tanio, biorąc pod uwagę dodatkowe koszty elementu obliczeniowego i pamięci masowej. W najmniejszej testowanej przez nas wersji trzeba się liczyć z wydatkiem około 850 euro, jest to model w połączeniu z Intel Core i7-1265Umoże bez problemu kosztować 1250 euro. W podobny sposób Intel podchodzi do laptopa Intel NUC P14E, który również może być wyposażony w odpowiednie elementy obliczeniowe. Według Intela dużą zaletą jest długowieczność podstawki, zarówno w przypadku laptopa, jak i wersji desktopowej. Obecnie nie można jednak przewidzieć, jak w przyszłości będzie wyglądało wsparcie dla nowszych modułów. Przegląd zastosowanych elementów obliczeniowych można zobaczyć w poniższej tabeli.

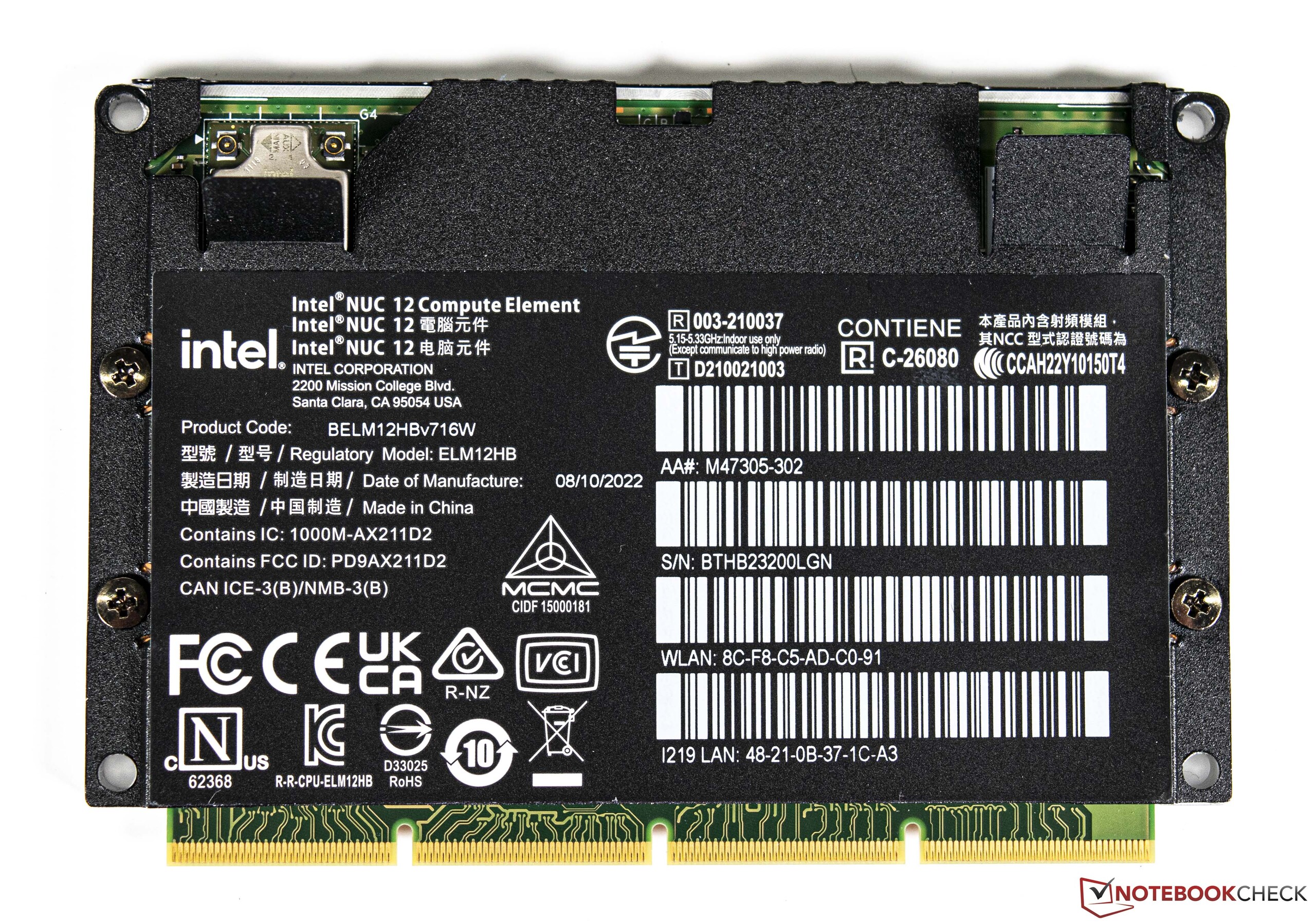

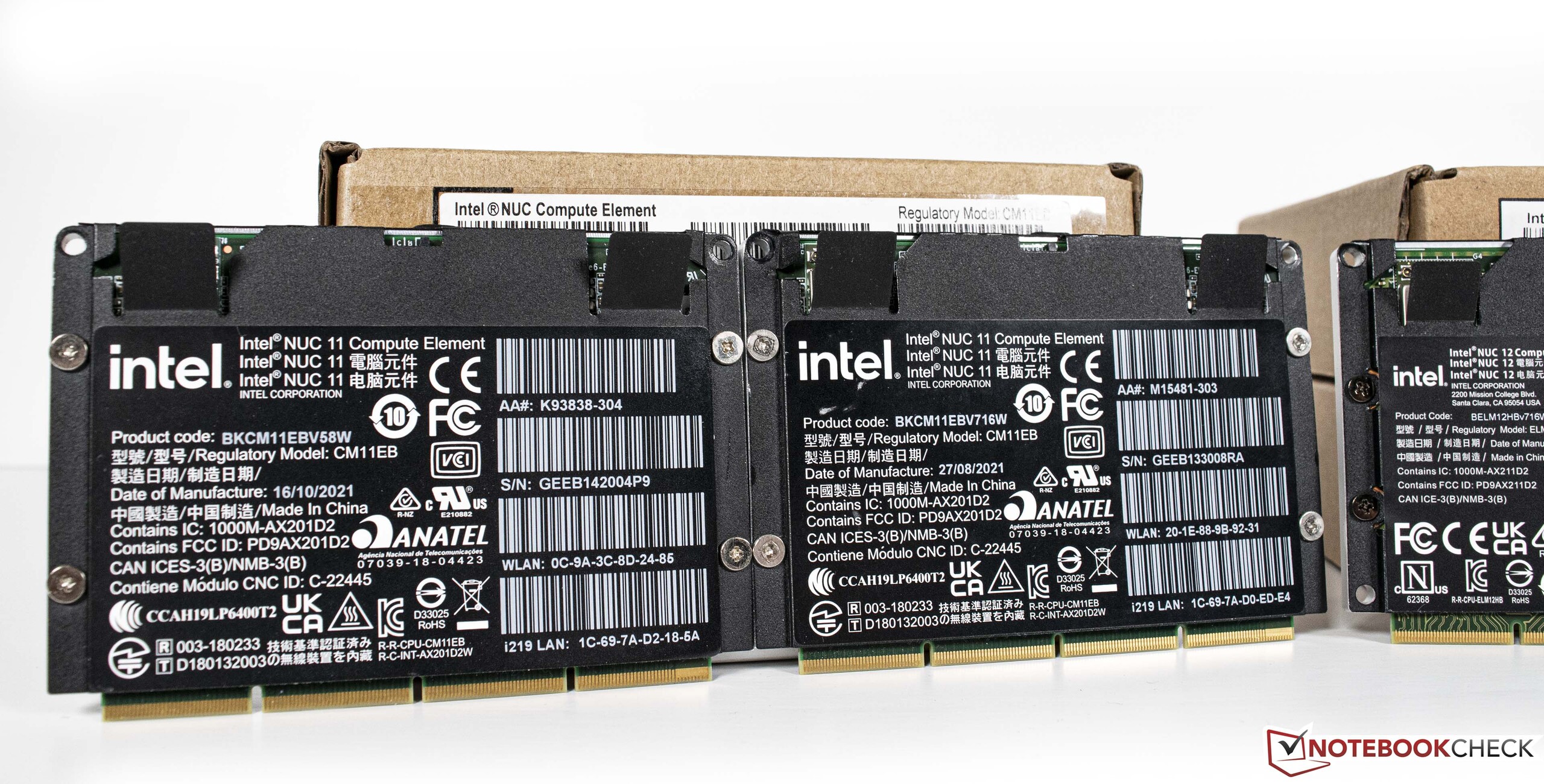

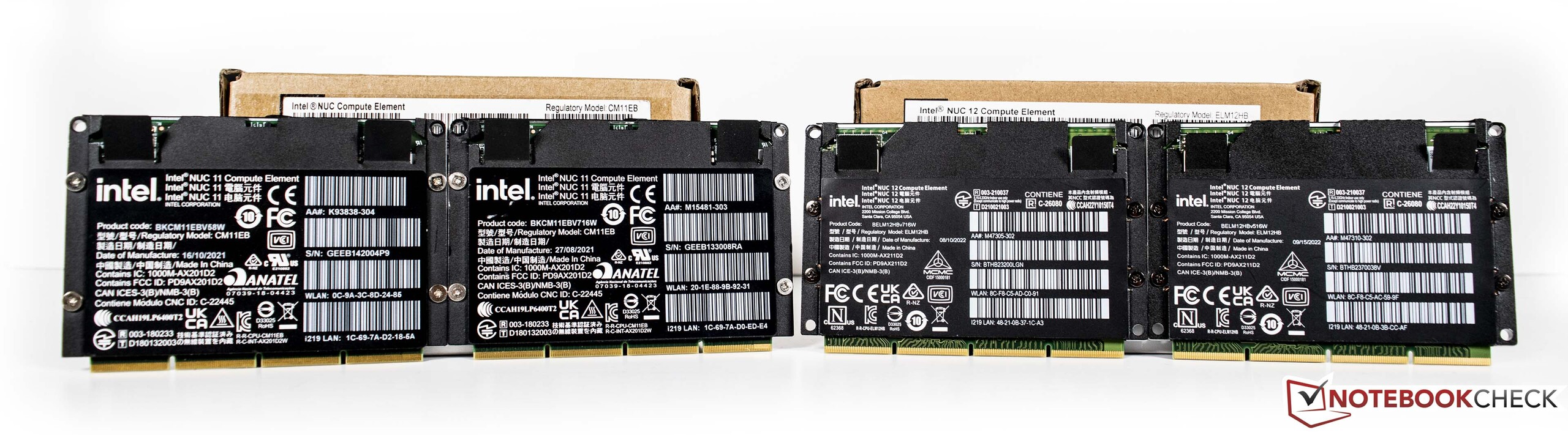

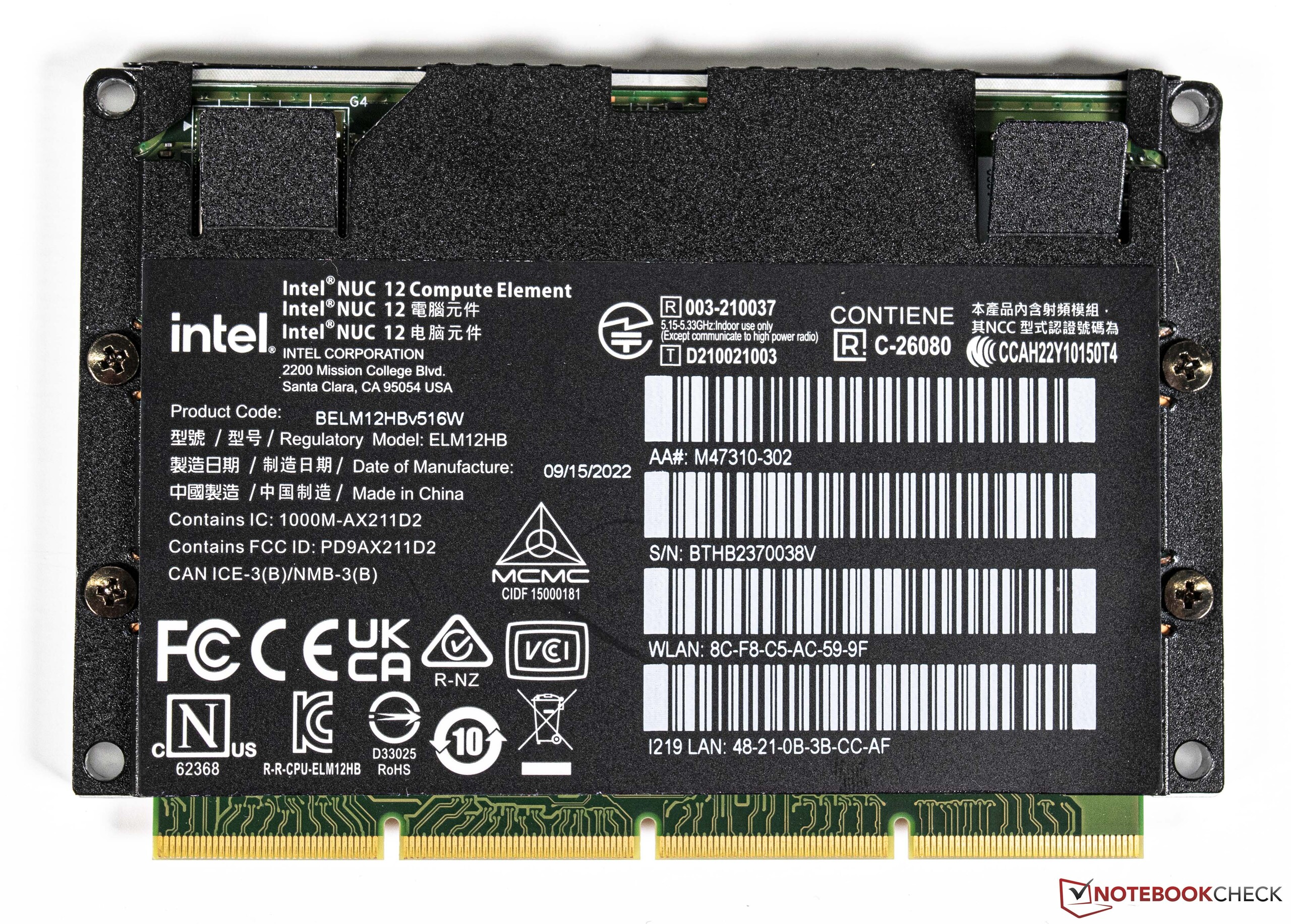

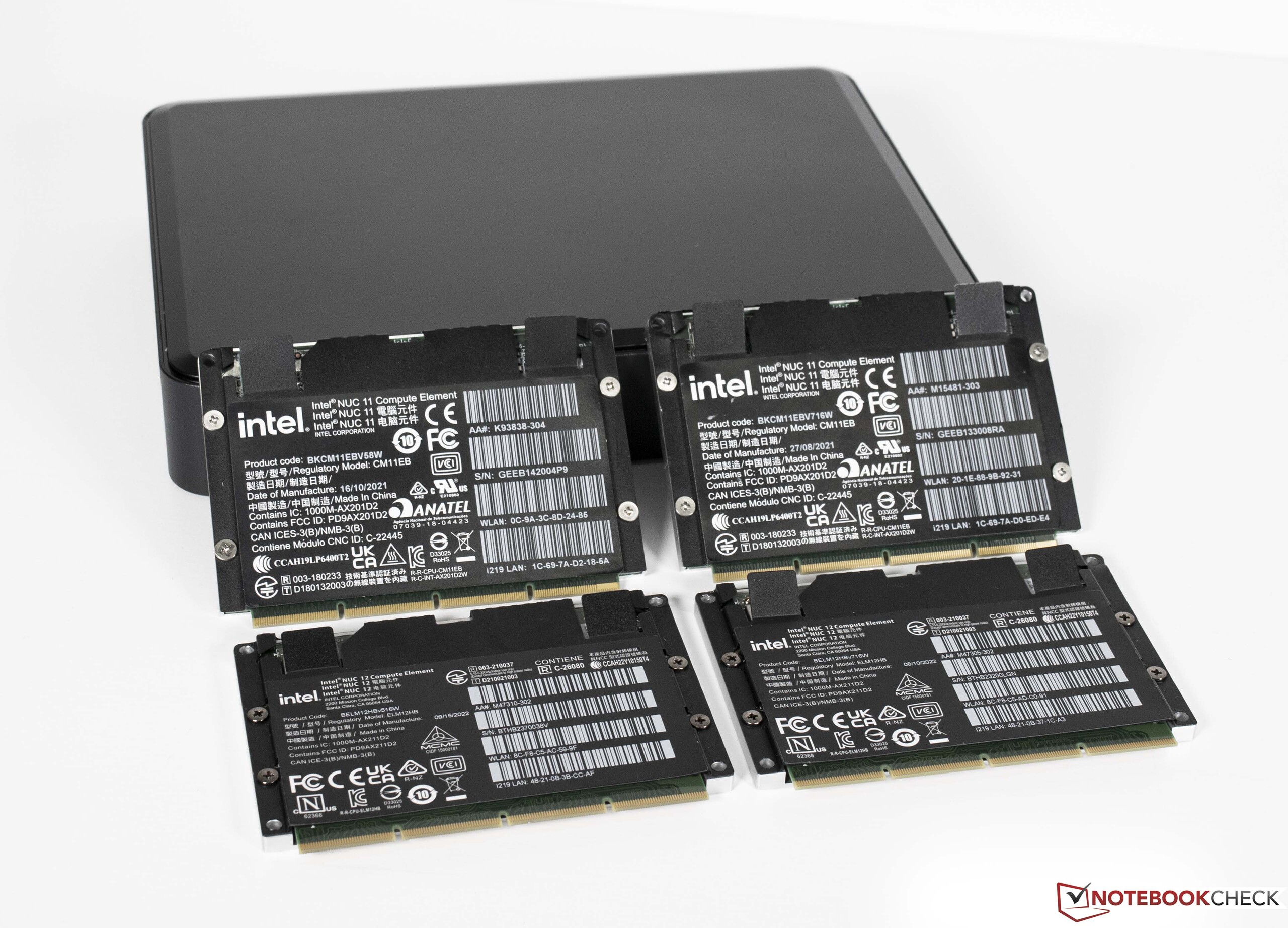

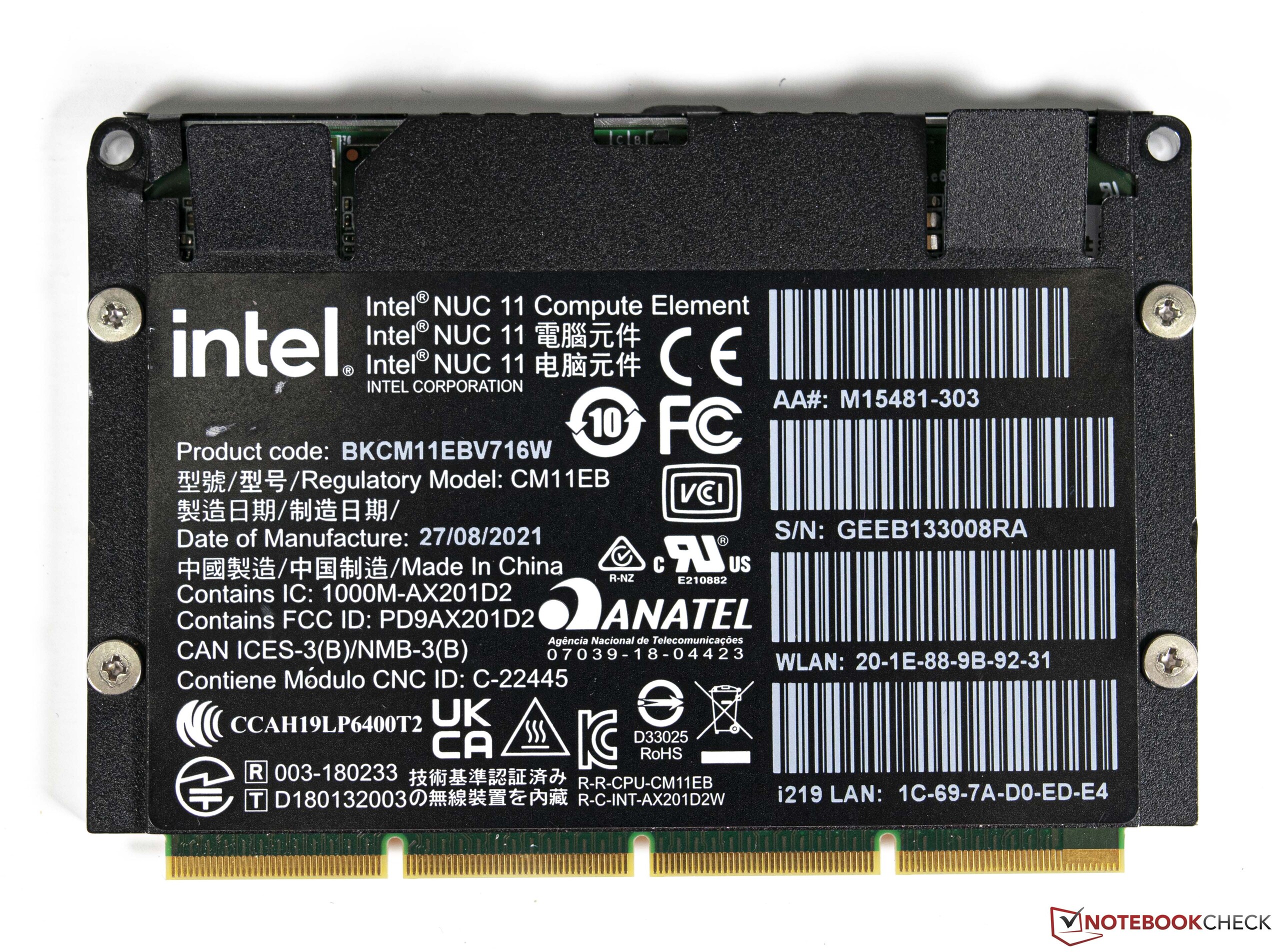

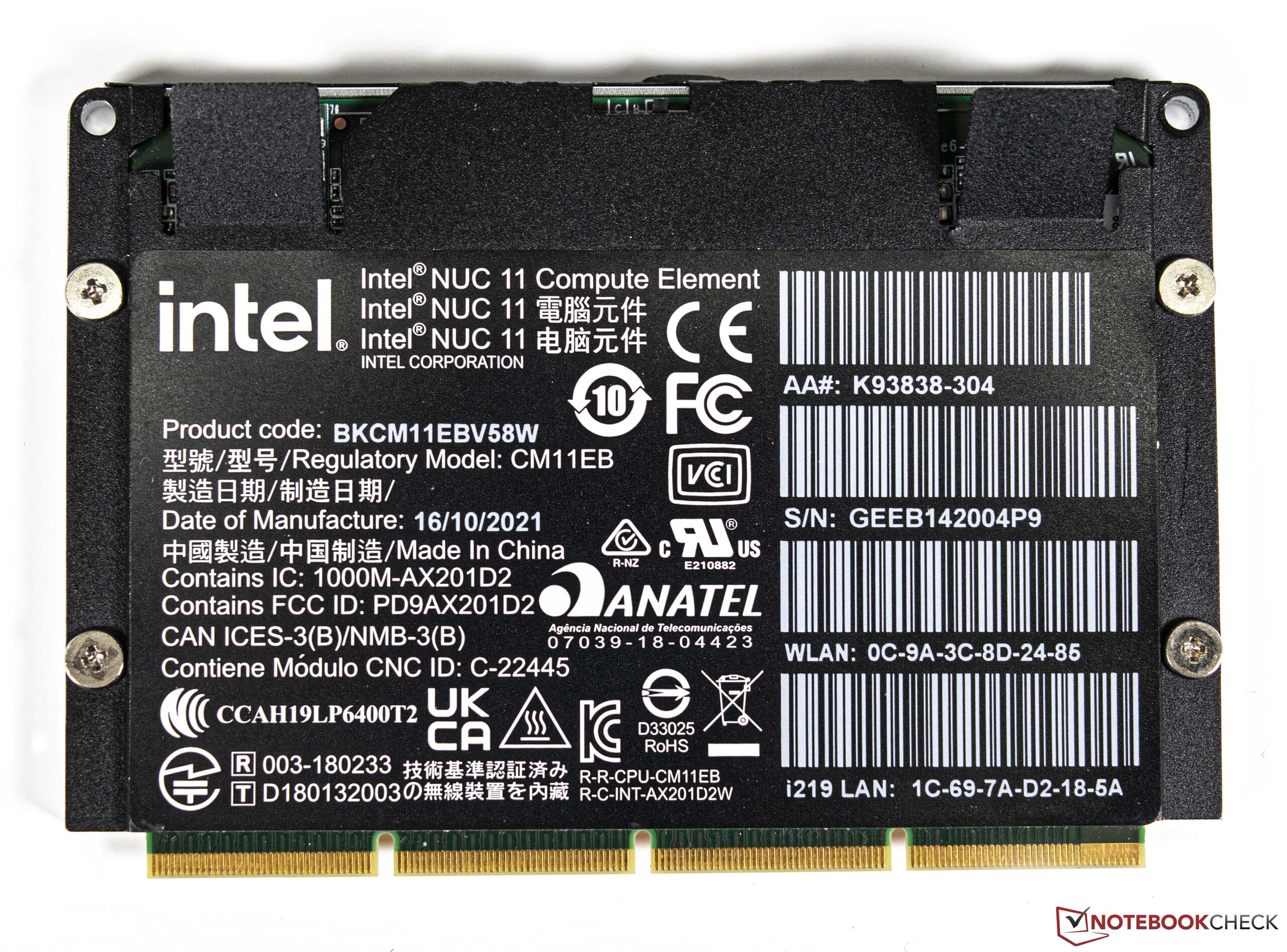

Model	Intel NUC 11 Compute Element (CM11EBv58W)	Intel NUC 11 Compute Element (CM11EBv716W)	Intel NUC 12 Compute Element (ELM12HBv5)	Intel NUC 12 Compute Element (ELM12HBv7)
SoC	Intel Core i5-1145G7	Intel Core i7-1185G7	Intel Core i5-1245U	Intel Core i7-1265U
Rdzenie / wątki	4 / 8	4 / 8	10 / 12	10 / 12
RAM	8GB (LPDDR4x-4266)	16GB (LPDDR4x-4266)	8GB, 16GB (LPDDR5-5200)	16GB, 32GB (LPDDR5-5200)
WiFi	Intel Wi-Fi 6 AX201	Intel Wi-Fi 6 AX201	Intel Wi-Fi 6E AX211	Intel Wi-Fi 6E AX211
Cena w USD	447	669	508	765 - 885

Sprawa

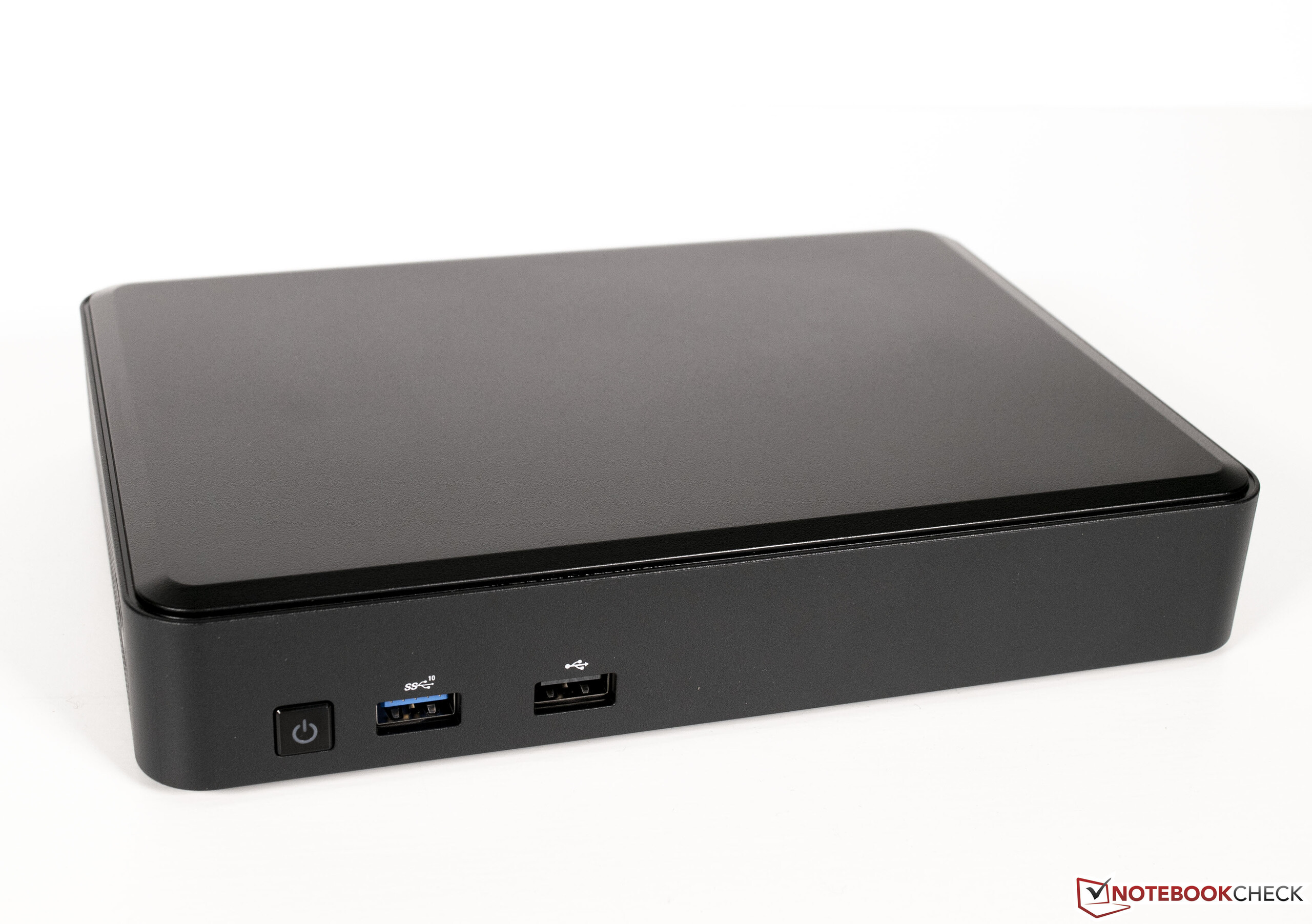

Element obudowy Intel NUC Pro jest całkowicie czarny, przez co wygląda stosunkowo mało efektownie, można by nawet powiedzieć, że dość nudno. Niemniej jednak jakość wykonania stoi na wysokim poziomie, jaki znamy z systemów NUC Intela. Z zewnątrz wszystko wykonane jest z plastiku, a wewnątrz znajduje się solidna metalowa rama, która nadaje urządzeniu niezbędną stabilność.

Sprzęt

Na pierwszy rzut oka można odkryć wiele w kwestii łączności. Jednak bliższe spojrzenie ujawnia raczej rozczarowanie. 3x USB 2.0 nie jest po prostu tym, czego można by się spodziewać w 2022 roku. Można to jeszcze tolerować, gdy mysz i klawiatura są obsługiwane za jego pośrednictwem. Mimo to chętnie zobaczylibyśmy bardziej nowoczesne interfejsy - zwłaszcza USB-C, w tym Thunderbolt. Dwa wyjścia HDMI są dobre i mogą zasilić konfigurację dwumonitorową, ale porty LAN wypadają słabo z prędkością 1 GBit. Tutaj również przynajmniej port LAN 2,5 GBit byłby tym, czego obecnie należy oczekiwać.

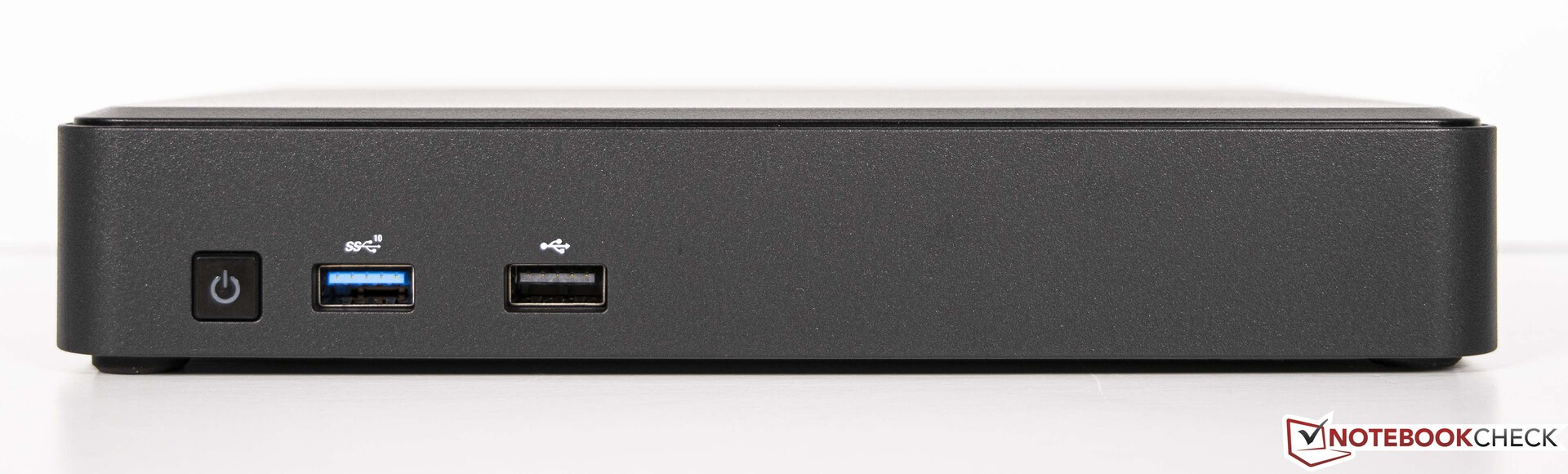

Przód: Power-On, 1x USB3.1 Gen.2, 1x USB2.0

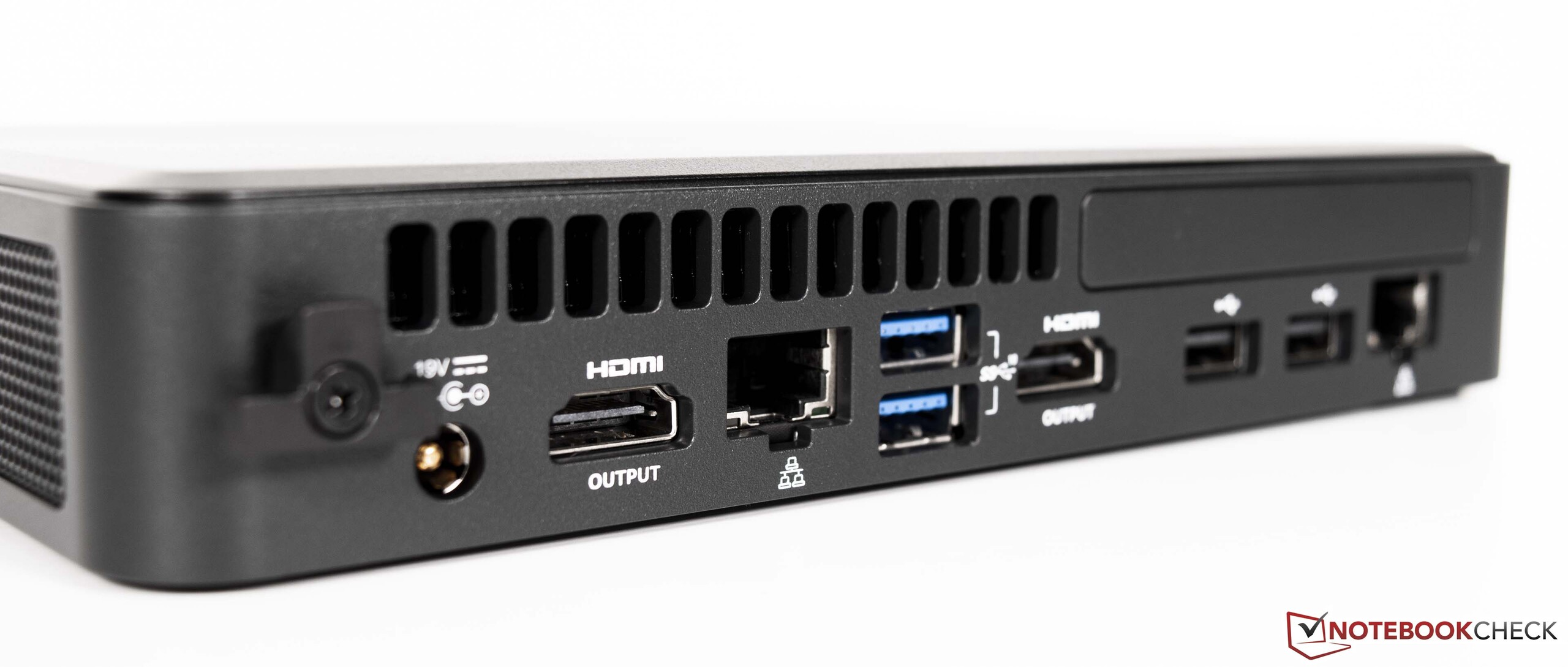

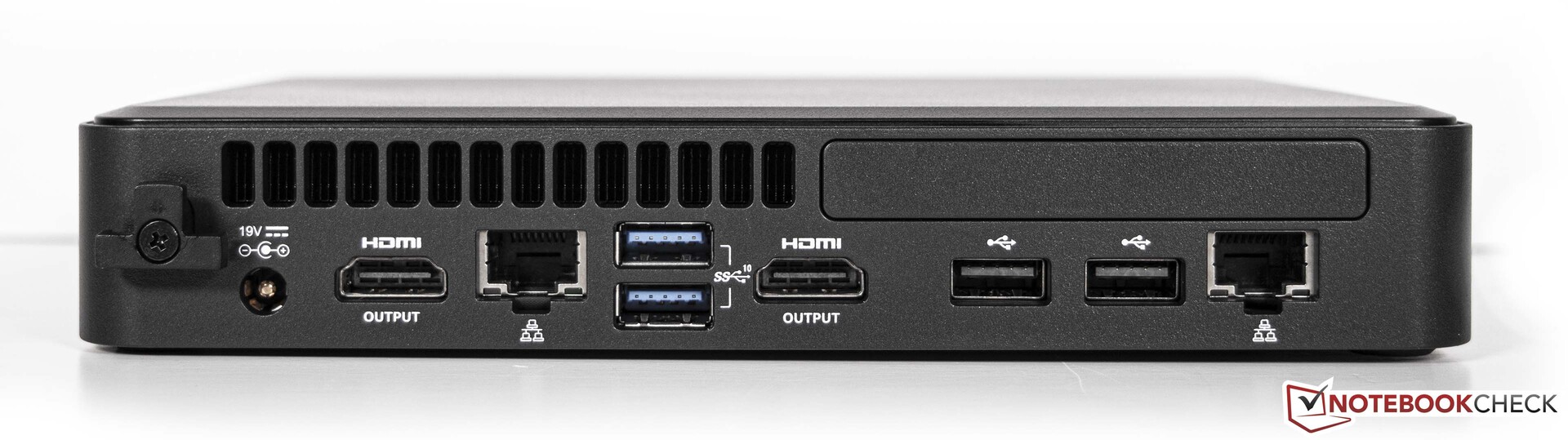

Tył: Złącze zasilania, 2x HDMI, 2x LAN (Intel i219-LM GbE +Intel i211-AT GbE), 2x USB3.1 Gen.2, 2x USB2.0

Komunikacja

Jeśli chodzi o zastosowane moduły Wi-Fi, to w przypadku elementów obliczeniowych opartych na Tiger-Lake Intel postawił na Intel Wi-Fi 6 AX201, natomiast SoC z Alder-Lake sparowano z nieco nowocześniejszym Intel Wi-Fi 6 AX211. Wydajność wszystkich testowanych konfiguracji jest dobra i różni się tylko o kilka procent. Do testu wykorzystany został nasz router testowy ASUS ROG Rapture GT-AXE11000.

Networking
iperf3 receive AXE11000 6GHz
Intel NUC Pro Chassis_i7_1265U Intel Wi-Fi 6E AX211	1713 (1694^min - 1728^max) MBit/s ∼100%
Intel NUC Pro Chassis_i5_1245U Intel Wi-Fi 6E AX211	1701 (854^min - 1715^max) MBit/s ∼99%
iperf3 transmit AXE11000 6GHz
Intel NUC Pro Chassis_i7_1265U Intel Wi-Fi 6E AX211	1093 (570^min - 1168^max) MBit/s ∼100%
Intel NUC Pro Chassis_i5_1245U Intel Wi-Fi 6E AX211	1062 (1009^min - 1098^max) MBit/s ∼97%
iperf3 receive AXE11000
Intel NUC Pro Chassis_i5_1145G7 Intel Wi-Fi 6 AX201	1688 (1377^min - 1732^max) MBit/s ∼100%
Intel NUC Pro Chassis_i7_1185G7 Intel Wi-Fi 6 AX201	1685 (841^min - 1722^max) MBit/s ∼100% 0%
iperf3 transmit AXE11000
Intel NUC Pro Chassis_i5_1145G7 Intel Wi-Fi 6 AX201	1060 (544^min - 1101^max) MBit/s ∼100%
Intel NUC Pro Chassis_i7_1185G7 Intel Wi-Fi 6 AX201	1011 (529^min - 1068^max) MBit/s ∼95% -5%

Intel NUC Pro Chassis_i5_1245U Intel Wi-Fi 6E AX211; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1062 (1009-1098)

Intel NUC Pro Chassis_i7_1265U Intel Wi-Fi 6E AX211; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1074 (570-1168)

Intel NUC Pro Chassis_i5_1245U Intel Wi-Fi 6E AX211; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1671 (854-1715)

Intel NUC Pro Chassis_i7_1265U Intel Wi-Fi 6E AX211; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1712 (1694-1728)

Intel NUC Pro Chassis_i5_1145G7 Intel Wi-Fi 6 AX201; iperf3 receive AXE11000; iperf 3.1.3: Ø1687 (1377-1732)

Intel NUC Pro Chassis_i7_1185G7 Intel Wi-Fi 6 AX201; iperf3 receive AXE11000; iperf 3.1.3: Ø1657 (841-1722)

Intel NUC Pro Chassis_i5_1145G7 Intel Wi-Fi 6 AX201; iperf3 transmit AXE11000; iperf 3.1.3: Ø1042 (544-1101)

Intel NUC Pro Chassis_i7_1185G7 Intel Wi-Fi 6 AX201; iperf3 transmit AXE11000; iperf 3.1.3: Ø993 (529-1068)

Konserwacja

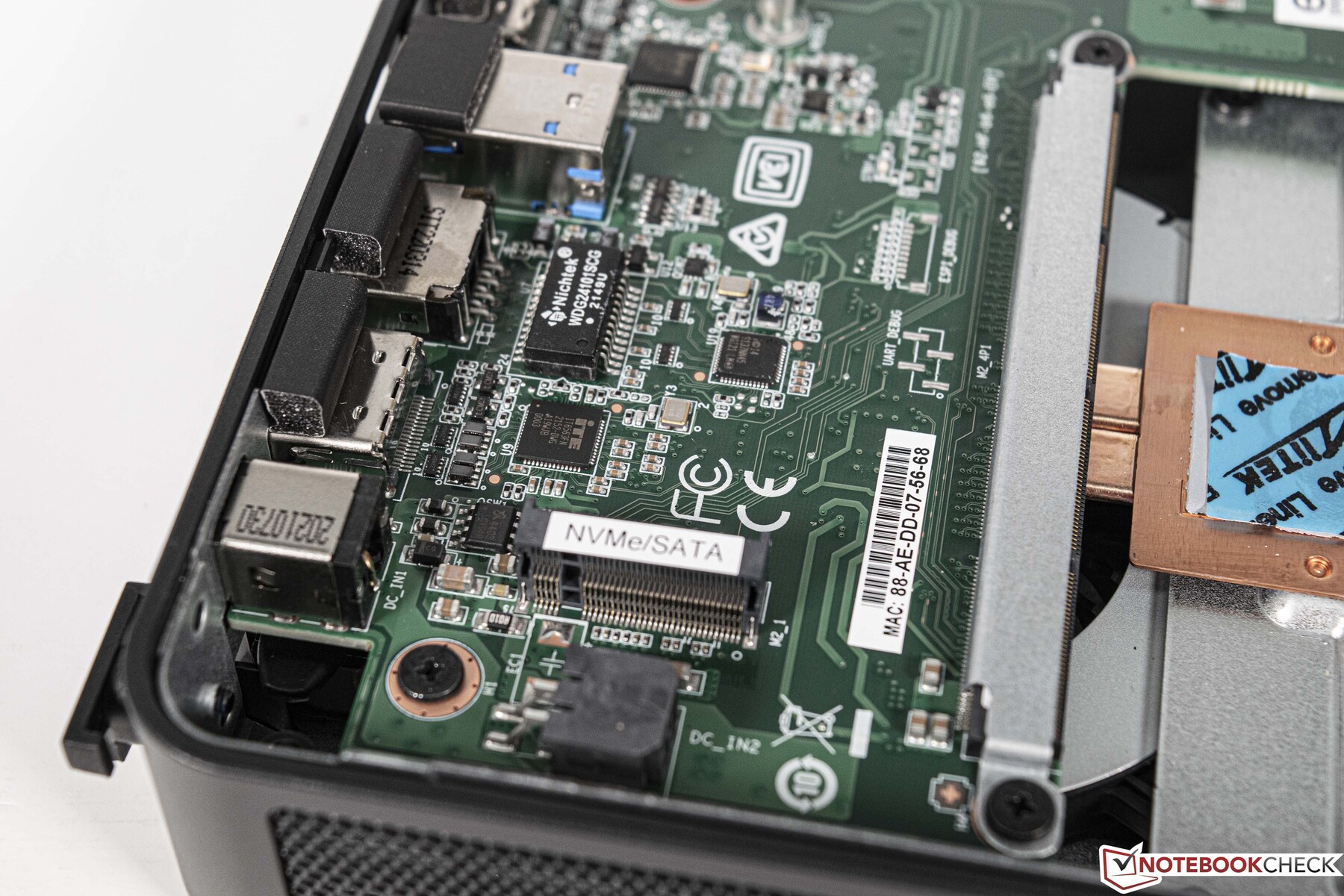

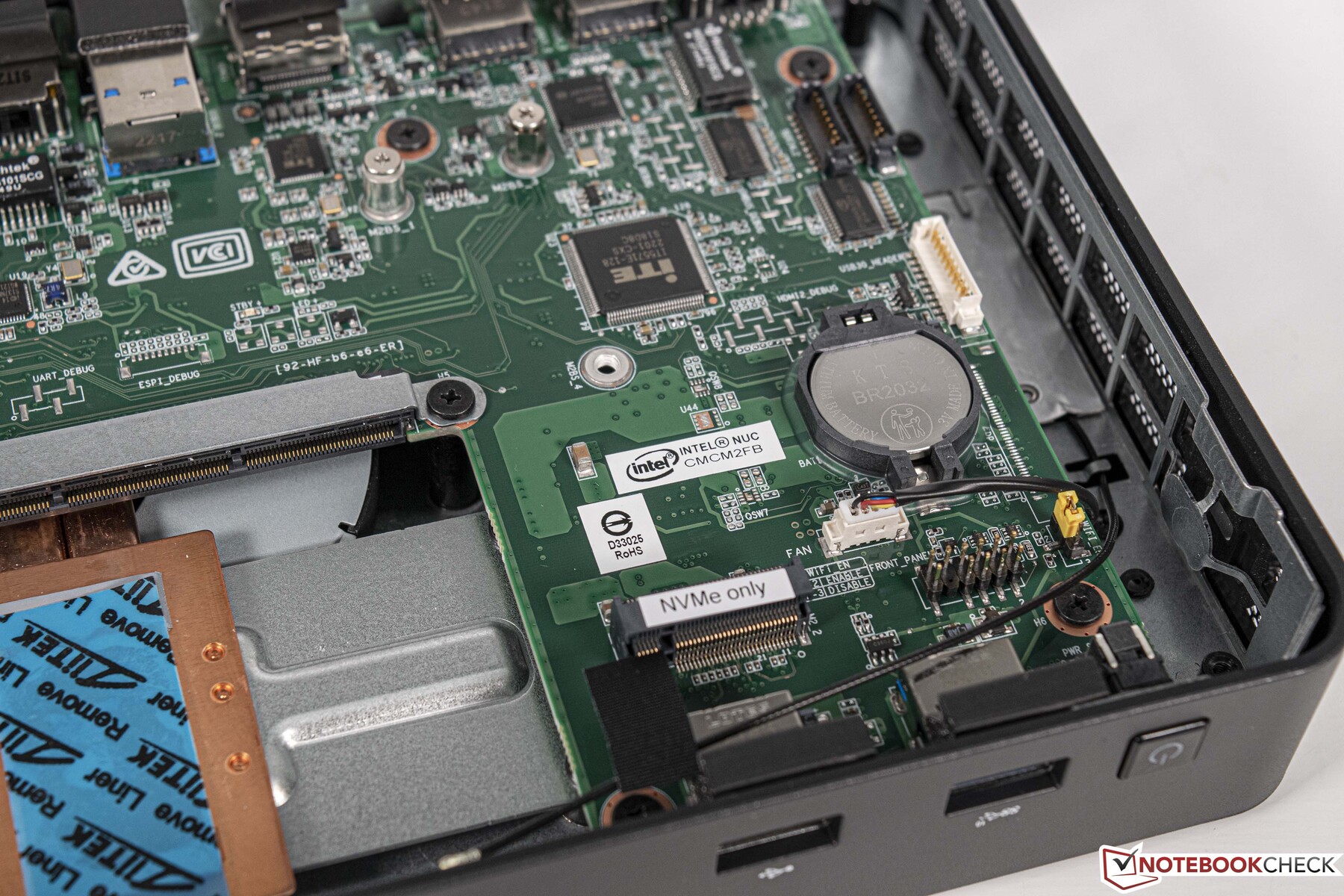

Opcja barebone ułatwia otwarcie elementu obudowy Intel NUC Pro. Płyta bazowa jest przymocowana za pomocą czterech śrub. Wewnątrz można łatwo uzyskać dostęp do niezbędnych interfejsów, aby wyposażyć urządzenie w najpotrzebniejsze rzeczy. Element obliczeniowy ma swoje miejsce w przednim obszarze. Ponadto zastosowano już podkładkę termoprzewodzącą, która zapewnia odprowadzanie ciepła. Ponadto należy podłączyć dwie anteny WLAN, które są również preinstalowane. Do pamięci masowej można zainstalować do dwóch dysków SSD M.2.

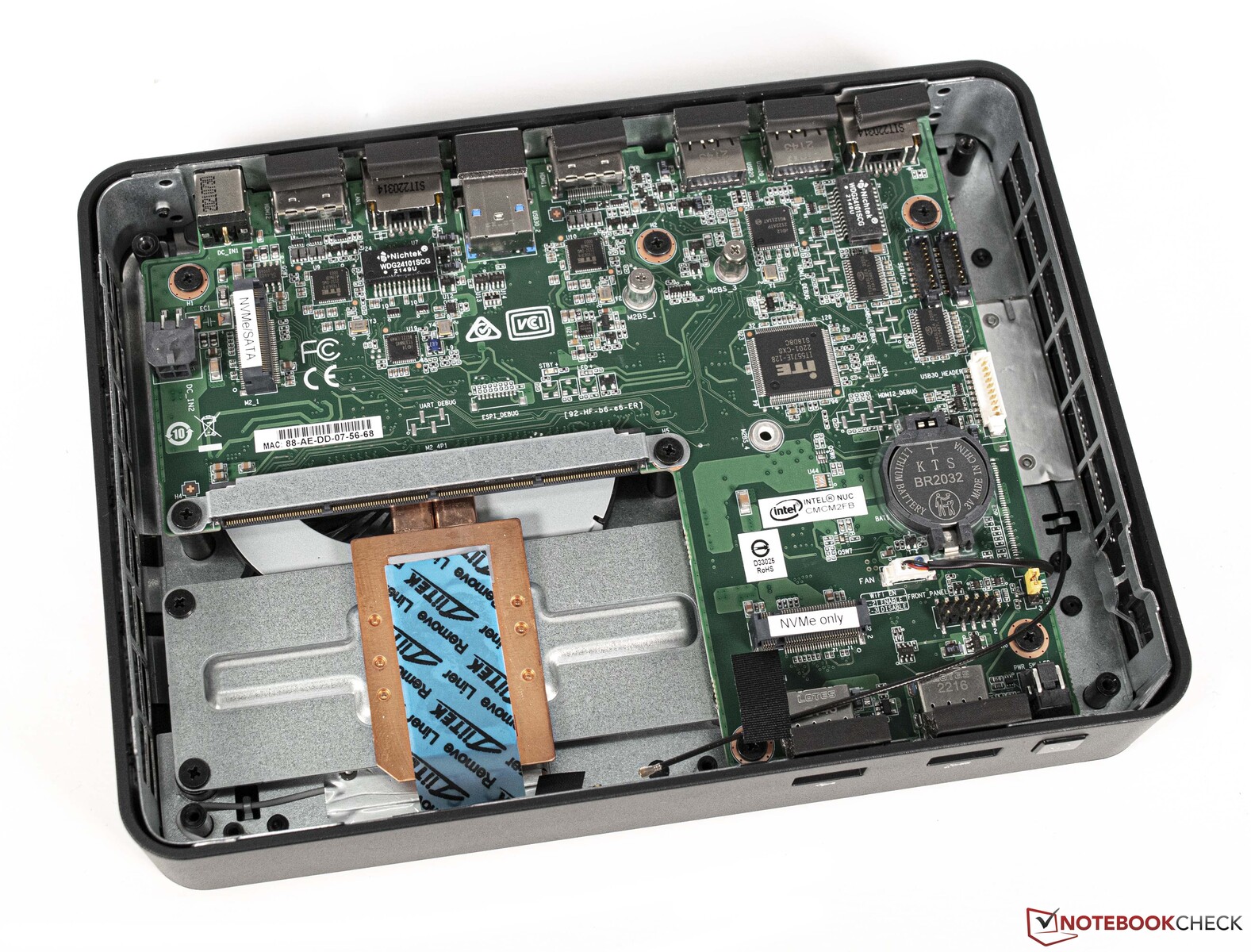

Intel NUC Pro Chassis Element bez płyty bazowej

Wydajność

Jeśli chodzi o wydajność, każdy może sam zdecydować, ile jest potrzebne. Dzięki modułowej konstrukcji, Intel NUC Pro Chassis Element może być wyposażony zgodnie z przypadkiem użycia i budżetem.

Benchmarki procesora

Wydajność CPU poszczególnych elementów obliczeniowych różni się od siebie zgodnie z oczekiwaniami. Około 20 procent wynosi różnica między Intel Core i5-1145G7 a Intel Core i7-1265U. Różnica w wydajności pomiędzy dwoma SoC z serii Alder Lake jest jednak marginalna. Działają one niemal identycznie ze względu na taką samą liczbę rdzeni i wątków. Aby lepiej ocenić wydajność, przetestowaliśmy również m.in PrimeBook Circular. Ten również jest wyposażony w element obliczeniowy i plasuje się wśród najlepszych urządzeń opartych na Intel Core i7-1165G7, co plasuje go bezpośrednio za Intel Core i7-1185G7 w rankingach. W porównaniu do AMD Ryzen 5 5600U, którego testowaliśmy w Ace Magician AMR5 element obudowy Intel NUC Pro z SoC z Alder-Lake może się łatwo wyróżnić.

Po dalsze porównania i benchmarki odsyłamy do naszejTabela porównawcza procesorów.

Performance Rating - Percent
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	46.7 pt ∼47%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	46.4 pt ∼46%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	42.7 pt ∼43%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	40.1 pt ∼40%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	39.4 pt ∼39%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	39.1 pt ∼39%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	36.5 pt ∼37%

Cinebench R15
CPU Single 64Bit
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	245 Points ∼75% +21%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	242 Points ∼74% +20%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	223 Points ∼68% +10%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	221 Points ∼67% +9%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	215 Points ∼66% +6%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	202 Points ∼62%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	197 Points ∼60% -2%
CPU Multi 64Bit
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	1320 Points ∼14% +67%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	1311 Points ∼14% +66%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	1265 Points ∼13% +60%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	832 Points ∼9% +5%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	791 Points ∼8%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	791 Points ∼8% 0%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	560 Points ∼6% -29%

Cinebench R20
CPU (Single Core)
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	654 Points ∼75% +23%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	649 Points ∼75% +22%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	568 Points ∼65% +7%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	558 Points ∼64% +5%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	534 Points ∼61% +1%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	531 Points ∼61%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	517 Points ∼59% -3%
CPU (Multi Core)
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	3234 Points ∼14% +63%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	3153 Points ∼13% +58%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	2975 Points ∼13% +49%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	2051 Points ∼9% +3%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	2027 Points ∼9% +2%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	1990 Points ∼8%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	1440 Points ∼6% -28%

Cinebench R23
Single Core
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	1713 Points ∼75% +26%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	1690 Points ∼74% +24%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	1487 Points ∼65% +9%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	1451 Points ∼64% +7%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	1376 Points ∼61% +1%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	1361 Points ∼60%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	1346 Points ∼59% -1%
Multi Core
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	8342 Points ∼14% +67%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	8199 Points ∼13% +64%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	7615 Points ∼12% +53%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	5240 Points ∼9% +5%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	5222 Points ∼9% +5%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	4991 Points ∼8%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	3721 Points ∼6% -25%

Cinebench R11.5
CPU Single 64Bit
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	2.99 Points ∼9% +27%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	2.92 Points ∼9% +24%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	2.64 Points ∼8% +12%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	2.58 Points ∼8% +9%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	2.52 Points ∼8% +7%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	2.36 Points ∼7%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	2.31 Points ∼7% -2%
CPU Multi 64Bit
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	16.48 Points ∼23% +81%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	16.2 Points ∼23% +78%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	14.78 Points ∼21% +62%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	9.78 Points ∼14% +7%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	9.12 Points ∼13%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	8.99 Points ∼13% -1%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	6.37 Points ∼9% -30%

Cinebench R10
Rendering Single CPUs 64Bit
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	13904 Points ∼76% +33%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	13501 Points ∼74% +29%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	11620 Points ∼63% +11%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	11343 Points ∼62% +8%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	11098 Points ∼60% +6%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	10472 Points ∼57%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	10395 Points ∼57% -1%
Rendering Multiple CPUs 64Bit
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	61863 Points ∼45% +75%
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	60266 Points ∼43% +70%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	45363 Points ∼33% +28%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	36902 Points ∼27% +4%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	35564 Points ∼26% +1%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	35372 Points ∼25%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	24499 Points ∼18% -31%

Blender - v2.79 BMW27 CPU
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	759 Seconds * ∼5% -26%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	750 Seconds * ∼5% -25%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	601 Seconds * ∼4%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	590 Seconds * ∼4% +2%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	399 Seconds * ∼3% +34%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	388 Seconds * ∼3% +35%
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	380 Seconds * ∼3% +37%

wPrime 2.10
32m
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	6.875 s * ∼1% -6%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	6.799 s * ∼1% -5%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	6.499 s * ∼1%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	6.428 s * ∼1% +1%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	5.435 s * ∼1% +16%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	5.377 s * ∼1% +17%
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	5.242 s * ∼1% +19%
1024m
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	286.835 s * ∼3% -26%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	240.405 s * ∼3% -6%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	229.096 s * ∼3% -1%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	227.285 s * ∼3%
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	217.425 s * ∼3% +4%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	216.279 s * ∼3% +5%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	156.33 s * ∼2% +31%

X264 HD Benchmark 4.0
Pass 1
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	265.5 (255^min - 284^max) fps ∼62% +38%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	263 (250^min - 286^max) fps ∼62% +37%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	234 (233^min - 235^max) fps ∼55% +22%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	209 (207^min - 221^max) fps ∼49% +9%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	198.8 (197.5^min - 231^max) fps ∼47% +4%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	192 (188.3^min - 208^max) fps ∼45%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	165.55 (163.6^min - 204^max) fps ∼39% -14%
Pass 2
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	80.95 (79.9^min - 96.6^max) fps ∼30% +75%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	78.35 (77.6^min - 101.7^max) fps ∼29% +69%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	76 (75.7^min - 76.3^max) fps ∼28% +64%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	48.7 (48.7^min - 55.5^max) fps ∼18% +5%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	46.6 (46.4^min - 53.9^max) fps ∼17% +1%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	46.3 (46^min - 51^max) fps ∼17%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	36.7 (36.7^min - 37.6^max) fps ∼13% -21%

WinRAR - Result
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	6877 KB/s ∼40% +32%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	6154 KB/s ∼36% +18%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	6045 KB/s ∼35% +16%
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	5960 KB/s ∼34% +14%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	5717 KB/s ∼33% +9%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	5223 KB/s ∼30%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	4185 KB/s ∼24% -20%

TrueCrypt
AES Mean 100MB
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	9.7 GB/s ∼0% +73%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	9.2 GB/s ∼0% +64%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	7.7 GB/s ∼0% +38%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	5.8 GB/s ∼0% +4%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	5.7 GB/s ∼0% +2%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	5.6 GB/s ∼0%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	5.3 GB/s ∼0% -5%
Twofish Mean 100MB
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	1.6 GB/s ∼0% +100%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	1.5 GB/s ∼0% +87%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	1.1 GB/s ∼0% +37%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	0.819 GB/s ∼0% +2%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	0.813 GB/s ∼0% +1%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	0.802 GB/s ∼0%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	0.755 GB/s ∼0% -6%
Serpent Mean 100MB
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	0.901 GB/s ∼0% +92%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	0.872 GB/s ∼0% +86%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	0.7 GB/s ∼0% +49%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	0.496 GB/s ∼0% +6%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	0.469 GB/s ∼0%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	0.448 GB/s ∼0% -4%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	0.447 GB/s ∼0% -5%

Geekbench 5.4
Multi-Core
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	9065 Points ∼31% +66%
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	8772 Points ∼30% +60%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	6175 Points ∼21% +13%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	5813 Points ∼20% +6%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	5467 Points ∼19%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	4898 Points ∼17% -10%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	4851 Points ∼17% -11%
Single-Core
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	1714 Points ∼74% +20%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	1675 Points ∼72% +17%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	1543 Points ∼67% +8%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	1506 Points ∼65% +6%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	1430 Points ∼62% 0%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	1427 Points ∼62%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	1391 Points ∼60% -3%

Geekbench 5.0
5.0 Multi-Core
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	8911 Points ∼28% +67%
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	8807 Points ∼28% +65%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	6117 Points ∼19% +14%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	5745 Points ∼18% +7%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	5351 Points ∼17%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	4841 Points ∼15% -10%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	4813 Points ∼15% -10%
5.0 Single-Core
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	1674 Points ∼7% +18%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	1585 Points ∼7% +11%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	1553 Points ∼7% +9%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	1508 Points ∼7% +6%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	1423 Points ∼6%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	1385 Points ∼6% -3%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	1383 Points ∼6% -3%

Geekbench 4.1 - 4.4
64 Bit Single-Core Score
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	7515 Points ∼78% +21%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	7065 Points ∼73% +13%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	6686 Points ∼69% +7%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	6305 Points ∼65% +1%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	6226 Points ∼64%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	5911 Points ∼61% -5%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	5854 Points ∼60% -6%
64 Bit Multi-Core Score
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	33057 Points ∼37% +59%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	33040 Points ∼37% +59%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	24495 Points ∼27% +18%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	22175 Points ∼25% +7%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	21011 Points ∼23% +1%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	20787 Points ∼23%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	19288 Points ∼22% -7%

3DMark 11 - 1280x720 Performance Physics
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	16005 Points ∼43% +39%
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	15485 Points ∼42% +34%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	12608 Points ∼34% +9%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	11536 Points ∼31%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	11284 Points ∼31% -2%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	7797 Points ∼21% -32%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	7792 Points ∼21% -32%

7-Zip 18.03
7z b 4
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	39207 MIPS ∼24% +70%
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	36343 MIPS ∼22% +57%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	35918 MIPS ∼22% +55%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	24006 MIPS ∼15% +4%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	23471 MIPS ∼15% +2%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	23123 MIPS ∼14%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	17636 MIPS ∼11% -24%
7z b 4 -mmt1
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	5353 MIPS ∼64% +10%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	5255 MIPS ∼63% +8%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	5249 MIPS ∼63% +8%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	5235 MIPS ∼63% +8%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	5097 MIPS ∼61% +5%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	4853 MIPS ∼58%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	4788 MIPS ∼57% -1%

HWBOT x265 Benchmark v2.2 - 4k Preset
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	10.1 fps ∼22% +53%
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	9.7 fps ∼21% +47%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	9.47 fps ∼20% +43%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	6.6 fps ∼14%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	6.55 fps ∼14% -1%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	5.26 fps ∼11% -20%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	4.74 fps ∼10% -28%

R Benchmark 2.5 - Overall mean
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	0.639 sec * ∼14% -1%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	0.63 sec * ∼14%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	0.609 sec * ∼13% +3%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	0.599 sec * ∼13% +5%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	0.537 sec * ∼12% +15%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	0.511 sec * ∼11% +19%
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	0.4856 sec * ∼10% +23%

LibreOffice - 20 Documents To PDF
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	52 s * ∼13% -11%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	51.8 s * ∼13% -10%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	51.1 s * ∼13% -9%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	49.4 s * ∼12% -5%
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	48.9 s * ∼12% -4%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	46.9 s * ∼12%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	46.1 s * ∼12% +2%

WebXPRT 3 - ---
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	271 Points ∼67% +16%
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	263 Points ∼65% +12%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	255 Points ∼63% +9%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	252 Points ∼62% +8%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	245 Points ∼60% +5%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	236 Points ∼58% +1%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	234 Points ∼57%

Mozilla Kraken 1.1 - Total Score
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	724 ms * ∼1% -0%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	722 ms * ∼1%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	695 ms * ∼1% +4%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	646 ms * ∼1% +11%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	643 ms * ∼1% +11%
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	597 ms * ∼1% +17%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	575 ms * ∼1% +20%

3DMark
3840x2160 Fire Strike Ultra Physics
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	18463 Points ∼34% +37%
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	18218 Points ∼34% +35%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	17568 Points ∼32% +30%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	13479 Points ∼25%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	12661 Points ∼23% -6%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	9561 Points ∼18% -29%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	9094 Points ∼17% -33%
1920x1080 Fire Strike Physics
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	18467 Points ∼34% +38%
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	18108 Points ∼33% +35%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	18076 Points ∼33% +35%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	13413 Points ∼25%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	12768 Points ∼24% -5%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	9354 Points ∼17% -30%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	8668 Points ∼16% -35%
2560x1440 Time Spy CPU
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	6307 Points ∼31% +41%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	6185 Points ∼31% +38%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	5443 Points ∼27% +21%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	4487 Points ∼22%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	4426 Points ∼22% -1%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	3070 Points ∼15% -32%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	2867 Points ∼14% -36%

* ... im mniej tym lepiej

Różne elementy obliczeniowe w Cinebench R15 multi-loop

Podobne zachowanie jest widoczne we wszystkich czterech konstelacjach. Wydajność procesora spada znacząco po pierwszym uruchomieniu ze względu na temperatury. Spadek wydajności jest znacznie większy w nowszych SoC Alder Lake. W dalszym przebiegu wydajność pozostaje jednak w dużej mierze stabilna

Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7: Ø757 (739.28-828.86)

Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7: Ø757 (738.48-856.13)

Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U: Ø1222 (1193.03-1456.4)

Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U: Ø1254 (1145.71-1444.46)

Syntetyczne benchmarki i wydajność aplikacji

W benchmarkach syntetycznych widzimy niemal identyczny wynik jak wcześniej w testach czystych procesorów. Tym razem 1 i 2 miejsce trafiają do dwóch SoC Alder Lake w odwrotnej kolejności. Tym samym po raz kolejny okazuje się, że np Core i7-1265Unie zawsze jest lepszym rozwiązaniem. Elementy obliczeniowe oparte na Tiger-Lake są podobnie zbliżone, więc np Core i7-1185G7 również nie odnosi tutaj wyraźniejszego zwycięstwa.

Performance Rating | PCMark 10 | 3DMark | 3DMark 11 | CrossMark

Performance Rating - Percent
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	98.3 pt ∼98%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	97.9 pt ∼98%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	90 pt ∼90%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	78.6 pt ∼79%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs	76 pt ∼76%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	64.6 pt ∼65%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	60.4 pt ∼60%

PCMark 10 - Score
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	5761 Points ∼100% +20%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	5510 Points ∼96% +15%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	5387 Points ∼94% +12%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	5160 Points ∼90% +8%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	4892 Points ∼85% +2%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs	4792 Points ∼83%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	4521 Points ∼78% -6%

3DMark
1920x1080 Fire Strike Physics
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	18467 Points ∼100% +38%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	18108 Points ∼98% +35%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	18076 Points ∼98% +35%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs	13413 Points ∼73%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	12768 Points ∼69% -5%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	9354 Points ∼51% -30%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	8668 Points ∼47% -35%
2560x1440 Time Spy CPU
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	6307 Points ∼100% +41%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	6185 Points ∼98% +38%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	5443 Points ∼86% +21%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs	4487 Points ∼71%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	4426 Points ∼70% -1%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	3070 Points ∼49% -32%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	2867 Points ∼45% -36%

3DMark 11 - 1280x720 Performance Physics
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	16005 Points ∼100% +39%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	15485 Points ∼97% +34%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	12608 Points ∼79% +9%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs	11536 Points ∼72%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	11284 Points ∼71% -2%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	7797 Points ∼49% -32%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	7792 Points ∼49% -32%

CrossMark - Overall
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	1577 Points ∼100% +23%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	1559 Points ∼99% +22%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	1477 Points ∼94% +15%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	1474 Points ∼93% +15%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	1373 Points ∼87% +7%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs	1279 Points ∼81%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	1245 Points ∼79% -3%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Iris Xe G7 80EUs	70620 MB/s ∼100% +18%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	69882 MB/s ∼99% +17%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7, Iris Xe G7 96EUs	65021 MB/s ∼92% +9%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Iris Xe G7 96EUs	62171 MB/s ∼88% +4%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Iris Xe G7 80EUs	59767 MB/s ∼85%
Average of class Mini PC (6481 - 70620, n=31, last 2 years)	40390 MB/s ∼57% -32%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	35423 MB/s ∼50% -41%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	35051 MB/s ∼50% -41%

AIDA64 / Memory Read
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Iris Xe G7 80EUs	65856 MB/s ∼100% +7%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	65177 MB/s ∼99% +6%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7, Iris Xe G7 96EUs	63583 MB/s ∼97% +3%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Iris Xe G7 80EUs	61758 MB/s ∼94%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Iris Xe G7 96EUs	59634 MB/s ∼91% -3%
Average of class Mini PC (6914 - 65856, n=31, last 2 years)	41175 MB/s ∼63% -33%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	40348 MB/s ∼61% -35%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	38400 MB/s ∼58% -38%

AIDA64 / Memory Write
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7, Iris Xe G7 96EUs	66791 MB/s ∼100% +1%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Iris Xe G7 80EUs	66047 MB/s ∼99%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Iris Xe G7 96EUs	63908 MB/s ∼96% -3%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	63385 MB/s ∼95% -4%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Iris Xe G7 80EUs	63277 MB/s ∼95% -4%
Average of class Mini PC (6862 - 66047, n=31, last 2 years)	42793 MB/s ∼64% -35%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	39154 MB/s ∼59% -41%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	37475 MB/s ∼56% -43%

AIDA64 / Memory Latency
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	100 ns * ∼100% -16%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Iris Xe G7 80EUs	99.9 ns * ∼100% -16%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Iris Xe G7 96EUs	98.1 ns * ∼98% -14%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7, Iris Xe G7 96EUs	92.3 ns * ∼92% -7%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	91.3 ns * ∼91% -6%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Iris Xe G7 80EUs	86.4 ns * ∼86%
Average of class Mini PC (55.3 - 146, n=31, last 2 years)	85.5 ns * ∼86% +1%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	69 ns * ∼69% +20%

* ... im mniej tym lepiej

Opóźnienia DPC

Tylko połączenie z Intel Core i7-1265U wyróżnia się nieco pod względem latencji DPC. Powtórzony test wykazał ten sam wynik. W pozostałych trzech konstelacjach według LatancyMon nie było problemów. Podczas odtwarzania filmu 4K z YouTube'a iGPU było wykorzystywane w 30-40 procentach.

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Prime Computer PrimeBook Circular-i7-1165G7 Iris Xe G7 96EUs, i7-1165G7, Samsung SSD 980 500GB (MZ-V8V500BW)	4415 μs * ∼100% -698%
Intel NUC Pro Chassis_i7_1265U Iris Xe G7 96EUs, i7-1265U, WDC PC SN720 SDAQNTW-512G	1151 μs * ∼26% -108%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	765 μs * ∼17% -38%
Intel NUC Pro Chassis_i7_1185G7 Iris Xe G7 96EUs, i7-1185G7, WDC PC SN720 SDAQNTW-512G	740 μs * ∼17% -34%
Intel NUC Pro Chassis_i5_1245U Iris Xe G7 80EUs, i5-1245U, WDC PC SN720 SDAQNTW-512G	738 μs * ∼17% -33%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	659.1 μs * ∼15% -19%
Intel NUC Pro Chassis_i5_1145G7 Iris Xe G7 80EUs, i5-1145G7, WDC PC SN720 SDAQNTW-512G	553.1 μs * ∼13%

* ... im mniej tym lepiej

Pamięć masowa

Intel NUC Pro Chassis Element obsługuje do dwóch urządzeń pamięci masowej w formacie M.2. Osoby korzystające z dysków SSD M.2 o prędkości SATA muszą jednak zwrócić uwagę na odpowiedni wybór interfejsu M.2. Tylko jedno gniazdo obsługuje ten nieco wolniejszy format. Do testu wykorzystaliśmy nasz WDC PC SN720 o pojemności 512 GB. Mimo identycznego dysku SSD w teście wystąpiły znaczne różnice, które są zauważalne w czasach dostępu, a także w prędkości odczytu i zapisu 4K. Podczas stałego obciążenia nie występują żadne problemy. Podkładki termiczne na płycie bazowej obu gniazd SSD zapewniają dobre odprowadzanie ciepła.

CrystalDiskMark 3.0

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

WDC PC SN720 SDAQNTW-512G

Sequential Read: 2451 MB/s

Sequential Write: 2512 MB/s

512K Read: 1521 MB/s

512K Write: 1490 MB/s

4K Read: 41.97 MB/s

4K Write: 212.4 MB/s

4K QD32 Read: 683.2 MB/s

4K QD32 Write: 435.2 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	94 pt ∼94%
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	83.3 pt ∼83%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	79.5 pt ∼80%
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	76.3 pt ∼76%
Average of class Mini PC	76 pt ∼76%

DiskSpd
seq read
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	2228 (1938.09^min - 2228.38^max) MB/s ∼100% +23%
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	2058 (1847.09^min - 2057.65^max) MB/s ∼92% +14%
Average of class Mini PC (233 - 4168, n=30, last 2 years)	1855 MB/s ∼83% +2%
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	1811 (1731.93^min - 1810.83^max) MB/s ∼81% 0%
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	1810 (1705.56^min - 1810.26^max) MB/s ∼81%
seq write
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	2249 (2126.93^min - 2248.57^max) MB/s ∼100% +29%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	2198 (2143.62^min - 2198.23^max) MB/s ∼98% +26%
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	2149 (2077.61^min - 2148.85^max) MB/s ∼96% +24%
Average of class Mini PC (222 - 3938, n=30, last 2 years)	1846 MB/s ∼82% +6%
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	1739 (1663.04^min - 1739.25^max) MB/s ∼77%
seq q8 t1 read
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	3497 (2944.82^min - 3496.65^max) MB/s ∼100% +1%
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	3487 (2948.62^min - 3486.57^max) MB/s ∼100% 0%
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	3485 (3116.01^min - 3485^max) MB/s ∼100% 0%
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	3479 (2889.34^min - 3478.93^max) MB/s ∼99%
Average of class Mini PC (236 - 7061, n=30, last 2 years)	2753 MB/s ∼79% -21%
seq q8 t1 write
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	2573 (2526.46^min - 2573.42^max) MB/s ∼100% 0%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	2573 (2547.29^min - 2572.88^max) MB/s ∼100% 0%
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	2564 (2533.74^min - 2564.49^max) MB/s ∼100% 0%
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	2561 MB/s ∼100%
Average of class Mini PC (228 - 3938, n=30, last 2 years)	1963 MB/s ∼76% -23%
4k q1 t1 read
Average of class Mini PC (5.67 - 86.6, n=30, last 2 years)	49.5 MB/s ∼100% +17%
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	46.8 (46.64^min - 46.84^max) MB/s ∼95% +11%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	44.7 (43.85^min - 44.67^max) MB/s ∼90% +6%
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	43.2 (42.7^min - 43.23^max) MB/s ∼87% +2%
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	42.2 (41.96^min - 42.19^max) MB/s ∼85%
4k q1 t1 write
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	232 (230.89^min - 232.39^max) MB/s ∼100% +54%
Average of class Mini PC (22 - 425, n=30, last 2 years)	185.7 MB/s ∼80% +23%
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	155.6 (152.79^min - 155.57^max) MB/s ∼67% +3%
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	150.5 (149.1^min - 150.47^max) MB/s ∼65%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	127.3 (125.68^min - 127.3^max) MB/s ∼55% -15%
4k q32 t16 read
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	1750 (1724.46^min - 1749.88^max) MB/s ∼100% +82%
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	963 (935.31^min - 963.3^max) MB/s ∼55%
Average of class Mini PC (31 - 1948, n=30, last 2 years)	950 MB/s ∼54% -1%
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	926 (896.56^min - 926.49^max) MB/s ∼53% -4%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	643 (632.31^min - 643.46^max) MB/s ∼37% -33%
4k q32 t16 write
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	1380 (935.1^min - 1380.02^max) MB/s ∼100% +235%
Average of class Mini PC (30.2 - 3830, n=30, last 2 years)	1194 MB/s ∼87% +190%
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	423 (402.45^min - 423.18^max) MB/s ∼31% +3%
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	412 (397.32^min - 412.23^max) MB/s ∼30%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	328 (314.14^min - 327.95^max) MB/s ∼24% -20%

AS SSD
Score Total
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	4415 Points ∼100% +1%
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	4358 Points ∼99%
Average of class Mini PC (151.3 - 9030, n=31, last 2 years)	3580 Points ∼81% -18%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	3536 Points ∼80% -19%
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	3526 Points ∼80% -19%
Score Read
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	1657 Points ∼100% 0%
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	1656 Points ∼100%
Average of class Mini PC (61 - 3635, n=31, last 2 years)	1311 Points ∼79% -21%
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	1269 Points ∼77% -23%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	1042 Points ∼63% -37%
Score Write
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	1997 Points ∼100% +6%
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	1936 Points ∼97% +3%
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	1888 Points ∼95%
Average of class Mini PC (97 - 4185, n=31, last 2 years)	1659 Points ∼83% -12%
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	1652 Points ∼83% -12%
Seq Read
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	3039 MB/s ∼100%
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	3030 MB/s ∼100% 0%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	2881 MB/s ∼95% -5%
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	2854 MB/s ∼94% -6%
Average of class Mini PC (305 - 5799, n=31, last 2 years)	2612 MB/s ∼86% -14%
Seq Write
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	2390 MB/s ∼100% +5%
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	2273 MB/s ∼95%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	1960 MB/s ∼82% -14%
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	1846 MB/s ∼77% -19%
Average of class Mini PC (240 - 3927, n=31, last 2 years)	1845 MB/s ∼77% -19%
4K Read
Average of class Mini PC (6.08 - 103.7, n=31, last 2 years)	52.6 MB/s ∼100% +13%
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	49.78 MB/s ∼95% +7%
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	46.54 MB/s ∼88%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	45.38 MB/s ∼86% -2%
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	43.07 MB/s ∼82% -7%
4K Write
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	205.06 MB/s ∼100% +5%
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	201.42 MB/s ∼98% +3%
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	195.91 MB/s ∼96%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	182.89 MB/s ∼89% -7%
Average of class Mini PC (33.7 - 366, n=31, last 2 years)	165 MB/s ∼80% -16%
4K-64 Read
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	1305.92 MB/s ∼100%
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	1304.51 MB/s ∼100% 0%
Average of class Mini PC (24.7 - 3035, n=31, last 2 years)	998 MB/s ∼76% -24%
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	940.13 MB/s ∼72% -28%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	708.14 MB/s ∼54% -46%
4K-64 Write
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	1617.56 MB/s ∼100% +10%
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	1495.31 MB/s ∼92% +2%
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	1464.88 MB/s ∼91%
Average of class Mini PC (39.4 - 3598, n=31, last 2 years)	1310 MB/s ∼81% -11%
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	1262.16 MB/s ∼78% -14%
Access Time Read
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	0.237 ms * ∼100% -85%
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	0.128 ms * ∼54%
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	0.124 ms * ∼52% +3%
Average of class Mini PC (0.022 - 0.237, n=31, last 2 years)	0.09816 ms * ∼41% +23%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	0.053 ms * ∼22% +59%
Access Time Write
Average of class Mini PC (0.017 - 0.582, n=31, last 2 years)	0.1066 ms * ∼100% -408%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	0.022 ms * ∼21% -5%
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	0.021 ms * ∼20%
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	0.02 ms * ∼19% +5%
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	0.019 ms * ∼18% +10%

* ... im mniej tym lepiej

Continuous Read: DiskSpd Read Loop, Queue Depth 8

Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G: Ø3473 (3163.1-3486.1)

Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G: Ø3480 (2916.51-3492.11)

Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G: Ø3482 (3157.08-3490.29)

Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G: Ø3481 (3067.45-3492.18)

Karta graficzna

An Intel Iris Xe Graphics G7 z 80 lub 96 jednostkami EU jest wykorzystywany jako zintegrowany procesor graficzny dla elementów obliczeniowych. Z tego powodu występują niewielkie różnice w wydajności. Model z 96 EU jest o około 15% szybszy, ale nie jest to subiektywnie zauważalne. Wydajność w przypadku AMD Radeon RX Vega 7 można tu prawie zawsze przewyższyć w porównaniu.

Po więcej porównań i benchmarków zapraszamy do naszegoG PU comparison chart.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Asus ROG Zephyrus G14 GA402RJ AMD Radeon RX 6700S, AMD Ryzen 7 6800HS	99.7 pt ∼100%
Schenker XMG Core 15 Ampere NVIDIA GeForce RTX 3060 Laptop GPU, AMD Ryzen 7 4800H	88.3 pt ∼88%
Average of class Mini PC	27.7 pt ∼28%
Intel NUC Pro Chassis_i7_1185G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7	19 pt ∼19%
Intel NUC Pro Chassis_i7_1265U Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	18 pt ∼18%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	16.7 pt ∼17%
Intel NUC Pro Chassis_i5_1145G7 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1145G7	16.4 pt ∼16%
Intel NUC Pro Chassis_i5_1245U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1245U	15.6 pt ∼16%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	15.5 pt ∼16%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	14.7 pt ∼15%

3DMark 11 - 1280x720 Performance GPU
Asus ROG Zephyrus G14 GA402RJ AMD Radeon RX 6700S, AMD Ryzen 7 6800HS	32662 Points ∼100% +471%
Schenker XMG Core 15 Ampere NVIDIA GeForce RTX 3060 Laptop GPU, AMD Ryzen 7 4800H	27741 Points ∼85% +385%
Average of class Mini PC (837 - 45804, n=31, last 2 years)	9381 Points ∼29% +64%
Intel NUC Pro Chassis_i7_1185G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7	6676 Points ∼20% +17%
Intel NUC Pro Chassis_i7_1265U Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	6210 Points ∼19% +9%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	6091 Points ∼19% +7%
Intel NUC Pro Chassis_i5_1145G7 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1145G7	5718 Points ∼18%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	5610 Points ∼17% -2%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	5565 Points ∼17% -3%
Intel NUC Pro Chassis_i5_1245U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1245U	5378 Points ∼16% -6%

3DMark
1280x720 Cloud Gate Standard Graphics
Asus ROG Zephyrus G14 GA402RJ AMD Radeon RX 6700S, AMD Ryzen 7 6800HS	153853 Points ∼100% +569%
Schenker XMG Core 15 Ampere NVIDIA GeForce RTX 3060 Laptop GPU, AMD Ryzen 7 4800H	130964 Points ∼85% +470%
Average of class Mini PC (4625 - 175713, n=31, last 2 years)	37600 Points ∼24% +64%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	26247 Points ∼17% +14%
Intel NUC Pro Chassis_i7_1185G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7	25485 Points ∼17% +11%
Intel NUC Pro Chassis_i5_1145G7 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1145G7	22983 Points ∼15%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	22735 Points ∼15% -1%
Intel NUC Pro Chassis_i7_1265U Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	21602 Points ∼14% -6%
Intel NUC Pro Chassis_i5_1245U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1245U	21276 Points ∼14% -7%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	20432 Points ∼13% -11%
1920x1080 Fire Strike Graphics
Asus ROG Zephyrus G14 GA402RJ AMD Radeon RX 6700S, AMD Ryzen 7 6800HS	24135 Points ∼100% +472%
Schenker XMG Core 15 Ampere NVIDIA GeForce RTX 3060 Laptop GPU, AMD Ryzen 7 4800H	20081 Points ∼83% +376%
Average of class Mini PC (637 - 33270, n=31, last 2 years)	6697 Points ∼28% +59%
Intel NUC Pro Chassis_i7_1185G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7	4959 Points ∼21% +18%
Intel NUC Pro Chassis_i7_1265U Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	4902 Points ∼20% +16%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	4360 Points ∼18% +3%
Intel NUC Pro Chassis_i5_1245U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1245U	4249 Points ∼18% +1%
Intel NUC Pro Chassis_i5_1145G7 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1145G7	4217 Points ∼17%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	3725 Points ∼15% -12%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	3586 Points ∼15% -15%
2560x1440 Time Spy Graphics
Schenker XMG Core 15 Ampere NVIDIA GeForce RTX 3060 Laptop GPU, AMD Ryzen 7 4800H	8425 Points ∼100% +536%
Asus ROG Zephyrus G14 GA402RJ AMD Radeon RX 6700S, AMD Ryzen 7 6800HS	8316 Points ∼99% +528%
Average of class Mini PC (179 - 12892, n=28, last 2 years)	2527 Points ∼30% +91%
Intel NUC Pro Chassis_i7_1185G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7	1570 Points ∼19% +19%
Intel NUC Pro Chassis_i7_1265U Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	1556 Points ∼18% +18%
Intel NUC Pro Chassis_i5_1145G7 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1145G7	1324 Points ∼16%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	1287 Points ∼15% -3%
Intel NUC Pro Chassis_i5_1245U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1245U	1234 Points ∼15% -7%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	1109 Points ∼13% -16%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	1102 Points ∼13% -17%

Wydajność w grach

IGPU w SoC nadaje się jako rozwiązanie do gier tylko w ograniczonym zakresie. Grywalne liczby klatek na sekundę są często możliwe w niskich rozdzielczościach i na najniższych detalach. W wyższych rozdzielczościach udokumentowane liczby klatek na sekundę drastycznie spadają. Mimo to iGPU elementów obliczeniowych w elemencie obudowy Intel NUC Pro radzą sobie całkiem dobrze, co widać po średniej wydajności.

GTA V
1024x768 Lowest Settings possible
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	179.6 (3.66^min, 142.9^P1) fps ∼100% +90%
Average NVIDIA GeForce RTX 3060 Laptop GPU (164 - 186.8, n=37)	179.4 fps ∼100% +90%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	116 (17^min, 76.9^P1) fps ∼65% +23%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	114.3 (8.54^min, 76.9^P1) fps ∼64% +21%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	105.8 (17.8^min, 71.4^P1) fps ∼59% +12%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	102.1 (19.6^min, 58.8^P1) fps ∼57% +8%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	97.6 (17.8^min, 62.5^P1) fps ∼54% +3%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs	94.4 (6.11^min, 50^P1) fps ∼53%
Average Intel Iris Xe Graphics G7 96EUs (52 - 157, n=110)	93.6 fps ∼52% -1%
Average Intel Iris Xe Graphics G7 80EUs (36.5 - 119.9, n=56)	76.4 fps ∼43% -19%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	68.3 (18.7^min, 45.5^P1) fps ∼38% -28%
1366x768 Normal/Off AF:4x
Average NVIDIA GeForce RTX 3060 Laptop GPU (152 - 183.4, n=35)	173.9 fps ∼100% +117%
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	172.2 (4.2^min, 125^P1) fps ∼99% +114%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	104 (13.4^min, 71.4^P1) fps ∼60% +30%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	95.2 (17.8^min, 58.8^P1) fps ∼55% +19%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	94.3 (5.72^min, 62.5^P1) fps ∼54% +17%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	89.4 (9.45^min, 55.6^P1) fps ∼51% +11%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	87.4 (20.5^min, 50^P1) fps ∼50% +9%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs	80.3 (13.6^min, 47.6^P1) fps ∼46%
Average Intel Iris Xe Graphics G7 96EUs (24.1 - 137, n=111)	78.1 fps ∼45% -3%
Average Intel Iris Xe Graphics G7 80EUs (28.9 - 104.6, n=59)	64.6 fps ∼37% -20%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	54.8 (16.1^min, 37^P1) fps ∼32% -32%

The Witcher 3
1024x768 Low Graphics & Postprocessing
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	367 (5.67^min, 43.9^P0.1, 264^P1) fps ∼100% +352%
Average NVIDIA GeForce RTX 3060 Laptop GPU (221 - 449, n=34)	323 fps ∼88% +298%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	90.7 (3.4^min, 21.9^P0.1, 53.7^P1) fps ∼25% +12%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	89 (38.4^min, 43.3^P0.1, 52.8^P1) fps ∼24% +10%
Average Intel Iris Xe Graphics G7 96EUs (28.9 - 109, n=137)	83.8 fps ∼23% +3%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	81.4 (31.8^min, 35.9^P0.1, 47.9^P1) fps ∼22% 0%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs	81.2 (4.78^min, 20.4^P0.1, 42.9^P1) fps ∼22%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	72.2 (21.1^min, 40.1^P0.1, 51.4^P1) fps ∼20% -11%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	65.9 (1.678^min, 12.6^P0.1, 39.7^P1) fps ∼18% -19%
Average Intel Iris Xe Graphics G7 80EUs (33.5 - 92.2, n=77)	62.8 fps ∼17% -23%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	61.8 (16.1^min, 20.6^P0.1, 34.6^P1) fps ∼17% -24%
1366x768 Medium Graphics & Postprocessing
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	260 (41.7^min, 170.3^P0.1, 202^P1) fps ∼100% +400%
Average NVIDIA GeForce RTX 3060 Laptop GPU (204 - 296, n=32)	237 fps ∼91% +356%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	59.9 (15.7^min, 28.4^P0.1, 34^P1) fps ∼23% +15%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs

Intel NUC Pro Chassis Element w recenzji - modułowy barebone do wielu zastosowań

Elementy obliczeniowe użyte w tym teście w szczegółach

Sprawa

Sprzęt

Komunikacja

Konserwacja

Wydajność

Benchmarki procesora

Różne elementy obliczeniowe w Cinebench R15 multi-loop

Syntetyczne benchmarki i wydajność aplikacji

Opóźnienia DPC

Pamięć masowa

Continuous Read: DiskSpd Read Loop, Queue Depth 8

Karta graficzna

Wydajność w grach
