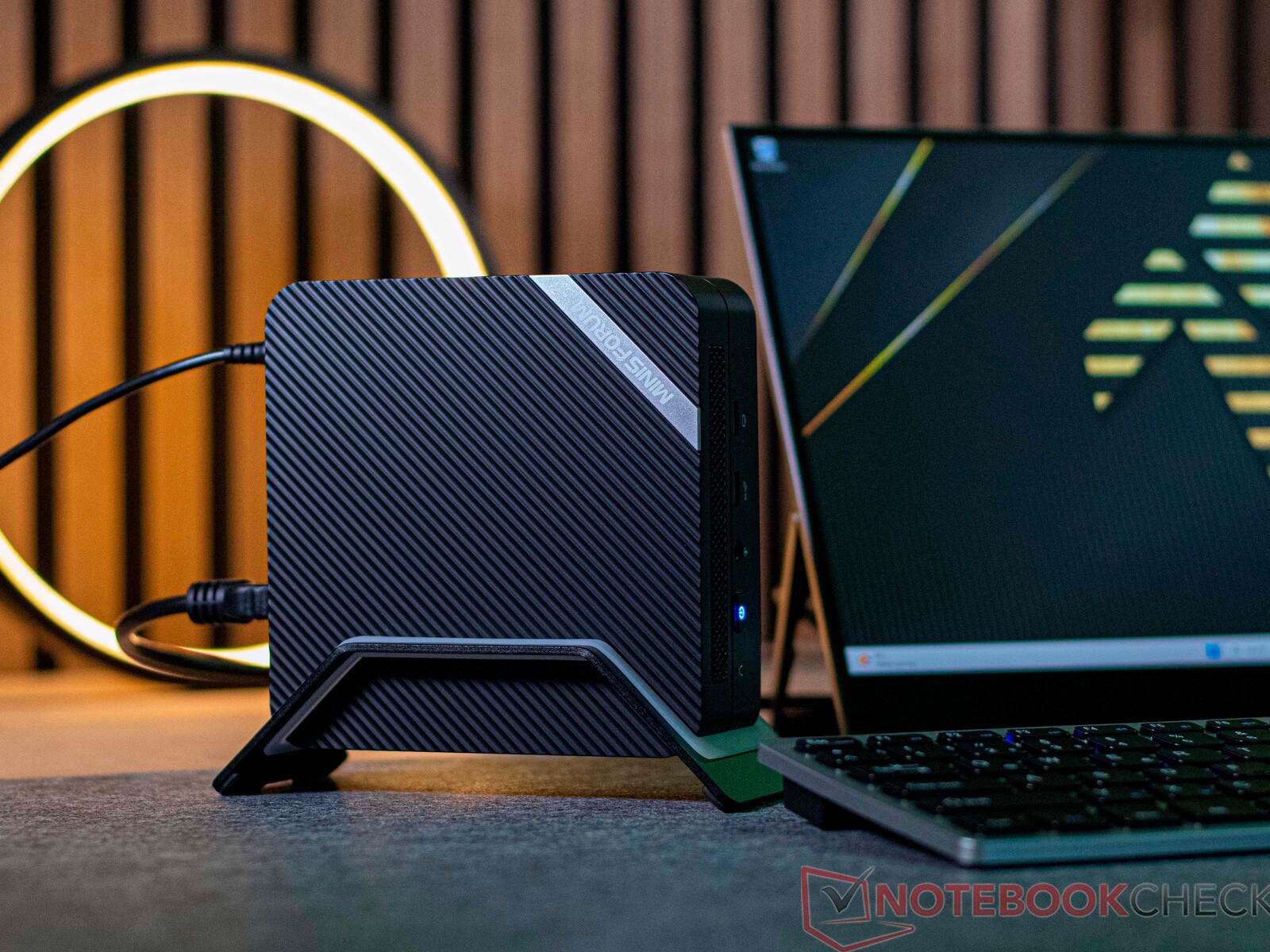

Recenzja komputera stacjonarnego Minisforum Venus Series UM560 XT: Mini PC z SoC AMD Cezanne w przystępnej cenie!

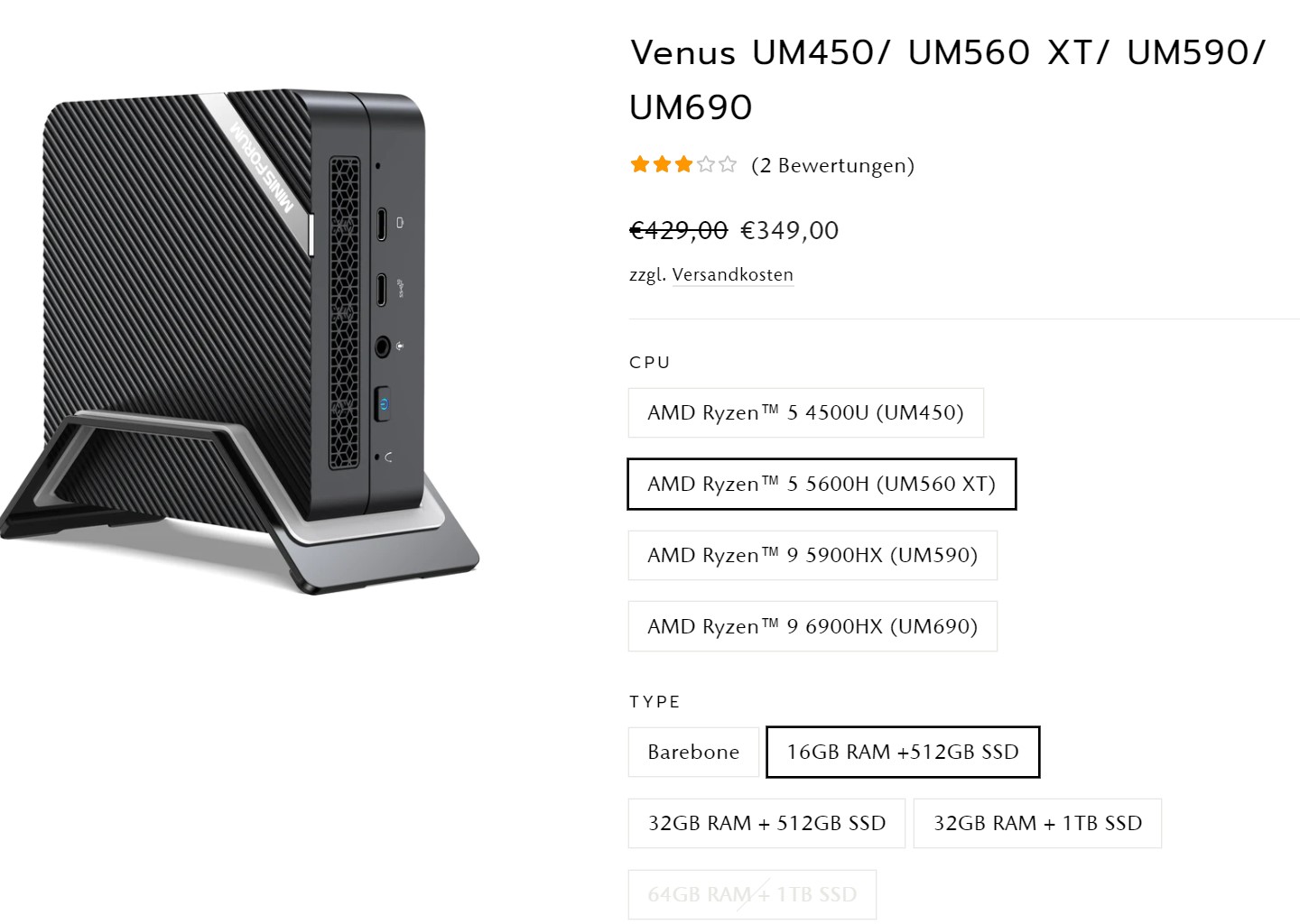

Konfiguracje Minisforum Venus Series UM560 XT (źródło: Minisforum)

Na początku tego roku przyjrzeliśmy się Minisforum Venus Series UM690. Oprócz topowego modelu opartego na procesorze AMD Ryzen 9 6900HX, chiński producent mini PC oferuje dodatkowe konfiguracje. Oparty na AMD Ryzen 5 5600H, UM560 XT jest dostępny w tej samej obudowie i po znacznie niższej cenie. Oczywiście nie można porównywać wydajności natywnej sześciordzeniowej maszyny z topowym modelem, ale za 419 USD z 16 GB pamięci RAM i dyskiem SSD o pojemności 512 GB jest to interesująca propozycja. W wersji barebones można zaoszczędzić kolejne 90 dolarów. Jednak to użytkownik musi zadbać o pamięć RAM i dysk SSD.

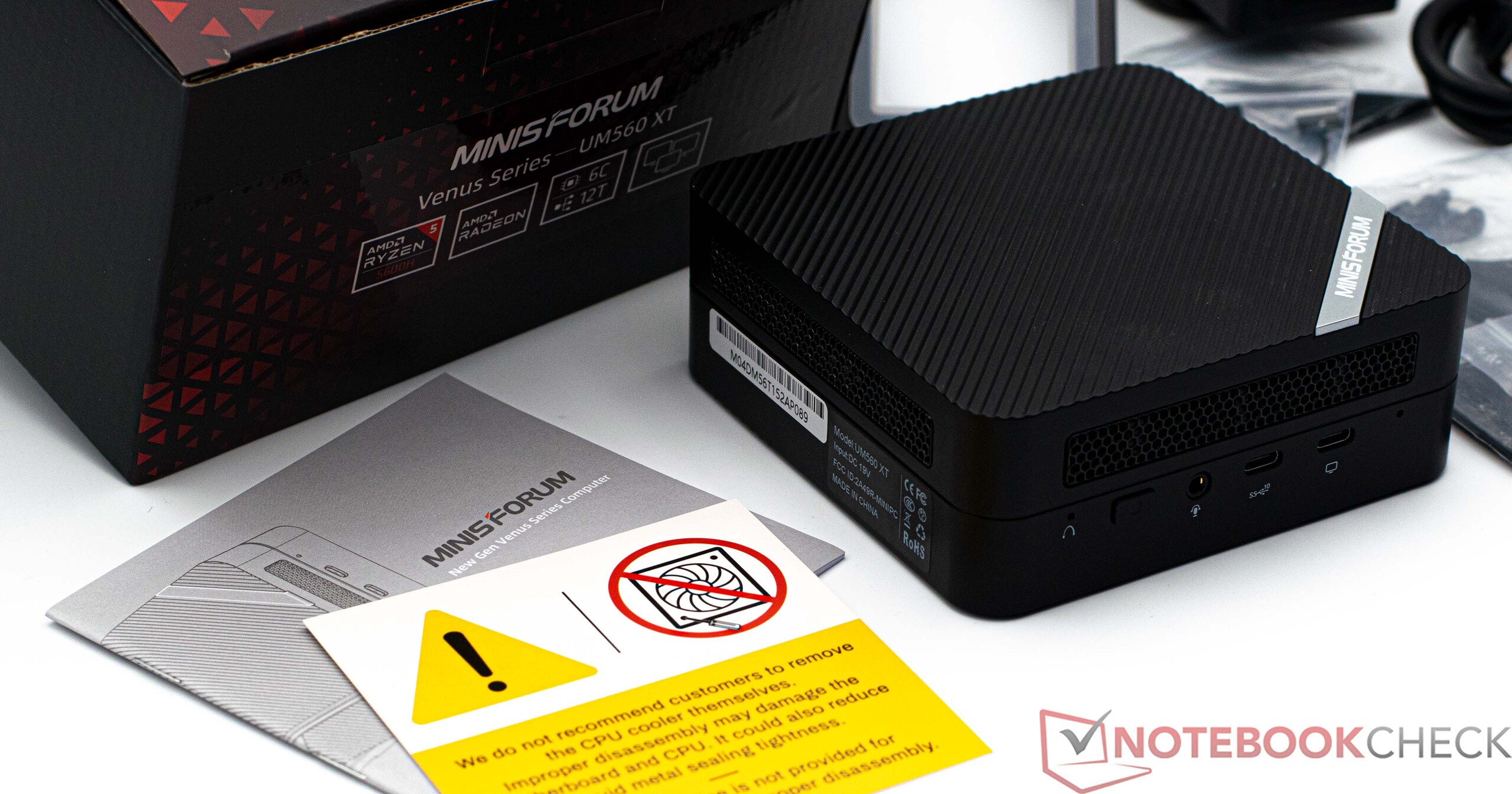

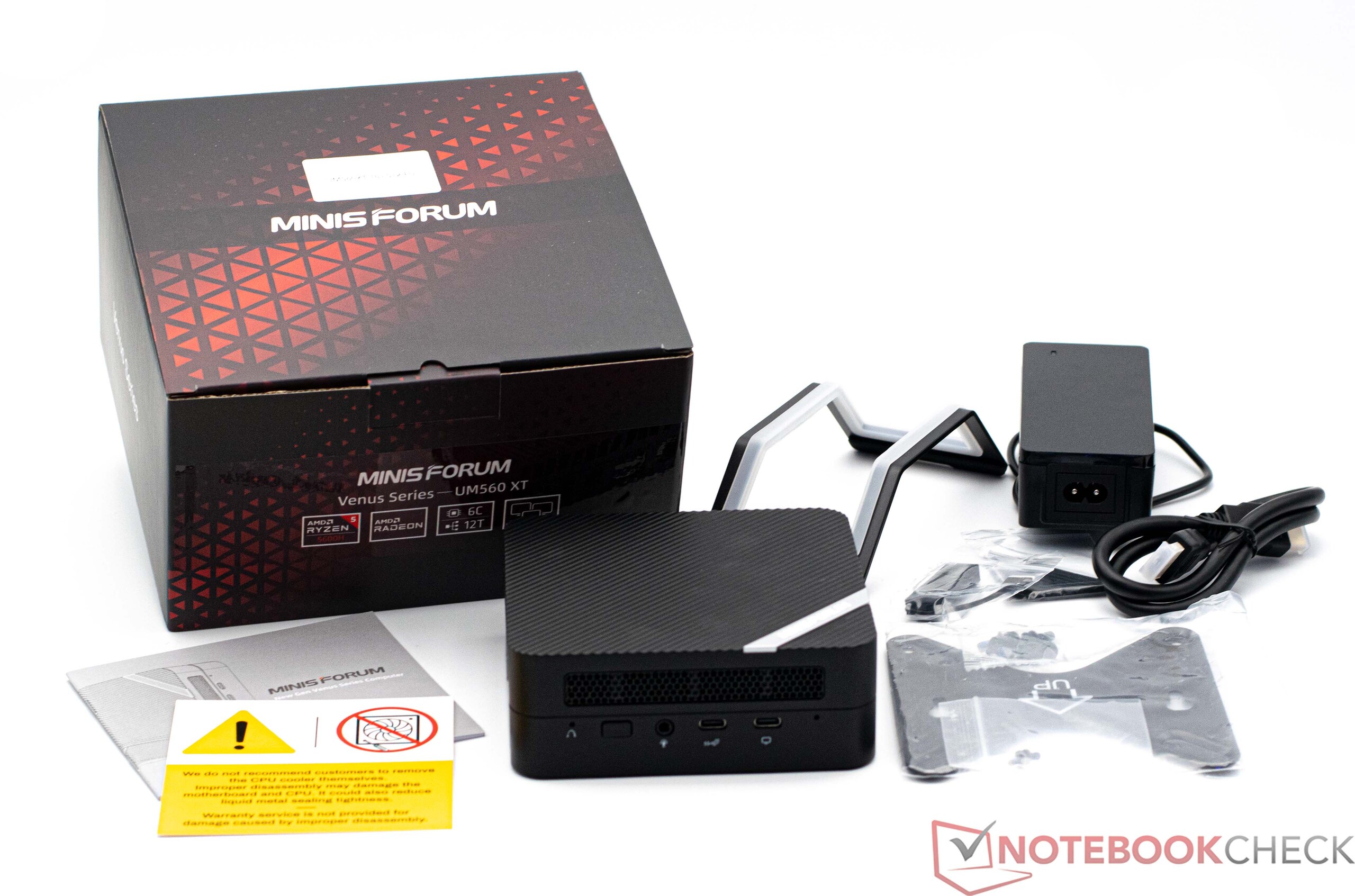

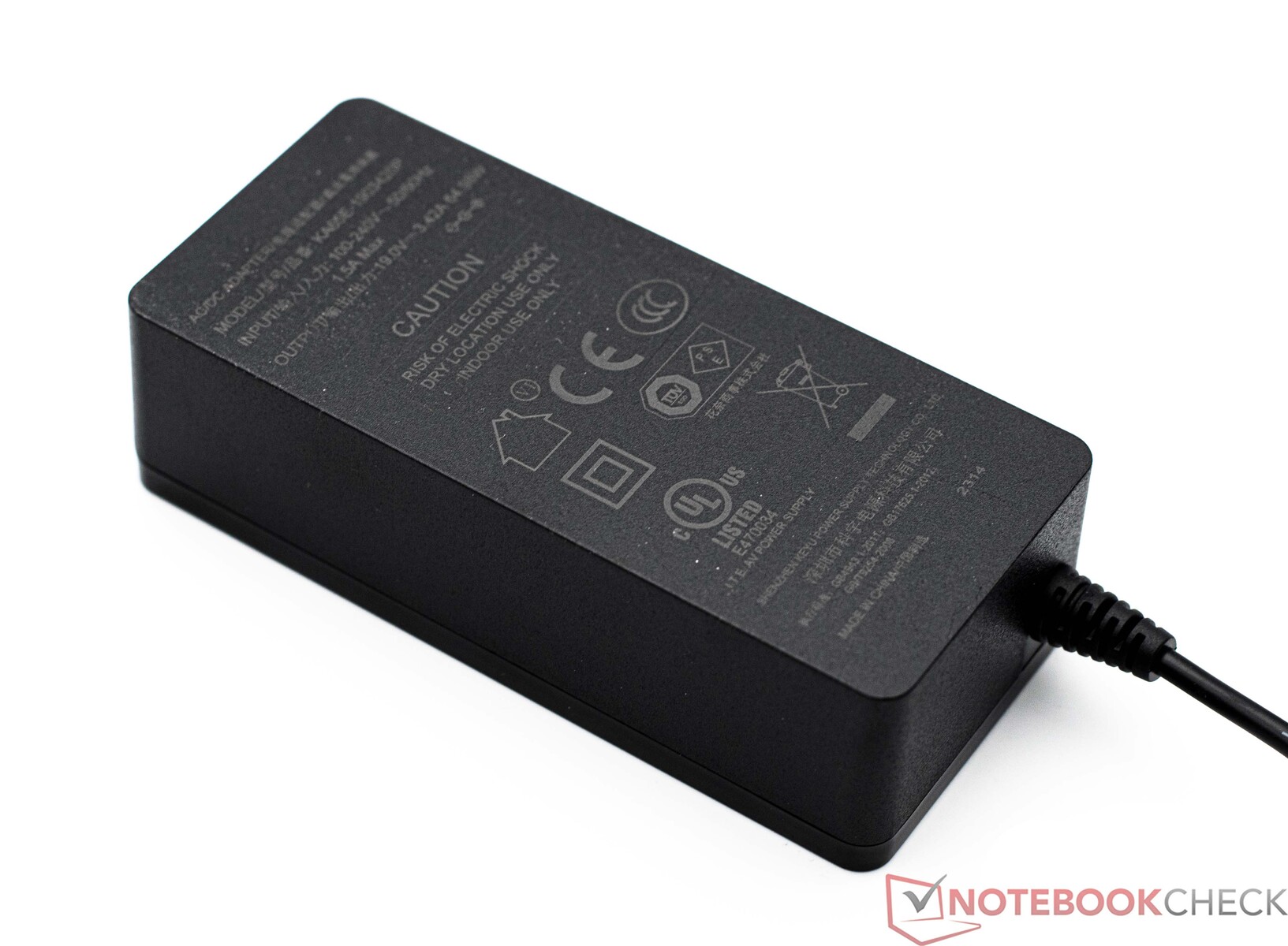

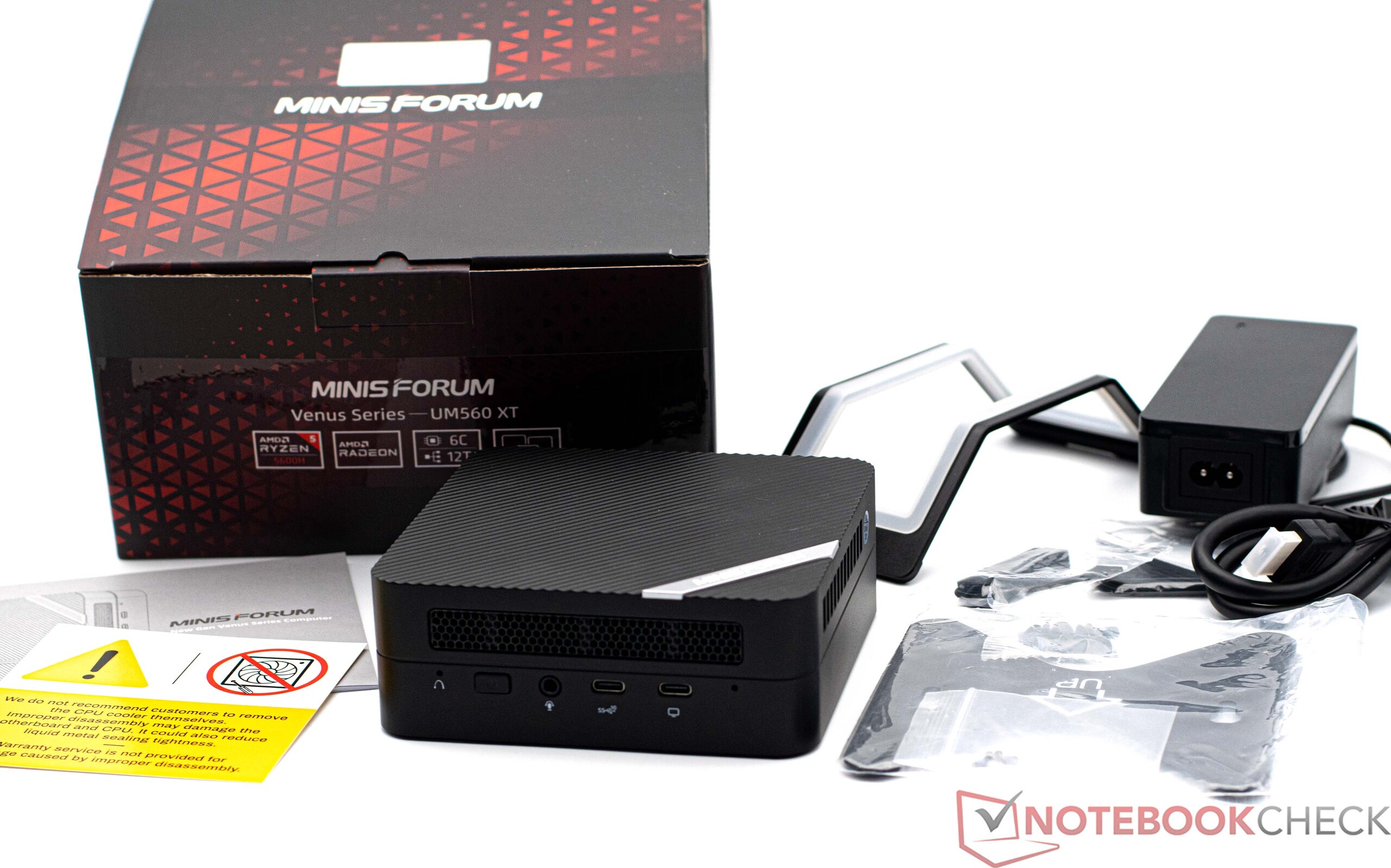

Minisforum Venus Series UM560 XT jest dobrze wyposażony. W zestawie znajdują się wszystkie niezbędne elementy do uruchomienia urządzenia. Urządzenie jest również dostarczane z płytką umożliwiającą przymocowanie urządzenia do monitora (mocowanie Vesa). W tej recenzji przyjrzymy się dokładnie, jak recenzowany model wypada w porównaniu z topowym modelem pod względem wydajności, urządzeniem, które kosztuje prawie 400 USD więcej. Czy ta różnica w cenie jest uzasadniona, czy też model podstawowy jest wystarczający? I jakie są zmiany w szczegółach? Ponadto, Minisforum Venus Series UM560 XT nie tylko musi konkurować z własnymi rywalami, ale także z silną konkurencją ze strony Geekom, Morefine i Intela w tej kategorii cenowej. Ich listę można znaleźć w poniższej tabeli.

Rating	Date	Model	Weight	Height
81.7 % v7 ^(old)	05/2023	Minisforum Venus Series UM560 XT R5 5600H, Vega 7	652 g	48 mm
v ^(old)	10/2022	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	628 g	72 mm
79.5 % v7 ^(old)	02/2023	Minisforum Mars Series MC560 R5 5600U, Vega 7	562 g	66 mm
81.9 % v7 ^(old)	05/2023	Minisforum Venus Series NAB6 i7-12650H, UHD Graphics 64EUs	616 g	55 mm
85.5 % v7 ^(old)	03/2023	Morefine M600, 6900HX R9 6900HX, Radeon 680M	779 g	40.6 mm
86.1 % v7 ^(old)	02/2023	Minisforum Venus Series UM690 R9 6900HX, Radeon 680M	621 g	48 mm
82.3 % v7 ^(old)	05/2023	Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs	572 g	45.6 mm
85.1 % v7 ^(old)	01/2023	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	1.2 kg	66 mm
83.7 % v7 ^(old)	05/2023	Morefine M600, 6600U R5 6600U, Radeon 660M	768 g	40.6 mm

Przypadek

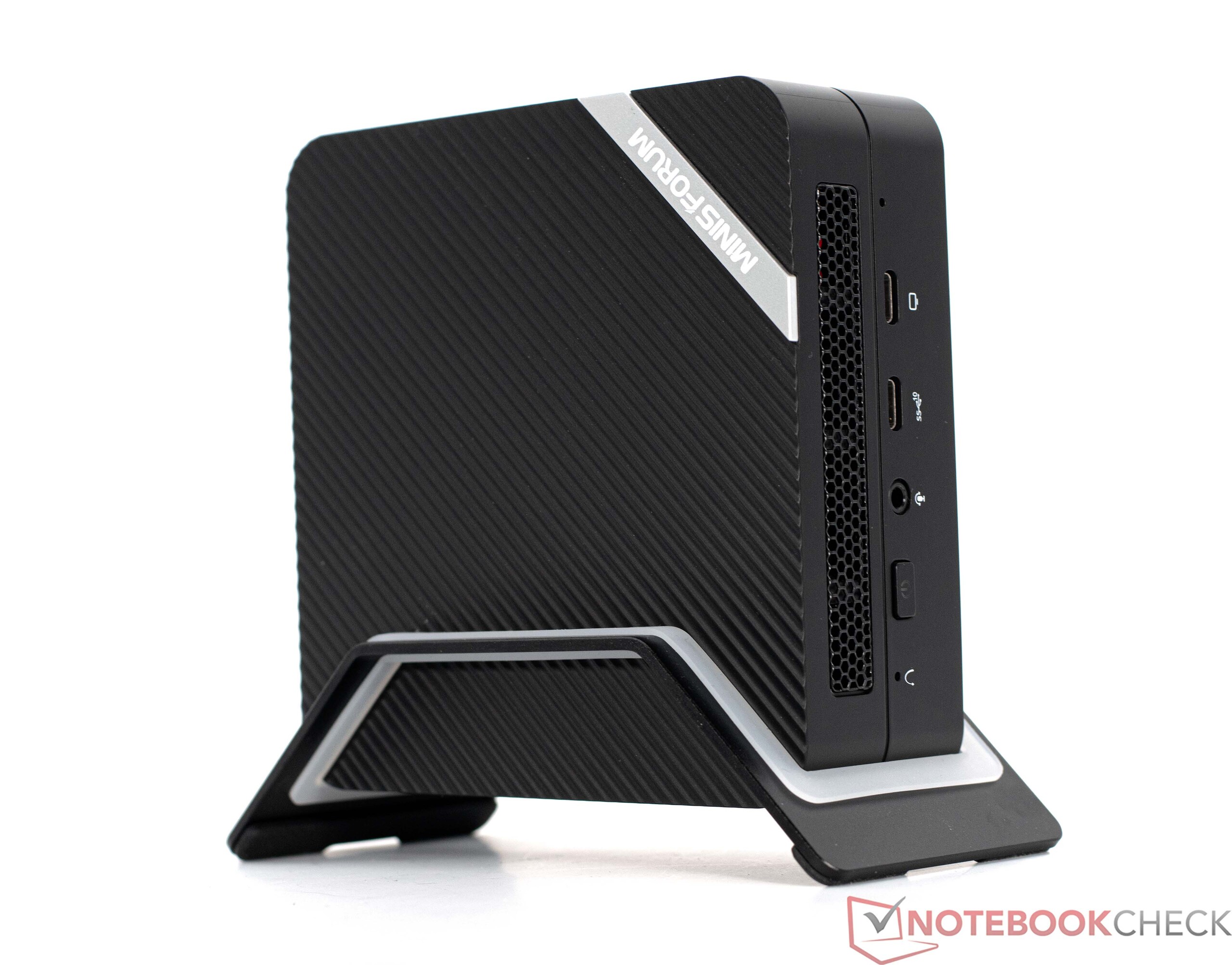

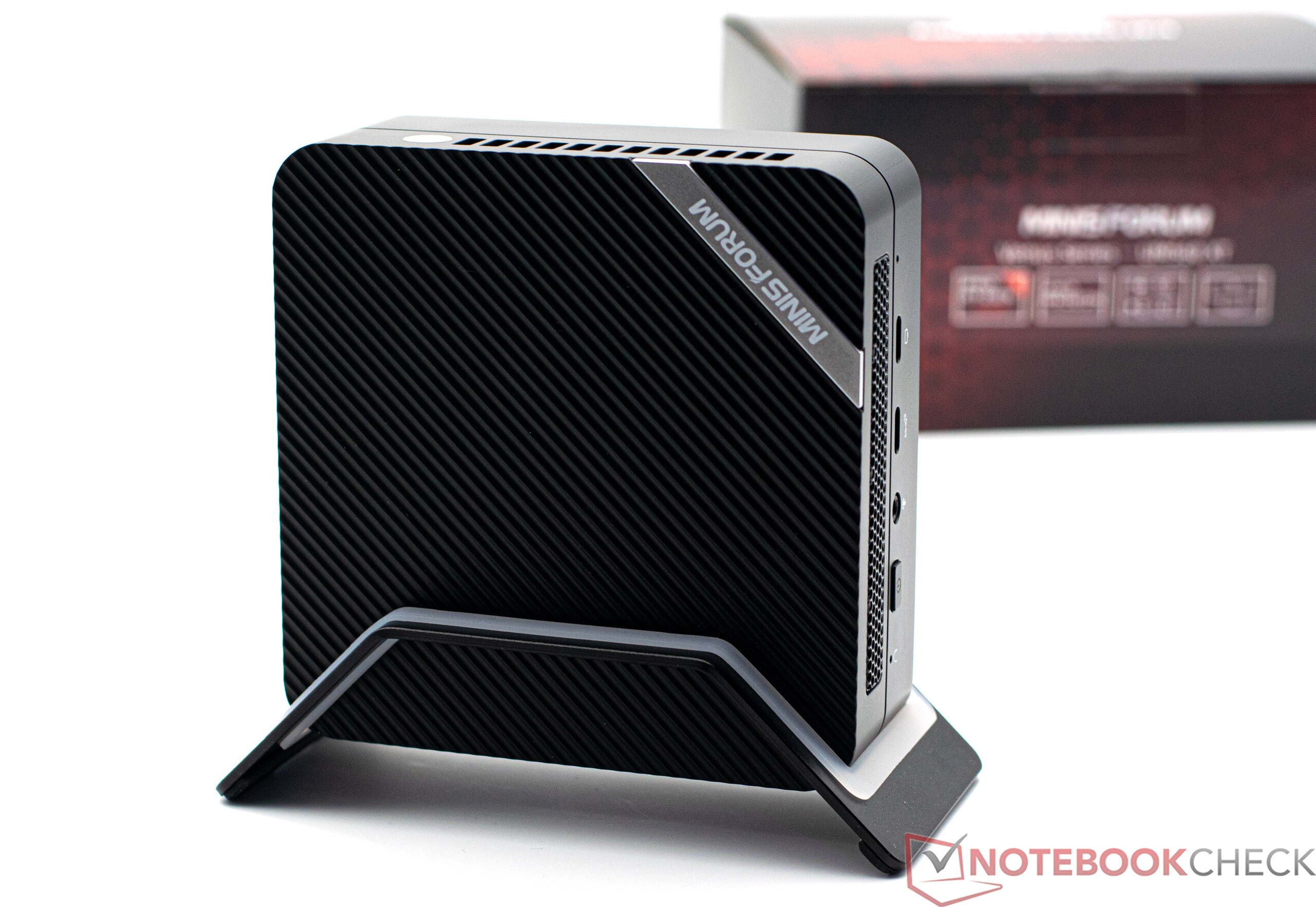

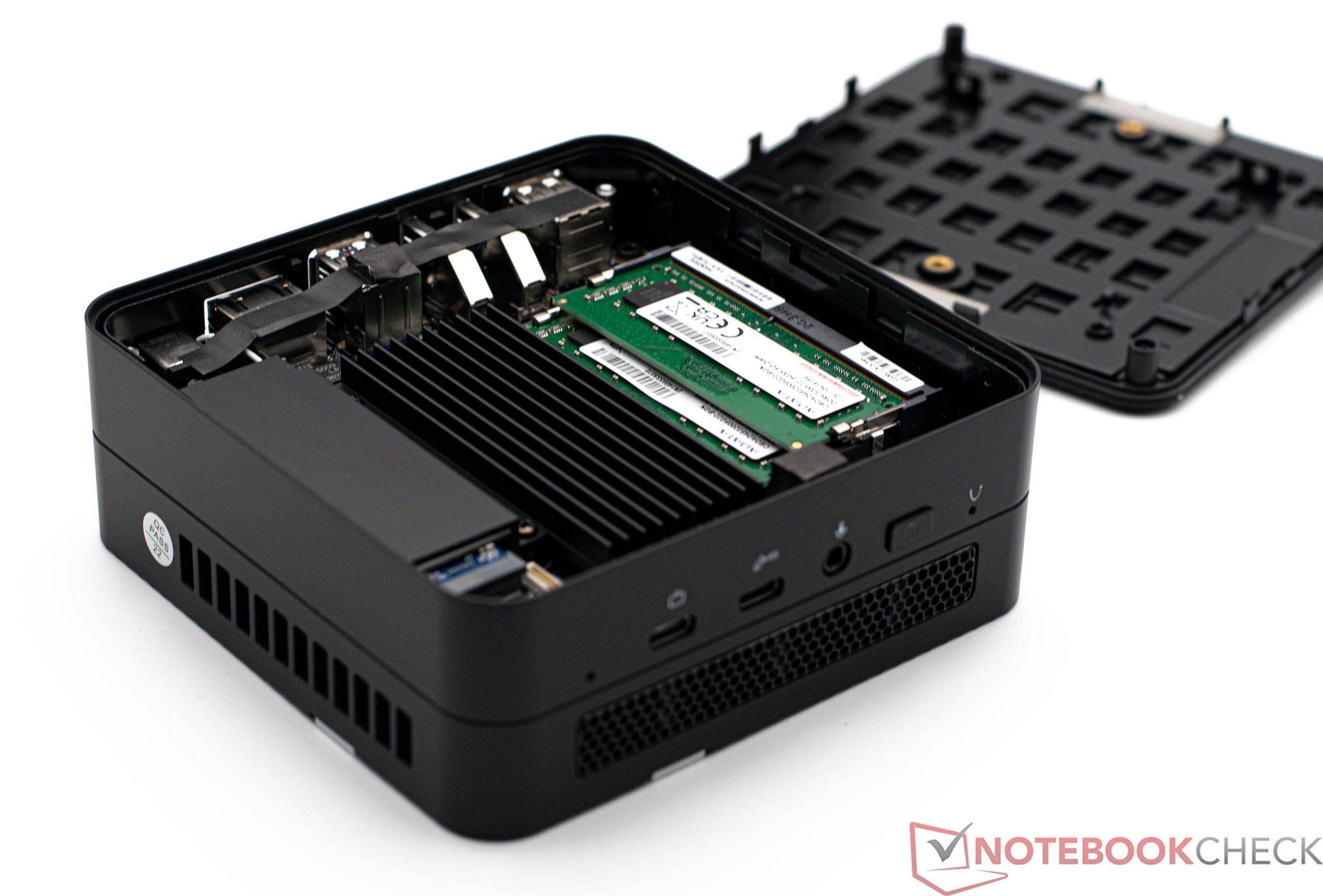

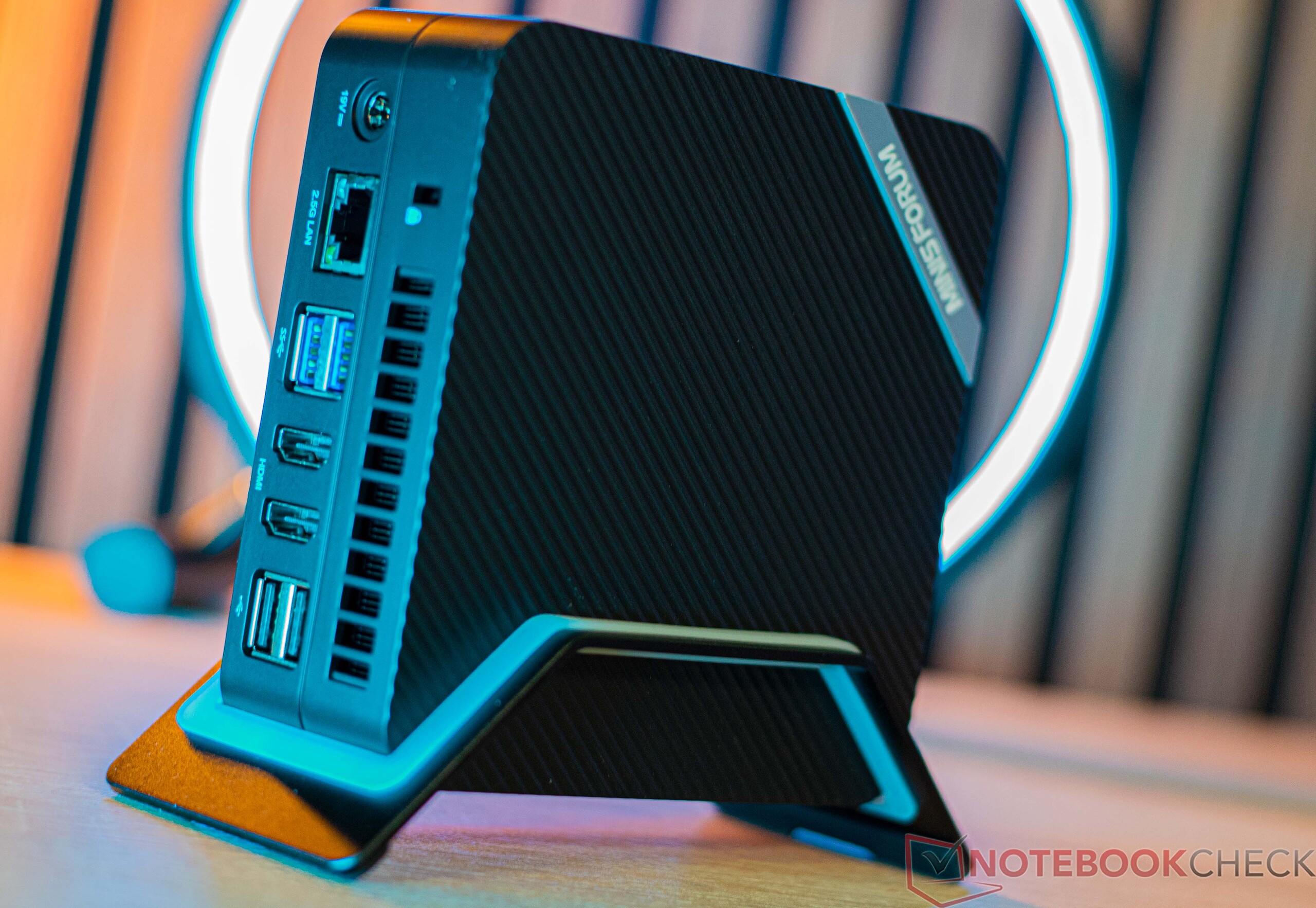

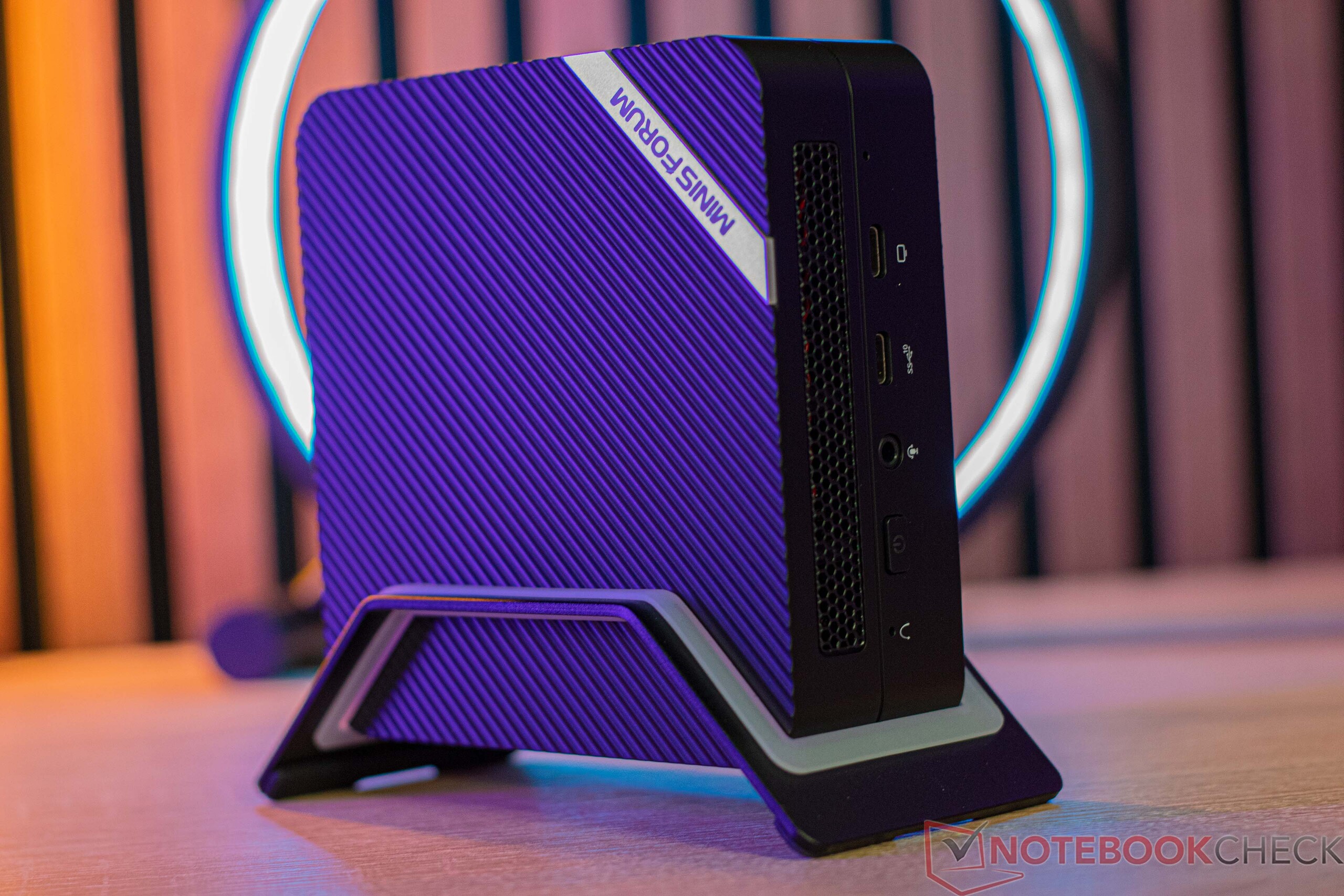

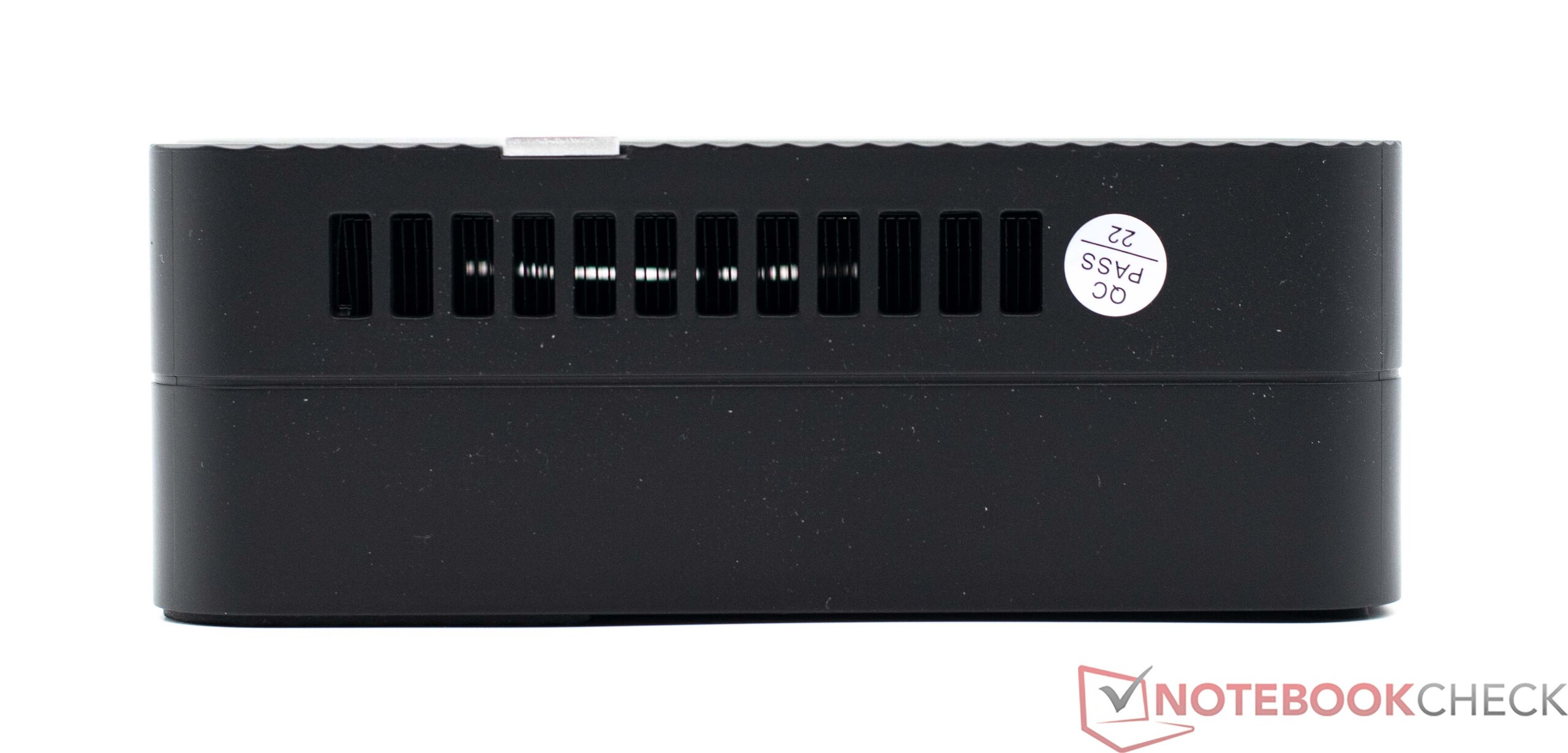

Minisforum UM560 XT ma podobną budowę do Minisforum UM690 z procesorem AMD Ryzen 9 6900HX. Dalsze szczegóły dotyczące obudowy można znaleźć tutaj w naszej recenzji topowego modelu.

Porównanie wielkości

Cechy

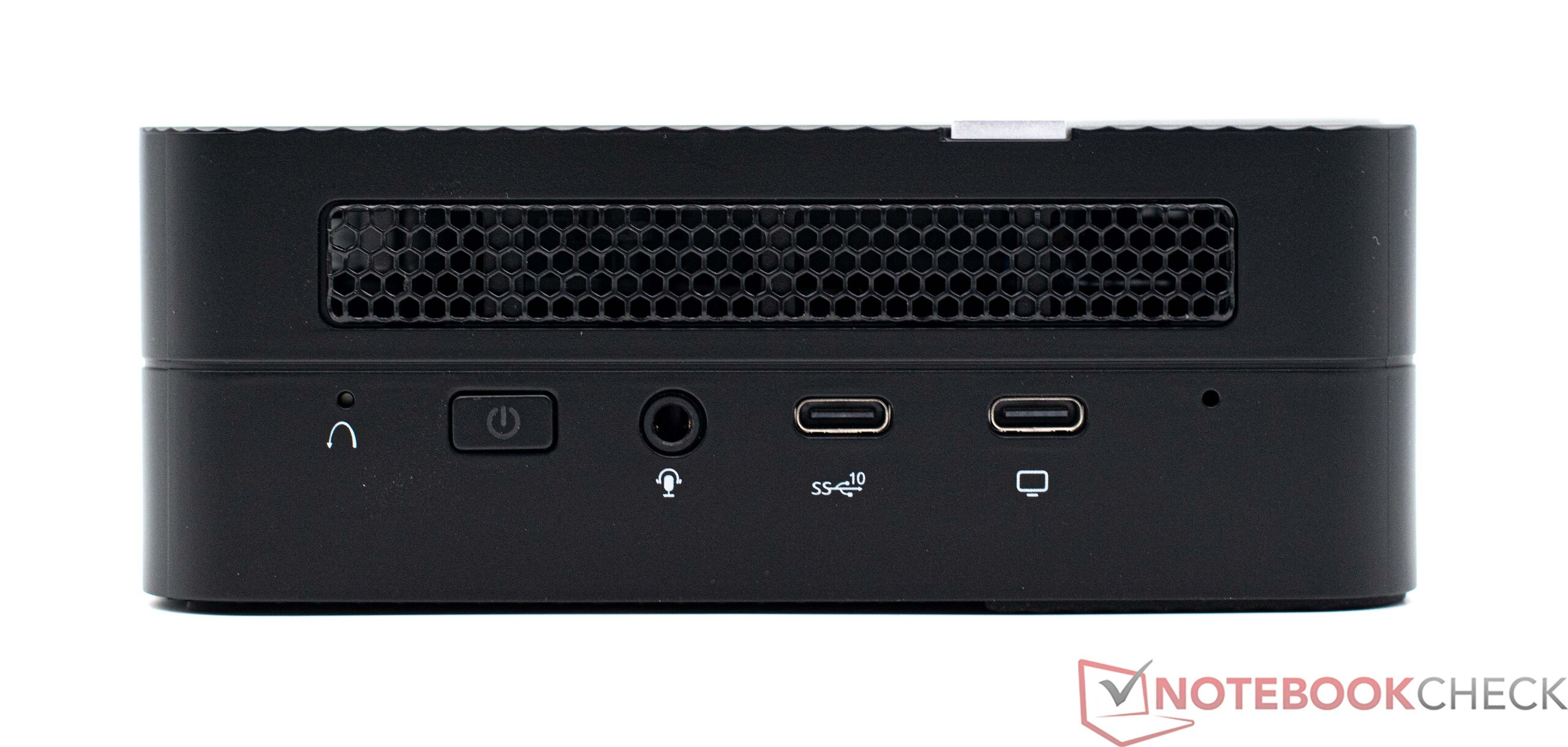

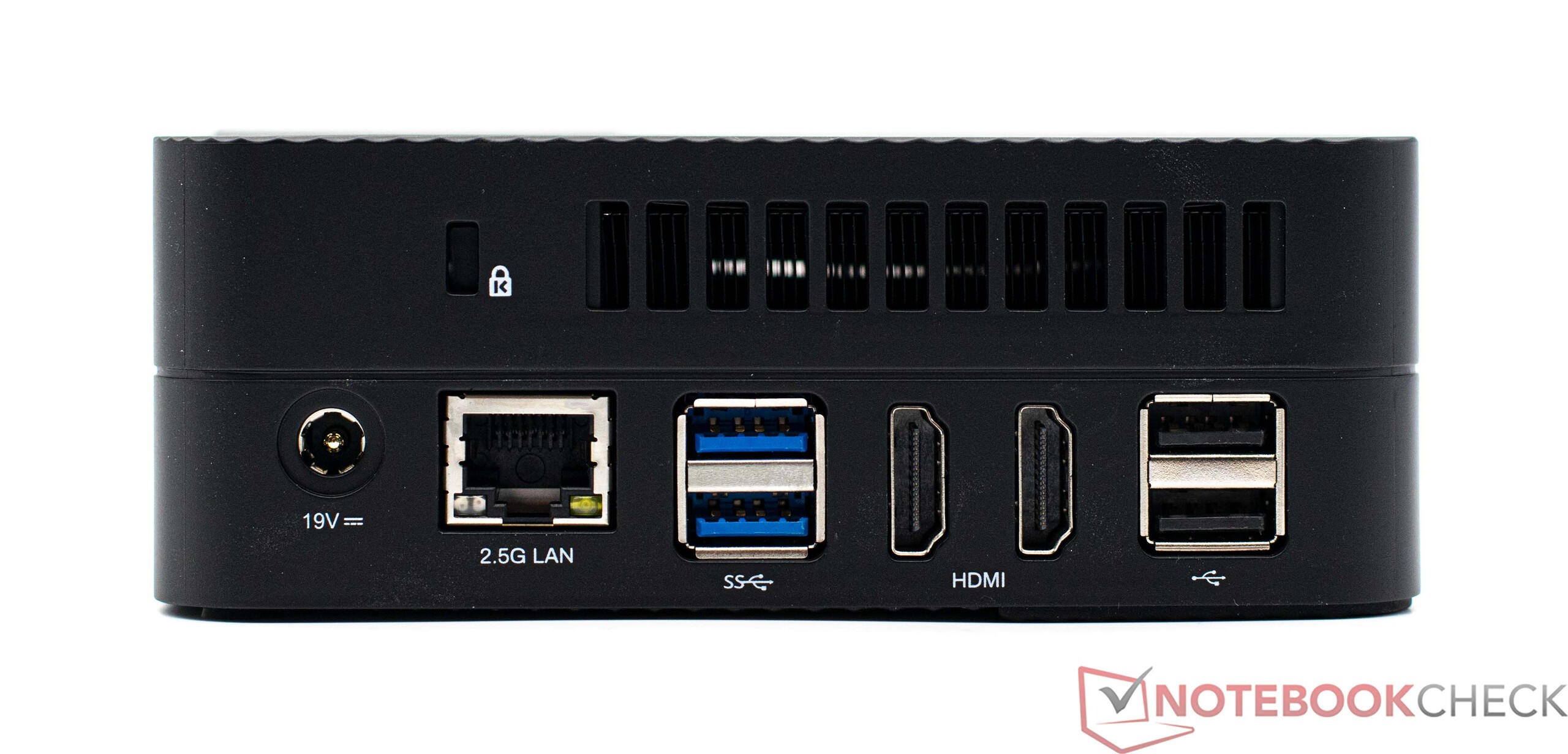

Na pierwszy rzut oka Minisforum Venus Series UM560 XT oferuje te same funkcje co UM690. Na pokładzie nie ma jednak obsługi USB4. Oznacza to, że typ rozszerzeń, które byłyby możliwe za pośrednictwem Thunderbolt, nie jest tutaj możliwy. Niemniej jednak, sześć portów USB jest na szczęście pod ręką. Co więcej, trzy monitory mogą być używane jednocześnie, jeśli port USB-C z przodu urządzenia jest również używany.

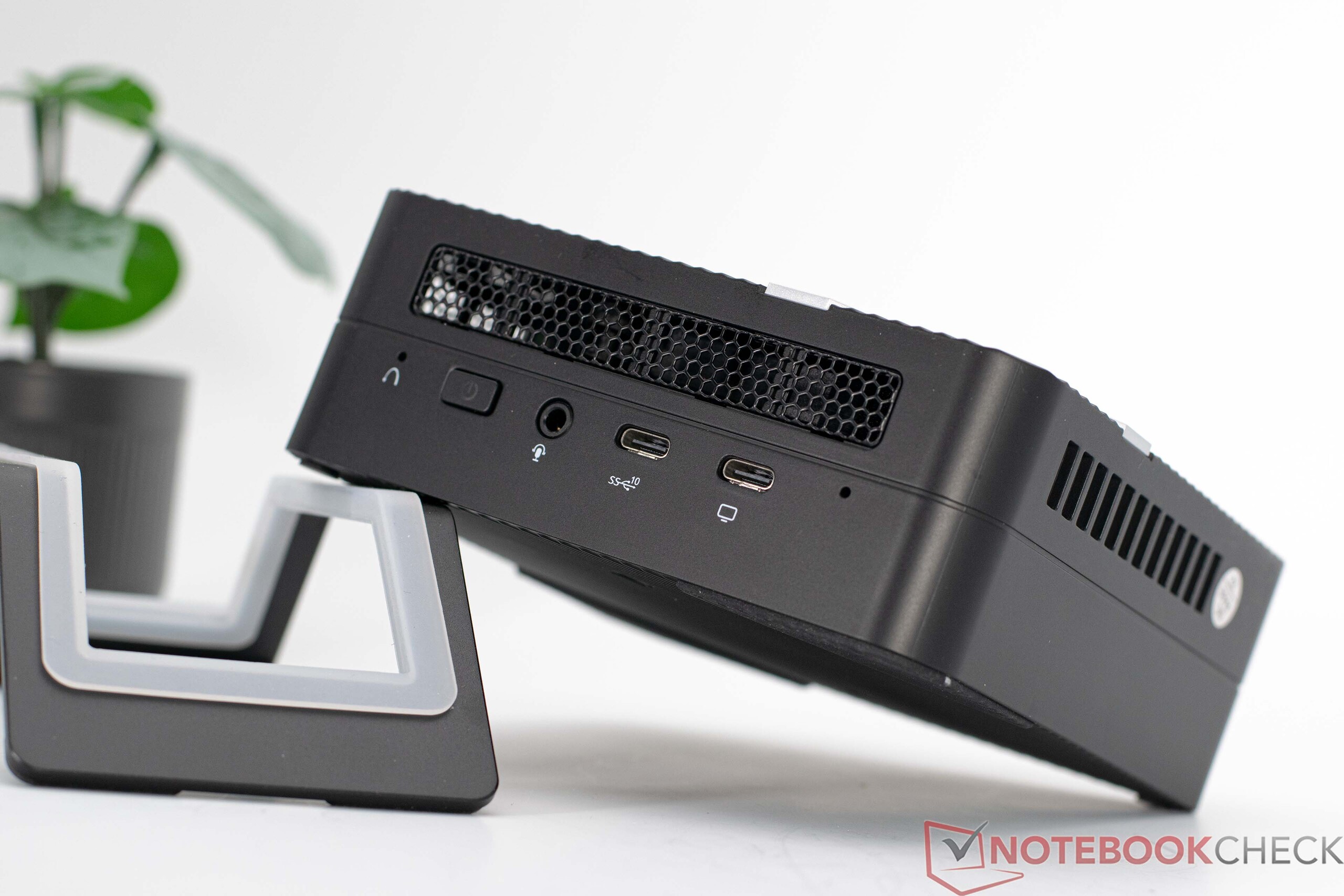

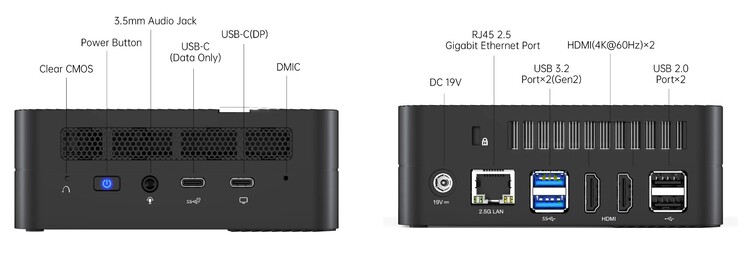

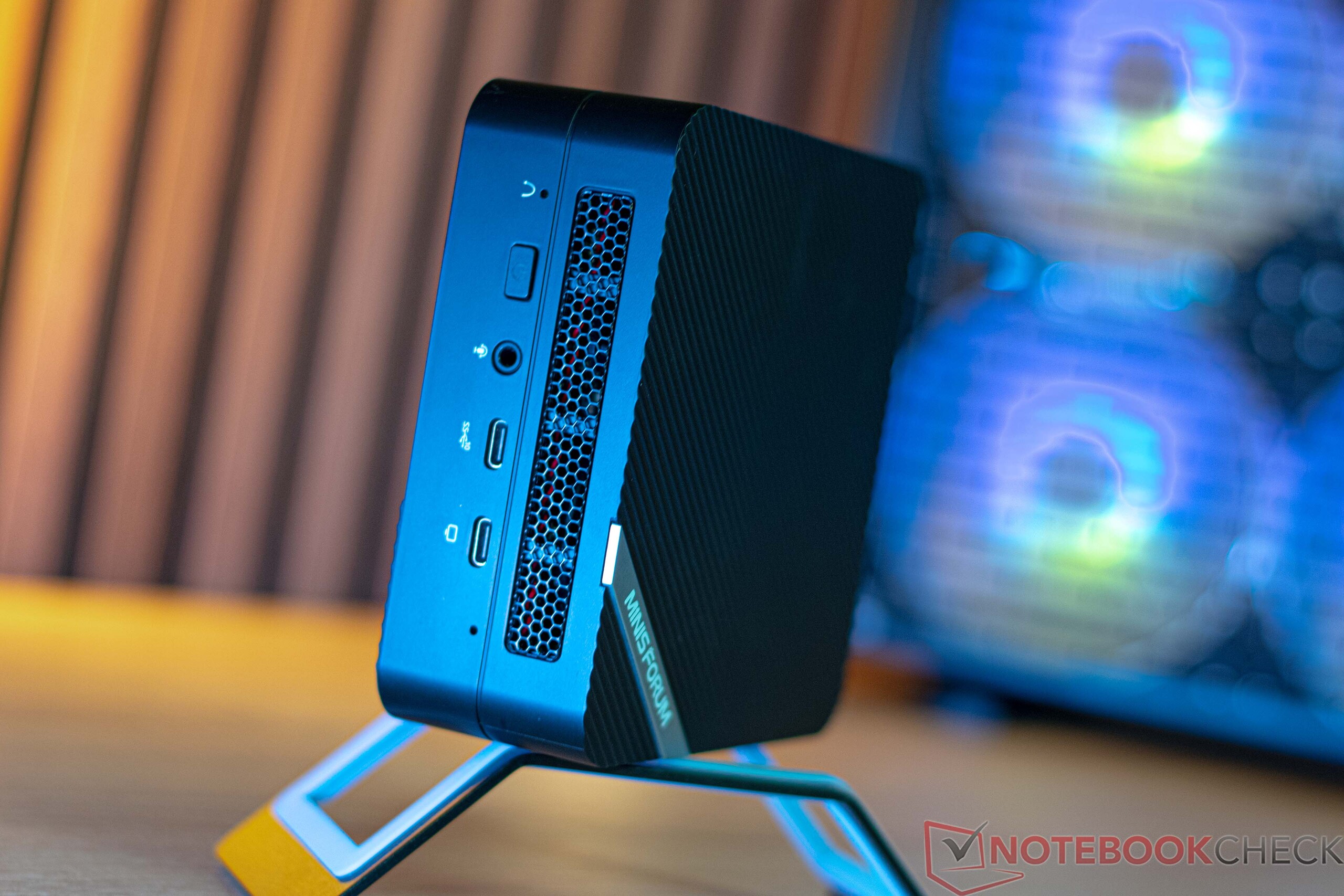

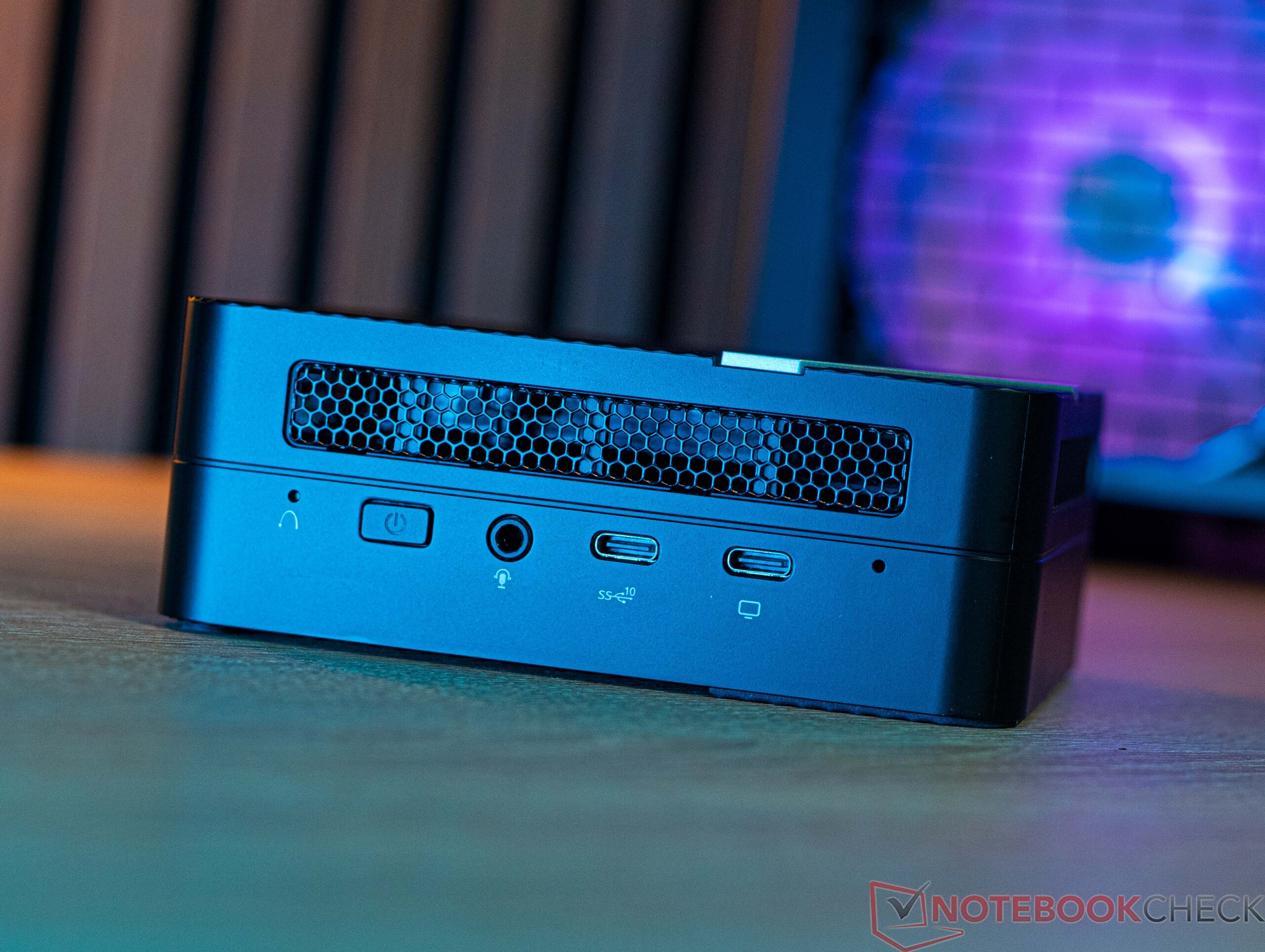

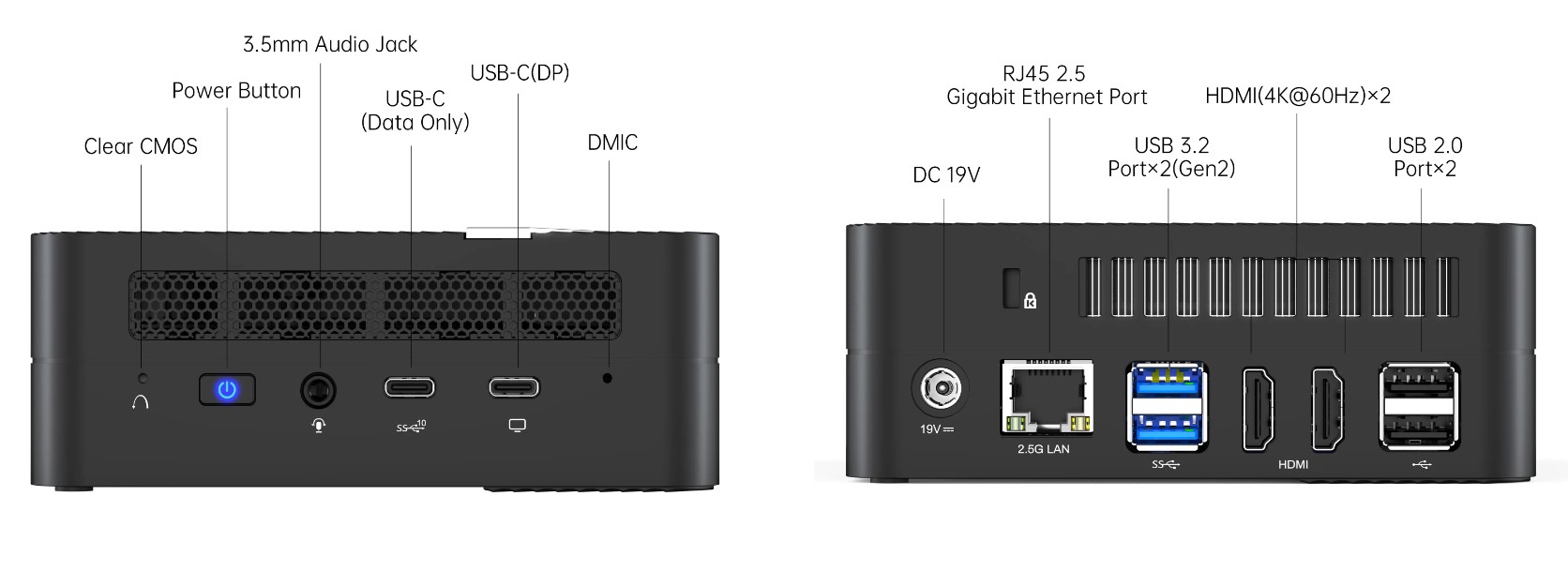

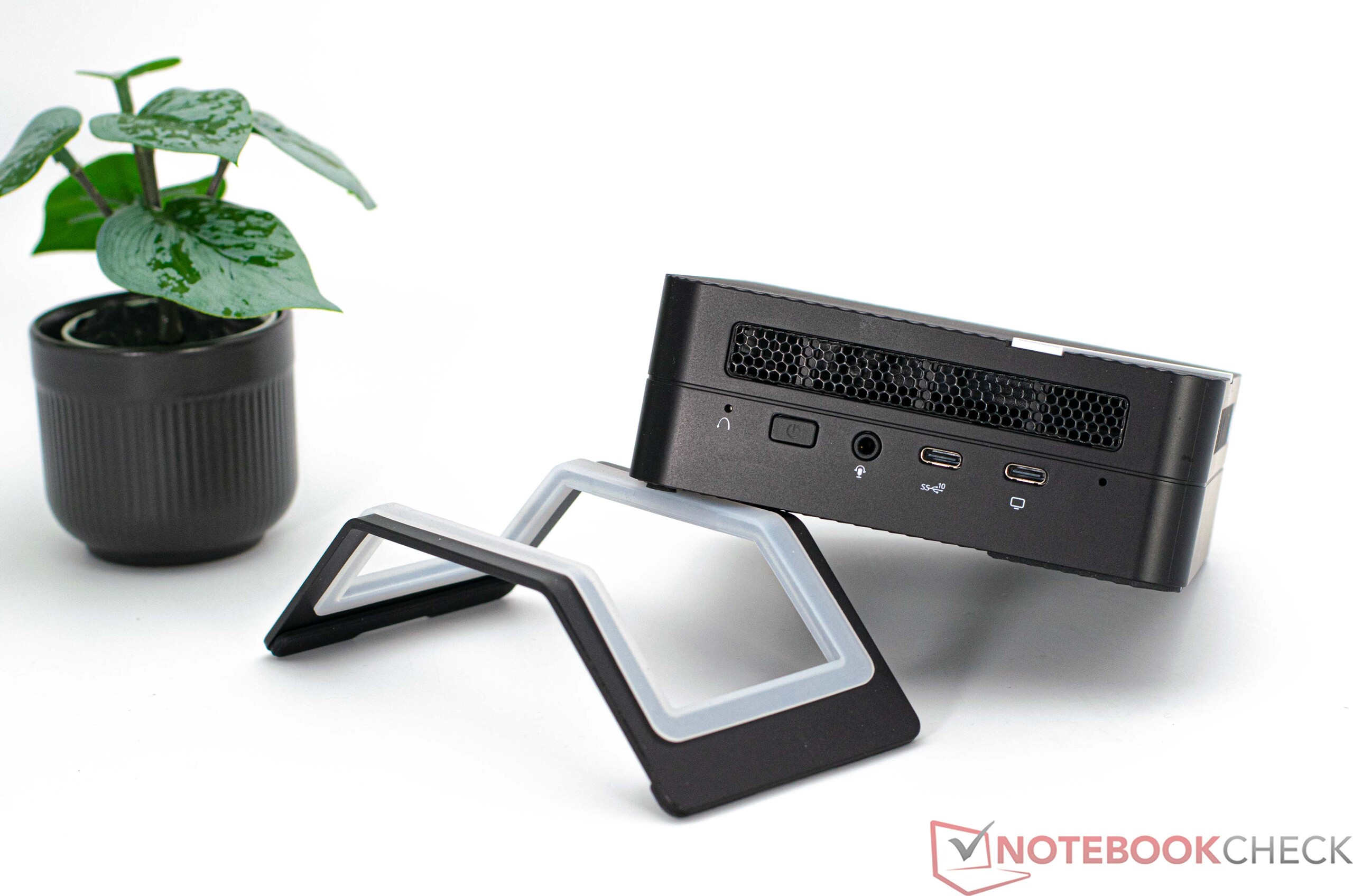

Porty zewnętrzne w Minisforum Venus Series UM560 XT (źródło: Minisforum)

Komunikacja

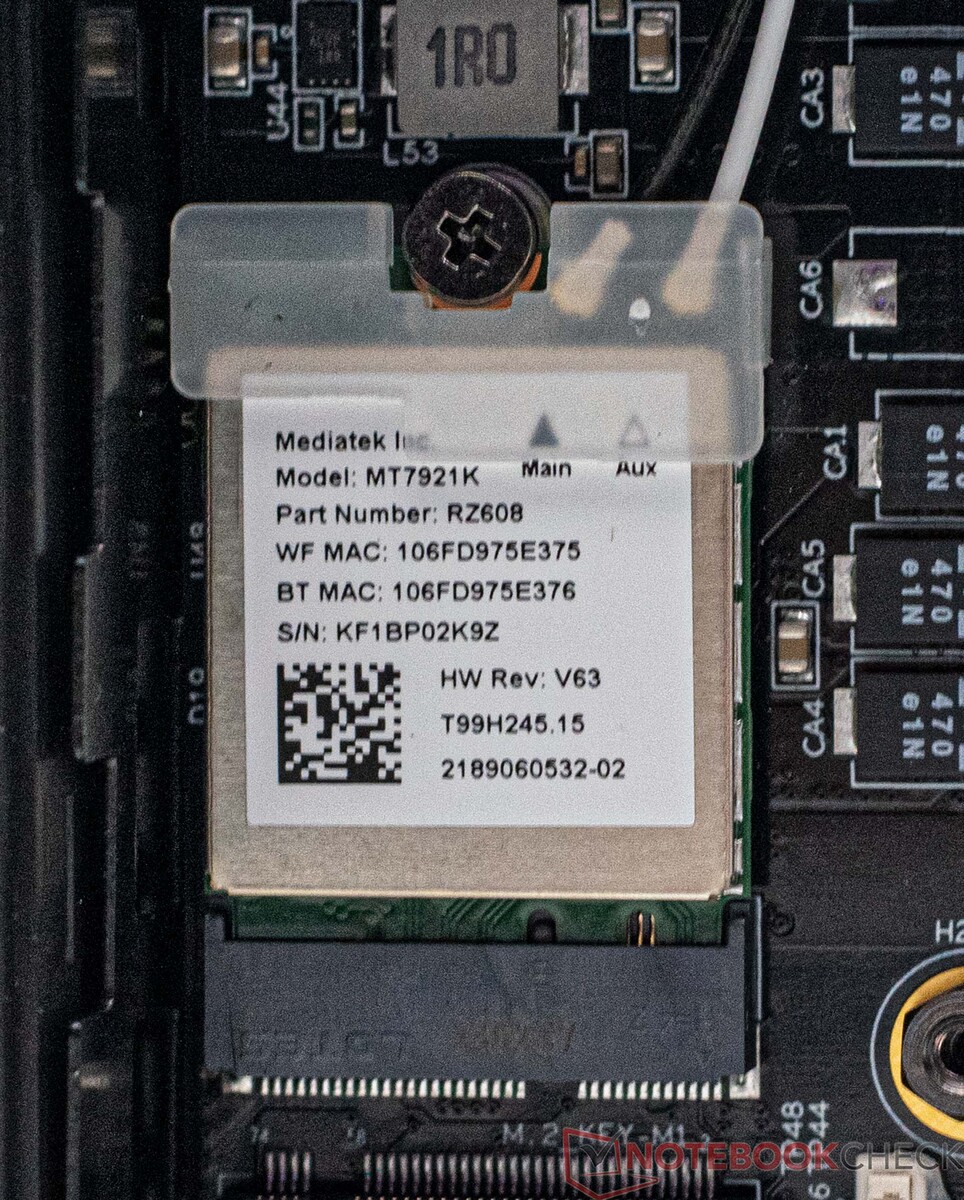

Moduł Wi-Fi Minisforum Venus Series UM560 XT

Minisforum wyposażyło UM560 XT w ten sam moduł Wi-Fi 6E, który znajduje się w UM690. W testach praktycznych moduł Mediatek wypadł dobrze. Do celów testowych wykorzystaliśmy kartę Asus ROG Rapture GT-AXE11000. Alternatywnie, do szybszych połączeń danych można wykorzystać port LAN, umożliwiający transfer danych do maksymalnie 2,5 GBit/s.

Networking
iperf3 receive AXE11000
Minisforum Neptune Series NAD9 Intel Wi-Fi 6E AX210	1318 (663^min - 1363^max) MBit/s +48%
Minisforum Venus Series UM690 MediaTek RZ608	956 (944^min - 963^max) MBit/s +7%
Minisforum Mars Series MC560 MediaTek RZ608	949 (924^min - 954^max) MBit/s +7%
Morefine M600, 6600U MediaTek RZ608	948 (934^min - 957^max) MBit/s +7%
Geekom Mini IT12 Intel Wi-Fi 6E AX211	943 (923^min - 960^max) MBit/s +6%
Average of class Mini PC (320 - 1796, n=111, last 2 years)	941 MBit/s +6%
Morefine M600, 6900HX MediaTek RZ608	929 (874^min - 946^max) MBit/s +4%
Minipc Union Ace Magician AMR5 MediaTek RZ608	903 MBit/s +1%
Minisforum Venus Series UM560 XT MediaTek RZ608	890 (851^min - 908^max) MBit/s
Average MediaTek RZ608 (430 - 975, n=20)	886 MBit/s 0%
Minisforum Venus Series NAB6 MediaTek RZ608	787 (752^min - 801^max) MBit/s -12%
iperf3 transmit AXE11000
Minisforum Neptune Series NAD9 Intel Wi-Fi 6E AX210	1320 (1165^min - 1353^max) MBit/s +59%
Minipc Union Ace Magician AMR5 MediaTek RZ608	967 MBit/s +17%
Morefine M600, 6900HX MediaTek RZ608	964 (924^min - 990^max) MBit/s +16%
Minisforum Venus Series UM690 MediaTek RZ608	943 (477^min - 981^max) MBit/s +14%
Minisforum Mars Series MC560 MediaTek RZ608	936 (873^min - 988^max) MBit/s +13%
Geekom Mini IT12 Intel Wi-Fi 6E AX211	918 (892^min - 938^max) MBit/s +11%
Average of class Mini PC (184.1 - 1776, n=111, last 2 years)	868 MBit/s +5%
Average MediaTek RZ608 (572 - 979, n=20)	860 MBit/s +4%
Minisforum Venus Series UM560 XT MediaTek RZ608	829 (775^min - 889^max) MBit/s
Morefine M600, 6600U MediaTek RZ608	784 (381^min - 874^max) MBit/s -5%
Minisforum Venus Series NAB6 MediaTek RZ608	626 (301^min - 689^max) MBit/s -24%

Minisforum Venus Series UM560 XT; iperf3 receive AXE11000; iperf 3.1.3: Ø889 (851-908)

Minisforum Venus Series UM560 XT; iperf3 transmit AXE11000; iperf 3.1.3: Ø829 (775-889)

Wydajność - AMD oparte na generacji Cezanne

W Minisforum Venus Series UM560 XT, komputer z procesorem AMD Ryzen 5 5600H z sześcioma rdzeniami i dwunastoma wątkami wykonuje swoją pracę, pomagając urządzeniu być dobrze wyposażonym do codziennych zadań związanych z pracą. Biuro, multimedia i streaming są głównym celem tego mini PC. Dzięki AMD Radeon RX Vega 7 mamy dobry iGPU, który umiejętnie wspiera SoC.

Warunki testowe

Podczas przeprowadzania wszystkich testów wydajności wybraliśmy profil energetyczny High Performance. Odstępstwa od niego dotyczyły jedynie pomiarów energii i głośności, zgodnie z naszymi kryteriami testowymi. Wydajność procesora nie została zmieniona w BIOS-ie, a także nie wprowadziliśmy żadnych zmian w krzywej wentylatora dotyczącej chłodzenia.

Procesor

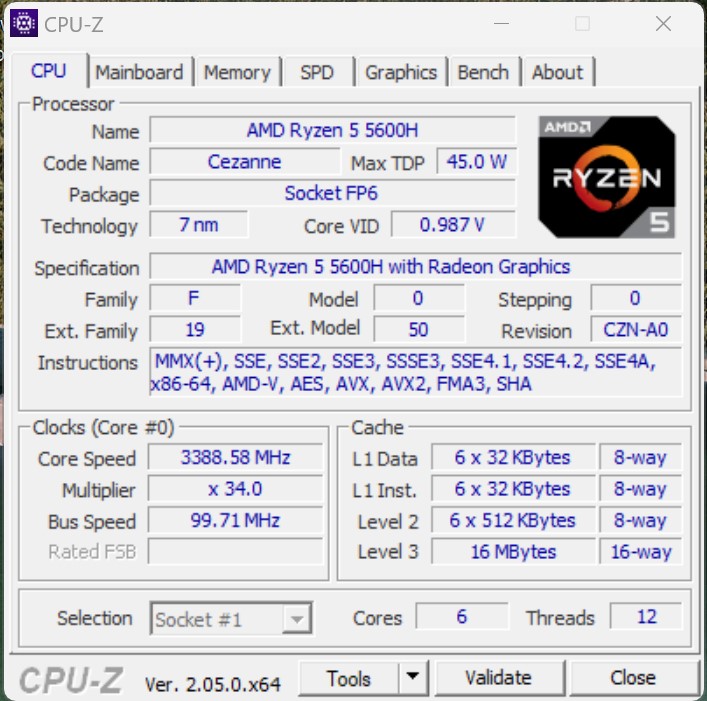

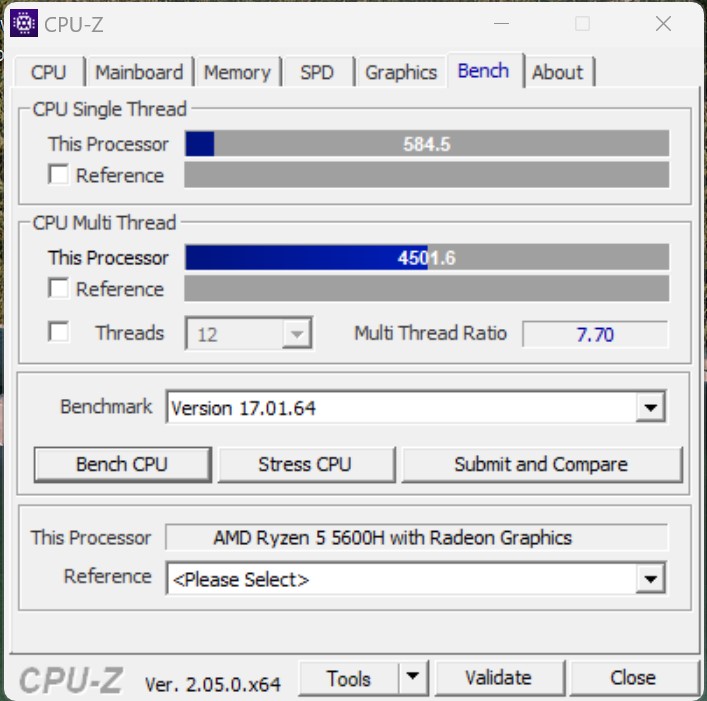

Model AMD Ryzen 5 5600H należy do serii AMD Cezanne i oferuje sześć rdzeni z łącznie dwunastoma wątkami. W porównaniu do topowego modelu z AMD Ryzen 9 6900HX, Minisforum Venus Series UM560 XT traci 13 procent w naszej ocenie wydajności, przy czym jest to mniej więcej środkowa wartość wszystkich benchmarków CPU w tym porównaniu. Jednak w porównaniu z konkurencją, nasz testowany egzemplarz wypada znakomicie. Zasadniczo, Minisforum Venus Series UM560 XT oferuje podobną wydajność do tej, którą można znaleźć w Geekom Mini IT12 z Intel Core i7-1260P. Dodatkowo, Morefine M600 6600U jest utrzymywany w ryzach. Niemniej jednak nasze urządzenie testowe zapewniło tylko nieznacznie lepszą wydajność, którą można wykryć tylko tutaj, w warunkach testowych.

Dodatkowe testy porównawcze procesora można znaleźćtutaj.

Performance Rating - Percent
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	50.6 pt
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	50.1 pt
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	50 pt
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	48.4 pt
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	45.8 pt
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	44.5 pt
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	44 pt
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	42.2 pt
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	41.8 pt

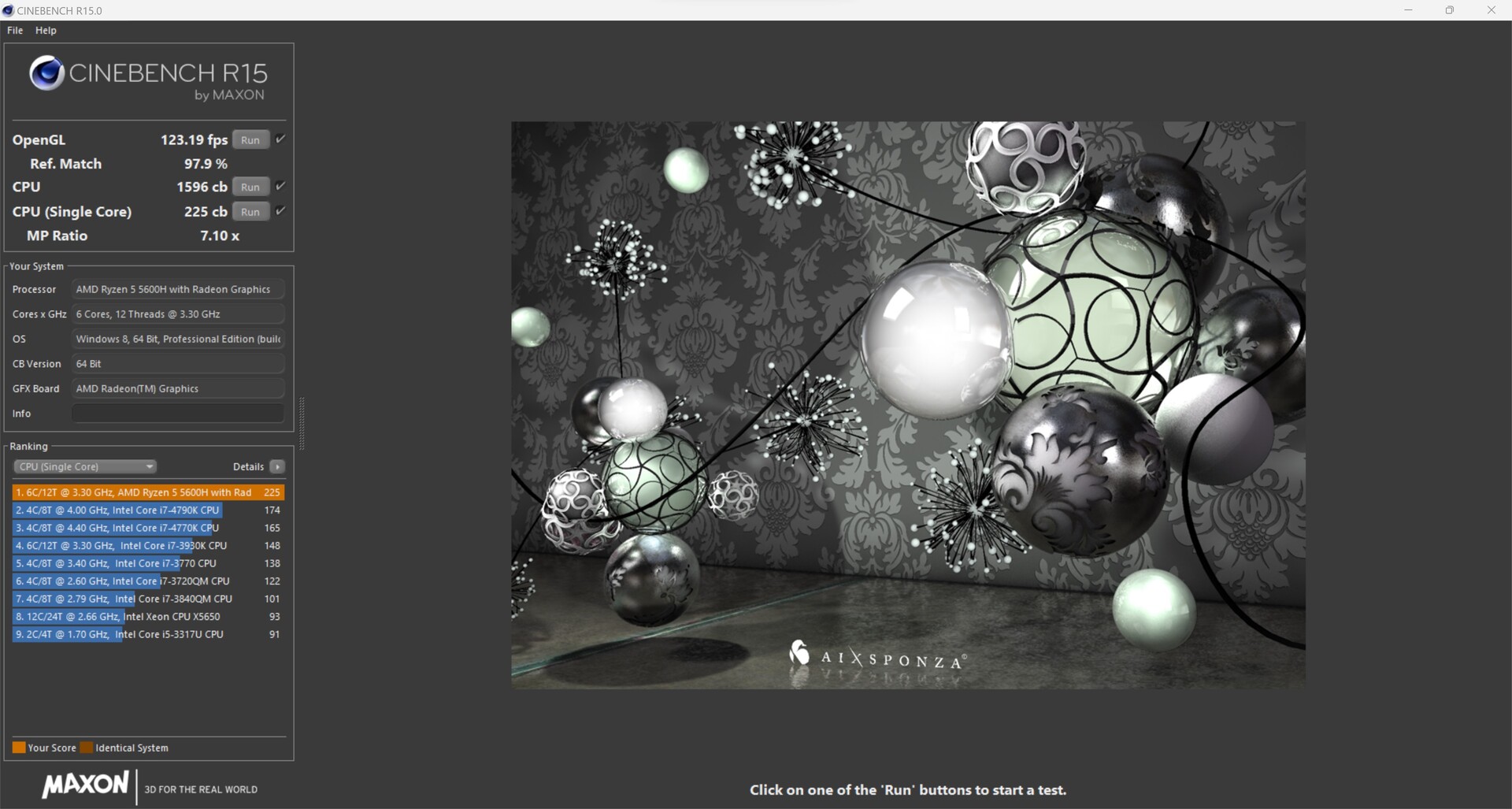

Cinebench R15
CPU Single 64Bit
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	261 Points +16%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	260 Points +16%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	247 Points +10%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	244 Points +8%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	241 Points +7%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	227 Points +1%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	225 Points
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	223 Points -1%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	223 Points -1%
CPU Multi 64Bit
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	2231 Points +40%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2067 Points +30%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1920 Points +20%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1893 Points +19%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	1596 Points
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1565 Points -2%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1361 Points -15%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	1356 Points -15%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1265 Points -21%

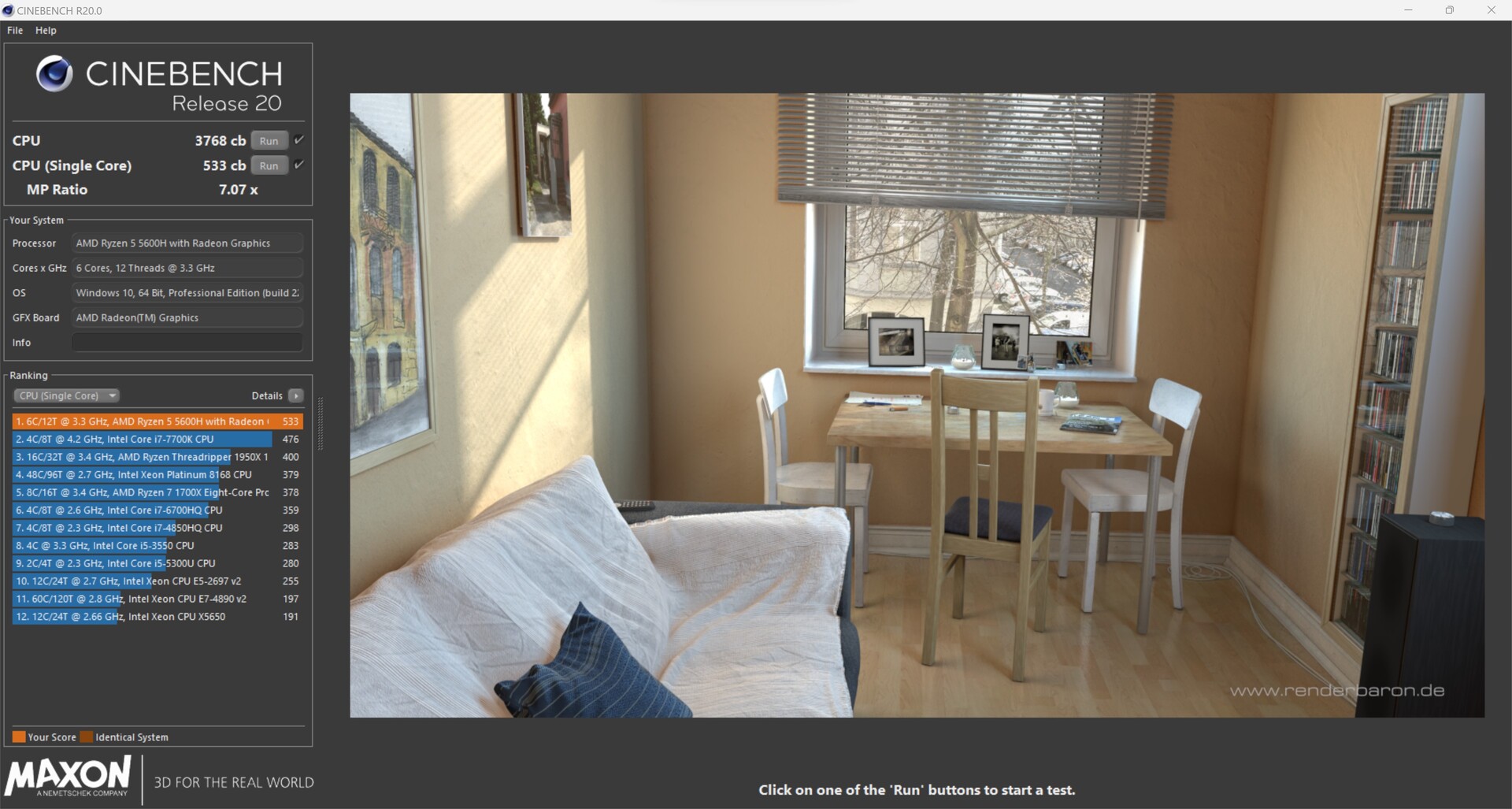

Cinebench R20
CPU (Single Core)
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	696 Points +31%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	682 Points +28%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	652 Points +22%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	629 Points +18%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	600 Points +13%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	558 Points +5%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	535 Points 0%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	534 Points 0%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	533 Points
CPU (Multi Core)
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	5328 Points +41%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	4941 Points +31%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	4788 Points +27%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	4781 Points +27%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	3768 Points
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	3427 Points -9%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	3419 Points -9%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	3189 Points -15%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	2975 Points -21%

Cinebench R11.5
CPU Single 64Bit
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	3.14 Points +19%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	3.07 Points +17%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	2.93 Points +11%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	2.88 Points +10%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2.86 Points +9%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	2.73 Points +4%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	2.64 Points 0%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	2.63 Points
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	2.61 Points -1%
CPU Multi 64Bit
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	26.35 Points +41%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	25.96 Points +39%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	23.66 Points +27%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	22.08 Points +18%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	20.06 Points +7%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	18.68 Points
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	17.15 Points -8%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	15.96 Points -15%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	14.78 Points -21%

Cinebench R10
Rendering Single CPUs 64Bit
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	14533 Points +30%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	13568 Points +21%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	12943 Points +16%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	12846 Points +15%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	12185 Points +9%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	11685 Points +4%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	11201 Points
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	11132 Points -1%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	11098 Points -1%
Rendering Multiple CPUs 64Bit
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	77409 Points +30%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	76758 Points +29%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	69797 Points +17%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	68516 Points +15%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	59479 Points
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	54792 Points -8%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	53950 Points -9%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	50831 Points -15%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	45363 Points -24%

Blender - v2.79 BMW27 CPU
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	426 Seconds * -34%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	415 Seconds * -30%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	399 Seconds * -25%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	319 Seconds *
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	285 Seconds * +11%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	279 Seconds * +13%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	273 Seconds * +14%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	234 Seconds * +27%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	231 Seconds * +28%

wPrime 2.10
32m
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5.377 s * -18%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	4.848 s * -7%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	4.688 s * -3%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	4.552 s *
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	4.485 s * +1%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	3.705 s * +19%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	3.642 s * +20%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	3.461 s * +24%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	3.421 s * +25%
1024m
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	410.289 s * -218%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	237.123 s * -84%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	189.07 s * -46%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	156.33 s * -21%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	147.807 s * -14%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	146.553 s * -13%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	129.204 s *
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	103.226 s * +20%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	93.19 s * +28%

X264 HD Benchmark 4.0
Pass 1
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	311.5 (311^min - 312^max) fps +24%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	262.5 (262^min - 266^max) fps +4%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	258.5 (256^min - 268^max) fps +3%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	251.21 fps
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	245 (239^min - 261^max) fps -2%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	236 (235^min - 246^max) fps -6%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	234 (233^min - 235^max) fps -7%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	224 (222^min - 258^max) fps -11%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	212 (206^min - 224^max) fps -16%
Pass 2
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	127.8 (127.3^min - 129.1^max) fps +34%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	125.25 (105.2^min - 130^max) fps +32%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	114 (111.2^min - 119.4^max) fps +20%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	111.1 (96.7^min - 111.7^max) fps +17%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	95.18 fps
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	80.95 (76.3^min - 82.4^max) fps -15%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	77.75 (77.6^min - 113.9^max) fps -18%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	76 (75.7^min - 76.3^max) fps -20%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	71.45 (70.2^min - 76.6^max) fps -25%

WinRAR - Result
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	9090 KB/s +21%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	7937 KB/s +6%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	7497 KB/s
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	6937 KB/s -7%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	6882 KB/s -8%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6877 KB/s -8%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	6858 KB/s -9%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	6795 KB/s -9%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	6559 KB/s -13%

TrueCrypt
AES Mean 100MB
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	13.4 GB/s +43%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	12.1 GB/s +29%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	10.4 GB/s +11%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	10.1 GB/s +7%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	9.4 GB/s
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	9.3 GB/s -1%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	8.6 GB/s -9%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	8.3 GB/s -12%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	7.7 GB/s -18%
Twofish Mean 100MB
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2 GB/s +54%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	1.8 GB/s +38%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1.8 GB/s +38%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1.8 GB/s +38%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1.6 GB/s +23%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1.3 GB/s 0%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	1.3 GB/s
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	1.2 GB/s -8%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1.1 GB/s -15%
Serpent Mean 100MB
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	1.2 GB/s +40%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1.1 GB/s +28%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1.1 GB/s +28%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1 GB/s +17%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	0.974 GB/s +14%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	0.857 GB/s 0%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	0.857 GB/s
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	0.796 GB/s -7%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	0.7 GB/s -18%

Geekbench 5.5
Multi-Core
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	9706 Points +34%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	9695 Points +34%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	9363 Points +29%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	9151 Points +26%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	8918 Points +23%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	7658 Points +6%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	7253 Points
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	6523 Points -10%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6175 Points -15%
Single-Core
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	1861 Points +29%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1782 Points +23%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1767 Points +22%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	1634 Points +13%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1547 Points +7%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1504 Points +4%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	1443 Points
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1430 Points -1%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	1427 Points -1%

Geekbench 5.0
5.0 Multi-Core
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	10249 Points +44%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	10249 Points +44%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	10249 Points +44%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	9663 Points +36%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	9638 Points +35%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	9099 Points +28%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	7128 Points
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	6479 Points -9%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6117 Points -14%
5.0 Single-Core
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	1838 Points +32%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1736 Points +25%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	1593 Points +14%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1557 Points +12%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1557 Points +12%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1557 Points +12%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	1393 Points
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1383 Points -1%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	1371 Points -2%

Geekbench 4.4
64 Bit Single-Core Score
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	8015 Points +31%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	7705 Points +26%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	6804 Points +11%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	6698 Points +9%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	6698 Points +9%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	6698 Points +9%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	6117 Points
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	5918 Points -3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5854 Points -4%
64 Bit Multi-Core Score
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	39852 Points +37%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	39852 Points +37%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	39852 Points +37%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	38566 Points +33%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	36692 Points +27%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	34909 Points +20%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	28997 Points
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	25738 Points -11%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	24495 Points -16%

3DMark 11 - 1280x720 Performance Physics
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	18382 Points +27%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	18363 Points +27%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	18277 Points +26%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	15855 Points +9%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	14496 Points
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	13130 Points -9%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	13067 Points -10%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	12608 Points -13%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	11630 Points -20%

7-Zip 18.03
7z b 4
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	61401 MIPS +32%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	56923 MIPS +22%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	51151 MIPS +10%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	47893 MIPS +3%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	46562 MIPS
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	44320 MIPS -5%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	40318 MIPS -13%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	39207 MIPS -16%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	37570 MIPS -19%
7z b 4 -mmt1
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	6116 MIPS +14%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	6067 MIPS +13%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	6019 MIPS +12%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	5591 MIPS +4%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	5577 MIPS +4%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	5486 MIPS +2%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	5369 MIPS
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5249 MIPS -2%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	5161 MIPS -4%

HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	17.1 fps +38%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	15.4 fps +24%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	14.1 fps +14%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	13.6 fps +10%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	12.4 fps
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	11.7 fps -6%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	10.2 fps -18%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	10.1 fps -19%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	10.1 fps -19%

R Benchmark 2.5 - Overall mean
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	0.548 sec * -4%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	0.537 sec * -2%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	0.526 sec *
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	0.511 sec * +3%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	0.4881 sec * +7%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	0.4757 sec * +10%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	0.4718 sec * +10%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	0.4641 sec * +12%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	0.462 sec * +12%

LibreOffice - 20 Documents To PDF
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	57.5 s * -1%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	56.7 s *
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	53.4 s * +6%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	53 s * +7%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	51.1 s * +10%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	48.8 s * +14%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	48.1 s * +15%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	39.6 s * +30%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	38 s * +33%

WebXPRT 3 - Overall
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	311 Points +15%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	309 Points +14%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	292 Points +8%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	287 Points +6%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	287 Points +6%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	274 Points +1%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	270 Points
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	263 Points -3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	255 Points -6%

Mozilla Kraken 1.1 - Total
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	659 ms * -1%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	651 ms *
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	646 ms * +1%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	619 ms * +5%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	605 ms * +7%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	577 ms * +11%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	571 ms * +12%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	539 ms * +17%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	519 ms * +20%

3DMark
3840x2160 Fire Strike Ultra Physics
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	25456 Points +21%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	22441 Points +6%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	21422 Points +1%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	21110 Points
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	21001 Points -1%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	18599 Points -12%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	17568 Points -17%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	16412 Points -22%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	15903 Points -25%
1920x1080 Fire Strike Physics
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	25915 Points +23%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	22426 Points +7%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	22346 Points +6%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	22244 Points +6%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	21025 Points
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	18076 Points -14%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	17499 Points -17%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	16568 Points -21%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	15934 Points -24%
2560x1440 Time Spy CPU
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	10539 Points +56%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	9354 Points +38%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	9168 Points +35%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	8622 Points +27%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	6767 Points
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	6487 Points -4%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5443 Points -20%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	5114 Points -24%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	5077 Points -25%

* ... im mniej tym lepiej

Performance Rating
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	99.3 pt
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	85.9 pt
Average of class Mini PC	76.8 pt
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	71.2 pt
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	70.7 pt
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	69.4 pt
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	62.8 pt
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	62.3 pt
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	60.2 pt
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	57 pt

AIDA64 / FP32 Ray-Trace
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	15102 KRay/s +33%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	13757 KRay/s +21%
Average of class Mini PC (646 - 51004, n=117, last 2 years)	12754 KRay/s +12%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	11347 KRay/s
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	10952 KRay/s -3%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	10839 KRay/s -4%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	9518 KRay/s -16%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	9406 KRay/s -17%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	9086 KRay/s -20%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	7933 KRay/s -30%

AIDA64 / FPU Julia
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	98980 Points +40%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	87663 Points +24%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	70782 Points
Average of class Mini PC (3857 - 214250, n=117, last 2 years)	64155 Points -9%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	60111 Points -15%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	59704 Points -16%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	57375 Points -19%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	55221 Points -22%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	54435 Points -23%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	40251 Points -43%

AIDA64 / CPU SHA3
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	3452 MB/s +46%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	2931 MB/s +24%
Average of class Mini PC (260 - 9399, n=117, last 2 years)	2829 MB/s +20%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	2558 MB/s +8%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	2360 MB/s
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	2357 MB/s 0%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	2065 MB/s -12%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	2006 MB/s -15%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	1997 MB/s -15%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	1971 MB/s -16%

AIDA64 / CPU Queen
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	103686 Points +37%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	100293 Points +32%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	85240 Points +13%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	82454 Points +9%
Average of class Mini PC (8172 - 184747, n=117, last 2 years)	79428 Points +5%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	75724 Points
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	75248 Points -1%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	73765 Points -3%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	70563 Points -7%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	67224 Points -11%

AIDA64 / FPU SinJulia
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	13101 Points +46%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	12396 Points +38%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	8952 Points
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	8738 Points -2%
Average of class Mini PC (408 - 29064, n=117, last 2 years)	8724 Points -3%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	8507 Points -5%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	8294 Points -7%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	7548 Points -16%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	7444 Points -17%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	5567 Points -38%

AIDA64 / FPU Mandel
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	52710 Points +35%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	44629 Points +14%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	38989 Points
Average of class Mini PC (1987 - 113499, n=117, last 2 years)	33471 Points -14%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	33084 Points -15%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	32465 Points -17%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	31389 Points -19%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	28159 Points -28%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	26735 Points -31%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	19857 Points -49%

AIDA64 / CPU AES
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	136723 MB/s +44%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	99521 MB/s +5%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	95057 MB/s
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	92530 MB/s -3%
Average of class Mini PC (3691 - 325960, n=117, last 2 years)	87791 MB/s -8%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	82315 MB/s -13%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	78211 MB/s -18%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	74716 MB/s -21%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	56199 MB/s -41%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	39680 MB/s -58%

AIDA64 / CPU ZLib
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	863 MB/s +41%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	745 MB/s +21%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	732 MB/s +19%
Average of class Mini PC (74.9 - 2039, n=117, last 2 years)	732 MB/s +19%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	674 MB/s +10%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	614 MB/s
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	575 MB/s -6%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	531 MB/s -14%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	530 MB/s -14%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	505 MB/s -18%

AIDA64 / FP64 Ray-Trace
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	7973 KRay/s +38%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	7288 KRay/s +26%
Average of class Mini PC (350 - 26952, n=117, last 2 years)	6821 KRay/s +18%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	5777 KRay/s 0%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	5777 KRay/s
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	5771 KRay/s 0%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	5058 KRay/s -12%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	5024 KRay/s -13%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	4636 KRay/s -20%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	4156 KRay/s -28%

AIDA64 / CPU PhotoWorxx
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	29765 MPixel/s +46%
Average of class Mini PC (4408 - 50500, n=117, last 2 years)	28317 MPixel/s +39%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	28118 MPixel/s +38%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	28010 MPixel/s +37%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	27720 MPixel/s +36%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	27456 MPixel/s +35%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	24323 MPixel/s +19%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	20410 MPixel/s
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	19395 MPixel/s -5%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	17803 MPixel/s -13%

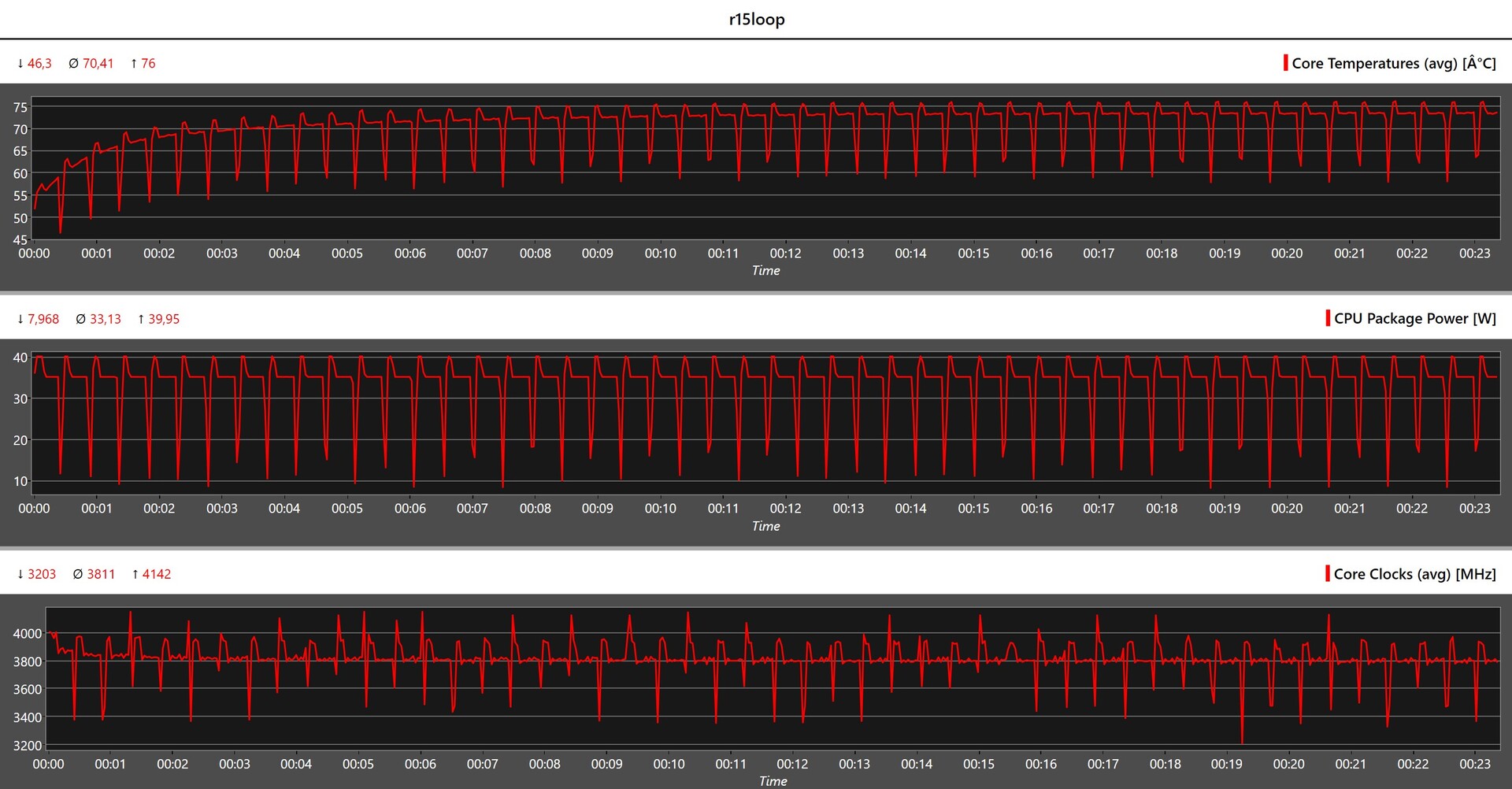

Minisforum Venus Series UM560 XT w teście wielopętlowym Cinebench R15

W ciągłej pętli Cinebench R15 można uzyskać dobre wrażenie, jak dobrze system działa pod obciążeniem. Minisforum Venus Series UM560 XT wspaniale poradził sobie z tym testem. Wyniki AMD Ryzen 5 5600H w każdym z 50 przebiegów były bardzo stabilne i nie odnotowano prawie żadnego znaczącego spadku wydajności. W tym obszarze porównawczym żaden inny system nie jest blisko.

Metryki procesora podczas pętli Cinebench R15

Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, AMD Ryzen 5 5600H: Ø1586 (1574.56-1611.34)

Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Ryzen 5 5600U: Ø1158 (1130.29-1266.62)

Minisforum Mars Series MC560 AMD Ryzen 5 5600U, AMD Ryzen 5 5600U: Ø1099 (1072.7-1239.66)

Minisforum Venus Series NAB6 Intel Core i7-12650H, Intel Core i7-12650H: Ø1627 (1590.71-1899.25)

Morefine M600, 6900HX AMD Ryzen 9 6900HX, AMD Ryzen 9 6900HX: Ø1900 (1863.93-2044.26)

Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, AMD Ryzen 9 6900HX: Ø2111 (2087.36-2211.78)

Geekom Mini IT12 Intel Core i7-1260P, Intel Core i7-1260P: Ø1280 (1241-1619.37)

Minisforum Neptune Series NAD9 Intel Core i9-12900H, Intel Core i9-12900H: Ø1703 (1657.14-2261.04)

Morefine M600, 6600U AMD Ryzen 5 6600U, AMD Ryzen 5 6600U: Ø1166 (1105.77-1443.37)

Wydajność systemu

W obszarze benchmarków systemowych, Minisforum Venus Series UM560 XT wypadł bardzo dobrze, zajmując trzecie miejsce w porównaniu PCMark 10. Sprawy wyglądają jednak nieco inaczej w porównaniu Crossmark. Jednak to właśnie w tym obszarze wszystkie urządzenia wyposażone w układy AMD muszą ustąpić miejsca urządzeniom Intela. Posiadanie pamięci RAM DDR4 oznacza, że Minisforum Venus Series UM560 XT jest w stanie konkurować tylko z dość tępą bronią. Pierwsze trzy miejsca przypadają tutaj urządzeniom z szybszą pamięcią RAM DDR5. Niemniej jednak wydajność naszej próbki testowej jest przyzwoita i można ją porównać do UM560 XT. Znajduje to subiektywne odzwierciedlenie w wydajności.

PCMark 10: Score | Essentials | Productivity

PCMark 10 / Score
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston OM8PGP4512Q-A0	7045 Points +14%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	6654 Points +8%
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7, ESO512GYLCT	6189 Points
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Core i9-12900H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	6187 Points 0%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	6057 Points -2%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Ryzen 5 6600U, AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	5872 Points -5%
Minisforum Mars Series MC560, AMD Ryzen 5 5600U AMD Ryzen 5 5600U, AMD Radeon RX Vega 7, ESO512GYLCT	5862 Points -5%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Ryzen 5 5600U, AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	5761 Points -7%
Geekom Mini IT12, Intel Core i7-1260P Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	5658 Points -9%

PCMark 10 / Essentials
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	11395 Points +8%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Core i9-12900H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	11217 Points +7%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston OM8PGP4512Q-A0	10838 Points +3%
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7, ESO512GYLCT	10503 Points
Minisforum Mars Series MC560, AMD Ryzen 5 5600U AMD Ryzen 5 5600U, AMD Radeon RX Vega 7, ESO512GYLCT	10484 Points 0%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	10390 Points -1%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Ryzen 5 5600U, AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	10385 Points -1%
Geekom Mini IT12, Intel Core i7-1260P Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	10139 Points -3%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Ryzen 5 6600U, AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	9820 Points -7%

PCMark 10 / Productivity
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston OM8PGP4512Q-A0	10060 Points +4%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	9817 Points +2%
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7, ESO512GYLCT	9642 Points
Minisforum Mars Series MC560, AMD Ryzen 5 5600U AMD Ryzen 5 5600U, AMD Radeon RX Vega 7, ESO512GYLCT	9545 Points -1%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Ryzen 5 5600U, AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	9539 Points -1%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Ryzen 5 6600U, AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	9031 Points -6%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	8164 Points -15%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Core i9-12900H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	7673 Points -20%
Geekom Mini IT12, Intel Core i7-1260P Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	7427 Points -23%

CrossMark: Overall | Productivity | Creativity | Responsiveness

CrossMark / Overall
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1894 Points +41%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1875 Points +39%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1738 Points +29%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston OM8PGP4512Q-A0	1731 Points +29%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1517 Points +13%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1517 Points +13%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1373 Points +2%
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H AMD Radeon RX Vega 7, ESO512GYLCT	1346 Points
Minisforum Mars Series MC560, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, ESO512GYLCT	1300 Points -3%

CrossMark / Productivity
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1921 Points +40%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1876 Points +37%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston OM8PGP4512Q-A0	1738 Points +27%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1729 Points +26%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1491 Points +9%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1491 Points +9%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1406 Points +3%
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H AMD Radeon RX Vega 7, ESO512GYLCT	1368 Points
Minisforum Mars Series MC560, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, ESO512GYLCT	1335 Points -2%

CrossMark / Creativity
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1811 Points +32%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1800 Points +31%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1749 Points +27%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston OM8PGP4512Q-A0	1745 Points +27%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1652 Points +20%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1652 Points +20%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1379 Points 0%
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H AMD Radeon RX Vega 7, ESO512GYLCT	1377 Points
Minisforum Mars Series MC560, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, ESO512GYLCT	1325 Points -4%

CrossMark / Responsiveness
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	2116 Points +77%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	2077 Points +74%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1734 Points +45%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston OM8PGP4512Q-A0	1671 Points +40%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1263 Points +6%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1238 Points +3%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1238 Points +3%
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H AMD Radeon RX Vega 7, ESO512GYLCT	1197 Points
Minisforum Mars Series MC560, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, ESO512GYLCT	1133 Points -5%

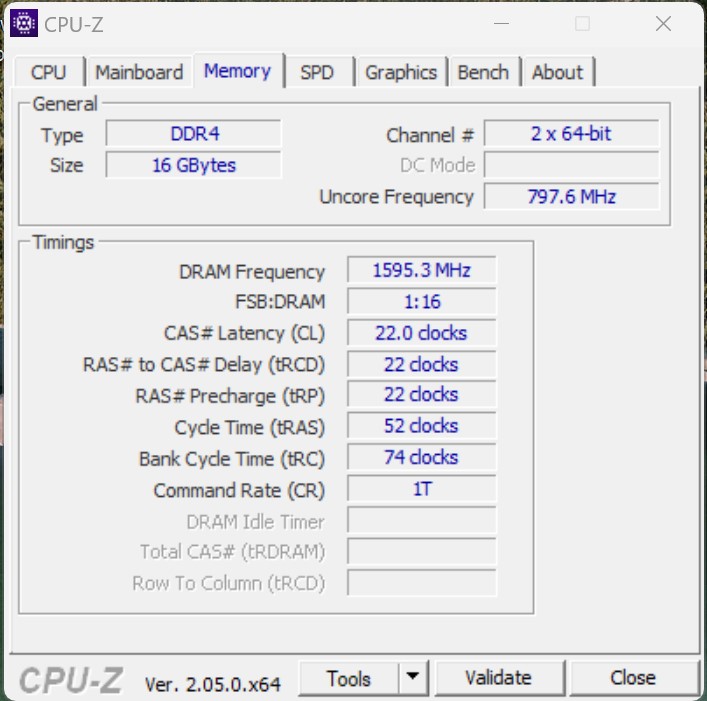

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	50228 MB/s +20%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	47938 MB/s +15%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	47711 MB/s +14%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	46936 MB/s +12%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	45941 MB/s +10%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	44726 MB/s +7%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	41732 MB/s
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	38102 MB/s -9%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	35051 MB/s -16%

AIDA64 / Memory Read
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	51077 MB/s +9%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	50120 MB/s +7%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	49936 MB/s +6%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	49559 MB/s +6%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	47491 MB/s +1%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	46963 MB/s
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	46084 MB/s -2%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	40126 MB/s -15%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	38400 MB/s -18%

AIDA64 / Memory Write
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	55194 MB/s +23%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	54750 MB/s +22%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	49353 MB/s +10%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	47383 MB/s +6%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	46815 MB/s +4%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	46785 MB/s +4%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	44872 MB/s
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	40633 MB/s -9%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	37475 MB/s -16%

AIDA64 / Memory Latency
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	100 ns * -32%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	96.2 ns * -27%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	94 ns * -25%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	92.4 ns * -22%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	91.3 ns * -21%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	83 ns * -10%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	80.2 ns * -6%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	75.5 ns *
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	71.6 ns * +5%

* ... im mniej tym lepiej

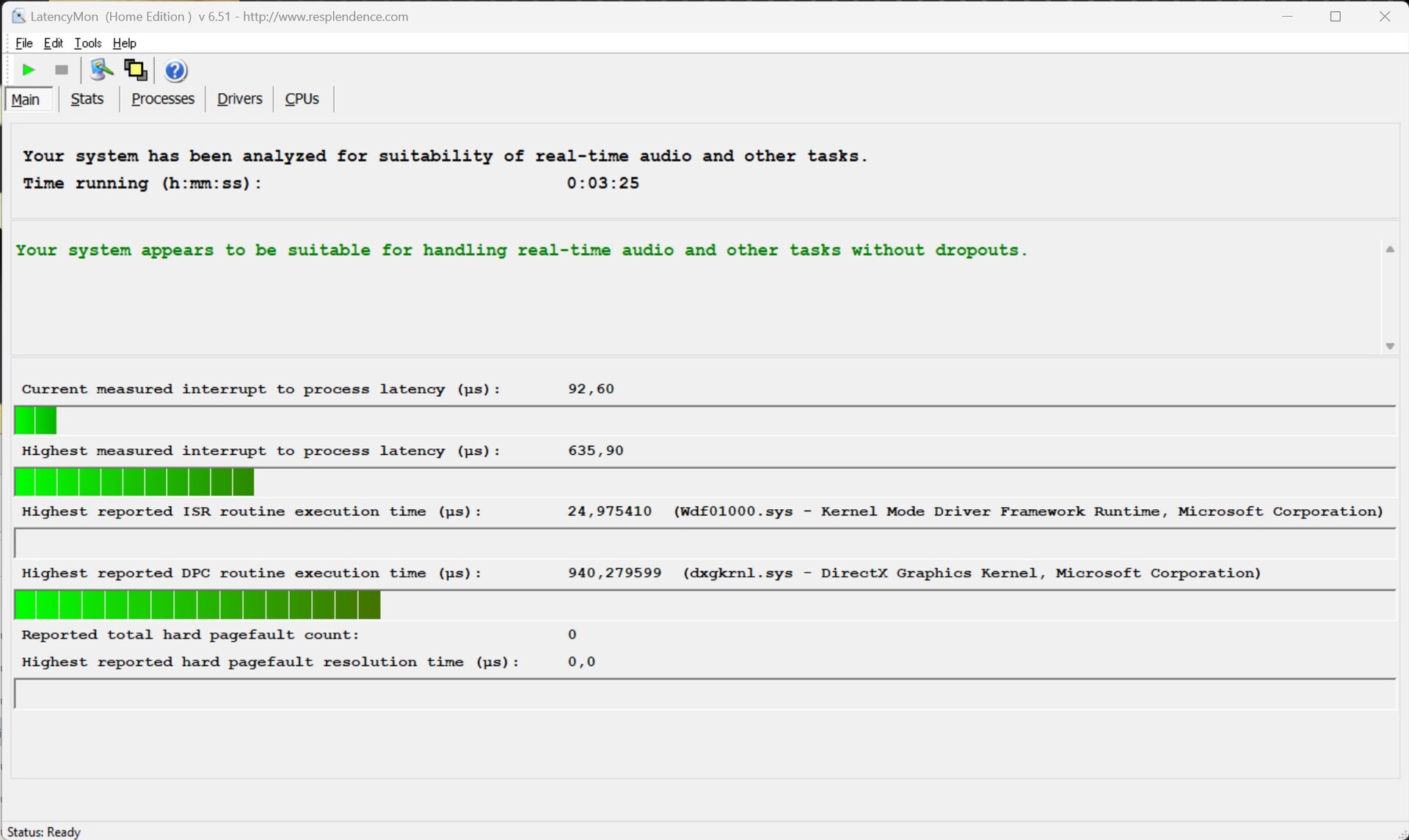

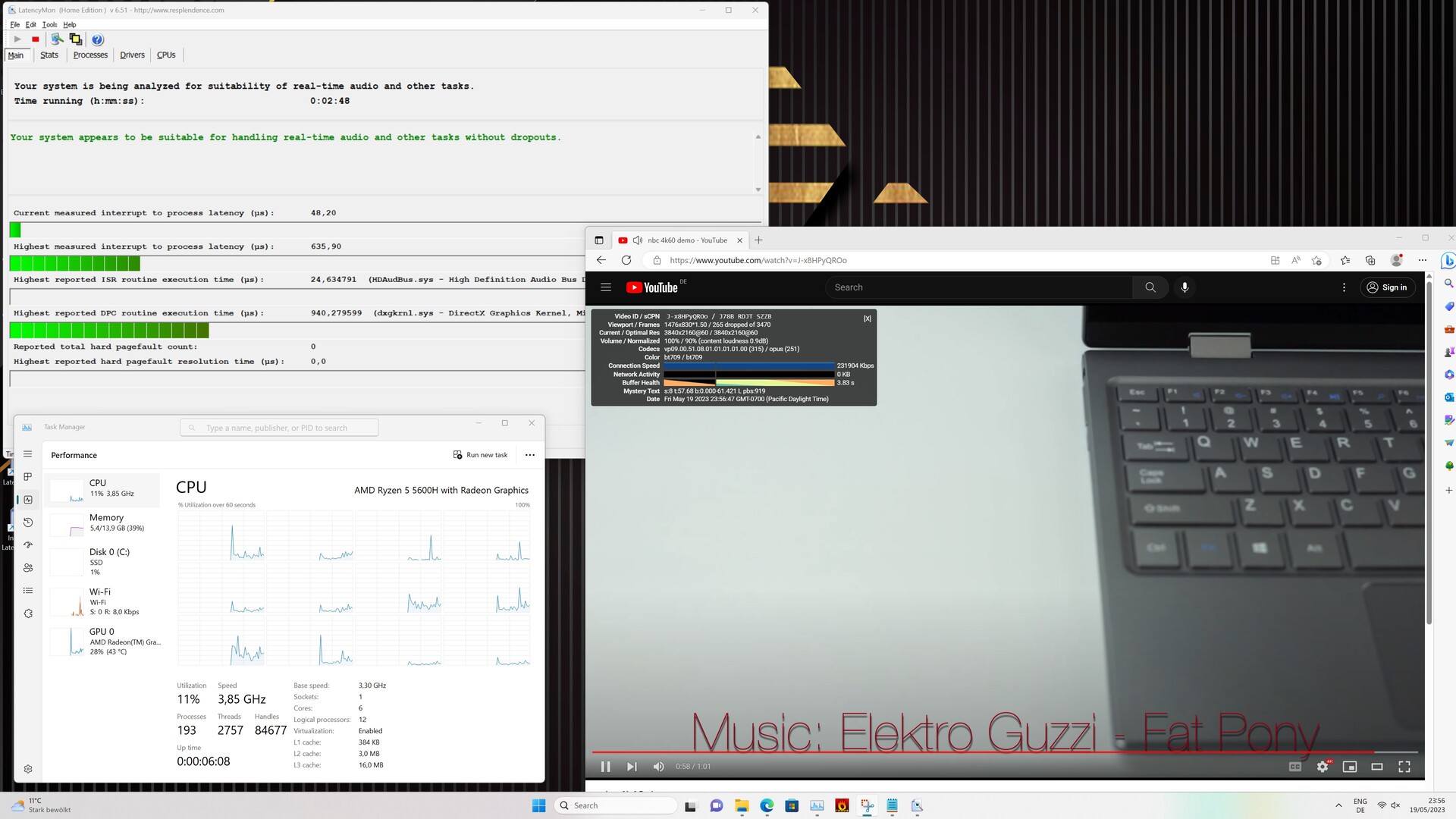

Opóźnienia DPC

Nie napotkaliśmy żadnych problematycznych opóźnień w działaniu Minisforum Venus Series UM560 XT. Nasze urządzenie testowe doskonale radziło sobie zarówno z otwieraniem wielu kart w przeglądarce Edge, jak i odtwarzaniem testowego wideo 4K. Korzystając z Prime95, nie byliśmy w stanie wykryć żadnych zwiększonych opóźnień.

Maksymalne opóźnienie podczas otwierania wielu kart przeglądarki i odtwarzania materiałów wideo 4K

Maksymalne opóźnienie po dziesięciu sekundach Prime95

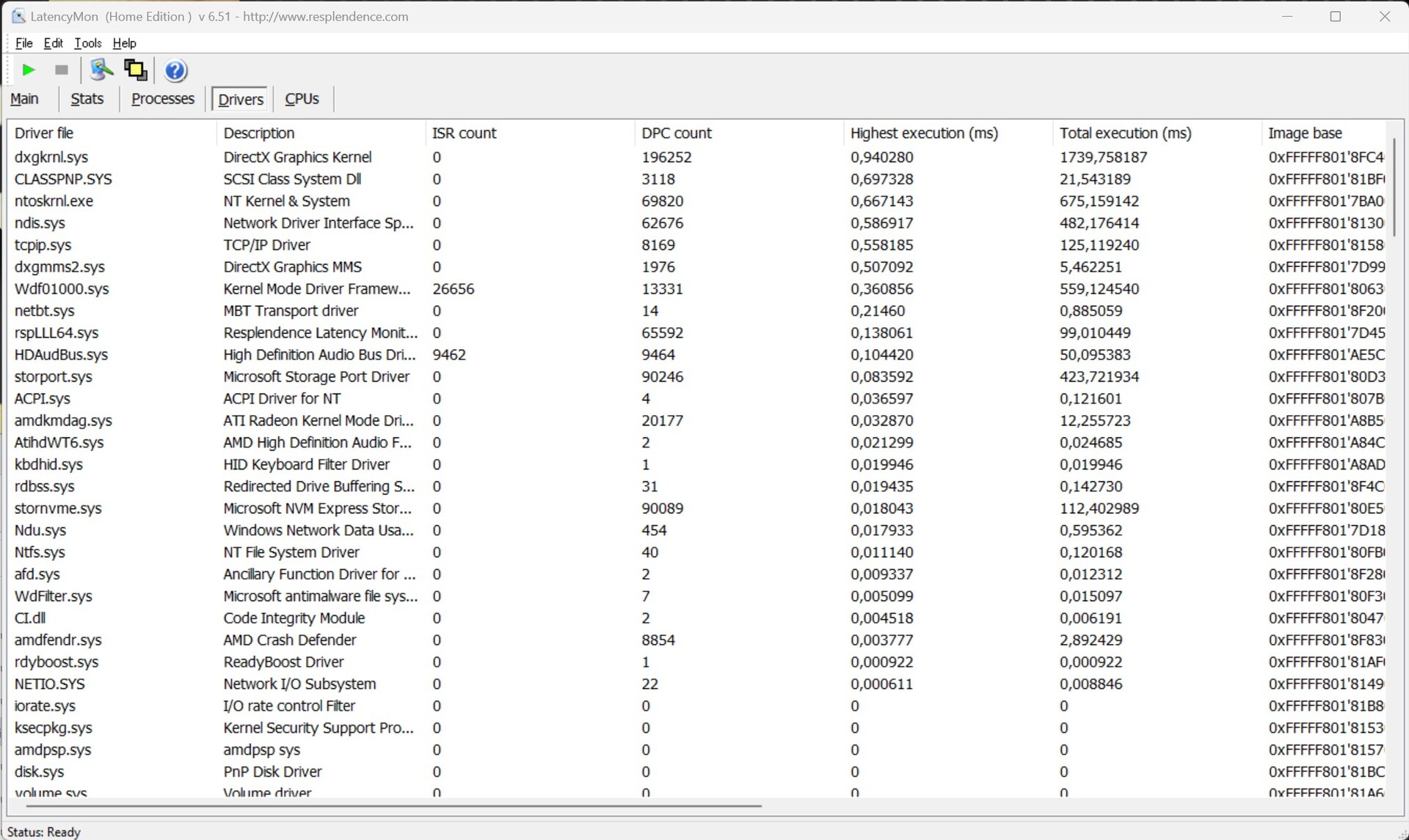

Kierowcy uporządkowani według najdłuższego czasu działania

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston OM8PGP4512Q-A0	1488 μs * -58%
Minisforum Mars Series MC560, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, ESO512GYLCT	1359.1 μs * -45%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1317 μs * -40%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1113.9 μs * -18%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1016.7 μs * -8%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	985.8 μs * -5%
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H AMD Radeon RX Vega 7, ESO512GYLCT	940.27 μs *
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	795 μs * +15%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	765 μs * +19%

* ... im mniej tym lepiej

Pamięć masowa

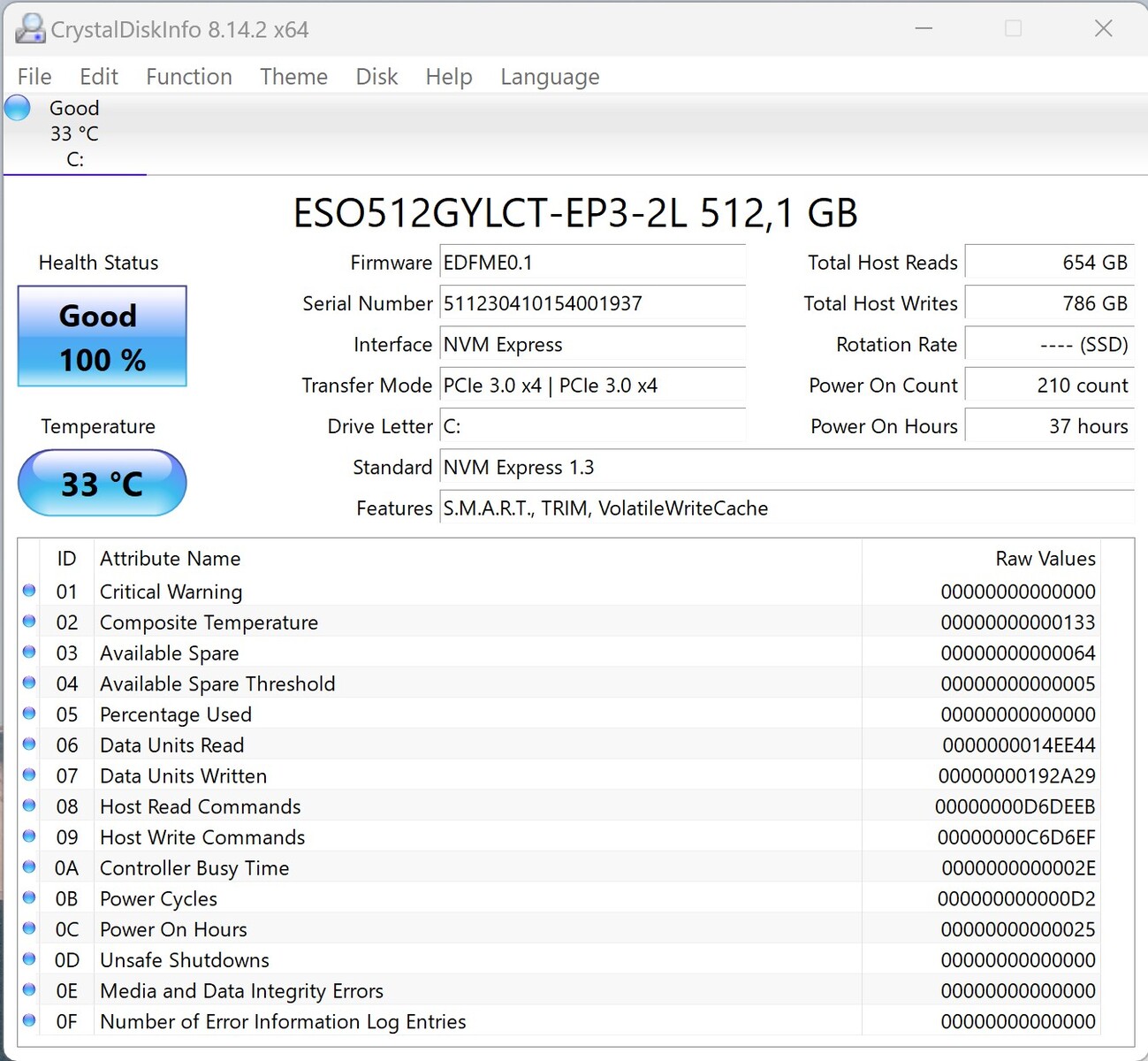

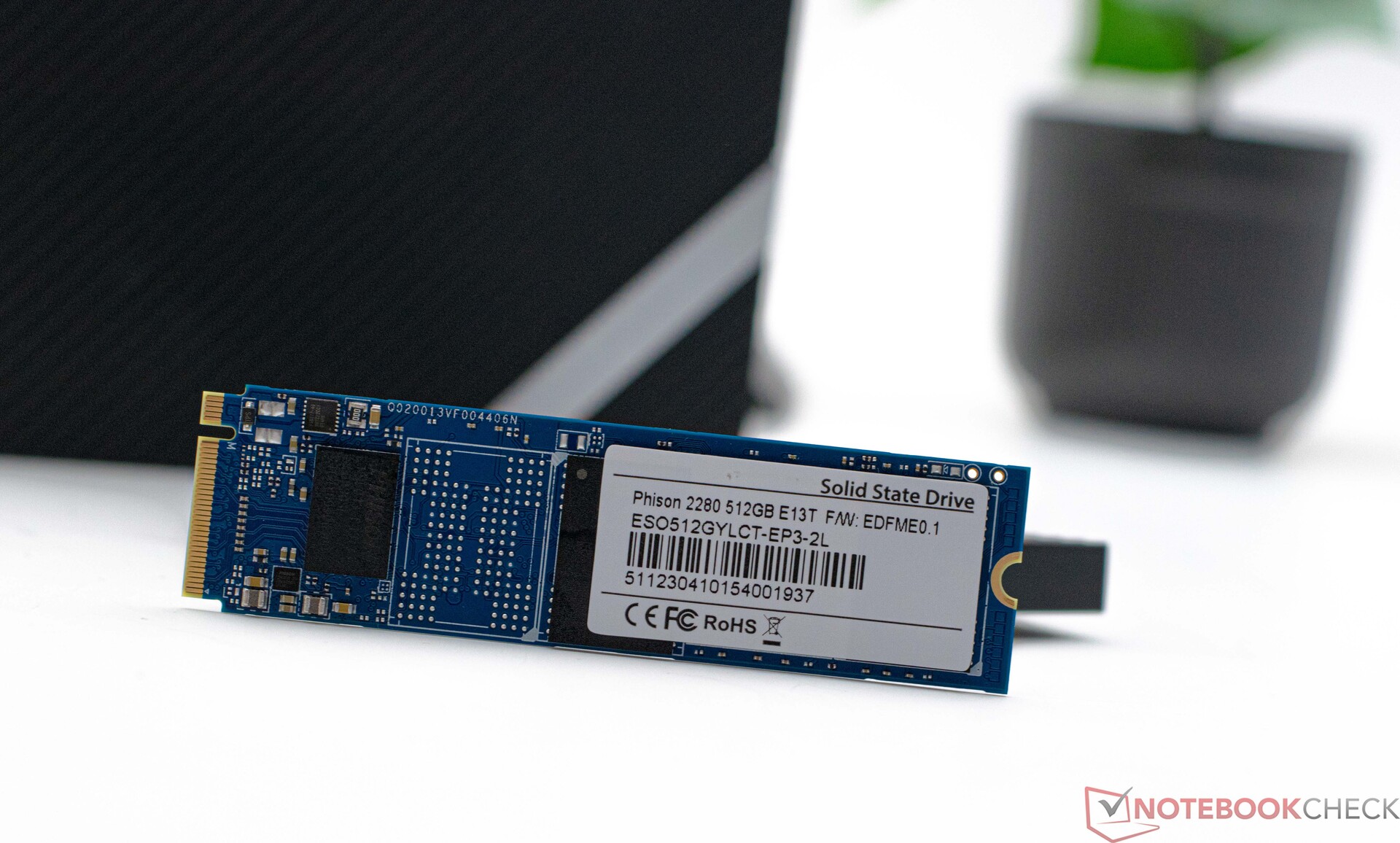

Minisforum wyposażyło nasz recenzencki model Venus Series UM560 XT w dysk SSD o pojemności 512 GB, bez podawania szczegółów. Prędkości transferu zainstalowanego modelu odzwierciedlają jego interfejs PCIe 3.0. Konkurencja, z szybszymi dyskami SSD PCIe 4.0, cieszy się nieosiągalną przewagą. Pod ciągłym obciążeniem Minisforum Venus Series UM560 XT nie miał problemów z utrzymaniem wydajności SSD. To właśnie w tym obszarze opłacało się wyposażyć dysk SSD w stosunkowo duży radiator. Urządzenie może pomieścić łącznie dwa urządzenia pamięci masowej. Oprócz interfejsu M.2 dostępne jest również złącze SATA dla 2,5-calowego nośnika pamięci. Urządzenie dostarczane jest wraz z odpowiednimi kablami połączeniowymi.

Dodatkowe porównania i testy porównawcze można znaleźć w naszej tabeli porównawczej.

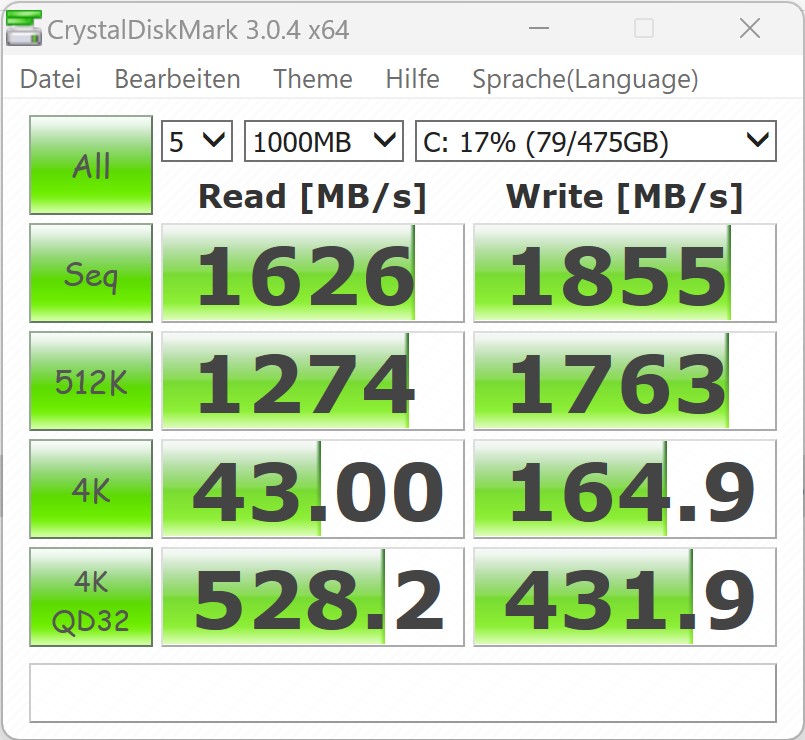

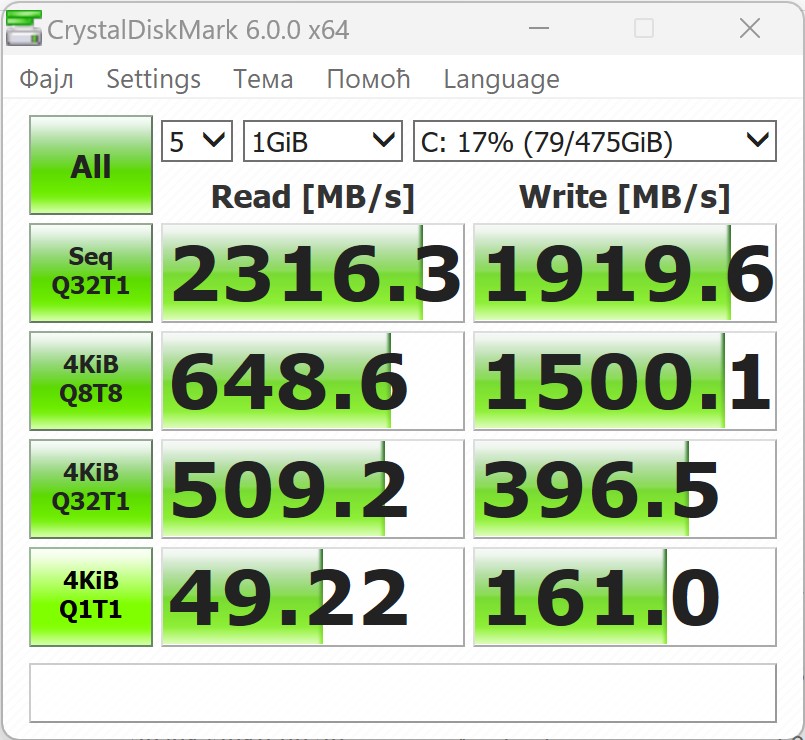

CrystalDiskMark 3.0

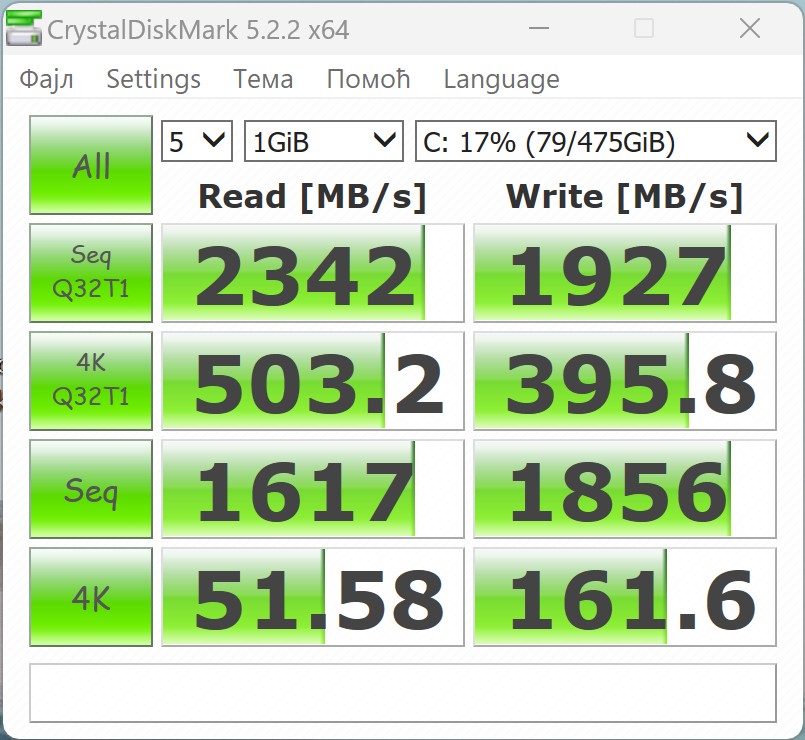

CrystalDiskMark 5.2 / 6

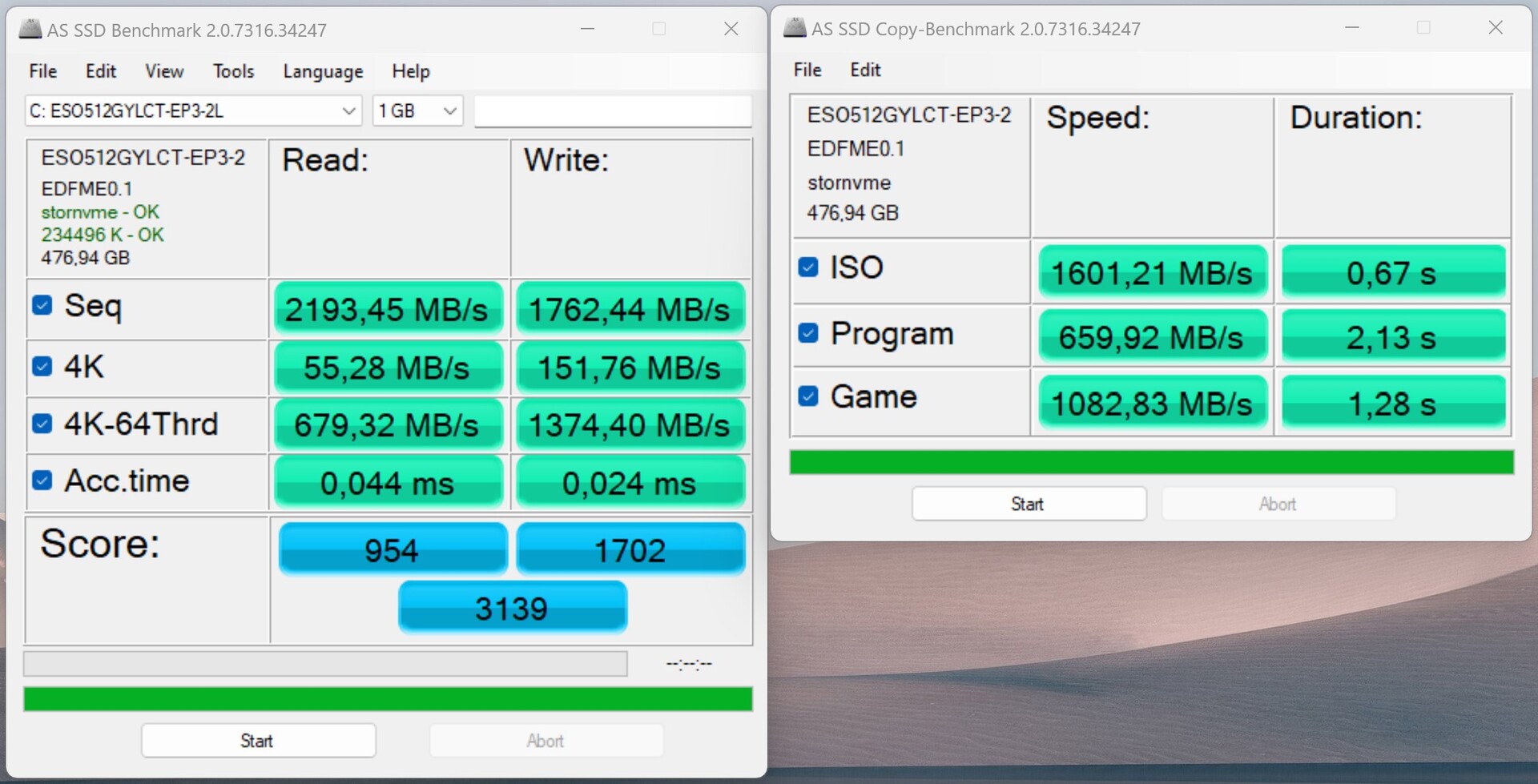

AS SSD

DiskSpd

ESO512GYLCT

Sequential Read: 1626 MB/s

Sequential Write: 1855 MB/s

512K Read: 1274 MB/s

512K Write: 1763 MB/s

4K Read: 43 MB/s

4K Write: 164.9 MB/s

4K QD32 Read: 528.2 MB/s

4K QD32 Write: 431.9 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	85.3 pt
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	81.3 pt
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	69.7 pt
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	66.1 pt
Average of class Mini PC	52.7 pt
Minisforum Venus Series UM560 XT ESO512GYLCT	46.9 pt
Minisforum Mars Series MC560 ESO512GYLCT	41.1 pt
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	40.2 pt
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	36.8 pt
Geekom Mini IT12 Kingston OM8SEP4512N-A0	36.2 pt

DiskSpd
seq read
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3195 (3147.62^min - 3194.91^max) MB/s +94%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2815 (2802.79^min - 2814.97^max) MB/s +71%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	2689 (2681.42^min - 2688.76^max) MB/s +63%
Average of class Mini PC (277 - 4357, n=117, last 2 years)	2326 MB/s +41%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2082 (2067.58^min - 2082.23^max) MB/s +27%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	1720 (1344.24^min - 1720.17^max) MB/s +5%
Minisforum Venus Series UM560 XT ESO512GYLCT	1645 (1636.91^min - 1645.01^max) MB/s
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1451 (1441.37^min - 1451.23^max) MB/s -12%
Minisforum Mars Series MC560 ESO512GYLCT	1310 (1296.67^min - 1309.67^max) MB/s -20%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1176 (1169.13^min - 1175.87^max) MB/s -29%
seq write
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	3544 (3538.94^min - 3544.19^max) MB/s +89%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3539 (3516.6^min - 3538.94^max) MB/s +89%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3402 (3372.67^min - 3402.21^max) MB/s +81%
Average of class Mini PC (229 - 5595, n=117, last 2 years)	2492 MB/s +33%
Minisforum Venus Series UM560 XT ESO512GYLCT	1877 (1870.87^min - 1877.35^max) MB/s
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1792 (1662.17^min - 1791.62^max) MB/s -5%
Minisforum Mars Series MC560 ESO512GYLCT	1735 (1689.26^min - 1735.49^max) MB/s -8%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1530 (603.77^min - 1530.08^max) MB/s -18%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1203 (1169.58^min - 1202.51^max) MB/s -36%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	1075 (545.51^min - 1075.26^max) MB/s -43%
seq q8 t1 read
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	4820 (3819.87^min - 4820.3^max) MB/s +104%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	4801 (4506.78^min - 4800.59^max) MB/s +103%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	4797 (4271.21^min - 4796.87^max) MB/s +103%
Average of class Mini PC (236 - 8430, n=117, last 2 years)	3772 MB/s +60%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	2522 (2230.32^min - 2522.44^max) MB/s +7%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2444 (2328.09^min - 2444.09^max) MB/s +4%
Minisforum Venus Series UM560 XT ESO512GYLCT	2360 (2078.7^min - 2359.72^max) MB/s
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1987 (1409.4^min - 1987.27^max) MB/s -16%
Minisforum Mars Series MC560 ESO512GYLCT	1749 (1565.12^min - 1749.09^max) MB/s -26%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1694 (1415.05^min - 1693.87^max) MB/s -28%
seq q8 t1 write
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	3541 (3519.65^min - 3541.04^max) MB/s +82%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3536 (3475.82^min - 3536.01^max) MB/s +82%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3402 (3374.28^min - 3401.67^max) MB/s +75%
Average of class Mini PC (239 - 6669, n=117, last 2 years)	2793 MB/s +44%
Minisforum Venus Series UM560 XT ESO512GYLCT	1946 (1938.09^min - 1945.74^max) MB/s
Minisforum Mars Series MC560 ESO512GYLCT	1815 (1770.86^min - 1814.81^max) MB/s -7%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1769 (1687.39^min - 1768.92^max) MB/s -9%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	1599 (266.87^min - 1599.24^max) MB/s -18%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1213 (1155.74^min - 1212.78^max) MB/s -38%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1084 (553.02^min - 1084.16^max) MB/s -44%
4k q1 t1 read
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	82.8 (82.48^min - 82.75^max) MB/s +85%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	82.1 (81.4^min - 82.09^max) MB/s +83%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	70.8 (63.28^min - 70.81^max) MB/s +58%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	55.6 (54.87^min - 55.6^max) MB/s +24%
Average of class Mini PC (6.85 - 86.6, n=117, last 2 years)	55 MB/s +23%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	48.5 (48.27^min - 48.47^max) MB/s +8%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	48.2 (48.04^min - 48.16^max) MB/s +8%
Minisforum Venus Series UM560 XT ESO512GYLCT	44.8 (44.42^min - 44.77^max) MB/s
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	40.3 (36.8^min - 40.3^max) MB/s -10%
Minisforum Mars Series MC560 ESO512GYLCT	35.4 (35.09^min - 35.36^max) MB/s -21%
4k q1 t1 write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	425 (415.92^min - 425.01^max) MB/s +152%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	420 (417.55^min - 420.16^max) MB/s +149%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	288 (287.39^min - 288.47^max) MB/s +71%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	276 (193.9^min - 275.81^max) MB/s +64%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	229 (165.03^min - 229.29^max) MB/s +36%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	220 (212.2^min - 220.15^max) MB/s +31%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	210 (122.22^min - 209.88^max) MB/s +25%
Average of class Mini PC (30.4 - 435, n=117, last 2 years)	196.5 MB/s +17%
Minisforum Venus Series UM560 XT ESO512GYLCT	168.4 (166.77^min - 168.37^max) MB/s
Minisforum Mars Series MC560 ESO512GYLCT	164.5 (163.24^min - 164.49^max) MB/s -2%
4k q32 t16 read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	1944 (1936.89^min - 1943.53^max) MB/s +134%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	1939 (1934.48^min - 1939.25^max) MB/s +133%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	1933 (1926.8^min - 1932.75^max) MB/s +133%
Average of class Mini PC (26.1 - 4158, n=117, last 2 years)	1389 MB/s +67%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	991 (989.79^min - 991.47^max) MB/s +19%
Minisforum Venus Series UM560 XT ESO512GYLCT	831 (807.33^min - 831.01^max) MB/s
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	561 (475.29^min - 560.56^max) MB/s -32%
Minisforum Mars Series MC560 ESO512GYLCT	424 (413.36^min - 423.78^max) MB/s -49%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	420 (418.45^min - 419.54^max) MB/s -49%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	354 (11.43^min - 353.56^max) MB/s -57%
4k q32 t16 write
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	3388 (3373.11^min - 3387.88^max) MB/s +110%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3331 (2068.43^min - 3331.41^max) MB/s +107%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2396 (2376.28^min - 2396.46^max) MB/s +49%
Minisforum Venus Series UM560 XT ESO512GYLCT	1611 (1590.22^min - 1610.86^max) MB/s
Average of class Mini PC (32.6 - 4288, n=117, last 2 years)

Recenzja komputera stacjonarnego Minisforum Venus Series UM560 XT: Mini PC z SoC AMD Cezanne w przystępnej cenie!

Zmarnowany występ!

Potencjalni konkurenci w porównaniu

Minisforum Venus Series UM560 XT w szczegółach

Przypadek

Porównanie wielkości

Cechy

Komunikacja

Wydajność - AMD oparte na generacji Cezanne

Warunki testowe

Procesor

Minisforum Venus Series UM560 XT w teście wielopętlowym Cinebench R15

Wydajność systemu

Opóźnienia DPC

Pamięć masowa
