Recenzja Geekom Mini IT12: Konkurent Intel NUC z procesorem Intel Core i7-1260P pracuje bardzo cicho!

NUC, ale cicho! Geekom Mini IT12 to ciekawa alternatywa dla znanych modeli Intel NUC. Tajwański producent zdecydował się na mobilny SoC Intel Alder Lake. W tej recenzji przyjrzeliśmy się bliżej temu, co może dostarczyć ten mini PC i czy jest w stanie dorównać liderowi klasy, czyli Intelowi. Dzięki portowi Thunderbolt mogliśmy również przyjrzeć się jego wydajności w grach przy użyciu zewnętrznego GPU.
Mini PC Intel Alder Lake Desktop Thunderbolt

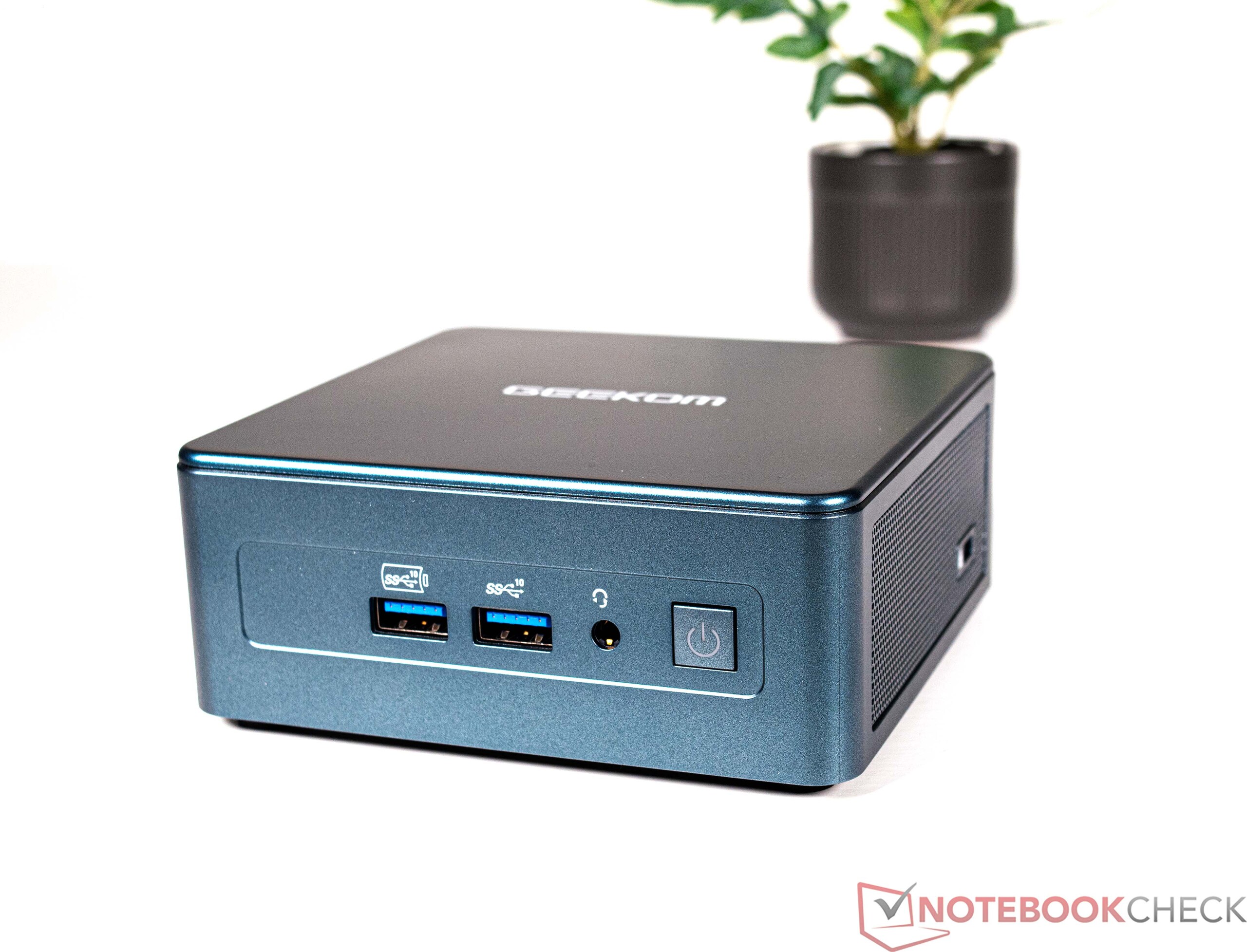

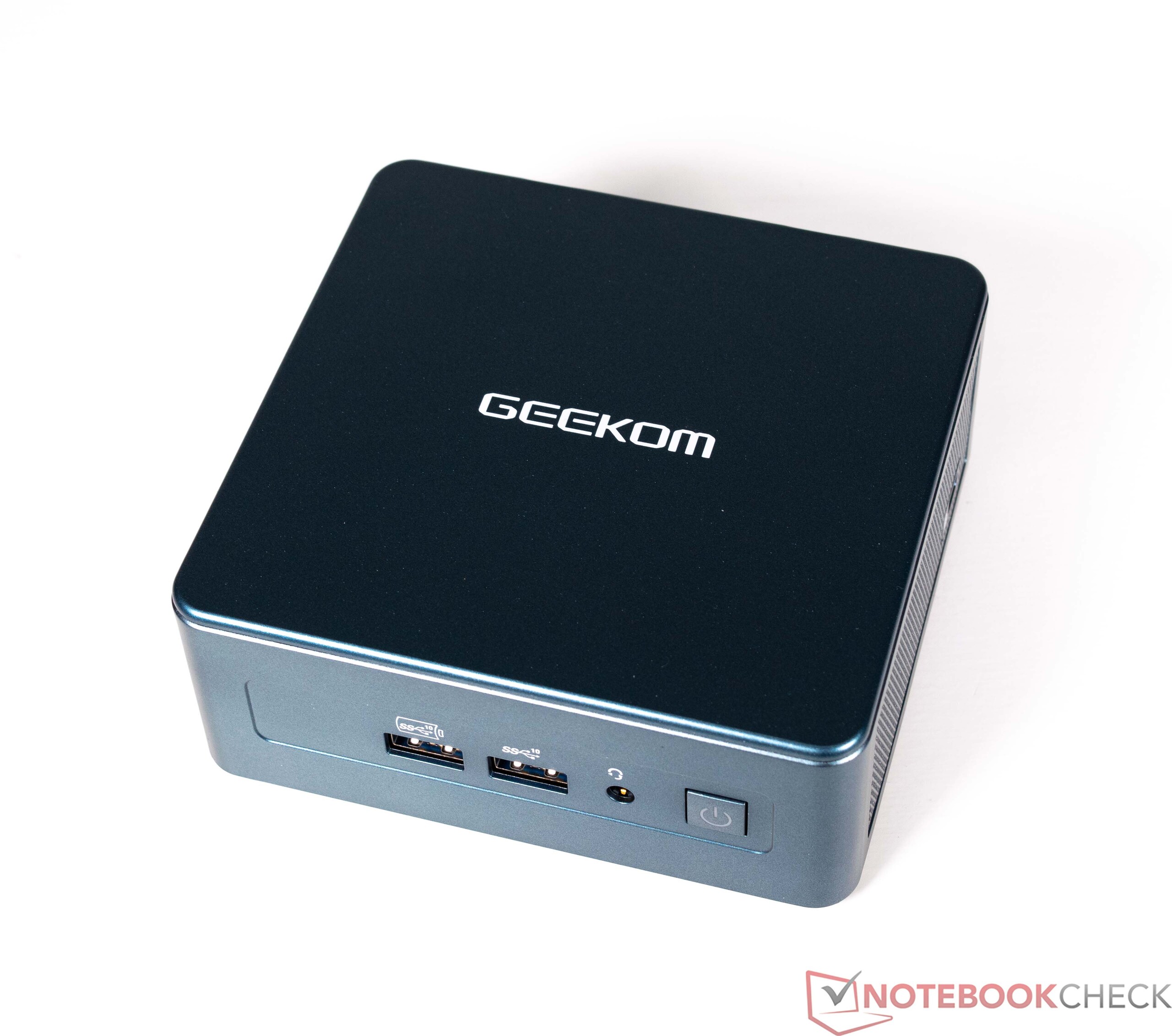

Geekom Mini IT12, i7-1260P
Geekom Mini IT12, i7-1260P

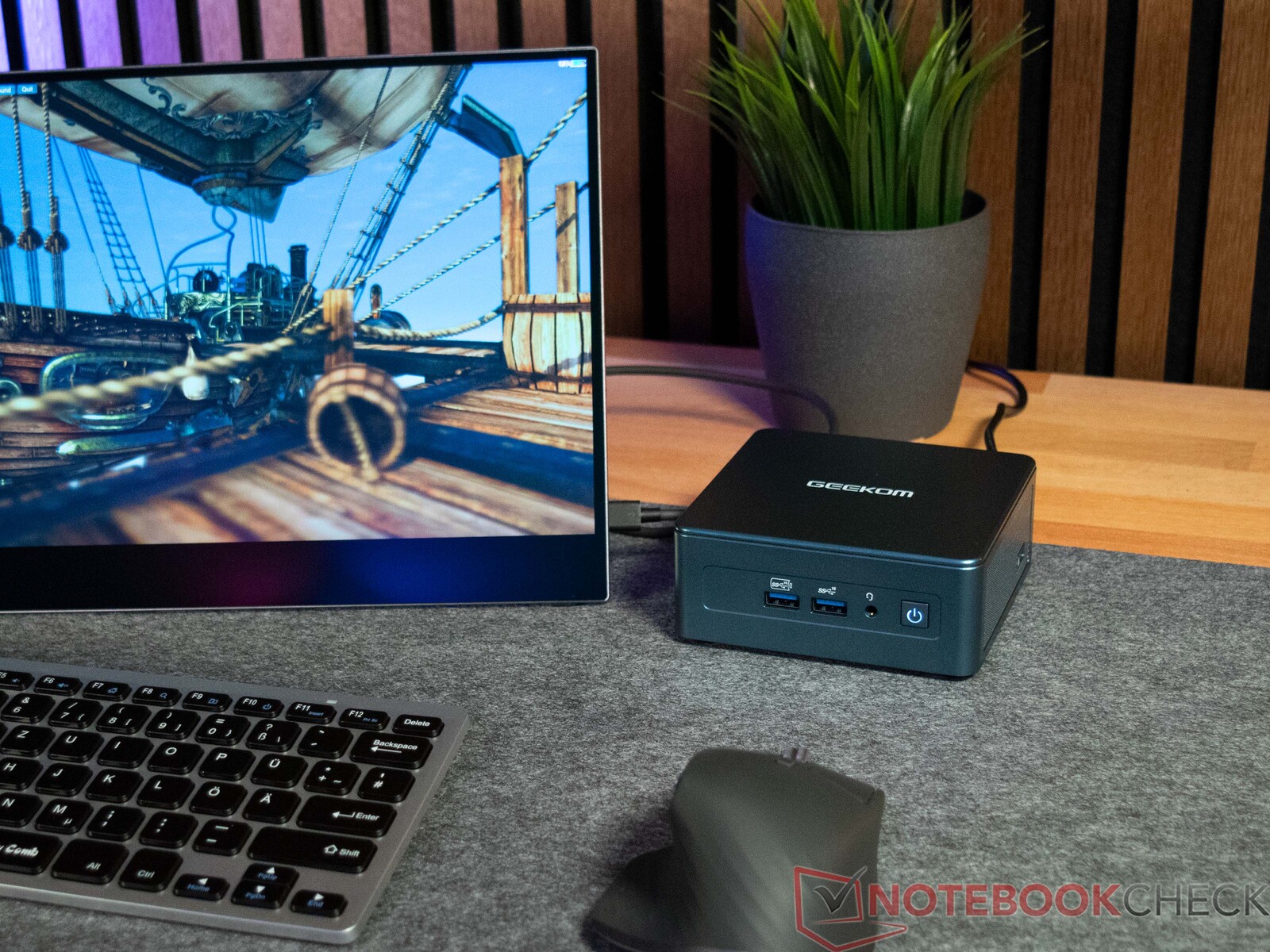

Geekom Mini IT12 to kompaktowy, a zarazem niezwykle wydajny mini PC. Nasze urządzenie testowe wyposażone jest w.Intel Core i7-1260P, 16 GB pamięci RAM, dysk SSD o pojemności 512 GB oraz system Windows 11 Professional. Obecnie cena wywoławcza urządzenia przez producenta wynosi 639 dolarów, jest to już taniej niż jego MRSP wynosząca 979 dolarów. Tańsza wersja Mini IT12 zaczyna się od około 591 dolarów. Wtedy wystarczy zadowolić się m.in.Intel Core i5-1240P- który w żadnym wypadku nie jest złym SoC. W porównaniu z naszym urządzeniem testowym nie ma różnic w dyskach SSD.

Wyraźnym konkurentem dla Geekom Mini IT12 jest seria Intel NUC - zwłaszcza modele Wall Street Canyon i Arena Canyon. Oba modele również posiadają wydajne SoC i z wyglądu są również dość podobne. Podobnymi mocnymi konkurentami okazują się także niektóre urządzenia Morefine i Minisforum. Listę urządzeń porównawczych do niniejszej recenzji znajdziecie w poniższej tabeli.

Geekom Mini IT12
Procesor
Intel Core i7-1260P 12 x 1.5 - 4.7 GHz, 64 W PL2 / Short Burst, 28 W PL1 / Sustained, Alder Lake-P
Karta grafiki
Intel Iris Xe Graphics G7 96EUs, rdzeń: 1400 MHz, pamięć: 2666 MHz, 31.0.101.3559
Pamięć
16 GB
, DDR4-3200, 2 of 2 installed, max. 64 GB
Chipset
Intel Alder Lake-P PCH

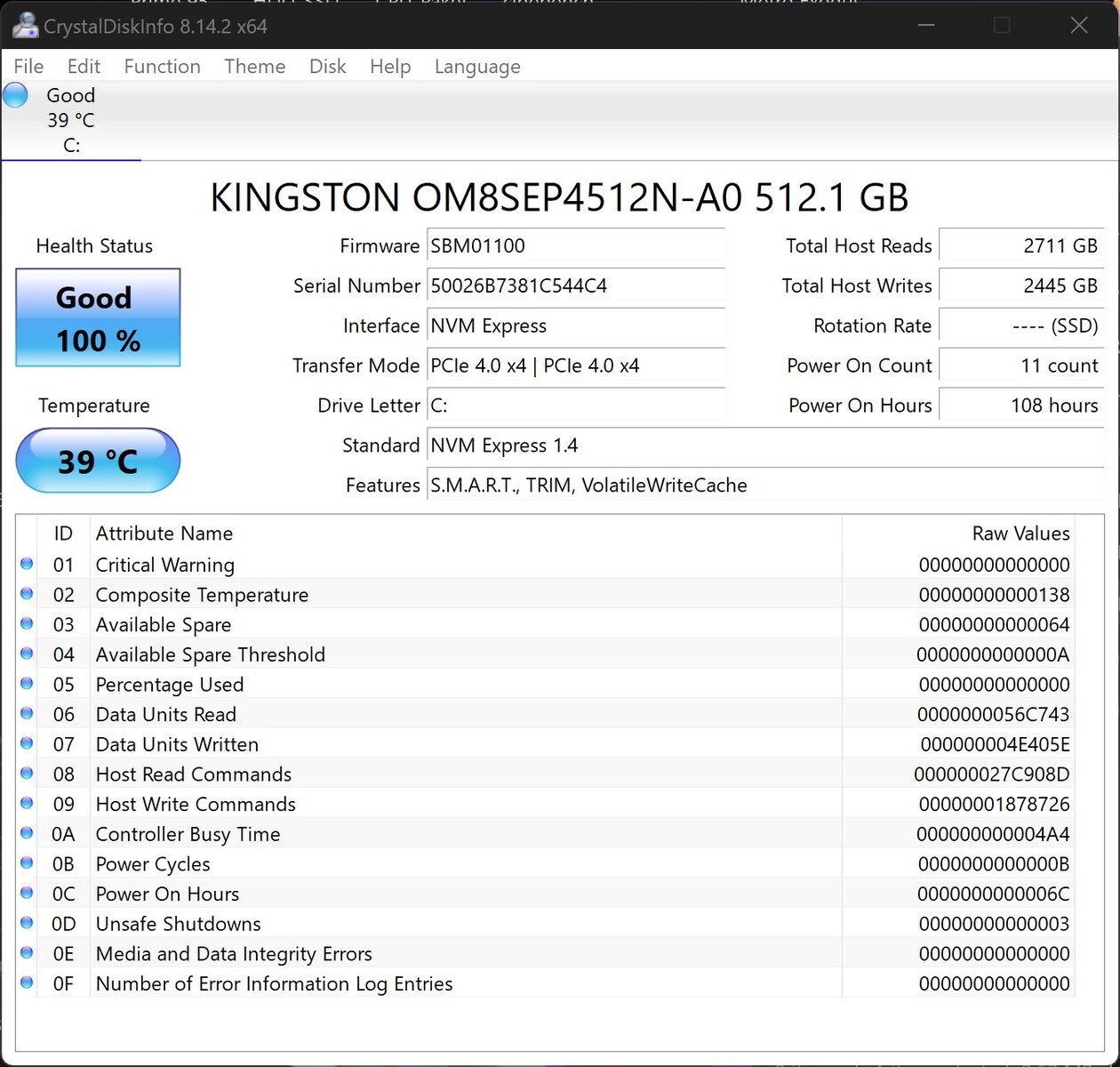

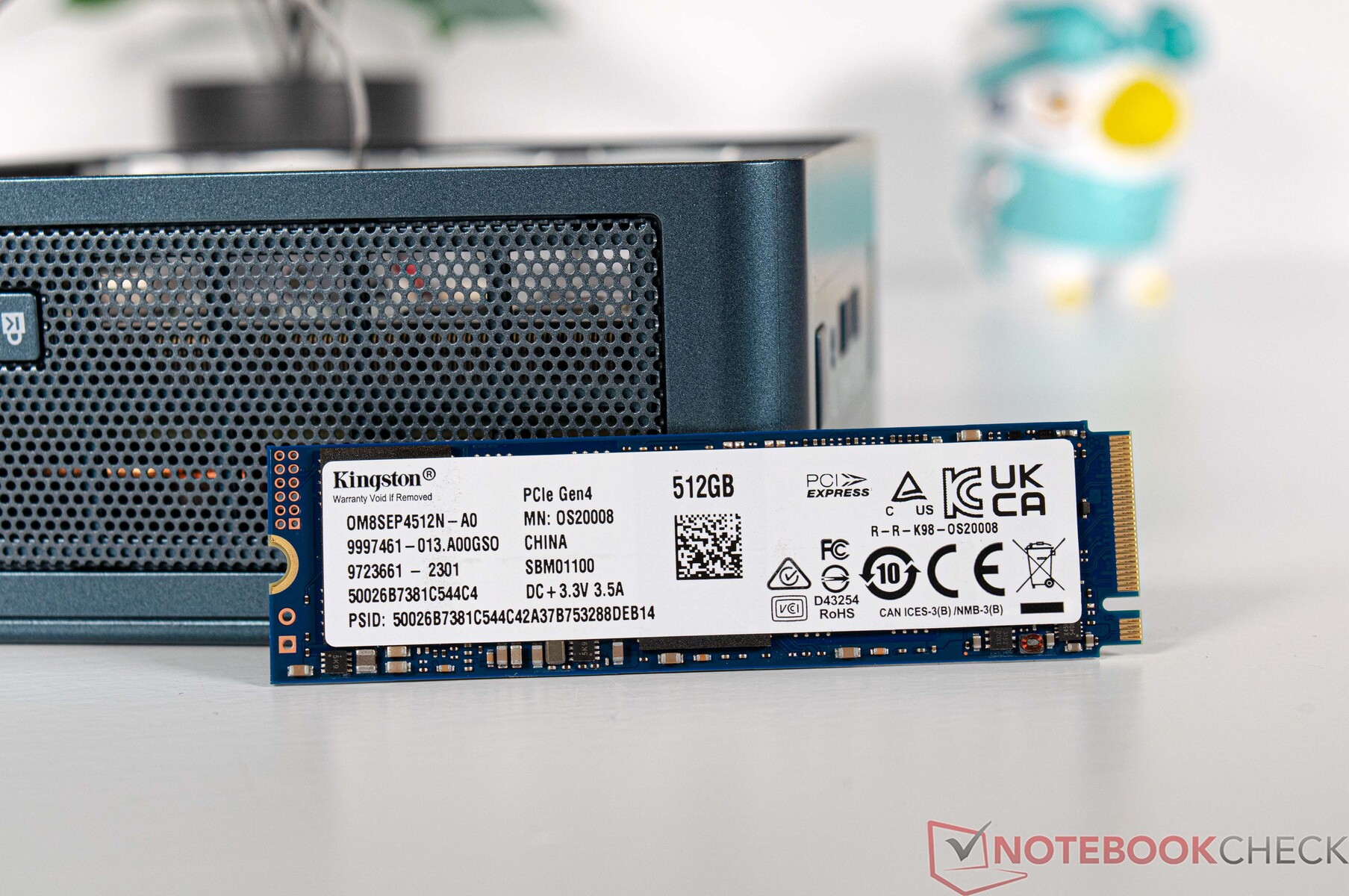

Dysk twardy
Kingston OM8SEP4512N-A0, 512 GB
, M.2-2280, NVMe, 450 GB wolne miejsce
Karta dźwiękowa
Intel Alder Lake-P PCH - cAVS (Audio, Voice, Speech)
Złącza
1 USB 2.0, 3 USB 3.1 Gen2, 2 USB 4.0 40 Gbps, 2 Thunderbolt, 2 HDMI, 2 DisplayPort, 1 blokada Kensingtona, czytnik kart: Full size card reader
Łączność
Intel Ethernet Controller I225-V (10/100/1000/2500MBit/s), Intel Wi-Fi 6E AX211 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.2
Gabaryty
wysokość x szerokość x głębokość (mm): 45.6 x 117 x 112
System operacyjny
Microsoft Windows 11 Pro
Inne
90-watt power adapter, VESA mount, HDMI cable, 24 miesiące(y) gwarancji
Waga
572 g, zasilacz: 380 g
Cena
639 EUR
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Potencjalni konkurenci w porównaniu

Rating
Date
Model
Weight
Height
Best Price
82.3 %
05/2023
Geekom Mini IT12
i7-1260P, Iris Xe G7 96EUs
572 g45.6 mm
80.8 %
04/2023
Intel NUC 13 Pro Kit NUC13ANK
i7-1360P, Iris Xe G7 96EUs
538 g37 mm
78.9 %
11/2022
Intel NUC 12 Pro Kit NUC12WSKi7
i7-1260P, Iris Xe G7 96EUs
511 g37 mm
85.5 %
03/2023
Morefine M600, 6900HX
R9 6900HX, Radeon 680M
779 g40.6 mm
85.1 %
01/2023
Minisforum Neptune Series NAD9
i9-12900H, Iris Xe G7 96EUs
1.2 kg66 mm
79.5 %
02/2023
Minisforum Mars Series MC560
R5 5600U, Vega 7
562 g66 mm
10/2022
Minipc Union Ace Magician AMR5
R5 5600U, Vega 7
628 g72 mm

Geekom Mini IT12, i7-1260P w szczegółach

Geekom Mini IT12, i7-1260P
Geekom Mini IT12, i7-1260P
Geekom Mini IT12, i7-1260P

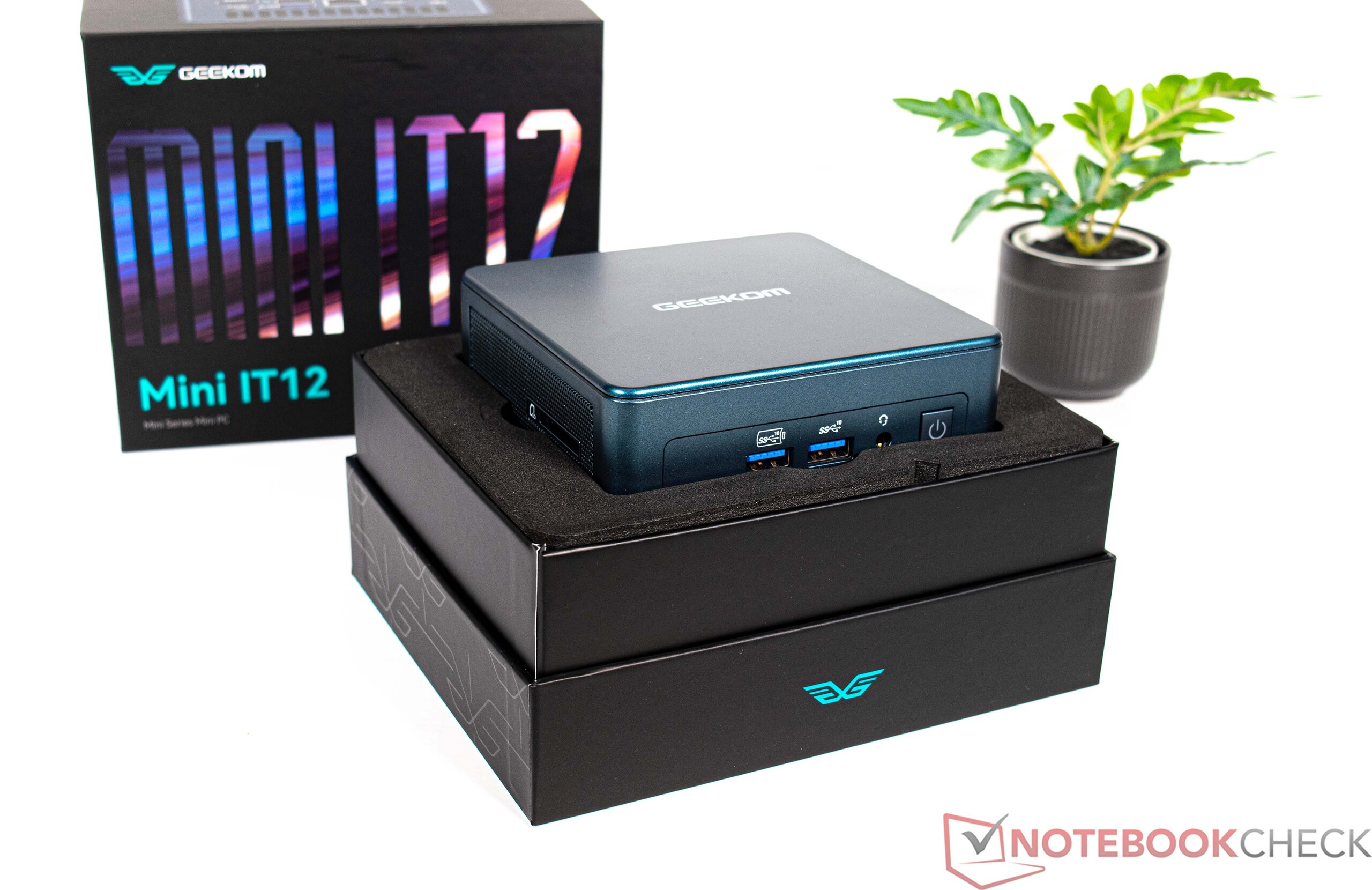

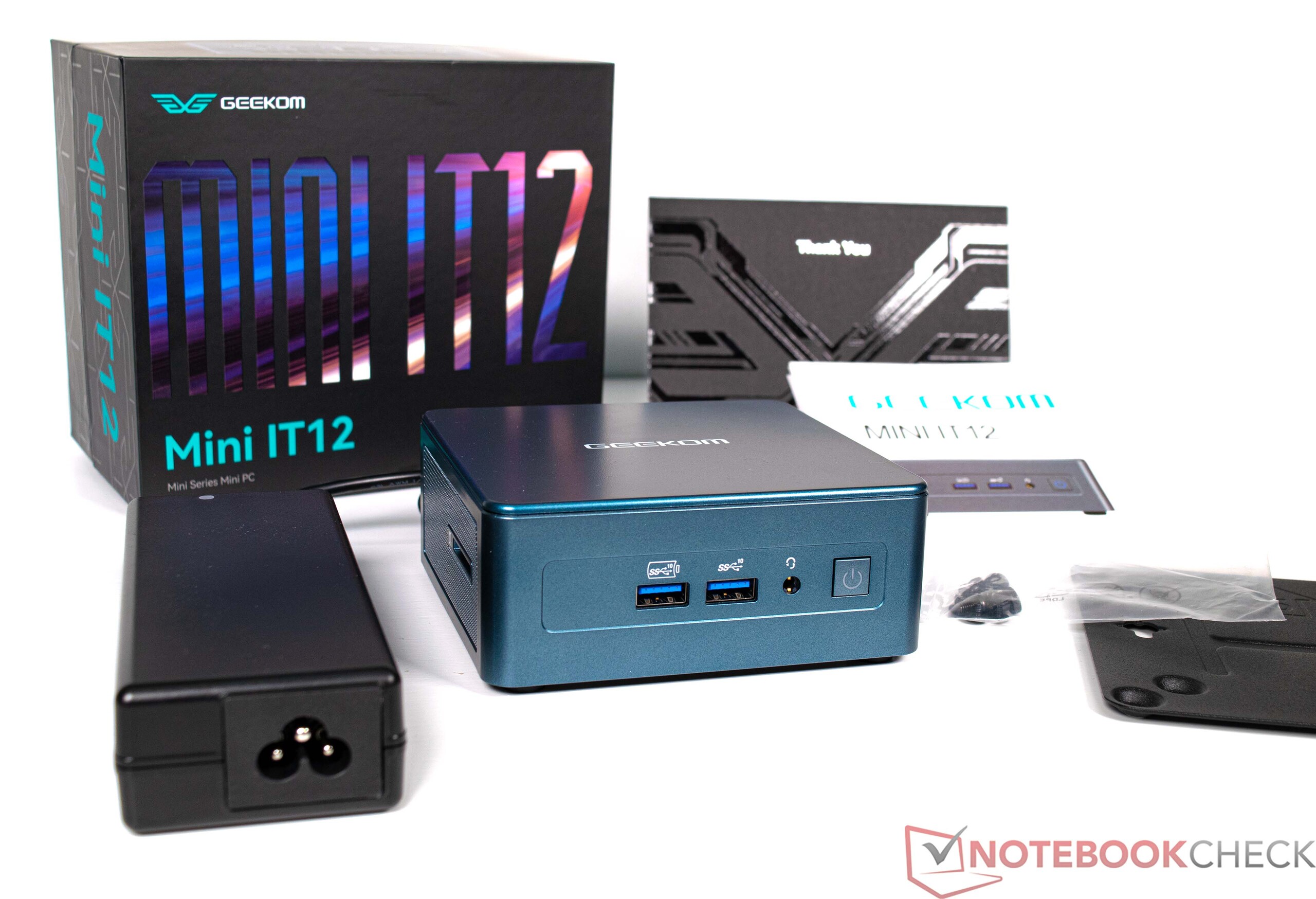

Geekom Mini IT12, i7-1260P (zakres dostawy)
Geekom Mini IT12, i7-1260P
Geekom Mini IT12, i7-1260P

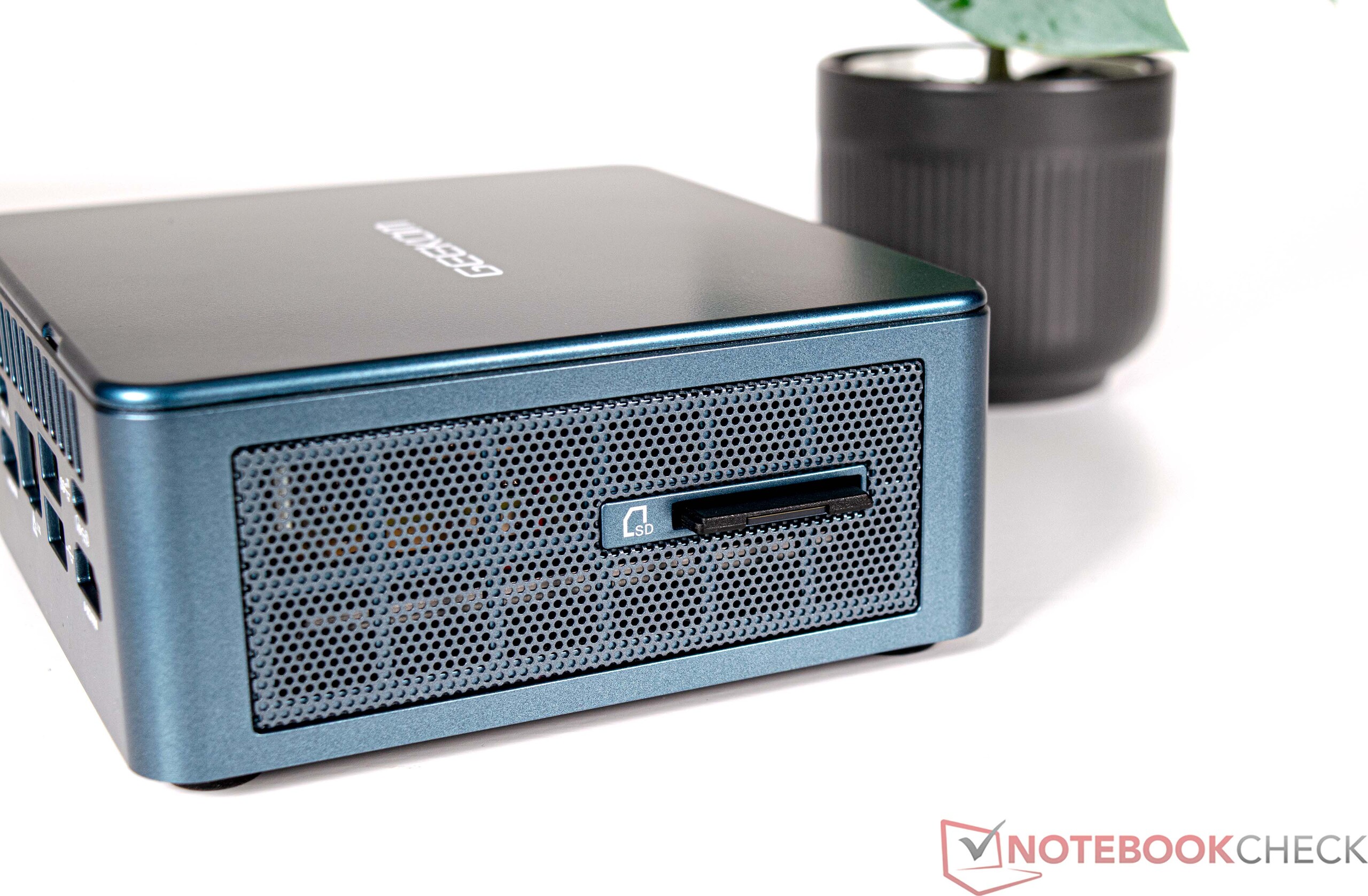

Geekom Mini IT12, i7-1260P (z włożoną kartą SC)
Geekom Mini IT12, i7-1260P (testowa karta SD)
Geekom Mini IT12, i7-1260P

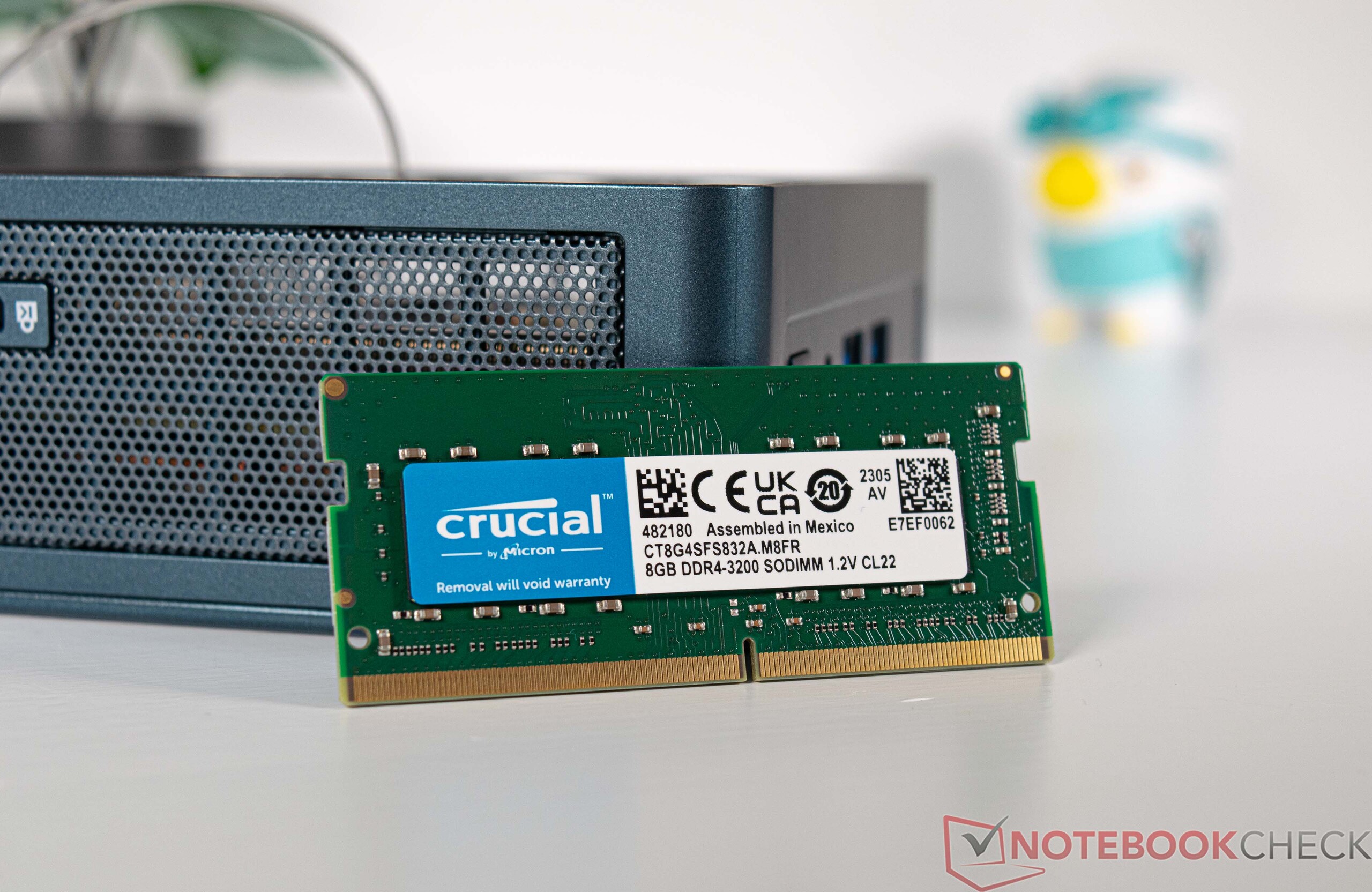

Geekom Mini IT12, i7-1260P - moduł pamięci RAM
Geekom Mini IT12, i7-1260P
Geekom Mini IT12, i7-1260P
Geekom Mini IT12, i7-1260P

Sprawa

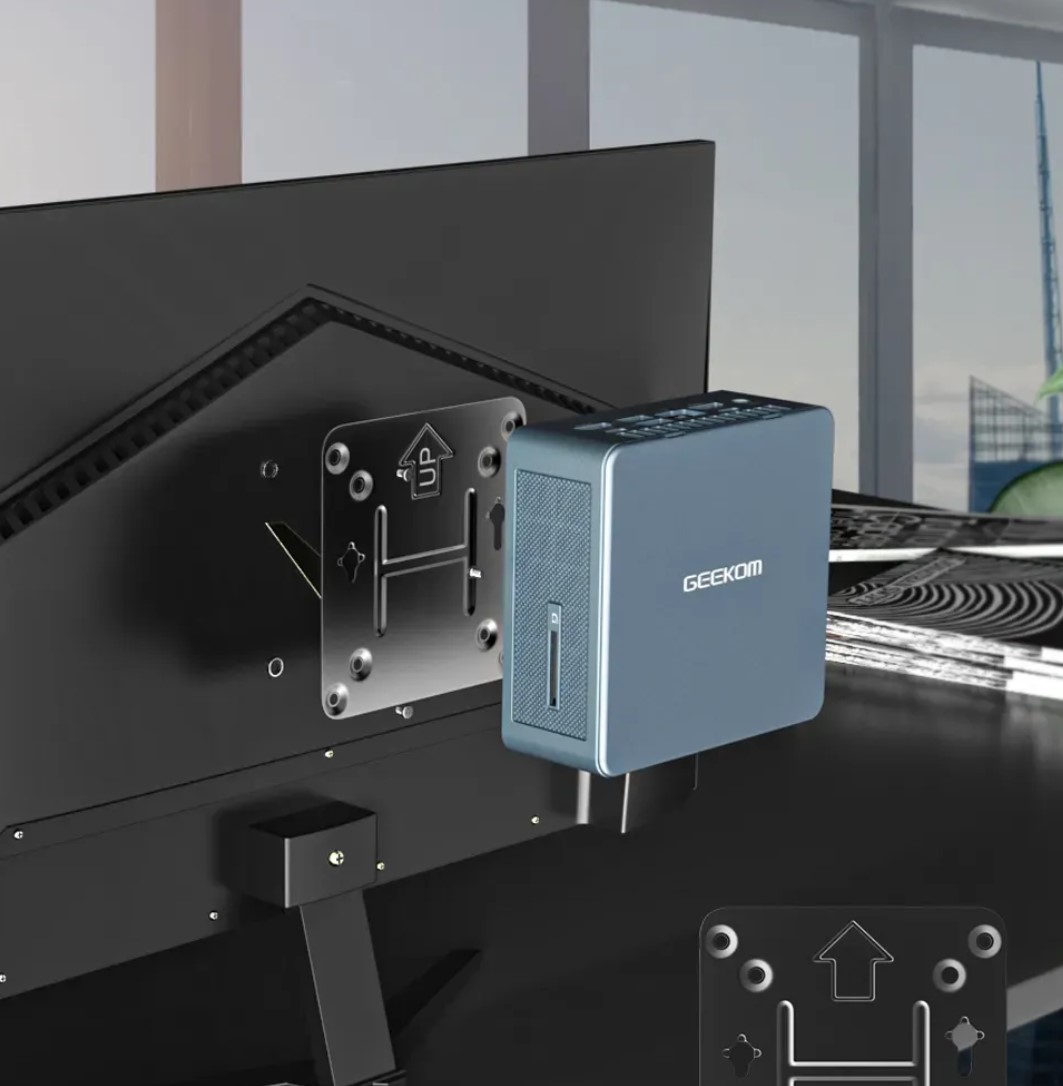

Geekom Mini IT12 - mocowanie VESA (źródło: Geekom)
Geekom Mini IT12 - mocowanie VESA (źródło: Geekom)

Wizualnie Geekom Mini IT12 wygląda bardzo podobnie do modeli Intel NUC. Przy wymiarach stopy 11,7 x 11,2 centymetra mają one nawet identyczne rozmiary. Geekom Mini IT12 różni się jednak wysokością, gdyż posiada miejsce na dodatkowy 2,5-calowy dysk. Wall Street Canyon i Arena Canyon również mają do wyboru wysokie modele, które są skonstruowane w nieco większej wysokości. Przy wysokości 4,5 centymetra Geekom Mini IT12 jest jeszcze stosunkowo płaskim urządzeniem. Największą różnicą w porównaniu z konkurentami Intela jest jego kolor: Geekom Mini IT12 ma turkusową obudowę, a Intel jest mocno przywiązany do swojego czarnego designu. Powierzchnie Mini IT12 mają wysoką jakość. Szczególnie podoba nam się pokrywa obudowy, która wygląda na znacznie wyższej jakości niż jej odpowiedniki od Intela. Niestety, większość obudowy jest wykonana z plastiku - ale wizualnie nie ma to żadnych wad. Metalowa obudowa nadałaby jeszcze urządzeniu nieco ładniejszy charakter - co widać w urządzeniach Morefine M600. Trzeba przyznać, że żadna z tych dolegliwości nie jest dużym problemem - urządzeniu nie brakuje stabilności, która uzasadniałaby zastosowanie aluminiowej obudowy. Stabilność zapewniają metalowe wzmocnienia, które znajdują się pod plastikową warstwą zewnętrzną - znów to samo, co w przypadku urządzeń Intel NUC.

Na marginesie: podobnie jak w przypadku wielu innych mini PC, Geekom Mini IT12 może być podłączony do monitora za pomocą dołączonego uchwytu VESA.

Porównanie wielkości

208 mm 180 mm 66 mm 1.2 kg155 mm 130 mm 72 mm 628 g147.3 mm 144.7 mm 40.6 mm 779 g104 mm 153 mm 66 mm 562 g117 mm 112 mm 45.6 mm 572 g117 mm 112 mm 37 mm 538 g117 mm 112 mm 37 mm 511 g297 mm 210 mm 1 mm 5.7 g

Łączność

W kwestii opcji łączności wiele przemawia za Geekom Mini IT12. Posiada on cztery porty USB Type-A - które niestety oferują jedynie prędkość USB 2.0. Ponadto posiada dwa nowoczesne złącza USB-4 z obsługą Thunderbolt. Pozwala to na podłączenie wielu urządzeń zewnętrznych, co z kolei może masowo poszerzyć zakres zastosowań tego kompaktowego urządzenia. W sumie przez HDMI i Thunderbolt można podłączyć cztery ekrany. Mini PC posiada również złącze sieciowe o pojemności 2,5 GB, a także czytnik kart SD, który spisuje się naprawdę dobrze.

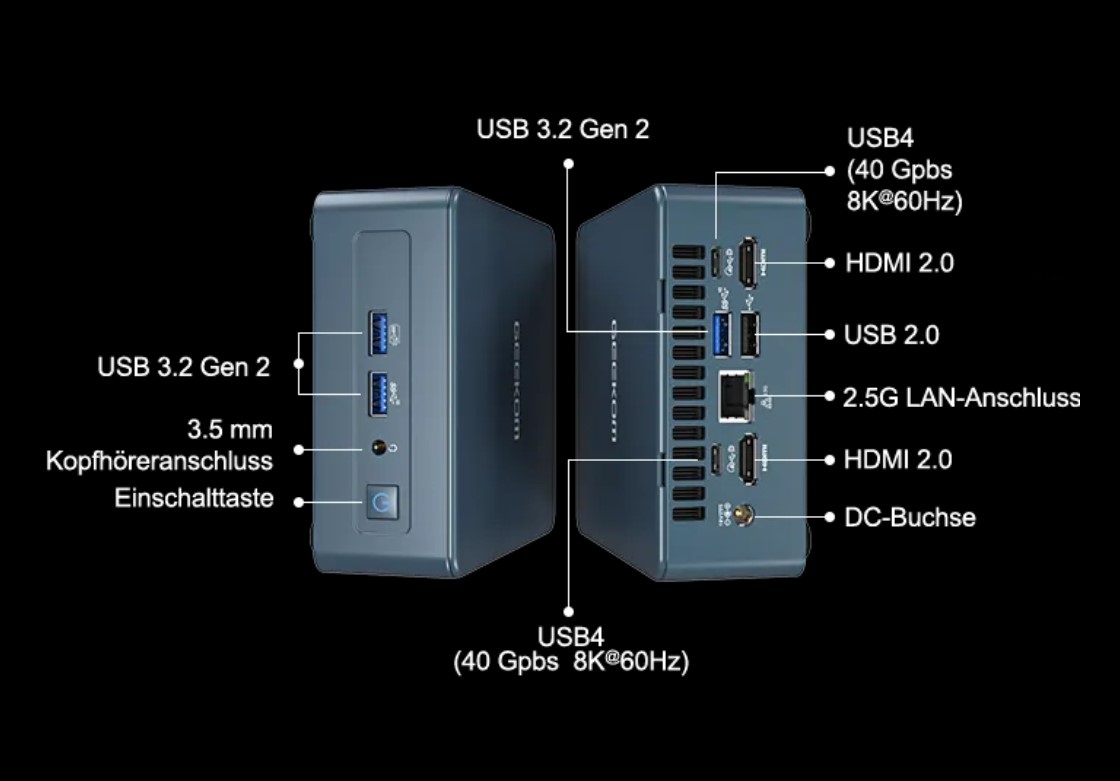

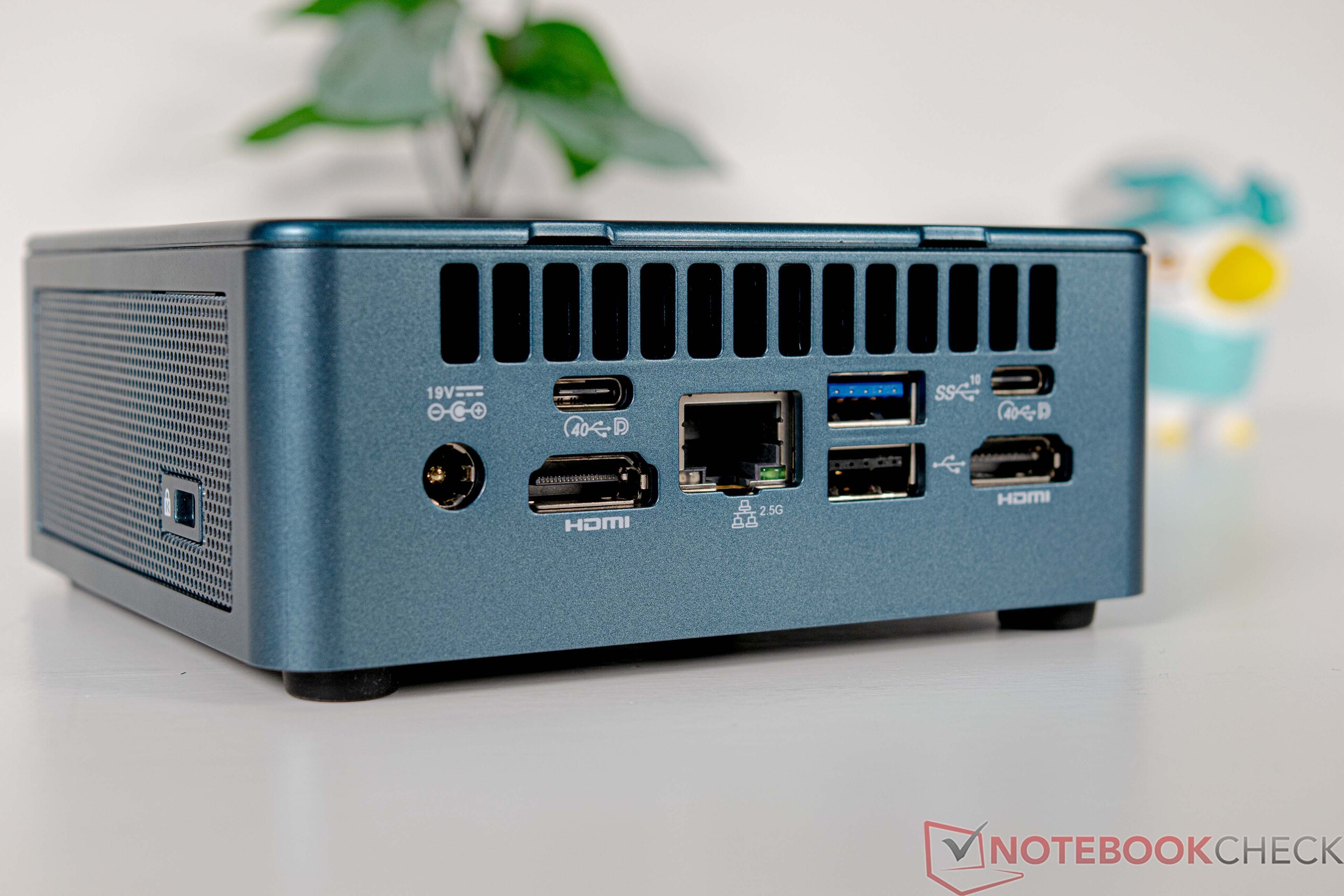

Porty zewnętrzne Geekom Mini IT12, i7-1260P (źródło: Geekom)
Porty zewnętrzne Geekom Mini IT12, i7-1260P (źródło: Geekom)

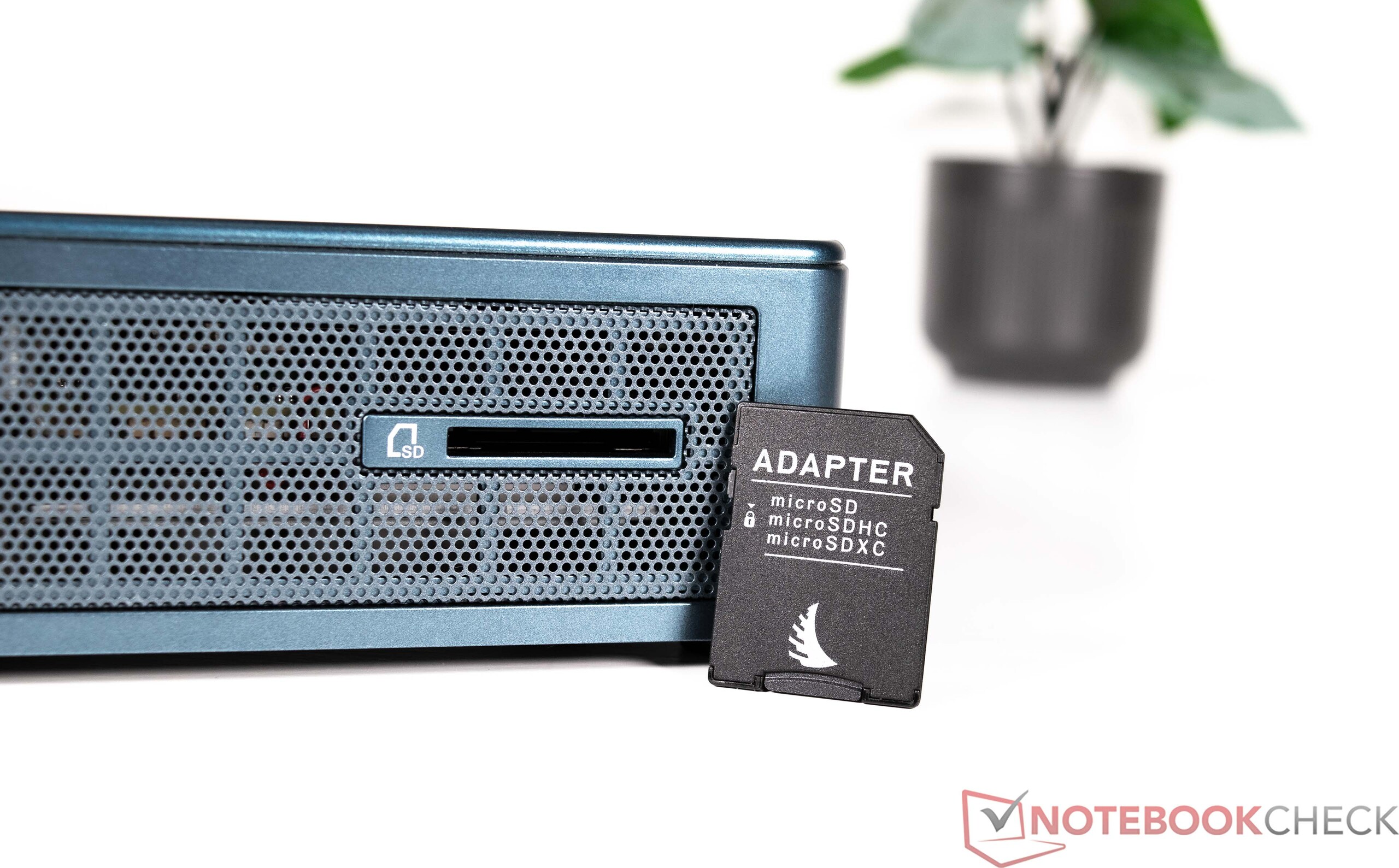

Czytnik kart SD

SD Card Reader
average JPG Copy Test (av. of 3 runs)
Intel Beast Canyon NUC
Intel Core i9-11900KB (AV Pro SD microSD 128 GB V60)
140.3 MB/s +9%
Intel Dragon Canyon NUC

140.3 MB/s +9%
Geekom Mini IT12
Intel Core i7-1260P (AV Pro SD microSD 128 GB V60)
129.2 MB/s
Average of class Mini PC
  (16.9 - 181.8, n=11, last 2 years)
90.6 MB/s -30%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H (AV Pro SD microSD 128 GB V60)
65 MB/s -50%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095 (AV Pro SD microSD 128 GB V60)
16.9 MB/s -87%
maximum AS SSD Seq Read Test (1GB)
Intel Beast Canyon NUC
Intel Core i9-11900KB (AV Pro SD microSD 128 GB V60)
198.7 MB/s +12%
Intel Dragon Canyon NUC

198.7 MB/s +12%
Geekom Mini IT12
Intel Core i7-1260P (AV Pro SD microSD 128 GB V60)
176.8 MB/s
Average of class Mini PC
  (26 - 200, n=11, last 2 years)
106.2 MB/s -40%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H (AV Pro SD microSD 128 GB V60)
69.9 MB/s -60%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095 (AV Pro SD microSD 128 GB V60)
28.8 MB/s -84%

Komunikacja

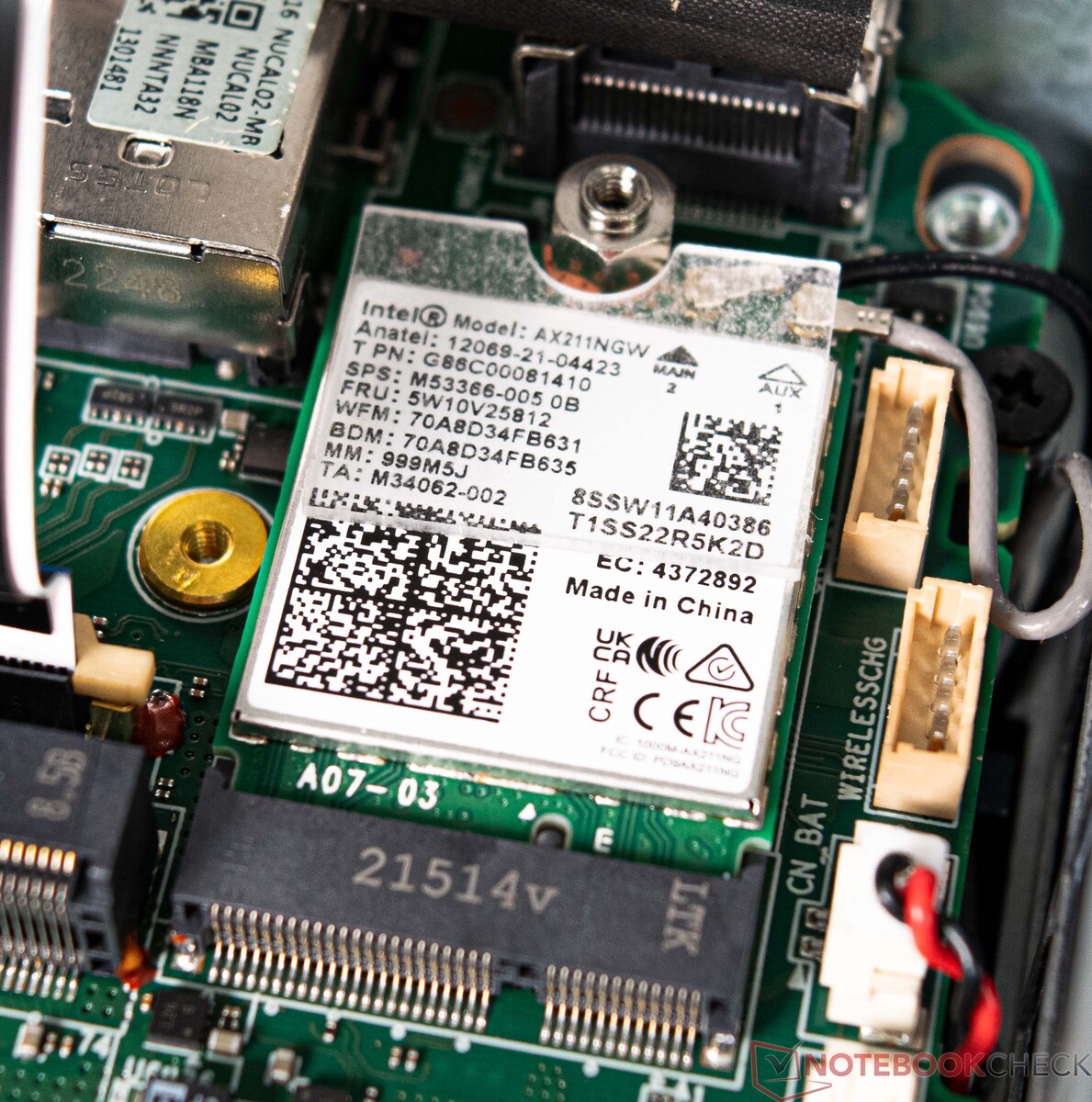

Moduł Wi-Fi
Moduł Wi-Fi

Geekom nie idzie na kompromisy i wyposażył Mini IT12 w nowoczesny moduł Wi-Fi-6E-AX211. Ten sam model można zobaczyć w m.in Intel NUC 12 Pro Kitjak również Intel NUC 13 Pro Kit. Zmierzona wydajność podczas wysyłania i odbierania danych była dobra do bardzo dobrej zarówno w paśmie 5 GHz jak i 6 GHz. Jako router testowy do tego testu został użyty Asus ROG Rapture GT-AXE11000.

Networking
iperf3 receive AXE11000 6GHz
Intel NUC 13 Pro Kit NUC13ANK
Intel Wi-Fi 6E AX211
1668 (1467min - 1725max) MBit/s +10%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Wi-Fi 6E AX211
1530 (1509min - 1551max) MBit/s +1%
Geekom Mini IT12
Intel Wi-Fi 6E AX211
1519 (1392min - 1699max) MBit/s
Average Intel Wi-Fi 6E AX211
  (883 - 1857, n=149)
1493 MBit/s -2%
Average of class Mini PC
  (390 - 1771, n=31, last 2 years)
1161 MBit/s -24%
Minisforum Mars Series MC560
MediaTek RZ608
961 (949min - 968max) MBit/s -37%
Minipc Union Ace Magician AMR5
MediaTek RZ608
903 (450min - 913max) MBit/s -41%
iperf3 transmit AXE11000 6GHz
Geekom Mini IT12
Intel Wi-Fi 6E AX211
1622 (1561min - 1670max) MBit/s
Intel NUC 13 Pro Kit NUC13ANK
Intel Wi-Fi 6E AX211
1445 (736min - 1476max) MBit/s -11%
Average Intel Wi-Fi 6E AX211
  (713 - 1851, n=150)
1393 MBit/s -14%
Average of class Mini PC
  (722 - 1764, n=32, last 2 years)
1123 MBit/s -31%
Minipc Union Ace Magician AMR5
MediaTek RZ608
967 (486min - 993max) MBit/s -40%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Wi-Fi 6E AX211
919 (458min - 982max) MBit/s -43%
Minisforum Mars Series MC560
MediaTek RZ608
849 (799min - 898max) MBit/s -48%
iperf3 receive AXE11000
Average Intel Wi-Fi 6E AX211
  (826 - 1890, n=143)
1383 MBit/s +47%
Minisforum Neptune Series NAD9
Intel Wi-Fi 6E AX210
1318 (663min - 1363max) MBit/s +40%
Minisforum Mars Series MC560
MediaTek RZ608
949 (924min - 954max) MBit/s +1%
Geekom Mini IT12
Intel Wi-Fi 6E AX211
943 (923min - 960max) MBit/s
Intel NUC 13 Pro Kit NUC13ANK
Intel Wi-Fi 6E AX211
939 (921min - 952max) MBit/s 0%
Morefine M600, 6900HX
MediaTek RZ608
929 (874min - 946max) MBit/s -1%
Minipc Union Ace Magician AMR5
MediaTek RZ608
903 MBit/s -4%
Average of class Mini PC
  (192.9 - 1796, n=68, last 2 years)
881 MBit/s -7%
iperf3 transmit AXE11000
Minisforum Neptune Series NAD9
Intel Wi-Fi 6E AX210
1320 (1165min - 1353max) MBit/s +44%
Average Intel Wi-Fi 6E AX211
  (464 - 1861, n=143)
1251 MBit/s +36%
Minipc Union Ace Magician AMR5
MediaTek RZ608
967 MBit/s +5%
Morefine M600, 6900HX
MediaTek RZ608
964 (924min - 990max) MBit/s +5%
Minisforum Mars Series MC560
MediaTek RZ608
936 (873min - 988max) MBit/s +2%
Geekom Mini IT12
Intel Wi-Fi 6E AX211
918 (892min - 938max) MBit/s
Intel NUC 13 Pro Kit NUC13ANK
Intel Wi-Fi 6E AX211
833 (805min - 866max) MBit/s -9%
Average of class Mini PC
  (184.1 - 1776, n=68, last 2 years)
806 MBit/s -12%
05010015020025030035040045050055060065070075080085090095010001050110011501200125013001350140014501500155016001650Tooltip
Geekom Mini IT12; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1622 (1561-1670)
Geekom Mini IT12; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1519 (1392-1699)
Geekom Mini IT12; iperf3 receive AXE11000; iperf 3.1.3: Ø943 (923-960)
Geekom Mini IT12; iperf3 transmit AXE11000; iperf 3.1.3: Ø918 (892-938)

Akcesoria

W zestawie znajduje się również 90-watowy zasilacz, a także płytka do mocowania VESA. Otrzymaliśmy także kabel HDMI i krótką instrukcję obsługi.

Konserwacja

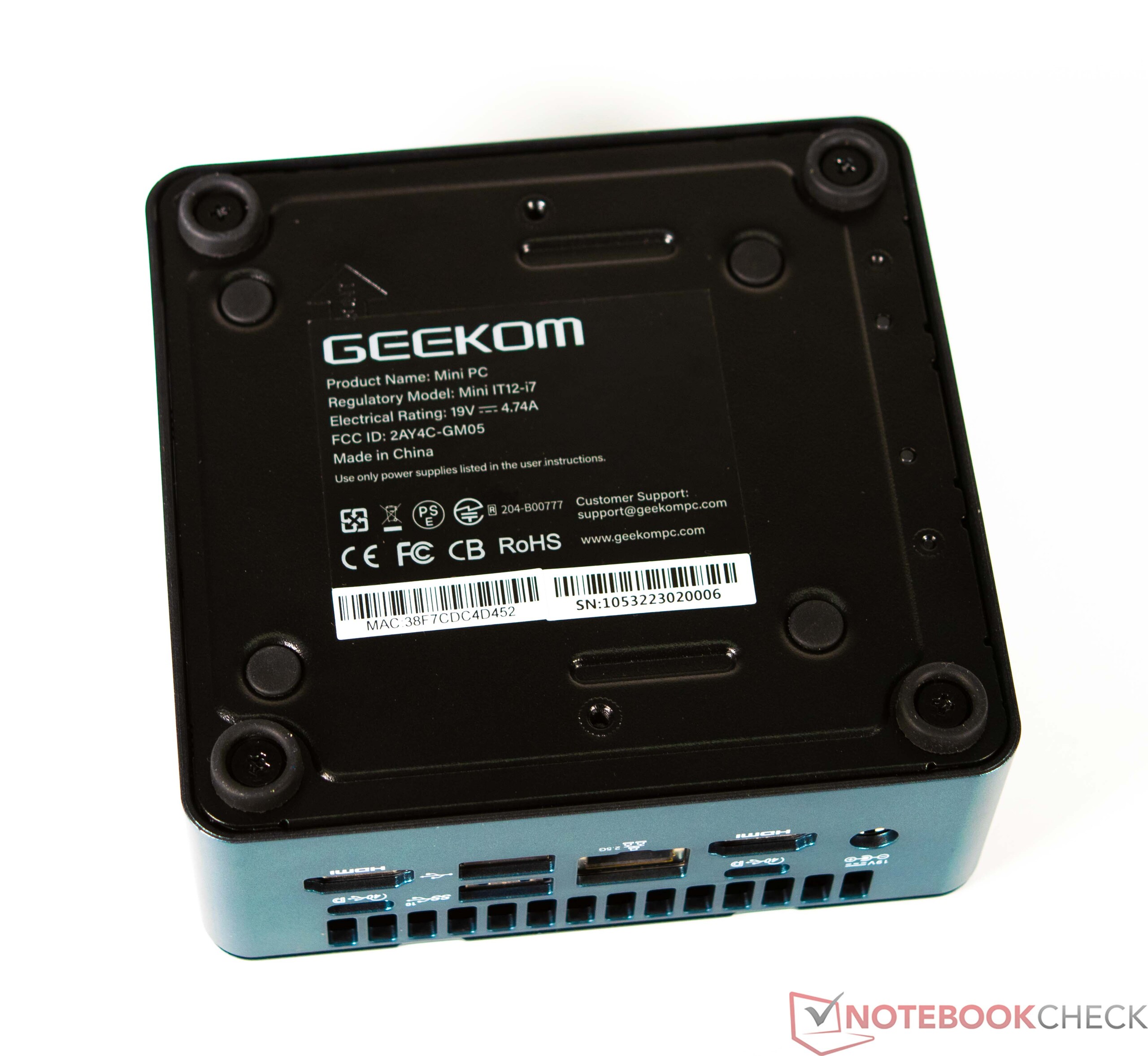

Spód Geekom Mini IT12 można łatwo otworzyć. Płyta trzyma się na czterech śrubkach, które pomagają również w odprowadzaniu ciepła pochodzącego z dysku SSD. Pod spodem można łatwo uzyskać dostęp do gniazd pamięci RAM i SSD. Można też wymienić moduł WLAN i zainstalować dysk 2,5-calowy. Czyszczenie wentylatora nie jest najłatwiejsze - wymagałoby to dalszego rozbierania urządzenia. Górna płyta nie jest przykręcona - wystarczy ostrożne szarpnięcie i można ją bez problemu zdjąć.

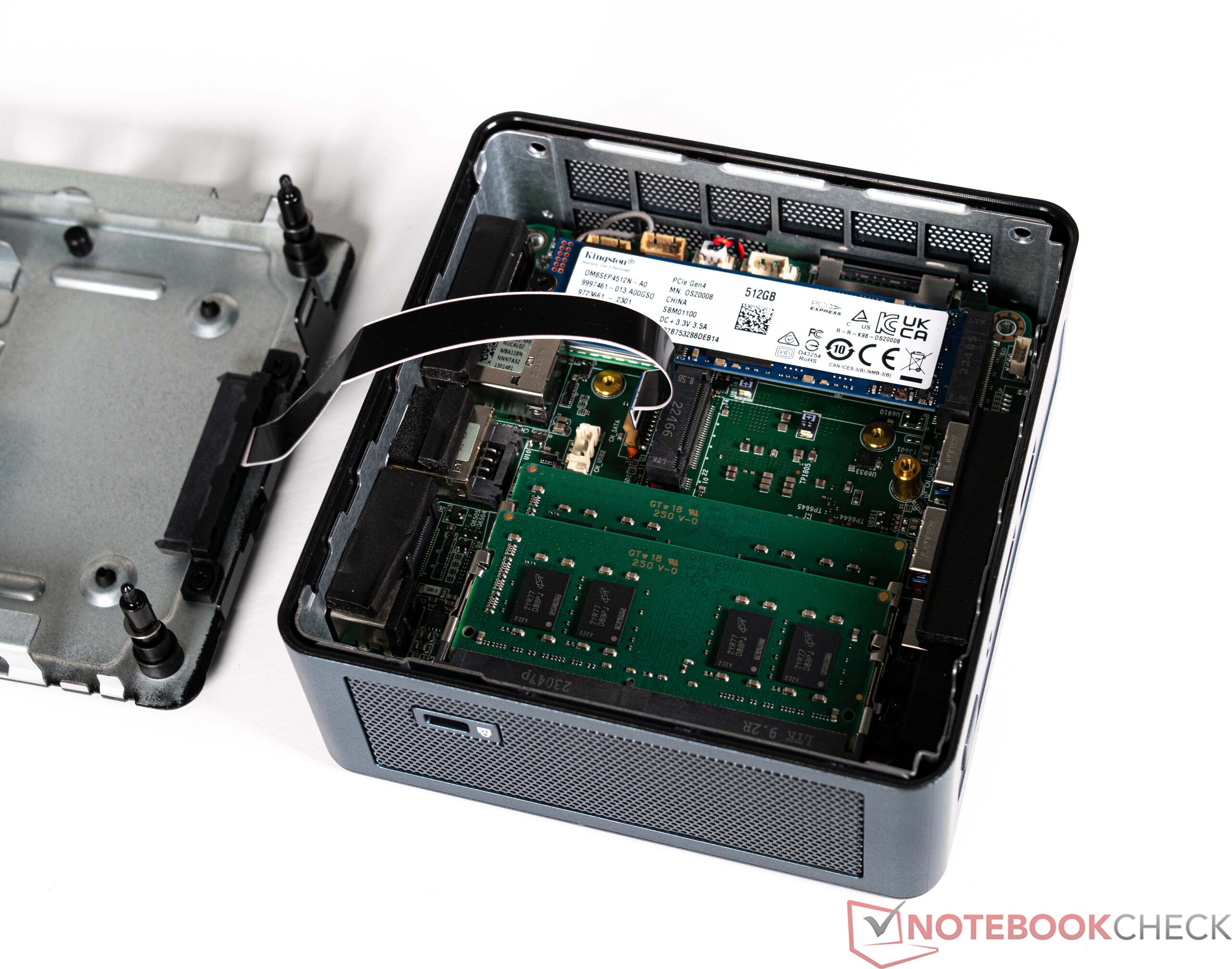

Geekom Mini IT12 z usuniętą płytą dolną
Geekom Mini IT12 z usuniętą płytą dolną

Wydajność - Wydajny Core i7 z rdzeniami P i E

Dzięki zastosowaniuIntel Core i7-1260p, oczekujemy, że Geekom Mini zapewni bezbłędną wydajność w codziennym użytkowaniu. Dzięki połączeniu rdzeni P i E, SoC powinien być w stanie opanować nawet bardziej złożone zadania, a tym samym sprostaćIntel NUC 12 Pro Kit'z łatwością - urządzeniu, które posiada ten sam SoC.

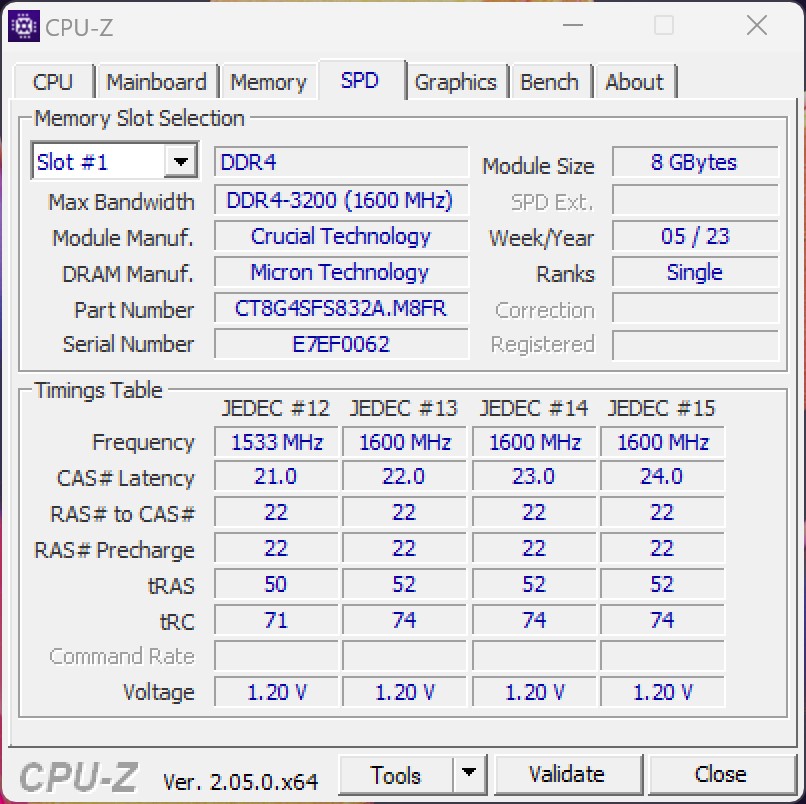

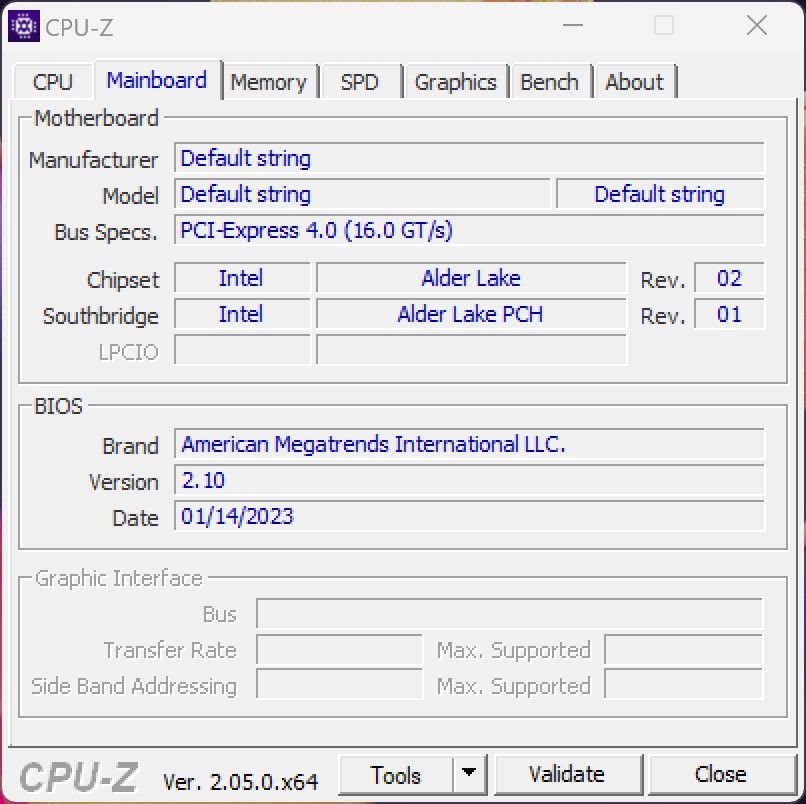

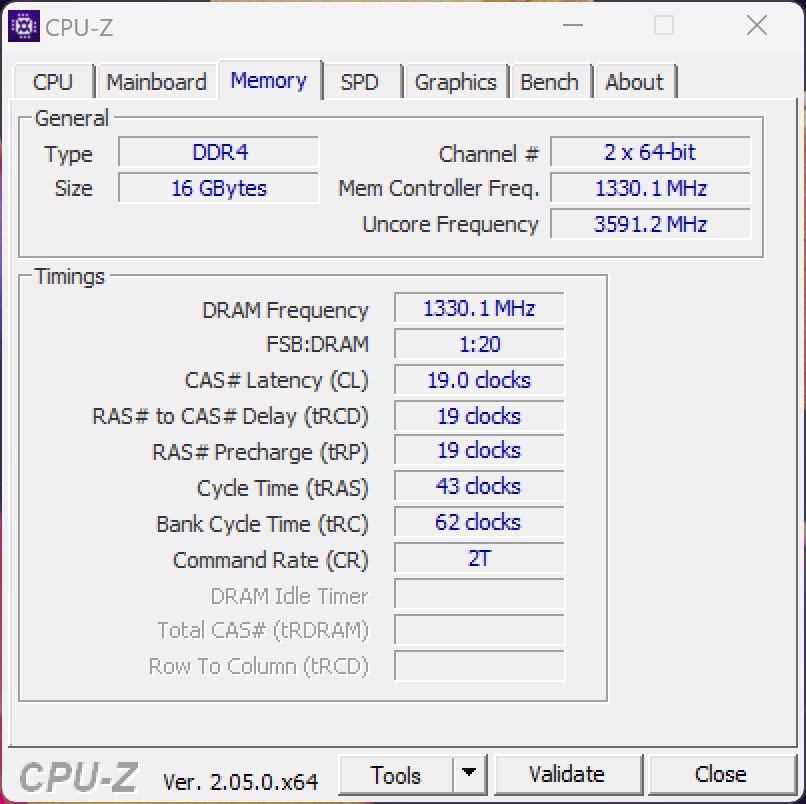

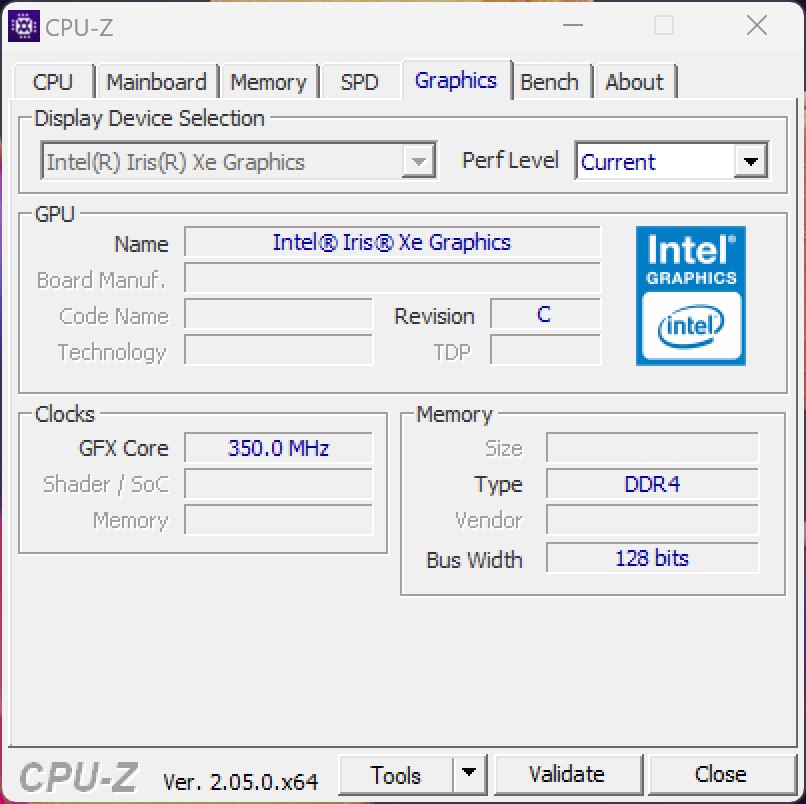

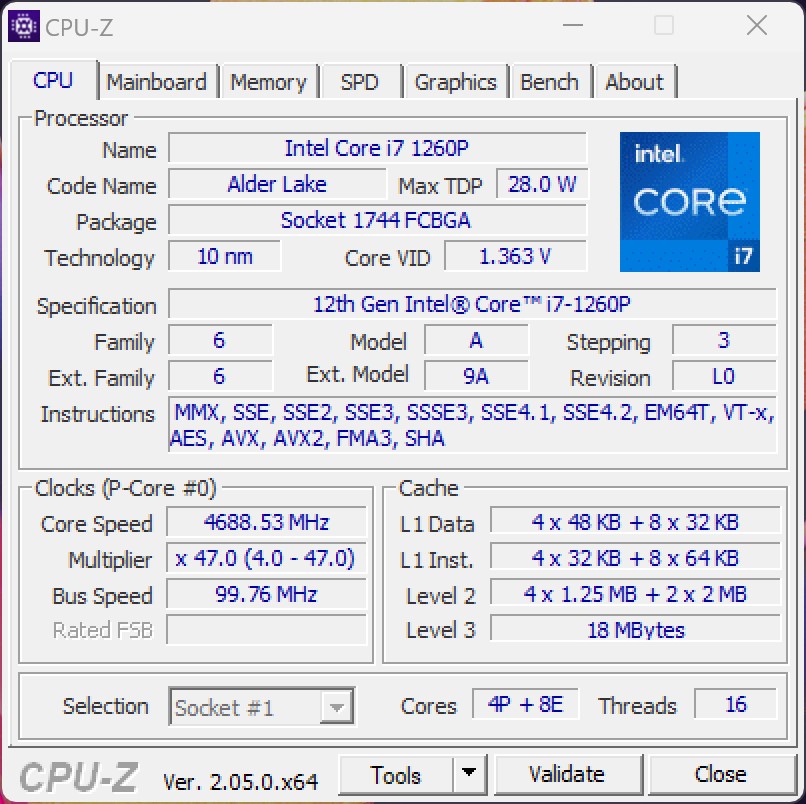

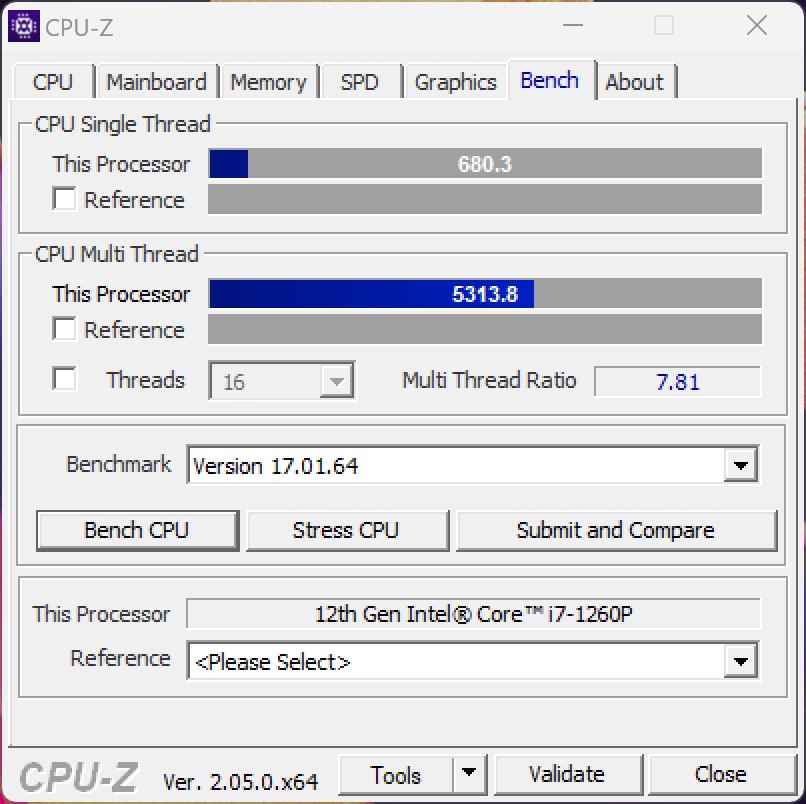

CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z

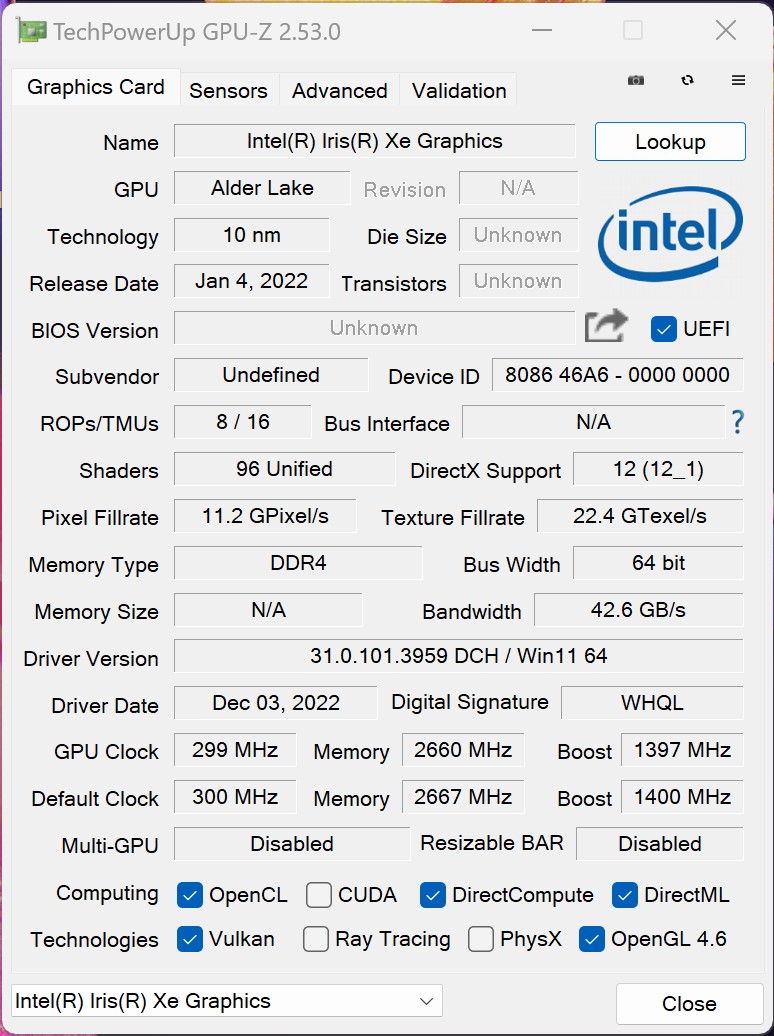

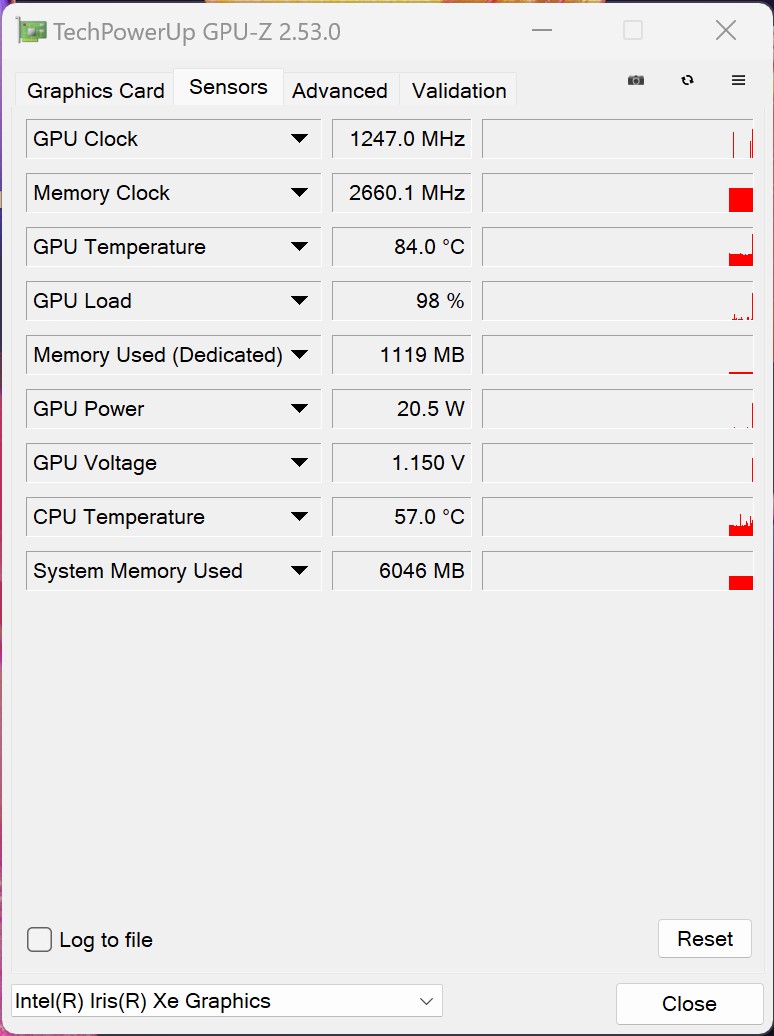

GPU-Z
GPU-Z

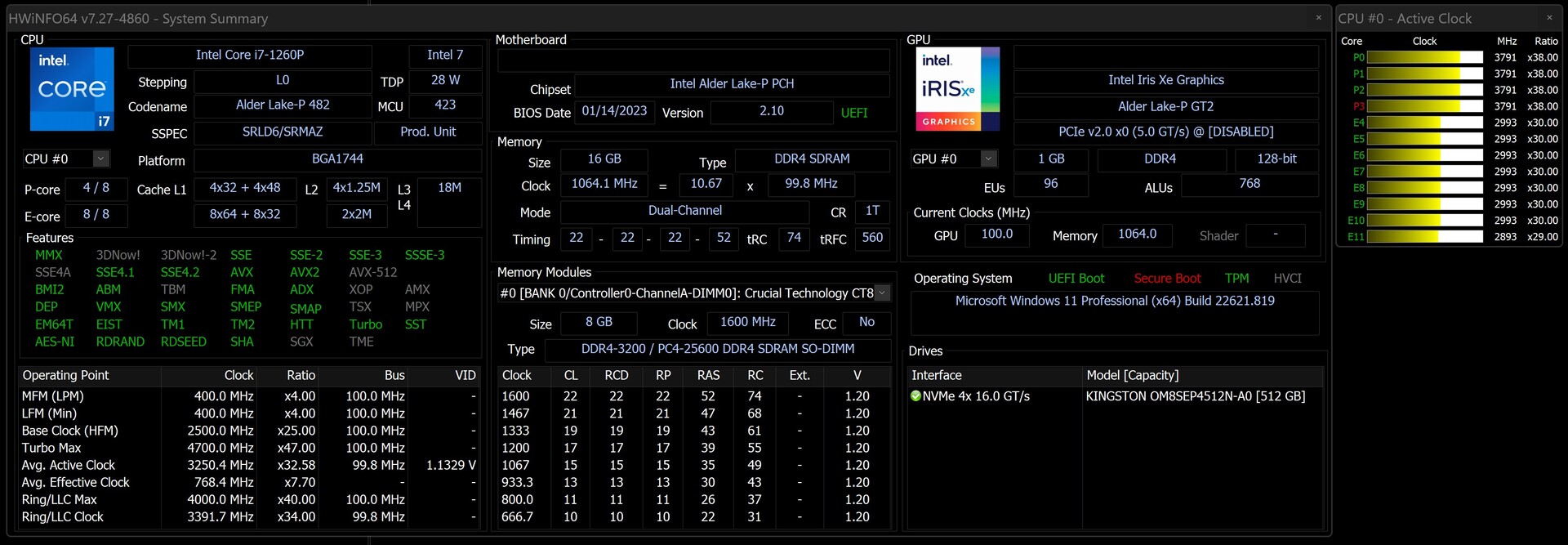

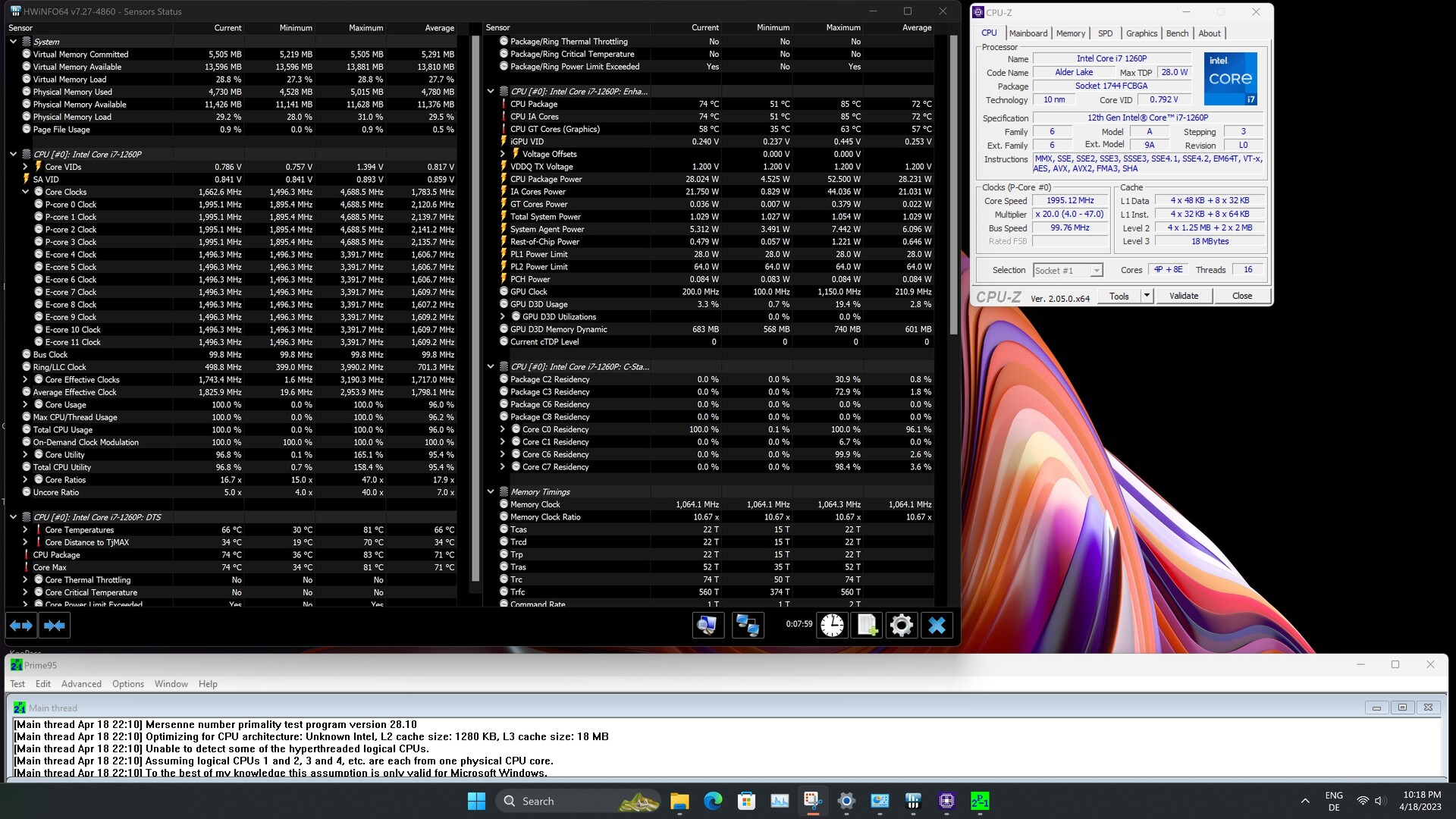

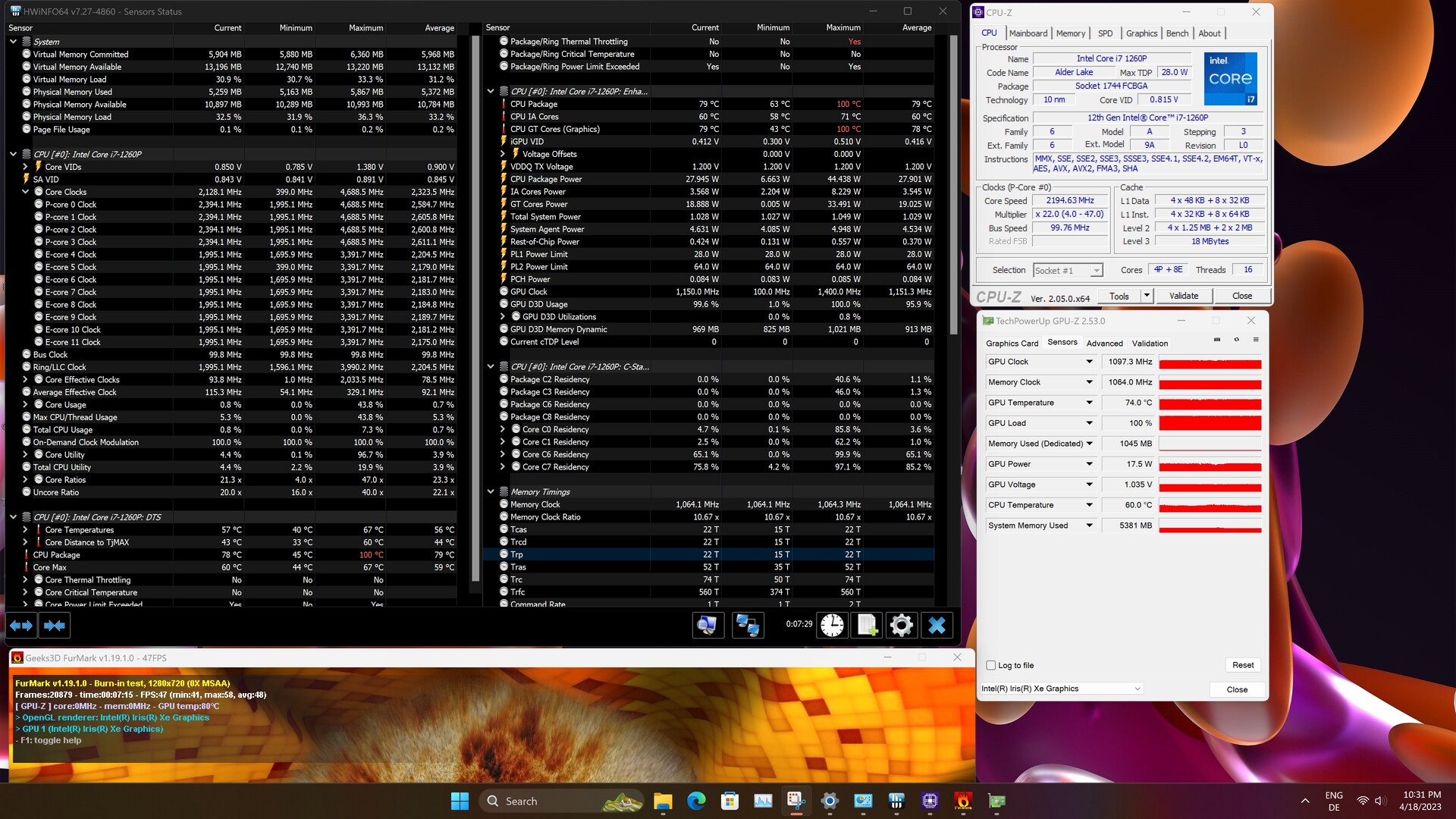

HWiNFO

Warunki badania

Wszystkie testy wydajnościowe przeprowadziliśmy z wykorzystaniem profilu energetycznego Balanced. Nie zmienialiśmy wydajności SoC, a zamiast tego pozostawiliśmy go w stanie, w jakim został nam dostarczony zgodnie z ustawieniami BIOS-u.

Procesor

Geekom Mini IT12 wyposażony jest w nowoczesny Intel Core i7-1260P. SoC ma dostęp do dwunastu rdzeni natywnych, a obok tego może przetwarzać łącznie 16 wątków. Dzięki temu niewielki procesor stanowi solidną podstawę do realizacji złożonych zadań. Jego krótkotrwały pobór mocy (PL2) określono na 64 W, a przy ciągłym obciążeniu (PL1) zużywa 28 W. W porównaniu z oboma konkurentami Intel NUC dużo niższa wartość PL1 w naszym teście okazała się przyczyną znacznie niższej wydajności wielowątkowej. W sumie jednak jego oceny były tylko o 8 procent gorsze odIntel NUC 12 Pro Kit.

Aby uzyskać więcej porównań i benchmarków, zajrzyj do naszej tabeli porównawczej procesorów Mobile Processors - Benchmark List .

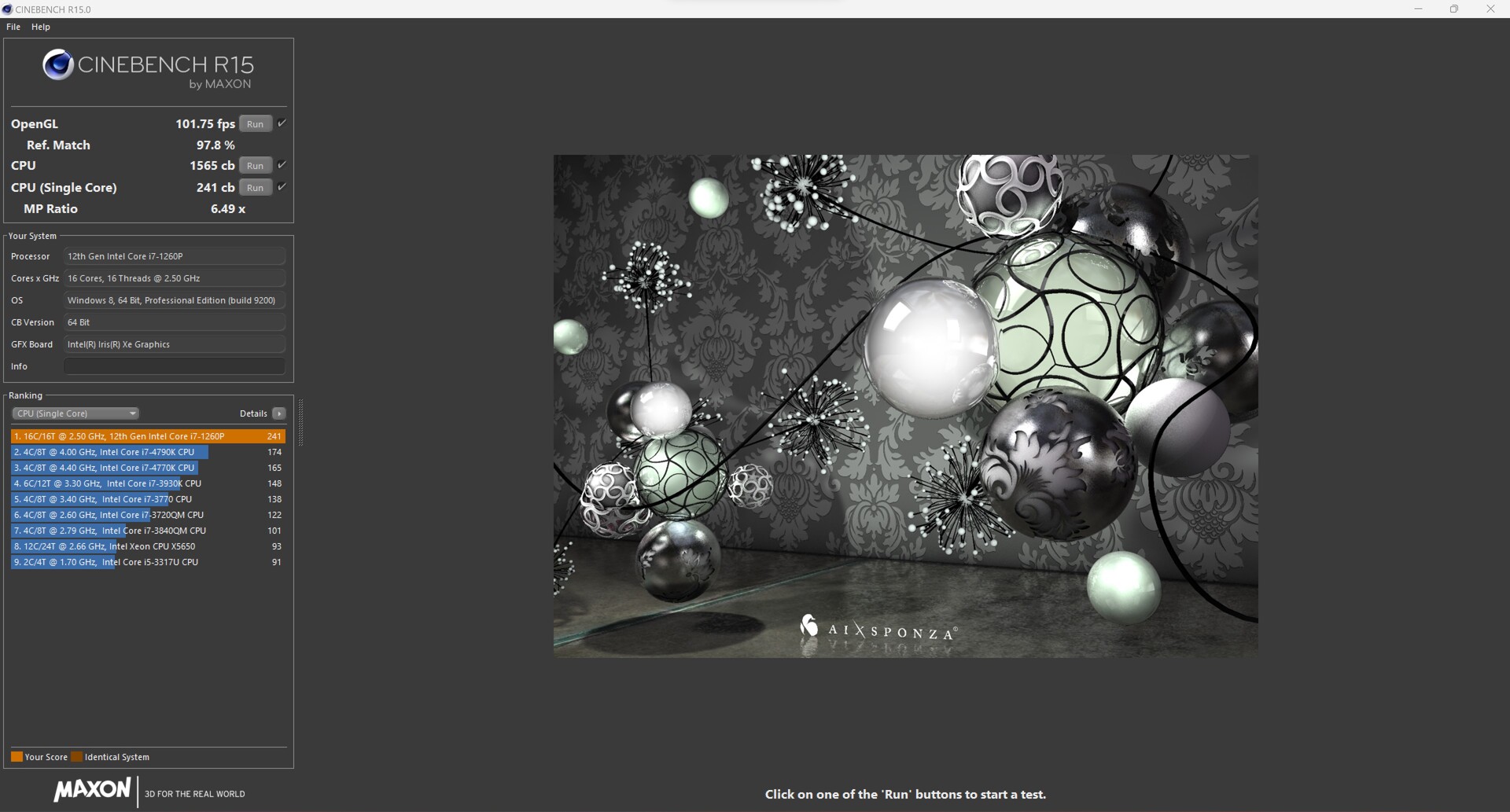

Cinebench R15
Cinebench R15
Cinebench R20
Cinebench R20

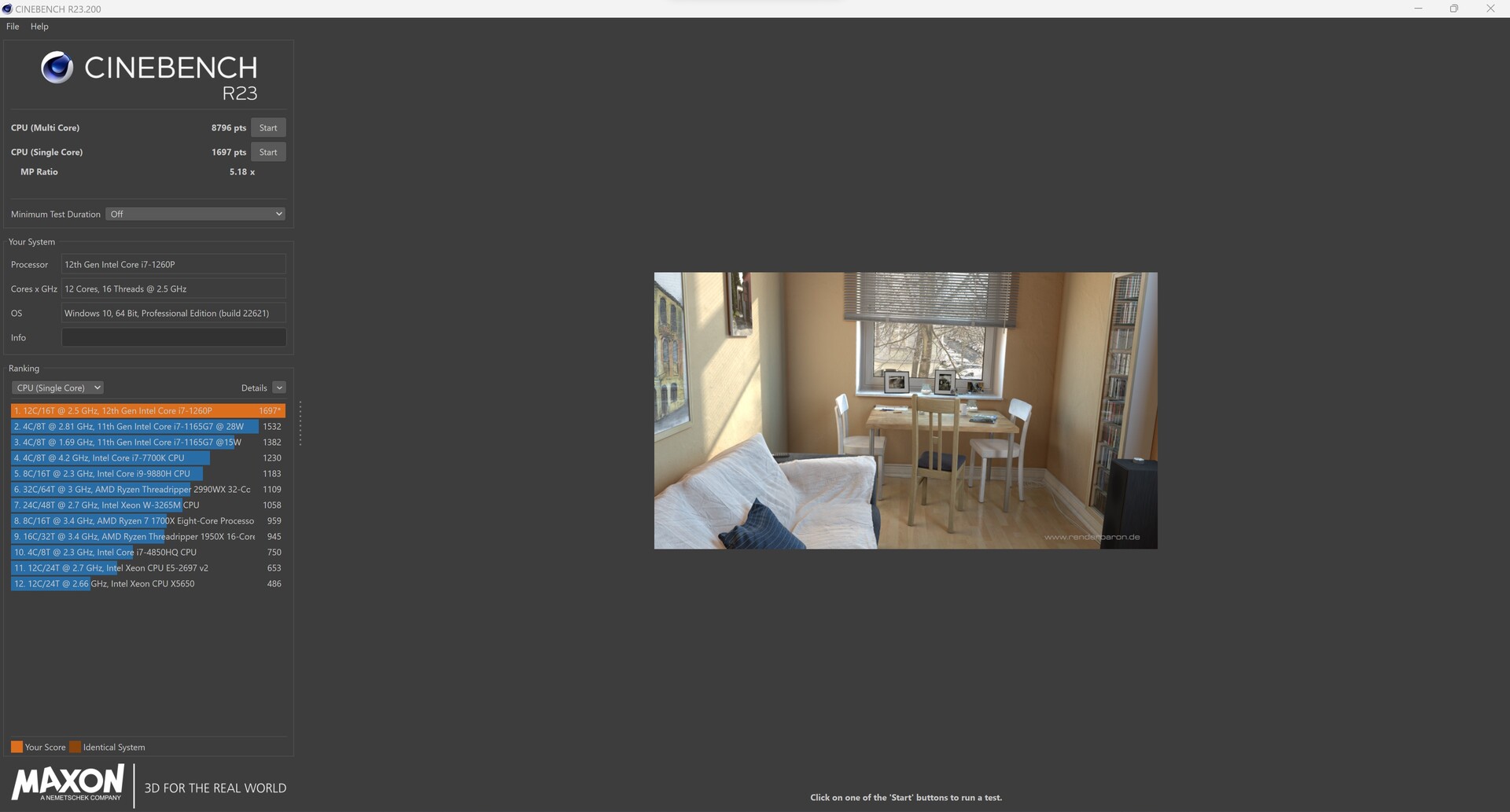

Cinebench R23
Cinebench R23
Performance Rating - Percent
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
51.7 pt
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
50.5 pt
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
50 pt
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
48.6 pt
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
46.4 pt
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
42.6 pt
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
42.3 pt
Cinebench R15
CPU Single 64Bit
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
271 Points +12%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
260 Points +8%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
247 Points +2%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
244 Points +1%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
241 Points
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
223 Points -7%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
223 Points -7%
CPU Multi 64Bit
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
2067 Points +32%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
2030 Points +30%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
1920 Points +23%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
1879 Points +20%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
1565 Points
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
1356 Points -13%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
1265 Points -19%

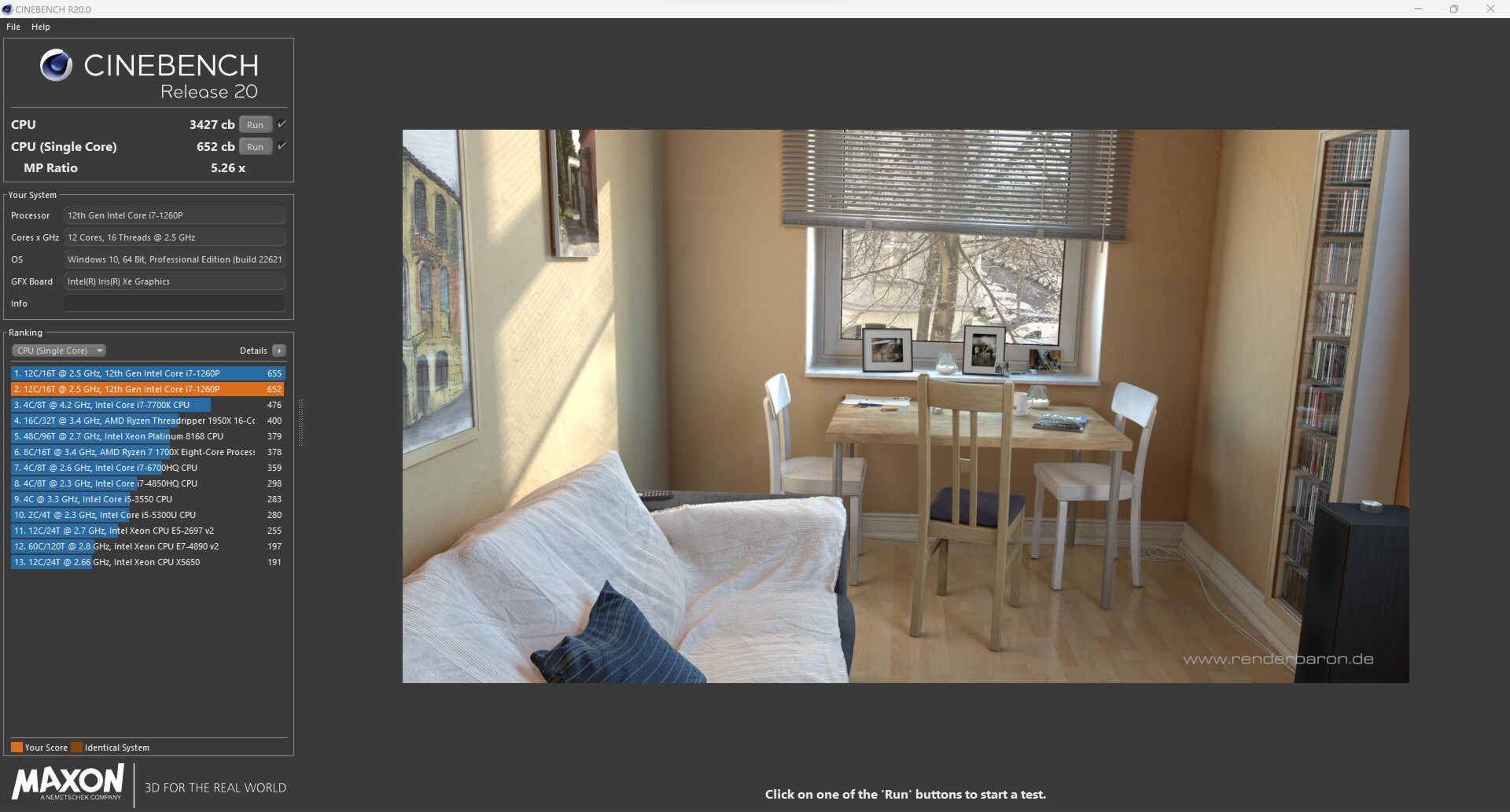

Cinebench R20
CPU (Single Core)
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
736 Points +13%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
698 Points +7%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
682 Points +5%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
652 Points
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
600 Points -8%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
535 Points -18%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
534 Points -18%
CPU (Multi Core)
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
4941 Points +44%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
4887 Points +43%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
4788 Points +40%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
4578 Points +34%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
3427 Points
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
3189 Points -7%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
2975 Points -13%
Cinebench R23
Single Core
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
1909 Points +13%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
1812 Points +7%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
1743 Points +3%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
1693 Points
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
1533 Points -9%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
1376 Points -19%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
1371 Points -19%
Multi Core
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
13320 Points +51%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
12637 Points +43%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
12375 Points +40%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
11815 Points +34%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
8846 Points
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
8193 Points -7%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
7615 Points -14%
Cinebench R11.5
CPU Single 64Bit
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
3.3 Points +13%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
3.15 Points +8%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
2.93 Points
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
2.88 Points -2%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
2.86 Points -2%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
2.64 Points -10%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
2.61 Points -11%
CPU Multi 64Bit
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
25.96 Points +29%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
25.12 Points +25%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
23.66 Points +18%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
23.6 Points +18%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
20.06 Points
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
15.96 Points -20%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
14.78 Points -26%
Cinebench R10
Rendering Single CPUs 64Bit
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
15471 Points +14%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
14504 Points +7%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
13568 Points
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
12846 Points -5%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
12185 Points -10%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
11132 Points -18%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
11098 Points -18%
Rendering Multiple CPUs 64Bit
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
77409 Points +43%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
76744 Points +42%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
73492 Points +36%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
69797 Points +29%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
53950 Points
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
50831 Points -6%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
45363 Points -16%
Blender - v2.79 BMW27 CPU
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
426 Seconds * -53%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
399 Seconds * -43%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
280 Seconds * -0%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
279 Seconds *
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
275 Seconds * +1%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
273 Seconds * +2%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
231 Seconds * +17%
wPrime 2.10
32m
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
5.377 s * -20%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
4.848 s * -8%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
4.485 s *
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
3.735 s * +17%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
3.642 s * +19%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
3.641 s * +19%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
3.421 s * +24%
1024m
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
277.01 s * -17%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
237.123 s *
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
235.874 s * +1%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
189.07 s * +20%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
156.33 s * +34%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
147.807 s * +38%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
103.226 s * +56%
X264 HD Benchmark 4.0
Pass 1
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
312 (305min - 331max) fps +39%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
266 (264min - 271max) fps +19%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
258.5 (256min - 268max) fps +15%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
245 (239min - 261max) fps +9%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
236 (235min - 246max) fps +5%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
234 (233min - 235max) fps +4%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
224 (222min - 258max) fps
Pass 2
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
125.25 (105.2min - 130max) fps +61%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
116.4 (108.5min - 128.8max) fps +50%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
114 (111.2min - 119.4max) fps +47%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
110.5 (101.7min - 125.3max) fps +42%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
80.95 (76.3min - 82.4max) fps +4%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
77.75 (77.6min - 113.9max) fps
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
76 (75.7min - 76.3max) fps -2%
WinRAR - Result
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
7937 KB/s +21%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
7200 KB/s +10%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
6877 KB/s +5%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
6858 KB/s +5%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
6795 KB/s +4%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
6559 KB/s
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
5759 KB/s -12%
TrueCrypt
AES Mean 100MB
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
12.5 GB/s +20%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
12.1 GB/s +16%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
11.6 GB/s +12%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
10.4 GB/s
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
8.6 GB/s -17%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
8.3 GB/s -20%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
7.7 GB/s -26%
Twofish Mean 100MB
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
2.2 GB/s +22%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
2 GB/s +11%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
1.9 GB/s +6%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
1.8 GB/s
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
1.6 GB/s -11%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
1.2 GB/s -33%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
1.1 GB/s -39%
Serpent Mean 100MB
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
1.2 GB/s +20%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
1.1 GB/s +10%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
1.1 GB/s +10%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
1 GB/s
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
0.974 GB/s -3%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
0.796 GB/s -20%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
0.7 GB/s -30%
Geekbench 5.5
Multi-Core
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
10574 Points +19%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
9935 Points +11%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
9695 Points +9%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
9151 Points +3%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
8918 Points
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
6523 Points -27%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
6175 Points -31%
Single-Core
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
1861 Points +4%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
1850 Points +4%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
1782 Points
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
1715 Points -4%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
1547 Points -13%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
1430 Points -20%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
1427 Points -20%
Geekbench 5.0
5.0 Multi-Core
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
10249 Points 0%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
10249 Points 0%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
10249 Points
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
9817 Points -4%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
9663 Points -6%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
6479 Points -37%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
6117 Points -40%
5.0 Single-Core
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
1838 Points +18%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
1694 Points +9%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
1557 Points 0%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
1557 Points 0%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
1557 Points
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
1383 Points -11%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
1371 Points -12%
Geekbench 4.4
64 Bit Single-Core Score
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
8015 Points +20%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
7554 Points +13%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
6698 Points 0%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
6698 Points 0%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
6698 Points
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
5918 Points -12%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
5854 Points -13%
64 Bit Multi-Core Score
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
39852 Points 0%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
39852 Points 0%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
39852 Points
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
36974 Points -7%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
36692 Points -8%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
25738 Points -35%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
24495 Points -39%
3DMark 11 - 1280x720 Performance Physics
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
18382 Points +41%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
18044 Points +38%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
17973 Points +38%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
15855 Points +21%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
13130 Points 0%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
13067 Points
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
12608 Points -4%
7-Zip 18.03
7z b 4
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
56923 MIPS +52%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
52959 MIPS +41%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
51151 MIPS +36%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
47064 MIPS +25%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
40318 MIPS +7%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
39207 MIPS +4%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
37570 MIPS
7z b 4 -mmt1
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
6019 MIPS +8%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
5961 MIPS +7%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
5738 MIPS +3%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
5591 MIPS 0%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
5577 MIPS
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
5249 MIPS -6%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
5161 MIPS -7%
HWBOT x265 Benchmark v2.2 - 4k Preset
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
15.4 fps +52%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
14.2 fps +41%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
14.1 fps +40%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
13.2 fps +31%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
10.2 fps +1%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
10.1 fps 0%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
10.1 fps
R Benchmark 2.5 - Overall mean
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
0.548 sec * -16%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
0.537 sec * -14%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
0.4881 sec * -3%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
0.4787 sec * -1%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
0.4718 sec *
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
0.4641 sec * +2%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
0.445 sec * +6%
LibreOffice - 20 Documents To PDF
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
57.5 s * -20%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
53.4 s * -11%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
51.1 s * -6%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
48.1 s *
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
45 s * +6%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
43.7 s * +9%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
38 s * +21%
WebXPRT 3 - ---
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
311 Points +8%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
305 Points +6%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
292 Points +2%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
287 Points
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
285 Points -1%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
263 Points -8%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
255 Points -11%
Mozilla Kraken 1.1 - Total Score
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
659 ms * -22%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
646 ms * -20%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
605 ms * -12%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
577 ms * -7%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
539 ms *
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
534 ms * +1%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
494 ms * +8%
3DMark
3840x2160 Fire Strike Ultra Physics
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
22441 Points +41%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
21422 Points +35%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
20158 Points +27%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
19357 Points +22%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
17568 Points +10%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
16412 Points +3%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
15903 Points
1920x1080 Fire Strike Physics
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
22426 Points +35%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
22244 Points +34%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
21523 Points +30%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
20684 Points +25%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
18076 Points +9%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
17499 Points +6%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
16568 Points
2560x1440 Time Spy CPU
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
10539 Points +62%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
9334 Points +44%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
8622 Points +33%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
8393 Points +29%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
6487 Points
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
5443 Points -16%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
5077 Points -22%

* ... im mniej tym lepiej

Performance Rating
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
94.9 pt
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Iris Xe G7 96EUs
82.3 pt
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
79.1 pt
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
77.2 pt
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, Vega 7
69.8 pt
Average of class Mini PC

68.9 pt
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
67.3 pt
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
63.3 pt
AIDA64 / FP32 Ray-Trace
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
13757 KRay/s +73%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Iris Xe G7 96EUs
11040 KRay/s +39%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
10952 KRay/s +38%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
10351 KRay/s +30%
Average of class Mini PC
  (561 - 27538, n=77, last 2 years)
9561 KRay/s +21%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, Vega 7
9406 KRay/s +19%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
9086 KRay/s +15%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
7933 KRay/s
AIDA64 / FPU Julia
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
87663 Points +118%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, Vega 7
60111 Points +49%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
57375 Points +43%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Iris Xe G7 96EUs
55557 Points +38%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
55221 Points +37%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
52136 Points +30%
Average of class Mini PC
  (3604 - 116903, n=77, last 2 years)
51779 Points +29%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
40251 Points
AIDA64 / CPU SHA3
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
2931 MB/s +46%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Iris Xe G7 96EUs
2728 MB/s +36%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
2590 MB/s +29%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
2558 MB/s +28%
Average of class Mini PC
  (225 - 5096, n=77, last 2 years)
2202 MB/s +10%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, Vega 7
2065 MB/s +3%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
2006 MB/s
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
1971 MB/s -2%
AIDA64 / CPU Queen
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
100293 Points +36%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Iris Xe G7 96EUs
86691 Points +18%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
85240 Points +16%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
82493 Points +12%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
73765 Points
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, Vega 7
70563 Points -4%
Average of class Mini PC
  (8172 - 119569, n=77, last 2 years)
68694 Points -7%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
67224 Points -9%
AIDA64 / FPU SinJulia
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
12396 Points +123%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, Vega 7
8507 Points +53%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
8294 Points +49%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
7548 Points +36%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Iris Xe G7 96EUs
7269 Points +31%
Average of class Mini PC
  (408 - 15525, n=77, last 2 years)
7194 Points +29%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
6728 Points +21%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
5567 Points
AIDA64 / FPU Mandel
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
44629 Points +125%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, Vega 7
33084 Points +67%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
31389 Points +58%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
28159 Points +42%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Iris Xe G7 96EUs
27772 Points +40%
Average of class Mini PC
  (1958 - 62378, n=77, last 2 years)
27438 Points +38%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
25996 Points +31%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
19857 Points
AIDA64 / CPU AES
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
99521 MB/s +33%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Iris Xe G7 96EUs
99244 MB/s +33%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
92356 MB/s +24%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, Vega 7
82315 MB/s +10%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
78211 MB/s +5%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
74716 MB/s
Average of class Mini PC
  (5504 - 177158, n=77, last 2 years)
74215 MB/s -1%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
56199 MB/s -25%
AIDA64 / CPU ZLib
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Iris Xe G7 96EUs
807 MB/s +40%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
745 MB/s +30%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
732 MB/s +27%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
722 MB/s +26%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
575 MB/s
Average of class Mini PC
  (74.8 - 1114, n=77, last 2 years)
561 MB/s -2%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, Vega 7
531 MB/s -8%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
505 MB/s -12%
AIDA64 / FP64 Ray-Trace
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
7288 KRay/s +75%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Iris Xe G7 96EUs
5920 KRay/s +42%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
5777 KRay/s +39%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
5613 KRay/s +35%
Average of class Mini PC
  (308 - 14722, n=77, last 2 years)
5106 KRay/s +23%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, Vega 7
5024 KRay/s +21%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
4636 KRay/s +12%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
4156 KRay/s
AIDA64 / CPU PhotoWorxx
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
29765 MPixel/s +6%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Iris Xe G7 96EUs
29108 MPixel/s +4%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
28377 MPixel/s +1%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
28118 MPixel/s
Average of class Mini PC
  (4408 - 44347, n=77, last 2 years)
24659 MPixel/s -12%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
24323 MPixel/s -13%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
19395 MPixel/s -31%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, Vega 7
17803 MPixel/s -37%

Geekom Mini IT12 vs Cinebench R15 Multi Loop

Pierwszy raz mogliśmy się przyjrzeć jak efektywnie działa zainstalowany system chłodzenia w połączeniu z docelową mocą SoC podczas ciągłej pętli Cinebench R15: SoC najlepiej wypadł podczas pierwszego przebiegu, gdzie udało się wykorzystać jego maksymalne Turbo. W drugim przebiegu zmierzyliśmy już znacznie niższe wyniki - na długich odcinkach m.in Intel Core i7-1260Pmiał dostęp tylko do 28 W. W pozostałej części testu nie zmierzyliśmy żadnych zauważalnych wahań wydajności i urządzenie uzyskało średni wynik 1280 punktów.

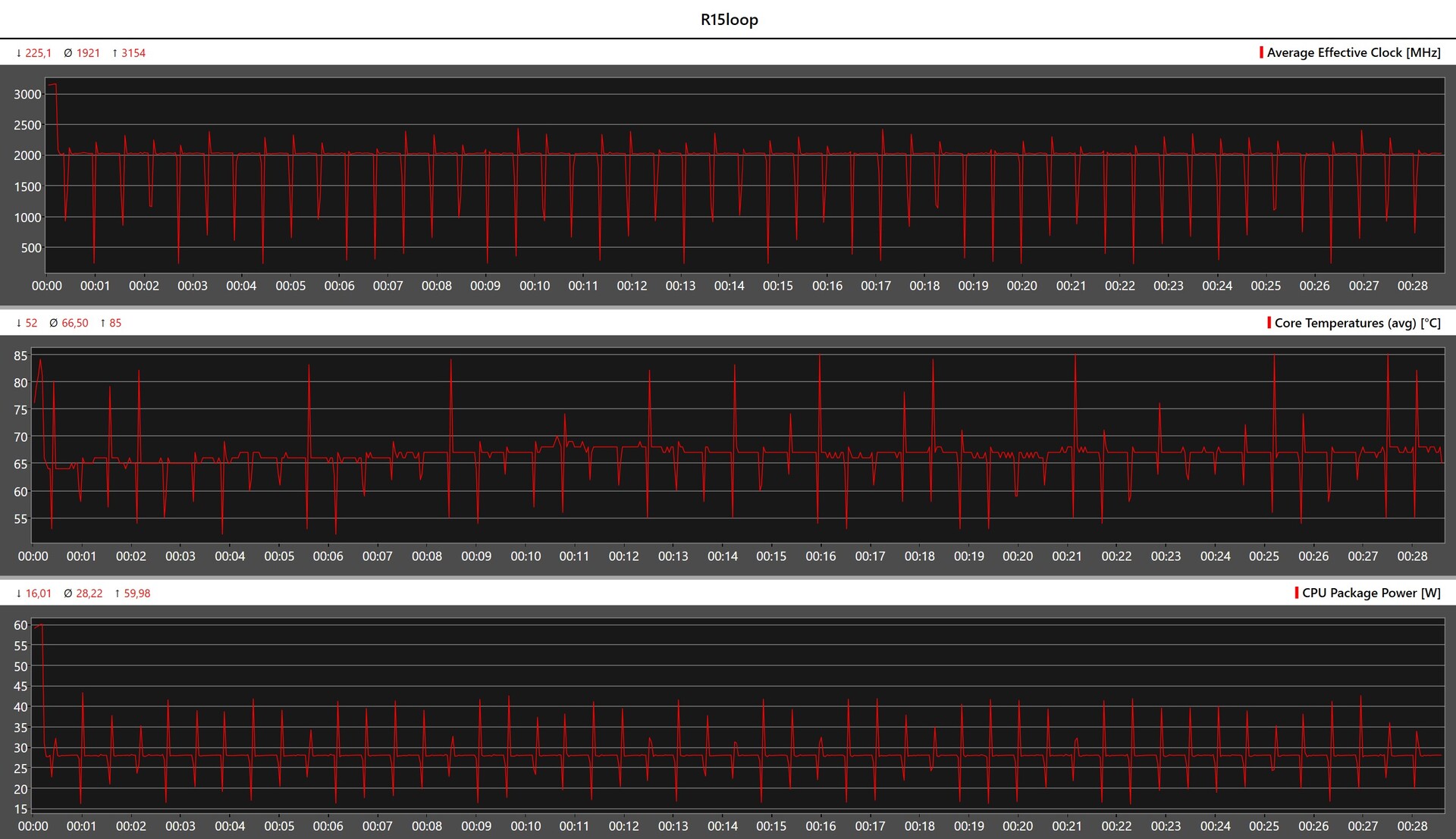

Metryka procesora podczas pętli Cinebench R15
Metryka procesora podczas pętli Cinebench R15
011523034546057569080592010351150126513801495161017251840195520702185Tooltip
Geekom Mini IT12 Intel Core i7-1260P, Intel Core i7-1260P: Ø1280 (1241-1619.37)
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Core i7-1360P: Ø1825 (1794.93-2181.38)
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Core i7-1260P: Ø1702 (1671.26-2063.13)
Morefine M600, 6900HX AMD Ryzen 9 6900HX, AMD Ryzen 9 6900HX: Ø1900 (1863.93-2044.26)
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Intel Core i9-12900H: Ø1703 (1657.14-2261.04)
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, AMD Ryzen 5 5600U: Ø1099 (1072.7-1239.66)
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Ryzen 5 5600U: Ø1158 (1130.29-1266.62)

Wydajność systemu

Bardzo konserwatywnie ustawiony PL2 (Power Limit 2) sprawił, że nasz egzemplarz testowy wypadł stosunkowo słabo w syntetycznych benchmarkach wydajności systemu. Różnica była jednak znacznie bardziej zauważalna w PCMarku 10 niż w Crossmarku czy benchmarkach pamięci RAM. W tych ostatnich Geekom Mini IT12 osiągnął nawet relatywnie dobre wyniki i uplasował się przed m.in Intel NUC 12 Pro Kit. Wydajność komputera jest dobra i z pewnością potwierdza, że nadaje się on do codziennego użytku.

PCMark 10 / Score
Morefine M600, 6900HX, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G
6654 Points +18%
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P
Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ
6281 Points +11%
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
6187 Points +9%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S
5915 Points +5%
Minisforum Mars Series MC560, AMD Ryzen 5 5600U
AMD Radeon RX Vega 7, ESO512GYLCT
5862 Points +4%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U
AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G
5761 Points +2%
Geekom Mini IT12, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0
5658 Points
PCMark 10 / Essentials
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P
Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ
11596 Points +14%
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
11217 Points +11%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S
10661 Points +5%
Minisforum Mars Series MC560, AMD Ryzen 5 5600U
AMD Radeon RX Vega 7, ESO512GYLCT
10484 Points +3%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G
10390 Points +2%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U
AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G
10385 Points +2%
Geekom Mini IT12, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0
10139 Points
PCMark 10 / Productivity
Morefine M600, 6900HX, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G
9817 Points +32%
Minisforum Mars Series MC560, AMD Ryzen 5 5600U
AMD Radeon RX Vega 7, ESO512GYLCT
9545 Points +29%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U
AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G
9539 Points +28%
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P
Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ
7893 Points +6%
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
7673 Points +3%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S
7626 Points +3%
Geekom Mini IT12, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0
7427 Points
CrossMark / Overall
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
1894 Points +9%
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P
Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ
1810 Points +4%
Geekom Mini IT12, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0
1738 Points
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S
1679 Points -3%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G
1517 Points -13%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U
AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G
1373 Points -21%
Minisforum Mars Series MC560, AMD Ryzen 5 5600U
AMD Radeon RX Vega 7, ESO512GYLCT
1300 Points -25%
CrossMark / Responsiveness
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
2116 Points +22%
Geekom Mini IT12, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0
1734 Points
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P
Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ
1578 Points -9%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S
1476 Points -15%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U
AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G
1263 Points -27%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G
1238 Points -29%
Minisforum Mars Series MC560, AMD Ryzen 5 5600U
AMD Radeon RX Vega 7, ESO512GYLCT
1133 Points -35%
CrossMark / Creativity
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P
Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ
1970 Points +13%
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
1800 Points +3%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S
1785 Points +2%
Geekom Mini IT12, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0
1749 Points
Morefine M600, 6900HX, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G
1652 Points -6%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U
AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G
1379 Points -21%
Minisforum Mars Series MC560, AMD Ryzen 5 5600U
AMD Radeon RX Vega 7, ESO512GYLCT
1325 Points -24%
CrossMark / Productivity
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
1921 Points +11%
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P
Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ
1740 Points +1%
Geekom Mini IT12, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0
1729 Points
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S
1649 Points -5%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G
1491 Points -14%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U
AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G
1406 Points -19%
Minisforum Mars Series MC560, AMD Ryzen 5 5600U
AMD Radeon RX Vega 7, ESO512GYLCT
1335 Points -23%
AIDA64 / Memory Copy
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
50228 MB/s +12%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
45941 MB/s +3%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Iris Xe G7 96EUs
44892 MB/s 0%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
44726 MB/s
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
44661 MB/s 0%
Average of class Mini PC
  (6481 - 70620, n=77, last 2 years)
42333 MB/s -5%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, Vega 7
38102 MB/s -15%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
35051 MB/s -22%
AIDA64 / Memory Read
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
51077 MB/s +8%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
49559 MB/s +4%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
47491 MB/s
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
46644 MB/s -2%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Iris Xe G7 96EUs
45196 MB/s -5%
Average of class Mini PC
  (6914 - 71285, n=77, last 2 years)
43163 MB/s -9%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, Vega 7
40126 MB/s -16%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
38400 MB/s -19%
AIDA64 / Memory Write
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
55194 MB/s +18%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
46815 MB/s 0%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
46785 MB/s
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
46223 MB/s -1%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Iris Xe G7 96EUs
46179 MB/s -1%
Average of class Mini PC
  (6862 - 87358, n=77, last 2 years)
45434 MB/s -3%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, Vega 7
40633 MB/s -13%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
37475 MB/s -20%
AIDA64 / Memory Latency
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
100 ns * -25%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, Vega 7
96.2 ns * -20%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Iris Xe G7 96EUs
96.1 ns * -20%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
92.7 ns * -16%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
92.4 ns * -15%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
91.3 ns * -14%
Average of class Mini PC
  (55.3 - 146, n=77, last 2 years)
88.3 ns * -10%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
80.2 ns *

* ... im mniej tym lepiej

Opóźnienie DPC

StronaIntel Core i7-1260Pdobrze współpracuje z innymi komponentami w Geekom Mini IT12. Podczas odtwarzania naszego testowego filmu 4K nie zaobserwowaliśmy żadnych zwiększonych opóźnień. Jednostka iGPU była wykorzystywana w około 15 procentach swoich możliwości i nawet przy użyciu Prime95 nie udało się wywołać wysokich opóźnień.

Maksymalne opóźnienie podczas otwierania wielu kart przeglądarki i odtwarzania wideo 4K
Maksymalne opóźnienie podczas otwierania wielu kart przeglądarki i odtwarzania wideo 4K
Maksymalne opóźnienie po dziesięciu sekundach Prime95
Maksymalne opóźnienie po dziesięciu sekundach Prime95
Kierowcy uszeregowani według najdłuższego czasu realizacji
Kierowcy uszeregowani według najdłuższego czasu realizacji
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minisforum Mars Series MC560
Vega 7, R5 5600U, ESO512GYLCT
1359.1 μs * -38%
Morefine M600, 6900HX
Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
1317 μs * -34%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
1113.9 μs * -13%
Intel NUC 13 Pro Kit NUC13ANK
Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
1087 μs * -10%
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
985.8 μs *
Intel NUC 12 Pro Kit NUC12WSKi7
Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S
779 μs * +21%
Minipc Union Ace Magician AMR5
Vega 7, R5 5600U, Future Path FPE220M8SSD512G
765 μs * +22%

* ... im mniej tym lepiej

Urządzenia pamięci masowej

512 GB NVMe SSD
512 GB NVMe SSD

Mini IT12 posiada dysk SSD NVMe o pojemności 512 GB wyprodukowany przez Kingstona. Zainstalowany model wykorzystuje port NVMe, więc zapewnia dobre transfery. Mimo to udokumentowane wyniki nie mogą konkurować z wynikami urządzeń porównawczych. Pierwsze trzy urządzenia porównawcze pokazują, co można osiągnąć dzięki bardzo szybkiemu dyskowi SSD. Niemniej jednak wydajność dysku SSD w Geekom Mini IT12 jest wyraźnie lepsza niż w przypadku konwencjonalnych dysków SSD SATA. W codziennym użytkowaniu dysk SSD jest wystarczająco szybki i w naszym teście generalnie nie było zauważalnych latencji. Pod stałym obciążeniem dysk SSD nie był w stanie uzyskać dostępu do swojej pełnej wydajności. Tutaj wyraźnie brakuje mu elementu chłodzącego, który pomógłby uniknąć tego spadku wydajności przy ciągłym obciążeniu.

W Geekom Mini IT12 można zainstalować do trzech dysków SSD. Obok dysku SSD NVMe można zainstalować jeszcze jeden dysk SSD M.2 2242 - jest on jednak ograniczony do prędkości SATA. Ponadto w urządzeniu można zainstalować również 2,5-calowy nośnik danych - tutaj trzeba trzymać się maksymalnej wysokości 7 milimetrów.

Aby uzyskać więcej porównań i benchmarków, zajrzyj do naszej tabeli porównawczej

.


AS SSD
AS SSD
CDM 3
CDM 3
CDM 5
CDM 5
CDM 6
CDM 6
CDI
CDI
Kingston OM8SEP4512N-A0
Sequential Read: 2211 MB/s
Sequential Write: 1326 MB/s
512K Read: 1508 MB/s
512K Write: 1226 MB/s
4K Read: 64.49 MB/s
4K Write: 172.4 MB/s
4K QD32 Read: 407.6 MB/s
4K QD32 Write: 670.9 MB/s
Drive Performance Rating - Percent
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
85 pt
Intel NUC 13 Pro Kit NUC13ANK
Samsung PM9A1 MZVL2512HCJQ
71 pt
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
65.6 pt
Average of class Mini PC

43.5 pt
Minisforum Mars Series MC560
ESO512GYLCT
41.2 pt
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
39.7 pt
Geekom Mini IT12
Kingston OM8SEP4512N-A0
36 pt
Intel NUC 12 Pro Kit NUC12WSKi7
Transcend M.2 SSD 2200S TS512GMTE220S
33.2 pt
DiskSpd
seq read
Intel NUC 13 Pro Kit NUC13ANK
Samsung PM9A1 MZVL2512HCJQ
3375 (3310.44min - 3375.33max) MB/s +133%
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
2815 (2802.79min - 2814.97max) MB/s +94%
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
2082 (2067.58min - 2082.23max) MB/s +43%
Average of class Mini PC
  (233 - 4168, n=76, last 2 years)
1987 MB/s +37%
Intel NUC 12 Pro Kit NUC12WSKi7
Transcend M.2 SSD 2200S TS512GMTE220S
1790 (1744.2min - 1789.7max) MB/s +23%
Geekom Mini IT12
Kingston OM8SEP4512N-A0
1451 (1441.37min - 1451.23max) MB/s
Minisforum Mars Series MC560
ESO512GYLCT
1310 (1296.67min - 1309.67max) MB/s -10%
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
1176 (1169.13min - 1175.87max) MB/s -19%
seq write
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
3402 (3372.67min - 3402.21max) MB/s +183%
Intel NUC 13 Pro Kit NUC13ANK
Samsung PM9A1 MZVL2512HCJQ
3360 (1416.73min - 3360.47max) MB/s +179%
Average of class Mini PC
  (222 - 4121, n=76, last 2 years)
1998 MB/s +66%
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
1792 (1662.17min - 1791.62max) MB/s +49%
Minisforum Mars Series MC560
ESO512GYLCT
1735 (1689.26min - 1735.49max) MB/s +44%
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
1530 (603.77min - 1530.08max) MB/s +27%
Geekom Mini IT12
Kingston OM8SEP4512N-A0
1203 (1169.58min - 1202.51max) MB/s
Intel NUC 12 Pro Kit NUC12WSKi7
Transcend M.2 SSD 2200S TS512GMTE220S
984 (154.77min - 984.48max) MB/s -18%
seq q8 t1 read
Intel NUC 13 Pro Kit NUC13ANK
Samsung PM9A1 MZVL2512HCJQ
6729 (6134.8min - 6728.5max) MB/s +297%
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
4801 (4506.78min - 4800.59max) MB/s +183%
Average of class Mini PC
  (236 - 8430, n=76, last 2 years)
3105 MB/s +83%
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
2444 (2328.09min - 2444.09max) MB/s +44%
Intel NUC 12 Pro Kit NUC12WSKi7
Transcend M.2 SSD 2200S TS512GMTE220S
2273 (1501.91min - 2273.31max) MB/s +34%
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
1987 (1409.4min - 1987.27max) MB/s +17%
Minisforum Mars Series MC560
ESO512GYLCT
1749 (1565.12min - 1749.09max) MB/s +3%
Geekom Mini IT12
Kingston OM8SEP4512N-A0
1694 (1415.05min - 1693.87max) MB/s
seq q8 t1 write
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
3402 (3374.28min - 3401.67max) MB/s +180%
Intel NUC 13 Pro Kit NUC13ANK
Samsung PM9A1 MZVL2512HCJQ
2830 (1138.15min - 2830.32max) MB/s +133%
Average of class Mini PC
  (228 - 4955, n=76, last 2 years)
2113 MB/s +74%
Minisforum Mars Series MC560
ESO512GYLCT
1815 (1770.86min - 1814.81max) MB/s +50%
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
1769 (1687.39min - 1768.92max) MB/s +46%
Intel NUC 12 Pro Kit NUC12WSKi7
Transcend M.2 SSD 2200S TS512GMTE220S
1758 (161.06min - 1758.04max) MB/s +45%
Geekom Mini IT12
Kingston OM8SEP4512N-A0
1213 (1155.74min - 1212.78max) MB/s
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
1084 (553.02min - 1084.16max) MB/s -11%
4k q1 t1 read
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
82.1 (81.4min - 82.09max) MB/s +48%
Intel NUC 12 Pro Kit NUC12WSKi7
Transcend M.2 SSD 2200S TS512GMTE220S
63 (57.2min - 63.02max) MB/s +13%
Geekom Mini IT12
Kingston OM8SEP4512N-A0
55.6 (54.87min - 55.6max) MB/s
Intel NUC 13 Pro Kit NUC13ANK
Samsung PM9A1 MZVL2512HCJQ
51.8 (51.62min - 51.84max) MB/s -7%
Average of class Mini PC
  (5.67 - 86.6, n=76, last 2 years)
51 MB/s -8%
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
48.5 (48.27min - 48.47max) MB/s -13%
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
48.2 (48.04min - 48.16max) MB/s -13%
Minisforum Mars Series MC560
ESO512GYLCT
35.4 (35.09min - 35.36max) MB/s -36%
4k q1 t1 write
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
425 (415.92min - 425.01max) MB/s +54%
Geekom Mini IT12
Kingston OM8SEP4512N-A0
276 (193.9min - 275.81max) MB/s
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
220 (212.2min - 220.15max) MB/s -20%
