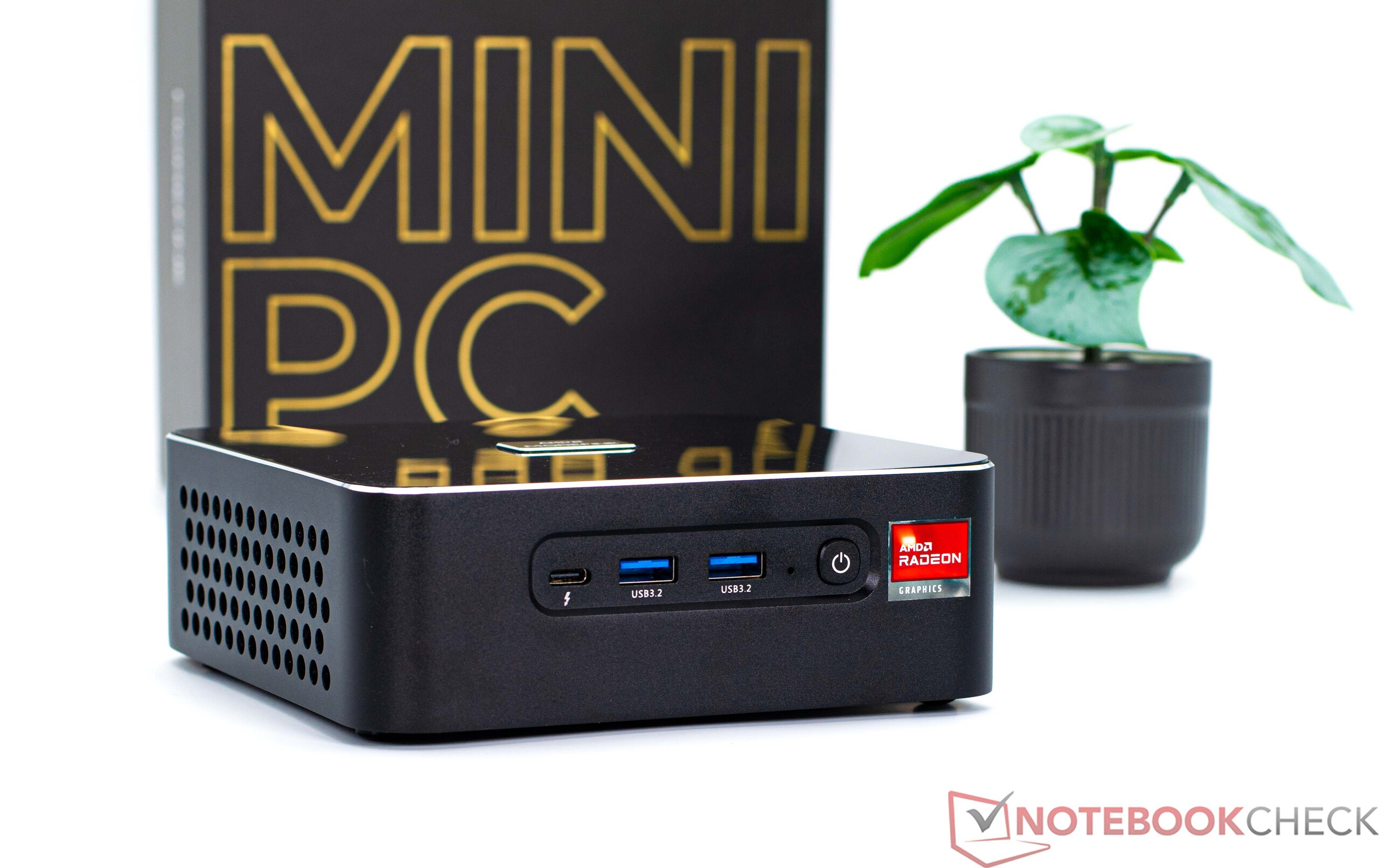

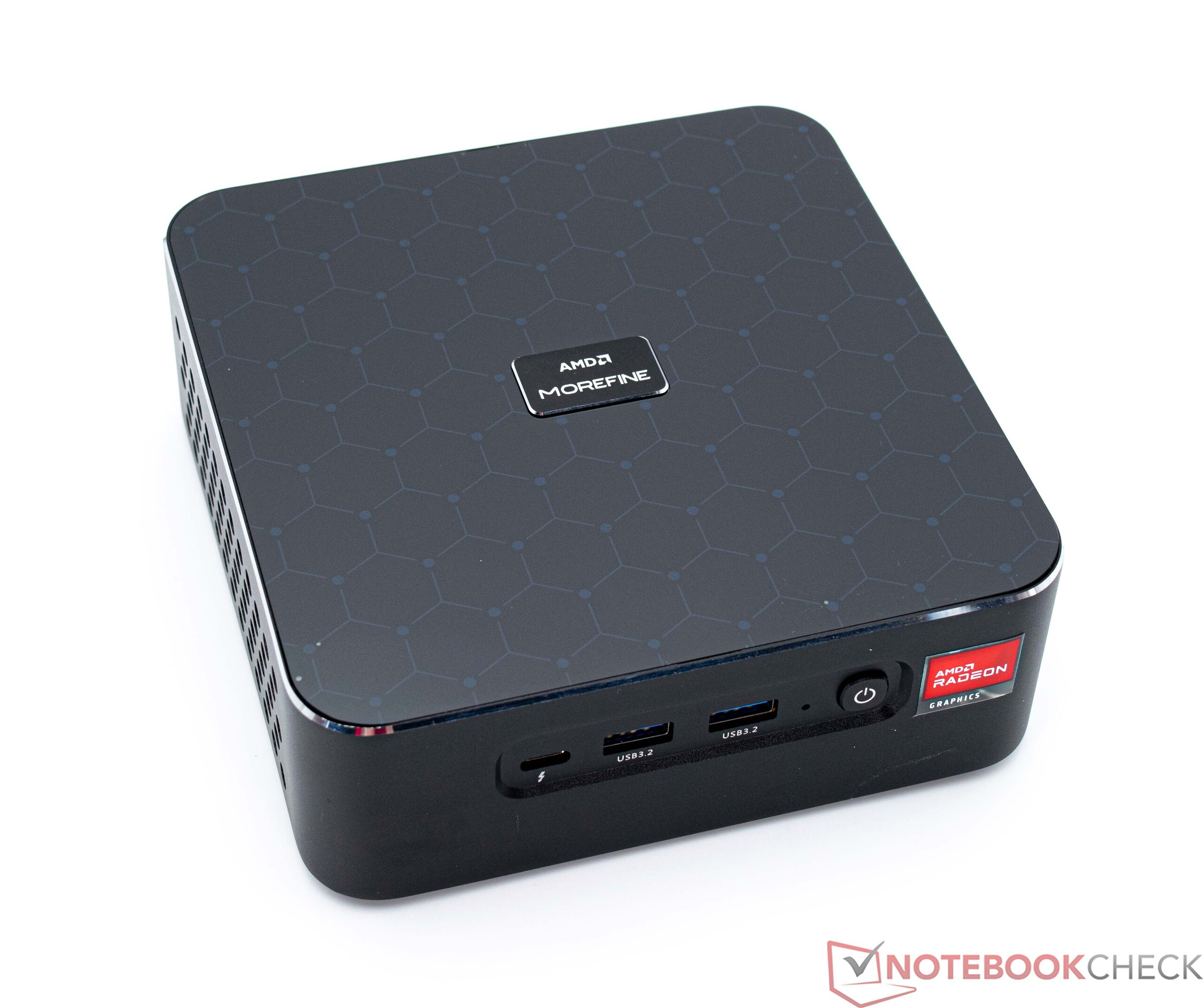

Recenzja komputera stacjonarnego Morefine M600 6600U: Niedrogi mini PC z procesorem AMD Ryzen 5 6600U z 32 GB RAM i USB4

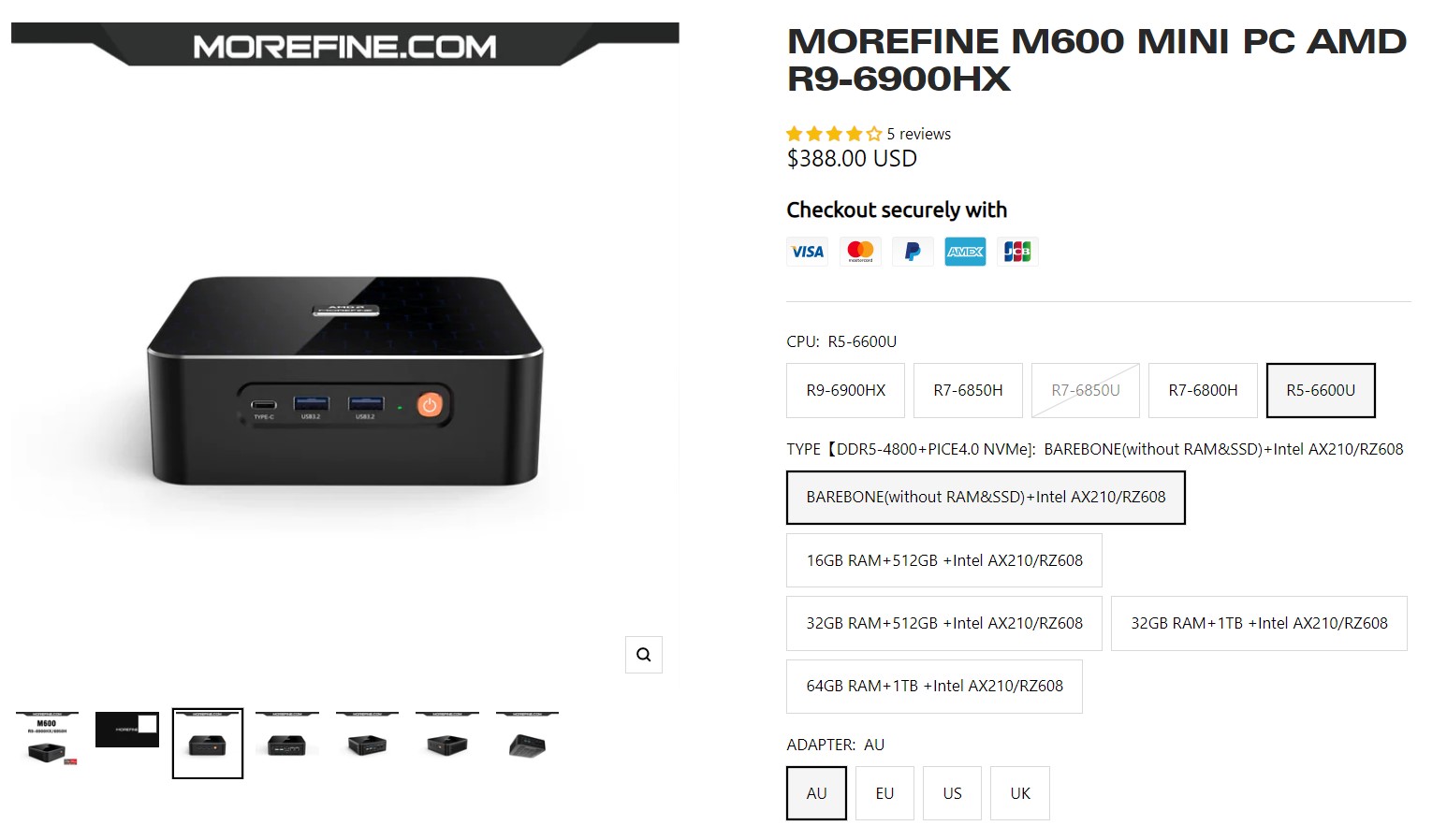

Konfiguracje Morefine M600 (źródło: Morefine)

Niedawno analizowaliśmy topowy modelMorefine M600 6900HX'- co było co najmniej imponujące. Teraz nadszedł czas, abyśmy przyjrzeli się modelowi Morefine M600 6600U, który wraz ze swoimAMD Ryzen 5 6600U, ma nieco niższą wydajność procesora - choć reszta jego cech jest identyczna. To z kolei oznacza, że możemy się również ekscytować jego nowoczesnymi portami, takimi jak USB4. Udało nam się dostać w swoje ręce wersję barebone płyty Morefine M600 6600U. Obecnie jego cena detaliczna wynosi 388 dolarów. Do naszych testów wykorzystaliśmy dostępne podzespoły z Morefine M600 6900HX, czyli nasze urządzenie testowe wyposażone jest również w 32 GB pamięci RAM DDR5 oraz dysk SSD 512 GB od Transcend.

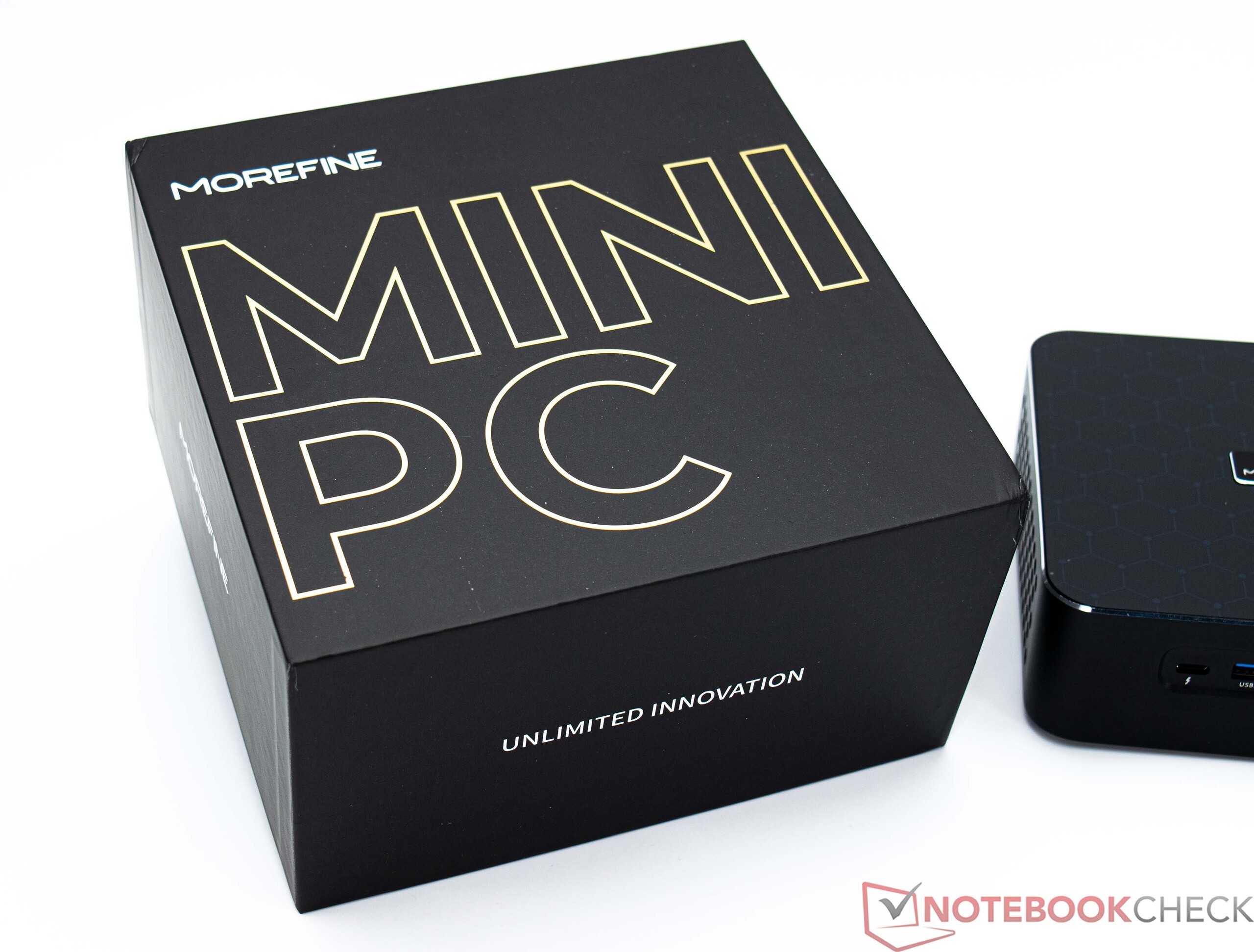

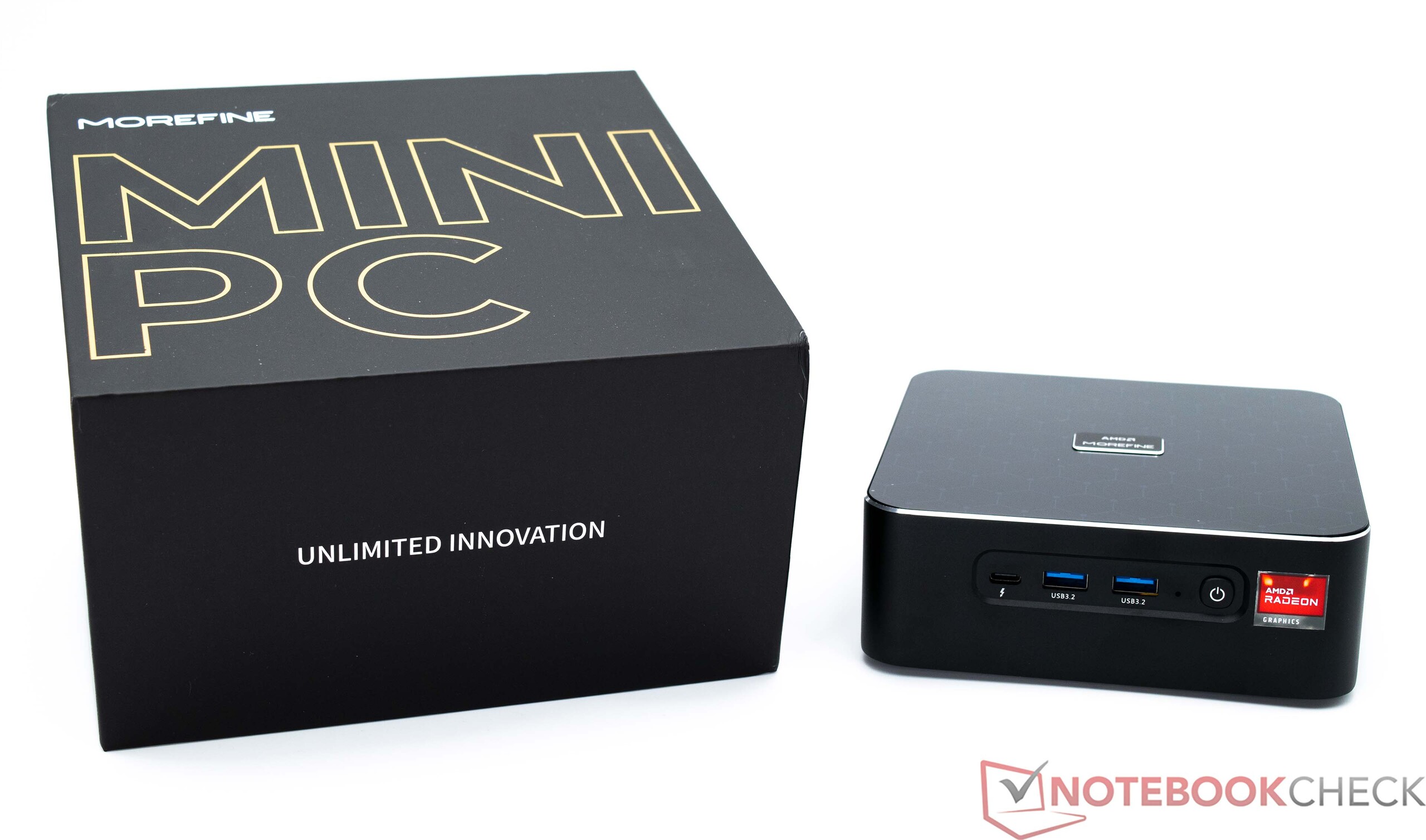

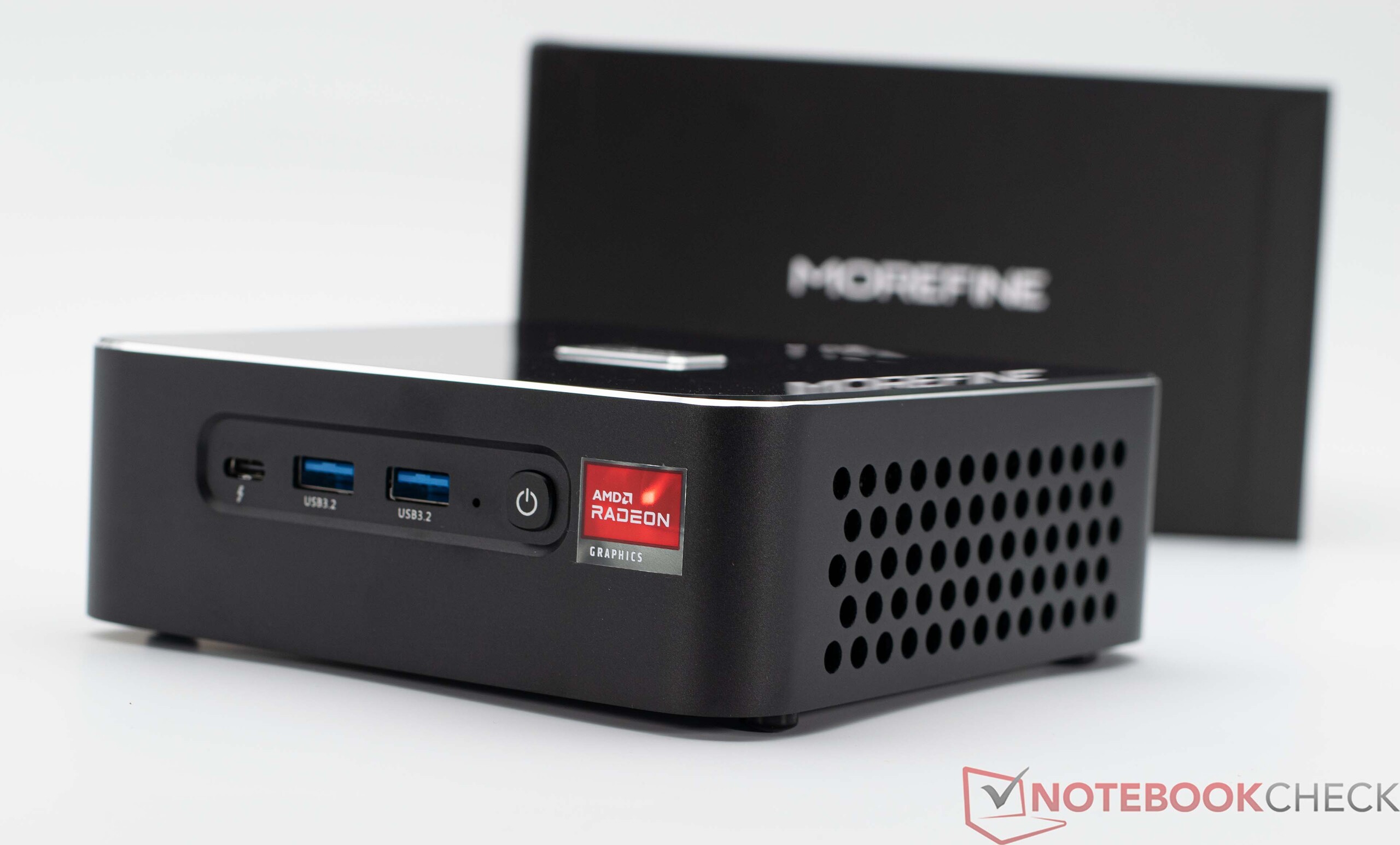

Morefine M600 6600U dostarczany jest w atrakcyjnym wizualnie opakowaniu ze złotą etykietą. Zakres dostawy obejmuje wszystkie niezbędne części. Do komputera dołączona jest nawet płyta montażowa w celu podłączenia go do monitora (mocowanie VESA). Urządzenie można wyposażyć w maksymalnie trzy dyski SSD - tutaj również dołączone są wszystkie niezbędne kable. W niniejszej recenzji przyjrzymy się dokładnie jego wydajności w porównaniu do modelu z najwyższej półki, który w podstawowej konfiguracji kosztuje około 200 dolarów więcej. Czy ta wyższa cena jest uzasadniona, czy też sensowne jest wybranie modelu wprowadzającego? Wybraliśmy również urządzenia z MinisForum, Geekom i Intel, które mają pełnić rolę bezpośrednich konkurentów, do których możemy porównać nasze urządzenie. Ich listę znajdziecie w poniższej tabeli.

Rating	Date	Model	Weight	Height
83.7 %	05/2023	Morefine M600, 6600U R5 6600U, Radeon 660M	768 g	40.6 mm
85.5 %	03/2023	Morefine M600, 6900HX R9 6900HX, Radeon 680M	779 g	40.6 mm
86.1 %	02/2023	Minisforum Venus Series UM690 (6900HX) R9 6900HX, Radeon 680M	621 g	48 mm
78.9 %	11/2022	Intel NUC 12 Pro Kit NUC12WSKi7 i7-1260P, Iris Xe G7 96EUs	511 g	37 mm
86.6 %	01/2023	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	1.2 kg	66 mm
		Morefine S500+ R9 5900HX, Vega 8	697 g	40 mm
	10/2022	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs	586 g	53 mm
		Minisforum EliteMini B550 R7 5700G, Vega 8	1.1 kg	67 mm

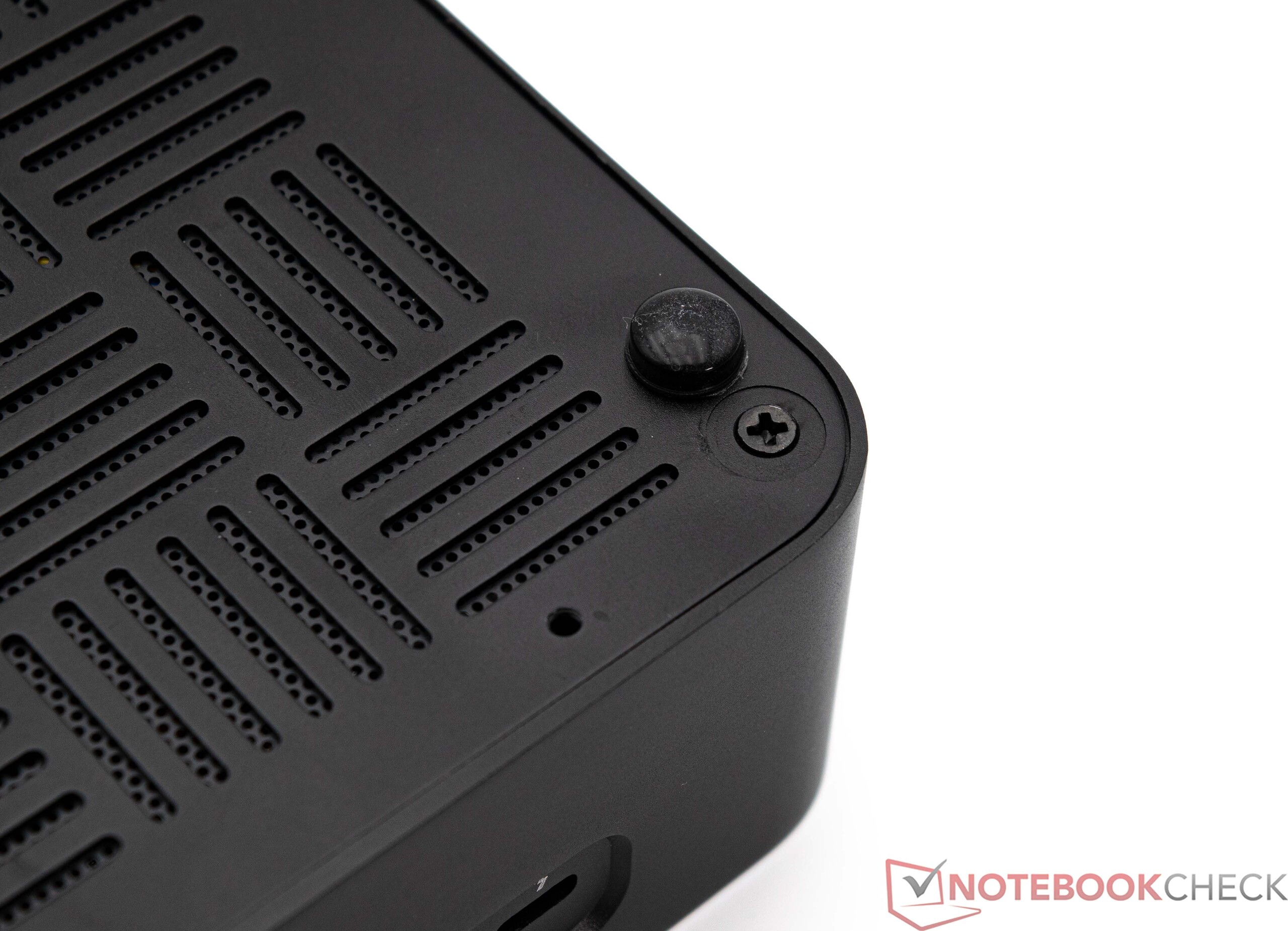

Sprawa

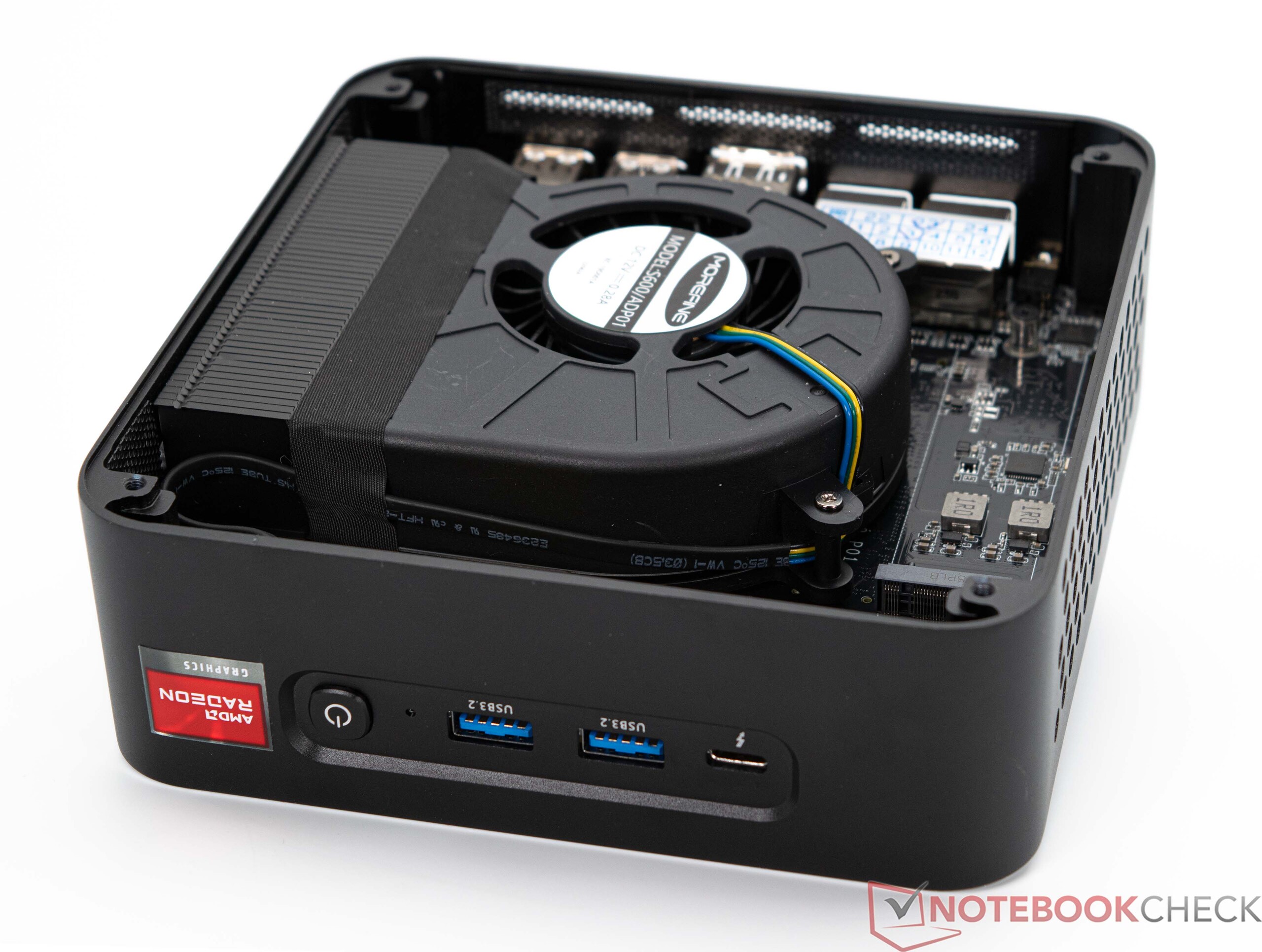

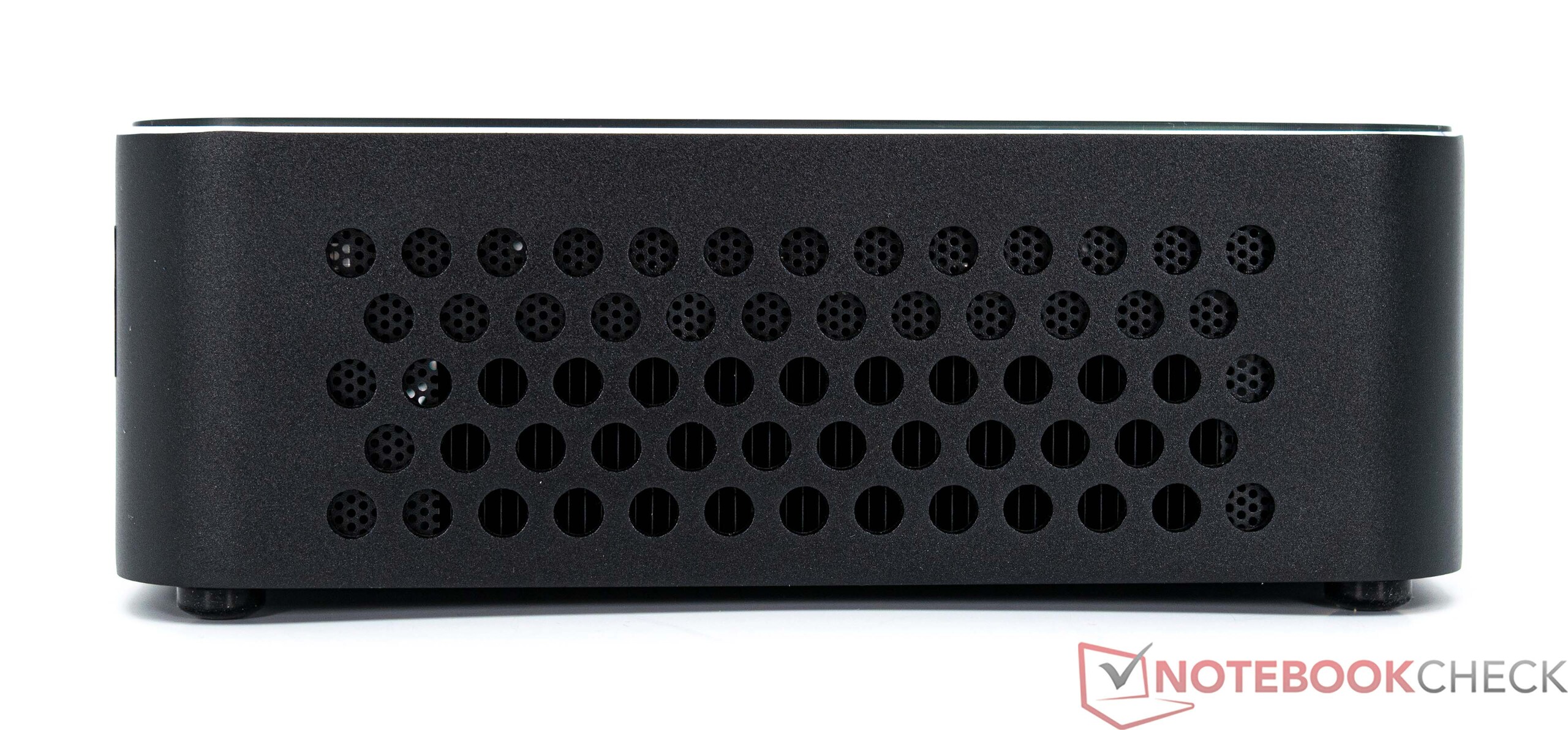

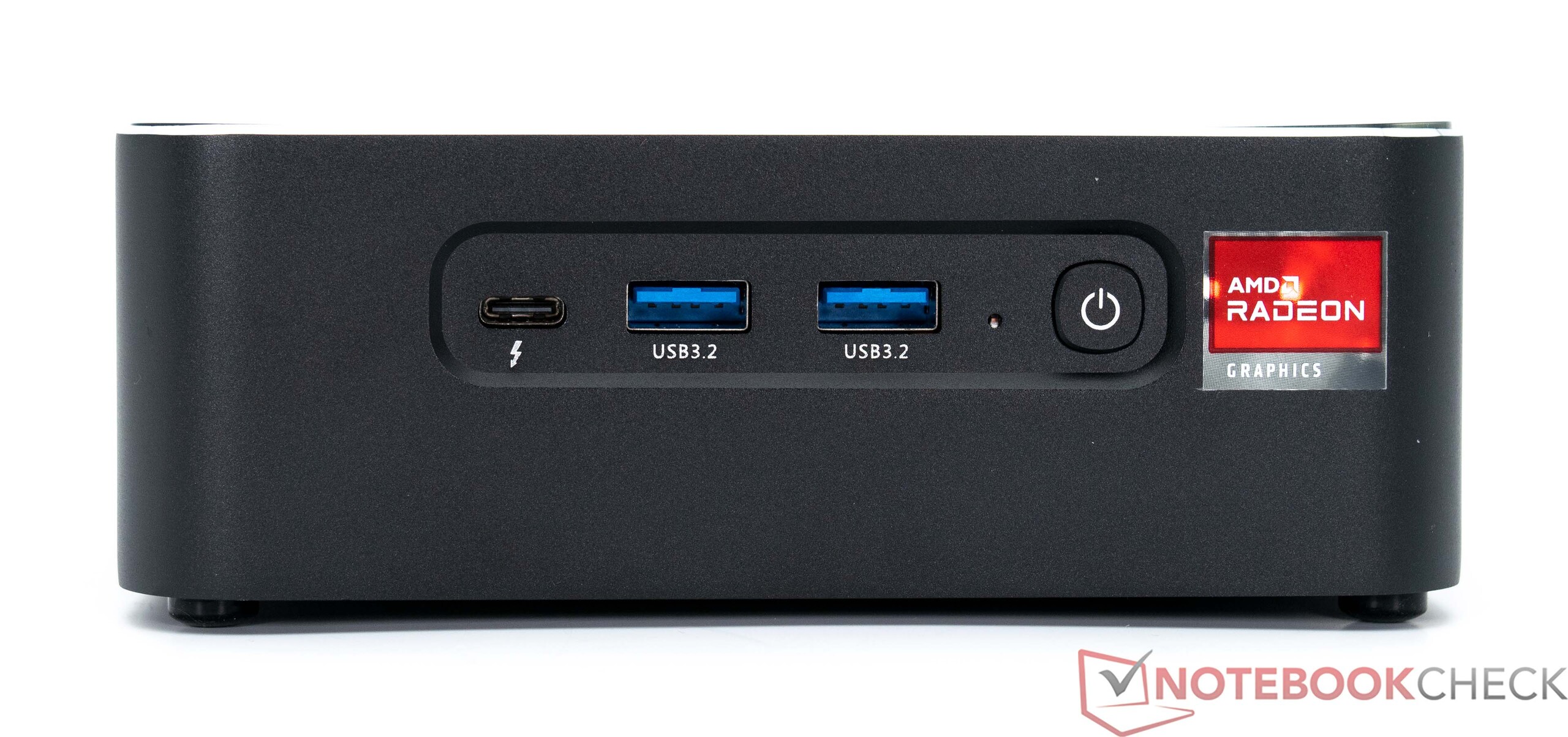

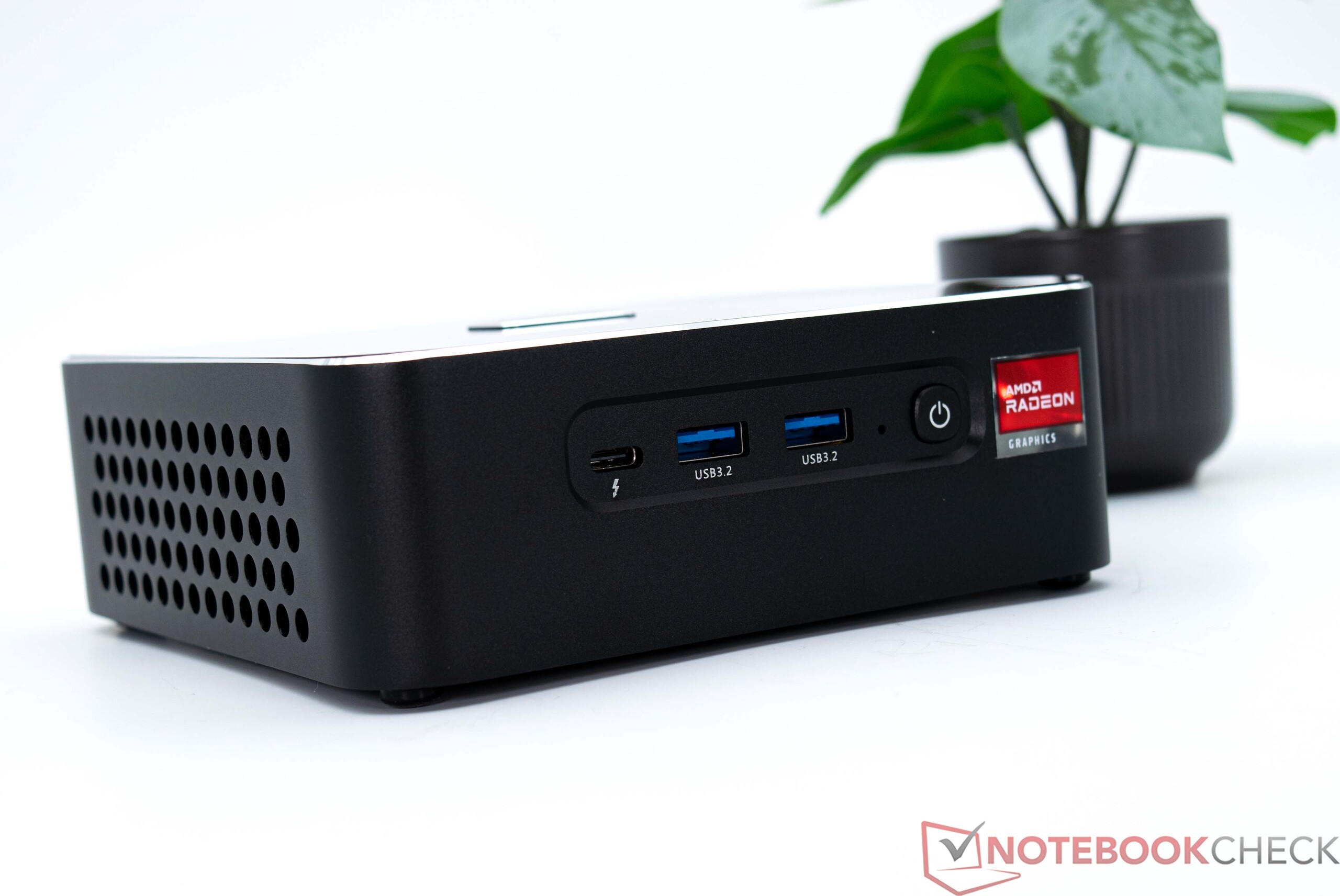

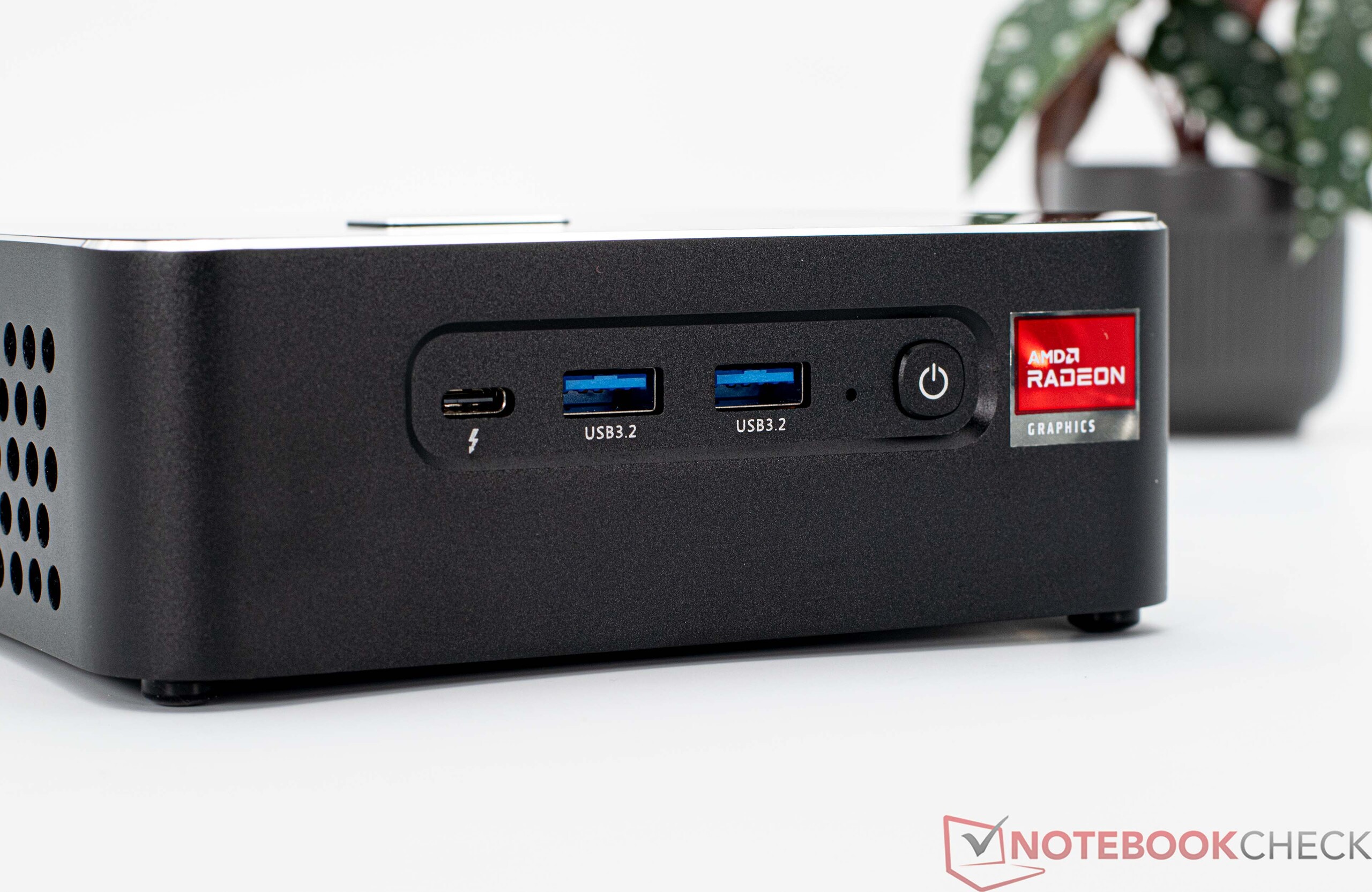

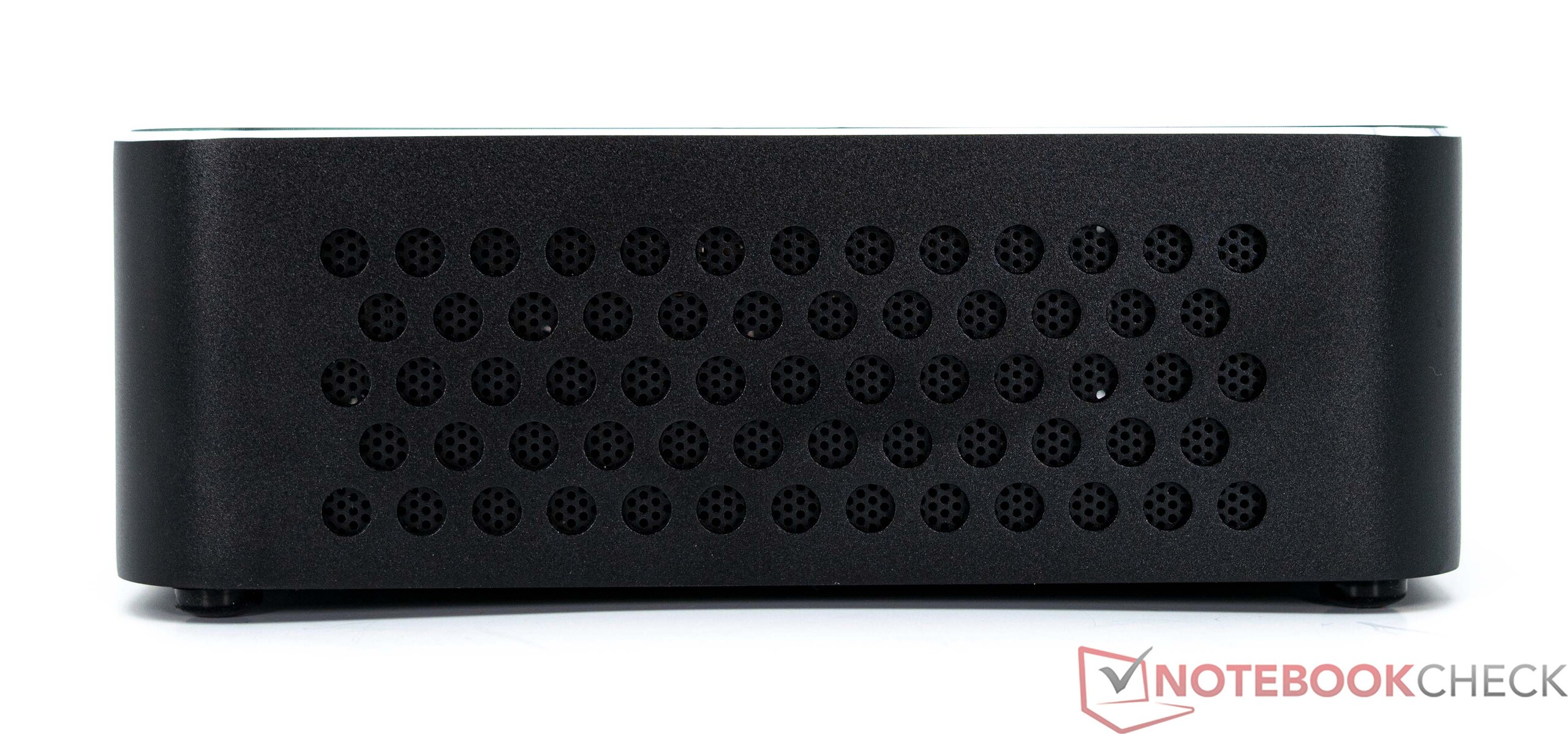

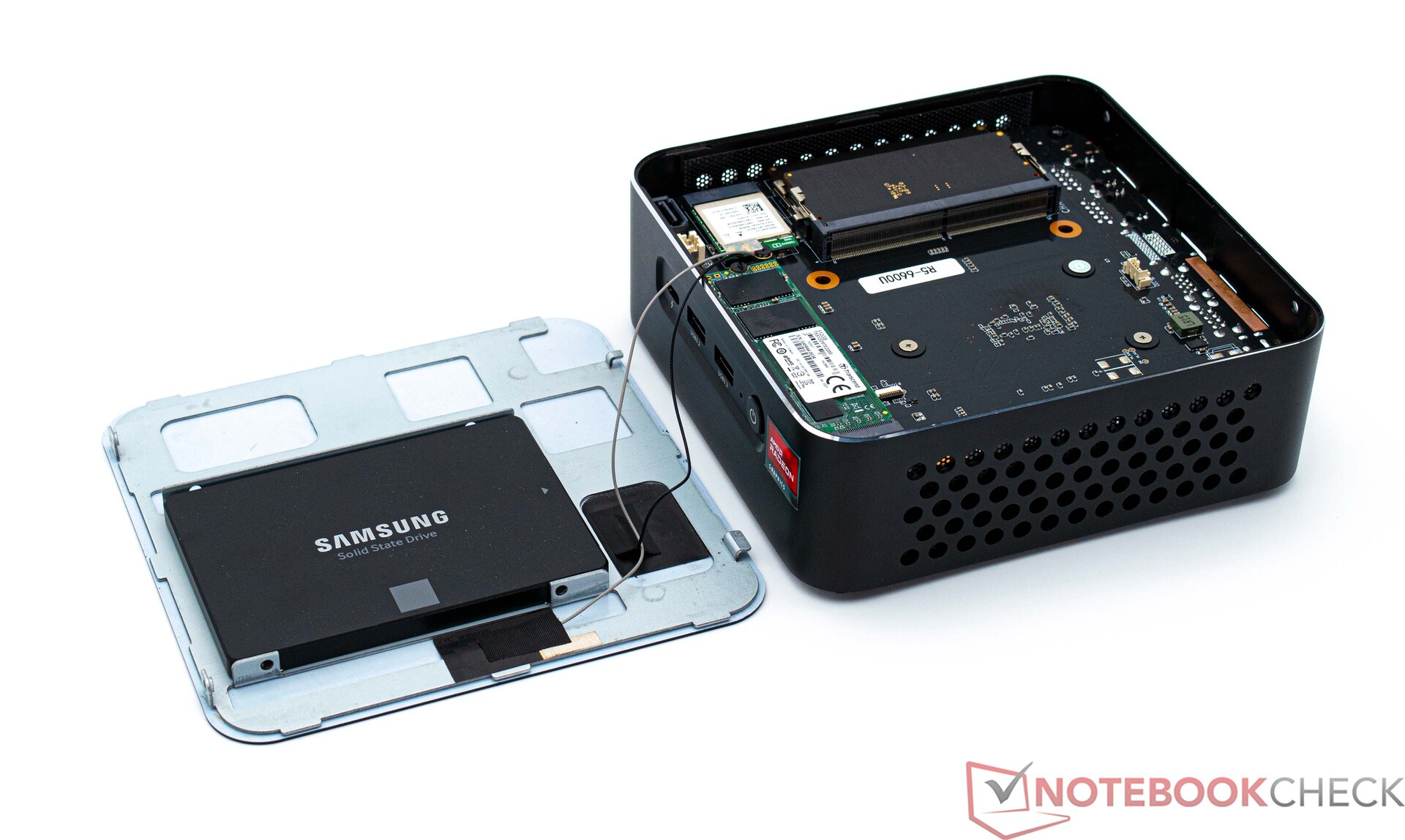

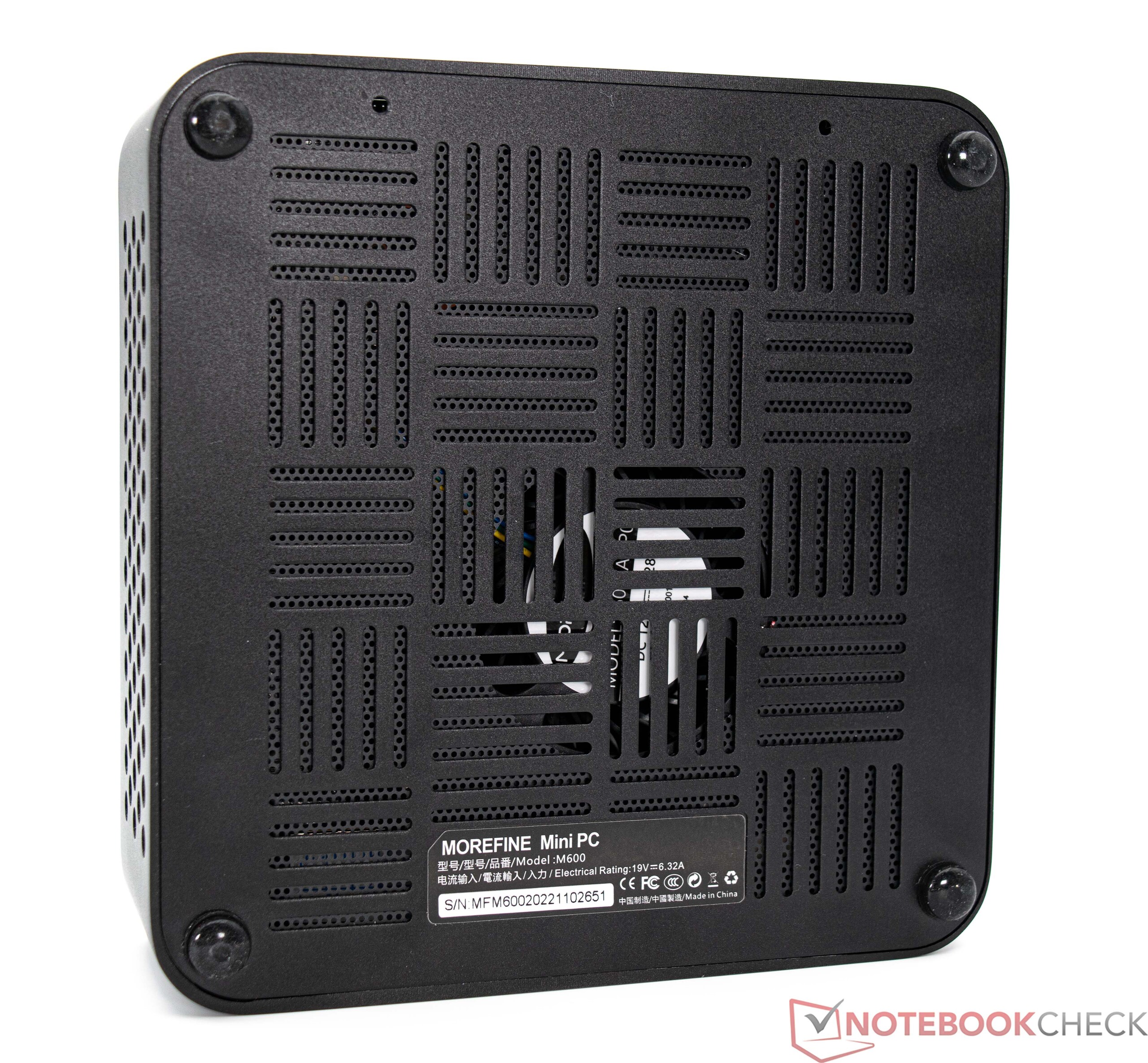

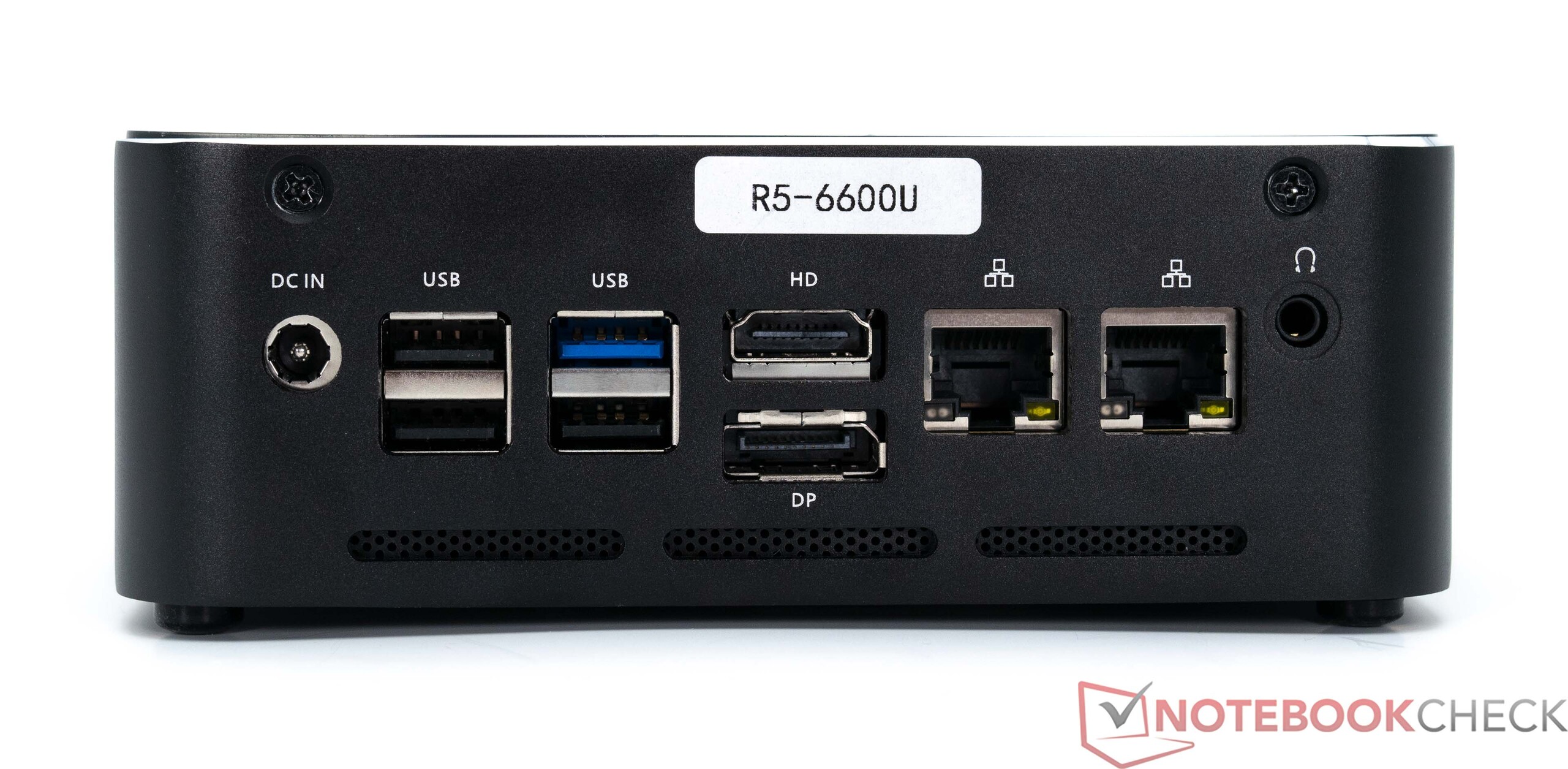

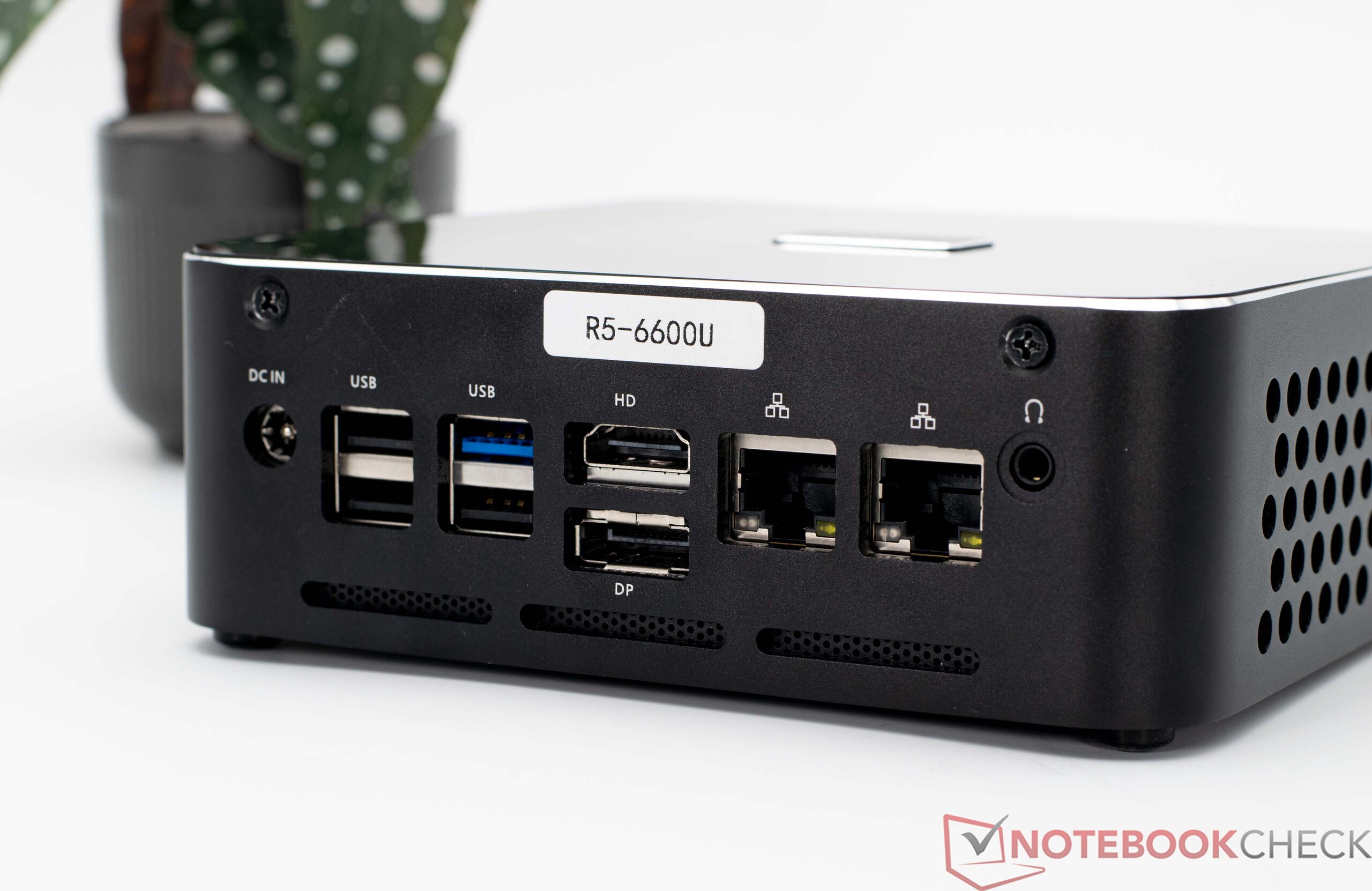

Nasz testowy egzemplarz ma dokładnie taką samą budowę jak Morefine M600 z procesorem AMD Ryzen 9 6900HX. Aby poznać więcej szczegółów na temat jego obudowy, zajrzyjcie do naszej recenzję modelu z najwyższej półki. To samo można powiedzieć o jego opcjach łączności, które również są takie same w mniejszym modelu.

W tym miejscu chcielibyśmy jeszcze wspomnieć o jednej kwestii wokół tego testu: Model z Ryzenem 5 6600U posiada również port Thunderbolt, który może ogromnie poszerzyć zakres zastosowań urządzenia. Jednak po naszym pierwszym teście nie byliśmy w stanie podłączyć do urządzenia naszej zewnętrznej stacji dokującej GPU. Po rozmowie z producentem powiedziano nam, że należy sprawdzić niektóre ustawienia BIOS-u. Po aktywacji kilku funkcji związanych z USB4, byliśmy w stanie podłączyć stację dokującą.

Ustawienia BIOS-u w celu aktywacji portu Thunderbolt:

USB4 Enable path:BIOS--Advanced--AMD CBS--FCH Common Options--USB4 Configuration Options--USB4 pre-CM Enable [Disabled] to [Enabled].
USB4 RT0--RT0 Router Enable [Disabled] to [Enabled]

.

Porównanie wielkości

Minisforum Neptune Series NAD9 Minisforum EliteMini B550 Morefine S600-Apex Engineer Minipc Union Ace Magician TK11-A0 Morefine M600, 6600U Morefine S500+ Minisforum Venus Series UM690 (6900HX) Intel NUC 12 Pro Kit NUC12WSKi7 DIN A4 ❌

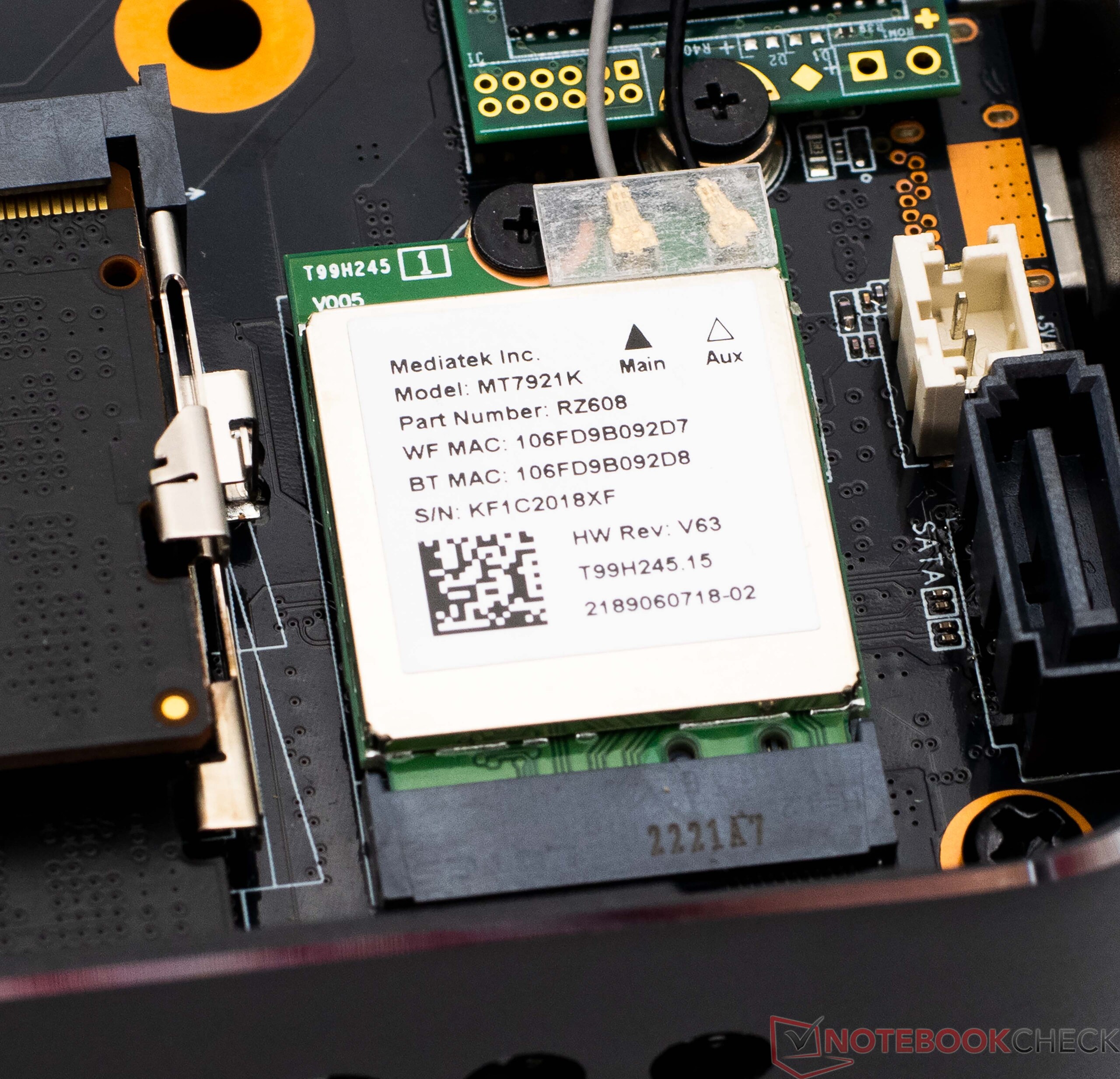

Networking
iperf3 receive AXE11000
Minisforum Neptune Series NAD9 Intel Wi-Fi 6E AX210	1318 (663^min - 1363^max) MBit/s ∼100% +39%
Minisforum Venus Series UM690 (6900HX) MediaTek RZ608	956 (944^min - 963^max) MBit/s ∼73% +1%
Morefine M600, 6600U MediaTek RZ608	948 (934^min - 957^max) MBit/s ∼72%
Morefine M600, 6900HX MediaTek RZ608	929 (874^min - 946^max) MBit/s ∼70% -2%
Average MediaTek RZ608 (430 - 975, n=13)	885 MBit/s ∼67% -7%
Average of class Mini PC (192.9 - 1688, n=33, last 2 years)	849 MBit/s ∼64% -10%
Minisforum EliteMini B550 MediaTek RZ608	430 MBit/s ∼33% -55%
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	390 MBit/s ∼30% -59%
iperf3 transmit AXE11000
Minisforum Neptune Series NAD9 Intel Wi-Fi 6E AX210	1320 (1165^min - 1353^max) MBit/s ∼100% +68%
Morefine M600, 6900HX MediaTek RZ608	964 (924^min - 990^max) MBit/s ∼73% +23%
Minisforum Venus Series UM690 (6900HX) MediaTek RZ608	943 (477^min - 981^max) MBit/s ∼71% +20%
Average MediaTek RZ608 (572 - 979, n=13)	862 MBit/s ∼65% +10%
Morefine M600, 6600U MediaTek RZ608	784 (381^min - 874^max) MBit/s ∼59%
Average of class Mini PC (184.1 - 1491, n=33, last 2 years)	773 MBit/s ∼59% -1%
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	745 MBit/s ∼56% -5%
Minisforum EliteMini B550 MediaTek RZ608	572 MBit/s ∼43% -27%
iperf3 receive AXE11000 6GHz
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Wi-Fi 6E AX211	1530 (1509^min - 1551^max) MBit/s ∼100% +60%
Average of class Mini PC (390 - 1771, n=20, last 2 years)	1137 MBit/s ∼74% +19%
Minisforum Venus Series UM690 (6900HX) MediaTek RZ608	961 (954^min - 967^max) MBit/s ∼63% 0%
Morefine M600, 6600U MediaTek RZ608	957 (943^min - 967^max) MBit/s ∼63%
Average MediaTek RZ608 (430 - 961, n=12)	843 MBit/s ∼55% -12%
Minisforum EliteMini B550 MediaTek RZ608	430 (379^min - 451^max) MBit/s ∼28% -55%
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	390 (322^min - 478^max) MBit/s ∼25% -59%
iperf3 transmit AXE11000 6GHz
Average of class Mini PC (722 - 1764, n=21, last 2 years)	1102 MBit/s ∼100% +44%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Wi-Fi 6E AX211	919 (458^min - 982^max) MBit/s ∼83% +20%
Average MediaTek RZ608 (572 - 980, n=12)	832 MBit/s ∼75% +9%
Minisforum Venus Series UM690 (6900HX) MediaTek RZ608	787 (638^min - 865^max) MBit/s ∼71% +3%
Morefine M600, 6600U MediaTek RZ608	765 (718^min - 814^max) MBit/s ∼69%
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	745 (381^min - 876^max) MBit/s ∼68% -3%
Minisforum EliteMini B550 MediaTek RZ608	572 (532^min - 680^max) MBit/s ∼52% -25%

Morefine M600, 6600U; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø765 (718-814)

Morefine M600, 6600U; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø957 (943-967)

Morefine M600, 6600U; iperf3 receive AXE11000; iperf 3.1.3: Ø948 (934-957)

Morefine M600, 6600U; iperf3 transmit AXE11000; iperf 3.1.3: Ø771 (381-874)

Wydajność - SoC Rembrandt od AMD jest szybki dzięki 6 rdzeniom

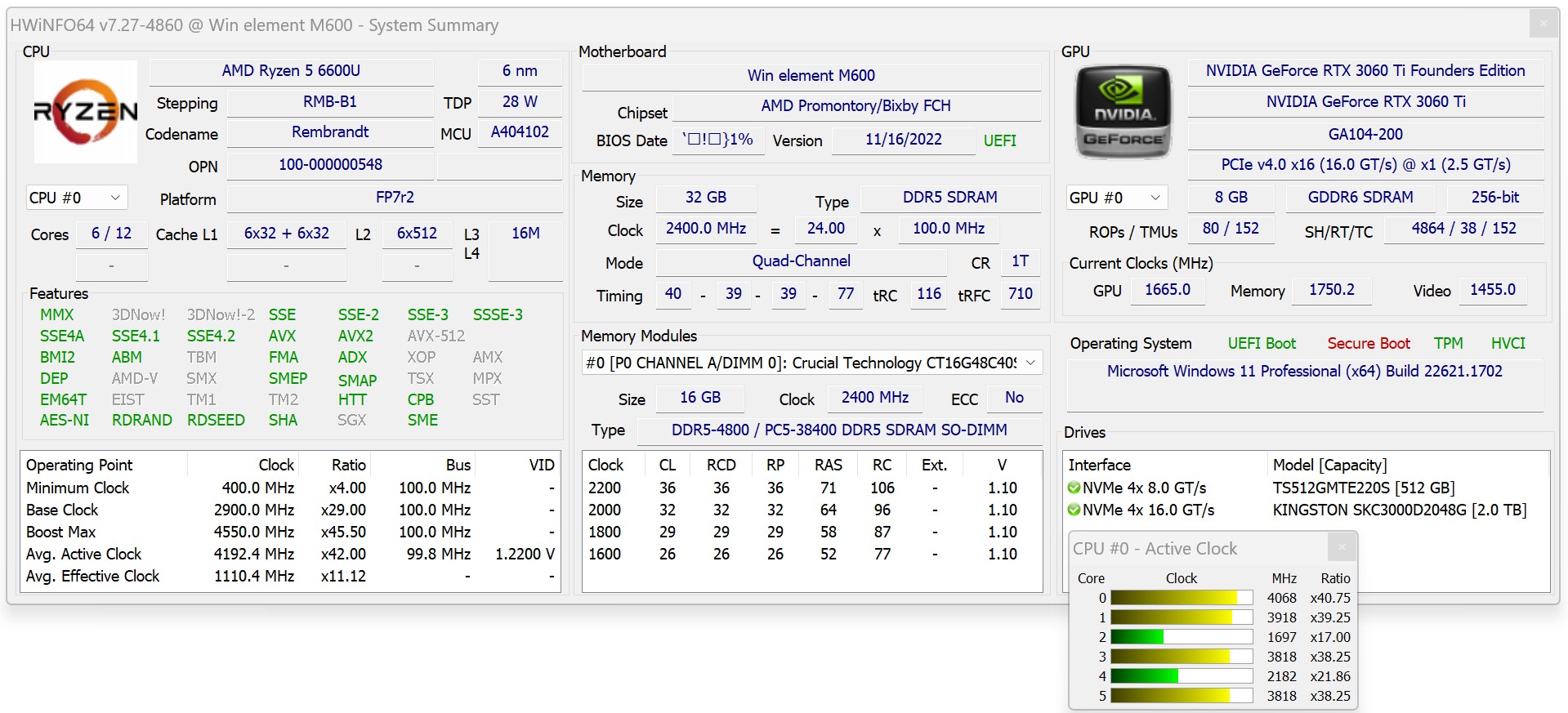

Morefine M600 posiada.AMD Ryzen 5 6600Uz 6 rdzeniami i 12 wątkami w najmniejszej konfiguracji. To więcej niż wystarczająca wydajność do codziennego użytku - z kilkoma dodatkowymi w zapasie. SoCAMD Radeon 660Mto niewielkie iGPU, które pod względem wydajności jest podobne do AMD Radeon RX Vega 8.

Warunki badania

Do wszystkich testów wydajnościowych wybraliśmy profil energetyczny o maksymalnej mocy. Odstępstwa od niego były dokonywane jedynie w pomiarach mocy i emisji hałasu zgodnie z naszymi kryteriami testowymi. Wydajność procesora nie była zmieniana w BIOS-ie, nie dokonywaliśmy też żadnych korekt krzywej wentylatora w zakresie chłodzenia.

Procesor

Na stronie .AMD Ryzen 5 6600Unależy do serii Rembrandt firmy AMD i posiada 6 rdzeni o łącznej liczbie 12 wątków. Morefine M600 6600U traci około 10 procent w rankingu wydajności, który stanowi średnią ze wszystkich benchmarków procesora, w porównaniu do modelu z najwyższej półki zAMD Ryzen 9 6900HX. Nasz testowy egzemplarz zajął przedostatnie miejsce - choć dystans do konkurentów jest minimalny. Widzieliśmy znaczną różnicę w wydajności między Morefine M600 6600U a m.in.Ace Magician TK11-A0.

Więcej benchmarków procesorów znajdziecie tutaj

.

Performance Rating - Percent
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	52.7 pt ∼53%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	52.4 pt ∼52%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	51.4 pt ∼51%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	50.5 pt ∼51%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	49.5 pt ∼50%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	49.1 pt ∼49%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	45.8 pt ∼46%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	37.1 pt ∼37%

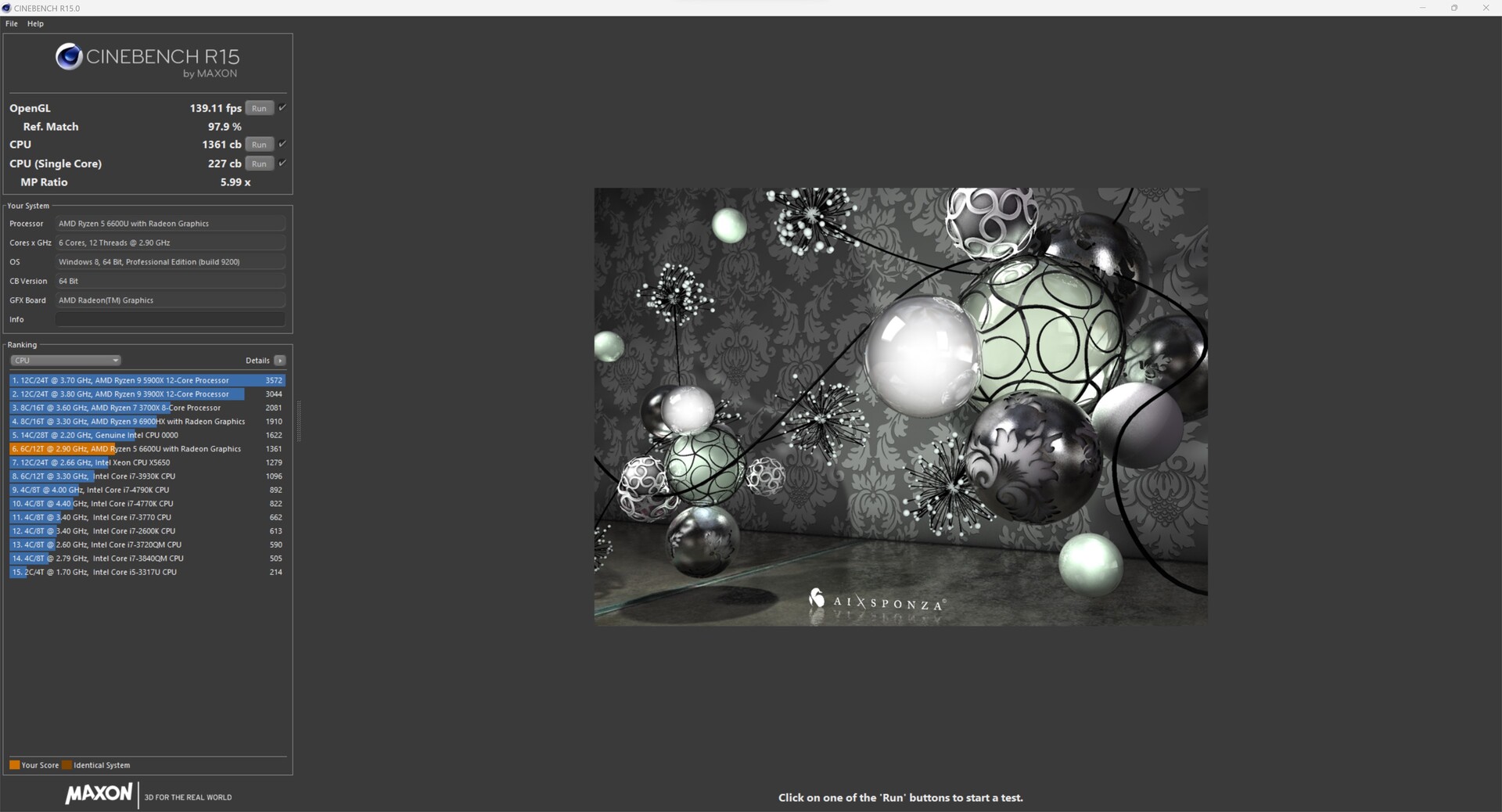

Cinebench R15
CPU Single 64Bit
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	261 Points ∼80% +15%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	260 Points ∼79% +15%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	247 Points ∼75% +9%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	244 Points ∼74% +7%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	243 Points ∼74% +7%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	240 Points ∼73% +6%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	227 Points ∼69%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	197 Points ∼60% -13%
CPU Multi 64Bit
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	2231 Points ∼23% +64%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2067 Points ∼21% +52%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1980 Points ∼20% +45%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1920 Points ∼20% +41%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1919 (1862.02^min - 1893.4^max) Points ∼20% +41%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1879 Points ∼19% +38%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1361 Points ∼14%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	560 Points ∼6% -59%

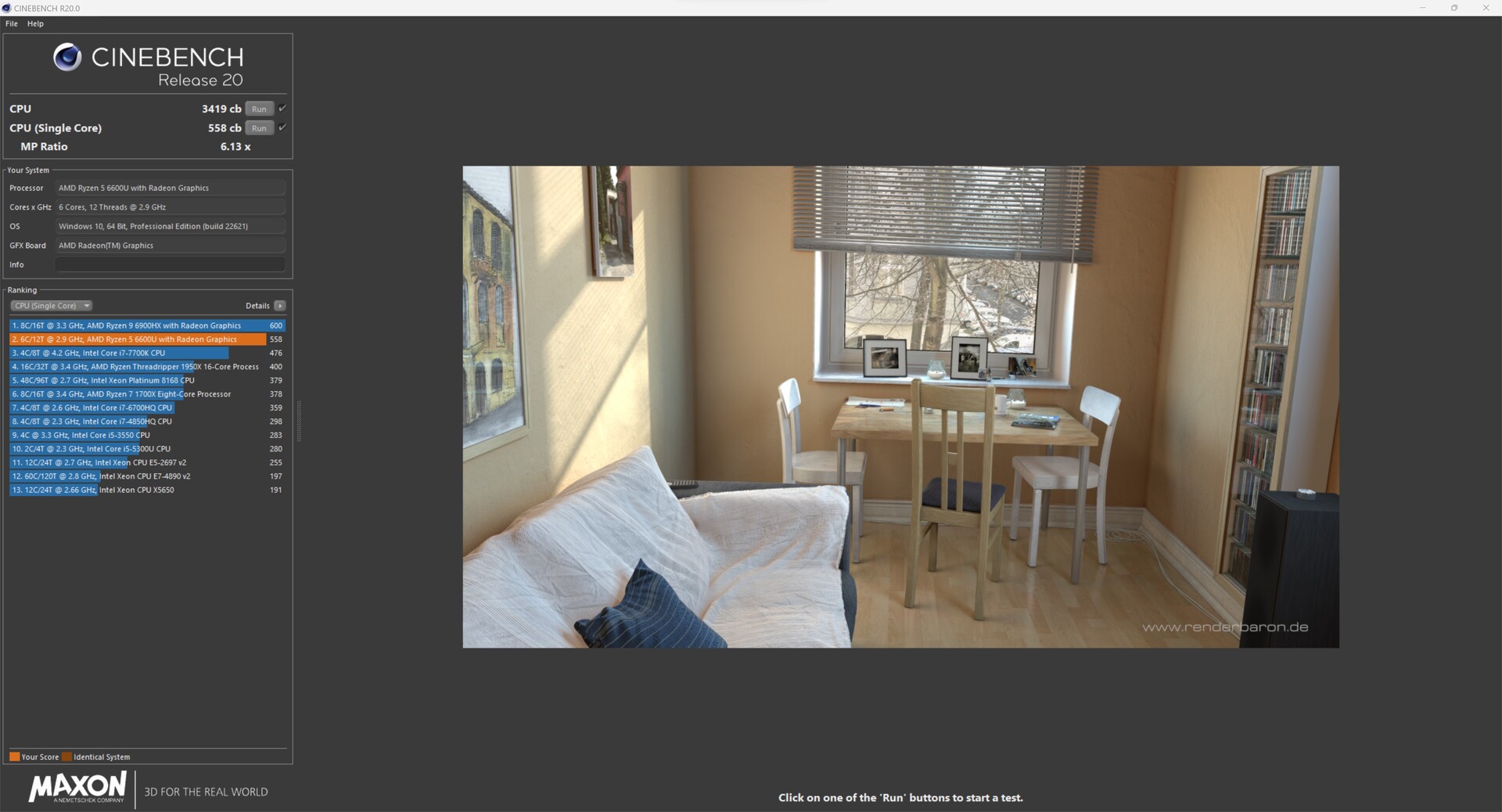

Cinebench R20
CPU (Single Core)
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	698 Points ∼80% +25%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	682 Points ∼78% +22%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	629 Points ∼72% +13%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	600 Points ∼69% +8%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	585 Points ∼67% +5%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	567 Points ∼65% +2%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	558 Points ∼64%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	517 Points ∼59% -7%
CPU (Multi Core)
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	5328 Points ∼23% +56%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	4941 Points ∼21% +45%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	4788 Points ∼20% +40%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	4660 Points ∼20% +36%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	4578 Points ∼19% +34%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	4495 Points ∼19% +31%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	3419 Points ∼15%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1440 Points ∼6% -58%

Cinebench R11.5
CPU Single 64Bit
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	3.15 Points ∼10% +15%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	3.07 Points ∼10% +12%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	2.88 Points ∼9% +5%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	2.87 Points ∼9% +5%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2.86 Points ∼9% +5%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	2.8 Points ∼9% +3%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	2.73 Points ∼9%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	2.31 Points ∼7% -15%
CPU Multi 64Bit
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	26.35 Points ∼37% +54%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	25.96 Points ∼37% +51%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	23.66 Points ∼33% +38%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	23.6 Points ∼33% +38%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	22.79 Points ∼32% +33%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	22 Points ∼31% +28%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	17.15 Points ∼24%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	6.37 Points ∼9% -63%

Cinebench R10
Rendering Single CPUs 64Bit
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	14504 Points ∼79% +24%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	12943 Points ∼71% +11%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	12846 Points ∼70% +10%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	12185 Points ∼66% +4%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	12113 Points ∼66% +4%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	11811 Points ∼64% +1%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	11685 Points ∼64%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	10395 Points ∼57% -11%
Rendering Multiple CPUs 64Bit
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	77409 Points ∼56% +41%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	76758 Points ∼55% +40%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	73492 Points ∼53% +34%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	69797 Points ∼50% +27%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	66237 Points ∼48% +21%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	64320 Points ∼46% +17%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	54792 Points ∼39%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	24499 Points ∼18% -55%

Blender - v2.79 BMW27 CPU
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	750 Seconds * ∼5% -81%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	415 Seconds * ∼3%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	280 Seconds * ∼2% +33%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	273 Seconds * ∼2% +34%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	265 Seconds * ∼2% +36%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	252.1 Seconds * ∼2% +39%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	234 Seconds * ∼2% +44%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	231 Seconds * ∼2% +44%

wPrime 2.10
32m
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	6.799 s * ∼1% -45%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	4.688 s * ∼1%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	4.4 s * ∼1% +6%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	3.642 s * ∼1% +22%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	3.641 s * ∼1% +22%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	3.595 s * ∼1% +23%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	3.461 s * ∼1% +26%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	3.421 s * ∼1% +27%
1024m
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	286.835 s * ∼3% -96%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	235.874 s * ∼3% -61%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	189.07 s * ∼2% -29%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	146.553 s * ∼2%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	106.7 s * ∼1% +27%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	103.226 s * ∼1% +30%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	98.635 s * ∼1% +33%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	93.19 s * ∼1% +36%

X264 HD Benchmark 4.0
Pass 1
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	276.5 (274^min - 278^max) fps ∼65% +30%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	266 (264^min - 271^max) fps ∼63% +25%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	263.5 (262^min - 266^max) fps ∼62% +24%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	262.5 (262^min - 266^max) fps ∼62% +24%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	258.5 (256^min - 268^max) fps ∼61% +22%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	245 (239^min - 261^max) fps ∼58% +16%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	212 (206^min - 224^max) fps ∼50%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	165.55 (163.6^min - 204^max) fps ∼39% -22%
Pass 2
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	127.8 (127.3^min - 129.1^max) fps ∼47% +79%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	125.25 (105.2^min - 130^max) fps ∼46% +75%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	116.8 (116.8^min - 117.3^max) fps ∼43% +63%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	114 (111.2^min - 119.4^max) fps ∼42% +60%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	112 (112^min - 112^max) fps ∼41% +57%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	110.5 (101.7^min - 125.3^max) fps ∼40% +55%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	71.45 (70.2^min - 76.6^max) fps ∼26%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	36.7 (36.7^min - 37.6^max) fps ∼13% -49%

WinRAR - Result
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	7937 KB/s ∼46% +14%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7722 KB/s ∼45% +11%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	7200 KB/s ∼42% +4%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	6960 KB/s ∼40% 0%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	6937 KB/s ∼40%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	6882 KB/s ∼40% -1%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	6795 KB/s ∼39% -2%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4185 KB/s ∼24% -40%

TrueCrypt
AES Mean 100MB
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	13.4 GB/s ∼41% +44%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	12.1 GB/s ∼37% +30%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	11.6 GB/s ∼36% +25%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	10.8 GB/s ∼33% +16%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	9.3 GB/s ∼29%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	8.6 GB/s ∼26% -8%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7.6 GB/s ∼23% -18%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5.3 GB/s ∼16% -43%
Twofish Mean 100MB
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2 GB/s ∼0% +54%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1.9 GB/s ∼0% +46%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	1.8 GB/s ∼0% +38%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1.6 GB/s ∼0% +23%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1.6 GB/s ∼0% +23%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1.5 GB/s ∼0% +15%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1.3 GB/s ∼0%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.755 GB/s ∼0% -42%
Serpent Mean 100MB
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	1.2 GB/s ∼0% +40%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1.1 GB/s ∼0% +28%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1.1 GB/s ∼0% +28%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1.1 GB/s ∼0% +28%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1.1 GB/s ∼0% +28%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	0.974 GB/s ∼0% +14%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	0.857 GB/s ∼0%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.448 GB/s ∼0% -48%

Geekbench 5.4
Multi-Core
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	9935 Points ∼34% +30%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	9706 Points ∼34% +27%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	9695 Points ∼34% +27%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	9151 Points ∼32% +19%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7855 Points ∼27% +3%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7818 Points ∼27% +2%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	7658 Points ∼27%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4898 Points ∼17% -36%
Single-Core
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	1861 Points ∼81% +24%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1715 Points ∼74% +14%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	1634 Points ∼71% +9%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1560 Points ∼68% +4%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1552 Points ∼67% +3%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1547 Points ∼67% +3%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1504 Points ∼65%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1391 Points ∼60% -8%

Geekbench 5.0
5.0 Multi-Core
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	10249 Points ∼32% 0%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	10249 Points ∼32%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	9817 Points ∼31% -4%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	9663 Points ∼30% -6%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	9638 Points ∼30% -6%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7847 Points ∼25% -23%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7806 Points ∼25% -24%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4841 Points ∼15% -53%
5.0 Single-Core
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	1838 Points ∼8% +18%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1694 Points ∼7% +9%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	1593 Points ∼7% +2%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1557 Points ∼7% 0%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1557 Points ∼7%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1518 Points ∼7% -3%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1504 Points ∼7% -3%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1385 Points ∼6% -11%

Geekbench 4.1 - 4.4
64 Bit Single-Core Score
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	8015 Points ∼83% +20%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	7554 Points ∼78% +13%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	6804 Points ∼70% +2%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	6698 Points ∼69% 0%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	6698 Points ∼69%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	6517 Points ∼67% -3%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	6434 Points ∼66% -4%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5911 Points ∼61% -12%
64 Bit Multi-Core Score
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	39852 Points ∼44% 0%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	39852 Points ∼44%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	38566 Points ∼43% -3%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	36974 Points ∼41% -7%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	36692 Points ∼41% -8%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	31835 Points ∼35% -20%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	31724 Points ∼35% -20%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	19288 Points ∼22% -52%

3DMark 11 - 1280x720 Performance Physics
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	18382 Points ∼50% +58%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	18277 Points ∼49% +57%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	18044 Points ∼49% +55%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	16783 Points ∼45% +44%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	15855 Points ∼43% +36%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	14277 Points ∼39% +23%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	11630 Points ∼31%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	7792 Points ∼21% -33%

7-Zip 18.03
7z b 4
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	61401 MIPS ∼38% +39%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	56923 MIPS ∼35% +28%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	55046 MIPS ∼34% +24%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	54998 MIPS ∼34% +24%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	51151 MIPS ∼32% +15%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	47064 MIPS ∼29% +6%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	44320 MIPS ∼27%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	17636 MIPS ∼11% -60%
7z b 4 -mmt1
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	6067 MIPS ∼73% +11%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	6019 MIPS ∼72% +10%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	5905 MIPS ∼71% +8%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	5809 MIPS ∼69% +6%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	5738 MIPS ∼69% +5%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	5591 MIPS ∼67% +2%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	5486 MIPS ∼66%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4788 MIPS ∼57% -13%

HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	17.1 fps ∼37% +46%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	15.4 fps ∼33% +32%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	14.8 fps ∼32% +26%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	14.5 fps ∼31% +24%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	14.1 fps ∼30% +21%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	13.2 fps ∼28% +13%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	11.7 fps ∼25%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5.26 fps ∼11% -55%

R Benchmark 2.5 - Overall mean
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.639 sec * ∼14% -25%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	0.511 sec * ∼11%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	0.4975 sec * ∼11% +3%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	0.493 sec * ∼11% +4%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	0.4881 sec * ∼11% +4%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	0.4787 sec * ∼10% +6%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	0.4757 sec * ∼10% +7%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	0.4641 sec * ∼10% +9%

LibreOffice - 20 Documents To PDF
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	53.4 s * ∼13% -1%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	53 s * ∼13%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	52 s * ∼13% +2%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	50.7 s * ∼13% +4%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	50.4 s * ∼13% +5%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	48.8 s * ∼12% +8%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	45 s * ∼11% +15%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	38 s * ∼10% +28%

WebXPRT 3 - ---
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	311 Points ∼72% +14%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	292 Points ∼68% +7%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	287 Points ∼66% +5%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	285 Points ∼66% +4%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	284 Points ∼66% +4%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	274 Points ∼63% 0%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	274 Points ∼63%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	236 Points ∼55% -14%

Mozilla Kraken 1.1 - Total Score
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	724 ms * ∼1% -17%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	619 ms * ∼1%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	605 ms * ∼1% +2%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	604 ms * ∼1% +2%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	602 ms * ∼1% +3%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	577 ms * ∼1% +7%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	571 ms * ∼1% +8%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	534 ms * ∼1% +14%

3DMark
3840x2160 Fire Strike Ultra Physics
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	25456 Points ∼47% +37%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	23939 Points ∼44% +29%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	23269 Points ∼43% +25%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	22441 Points ∼41% +21%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	21422 Points ∼40% +15%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	19357 Points ∼36% +4%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	18599 Points ∼34%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	9561 Points ∼18% -49%
1920x1080 Fire Strike Physics
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	25915 Points ∼48% +63%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	25160 Points ∼46% +58%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	23903 Points ∼44% +50%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	22426 Points ∼41% +41%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	22244 Points ∼41% +40%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	20684 Points ∼38% +30%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	15934 Points ∼29%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	9354 Points ∼17% -41%
2560x1440 Time Spy CPU
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	10539 Points ∼52% +106%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	9354 Points ∼46% +83%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	8622 Points ∼43% +69%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	8393 Points ∼41% +64%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	8191 Points ∼40% +60%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7087 Points ∼35% +39%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	5114 Points ∼25%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	2867 Points ∼14% -44%

* ... im mniej tym lepiej

Performance Rating
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, Radeon 680M	99.3 pt ∼99%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	86 pt ∼86%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	85.9 pt ∼86%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	85.8 pt ∼86%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	70.7 pt ∼71%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	69.3 pt ∼69%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	62.8 pt ∼63%
Average of class Mini PC	58.4 pt ∼58%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	41.5 pt ∼42%

AIDA64 / FP32 Ray-Trace
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, Radeon 680M	15102 KRay/s ∼100% +59%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	13757 KRay/s ∼91% +45%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	13631 KRay/s ∼90% +43%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	13460 KRay/s ∼89% +41%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	10952 KRay/s ∼73% +15%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	10351 KRay/s ∼69% +9%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	9518 KRay/s ∼63%
Average of class Mini PC (561 - 15814, n=43, last 2 years)	8639 KRay/s ∼57% -9%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	5612 KRay/s ∼37% -41%

AIDA64 / FPU Julia
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, Radeon 680M	98980 Points ∼100% +66%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	87663 Points ∼89% +47%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	86825 Points ∼88% +45%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	85294 Points ∼86% +43%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	59704 Points ∼60%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	55221 Points ∼56% -8%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	52136 Points ∼53% -13%
Average of class Mini PC (3604 - 99936, n=43, last 2 years)	49461 Points ∼50% -17%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	24138 Points ∼24% -60%

AIDA64 / CPU SHA3
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, Radeon 680M	3452 MB/s ∼100% +73%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	2953 MB/s ∼86% +48%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	2931 MB/s ∼85% +47%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	2924 MB/s ∼85% +46%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	2590 MB/s ∼75% +30%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	2558 MB/s ∼74% +28%
Average of class Mini PC (225 - 3570, n=43, last 2 years)	2045 MB/s ∼59% +2%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	1997 MB/s ∼58%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	1649 MB/s ∼48% -17%

AIDA64 / CPU Queen
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, Radeon 680M	103686 Points ∼100% +38%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	100293 Points ∼97% +33%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	97720 Points ∼94% +30%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	94655 Points ∼91% +26%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	85240 Points ∼82% +13%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	82493 Points ∼80% +10%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	75248 Points ∼73%
Average of class Mini PC (8178 - 104437, n=43, last 2 years)	66942 Points ∼65% -11%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	46646 Points ∼45% -38%

AIDA64 / FPU SinJulia
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, Radeon 680M	13101 Points ∼100% +50%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	12396 Points ∼95% +42%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	12202 Points ∼93% +40%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	11929 Points ∼91% +37%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	8738 Points ∼67%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	7548 Points ∼58% -14%
Average of class Mini PC (408 - 13164, n=43, last 2 years)	7007 Points ∼53% -20%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	6728 Points ∼51% -23%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	3964 Points ∼30% -55%

AIDA64 / FPU Mandel
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, Radeon 680M	52710 Points ∼100% +62%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	47597 Points ∼90% +47%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	47010 Points ∼89% +45%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	44629 Points ∼85% +37%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	32465 Points ∼62%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	28159 Points ∼53% -13%
Average of class Mini PC (1958 - 55002, n=43, last 2 years)	26312 Points ∼50% -19%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	25996 Points ∼49% -20%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	14905 Points ∼28% -54%

AIDA64 / CPU AES
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, Radeon 680M	136723 MB/s ∼100% +245%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	119844 MB/s ∼88% +202%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	115382 MB/s ∼84% +191%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	99521 MB/s ∼73% +151%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	92356 MB/s ∼68% +133%
Average of class Mini PC (3778 - 136723, n=43, last 2 years)	69190 MB/s ∼51% +74%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	58910 MB/s ∼43% +48%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	56199 MB/s ∼41% +42%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	39680 MB/s ∼29%

AIDA64 / CPU ZLib
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, Radeon 680M	863 MB/s ∼100% +63%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	774 MB/s ∼90% +46%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	747 MB/s ∼87% +41%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	745 MB/s ∼86% +41%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	732 MB/s ∼85% +38%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	722 MB/s ∼84% +36%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	530 MB/s ∼61%
Average of class Mini PC (74.8 - 982, n=43, last 2 years)	529 MB/s ∼61% 0%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	265 MB/s ∼31% -50%

AIDA64 / FP64 Ray-Trace
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, Radeon 680M	7973 KRay/s ∼100% +58%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	7288 KRay/s ∼91% +44%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	7193 KRay/s ∼90% +42%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	7184 KRay/s ∼90% +42%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	5777 KRay/s ∼72% +14%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	5613 KRay/s ∼70% +11%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	5058 KRay/s ∼63%
Average of class Mini PC (308 - 8447, n=43, last 2 years)	4601 KRay/s ∼58% -9%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	2997 KRay/s ∼38% -41%

AIDA64 / CPU PhotoWorxx
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	29765 MPixel/s ∼100% +8%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	28377 MPixel/s ∼95% +3%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, Radeon 680M	27720 MPixel/s ∼93% +1%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	27456 MPixel/s ∼92%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	26959 MPixel/s ∼91% -2%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	24323 MPixel/s ∼82% -11%
Average of class Mini PC (4408 - 44347, n=43, last 2 years)	23846 MPixel/s ∼80% -13%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	19885 MPixel/s ∼67% -28%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	14810 MPixel/s ∼50% -46%

Morefine M600 w pętli Cinebench R15 Multi Loop

Ciągła pętla Cinebench R15 pokazuje, jak dobrze układ radzi sobie przy ciągłym obciążeniu. System po prostu nie jest w stanie utrzymać wyjściowego poziomu wydajności SoC. Udaje się to jednak tylko nielicznym urządzeniom, co oznacza, że nasz Morefine M600 6600U nie jest sam. Wydajność SoC spadała nieprzerwanie przez pierwsze dziesięć uruchomień i wyrównała się średnio do 105 punktów. Oznacza to, że jego ciągła wydajność spadła o około 20 procent w porównaniu z pojedynczym przebiegiem.

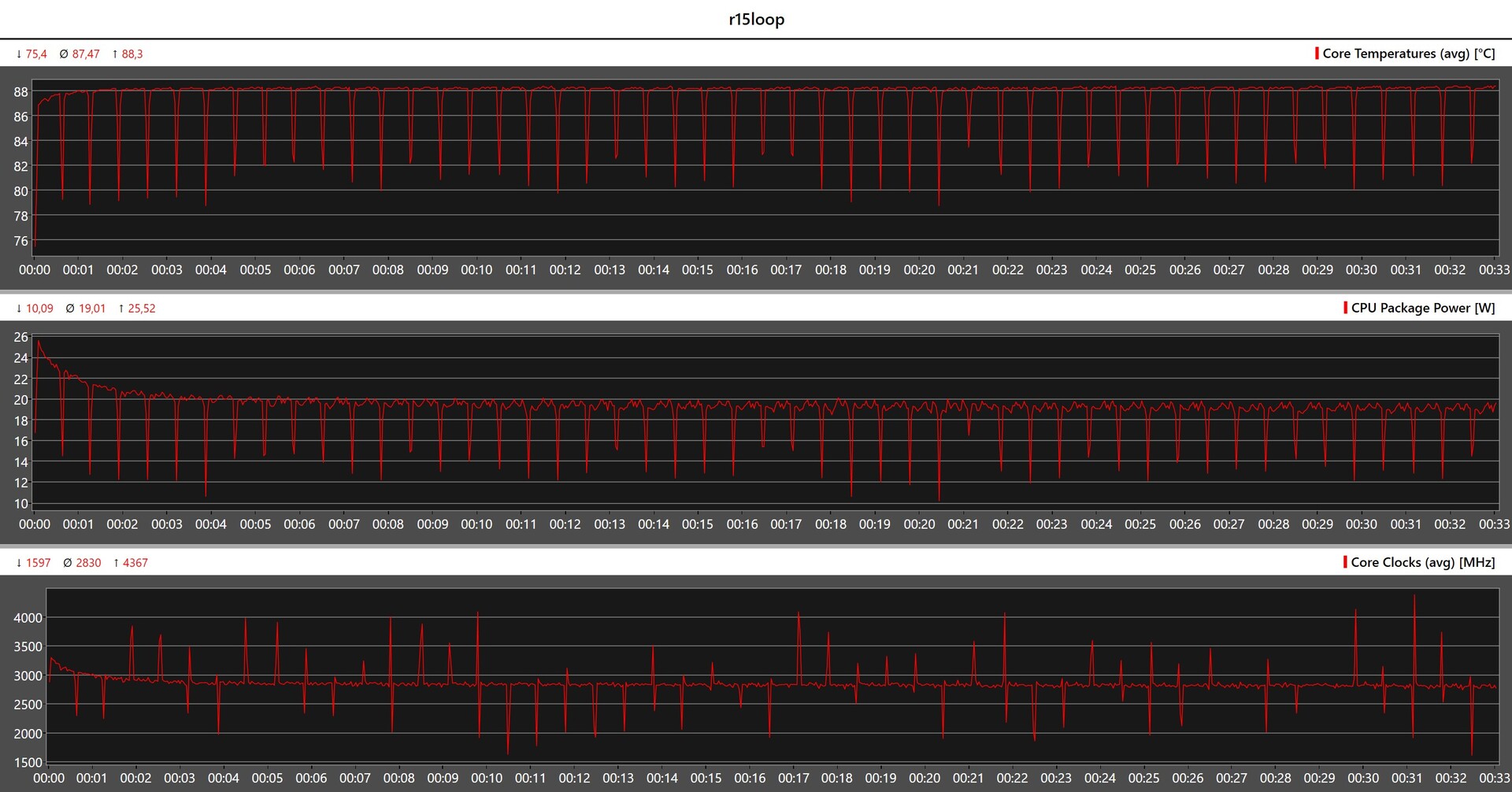

Metryka procesora podczas pętli Cinebench R15

Morefine M600, 6600U AMD Ryzen 5 6600U, AMD Ryzen 5 6600U: Ø1166 (1105.77-1443.37)

Morefine S500+ AMD Ryzen 9 5900HX, AMD Ryzen 9 5900HX: Ø1892 (1879.35-1907.49)

Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Ryzen 7 5700G: Ø1980 (1960.21-1996.81)

Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Core i5-1135G7: Ø574 (568.03-615.59)

Minisforum Neptune Series NAD9 Intel Core i9-12900H, Intel Core i9-12900H: Ø1703 (1657.14-2261.04)

Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Core i7-1260P: Ø1702 (1671.26-2063.13)

Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, AMD Ryzen 9 6900HX: Ø2111 (2087.36-2211.78)

Morefine M600, 6900HX AMD Ryzen 9 6900HX, AMD Ryzen 9 6900HX: Ø1900 (1863.93-2044.26)

Wydajność systemu

Nasze benchmarki systemowe odzwierciedlają wydajność benchmarków CPU. Morefine M600 6600U udało się utrzymać m.in.Ace Magician TK11-A0w ryzach - jego opóźnienie w stosunku do reszty konkurentów nie było aż tak duże. Testy pamięci RAM pokazały stosunkowo dobre wyniki dzięki posiadanej pamięci DDR5.

PCMark 10: Score | Essentials | Productivity

PCMark 10 / Score
Minisforum Venus Series UM690 (6900HX), AMD Ryzen 9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston OM8PGP4512Q-A0	7045 Points ∼100% +20%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	6654 Points ∼94% +13%
Morefine S500+, AMD Ryzen 9 5900HX AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	6290 Points ∼89% +7%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	6214 Points ∼88% +6%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Core i9-12900H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	6187 Points ∼88% +5%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	5915 Points ∼84% +1%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Ryzen 5 6600U, AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	5872 Points ∼83%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	4521 Points ∼64% -23%

PCMark 10 / Essentials
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Core i9-12900H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	11217 Points ∼100% +14%
Minisforum Venus Series UM690 (6900HX), AMD Ryzen 9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston OM8PGP4512Q-A0	10838 Points ∼97% +10%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	10661 Points ∼95% +9%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	10390 Points ∼93% +6%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	10148 Points ∼90% +3%
Morefine S500+, AMD Ryzen 9 5900HX AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	10087 Points ∼90% +3%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Ryzen 5 6600U, AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	9820 Points ∼88%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	8910 Points ∼79% -9%

PCMark 10 / Productivity
Minisforum Venus Series UM690 (6900HX), AMD Ryzen 9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston OM8PGP4512Q-A0	10060 Points ∼100% +11%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	9941 Points ∼99% +10%
Morefine S500+, AMD Ryzen 9 5900HX AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	9856 Points ∼98% +9%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	9817 Points ∼98% +9%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Ryzen 5 6600U, AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	9031 Points ∼90%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Core i9-12900H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	7673 Points ∼76% -15%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	7626 Points ∼76% -16%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	6357 Points ∼63% -30%

CrossMark: Overall | Productivity | Creativity | Responsiveness

CrossMark / Overall
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1894 Points ∼100% +25%
Minisforum Venus Series UM690 (6900HX), AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston OM8PGP4512Q-A0	1731 Points ∼91% +14%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	1679 Points ∼89% +11%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1517 Points ∼80% 0%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1517 Points ∼80%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1424 Points ∼75% -6%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1245 Points ∼66% -18%

CrossMark / Productivity
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1921 Points ∼100% +29%
Minisforum Venus Series UM690 (6900HX), AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston OM8PGP4512Q-A0	1738 Points ∼90% +17%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	1649 Points ∼86% +11%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1491 Points ∼78% 0%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1491 Points ∼78%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1453 Points ∼76% -3%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1306 Points ∼68% -12%

CrossMark / Creativity
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1800 Points ∼100% +9%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	1785 Points ∼99% +8%
Minisforum Venus Series UM690 (6900HX), AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston OM8PGP4512Q-A0	1745 Points ∼97% +6%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1652 Points ∼92% 0%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1652 Points ∼92%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1448 Points ∼80% -12%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1193 Points ∼66% -28%

CrossMark / Responsiveness
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	2116 Points ∼100% +71%
Minisforum Venus Series UM690 (6900HX), AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston OM8PGP4512Q-A0	1671 Points ∼79% +35%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	1476 Points ∼70% +19%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1271 Points ∼60% +3%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1238 Points ∼59% 0%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1238 Points ∼59%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1224 Points ∼58% -1%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	50228 MB/s ∼100% +5%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, Radeon 680M	47938 MB/s ∼95% 0%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	47711 MB/s ∼95%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	45941 MB/s ∼91% -4%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	44661 MB/s ∼89% -6%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	41969 MB/s ∼84% -12%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	37840 MB/s ∼75% -21%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	35423 MB/s ∼71% -26%

AIDA64 / Memory Read
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	51077 MB/s ∼100% +11%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, Radeon 680M	49936 MB/s ∼98% +8%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	49559 MB/s ∼97% +8%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	46906 MB/s ∼92% +2%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	46644 MB/s ∼91% +1%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	46084 MB/s ∼90%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	42996 MB/s ∼84% -7%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	40348 MB/s ∼79% -12%

AIDA64 / Memory Write
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	55194 MB/s ∼100% +12%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, Radeon 680M	54750 MB/s ∼99% +11%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	49353 MB/s ∼89%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	46815 MB/s ∼85% -5%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	46223 MB/s ∼84% -6%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	41806 MB/s ∼76% -15%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	39154 MB/s ∼71% -21%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	35371 MB/s ∼64% -28%

AIDA64 / Memory Latency
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	100 ns * ∼100% -6%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	94 ns * ∼94%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	92.7 ns * ∼93% +1%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	92.4 ns * ∼92% +2%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, Radeon 680M	83 ns * ∼83% +12%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	74.2 ns * ∼74% +21%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	73.5 ns * ∼74% +22%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	69 ns * ∼69% +27%

* ... im mniej tym lepiej

Opóźnienie DPC

LatencyMon nie wykazał też krytycznych opóźnień w Morefine M600 6600U. Widzieliśmy nieco wyższe latencje podczas otwierania wielu kart w Edge, które nie wzrosły dalej podczas odtwarzania testowego wideo 4K. Nie zaobserwowaliśmy też wyższych latencji w przypadku Prime95.

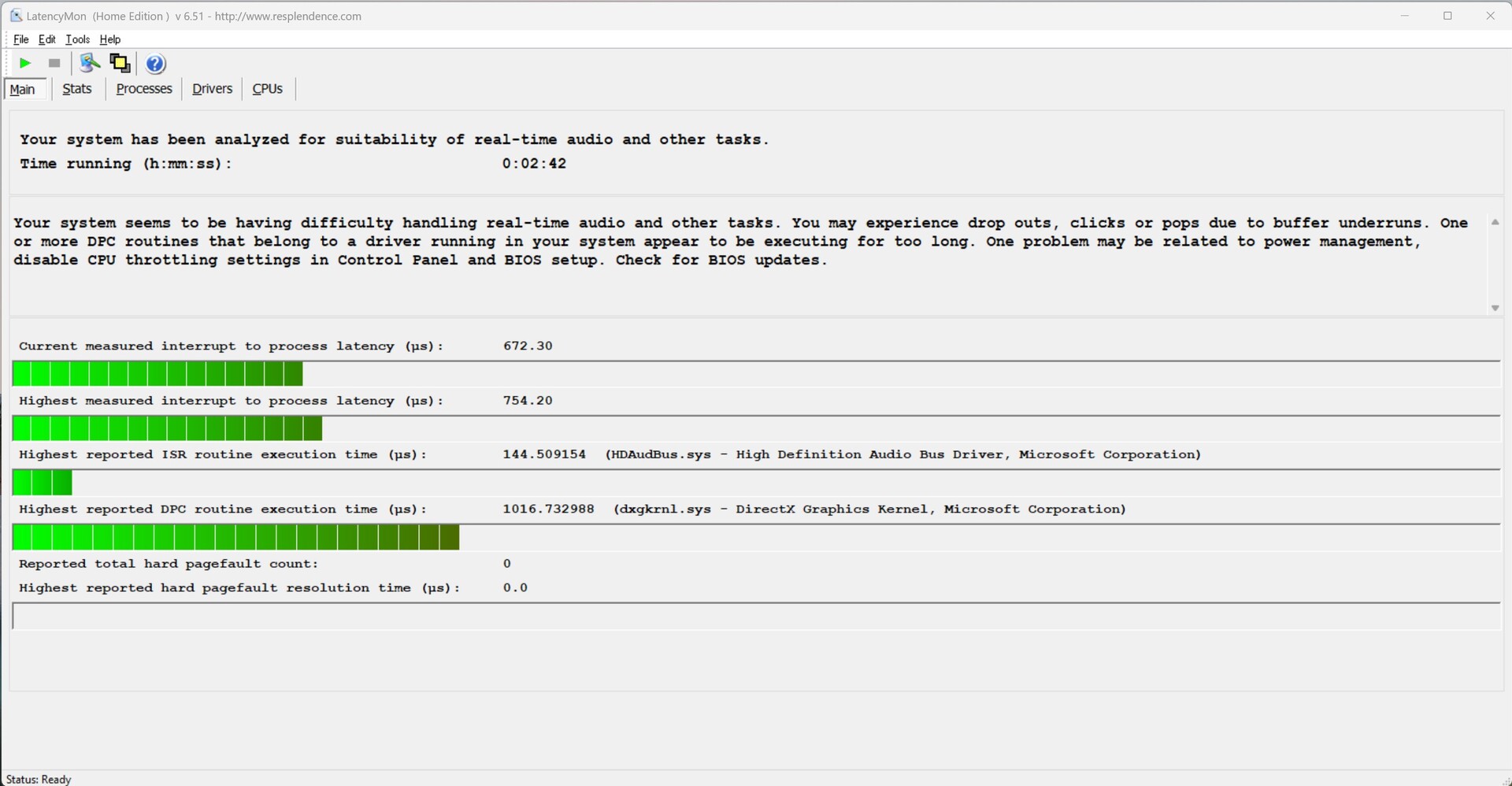

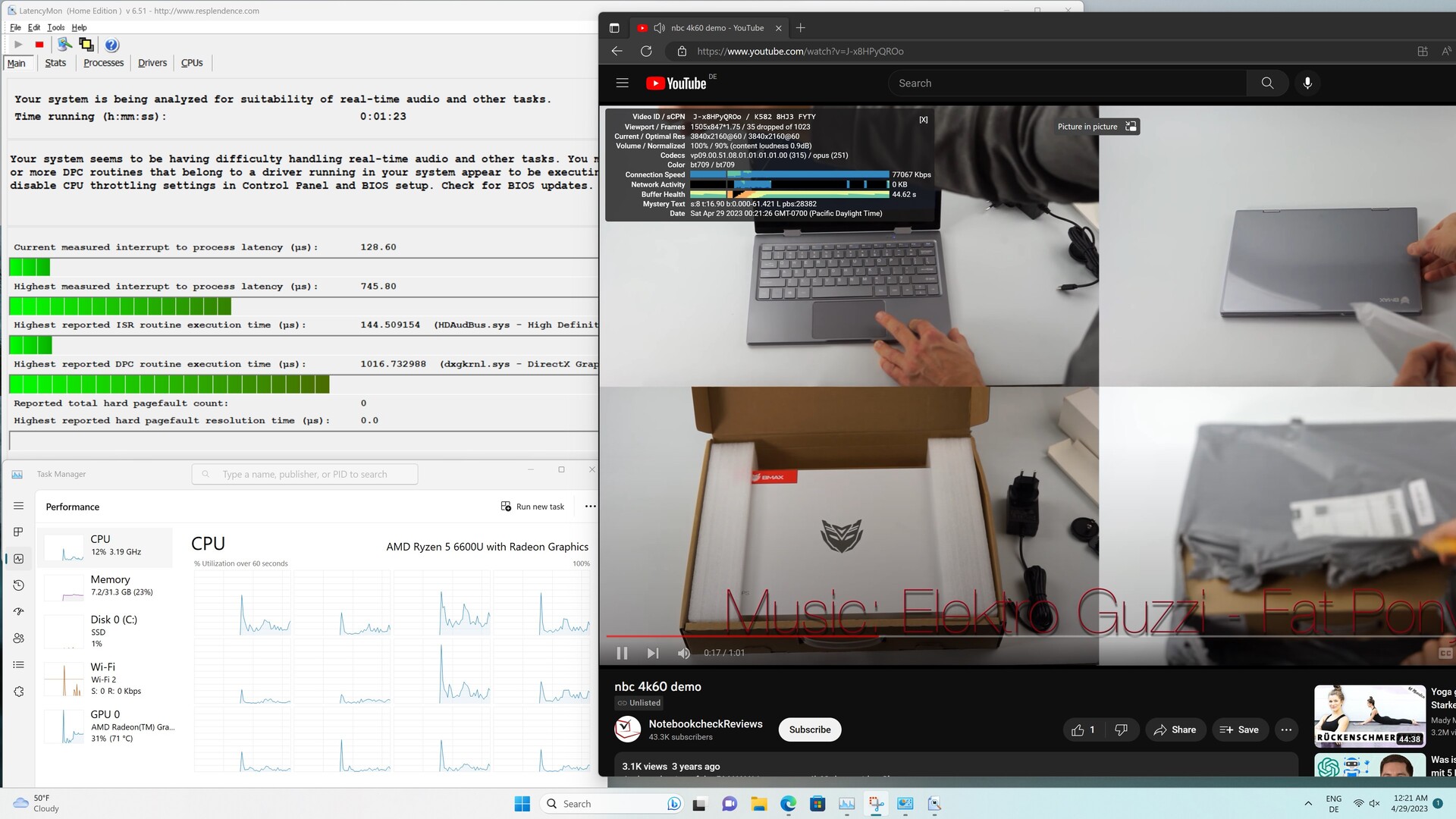

Maksymalne opóźnienia podczas otwierania wielu kart przeglądarki i odtwarzania materiałów wideo w rozdzielczości 4K

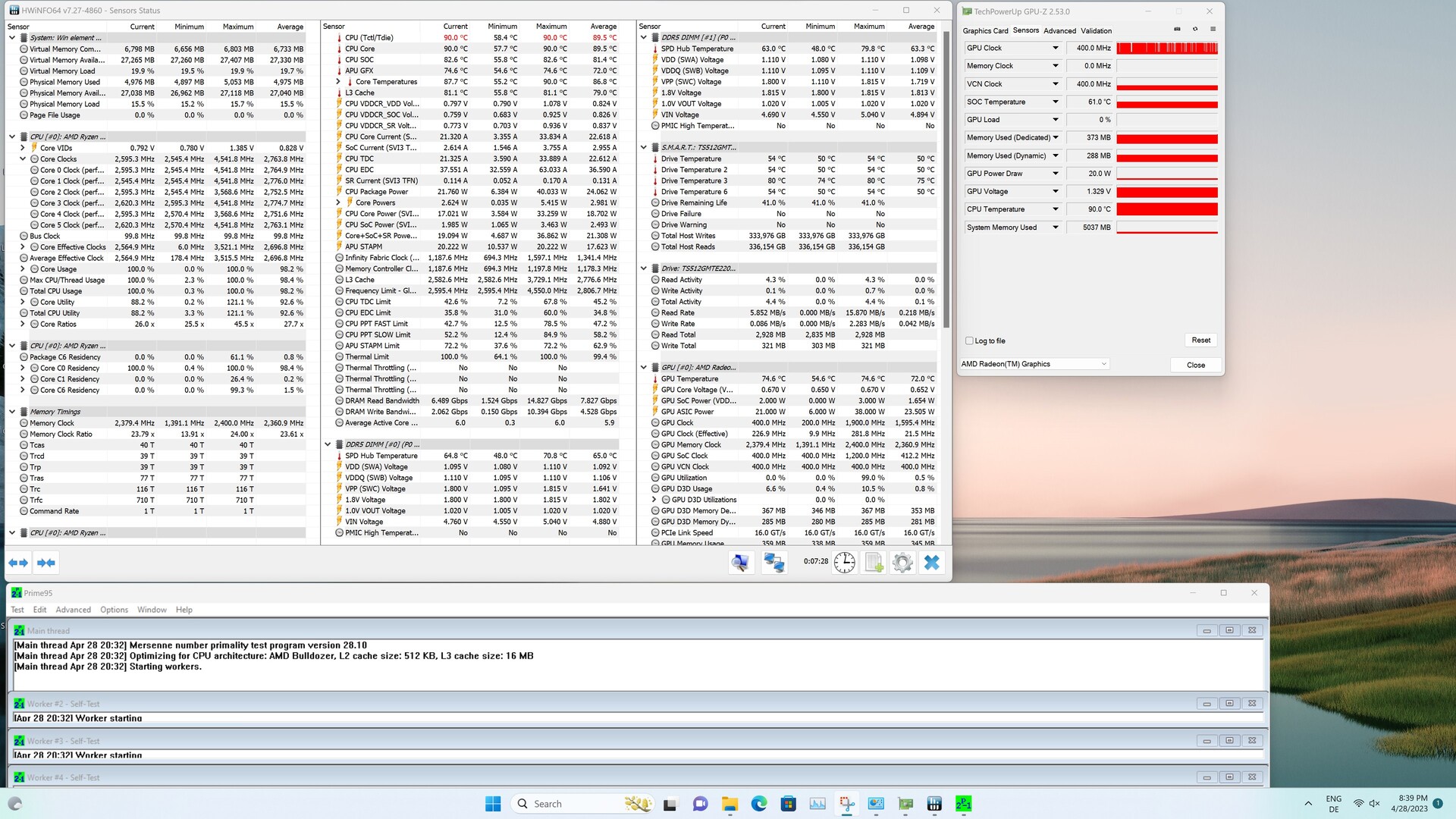

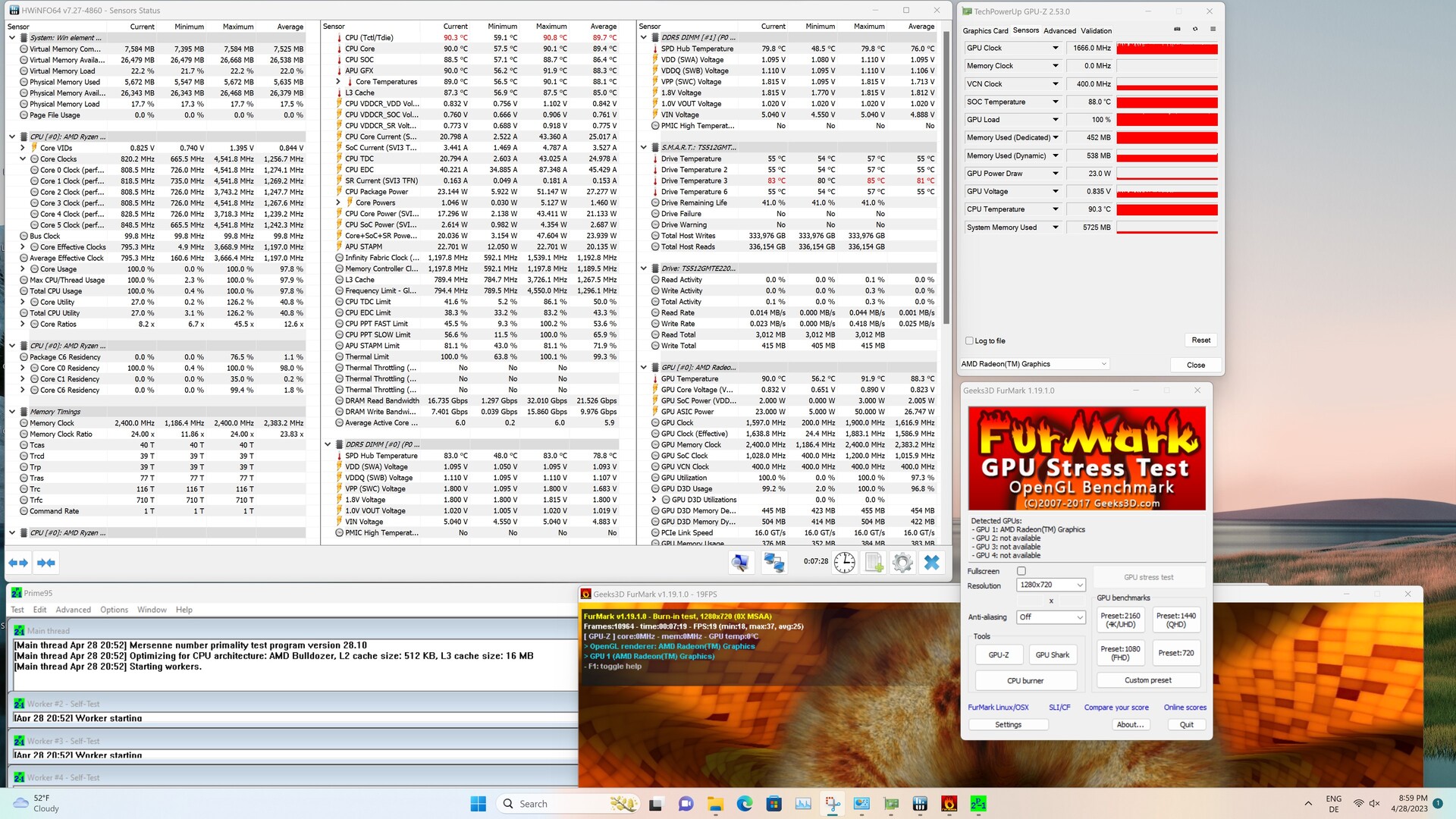

Maksymalne opóźnienie po dziesięciu sekundach Prime95

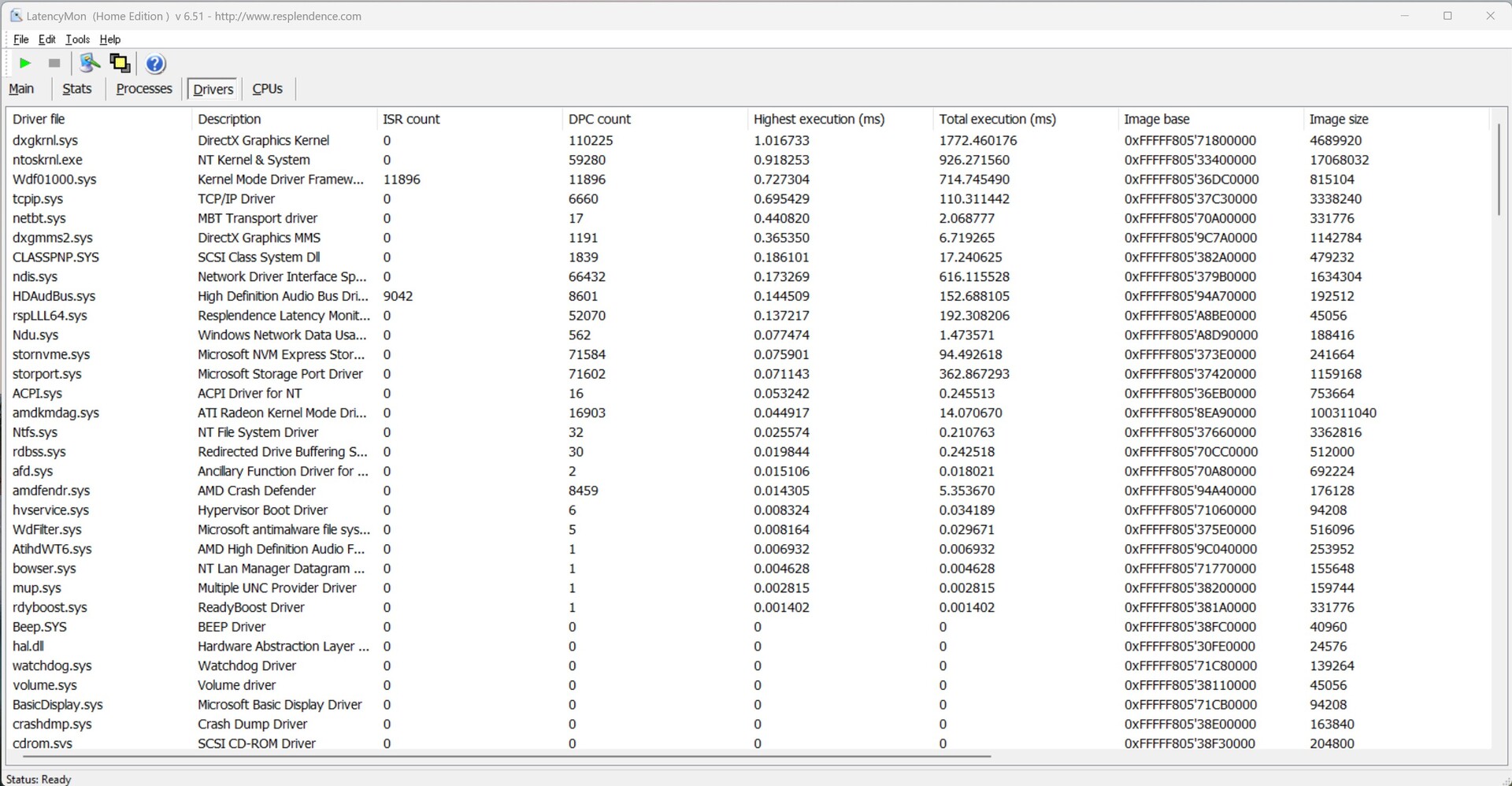

Kierowcy uszeregowani według najdłuższego czasu wykonania

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1867 μs * ∼100% -84%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	1625 μs * ∼87% -60%
Minisforum Venus Series UM690 (6900HX), AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston OM8PGP4512Q-A0	1488 μs * ∼80% -46%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1317 μs * ∼71% -30%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1113.9 μs * ∼60% -10%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1016.7 μs * ∼54%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	779 μs * ∼42% +23%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	659.1 μs * ∼35% +35%

* ... im mniej tym lepiej

Urządzenia pamięci masowej

Niniejszy egzemplarz testowy otrzymaliśmy w wersji barebone i przeprowadziliśmy test z wykorzystaniem 512-GB dysku SSD firmy Transcend. Ten sam model został wykorzystany również w zestawie Intel NUC 12 Pro. Ten sam dysk SSD dostarczył jednak nieco lepsze wskaźniki w Morefine M600 6600U. Niemniej jednak znacznie lepsze wyniki można było osiągnąć stosując dysk SSD wykorzystujący pełną przepustowość dzięki PCIe 4.0. W tym celu można przyjrzeć się modelowi Morefine M600 6900HXktóry zapewniał znacznie wyższy transfer w porównaniu z Kingston KC3000. Morefine M600 miał jednak problemy z utrzymaniem wydajności SSD pod stałym obciążeniem. Czasami wskazane jest zainstalowanie dysku SSD z jednostką chłodzącą, gdyż cyrkulacja powietrza w urządzeniu jest bardzo ograniczona.

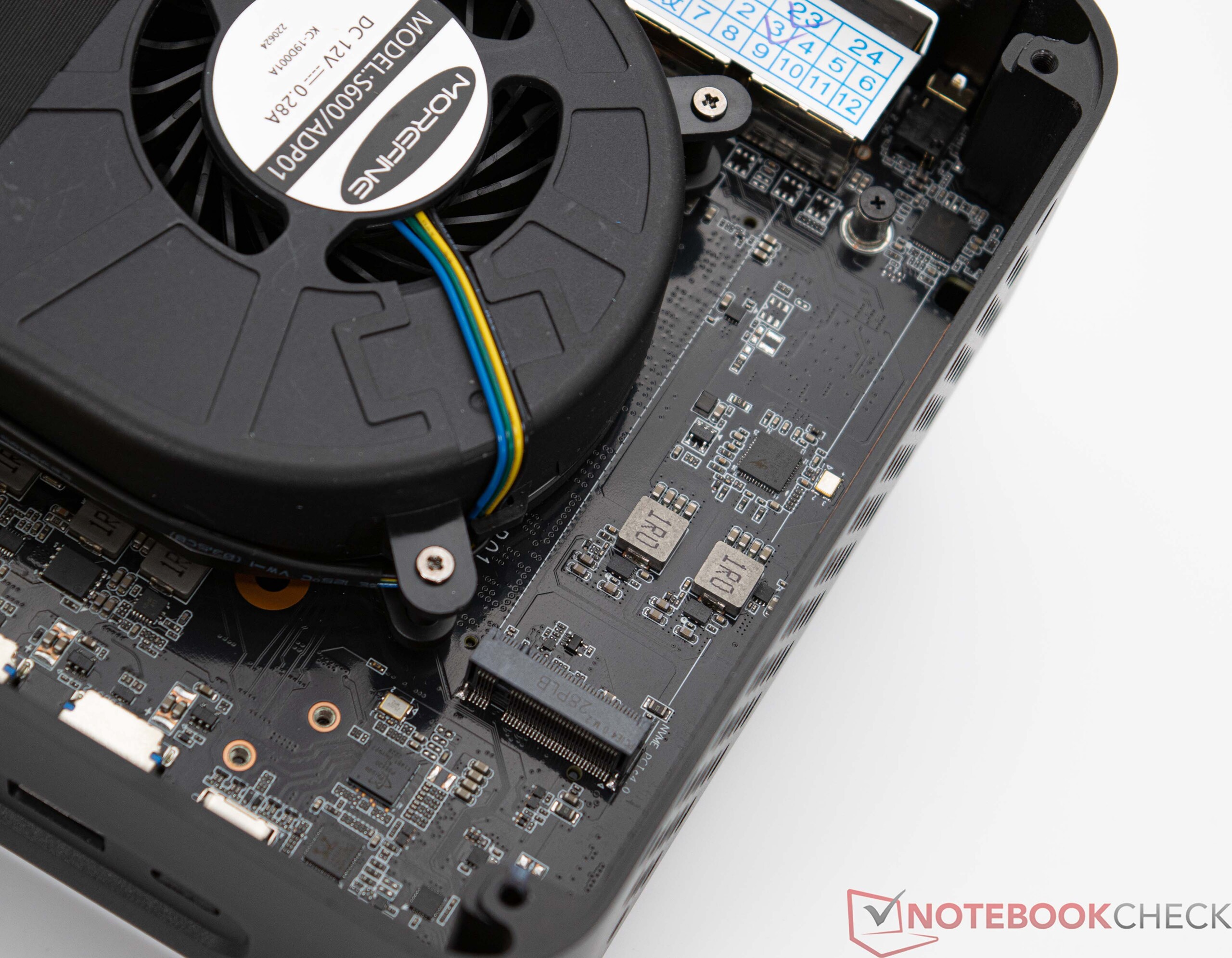

Morefine M600 może być wyposażony w trzy pamięci masowe - niezależnie od konfiguracji SoC. Urządzenie ma dwa sloty M.2, a w pokrywie obudowy można też zmieścić 2,5-calowy nośnik danych (patrz zdjęcie). Nie może on jednak przekroczyć wysokości 9 milimetrów. Odpowiedni kabel połączeniowy znajduje się w zakresie dostawy.

Więcej porównań i benchmarków znajdziesz w naszej tabela porównawcza.

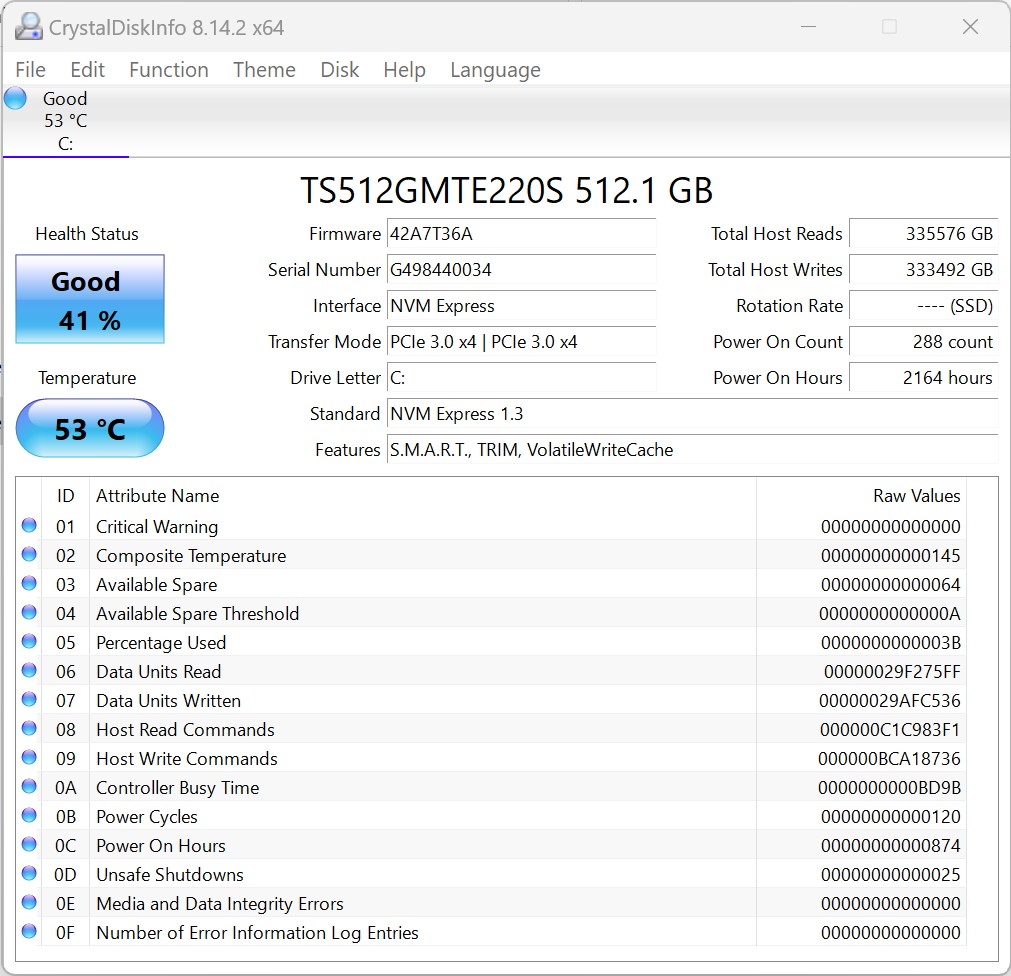

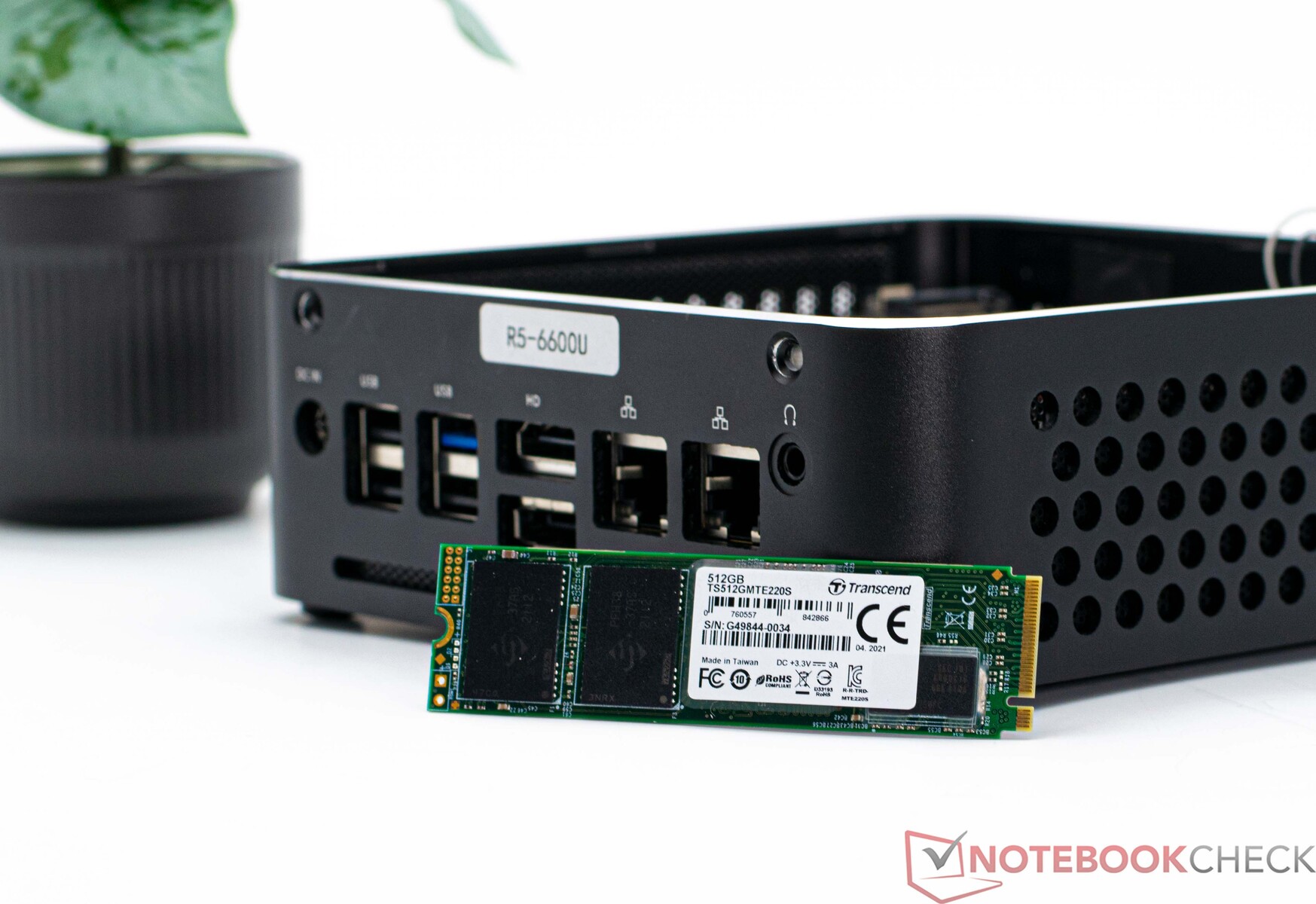

Nasz testowy dysk SSD od Transcend o pojemności 512 GB

Przykład instalacji 2,5-calowego dysku SSD firmy Samsung

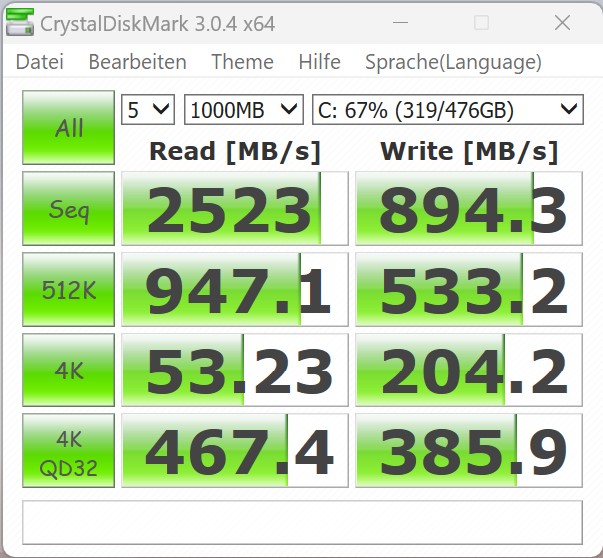

CrystalDiskMark 3.0

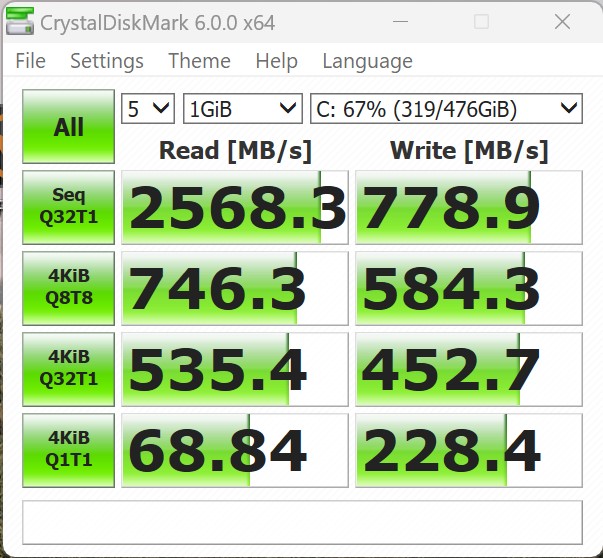

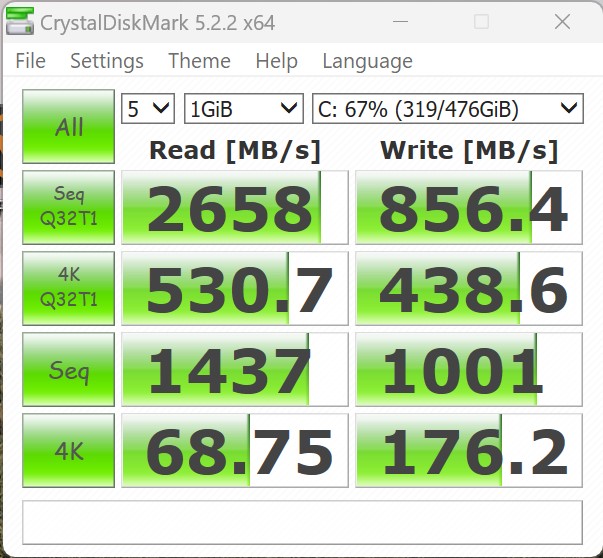

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

Transcend M.2 SSD 2200S TS512GMTE220S

Sequential Read: 2523 MB/s

Sequential Write: 894.3 MB/s

512K Read: 947.1 MB/s

512K Write: 533.2 MB/s

4K Read: 53.23 MB/s

4K Write: 204.2 MB/s

4K QD32 Read: 467.4 MB/s

4K QD32 Write: 385.9 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	86.4 pt ∼86%
Minisforum Venus Series UM690 (6900HX) Kingston OM8PGP4512Q-A0	82.2 pt ∼82%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	67 pt ∼67%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	42.4 pt ∼42%
Average of class Mini PC	42 pt ∼42%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	40.1 pt ∼40%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	37.6 pt ∼38%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	35.1 pt ∼35%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	31.8 pt ∼32%

DiskSpd
seq read
Minisforum Venus Series UM690 (6900HX) Kingston OM8PGP4512Q-A0	3195 (3147.62^min - 3194.91^max) MB/s ∼100% +86%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2815 (2802.79^min - 2814.97^max) MB/s ∼88% +64%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2184 (2176.42^min - 2183.52^max) MB/s ∼68% +27%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2034 (2023.33^min - 2033.61^max) MB/s ∼64% +18%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	1790 (1744.2^min - 1789.7^max) MB/s ∼56% +4%
Average of class Mini PC (233 - 4168, n=42, last 2 years)	1786 MB/s ∼56% +4%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	1720 (1344.24^min - 1720.17^max) MB/s ∼54%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1713 (1703.57^min - 1712.81^max) MB/s ∼54% 0%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1176 (1169.13^min - 1175.87^max) MB/s ∼37% -32%
seq write
Minisforum Venus Series UM690 (6900HX) Kingston OM8PGP4512Q-A0	3539 (3516.6^min - 3538.94^max) MB/s ∼100% +229%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3402 (3372.67^min - 3402.21^max) MB/s ∼96% +216%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1790 (1681.49^min - 1789.9^max) MB/s ∼51% +67%
Average of class Mini PC (222 - 3938, n=42, last 2 years)	1707 MB/s ∼48% +59%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1530 (603.77^min - 1530.08^max) MB/s ∼43% +42%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1277 (1270.04^min - 1277.38^max) MB/s ∼36% +19%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1185 (1181.38^min - 1184.95^max) MB/s ∼33% +10%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	1075 (545.51^min - 1075.26^max) MB/s ∼30%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	984 (154.77^min - 984.48^max) MB/s ∼28% -8%
seq q8 t1 read
Minisforum Venus Series UM690 (6900HX) Kingston OM8PGP4512Q-A0	4820 (3819.87^min - 4820.3^max) MB/s ∼100% +91%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	4801 (4506.78^min - 4800.59^max) MB/s ∼100% +90%
Average of class Mini PC (236 - 7061, n=42, last 2 years)	2706 MB/s ∼56% +7%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2525 (2269.25^min - 2525.2^max) MB/s ∼52% 0%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	2522 (2230.32^min - 2522.44^max) MB/s ∼52%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	2378 (2126.78^min - 2378.31^max) MB/s ∼49% -6%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	2273 (1501.91^min - 2273.31^max) MB/s ∼47% -10%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2167 (2086.44^min - 2166.57^max) MB/s ∼45% -14%
Morefine M600, 6900HX Kingston KC300

Recenzja komputera stacjonarnego Morefine M600 6600U: Niedrogi mini PC z procesorem AMD Ryzen 5 6600U z 32 GB RAM i USB4

Potencjalni konkurenci w porównaniu

Morefine M600 z procesorem AMD Ryzen 5 6600U w szczegółach

Sprawa

Porównanie wielkości

Wydajność - SoC Rembrandt od AMD jest szybki dzięki 6 rdzeniom

Warunki badania

Procesor

Morefine M600 w pętli Cinebench R15 Multi Loop

Wydajność systemu

Opóźnienie DPC

Urządzenia pamięci masowej
