Intel NUC 12 Pro Kit - Wall Street Canyon w recenzji: Zaawansowany mini PC z Intel Core i7-1260P zapewniający dużą wszechstronność

Intel zaktualizował swoją kompaktową serię mini komputerów NUC o nowe SoC Alder Lake-P. Nazwa "Wall Street Canyon" oznacza najnowszą serię modeli opartą na nowoczesnych SoC. Dostępne są dwie bazowe konfiguracje, które różnią się wymiarami. Nieco wyższy model nosi monidło "Tall", co wskazuje na możliwość zastosowania dodatkowego dysku 2,5-calowego. Natomiast nasze urządzenie testowe "Slim" nie oferuje takiej opcji. Jeśli chodzi o cenę, to około 100 USD dzieli oba warianty. Oba urządzenia są w stanie jedynie jako barebone. Użytkownicy będą więc musieli sami zainstalować pamięć RAM i magazyny.

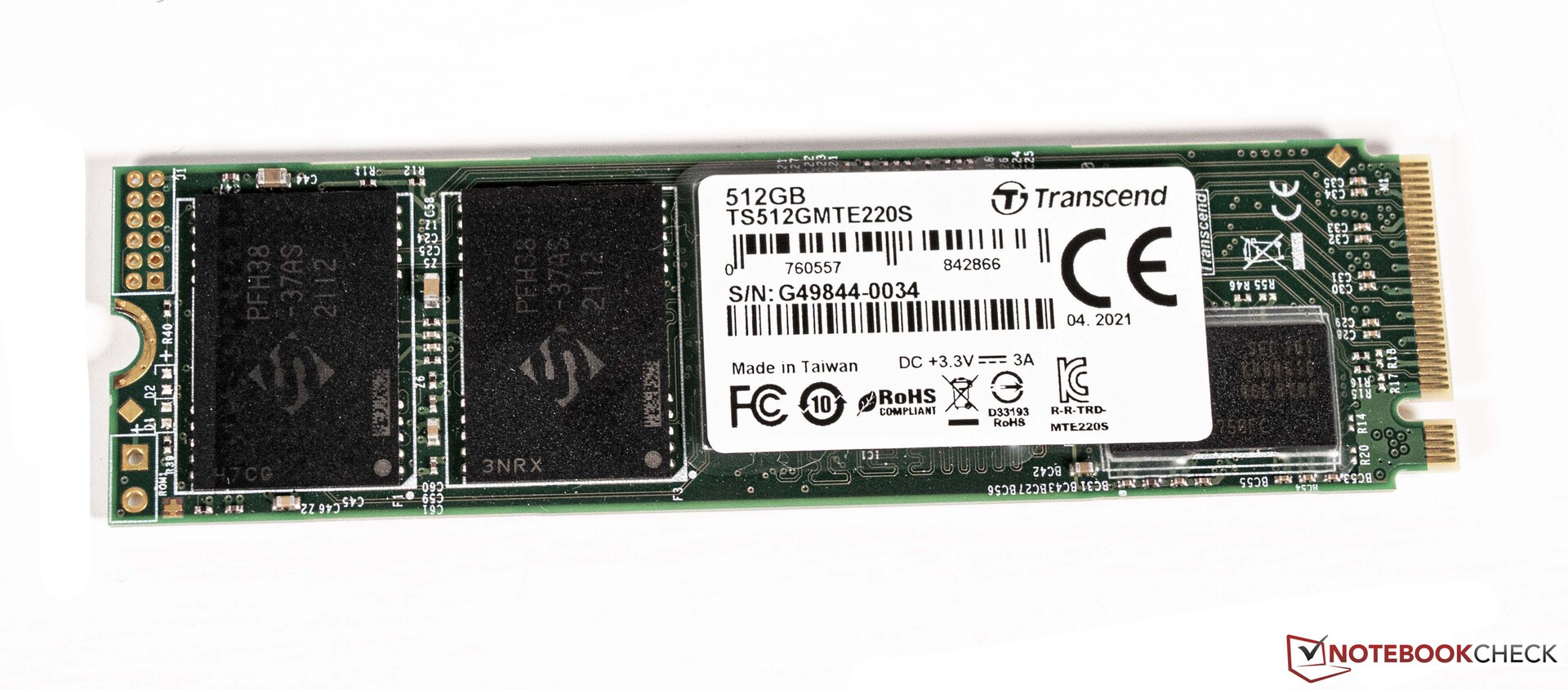

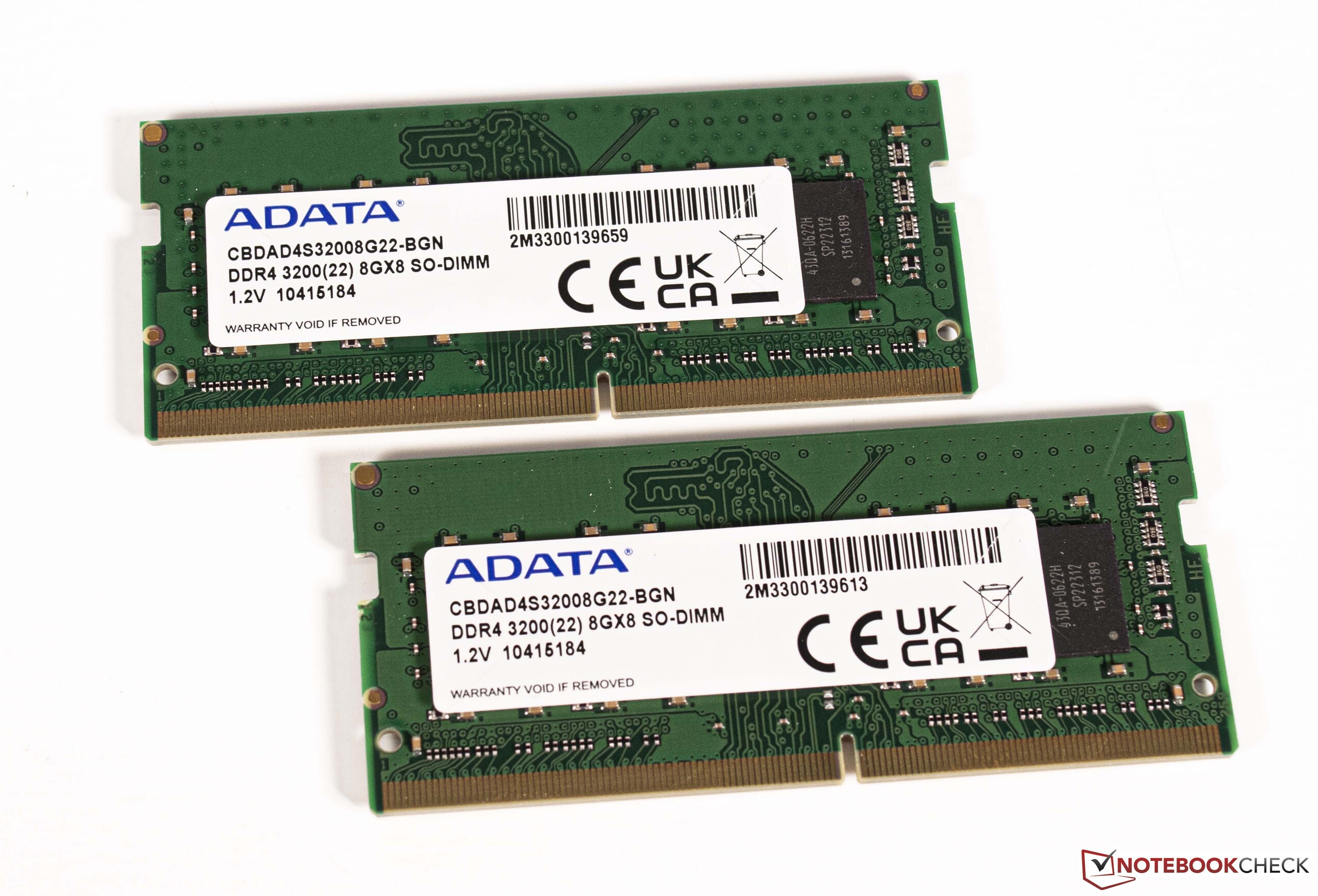

Na potrzeby naszych testów w testowanym egzemplarzu zainstalowaliśmy dwa 8-GB moduły DDR4-3200 oraz 512-GB dysk SSD. Systemem operacyjnym jest najnowsza dostępna w momencie pisania tej recenzji wersja Windows 11 Professional.

Rating	Date	Model	Weight	Height
78.9 % v7 ^(old)	11/2022	Intel NUC 12 Pro Kit NUC12WSKi7 i7-1260P, Iris Xe G7 96EUs	511 g	37 mm
v ^(old)		Minisforum EliteMini HX90 R9 5900HX, Vega 8		60 mm
v ^(old)		Intel NUC11TNKi5 i5-1135G7, Iris Xe G7 80EUs	504 g	37 mm
v ^(old)	10/2022	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	628 g	72 mm
v7 ^(old)	10/2022	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs	586 g	53 mm
v7 ^(old)	10/2022	Morefine S600-Apex Engineer i9-12900HK, Iris Xe G7 96EUs	795 g	63.5 mm

Sprawa

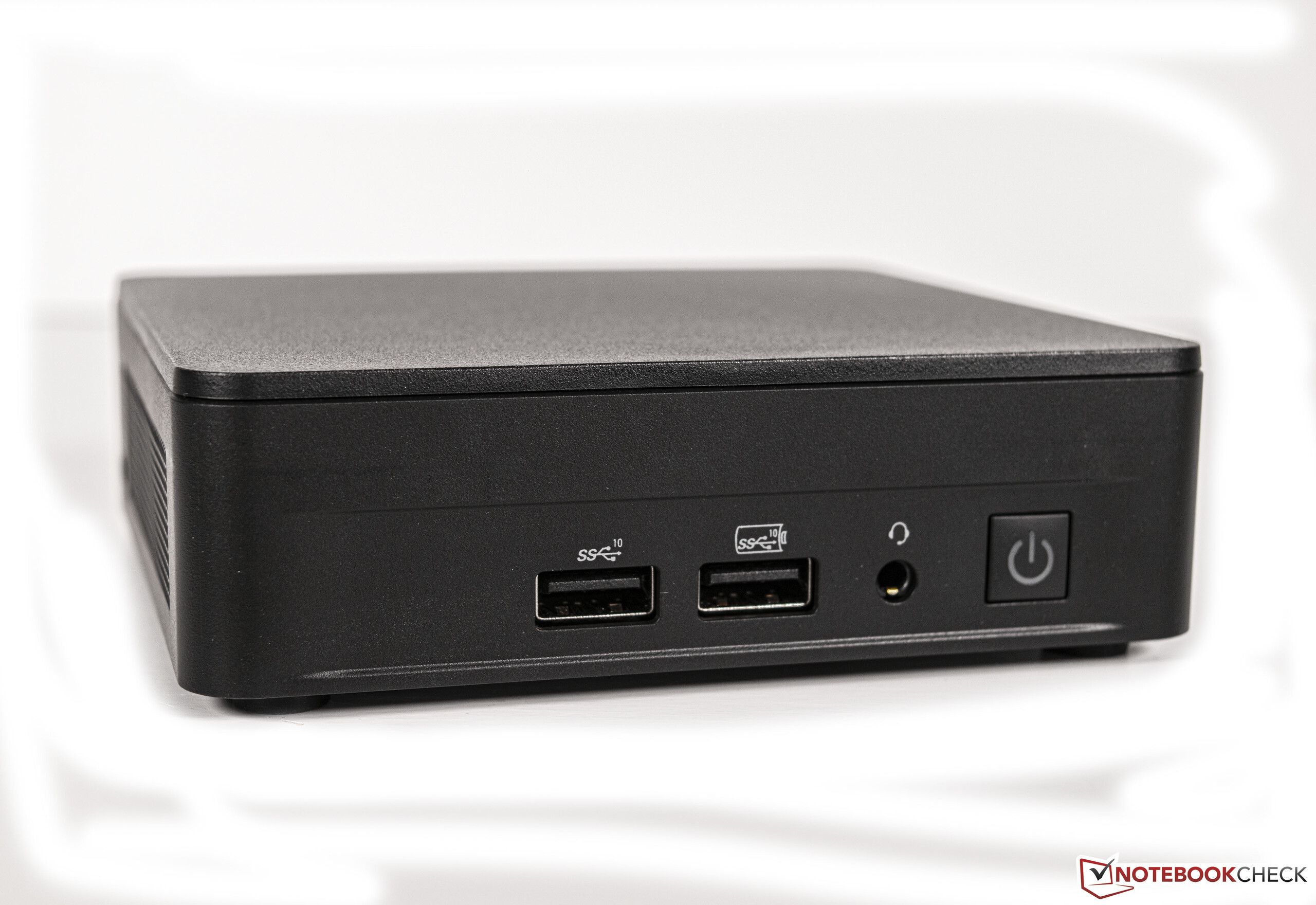

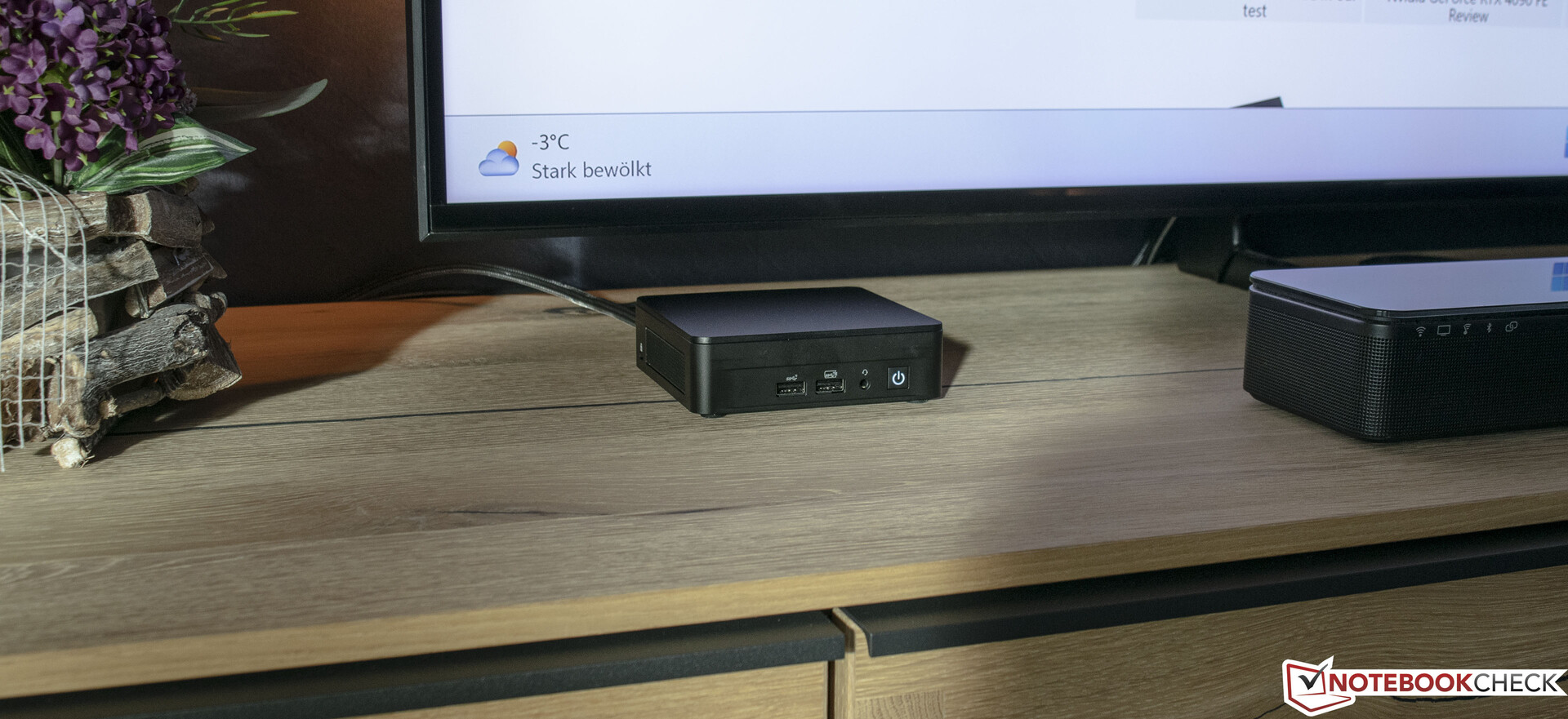

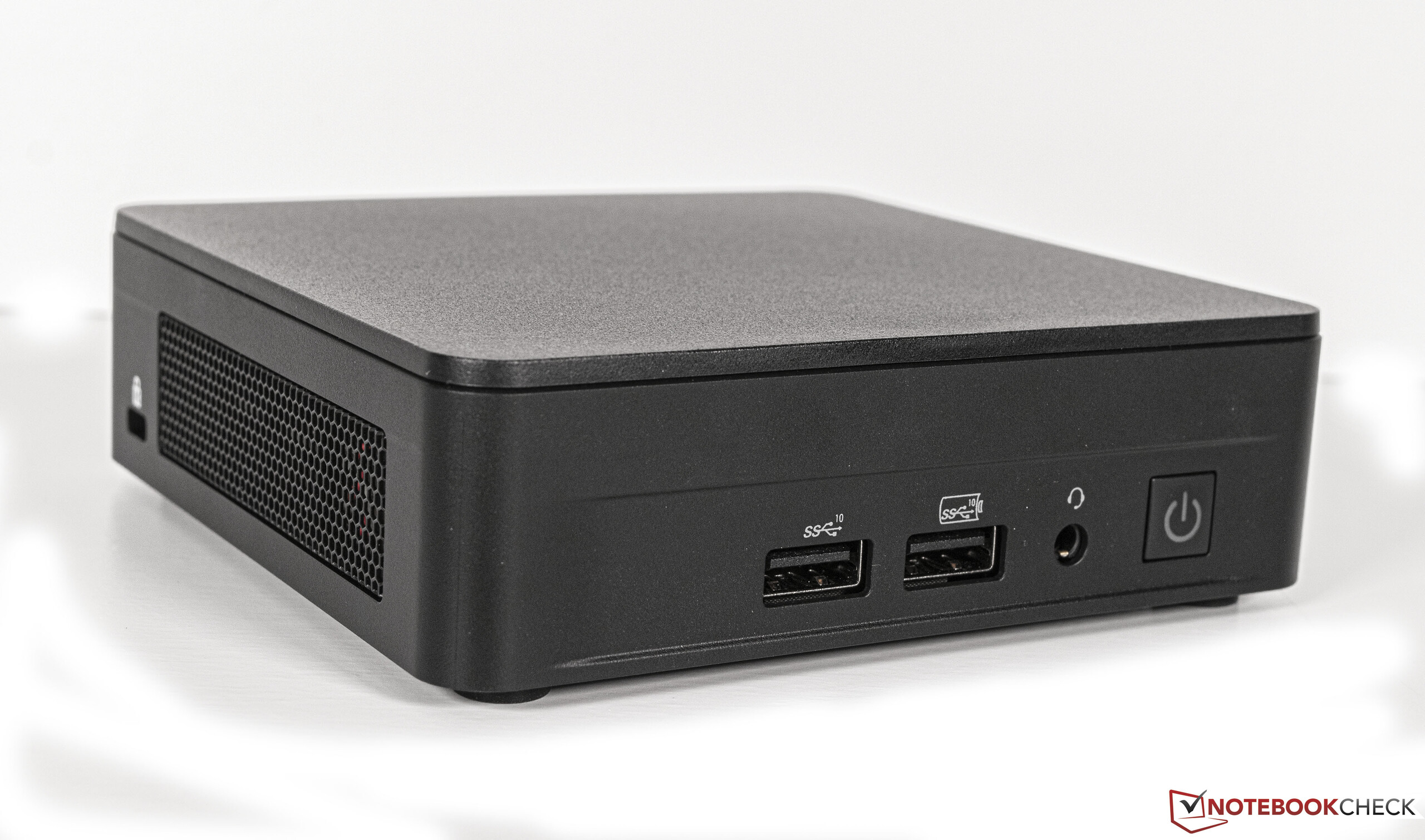

Wizualnie Wall Street Canyon to bardzo wyraźnie Intel NUC. Zewnętrzny wygląd urządzenia jest bardzo subtelny i nigdzie nie ma błyszczących powierzchni. Chociaż spód obudowy składa się z metalu, podwajając się jako rozwiązanie chłodzące dla pamięci masowej, zauważalna część NUC składa się z plastiku. Urządzenie posiada solidną metalową ramę, która stała się niemal standardem w kompaktowych komputerach Intel NUC i zapewnia komputerowi niezbędną sztywność. Przy wysokości zaledwie 37 mm (~1,46 cala), nasza wersja Slim jest dość mała. Co więcej, urządzenie nie zajmuje dużo miejsca na biurku dzięki niewielkim rozmiarom 11,7 x 11,2 cm (~4,61 x 4,41 in). Alternatywnie, można go przymocować do monitora za pomocą dołączonego uchwytu VESA.

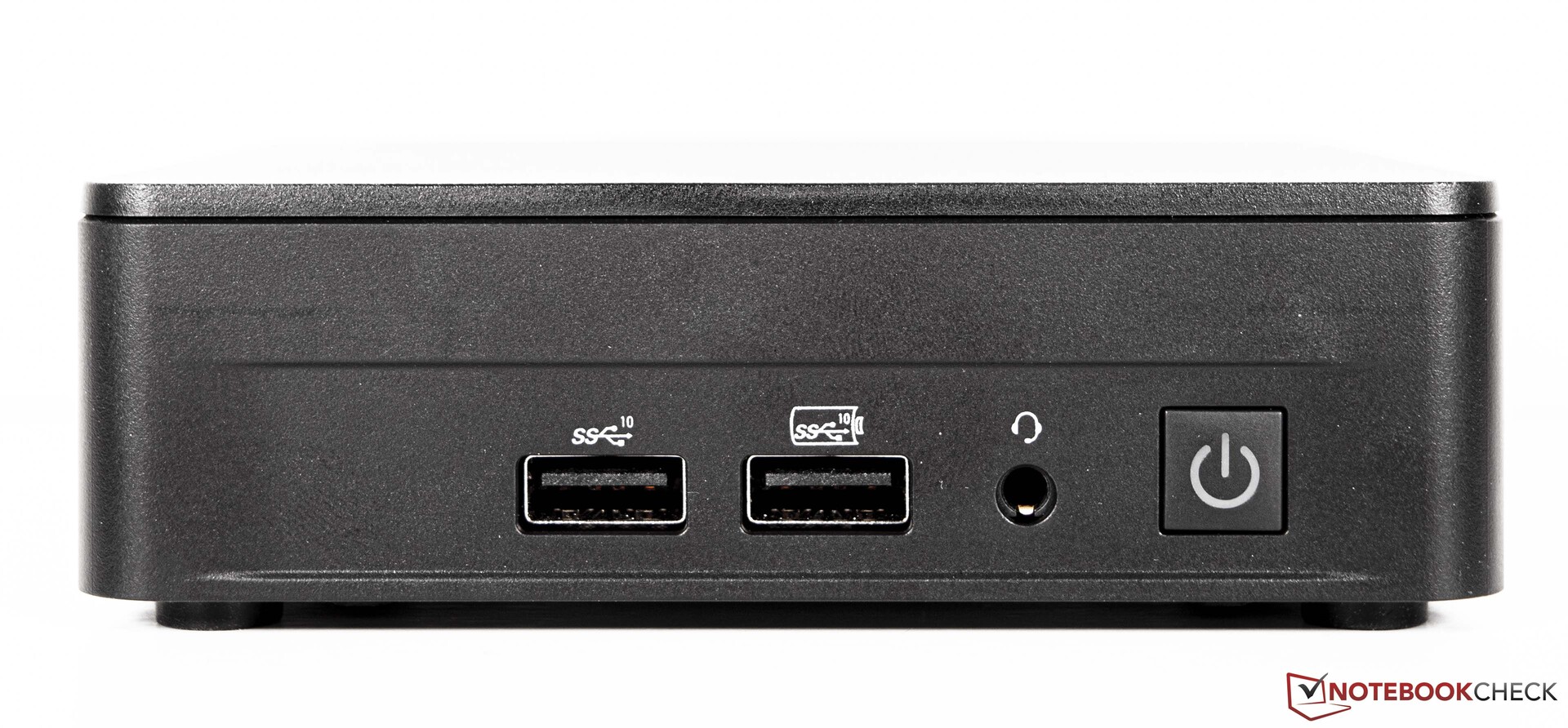

Łączność

Intel NUC 12 Pro Kit oferuje wszystkie najpopularniejsze opcje, jeśli chodzi o wybór portów. Do dyspozycji mamy cztery porty USB typu-A oraz dwa porty USB typu-C. Porty typu-C obsługują prędkości USB4. Dwa interfejsy Thunderbolt również ogromnie zwiększają elastyczność systemu. Szeroka gama dostępnych akcesoriów jest niemal nieskończona. Wreszcie, są dwa porty HDMI i port Ethernet 2,5G.

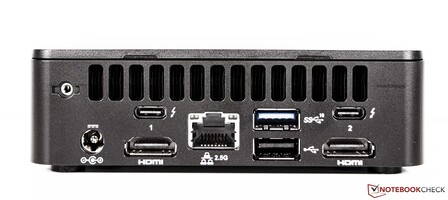

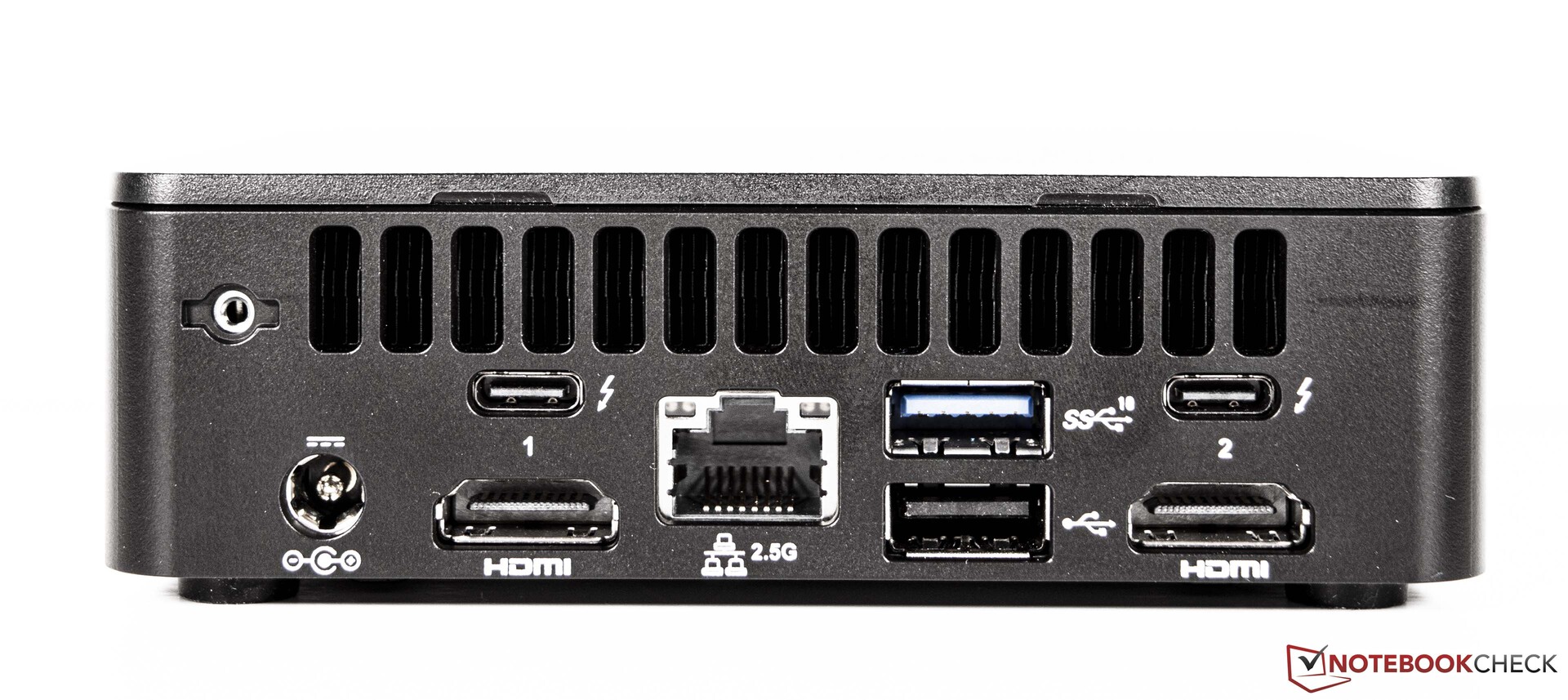

Tył: Adapter AC, 2x USB4 (typ-C), 1x USB 3.2, 1x USB 2.0, LAN 2,5G, 2x HDMI 2.1

Komunikacja

W NUC 12 Pro Kit do obsługi sieci bezprzewodowej wykorzystano autorski moduł Wi-Fi 6E AX211 Intela. W naszych testach spisuje się on dobrze. Niezależnie od tego nie dość, że nie osiąga takich prędkości transferu, na jakie liczyliśmy podczas wysyłania danych. Na stronie Morefine S600-Apex osiąga znacznie lepsze wyniki przy użyciu tego samego modułu. Do testu wykorzystaliśmy nasz referencyjny router Asus ROG Rapture GT-AXE11000.

Networking
iperf3 receive AXE11000 6GHz
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Wi-Fi 6E AX211	1530 (1509^min - 1551^max) MBit/s
Average Intel Wi-Fi 6E AX211 (700 - 1857, n=210)	1493 MBit/s -2%
Average of class Mini PC (684 - 1771, n=54, last 2 years)	1387 MBit/s -9%
Morefine S600-Apex Engineer Intel Wi-Fi 6E AX211	1044 (1009^min - 1058^max) MBit/s -32%
Minipc Union Ace Magician AMR5 MediaTek RZ608	903 (450^min - 913^max) MBit/s -41%
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	390 (322^min - 478^max) MBit/s -75%
iperf3 transmit AXE11000 6GHz
Morefine S600-Apex Engineer Intel Wi-Fi 6E AX211	1658 (1514^min - 1706^max) MBit/s +80%
Average Intel Wi-Fi 6E AX211 (632 - 1851, n=211)	1372 MBit/s +49%
Average of class Mini PC (394 - 1800, n=54, last 2 years)	1334 MBit/s +45%
Minipc Union Ace Magician AMR5 MediaTek RZ608	967 (486^min - 993^max) MBit/s +5%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Wi-Fi 6E AX211	919 (458^min - 982^max) MBit/s
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	745 (381^min - 876^max) MBit/s -19%

Intel NUC 12 Pro Kit NUC12WSKi7; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø904 (458-982)

Intel NUC 12 Pro Kit NUC12WSKi7; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1530 (1509-1551)

Akcesoria

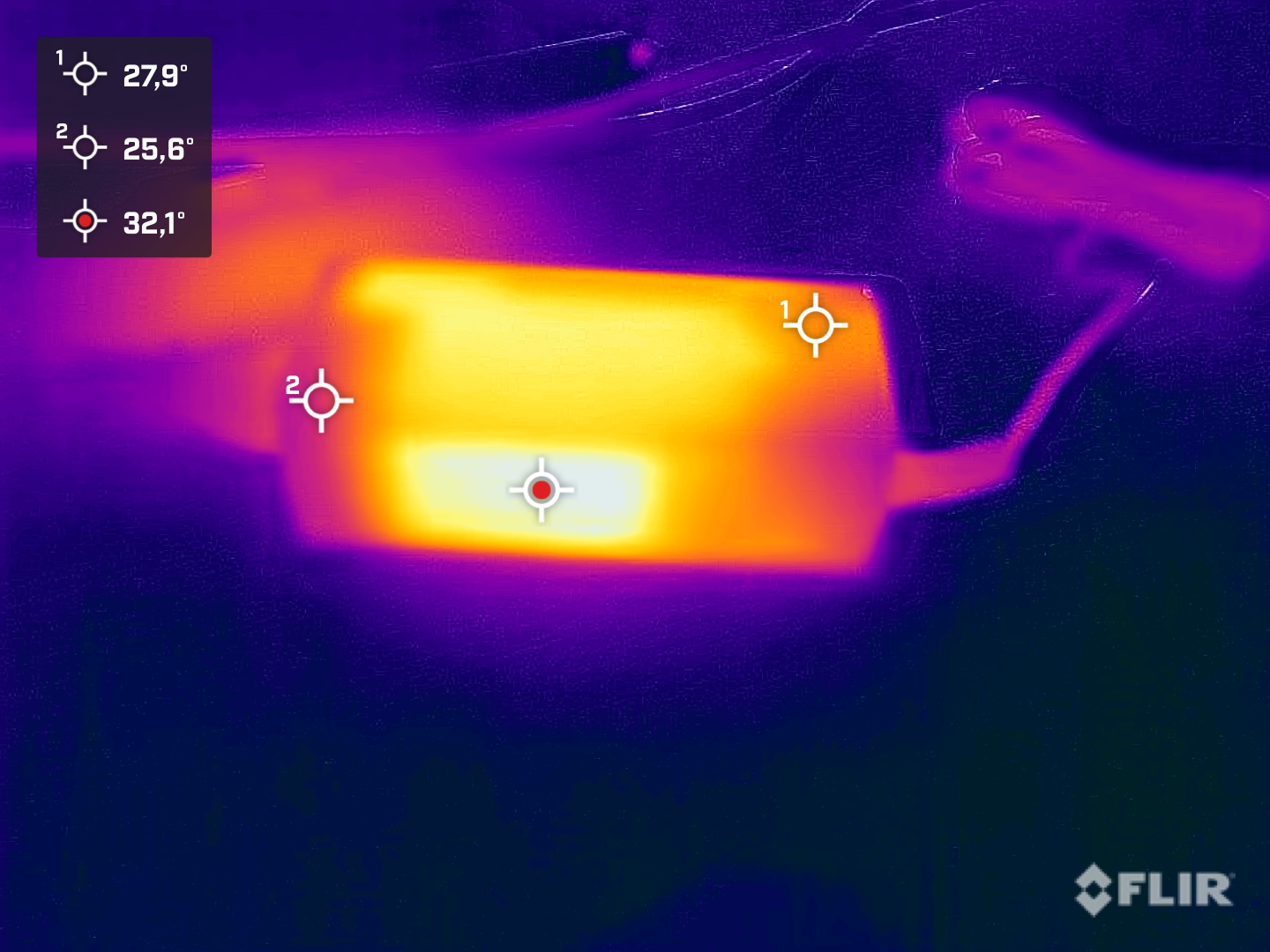

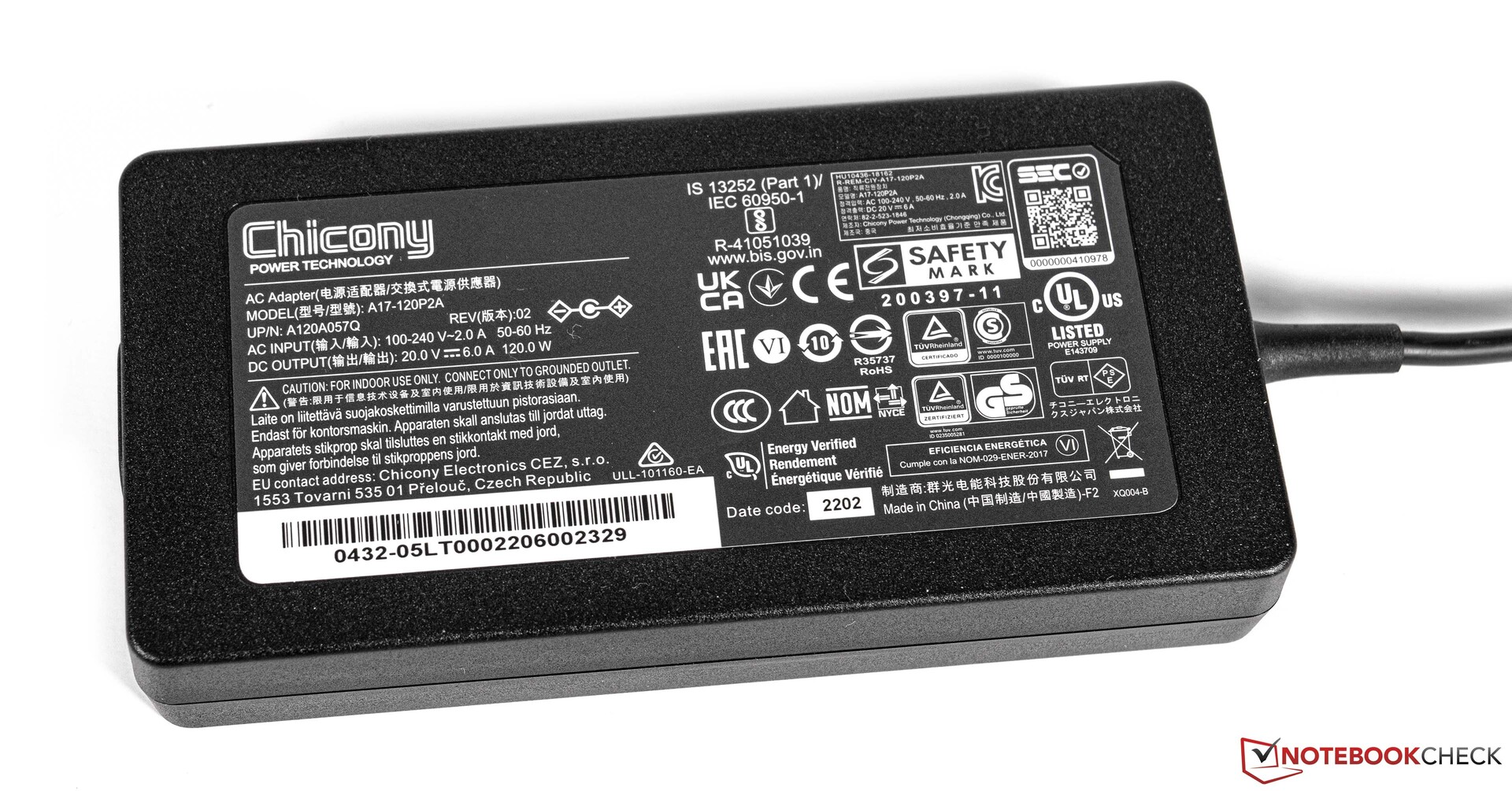

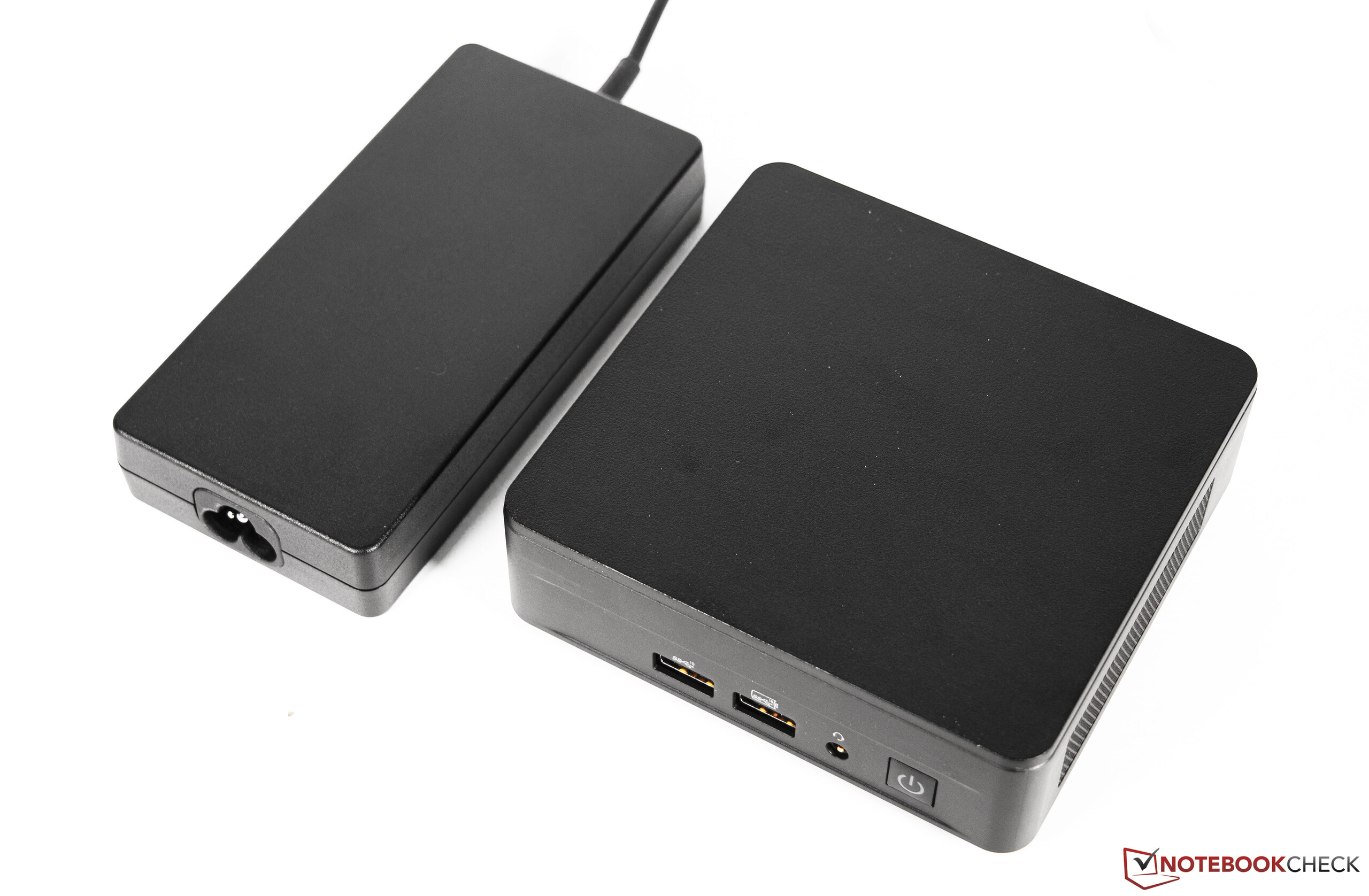

Poza samym urządzeniem w zestawie znajduje się 120-watowy zasilacz sieciowy oraz płytka do montażu VESA.

Konserwacja

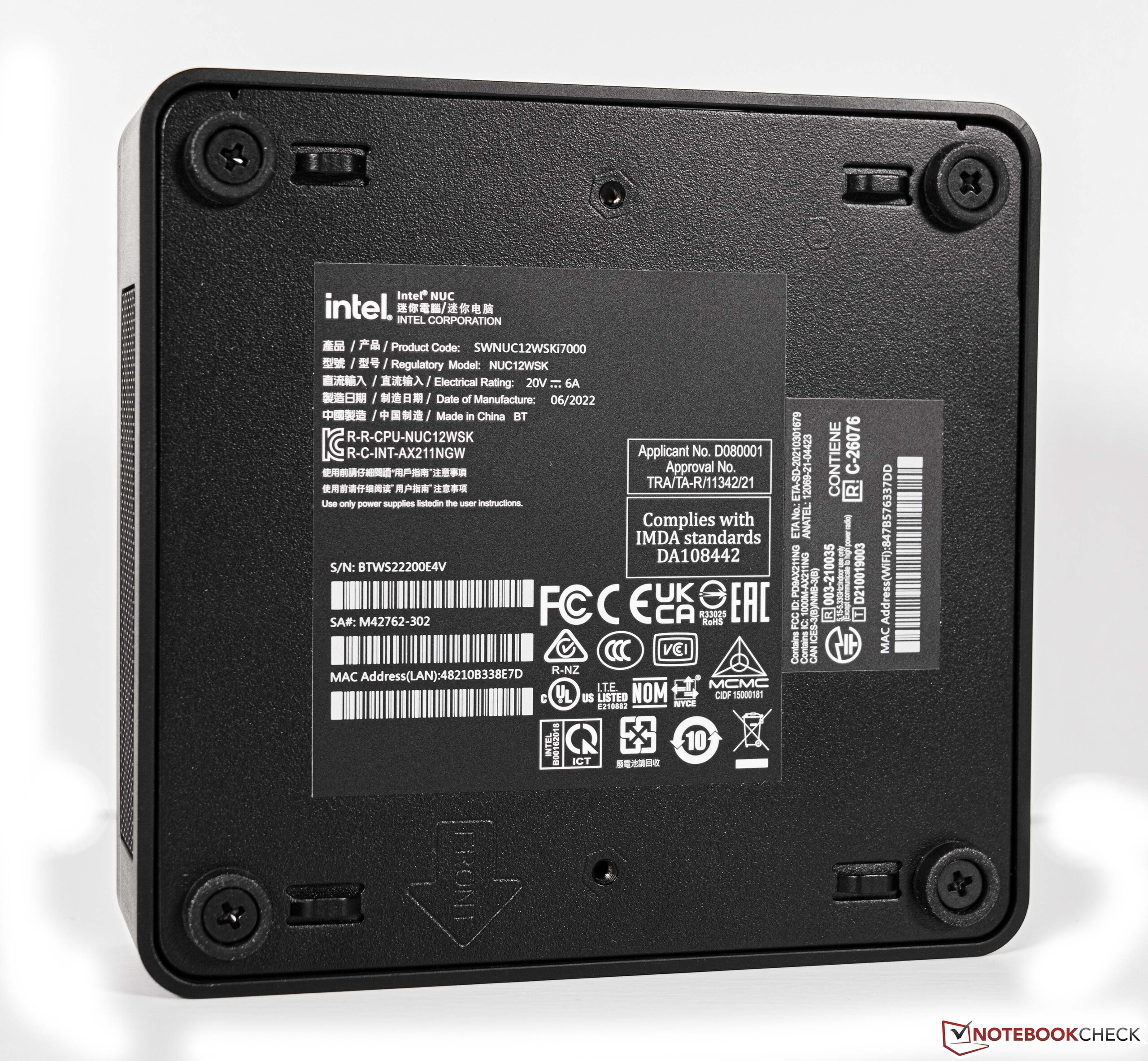

Jak wszystkie kompaktowe Intel NUC, NUC 12 Pro Kit pozwala na szybką i łatwą konserwację poprzez spód urządzenia. Dolna pokrywa jest mocowana za pomocą czterech małych śrub i podwaja się jako chłodnica dla dysków SSD. Po wejściu do środka, dostęp do gniazd pamięci RAM i SSD jest bardzo prosty.

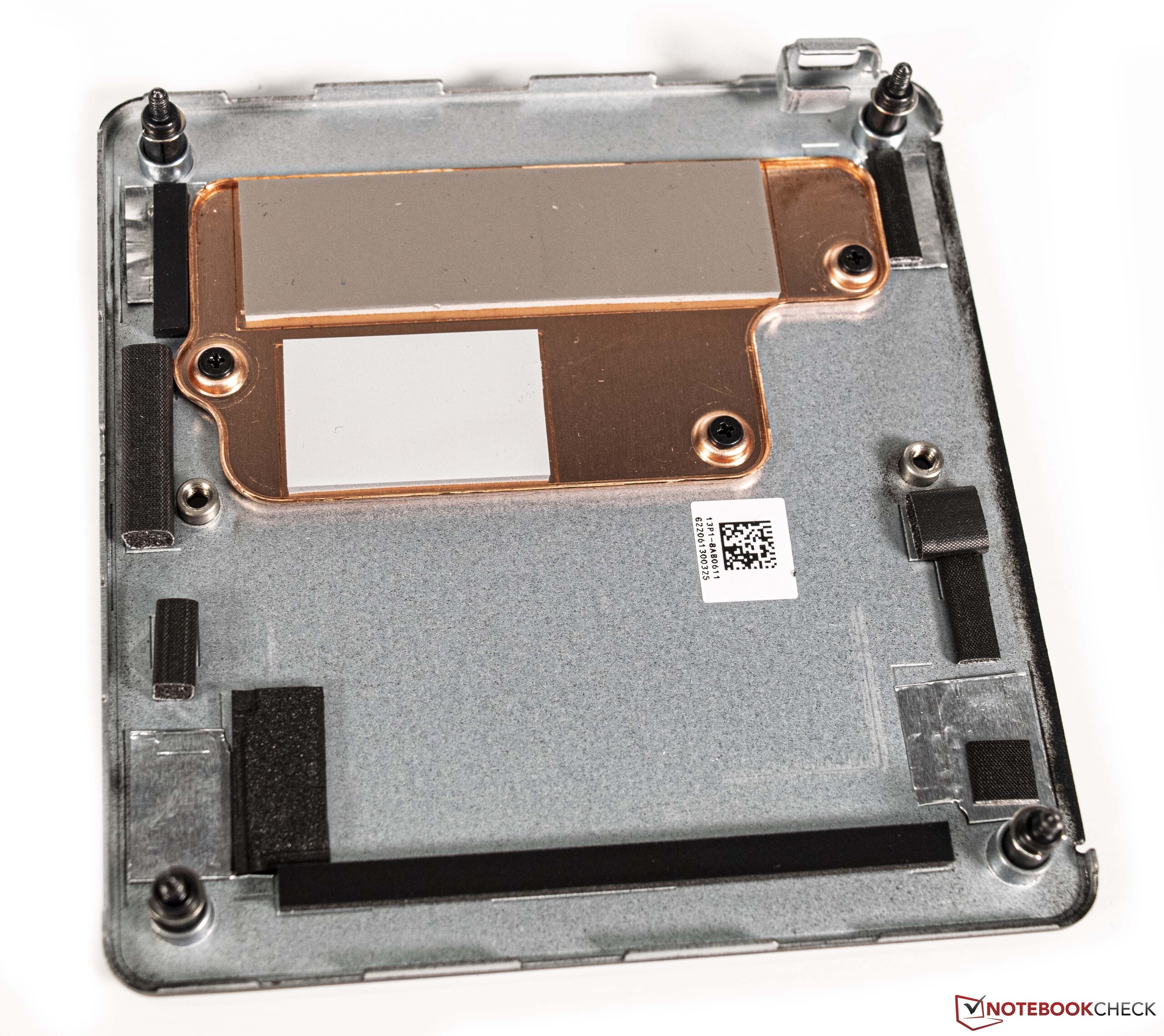

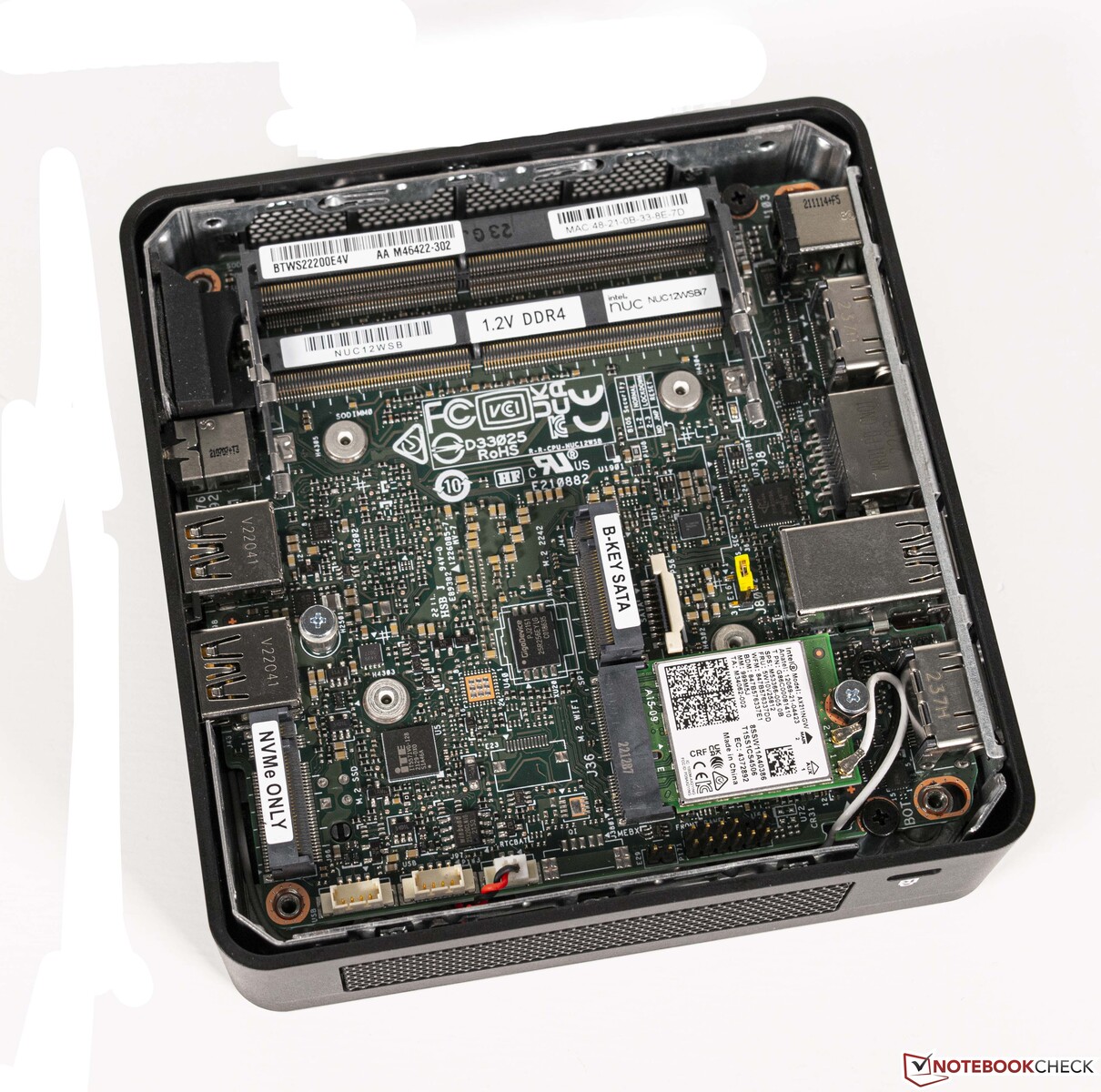

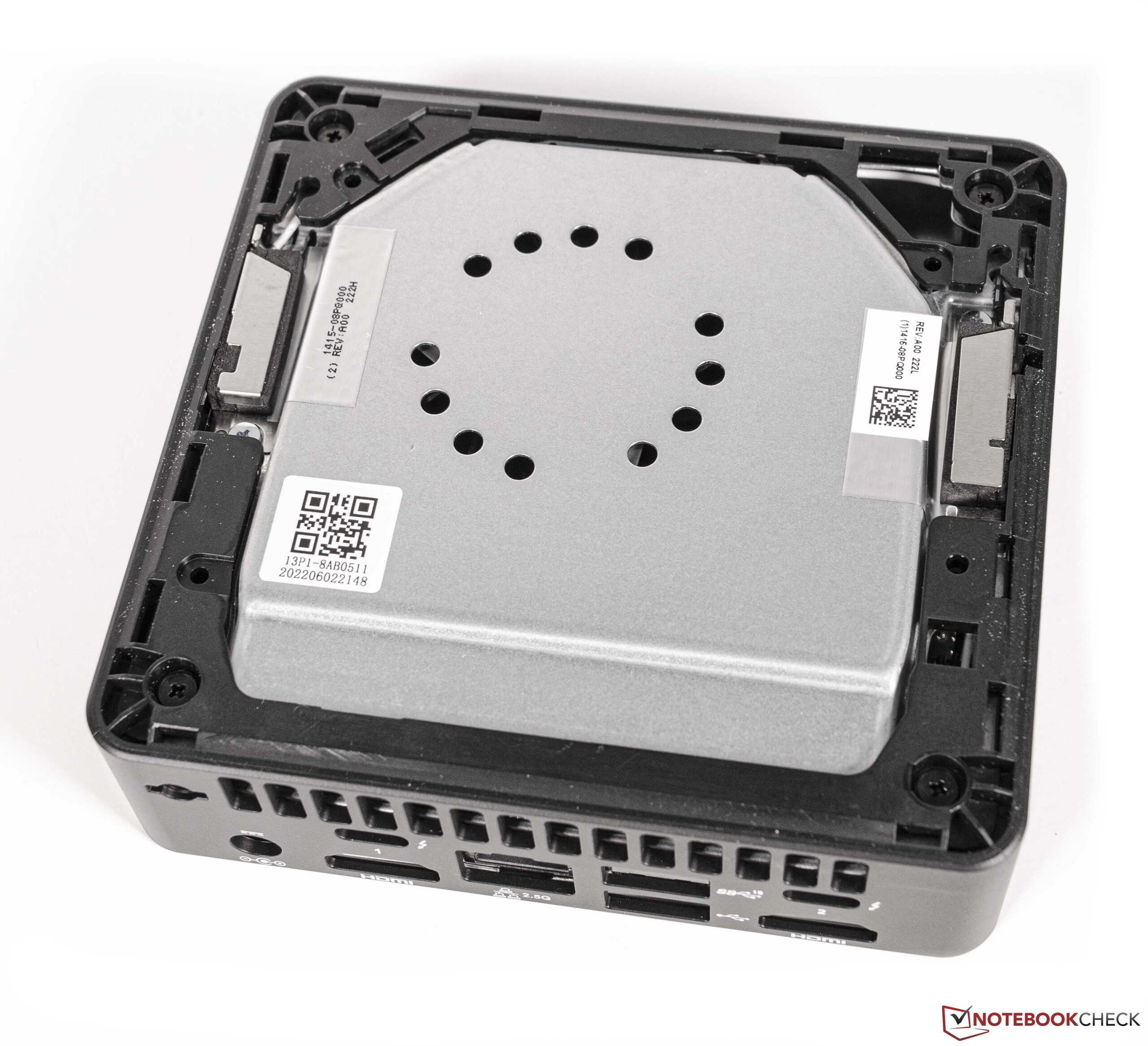

Intel NUC 12 Pro Kit - Wall Street Canyon ze zdjętą dolną pokrywą

Wydajność - Core i7 z 12 rdzeniami

Kompaktowe komputery stają się coraz bardziej wydajne, o czym szybko przekonają się użytkownicy pracujący z zestawem Intel NUC 12 Pro. W sercu systemu znajduje się 12-rdzeniowy procesor z 16 wątkami, dzięki czemu kompaktowy system jest doskonałym wyborem do wymagających zadań.

Warunki badania

Wszystkie benchmarki przeprowadziliśmy przy użyciu zrównoważonego profilu zasilania. Nie modyfikowaliśmy ustawień wydajności procesora i pozostawiliśmy wszystko na auto w ustawieniach BIOS-u.

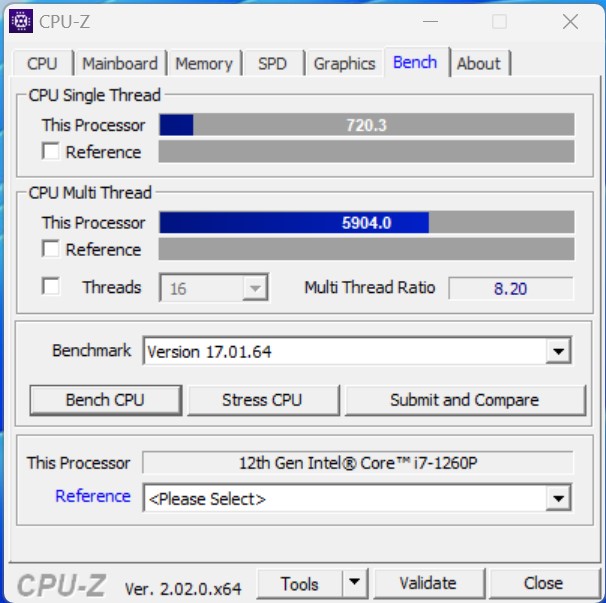

Procesor

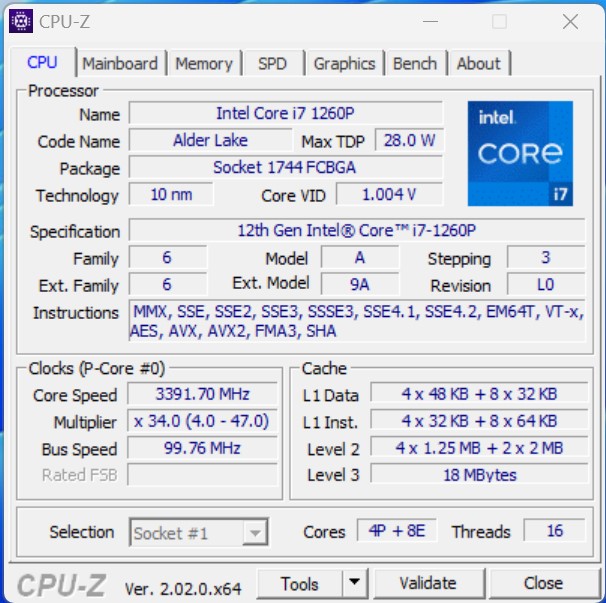

Z.Intel Core i7-1260P, w zestawie Intel NUC 12 Pro znalazł się bardzo aktualny SoC. Dzięki 12 fizycznym rdzeniom i łącznie 16 wątkom, Intel Core i7-1260p jest solidnym wyborem nawet dla wymagających użytkowników. Jego współczynnik TDP przy rozruchu (PL2) wynosi 64 W, a przy ciągłym TDP (PL1) - 40 W. Na tle swoich konkurentów Intel NUC 12 Pro Kit wypada bardzo dobrze. Wśród jego kompaktowych konkurentów PC, tylko Morefine S600-Apex jest w stanie osiągnąć nieco lepszy wynik ogólny. 14-procentowy deficyt w porównaniu z procesorem Intel Core i5-12600K nie jest jeszcze szczególnie duży. To jeszcze bardziej pokazuje, jak dobrze ten mobilny SoC jest w stanie sobie poradzić.

Więcej porównań i benchmarków można znaleźć na naszej stronie Strona benchmarków CPU.

Performance Rating - Percent
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	56.2 pt
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	49.4 pt
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	47.8 pt
Average Intel Core i7-1260P	46.9 pt
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	41.8 pt
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	35.8 pt

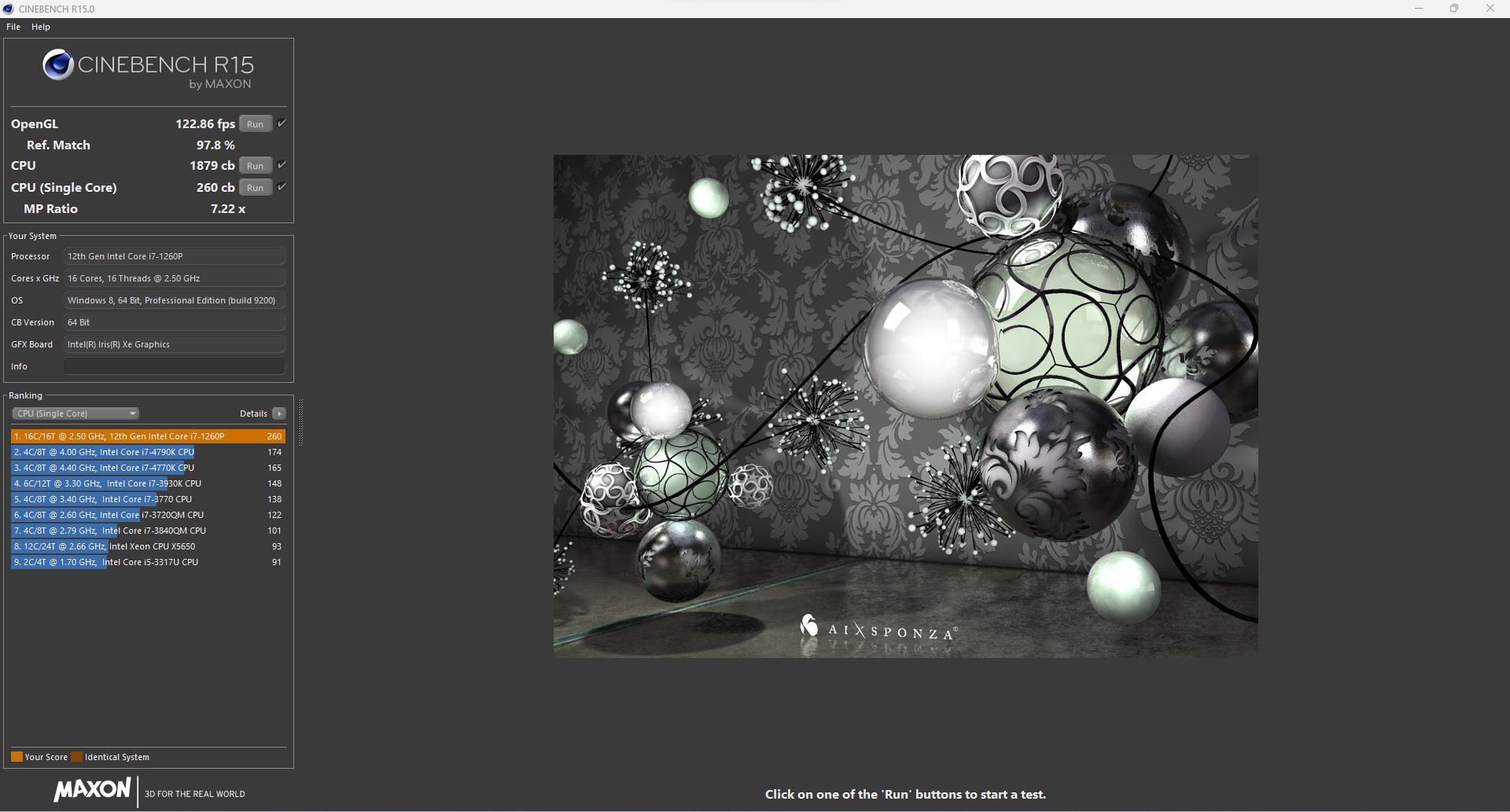

Cinebench R15
CPU Single 64Bit
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	275 Points +6%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	260 Points
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	242 Points -7%
Average Intel Core i7-1260P (165.4 - 260, n=27)	232 Points -11%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	223 Points -14%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	197 Points -24%
CPU Multi 64Bit
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	2555 Points +36%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	2224 Points +18%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1879 Points
Average Intel Core i7-1260P (549 - 2034, n=29)	1553 Points -17%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1265 Points -33%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	560 Points -70%

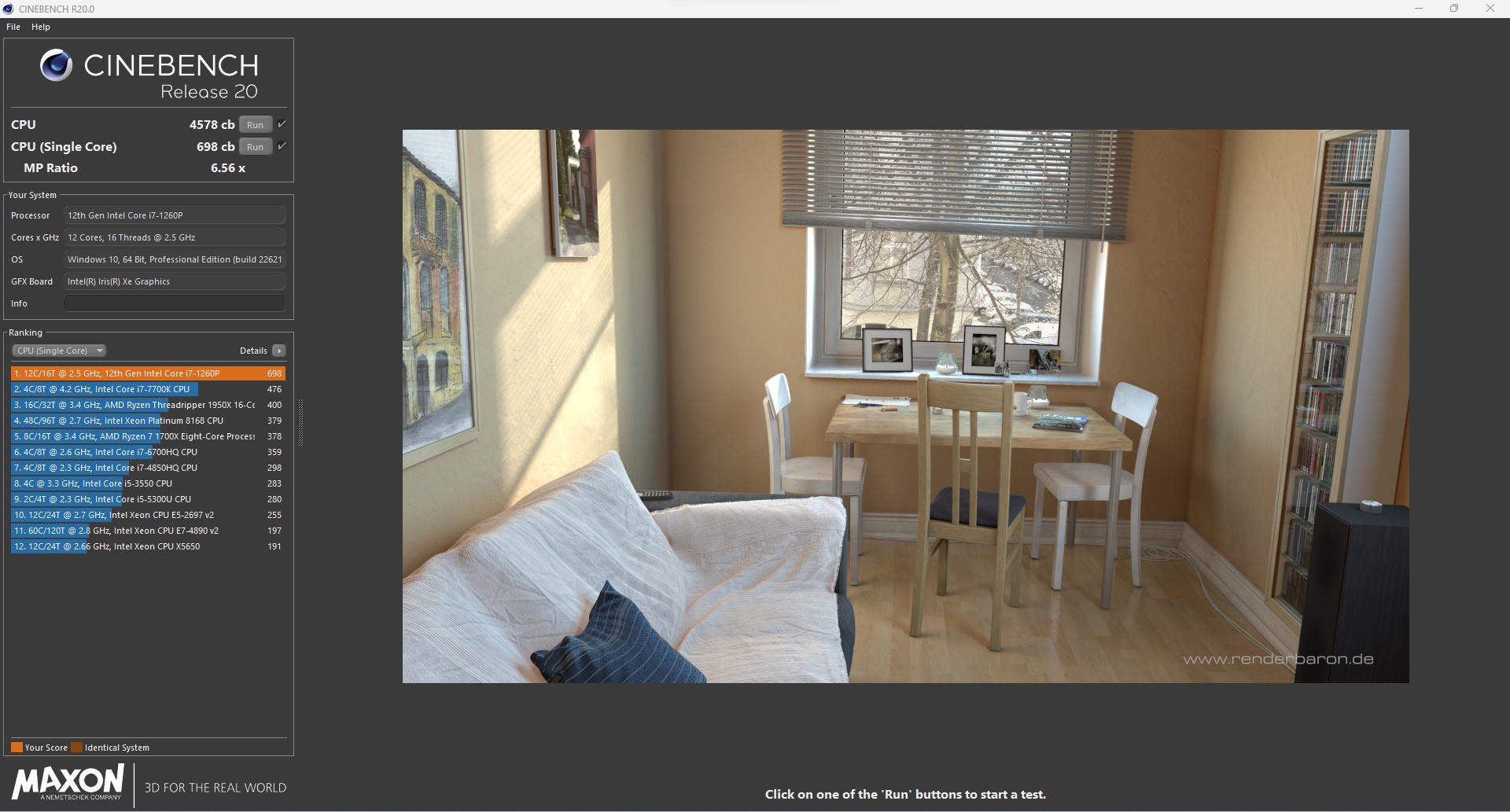

Cinebench R20
CPU (Single Core)
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	734 Points +5%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	698 Points
Average Intel Core i7-1260P (448 - 698, n=25)	645 Points -8%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	582 Points -17%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	534 Points -23%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	517 Points -26%
CPU (Multi Core)
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	6692 Points +46%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	5185 Points +13%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	4578 Points
Average Intel Core i7-1260P (1234 - 4748, n=25)	3595 Points -21%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	2975 Points -35%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1440 Points -69%

Cinebench R11.5
CPU Single 64Bit
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	3.31 Points +5%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	3.15 Points
Average Intel Core i7-1260P (2.93 - 3.15, n=3)	3.06 Points -3%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	2.86 Points -9%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	2.64 Points -16%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	2.31 Points -27%
CPU Multi 64Bit
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	30.01 Points +27%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	25.6 Points +8%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	23.6 Points
Average Intel Core i7-1260P (20.1 - 23.6, n=3)	21.9 Points -7%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	14.78 Points -37%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	6.37 Points -73%

Cinebench R10
Rendering Single CPUs 64Bit
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	15180 Points +5%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	14504 Points
Average Intel Core i7-1260P (13568 - 14504, n=2)	14036 Points -3%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	12152 Points -16%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	11098 Points -23%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	10395 Points -28%
Rendering Multiple CPUs 64Bit
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	89478 Points +22%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	73492 Points
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	73115 Points -1%
Average Intel Core i7-1260P (53950 - 73492, n=2)	63721 Points -13%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	45363 Points -38%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	24499 Points -67%

Blender - v2.79 BMW27 CPU
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	750 Seconds * -168%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	399 Seconds * -43%
Average Intel Core i7-1260P (264 - 906, n=26)	366 Seconds * -31%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	280 Seconds *
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	229.3 Seconds * +18%
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	189.5 Seconds * +32%

wPrime 2.10
32m
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	6.799 s * -87%
Average Intel Core i7-1260P (3.64 - 9.8, n=3)	5.98 s * -64%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5.377 s * -48%
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	4.725 s * -30%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	3.641 s *
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	3.308 s * +9%
1024m
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	286.835 s * -22%
Average Intel Core i7-1260P (236 - 314, n=3)	262 s * -11%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	235.874 s *
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	202.7 s * +14%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	156.33 s * +34%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	91.6 s * +61%

X264 HD Benchmark 4.0
Pass 1
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	333.5 (332^min - 336^max) fps +25%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	271.5 (259^min - 276^max) fps +2%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	266 (264^min - 271^max) fps
Average Intel Core i7-1260P (224 - 266, n=2)	245 fps -8%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	234 (233^min - 235^max) fps -12%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	165.55 (163.6^min - 204^max) fps -38%
Pass 2
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	148 (147^min - 148^max) fps +34%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	128 (122^min - 128^max) fps +16%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	110.5 (101.7^min - 125.3^max) fps
Average Intel Core i7-1260P (77.8 - 110.5, n=2)	94.1 fps -15%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	76 (75.7^min - 76.3^max) fps -31%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	36.7 (36.7^min - 37.6^max) fps -67%

WinRAR - Result
Average Intel Core i7-1260P (6559 - 16777, n=3)	10179 KB/s +41%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	7200 KB/s
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6877 KB/s -4%
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	6239 KB/s -13%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	4297 KB/s -40%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4185 KB/s -42%

TrueCrypt
AES Mean 100MB
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	12.8 GB/s +10%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	11.6 GB/s
Average Intel Core i7-1260P (10.4 - 11.6, n=3)	11.2 GB/s -3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	7.7 GB/s -34%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	7.4 GB/s -36%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5.3 GB/s -54%
Twofish Mean 100MB
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	2.2 GB/s +16%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	2 GB/s +5%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1.9 GB/s
Average Intel Core i7-1260P (1.8 - 1.9, n=3)	1.867 GB/s -2%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1.1 GB/s -42%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.755 GB/s -60%
Serpent Mean 100MB
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	1.3 GB/s +18%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	1.2 GB/s +9%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1.1 GB/s
Average Intel Core i7-1260P (1 - 1.1, n=3)	1.067 GB/s -3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	0.7 GB/s -36%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.448 GB/s -59%

Geekbench 5.5
Multi-Core
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	12797 Points +29%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	9935 Points
Average Intel Core i7-1260P (3866 - 10570, n=25)	8763 Points -12%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	7875 Points -21%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6175 Points -38%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4898 Points -51%
Single-Core
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	1904 Points +11%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1715 Points
Average Intel Core i7-1260P (1436 - 1786, n=25)	1693 Points -1%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	1542 Points -10%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1430 Points -17%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1391 Points -19%

Geekbench 5.0
5.0 Multi-Core
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	12746 Points +30%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	9817 Points
Average Intel Core i7-1260P (6440 - 10411, n=10)	9445 Points -4%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	7859 Points -20%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6117 Points -38%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4841 Points -51%
5.0 Single-Core
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	1821 Points +7%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1694 Points
Average Intel Core i7-1260P (1557 - 1694, n=10)	1655 Points -2%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	1498 Points -12%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1385 Points -18%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1383 Points -18%

Geekbench 4.4
64 Bit Single-Core Score
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	8223 Points +9%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	7554 Points
Average Intel Core i7-1260P (6698 - 7554, n=3)	7261 Points -4%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	6365 Points -16%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5911 Points -22%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5854 Points -23%
64 Bit Multi-Core Score
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	46557 Points +26%
Average Intel Core i7-1260P (36974 - 39852, n=3)	38338 Points +4%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	36974 Points
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	32434 Points -12%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	24495 Points -34%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	19288 Points -48%

3DMark 11 - 1280x720 Performance Physics
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	25017 Points +39%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	18044 Points
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	13940 Points -23%
Average Intel Core i7-1260P (4745 - 18968, n=27)	13735 Points -24%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	12608 Points -30%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	7792 Points -57%

7-Zip 18.03
7z b 4
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	64260 MIPS +37%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	57435 MIPS +22%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	47064 MIPS
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	39207 MIPS -17%
Average Intel Core i7-1260P (16146 - 47064, n=25)	38707 MIPS -18%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	17636 MIPS -63%
7z b 4 -mmt1
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	5944 MIPS +4%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	5739 MIPS 0%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	5738 MIPS
Average Intel Core i7-1260P (4064 - 5791, n=25)	5284 MIPS -8%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5249 MIPS -9%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4788 MIPS -17%

HWBOT x265 Benchmark v2.2 - 4k Preset
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	30.1 fps +128%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	15.9 fps +20%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	13.2 fps
Average Intel Core i7-1260P (3.45 - 13.6, n=26)	10.8 fps -18%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	10.1 fps -23%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5.26 fps -60%

R Benchmark 2.5 - Overall mean
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.639 sec * -33%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	0.537 sec * -12%
Average Intel Core i7-1260P (0.4559 - 0.727, n=25)	0.5 sec * -4%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	0.4965 sec * -4%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	0.4787 sec *
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	0.4456 sec * +7%

LibreOffice - 20 Documents To PDF
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	71.8 s * -60%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	52 s * -16%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	51.1 s * -14%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	49.3 s * -10%
Average Intel Core i7-1260P (40.2 - 65.7, n=25)	48.4 s * -8%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	45 s *

WebXPRT 3 - Overall
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	293 Points +3%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	285 Points
Average Intel Core i7-1260P (250 - 298, n=24)	281 Points -1%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	278 Points -2%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	255 Points -11%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	236 Points -17%

Mozilla Kraken 1.1 - Total
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	724 ms * -36%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	646 ms * -21%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	601 ms * -13%
Average Intel Core i7-1260P (531 - 604, n=24)	555 ms * -4%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	534 ms *
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	511 ms * +4%

3DMark
3840x2160 Fire Strike Ultra Physics
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	29443 Points +52%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	22976 Points +19%
Average Intel Core i7-1260P (15903 - 22818, n=12)	19524 Points +1%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	19357 Points
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	17568 Points -9%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	9561 Points -51%
1920x1080 Fire Strike Physics
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	29671 Points +43%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	24096 Points +16%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	20684 Points
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	18076 Points -13%
Average Intel Core i7-1260P (6797 - 22877, n=28)	17766 Points -14%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	9354 Points -55%
2560x1440 Time Spy CPU
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	13869 Points +65%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	8393 Points
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	6955 Points -17%
Average Intel Core i7-1260P (2352 - 10150, n=28)	6762 Points -19%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5443 Points -35%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	2867 Points -66%

* ... im mniej tym lepiej

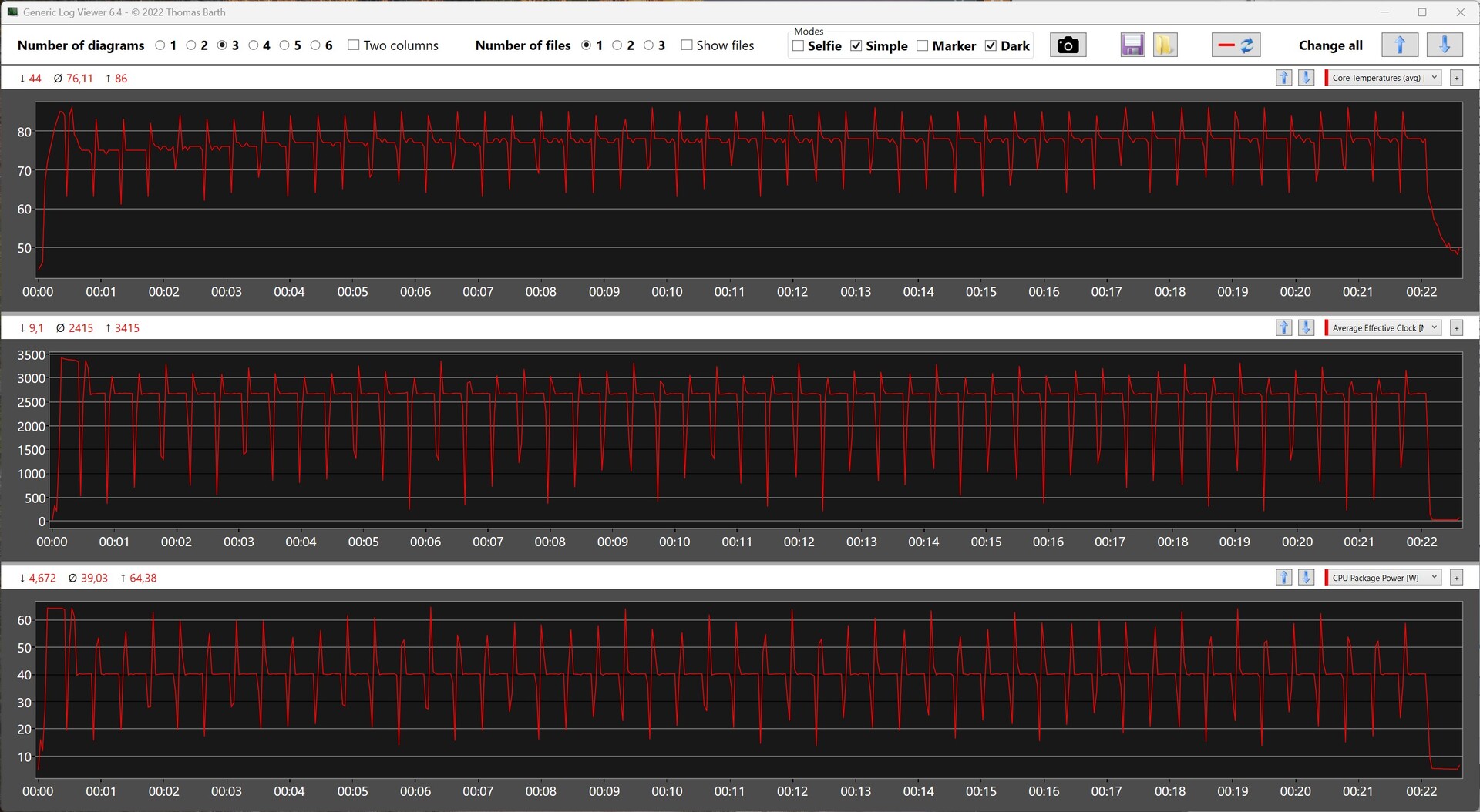

Cinebench R15
CPU Single 64Bit
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	260 Points
Average Intel Core i7-1260P (165.4 - 260, n=27)	232 Points -11%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	226 Points -13%
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	201 Points -23%
CPU Multi 64Bit
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	1975 Points +5%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1879 Points
Average Intel Core i7-1260P (549 - 2034, n=29)	1553 Points -17%
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	794 (772.57^min - 794.38^max) Points -58%

Cinebench R20
CPU (Single Core)
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	698 Points
Average Intel Core i7-1260P (448 - 698, n=25)	645 Points -8%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	608 Points -13%
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	503 Points -28%
CPU (Multi Core)
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	5168 Points +13%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	4578 Points
Average Intel Core i7-1260P (1234 - 4748, n=25)	3595 Points -21%
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	1974 Points -57%

Cinebench R11.5
CPU Single 64Bit
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	3.15 Points
Average Intel Core i7-1260P (2.93 - 3.15, n=3)	3.06 Points -3%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	2.69 Points -15%
CPU Multi 64Bit
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	23.6 Points
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	23.44 Points -1%
Average Intel Core i7-1260P (20.1 - 23.6, n=3)	21.9 Points -7%

Cinebench R10
Rendering Single CPUs 64Bit
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	14504 Points
Average Intel Core i7-1260P (13568 - 14504, n=2)	14036 Points -3%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	12378 Points -15%
Rendering Multiple CPUs 64Bit
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	75223 Points +2%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	73492 Points
Average Intel Core i7-1260P (53950 - 73492, n=2)	63721 Points -13%

Blender - v2.79 BMW27 CPU
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	600 Seconds * -114%
Average Intel Core i7-1260P (264 - 906, n=26)	366 Seconds * -31%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	280 Seconds *
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	232 Seconds * +17%

wPrime 2.10
32m
Average Intel Core i7-1260P (3.64 - 9.8, n=3)	5.98 s * -64%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	3.641 s *
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	3.375 s * +7%
1024m
Average Intel Core i7-1260P (236 - 314, n=3)	262 s * -11%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	235.874 s *
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	201.062 s * +15%

X264 HD Benchmark 4.0
Pass 1
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	276 (273^min - 294^max) fps +4%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	266 (264^min - 271^max) fps
Average Intel Core i7-1260P (224 - 266, n=2)	245 fps -8%
Pass 2
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	113.7 (113.5^min - 122.2^max) fps +3%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	110.5 (101.7^min - 125.3^max) fps
Average Intel Core i7-1260P (77.8 - 110.5, n=2)	94.1 fps -15%

WinRAR - Result
Average Intel Core i7-1260P (6559 - 16777, n=3)	10179 KB/s +41%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	7387 KB/s +3%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	7200 KB/s

TrueCrypt
AES Mean 100MB
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	14.1 GB/s +22%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	11.6 GB/s
Average Intel Core i7-1260P (10.4 - 11.6, n=3)	11.2 GB/s -3%
Twofish Mean 100MB
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	2.3 GB/s +21%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1.9 GB/s
Average Intel Core i7-1260P (1.8 - 1.9, n=3)	1.867 GB/s -2%
Serpent Mean 100MB
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	1.3 GB/s +18%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1.1 GB/s
Average Intel Core i7-1260P (1 - 1.1, n=3)	1.067 GB/s -3%

Geekbench 5.5
Multi-Core
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	9935 Points
Average Intel Core i7-1260P (3866 - 10570, n=25)	8763 Points -12%
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	4593 Points -54%
Single-Core
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1715 Points
Average Intel Core i7-1260P (1436 - 1786, n=25)	1693 Points -1%
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	1396 Points -19%

Geekbench 5.0
5.0 Multi-Core
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	9817 Points
Average Intel Core i7-1260P (6440 - 10411, n=10)	9445 Points -4%
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	4586 Points -53%
5.0 Single-Core
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1694 Points
Average Intel Core i7-1260P (1557 - 1694, n=10)	1655 Points -2%
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	1368 Points -19%

Geekbench 4.4
64 Bit Single-Core Score
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	7554 Points
Average Intel Core i7-1260P (6698 - 7554, n=3)	7261 Points -4%
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	5828 Points -23%
64 Bit Multi-Core Score
Average Intel Core i7-1260P (36974 - 39852, n=3)	38338 Points +4%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	36974 Points
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	18200 Points -51%

3DMark 11 - 1280x720 Performance Physics
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	18044 Points
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	17378 Points -4%
Average Intel Core i7-1260P (4745 - 18968, n=27)	13735 Points -24%
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	10105 Points -44%

7-Zip 18.03
7z b 4
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	56455 MIPS +20%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	47064 MIPS
Average Intel Core i7-1260P (16146 - 47064, n=25)	38707 MIPS -18%
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	23280 MIPS -51%
7z b 4 -mmt1
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	5738 MIPS
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	5347 MIPS -7%
Average Intel Core i7-1260P (4064 - 5791, n=25)	5284 MIPS -8%
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	4738 MIPS -17%

HWBOT x265 Benchmark v2.2 - 4k Preset
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	15.7 fps +19%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	13.2 fps
Average Intel Core i7-1260P (3.45 - 13.6, n=26)	10.8 fps -18%
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	6.63 fps -50%

R Benchmark 2.5 - Overall mean
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	0.622 sec * -30%
Average Intel Core i7-1260P (0.4559 - 0.727, n=25)	0.5 sec * -4%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	0.4997 sec * -4%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	0.4787 sec *

LibreOffice - 20 Documents To PDF
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	51.3 s * -14%
Average Intel Core i7-1260P (40.2 - 65.7, n=25)	48.4 s * -8%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	45 s *
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	41.9 s * +7%

WebXPRT 3 - Overall
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	285 Points 0%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	285 Points
Average Intel Core i7-1260P (250 - 298, n=24)	281 Points -1%
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	228 Points -20%

Mozilla Kraken 1.1 - Total
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	715 ms * -34%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	582 ms * -9%
Average Intel Core i7-1260P (531 - 604, n=24)	555 ms * -4%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	534 ms *

3DMark
3840x2160 Fire Strike Ultra Physics
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	22101 Points +14%
Average Intel Core i7-1260P (15903 - 22818, n=12)	19524 Points +1%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	19357 Points
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	12434 Points -36%
1920x1080 Fire Strike Physics
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	23308 Points +13%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	20684 Points
Average Intel Core i7-1260P (6797 - 22877, n=28)	17766 Points -14%
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	12562 Points -39%
2560x1440 Time Spy CPU
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	9449 Points +13%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	8393 Points
Average Intel Core i7-1260P (2352 - 10150, n=28)	6762 Points -19%
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	4117 Points -51%

* ... im mniej tym lepiej

Performance Rating
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	91.9 pt
Average of class Mini PC	71.4 pt
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	70.1 pt
Intel Core i5-12600K Intel Core i5-12600K, NVIDIA Titan RTX	69 pt
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	63.7 pt
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	56.1 pt
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	39.9 pt
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	37.1 pt

AIDA64 / FP32 Ray-Trace
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	15755 KRay/s +52%
Average of class Mini PC (646 - 51004, n=118, last 2 years)	12856 KRay/s +24%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	12208 KRay/s +18%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	10351 KRay/s
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	9086 KRay/s -12%
Intel Core i5-12600K Intel Core i5-12600K, NVIDIA Titan RTX	8243 KRay/s -20%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	6699 KRay/s -35%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	5612 KRay/s -46%

AIDA64 / FPU Julia
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	100504 Points +93%
Average of class Mini PC (3857 - 214250, n=118, last 2 years)	64665 Points +24%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	61600 Points +18%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	57375 Points +10%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	52136 Points
Intel Core i5-12600K Intel Core i5-12600K, NVIDIA Titan RTX	37321 Points -28%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	27861 Points -47%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	24138 Points -54%

AIDA64 / CPU SHA3
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	3444 MB/s +33%
Intel Core i5-12600K Intel Core i5-12600K, NVIDIA Titan RTX	3250 MB/s +25%
Average of class Mini PC (260 - 9399, n=118, last 2 years)	2852 MB/s +10%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	2844 MB/s +10%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	2590 MB/s
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	1971 MB/s -24%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	1855 MB/s -28%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	1649 MB/s -36%

AIDA64 / CPU Queen
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	105123 Points +27%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	95602 Points +16%
Intel Core i5-12600K Intel Core i5-12600K, NVIDIA Titan RTX	88337 Points +7%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	82493 Points
Average of class Mini PC (8172 - 184747, n=118, last 2 years)	80040 Points -3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	67224 Points -19%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	46646 Points -43%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	46536 Points -44%

AIDA64 / FPU SinJulia
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	12792 Points +90%
Intel Core i5-12600K Intel Core i5-12600K, NVIDIA Titan RTX	9510 Points +41%
Average of class Mini PC (408 - 29064, n=118, last 2 years)	8779 Points +30%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	8294 Points +23%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	8213 Points +22%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	6728 Points
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	4444 Points -34%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	3964 Points -41%

AIDA64 / FPU Mandel
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	55452 Points +113%
Average of class Mini PC (1987 - 113499, n=118, last 2 years)	33701 Points +30%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	31389 Points +21%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	30804 Points +18%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	25996 Points
Intel Core i5-12600K Intel Core i5-12600K, NVIDIA Titan RTX	24230 Points -7%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	16937 Points -35%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	14905 Points -43%

AIDA64 / CPU AES
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	135212 MB/s +46%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	92356 MB/s
Average of class Mini PC (3691 - 325960, n=118, last 2 years)	88017 MB/s -5%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	78211 MB/s -15%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	66724 MB/s -28%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	59882 MB/s -35%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	58910 MB/s -36%
Intel Core i5-12600K Intel Core i5-12600K, NVIDIA Titan RTX	58635 MB/s -37%

AIDA64 / CPU ZLib
Intel Core i5-12600K Intel Core i5-12600K, NVIDIA Titan RTX	988 MB/s +37%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	871 MB/s +21%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	828 MB/s +15%
Average of class Mini PC (74.9 - 2039, n=118, last 2 years)	739 MB/s +2%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	722 MB/s
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	505 MB/s -30%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	373 MB/s -48%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	265 MB/s -63%

AIDA64 / FP64 Ray-Trace
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	8425 KRay/s +50%
Average of class Mini PC (350 - 26952, n=118, last 2 years)	6871 KRay/s +22%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	6612 KRay/s +18%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	5613 KRay/s
Intel Core i5-12600K Intel Core i5-12600K, NVIDIA Titan RTX	5149 KRay/s -8%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	4636 KRay/s -17%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	3628 KRay/s -35%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	2997 KRay/s -47%

AIDA64 / CPU PhotoWorxx
Intel Core i5-12600K Intel Core i5-12600K, NVIDIA Titan RTX	48577 MPixel/s +71%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	30098 MPixel/s +6%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	28377 MPixel/s
Average of class Mini PC (4408 - 50500, n=118, last 2 years)	28288 MPixel/s 0%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	26959 MPixel/s -5%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	19395 MPixel/s -32%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	16877 MPixel/s -41%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	14978 MPixel/s -47%

Intel NUC 12 Pro Kit - Wall Street Canyon vs. Cinebench R15 Multi Loop - zestawienie

Odczyty procesora podczas pętli Cinebench R15

Pierwsze spojrzenie na wydajność zintegrowanego rozwiązania chłodzącego otrzymujemy w naszej pętli Cinebench R15. Maksymalne Turbo jest aktywne tylko podczas pierwszej pętli, a wydajność spada znacząco podczas drugiej. Wynik spada o około 10 procent. W dalszej części testu nie ma większych wahań, a średni wynik to 1702 punkty.

Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Core i7-1260P: Ø1702 (1671.26-2063.13)

Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Ryzen 9 5900HX: Ø2121 (2086.27-2197.32)

Intel NUC11TNKi5 Intel Core i5-1135G7, Intel Core i5-1135G7: Ø789 (772.57-794.38)

Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Ryzen 5 5600U: Ø1158 (1130.29-1266.62)

Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Core i5-1135G7: Ø574 (568.03-615.59)

Morefine S600-Apex Engineer Intel Core i9-12900HK, Intel Core i9-12900HK: Ø1986 (1882.53-2086.59)

Wydajność systemu

Niestety, Intel NUC 12 Pro Kit nie jest w stanie płynnie przełożyć swoich dobrych wyników w benchmarkach CPU na dobre wyniki w benchmarkach syntetycznych. Pomijając Intel Core i5-12600K, w PCMarku 10 zajmuje dopiero trzecie miejsce. Natomiast Crossmark po raz kolejny wydaje się faworyzować nasze urządzenie testowe i przywraca dawną hierarchię wydajności. Podobnie w testach pamięci RAM obserwujemy ponadprzeciętne transfery w porównaniu z innymi mini PC.

PCMark 10: Score | Essentials | Productivity

PCMark 10 / Score
Intel Core i5-12600K, Intel Core i5-12600K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	8259 Points +40%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	6507 Points +10%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	5915 Points
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	5761 Points -3%
Morefine S600-Apex Engineer, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8	5658 Points -4%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	4521 Points -24%
Intel NUC11TNKi5, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 80EUs, Transcend M.2 SSD 430S TS512GMTS430S	4512 Points -24%

PCMark 10 / Essentials
Morefine S600-Apex Engineer, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8	10700 Points 0%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	10661 Points
Intel Core i5-12600K, Intel Core i5-12600K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	10650 Points 0%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	10385 Points -3%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	10321 Points -3%
Intel NUC11TNKi5, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 80EUs, Transcend M.2 SSD 430S TS512GMTS430S	9000 Points -16%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	8910 Points -16%

PCMark 10 / Productivity
Intel Core i5-12600K, Intel Core i5-12600K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	11001 Points +44%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	10196 Points +34%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	9539 Points +25%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	7626 Points
Morefine S600-Apex Engineer, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8	7041 Points -8%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	6357 Points -17%
Intel NUC11TNKi5, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 80EUs, Transcend M.2 SSD 430S TS512GMTS430S	6190 Points -19%

CrossMark: Overall | Responsiveness | Creativity | Productivity

CrossMark / Overall
Morefine S600-Apex Engineer, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8	1804 Points +7%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	1679 Points
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1373 Points -18%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1245 Points -26%

CrossMark / Responsiveness
Morefine S600-Apex Engineer, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8	1811 Points +23%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	1476 Points
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1263 Points -14%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1224 Points -17%

CrossMark / Creativity
Morefine S600-Apex Engineer, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8	1867 Points +5%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	1785 Points
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1379 Points -23%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1193 Points -33%

CrossMark / Productivity
Morefine S600-Apex Engineer, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8	1740 Points +6%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	1649 Points
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1406 Points -15%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1306 Points -21%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Intel Core i5-12600K Intel Core i5-12600K, NVIDIA Titan RTX	70749 MB/s +58%
Average Intel Core i7-1260P (25125 - 71544, n=25)	54361 MB/s +22%
Average of class Mini PC (6481 - 89287, n=118, last 2 years)	48333 MB/s +8%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	44965 MB/s +1%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	44661 MB/s
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	37616 MB/s -16%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	35423 MB/s -21%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	35051 MB/s -22%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	22895 MB/s -49%

AIDA64 / Memory Read
Intel Core i5-12600K Intel Core i5-12600K, NVIDIA Titan RTX	76864 MB/s +65%
Average Intel Core i7-1260P (24983 - 72065, n=25)	56385 MB/s +21%
Average of class Mini PC (6914 - 99171, n=118, last 2 years)	49155 MB/s +5%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	46644 MB/s
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	44775 MB/s -4%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	43678 MB/s -6%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	40348 MB/s -13%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	38400 MB/s -18%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	24947 MB/s -47%

AIDA64 / Memory Write
Intel Core i5-12600K Intel Core i5-12600K, NVIDIA Titan RTX	73824 MB/s +60%
Average Intel Core i7-1260P (23512 - 66799, n=25)	53353 MB/s +15%
Average of class Mini PC (6862 - 98583, n=118, last 2 years)	52836 MB/s +14%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	46454 MB/s 0%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	46223 MB/s
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	39154 MB/s -15%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	37475 MB/s -19%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	35146 MB/s -24%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	23454 MB/s -49%

AIDA64 / Memory Latency
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	101.5 ns * -9%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	92.7 ns *
Average of class Mini PC (44.9 - 184.8, n=118, last 2 years)	92.2 ns * +1%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	91.3 ns * +2%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	87.1 ns * +6%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	79.6 ns * +14%
Average Intel Core i7-1260P (77.9 - 118.4, n=21)	78.7 ns * +15%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	69 ns * +26%

* ... im mniej tym lepiej

Opóźnienie DPC

Zestaw Intel NUC 12 Pro dobrze sprawdza się w połączeniu z Intel Core i7-1260P. Nie zaobserwowaliśmy problematycznych latencji podczas odtwarzania próbki wideo. Tutaj wykorzystanie iGPU było na poziomie około 45 procent.

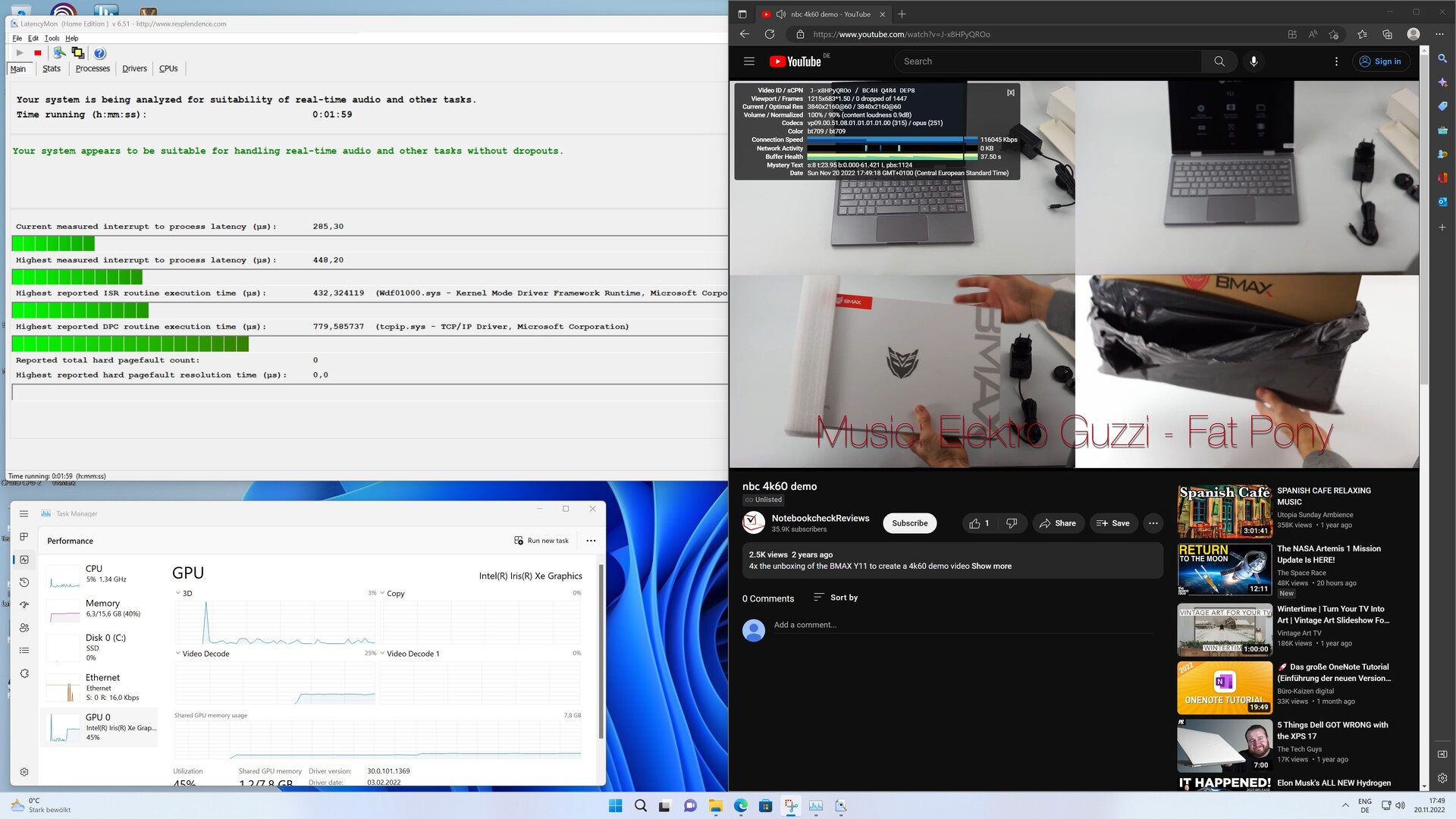

Maksymalne opóźnienie podczas otwierania wielu kart przeglądarki i odtwarzania wideo 4K

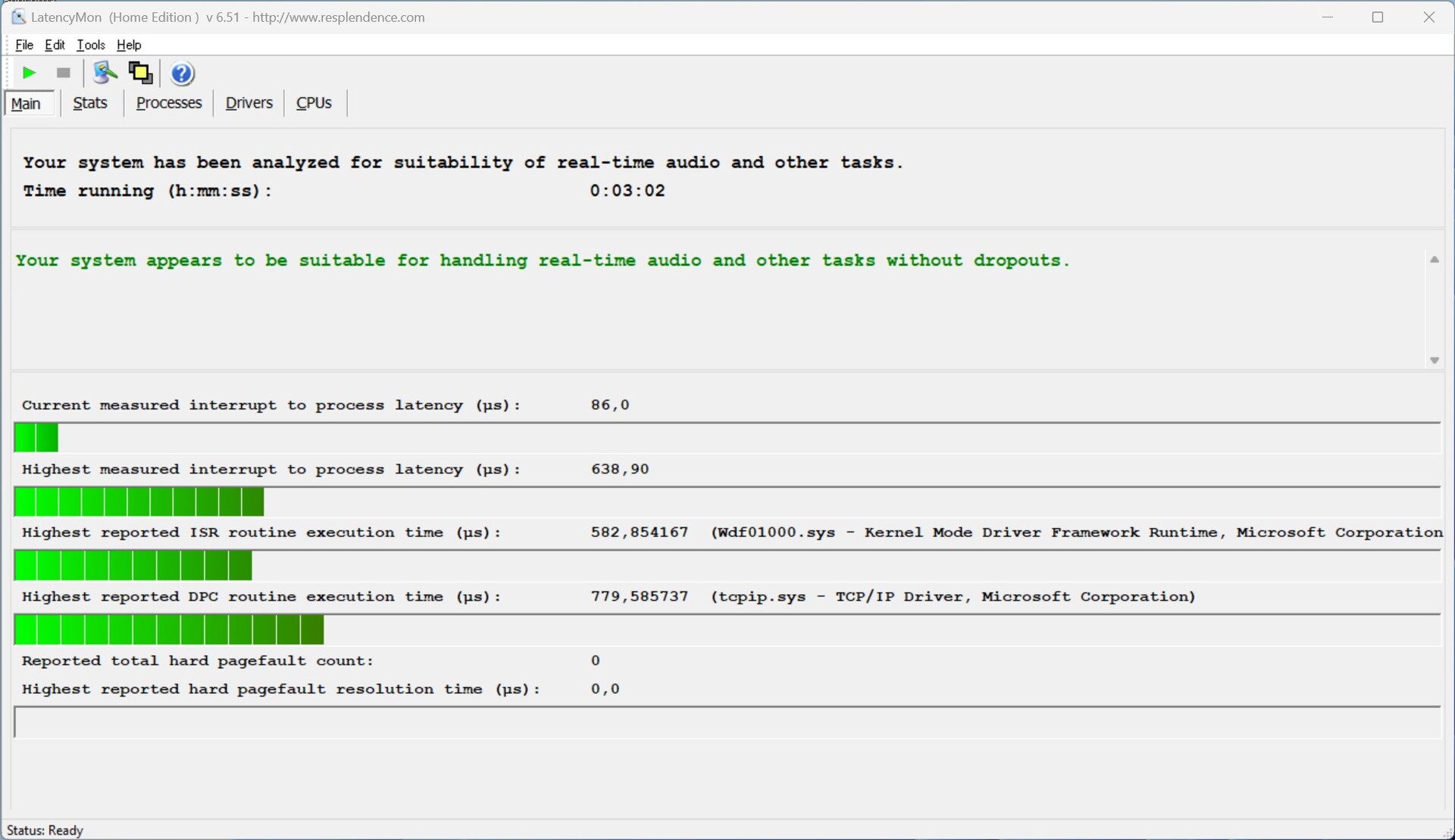

Maksymalna latencja po obciążeniu systemu programem Prime95 przez dziesięć sekund

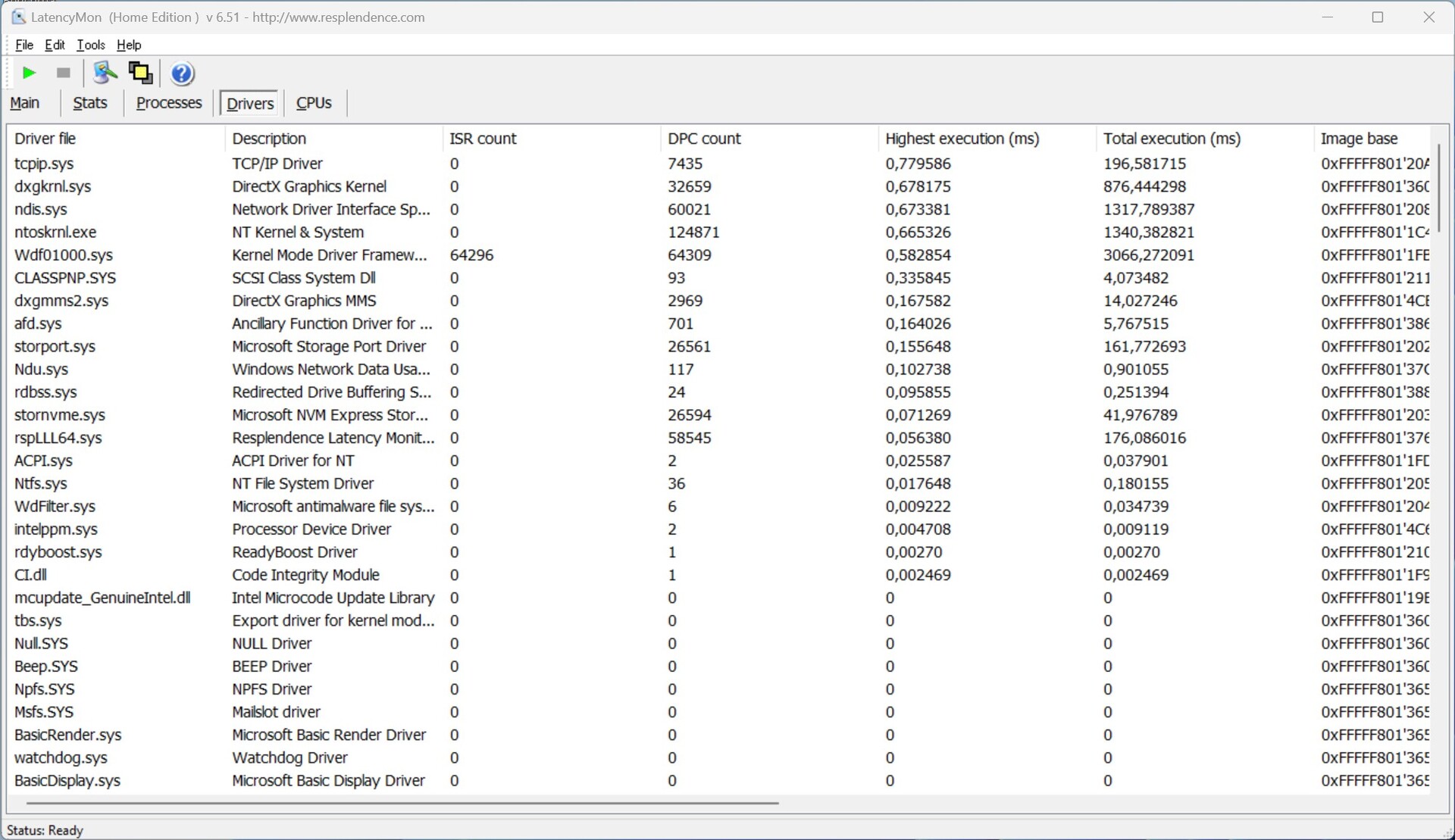

Sterowniki uporządkowane według najwyższego czasu wykonania

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	1106 μs * -42%
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	961.5 μs * -23%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	779 μs *
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	765 μs * +2%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	659.1 μs * +15%
Intel NUC11TNKi5 Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S	525 μs * +33%

* ... im mniej tym lepiej

Rozwiązanie w zakresie przechowywania

Nasza próbka testowa Intel NUC 12 Pro Kit obsługuje do dwóch dysków SSD M.2. Użytkownicy będą musieli jednak zwrócić uwagę na współczynnik kształtu. Podczas gdy podstawowe gniazdo NVMe-M.2 obsługuje tylko dyski SSD 80 mm, drugie gniazdo M.2 akceptuje tylko krótsze dyski SSD 42 mm.

Używamy dysku SSD firmy Transcend i pamięci RAM z naszych zapasów sprzętowych. Wydajność dysku SSD jest solidna. Inne urządzenia w naszym porównaniu są jednak wyposażone w szybsze dyski SSD. Nie należy przeceniać znaczenia tych wyników, ponieważ użytkownicy będą mogli zainstalować wybrany przez siebie dysk SSD w barebone Intel NUC 12 Pro Kit.

Więcej porównań i benchmarków można znaleźć na naszej Stronie poświęconej dyskom SSD i HDD.

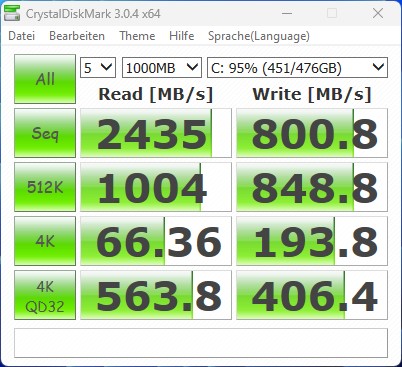

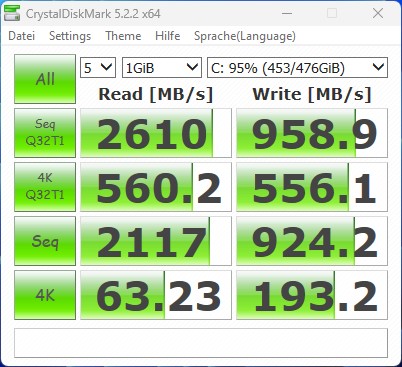

CrystalDiskMark 3.0

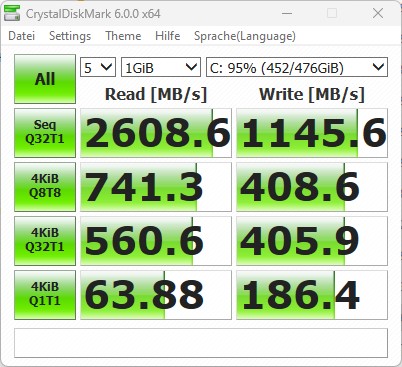

CrystalDiskMark 5.2 / 6

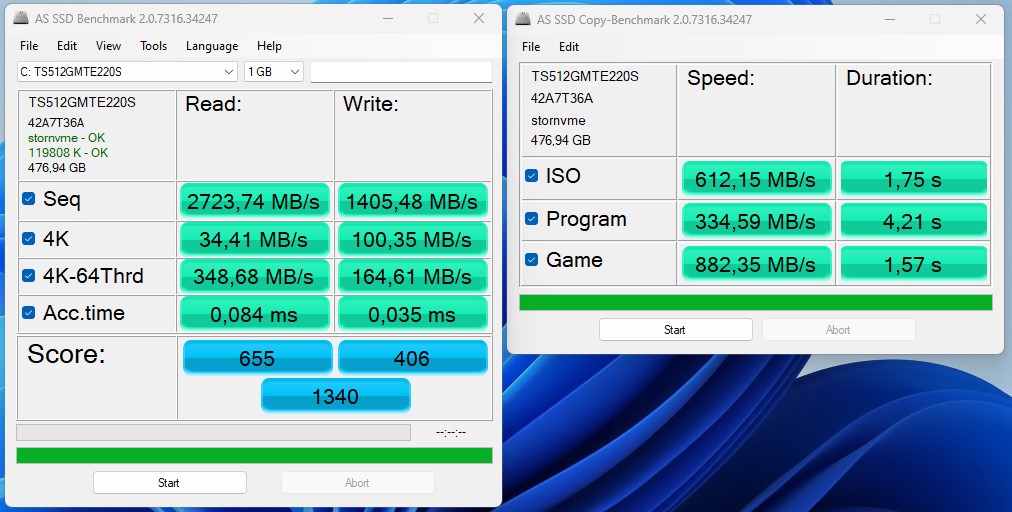

AS SSD

DiskSpd

Transcend M.2 SSD 2200S TS512GMTE220S

Sequential Read: 2435 MB/s

Sequential Write: 800.8 MB/s

512K Read: 1004 MB/s

512K Write: 848.8 MB/s

4K Read: 66.36 MB/s

4K Write: 193.8 MB/s

4K QD32 Read: 563.8 MB/s

4K QD32 Write: 406.4 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Average of class Mini PC	92.6 pt
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	70.5 pt
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	69.1 pt
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	56.8 pt
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	53.3 pt
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	19.2 pt

DiskSpd
seq read
Average of class Mini PC (277 - 4357, n=118, last 2 years)	2331 MB/s +30%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2184 (2176.42^min - 2183.52^max) MB/s +22%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2082 (2067.58^min - 2082.23^max) MB/s +16%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	1790 (1744.2^min - 1789.7^max) MB/s
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1319 (1307.78^min - 1319.44^max) MB/s -26%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	509 (505.62^min - 509.19^max) MB/s -72%
seq write
Average of class Mini PC (229 - 5595, n=118, last 2 years)	2506 MB/s +155%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1792 (1662.17^min - 1791.62^max) MB/s +82%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1790 (1681.49^min - 1789.9^max) MB/s +82%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	984 (154.77^min - 984.48^max) MB/s
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	977 (973.56^min - 977.06^max) MB/s -1%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	467 (462^min - 467.13^max) MB/s -53%
seq q8 t1 read
Average of class Mini PC (236 - 8430, n=118, last 2 years)	3792 MB/s +67%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2525 (2269.25^min - 2525.2^max) MB/s +11%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2444 (2328.09^min - 2444.09^max) MB/s +8%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	2273 (1501.91^min - 2273.31^max) MB/s
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1973 (254.17^min - 1973.17^max) MB/s -13%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	561 (469.24^min - 560.5^max) MB/s -75%
seq q8 t1 write
Average of class Mini PC (239 - 6669, n=118, last 2 years)	2807 MB/s +60%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1790 (1687.16^min - 1790.13^max) MB/s +2%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1769 (1687.39^min - 1768.92^max) MB/s +1%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	1758 (161.06^min - 1758.04^max) MB/s
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	977 (973.56^min - 976.5^max) MB/s -44%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	504 (500.38^min - 503.53^max) MB/s -71%
4k q1 t1 read
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	63 (57.2^min - 63.02^max) MB/s
Average of class Mini PC (6.85 - 86.6, n=118, last 2 years)	55.3 MB/s -12%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	48.2 (48.04^min - 48.16^max) MB/s -23%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	47.4 (11.99^min - 47.41^max) MB/s -25%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	45.1 (43.96^min - 45.09^max) MB/s -28%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	21.6 (20.05^min - 21.62^max) MB/s -66%
4k q1 t1 write
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	210 (122.22^min - 209.88^max) MB/s +5%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	199.5 (150.75^min - 199.48^max) MB/s
Average of class Mini PC (30.4 - 435, n=118, last 2 years)	197.1 MB/s -1%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	196.3 (179.94^min - 196.31^max) MB/s -2%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	167 (54.54^min - 166.59^max) MB/s -16%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	46.4 (45.57^min - 46.37^max) MB/s -77%
4k q32 t16 read
Average of class Mini PC (26.1 - 4158, n=118, last 2 years)	1406 MB/s +302%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1005 (1003.31^min - 1005.12^max) MB/s +187%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	991 (989.79^min - 991.47^max) MB/s +183%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	350 (213.46^min - 349.65^max) MB/s
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	313 (311.66^min - 312.85^max) MB/s -11%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	285 (283.99^min - 284.61^max) MB/s -19%
4k q32 t16 write
Average of class Mini PC (32.6 - 4288, n=118, last 2 years)	1331 MB/s +137%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	976 (747.22^min - 976.04^max) MB/s +74%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	774 (725.33^min - 774.03^max) MB/s +38%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	659 (650.84^min - 659.33^max) MB/s +17%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	561 (408.83^min - 561.15^max) MB/s
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	330 (329.53^min - 329.95^max) MB/s -41%

AS SSD
Score Total
Average of class Mini PC (211 - 10021, n=116, last 2 years)	4249 Points +217%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2887 Points +115%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2797 Points +109%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	2184 Points +63%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	1340 Points
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	839 Points -37%
Score Read
Average of class Mini PC (76 - 3741, n=116, last 2 years)	1579 Points +141%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1162 Points +77%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1152 Points +76%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	698 Points +7%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	655 Points
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	304 Points -54%
Score Write
Average of class Mini PC (88 - 4371, n=116, last 2 years)	1904 Points +369%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1169 Points +188%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1152 Points +184%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1059 Points +161%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	406 Points
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	375 Points -8%
Seq Read
Average of class Mini PC (291 - 6620, n=116, last 2 years)	3232 MB/s +19%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	2723 MB/s
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2260 MB/s -17%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2204 MB/s -19%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1777 MB/s -35%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	527 MB/s -81%
Seq Write
Average of class Mini PC (242 - 5783, n=116, last 2 years)	2288 MB/s +63%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1644 MB/s +17%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1603 MB/s +14%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	1405 MB/s
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	929 MB/s -34%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	469 MB/s -67%
4K Read
Average of class Mini PC (21.4 - 104.3, n=116, last 2 years)	59.7 MB/s +73%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	54.5 MB/s +58%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	52.54 MB/s +53%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	39.71 MB/s +15%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	34.41 MB/s
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	20.41 MB/s -41%
4K Write
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	185.32 MB/s +85%
Average of class Mini PC (30.9 - 366, n=116, last 2 years)	177.7 MB/s +77%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	144.1 MB/s +44%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	143.1 MB/s +43%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	100.35 MB/s
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	42.52 MB/s -58%
4K-64 Read
Average of class Mini PC (23.4 - 3220, n=116, last 2 years)	1196 MB/s +243%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	891.59 MB/s +156%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	883.24 MB/s +153%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	465.3 MB/s +33%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	348.68 MB/s
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	231.4 MB/s -34%
4K-64 Write
Average of class Mini PC (32.8 - 3731, n=116, last 2 years)	1498 MB/s +810%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	916 MB/s +456%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	823.51 MB/s +400%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	750.4 MB/s +356%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	285.3 MB/s +73%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	164.61 MB/s
Access Time Read
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	0.124 ms * -48%
Average of class Mini PC (0.022 - 0.489, n=116, last 2 years)	0.09605 ms * -14%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	0.084 ms *
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	0.081 ms * +4%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	0.075 ms * +11%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	0.06 ms * +29%
Access Time Write
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	0.269 ms * -669%
Average of class Mini PC (0.014 - 0.765, n=116, last 2 years)	0.1104 ms * -215%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	0.103 ms * -194%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	0.102 ms * -191%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	0.035 ms *
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	0.024 ms * +31%

* ... im mniej tym lepiej

Intel NUC 12 Pro Kit - Wall Street Canyon w recenzji: Zaawansowany mini PC z Intel Core i7-1260P zapewniający dużą wszechstronność

Szybko i przyszłościowo!

Potencjalni konkurenci w porównaniu

Intel NUC 12 Pro Kit w szczegółach

Sprawa

Łączność

Komunikacja

Akcesoria

Konserwacja

Wydajność - Core i7 z 12 rdzeniami

Warunki badania

Procesor

Intel NUC 12 Pro Kit - Wall Street Canyon vs. Cinebench R15 Multi Loop - zestawienie

Wydajność systemu

Opóźnienie DPC

Rozwiązanie w zakresie przechowywania

Disk Throttling: DiskSpd Read Loop, Queue Depth 8
