Test laptopa Acer Aspire 5 A515-51G

Tekst i zdjęcia: Sascha Mölck
Wstęp i tłumaczenie: Tomasz Cyba

02/08/2017

Acer Aspire A515-51G to jeden z pierwszych laptopów z kartą grafiki GeForce MX150. Układ ten ma wydajność zbliżoną do tej, jaką zapewniał GeForce GTX 950M.

Acer Aspire 5 A515-51G-51RL
Procesor
Intel Core i5-7200U 2 x 2.5 - 3.1 GHz, Kaby Lake
Karta grafiki
NVIDIA GeForce MX150 - 2048 MB VRAM, rdzeń: 1683 MHz, pamięć: 1502 MHz, GDDR5, magistrala 64-bitowa, ForceWare 384.76, Optimus
Pamięć
8 GB
, DDR4-2132, Dual-Channel, 4 GB przylutowane
Matryca
15.60 cali 16:9, 1920 x 1080 pikseli 141 PPI, AU Optronics B156HAN06.1, IPS, refleksująca: nie
Chipset
Intel Kaby Lake-U iHDCP 2.2 Premium PCH

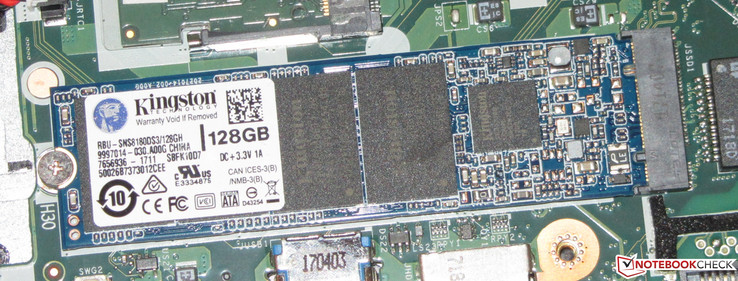

Dysk twardy
Kingston RBUSNS8180DS3128GH, 128 GB
, + WDC WD10SPZX (1 TB, 5400 obr/min), 1020 GB wolne miejsce
Karta dźwiękowa
Realtek HD Audio
Złącza
2 USB 2.0, 2 USB 3.0, 1 HDMI, 1 blokada Kensingtona, gniazda audio: wejście/wyjście audio w jednym, czytnik kart: SD, TPM 2.0
Łączność
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Intel Dual Band Wireless-AC 3168 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2
Gabaryty
wysokość x szerokość x głębokość (mm): 21.6 x 381.6 x 259
Akumulator
48 Wh, 3220 mAh litowo-jonowy, 15,2 V
System operacyjny
Microsoft Windows 10 Home 64 Bit
Camera
kamerka: 720p
Inne
głośniki: stereo, klawiatura: Chiclet, podświetlanie klawiatury: nie, MS Office 365 (na próbę), Norton Security (na próbę), 24 miesiące(y) gwarancji
Waga
2.1 kg, zasilacz: 318 g
Cena
899 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Obudowa

Acer A515-51 ma czarną obudowę. W większości jest ona plastikowa; tylko wierzch jednostki zasadniczej jest metalowy. Wieko ma ryflowaną powierzchnię.

Spasowanie obudowy nie budzi zastrzeżeń, Odstępy między elementami są w porządku. Jednostka zasadnicza mogłaby być nieco sztywniejsza. Pokrywa ekranu wypada pod tym względem nawet gorzej.

Maksymalny kąt odchylenia ekranu to około 240-250 stopni. Zawiasy dobrze utrzymują ekran w nadanej mu pozycji. Można podnieść klapę jedną ręką.

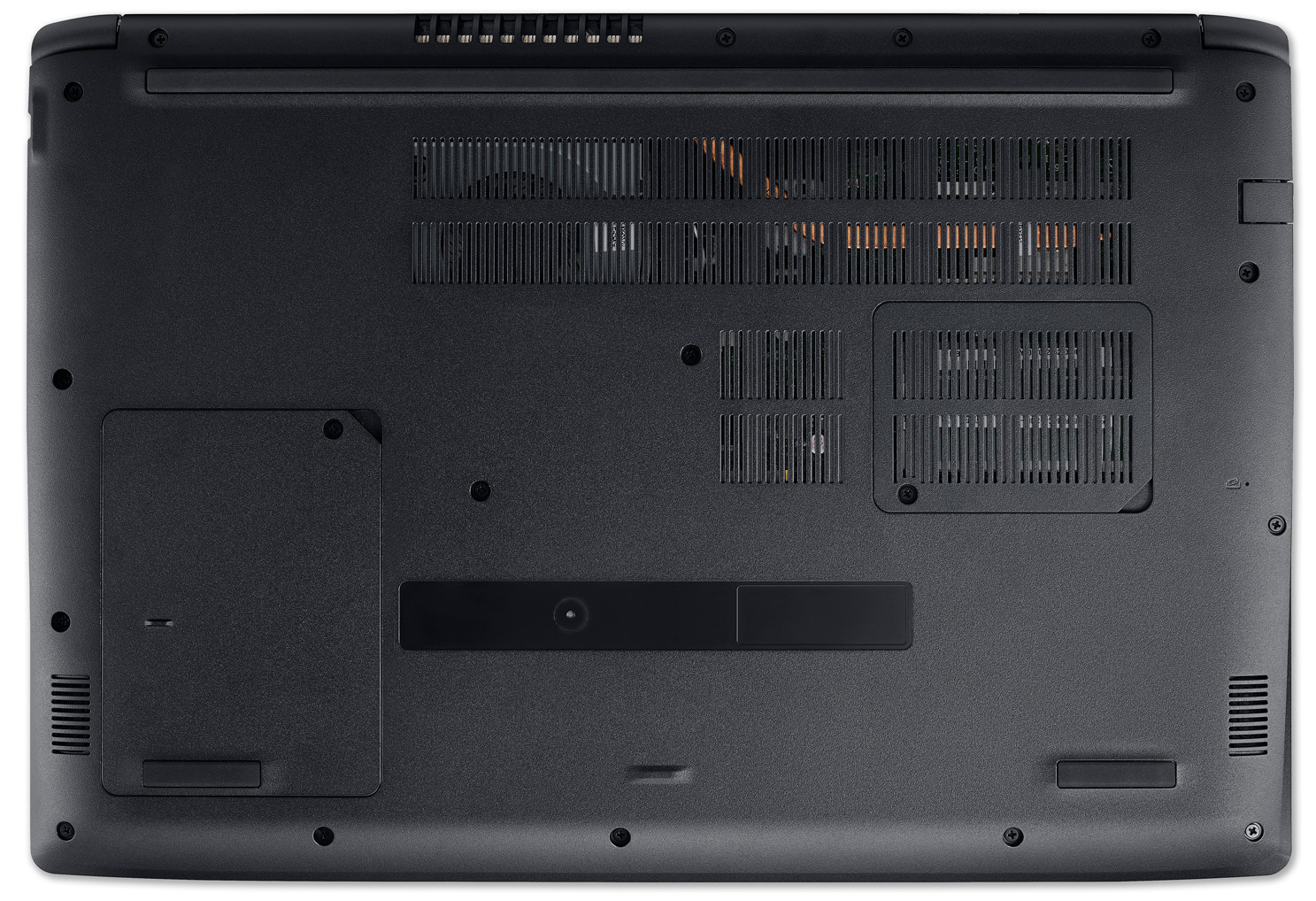

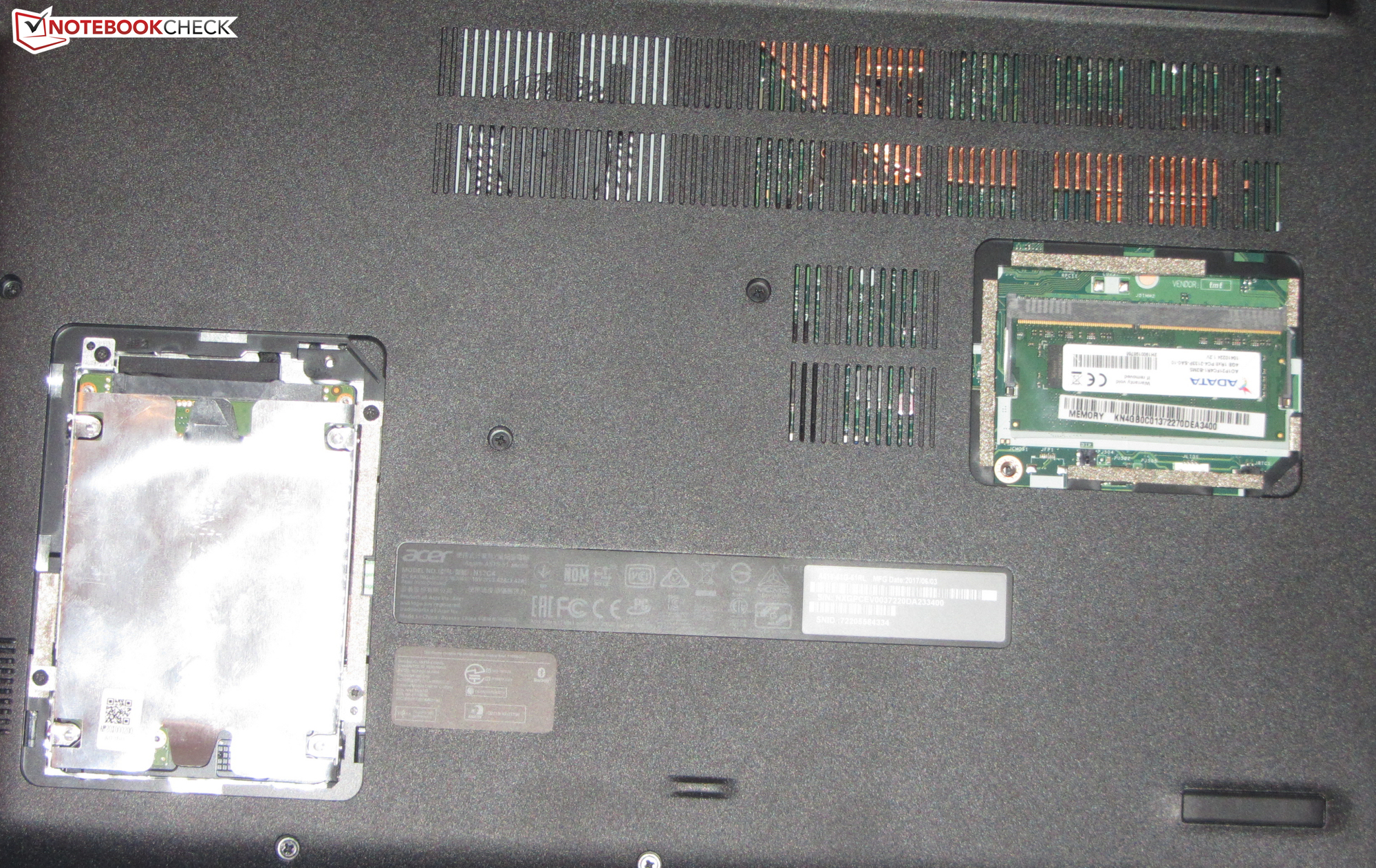

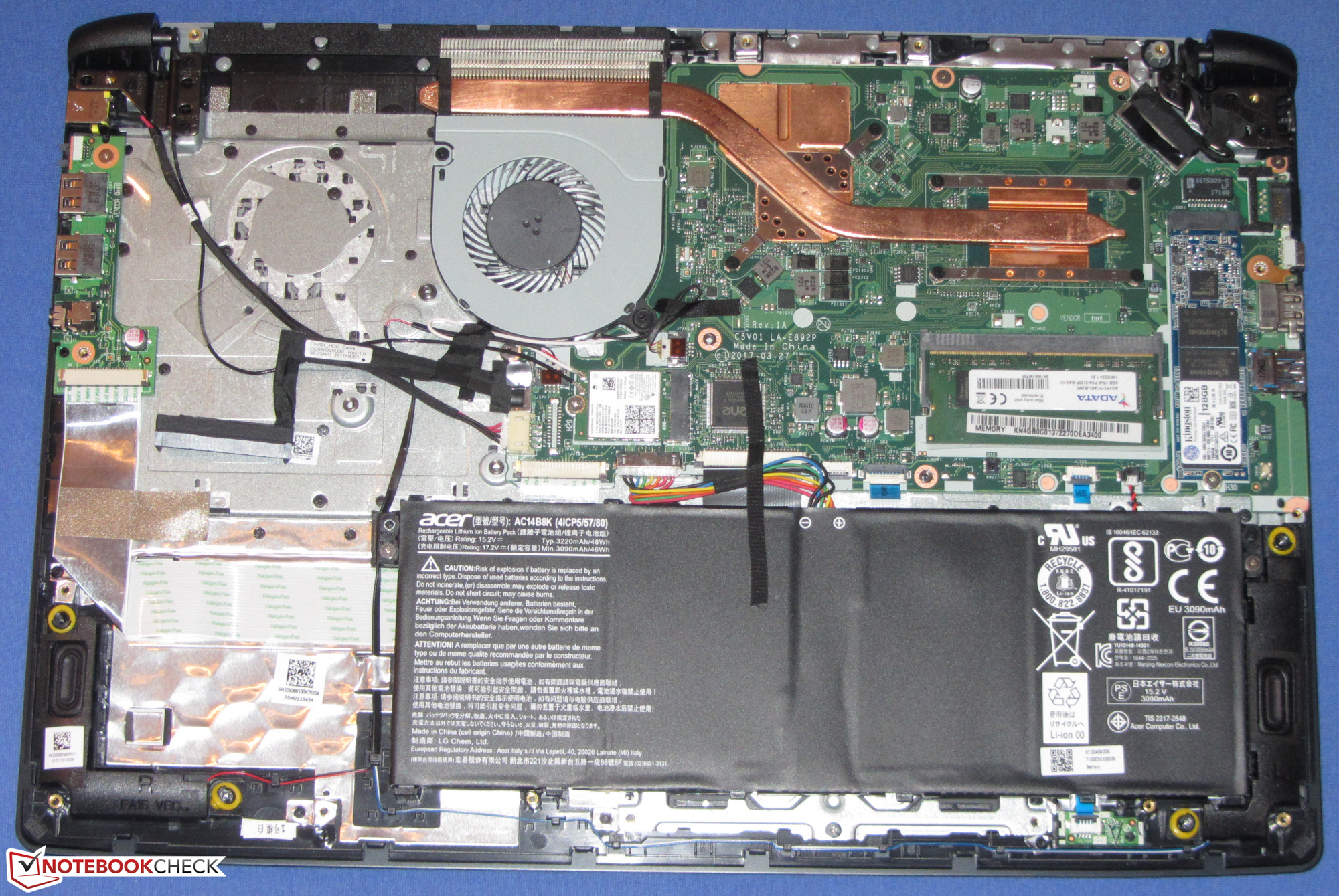

Na spodzie jednostki zasadniczej znajdują się dwie pokrywy serwisowe. Za mniejszą z nich znajduje się moduł pamięci RAM a większa daje dostęp do zatoki dysku 2,5". W celu dostania się do dysku SSD trzeba zdjąć spód jednostki zasadniczej. By tego dokonać, należ wymontować dysk 2,5" i odkręcić wszystkie śrubki. Poza SSD uzyskuje się w ten sposób dostęp do wentylatora, karty Wi-Fi i akumulatora.

W wyposażeniu w złącza nie ma niczego niezwykłego. Omawiany laptop posiada trzy porty USB typu A (2 USB 2.0 i USB 3.1 Gen 1) oraz port USB typu C (USB 3.1 Gen 1). Jest też wyjście HDMI. Złącza są rozmieszczone w tylnych częściach obu boków.

lewy bok: gniazdo linki zabezpieczającej, LAN, USB typu C, HDMI, USB 3.1 Gen 1 (typu A), czytnik kart pamięci (fot. Acer)
lewy bok: gniazdo linki zabezpieczającej, LAN, USB typu C, HDMI, USB 3.1 Gen 1 (typu A), czytnik kart pamięci (fot. Acer)

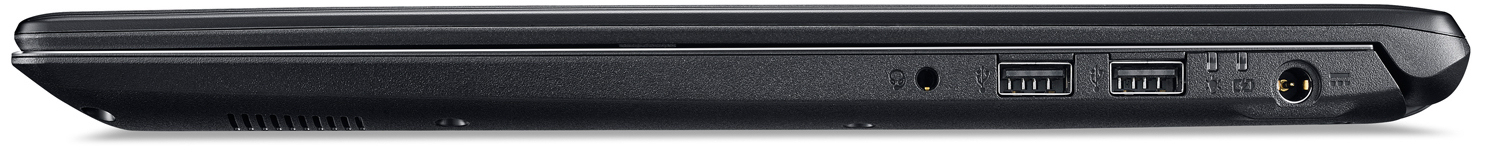

prawy bok: gniazdo audio, 2 USB 2.0, gniazdo zasilania (fot. Acer)
prawy bok: gniazdo audio, 2 USB 2.0, gniazdo zasilania (fot. Acer)

Osprzęt

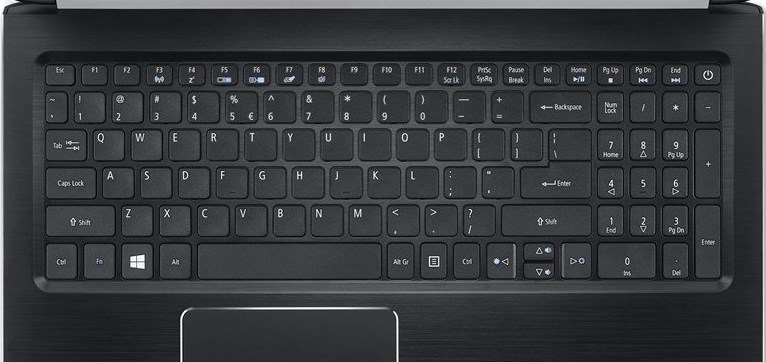

klawiatura QWERTY (fot. Acer)
klawiatura QWERTY (fot. Acer)

Klawiatura omawianego laptopa nie jest podświetlana. Główne klawisze są wklęsłe, natomiast klawisze funkcyjne oraz klawisze z bloku numerycznego są płaskie. Powierzchnia klawiszy jest trochę chropowata. Klawisze mają krótki skok a stop jest wyraźny.

Wymiary płytki dotykowej to około 10,5 x 7,9 cm. Jest więc ona dość spora. Powierzchnia płytki jest gładka a to ułatwia przesuwanie po niej palca.

Obraz

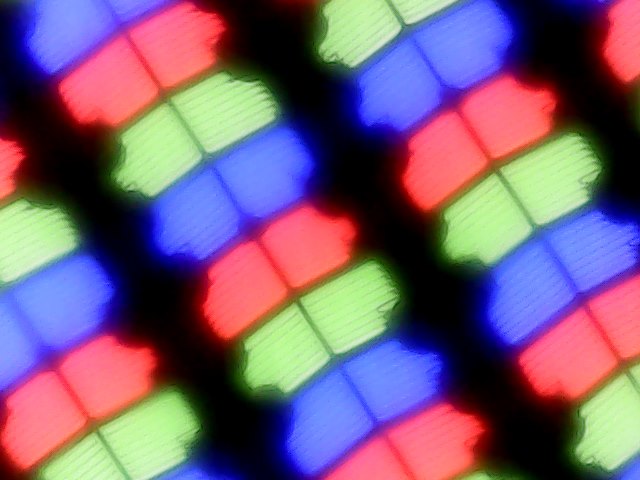

układ subpikseli
układ subpikseli

Testowany Acer posiadał matowy ekran o przekątnej 15,6 cala i rozdzielczości 1920 x 1080 pikseli.

Jasność obrazu okazała się niezbyt wysoka. Średnia luminancja przy maksymalnej intensywności podświetlenia wyniosła 236,1 cd/m². Laptop z tego przedziału cenowego powinien oferować około 300 cd/m². Pozytywne jest to, że nie występowało migotanie PWM.

252
cd/m²
235
cd/m²
241
cd/m²
250
cd/m²
235
cd/m²
217
cd/m²
261
cd/m²
224
cd/m²
210
cd/m²
podświetlenie ekranu
AU Optronics B156HAN06.1 tested with X-Rite i1Pro 2
maksimum: 261 cd/m² (Nits) średnia: 236.1 cd/m² Minimum: 18.2 cd/m²
rozświetlenie: 80 %
na akumulatorze: 235 cd/m²
kontrast: 1382:1 (czerń: 0.17 cd/m²)
ΔE Color 4.69 | 0.5-29.43 Ø5
ΔE Greyscale 3.34 | 0.57-98 Ø5.3
57% sRGB (Argyll 1.6.3 3D)
36% AdobeRGB 1998 (Argyll 1.6.3 3D)
39.57% AdobeRGB 1998 (Argyll 2.2.0 3D)
57.6% sRGB (Argyll 2.2.0 3D)
38.3% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.63

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 18110 (minimum: 5 - maximum: 3846000) Hz was measured.

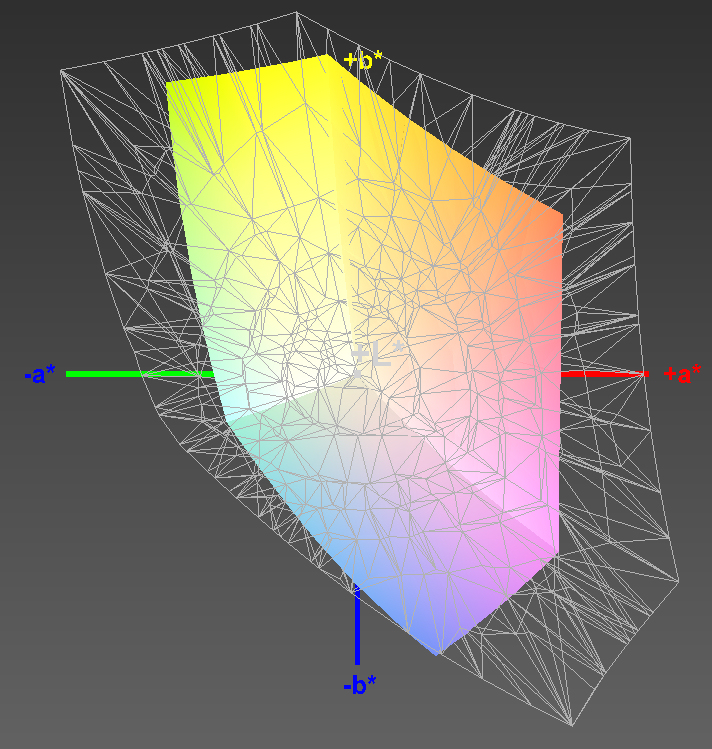

paleta barw a przestrzeń kolorów sRGB (siatka)
paleta barw a sRGB

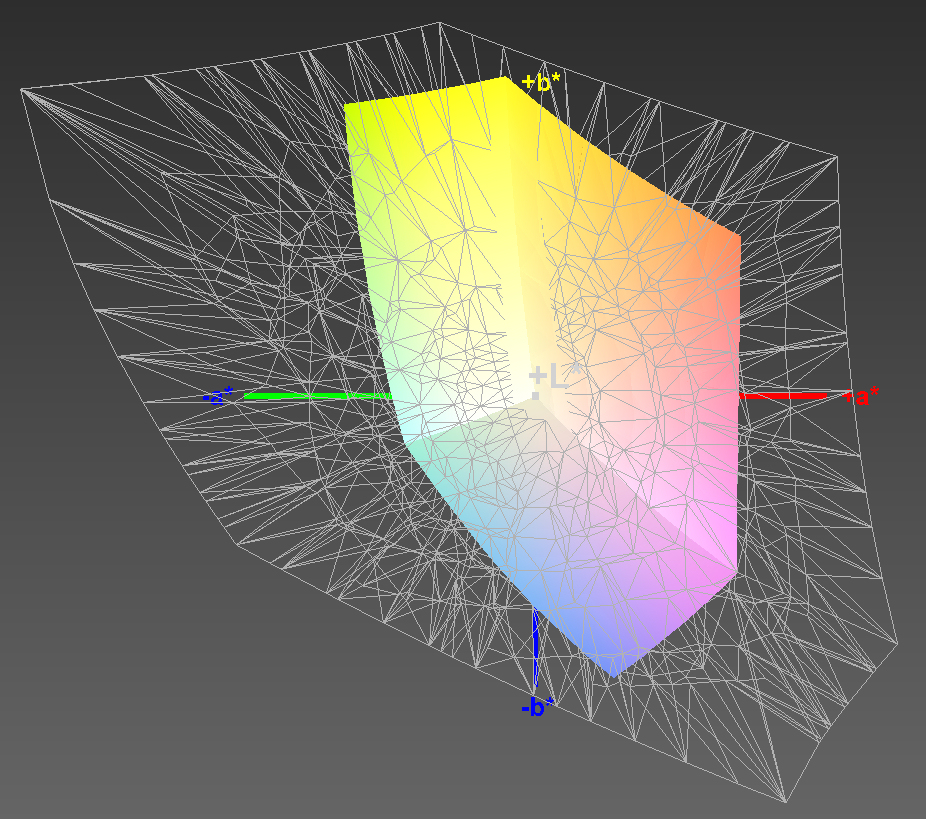

paleta barw a przestrzeń kolorów Adobe RGB (siatka)
paleta barw a aRGB

Odwzorowanie kolorów w stanie fabrycznym było całkiem niezłe. Średni błąd dE2000 dla kolorów wynosił 4,69. Po kalibracji udało się osiągnąć 3,52. Paleta barw nie jest niestety bogata. Pokrycie przestrzeni kolorów sRGB wyniosło tylko 57% a przestrzeni Adobe RGB - 36%.

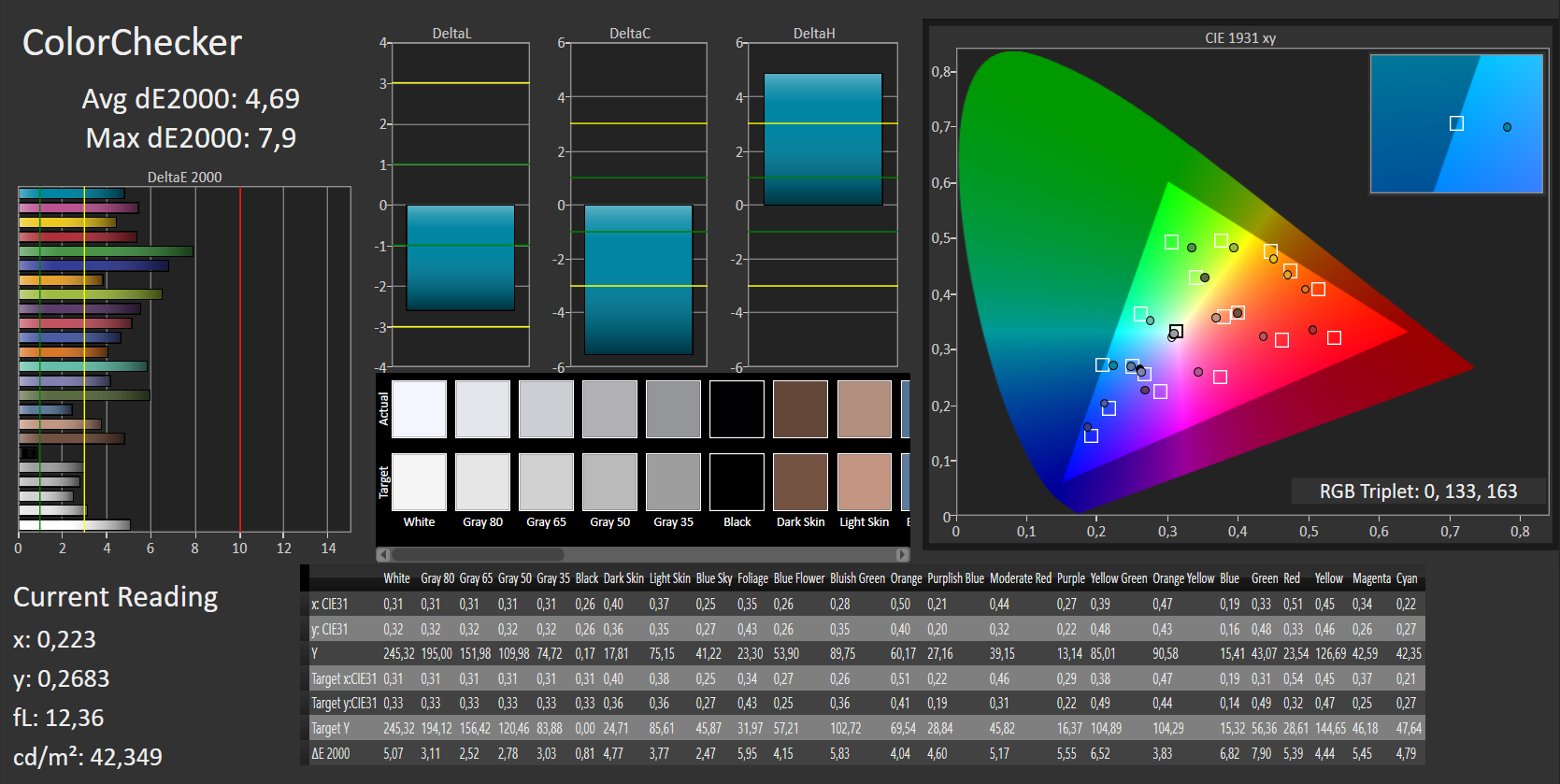

wierność kolorów (przed kalibracją)
wierność kolorów (przed kalibracją)

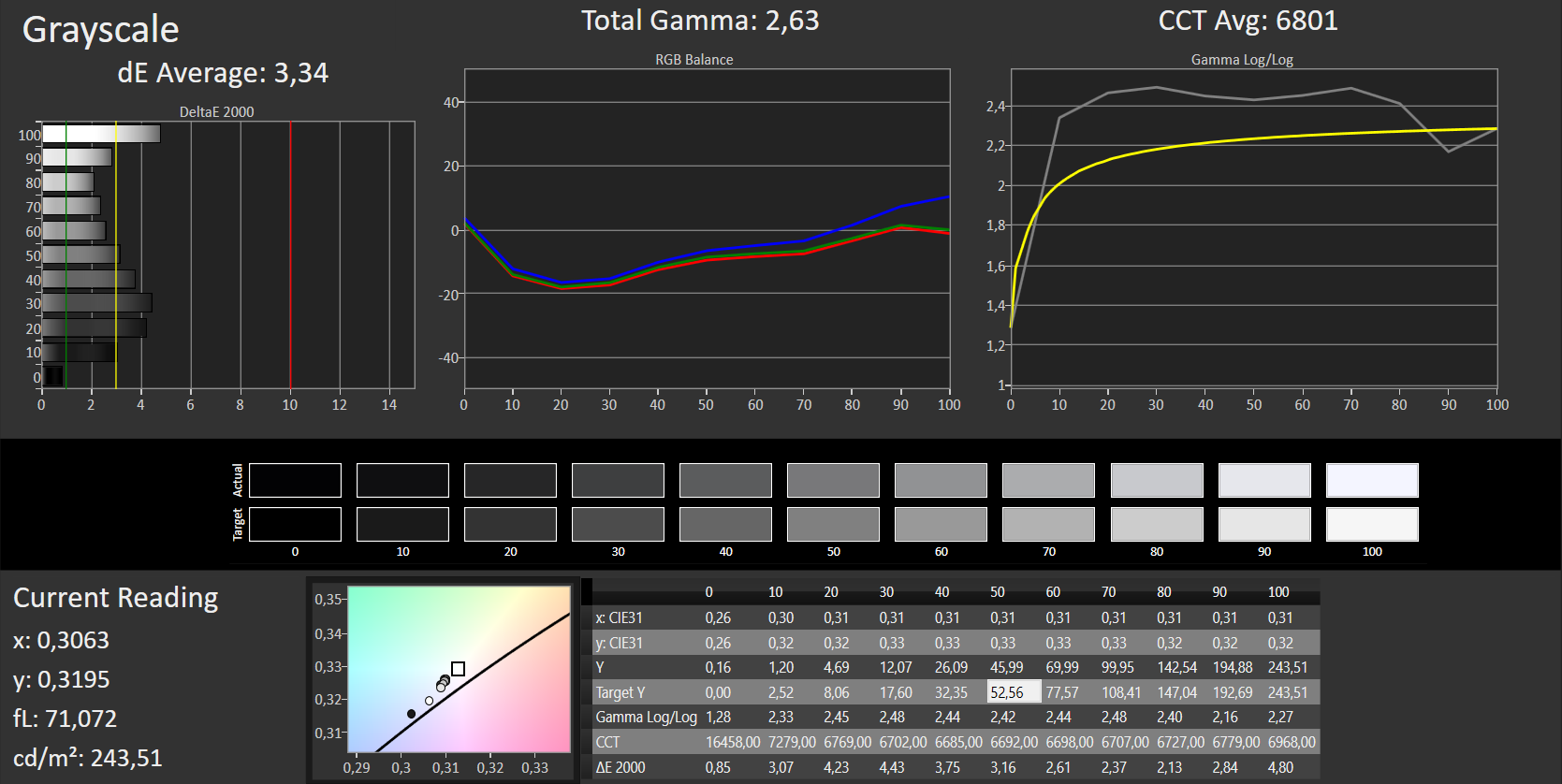

skala szarości (przed kalibracją)
skala szarości (przed kalibracją)

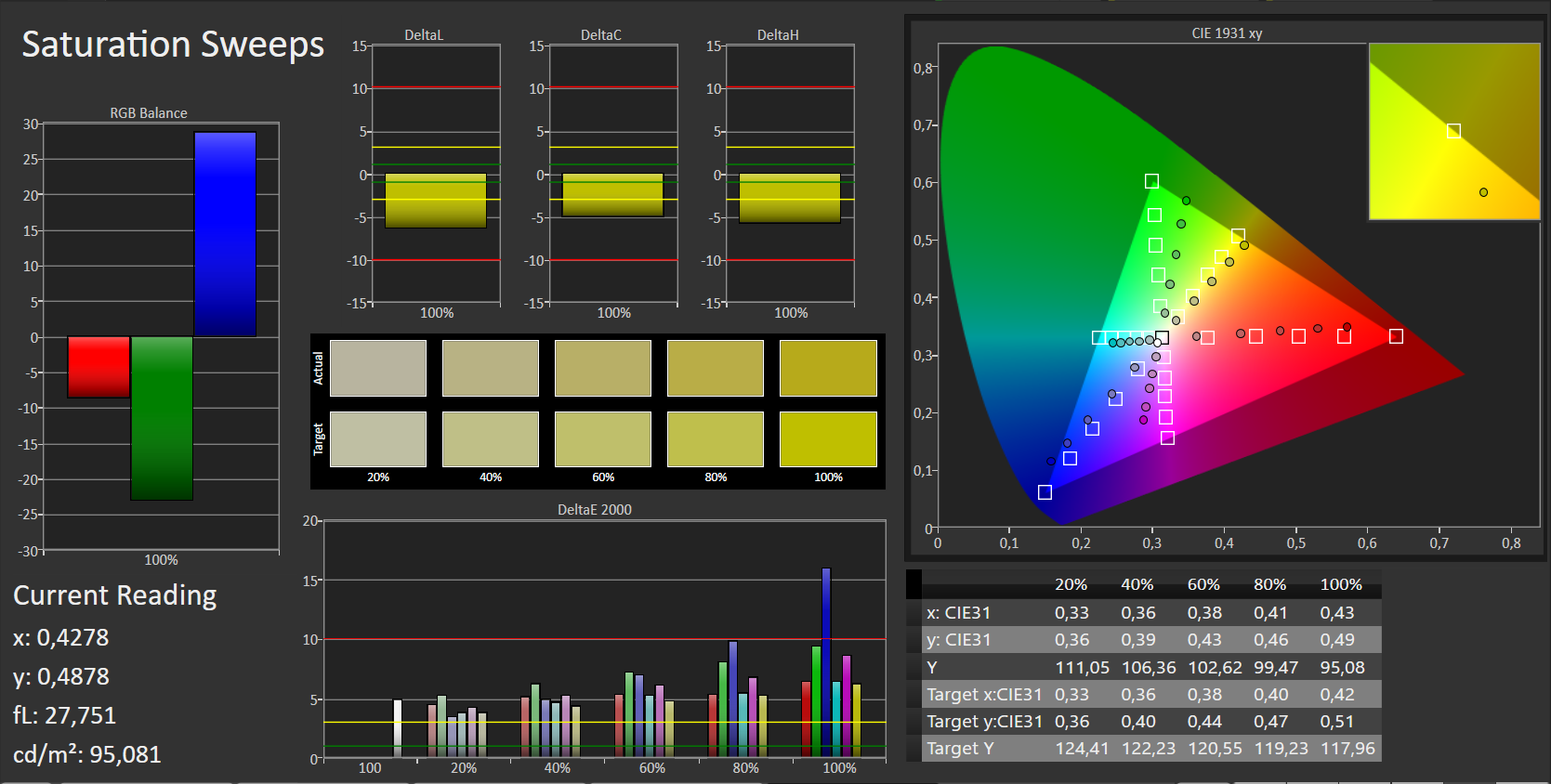

nasycenie kolorów (przed kalibracją)
nasycenie kolorów (przed kalibracją)

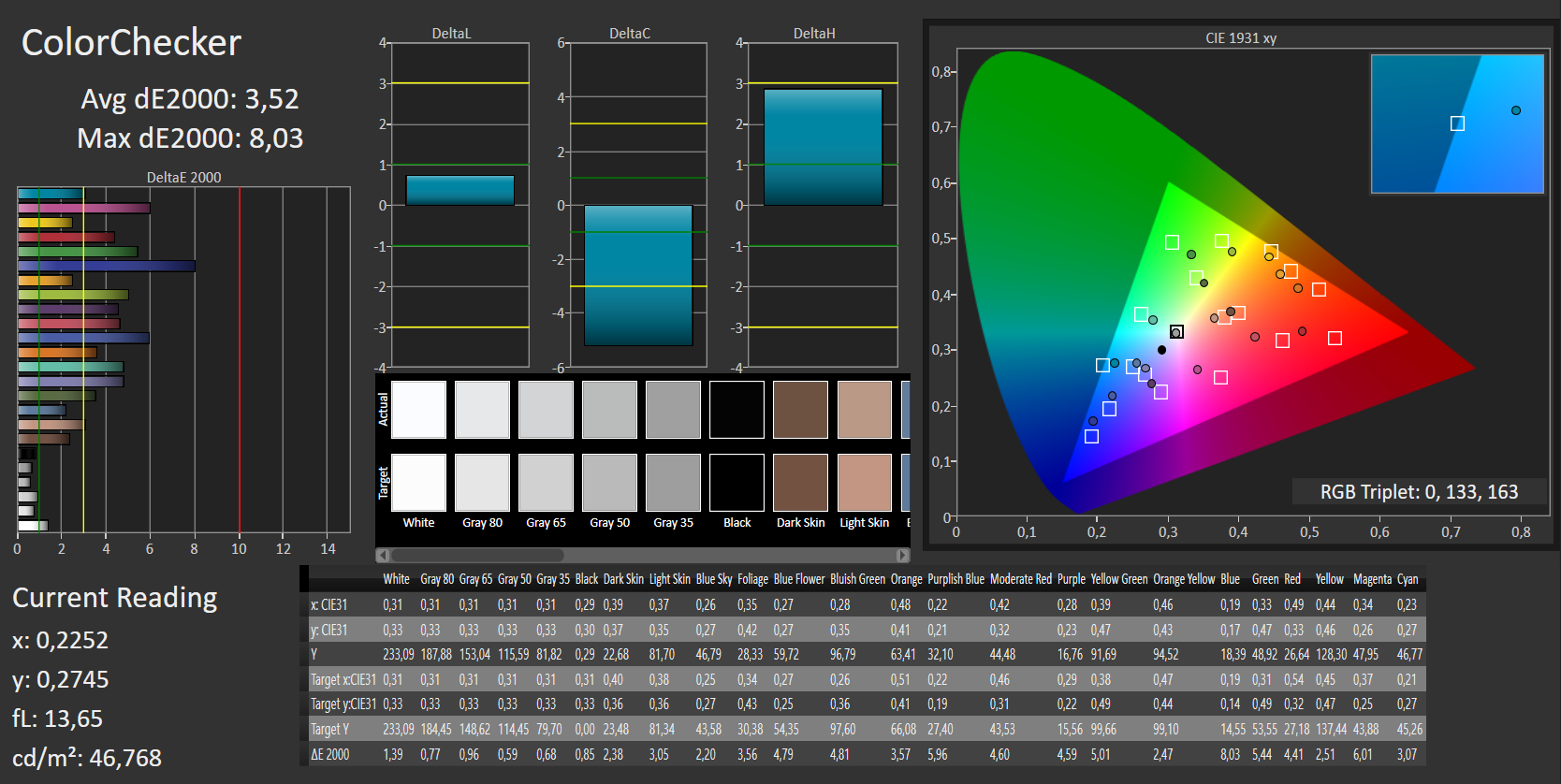

wierność kolorów (po kalibracji)
wierność kolorów (po kalibracji)

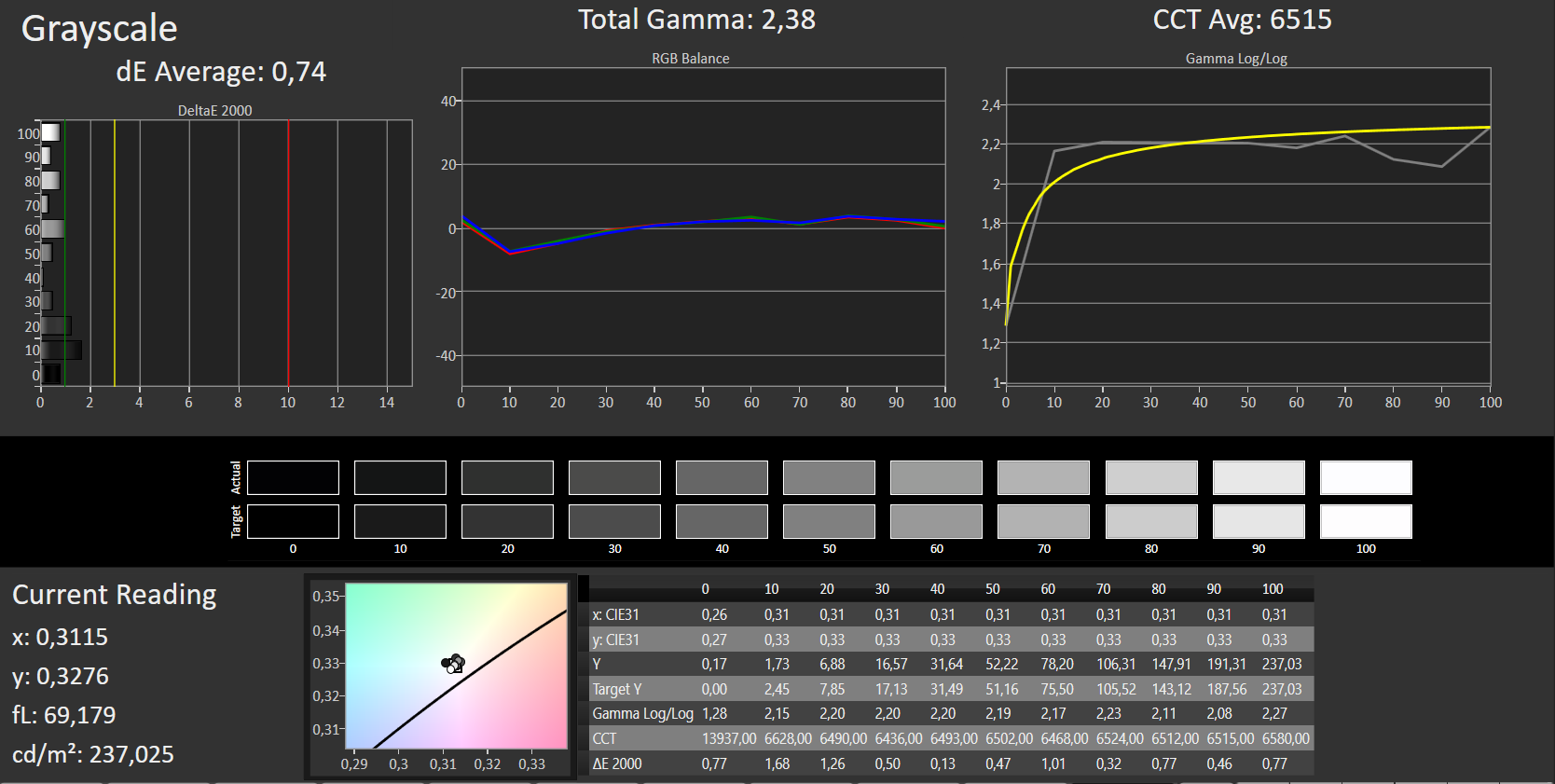

skala szarości (po kalibracji)
skala szarości (po kalibracji)
nasycenie kolorów (po kalibracji)
nasycenie kolorów (po kalibracji)

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

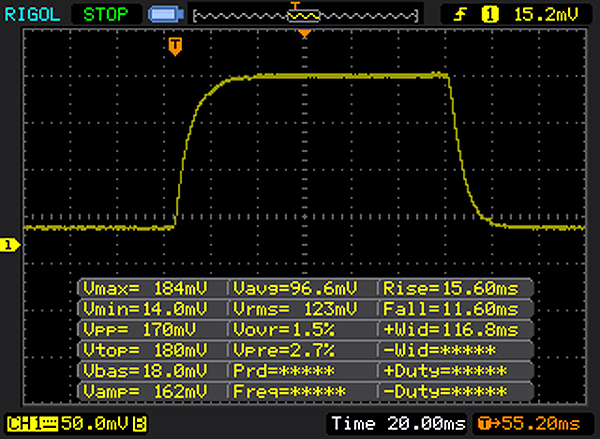

       Response Time Black to White
26 ms ... rise ↗ and fall ↘ combined↗ 15 ms rise
↘ 11 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 57 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (21.6 ms).

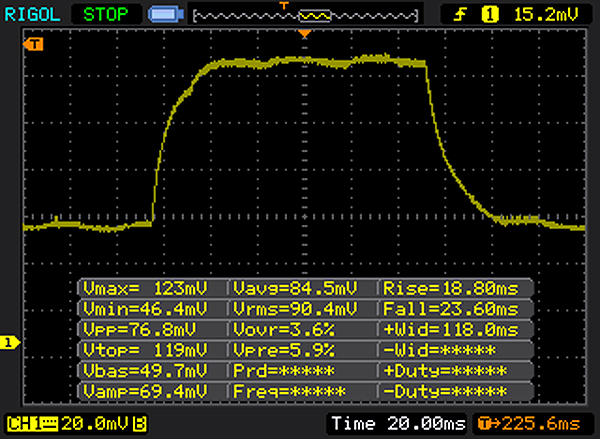

       Response Time 50% Grey to 80% Grey
41 ms ... rise ↗ and fall ↘ combined↗ 18 ms rise
↘ 23 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.2 (minimum) to 636 (maximum) ms. » 59 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (33.9 ms).

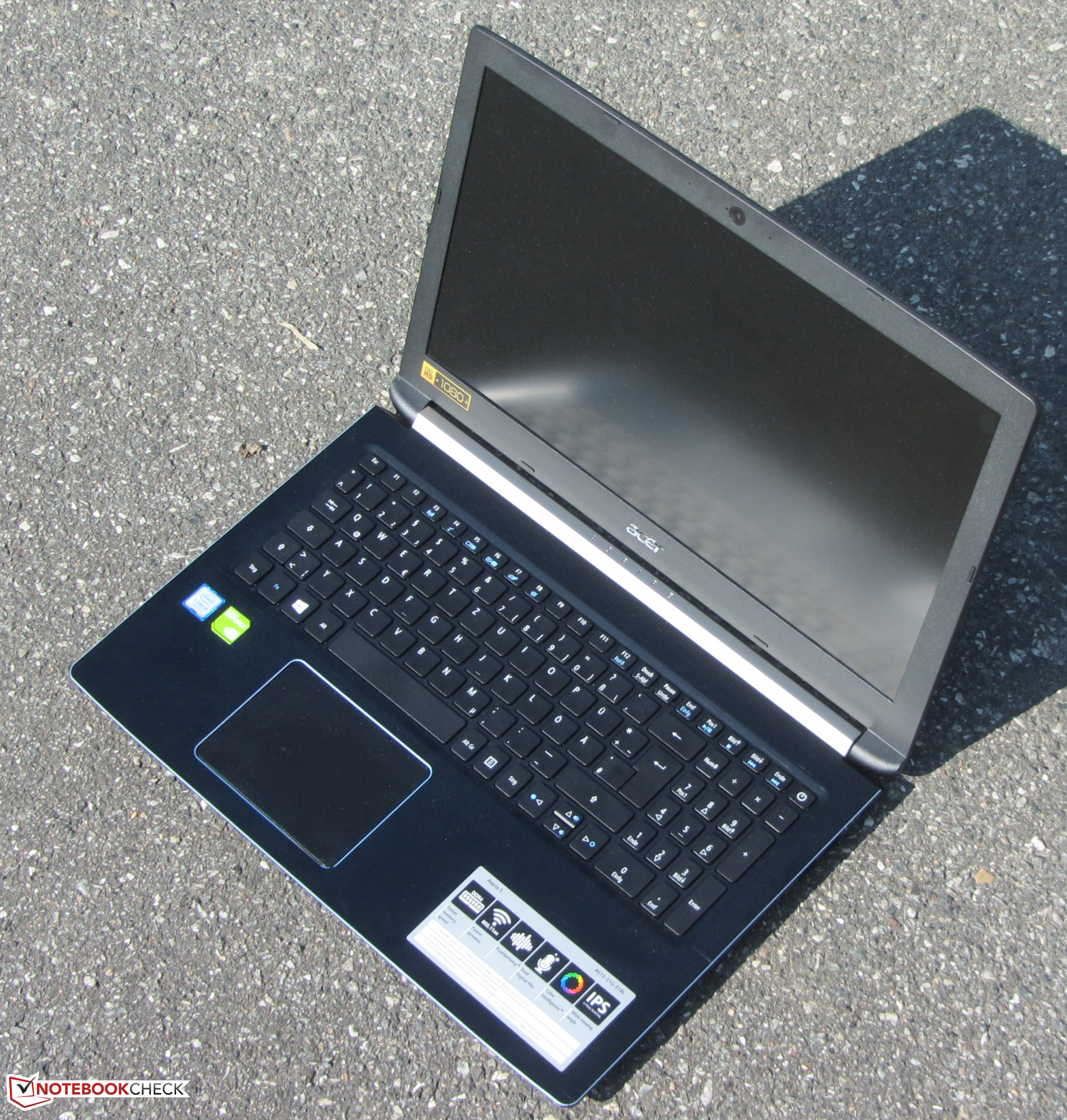

na dworze (przodem do słońca)
na dworze (przodem do słońca)

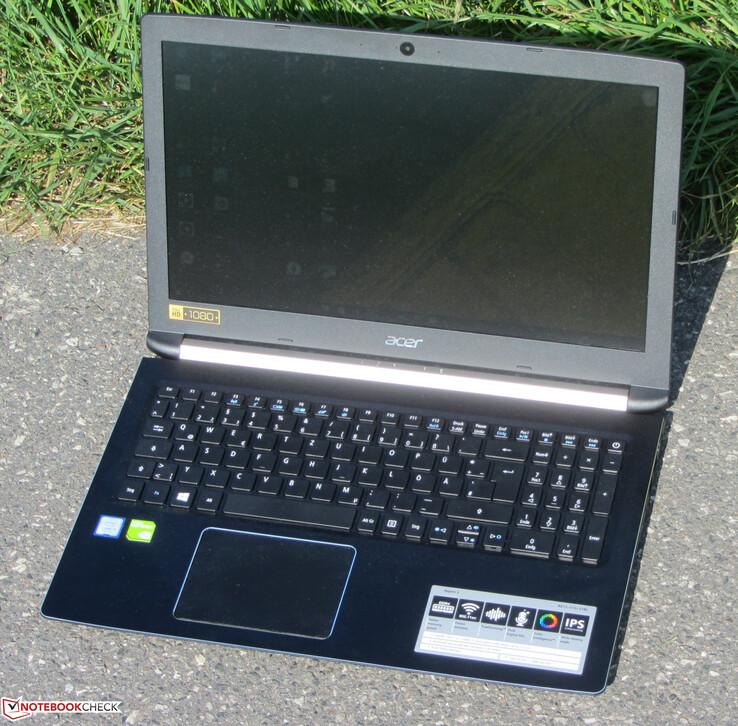

na dworze (tyłem do słońca)
na dworze (tyłem do słońca)
kąty widzenia
kąty widzenia

Osiągi

Omawiany laptop był wyposażony w procesor Core i5-7200U (Kaby Lake). Jest to dwurdzeniowa jednostka o TDP na poziomie 15 W. Bazowe taktowanie tego procesora wynosi 2,5 GHz. Turbo Boost zwiększa taktowanie do maksymalnie 3,1 GHz (dla obu rdzeni). Turbo Boost w Acerze A515-51 działał tylko na zasilaniu z sieci. Na zasilaniu akumulatorowym maksymalnym taktowaniem CPU było tylko taktowanie bazowe (2,5 GHz).

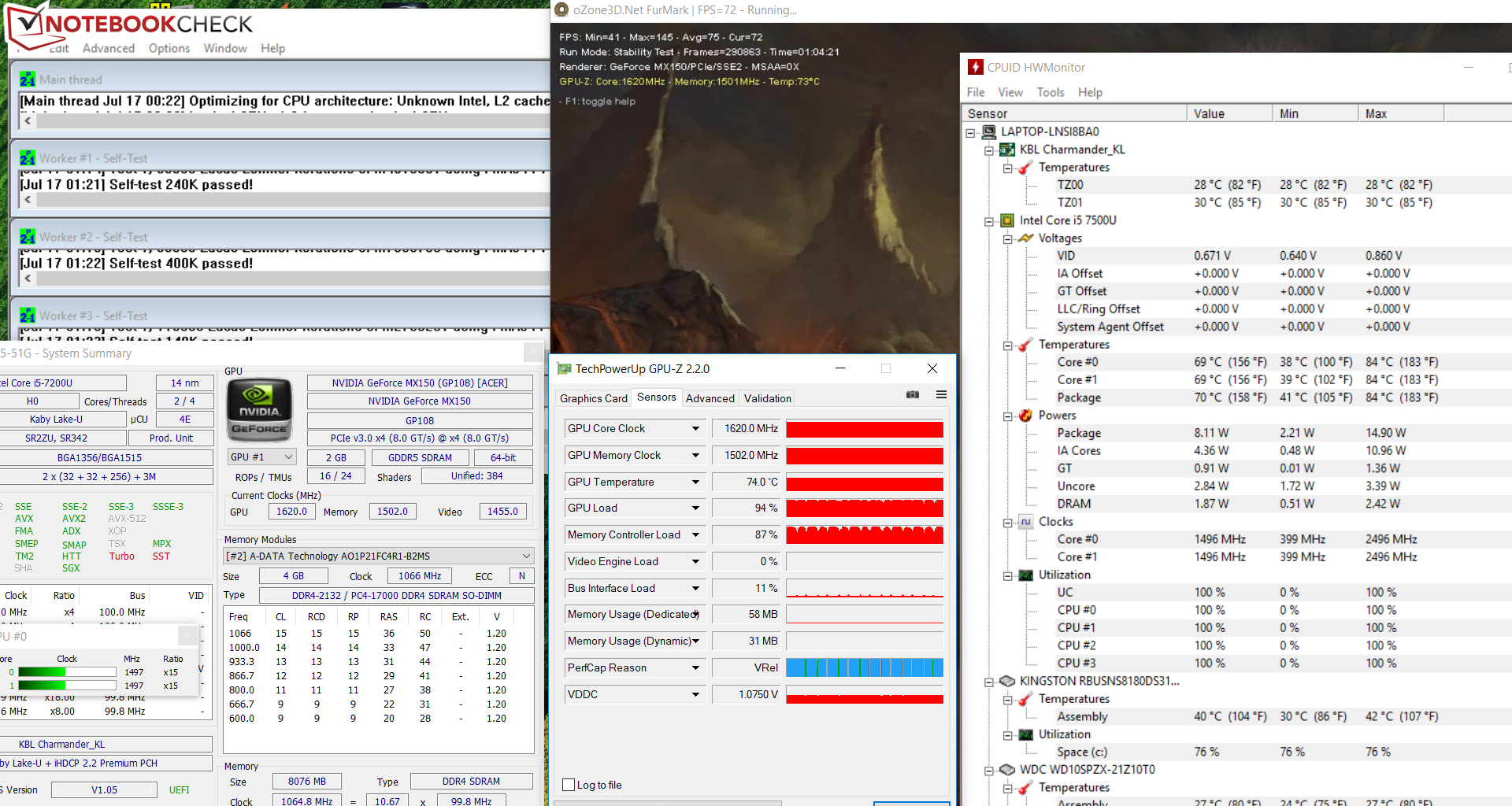

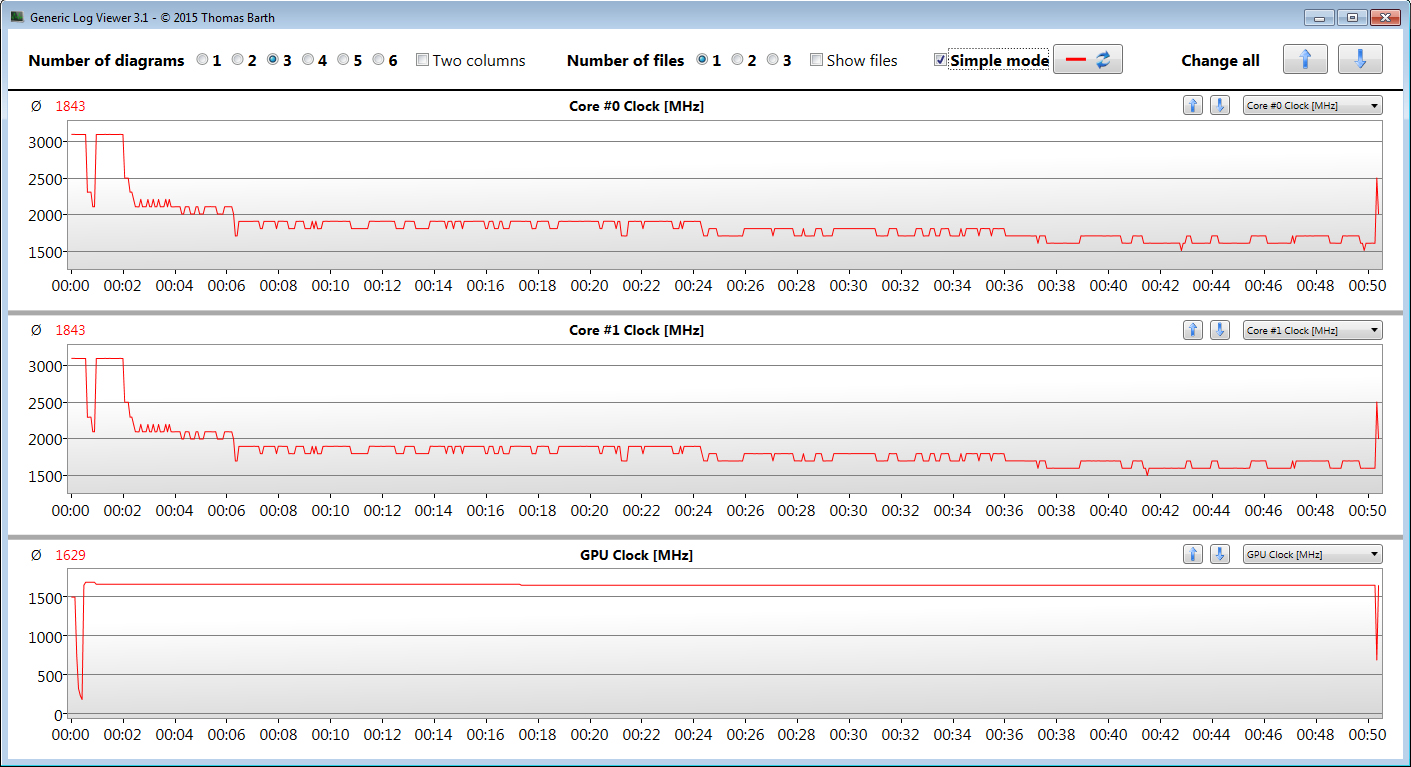

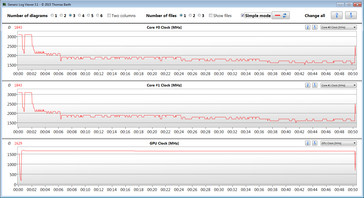

W półgodzinnym teście renderowania wielowątkowego Cinebench R15 taktowanie CPU było stabilne i omawiany laptop uzyskiwał w kolejnych próbach zbliżone wyniki.

Zastosowany w testowanym komputerze układ grafiki GeForce MX150 to odpowiednik układu GeForce GT 1030 z komputerów stacjonarnych. Posiada 384 rdzenie CUDA a jego maksymalne taktowanie to 1683 MHz. Wielkość pamięci VRAM GDDR5 to 2 GB. W testach 3DMark nasz Acer osiągał rezultaty z reguły nieco lepsze od wyników laptopów z kartą GeForce GTX 950M z pamięcią VRAM GDDR5.

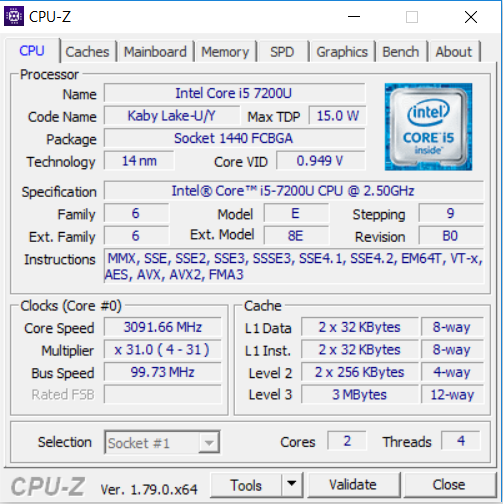

CPU-Z CPU
CPU-Z CPU

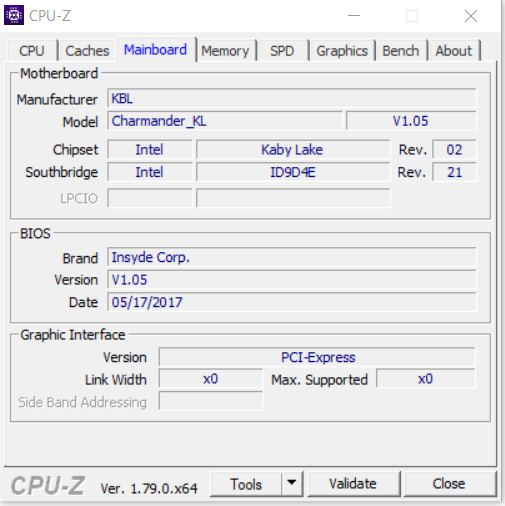

CPU-Z Mainboard
CPU-Z Mainboard

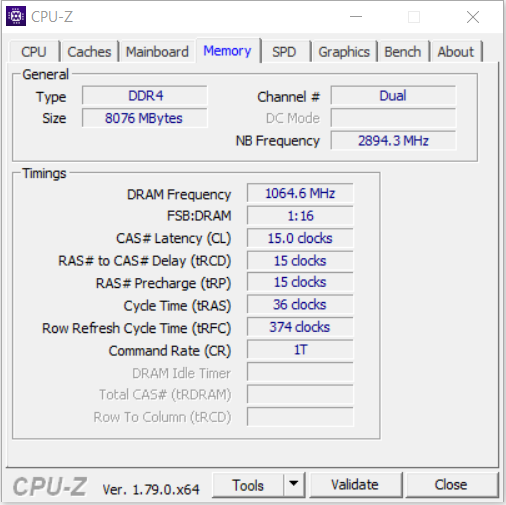

CPU-Z Memory
CPU-Z Memory

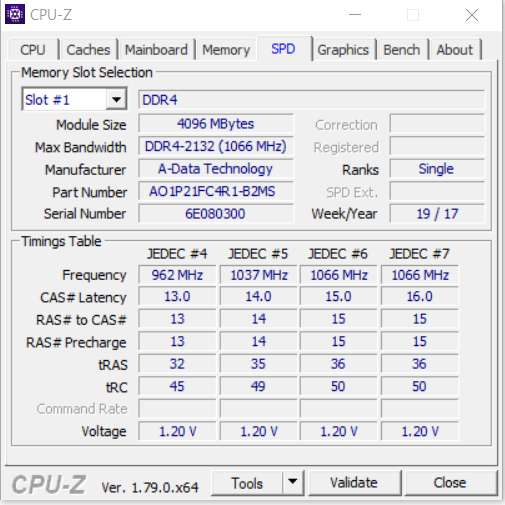

CPU-Z SPD
CPU-Z SPD

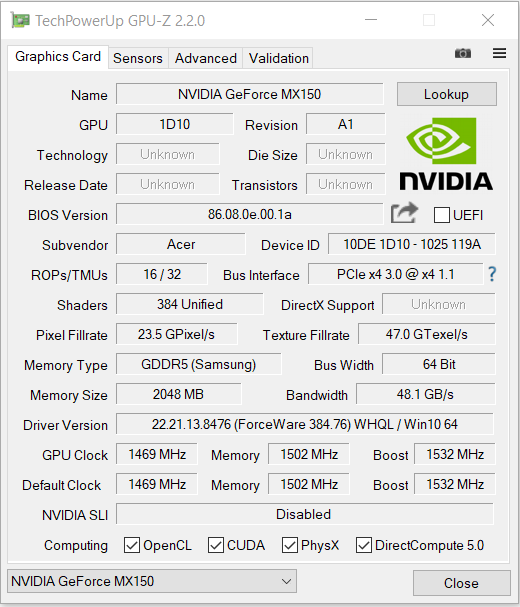

GPU-Z
GPU-Z

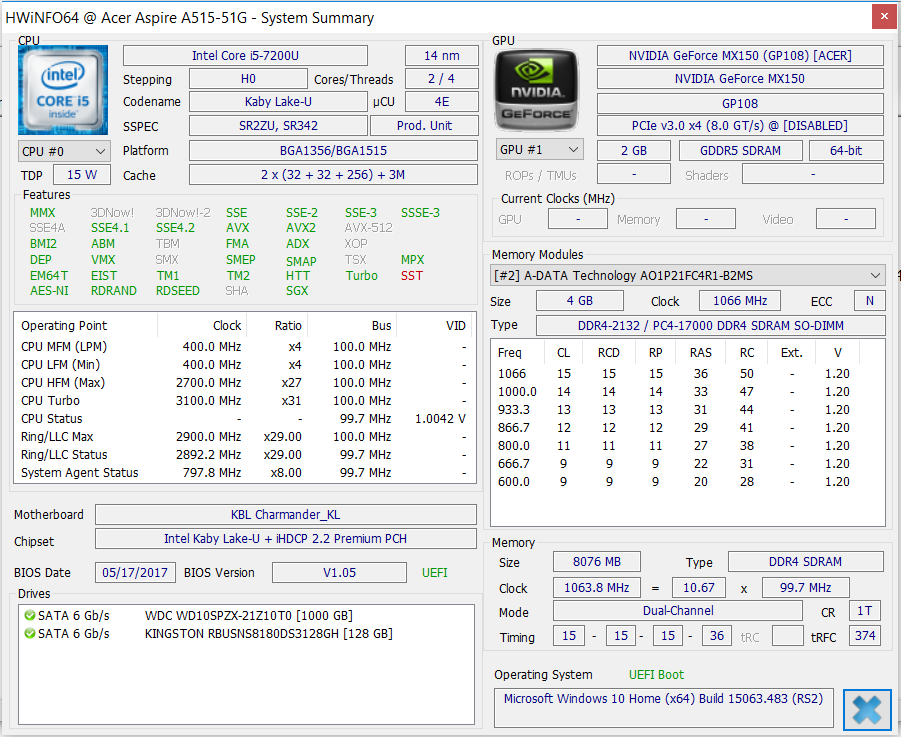

HWiNFO
HWiNFO
3DMark 06 Standard Score
19415 pkt.
3DMark Vantage P Result
14144 pkt.
3DMark 11 Performance
4506 pkt.
3DMark Ice Storm Standard Score
51765 pkt.
3DMark Cloud Gate Standard Score
9837 pkt.
3DMark Fire Strike Score
3114 pkt.
3DMark Fire Strike Extreme Score
1637 pkt.
3DMark Time Spy Score
1124 pkt.
Pomoc
PCMark 7 Score
5413 pkt.
PCMark 8 Home Score Accelerated v2
3650 pkt.
PCMark 8 Creative Score Accelerated v2
4443 pkt.
PCMark 8 Work Score Accelerated v2
4590 pkt.
PCMark 10 Score
3075 pkt.
Pomoc
Cinebench R10 Shading 32Bit
4015
Cinebench R10 Rendering Multiple CPUs 32Bit
11247
Cinebench R10 Rendering Single 32Bit
5007
Cinebench R11.5 OpenGL 64Bit
52.9 fps
Cinebench R11.5 CPU Multi 64Bit
3.69 Points
Cinebench R11.5 CPU Single 64Bit
1.48 Points
Cinebench R15 Ref. Match 64Bit
99.6 %
Cinebench R15 OpenGL 64Bit
84.1 fps
Cinebench R15 CPU Multi 64Bit
330 Points
Cinebench R15 CPU Single 64Bit
129 Points
Pomoc
0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330Tooltip
wyniki kolejnych powtórzeń testu renderowania wielowątkowego Cinebench R15
Cinebench R15
CPU Single 64Bit
HP Pavilion Power 15t-cb2000
Intel Core i7-7700HQ
159 Points +23%
Lenovo IdeaPad 510-15IKB 80SV0087GE
Intel Core i7-7500U
148 Points +15%
Acer Aspire VX15 VX5-591G-589S
Intel Core i5-7300HQ
148 Points +15%
Dell Inspiron 15 5000 5567-1753
Intel Core i7-7500U
142 Points +10%
HP Pavilion 15t-au100 CTO (W0P31AV)
Intel Core i7-7500U
141 Points +9%
Medion Erazer P6661 MD 99873
Intel Core i7-6500U
130 Points +1%
Acer Aspire E5-575G-549D
Intel Core i5-7200U
129 Points 0%
Acer Aspire 5 A515-51G-51RL
Intel Core i5-7200U
129 Points
CPU Multi 64Bit
HP Pavilion Power 15t-cb2000
Intel Core i7-7700HQ
686 Points +108%
Acer Aspire VX15 VX5-591G-589S
Intel Core i5-7300HQ
511 Points +55%
HP Pavilion 15t-au100 CTO (W0P31AV)
Intel Core i7-7500U
345 Points +5%
Lenovo IdeaPad 510-15IKB 80SV0087GE
Intel Core i7-7500U
338 Points +2%
Dell Inspiron 15 5000 5567-1753
Intel Core i7-7500U
338 Points +2%
Acer Aspire E5-575G-549D
Intel Core i5-7200U
331 Points 0%
Acer Aspire 5 A515-51G-51RL
Intel Core i5-7200U
330 Points
Medion Erazer P6661 MD 99873
Intel Core i7-6500U
300 Points -9%
Cinebench R11.5
CPU Multi 64Bit
HP Pavilion Power 15t-cb2000
Intel Core i7-7700HQ
7.54 Points +104%
HP Pavilion 15t-au100 CTO (W0P31AV)
Intel Core i7-7500U
3.78 Points +2%
Dell Inspiron 15 5000 5567-1753
Intel Core i7-7500U
3.75 Points +2%
Acer Aspire E5-575G-549D
Intel Core i5-7200U
3.7 Points 0%
Acer Aspire 5 A515-51G-51RL
Intel Core i5-7200U
3.69 Points
Medion Erazer P6661 MD 99873
Intel Core i7-6500U
3.33 Points -10%
CPU Single 64Bit
HP Pavilion Power 15t-cb2000
Intel Core i7-7700HQ
1.77 Points +20%
HP Pavilion 15t-au100 CTO (W0P31AV)
Intel Core i7-7500U
1.67 Points +13%
Dell Inspiron 15 5000 5567-1753
Intel Core i7-7500U
1.66 Points +12%
Medion Erazer P6661 MD 99873
Intel Core i7-6500U
1.48 Points 0%
Acer Aspire E5-575G-549D
Intel Core i5-7200U
1.48 Points 0%
Acer Aspire 5 A515-51G-51RL
Intel Core i5-7200U
1.48 Points
Cinebench R10
Rendering Multiple CPUs 32Bit
Acer Aspire VX15 VX5-591G-589S
Intel Core i5-7300HQ
18304 Points +63%
Dell Inspiron 15 5000 5567-1753
Intel Core i7-7500U
12161 Points +8%
HP Pavilion 15t-au100 CTO (W0P31AV)
Intel Core i7-7500U
12043 Points +7%
Acer Aspire E5-575G-549D
Intel Core i5-7200U
11301 Points 0%
Acer Aspire 5 A515-51G-51RL
Intel Core i5-7200U
11247 Points
Lenovo IdeaPad 510-15IKB 80SV0087GE
Intel Core i7-7500U
11211 Points 0%
Medion Erazer P6661 MD 99873
Intel Core i7-6500U
10562 Points -6%
Rendering Single 32Bit
Lenovo IdeaPad 510-15IKB 80SV0087GE
Intel Core i7-7500U
5687 Points +14%
HP Pavilion 15t-au100 CTO (W0P31AV)
Intel Core i7-7500U
5670 Points +13%
Dell Inspiron 15 5000 5567-1753
Intel Core i7-7500U
5624 Points +12%
Acer Aspire VX15 VX5-591G-589S
Intel Core i5-7300HQ
5502 Points +10%
Acer Aspire E5-575G-549D
Intel Core i5-7200U
5022 Points 0%
Acer Aspire 5 A515-51G-51RL
Intel Core i5-7200U
5007 Points
Medion Erazer P6661 MD 99873
Intel Core i7-6500U
4907 Points -2%
Geekbench 3
32 Bit Multi-Core Score
Acer Aspire VX15 VX5-591G-589S
Intel Core i5-7300HQ
9752 Points +44%
Lenovo IdeaPad 510-15IKB 80SV0087GE
Intel Core i7-7500U
7635 Points +13%
Acer Aspire 5 A515-51G-51RL
Intel Core i5-7200U
6766 Points
Acer Aspire E5-575G-549D
Intel Core i5-7200U
6370 Points -6%
32 Bit Single-Core Score
Lenovo IdeaPad 510-15IKB 80SV0087GE
Intel Core i7-7500U
3526 Points +14%
Acer Aspire VX15 VX5-591G-589S
Intel Core i5-7300HQ
3195 Points +3%
Acer Aspire 5 A515-51G-51RL
Intel Core i5-7200U
3094 Points
Acer Aspire E5-575G-549D
Intel Core i5-7200U
2888 Points -7%
Geekbench 4.0
64 Bit Multi-Core Score
Lenovo IdeaPad 510-15IKB 80SV0087GE
Intel Core i7-7500U
8237 Points +14%
Acer Aspire VX15 VX5-591G-589S
Intel Core i5-7300HQ
8085 Points +12%
Acer Aspire 5 A515-51G-51RL
Intel Core i5-7200U
7218 Points
Acer Aspire E5-575G-549D
Intel Core i5-7200U
6760 Points -6%
64 Bit Single-Core Score
Lenovo IdeaPad 510-15IKB 80SV0087GE
Intel Core i7-7500U
4291 Points +15%
Acer Aspire 5 A515-51G-51RL
Intel Core i5-7200U
3727 Points
Acer Aspire E5-575G-549D
Intel Core i5-7200U
3626 Points -3%
Acer Aspire VX15 VX5-591G-589S
Intel Core i5-7300HQ
3387 Points -9%
Geekbench 4.4
64 Bit Multi-Core Score
Acer Aspire VX15 VX5-591G-589S
Intel Core i5-7300HQ
8081 Points +7%
Acer Aspire 5 A515-51G-51RL
Intel Core i5-7200U
7544 Points
64 Bit Single-Core Score
Acer Aspire 5 A515-51G-51RL
Intel Core i5-7200U
3809 Points
Acer Aspire VX15 VX5-591G-589S
Intel Core i5-7300HQ
3387 Points -11%
JetStream 1.1 - Total Score
HP Pavilion Power 15t-cb2000
Intel Core i7-7700HQ
263.8 Points +23%
Acer Aspire VX15 VX5-591G-589S
Intel Core i5-7300HQ
247.5 Points +16%
Lenovo IdeaPad 510-15IKB 80SV0087GE
Intel Core i7-7500U
244.6 Points +14%
HP Pavilion 15t-au100 CTO (W0P31AV)
Intel Core i7-7500U
240.3 Points +12%
Dell Inspiron 15 5000 5567-1753
Intel Core i7-7500U
233.1 Points +9%
Acer Aspire E5-575G-549D
Intel Core i5-7200U
220.8 Points +3%
Acer Aspire 5 A515-51G-51RL
Intel Core i5-7200U
213.8 Points
Medion Erazer P6661 MD 99873
Intel Core i7-6500U
195.5 Points -9%
PCMark 8
Home Score Accelerated v2
Dell Inspiron 15 5000 5567-1753
Radeon R7 M445, i7-7500U, SanDisk X400 SED 256GB, SATA (SD8TB8U-256G)
3978 Points +9%
Lenovo IdeaPad 510-15IKB 80SV0087GE
GeForce 940MX, i7-7500U, Liteonit CV3-DE256
3778 Points +4%
Acer Aspire 5 A515-51G-51RL
GeForce MX150, i5-7200U, Kingston RBUSNS8180DS3128GH
3650 Points
HP Pavilion 15t-au100 CTO (W0P31AV)
GeForce 940MX, i7-7500U, Toshiba MQ01ABD100
3424 Points -6%
Medion Erazer P6661 MD 99873
GeForce GTX 950M, 6500U, Phison 128GB PS3109-S9
3266 Points -11%
Acer Aspire E5-575G-549D
GeForce GTX 950M, i5-7200U, Toshiba MQ01ABD100
3162 Points -13%
Work Score Accelerated v2
Dell Inspiron 15 5000 5567-1753
Radeon R7 M445, i7-7500U, SanDisk X400 SED 256GB, SATA (SD8TB8U-256G)
5033 Points +10%
Acer Aspire 5 A515-51G-51RL
GeForce MX150, i5-7200U, Kingston RBUSNS8180DS3128GH
4590 Points
Medion Erazer P6661 MD 99873
GeForce GTX 950M, 6500U, Phison 128GB PS3109-S9
4498 Points -2%
HP Pavilion 15t-au100 CTO (W0P31AV)
GeForce 940MX, i7-7500U, Toshiba MQ01ABD100
4340 Points -5%
Acer Aspire E5-575G-549D
GeForce GTX 950M, i5-7200U, Toshiba MQ01ABD100
4047 Points -12%
PCMark 10 - Score
Acer Aspire 5 A515-51G-51RL
GeForce MX150, i5-7200U, Kingston RBUSNS8180DS3128GH
3075 Points
3DMark 11 - 1280x720 Performance GPU
Apple MacBook Pro 15 2016 (2.7 GHz, 455)
AMD Radeon Pro 455, Intel Core i7-6820HQ
5388 Points +18%
MSI PL62 MX150 7700HQ
NVIDIA GeForce MX150, Intel Core i7-7700HQ
4685 Points +2%
Acer Aspire 5 A515-51G-51RL
NVIDIA GeForce MX150, Intel Core i5-7200U
4575 Points
Apple MacBook Pro 15 2016 (2.6 GHz, 450)
AMD Radeon Pro 450, Intel Core i7-6700HQ
4502 Points -2%
Medion Erazer P6661 MD 99873
NVIDIA GeForce GTX 950M, Intel Core i7-6500U
4350 Points -5%
Acer Aspire E5-575G-549D
NVIDIA GeForce GTX 950M, Intel Core i5-7200U
4251 Points -7%
HP Pavilion 15t-au100 CTO (W0P31AV)
NVIDIA GeForce 940MX, Intel Core i7-7500U
2556 Points -44%
Lenovo IdeaPad 510-15IKB 80SV0087GE
NVIDIA GeForce 940MX, Intel Core i7-7500U
2436 Points -47%
Dell Inspiron 15 5000 5567-1753
AMD Radeon R7 M445, Intel Core i7-7500U
2208 Points -52%
3DMark
1280x720 Cloud Gate Standard Graphics
Apple MacBook Pro 15 2016 (2.7 GHz, 455)
AMD Radeon Pro 455, Intel Core i7-6820HQ
23434 Points +21%
Acer Aspire E5-575G-549D
NVIDIA GeForce GTX 950M, Intel Core i5-7200U
22439 Points +16%
MSI PL62 MX150 7700HQ
NVIDIA GeForce MX150, Intel Core i7-7700HQ
21594 Points +12%
Apple MacBook Pro 15 2016 (2.6 GHz, 450)
AMD Radeon Pro 450, Intel Core i7-6700HQ
21533 Points +11%
Medion Erazer P6661 MD 99873
NVIDIA GeForce GTX 950M, Intel Core i7-6500U
20061 Points +4%
Acer Aspire 5 A515-51G-51RL
NVIDIA GeForce MX150, Intel Core i5-7200U
19333 Points
Dell Inspiron 15 5000 5567-1753
AMD Radeon R7 M445, Intel Core i7-7500U
9617 Points -50%
HP Pavilion 15t-au100 CTO (W0P31AV)
NVIDIA GeForce 940MX, Intel Core i7-7500U
9297 Points -52%
1920x1080 Fire Strike Graphics
Apple MacBook Pro 15 2016 (2.7 GHz, 455)
AMD Radeon Pro 455, Intel Core i7-6820HQ
3759 Points +5%
MSI PL62 MX150 7700HQ
NVIDIA GeForce MX150, Intel Core i7-7700HQ
3673 Points +3%
Acer Aspire 5 A515-51G-51RL
NVIDIA GeForce MX150, Intel Core i5-7200U
3576 Points
Acer Aspire E5-575G-549D
NVIDIA GeForce GTX 950M, Intel Core i5-7200U
3574 Points 0%
Apple MacBook Pro 15 2016 (2.6 GHz, 450)
AMD Radeon Pro 450, Intel Core i7-6700HQ
3252 Points -9%
Medion Erazer P6661 MD 99873
NVIDIA GeForce GTX 950M, Intel Core i7-6500U
3102 Points -13%
HP Pavilion 15t-au100 CTO (W0P31AV)
NVIDIA GeForce 940MX, Intel Core i7-7500U
1750 Points -51%
Dell Inspiron 15 5000 5567-1753
AMD Radeon R7 M445, Intel Core i7-7500U
1579 Points -56%
GFXBench (DX / GLBenchmark) 2.7
1920x1080 T-Rex Offscreen
Acer Aspire 5 A515-51G-51RL
NVIDIA GeForce MX150, Intel Core i5-7200U
283.9 fps
Apple MacBook Pro 15 2016 (2.7 GHz, 455)
AMD Radeon Pro 455, Intel Core i7-6820HQ
229 fps -19%
T-Rex Onscreen
Acer Aspire 5 A515-51G-51RL
NVIDIA GeForce MX150, Intel Core i5-7200U
200.6 fps
Apple MacBook Pro 15 2016 (2.7 GHz, 455)
AMD Radeon Pro 455, Intel Core i7-6820HQ
59.7 fps -70%
GFXBench 3.0
1920x1080 1080p Manhattan Offscreen
Acer Aspire 5 A515-51G-51RL
NVIDIA GeForce MX150, Intel Core i5-7200U
148.7 fps
Apple MacBook Pro 15 2016 (2.7 GHz, 455)
AMD Radeon Pro 455, Intel Core i7-6820HQ
92.2 fps -38%
on screen Manhattan Onscreen OGL
Acer Aspire 5 A515-51G-51RL
NVIDIA GeForce MX150, Intel Core i5-7200U
111.5 fps
Apple MacBook Pro 15 2016 (2.7 GHz, 455)
AMD Radeon Pro 455, Intel Core i7-6820HQ
27.9 fps -75%
GFXBench 3.1
1920x1080 Manhattan ES 3.1 Offscreen
Acer Aspire 5 A515-51G-51RL
NVIDIA GeForce MX150, Intel Core i5-7200U
111.5 fps
on screen Manhattan ES 3.1 Onscreen
Acer Aspire 5 A515-51G-51RL
NVIDIA GeForce MX150, Intel Core i5-7200U
92.1 fps
GFXBench
1920x1080 Car Chase Offscreen
Acer Aspire 5 A515-51G-51RL
NVIDIA GeForce MX150, Intel Core i5-7200U
75.4 fps
on screen Car Chase Onscreen
Acer Aspire 5 A515-51G-51RL
NVIDIA GeForce MX150, Intel Core i5-7200U
63.1 fps
LuxMark v2.0 64Bit
Room GPUs-only
MSI PL62 MX150 7700HQ
NVIDIA GeForce MX150, Intel Core i7-7700HQ
769 Samples/s +72%
MSI PL62 MX150 7700HQ
NVIDIA GeForce MX150, Intel Core i7-7700HQ
456 Samples/s +2%
Apple MacBook Pro 15 2016 (2.7 GHz, 455)
AMD Radeon Pro 455, Intel Core i7-6820HQ
483 Samples/s +8%
Acer Aspire 5 A515-51G-51RL
NVIDIA GeForce MX150, Intel Core i5-7200U
446 Samples/s
HP Pavilion 15t-au100 CTO (W0P31AV)
NVIDIA GeForce 940MX, Intel Core i7-7500U
422 Samples/s -5%
Apple MacBook Pro 15 2016 (2.6 GHz, 450)
AMD Radeon Pro 450, Intel Core i7-6700HQ
394 Samples/s -12%
Sala GPUs-only
MSI PL62 MX150 7700HQ
NVIDIA GeForce MX150, Intel Core i7-7700HQ
1451 Samples/s +84%
MSI PL62 MX150 7700HQ
NVIDIA GeForce MX150, Intel Core i7-7700HQ
805 Samples/s +2%
HP Pavilion 15t-au100 CTO (W0P31AV)
NVIDIA GeForce 940MX, Intel Core i7-7500U
987 Samples/s +25%
Apple MacBook Pro 15 2016 (2.7 GHz, 455)
AMD Radeon Pro 455, Intel Core i7-6820HQ
918 Samples/s +16%
Acer Aspire 5 A515-51G-51RL
NVIDIA GeForce MX150, Intel Core i5-7200U
790 Samples/s
Apple MacBook Pro 15 2016 (2.6 GHz, 450)
AMD Radeon Pro 450, Intel Core i7-6700HQ
774 Samples/s -2%
Geekbench 4.0 - Compute OpenCL Score
Acer Aspire 5 A515-51G-51RL
NVIDIA GeForce MX150, Intel Core i5-7200U
45746 Points
Apple MacBook Pro 15 2016 (2.7 GHz, 455)
AMD Radeon Pro 455, Intel Core i7-6820HQ
43771 Points -4%
Apple MacBook Pro 15 2016 (2.6 GHz, 450)
AMD Radeon Pro 450, Intel Core i7-6700HQ
41516 Points -9%
Apple MacBook Pro 15 2016 (2.6 GHz, 450)
AMD Radeon Pro 450, Intel Core i7-6700HQ
18977 Points -59%
Acer Aspire E5-575G-549D
NVIDIA GeForce GTX 950M, Intel Core i5-7200U
40018 Points -13%
Lenovo IdeaPad 510-15IKB 80SV0087GE
NVIDIA GeForce 940MX, Intel Core i7-7500U
19678 Points -57%
Geekbench 4.4 - Compute OpenCL Score
Acer Aspire 5 A515-51G-51RL
NVIDIA GeForce MX150, Intel Core i5-7200U
46097 Points
Unigine Heaven 2.1 - 1280x1024 high, Tesselation (normal), DirectX11 AA:off AF:1x
Acer Aspire 5 A515-51G-51RL
NVIDIA GeForce MX150, Intel Core i5-7200U
56.9 fps
Unigine Heaven 3.0 - 1920x1080 DX 11, Normal Tessellation, High Shaders AA:Off AF:Off
Acer Aspire 5 A515-51G-51RL
NVIDIA GeForce MX150, Intel Core i5-7200U
41.8 fps
Unigine Valley 1.0 - 1920x1080 Extreme HD DirectX AA:x8
Acer Aspire 5 A515-51G-51RL
NVIDIA GeForce MX150, Intel Core i5-7200U
16.8 fps
Apple MacBook Pro 15 2016 (2.7 GHz, 455)
AMD Radeon Pro 455, Intel Core i7-6820HQ
16.4 fps -2%
Dell Inspiron 15 5000 5567-1753
AMD Radeon R7 M445, Intel Core i7-7500U
6.6 fps -61%

W omawianym modelu system operacyjny był zainstalowany na dysku SSD Kigstona. Chodzi o dysk formatu M.2 2280 o pojemności 128 GB. Wyniki jego testów syntetycznych nie były nadzwyczajne. Poza tym SSD bohater niniejszej recenzji posiadał także dysk twardy o pojemności 1 TB i prędkości 5400 obr/min.

dysk SSD
dysk SSD
Kingston RBUSNS8180DS3128GH
Sequential Read: 407.5 MB/s
Sequential Write: 283.5 MB/s
512K Read: 282.4 MB/s
512K Write: 72.7 MB/s
4K Read: 26.81 MB/s
4K Write: 73.7 MB/s
4K QD32 Read: 294.8 MB/s
4K QD32 Write: 89.6 MB/s
Acer Aspire 5 A515-51G-51RL
Kingston RBUSNS8180DS3128GH
Lenovo IdeaPad 510-15IKB 80SV0087GE
Liteonit CV3-DE256
Acer Aspire E5-575G-549D
Toshiba MQ01ABD100
Medion Erazer P6661 MD 99873
Phison 128GB PS3109-S9
Dell Inspiron 15 5000 5567-1753
SanDisk X400 SED 256GB, SATA (SD8TB8U-256G)
HP Pavilion 15t-au100 CTO (W0P31AV)
Toshiba MQ01ABD100
CrystalDiskMark 3.0
74%
-87%
-16%
88%
-83%
Read Seq
407.5
469.2
15%
95.3
-77%
433.2
6%
502
23%
109.5
-73%
Write Seq
283.5
431.5
52%
85.6
-70%
131.9
-53%
458.1
62%
105.2
-63%
Read 512
282.4
338.3
20%
29.32
-90%
250
-11%
382.8
36%
34.08
-88%
Write 512
72.7
297.9
310%
25.93
-64%
90.6
25%
385.7
431%
40.02
-45%
Read 4k
26.81
28.68
7%
0.366
-99%
30.69
14%
29.25
9%
0.429
-98%
Write 4k
73.7
66.8
-9%
0.726
-99%
51.2
-31%
55.9
-24%
1.008
-99%
Read 4k QD32
294.8
364.7
24%
0.647
-100%
112.2
-62%
285.2
-3%
0.81
-100%
Write 4k QD32
89.6
245.9
174%
0.722
-99%
73.2
-18%
239.6
167%
0.893
-99%

Testy gier

Większość przetestowanych gier działała płynnie w rozdzielczości 1366 x 768 pikseli i na średnich ustawieniach jakościowych. W testach gier omawiany laptop wypadł nieco gorzej od modeli z kartą GTX 950M z pamięcią GDDR5. To z powodu węższej magistrali pamięci (GTX 950M ma szynę 128-bitową a MX150 - 64-bitową). Notebooki z kartą GTX 950M w wersji z pamięcią DDR3 osiągały gorsze wyniki.

0123456789101112131415161718Tooltip
liczba kl/s w teście gry Wiedźmin 3 (na ustawieniach ultra)
zegary CPU i GPU w teście gry Wiedźmin 3
zegary CPU i GPU w teście gry Wiedźmin 3

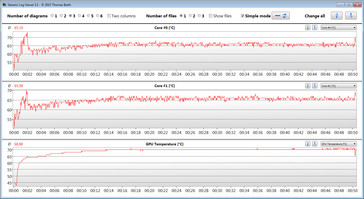

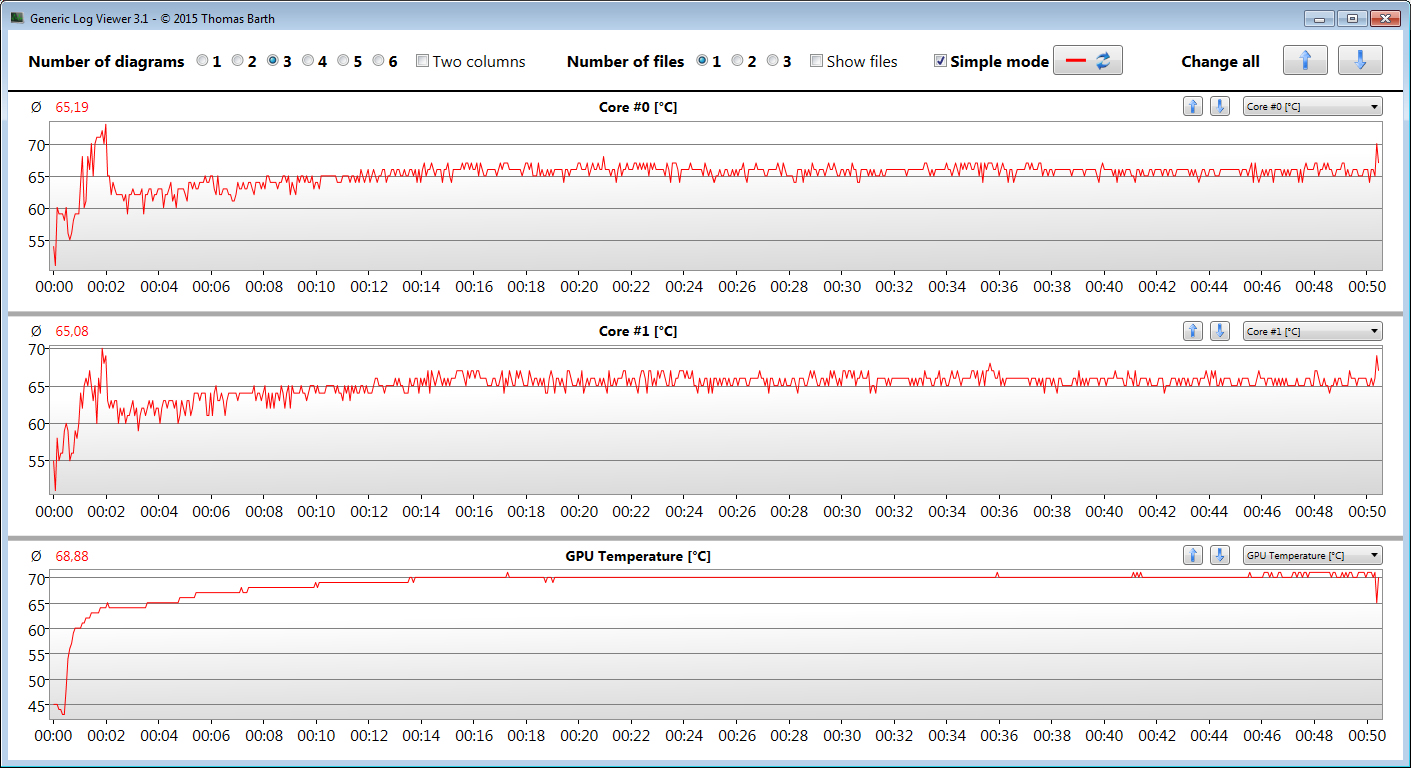

temperatury CPU i GPU w teście gry Wiedźmin 3
temperatury CPU i GPU w teście gry Wiedźmin 3
low med. high ultra
Diablo III (2012) 143 123 120.2 81.2
Tomb Raider (2013) 232.2 129.3 87.2 40.8
BioShock Infinite (2013) 160.5 97 82.2 30.2
Middle-earth: Shadow of Mordor (2014) 82.1 54.9 32.9 24.9
GTA V (2015) 92.2 83 35 6.9
The Witcher 3 (2015) 60.7 36.9 20.3 17
Batman: Arkham Knight (2015) 54 46 21
Mad Max (2015) 72.6 37.1 34.5
Dota 2 Reborn (2015) 125.6 97 78.5 68.9
World of Warships (2015) 130.8 106.4 68.1 45
Anno 2205 (2015) 60.6 46 27.2 9.1
Star Wars Battlefront (2015) 94.4 62.2 29.3 25.5
Rainbow Six Siege (2015) 118.1 78.8 42.4 25.1
Rise of the Tomb Raider (2016) 51.3 33.6 20.4 17.2
Far Cry Primal (2016) 57 26 23 18
The Division (2016) 65.2 42.8 20 15.5
Ashes of the Singularity (2016) 28.9 19.3 16.3
Doom (2016) 68.6 24.5 18.2 14
Deus Ex Mankind Divided (2016) 40.8 30.5 17 6.8
Battlefield 1 (2016) 71.9 53.9 25.4 20.9
Farming Simulator 17 (2016) 193.2 150.9 73.9 53.3
Resident Evil 7 (2017) 157.5 71.5 42 5.3
For Honor (2017) 85.1 31.1 29.4 21.4
Ghost Recon Wildlands (2017) 48.1 19.5 14.4 2.8
Warhammer 40.000: Dawn of War III (2017) 70 26.3 23.2
Prey (2017) 100.4 41 34.9 28.2
Rocket League (2017) 127.6 54.3 37.8
Dirt 4 (2017) 107.2 46.3 24.1 14
BioShock Infinite
1920x1080 Ultra Preset, DX11 (DDOF)
Apple MacBook Pro 15 2016 (2.7 GHz, 455)
Radeon Pro 455, 6820HQ, Apple SSD SM0512L
37.8 fps +25%
Lenovo ThinkPad E570-20H6S00000
GeForce GTX 950M, i5-7200U, Toshiba THNSF5256GPUK
35.66 fps +18%
Acer Aspire E5-575G-549D
GeForce GTX 950M, i5-7200U, Toshiba MQ01ABD100
35 fps +16%
Acer Aspire 5 A515-51G-51RL
GeForce MX150, i5-7200U, Kingston RBUSNS8180DS3128GH
30.2 fps
Medion Erazer P6661 MD 99873
GeForce GTX 950M, 6500U, Phison 128GB PS3109-S9
24 (5.7min - 45.5max) fps -21%
HP Pavilion 15t-au100 CTO (W0P31AV)
GeForce 940MX, i7-7500U, Toshiba MQ01ABD100
14.6 fps -52%
Dell Inspiron 15 5000 5567-1753
Radeon R7 M445, i7-7500U, SanDisk X400 SED 256GB, SATA (SD8TB8U-256G)
13.8 (5.7min - 120.6max) fps -54%
Lenovo IdeaPad 510-15IKB 80SV0087GE
GeForce 940MX, i7-7500U, Liteonit CV3-DE256
13.5 fps -55%
1366x768 High Preset
Lenovo ThinkPad E570-20H6S00000
GeForce GTX 950M, i5-7200U, Toshiba THNSF5256GPUK
86.8 fps +6%
Acer Aspire E5-575G-549D
GeForce GTX 950M, i5-7200U, Toshiba MQ01ABD100
86.7 fps +5%
Acer Aspire 5 A515-51G-51RL
GeForce MX150, i5-7200U, Kingston RBUSNS8180DS3128GH
82.2 fps
Medion Erazer P6661 MD 99873
GeForce GTX 950M, 6500U, Phison 128GB PS3109-S9
69.5 (11.6min - 138max) fps -15%
Dell Inspiron 15 5000 5567-1753
Radeon R7 M445, i7-7500U, SanDisk X400 SED 256GB, SATA (SD8TB8U-256G)
44.5 (8.7min - 164.9max) fps -46%
HP Pavilion 15t-au100 CTO (W0P31AV)
GeForce 940MX, i7-7500U, Toshiba MQ01ABD100
42.7 fps -48%
Lenovo IdeaPad 510-15IKB 80SV0087GE
GeForce 940MX, i7-7500U, Liteonit CV3-DE256
39.1 fps -52%
The Witcher 3 - 1024x768 Low Graphics & Postprocessing
MSI PL62 MX150 7700HQ
GeForce MX150, i7-7700HQ, Kingston RBU-SNS8152S3128GG6
72 (61min - 79max) fps +19%
Apple MacBook Pro 15 2016 (2.7 GHz, 455)
Radeon Pro 455, 6820HQ, Apple SSD SM0512L
69.5 (63min - 75max) fps +14%
Acer Aspire 5 A515-51G-51RL
GeForce MX150, i5-7200U, Kingston RBUSNS8180DS3128GH
60.7 fps
Acer Aspire F5-771G-50RD
GeForce GTX 950M, i5-7200U, Toshiba MQ01ABD100
55.7 fps -8%
Apple MacBook Pro 15 2016 (2.6 GHz, 450)
Radeon Pro 450, 6700HQ, Apple SSD SM0256L
40.9 (37min - 46max) fps -33%
Dell Inspiron 15 5000 5567-1753
Radeon R7 M445, i7-7500U, SanDisk X400 SED 256GB, SATA (SD8TB8U-256G)
30.8 fps -49%
Tomb Raider - 1920x1080 Ultra Preset AA:FX AF:16x
Acer Aspire 5 A515-51G-51RL
GeForce MX150, i5-7200U, Kingston RBUSNS8180DS3128GH
40.8 fps
HP Pavilion 15t-au100 CTO (W0P31AV)
GeForce 940MX, i7-7500U, Toshiba MQ01ABD100
18.3 fps -55%
Doom - 1280x720 Low Preset
Acer Aspire 5 A515-51G-51RL
GeForce MX150, i5-7200U, Kingston RBUSNS8180DS3128GH
68.6 fps
Apple MacBook Pro 15 2016 (2.6 GHz, 450)
Radeon Pro 450, 6700HQ, Apple SSD SM0256L
53.4 (45min - 71max) fps -22%
Apple MacBook Pro 15 2016 (2.7 GHz, 455)
Radeon Pro 455, 6820HQ, Apple SSD SM0512L
53.1 (45min - 71max) fps -23%
Dell Inspiron 15 5000 5567-1753
Radeon R7 M445, i7-7500U, SanDisk X400 SED 256GB, SATA (SD8TB8U-256G)
35 fps -49%
For Honor - 1280x720 Low Preset
MSI PL62 MX150 7700HQ
GeForce MX150, i7-7700HQ, Kingston RBU-SNS8152S3128GG6
91 (63min - 117max) fps +7%
Acer Aspire 5 A515-51G-51RL
GeForce MX150, i5-7200U, Kingston RBUSNS8180DS3128GH
85.1 fps
Apple MacBook Pro 15 2016 (2.6 GHz, 450)
Radeon Pro 450, 6700HQ, Apple SSD SM0256L
82.3 (64min - 106max) fps -3%

Wpływ na otoczenie

Hałas

W czasie pracy bez obciążania podzespołów wentylatora nie słychać, gdyż ten nie działa. Słyszalny był wtedy tylko dysk twardy. W teście pełnego obciążenia natężenie hałasu osiągnęło 41,2 dB. Kiedy wentylator chodził na nieco niższych obrotach, słychać było dźwięki o wysokiej częstotliwości.

Hałas

luz
30.1 / 30.2 / 30.5 dB
HDD
30.5 dB
obciążenie
41.1 / 41.2 dB
  red to green bar


30 dB
cichy
40 dB(A)
słyszalny
50 dB(A)
irytujący

min: dark, med: mid, max: light   Audix TM1, Arta (odległość 15 cm)   environment noise: 30.1 dB(A)

Temperatury

temperatury podzespołów pod pełnym obciążeniem
temperatury podzespołów pod pełnym obciążeniem

Temperatury

W teście pełnego obciążenia (aplikacji Prime95 i FurMark) taktowanie CPU wynosiło początkowo 2,5 GHz a po około 20 minutach zostało obniżone do 1,6 GHz. Później zaś wahało się między 1,4 a 1,5 GHz. Nie należy się tym jednak zbytnio martwić, gdyż przy obciążeniu samego procesora taktowanie jest utrzymywane na maksymalnym poziomie. We wspomnianym teście obciążeniowym temperatura procesora osiągnęła maksymalnie 84°C. Obudowa rozgrzała się na spodzie do 48,7°C. W godzinnym teście gry Wiedźmin 3 temperatury obudowy były dużo niższe (poniżej 40°C).

 37.4 °C41.3 °C29 °C
 34.5 °C37.2 °C24.6 °C
 26.4 °C26.1 °C24.6 °C
maks. w ogóle: 41.3 °C
średnia: 31.2 °C
30 °C48.7 °C31.7 °C
24.5 °C40.5 °C30.6 °C
24.1 °C25 °C25 °C
maks. w ogóle: 48.7 °C
średnia: 31.1 °C
zasilacz  49 °C | temperatura otoczenia 21.6 °C | FIRT 550-Pocket
(+) The average temperature for the upper side under maximal load is 31.2 °C / 88 F, compared to the average of 31.2 °C / 88 F for the devices in the class Multimedia.
(±) The maximum temperature on the upper side is 41.3 °C / 106 F, compared to the average of 36.9 °C / 98 F, ranging from 21.1 to 71 °C for the class Multimedia.
(-) The bottom heats up to a maximum of 48.7 °C / 120 F, compared to the average of 39.1 °C / 102 F
(+) In idle usage, the average temperature for the upper side is 24.9 °C / 77 F, compared to the device average of 31.2 °C / 88 F.
(±) Playing The Witcher 3, the average temperature for the upper side is 32.9 °C / 91 F, compared to the device average of 31.2 °C / 88 F.
(±) The palmrests and touchpad can get very hot to the touch with a maximum of 37.3 °C / 99.1 F.
(-) The average temperature of the palmrest area of similar devices was 28.8 °C / 83.8 F (-8.5 °C / -15.3 F).

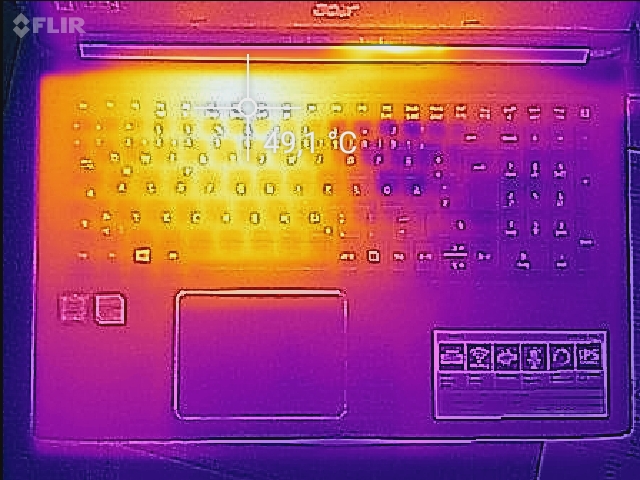

pod pełnym obciążeniem (wierzch)
pod pełnym obciążeniem (wierzch)

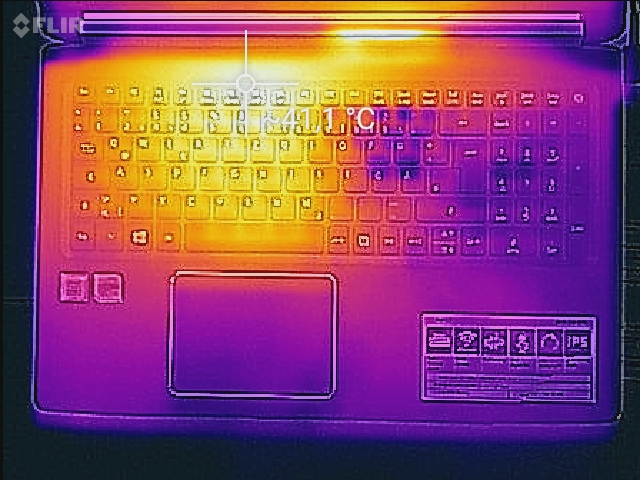

w teście gry Wiedźmin 3 (wierzch)
w teście gry Wiedźmin 3 (wierzch)

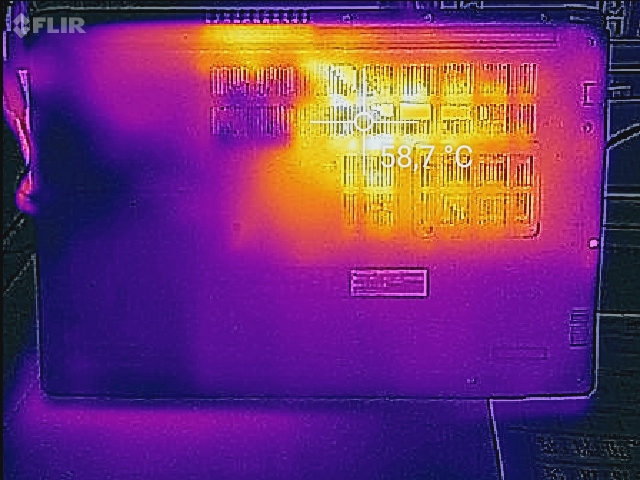

pod pełnym obciążeniem (spód)
pod pełnym obciążeniem (spód)

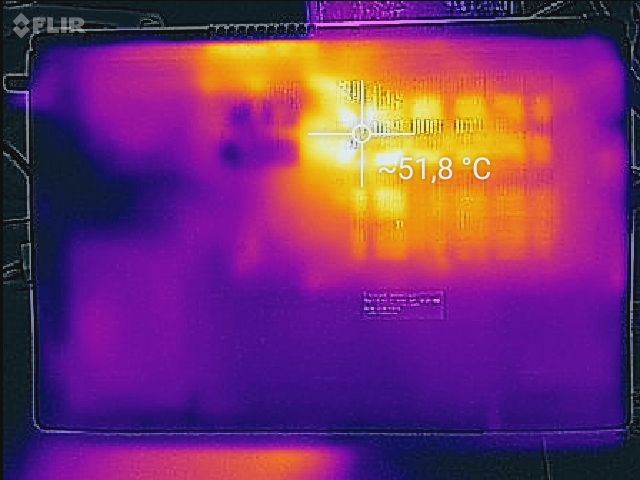

w teście gry Wiedźmin 3 (spód)
w teście gry Wiedźmin 3 (spód)

Głośniki

Głośniki stereo znajdują się na spodzie obudowy. Wytwarzają one dźwięk nie najgorszej jakości, w którym brakuje jednak basów. Poza tym głośność maksymalna jest dość niska.

Wydajność akumulatora

W teście symulującym korzystanie z internetu przez Wi-Fi omawiany laptop działał 8:37 h. W teście odtwarzania filmu zasób energii z akumulatora wystarczył na 8:14 h.

Pobór mocy
wyłączony / stan wstrzymaniadarklight 0.2 / 0.45 W
luzdarkmidlight 2.9 / 5.9 / 6.4 W
obciążenie midlight 54 / 66 W
 color bar
Legenda: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Wydajność akumulatora
luz
20h 53min
WiFi Websurfing (Edge 40)
8h 37min
Big Buck Bunny H.264 1080p
8h 14min
obciążenie
2h 22min
Acer Aspire 5 A515-51G-51RL
i5-7200U, GeForce MX150, 48 Wh
Lenovo IdeaPad 510-15IKB 80SV0087GE
i7-7500U, GeForce 940MX, 30 Wh
Acer Aspire E5-575G-549D
i5-7200U, GeForce GTX 950M, 62 Wh
Medion Erazer P6661 MD 99873
6500U, GeForce GTX 950M, 44 Wh
Dell Inspiron 15 5000 5567-1753
i7-7500U, Radeon R7 M445, 42 Wh
HP Pavilion 15t-au100 CTO (W0P31AV)
i7-7500U, GeForce 940MX, 41 Wh
Czasy pracy
-47%
-27%
-57%
-38%
-49%
Reader / Idle
1253
767
-39%
521
-58%
466
-63%
438
-65%
H.264
494
460
-7%
114
-77%
316
-36%
WiFi v1.3
517
275
-47%
451
-13%
230
-56%
417
-19%
220
-57%
Load
142
75
-47%
93
-35%
95
-33%
106
-25%

Za

+ SSD + HDD
+ czasy pracy na akumulatorze

Przeciw

- niezbyt jasny obraz
- brak podświetlenia klawiatury

Podsumowanie

Acer Aspire A515-51G to laptop multimedialny z ekranem 15,6". Komputer ten ma dość smukłą obudowę, przypominającą trochę te z serii Aspire Nitro. Model ten posiada niskonapięciowy procesor Kaby Lake a nadaje się do gier komputerowych dzięki karcie grafiki GeForce MX150 o wydajności zbliżonej do karty GTX 950M. Omawiany laptop nie jest bardzo głośny i nie robi się zanadto gorący pod obciążeniem. Podczas pracy bez obciążenia jest prawie bezgłośny i w ogóle się nie grzeje. Atutem jest możliwość wyposażenia go w dwa dyski, SSD M.2 i dysk 2,5". Do montażu lub wymiany dysku 2,5" wystarczy zdjęcie pokrywy serwisowej, natomiast montaż lub wymiana dysku M.2 wymaga demontażu spodu obudowy. Na pochwałę zasługują także czasy pracy na akumulatorze. Jako pewną wadę trzeba potraktować brak podświetlenia klawiatury. Zastosowana w testowanym egzemplarzu matryca zapewniała dość szerokie kąty widzenia i nie najgorsze odwzorowanie  kolorów. Paleta barw była jednak wąska a jasność obrazu okazała się raczej niska.

Please share our article, every link counts!
> laptopy testy i recenzje notebooki > Laptopy > Recenzja Acer Aspire 5 A515-51G
Sascha Mölck (Update: 2017-12-19)
