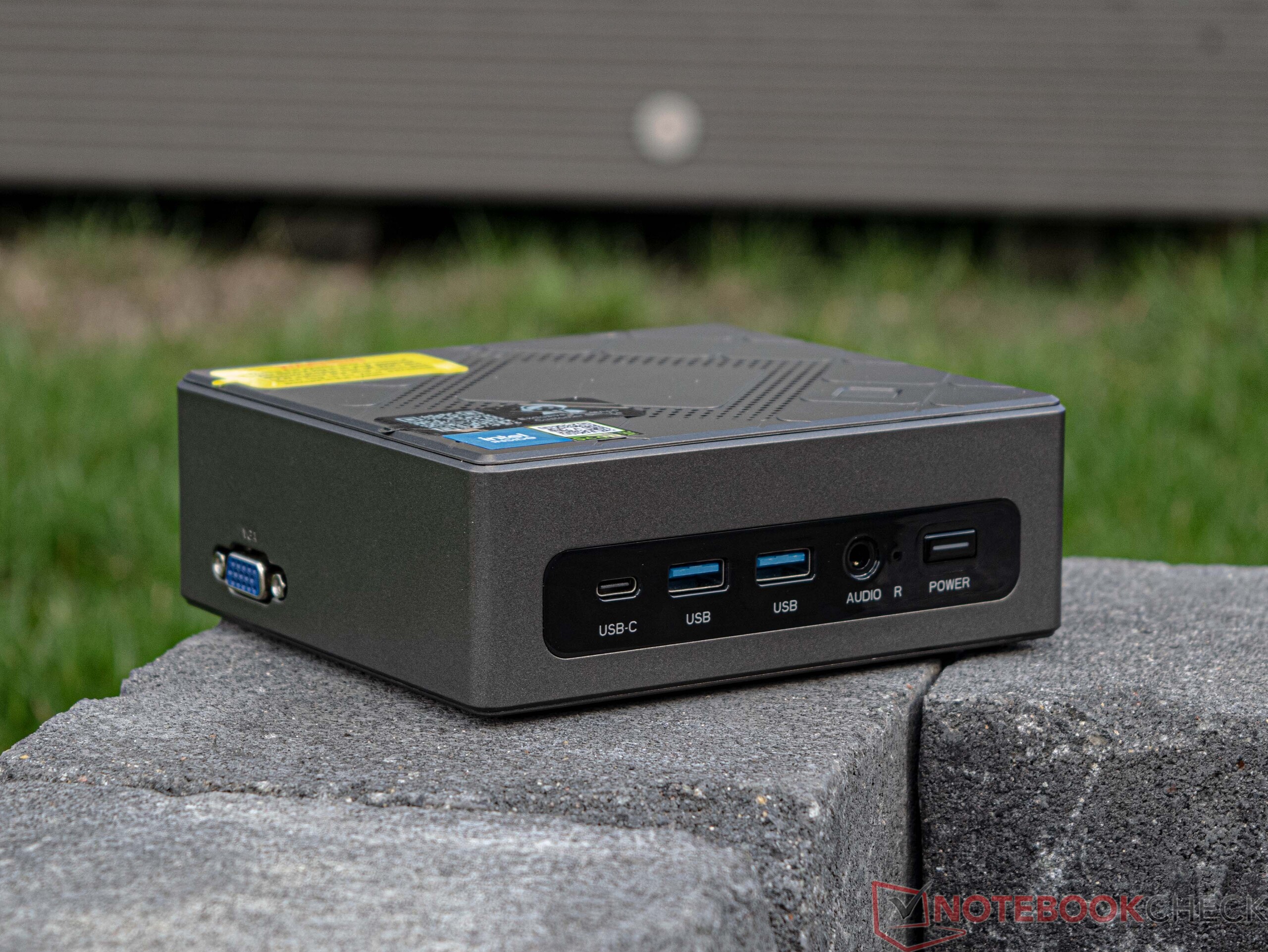

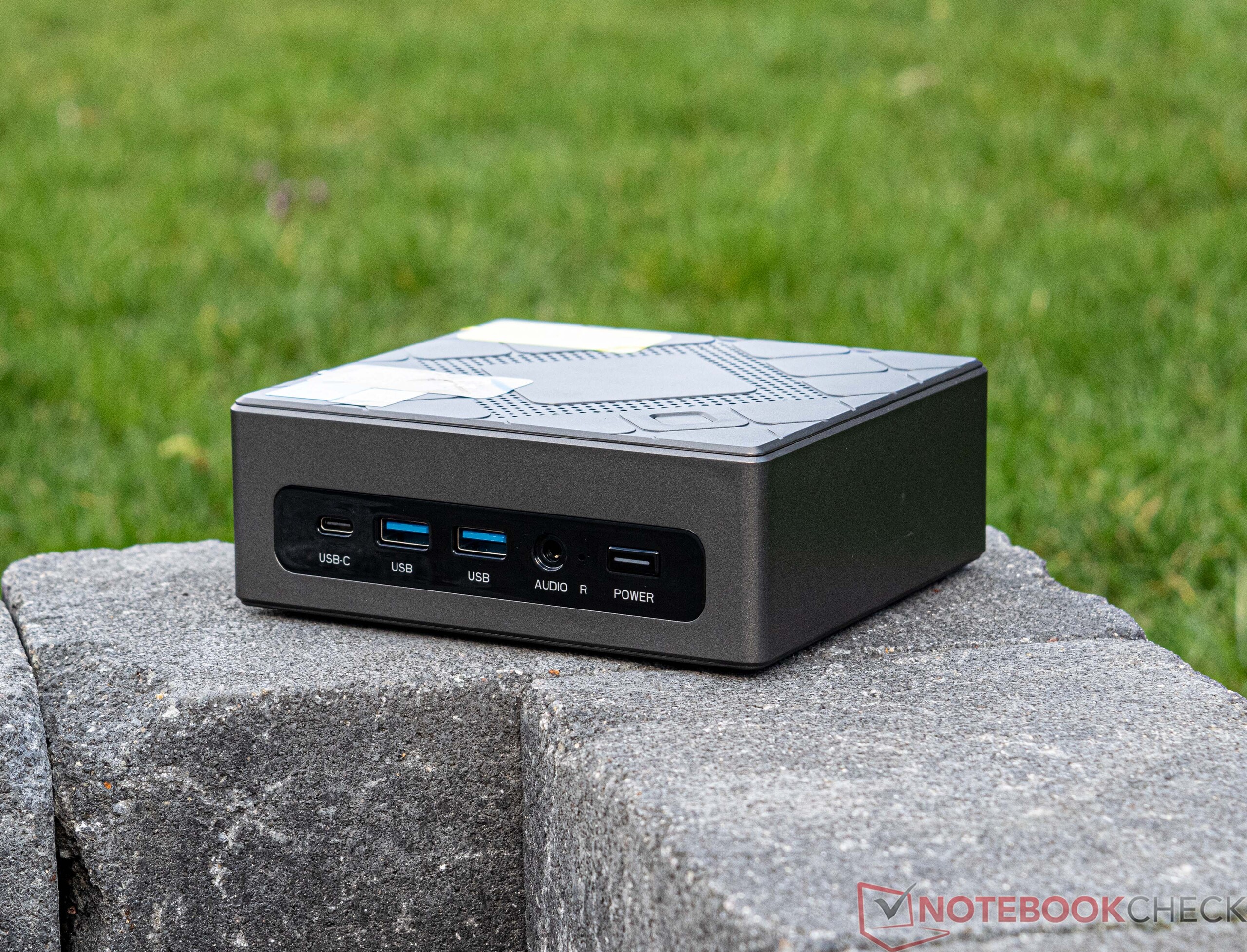

Recenzja mini PC ACEMagician ACE-CK10-8259U - cichy komputer biurowy z miejscem na nawet trzy dyski SSD

Chiński producent systemów Minipc Union dystrybuuje między innymi marki ACEMagician, NiPoGi i Kamuri, które poznaliśmy już w niektórych naszych testach. ACEMagician ACE-CK10-8259U opiera się na Intel Core i5-8259U jako SoC. SoC posiada 4 rdzenie i 8 wątków i stosunkowo dobrze radzi sobie z obciążeniem pracą w codziennym użytkowaniu - to możemy już w tym momencie przekomarzać. SoC jest wspierany przez 16 GB pamięci RAM LPDDR3, której nie można rozbudować. Dysk SSD naszego sampla testowego to model o pojemności 512 GB. Producent obecnie pobiera około 400 dolarów za urządzenie testowe, które zawiera również system Windows 11 Professional.

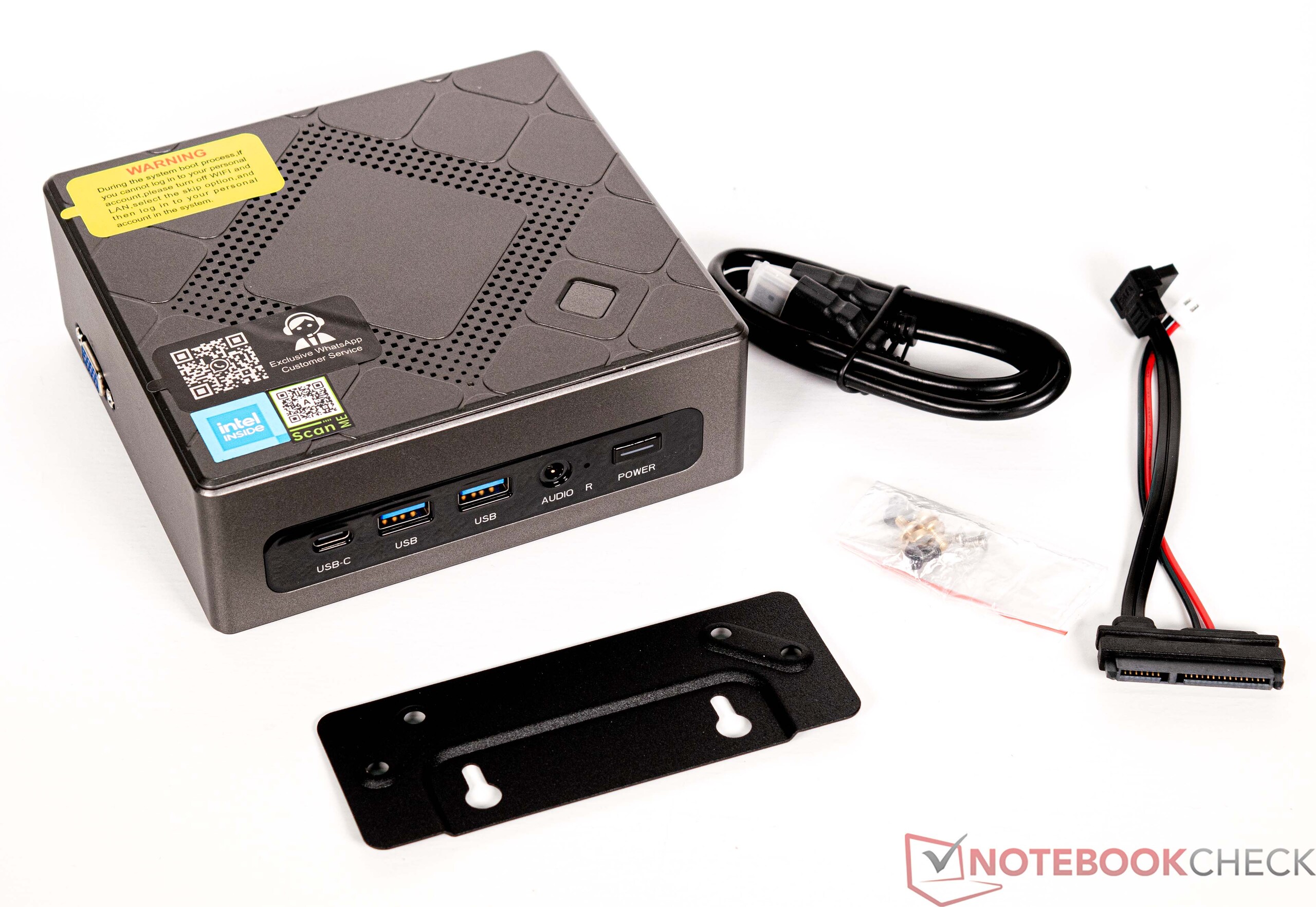

Mini PC dostarczany jest w kompaktowym opakowaniu, które zawiera 65-watowy zasilacz oraz uchwyt VESA - oznacza to, że można przymocować urządzenie do monitora. Przegląd potencjalnych rywali można znaleźć w poniższej tabeli.

Rating	Date	Model	Weight	Height
73.4 %	04/2023	ACEMagician ACE-CK10-8259U i5-8259U, Iris Plus Graphics 655	449 g	50 mm
		Morefine S500+ R9 5900HX, Vega 8	697 g	40 mm
		Minisforum EliteMini TH50 i5-11320H, Iris Xe G7 96EUs	763 g	55.5 mm
	10/2022	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	628 g	72 mm
	10/2022	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs	586 g	53 mm
70.9 %	12/2022	Minipc Union NiPoGi CK10 - 10810U i7-10810U, UHD Graphics 620	468 g	50 mm
68.2 %	03/2023	Minipc Union NiPoGi GK3PLUS - N95 N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	381 g	47 mm

Sprawa

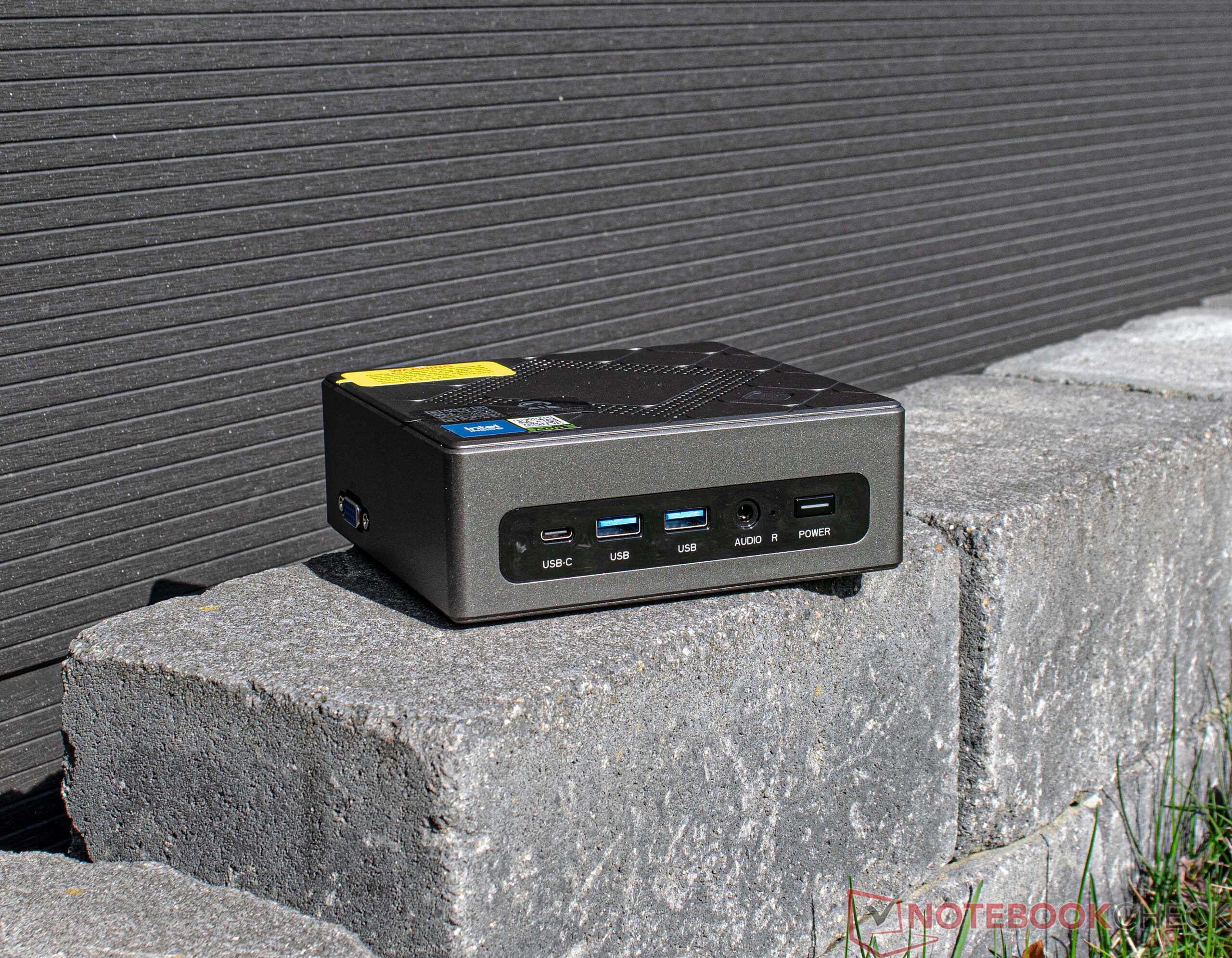

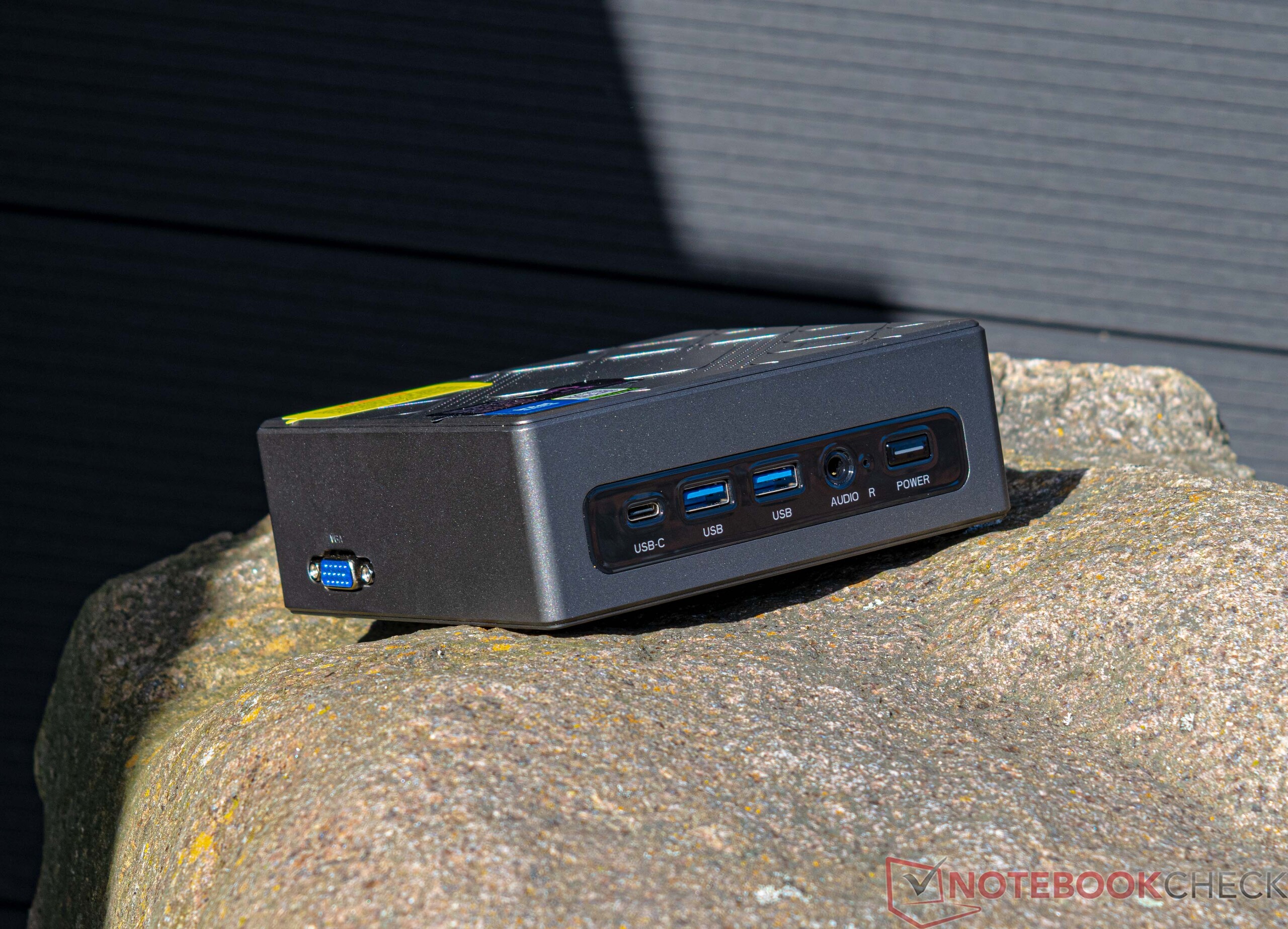

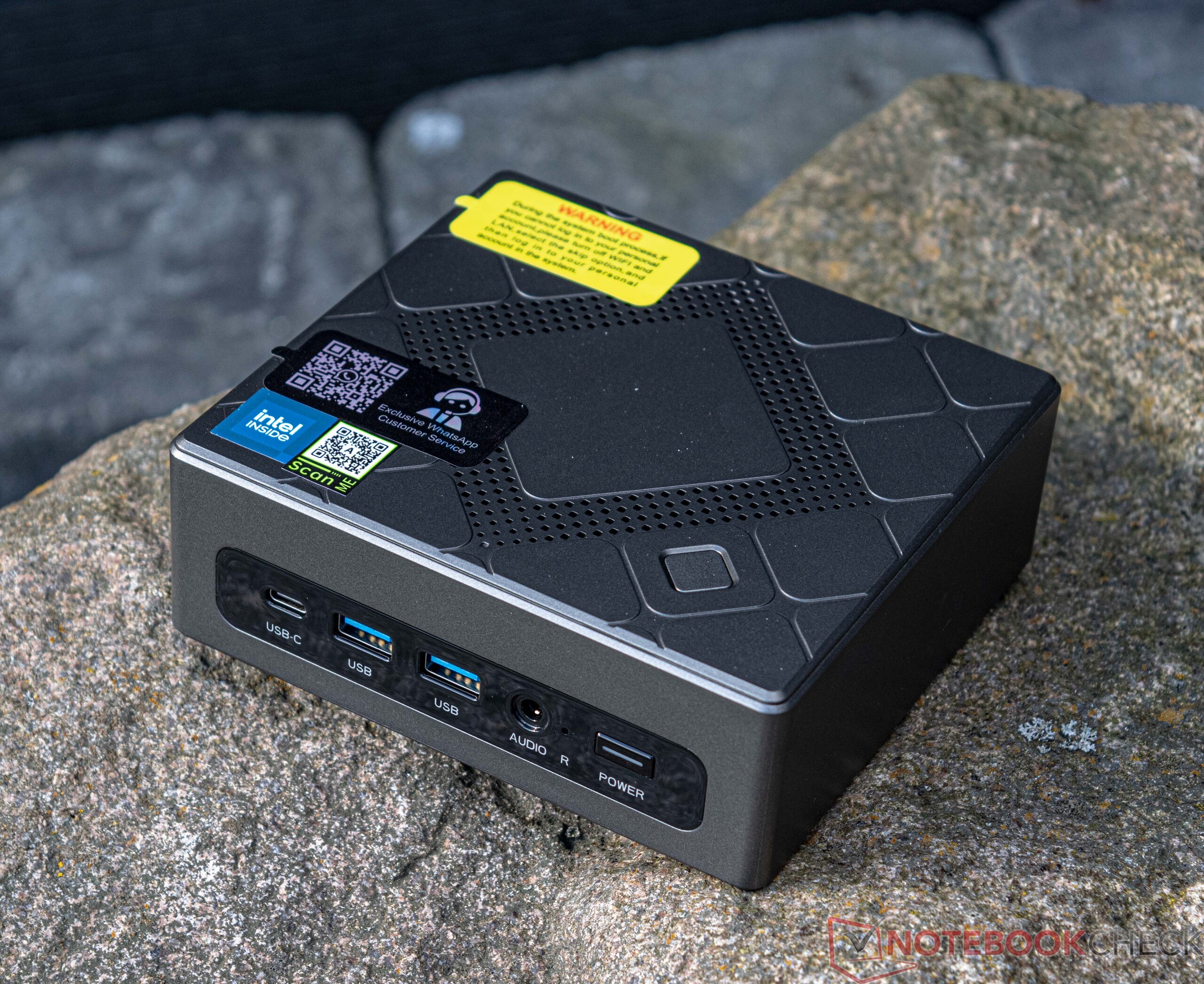

ACEMagician ACE-CK10-8259U ma identyczną budowę jak NiPoGi CK10. Oba modele posiadają taką samą obudowę, która w większości wykonana jest z tworzywa sztucznego. Urządzenie występuje w stosunkowo niepozornym, matowym, szarym kolorze. To dobrze, bo błyszczące powierzchnie mają tendencję do dość szybkiego rysowania się. Jego wymiary 13,7 x 12,5 centymetra są mniejsze niż u konkurencji. Jednak jego wysokość, która w naszym teście wyniosła dokładnie pięć centymetrów, okazała się nieco wyższa. Jeśli chodzi o wybór materiałów przez ACEMagician, NiPoGi CK10 jest w większości plastikowy. Producent postanowił zrezygnować z dodatkowej metalowej ramki zapewniającej stabilność. Implikowany skaner linii papilarnych na górnym boku najwyraźniej nie działa na naszym urządzeniu testowym. Wygląda na to, że producent wykorzystał etui urządzenia do dalszych opcji konfiguracyjnych.

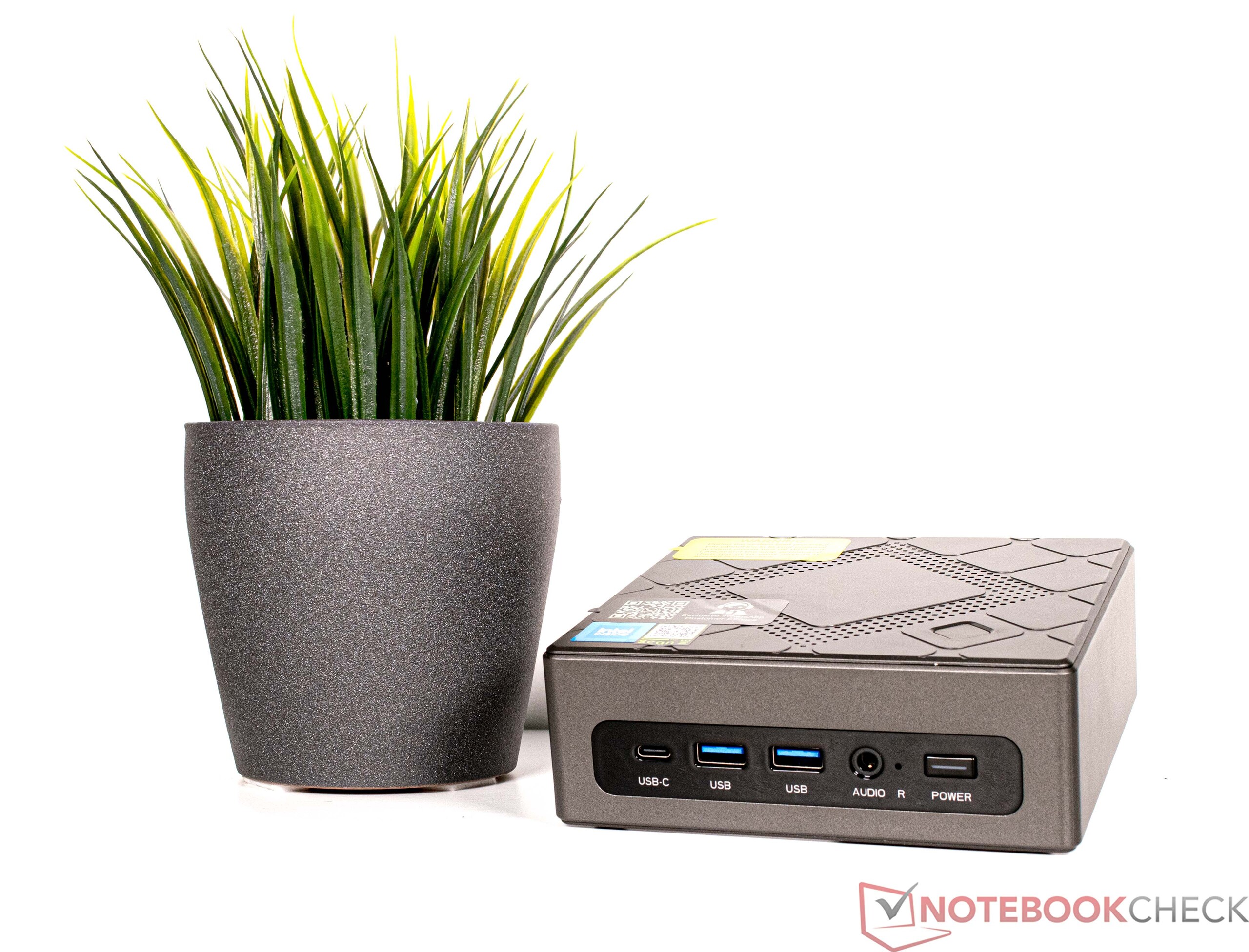

Porównanie wielkości

Minipc Union Ace Magician AMR5 Minisforum EliteMini TH50 Minipc Union Ace Magician TK11-A0 ACEMagician ACE-CK10-8259U Minipc Union NiPoGi CK10 - 10810U Morefine S500+ Minipc Union NiPoGi GK3PLUS - N95 DIN A4 ❌

Łączność

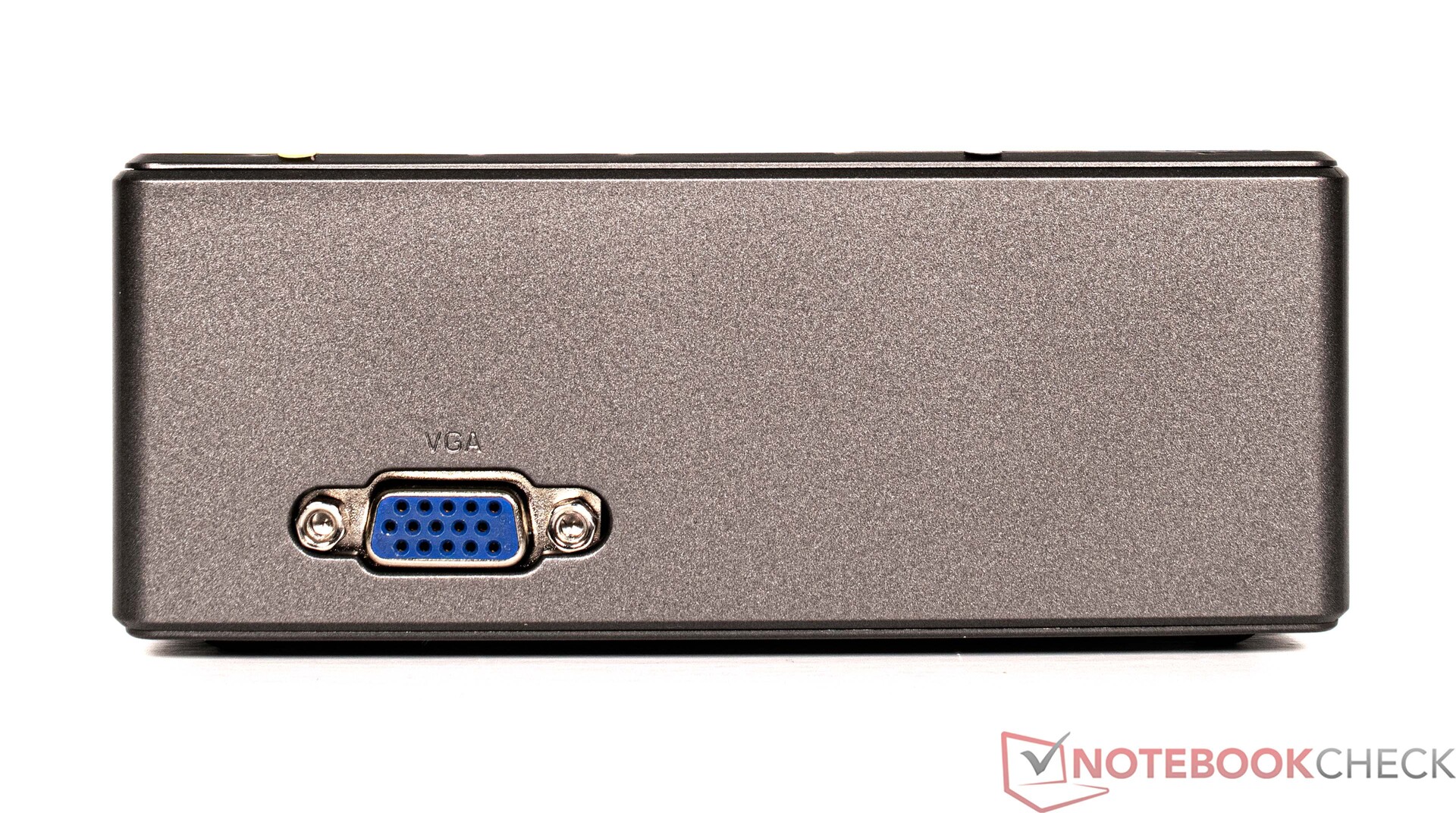

Jeśli chodzi o porty zewnętrzne, to na ACEMagician ACE-CK10-8259U mogliśmy zobaczyć te same porty, co na NiPoGi CK10. Naliczyliśmy łącznie pięć interfejsów USB, co powinno być więcej niż wystarczające dla większości użytkowników. Porty USB zostały podzielone na 4 porty USB typu-A oraz 1 port USB typu-C. Ten ostatni jest jednak zwykłym portem danych i w efekcie nie oferuje obsługi Thunderbolt. Wyświetlacze można podłączyć do urządzenia poprzez porty HDMI znajdujące się z tyłu. Ponadto ACEMagician ACE-CK10-8259U posiada port VGA, który w dzisiejszych czasach nie jest już powszechnie używany.

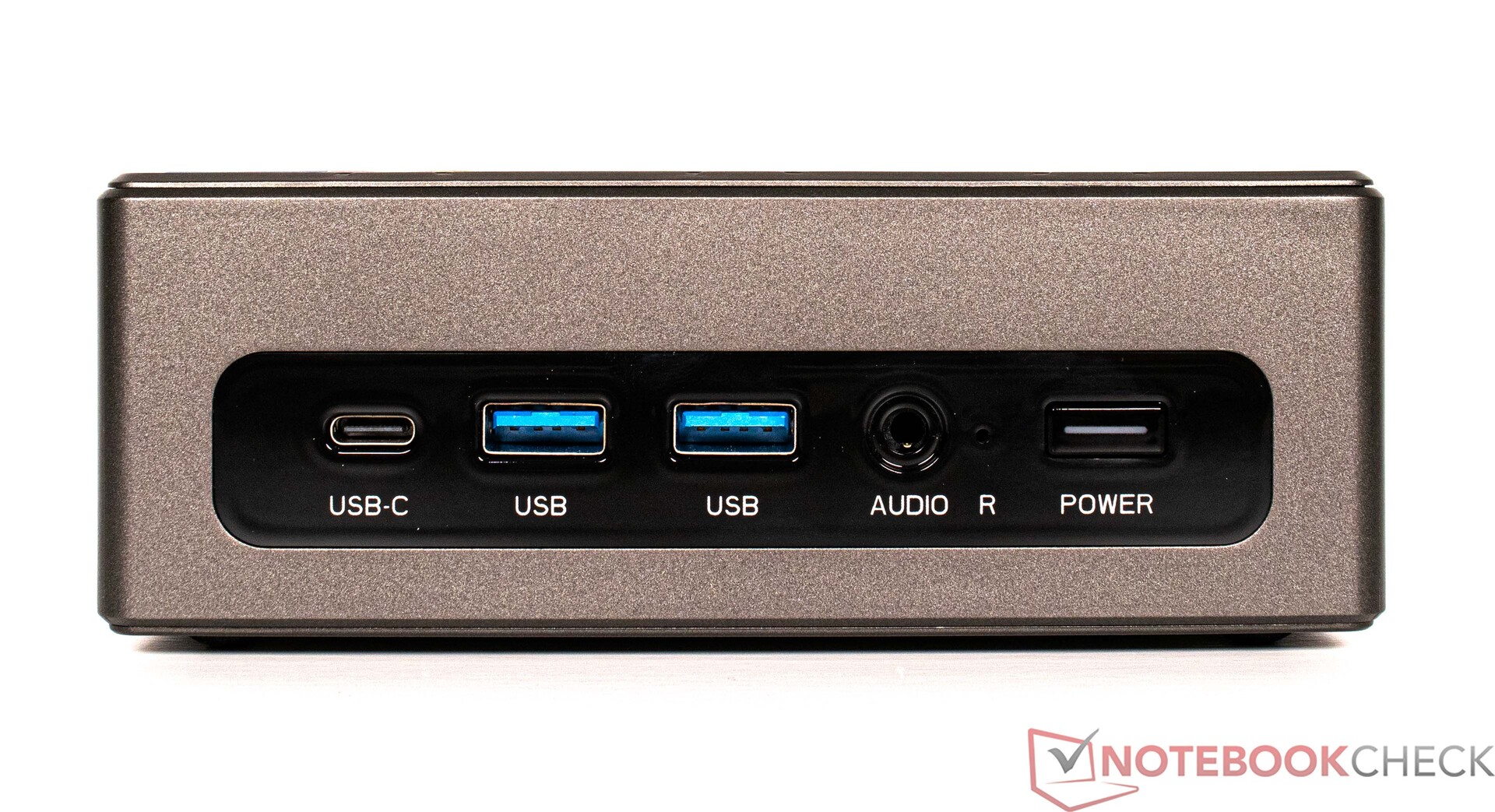

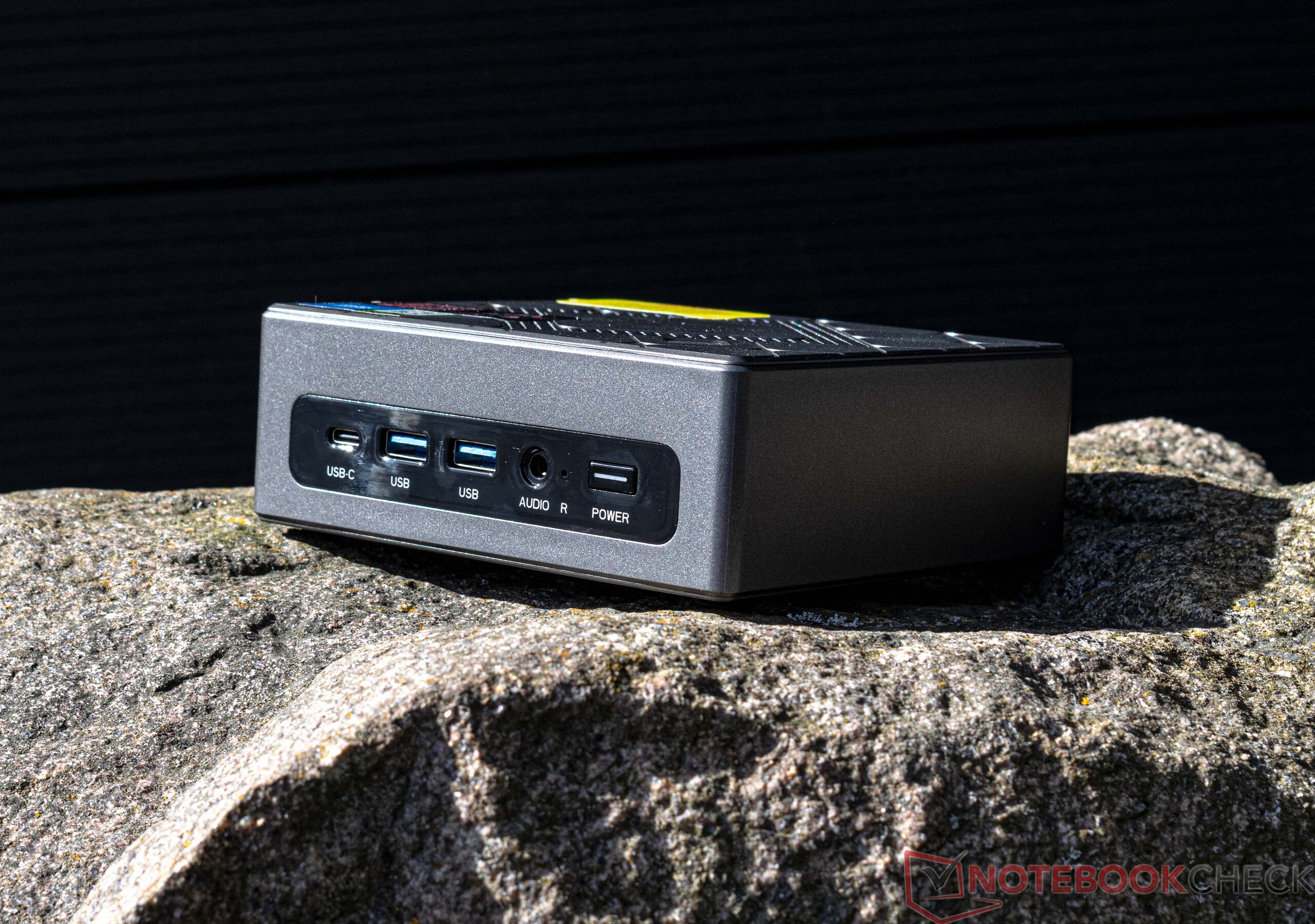

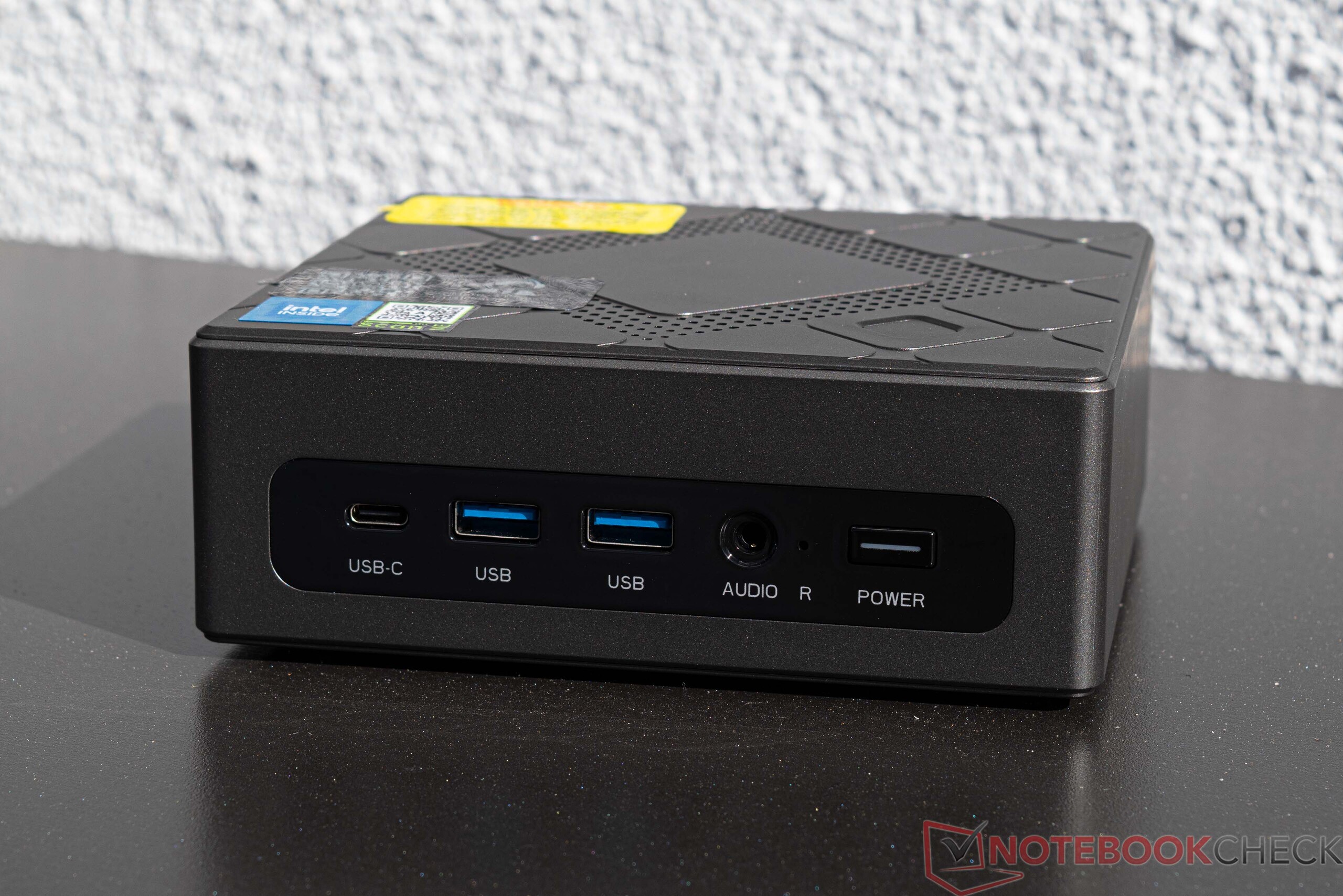

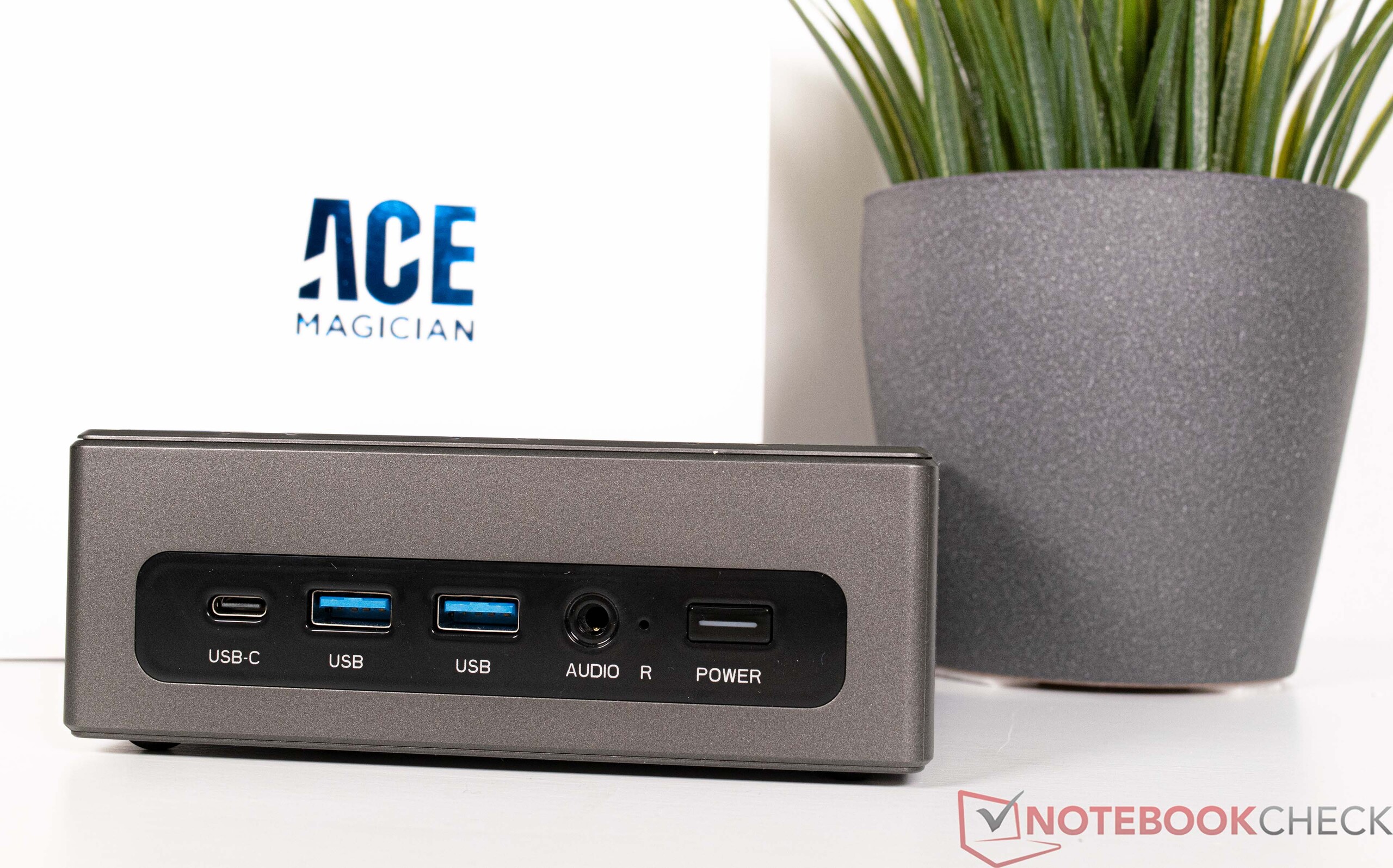

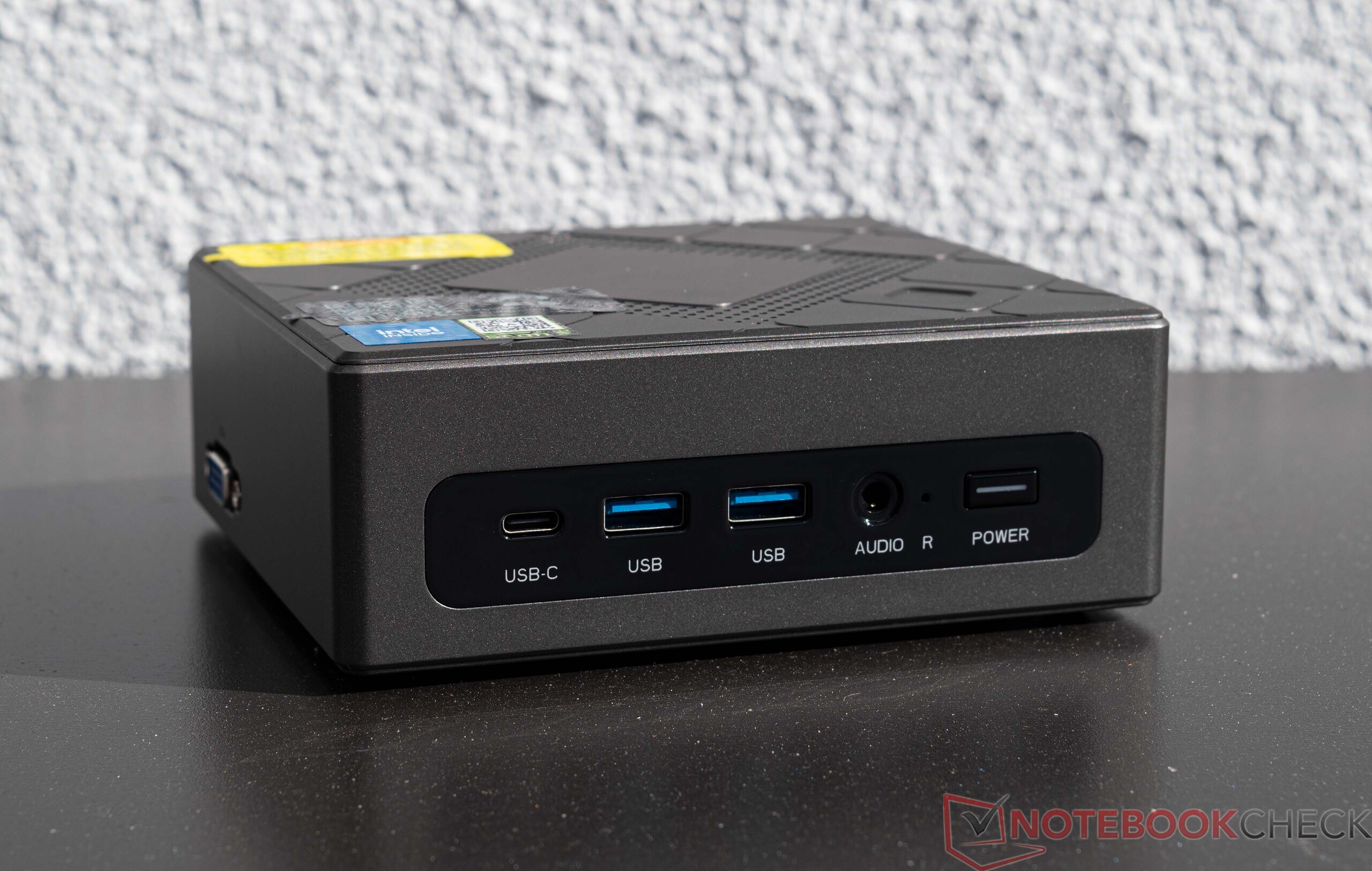

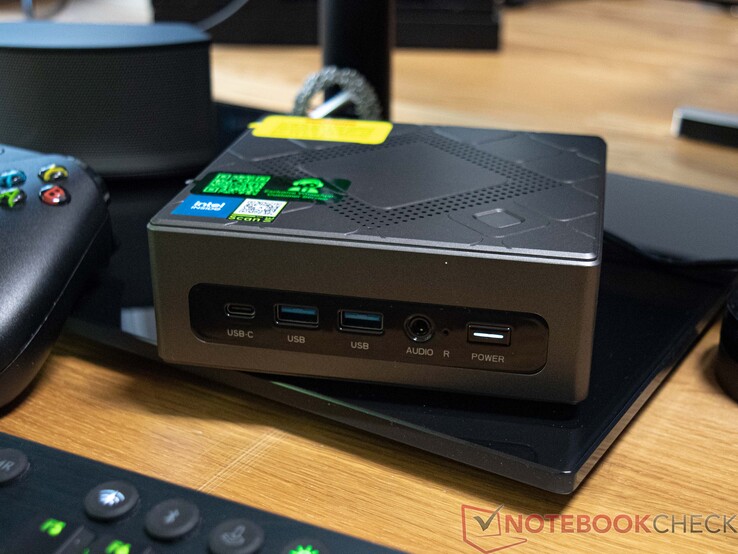

Przód: USB Type-C (dane), 2x USB 3.0, jack 3,5 mm, Power on

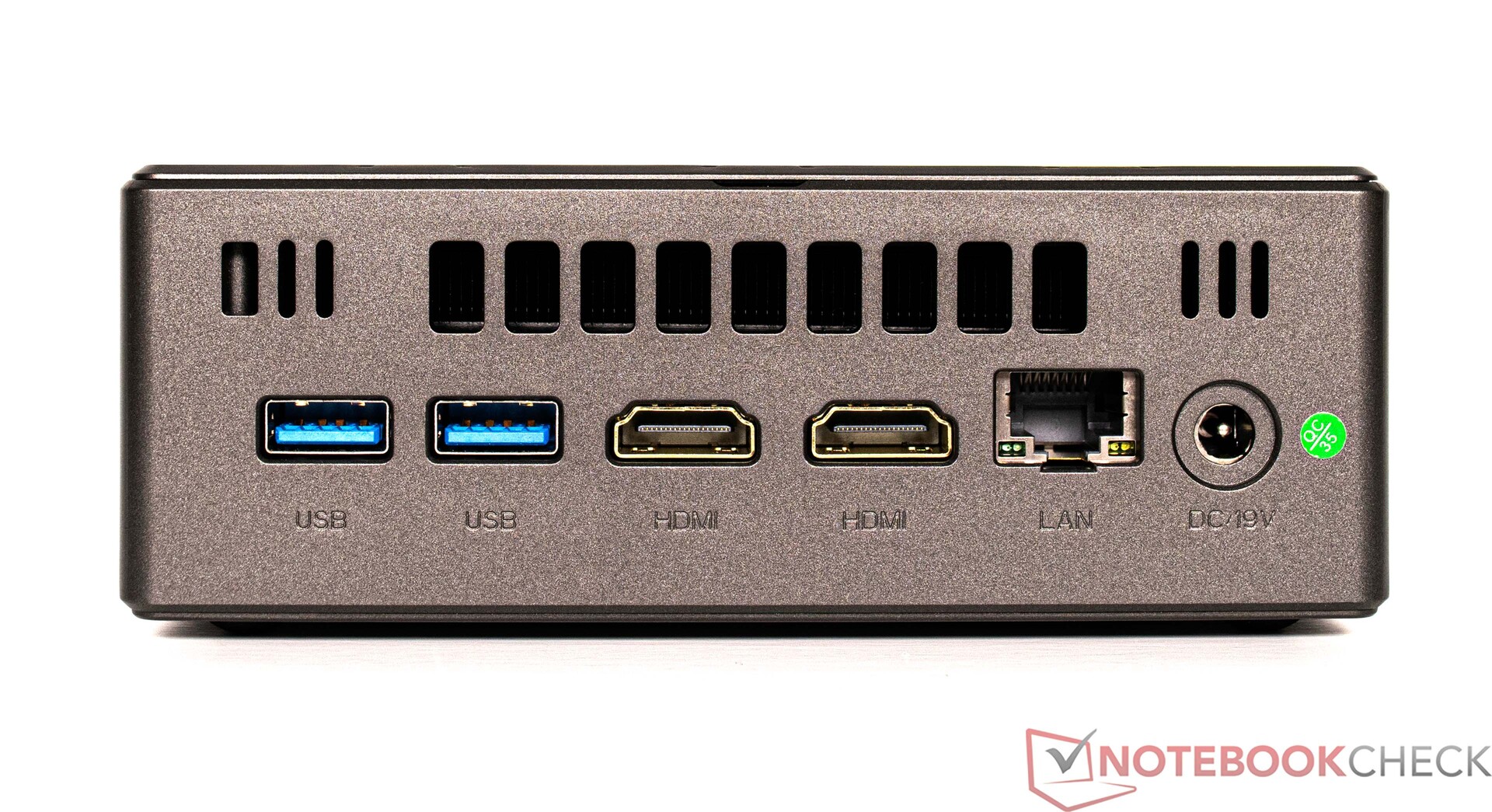

Tył: 2x USB 3.0, 2x HDMI, GBit-LAN, złącze zasilania

Komunikacja

Moduł Wi-Fi w ACEMagician ACE-CK10-8259U

ACEMagician CK10 jest wyposażony w moduł Wi-Fi firmy Realtek. W naszym teście moduł bezprzewodowy nie działał jednak zbyt niezawodnie, przez co nasz egzemplarz testowy znalazł się na dole naszego zestawienia. Identyczny moduł został zastosowany również w NiPoGi CK10który pokazał podobny wynik. Jako router testowy do tego testu wykorzystano Asus ROG Rapture GT-AXE11000. Alternatywnie, ACEMagician ACE-CK10-8259U posiada również port Ethernet. Tutaj możliwa jest przepustowość do 1 GBit/s.

Networking
iperf3 receive AXE11000
Minipc Union Ace Magician AMR5 MediaTek RZ608	903 MBit/s ∼100% +159%
Average of class Mini PC (192.9 - 1688, n=33, last 2 years)	849 MBit/s ∼94% +143%
Minisforum EliteMini TH50 MediaTek MT7921	776 MBit/s ∼86% +122%
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	390 MBit/s ∼43% +12%
Minipc Union NiPoGi GK3PLUS - N95 Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC	358 (180^min - 362^max) MBit/s ∼40% +3%
ACEMagician ACE-CK10-8259U RealTek Semiconductor, Device ID: C821	349 (175^min - 353^max) MBit/s ∼39%
Average RealTek Semiconductor, Device ID: C821 (192.9 - 349, n=2)	271 MBit/s ∼30% -22%
Minipc Union NiPoGi CK10 - 10810U RealTek Semiconductor, Device ID: C821	192.9 (95^min - 196^max) MBit/s ∼21% -45%
iperf3 transmit AXE11000
Minipc Union Ace Magician AMR5 MediaTek RZ608	967 MBit/s ∼100% +256%
Minisforum EliteMini TH50 MediaTek MT7921	866 MBit/s ∼90% +218%
Average of class Mini PC (184.1 - 1491, n=33, last 2 years)	773 MBit/s ∼80% +184%
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	745 MBit/s ∼77% +174%
Minipc Union NiPoGi CK10 - 10810U RealTek Semiconductor, Device ID: C821	343 (170^min - 362^max) MBit/s ∼35% +26%
Average RealTek Semiconductor, Device ID: C821 (272 - 343, n=2)	308 MBit/s ∼32% +13%
ACEMagician ACE-CK10-8259U RealTek Semiconductor, Device ID: C821	272 (263^min - 279^max) MBit/s ∼28%
Minipc Union NiPoGi GK3PLUS - N95 Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC	269 (136^min - 276^max) MBit/s ∼28% -1%

ACEMagician ACE-CK10-8259U; iperf3 receive AXE11000; iperf 3.1.3: Ø342 (175-353)

ACEMagician ACE-CK10-8259U; iperf3 transmit AXE11000; iperf 3.1.3: Ø272 (263-279)

Akcesoria

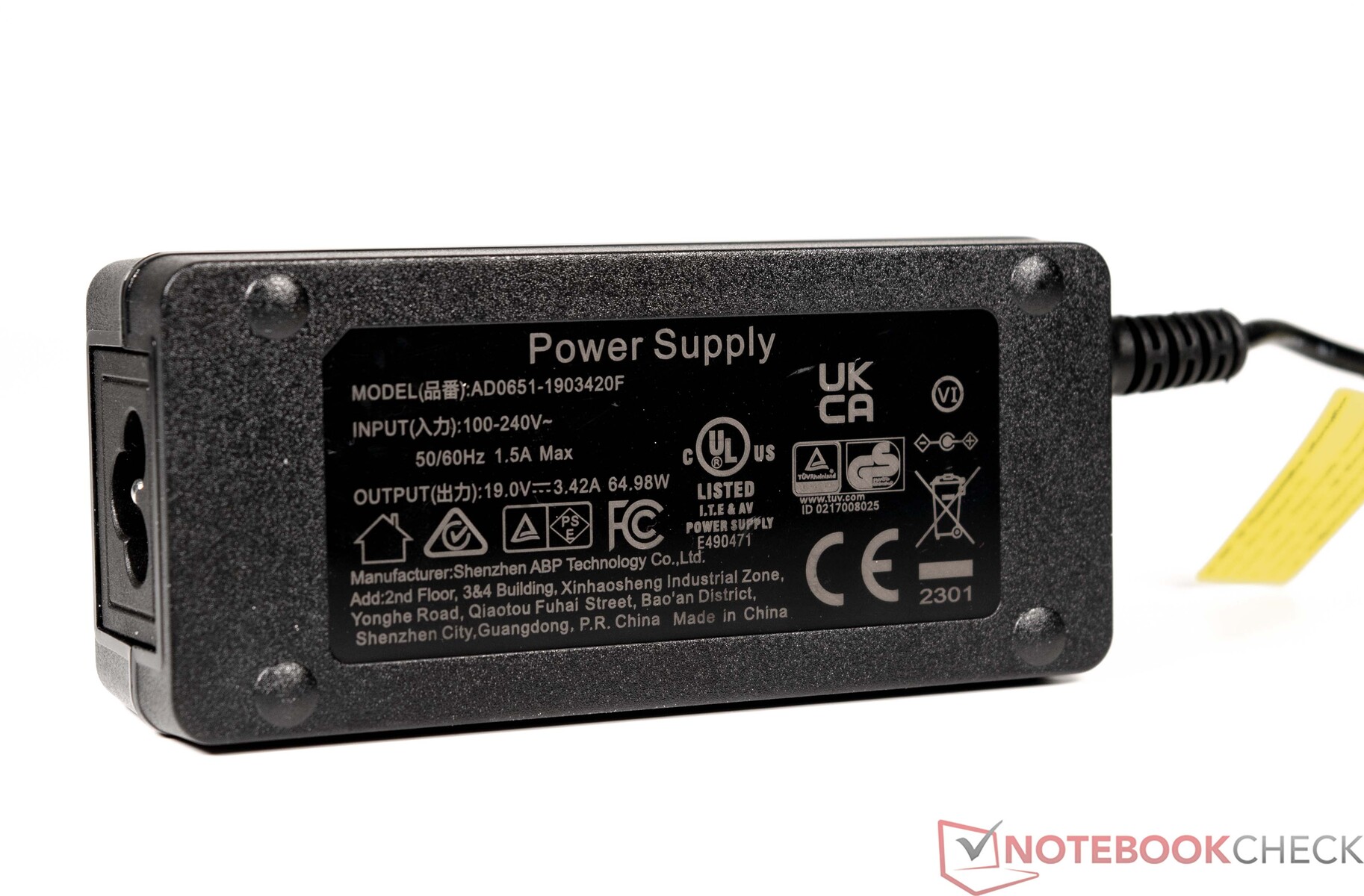

Obok samego urządzenia w naszej paczce znalazł się 65-watowy zasilacz oraz płyta montażowa VESA wraz ze wszystkimi niezbędnymi śrubami. Ponadto zakres dostawy obejmował kabel HDMI i kabel połączeniowy dla 2,5-calowego nośnika pamięci, który można zainstalować wewnętrznie.

Konserwacja

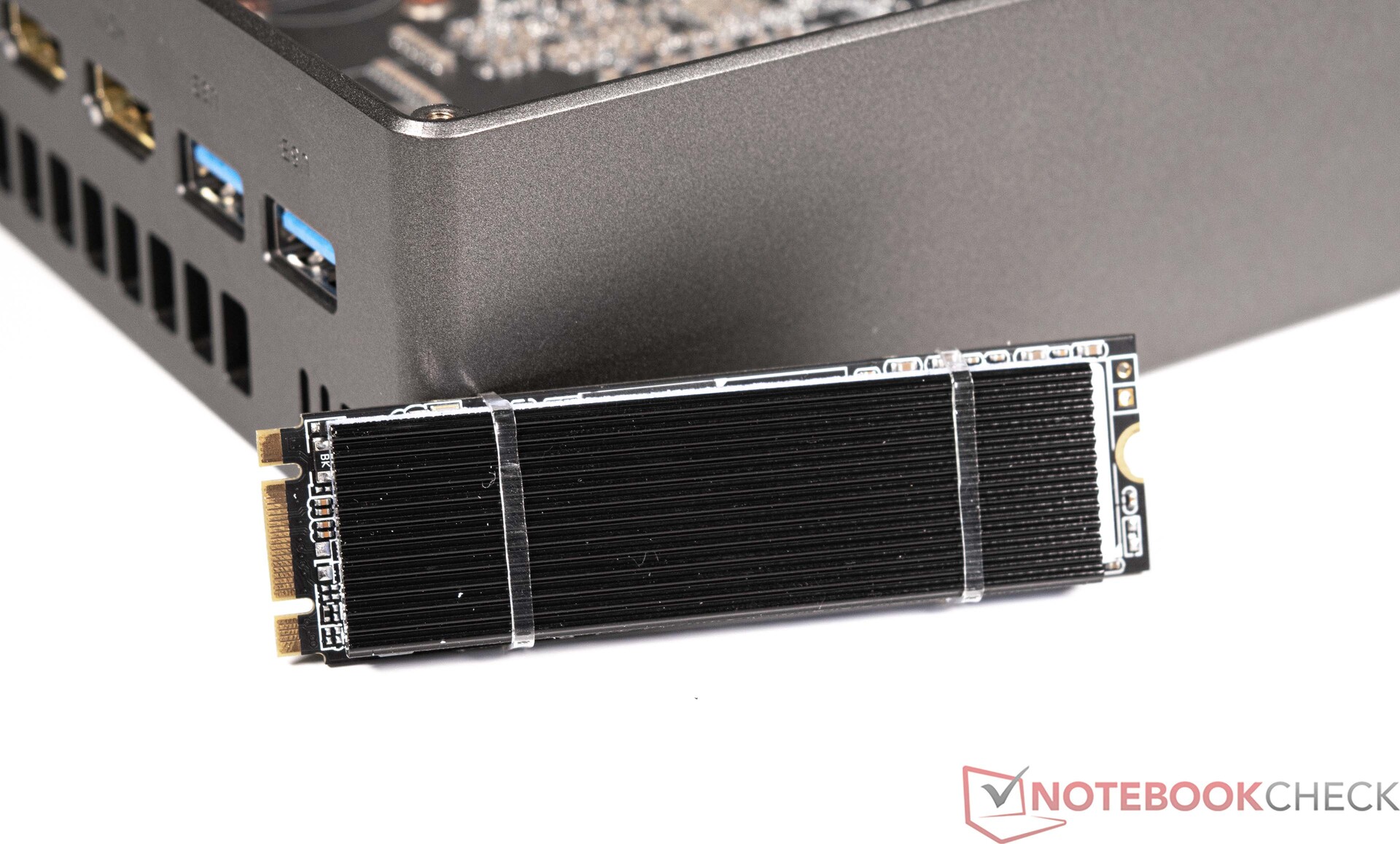

Rozbudowa nie powinna być na razie konieczna ze względu na prekonfigurowaną bazową konfigurację mini PC, obejmującą pamięć RAM i dysk SSD. Ponieważ jego pamięci roboczej i tak nie da się wymienić, jedyną opcją byłoby zainstalowanie dodatkowych dysków SSD. W tym celu można łatwo zdjąć spód urządzenia. Górę również można otworzyć - panel jest trzymany tylko przez kilka plastikowych klipsów. Wentylator procesora jest ukryty pod spodem.

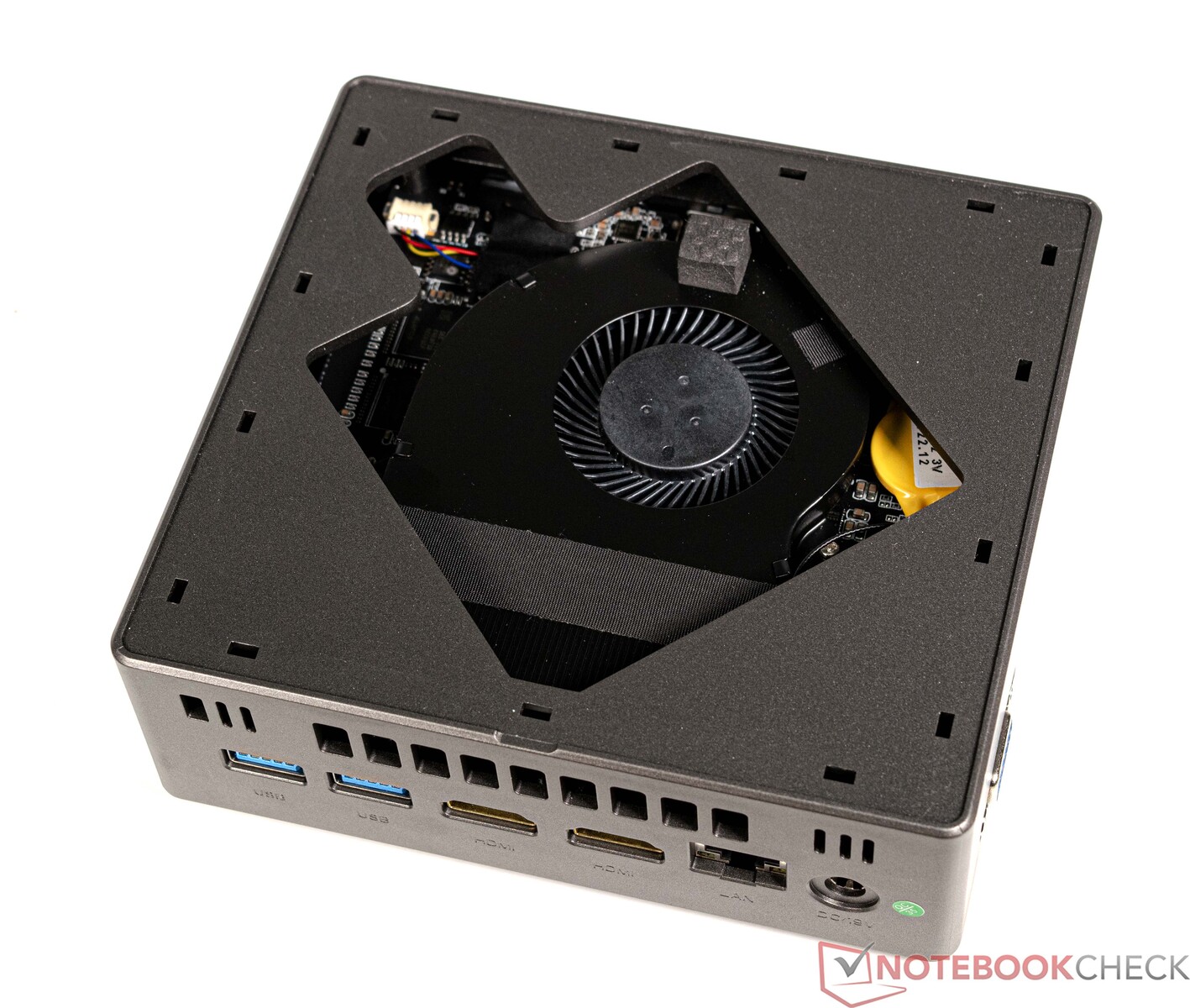

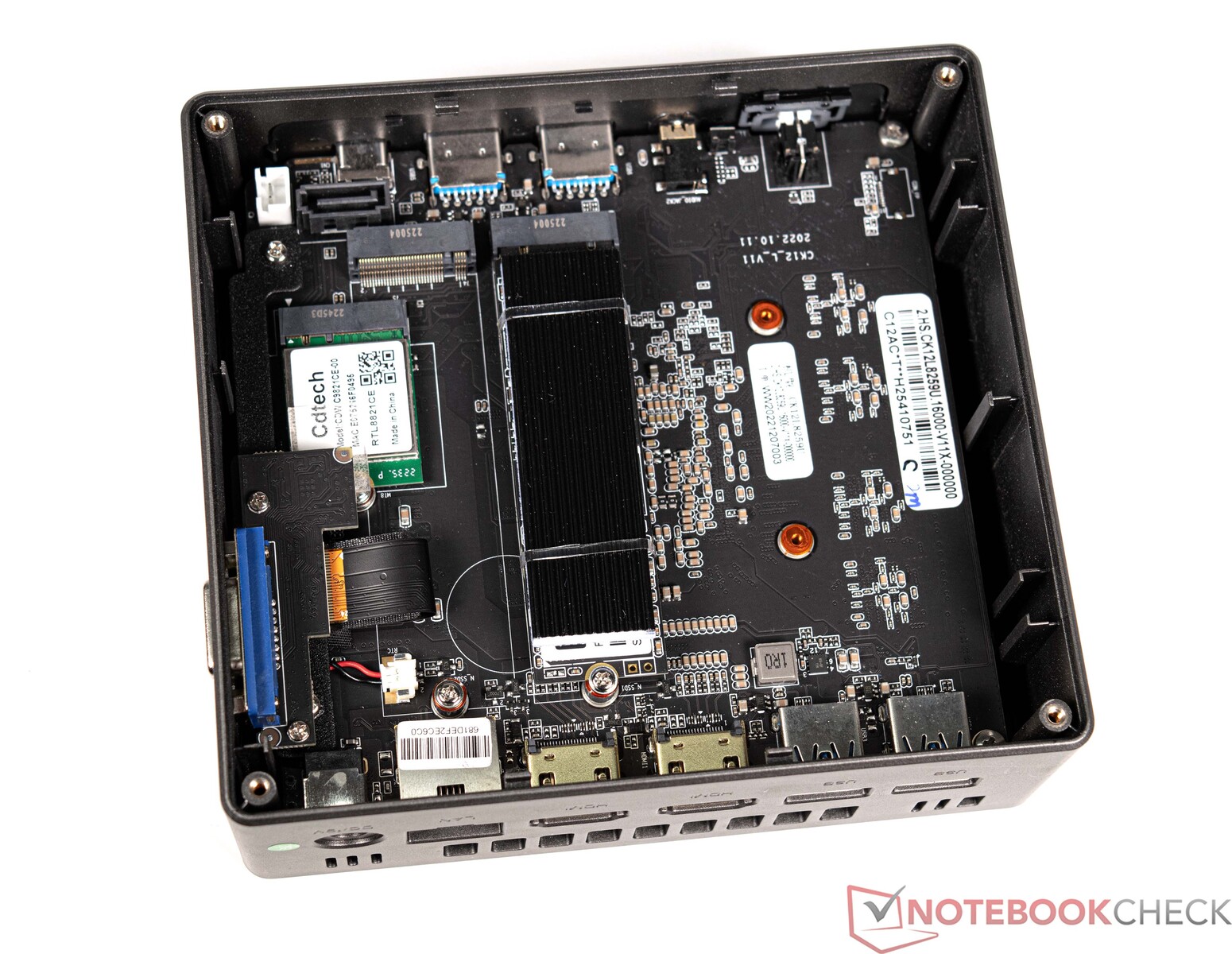

otworzył ACEMagician ACE-CK10-8259U (góra)

otworzył ACEMagician ACE-CK10-8259U (dół)

Wydajność

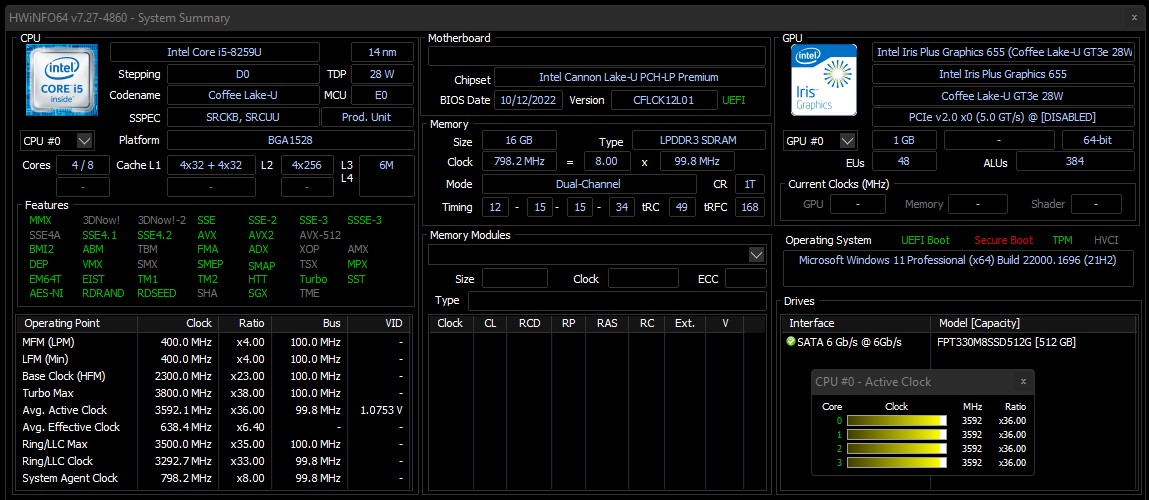

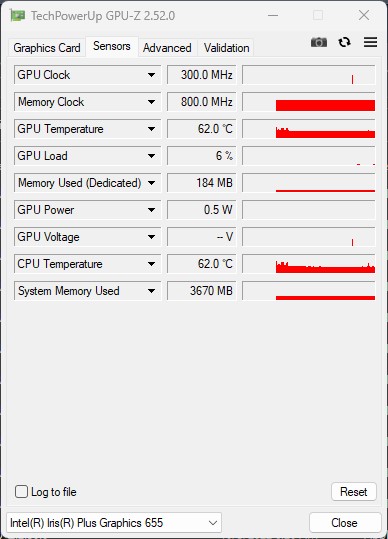

ACEMagician ACE-CK10-8259U to.Intel Core i5-8259U SoC, który jest już na rynku od dość dawna. Co za tym idzie, SoC ten będzie miał ciężko konkurować z obecnymi rodzimymi 4-rdzeniowcami. Niemniej jednak ACEMagician ACE-CK10-8259U wraz z 16 GB pamięci RAM i dyskiem SSD o pojemności 512 GB oferuje solidną wydajność i zdecydowanie może być brany pod uwagę jako urządzenie biurowe.

Warunki badania

Do wszystkich testów wydajnościowych pozostawiliśmy system w stanie dostarczonym. Nie zmienialiśmy limitów mocy SoC. Niemniej jednak, BIOS oferuje możliwość zmiany tych wartości.

Procesor

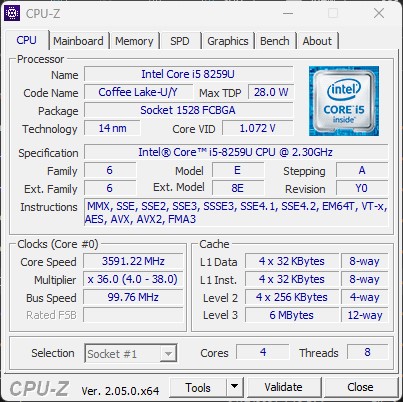

Na stronie .Intel Core i5-8259U należy do serii Coffee Lake i dysponuje czterema natywnymi rdzeniami obliczeniowymi o łącznej liczbie 8 wątków. Jego pobór mocy ograniczono do odpowiednio 40 i 28 watów. W naszym teście zobaczyliśmy wydajność odpowiadającą m.in NiPoGi CK10, który w rzeczywistości powinien mieć szybszy procesor z tych dwóch dzięki swojemu Intel Core i7-10810U. W porównaniu z 4 rdzeniami serii Tiger Lake, nasz testowany egzemplarz po prostu nie mógł nadążyć. Brak IPC, który jest związany z nowszą architekturą procesora, okazał się dość zauważalny w wynikach benchmarków.

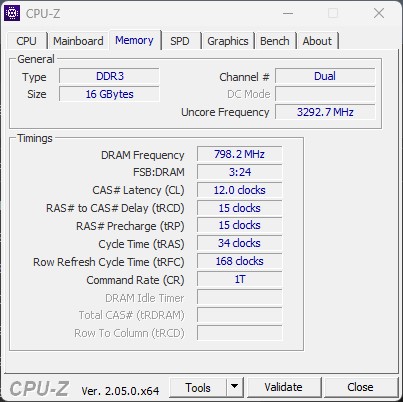

Ponadto ACEMagician ACE-CK10-8259U jest zmuszony do korzystania z wolniejszej pamięci RAM LPDDR3, co wyjaśnia jego stosunkowo słabe wyniki w benchmarkach pamięci.

Więcej benchmarków procesora można znaleźć tutaj.

Performance Rating - Percent
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	49.5 pt ∼50%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	43.6 pt ∼44%
Minisforum EliteMini TH50 ^-2! Intel Core i5-11320H, 3200 MHz	41.8 pt ∼42%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	37.1 pt ∼37%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	34.9 pt ∼35%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	33.8 pt ∼34%
Average Intel Core i5-8259U	33.6 pt ∼34%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	28.6 pt ∼29%

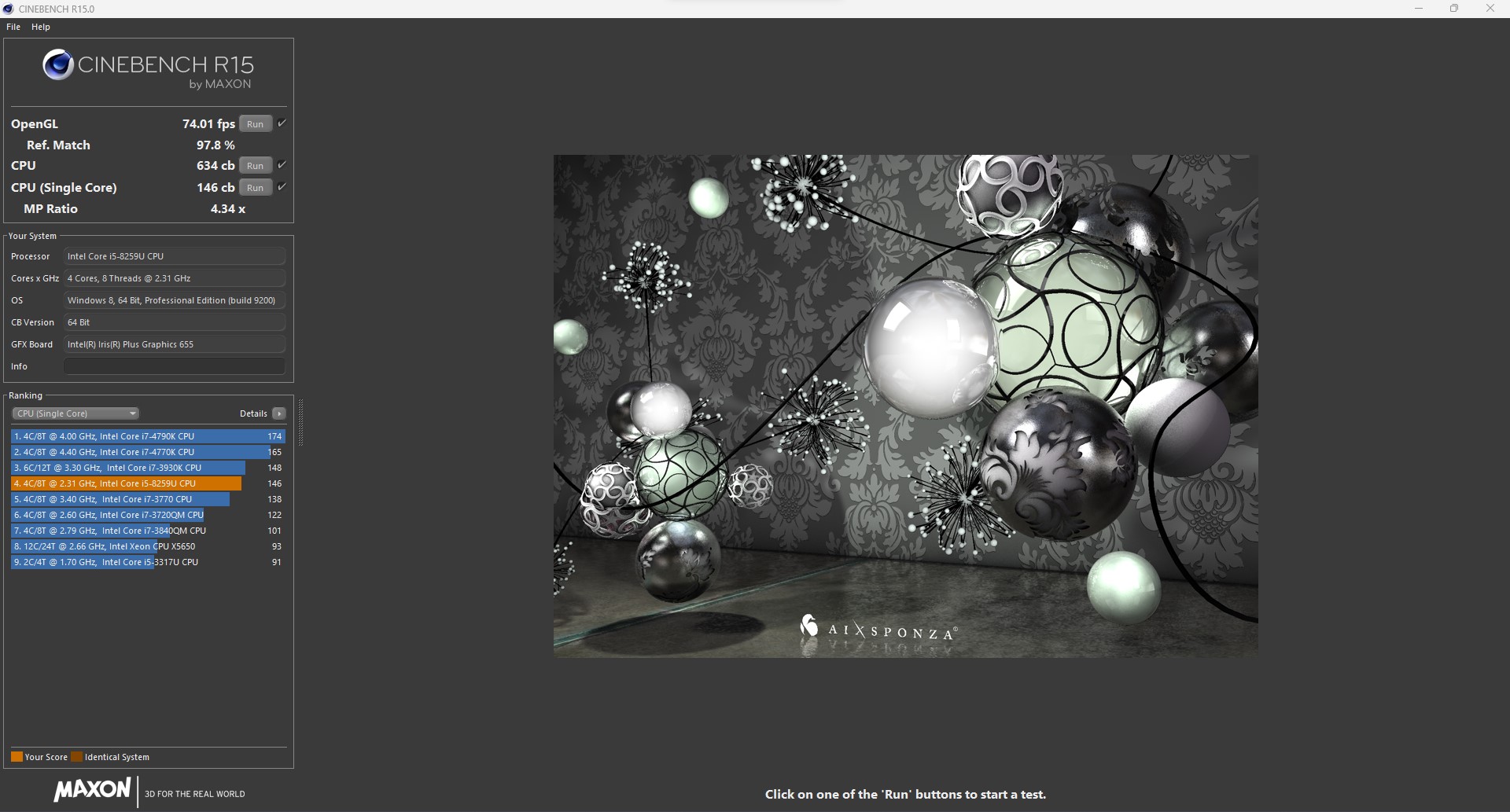

Cinebench R15
CPU Single 64Bit
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	240 Points ∼73% +64%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	223 Points ∼68% +53%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	212 Points ∼65% +45%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	197 Points ∼60% +35%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	170 Points ∼52% +16%
Average Intel Core i5-8259U (132 - 154, n=6)	147.1 Points ∼45% +1%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	146 Points ∼45%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	123 Points ∼38% -16%
CPU Multi 64Bit
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1919 (1862.02^min - 1893.4^max) Points ∼20% +203%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1265 Points ∼13% +100%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	950 Points ∼10% +50%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	634 Points ∼7%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	623 Points ∼6% -2%
Average Intel Core i5-8259U (575 - 687, n=7)	622 Points ∼6% -2%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	560 Points ∼6% -12%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	408 Points ∼4% -36%

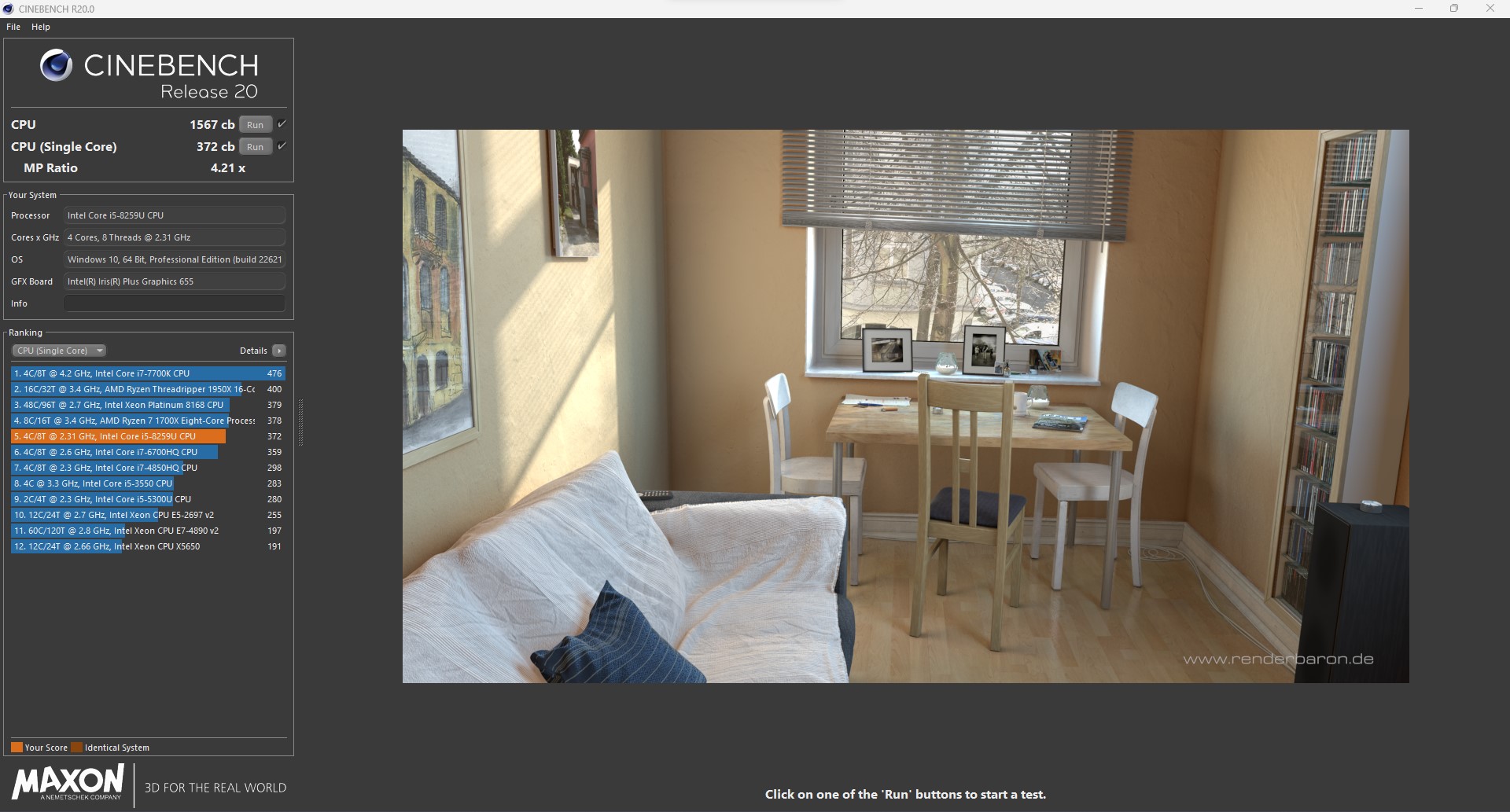

Cinebench R20
CPU (Single Core)
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	567 Points ∼65% +52%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	560 Points ∼64% +51%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	534 Points ∼61% +44%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	517 Points ∼59% +39%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	415 Points ∼48% +12%
Average Intel Core i5-8259U (369 - 386, n=5)	378 Points ∼43% +2%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	372 Points ∼43%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	241 Points ∼28% -35%
CPU (Multi Core)
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	4495 Points ∼19% +187%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	2975 Points ∼13% +90%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	2319 Points ∼10% +48%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	1567 Points ∼7%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	1498 Points ∼6% -4%
Average Intel Core i5-8259U (1385 - 1567, n=5)	1473 Points ∼6% -6%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1440 Points ∼6% -8%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	976 Points ∼4% -38%

Cinebench R11.5
CPU Single 64Bit
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	2.8 Points ∼9% +68%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	2.64 Points ∼8% +58%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	2.51 Points ∼8% +50%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	2.31 Points ∼7% +38%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	1.95 Points ∼6% +17%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	1.67 Points ∼5%
Average Intel Core i5-8259U	1.67 Points ∼5% 0%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	1.49 Points ∼5% -11%
CPU Multi 64Bit
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	22 Points ∼31% +211%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	14.78 Points ∼21% +109%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	10.78 Points ∼15% +52%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	7.07 Points ∼10%
Average Intel Core i5-8259U	7.07 Points ∼10% 0%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	6.98 Points ∼10% -1%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	6.37 Points ∼9% -10%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	5.18 Points ∼7% -27%

Cinebench R10
Rendering Single CPUs 64Bit
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	11811 Points ∼64% +60%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	11457 Points ∼62% +55%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	11098 Points ∼60% +50%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	10395 Points ∼57% +41%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	8591 Points ∼47% +16%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	7397 Points ∼40%
Average Intel Core i5-8259U	7397 Points ∼40% 0%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	6562 Points ∼36% -11%
Rendering Multiple CPUs 64Bit
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	64320 Points ∼46% +135%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	45363 Points ∼33% +66%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	42350 Points ∼30% +55%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	27377 Points ∼20%
Average Intel Core i5-8259U	27377 Points ∼20% 0%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	24499 Points ∼18% -11%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	23491 Points ∼17% -14%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	20429 Points ∼15% -25%

Blender - v2.79 BMW27 CPU
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	1152 Seconds * ∼8% -67%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	750 Seconds * ∼5% -9%
Average Intel Core i5-8259U (688 - 769, n=6)	730 Seconds * ∼5% -6%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	694 Seconds * ∼5% -1%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	688 Seconds * ∼5%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	516 Seconds * ∼4% +25%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	399 Seconds * ∼3% +42%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	265 Seconds * ∼2% +61%

wPrime 2.10
32m
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	16.449 s * ∼3% -120%
Average Intel Core i5-8259U	7.48 s * ∼2% -0%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	7.479 s * ∼2%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	6.952 s * ∼1% +7%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	6.799 s * ∼1% +9%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5.895 s * ∼1% +21%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5.377 s * ∼1% +28%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	4.4 s * ∼1% +41%
1024m
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	535.88 s * ∼6% -116%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	286.835 s * ∼3% -15%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	267.369 s * ∼3% -8%
Average Intel Core i5-8259U	249 s * ∼3% -0%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	248.619 s * ∼3%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	191.4 s * ∼2% +23%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	156.33 s * ∼2% +37%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	106.7 s * ∼1% +57%

X264 HD Benchmark 4.0
Pass 1
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	276.5 (274^min - 278^max) fps ∼65% +65%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	234 (233^min - 235^max) fps ∼55% +39%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	167.95 (167.5^min - 172.9^max) fps ∼39%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	165.55 (163.6^min - 204^max) fps ∼39% -1%
Average Intel Core i5-8259U (162.3 - 168, n=2)	165.1 fps ∼39% -2%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	145.25 (144.9^min - 145.6^max) fps ∼34% -14%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	141.6 (140.9^min - 163.1^max) fps ∼33% -16%
Pass 2
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	112 (112^min - 112^max) fps ∼41% +177%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	76 (75.7^min - 76.3^max) fps ∼28% +88%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	40.5 (39.6^min - 43.1^max) fps ∼15%
Average Intel Core i5-8259U (38.5 - 40.5, n=2)	39.5 fps ∼14% -2%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	39.15 (39.1^min - 42.7^max) fps ∼14% -3%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	36.7 (36.7^min - 37.6^max) fps ∼13% -9%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	29.65 (29.5^min - 29.7^max) fps ∼11% -27%

WinRAR - Result
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7722 KB/s ∼45% +44%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6877 KB/s ∼40% +29%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5481 KB/s ∼32% +2%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	5348 KB/s ∼31%
Average Intel Core i5-8259U	5348 KB/s ∼31% 0%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	4747 KB/s ∼27% -11%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4185 KB/s ∼24% -22%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	2181 KB/s ∼13% -59%

TrueCrypt
AES Mean 100MB
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	10.8 GB/s ∼33% +163%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	7.7 GB/s ∼24% +88%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	6.1 GB/s ∼19% +49%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	5.9 GB/s ∼18% +44%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5.3 GB/s ∼16% +29%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	4.1 GB/s ∼13%
Average Intel Core i5-8259U	4.1 GB/s ∼13% 0%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	2.4 GB/s ∼7% -41%
Twofish Mean 100MB
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1.6 GB/s ∼0% +112%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1.1 GB/s ∼0% +46%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	1 GB/s ∼0% +33%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	0.919 GB/s ∼0% +22%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.755 GB/s ∼0% 0%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	0.753 GB/s ∼0%
Average Intel Core i5-8259U	0.753 GB/s ∼0% 0%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	0.497 GB/s ∼0% -34%
Serpent Mean 100MB
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1.1 GB/s ∼0% +142%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	0.7 GB/s ∼0% +54%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	0.566 GB/s ∼0% +25%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	0.525 GB/s ∼0% +16%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	0.454 GB/s ∼0%
Average Intel Core i5-8259U	0.454 GB/s ∼0% 0%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.448 GB/s ∼0% -1%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	0.243 GB/s ∼0% -46%

Geekbench 5.4
Multi-Core
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7855 Points ∼27% +105%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6175 Points ∼21% +61%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5657 Points ∼20% +47%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4898 Points ∼17% +28%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	3934 Points ∼14% +2%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	3839 Points ∼13%
Average Intel Core i5-8259U (3359 - 3839, n=3)	3602 Points ∼13% -6%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	2391 Points ∼8% -38%
Single-Core
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1552 Points ∼67% +64%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	1453 Points ∼63% +53%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1430 Points ∼62% +51%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1391 Points ∼60% +47%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	1219 Points ∼53% +29%
Average Intel Core i5-8259U (948 - 984, n=3)	961 Points ∼42% +1%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	948 Points ∼41%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	804 Points ∼35% -15%

Geekbench 5.0
5.0 Multi-Core
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7847 Points ∼25% +106%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6117 Points ∼19% +61%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5606 Points ∼18% +47%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4841 Points ∼15% +27%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	3924 Points ∼12% +3%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	3811 Points ∼12%
Average Intel Core i5-8259U (3335 - 3811, n=3)	3571 Points ∼11% -6%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	2382 Points ∼8% -37%
5.0 Single-Core
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1504 Points ∼7% +59%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	1453 Points ∼6% +54%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1385 Points ∼6% +47%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1383 Points ∼6% +47%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	1220 Points ∼5% +29%
Average Intel Core i5-8259U (944 - 979, n=3)	957 Points ∼4% +1%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	944 Points ∼4%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	804 Points ∼3% -15%

Geekbench 4.1 - 4.4
64 Bit Single-Core Score
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	6434 Points ∼66% +53%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	6238 Points ∼64% +48%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5911 Points ∼61% +40%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5854 Points ∼60% +39%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	4762 Points ∼49% +13%
Average Intel Core i5-8259U (4200 - 4383, n=3)	4265 Points ∼44% +1%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	4211 Points ∼43%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	3591 Points ∼37% -15%
64 Bit Multi-Core Score
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	31724 Points ∼35% +112%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	24495 Points ∼27% +63%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	22045 Points ∼25% +47%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	19324 Points ∼22% +29%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	19288 Points ∼22% +29%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	14984 Points ∼17%
Average Intel Core i5-8259U (13421 - 14984, n=3)	14122 Points ∼16% -6%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	9662 Points ∼11% -36%

3DMark 11 - 1280x720 Performance Physics
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	16783 Points ∼45% +94%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	12608 Points ∼34% +45%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	11662 Points ∼32% +35%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	8666 Points ∼23%
Average Intel Core i5-8259U (7105 - 9276, n=6)	8348 Points ∼23% -4%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	7792 Points ∼21% -10%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	6537 Points ∼18% -25%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	5084 Points ∼14% -41%

7-Zip 18.03
7z b 4
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	54998 MIPS ∼34% +194%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	39207 MIPS ∼24% +109%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	26858 MIPS ∼17% +43%
Average Intel Core i5-8259U (17799 - 28824, n=6)	20778 MIPS ∼13% +11%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	20163 MIPS ∼12% +8%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	18729 MIPS ∼12%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	17636 MIPS ∼11% -6%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	11654 MIPS ∼7% -38%
7z b 4 -mmt1
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	5905 MIPS ∼71% +57%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5249 MIPS ∼63% +40%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	4945 MIPS ∼59% +32%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4788 MIPS ∼57% +28%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	4638 MIPS ∼55% +24%
Average Intel Core i5-8259U (3753 - 4022, n=6)	3949 MIPS ∼47% +5%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	3753 MIPS ∼45%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	3121 MIPS ∼37% -17%

HWBOT x265 Benchmark v2.2 - 4k Preset
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	14.5 fps ∼31% +164%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	10.1 fps ∼22% +84%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	7.86 fps ∼17% +43%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	5.49 fps ∼12%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5.26 fps ∼11% -4%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	5.2 fps ∼11% -5%
Average Intel Core i5-8259U (4.72 - 5.49, n=6)	5.19 fps ∼11% -5%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	3.03 fps ∼7% -45%

R Benchmark 2.5 - Overall mean
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	1.032 sec * ∼22% -26%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	0.818 sec * ∼18%
Average Intel Core i5-8259U (0.738 - 0.818, n=5)	0.779 sec * ∼17% +5%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	0.7 sec * ∼15% +14%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.639 sec * ∼14% +22%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	0.622 sec * ∼13% +24%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	0.537 sec * ∼12% +34%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	0.493 sec * ∼11% +40%

LibreOffice - 20 Documents To PDF
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	80.4 s * ∼20% -28%
Average Intel Core i5-8259U (62.7 - 76, n=5)	69.5 s * ∼18% -11%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	68.2 s * ∼17% -9%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	62.7 s * ∼16%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	52 s * ∼13% +17%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	51.1 s * ∼13% +19%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	50.4 s * ∼13% +20%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	48.7 s * ∼12% +22%

WebXPRT 3 - ---
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	274 Points ∼63% +50%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	257 Points ∼59% +41%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	255 Points ∼59% +40%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	236 Points ∼55% +29%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	205 Points ∼47% +12%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	182.4 Points ∼42%
Average Intel Core i5-8259U (173.3 - 182.4, n=5)	176.9 Points ∼41% -3%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	155.3 Points ∼36% -15%

Mozilla Kraken 1.1 - Total Score
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	1238 ms * ∼1% -14%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	1088 ms * ∼1%
Average Intel Core i5-8259U (1010 - 1095, n=5)	1054 ms * ∼1% +3%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	968 ms * ∼1% +11%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	724 ms * ∼1% +33%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	670 ms * ∼1% +38%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	646 ms * ∼1% +41%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	602 ms * ∼1% +45%

3DMark
3840x2160 Fire Strike Ultra Physics
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	23269 Points ∼43% +122%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	17568 Points ∼32% +67%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	13773 Points ∼25% +31%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	10500 Points ∼19%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	9561 Points ∼18% -9%
Average Intel Core i5-8259U (8488 - 10583, n=4)	9530 Points ∼18% -9%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	8470 Points ∼16% -19%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	5843 Points ∼11% -44%
1920x1080 Fire Strike Physics
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	23903 Points ∼44% +120%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	18076 Points ∼33% +66%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	13763 Points ∼25% +27%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	10860 Points ∼20%
Average Intel Core i5-8259U (8348 - 11006, n=6)	9726 Points ∼18% -10%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	9354 Points ∼17% -14%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	9003 Points ∼17% -17%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	5903 Points ∼11% -46%
2560x1440 Time Spy CPU
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	8191 Points ∼40% +145%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5443 Points ∼27% +63%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5210 Points ∼26% +56%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	3346 Points ∼17%
Average Intel Core i5-8259U (2752 - 3346, n=6)	3096 Points ∼15% -7%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	2867 Points ∼14% -14%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	2728 Points ∼13% -18%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	2081 Points ∼10% -38%

* ... im mniej tym lepiej

Performance Rating
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	96.5 pt ∼97%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	67.3 pt ∼67%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	57.9 pt ∼58%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	45.7 pt ∼46%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	36.9 pt ∼37%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	34.9 pt ∼35%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	7.3 pt ∼7%

AIDA64 / FP32 Ray-Trace
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	13460 KRay/s ∼100% +157%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	9086 KRay/s ∼68% +73%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	7489 KRay/s ∼56% +43%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	5612 KRay/s ∼42% +7%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	5247 KRay/s ∼39%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	4654 KRay/s ∼35% -11%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	744 KRay/s ∼6% -86%

AIDA64 / FPU Julia
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	85294 Points ∼100% +226%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	57375 Points ∼67% +119%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	31637 Points ∼37% +21%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	26251 Points ∼31% 0%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	26145 Points ∼31%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	24138 Points ∼28% -8%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	3970 Points ∼5% -85%

AIDA64 / CPU SHA3
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	2924 MB/s ∼100% +114%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	2099 MB/s ∼72% +54%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	1971 MB/s ∼67% +44%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	1649 MB/s ∼56% +21%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	1367 MB/s ∼47%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	1052 MB/s ∼36% -23%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	270 MB/s ∼9% -80%

AIDA64 / CPU Queen
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	94655 Points ∼100% +120%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	67224 Points ∼71% +56%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	56561 Points ∼60% +31%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	52477 Points ∼55% +22%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	46646 Points ∼49% +8%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	43072 Points ∼46%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	8178 Points ∼9% -81%

AIDA64 / FPU SinJulia
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	11929 Points ∼100% +177%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	8294 Points ∼70% +92%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	5011 Points ∼42% +16%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	4648 Points ∼39% +8%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	4310 Points ∼36%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	3964 Points ∼33% -8%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	408 Points ∼3% -91%

AIDA64 / FPU Mandel
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	47010 Points ∼100% +264%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	31389 Points ∼67% +143%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	18770 Points ∼40% +45%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	14905 Points ∼32% +15%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	12914 Points ∼27%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	12560 Points ∼27% -3%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	1987 Points ∼4% -85%

AIDA64 / CPU AES
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	115382 MB/s ∼100% +606%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	78211 MB/s ∼68% +378%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	76500 MB/s ∼66% +368%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	58910 MB/s ∼51% +260%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	17907 MB/s ∼16% +9%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	16354 MB/s ∼14%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	7954 MB/s ∼7% -51%

AIDA64 / CPU ZLib
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	747 MB/s ∼100% +136%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	505 MB/s ∼68% +60%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	410 MB/s ∼55% +30%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	316 MB/s ∼42%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	292 MB/s ∼39% -8%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	265 MB/s ∼35% -16%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	74.9 MB/s ∼10% -76%

AIDA64 / FP64 Ray-Trace
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	7193 KRay/s ∼100% +160%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	4636 KRay/s ∼64% +67%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	4021 KRay/s ∼56% +45%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	2997 KRay/s ∼42% +8%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	2771 KRay/s ∼39%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	2527 KRay/s ∼35% -9%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	412 KRay/s ∼6% -85%

AIDA64 / CPU PhotoWorxx
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	30647 MPixel/s ∼100% +105%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	26959 MPixel/s ∼88% +80%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	19885 MPixel/s ∼65% +33%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	19395 MPixel/s ∼63% +29%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	14986 MPixel/s ∼49%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	10107 MPixel/s ∼33% -33%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	4408 MPixel/s ∼14% -71%

ACEMagician ACE-CK10-8259U w pętli multi Cinebench R15

Wbudowany wentylator nie miał problemów z utrzymaniem Intel Core i5-8259Upod kontrolą. Podsumowując, faktycznie mogliśmy zaobserwować nawet nieco lepszy wynik niż w przypadku NiPoGi CK10 z natywnym 6-rdzeniowym procesorem. Mimo to producent zdecydował się również na bardzo konserwatywne prowadzenie SoC pod względem limitu mocy. Ze średnią 621 punktów, jego wydajność była niezwykle stabilna na przestrzeni wszystkich 50 przebiegów.

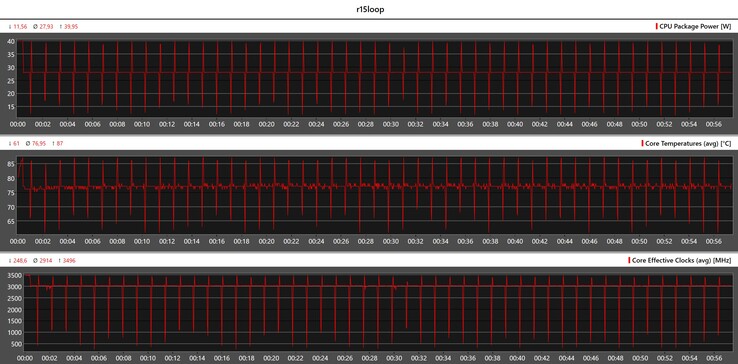

Metryka procesora podczas pętli Cinebench R15

ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Intel Core i5-8259U: Ø621 (611.68-659.87)

Morefine S500+ AMD Ryzen 9 5900HX, AMD Ryzen 9 5900HX: Ø1892 (1879.35-1907.49)

Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Core i5-11320H: Ø896 (837.78-960.71)

Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Ryzen 5 5600U: Ø1158 (1130.29-1266.62)

Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Core i5-1135G7: Ø574 (568.03-615.59)

Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel Core i7-10810U: Ø612 (604.67-652.86)

Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, Intel Processor N95: Ø404 (398.46-406.91)

Wydajność systemu

Wiek zainstalowanego SoC uwidocznił się również w benchmarkach systemowych. Nowsze modele były tu wyraźnie szybsze. Jedynie NiPoGi GK3PLUS mógł zostać pokonany. Jest on oparty na bardzo oszczędnym Intelu N95, który zdobył punkty dzięki swojej wydajności. Subiektywnie oceniając, zostaliśmy pozytywnie zaskoczeni jego czystą wydajnością systemową w codziennych zadaniach. Rzekomo gorszy i przestarzały SoC spisywał się dobrze, a płynna praca była możliwa w każdym momencie.

PCMark 10: Score | Essentials | Productivity

PCMark 10 / Score
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	6290 Points ∼100% +52%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	5761 Points ∼92% +39%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	5130 Points ∼82% +24%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	4521 Points ∼72% +9%
ACEMagician ACE-CK10-8259U, Intel Core i5-8259U Intel Iris Plus Graphics 655, FPT330M8SSD512G	4132 Points ∼66%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	3884 Points ∼62% -6%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Kimtigo KTB900SM28/512GB	2983 Points ∼47% -28%

PCMark 10 / Essentials
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	10385 Points ∼100% +26%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	10087 Points ∼97% +23%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	9556 Points ∼92% +16%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	8910 Points ∼86% +8%
ACEMagician ACE-CK10-8259U, Intel Core i5-8259U Intel Iris Plus Graphics 655, FPT330M8SSD512G	8215 Points ∼79%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	7469 Points ∼72% -9%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Kimtigo KTB900SM28/512GB	6650 Points ∼64% -19%

PCMark 10 / Productivity
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	9856 Points ∼100% +65%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	9539 Points ∼97% +60%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	6832 Points ∼69% +14%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	6657 Points ∼68% +11%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	6357 Points ∼64% +6%
ACEMagician ACE-CK10-8259U, Intel Core i5-8259U Intel Iris Plus Graphics 655, FPT330M8SSD512G	5976 Points ∼61%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Kimtigo KTB900SM28/512GB	4524 Points ∼46% -24%

Performance Rating: Percent
CrossMark: Overall | Responsiveness | Creativity | Productivity

Performance Rating
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	100 pt ∼100%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	95.6 pt ∼96%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	91.7 pt ∼92%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	72.2 pt ∼72%
ACEMagician ACE-CK10-8259U, Intel Core i5-8259U Intel Iris Plus Graphics 655, FPT330M8SSD512G	68.5 pt ∼69%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Kimtigo KTB900SM28/512GB	49.2 pt ∼49%

CrossMark / Overall
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1373 Points ∼100% +44%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1300 Points ∼95% +36%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1245 Points ∼91% +31%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	1018 Points ∼74% +7%
ACEMagician ACE-CK10-8259U, Intel Core i5-8259U Intel Iris Plus Graphics 655, FPT330M8SSD512G	954 Points ∼69%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Kimtigo KTB900SM28/512GB	666 Points ∼49% -30%

CrossMark / Responsiveness
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1263 Points ∼100% +59%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1260 Points ∼100% +58%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1224 Points ∼97% +54%
ACEMagician ACE-CK10-8259U, Intel Core i5-8259U Intel Iris Plus Graphics 655, FPT330M8SSD512G	796 Points ∼63%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	779 Points ∼62% -2%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Kimtigo KTB900SM28/512GB	661 Points ∼52% -17%

CrossMark / Creativity
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1379 Points ∼100% +34%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1241 Points ∼90% +21%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1193 Points ∼87% +16%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	1038 Points ∼75% +1%
ACEMagician ACE-CK10-8259U, Intel Core i5-8259U Intel Iris Plus Graphics 655, FPT330M8SSD512G	1027 Points ∼74%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Kimtigo KTB900SM28/512GB	616 Points ∼45% -40%

CrossMark / Productivity
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1406 Points ∼100% +49%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1376 Points ∼98% +46%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1306 Points ∼93% +38%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	1092 Points ∼78% +16%
ACEMagician ACE-CK10-8259U, Intel Core i5-8259U Intel Iris Plus Graphics 655, FPT330M8SSD512G	943 Points ∼67%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Kimtigo KTB900SM28/512GB	721 Points ∼51% -24%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	48650 MB/s ∼100% +28%
Average Intel Core i5-8259U (37992 - 49395, n=4)	46216 MB/s ∼95% +22%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	41969 MB/s ∼86% +10%
Average of class Mini PC (6481 - 70620, n=43, last 2 years)	41244 MB/s ∼85% +9%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	37992 MB/s ∼78%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	35423 MB/s ∼73% -7%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	35051 MB/s ∼72% -8%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	18973 MB/s ∼39% -50%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	6481 MB/s ∼13% -83%

AIDA64 / Memory Read
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	46906 MB/s ∼100% +32%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	46701 MB/s ∼100% +32%
Average of class Mini PC (6914 - 65856, n=43, last 2 years)	42129 MB/s ∼90% +19%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	40348 MB/s ∼86% +14%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	38400 MB/s ∼82% +8%
Average Intel Core i5-8259U (35415 - 39382, n=4)	37919 MB/s ∼81% +7%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	35415 MB/s ∼76%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	19621 MB/s ∼42% -45%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	6914 MB/s ∼15% -80%

AIDA64 / Memory Write
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	50353 MB/s ∼100% +15%
Average Intel Core i5-8259U (43598 - 51980, n=4)	48814 MB/s ∼97% +12%
Average of class Mini PC (6862 - 66047, n=43, last 2 years)	43699 MB/s ∼87% 0%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	43598 MB/s ∼87%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	41806 MB/s ∼83% -4%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	39154 MB/s ∼78% -10%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	37475 MB/s ∼74% -14%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	18296 MB/s ∼36% -58%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	6862 MB/s ∼14% -84%

AIDA64 / Memory Latency
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	146 ns * ∼100% -142%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	95.7 ns * ∼66% -59%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	91.3 ns * ∼63% -51%
Average of class Mini PC (55.3 - 146, n=43, last 2 years)	84.8 ns * ∼58% -41%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	73.5 ns * ∼50% -22%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	69 ns * ∼47% -14%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	60.3 ns * ∼41%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	60.2 ns * ∼41% -0%
Average Intel Core i5-8259U (55.2 - 60.3, n=4)	56.6 ns * ∼39% +6%

* ... im mniej tym lepiej

Opóźnienie DPC

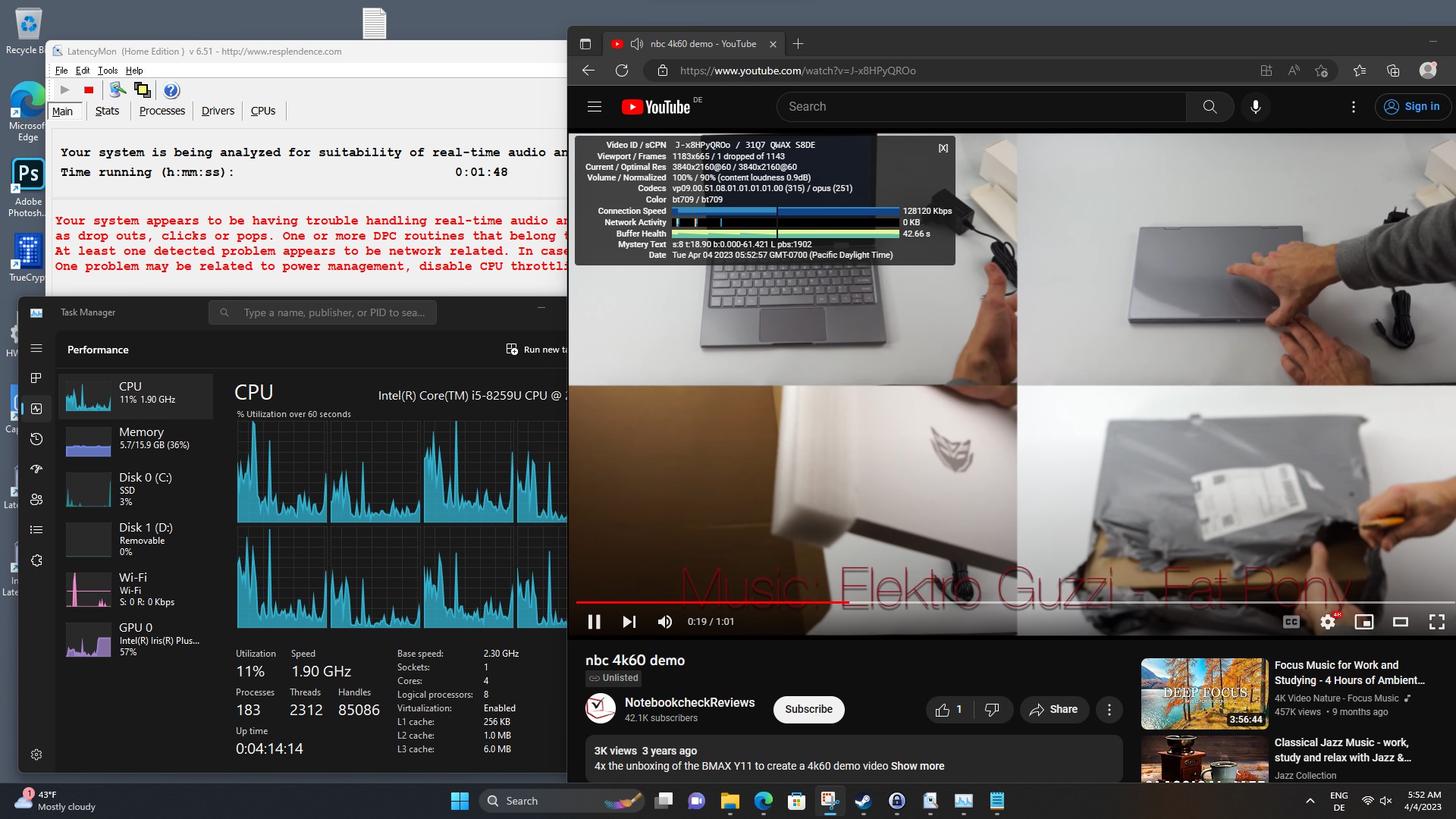

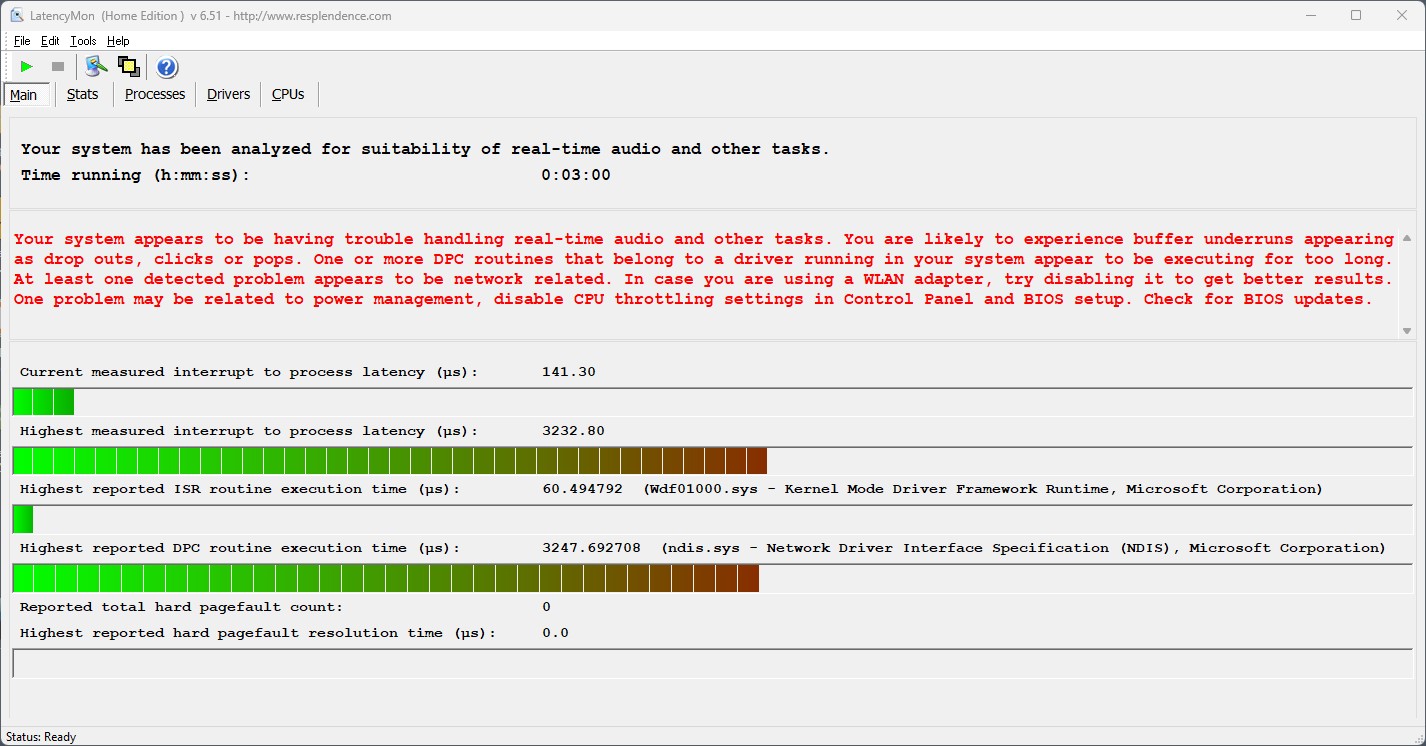

LatencyMon pokazał nam już zwiększone latencje podczas otwierania kilku kart za pomocą przeglądarki Edge. Latencje te nie wzrosły już bardziej podczas odtwarzania testowego filmu 4K z YouTube. Nie zaobserwowaliśmy żadnych spadków klatek, a procesor iGPUIntel Core i5-8259U był wykorzystywany w maksymalnie około 60%.

Maksymalne opóźnienia podczas otwierania wielu kart przeglądarki i odtwarzania wideo 4K.

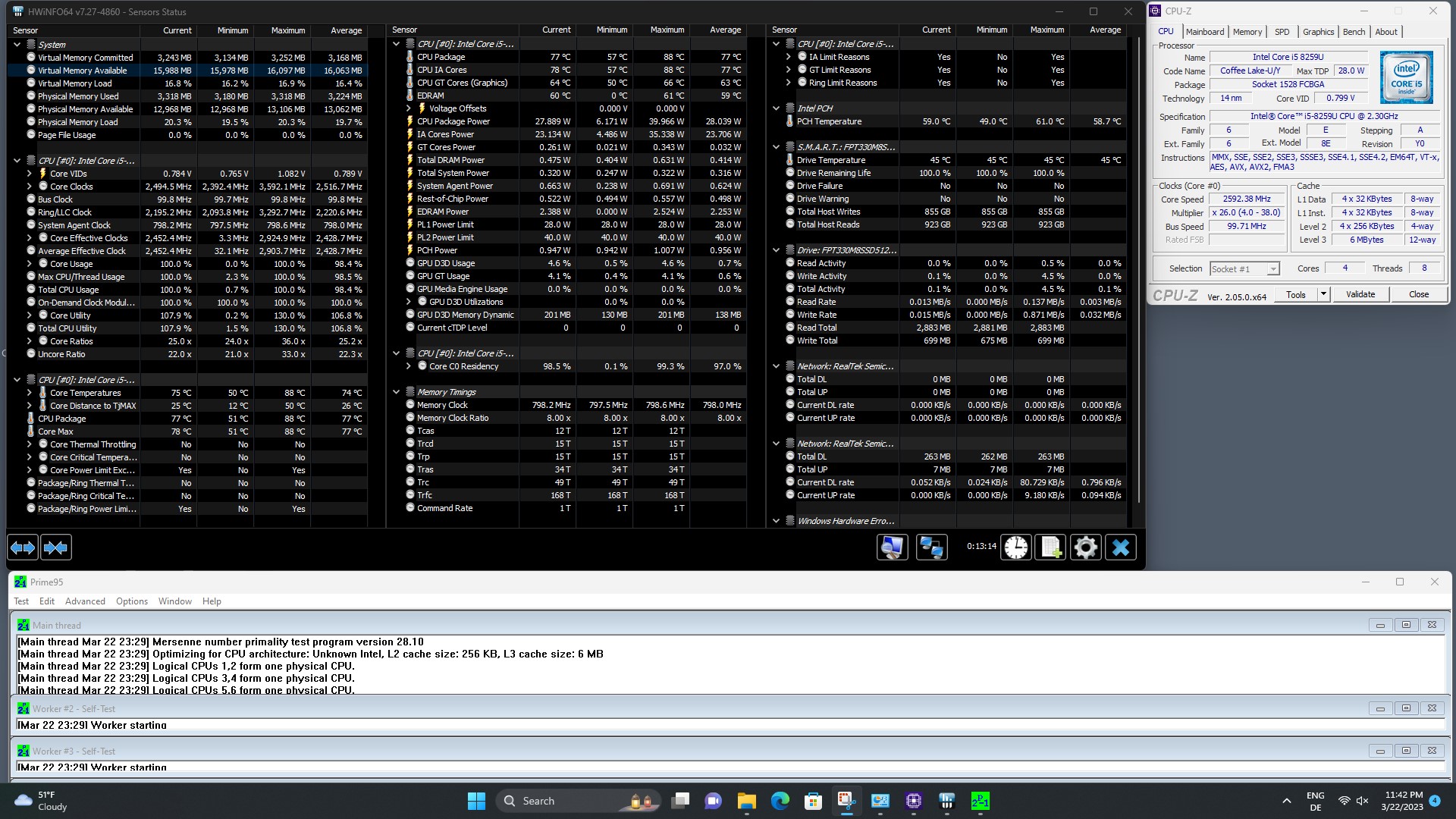

Maksymalne opóźnienia po dziesięciu sekundach Prime95

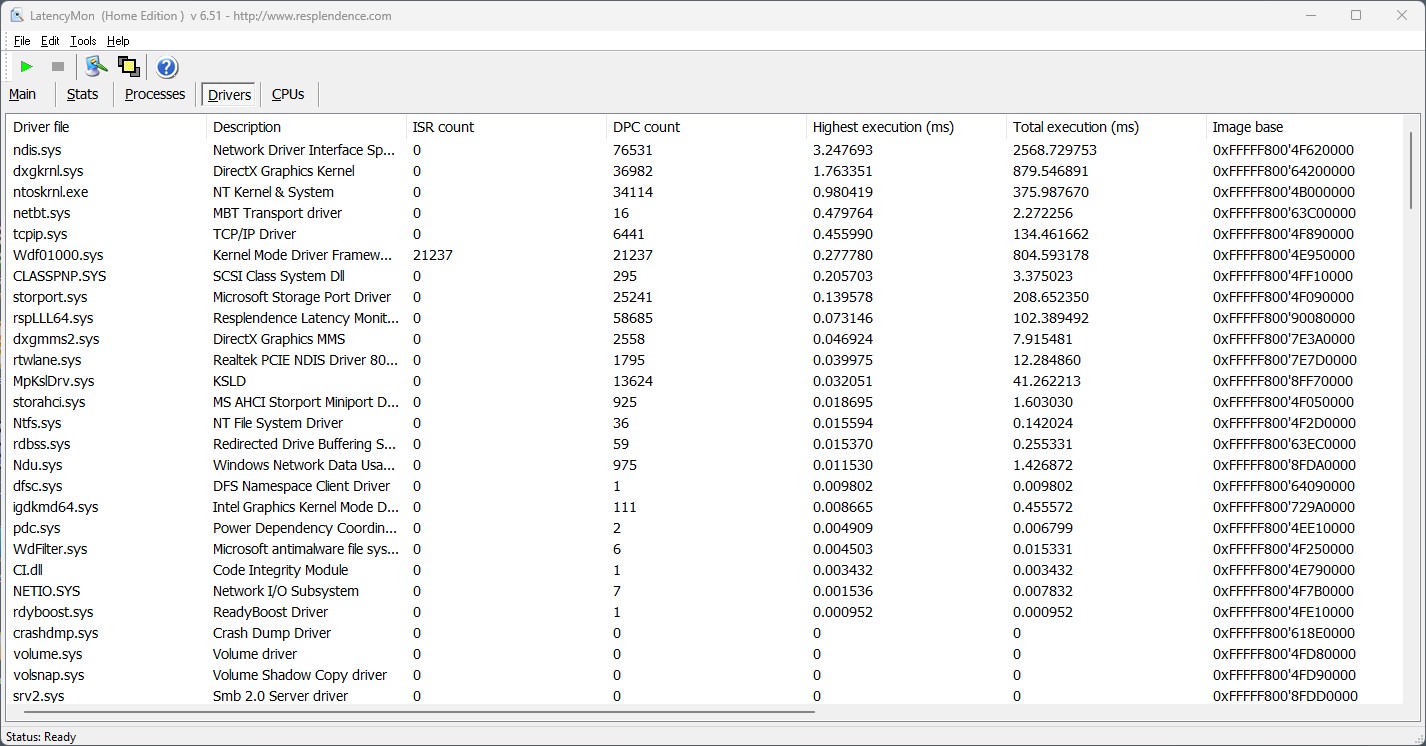

Kierowcy uszeregowani według najdłuższego czasu realizacji

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	7414 μs * ∼100% -128%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Kimtigo KTB900SM28/512GB	3463 μs * ∼47% -7%
ACEMagician ACE-CK10-8259U, Intel Core i5-8259U Intel Iris Plus Graphics 655, FPT330M8SSD512G	3247 μs * ∼44%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	1625 μs * ∼22% +50%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	765 μs * ∼10% +76%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	659.1 μs * ∼9% +80%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	349.5 μs * ∼5% +89%

* ... im mniej tym lepiej

Urządzenia pamięci masowej

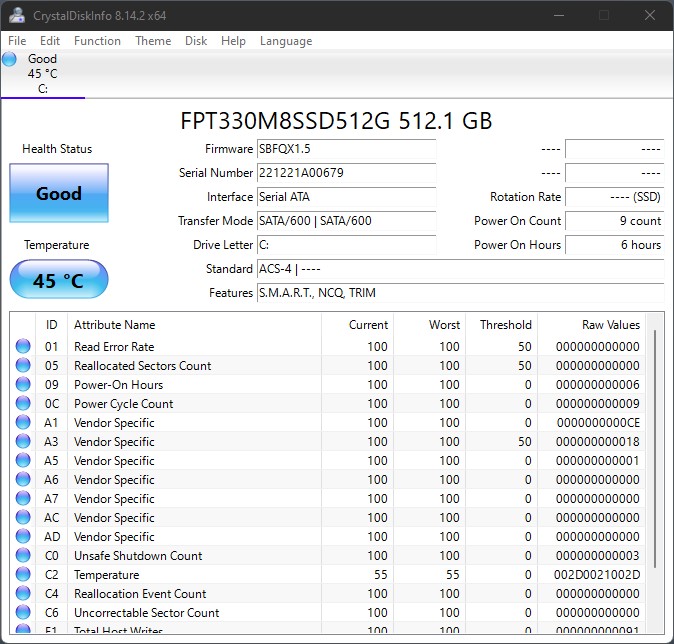

Nasz testowy egzemplarz został wyposażony w dysk SSD o pojemności 512 GB, o którym nie znamy więcej szczegółów. Zainstalowany dysk SSD wykorzystuje interfejs M.2-2280 i oferuje prędkość SATA, co dało się zauważyć w wynikach. Jego wada w porównaniu z szybszymi dyskami SSD NVMe stała się wyraźnie widoczna. Niemniej jednak w naszym teście mogliśmy zaobserwować stosunkowo dobrą wydajność odczytu 4K, co okazało się zaletą podczas ładowania wielu małych plików. Zainstalowany dysk SSD jest wyposażony w niewielki cooler. Wydaje się, że jest to skuteczne rozwiązanie, gdyż ciągła wydajność dysku SSD utrzymywała się na bardzo stałym poziomie. W sumie ACEMagician ACE-CK10-8259U może być wyposażony w maksymalnie trzy dyski SSD (2x M.2-2280, 1x 2,5 cala).

Aby zapoznać się z dalszymi porównaniami i benchmarkami, zajrzyjcie do naszej tabela porównawcza.

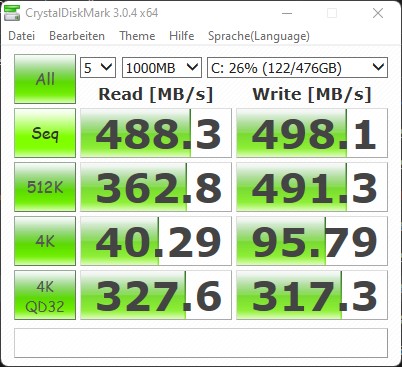

CrystalDiskMark 3.0

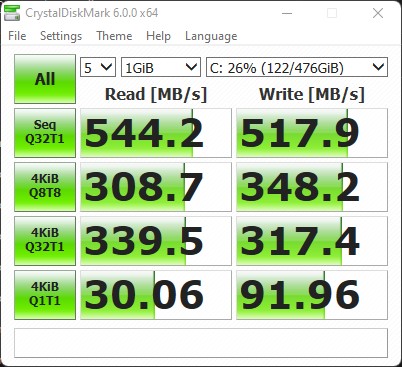

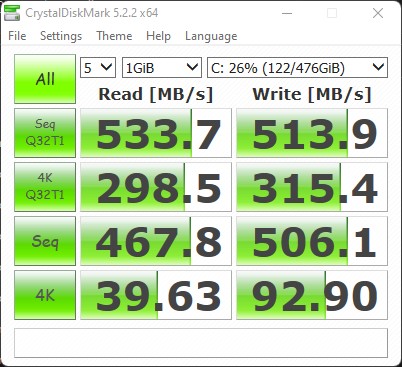

CrystalDiskMark 5.2 / 6

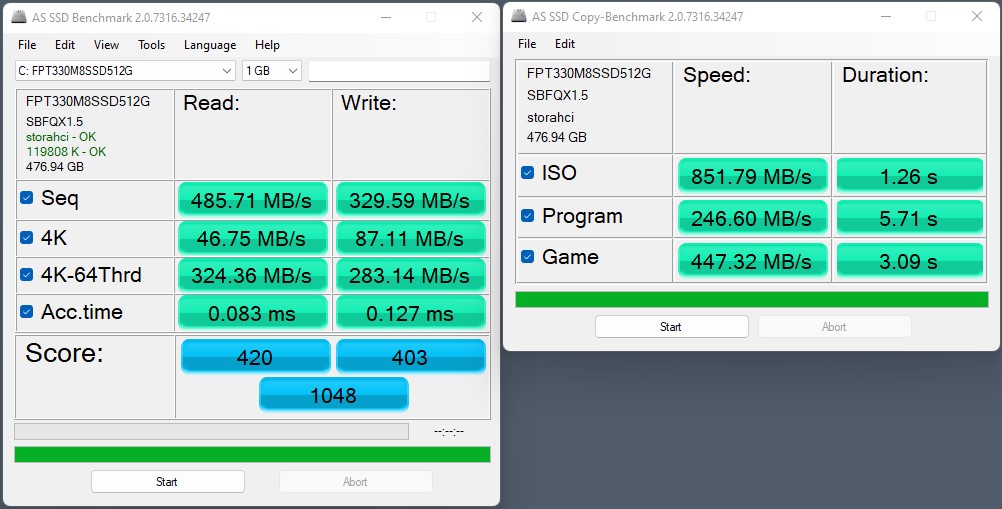

AS SSD

DiskSpd

FPT330M8SSD512G

Sequential Read: 488.3 MB/s

Sequential Write: 498.1 MB/s

512K Read: 362.8 MB/s

512K Write: 491.3 MB/s

4K Read: 40.29 MB/s

4K Write: 95.79 MB/s

4K QD32 Read: 327.6 MB/s

4K QD32 Write: 317.3 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	90.2 pt ∼90%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	88.5 pt ∼89%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	71 pt ∼71%
Minisforum EliteMini TH50 ^-11! Kingston OM8PDP3512B-AI1	65.8 pt ∼66%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	35.8 pt ∼36%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	30.1 pt ∼30%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	28.9 pt ∼29%

DiskSpd
seq read
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2184 (2176.42^min - 2183.52^max) MB/s ∼100% +371%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2082 (2067.58^min - 2082.23^max) MB/s ∼95% +349%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2034 (2023.33^min - 2033.61^max) MB/s ∼93% +338%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	1530 (1518.03^min - 1529.75^max) MB/s ∼70% +230%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	464 (407.92^min - 464.01^max) MB/s ∼21%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	459 (458.57^min - 459.41^max) MB/s ∼21% -1%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	311 (298.22^min - 311.01^max) MB/s ∼14% -33%
seq write
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1792 (1662.17^min - 1791.62^max) MB/s ∼100% +257%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1790 (1681.49^min - 1789.9^max) MB/s ∼100% +257%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1277 (1270.04^min - 1277.38^max) MB/s ∼71% +154%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	551 (548.61^min - 551.34^max) MB/s ∼31% +10%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	502 (311.64^min - 502.31^max) MB/s ∼28%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	494 (488.92^min - 494.36^max) MB/s ∼28% -2%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	439 (396.15^min - 438.89^max) MB/s ∼24% -13%
seq q8 t1 read
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2525 (2269.25^min - 2525.2^max) MB/s ∼100% +970%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2444 (2328.09^min - 2444.09^max) MB/s ∼97% +936%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	2353 (1911.6^min - 2353.12^max) MB/s ∼93% +897%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2167 (2086.44^min - 2166.57^max) MB/s ∼86% +818%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	504 (458.23^min - 504.4^max) MB/s ∼20% +114%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	444 (287.73^min - 443.55^max) MB/s ∼18% +88%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	236 (35.65^min - 236.35^max) MB/s ∼9%
seq q8 t1 write
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1790 (1687.16^min - 1790.13^max) MB/s ∼100% +250%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1769 (1687.39^min - 1768.92^max) MB/s ∼99% +246%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1316 (1309.25^min - 1315.54^max) MB/s ∼74% +157%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	553 (493.25^min - 553.44^max) MB/s ∼31% +8%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	519 (472.8^min - 519.47^max) MB/s ∼29% +1%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	512 (493.73^min - 511.73^max) MB/s ∼29%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	461 (421.95^min - 460.95^max) MB/s ∼26% -10%
4k q1 t1 read
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	48.2 (48.04^min - 48.16^max) MB/s ∼100% +27%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	45.1 (43.96^min - 45.09^max) MB/s ∼94% +18%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	38.8 (38.52^min - 38.82^max) MB/s ∼80% +2%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	38.2 (38.04^min - 38.15^max) MB/s ∼79% 0%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	38.1 (37.92^min - 38.07^max) MB/s ∼79%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	29.5 (29.27^min - 29.48^max) MB/s ∼61% -23%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	25.9 (25.82^min - 25.85^max) MB/s ∼54% -32%
4k q1 t1 write
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	218 (213.18^min - 217.95^max) MB/s ∼100% +140%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	210 (122.22^min - 209.88^max) MB/s ∼96% +131%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	196.3 (179.94^min - 196.31^max) MB/s ∼90% +116%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	138 (136.12^min - 137.6^max) MB/s ∼63% +52%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	96 (93.72^min - 96.04^max) MB/s ∼44% +6%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	90.9 (89.44^min - 90.91^max) MB/s ∼42%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	81.9 (80.7^min - 81.87^max) MB/s ∼38% -10%
4k q32 t16 read
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1063 (1053.81^min - 1062.87^max) MB/s ∼100% +214%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1005 (1003.31^min - 1005.12^max) MB/s ∼95% +197%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	991 (989.79^min - 991.47^max) MB/s ∼93% +193%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	672 (664.88^min - 671.89^max) MB/s ∼63% +99%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	338 (299.48^min - 338.25^max) MB/s ∼32%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	296 (283.25^min - 295.59^max) MB/s ∼28% -12%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	260 (259.46^min - 259.7^max) MB/s ∼24% -23%
4k q32 t16 write
Morefine S500+ ADATA XPG Gammix S11L 1024GB	890 (860.72^min - 889.72^max) MB/s ∼100% +154%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	774 (725.33^min - 774.03^max) MB/s ∼87% +121%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	659 (650.84^min - 659.33^max) MB/s ∼74% +88%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	528 (477.23^min - 527.86^max) MB/s ∼59% +51%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	350 (206.15^min - 349.79^max) MB/s ∼39%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	329 (317.87^min - 329.01^max) MB/s ∼37% -6%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	259 (224.2^min - 258.97^max) MB/s ∼29% -26%

AS SSD
Score Total
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2887 Points ∼100% +175%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2797 Points ∼97% +167%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2248 Points ∼78% +115%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	1048 Points ∼36%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	736 Points ∼25% -30%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	181.49 (344^min) Points ∼6% -83%
Score Read
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1162 Points ∼100% +177%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1152 Points ∼99% +174%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	855 Points ∼74% +104%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	420 Points ∼36%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	382 Points ∼33% -9%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	232 Points ∼20% -45%
Score Write
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1169 Points ∼100% +190%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1059 Points ∼91% +163%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	992 Points ∼85% +146%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	403 Points ∼34%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	373 Points ∼32% -7%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	173 Points ∼15% -57%
Seq Read
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2260 MB/s ∼100% +365%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2204 MB/s ∼98% +353%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2048 MB/s ∼91% +321%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	490 MB/s ∼22% +1%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	486 MB/s ∼22%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	470 MB/s ∼21% -3%
Seq Write
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1644 MB/s ∼100% +398%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1603 MB/s ∼98% +386%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1254 MB/s ∼76% +280%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	484 MB/s ∼29% +47%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	400 MB/s ∼24% +21%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	330 MB/s ∼20%
4K Read
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	52.54 MB/s ∼100% +12%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	46.8 MB/s ∼89%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	42.04 MB/s ∼80% -10%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	39.71 MB/s ∼76% -15%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	27.6 MB/s ∼53% -41%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	27.5 MB/s ∼52% -41%
4K Write
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	185.32 MB/s ∼100% +113%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	144.1 MB/s ∼78% +65%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	121.3 MB/s ∼65% +39%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	87.1 MB/s ∼47%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	85.6 MB/s ∼46% -2%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	39.4 MB/s ∼21% -55%
4K-64 Read
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	891.59 MB/s ∼100% +175%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	883.24 MB/s ∼99% +173%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	622 MB/s ∼70% +92%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	324 MB/s ∼36%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	291.36 MB/s ∼33% -10%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	157.7 MB/s ∼18% -51%
4K-64 Write
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	823.51 MB/s ∼100% +191%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	750.4 MB/s ∼91% +165%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	745 MB/s ∼90% +163%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	283 MB/s ∼34%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	239 MB/s ∼29% -16%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	93.65 MB/s ∼11%

Recenzja mini PC ACEMagician ACE-CK10-8259U - cichy komputer biurowy z miejscem na nawet trzy dyski SSD

Potencjalni konkurenci w porównaniu

ACEMagician ACE-CK10-8259U w szczegółach

Sprawa

Porównanie wielkości

Łączność

Komunikacja

Akcesoria

Konserwacja

Wydajność

Warunki badania

Procesor

ACEMagician ACE-CK10-8259U w pętli multi Cinebench R15

Wydajność systemu

Opóźnienie DPC

Urządzenia pamięci masowej
