Recenzja Ace Magician T8Pro: Budżetowy mini PC do użytku biurowego

Producent systemów Minipc Union oferuje szeroką gamę kompaktowych komputerów PC do zastosowań od podstawowych zadań biurowych po budżetowe gry. Ace Magician T8Pro to bardzo kompaktowy mini PC napędzany przez procesor Intel Celeron N5095A. Urządzenie jest również wyposażone w 8 GB pamięci RAM i dysk SSD o pojemności 256 GB. Za urządzenie można spodziewać się zapłaty około 290 euro (309 dolarów), co jest uczciwą ceną w porównaniu z innymi kompaktowymi mini komputerami. Nie ma dostępnych innych wariantów - nie żebyśmy uważali, że jest to w każdym razie konieczne. Co więcej, system Windows 11 Pro jest wliczony w cenę.

Mini PC jest zapakowany w niewielkie pudełko, które zawiera również 65-watową ładowarkę i uchwyt VESA do montażu urządzenia na monitorze.

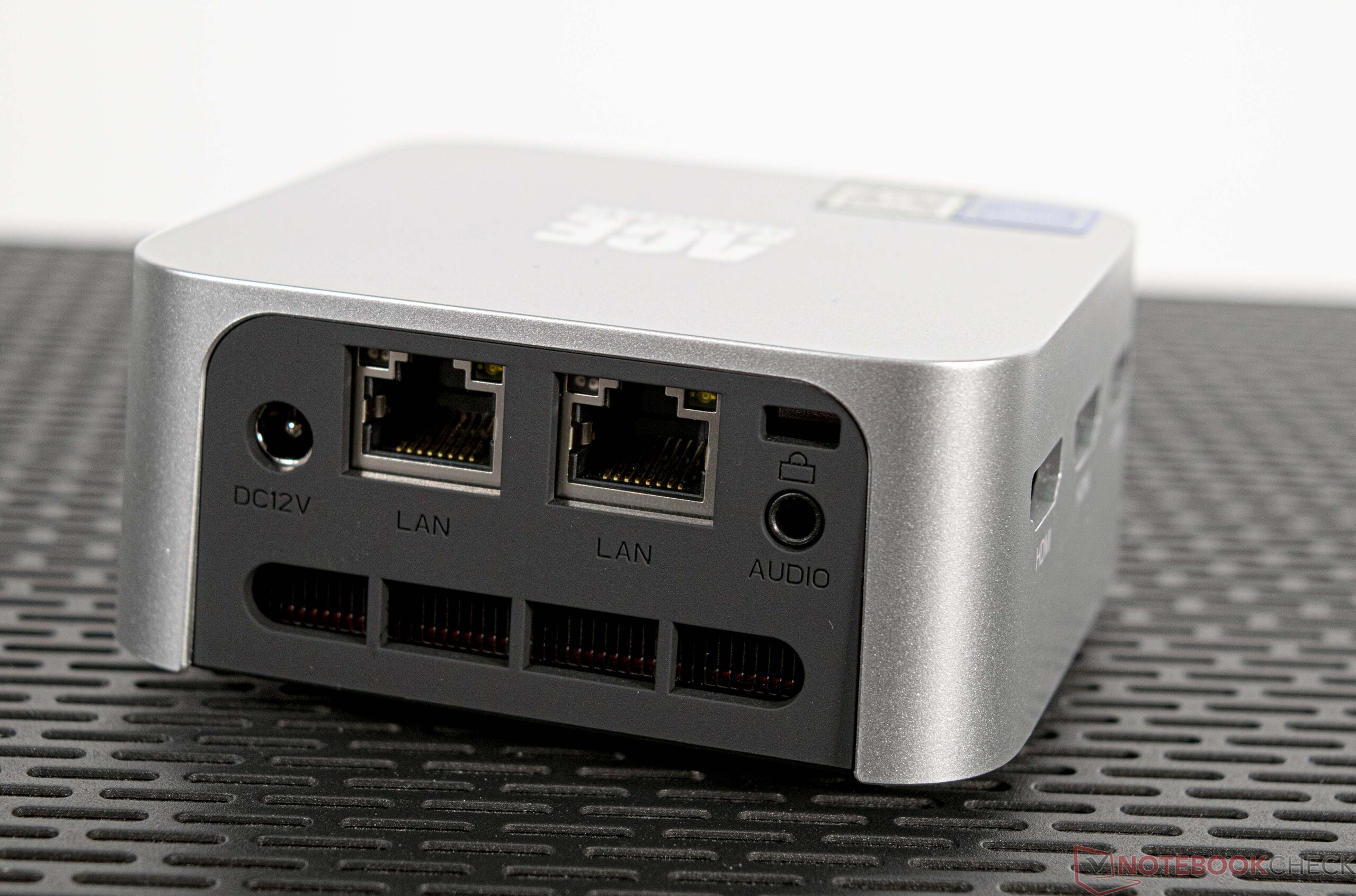

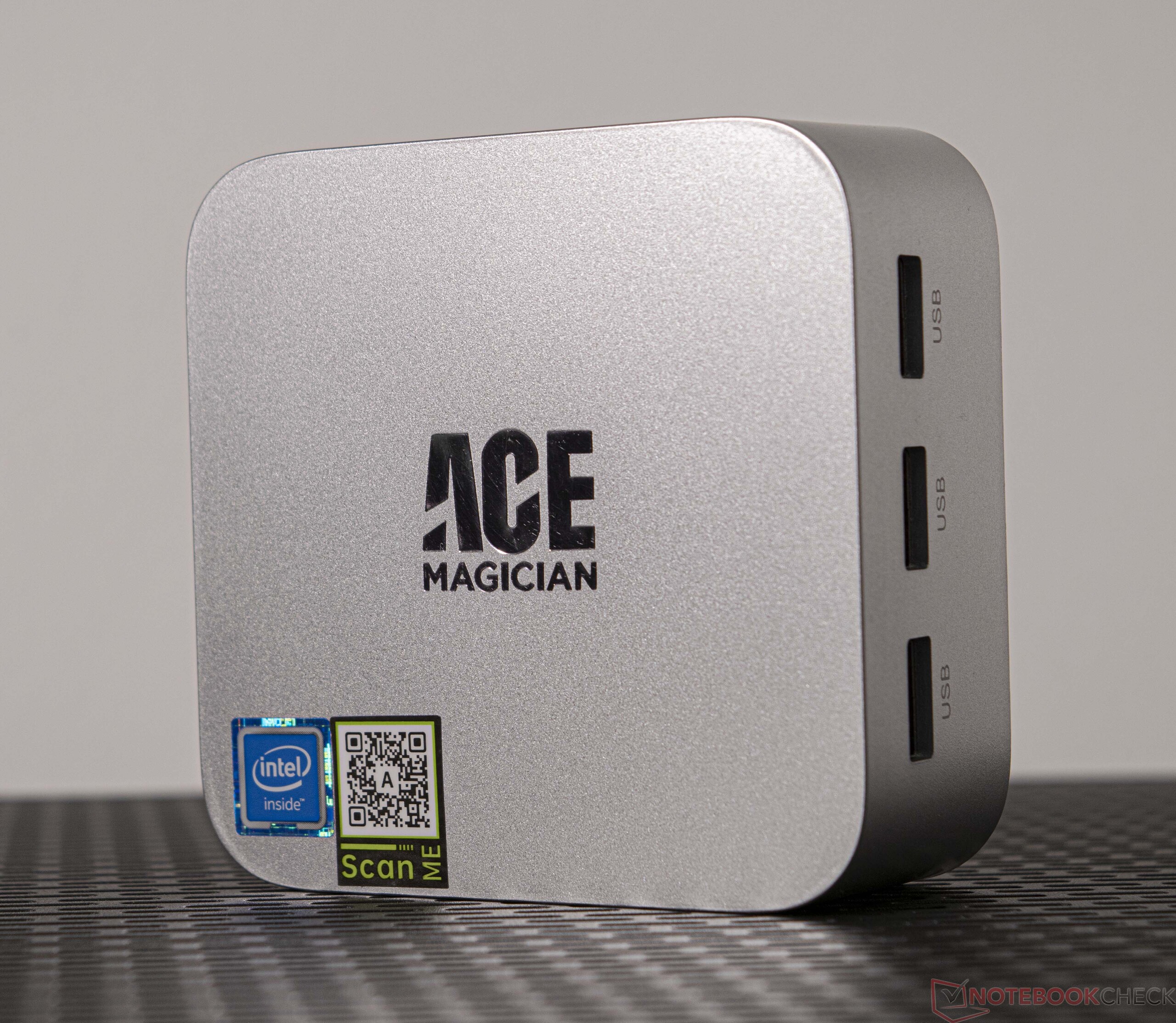

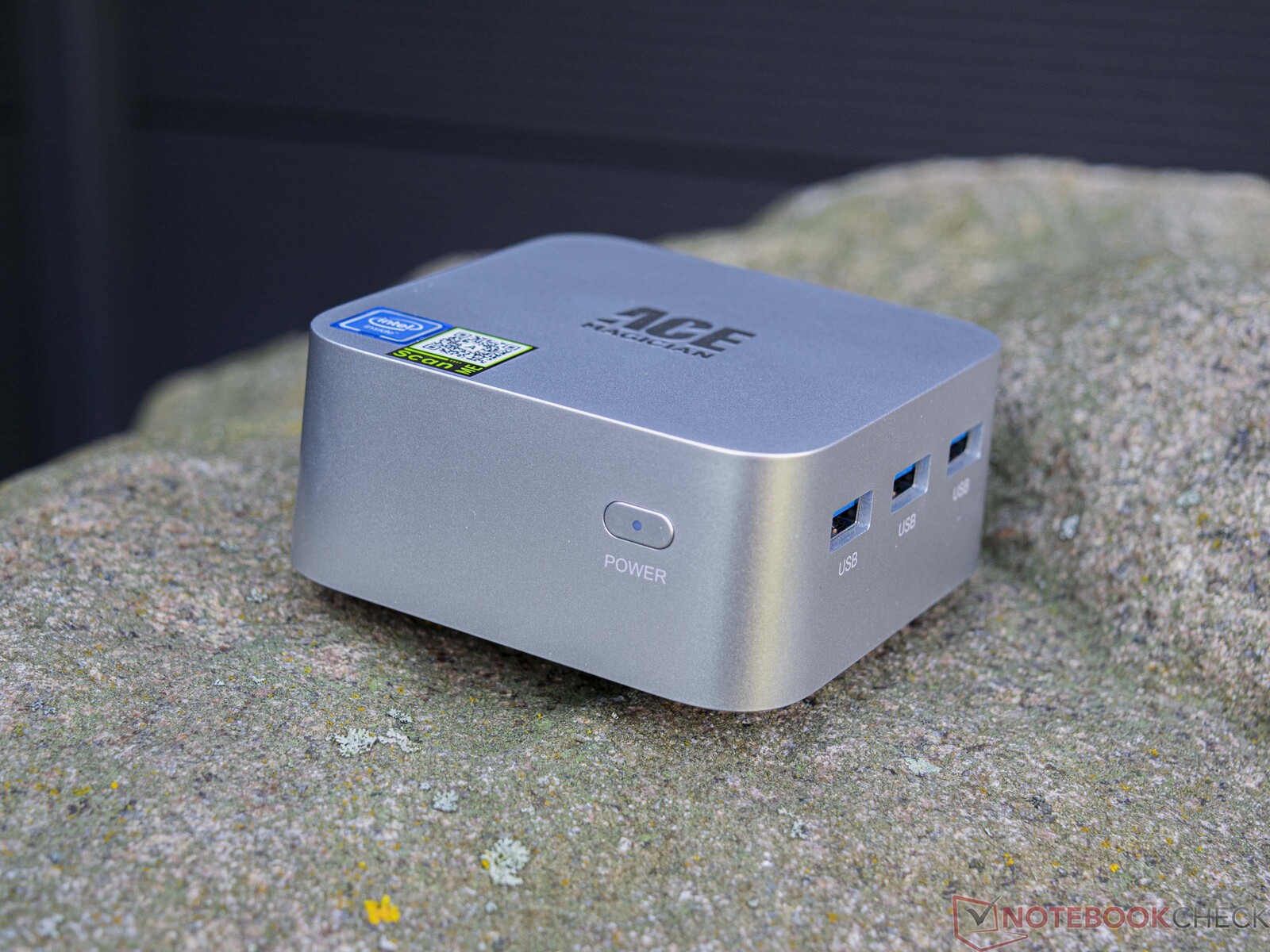

Sprawa

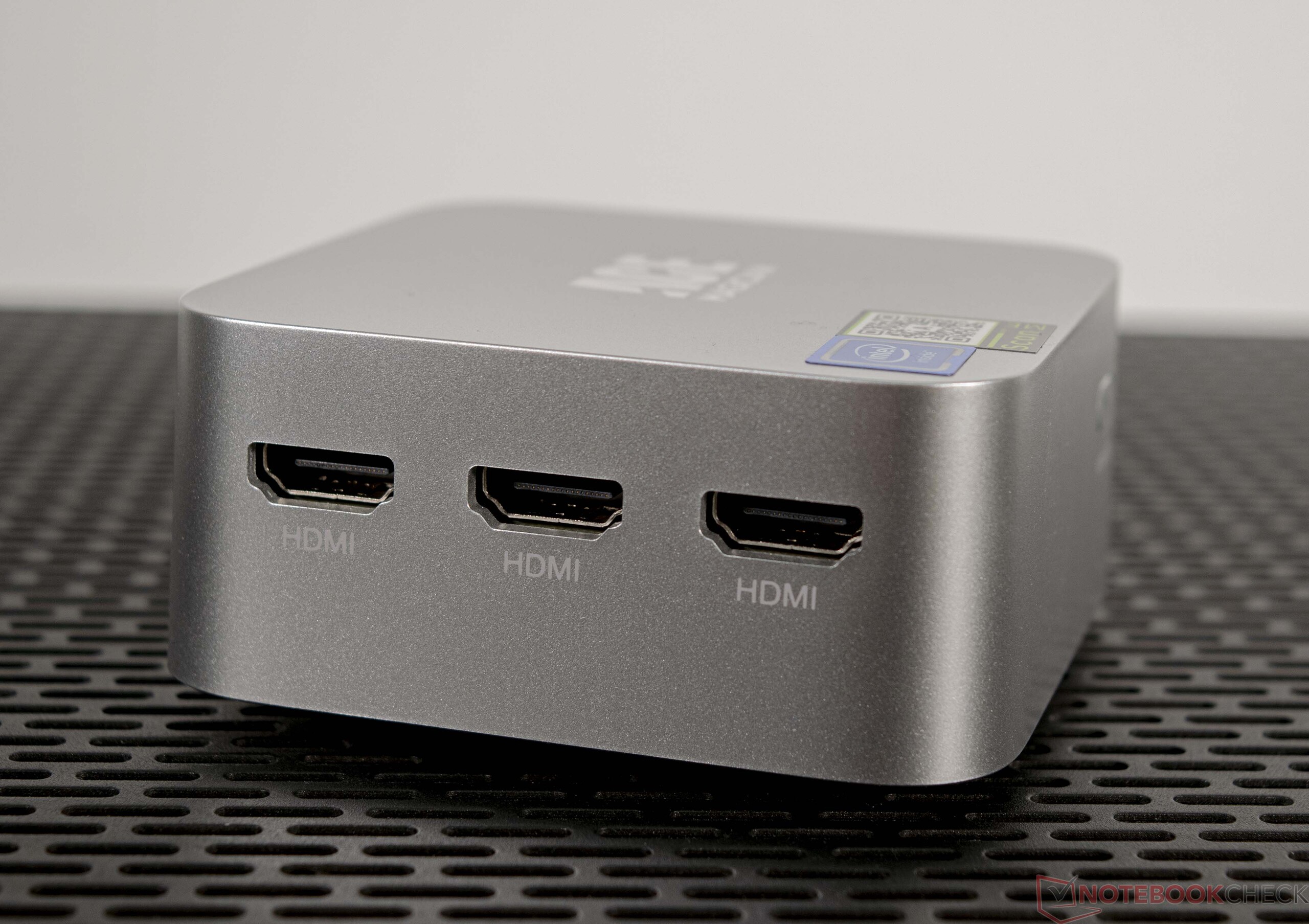

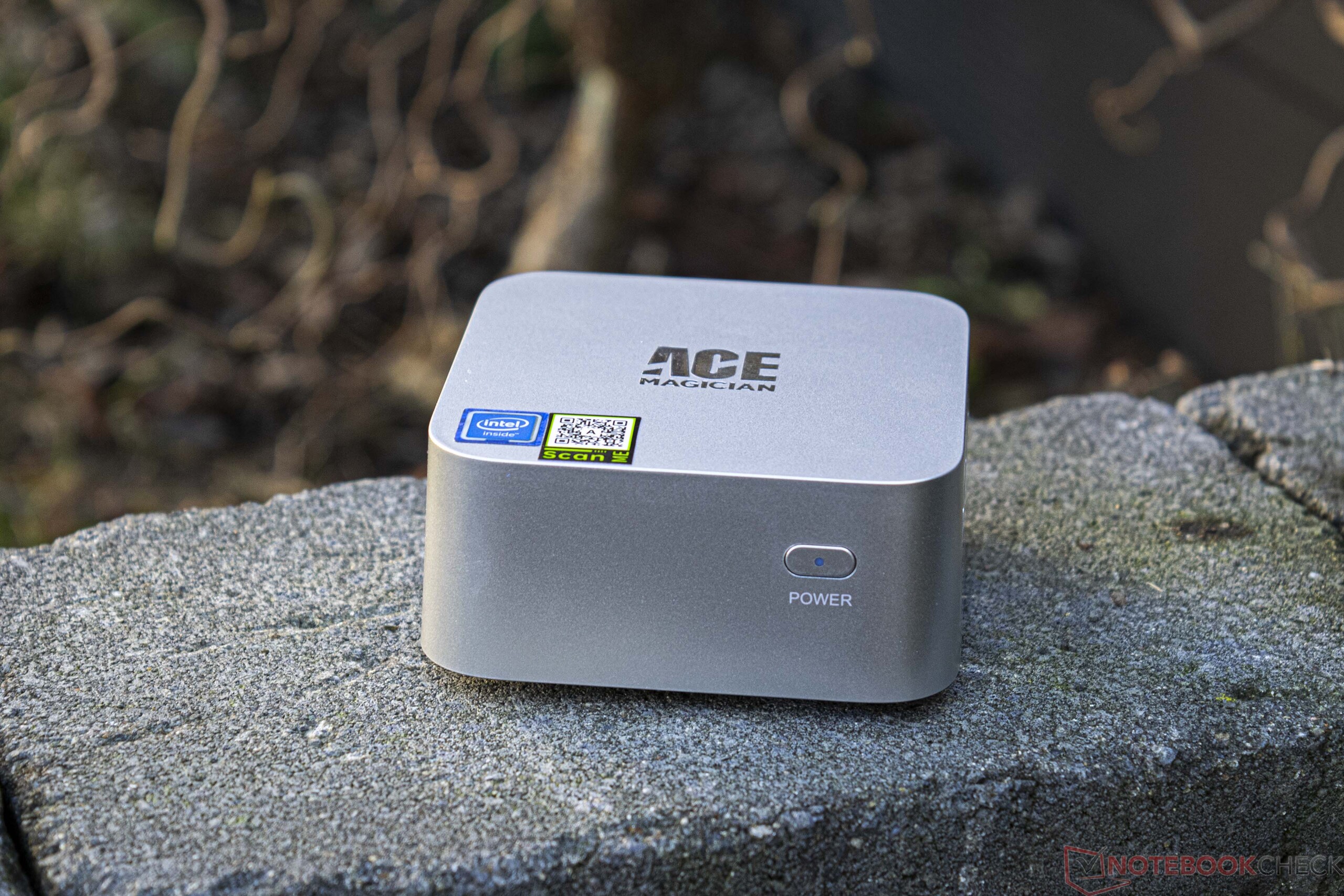

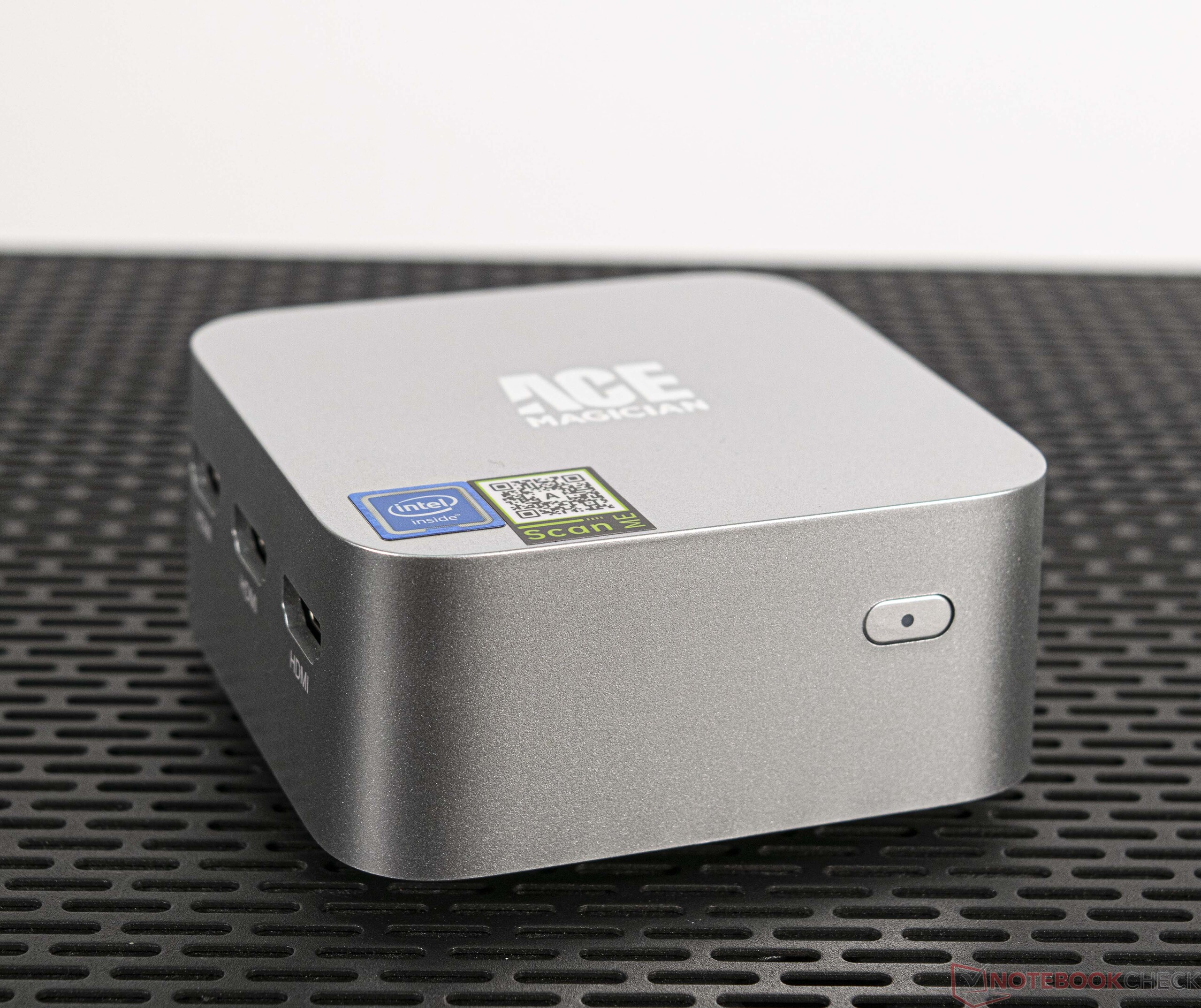

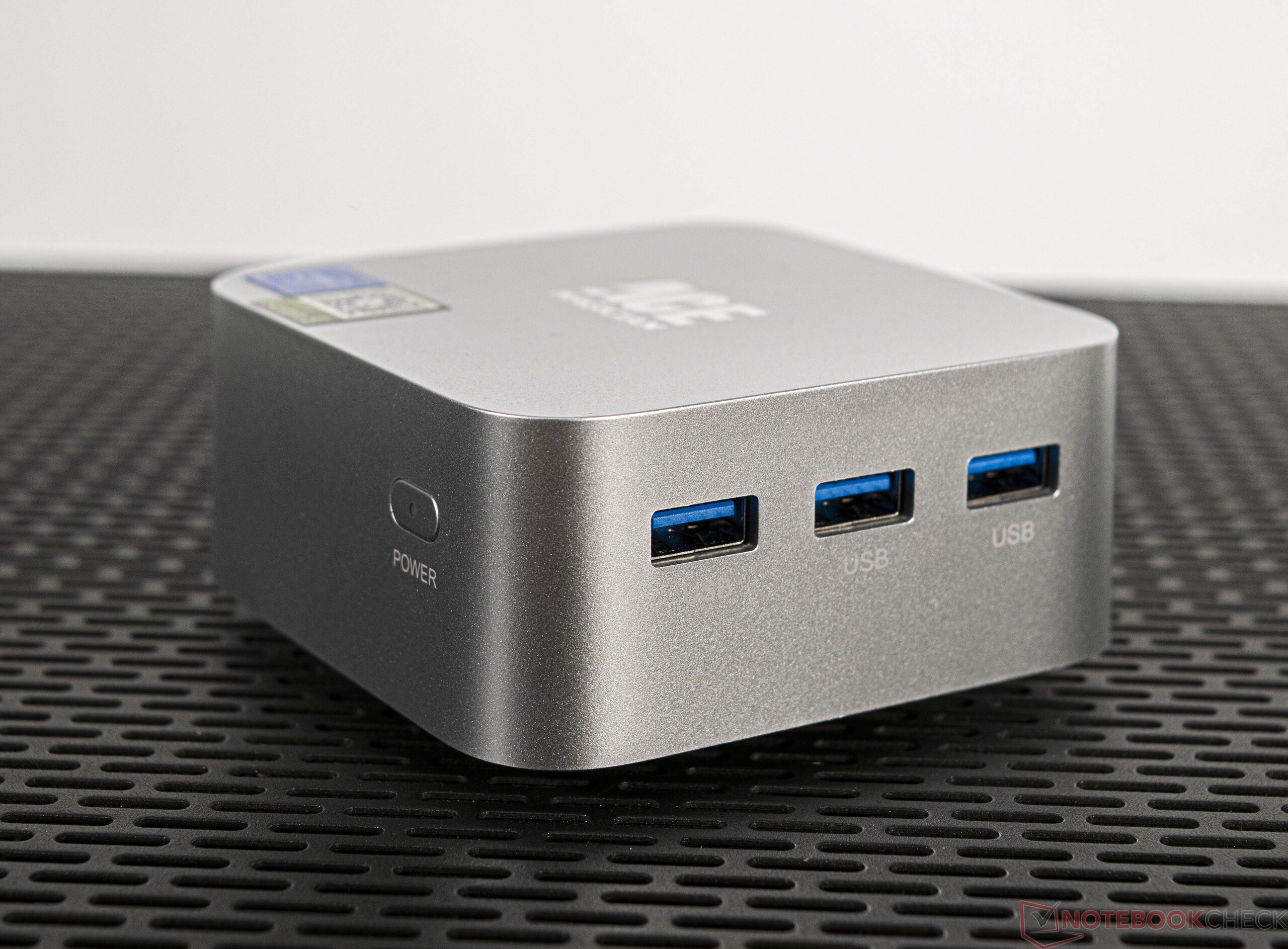

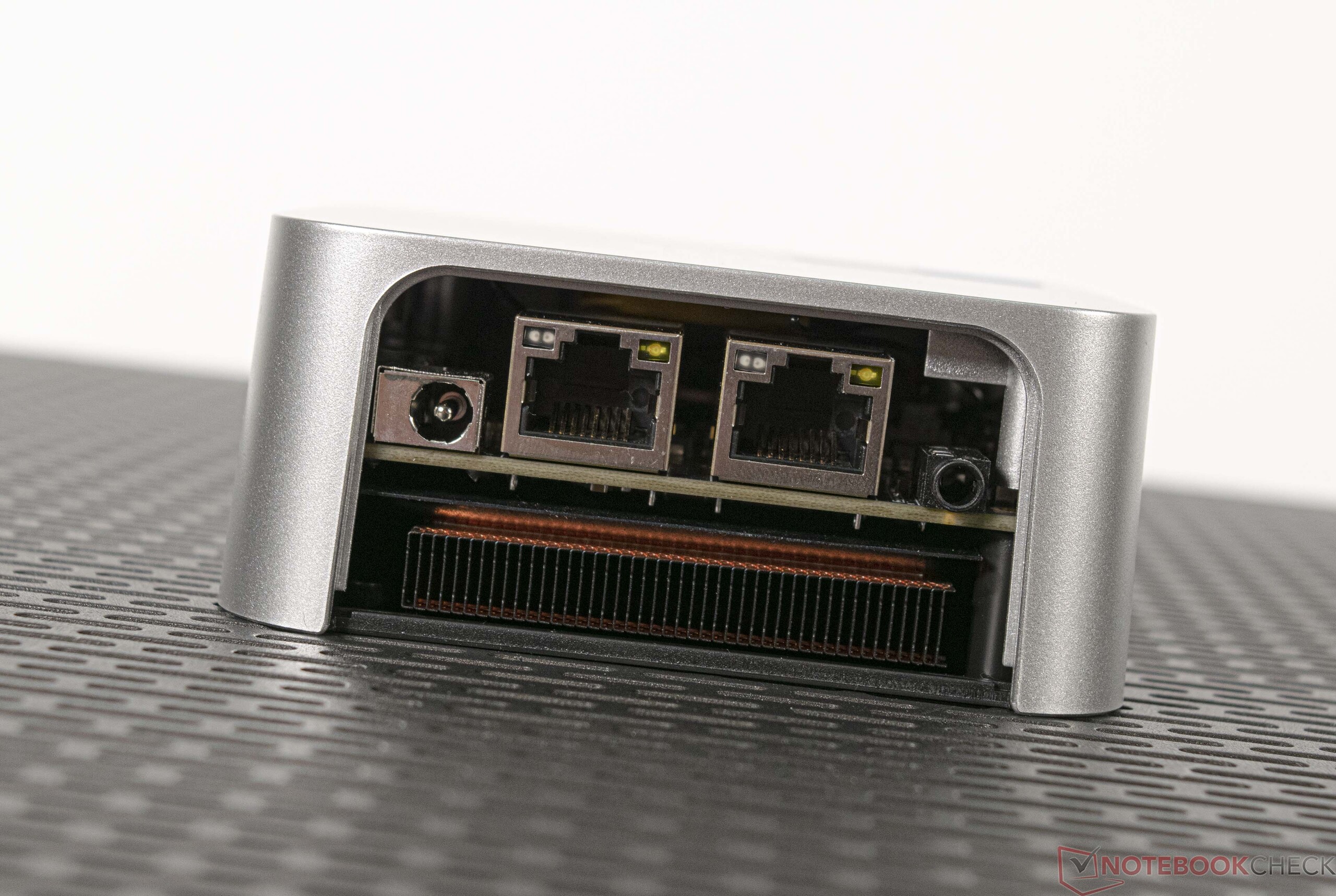

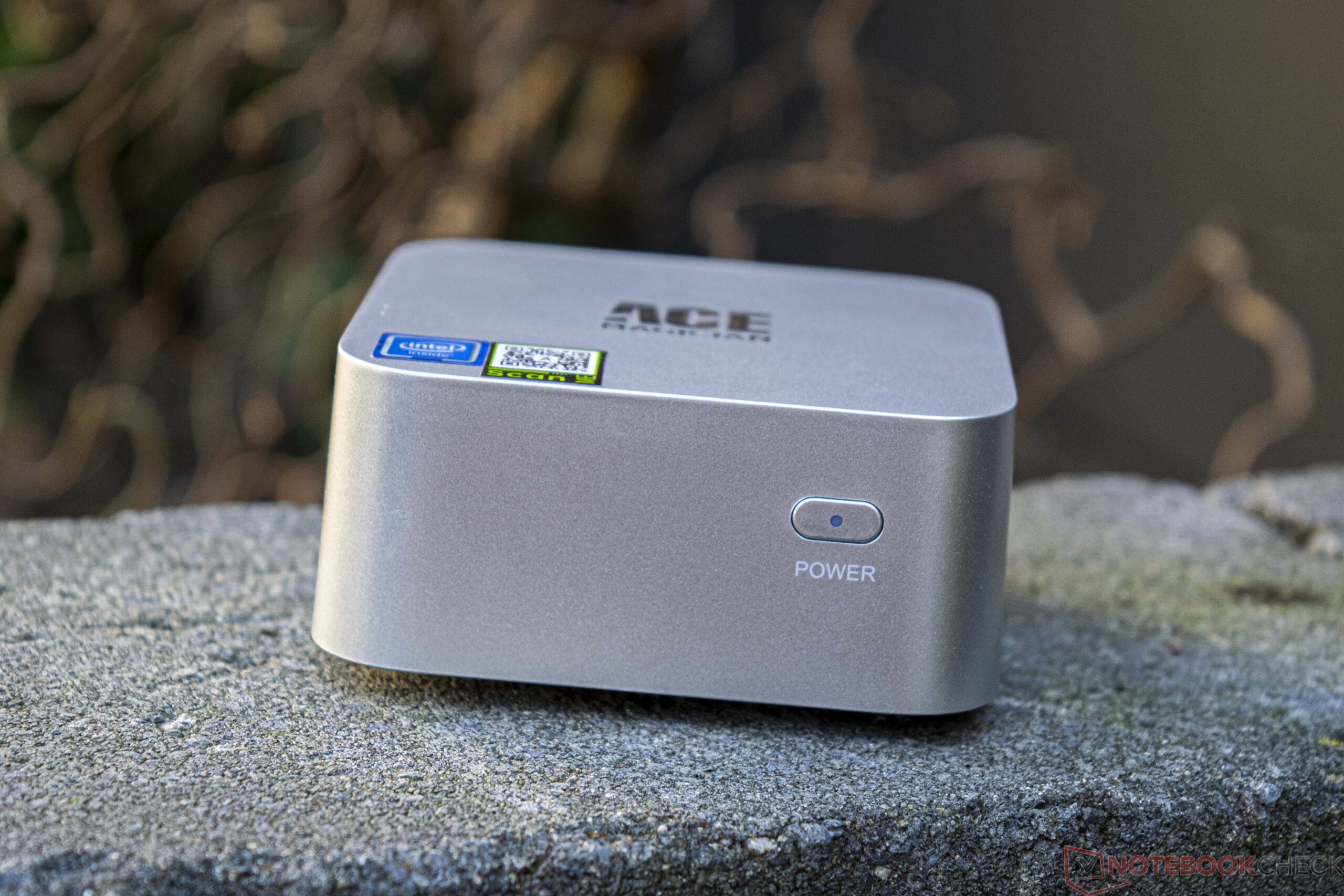

Ace Magician T8Pro to bardzo malutki mini PC, który zajmuje powierzchnię zaledwie około 8,7 x 8,7 cm (3,5 x 3,5"). Produkt jest również stosunkowo cienki - zaledwie 4,35 cm (1,69"). Producent postawił na konstrukcję wykonaną w większości z plastiku. Powierzchnie urządzenia są dość gładkie i przyjemne w dotyku. Kolorystycznie Ace Magician T8Pro utrzymany jest w stosunkowo neutralnych barwach srebra i szarości, dzięki czemu bez problemu wkomponuje się w nowoczesne biurko. Nie ma problemów ze stabilnością dzięki kompaktowej konstrukcji. Ten niewielki komputer jest bardzo lekki - waży zaledwie 209 g (0,46 lb).

Porównanie wielkości

Minisforum EliteMini B550 Newsmay Neosmay S2-B560TPM Beelink GTI 11 Minisforum EliteMini TH50 Morefine S500+ Geekom MiniAir 11 Special Edition Minipc Union Ace Magician T8Pro DIN A4 ❌

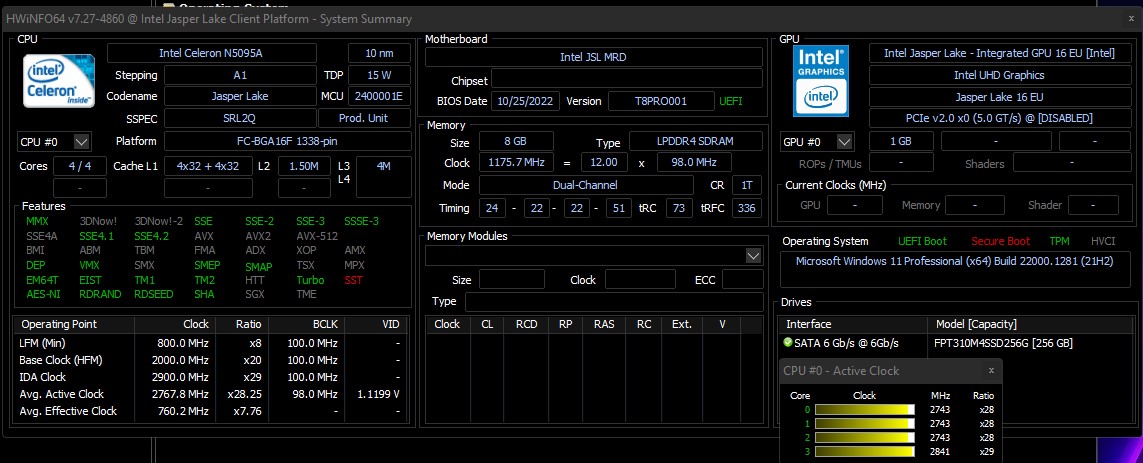

Specyfikacje

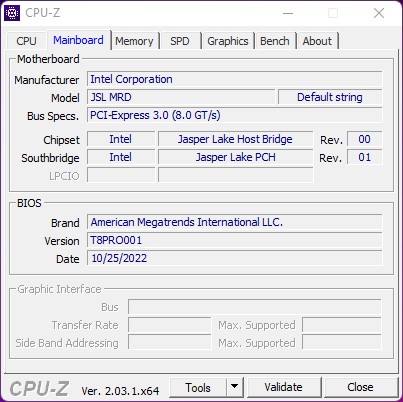

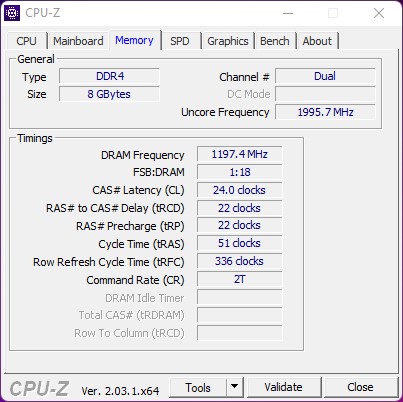

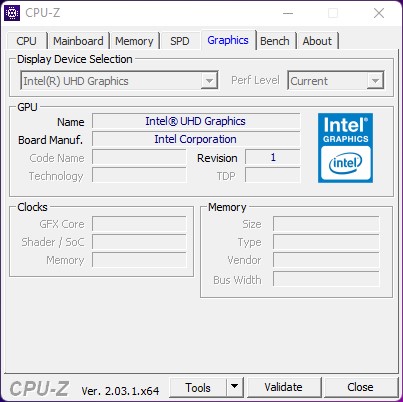

Pomimo kompaktowej budowy, Minipc Union udało się upakować w Ace Magician T8Pro trzy porty USB-A oraz trzy wyjścia HDMI. Każdy z tych dwóch typów portów znajduje się po jednej stronie urządzenia, a z tyłu znajdują się dwa porty LAN. Oznacza to, że Ace Magician T8Pro jest bardzo dobrze wyposażony i może stanąć do walki z "większymi" urządzeniami w naszym porównaniu. Do komunikacji bezprzewodowej T8Pro wykorzystuje układ Realtek 8821CE, który oferuje gorszą wydajność niż rozwiązania bezprzewodowe w pozostałych urządzeniach.

Networking
iperf3 receive AXE11000
Newsmay Neosmay S2-B560TPM Realtek RTL8852BE	964 (933^min - 986^max) MBit/s ∼100% +166%
Minipc Union Ace Magician AMR5 MediaTek RZ608	903 MBit/s ∼94% +149%
Average of class Mini PC (192.9 - 1796, n=50, last 2 years)	879 MBit/s ∼91% +142%
Minisforum EliteMini TH50 MediaTek MT7921	776 MBit/s ∼80% +114%
Minisforum EliteMini B550 MediaTek RZ608	430 MBit/s ∼45% +18%
Minipc Union Ace Magician T8Pro Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC	363 (359^min - 365^max) MBit/s ∼38%
Average Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC (354 - 365, n=5)	360 MBit/s ∼37% -1%
Geekom MiniAir 11 Special Edition Intel Dual Band Wireless-AC 7265	290 (279^min - 299^max) MBit/s ∼30% -20%
iperf3 transmit AXE11000
Minipc Union Ace Magician AMR5 MediaTek RZ608	967 MBit/s ∼100% +425%
Minisforum EliteMini TH50 MediaTek MT7921	866 MBit/s ∼90% +370%
Newsmay Neosmay S2-B560TPM Realtek RTL8852BE	858 (810^min - 882^max) MBit/s ∼89% +366%
Average of class Mini PC (184.1 - 1776, n=50, last 2 years)	817 MBit/s ∼84% +344%
Minisforum EliteMini B550 MediaTek RZ608	572 MBit/s ∼59% +211%
Average Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC (184.1 - 274, n=5)	242 MBit/s ∼25% +31%
Geekom MiniAir 11 Special Edition Intel Dual Band Wireless-AC 7265	225 (210^min - 237^max) MBit/s ∼23% +22%
Minipc Union Ace Magician T8Pro Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC	184.1 (94^min - 191^max) MBit/s ∼19%

Minipc Union Ace Magician T8Pro; iperf3 receive AXE11000; iperf 3.1.3: Ø363 (359-365)

Minipc Union Ace Magician T8Pro; iperf3 transmit AXE11000; iperf 3.1.3: Ø181 (94-191)

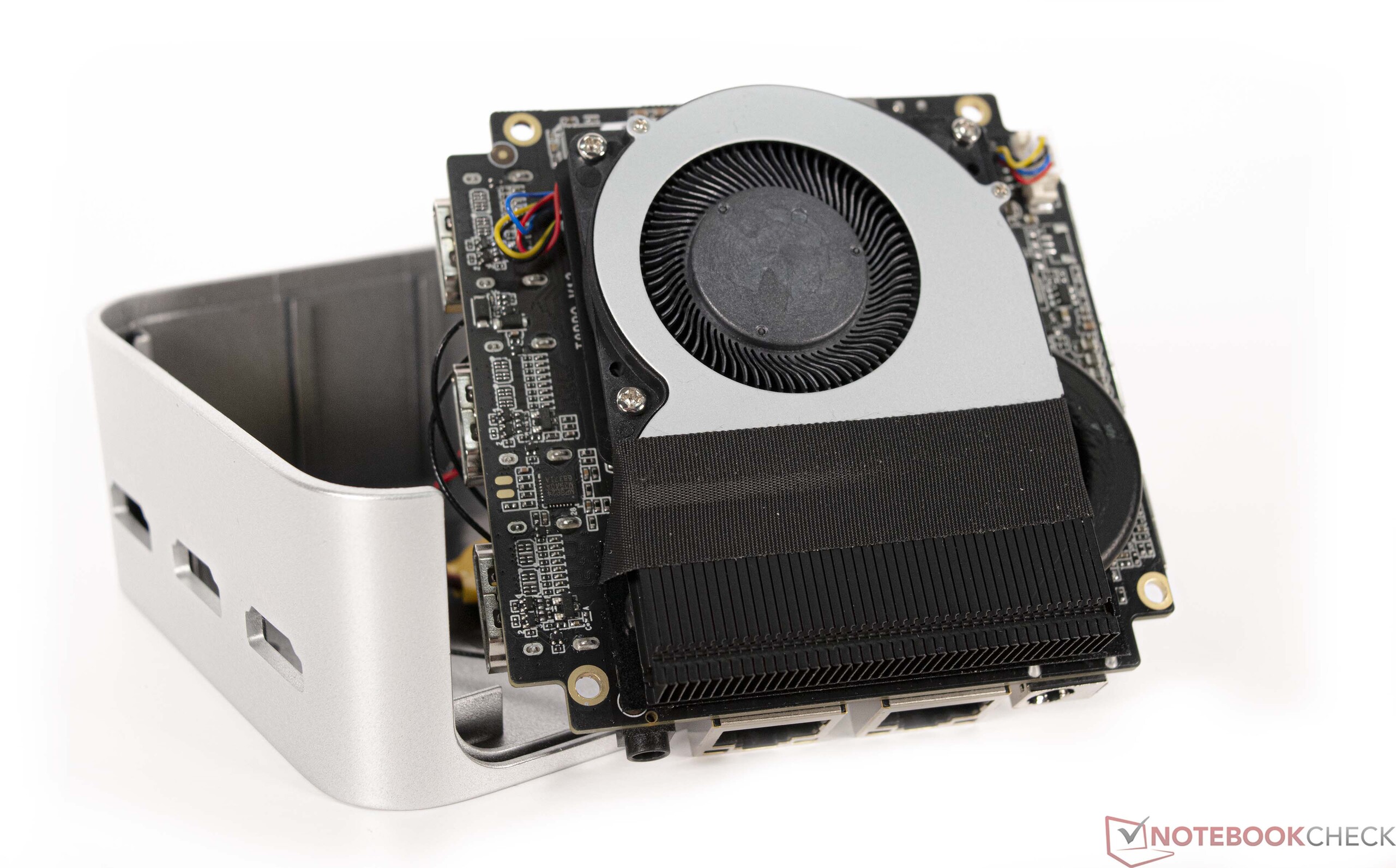

Konserwacja

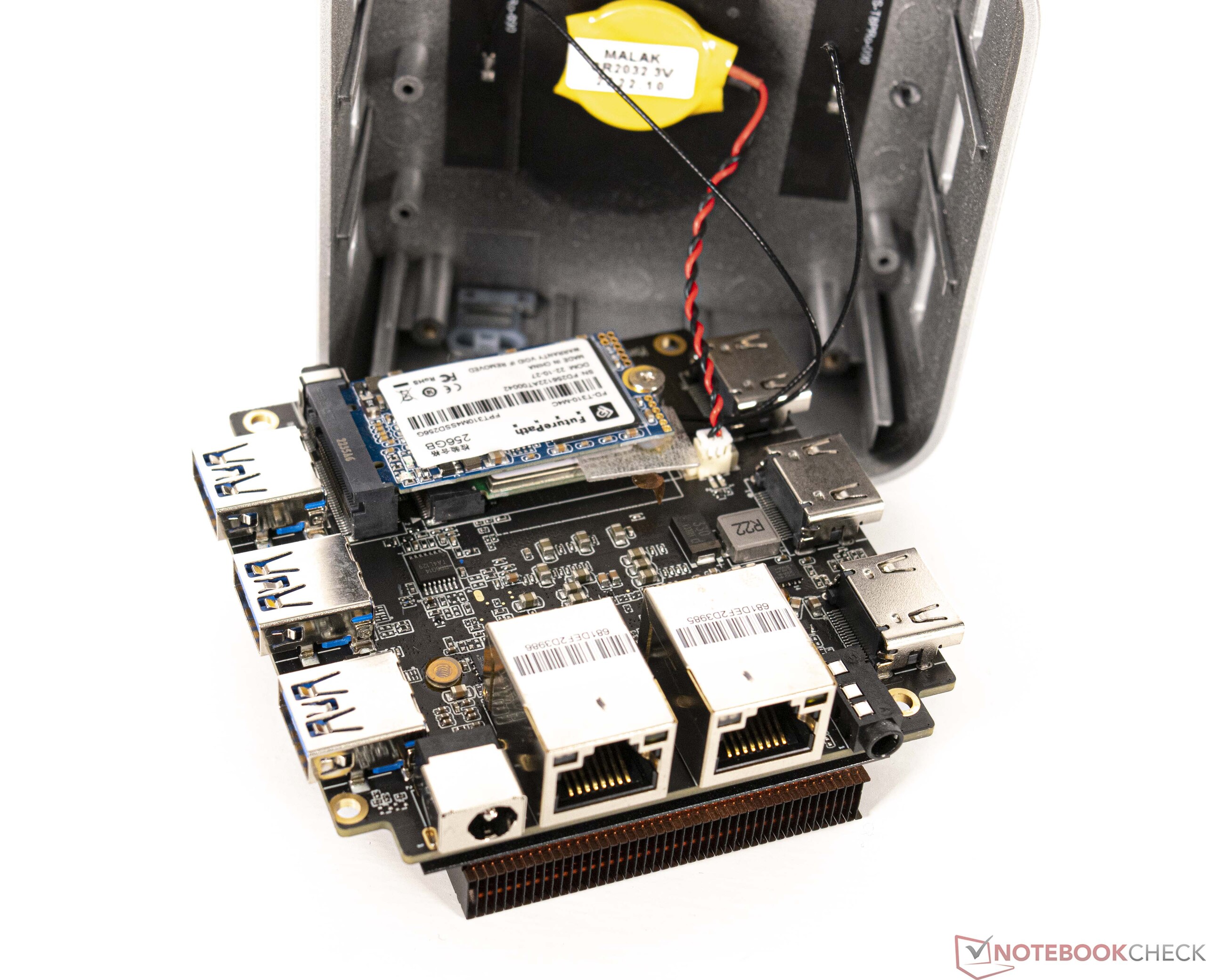

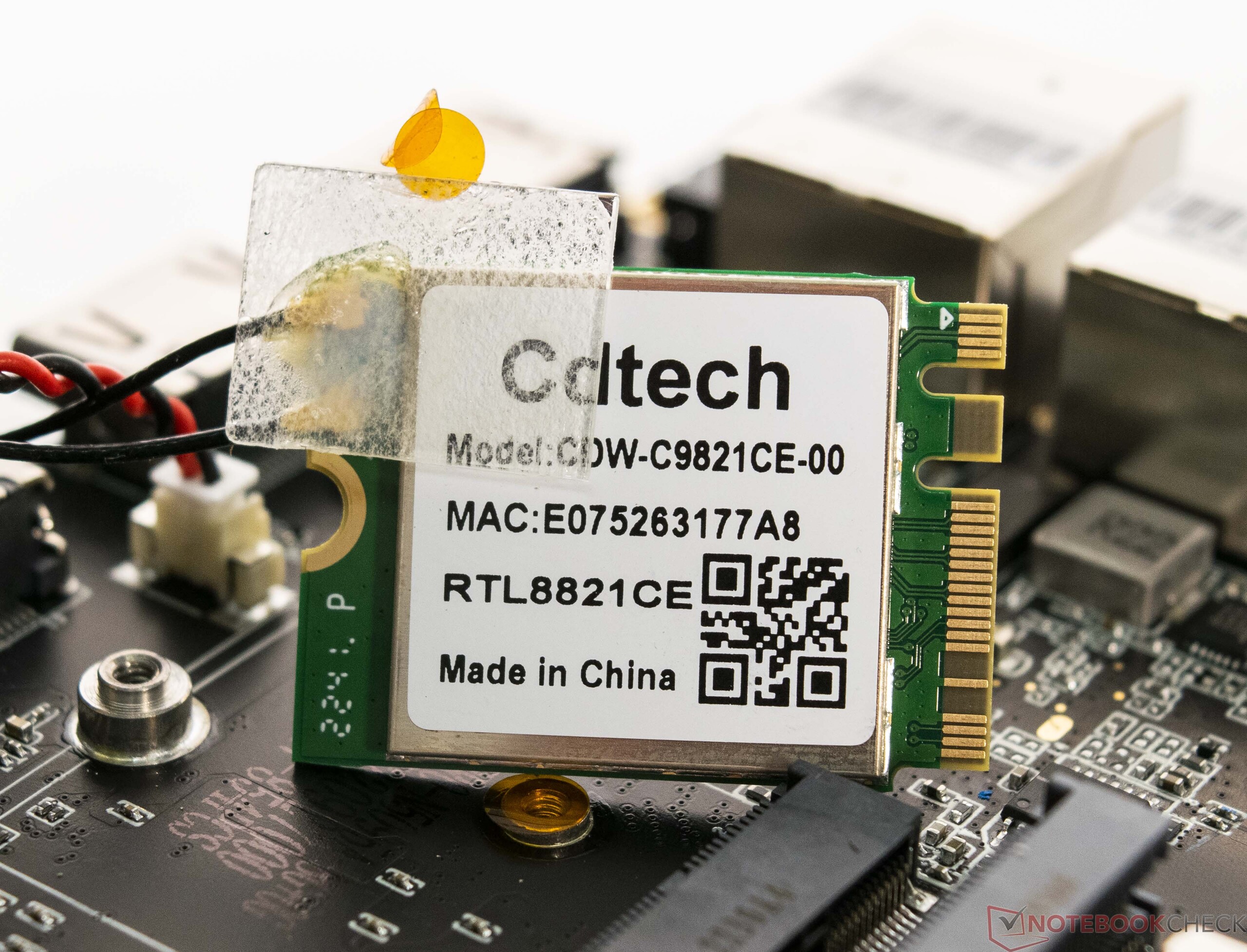

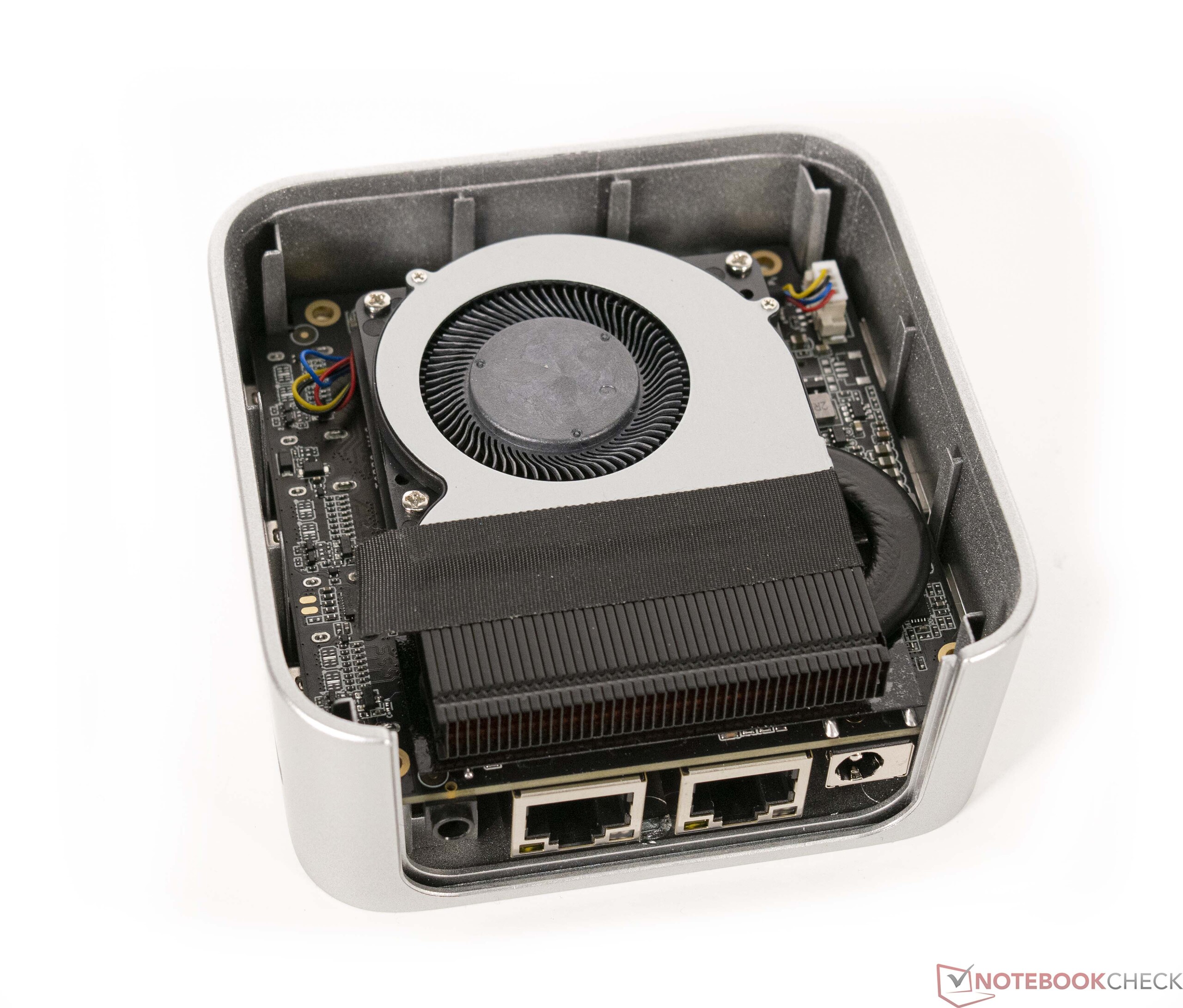

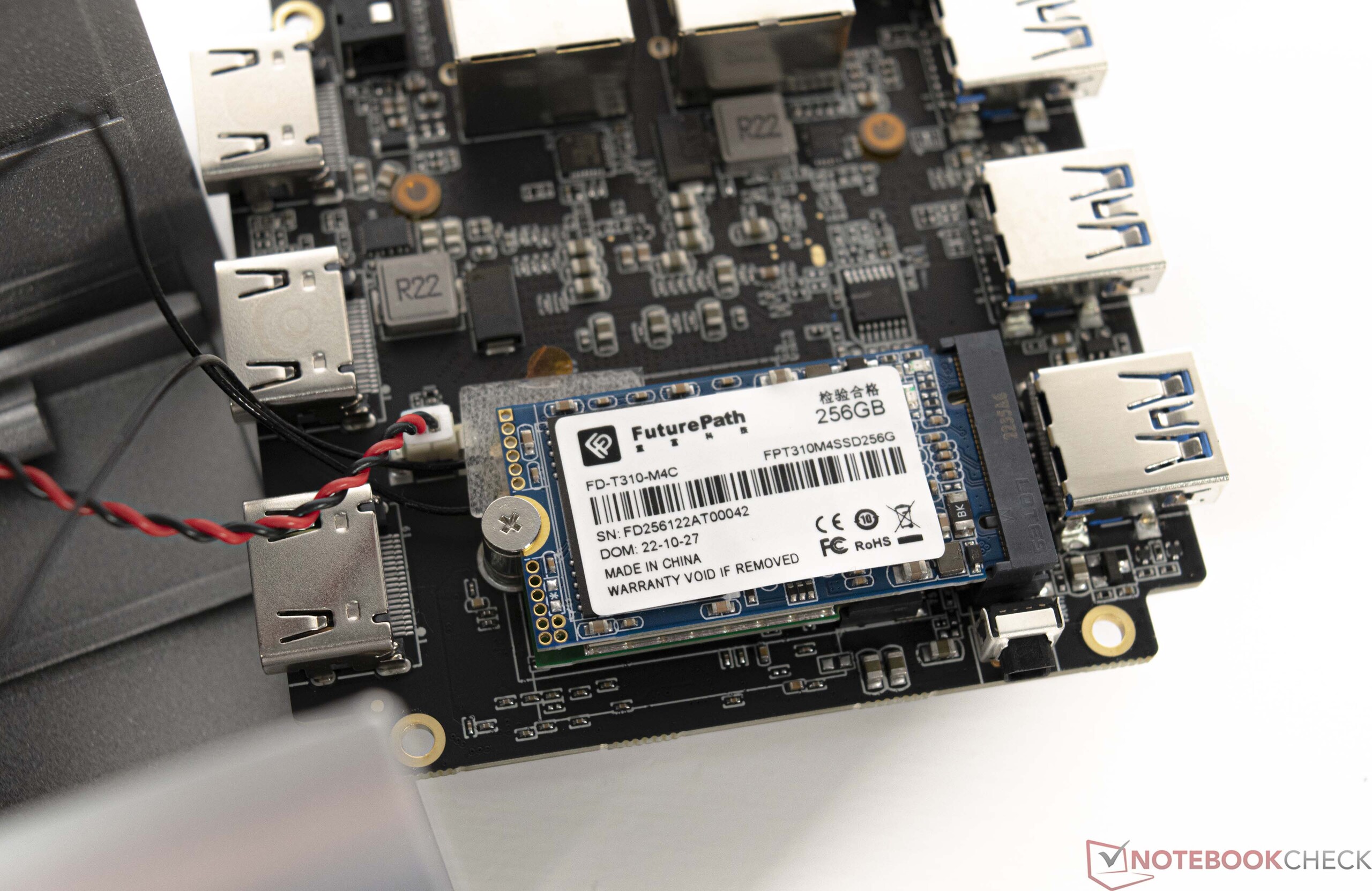

Dysk SSD i moduł Wi-Fi są łatwo dostępne dla tych, którzy chcą zmodernizować Ace Magician T8Pro. Aby otworzyć urządzenie, wystarczy odkręcić cztery śrubki na spodzie. Należy jednak zwrócić uwagę na współczynnik kształtu dysku SSD, ponieważ urządzenie może pomieścić tylko dysk SSD M.2 o długości 42 mm. W przeciwieństwie jednak do dysku SSD i modułu Wi-Fi, pamięć nie jest możliwa do rozbudowy.

Wydajność

Na stronie Intel Celeron N5095 to jedyna opcja procesora dostępna dla Ace Magician T8Pro. Cztery natywne rdzenie mają do dyspozycji 8 GB pamięci RAM DDR4 i oferują solidną wydajność do podstawowych zadań biurowych.

Warunki badania

Wszystkie testy związane z wydajnością przeprowadziliśmy z planem zasilania "High Performance", aby uzyskać jak najlepsze wyniki. Jedyny przypadek użycia innego planu zasilania to pomiar zużycia energii i poziomu hałasu. Kliknij tutaj https://www.notebookcheck.net/Our-Test-Criteria.15394.0.html aby dowiedzieć się więcej o naszych kryteriach testowych.

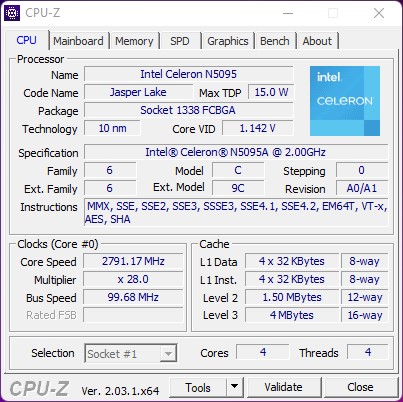

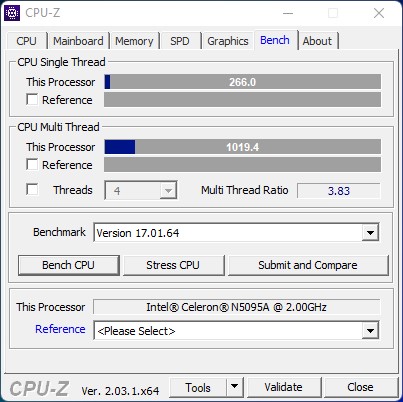

Procesor

Ace Magician T8Pro może wykorzystać moc Intel Celeron N5095 dość dobrze. Istnieją jednak produkty konkurencyjne, które lepiej radzą sobie z tym samym SoC, jak np Geekom MiniAir 11 Special Edition. Różnica w wydajności jest jednak w niskim, jednocyfrowym zakresie procentowym i dlatego jest nieistotna. Krótkoterminowy limit mocy SoC (PL2) wynosi około 20 watów, podczas gdy długoterminowy limit mocy (PL1) jest ograniczony do 15 watów.

Możesz kliknąć tutaj https://www.notebookcheck.net/Mobile-Processors-Benchmark-List.2436.0.htmlaby zobaczyć więcej benchmarków procesora.

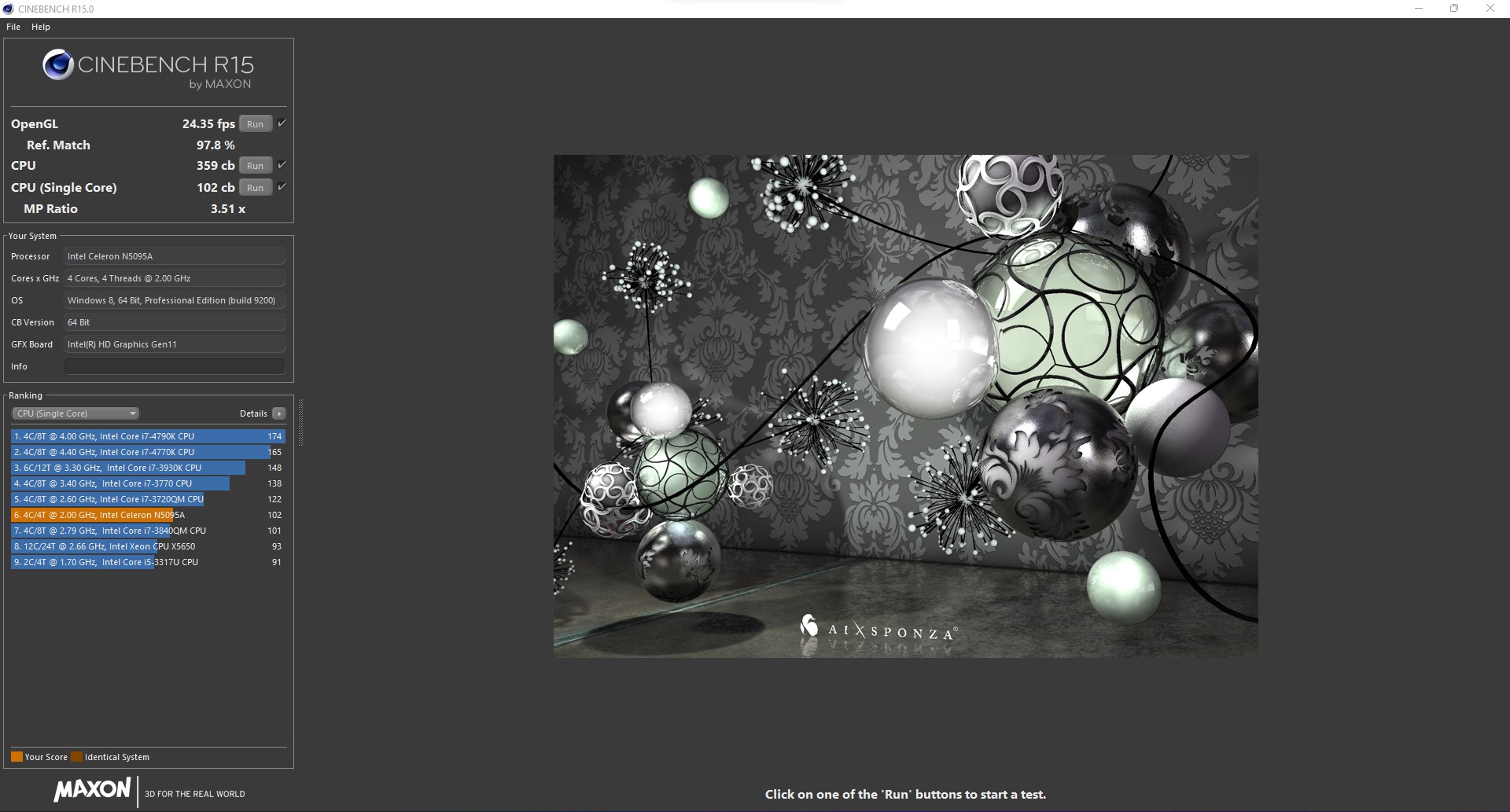

Cinebench R15
CPU Single 64Bit
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	123 Points ∼38% +21%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	107.3 Points ∼33% +5%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	106 Points ∼32% +4%
Average Intel Celeron N5095 (95.4 - 109, n=5)	103.9 Points ∼32% +2%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	102 Points ∼31%
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	95.4 Points ∼29% -6%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	77 Points ∼23% -25%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	76 Points ∼23% -25%
CPU Multi 64Bit
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	372 Points ∼4% +4%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	369 Points ∼4% +3%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	359 Points ∼4%
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	358 (350.25^min - 357.53^max) Points ∼4% 0%
Average Intel Celeron N5095 (221 - 379, n=6)	343 Points ∼4% -4%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	319 Points ∼3% -11%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	248 Points ∼3% -31%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	128 Points ∼1% -64%

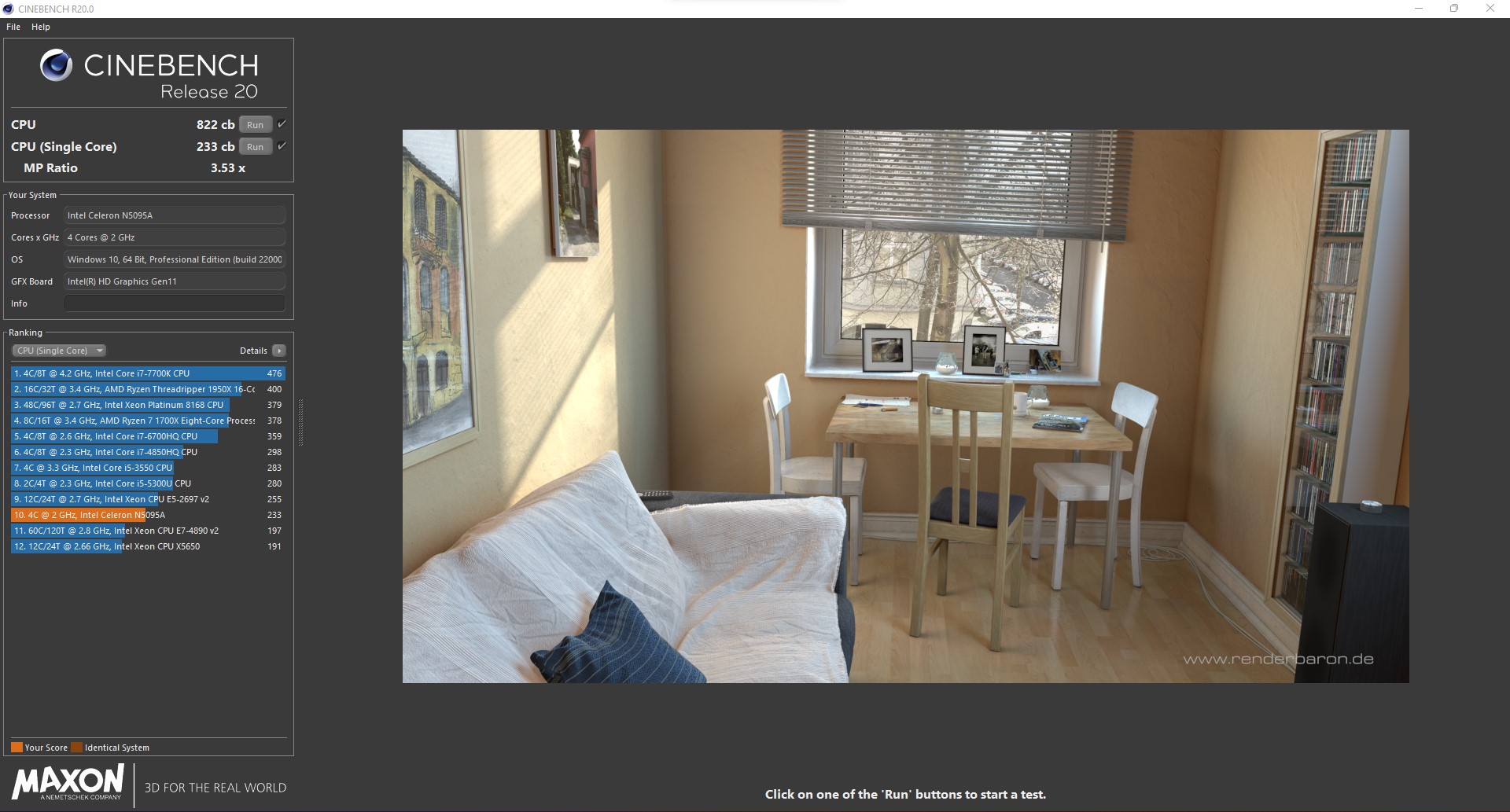

Cinebench R20
CPU (Single Core)
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	266 Points ∼31% +14%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	236 Points ∼27% +1%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	234 Points ∼27% 0%
Average Intel Celeron N5095 (228 - 239, n=5)	234 Points ∼27% 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	233 Points ∼27%
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	228 Points ∼26% -2%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	174 Points ∼20% -25%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	171 Points ∼20% -27%
CPU (Multi Core)
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	828 Points ∼4% +1%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	827 Points ∼4% +1%
Average Intel Celeron N5095 (804 - 844, n=5)	825 Points ∼4% 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	822 Points ∼3%
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	804 Points ∼3% -2%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	720 Points ∼3% -12%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	556 Points ∼2% -32%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	285 Points ∼1% -65%

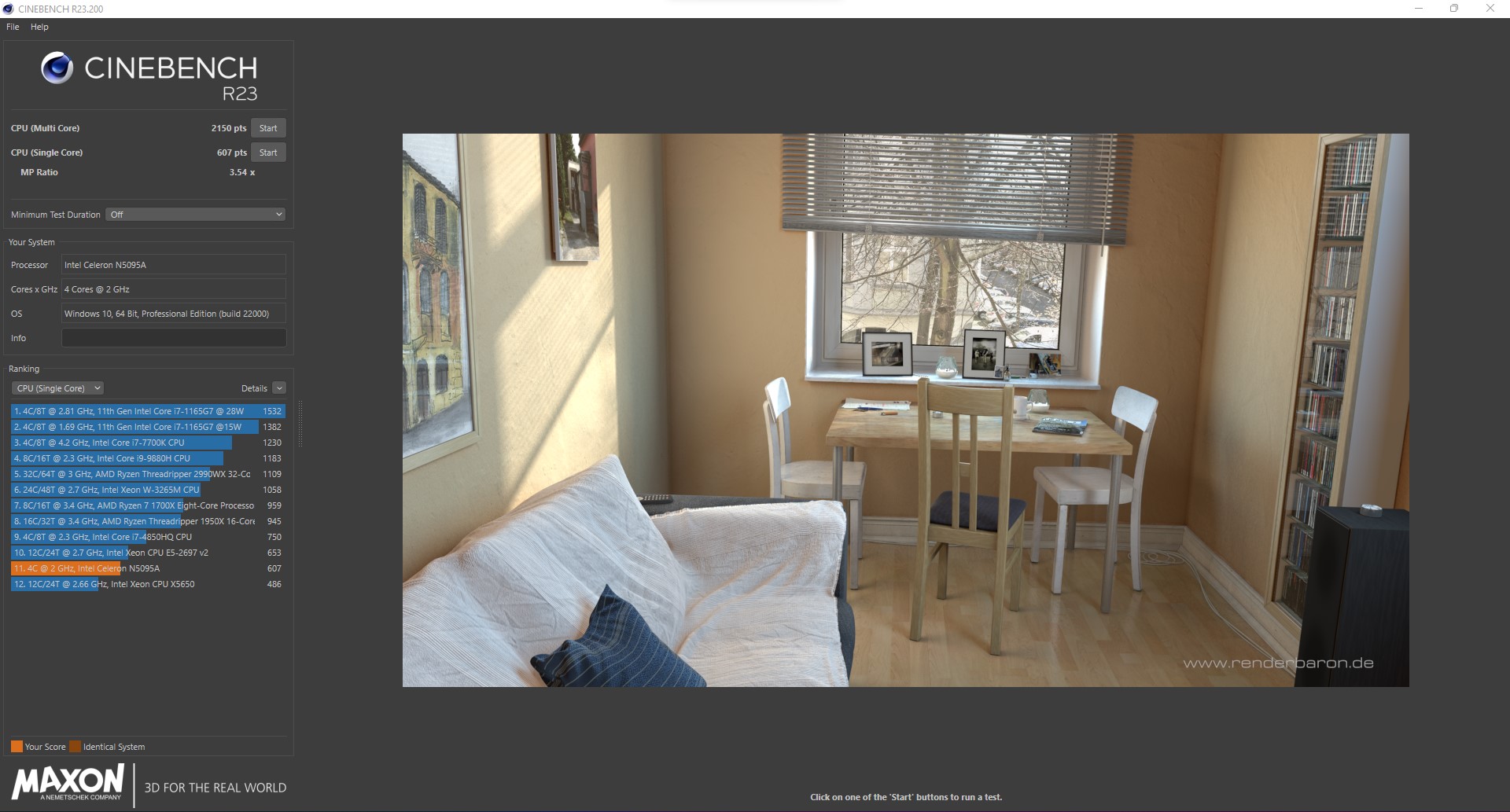

Cinebench R23
Single Core
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	696 Points ∼31% +15%
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	615 Points ∼27% +1%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	611 Points ∼27% +1%
Average Intel Celeron N5095 (587 - 621, n=5)	608 Points ∼27% 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	607 Points ∼27%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	587 Points ∼26% -3%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	439 Points ∼19% -28%
Multi Core
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	2176 (2164.67^min - 2176.1^max) Points ∼4% +1%
Average Intel Celeron N5095 (2150 - 2219, n=5)	2174 Points ∼4% +1%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	2164 Points ∼4% +1%
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	2159 (2113.79^min - 2158.74^max) Points ∼4% 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2150 Points ∼4%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1833 Points ∼3% -15%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	735 Points ∼1% -66%

Cinebench R11.5
CPU Single 64Bit
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1.47 Points ∼37% +18%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	1.29 Points ∼33% +3%
Average Intel Celeron N5095 (1.25 - 1.29, n=2)	1.27 Points ∼32% +2%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	1.25 Points ∼32%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	0.97 Points ∼25% -22%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	0.92 Points ∼23% -26%
CPU Multi 64Bit
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	4.76 Points ∼7% +2%
Average Intel Celeron N5095 (4.65 - 4.76, n=2)	4.71 Points ∼7% +1%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	4.65 Points ∼7%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	4.14 Points ∼6% -11%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	3.09 Points ∼4% -34%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	1.65 Points ∼2% -65%

Cinebench R10
Rendering Single CPUs 64Bit
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	6163 Points ∼34% +18%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	5451 Points ∼30% +4%
Average Intel Celeron N5095 (5224 - 5451, n=2)	5338 Points ∼29% +2%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	5224 Points ∼28%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	4120 Points ∼22% -21%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	3711 Points ∼20% -29%
Rendering Multiple CPUs 64Bit
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	17278 Points ∼12%
Average Intel Celeron N5095 (16442 - 17278, n=2)	16860 Points ∼12% -2%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	16442 Points ∼12% -5%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	15504 Points ∼11% -10%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	10705 Points ∼8% -38%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	6653 Points ∼5% -61%

Blender - v2.79 BMW27 CPU
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	3767 Seconds * ∼27% -144%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	2379 Seconds * ∼17% -54%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1805 Seconds * ∼13% -17%
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	1624 Seconds * ∼11% -5%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	1550 Seconds * ∼11% -0%
Average Intel Celeron N5095 (1502 - 1624, n=5)	1548 Seconds * ∼11% -0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	1547 Seconds * ∼11%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	1502 Seconds * ∼11% +3%

wPrime 2.10
32m
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	49.66 s * ∼10% -159%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	19.779 s * ∼4% -3%
Average Intel Celeron N5095 (19.2 - 19.8, n=2)	19.5 s * ∼4% -2%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	19.202 s * ∼4%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	17.37 s * ∼3% +10%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	17.09 s * ∼3% +11%
1024m
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	1561.178 s * ∼18% -158%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	617.326 s * ∼7% -2%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	615 s * ∼7% -2%
Average Intel Celeron N5095 (605 - 617, n=2)	611 s * ∼7% -1%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	605.375 s * ∼7%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	566 s * ∼7% +7%

X264 HD Benchmark 4.0
Pass 1
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	120.25 (119.9^min - 120.3^max) fps ∼28% +7%
Average Intel Celeron N5095 (112.8 - 120.3, n=2)	116.5 fps ∼27% +3%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	112.75 (112^min - 114.5^max) fps ∼26%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	102 (100^min - 118^max) fps ∼24% -10%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	78.9 (77.1^min - 81.7^max) fps ∼19% -30%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	45.25 (44.7^min - 45.7^max) fps ∼11% -60%
Pass 2
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	25.25 (25.2^min - 25.4^max) fps ∼9% +2%
Average Intel Celeron N5095 (24.8 - 25.3, n=2)	25 fps ∼9% +1%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	24.75 (24.5^min - 25^max) fps ∼9%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	21.6 (21.5^min - 22.1^max) fps ∼8% -13%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	16.75 (16.7^min - 16.9^max) fps ∼6% -32%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	9.995 (9.97^min - 10.2^max) fps ∼4% -60%

WinRAR - Result
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	1781 KB/s ∼3% +9%
Average Intel Celeron N5095 (1630 - 1781, n=2)	1706 KB/s ∼3% +5%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	1630 KB/s ∼3%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1525 KB/s ∼3% -6%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	1140 KB/s ∼2% -30%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	731 KB/s ∼1% -55%

TrueCrypt
AES Mean 100MB
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	2.6 GB/s ∼8% +4%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	2.5 GB/s ∼8% 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2.5 GB/s ∼8%
Average Intel Celeron N5095 (2.5 - 2.5, n=2)	2.5 GB/s ∼8% 0%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	1.9 GB/s ∼6% -24%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	0.979 GB/s ∼3% -61%
Twofish Mean 100MB
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	0.403 GB/s ∼0% +9%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	0.37 GB/s ∼0% 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	0.37 GB/s ∼0%
Average Intel Celeron N5095 (0.37 - 0.37, n=2)	0.37 GB/s ∼0% 0%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	0.266 GB/s ∼0% -28%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	0.14 GB/s ∼0% -62%
Serpent Mean 100MB
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	0.23 GB/s ∼0% +16%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	0.198 GB/s ∼0% 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	0.198 GB/s ∼0%
Average Intel Celeron N5095 (0.198 - 0.198, n=2)	0.198 GB/s ∼0% 0%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	0.182 GB/s ∼0% -8%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	0.074 GB/s ∼0% -63%

Geekbench 5.4
Multi-Core
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2052 Points ∼7%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	2036 Points ∼7% -1%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	2020 Points ∼7% -2%
Average Intel Celeron N5095 (1933 - 2052, n=4)	2010 Points ∼7% -2%
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	1933 Points ∼7% -6%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1673 Points ∼6% -18%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	1501 Points ∼5% -27%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	844 Points ∼3% -59%
Single-Core
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	659 Points ∼29% +3%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	657 Points ∼28% +3%
Average Intel Celeron N5095 (637 - 659, n=4)	649 Points ∼28% +2%
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	644 Points ∼28% +1%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	637 Points ∼28%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	606 Points ∼26% -5%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	556 Points ∼24% -13%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	455 Points ∼20% -29%

Geekbench 5.0
5.0 Multi-Core
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2041 Points ∼6%
Average Intel Celeron N5095 (1985 - 2070, n=4)	2029 Points ∼6% -1%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	2020 Points ∼6% -1%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	1985 Points ∼6% -3%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	1482 Points ∼5% -27%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1313 Points ∼4% -36%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	857 Points ∼3% -58%
5.0 Single-Core
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	655 Points ∼3% +3%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	655 Points ∼3% +3%
Average Intel Celeron N5095 (628 - 655, n=4)	644 Points ∼3% +1%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	638 Points ∼3%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	603 Points ∼3% -5%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	559 Points ∼2% -12%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	453 Points ∼2% -29%

Geekbench 4.1 - 4.4
64 Bit Single-Core Score
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	2929 Points ∼30% +2%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	2900 Points ∼30% +1%
Average Intel Celeron N5095 (2858 - 2929, n=3)	2896 Points ∼30% +1%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2858 Points ∼30%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	2585 Points ∼27% -10%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	2555 Points ∼26% -11%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	1922 Points ∼20% -33%
64 Bit Multi-Core Score
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	7968 Points ∼9%
Average Intel Celeron N5095 (7759 - 7968, n=3)	7856 Points ∼9% -1%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	7842 Points ∼9% -2%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	7759 Points ∼9% -3%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	5468 Points ∼6% -31%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	5399 Points ∼6% -32%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	3606 Points ∼4% -55%

3DMark 11 - 1280x720 Performance Physics
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	4322 Points ∼12% +1%
Average Intel Celeron N5095 (4224 - 4439, n=5)	4309 Points ∼12% +1%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	4287 Points ∼12%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	4272 Points ∼12% 0%
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	4224 Points ∼11% -1%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	3659 Points ∼10% -15%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	2794 Points ∼8% -35%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	1591 Points ∼4% -63%

7-Zip 18.03
7z b 4
Average Intel Celeron N5095 (10924 - 11168, n=5)	11024 MIPS ∼7% +1%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	11023 MIPS ∼7% +1%
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	11013 MIPS ∼7% +1%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	10994 MIPS ∼7% +1%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	10924 MIPS ∼7%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	9964 MIPS ∼6% -9%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	7790 MIPS ∼5% -29%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	3974 MIPS ∼2% -64%
7z b 4 -mmt1
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	3515 MIPS ∼42% +20%
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	3124 MIPS ∼37% +6%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	3100 MIPS ∼37% +6%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	3098 MIPS ∼37% +6%
Average Intel Celeron N5095 (2935 - 3124, n=5)	3074 MIPS ∼37% +5%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2935 MIPS ∼35%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	2593 MIPS ∼31% -12%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	2379 MIPS ∼28% -19%

HWBOT x265 Benchmark v2.2 - 4k Preset
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	2.02 fps ∼4% 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2.01 fps ∼4%
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	2 fps ∼4% 0%
Average Intel Celeron N5095 (1.9 - 2.05, n=5)	1.996 fps ∼4% -1%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	1.9 fps ∼4% -5%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1.65 fps ∼4% -18%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	1.48 fps ∼3% -26%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	0.88 fps ∼2% -56%

R Benchmark 2.5 - Overall mean
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	1.579 sec * ∼34% -32%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	1.371 sec * ∼30% -14%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	1.2 sec * ∼26%
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	1.178 sec * ∼25% +2%
Average Intel Celeron N5095 (1.16 - 1.2, n=5)	1.174 sec * ∼25% +2%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	1.166 sec * ∼25% +3%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	1.16 sec * ∼25% +3%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1.137 sec * ∼25% +5%

LibreOffice - 20 Documents To PDF
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	144.7 s * ∼37% -40%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	143 s * ∼36% -38%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	107.9 s * ∼27% -4%
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	106.5 s * ∼27% -3%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	103.6 s * ∼26%
Average Intel Celeron N5095 (97 - 107.9, n=5)	103.6 s * ∼26% -0%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	103.2 s * ∼26% -0%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	92.9 s * ∼23% +10%

WebXPRT 3 - ---
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	146 Points ∼30% +15%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	127.2 Points ∼27%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	125.3 Points ∼26% -1%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	125.3 Points ∼26% -1%
Average Intel Celeron N5095 (114.3 - 127.2, n=6)	123.4 Points ∼26% -3%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	122.2 Points ∼25% -4%
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	114.3 Points ∼24% -10%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	89.2 Points ∼19% -30%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	86.2 Points ∼18% -32%

Mozilla Kraken 1.1 - Total Score
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	2288 ms * ∼3% -41%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	1619 ms * ∼2%
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	1591 ms * ∼2% +2%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	1581 ms * ∼2% +2%
Average Intel Celeron N5095 (1557 - 1619, n=6)	1578 ms * ∼2% +3%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	1557 ms * ∼2% +4%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	1557 ms * ∼2% +4%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1396 ms * ∼2% +14%

3DMark - 1920x1080 Fire Strike Physics
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	5535 Points ∼10%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	5499 Points ∼10% -1%
Average Intel Celeron N5095 (5400 - 5572, n=5)	5496 Points ∼10% -1%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	5474 Points ∼10% -1%
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	5400 Points ∼10% -2%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	4295 Points ∼8% -22%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	3885 Points ∼7% -30%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	2195 Points ∼4% -60%

* ... im mniej tym lepiej

Performance Rating
Average of class Mini PC	100 pt ∼100%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	22.4 pt ∼22%
Geekom MiniAir 11 Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	21.4 pt ∼21%
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	21.1 pt ∼21%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	17.3 pt ∼17%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	9.4 pt ∼9%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	7.2 pt ∼7%

AIDA64 / FP32 Ray-Trace
Average of class Mini PC (561 - 27538, n=58, last 2 years)	9559 KRay/s ∼100% +670%
Geekom MiniAir 11 Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	1245 KRay/s ∼13% 0%
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	1244 KRay/s ∼13% 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	1242 KRay/s ∼13%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	999 KRay/s ∼10% -20%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	490 KRay/s ∼5% -61%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	416 KRay/s ∼4% -67%

AIDA64 / FPU Julia
Average of class Mini PC (3604 - 116903, n=58, last 2 years)	52301 Points ∼100% +601%
Geekom MiniAir 11 Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	7459 Points ∼14% 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	7457 Points ∼14%
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	7264 Points ∼14% -3%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	6217 Points ∼12% -17%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	2932 Points ∼6% -61%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	2401 Points ∼5% -68%

AIDA64 / CPU SHA3
Average of class Mini PC (225 - 5096, n=58, last 2 years)	2218 MB/s ∼100% +332%
Geekom MiniAir 11 Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	514 MB/s ∼23% 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	514 MB/s ∼23%
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	508 MB/s ∼23% -1%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	396 MB/s ∼18% -23%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	202 MB/s ∼9% -61%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	167 MB/s ∼8% -68%

AIDA64 / CPU Queen
Average of class Mini PC (8172 - 119569, n=58, last 2 years)	68863 Points ∼100% +208%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	22326 Points ∼32%
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	21801 Points ∼32% -2%
Geekom MiniAir 11 Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	21458 Points ∼31% -4%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	20014 Points ∼29% -10%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	8820 Points ∼13% -60%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	7876 Points ∼11% -65%

AIDA64 / FPU SinJulia
Average of class Mini PC (408 - 15525, n=58, last 2 years)	7314 Points ∼100% +630%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	1204 Points ∼16% +20%
Geekom MiniAir 11 Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	1003 Points ∼14% 0%
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	1002 Points ∼14% 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	1002 Points ∼14%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	397 Points ∼5% -60%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	396 Points ∼5% -60%

AIDA64 / FPU Mandel
Average of class Mini PC (1958 - 62378, n=58, last 2 years)	27849 Points ∼100% +603%
Geekom MiniAir 11 Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	3962 Points ∼14% 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	3961 Points ∼14%
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	3802 Points ∼14% -4%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	3375 Points ∼12% -15%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	1558 Points ∼6% -61%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	1264 Points ∼5% -68%

AIDA64 / CPU AES
Average of class Mini PC (5504 - 177158, n=58, last 2 years)	75101 MB/s ∼100% +288%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	19350 MB/s ∼26%
Geekom MiniAir 11 Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	19086 MB/s ∼25% -1%
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	19076 MB/s ∼25% -1%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	10084 MB/s ∼13% -48%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	7653 MB/s ∼10% -60%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	6370 MB/s ∼8% -67%

AIDA64 / CPU ZLib
Average of class Mini PC (74.8 - 1114, n=58, last 2 years)	559 MB/s ∼100% +197%
Geekom MiniAir 11 Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	189.9 MB/s ∼34% +1%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	188.1 MB/s ∼34%
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	187.7 MB/s ∼34% 0%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	131 MB/s ∼23% -30%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	75.2 MB/s ∼13% -60%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	60.6 MB/s ∼11% -68%

AIDA64 / FP64 Ray-Trace
Average of class Mini PC (308 - 14722, n=58, last 2 years)	5107 KRay/s ∼100% +655%
Geekom MiniAir 11 Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	676 KRay/s ∼13% 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	676 KRay/s ∼13%
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	673 KRay/s ∼13% 0%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	553 KRay/s ∼11% -18%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	273 KRay/s ∼5% -60%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	213 KRay/s ∼4% -68%

AIDA64 / CPU PhotoWorxx
Average of class Mini PC (4408 - 44347, n=58, last 2 years)	24418 MPixel/s ∼100% +147%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	9899 MPixel/s ∼41%
Geekom MiniAir 11 Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	7707 MPixel/s ∼32% -22%
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	7386 MPixel/s ∼30% -25%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	6778 MPixel/s ∼28% -32%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	5125 MPixel/s ∼21% -48%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	2501 MPixel/s ∼10% -75%

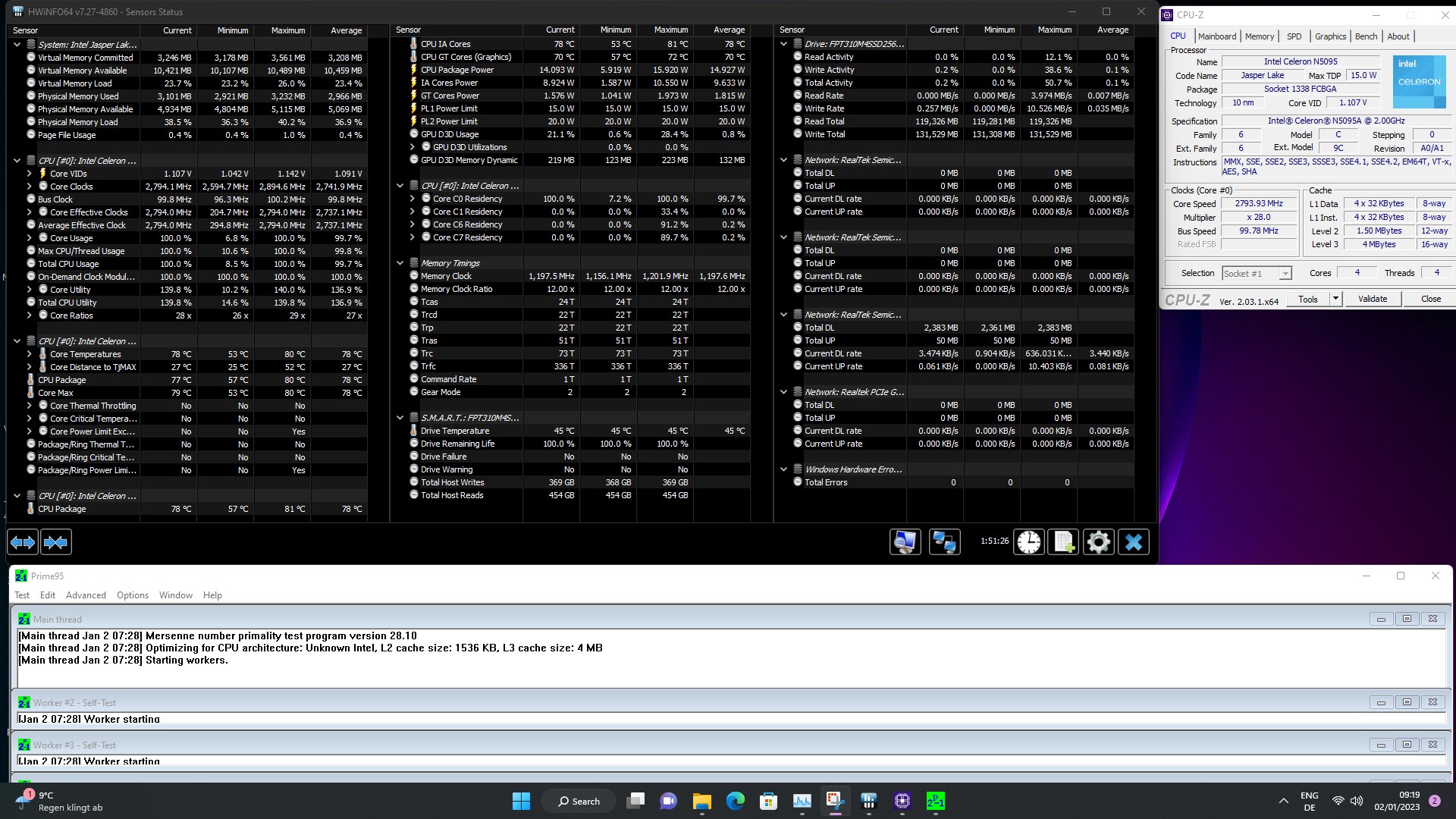

Wydajność Intel Celeron N5059jest bardzo dobrze zarządzana pod obciążeniem, co wykazał test pętli Cinebench R15. Wyniki pozostawały niezmienne przez wszystkie 50 przebiegów testu. Chłodzony pasywnie Newsmay AC8 nie był w stanie dotrzymać kroku, pomimo posiadania szybszego SoC. W sumie naszemu egzemplarzowi recenzenckiemu udało się zająć drugie miejsce w grupie porównawczej.

Minipc Union Ace Magician T8Pro Intel Celeron N5095, Intel Celeron N5095: Ø362 (359.44-363.62)

Geekom MiniAir 11 Intel Celeron N5095, Intel Celeron N5095: Ø373 (370.41-374.55)

Beelink U59 Mini-S Intel Celeron N5095, Intel Celeron N5095: Ø353 (350.25-357.53)

Zotac ZBOX PI336 pico Intel Celeron N6211, Intel Celeron N6211: Ø127.4 (121.19-129.05)

Newsmay AC8 N6005 Intel Pentium Silver N6005, Intel Pentium Silver N6005: Ø273 (225.33-307.03)

AC6-M Mini-PC Intel Celeron J4125, Intel Celeron J4125: Ø247 (245.01-250.05)

Wydajność systemu

Na stronie Intel Celeron N5059 ogranicza możliwości Ace Magician T8Pro. Mimo to urządzenie dobrze radzi sobie w codziennym użytkowaniu, pod warunkiem, że nie przeciążymy jego SoC. Ace Magician był nawet w stanie nieznacznie przewyższyć Geekom MiniAir 11 Special Edition, a różnica w wydajności pomiędzy T8Pro a Newsmay AC8 (z Intel Pentium Silver N6005) jest znikoma.

Performance Rating | PCMark 10

Performance Rating - Percent
Newsmay AC8 N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD	97.6 pt ∼98%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	96.7 pt ∼97%
Beelink U59 Mini-S, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3	95.1 pt ∼95%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	93.7 pt ∼94%
Geekom MiniAir 11, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	91.5 pt ∼92%
AC6-M Mini-PC, Intel Celeron J4125 Intel UHD Graphics 600,	75.6 pt ∼76%

PCMark 10
Score
Newsmay AC8 N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD	2548 Points ∼100% +5%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	2417 Points ∼95%
Beelink U59 Mini-S, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3	2386 Points ∼94% -1%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	2351 Points ∼92% -3%
Geekom MiniAir 11, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	2317 Points ∼91% -4%
AC6-M Mini-PC, Intel Celeron J4125 Intel UHD Graphics 600,	1806 Points ∼71% -25%
Essentials
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	5866 Points ∼100%
Beelink U59 Mini-S, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3	5778 Points ∼98% -2%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	5679 Points ∼97% -3%
Geekom MiniAir 11, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	5516 Points ∼94% -6%
Newsmay AC8 N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD	5446 Points ∼93% -7%
AC6-M Mini-PC, Intel Celeron J4125 Intel UHD Graphics 600,	4693 Points ∼80% -20%
Productivity
Newsmay AC8 N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD	3854 Points ∼100% +5%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	3666 Points ∼95%
Beelink U59 Mini-S, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3	3591 Points ∼93% -2%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	3547 Points ∼92% -3%
Geekom MiniAir 11, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	3454 Points ∼90% -6%
AC6-M Mini-PC, Intel Celeron J4125 Intel UHD Graphics 600,	2928 Points ∼76% -20%

Performance Rating | CrossMark

Performance Rating - Percent
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	99.8 pt ∼100%
Beelink U59 Mini-S, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3	98 pt ∼98%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	93 pt ∼93%

CrossMark
Responsiveness
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	497 Points ∼100%
Beelink U59 Mini-S, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3	469 Points ∼94% -6%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	403 Points ∼81% -19%
Creativity
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	440 Points ∼100% 0%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	438 Points ∼100%
Beelink U59 Mini-S, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3	434 Points ∼99% -1%
Productivity
Beelink U59 Mini-S, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3	561 Points ∼100% +1%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	558 Points ∼99%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	535 Points ∼95% -4%
Overall
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	495 Points ∼100%
Beelink U59 Mini-S, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3	490 Points ∼99% -1%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	473 Points ∼96% -4%

Opóźnienie DPC

Ace Magician T8Pro napotkał problemy z opóźnieniami, gdy tylko kilka kart było otwartych w przeglądarce Edge. Odtwarzanie naszego testowego wideo 4K jeszcze bardziej zwiększyło opóźnienie. Podczas odtwarzania wideo użycie iGPU wynosiło nieco ponad 30 procent.

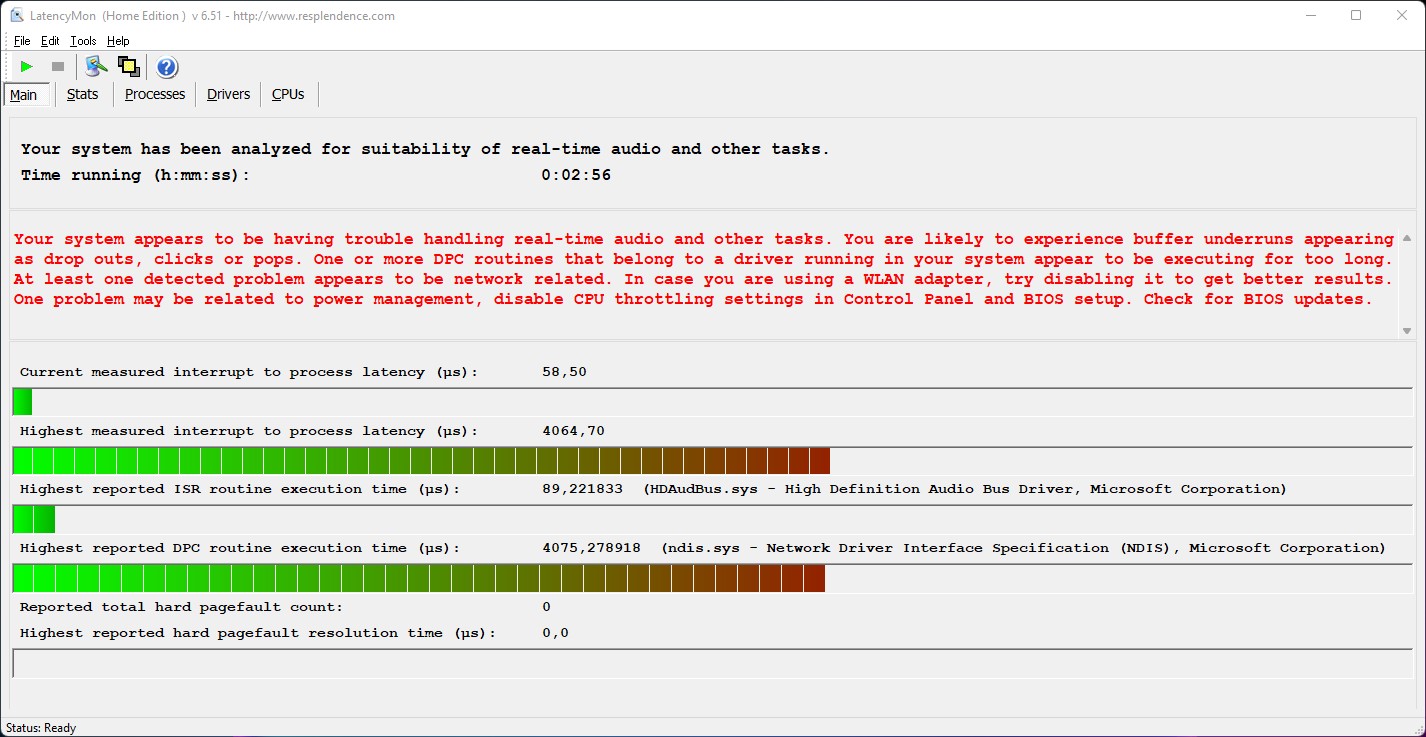

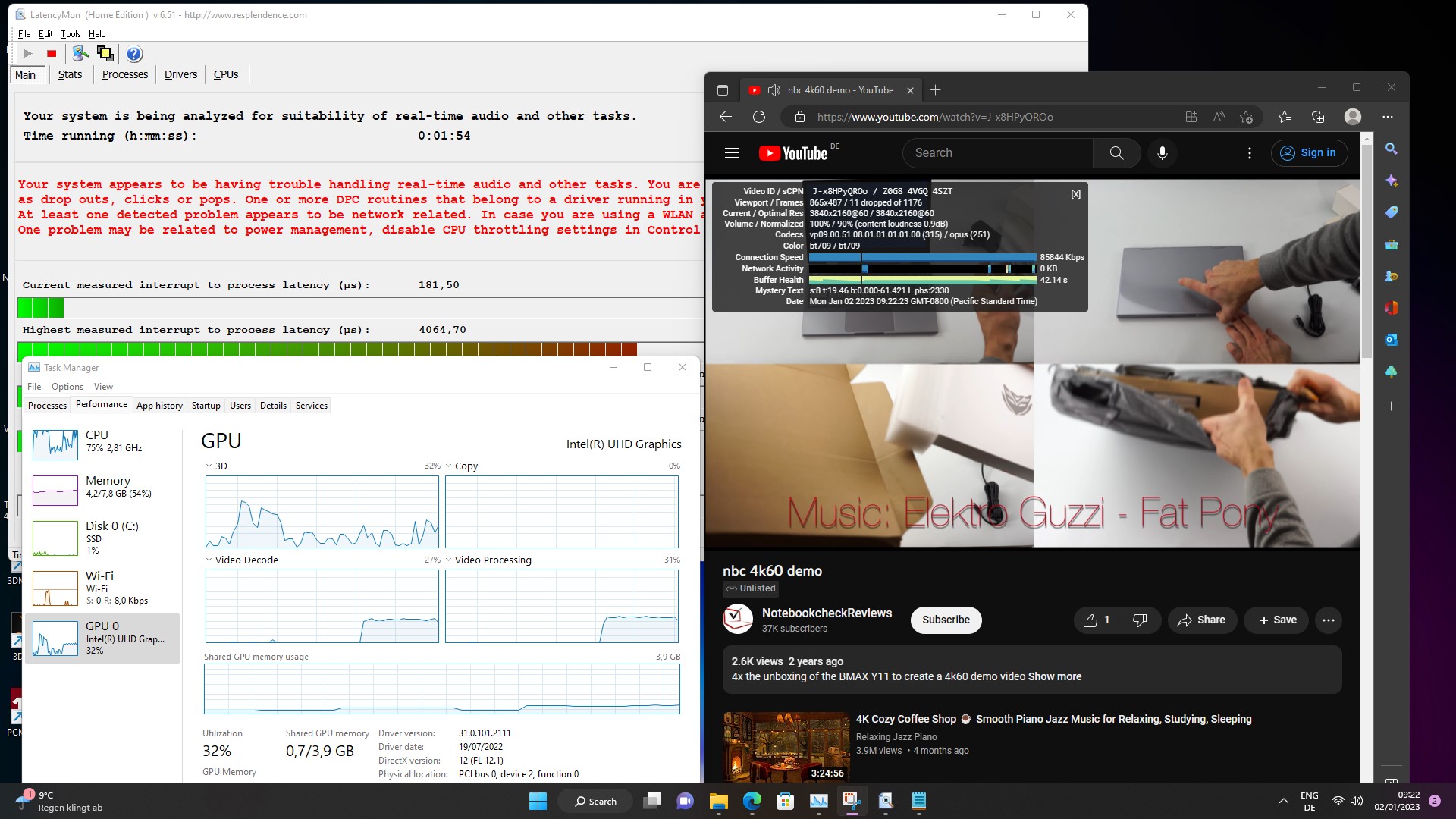

Maksymalna latencja przy otwartych kilku kartach przeglądarki i odtwarzaniu wideo 4K

Maksymalna latencja po uruchomieniu Prime95 przez 10 sekund

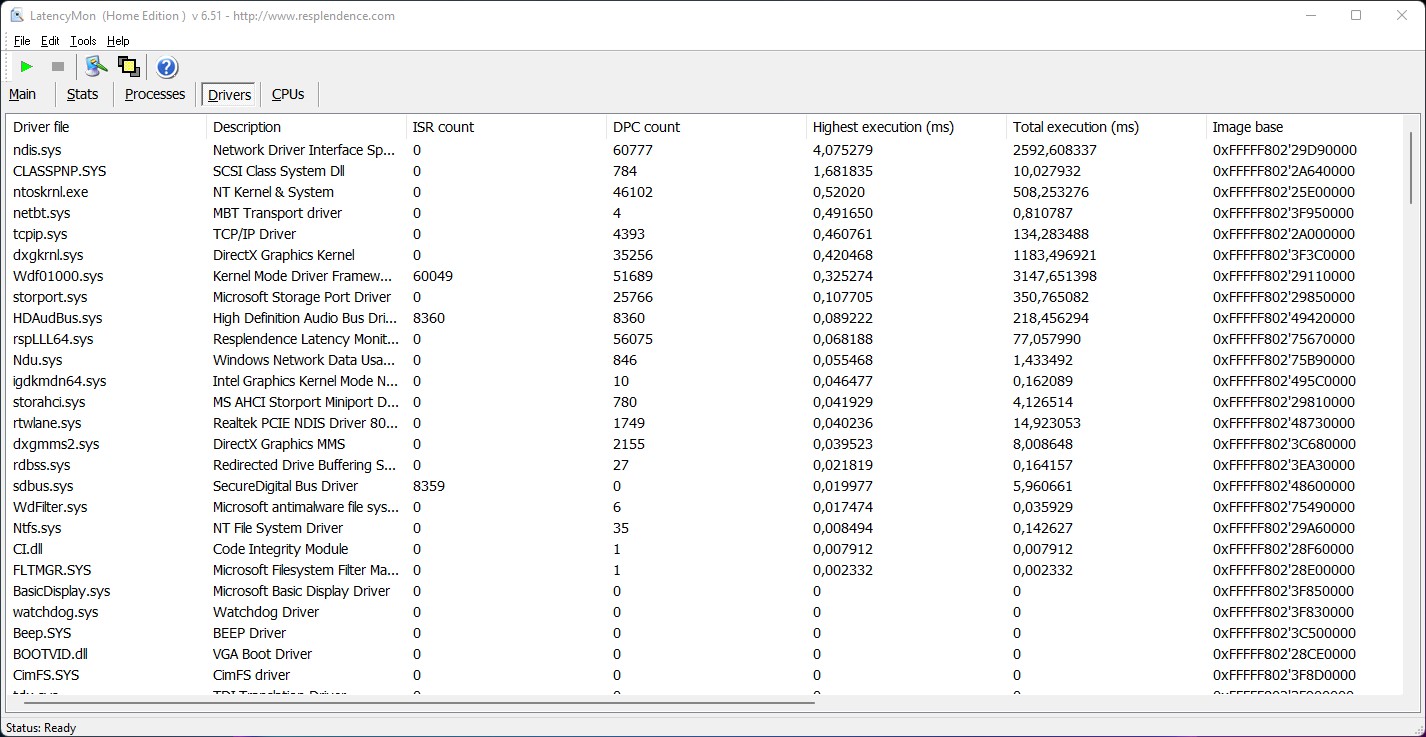

Sterowniki posortowane według czasu wykonania (od wysokiego do niskiego)

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	4075 μs * ∼100%
AC6-M Mini-PC, Intel Celeron J4125 Intel UHD Graphics 600,	3767 μs * ∼92% +8%
Newsmay AC8 N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD	2635 μs * ∼65% +35%
Geekom MiniAir 11, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	2582.6 μs * ∼63% +37%
Beelink U59 Mini-S, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3	1732.2 μs * ∼43% +57%
Zotac ZBOX PI336 pico, Intel Celeron N6211 Intel UHD Graphics (Elkhart Lake 16 EU), SanDisk DF4128	1476.3 μs * ∼36% +64%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	687.3 μs * ∼17% +83%

* ... im mniej tym lepiej

Pamięć masowa

Ace Magician T8Pro został wyposażony w dysk SSD o pojemności 256 GB. Dysk ten obsługuje tylko prędkości SATA, a więc jest wolniejszy od dysków SSD NVMe. Niemniej jednak jest on nadal wystarczający do celów, do których T8Pro jest przeznaczony. Nie zauważyliśmy też żadnych spadków wydajności pod trwałym obciążeniem. Jeśli 256 GB pamięci masowej w domyślnej konfiguracji nie jest wystarczające dla Twoich potrzeb, możesz wymienić dołączony dysk SSD na większy. Należy jednak pamiętać, by nowy dysk SSD nie był dłuższy niż 42 mm (M.2 2242).

Możesz zapoznać się z naszą tabelą dysków https://www.notebookcheck.net/Laptop-harddisks-HDD-SSD-benchmarks.22089.0.html aby uzyskać więcej porównań i wyników benchmarków.

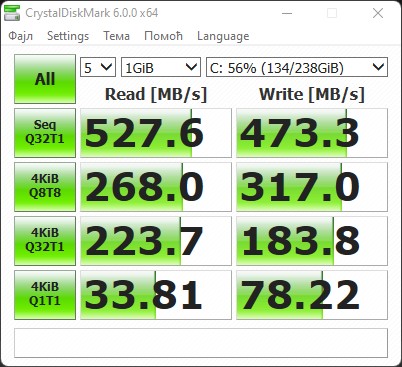

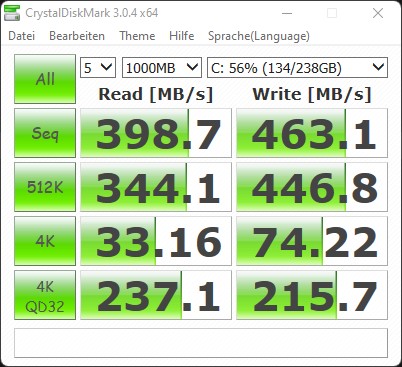

CrystalDiskMark 3.0

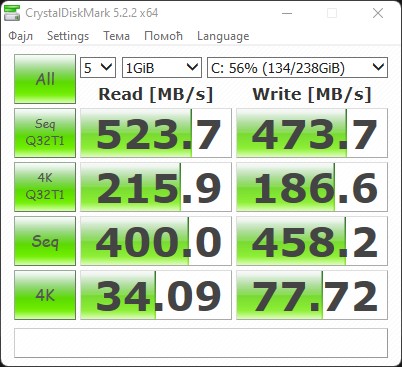

CrystalDiskMark 5.2 / 6

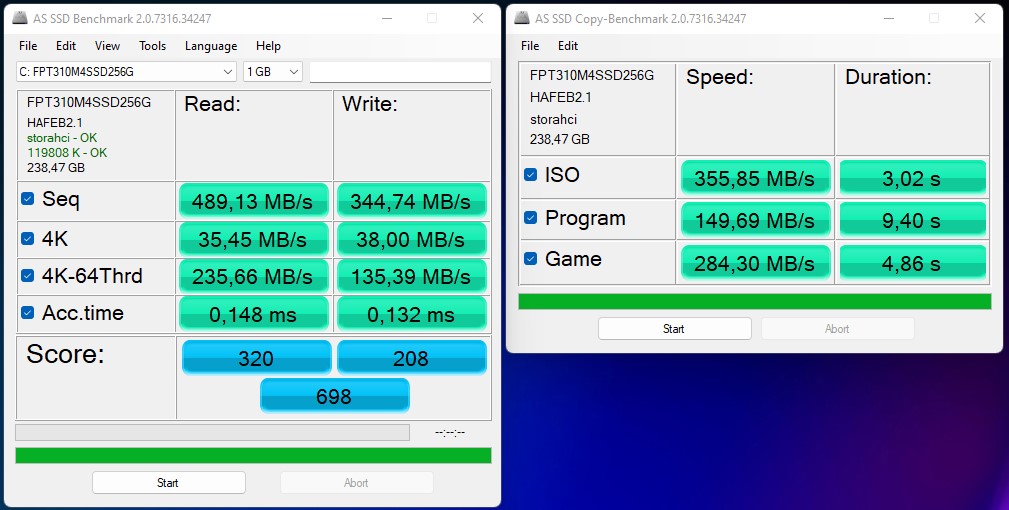

AS SSD

DiskSpd

FPT310M4SSD256G

Sequential Read: 398.7 MB/s

Sequential Write: 463.1 MB/s

512K Read: 344.1 MB/s

512K Write: 446.8 MB/s

4K Read: 33.16 MB/s

4K Write: 74.22 MB/s

4K QD32 Read: 237.1 MB/s

4K QD32 Write: 215.7 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Average of class Mini PC	97.5 pt ∼98%
AC6-M Mini-PC	33.6 pt ∼34%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	31.9 pt ∼32%
Average FPT310M4SSD256G	31.9 pt ∼32%
Newsmay AC8 N6005 Lexar 128GB SSD	31.5 pt ∼32%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	24.8 pt ∼25%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	22.1 pt ∼22%
Geekom MiniAir 11 NF830 256GB M.2 2280	18.8 pt ∼19%
Zotac ZBOX PI336 pico SanDisk DF4128	7 pt ∼7%

DiskSpd
seq read
Average of class Mini PC (233 - 4168, n=57, last 2 years)	1975 MB/s ∼100% +318%
Newsmay AC8 N6005 Lexar 128GB SSD	511 (502.22^min - 510.84^max) MB/s ∼26% +8%
AC6-M Mini-PC	477 (454.59^min - 477.1^max) MB/s ∼24% +1%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	472 (470.6^min - 472.28^max) MB/s ∼24%
Average FPT310M4SSD256G	472 MB/s ∼24% 0%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	468 (410.62^min - 468.2^max) MB/s ∼24% -1%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	434 (226.49^min - 434.29^max) MB/s ∼22% -8%
Zotac ZBOX PI336 pico SanDisk DF4128	250 (248.23^min - 249.69^max) MB/s ∼13% -47%
Geekom MiniAir 11 NF830 256GB M.2 2280	229 (187.74^min - 229.26^max) MB/s ∼12% -51%
seq write
Average of class Mini PC (222 - 4121, n=57, last 2 years)	1920 MB/s ∼100% +315%
Newsmay AC8 N6005 Lexar 128GB SSD	491 (445.91^min - 491.36^max) MB/s ∼26% +6%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	463 (451.31^min - 462.72^max) MB/s ∼24%
Average FPT310M4SSD256G	463 MB/s ∼24% 0%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	435 (387.34^min - 434.74^max) MB/s ∼23% -6%
AC6-M Mini-PC	428 (412.52^min - 427.8^max) MB/s ∼22% -8%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	409 (44.25^min - 408.73^max) MB/s ∼21% -12%
Geekom MiniAir 11 NF830 256GB M.2 2280	256 (237.45^min - 255.73^max) MB/s ∼13% -45%
Zotac ZBOX PI336 pico SanDisk DF4128	105.7 (97.74^min - 105.7^max) MB/s ∼6% -77%
seq q8 t1 read
Average of class Mini PC (236 - 7654, n=57, last 2 years)	3041 MB/s ∼100% +453%
AC6-M Mini-PC	563 (509.43^min - 563.43^max) MB/s ∼19% +2%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	550 (465.68^min - 549.87^max) MB/s ∼18%
Average FPT310M4SSD256G	550 MB/s ∼18% 0%
Newsmay AC8 N6005 Lexar 128GB SSD	548 (494.87^min - 547.82^max) MB/s ∼18% 0%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	490 (435.79^min - 489.54^max) MB/s ∼16% -11%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	447 (396.95^min - 446.64^max) MB/s ∼15% -19%
Geekom MiniAir 11 NF830 256GB M.2 2280	260 (234.3^min - 260.36^max) MB/s ∼9% -53%
Zotac ZBOX PI336 pico SanDisk DF4128	254 (201.55^min - 254.3^max) MB/s ∼8% -54%
seq q8 t1 write
Average of class Mini PC (228 - 4955, n=57, last 2 years)	1987 MB/s ∼100% +326%
Newsmay AC8 N6005 Lexar 128GB SSD	515 (500.64^min - 515.04^max) MB/s ∼26% +11%
AC6-M Mini-PC	497 (494.3^min - 497.29^max) MB/s ∼25% +7%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	488 (470.29^min - 487.93^max) MB/s ∼25% +5%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	466 (442.13^min - 465.87^max) MB/s ∼23%
Average FPT310M4SSD256G	466 MB/s ∼23% 0%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	346 (118.46^min - 345.82^max) MB/s ∼17% -26%
Geekom MiniAir 11 NF830 256GB M.2 2280	268 (261.2^min - 268.44^max) MB/s ∼13% -42%
Zotac ZBOX PI336 pico SanDisk DF4128	100.9 (42.78^min - 100.87^max) MB/s ∼5% -78%
4k q1 t1 read
Average of class Mini PC (5.67 - 86.6, n=57, last 2 years)	50.5 MB/s ∼100% +49%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	33.9 (33.27^min - 33.91^max) MB/s ∼67%
Average FPT310M4SSD256G	33.9 MB/s ∼67% 0%
Newsmay AC8 N6005 Lexar 128GB SSD	26.4 (25.68^min - 26.38^max) MB/s ∼52% -22%
Geekom MiniAir 11 NF830 256GB M.2 2280	16.1 (12.09^min - 16.13^max) MB/s ∼32% -53%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	16 (13.05^min - 15.97^max) MB/s ∼32% -53%
AC6-M Mini-PC	13.9 (11.27^min - 13.88^max) MB/s ∼28% -59%
Zotac ZBOX PI336 pico SanDisk DF4128	13.7 (13.61^min - 13.69^max) MB/s ∼27% -60%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	12.9 (5.79^min - 12.85^max) MB/s ∼26% -62%
4k q1 t1 write
Average of class Mini PC (22 - 425, n=57, last 2 years)	186.3 MB/s ∼100% +151%
Newsmay AC8 N6005 Lexar 128GB SSD	99.8 (98.72^min - 99.78^max) MB/s ∼54% +35%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	74.1 (72.55^min - 74.09^max) MB/s ∼40%
Average FPT310M4SSD256G	74.1 MB/s ∼40% 0%
AC6-M Mini-PC	62 (61.58^min - 62.02^max) MB/s ∼33% -16%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	46.9 (43.93^min - 46.94^max) MB/s ∼25% -37%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	22 (19.72^min - 21.99^max) MB/s ∼12% -70%
Geekom MiniAir 11 NF830 256GB M.2 2280	20.9 (15.11^min - 20.94^max) MB/s ∼11% -72%
Zotac ZBOX PI336 pico SanDisk DF4128	13.8 (12.91^min - 13.8^max) MB/s ∼7% -81%
4k q32 t16 read
Average of class Mini PC (26.1 - 2810, n=57, last 2 years)	1025 MB/s ∼100% +285%
AC6-M Mini-PC	302 (300.2^min - 301.59^max) MB/s ∼29% +14%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	266 (264.89^min - 265.82^max) MB/s ∼26%
Average FPT310M4SSD256G	266 MB/s ∼26% 0%
Newsmay AC8 N6005 Lexar 128GB SSD	185 (183.89^min - 185.03^max) MB/s ∼18% -30%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	170.2 (157.55^min - 170.17^max) MB/s ∼17% -36%
Geekom MiniAir 11 NF830 256GB M.2 2280	165.1 (75.31^min - 165.14^max) MB/s ∼16% -38%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	163.2 (153.74^min - 163.17^max) MB/s ∼16% -39%
Zotac ZBOX PI336 pico SanDisk DF4128	26 (24.84^min - 25.96^max) MB/s ∼3% -90%
4k q32 t16 write
Average of class Mini PC (30.2 - 3830, n=57, last 2 years)	1109 MB/s ∼100% +248%
AC6-M Mini-PC	351 (323.82^min - 350.53^max) MB/s ∼32% +10%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	319 (315.72^min - 318.72^max) MB/s ∼29%
Average FPT310M4SSD256G	319 MB/s ∼29% 0%
Newsmay AC8 N6005 Lexar 128GB SSD	288 (244.64^min - 287.66^max) MB/s ∼26% -10%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	209 (190.39^min - 209.23^max) MB/s ∼19% -34%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	168.3 (88.04^min - 168.3^max) MB/s ∼15% -47%
Geekom MiniAir 11 NF830 256GB M.2 2280	113 (45.88^min - 112.97^max) MB/s ∼10% -65%
Zotac ZBOX PI336 pico SanDisk DF4128	13.1 (12.24^min - 13.12^max) MB/s ∼1% -96%

AS SSD
Score Total
Average of class Mini PC (151.3 - 9030, n=56, last 2 years)	3498 Points ∼100% +401%
AC6-M Mini-PC	1091 Points ∼31% +56%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	698 Points ∼20%
Average FPT310M4SSD256G	698 Points ∼20% 0%
Newsmay AC8 N6005 Lexar 128GB SSD	604 Points ∼17% -13%
Geekom MiniAir 11 NF830 256GB M.2 2280	582 Points ∼17% -17%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	580 Points ∼17% -17%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	151.3 (331.02^min) Points ∼4% -78%
Zotac ZBOX PI336 pico SanDisk DF4128	136 Points ∼4% -81%
Score Read
Average of class Mini PC (61 - 3635, n=56, last 2 years)	1317 Points ∼100% +312%
AC6-M Mini-PC	473 Points ∼36% +48%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	320 Points ∼24%
Average FPT310M4SSD256G	320 Points ∼24% 0%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	217 Points ∼16% -32%
Geekom MiniAir 11 NF830 256GB M.2 2280	201 Points ∼15% -37%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	166 Points ∼13% -48%
Newsmay AC8 N6005 Lexar 128GB SSD	134 Points ∼10% -58%
Zotac ZBOX PI336 pico SanDisk DF4128	65 Points ∼5% -80%
Score Write
Average of class Mini PC (88 - 4185, n=56, last 2 years)	1577 Points ∼100% +658%
Newsmay AC8 N6005 Lexar 128GB SSD	396 Points ∼25% +90%
AC6-M Mini-PC	374 Points ∼24% +80%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	324 Points ∼21% +56%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	312 Points ∼20% +50%
Geekom MiniAir 11 NF830 256GB M.2 2280	278 Points ∼18% +34%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	208 Points ∼13%
Average FPT310M4SSD256G	208 Points ∼13% 0%
Zotac ZBOX PI336 pico SanDisk DF4128	39 Points ∼2% -81%
Seq Read
Average of class Mini PC (291 - 5799, n=56, last 2 years)	2770 MB/s ∼100% +466%
Newsmay AC8 N6005 Lexar 128GB SSD	512 MB/s ∼18% +5%
AC6-M Mini-PC	492 MB/s ∼18% +1%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	489 MB/s ∼18%
Average FPT310M4SSD256G	489 MB/s ∼18% 0%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	455.57 MB/s ∼16% -7%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	433 MB/s ∼16% -11%
Geekom MiniAir 11 NF830 256GB M.2 2280	421.78 MB/s ∼15% -14%
Zotac ZBOX PI336 pico SanDisk DF4128	264.86 MB/s ∼10% -46%
Seq Write
Average of class Mini PC (240 - 4258, n=56, last 2 years)	1826 MB/s ∼100% +431%
AC6-M Mini-PC	450 MB/s ∼25% +31%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	438.23 MB/s ∼24% +27%
Newsmay AC8 N6005 Lexar 128GB SSD	411.6 MB/s ∼23% +20%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	385 MB/s ∼21% +12%
Geekom MiniAir 11 NF830 256GB M.2 2280	365.24 MB/s ∼20% +6%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	344 MB/s ∼19%
Average FPT310M4SSD256G	344 MB/s ∼19% 0%
Zotac ZBOX PI336 pico SanDisk DF4128	117 MB/s ∼6% -66%
4K Read
Average of class Mini PC (6.08 - 104.2, n=56, last 2 years)	54.4 MB/s ∼100% +53%
Average FPT310M4SSD256G	35.5 MB/s ∼65% 0%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	35.45 MB/s ∼65%
Newsmay AC8 N6005 Lexar 128GB SSD	23.29 MB/s ∼43% -34%
AC6-M Mini-PC	19.43 MB/s ∼36% -45%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	16.2 MB/s ∼30% -54%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	13.9 MB/s ∼26% -61%
Geekom MiniAir 11 NF830 256GB M.2 2280	13.57 MB/s ∼25% -62%
Zotac ZBOX PI336 pico SanDisk DF4128	13.21 MB/s ∼24% -63%
4K Write
Average of class Mini PC (30.9 - 366, n=56, last 2 years)	172.2 MB/s ∼100% +353%
Newsmay AC8 N6005 Lexar 128GB SSD	83 MB/s ∼48% +118%
AC6-M Mini-PC	51.4 MB/s ∼30% +35%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	49.68 MB/s ∼29% +31%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	38 MB/s ∼22%
Average FPT310M4SSD256G	38 MB/s ∼22% 0%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	36.63 MB/s ∼21% -4%
Geekom MiniAir 11 NF830 256GB M.2 2280	21.25 MB/s ∼12% -44%
Zotac ZBOX PI336 pico SanDisk DF4128	13.46 MB/s ∼8% -65%
4K-64 Read
Average of class Mini PC (23.4 - 3035, n=56, last 2 years)	986 MB/s ∼100% +318%
AC6-M Mini-PC	404.1 MB/s ∼41% +71%
Average FPT310M4SSD256G	236 MB/s ∼24% 0%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	235.66 MB/s ∼24%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	157.18 MB/s ∼16% -33%
Geekom MiniAir 11 NF830 256GB M.2 2280	144.84 MB/s ∼15% -39%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	106.99 MB/s ∼11% -55%
Newsmay AC8 N6005 Lexar 128GB SSD	59.4 MB/s ∼6% -75%
Zotac ZBOX PI336 pico SanDisk DF4128	25.74 MB/s ∼3% -89%
4K-64 Write
Average of class Mini PC (32.8 - 3598, n=56, last 2 years)	1222 MB/s ∼100% +803%
AC6-M Mini-PC	277.8 MB/s ∼23% +105%
Newsmay AC8 N6005 Lexar 128GB SSD	272.3 MB/s ∼22% +101%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	237.24 MB/s ∼19% +75%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	230.65 MB/s ∼19% +70%
Geekom MiniAir 11 NF830 256GB M.2 2280	219.83 MB/s ∼18% +62%
Average FPT310M4SSD256G	135.4 MB/s ∼11% 0%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	135.39 MB/s ∼11%
Zotac ZBOX PI336 pico SanDisk DF4128	13.71 MB/s ∼1% -90%
Access Time Read
Zotac ZBOX PI336 pico SanDisk DF4128	0.311 ms * ∼100% -110%
Geekom MiniAir 11 NF830 256GB M.2 2280	0.284 ms * ∼91% -92%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	0.205 ms * ∼66% -39%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	0.193 ms * ∼62% -30%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	0.148 ms * ∼48%
Average FPT310M4SSD256G	0.148 ms * ∼48% -0%
Newsmay AC8 N6005 Lexar 128GB SSD	0.139 ms * ∼45% +6%
Average of class Mini PC (0.022 - 0.489, n=56, last 2 years)	0.1058 ms * ∼34% +29%
AC6-M Mini-PC	0.088 ms * ∼28% +41%
Access Time Write
Zotac ZBOX PI336 pico SanDisk DF4128	0.942 ms * ∼100% -614%
Geekom MiniAir 11 NF830 256GB M.2 2280	0.218 ms * ∼23% -65%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	0.203 ms * ∼22% -54%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	0.18 ms * ∼19% -36%
Newsmay AC8 N6005 Lexar 128GB SSD	0.145 ms * ∼15% -10%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	0.132 ms * ∼14%
Average FPT310M4SSD256G	0.132 ms * ∼14% -0%
Average of class Mini PC (0.016 - 0.765, n=56, last 2 years)	0.1252 ms * ∼13% +5%
AC6-M Mini-PC	0.071 ms * ∼8% +46%

* ... im mniej tym lepiej

Sustained Load Read: DiskSpd Read Loop, Queue Depth 8

Minipc Union Ace Magician T8Pro FPT310M4SSD256G: Ø553 (484.52-559.31)

Geekom MiniAir 11 NF830 256GB M.2 2280: Ø222 (150.9-230.52)

Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3: Ø485 (394.52-487.59)

Zotac ZBOX PI336 pico SanDisk DF4128: Ø256 (203.85-260.99)

Newsmay AC8 N6005 Lexar 128GB SSD: Ø545 (496.4-547.82)

Karta graficzna i wydajność w grach

Przetwarzanie grafiki jest obsługiwane przezIntel'a UHD Graphics 16 EUs (Jasper Lake). Przy takim iGPU nie ma co wymagać od Ace Magician T8Pro wykonywania skomplikowanych obliczeń 3D. Niemniej jednak, na podstawie naszych pomiarów, T8Pro jest nieco lepszy od Geekom MiniAir 11 Special Edition pod względem wydajności graficznej. To powiedziawszy, nasz egzemplarz recenzencki nie jest tak dobry jak Newsmay AC8ponieważ iGPU na Intel Pentium Silver N6005 ma w sumie 32 jednostki EU. Podczas gdy nie powinieneś oczekiwać, że będziesz grał w wymagające gry 3D na Ace Magician T8Pro, ten mały biurowy komputer powinien mieć bez problemu uruchomione proste gry oparte na przeglądarce i inne zwykłe gry.

Kliknij tutaj aby zobaczyć więcej wyników benchmarków dla Intela UHD Graphics.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Newsmay AC8 N6005 Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6005	100 pt ∼100%
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	72.6 pt ∼73%
Geekom MiniAir 11 Special Edition Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	69.7 pt ∼70%
Geekom MiniAir 11 Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	69.1 pt ∼69%
Beelink U59 Mini-S Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	68.3 pt ∼68%
Zotac ZBOX PI336 pico Intel UHD Graphics (Elkhart Lake 16 EU), Intel Celeron N6211	54.7 pt ∼55%
AC6-M Mini-PC Intel UHD Graphics 600, Intel Celeron J4125	49.3 pt ∼49%

3DMark 11 - 1280x720 Performance GPU
Newsmay AC8 N6005 Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6005	1589 Points ∼100% +85%
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	859 Points ∼54%
Beelink U59 Mini-S Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	854 Points ∼54% -1%
Geekom MiniAir 11 Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	837 Points ∼53% -3%
Geekom MiniAir 11 Special Edition Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	837 Points ∼53% -3%
Zotac ZBOX PI336 pico Intel UHD Graphics (Elkhart Lake 16 EU), Intel Celeron N6211	650 Points ∼41% -24%
AC6-M Mini-PC Intel UHD Graphics 600, Intel Celeron J4125

Recenzja Ace Magician T8Pro: Budżetowy mini PC do użytku biurowego

Szczegółowe informacje na temat Ace Magician T8Pro

Sprawa

Porównanie wielkości

Specyfikacje

Konserwacja

Wydajność

Warunki badania

Procesor

Wydajność systemu

Opóźnienie DPC

Pamięć masowa

Sustained Load Read: DiskSpd Read Loop, Queue Depth 8

Karta graficzna i wydajność w grach
