Recenzja Minisforum HX90G: Kompaktowy komputer dla graczy z procesorem AMD Ryzen 9 5900HX i kartą graficzną AMD Radeon RX 6600M

Potężny mini PC! Minisforum i jego linia kompaktowych komputerów stacjonarnych cieszy się coraz większą popularnością. Obecna linia chińskiego producenta skupia się w coraz większym stopniu na systemach gamingowych, takich jak Neptune Series HX90G. Dowiedz się, co to kompaktowe urządzenie ma do zaoferowania i czy polecilibyśmy je w tej recenzji.
AMD Cezanne (Zen 3) Desktop Mini PC Radeon Ryzen (Zen)

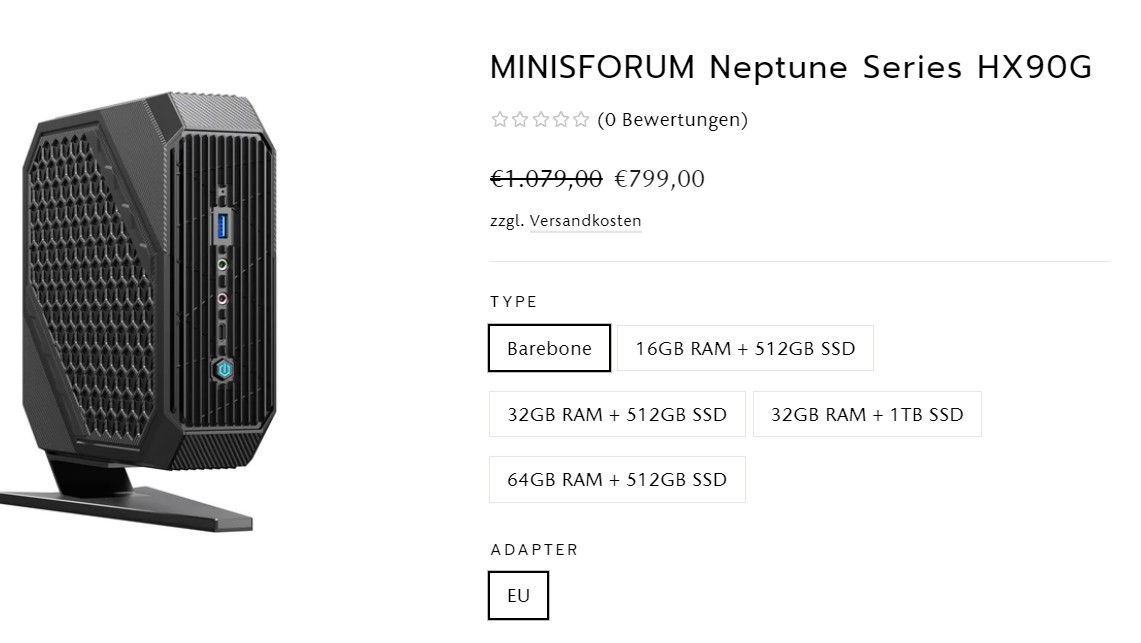

Konfiguracje Minisforum HX90G (Źródło: Minisforum)
Konfiguracje Minisforum HX90G (Źródło: Minisforum)

Minisforum cieszy się coraz większą popularnością. Chiński producent systemów zaczynał od kompaktowych komputerów biurowych i zaznaczył swój debiut w sektorze gier za sprawą EliteMini HX90 - urządzenia bez dedykowanego GPU. Minisforum Neptune Series HX90G nadrabia to i zawiera AMD Radeon RX 6600M, który uzupełnia procesor AMD Ryzen 9 5900HX. Układ ten znamy z naszych recenzji notebooków. Ma on VRAM o wielkości 8 GB i może pracować bez dławienia przez HX90G.

Minisforum HX90G jest dostępny w sklepie internetowym producenta. Występuje też w wersji barebone bez modułów RAM i SSD - i bez licencji na Windows Professional 11. Cena tej wersji barebone zaczyna się od 1 079 euro. Najlepszy model z 64 GB pamięci RAM i dyskiem SSD o pojemności 512 GB jest dostępny za 1 469 euro. Pierwsze produkty trafią do dystrybucji w połowie listopada i są obecnie dostępne z rabatem na zamówienie przedpremierowe w wysokości ok. 300 euro, co daje bardzo atrakcyjną cenę.

W niniejszej recenzji jako urządzenia porównawcze uwzględniono kompaktowe komputery stacjonarne, a w celu bardziej bezpośredniego porównania wydajności GPU przyjrzano się także podobnie wyposażonym notebookom dla graczy.

Minisforum Neptune Series HX90G
Procesor
AMD Ryzen 9 5900HX 8 x 3.3 - 4.6 GHz, 54 W PL2 / Short Burst, 45 W PL1 / Sustained, Cezanne-H (Zen 3)
Karta grafiki
AMD Radeon RX 6600M - 8 GB VRAM, rdzeń: 2448 MHz, pamięć: 1750 MHz, 100 W TDP, GDDR6, Adrenalin 22.10.1
Pamięć
16 GB
, DDR4-3200, 2 von 2 installiert
Chipset
AMD Promontory/Bixby FCH

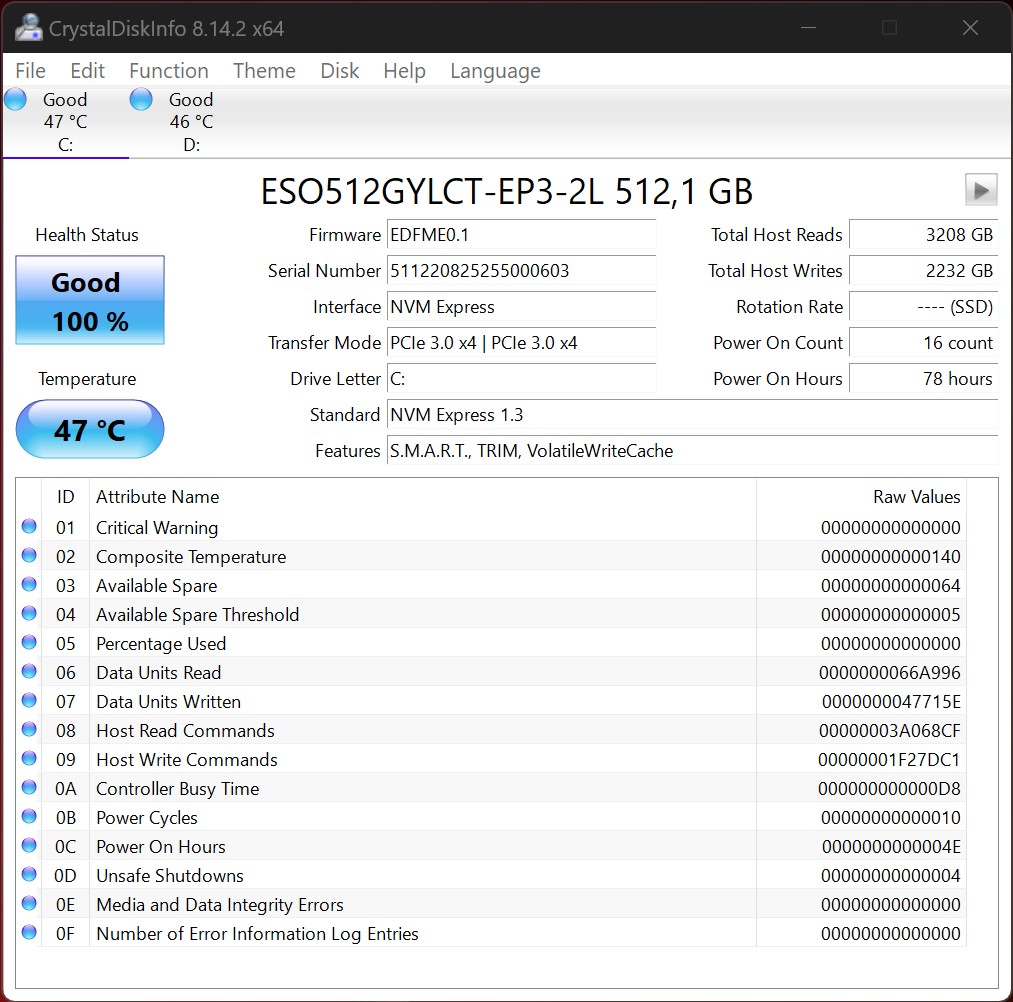

Dysk twardy
ESO512GYLCT, 512 GB
, M.2 NVMe, 450 GB wolne miejsce
Karta dźwiękowa
AMD Zen - Audio Processor - HD Audio Controller
Złącza
2 USB 3.0, 3 USB 3.1 Gen2, 2 HDMI, 2 DisplayPort, gniazda audio: Mikrofonbuchse, Kopfhöreranschluss
Łączność
Intel Ethernet Controller I225-V (10/100/1000/2500MBit/s), MediaTek RZ608 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.2
Gabaryty
wysokość x szerokość x głębokość (mm): 69.3 x 205 x 203
System operacyjny
Microsoft Windows 11 Pro
Inne
power supply with cable, HDMI cable, computer stand, user manual, 24 miesiące(y) gwarancji
Released
21/11/2022
Waga
1.414 kg, zasilacz: 653 g
Cena
1229 EUR
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Potencjalni konkurenci w porównaniu

Rating
Date
Model
Weight
Height
Best Price
10/2022
Minisforum Neptune Series HX90G
R9 5900HX, Radeon RX 6600M
1.4 kg69.3 mm
Intel Beast Canyon NUC
i9-11900KB, NVIDIA GeForce RTX 3060
189 mm
Zotac Magnus One (ECM73070C)
i7-10700, NVIDIA GeForce RTX 3070
Zotac ZBOX Magnus EN173070C
i7-11800H, GeForce RTX 3070 Laptop GPU
1.8 kg62.2 mm
Intel Dragon Canyon NUC - RTX 3060
i9-12900, NVIDIA GeForce RTX 3060
189 mm
82.6 %
Lenovo Legion 5 15ACH6A-82NW0010GE
R5 5600H, Radeon RX 6600M
2.5 kg25.75 mm
10/2022
Minisforum NUCX i7
i7-11800H, GeForce RTX 3070 Laptop GPU
2.4 kg393 mm
Minisforum EliteMini HX90
R9 5900HX, Vega 8
60 mm

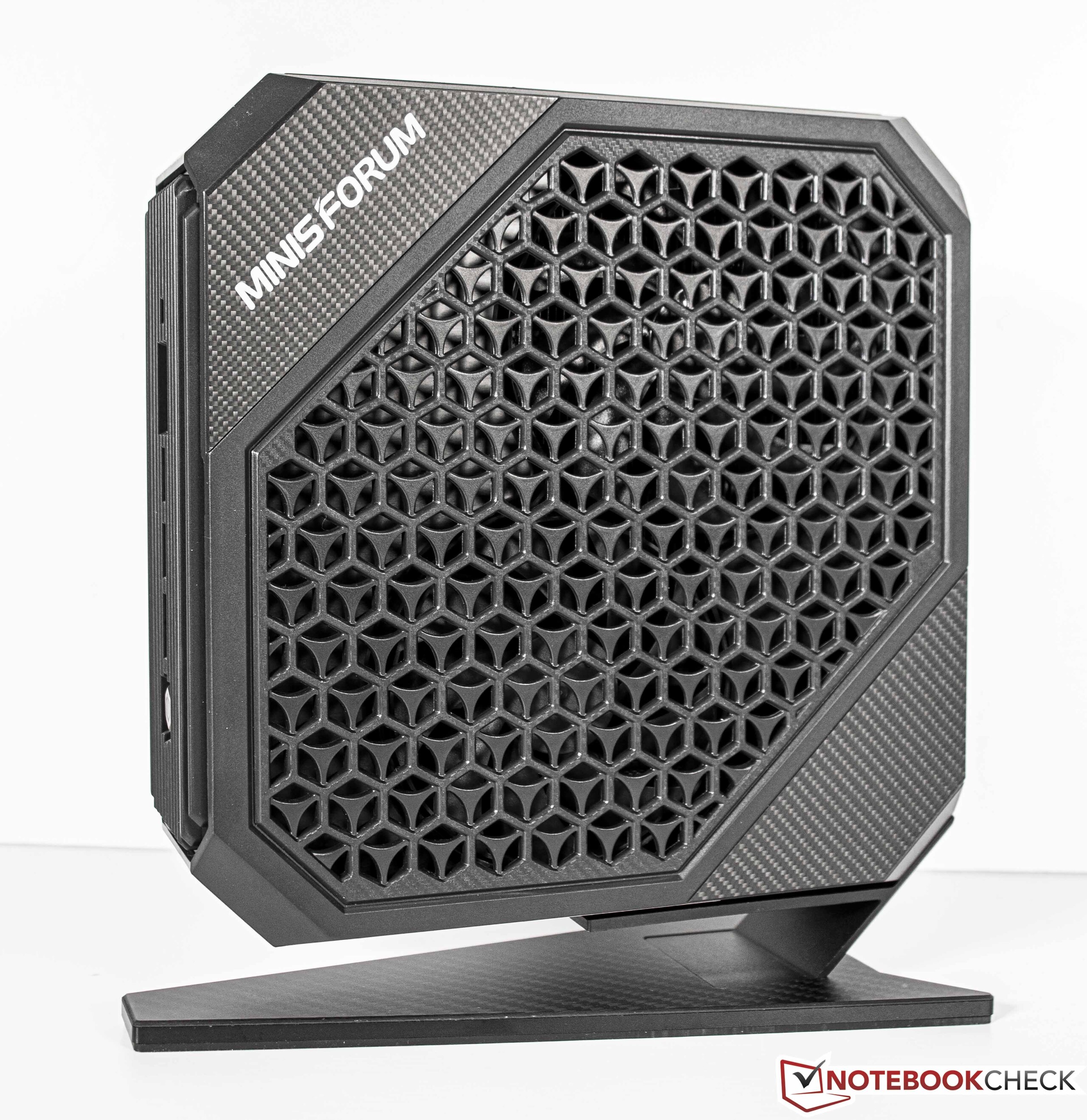

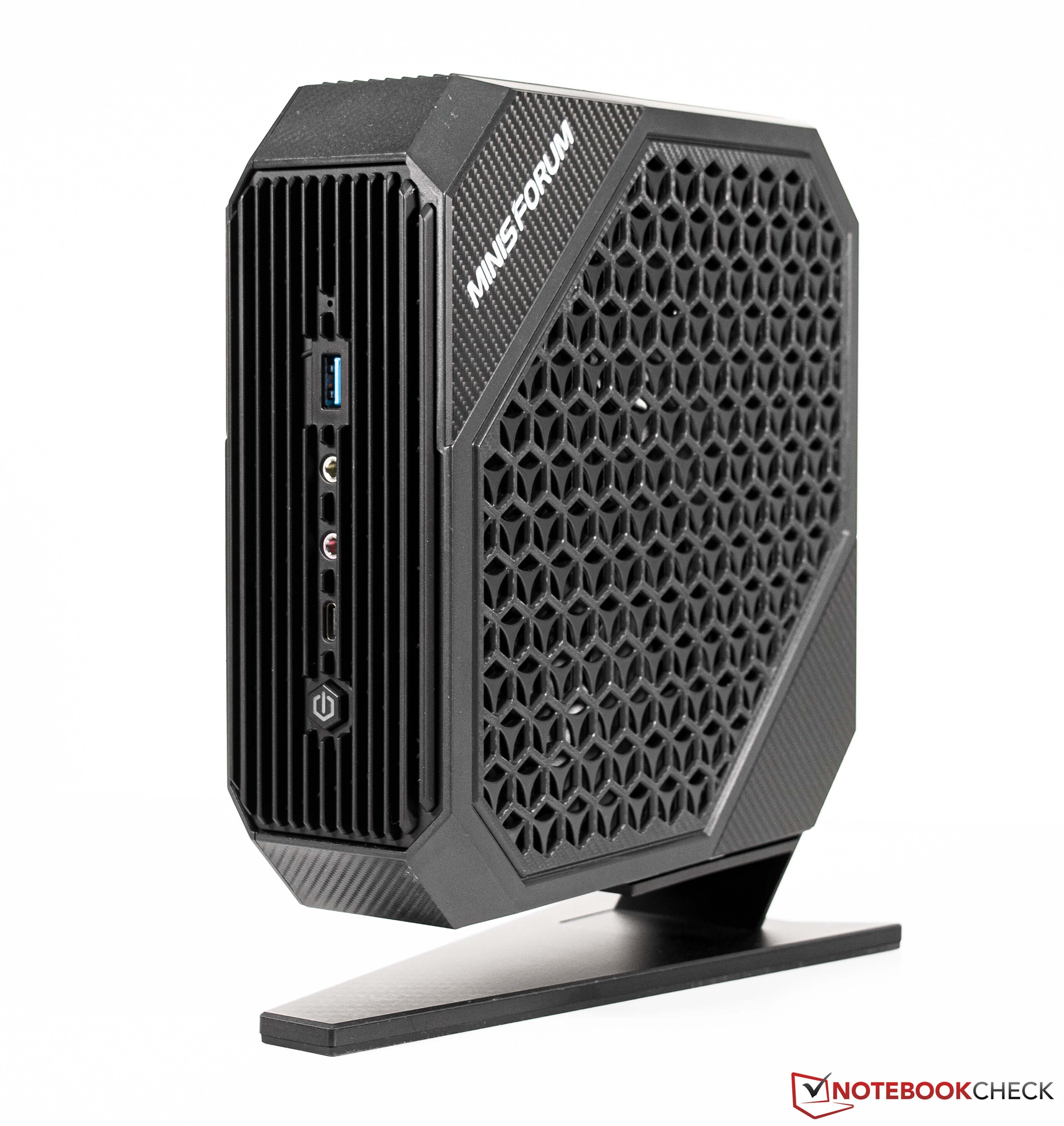

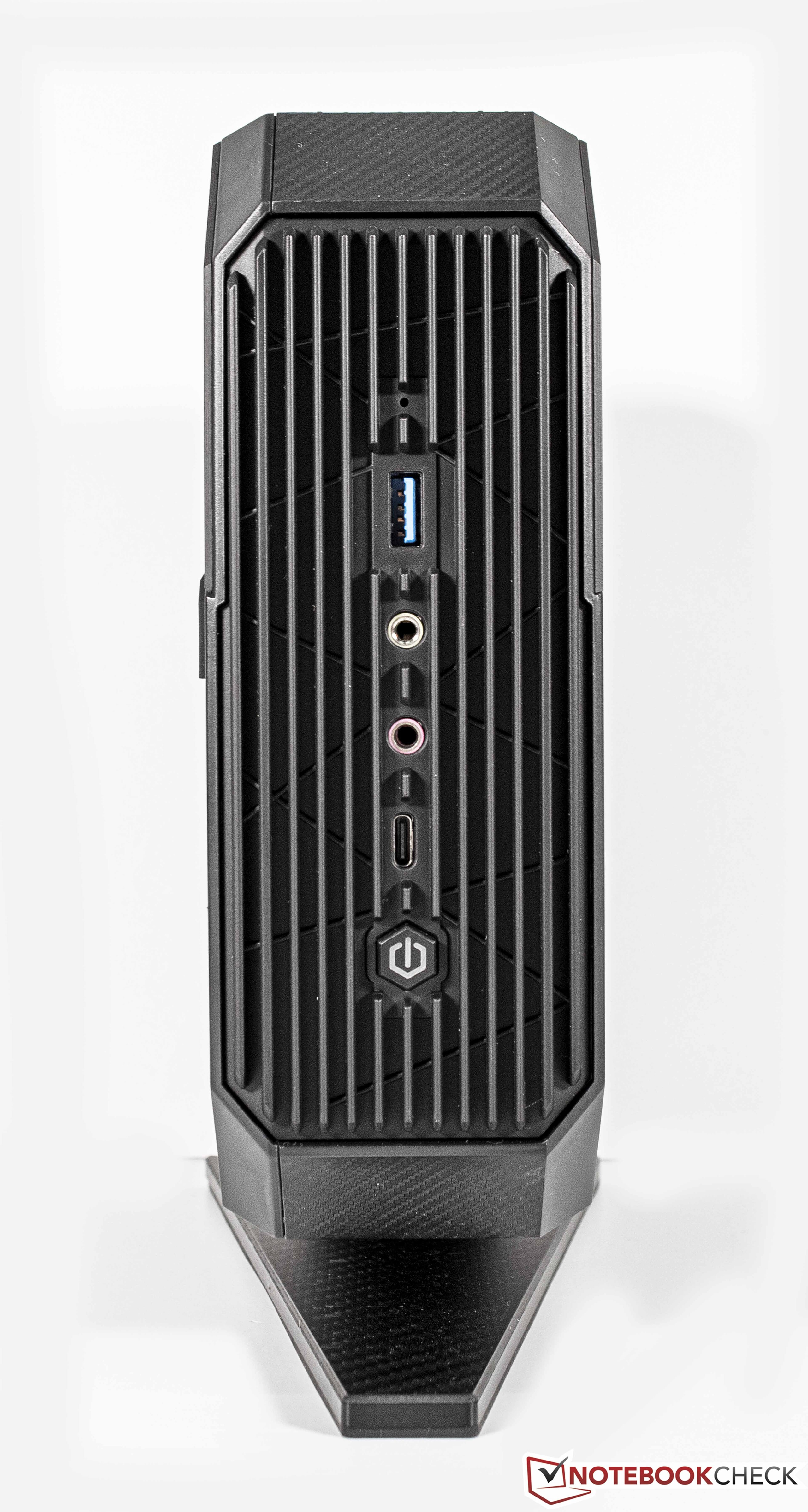

Szczegółowe spojrzenie na Minisforum Neptune Series HX90G

Minisforum Seria Neptune HX90G
Minisforum Seria Neptune HX90G
Minisforum Seria Neptune HX90G
Minisforum Seria Neptune HX90G
Minisforum Seria Neptune HX90G
Minisforum Seria Neptune HX90G
Minisforum Seria Neptune HX90G
Minisforum Seria Neptune HX90G
Minisforum Seria Neptune HX90G
Minisforum Seria Neptune HX90G
Minisforum Seria Neptune HX90G
Minisforum Seria Neptune HX90G
Minisforum Seria Neptune HX90G
Minisforum Seria Neptune HX90G
Minisforum Seria Neptune HX90G

Sprawa

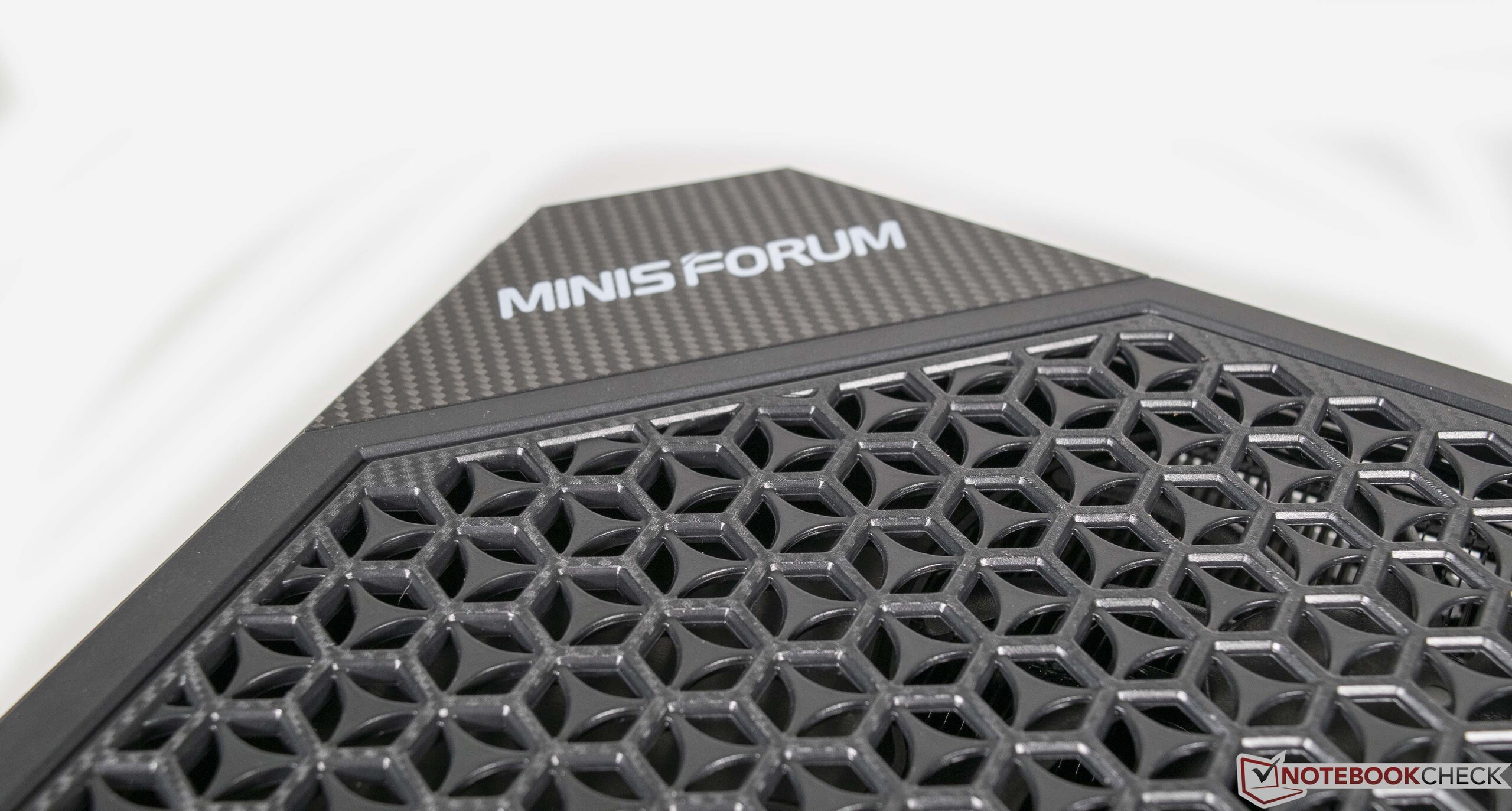

Obudowa wykonana jest w całości z tworzywa sztucznego i podobnie jak Minisforum EliteMini HX90 posiada karbonowy wygląd niektórych elementów. Wnętrze obudowy jest wzmocnione metalem. W kwestii wyglądu zewnętrznego urządzenia nie ma nic do skrytykowania. Jakość wykonania jest dobra, a wymiary szczelin nie są zbyt duże. Niemniej jednak wolelibyśmy obudowę aluminiową. Mogłoby to sprawić, że urządzenie byłoby nieco cięższe, ale nadałoby mu bardziej topowy wygląd. Minisforum HX90G można ustawić na płasko lub w pionie za pomocą małej podstawki, co widać na zdjęciach.

Minisforum HX90G waży tylko 1,4 kg (wraz z podstawką). Zewnętrzny zasilacz waży kolejne 650 g.

Łączność

Na pierwszy rzut oka wydaje się, że Minisforum Neptune Series HX90G zawiera wszystkie istotne porty. Posiada pięć portów USB, z czego jeden to port typu C. Niestety, żaden z portów nie obsługuje Thunderbolt, a port typu C nie obsługuje wyjścia obrazu. Urządzenie zapewnia wystarczające alternatywy do podłączenia zewnętrznych ekranów: dwa złącza HDMI i dwa DisplayPort. Niestety, te cztery porty obsługują tylko do 4K@60Hz. Porty są rozmieszczone z przodu i z tyłu i są łatwo dostępne.

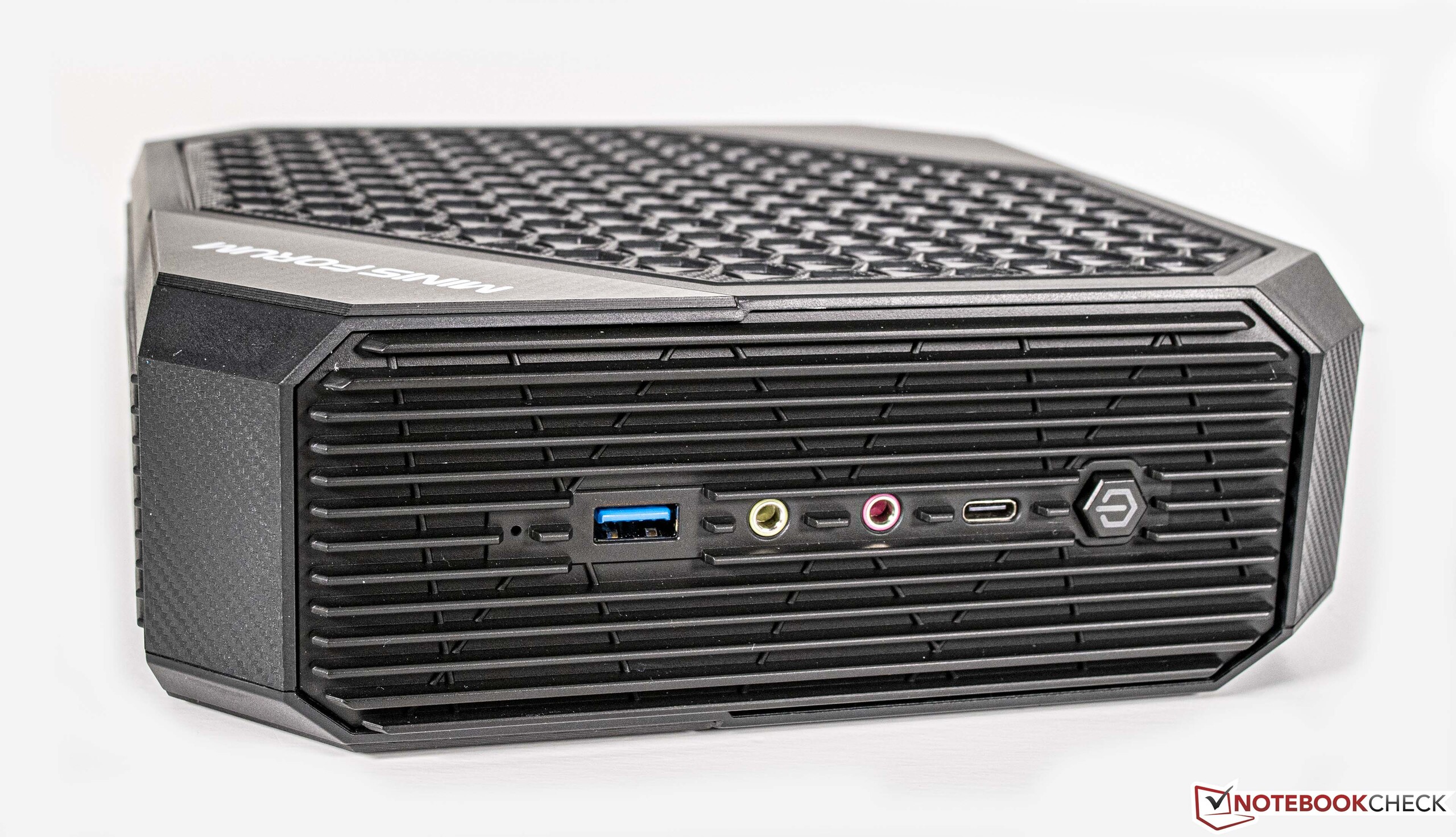

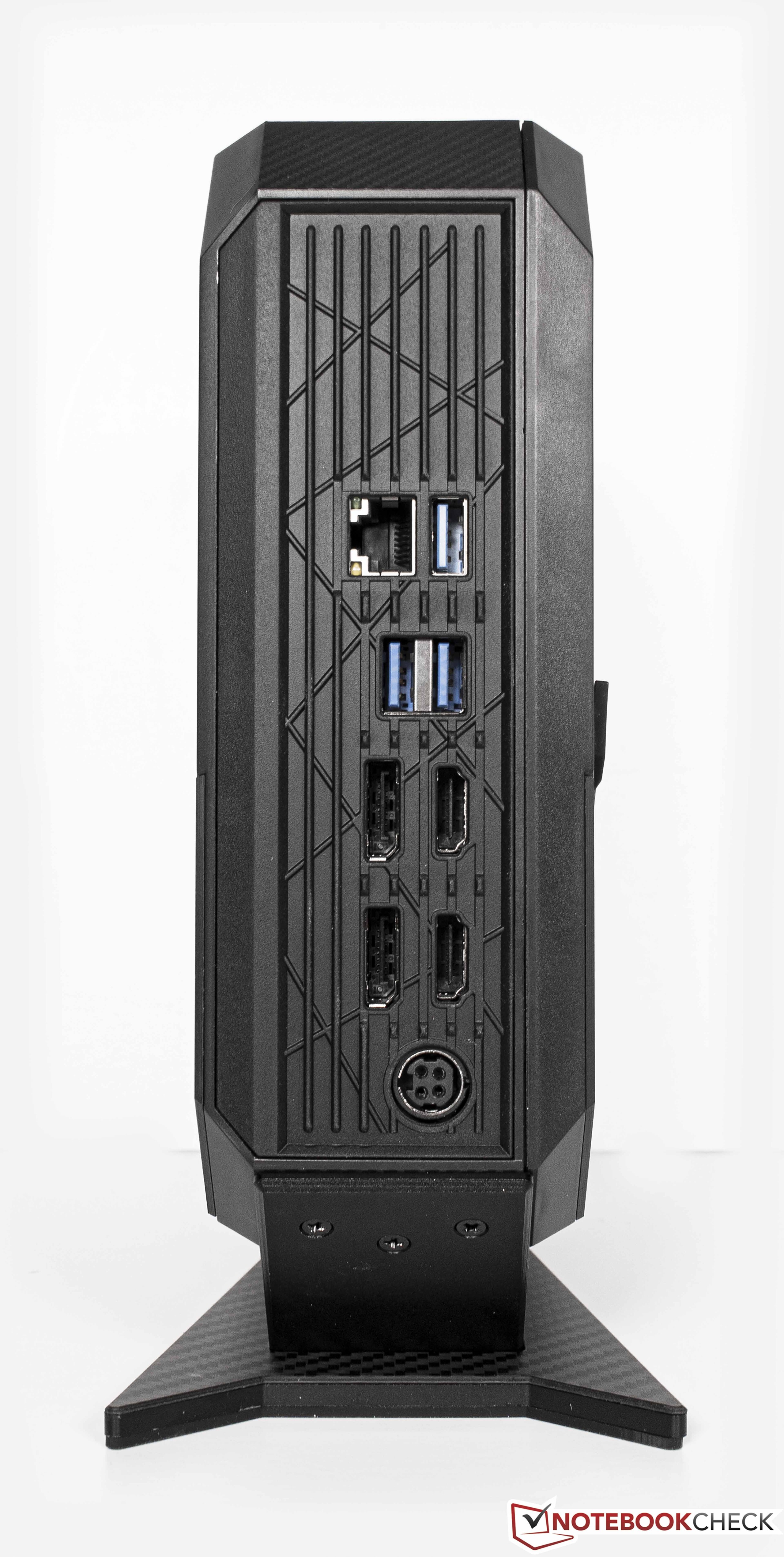

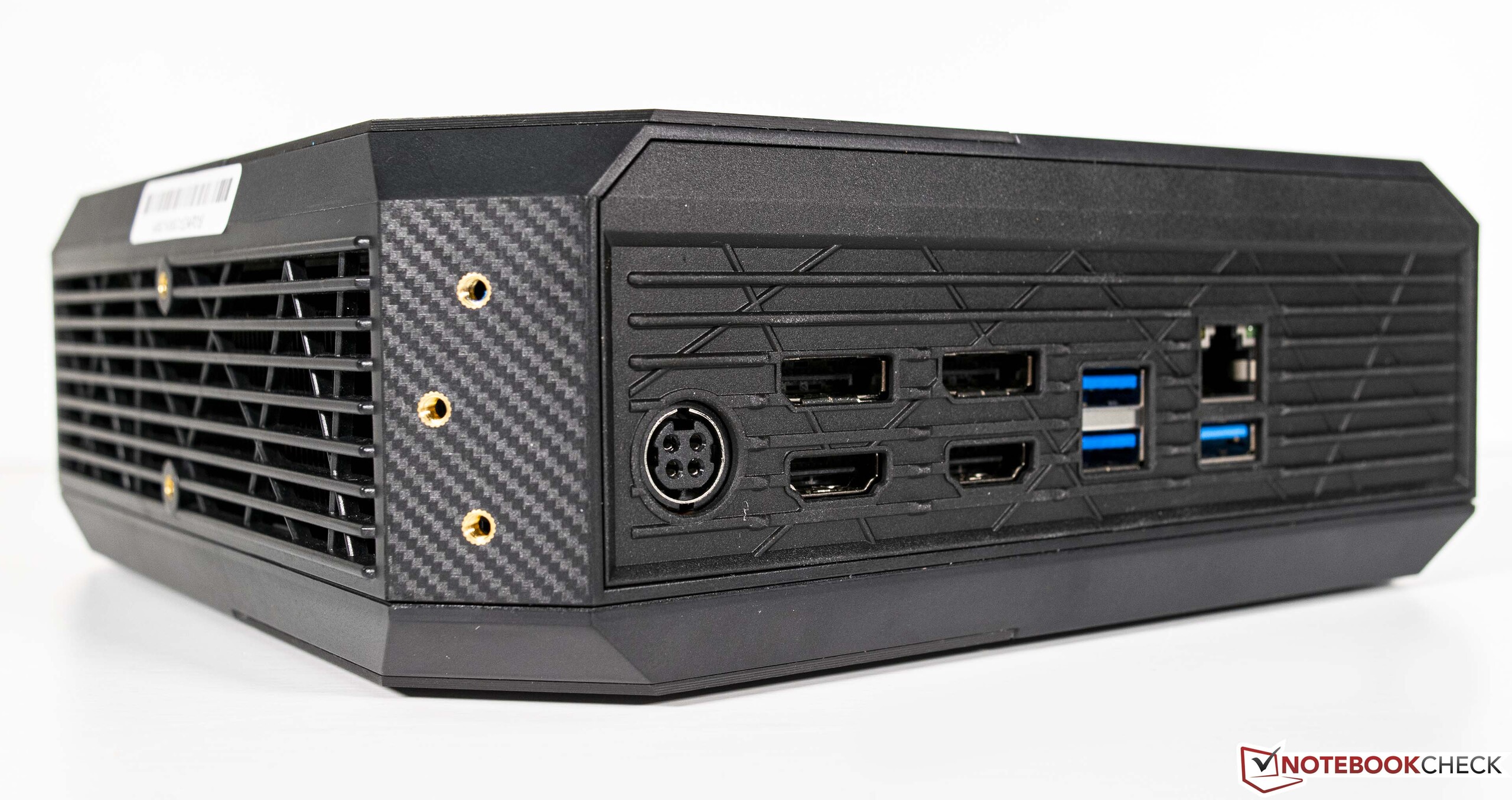

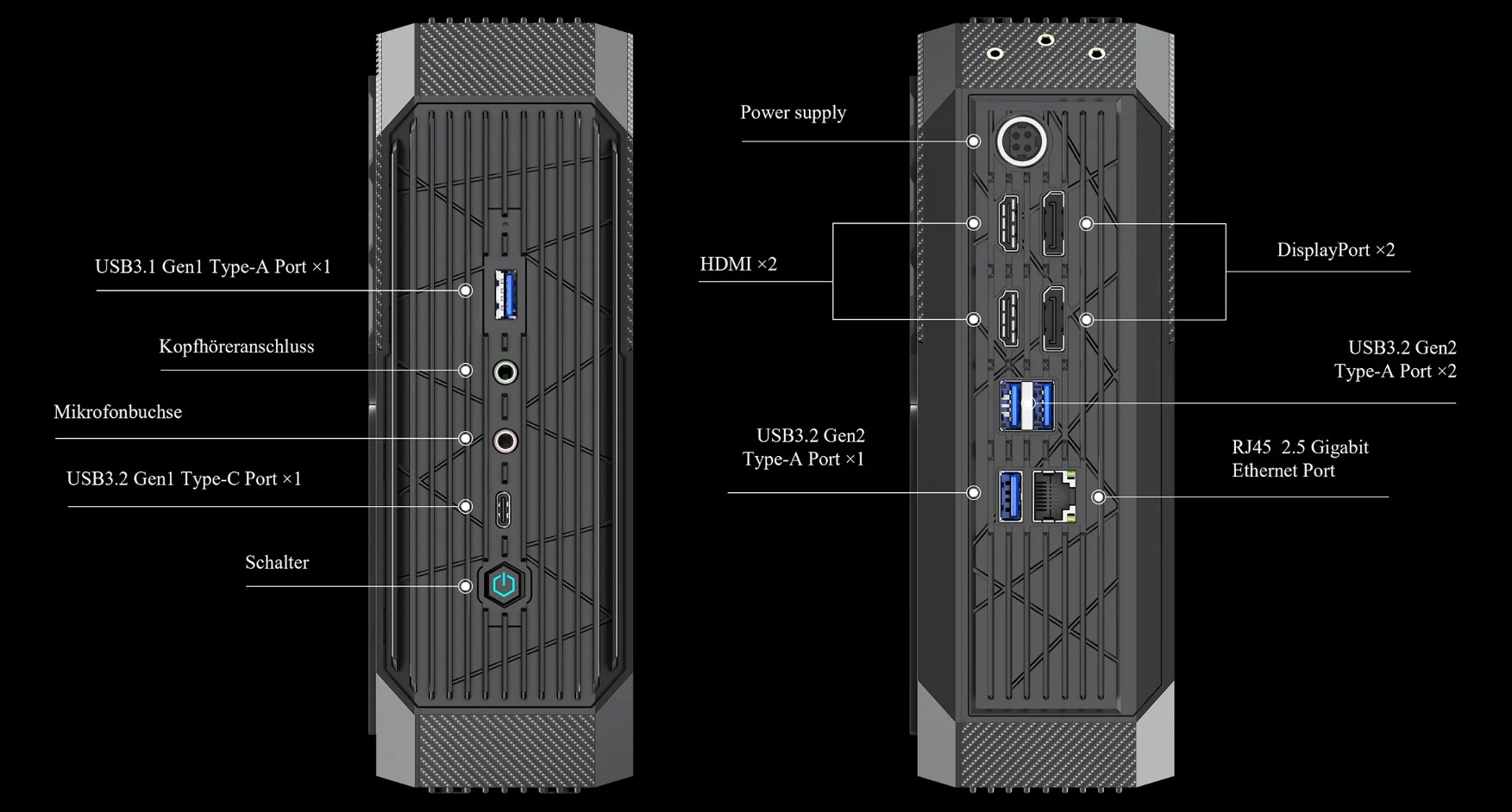

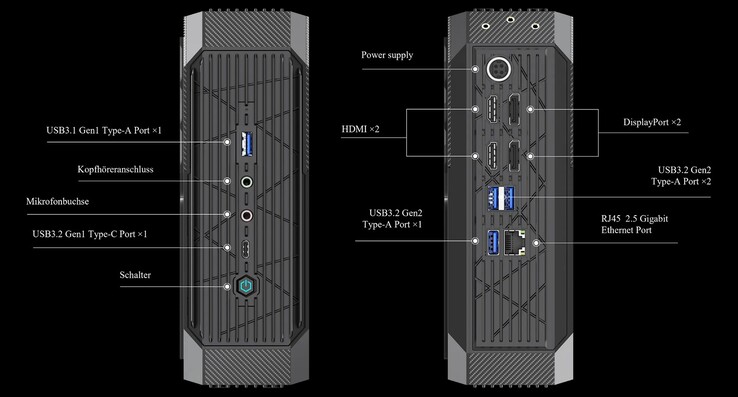

Porty zewnętrzne w modelu Minisforum Neptune Series HX90G (Źródło: Minisforum)
Porty zewnętrzne w modelu Minisforum Neptune Series HX90G (Źródło: Minisforum)

Communciation

Minisforum w swoim HX90G umieściło moduł MediaTek RZ608. Mini PC osiągnął dobre wyniki w naszym teście z naszym referencyjnym routerem ASUS ROG Rapture GT-AXE11000. Jego transfery były wyższe od wszystkich naszych wcześniejszych pomiarów z tym modułem w innych jednostkach testowych. Moduły Intel Wi-Fi 6E są jednak znacznie szybsze i z łatwością przebijają naszą jednostkę testową. Zintegrowany port LAN jest dobrą alternatywą i obsługuje do 2,5 GBit/s.

Networking
iperf3 receive AXE11000 6GHz
Intel Dragon Canyon NUC - RTX 3060
Intel Wi-Fi 6E AX211
1848 (1731min - 1888max) MBit/s +122%
Zotac ZBOX Magnus EN173070C
Killer Wi-Fi 6 AX1650x Wireless Network Adapter (200NGW)
1480 (1212min - 1519max) MBit/s +78%
Average of class Mini PC
  (390 - 1771, n=39, last 2 years)
1196 MBit/s +44%
Minisforum NUCX i7
Intel Wi-Fi 6E AX210
885 (820min - 897max) MBit/s +6%
Minisforum Neptune Series HX90G
MediaTek RZ608
831 (801min - 844max) MBit/s
Average MediaTek RZ608
  (430 - 961, n=16)
826 MBit/s -1%
iperf3 transmit AXE11000 6GHz
Intel Dragon Canyon NUC - RTX 3060
Intel Wi-Fi 6E AX211
1851 (1799min - 1897max) MBit/s +91%
Zotac ZBOX Magnus EN173070C
Killer Wi-Fi 6 AX1650x Wireless Network Adapter (200NGW)
1669 (1609min - 1719max) MBit/s +72%
Minisforum NUCX i7
Intel Wi-Fi 6E AX210
1198 (975min - 1352max) MBit/s +24%
Average of class Mini PC
  (432 - 1764, n=40, last 2 years)
1162 MBit/s +20%
Minisforum Neptune Series HX90G
MediaTek RZ608
968 (949min - 994max) MBit/s
Average MediaTek RZ608
  (572 - 980, n=16)
825 MBit/s -15%
050100150200250300350400450500550600650700750800850900950Tooltip
Minisforum Neptune Series HX90G; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø968 (949-994)
Minisforum Neptune Series HX90G; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø830 (801-844)

Akcesoria

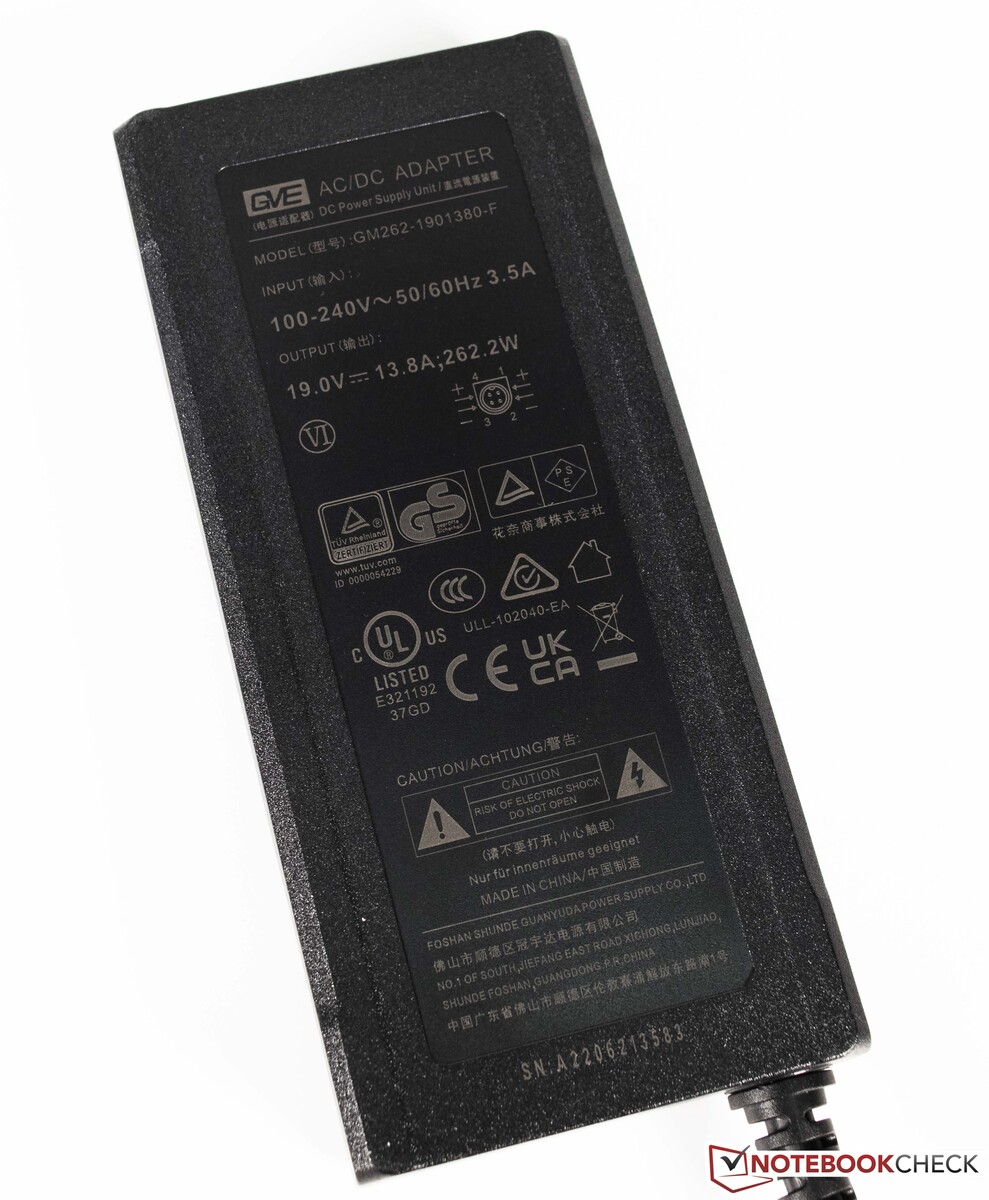

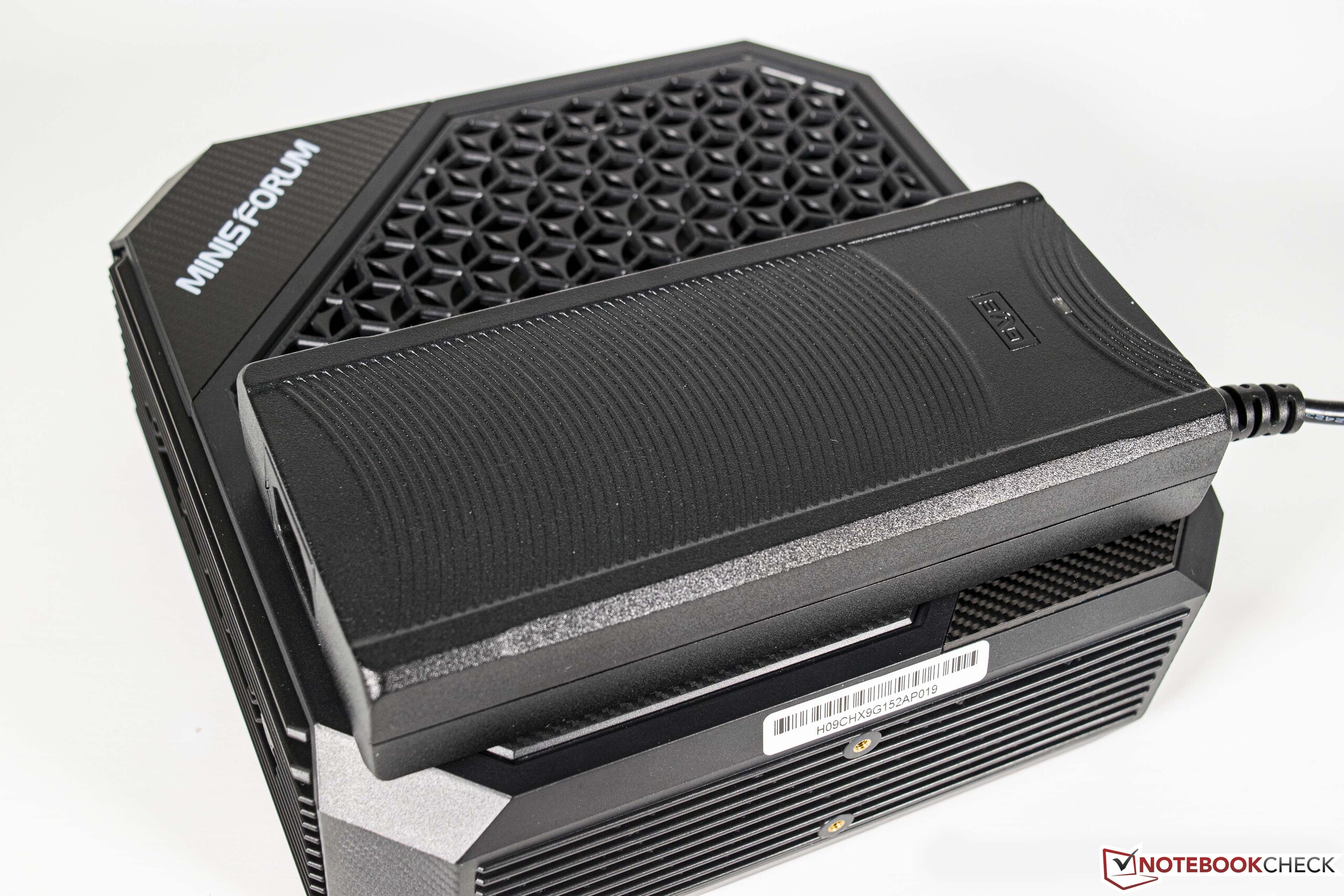

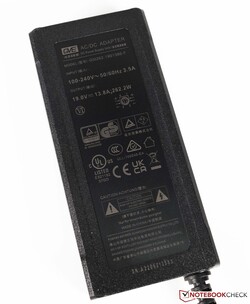

Do urządzenia dołączony jest 260-watowy zasilacz oraz podstawka.

Konserwacja

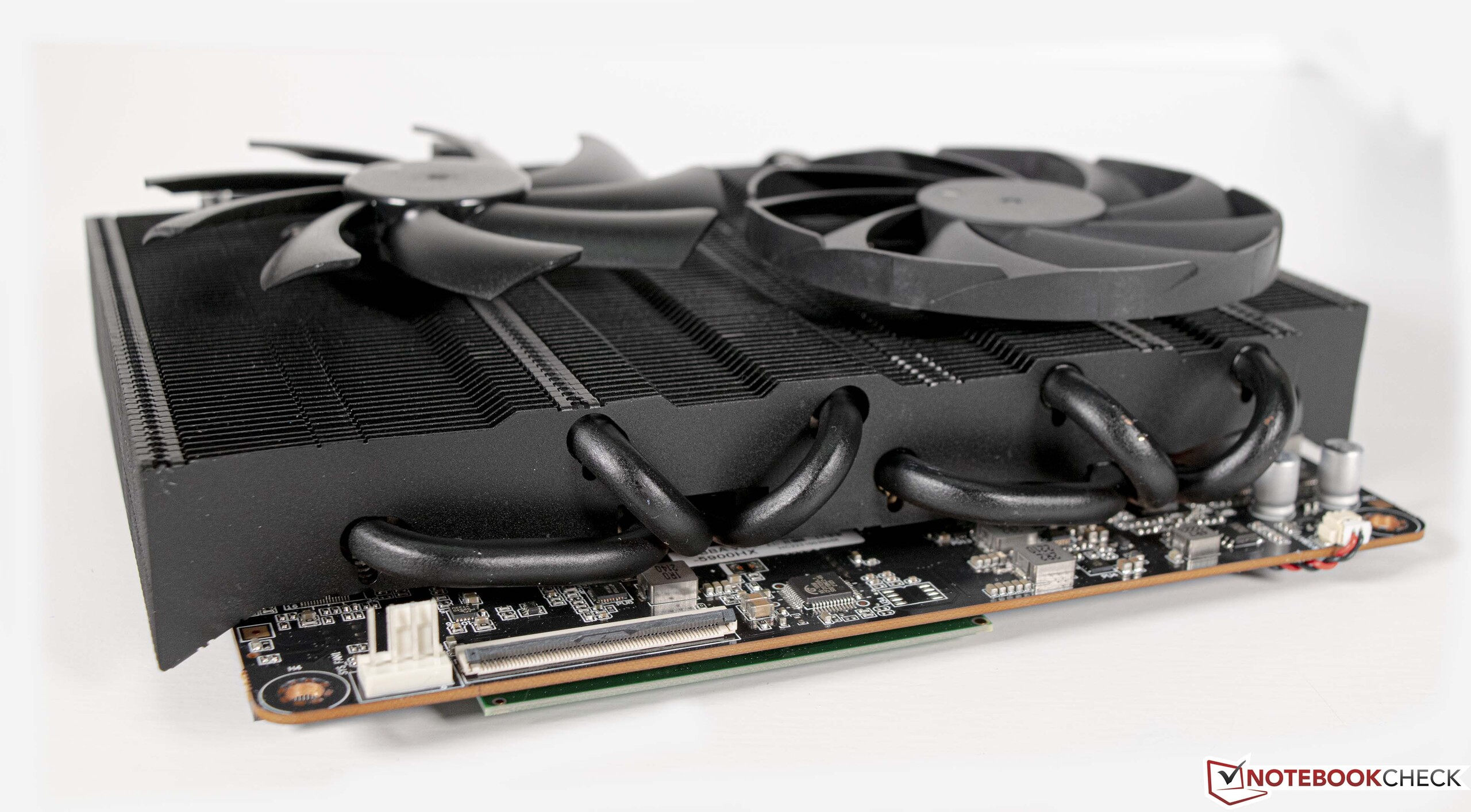

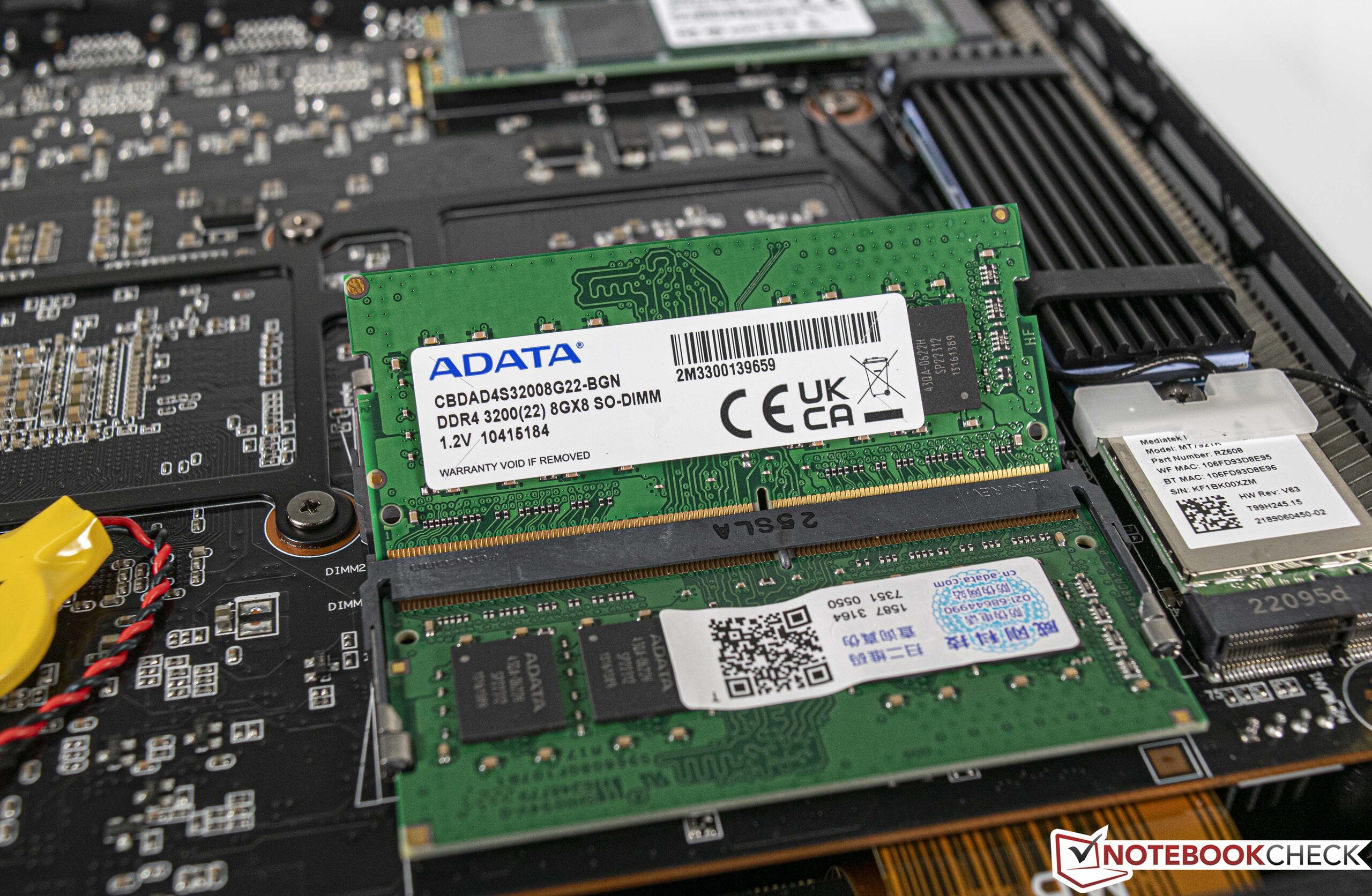

Boczną pokrywę urządzenia można zdjąć w celu przeprowadzenia jakichkolwiek prac konserwacyjnych. Niestety, wymaga to usunięcia gumowych podkładek, co nie jest idealnym rozwiązaniem, gdyż mają one tendencję do utraty przyczepności, gdy to nastąpi. Pokrywa boczna jest przymocowana do obudowy za pomocą czterech śrub. Użytkownicy będą musieli następnie zdjąć kolejną metalową osłonę, zanim uzyskają dostęp do modułu RAM, dysku SSD lub modułu Wi-Fi. Metalowa płytka służy tylko do zabezpieczenia bocznej pokrywy. Nie ma miejsca na 2,5-calowy nośnik danych, nie można go też podłączyć do płyty głównej. Jest jednak miejsce na dwa moduły SO-DIMM i dwa moduły M.2 SSD. Chcąc wyczyścić wentylatory trzeba będzie jeszcze bardziej rozebrać urządzenie, ale nie powinno to stanowić problemu, jeśli wiemy co robimy. Producent odradza użytkownikom rozbieranie układu chłodzenia. A że producent zastosował dobrej jakości pastę termiczną (ciekły metal), to naszym zdaniem i tak nie jest to konieczne.

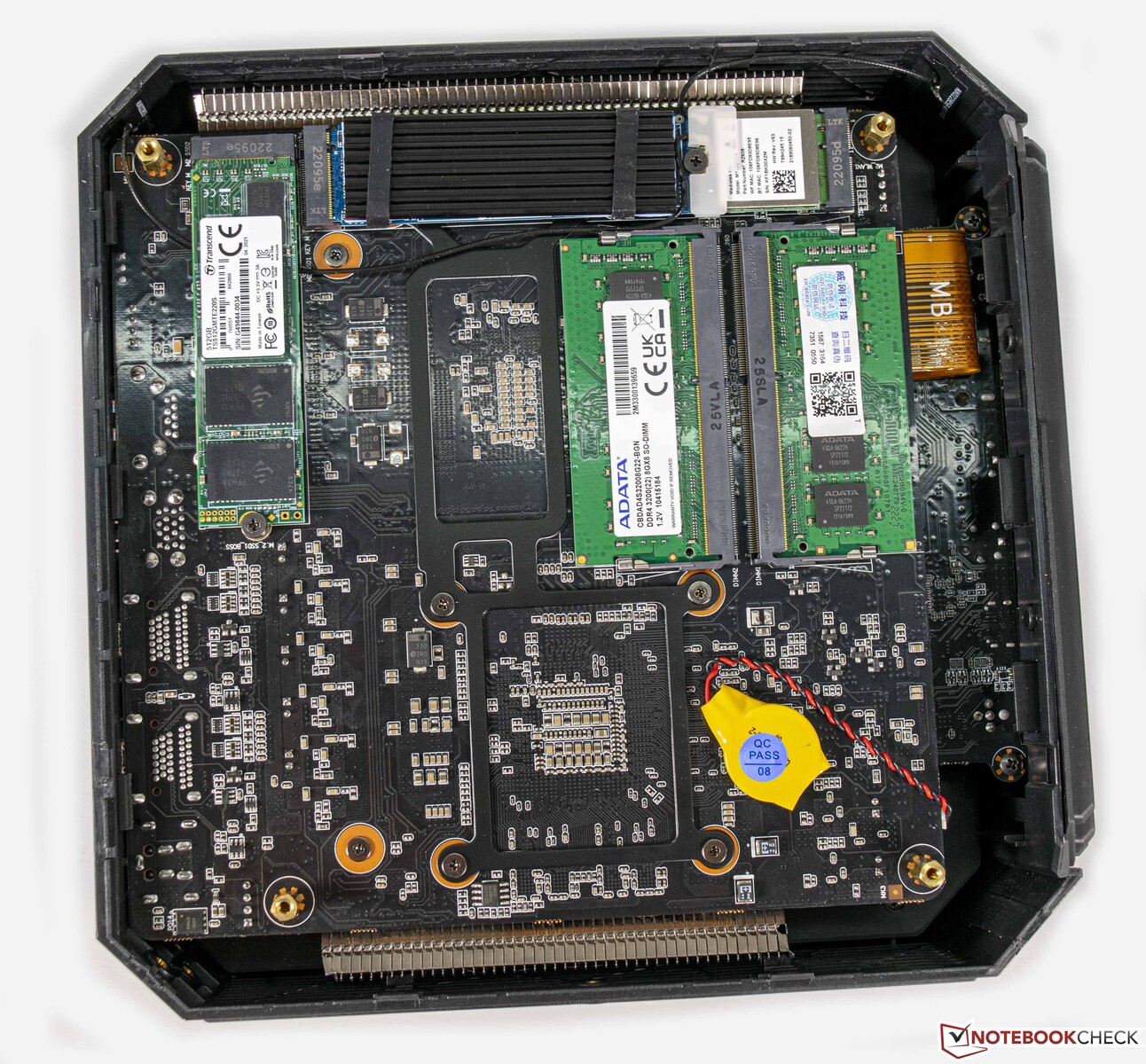

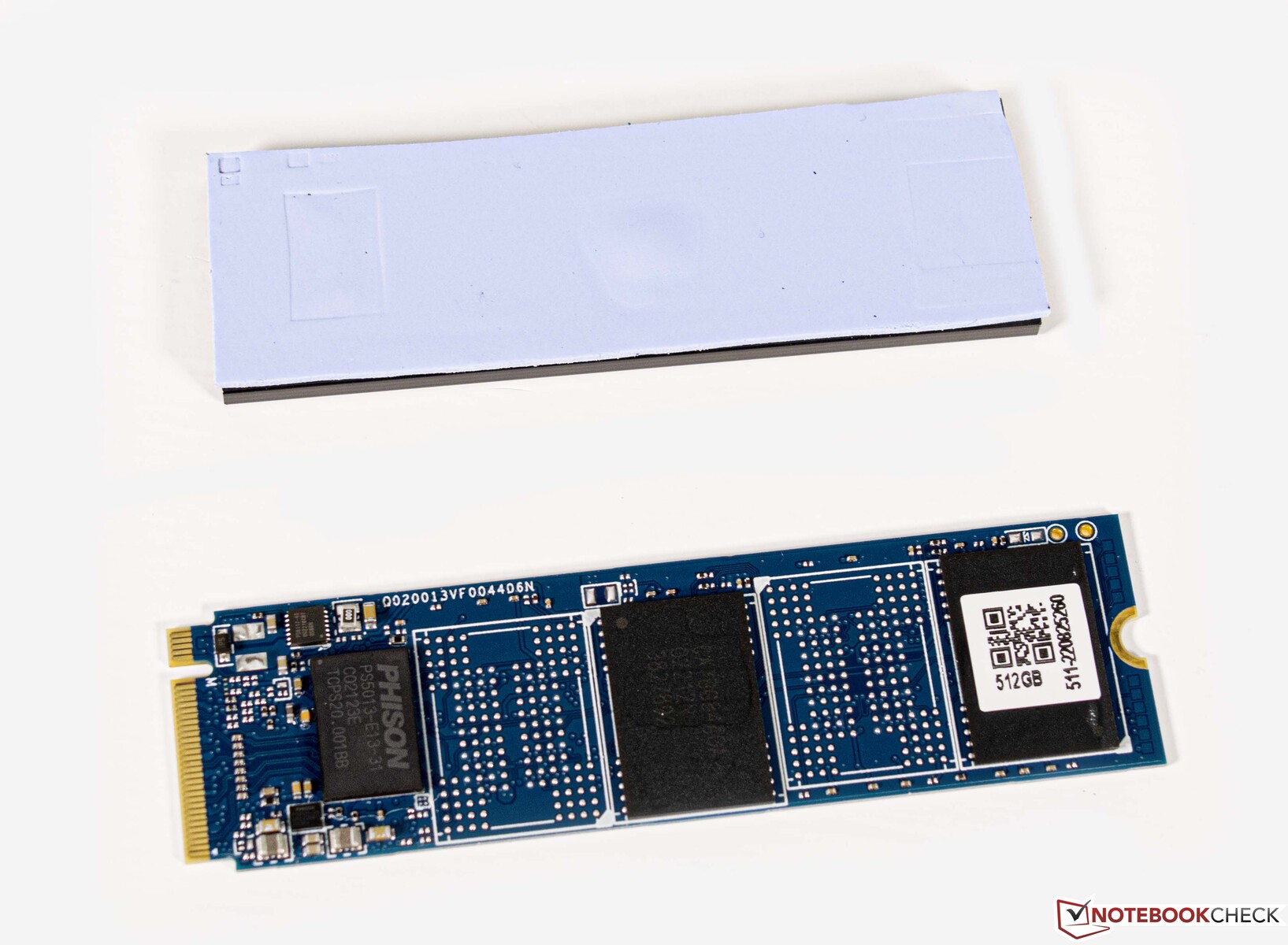

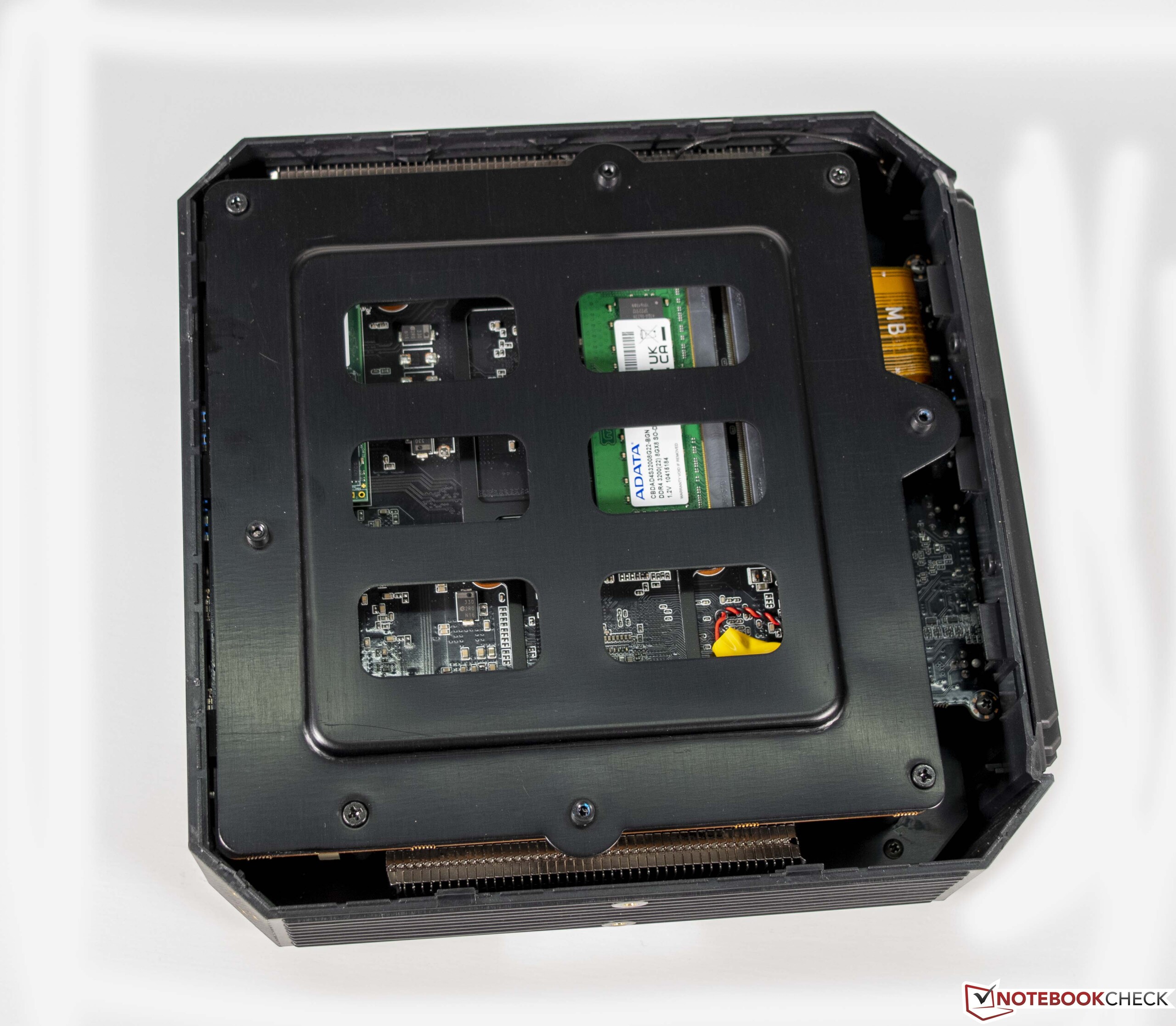

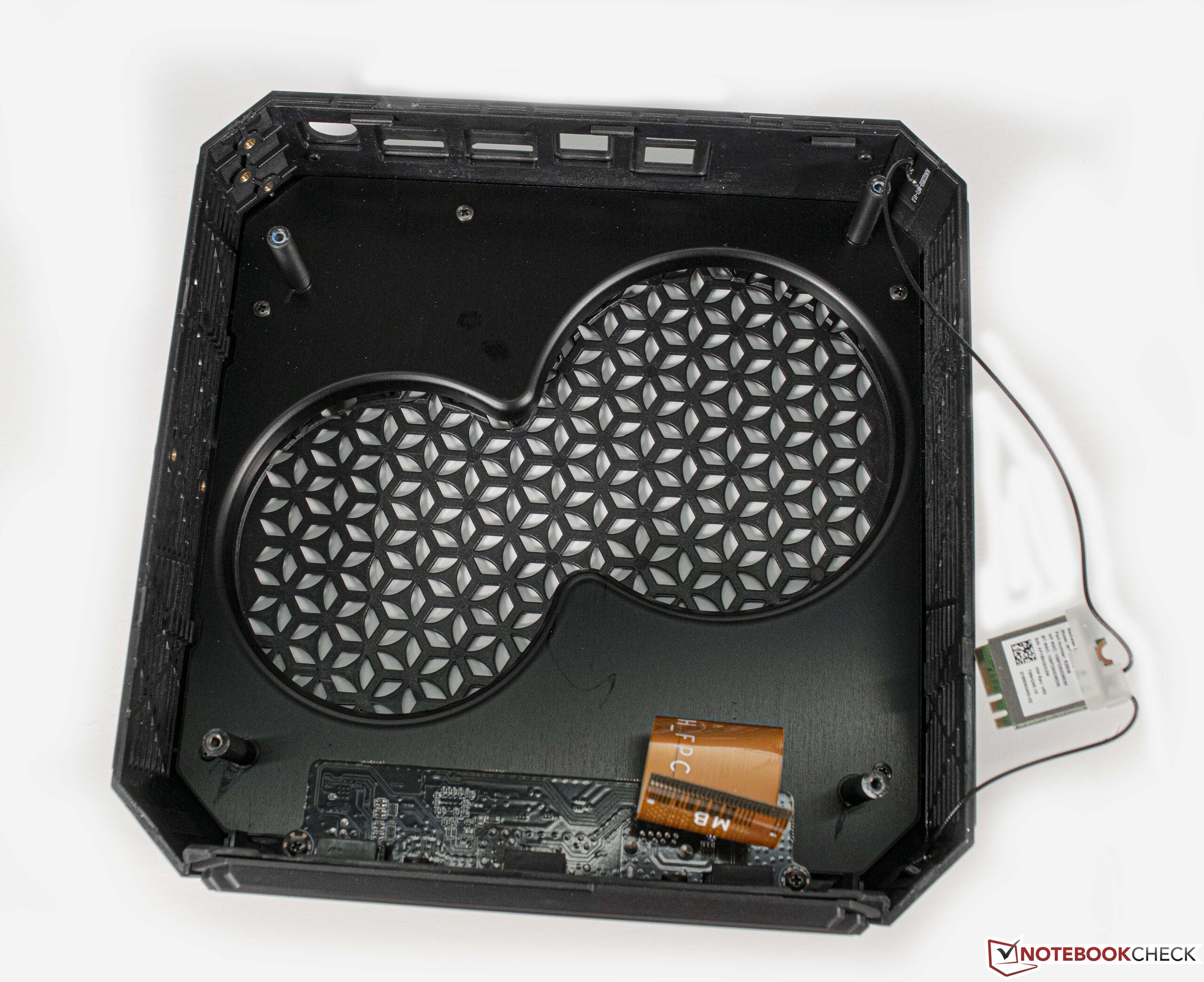

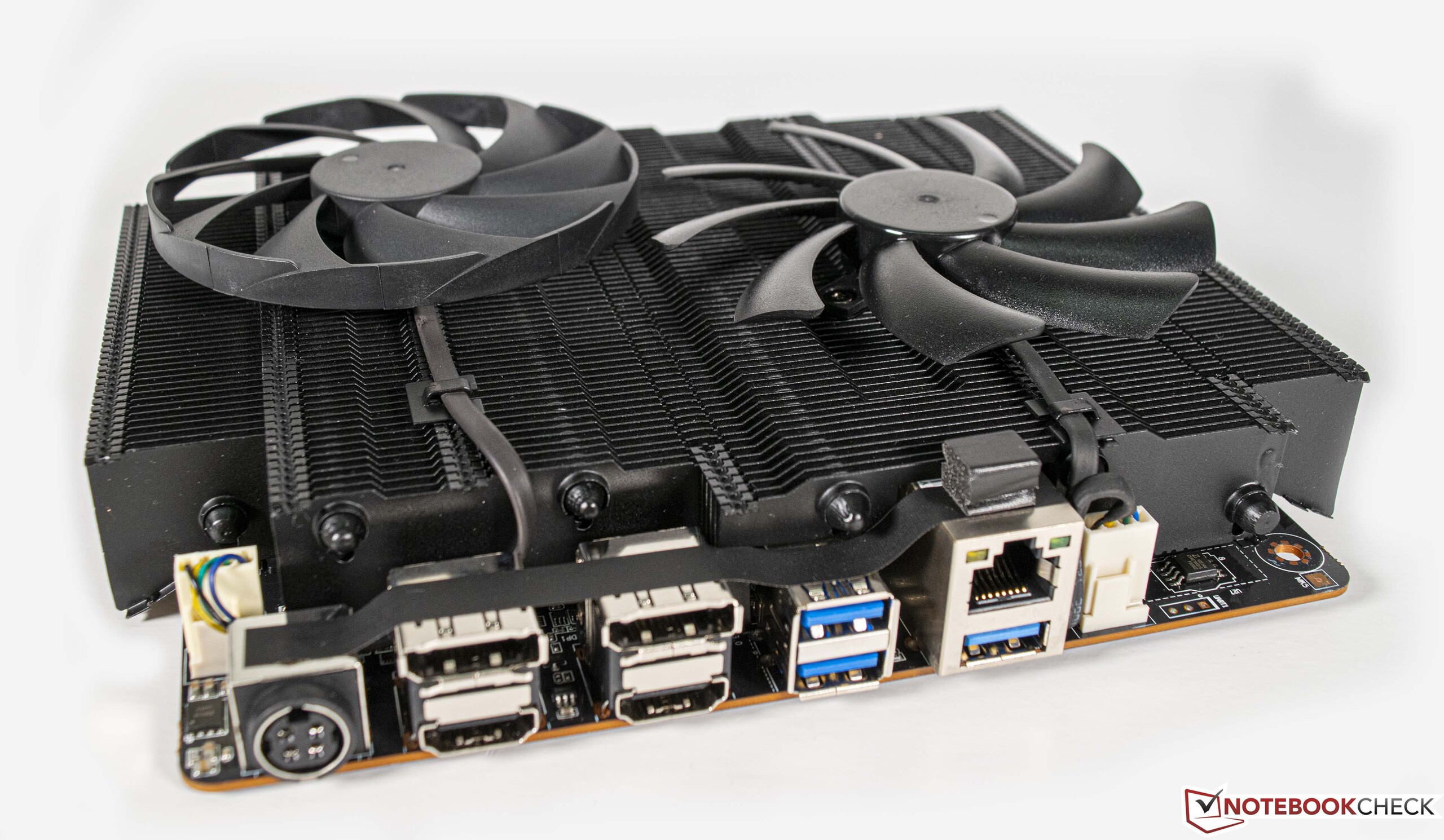

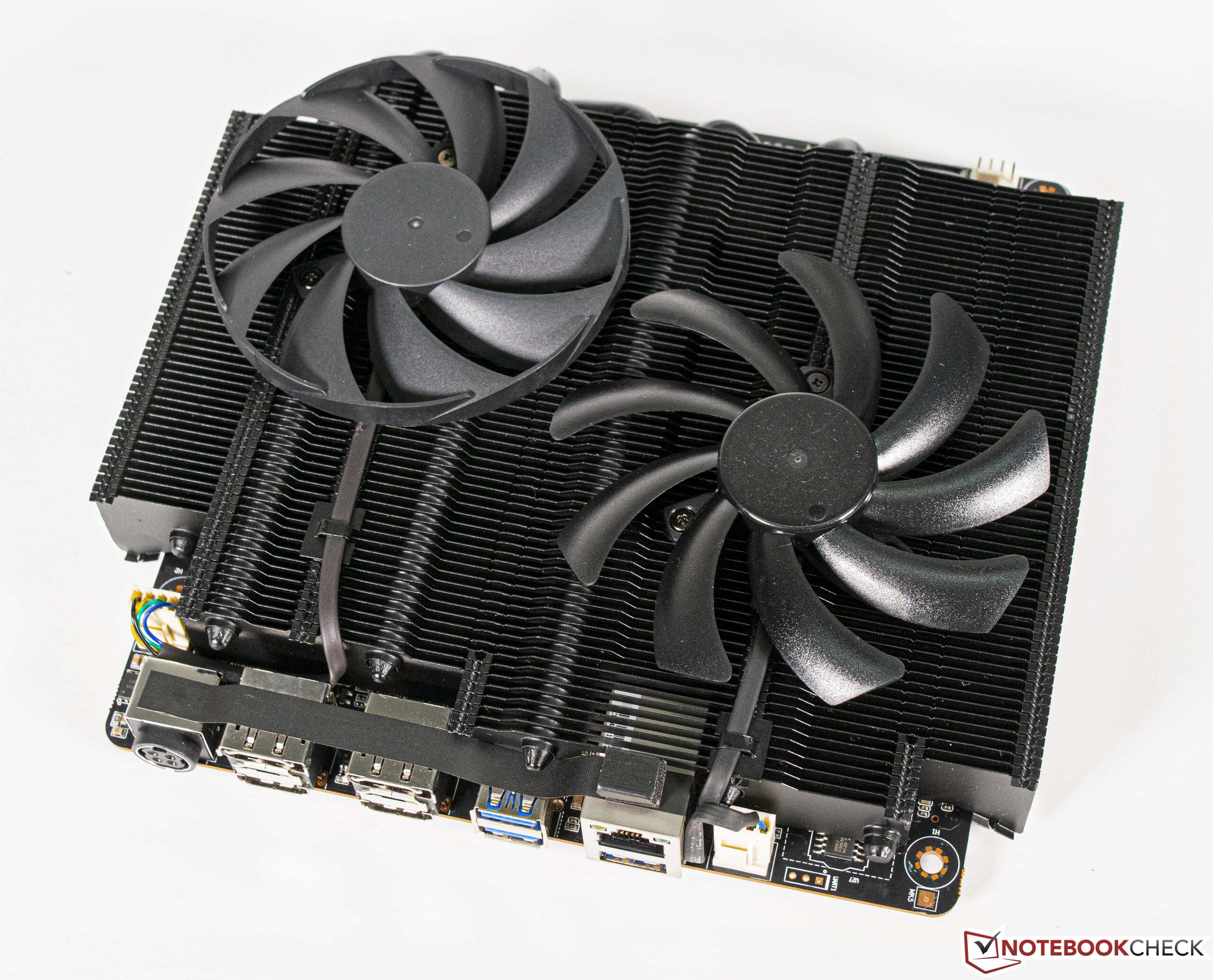

Wewnątrz Minisforum Neptune Series HX90G
Wewnątrz Minisforum Neptune Series HX90G

Wydajność - kompaktowy i mocny

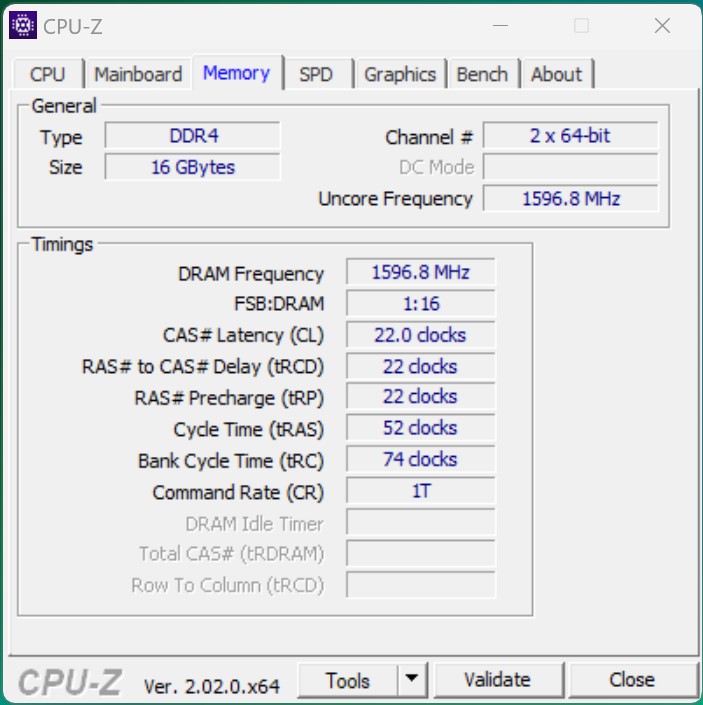

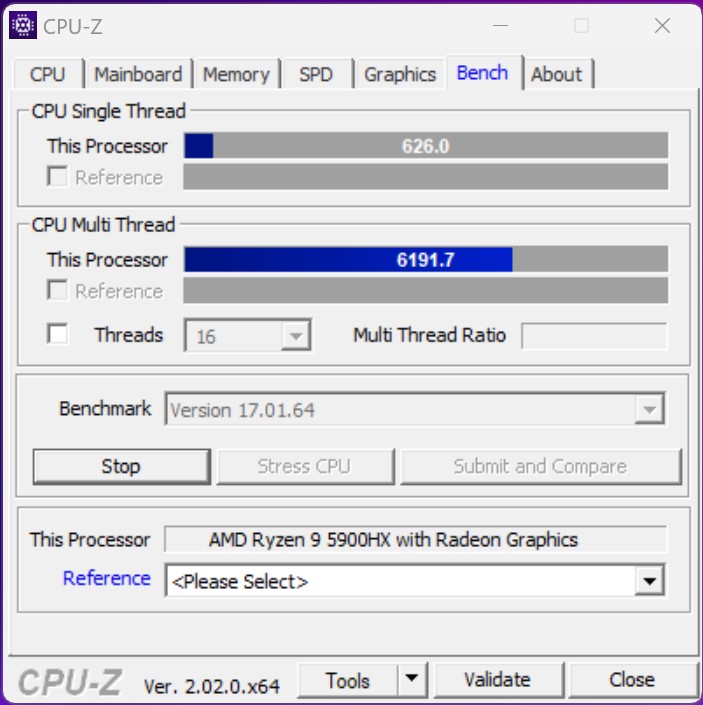

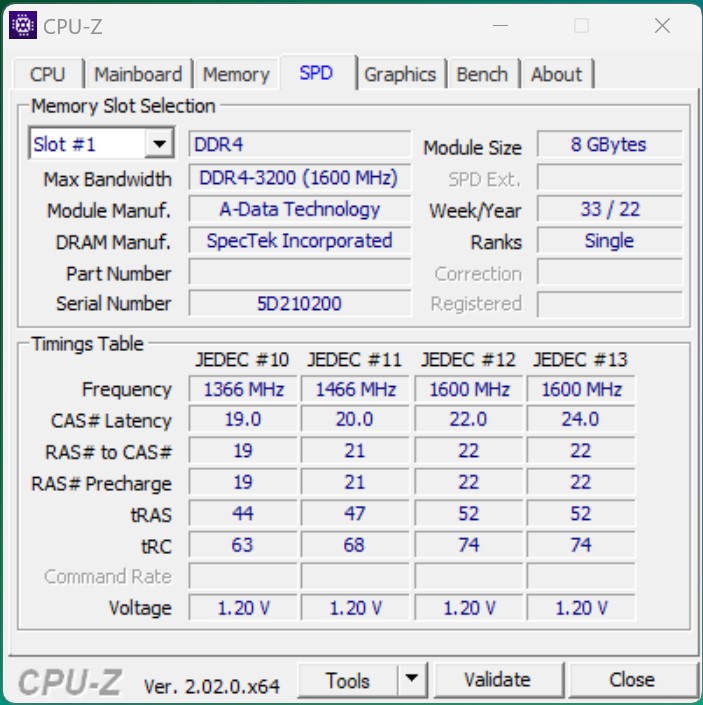

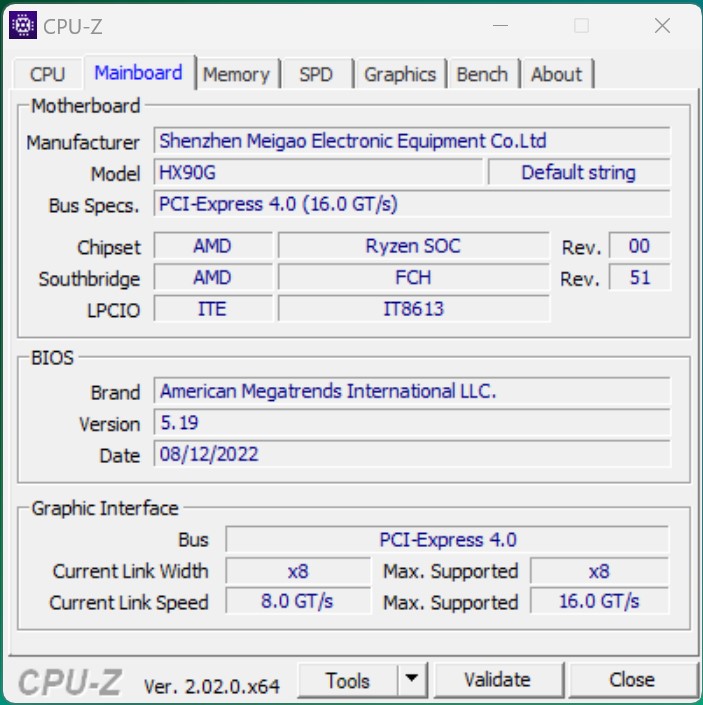

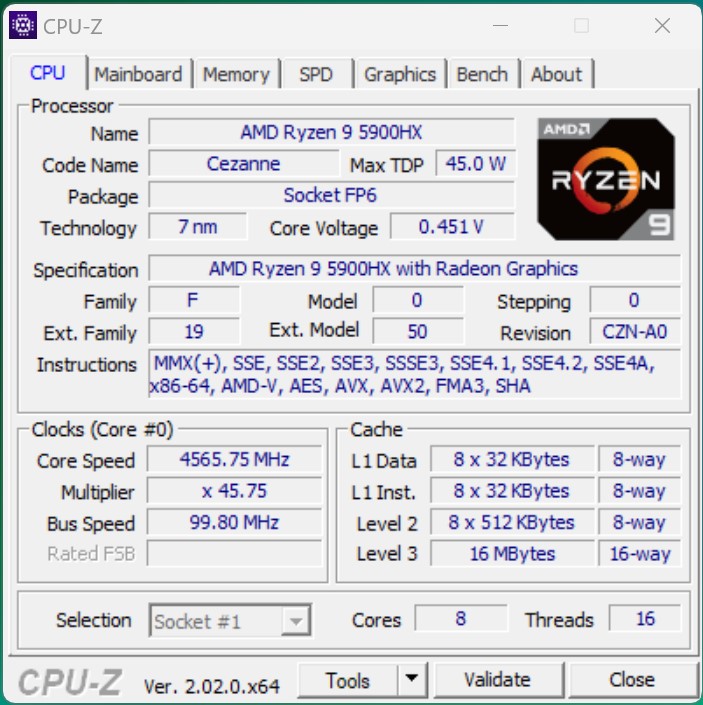

CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z

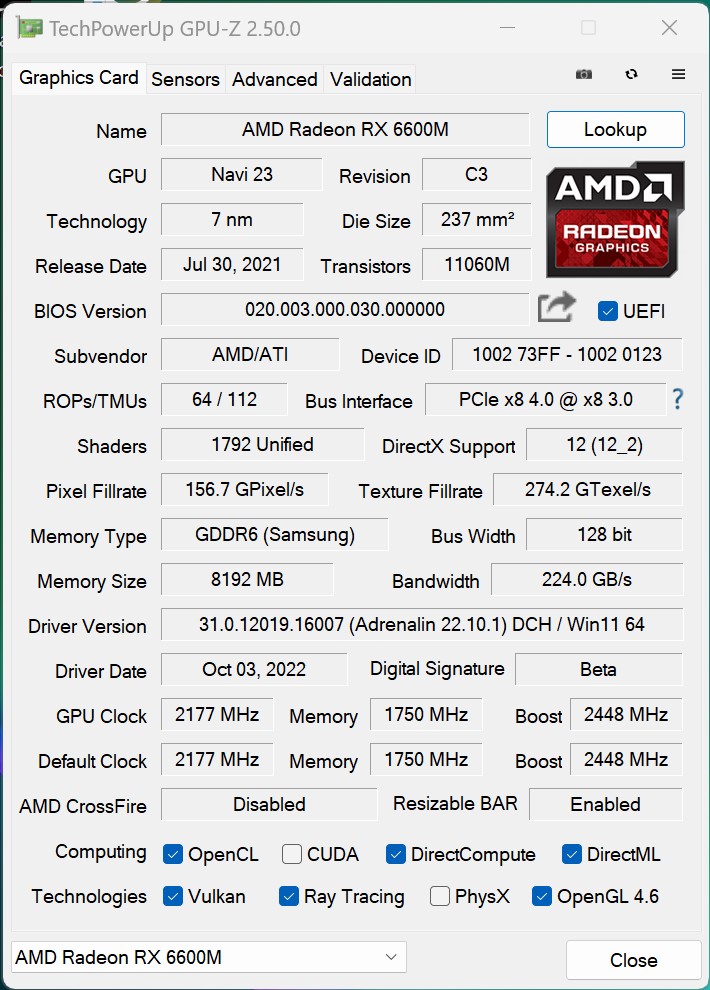

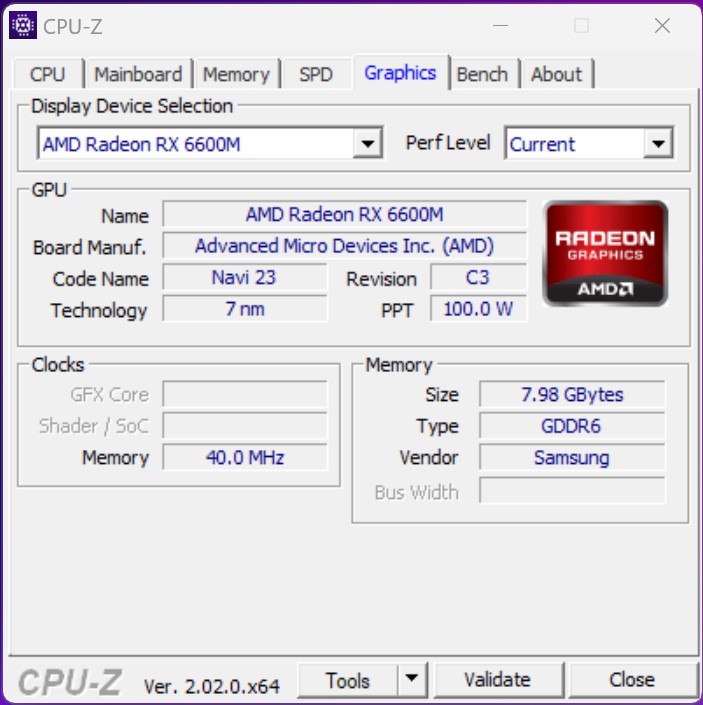

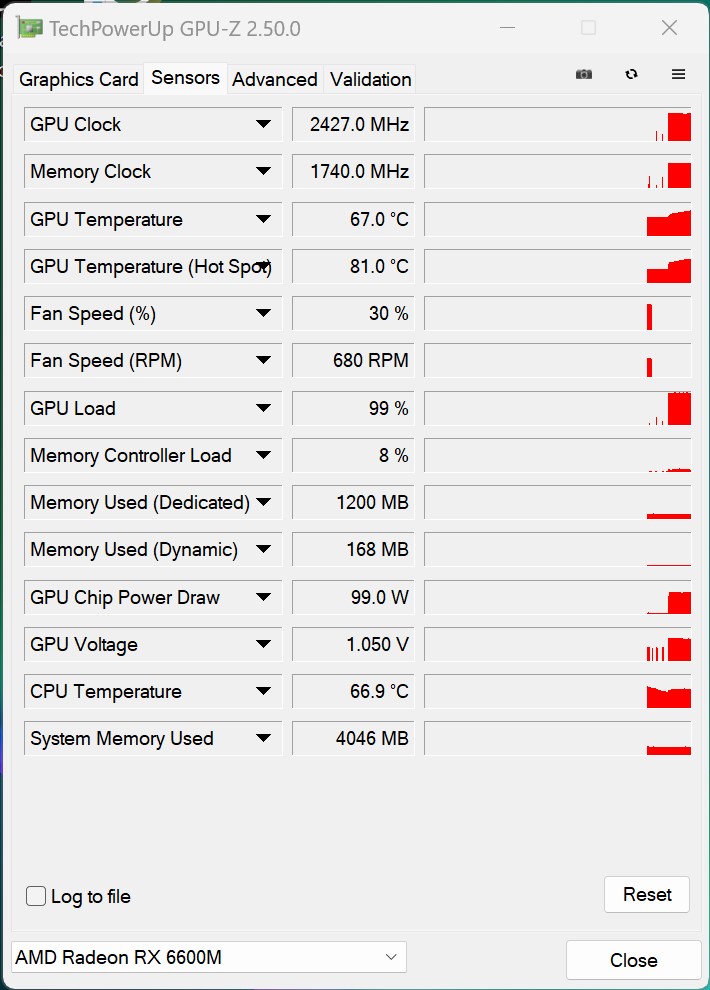

GPU-Z
GPU-Z

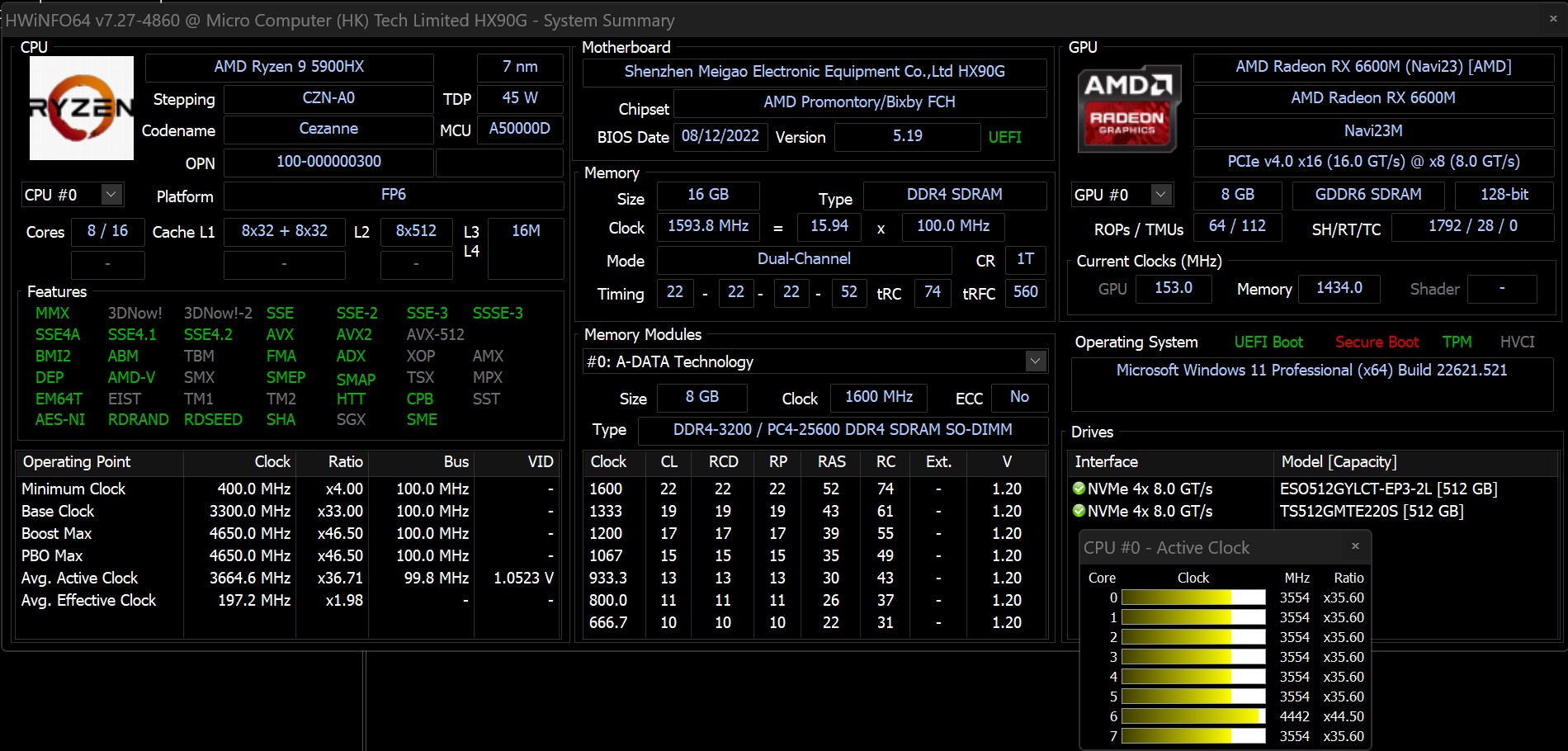

HWiNFO

Warunki badania

Wszystkie testy wydajnościowe przeprowadziliśmy w profilu energetycznym "wysoka wydajność". Nie dokonaliśmy żadnych zmian w wydajności procesora i pozostawiliśmy wszystkie ustawienia BIOS-u w trybie automatycznym.

Procesor

AMD Ryzen 9 5900HX w modelu Minisforum HX90G (Źródło: Minisforum)
AMD Ryzen 9 5900HX w modelu Minisforum HX90G (Źródło: Minisforum)

AMD Ryzen 9 5900HX należy do serii Cezanne i bazuje na architekturze Zen3. SoC oferuje 8 fizycznych rdzeni o łącznej liczbie 16 wątków (dzięki SMT). Jest to szczególnie korzystne w przypadku aplikacji wielowątkowych. AMD Ryzen 9 5900HX wypada dobrze, a ogólna wydajność HX90G jest lepsza od HX90, wyposażonego w ten sam SoC. By różnica w wydajności procesora była bardziej wyraźna, producent mógł zastosować nowszy SoC AMD Ryzen 9 6900HX. Nasz ranking wydajności wykazał, że ten SoC jest o 10 procent lepszy od SoC naszego systemu. HX90G ma jeszcze jednego wewnętrznego przeciwnika w postaci Minisforum NUCXi7. AMD Ryzen 9 5900HX ma pod bardzo dobrą kontrolą Intel Core i7-11800H, ale nie może konkurować z Intel Dragon Canyon NUC, opartym na obecnej generacji Alder Lake. W liczbach równa się to 12-procentowej różnicy w wydajności, której nie uznalibyśmy za zauważalną w codziennym użytkowaniu.

W porównaniu do Minisforum HX90 nie ma żadnych różnic w zakresie specyfikacji SoC. Przetestowaliśmy SoC HX90G w trybie automatycznym, w którym SoC osiągnął na krótko do 54 W. Długoterminowy limit mocy jest ustawiony na 45 watów. SoC można ustawić w sześciu różnych trybach (10, 15, 25, 35, 45, 54 W), aby oszczędzać energię elektryczną lub jeszcze bardziej zmniejszyć i tak już niską emisję hałasu.

Więcej porównań i benchmarków można znaleźć w naszej Tabela porównawcza procesorów.

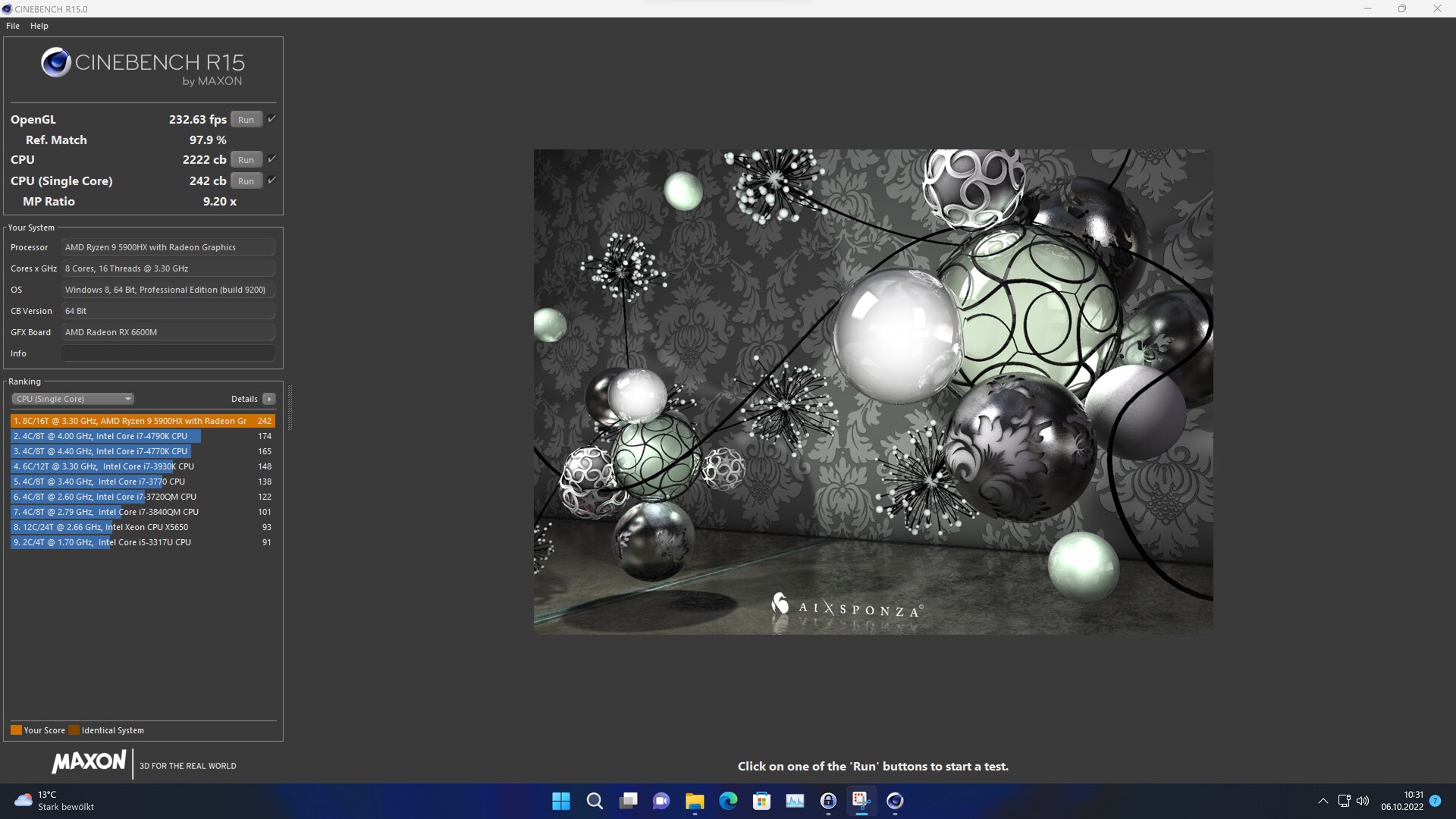

Cinebench R15
Cinebench R15

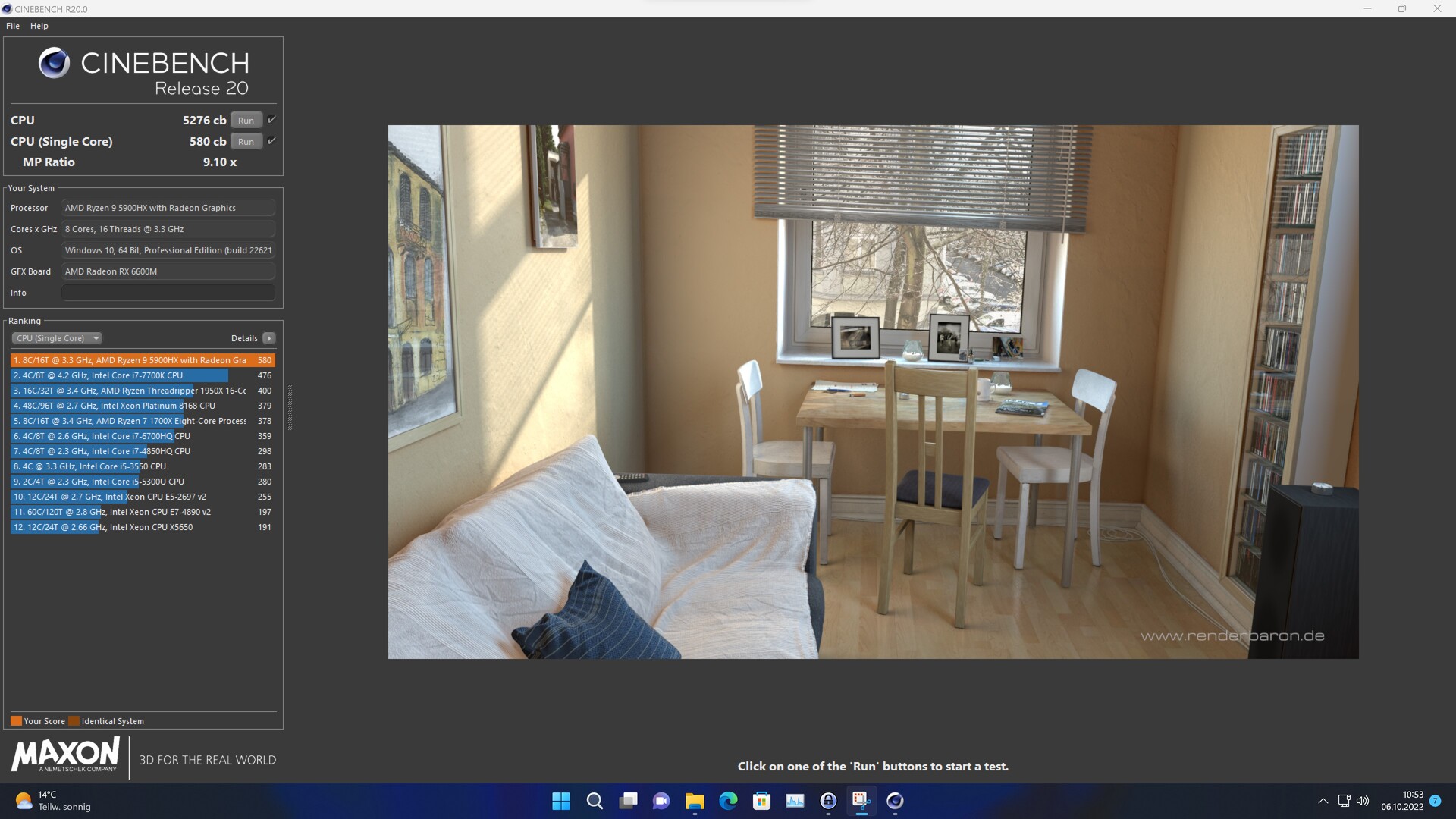

Cinebench R20
Cinebench R20

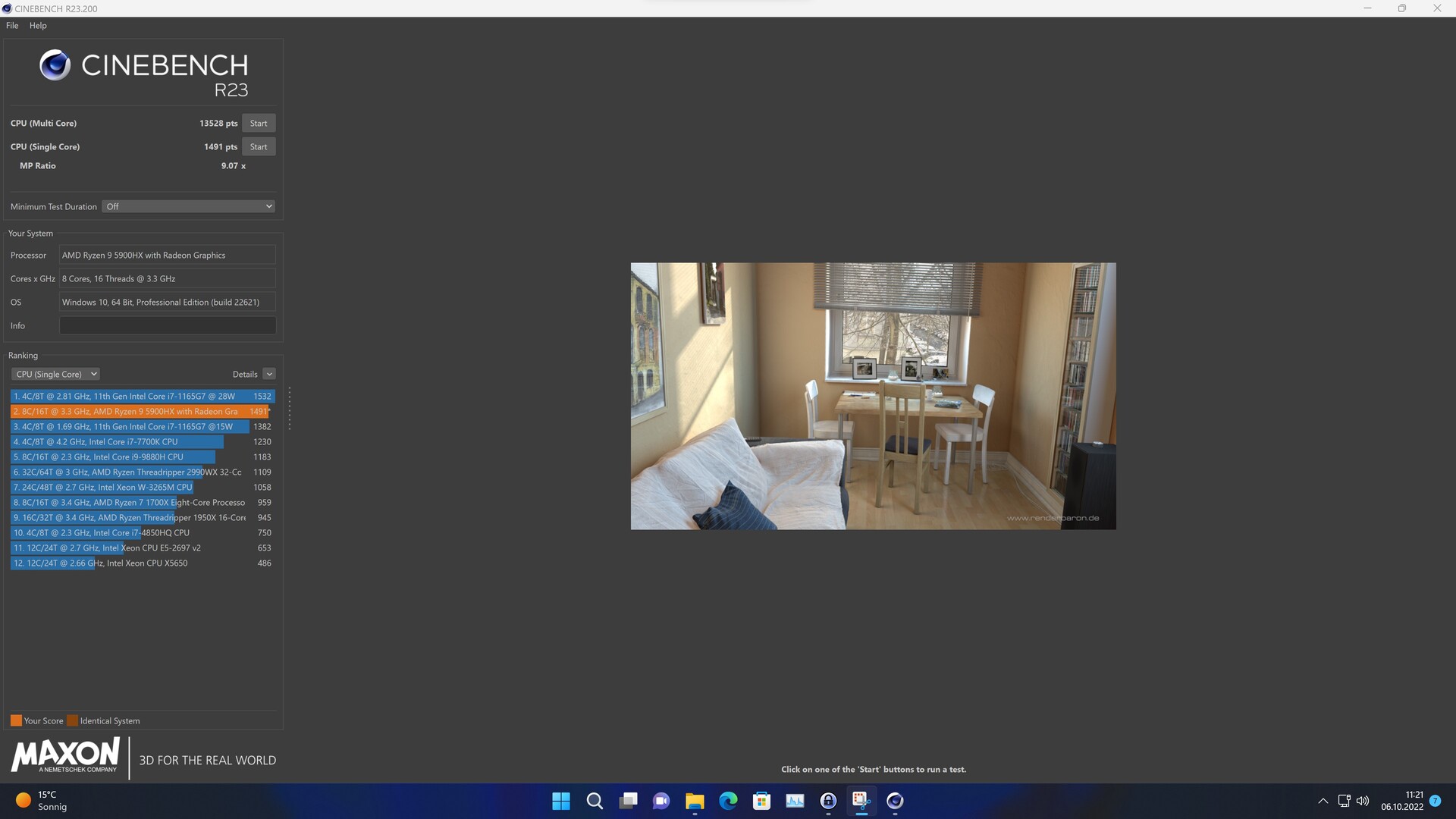

Cinebench R23
Cinebench R23
Performance Rating - Percent
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
54.3 pt
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
48.7 pt
Average AMD Ryzen 9 6900HX

48.5 pt
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
48.1 pt
Average AMD Ryzen 9 5900HX

47.3 pt
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
47 pt
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
46.7 pt
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
45.5 pt
Lenovo Legion 5 15ACH6A-82NW0010GE -8!
AMD Ryzen 5 5600H, 3300 MHz
44.7 pt
Zotac Magnus One (ECM73070C) -2!
Intel Core i7-10700, 2900 MHz
43.4 pt
Cinebench R15
CPU Single 64Bit
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
262 Points +8%
Average AMD Ryzen 9 6900HX
  (241 - 261, n=19)
250 Points +3%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
247 Points +2%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
242 Points 0%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
242 Points
Average AMD Ryzen 9 5900HX
  (197 - 243, n=25)
238 Points -2%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
227 Points -6%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
224 Points -7%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
223 Points -8%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
196 Points -19%
CPU Multi 64Bit
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
3299 Points +48%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
2224 Points 0%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
2222 Points
Average AMD Ryzen 9 6900HX
  (1588 - 2411, n=19)
2163 Points -3%
Average AMD Ryzen 9 5900HX
  (1076 - 2267, n=29)
2050 Points -8%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
2045 Points -8%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
2027 Points -9%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
1723 Points -22%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
1666 Points -25%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
1455 Points -35%
Cinebench R20
CPU (Single Core)
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
703 Points +21%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
629 Points +8%
Average AMD Ryzen 9 6900HX
  (595 - 631, n=19)
610 Points +5%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
582 Points 0%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
580 Points
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
579 Points 0%
Average AMD Ryzen 9 5900HX
  (471 - 584, n=29)
573 Points -1%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
564 Points -3%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
535 Points -8%
CPU (Multi Core)
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
7179 Points +36%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
5276 Points
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
5185 Points -2%
Average AMD Ryzen 9 6900HX
  (3742 - 5813, n=19)
5162 Points -2%
Average AMD Ryzen 9 5900HX
  (2242 - 5476, n=30)
4847 Points -8%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
4760 Points -10%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
4644 Points -12%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
4059 Points -23%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
3954 Points -25%
Cinebench R11.5
CPU Single 64Bit
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
3.16 Points +11%
Average AMD Ryzen 9 6900HX
  (2.86 - 3.07, n=8)
2.94 Points +4%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
2.86 Points +1%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
2.84 Points 0%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
2.84 Points
Average AMD Ryzen 9 5900HX
  (2.8 - 2.86, n=5)
2.84 Points 0%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
2.62 Points -8%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
2.61 Points -8%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
2.59 Points -9%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
2.26 Points -20%
CPU Multi 64Bit
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
38.96 Points +58%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
25.6 Points +4%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
24.71 Points
Average AMD Ryzen 9 5900HX
  (22 - 25.6, n=5)
24 Points -3%
Average AMD Ryzen 9 6900HX
  (19 - 26.4, n=8)
23.9 Points -3%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
22.07 Points -11%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
21.87 Points -11%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
19.71 Points -20%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
19.18 Points -22%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
16.7 Points -32%
Cinebench R10
Rendering Single CPUs 64Bit
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
14610 Points +21%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
12508 Points +4%
Average AMD Ryzen 9 6900HX
  (11870 - 12943, n=8)
12332 Points +2%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
12152 Points +1%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
12037 Points
Average AMD Ryzen 9 5900HX
  (11811 - 12152, n=5)
12020 Points 0%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
11957 Points -1%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
11608 Points -4%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
11082 Points -8%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
9898 Points -18%
Rendering Multiple CPUs 64Bit
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
107565 Points +44%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
74772 Points
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
73115 Points -2%
Average AMD Ryzen 9 5900HX
  (64320 - 74772, n=5)
70380 Points -6%
Average AMD Ryzen 9 6900HX
  (55915 - 77450, n=8)
69650 Points -7%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
67486 Points -10%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
67183 Points -10%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
63144 Points -16%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
58426 Points -22%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
52577 Points -30%
Blender - v2.79 BMW27 CPU
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
315.4 Seconds * -37%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
305.2 Seconds * -32%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
286.1 Seconds * -24%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
262.7 Seconds * -14%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
262.7 Seconds * -14%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
261 Seconds * -13%
Average AMD Ryzen 9 5900HX
  (219 - 442, n=29)
250 Seconds * -8%
Average AMD Ryzen 9 6900HX
  (212 - 357, n=21)
239 Seconds * -3%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
231 Seconds *
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
229.3 Seconds * +1%
wPrime 2.10
32m
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
4.186 s * -25%
Average AMD Ryzen 9 6900HX
  (3.46 - 4.69, n=7)
4 s * -20%
Average AMD Ryzen 9 5900HX
  (3.31 - 4.4, n=4)
3.66 s * -9%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
3.416 s * -2%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
3.405 s * -2%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
3.345 s *
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
3.308 s * +1%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
3.257 s * +3%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
2.67 s * +20%
1024m
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
211.8 s * -128%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
120.839 s * -30%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
119.5 s * -28%
Average AMD Ryzen 9 6900HX
  (93.2 - 149.4, n=7)
114.7 s * -23%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
102.2 s * -10%
Average AMD Ryzen 9 5900HX
  (91.6 - 106.7, n=4)
98.7 s * -6%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
98.307 s * -6%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
93.062 s *
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
91.6 s * +2%
X264 HD Benchmark 4.0
Pass 1
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
310 (303min - 324max) fps +12%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
278 (276min - 280max) fps
Average AMD Ryzen 9 5900HX
  (272 - 278, n=4)
275 fps -1%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
272.5 (271min - 279max) fps -2%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
271.5 (259min - 276max) fps -2%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
258 (256min - 259max) fps -7%
Average AMD Ryzen 9 6900HX
  (241 - 263, n=7)
254 fps -9%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
247.5 (245min - 250max) fps -11%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
236 (235min - 257max) fps -15%
Pass 2
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
147.5 (134min - 173max) fps +15%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
128.35 (126.9min - 128.4max) fps
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
128 (122min - 128max) fps 0%
Average AMD Ryzen 9 5900HX
  (112 - 128.4, n=4)
120.2 fps -6%
Average AMD Ryzen 9 6900HX
  (93.3 - 127.8, n=7)
115.2 fps -10%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
109.3 (108.1min - 111.7max) fps -15%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
106 (101min - 108max) fps -17%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
93.75 (91.3min - 98.8max) fps -27%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
84.8 (84.6min - 105max) fps -34%
WinRAR - Result
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
10739 KB/s +43%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
9584 KB/s +27%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
7944 KB/s +6%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
7925 KB/s +5%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
7523 KB/s
Average AMD Ryzen 9 6900HX
  (6795 - 6980, n=7)
6875 KB/s -9%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
6555 KB/s -13%
Average AMD Ryzen 9 5900HX
  (4297 - 7722, n=4)
6535 KB/s -13%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
4297 KB/s -43%
TrueCrypt
AES Mean 100MB
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
17.2 GB/s +51%
Average AMD Ryzen 9 6900HX
  (9.3 - 13.5, n=7)
11.8 GB/s +4%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
11.6 GB/s +2%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
11.6 GB/s +2%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
11.4 GB/s
Average AMD Ryzen 9 5900HX
  (7.4 - 12.3, n=4)
10.5 GB/s -8%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
10.3 GB/s -10%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
9.9 GB/s -13%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
7.4 GB/s -35%
Twofish Mean 100MB
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
3.4 GB/s +79%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
2 GB/s +5%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
1.9 GB/s
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
1.8 GB/s -5%
Average AMD Ryzen 9 5900HX
  (1.6 - 2, n=4)
1.775 GB/s -7%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
1.7 GB/s -11%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
1.7 GB/s -11%
Average AMD Ryzen 9 6900HX
  (1.3 - 1.8, n=7)
1.643 GB/s -14%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
1.5 GB/s -21%
Serpent Mean 100MB
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
1.9 GB/s +58%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
1.2 GB/s 0%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
1.2 GB/s
Average AMD Ryzen 9 5900HX
  (1.1 - 1.2, n=4)
1.15 GB/s -4%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
1.1 GB/s -8%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
1.1 GB/s -8%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
1.1 GB/s -8%
Average AMD Ryzen 9 6900HX
  (0.857 - 1.2, n=7)
1.094 GB/s -9%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
0.9 GB/s -25%
Geekbench 5.5
Multi-Core
Average AMD Ryzen 9 6900HX
  (8313 - 10490, n=21)
9642 Points +7%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
9186 Points +2%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
9020 Points
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
8924 Points -1%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
8924 Points -1%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
8207 Points -9%
Average AMD Ryzen 9 5900HX
  (5057 - 9294, n=27)
8188 Points -9%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
8173 Points -9%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
7875 Points -13%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
6567 Points -27%
Single-Core
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
1656 Points +6%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
1656 Points +6%
Average AMD Ryzen 9 6900HX
  (1523 - 1652, n=21)
1589 Points +2%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
1579 Points +1%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
1570 Points +1%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
1560 Points
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
1542 Points -1%
Average AMD Ryzen 9 5900HX
  (1271 - 1574, n=27)
1517 Points -3%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
1414 Points -9%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
1299 Points -17%
Geekbench 5.0
5.0 Multi-Core
Average AMD Ryzen 9 6900HX
  (9220 - 10426, n=15)
9880 Points +12%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
9074 Points +2%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
8853 Points
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
8845 Points 0%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
8845 Points 0%
Average AMD Ryzen 9 5900HX
  (7327 - 9053, n=9)
8267 Points -7%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
8196 Points -7%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
8109 Points -8%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
7859 Points -11%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
6483 Points -27%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
6483 Points -27%
5.0 Single-Core
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
1638 Points +9%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
1638 Points +9%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
1571 Points +5%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
1563 Points +4%
Average AMD Ryzen 9 6900HX
  (1531 - 1603, n=15)
1561 Points +4%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
1500 Points
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
1498 Points 0%
Average AMD Ryzen 9 5900HX
  (1233 - 1517, n=9)
1460 Points -3%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
1377 Points -8%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
1377 Points -8%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
1304 Points -13%
Geekbench 4.4
64 Bit Single-Core Score
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
6991 Points +6%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
6991 Points +6%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
6698 Points +2%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
6693 Points +2%
Average AMD Ryzen 9 6900HX
  (6191 - 6804, n=11)
6642 Points +1%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
6572 Points
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
6365 Points -3%
Average AMD Ryzen 9 5900HX
  (5249 - 6591, n=8)
6240 Points -5%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
5812 Points -12%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
5726 Points -13%
64 Bit Multi-Core Score
Average AMD Ryzen 9 6900HX
  (36780 - 39852, n=11)
39028 Points +14%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
36347 Points +6%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
36310 Points +6%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
36310 Points +6%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
34259 Points
Average AMD Ryzen 9 5900HX
  (30451 - 35465, n=8)
33068 Points -3%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
33034 Points -4%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
32434 Points -5%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
32174 Points -6%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
27071 Points -21%
3DMark 11 - 1280x720 Performance Physics
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
24314 Points +33%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
18332 Points
Average AMD Ryzen 9 6900HX
  (15855 - 21036, n=23)
18161 Points -1%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
17803 Points -3%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
16736 Points -9%
Average AMD Ryzen 9 5900HX
  (13940 - 18790, n=28)
16642 Points -9%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
15739 Points -14%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
15497 Points -15%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
13940 Points -24%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
13568 Points -26%
7-Zip 18.03
7z b 4
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
61760 MIPS
Average AMD Ryzen 9 6900HX
  (49526 - 65336, n=20)
60091 MIPS -3%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
57435 MIPS -7%
Average AMD Ryzen 9 5900HX
  (36011 - 62503, n=29)
57266 MIPS -7%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
51773 MIPS -16%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
50152 MIPS -19%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
50152 MIPS -19%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
45999 MIPS -26%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
44503 MIPS -28%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
43007 MIPS -30%
7z b 4 -mmt1
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
5979 MIPS +3%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
5979 MIPS +3%
Average AMD Ryzen 9 6900HX
  (5090 - 6070, n=20)
5799 MIPS 0%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
5798 MIPS
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
5739 MIPS -1%
Average AMD Ryzen 9 5900HX
  (4791 - 5905, n=29)
5701 MIPS -2%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
5619 MIPS -3%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
5446 MIPS -6%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
5330 MIPS -8%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
5293 MIPS -9%
HWBOT x265 Benchmark v2.2 - 4k Preset
Average AMD Ryzen 9 6900HX
  (12.6 - 18.7, n=20)
16.7 fps +5%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
15.9 fps 0%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
15.9 fps
Average AMD Ryzen 9 5900HX
  (8.26 - 17.1, n=29)
15.2 fps -4%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
14.8 fps -7%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
14.4 fps -9%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
14.4 fps -9%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
13.2 fps -17%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
12.8 fps -19%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
11.6 fps -27%
R Benchmark 2.5 - Overall mean
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
0.588 sec * -20%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
0.562 sec * -14%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
0.56 sec * -14%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
0.537 sec * -9%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
0.535 sec * -9%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
0.535 sec * -9%
Average AMD Ryzen 9 5900HX
  (0.48 - 0.599, n=29)
0.507 sec * -3%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
0.4965 sec * -1%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
0.492 sec *
Average AMD Ryzen 9 6900HX
  (0.4627 - 0.4974, n=20)
0.483 sec * +2%
LibreOffice - 20 Documents To PDF
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
59.5 s * -1%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
59 s *
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
55.1 s * +7%
Average AMD Ryzen 9 5900HX
  (44.1 - 87.4, n=29)
53.3 s * +10%
Average AMD Ryzen 9 6900HX
  (44.8 - 81.7, n=20)
53.1 s * +10%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
50.1 s * +15%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
49.3 s * +16%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
48 s * +19%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
44.9 s * +24%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
44.9 s * +24%
WebXPRT 3 - Overall
Average AMD Ryzen 9 6900HX
  (248 - 304, n=17)
280 Points +1%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
278 Points 0%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
278 Points
Average AMD Ryzen 9 5900HX
  (230 - 291, n=28)
275 Points -1%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
269 Points -3%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
269 Points -3%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
267 Points -4%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
267 Points -4%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
267 Points -4%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
262 Points -6%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
244 Points -12%
Mozilla Kraken 1.1 - Total
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
752 ms * -22%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
647 ms * -5%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
641 ms * -4%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
640 ms * -4%
Average AMD Ryzen 9 5900HX
  (595 - 728, n=29)
617 ms * -0%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
614 ms *
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
602 ms * +2%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
602 ms * +2%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
601 ms * +2%
Average AMD Ryzen 9 6900HX
  (564 - 607, n=18)
588 ms * +4%
3DMark
3840x2160 Fire Strike Ultra Physics
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
37967 Points +41%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
26957 Points
Average AMD Ryzen 9 5900HX
  (22976 - 26958, n=19)
25146 Points -7%
Average AMD Ryzen 9 6900HX
  (17731 - 26684, n=18)
24448 Points -9%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
23921 Points -11%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
23774 Points -12%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
22976 Points -15%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
22873 Points -15%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
21542 Points -20%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
21256 Points -21%
1920x1080 Fire Strike Physics
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
35153 Points +31%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
26772 Points
Average AMD Ryzen 9 5900HX
  (17714 - 27288, n=31)
24899 Points -7%
Average AMD Ryzen 9 6900HX
  (18389 - 27338, n=23)
24551 Points -8%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
24508 Points -8%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
24327 Points -9%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
24096 Points -10%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
23641 Points -12%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
21095 Points -21%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
20080 Points -25%
2560x1440 Time Spy CPU
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
15095 Points +42%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
10603 Points
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
10169 Points -4%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
10035 Points -5%
Average AMD Ryzen 9 6900HX
  (6621 - 11039, n=23)
9584 Points -10%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
9282 Points -12%
Average AMD Ryzen 9 5900HX
  (6932 - 10603, n=31)
9224 Points -13%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
8580 Points -19%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
6957 Points -34%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
6955 Points -34%

* ... im mniej tym lepiej

Performance Rating
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, Radeon RX 6600M
94.9 pt
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
94.1 pt
Intel Beast Canyon NUC
Intel Core i9-11900KB, NVIDIA GeForce RTX 3060
86.1 pt
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
86.1 pt
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
80.4 pt
Minisforum NUCX i7
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
80.3 pt
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, Radeon RX 6600M
71.8 pt
Average of class Mini PC

62.9 pt
AIDA64 / FP32 Ray-Trace
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
15755 KRay/s +3%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, Radeon RX 6600M
15334 KRay/s
Intel Beast Canyon NUC
Intel Core i9-11900KB, NVIDIA GeForce RTX 3060
14342 KRay/s -6%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
14342 KRay/s -6%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
13002 KRay/s -15%
Minisforum NUCX i7
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
12788 KRay/s -17%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, Radeon RX 6600M
12360 KRay/s -19%
Average of class Mini PC
  (561 - 27538, n=98, last 2 years)
9983 KRay/s -35%
AIDA64 / FPU Julia
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
100504 Points +1%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, Radeon RX 6600M
99427 Points
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, Radeon RX 6600M
76011 Points -24%
Intel Beast Canyon NUC
Intel Core i9-11900KB, NVIDIA GeForce RTX 3060
60136 Points -40%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
60136 Points -40%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
56368 Points -43%
Minisforum NUCX i7
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
54342 Points -45%
Average of class Mini PC
  (3604 - 116903, n=98, last 2 years)
52529 Points -47%
AIDA64 / CPU SHA3
Intel Beast Canyon NUC
Intel Core i9-11900KB, NVIDIA GeForce RTX 3060
4043 MB/s +19%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
4043 MB/s +19%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
3829 MB/s +13%
Minisforum NUCX i7
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
3655 MB/s +7%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
3444 MB/s +1%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, Radeon RX 6600M
3401 MB/s
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, Radeon RX 6600M
2607 MB/s -23%
Average of class Mini PC
  (225 - 5096, n=98, last 2 years)
2296 MB/s -32%
AIDA64 / CPU Queen
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
105123 Points +1%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, Radeon RX 6600M
104437 Points
Intel Beast Canyon NUC
Intel Core i9-11900KB, NVIDIA GeForce RTX 3060
98219 Points -6%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
98219 Points -6%
Minisforum NUCX i7
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
89290 Points -15%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
88481 Points -15%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, Radeon RX 6600M
76998 Points -26%
Average of class Mini PC
  (8172 - 119569, n=98, last 2 years)
69271 Points -34%
AIDA64 / FPU SinJulia
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
12792 Points +1%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, Radeon RX 6600M
12662 Points
Intel Beast Canyon NUC
Intel Core i9-11900KB, NVIDIA GeForce RTX 3060
9861 Points -22%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
9861 Points -22%
Minisforum NUCX i7
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
9734 Points -23%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
9457 Points -25%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, Radeon RX 6600M
8894 Points -30%
Average of class Mini PC
  (408 - 15525, n=98, last 2 years)
7328 Points -42%
AIDA64 / FPU Mandel
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
55452 Points +1%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, Radeon RX 6600M
54893 Points
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, Radeon RX 6600M
41691 Points -24%
Intel Beast Canyon NUC
Intel Core i9-11900KB, NVIDIA GeForce RTX 3060
36161 Points -34%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
36161 Points -34%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
33223 Points -39%
Minisforum NUCX i7
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
32372 Points -41%
Average of class Mini PC
  (1958 - 62378, n=98, last 2 years)
27834 Points -49%
AIDA64 / CPU AES
Intel Beast Canyon NUC
Intel Core i9-11900KB, NVIDIA GeForce RTX 3060
141926 MB/s +6%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
141926 MB/s +6%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
135212 MB/s +1%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, Radeon RX 6600M
134031 MB/s
Minisforum NUCX i7
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
128262 MB/s -4%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
124539 MB/s -7%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, Radeon RX 6600M
96790 MB/s -28%
Average of class Mini PC
  (3691 - 177158, n=98, last 2 years)
75245 MB/s -44%
AIDA64 / CPU ZLib
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
871 MB/s +1%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, Radeon RX 6600M
859 MB/s
Minisforum NUCX i7
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
756 MB/s -12%
Intel Beast Canyon NUC
Intel Core i9-11900KB, NVIDIA GeForce RTX 3060
755 MB/s -12%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
755 MB/s -12%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
735 MB/s -14%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, Radeon RX 6600M
632 MB/s -26%
Average of class Mini PC
  (74.8 - 1183, n=98, last 2 years)
582 MB/s -32%
AIDA64 / FP64 Ray-Trace
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
8425 KRay/s +5%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, Radeon RX 6600M
8000 KRay/s
Intel Beast Canyon NUC
Intel Core i9-11900KB, NVIDIA GeForce RTX 3060
7780 KRay/s -3%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
7780 KRay/s -3%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
7119 KRay/s -11%
Minisforum NUCX i7
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
7109 KRay/s -11%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, Radeon RX 6600M
6652 KRay/s -17%
Average of class Mini PC
  (308 - 14722, n=98, last 2 years)
5332 KRay/s -33%
AIDA64 / CPU PhotoWorxx
Average of class Mini PC
  (4408 - 44347, n=98, last 2 years)
24661 MPixel/s +21%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
23774 MPixel/s +16%
Minisforum NUCX i7
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
23758 MPixel/s +16%
Intel Beast Canyon NUC
Intel Core i9-11900KB, NVIDIA GeForce RTX 3060
23422 MPixel/s +15%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
23422 MPixel/s +15%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, Radeon RX 6600M
20422 MPixel/s
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, Radeon RX 6600M
15135 MPixel/s -26%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
14978 MPixel/s -27%

Minisforum Neptune Series HX90G podczas pętli Cinebench R15 Multi

Pętla Cinebench R15 pozwala na pierwsze spojrzenie na wydajność układu chłodzenia. Po pierwszych kilku przebiegach nie zaobserwowaliśmy spadku wydajności, dopiero w drugiej połowie z łącznie 50 przebiegów zauważyliśmy minimalny spadek. Ogólnie rzecz biorąc, wydajność jest nieco lepsza od Minisforum EliteMini HX90 (2 121 pkt.) ze średnią 2 169 pkt.

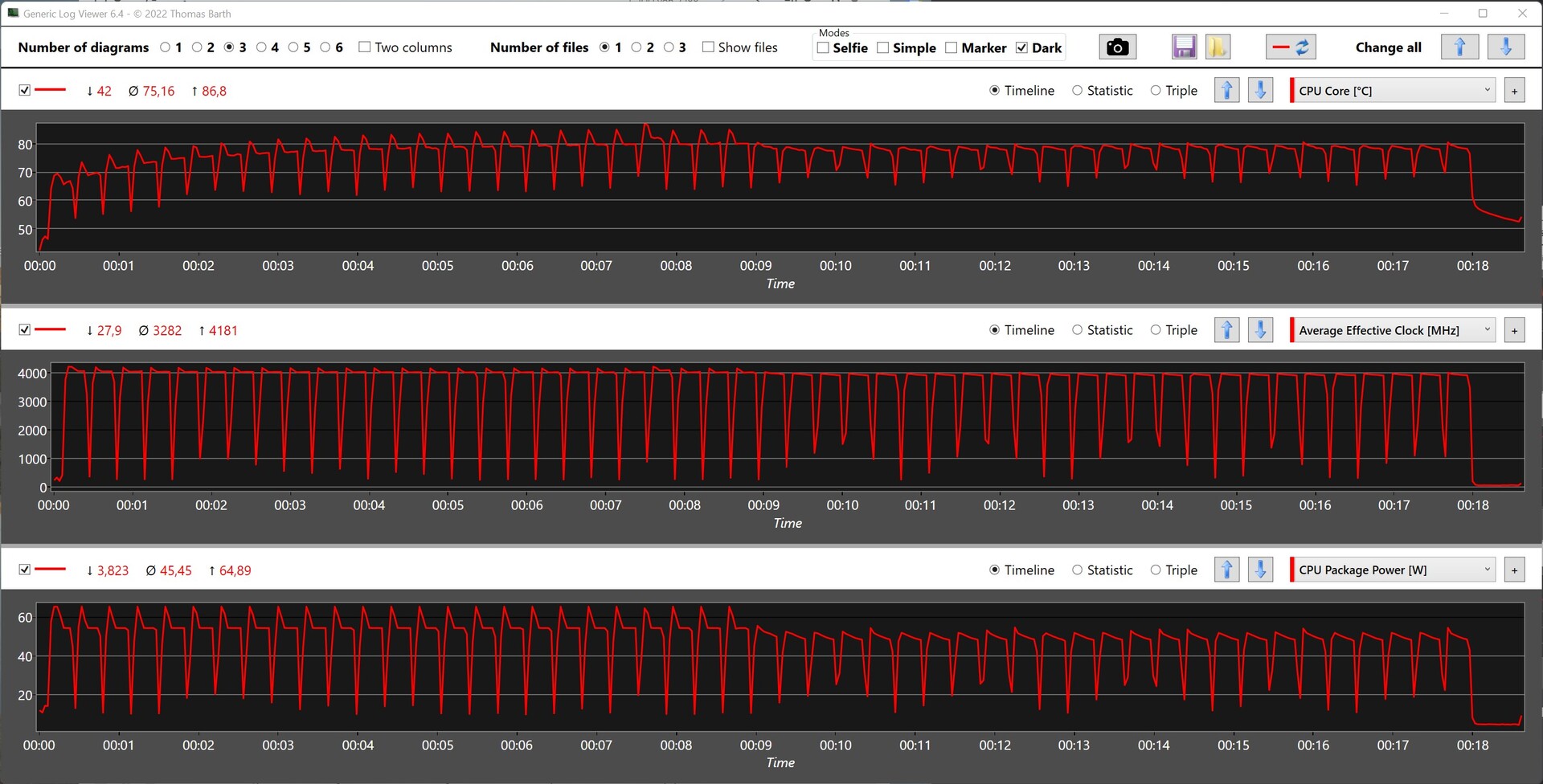

Metryka procesora podczas pętli Cinebench R15
Metryka procesora podczas pętli Cinebench R15
017034051068085010201190136015301700187020402210238025502720289030603230Tooltip
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Ryzen 9 5900HX: Ø2169 (2116.63-2224.69)
Intel Beast Canyon NUC Intel Core i9-11900KB, Intel Core i9-11900KB: Ø1800 (1776.75-1859.25)
Zotac ZBOX Magnus EN173070C Intel Core i7-11800H, Intel Core i7-11800H: Ø1562 (1536.63-1683.86)
Intel Dragon Canyon NUC - RTX 3060 Intel Core i9-12900, Intel Core i9-12900: Ø2592 (2433.39-3346.44)
Minisforum NUCX i7 Intel Core i7-11800H, Intel Core i7-11800H: Ø1825 (1783.96-2050.55)
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Ryzen 9 5900HX: Ø2121 (2086.27-2197.32)

Wydajność systemu

Minisforum HX90G dobrze radzi sobie w naszych syntetycznych benchmarkach i zajmuje trzecie miejsce w PCMark 10. Mimo to nasza jednostka testowa oparta na procesorze AMD nie może się równać z wynikami konkurentów z procesorami Intela w benchmarku Crossmark. Subiektywnie rzecz biorąc, Minisforum HX90G jest nadal komfortowo szybki. System działa płynnie i nie zauważyliśmy żadnych lagów spowodowanych wysokimi opóźnieniami podczas ładowania różnych programów.

Performance Rating - Percent
Intel Dragon Canyon NUC - RTX 3060, Intel Core i9-12900
NVIDIA GeForce RTX 3060, Transcend M.2 SSD 2200S TS512GMTE220S
100 pt
Intel Beast Canyon NUC, Intel Core i9-11900KB
NVIDIA GeForce RTX 3060, Sabrent Rocket 4.0 500GB
92.4 pt
Minisforum Neptune Series HX90G, AMD Ryzen 9 5900HX
AMD Radeon RX 6600M, ESO512GYLCT
92.1 pt
Lenovo Legion 5 15ACH6A-82NW0010GE, AMD Ryzen 5 5600H
AMD Radeon RX 6600M, Micron 2210 MTFDHBA512QFD
91 pt
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB
90.9 pt
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S
87.9 pt
Minisforum NUCX i7, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU,
85.8 pt
Zotac Magnus One (ECM73070C), Intel Core i7-10700
NVIDIA GeForce RTX 3070, Phison 512GB PA6620060U
80.5 pt
PCMark 10
Score
Intel Dragon Canyon NUC - RTX 3060, Intel Core i9-12900
NVIDIA GeForce RTX 3060, Transcend M.2 SSD 2200S TS512GMTE220S
8083 Points +10%
Minisforum Neptune Series HX90G, AMD Ryzen 9 5900HX
AMD Radeon RX 6600M, ESO512GYLCT
7341 Points
Intel Beast Canyon NUC, Intel Core i9-11900KB
NVIDIA GeForce RTX 3060, Sabrent Rocket 4.0 500GB
7281 Points -1%
Lenovo Legion 5 15ACH6A-82NW0010GE, AMD Ryzen 5 5600H
AMD Radeon RX 6600M, Micron 2210 MTFDHBA512QFD
7091 Points -3%
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S
6952 Points -5%
Minisforum NUCX i7, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU,
6863 Points -7%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB
6507 Points -11%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
NVIDIA GeForce RTX 3070, Phison 512GB PA6620060U
6499 Points -11%
Essentials
Intel Dragon Canyon NUC - RTX 3060, Intel Core i9-12900
NVIDIA GeForce RTX 3060, Transcend M.2 SSD 2200S TS512GMTE220S
11171 Points +6%
Minisforum Neptune Series HX90G, AMD Ryzen 9 5900HX
AMD Radeon RX 6600M, ESO512GYLCT
10552 Points
Lenovo Legion 5 15ACH6A-82NW0010GE, AMD Ryzen 5 5600H
AMD Radeon RX 6600M, Micron 2210 MTFDHBA512QFD
10506 Points 0%
Intel Beast Canyon NUC, Intel Core i9-11900KB
NVIDIA GeForce RTX 3060, Sabrent Rocket 4.0 500GB
10422 Points -1%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB
10321 Points -2%
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S
10014 Points -5%
Minisforum NUCX i7, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU,
9865 Points -7%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
NVIDIA GeForce RTX 3070, Phison 512GB PA6620060U
9846 Points -7%
Productivity
Intel Dragon Canyon NUC - RTX 3060, Intel Core i9-12900
NVIDIA GeForce RTX 3060, Transcend M.2 SSD 2200S TS512GMTE220S
10205 Points +10%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB
10196 Points +10%
Intel Beast Canyon NUC, Intel Core i9-11900KB
NVIDIA GeForce RTX 3060, Sabrent Rocket 4.0 500GB
9582 Points +3%
Lenovo Legion 5 15ACH6A-82NW0010GE, AMD Ryzen 5 5600H
AMD Radeon RX 6600M, Micron 2210 MTFDHBA512QFD
9299 Points 0%
Minisforum Neptune Series HX90G, AMD Ryzen 9 5900HX
AMD Radeon RX 6600M, ESO512GYLCT
9288 Points
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S
8985 Points -3%
Minisforum NUCX i7, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU,
8579 Points -8%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
NVIDIA GeForce RTX 3070, Phison 512GB PA6620060U
7447 Points -20%
CrossMark / Responsiveness
Intel Beast Canyon NUC, Intel Core i9-11900KB
NVIDIA GeForce RTX 3060, Sabrent Rocket 4.0 500GB
1885 Points +43%
Intel Dragon Canyon NUC - RTX 3060, Intel Core i9-12900
NVIDIA GeForce RTX 3060, Transcend M.2 SSD 2200S TS512GMTE220S
1885 Points +43%
Minisforum NUCX i7, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU,
1496 Points +13%
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S
1435 Points +9%
Minisforum Neptune Series HX90G, AMD Ryzen 9 5900HX
AMD Radeon RX 6600M, ESO512GYLCT
1322 Points
CrossMark / Creativity
Intel Beast Canyon NUC, Intel Core i9-11900KB
NVIDIA GeForce RTX 3060, Sabrent Rocket 4.0 500GB
1724 Points +12%
Intel Dragon Canyon NUC - RTX 3060, Intel Core i9-12900
NVIDIA GeForce RTX 3060, Transcend M.2 SSD 2200S TS512GMTE220S
1724 Points +12%
Minisforum NUCX i7, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU,
1644 Points +7%
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S
1613 Points +5%
Minisforum Neptune Series HX90G, AMD Ryzen 9 5900HX
AMD Radeon RX 6600M, ESO512GYLCT
1535 Points
CrossMark / Productivity
Intel Beast Canyon NUC, Intel Core i9-11900KB
NVIDIA GeForce RTX 3060, Sabrent Rocket 4.0 500GB
1816 Points +20%
Intel Dragon Canyon NUC - RTX 3060, Intel Core i9-12900
NVIDIA GeForce RTX 3060, Transcend M.2 SSD 2200S TS512GMTE220S
1816 Points +20%
Minisforum NUCX i7, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU,
1592 Points +6%
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S
1573 Points +4%
Minisforum Neptune Series HX90G, AMD Ryzen 9 5900HX
AMD Radeon RX 6600M, ESO512GYLCT
1508 Points
CrossMark / Overall
Intel Beast Canyon NUC, Intel Core i9-11900KB
NVIDIA GeForce RTX 3060, Sabrent Rocket 4.0 500GB
1785 Points +20%
Intel Dragon Canyon NUC - RTX 3060, Intel Core i9-12900
NVIDIA GeForce RTX 3060, Transcend M.2 SSD 2200S TS512GMTE220S
1785 Points +20%
Minisforum NUCX i7, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU,
1600 Points +7%
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S
1569 Points +5%
Minisforum Neptune Series HX90G, AMD Ryzen 9 5900HX
AMD Radeon RX 6600M, ESO512GYLCT
1491 Points
AIDA64 / Memory Copy
Intel Beast Canyon NUC
Intel Core i9-11900KB, NVIDIA GeForce RTX 3060
44474 MB/s +6%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
44474 MB/s +6%
Minisforum NUCX i7
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
44370 MB/s +5%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
44240 MB/s +5%
Average of class Mini PC
  (6481 - 70620, n=98, last 2 years)
42914 MB/s +2%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, Radeon RX 6600M
42133 MB/s
Average AMD Ryzen 9 5900HX
  (36725 - 43318, n=26)
40935 MB/s -3%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
37616 MB/s -11%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, Radeon RX 6600M
37007 MB/s -12%
AIDA64 / Memory Read
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
50365 MB/s +6%
Intel Beast Canyon NUC
Intel Core i9-11900KB, NVIDIA GeForce RTX 3060
49616 MB/s +5%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
49616 MB/s +5%
Minisforum NUCX i7
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
49326 MB/s +4%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, Radeon RX 6600M
47460 MB/s
Average AMD Ryzen 9 5900HX
  (41378 - 47593, n=26)
45797 MB/s -4%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
43678 MB/s -8%
Average of class Mini PC
  (6914 - 71285, n=98, last 2 years)
43571 MB/s -8%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, Radeon RX 6600M
42375 MB/s -11%
AIDA64 / Memory Write
Average of class Mini PC
  (6862 - 89318, n=98, last 2 years)
46636 MB/s +7%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
46213 MB/s +6%
Minisforum NUCX i7
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
46018 MB/s +6%
Intel Beast Canyon NUC
Intel Core i9-11900KB, NVIDIA GeForce RTX 3060
45577 MB/s +5%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
45577 MB/s +5%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, Radeon RX 6600M
43471 MB/s
Average AMD Ryzen 9 5900HX
  (32536 - 46718, n=26)
41417 MB/s -5%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
35146 MB/s -19%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, Radeon RX 6600M
30785 MB/s -29%
AIDA64 / Memory Latency
Minisforum NUCX i7
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
97.7 ns * -31%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, Radeon RX 6600M
87.9 ns * -18%
Average of class Mini PC
  (44.9 - 154.6, n=98, last 2 years)
87.8 ns * -17%
Intel Beast Canyon NUC
Intel Core i9-11900KB, NVIDIA GeForce RTX 3060
87.4 ns * -17%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
87.4 ns * -17%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
79.6 ns * -6%
Average AMD Ryzen 9 5900HX
  (73.5 - 97.1, n=26)
78.8 ns * -5%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
77.3 ns * -3%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, Radeon RX 6600M
74.8 ns *

* ... im mniej tym lepiej

Opóźnienia DPC

Minisforum HX90G nie ma żadnych problemów podczas otwierania kilku kart przeglądarki w przeglądarce Edge, ani podczas odtwarzania wideo 4K na Youtube. LatencyMon nie udokumentował żadnych zwiększonych opóźnień, a AMD Radeon RX 6600M musi pracować tylko na 10 procentach wydajności, by odtworzyć nasze testowe wideo.

Maksymalne opóźnienie podczas otwierania kilku kart przeglądarki i podczas odtwarzania wideo 4K
Maksymalne opóźnienie podczas otwierania kilku kart przeglądarki i podczas odtwarzania wideo 4K
Maksymalne opóźnienie po dziesięciu sekundach Prime95
Maksymalne opóźnienie po dziesięciu sekundach Prime95
Kierowcy posortowani według najdłuższego czasu wykonania
Kierowcy posortowani według najdłuższego czasu wykonania

Urządzenie do przechowywania danych

512 GB NVMe SSD
512 GB NVMe SSD

Nasza konfiguracja testowa jest wyposażona w dysk SSD NVMe o pojemności 512 GB. Model ten jest szybki i plasuje się w średniej klasie, ale nie może konkurować z szybszymi dyskami SSD PCIe 4.0. Jego wydajność jest w zupełności wystarczająca do codziennego użytkowania. Natomiast ilość pamięci masowej, którą zapewnia, jest raczej niska jak na komputer do gier. Miejsce, którego wymaga system operacyjny, zmniejsza 512 GB pamięci masowej do 450 GB. Ponieważ jest to urządzenie do gier, spodziewalibyśmy się co najmniej 1 TB pamięci masowej. Na szczęście przestrzeń dyskową można w każdej chwili łatwo rozszerzyć dzięki drugiemu slotowi M.2.

Zobacz naszą tabela porównawcza po więcej porównań i benchmarków.

AS SSD
AS SSD
CDM 3
CDM 3
CDM 5
CDM 5
CDM 6
CDM 6
CDI
CDI
ESO512GYLCT
Sequential Read: 1561 MB/s
Sequential Write: 1864 MB/s
512K Read: 1306 MB/s
512K Write: 1805 MB/s
4K Read: 45.25 MB/s
4K Write: 167.7 MB/s
4K QD32 Read: 567.5 MB/s
4K QD32 Write: 428.3 MB/s
Drive Performance Rating - Percent
Intel Beast Canyon NUC
Sabrent Rocket 4.0 500GB
90.9 pt
Intel Dragon Canyon NUC - RTX 3060 -11!
Transcend M.2 SSD 2200S TS512GMTE220S
87 pt
Average of class Mini PC

62.8 pt
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
60.4 pt
Zotac ZBOX Magnus EN173070C
Transcend M.2 SSD 2200S TS512GMTE220S
60 pt
Average ESO512GYLCT

58.8 pt
Minisforum Neptune Series HX90G
ESO512GYLCT
57.9 pt
Lenovo Legion 5 15ACH6A-82NW0010GE
Micron 2210 MTFDHBA512QFD
52.8 pt
Minisforum NUCX i7

52.2 pt
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
45.9 pt
DiskSpd
seq read
Average of class Mini PC
  (233 - 4168, n=97, last 2 years)
2030 MB/s +26%
Zotac ZBOX Magnus EN173070C
Transcend M.2 SSD 2200S TS512GMTE220S
2008 (1998.8min - 2008.02max) MB/s +24%
Intel Beast Canyon NUC
Sabrent Rocket 4.0 500GB
1936 (1755.26min - 1936.41max) MB/s +20%
Intel Dragon Canyon NUC - RTX 3060
Transcend M.2 SSD 2200S TS512GMTE220S
1936 (1755.26min - 1936.41max) MB/s +20%
Lenovo Legion 5 15ACH6A-82NW0010GE
Micron 2210 MTFDHBA512QFD
1935 (1931.9min - 1934.83max) MB/s +20%
Minisforum NUCX i7

1620 (1579.16min - 1620.17max) MB/s 0%
Minisforum Neptune Series HX90G
ESO512GYLCT
1614 (1595.77min - 1613.55max) MB/s
Average ESO512GYLCT
  (1310 - 1645, n=3)
1523 MB/s -6%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
1319 (1307.78min - 1319.44max) MB/s -18%
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
824 (549.82min - 823.58max) MB/s -49%
seq write
Average of class Mini PC
  (222 - 5595, n=97, last 2 years)
2052 MB/s +22%
Average ESO512GYLCT
  (1681 - 1877, n=3)
1764 MB/s +5%
Intel Beast Canyon NUC
Sabrent Rocket 4.0 500GB
1744 (525.75min - 1743.78max) MB/s +4%
Intel Dragon Canyon NUC - RTX 3060
Transcend M.2 SSD 2200S TS512GMTE220S
1744 (525.75min - 1743.78max) MB/s +4%
Minisforum NUCX i7

1707 (1684.21min - 1706.66max) MB/s +2%
Zotac ZBOX Magnus EN173070C
Transcend M.2 SSD 2200S TS512GMTE220S
1701 (653.68min - 1701.42max) MB/s +1%
Minisforum Neptune Series HX90G
ESO512GYLCT
1681 (1674.37min - 1681.28max) MB/s
Lenovo Legion 5 15ACH6A-82NW0010GE
Micron 2210 MTFDHBA512QFD
1146 (903.24min - 1146.3max) MB/s -32%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
977 (973.56min - 977.06max) MB/s -42%
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
665 (240.27min - 665.08max) MB/s -60%
seq q8 t1 read
Intel Beast Canyon NUC
Sabrent Rocket 4.0 500GB
4996 (4330.97min - 4996.25max) MB/s +113%
Intel Dragon Canyon NUC - RTX 3060
Transcend M.2 SSD 2200S TS512GMTE220S
4996 (4330.97min - 4996.25max) MB/s +113%
Average of class Mini PC
  (236 - 8430, n=97, last 2 years)
3172 MB/s +35%
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
2635 (2212.29min - 2635.07max) MB/s +12%
Zotac ZBOX Magnus EN173070C
Transcend M.2 SSD 2200S TS512GMTE220S
2599 (2228.8min - 2599.21max) MB/s +11%
Minisforum Neptune Series HX90G
ESO512GYLCT
2344 (2130.71min - 2343.78max) MB/s
Minisforum NUCX i7

2308 (2036.12min - 2307.5max) MB/s -2%
Lenovo Legion 5 15ACH6A-82NW0010GE
Micron 2210 MTFDHBA512QFD
2213 (2018.77min - 2212.5max) MB/s -6%
Average ESO512GYLCT
  (1749 - 2360, n=3)
2151 MB/s -8%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
1973 (254.17min - 1973.17max) MB/s -16%
seq q8 t1 write
Intel Beast Canyon NUC
Sabrent Rocket 4.0 500GB
2524 (535.17min - 2524.36max) MB/s +37%
Intel Dragon Canyon NUC - RTX 3060
Transcend M.2 SSD 2200S TS512GMTE220S
2524 (535.17min - 2524.36max) MB/s +37%
Average of class Mini PC
  (228 - 6669, n=97, last 2 years)
2233 MB/s +21%
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
2002 (577.14min - 2001.94max) MB/s +8%
Zotac ZBOX Magnus EN173070C
Transcend M.2 SSD 2200S TS512GMTE220S
1988 (530.16min - 1987.88max) MB/s +8%
Average ESO512GYLCT
  (1815 - 1946, n=3)
1870 MB/s +1%
Minisforum Neptune Series HX90G
ESO512GYLCT
1849 (1833.02min - 1849.14max) MB/s
Minisforum NUCX i7

1843 (1731.1min - 1843.4max) MB/s 0%
Lenovo Legion 5 15ACH6A-82NW0010GE
Micron 2210 MTFDHBA512QFD
1145 (65.64min - 1144.64max) MB/s -38%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
977 (973.56min - 976.5max) MB/s -47%
4k q1 t1 read
Zotac ZBOX Magnus EN173070C
Transcend M.2 SSD 2200S TS512GMTE220S
68.2 (66.68min - 68.15max) MB/s +80%
Lenovo Legion 5 15ACH6A-82NW0010GE
Micron 2210 MTFDHBA512QFD
60.5 (60.38min - 60.5max) MB/s +60%
Average of class Mini PC
  (5.67 - 86.6, n=97, last 2 years)
51.5 MB/s +36%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
47.4 (11.99min - 47.41max) MB/s +25%
Intel Beast Canyon NUC
Sabrent Rocket 4.0 500GB
45.7 (45.38min - 45.71max) MB/s +21%
Intel Dragon Canyon NUC - RTX 3060
Transcend M.2 SSD 2200S TS512GMTE220S
45.7 (45.38min - 45.71max) MB/s +21%
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
42.2 (41.94min - 42.15max) MB/s +11%
Average ESO512GYLCT
  (35.4 - 44.8, n=3)
39.4 MB/s +4%
Minisforum NUCX i7

38.9 (38.65min - 38.87max) MB/s +3%
Minisforum Neptune Series HX90G
ESO512GYLCT
37.9 (37.34min - 37.87max) MB/s
4k q1 t1 write
Intel Beast Canyon NUC
Sabrent Rocket 4.0 500GB
320 (298.75min - 319.53max) MB/s +98%
Intel Dragon Canyon NUC - RTX 3060
Transcend M.2 SSD 2200S TS512GMTE220S
320 (298.75min - 319.53max) MB/s +98%
Zotac ZBOX Magnus EN173070C
Transcend M.2 SSD 2200S TS512GMTE220S
251 (152.06min - 251.09max) MB/s +56%
Minisforum NUCX i7

187.4 (170.03min - 187.4max) MB/s +16%
Average of class Mini PC
  (22 - 425, n=97, last 2 years)
185.7 MB/s +15%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
167 (54.54min - 166.59max) MB/s +4%
Average ESO512GYLCT
  (161.3 - 168.4, n=3)
164.7 MB/s +2%
Minisforum Neptune Series HX90G
ESO512GYLCT
161.3 (150.7min - 161.34max) MB/s
Lenovo Legion 5 15ACH6A-82NW0010GE
Micron 2210 MTFDHBA512QFD
153 (151.1min - 152.72max) MB/s -5%
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
120 (119.43min - 119.96max) MB/s -26%
4k q32 t16 read
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
1311 (1269.74min - 1311.13max) MB/s +59%
Average of class Mini PC
  (26.1 - 2810, n=97, last 2 years)
1092 MB/s +33%
Intel Beast Canyon NUC
Sabrent Rocket 4.0 500GB
970 (966.45min - 970.29max) MB/s +18%
Intel Dragon Canyon NUC - RTX 3060
Transcend M.2 SSD 2200S TS512GMTE220S
970 (966.45min - 970.29max) MB/s +18%
Minisforum Neptune Series HX90G
ESO512GYLCT
822 (773.05min - 821.5max) MB/s
Minisforum NUCX i7

786 (734.36min - 786.34max) MB/s -4%
Average ESO512GYLCT
  (424 - 831, n=3)
692 MB/s -16%
Zotac ZBOX Magnus EN173070C
Transcend M.2 SSD 2200S TS512GMTE220S
656 (654.58min - 656.18max) MB/s -20%
Lenovo Legion 5 15ACH6A-82NW0010GE
Micron 2210 MTFDHBA512QFD
646 (644.91min - 645.74max) MB/s -21%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
313 (311.66min - 312.85max) MB/s -62%
4k q32 t16 write
Minisforum Neptune Series HX90G
ESO512GYLCT
1492 (333.99min - 1492.35max) MB/s
Average ESO512GYLCT
  (934 - 1611, n=3)
1346 MB/s -10%
Intel Beast Canyon NUC
Sabrent Rocket 4.0 500GB
1119 (483.18min - 1119.3max) MB/s -25%
Intel Dragon Canyon NUC - RTX 3060
Transcend M.2 SSD 2200S TS512GMTE220S
1119 (483.18min - 1119.3max) MB/s -25%
Average of class Mini PC
  (30.2 - 3983, n=97, last 2 years)
1088 MB/s -27%
Lenovo Legion 5 15ACH6A-82NW0010GE
Micron 2210 MTFDHBA512QFD
1061 (62.92min - 1061.17max) MB/s -29%
Minisforum NUCX i7

1032 (266.97min - 1032.05max) MB/s -31%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
976 (747.22min - 976.04max) MB/s -35%
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
937 (473.07min - 936.52max) MB/s -37%
Zotac ZBOX Magnus EN173070C
Transcend M.2 SSD 2200S TS512GMTE220S
933 (584.14min - 933.42max) MB/s -37%
AS SSD
Score Total
Intel Beast Canyon NUC
Sabrent Rocket 4.0 500GB
6467 Points +116%
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
4893 Points +64%
Average of class Mini PC
  (151.3 - 9030, n=95, last 2 years)
3560 Points +19%
Minisforum Neptune Series HX90G
ESO512GYLCT
2988 Points
Average ESO512GYLCT
  (2491 - 3139, n=3)
2873 Points -4%
Lenovo Legion 5 15ACH6A-82NW0010GE
Micron 2210 MTFDHBA512QFD
2499 Points -16%
Zotac ZBOX Magnus EN173070C
Transcend M.2 SSD 2200S TS512GMTE220S
2237 Points -25%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
2184 Points -27%
Minisforum NUCX i7

1054.23 Points -65%
Score Read
Intel Beast Canyon NUC
Sabrent Rocket 4.0 500GB
2462 Points +146%
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
1911 Points +91%
Average of class Mini PC
  (61 - 3635, n=95, last 2 years)
1354 Points +35%
Minisforum Neptune Series HX90G
ESO512GYLCT
1001 Points
Average ESO512GYLCT
  (954 - 1001, n=3)
973 Points -3%
Minisforum NUCX i7

895 Points -11%
Lenovo Legion 5 15ACH6A-82NW0010GE
Micron 2210 MTFDHBA512QFD
841 Points -16%
Zotac ZBOX Magnus EN173070C
Transcend M.2 SSD 2200S TS512GMTE220S
824 Points -18%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
698 Points -30%
Score Write
Intel Beast Canyon NUC
Sabrent Rocket 4.0 500GB
2827 Points +91%
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
2041 Points +38%
Average of class Mini PC
  (88 - 4185, n=95, last 2 years)
1564 Points +6%
Minisforum NUCX i7

1556 Points +5%
Minisforum Neptune Series HX90G
ESO512GYLCT
1482 Points
Average ESO512GYLCT
  (1037 - 1702, n=3)
1407 Points -5%
Lenovo Legion 5 15ACH6A-82NW0010GE
Micron 2210 MTFDHBA512QFD
1251 Points -16%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
1152 Points -22%
Zotac ZBOX Magnus EN173070C
Transcend M.2 SSD 2200S TS512GMTE220S
1022 Points -31%
Seq Read
Intel Beast Canyon NUC
Sabrent Rocket 4.0 500GB
4274 MB/s +93%
Zotac ZBOX Magnus EN173070C
Transcend M.2 SSD 2200S TS512GMTE220S
2822 MB/s +27%
Average of class Mini PC
  (291 - 6620, n=95, last 2 years)
2820 MB/s +27%
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
2361 MB/s +7%
Minisforum Neptune Series HX90G
ESO512GYLCT
2215 MB/s
Average ESO512GYLCT
  (2181 - 2215, n=3)
2196 MB/s -1%
Lenovo Legion 5 15ACH6A-82NW0010GE
Micron 2210 MTFDHBA512QFD
1948 MB/s -12%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
1777 MB/s -20%
Minisforum NUCX i7

1613 MB/s -27%
Seq Write
Intel Beast Canyon NUC
Sabrent Rocket 4.0 500GB
2382 MB/s +34%
Zotac ZBOX Magnus EN173070C
Transcend M.2 SSD 2200S TS512GMTE220S
2044 MB/s +15%
Average of class Mini PC
  (240 - 5783, n=95, last 2 years)
1970 MB/s +11%
Minisforum Neptune Series HX90G
ESO512GYLCT
1780 MB/s
Average ESO512GYLCT
  (1762 - 1780, n=3)
1770 MB/s -1%
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
1690 MB/s -5%
Minisforum NUCX i7

1468 MB/s -18%
Lenovo Legion 5 15ACH6A-82NW0010GE
Micron 2210 MTFDHBA512QFD
1094 MB/s -39%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
929 MB/s -48%
4K Read
Intel Beast Canyon NUC
Sabrent Rocket 4.0 500GB
83.9 MB/s +58%
Lenovo Legion 5 15ACH6A-82NW0010GE
Micron 2210 MTFDHBA512QFD
60.58 MB/s +14%
Average of class Mini PC
  (6.08 - 104.2, n=95, last 2 years)
55.5 MB/s +4%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
54.5 MB/s +2%
Average ESO512GYLCT
  (53.2 - 55.3, n=3)
54.5 MB/s +2%
Minisforum NUCX i7

54.25 MB/s +2%
Minisforum Neptune Series HX90G
ESO512GYLCT
53.18 MB/s
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
38.25 MB/s -28%
Zotac ZBOX Magnus EN173070C
Transcend M.2 SSD 2200S TS512GMTE220S
37.9 MB/s -29%
4K Write
Intel Beast Canyon NUC
Sabrent Rocket 4.0 500GB
308.4 MB/s +96%
Zotac ZBOX Magnus EN173070C
Transcend M.2 SSD 2200S TS512GMTE220S
173.69 MB/s +10%
Average of class Mini PC
  (30.9 - 366, n=95, last 2 years)
168.3 MB/s +7%
Minisforum Neptune Series HX90G
ESO512GYLCT
157.2 MB/s
Average ESO512GYLCT
  (151.8 - 160.1, n=3)
156.4 MB/s -1%
Lenovo Legion 5 15ACH6A-82NW0010GE
Micron 2210 MTFDHBA512QFD
145.7 MB/s -7%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
143.1 MB/s -9%
Minisforum NUCX i7

129.81 MB/s -17%
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
100.2 MB/s -36%
4K-64 Read
Intel Beast Canyon NUC
Sabrent Rocket 4.0 500GB
1950 MB/s +169%
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
1637 MB/s +125%
Average of class Mini PC
  (23.4 - 3035, n=95, last 2 years)
1016 MB/s +40%
Minisforum Neptune Series HX90G
ESO512GYLCT
725.98 MB/s
Average ESO512GYLCT
  (679 - 726, n=3)
699 MB/s -4%
Minisforum NUCX i7

679.23 MB/s -6%
Lenovo Legion 5 15ACH6A-82NW0010GE
Micron 2210 MTFDHBA512QFD
585.23 MB/s -19%
Zotac ZBOX Magnus EN173070C
Transcend M.2 SSD 2200S TS512GMTE220S
503.52 MB/s -31%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
465.3 MB/s -36%
4K-64 Write
Intel Beast Canyon NUC
Sabrent Rocket 4.0 500GB
2281 MB/s +99%
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
1772 MB/s +55%
Minisforum NUCX i7

1279.71 MB/s +12%
Average of class Mini PC
  (32.8 - 3598, n=95, last 2 years)
1199 MB/s +5%
Minisforum Neptune Series HX90G
ESO512GYLCT
1146.83 MB/s
Average ESO512GYLCT
  (699 - 1374, n=3)
1073 MB/s -6%
Lenovo Legion 5 15ACH6A-82NW0010GE
Micron 2210 MTFDHBA512QFD
995.52 MB/s -13%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
916 MB/s -20%
Zotac ZBOX Magnus EN173070C
Transcend M.2 SSD 2200S TS512GMTE220S
643.35 MB/s -44%
Access Time Read
Minisforum Neptune Series HX90G
ESO512GYLCT
0.117 ms *
Average of class Mini PC
  (0.022 - 0.489, n=95, last 2 years)
0.1025 ms * +12%
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
0.099 ms * +15%
Minisforum NUCX i7

0.092 ms * +21%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
0.081 ms * +31%
Lenovo Legion 5 15ACH6A-82NW0010GE
Micron 2210 MTFDHBA512QFD
0.077 ms * +34%
Intel Beast Canyon NUC
Sabrent Rocket 4.0 500GB
0.071 ms * +39%
Zotac ZBOX Magnus EN173070C
Transcend M.2 SSD 2200S TS512GMTE220S
0.063 ms * +46%
Average ESO512GYLCT
  (0.022 - 0.117, n=3)
0.061 ms * +48%
Access Time Write
Average of class Mini PC
  (0.016 - 0.765, n=95, last 2 years)
0.1297 ms * -440%
Minisforum NUCX i7

0.079 ms * -229%
Lenovo Legion 5 15ACH6A-82NW0010GE
Micron 2210 MTFDHBA512QFD
0.039 ms * -63%
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
0.035 ms * -46%
Zotac ZBOX Magnus EN173070C
Transcend M.2 SSD 2200S TS512GMTE220S
0.027 ms * -13%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
0.024 ms * -0%
Minisforum Neptune Series HX90G
ESO512GYLCT
0.024 ms *
Average ESO512GYLCT
  (0.024 - 0.024, n=3)
0.024 ms * -0%
Intel Beast Canyon NUC
Sabrent Rocket 4.0 500GB
0.012 ms * +50%

* ... im mniej tym lepiej

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

02555107651020127515301785204022952550280530603315357038254080433545904845Tooltip
Minisforum Neptune Series HX90G ESO512GYLCT: Ø1859 (996.67-1961.26)
Intel Beast Canyon NUC Sabrent Rocket 4.0 500GB: Ø3896 (225.06-5002.7)
Zotac ZBOX Magnus EN173070C Transcend M.2 SSD 2200S TS512GMTE220S: Ø2440 (1786.98-2501.9)
Intel Dragon Canyon NUC - RTX 3060 Transcend M.2 SSD 2200S TS512GMTE220S: Ø3896 (225.06-5002.7)
Minisforum NUCX i7  : Ø2309 (2137.76-2318.4)
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB: Ø1499 (1411.27-1985.99)

Wydajność GPU

na wydajność 3D ma wpływ nie tylko CPU, ale także GPU. O tym, jaką przewagę to daje, świadczy nasze bezpośrednie porównanie z Minisforum EliteMini HX90, wyposażonym tylko w AMD Radeon RX Vega 8. Minisforum HX90G posiada AMD Radeon RX 6600M - dobrą kartę graficzną ze średniej półki. Bazuje ona na najnowszej architekturze RDNA-2, a jej TDP wynosi do 100 W, co często osiąga podczas pracy pod obciążeniem. Użytkownicy mogą liczyć na wykorzystanie pełnej wydajności tego dedykowanego GPU.

Syntetyczne porównanie wydajności pozycjonuje nasz testowy egzemplarz w centrum. Wydajność AMD Radeon RX 6600M jest nieco lepsza od konkurentów wyposażonych w kartę Nvidia GeForce RTX 3060. W zamian Minisforum NUXCi7 wyposażony w laptop Nvidia GeForce RTX 3070 udaje się wyprzedzić Minisforum HX90G o niespełna 10 procent.

Więcej szczegółów na temat AMD Radeon RX 6600Mmożna znaleźć na naszej stronie poświęconej procesorom graficznym.

Nasza Tabela porównawcza procesorów graficznych zawiera więcej porównań i benchmarków.

3DMark Performance Rating - Percent
Zotac Magnus One (ECM73070C)
NVIDIA GeForce RTX 3070, Intel Core i7-10700
100 pt
Zotac ZBOX Magnus EN173070C
NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H
85.8 pt
Minisforum NUCX i7
NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H
80.4 pt
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Radeon RX 6600M, AMD Ryzen 5 5600H
78.3 pt
Minisforum Neptune Series HX90G
AMD Radeon RX 6600M, AMD Ryzen 9 5900HX
74.1 pt
Average AMD Radeon RX 6600M

74 pt
Intel Dragon Canyon NUC - RTX 3060
NVIDIA GeForce RTX 3060, Intel Core i9-12900
70.2 pt
Intel Beast Canyon NUC
NVIDIA GeForce RTX 3060, Intel Core i9-11900KB
70 pt
Minisforum EliteMini HX90
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX
13.1 pt
3DMark 11 - 1280x720 Performance GPU
Zotac Magnus One (ECM73070C)
NVIDIA GeForce RTX 3070, Intel Core i7-10700
40950 Points +28%
Minisforum NUCX i7
NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H
34986 Points +10%
Zotac ZBOX Magnus EN173070C
NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H
34957 Points +10%
Minisforum Neptune Series HX90G
AMD Radeon RX 6600M, AMD Ryzen 9 5900HX
31877 Points
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Radeon RX 6600M, AMD Ryzen 5 5600H
31702 Points -1%
Average AMD Radeon RX 6600M
  (27030 - 32340, n=6)
31142 Points -2%
Intel Dragon Canyon NUC - RTX 3060
NVIDIA GeForce RTX 3060, Intel Core i9-12900
29172 Points -8%
Intel Beast Canyon NUC
NVIDIA GeForce RTX 3060, Intel Core i9-11900KB
28939 Points -9%
Minisforum EliteMini HX90
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX
6306 Points -80%
3DMark
1280x720 Cloud Gate Standard Graphics
Zotac Magnus One (ECM73070C)
NVIDIA GeForce RTX 3070, Intel Core i7-10700
164443 Points +13%
Zotac ZBOX Magnus EN173070C
NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H
159036 Points +9%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Radeon RX 6600M, AMD Ryzen 5 5600H
155788 Points +7%
Minisforum Neptune Series HX90G
AMD Radeon RX 6600M, AMD Ryzen 9 5900HX
145359 Points
Minisforum NUCX i7
NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H
143126 Points -2%
Average AMD Radeon RX 6600M
  (117448 - 155788, n=6)
139228 Points -4%
Intel Beast Canyon NUC
NVIDIA GeForce RTX 3060, Intel Core i9-11900KB
124830 Points -14%
Intel Dragon Canyon NUC - RTX 3060
NVIDIA GeForce RTX 3060, Intel Core i9-12900
120756 Points -17%
Minisforum EliteMini HX90
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX
28915 Points -80%
1920x1080 Fire Strike Graphics
Zotac Magnus One (ECM73070C)
NVIDIA GeForce RTX 3070, Intel Core i7-10700
30090 Points +31%
Zotac ZBOX Magnus EN173070C
NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H
26284 Points +15%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Radeon RX 6600M, AMD Ryzen 5 5600H
24788 Points +8%
Minisforum NUCX i7
NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H
24451 Points +7%
Average AMD Radeon RX 6600M
  (21876 - 24788, n=7)
23563 Points +3%
Minisforum Neptune Series HX90G
AMD Radeon RX 6600M, AMD Ryzen 9 5900HX
22884 Points
Intel Dragon Canyon NUC - RTX 3060
NVIDIA GeForce RTX 3060, Intel Core i9-12900
21984 Points -4%
Intel Beast Canyon NUC
NVIDIA GeForce RTX 3060, Intel Core i9-11900KB
21379 Points -7%
Minisforum EliteMini HX90
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX
3775 Points -84%
2560x1440 Time Spy Graphics
Zotac Magnus One (ECM73070C)
NVIDIA GeForce RTX 3070, Intel Core i7-10700
12668 Points +65%
Zotac ZBOX Magnus EN173070C
NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H
9929 Points +29%
Minisforum NUCX i7
NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H
9205 Points +20%
Intel Dragon Canyon NUC - RTX 3060
NVIDIA GeForce RTX 3060, Intel Core i9-12900
8578 Points +12%
Intel Beast Canyon NUC
NVIDIA GeForce RTX 3060, Intel Core i9-11900KB
8525 Points +11%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Radeon RX 6600M, AMD Ryzen 5 5600H
8234 Points +7%
Average AMD Radeon RX 6600M
  (7200 - 8234, n=7)
7864 Points +2%
Minisforum Neptune Series HX90G
AMD Radeon RX 6600M, AMD Ryzen 9 5900HX
7685 Points
Minisforum EliteMini HX90
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX
1247 Points -84%
Fire Strike Extreme Graphics
Zotac Magnus One (ECM73070C)
NVIDIA GeForce RTX 3070, Intel Core i7-10700
15597 Points +48%
Zotac ZBOX Magnus EN173070C
NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H
12636 Points +20%
Minisforum NUCX i7
NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H
11757 Points +11%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Radeon RX 6600M, AMD Ryzen 5 5600H
11255 Points +7%
Average AMD Radeon RX 6600M
  (10016 - 11360, n=6)
10782 Points +2%
Minisforum Neptune Series HX90G
AMD Radeon RX 6600M, AMD Ryzen 9 5900HX
10545 Points
Intel Dragon Canyon NUC - RTX 3060
NVIDIA GeForce RTX 3060, Intel Core i9-12900
10244 Points -3%
Intel Beast Canyon NUC
NVIDIA GeForce RTX 3060, Intel Core i9-11900KB
10181 Points -3%
Minisforum EliteMini HX90
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX
1578 Points -85%
Performance Rating - Percent
Zotac Magnus One (ECM73070C)
NVIDIA GeForce RTX 3070, i7-10700, Phison 512GB PA6620060U
100 pt
Zotac ZBOX Magnus EN173070C
GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S
80.3 pt
Minisforum NUCX i7
GeForce RTX 3070 Laptop GPU, i7-11800H
74.4 pt
Intel Dragon Canyon NUC - RTX 3060
NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S
66 pt
Intel Beast Canyon NUC
NVIDIA GeForce RTX 3060, i9-11900KB, Sabrent Rocket 4.0 500GB
65.1 pt
Minisforum Neptune Series HX90G
Radeon RX 6600M, R9 5900HX, ESO512GYLCT
60.7 pt
Average AMD Radeon RX 6600M

59.4 pt
Lenovo Legion 5 15ACH6A-82NW0010GE
Radeon RX 6600M, R5 5600H, Micron 2210 MTFDHBA512QFD
53.8 pt
Minisforum EliteMini HX90
Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB
8.8 pt
Unigine Heaven 4.0
Extreme Preset OpenGL
Zotac Magnus One (ECM73070C)
NVIDIA GeForce RTX 3070, i7-10700, Phison 512GB PA6620060U
187.5 fps +39%
Zotac ZBOX Magnus EN173070C
GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S
152.9 fps +13%
Minisforum NUCX i7
GeForce RTX 3070 Laptop GPU, i7-11800H
139.4 fps +3%
Minisforum Neptune Series HX90G
Radeon RX 6600M, R9 5900HX, ESO512GYLCT
135.1 fps
Average AMD Radeon RX 6600M
  (92.2 - 140.4, n=4)
126.3 fps -7%
Intel Dragon Canyon NUC - RTX 3060
NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S
124.9 fps -8%
Intel Beast Canyon NUC
NVIDIA GeForce RTX 3060, i9-11900KB, Sabrent Rocket 4.0 500GB
121 fps -10%
Lenovo Legion 5 15ACH6A-82NW0010GE
Radeon RX 6600M, R5 5600H, Micron 2210 MTFDHBA512QFD
92.2 fps -32%
Minisforum EliteMini HX90
Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB
16.2 fps -88%
Extreme Preset DX11
Zotac Magnus One (ECM73070C)
NVIDIA GeForce RTX 3070, i7-10700, Phison 512GB PA6620060U
196.4 fps +54%
Zotac ZBOX Magnus EN173070C
GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S
165.1 fps +29%
Minisforum NUCX i7
GeForce RTX 3070 Laptop GPU, i7-11800H
152.9 fps +20%
Intel Dragon Canyon NUC - RTX 3060
NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S
134.8 fps +6%
Intel Beast Canyon NUC
NVIDIA GeForce RTX 3060, i9-11900KB, Sabrent Rocket 4.0 500GB
130.8 fps +2%
Minisforum Neptune Series HX90G
Radeon RX 6600M, R9 5900HX, ESO512GYLCT
127.7 fps
Average AMD Radeon RX 6600M
  (114.8 - 130.2, n=4)
125.4 fps -2%
Lenovo Legion 5 15ACH6A-82NW0010GE
Radeon RX 6600M, R5 5600H, Micron 2210 MTFDHBA512QFD
114.8 fps -10%
Minisforum EliteMini HX90
Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB
18 fps -86%
Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Zotac Magnus One (ECM73070C)
NVIDIA GeForce RTX 3070, i7-10700, Phison 512GB PA6620060U
157.5 fps +69%
Zotac ZBOX Magnus EN173070C
GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S
131.6 fps +41%
Minisforum NUCX i7
GeForce RTX 3070 Laptop GPU, i7-11800H
120.9 fps +30%
Intel Dragon Canyon NUC - RTX 3060
NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S
108.3 fps +16%
Intel Beast Canyon NUC
NVIDIA GeForce RTX 3060, i9-11900KB, Sabrent Rocket 4.0 500GB
106.7 fps +14%
Minisforum Neptune Series HX90G
Radeon RX 6600M, R9 5900HX, ESO512GYLCT
93.3 fps
Average AMD Radeon RX 6600M
  (83.6 - 94.5, n=4)
91.1 fps -2%
Lenovo Legion 5 15ACH6A-82NW0010GE
Radeon RX 6600M, R5 5600H, Micron 2210 MTFDHBA512QFD
83.6 fps -10%
Minisforum EliteMini HX90
Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB
11.6 fps -88%
1920x1080 Extreme HD Preset OpenGL AA:x8
Zotac Magnus One (ECM73070C)
NVIDIA GeForce RTX 3070, i7-10700, Phison 512GB PA6620060U
140.2 fps +53%
Zotac ZBOX Magnus EN173070C
GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S
115.3 fps +26%
Minisforum NUCX i7
GeForce RTX 3070 Laptop GPU, i7-11800H
104.8 fps +14%
Intel Dragon Canyon NUC - RTX 3060
NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S
96.1 fps +5%
Intel Beast Canyon NUC
NVIDIA GeForce RTX 3060, i9-11900KB, Sabrent Rocket 4.0 500GB
93.9 fps +3%
Minisforum Neptune Series HX90G
Radeon RX 6600M, R9 5900HX, ESO512GYLCT
91.6 fps
Average AMD Radeon RX 6600M
  (64.8 - 93.8, n=4)
85.5 fps -7%
Lenovo Legion 5 15ACH6A-82NW0010GE
Radeon RX 6600M, R5 5600H, Micron 2210 MTFDHBA512QFD
64.8 fps -29%
Minisforum EliteMini HX90
Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB
10.7 fps -88%
Unigine Superposition
1920x1080 1080p High
Zotac Magnus One (ECM73070C)
NVIDIA GeForce RTX 3070, i7-10700, Phison 512GB PA6620060U
17054 Points +67%
Zotac ZBOX Magnus EN173070C
GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S
13502 Points +33%
Minisforum NUCX i7
GeForce RTX 3070 Laptop GPU, i7-11800H
12667 Points +24%
Intel Beast Canyon NUC
NVIDIA GeForce RTX 3060, i9-11900KB, Sabrent Rocket 4.0 500GB
11177 Points +10%
Intel Dragon Canyon NUC - RTX 3060
NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S
11130 Points +9%
Lenovo Legion 5 15ACH6A-82NW0010GE
Radeon RX 6600M, R5 5600H, Micron 2210 MTFDHBA512QFD
10438 Points +2%
Average AMD Radeon RX 6600M
  (10187 - 10459, n=4)
10319 Points +1%
Minisforum Neptune Series HX90G
Radeon RX 6600M, R9 5900HX, ESO512GYLCT
10187 Points
Minisforum EliteMini HX90
Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB
1702 Points -83%
1920x1080 1080p Extreme
Zotac Magnus One (ECM73070C)
NVIDIA GeForce RTX 3070, i7-10700, Phison 512GB PA6620060U
8276 Points +94%
Zotac ZBOX Magnus EN173070C
GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S
6259 Points +46%
Minisforum NUCX i7
GeForce RTX 3070 Laptop GPU, i7-11800H
5847 Points +37%
Intel Dragon Canyon NUC - RTX 3060
NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S
5008 Points +17%
Intel Beast Canyon NUC
NVIDIA GeForce RTX 3060, i9-11900KB, Sabrent Rocket 4.0 500GB
5006 Points +17%
Lenovo Legion 5 15ACH6A-82NW0010GE
Radeon RX 6600M, R5 5600H, Micron 2210 MTFDHBA512QFD
4498 Points +5%
Average AMD Radeon RX 6600M
  (4212 - 4498, n=4)
4335 Points +1%
Minisforum Neptune Series HX90G
Radeon RX 6600M, R9 5900HX, ESO512GYLCT
4274 Points
Minisforum EliteMini HX90
Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB
762 Points -82%
3840x2160 4k Optimized
Zotac Magnus One (ECM73070C)
NVIDIA GeForce RTX 3070, i7-10700, Phison 512GB PA6620060U
10544 Points +92%
Zotac ZBOX Magnus EN173070C
GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S
7997 Points +46%
Minisforum NUCX i7
GeForce RTX 3070 Laptop GPU, i7-11800H
7574 Points +38%
Intel Beast Canyon NUC
NVIDIA GeForce RTX 3060, i9-11900KB, Sabrent Rocket 4.0 500GB
6733 Points +23%
Intel Dragon Canyon NUC - RTX 3060
NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S
6694 Points +22%
Lenovo Legion 5 15ACH6A-82NW0010GE
Radeon RX 6600M, R5 5600H, Micron 2210 MTFDHBA512QFD
5707 Points +4%
Average AMD Radeon RX 6600M
  (5478 - 5707, n=4)
5567 Points +2%
Minisforum Neptune Series HX90G
Radeon RX 6600M, R9 5900HX, ESO512GYLCT
5478 Points
Minisforum EliteMini HX90
Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB
989 Points -82%
3DMark 05 Standard
57463 pkt.
3DMark 06 Standard Score
48270 pkt.
3DMark Vantage P Result
76579 pkt.
3DMark 11 Performance
26149 pkt.
3DMark Ice Storm Standard Score
231518 pkt.
3DMark Cloud Gate Standard Score
59875 pkt.
3DMark Fire Strike Score
20656 pkt.
3DMark Fire Strike Extreme Score
10026 pkt.
3DMark Time Spy Score
8015 pkt.
Pomoc

Wydajność w grach

Minisforum HX90G radzi sobie dobrze, jeśli chodzi o czystą wydajność w grach, a to za sprawą karty graficznej AMD Radeon RX 6600M. W porównaniu z Lenovo Legion 5, wyposażonym w to samo GPU, laptop jest zdecydowanym zwycięzcą. Dlaczego? Wydajność dedykowanego GPU konsekwentnie utrzymuje się na maksymalnym poziomie 100 W. Nasz testowy egzemplarz pozostaje w tyle dopiero w porównaniu z kartą Nvidia GeForce RTX 3060. Ogólnie rzecz biorąc, Minisforum HX90G może wyświetlać wszystkie gry, które testowaliśmy w 1080p z maksymalnymi szczegółami. W niektóre gry można nawet grać w 1440p, ale jeszcze wyższe rozdzielczości szybko doprowadzają średniej klasy GPU do granic możliwości.

GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Minisforum NUCX i7
Intel Core i7-11800H, NVIDIA GeForce RTX 3070 Laptop GPU
106 (6.46min, 76.9P1) fps +22%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, NVIDIA GeForce RTX 3070 Laptop GPU
104.9 (4.3min, 71.4P1) fps +21%
Intel Beast Canyon NUC
Intel Core i9-11900KB, NVIDIA GeForce RTX 3060
104 (4.33min, 71.4P1) fps +20%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
104 (4.33min, 71.4P1) fps +20%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, NVIDIA GeForce RTX 3070
95.6 (6.11min, 66.7P1) fps +10%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, AMD Radeon RX 6600M
86.6 (3.43min, 58.8P1) fps
Average AMD Radeon RX 6600M
  (65.9 - 88.7, n=6)
78.6 fps -9%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, AMD Radeon RX 6600M
73.8 (17.6min, 52.6P1) fps -15%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
12 (3.91min, 8.93P1) fps -86%
The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, NVIDIA GeForce RTX 3070
121 fps +38%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, NVIDIA GeForce RTX 3070 Laptop GPU
105.5 (40.2min, 65.7P0.1, 83.1P1) fps +20%
Minisforum NUCX i7
Intel Core i7-11800H, NVIDIA GeForce RTX 3070 Laptop GPU
104.1 (24.9min, 51.1P0.1, 81.2P1) fps +18%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
91.3 (52.3min, 64.5P0.1, 77.1P1) fps +4%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, AMD Radeon RX 6600M
88 (41.9min, 48.7P0.1, 72.5P1) fps
Average AMD Radeon RX 6600M
  (75.4 - 88.2, n=6)
84 fps -5%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, AMD Radeon RX 6600M
81.3 (9.27min, 52.3P0.1, 66.2P1) fps -8%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
14.4 (8.07min, 10.9P0.1, 12P1) fps -84%
Far Cry 5 - 1920x1080 Ultra Preset AA:T
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
132 (114min) fps +20%
Intel Beast Canyon NUC
Intel Core i9-11900KB, NVIDIA GeForce RTX 3060
122 (93min) fps +11%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, NVIDIA GeForce RTX 3070 Laptop GPU
120 (91min) fps +9%
Minisforum NUCX i7
Intel Core i7-11800H, NVIDIA GeForce RTX 3070 Laptop GPU
119 (90min) fps +8%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, NVIDIA GeForce RTX 3070
117 (89min) fps +6%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, AMD Radeon RX 6600M
110 (87min) fps
Average AMD Radeon RX 6600M
  (86 - 110, n=6)
100 fps -9%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, AMD Radeon RX 6600M
86 (64min) fps -22%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
19 (17min) fps -83%
Far Cry New Dawn - 1920x1080 Ultra Preset
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
113 (86min) fps +26%
Intel Beast Canyon NUC
Intel Core i9-11900KB, NVIDIA GeForce RTX 3060
102 (72min) fps +13%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, NVIDIA GeForce RTX 3070 Laptop GPU
100 (67min) fps +11%
Minisforum NUCX i7
Intel Core i7-11800H, NVIDIA GeForce RTX 3070 Laptop GPU
100 (71min) fps +11%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, NVIDIA GeForce RTX 3070
95 (66min) fps +6%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, AMD Radeon RX 6600M
90 (63min) fps
Average AMD Radeon RX 6600M
  (67 - 91, n=4)
83.8 fps -7%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, AMD Radeon RX 6600M
67 (48min) fps -26%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
19 (14min) fps -79%
F1 2020 - 1920x1080 Ultra High Preset AA:T AF:16x
Minisforum NUCX i7
Intel Core i7-11800H, NVIDIA GeForce RTX 3070 Laptop GPU
166.2 (136min) fps +26%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, NVIDIA GeForce RTX 3070 Laptop GPU
165.8 (134min) fps +25%
Intel Beast Canyon NUC
Intel Core i9-11900KB, NVIDIA GeForce RTX 3060
142 (114min) fps +7%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
142 (114min) fps +7%
Average AMD Radeon RX 6600M
  (128 - 135.8, n=4)
133 fps 0%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, AMD Radeon RX 6600M
132.4 (98min) fps
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, AMD Radeon RX 6600M
128 (95min) fps -3%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
24.3 (18min) fps -82%
Dota 2 Reborn - 1920x1080 ultra (3/3) best looking
Intel Beast Canyon NUC
Intel Core i9-11900KB, NVIDIA GeForce RTX 3060
147.1 (126min) fps +52%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
147.1 (126min) fps +52%
Minisforum NUCX i7
Intel Core i7-11800H, NVIDIA GeForce RTX 3070 Laptop GPU
135.6 (116.6min) fps +40%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, NVIDIA GeForce RTX 3070 Laptop GPU
133.9 (116.8min) fps +39%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, NVIDIA GeForce RTX 3070
129.7 (113.4min) fps +34%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, AMD Radeon RX 6600M
104 (83.4min) fps +8%
Average AMD Radeon RX 6600M
  (91.4 - 110.1, n=8)
100.9 fps +4%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, AMD Radeon RX 6600M
96.6 (75.3min) fps
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
49.9 (43.8min) fps -48%
Strange Brigade - 1920x1080 ultra AA:ultra AF:16
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, NVIDIA GeForce RTX 3070
222 (155min, 168P1) fps +46%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, NVIDIA GeForce RTX 3070 Laptop GPU
186.7 (103.5min, 141.7P1) fps +23%
Minisforum NUCX i7
Intel Core i7-11800H, NVIDIA GeForce RTX 3070 Laptop GPU
184.7 (56.8min, 140.7P1) fps +22%
Intel Beast Canyon NUC
Intel Core i9-11900KB, NVIDIA GeForce RTX 3060
154 (58.1min, 116P1) fps +1%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
154 (58.1min, 116P1) fps +1%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, AMD Radeon RX 6600M
151.8 (107min, 110.3P1) fps
Average AMD Radeon RX 6600M
  (138 - 158, n=6)
151.7 fps 0%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, AMD Radeon RX 6600M
151 (104min, 109P1) fps -1%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
23.9 (18.2min, 19.2P1) fps -84%
Borderlands 3 - 1920x1080 Badass Overall Quality (DX11)
Intel Beast Canyon NUC
Intel Core i9-11900KB, NVIDIA GeForce RTX 3060
100 fps +51%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, NVIDIA GeForce RTX 3070
98.8 fps +49%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
84.7 fps +28%
Minisforum NUCX i7
Intel Core i7-11800H, NVIDIA GeForce RTX 3070 Laptop GPU
84.7 fps +28%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, NVIDIA GeForce RTX 3070 Laptop GPU
84.6 fps +28%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, AMD Radeon RX 6600M
66.2 fps
Average AMD Radeon RX 6600M
  (59.9 - 67.3, n=5)
64.8 fps -2%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, AMD Radeon RX 6600M
64.5 fps -3%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
11.3 fps -83%
Metro Exodus - 1920x1080 Ultra Quality AF:16x
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, NVIDIA GeForce RTX 3070
93.1 (45.73min) fps +57%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, NVIDIA GeForce RTX 3070 Laptop GPU
74.6 (38.33min) fps +26%
Minisforum NUCX i7
Intel Core i7-11800H, NVIDIA GeForce RTX 3070 Laptop GPU
74.6 (38.07min) fps +26%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
65.3 (34.71min) fps +10%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, AMD Radeon RX 6600M
62.3 (31.28min) fps +5%
Intel Beast Canyon NUC
Intel Core i9-11900KB, NVIDIA GeForce RTX 3060
59.8 (30.99min) fps +1%
Average AMD Radeon RX 6600M
  (55.6 - 62.3, n=4)
59.8 fps +1%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, AMD Radeon RX 6600M
59.2 (34.14min) fps
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
10.8 (5.78min) fps -82%
F1 2021 - 1920x1080 Ultra High Preset + Raytracing AA:T AF:16x
Minisforum NUCX i7
Intel Core i7-11800H, NVIDIA GeForce RTX 3070 Laptop GPU
123.1 (104min, 93P1) fps +28%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, NVIDIA GeForce RTX 3070 Laptop GPU
122.7 (104min, 102P1) fps +28%
Intel Beast Canyon NUC
Intel Core i9-11900KB, NVIDIA GeForce RTX 3060
96.9 (83min, 83P1) fps +1%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
96.9 (83min, 83P1) fps +1%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, AMD Radeon RX 6600M
95.9 (79min, 73P1) fps 0%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, AMD Radeon RX 6600M
95.8 (80min, 80P1) fps
Average AMD Radeon RX 6600M
  (80.9 - 95.9, n=5)
91.8 fps -4%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
22 (17min, 17P1) fps -77%
low med. high ultraQHD4K
GTA V (2015) 179.6 172.2 157.4 86.6 60.8 57.9
The Witcher 3 (2015) 367 260 144.9 88 43.9
Dota 2 Reborn (2015) 154.9 120.2 106.8 96.6 81.7
Rise of the Tomb Raider (2016) 263 206 126.8 105.2 41.5
Final Fantasy XV Benchmark (2018) 197.7 111.1 81.4 56.6 30.6
X-Plane 11.11 (2018) 60.1 49.8 47.1 29
Far Cry 5 (2018) 137 122 116 110 89 43
Strange Brigade (2018) 447 216 174.1 151.8 98.3 51.6
Shadow of the Tomb Raider (2018) 170.3 135.7 126 105.7 67.3 31.1
Forza Horizon 4 (2018) 220 187 184 158 123 73
Far Cry New Dawn (2019) 114 102 99 90 85 48
Metro Exodus (2019) 198.4 98.8 72.5 59.2 45.1 27.3
Anno 1800 (2019) 109.6 96.7 79.6 47 37.3 20.3
Control (2019) 220 102.6 70.4 44.9 21.7
Borderlands 3 (2019) 127.5 111.2 85.1 66.2 44.9 23.7
F1 2020 (2020) 325 242 198.8 132.4 96.6 52.6
Mafia Definitive Edition (2020) 137.4 93.8 85.6 57.7 27.3
Dirt 5 (2020) 236.2 135.4 104.5 81.3 68 40.4
F1 2021 (2021) 326 283 215 95.8 65.7 31.6
New World (2021) 113.7 90.5 84.1 75.6 52.4 31.3
Far Cry 6 (2021) 102 86.6 78.2 71.5 61.7 2.85
Forza Horizon 5 (2021) 154 121 118 62 50 30
Farming Simulator 22 (2021) 205 133.6 114.1 111.2 110.9 65.4
God of War (2022) 109.1 96.9 77.7 54.5 42.5 25
GRID Legends (2022) 236 207 164.7 131.7 102.8 59.8
Cyberpunk 2077 1.6 (2022) 107.3 82.6 68.8 61.2 36 14.4
Tiny Tina's Wonderlands (2022) 178.8 151 96.5 74.8 49.4 18.2
F1 22 (2022) 240 222 167.7 39.9 24.4 11.3
The Quarry (2022) 116.5 91 73.3 53 35 13
FIFA 23 (2022) 170.4 170.2 169.5 169.4 134 73.9
A Plague Tale Requiem (2022) 79.6 67.2 55.4 46.4 35.7 21.7
Uncharted Legacy of Thieves Collection (2022) 76.8 74.6 68.2 65.4 33.6 18.8
Call of Duty Modern Warfare 2 2022 (2022) 113 104 79 68 48 28
Spider-Man Miles Morales (2022) 94 85.3 82.9 69.4 47.2 24.4

Emisje - bardzo cicha praca

Szum systemu

Układ chłodzenia Minisforum HX90G składa się z siedmiu ciepłowodów oraz dwóch dużych wentylatorów. Producent zastosował ciekły metal, który ma zapewnić idealne odprowadzanie ciepła z CPU i GPU do układu chłodzenia. Dlatego też producent wyraźnie odradza użytkownikom rozbieranie układu chłodzenia. Układ jest bardzo cichy, a podczas pracy na biegu jałowym jest praktycznie bezgłośny. Przy niewielkim obciążeniu zmierzyliśmy hałas systemowy na poziomie zaledwie 31 dB(A), co i tak jest bardzo niskim wynikiem. Podczas testu obciążeniowego Minisforum HX90G osiąga maksymalnie 36,6 dB(A). Głośność waha się wtedy między 31 a 34 dB(A), w zależności od aplikacji i obciążenia. Nie zauważyliśmy żadnego gwałtownego przyspieszenia wentylatorów.

Układ chłodzenia w Minisforum Neptune Series HX90G (Źródło: Minisforum)
Układ chłodzenia w Minisforum Neptune Series HX90G (Źródło: Minisforum)

Hałas

luz
30.4 / 30.7 / 30.7 dB
obciążenie
31 / 36.6 dB
  red to green bar


30 dB
cichy
40 dB(A)
słyszalny
50 dB(A)
irytujący

min: dark, med: mid, max: light   Earthworks M23R, Arta (odległość 15 cm)   environment noise: 30.3 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2047.933.133.533.133.533.347.92548.333.133.232.630.63548.33148.531.134.334.929.931.448.5404028.829.430.229.529.9405036.532.330.930.234.128.236.56333.228.92726.929.127.233.28030.428.227.827.52826.330.410029.826.826.925.826.324.329.812527.725.324.82525.224.527.716026.924.625.124.424.622.826.920027.323.223.922.723.322.627.325030.722.622.822.122.122.330.731526.622.222.322.322.320.926.640027.420.320.921.121.320.227.45002720.520.320.420.520.22763028.920.520.220.320.41928.980028.219.519.819.519.318.228.2100025.41918.618.918.717.925.4125026.518.618.418.118.51826.5160024.818.217.718.117.917.824.8200025.418.217.517.517.417.225.4250023.817.917.517.617.617.423.8315021.918.217.617.417.417.421.9400021.818.917.717.817.517.521.8500018.818.117.817.917.817.618.8630018.418.21818.118.117.918.4800018.418.418.218.218.21818.41000018.718.618.418.518.318.218.712500191918.818.918.818.6191600019.419.519.419.319.319.119.4SPL36.73130.730.730.730.336.7N2.61.51.51.51.51.42.6median 25.4median 19median 18.8median 18.9median 18.8median 18.2median 25.4Delta3.71.82.32.12.11.43.7hearing rangehide median Fan NoiseMinisforum Neptune Series HX90G
Minisforum Neptune Series HX90G
R9 5900HX, Radeon RX 6600M
Zotac Magnus One (ECM73070C)
i7-10700, NVIDIA GeForce RTX 3070
Zotac ZBOX Magnus EN173070C
i7-11800H, GeForce RTX 3070 Laptop GPU
Intel Dragon Canyon NUC - RTX 3060
i9-12900, NVIDIA GeForce RTX 3060
Lenovo Legion 5 15ACH6A-82NW0010GE
R5 5600H, Radeon RX 6600M
Minisforum NUCX i7
i7-11800H, GeForce RTX 3070 Laptop GPU
Minisforum EliteMini HX90
R9 5900HX, Vega 8
Noise
-21%
-14%
-4%
-11%
-1%
1%
off / environment *
30.3
30
1%
30.7
-1%
30.2
-0%
25
17%
29.5
3%
30.8
-2%
Idle Minimum *
30.4
33.58
-10%
32.7
-8%
30.2
1%
25
18%
29.5
3%
Idle Average *
30.7
32.8
-7%
30.4
1%
25
19%
29.5
4%
31.6
-3%
Idle Maximum *
30.7
32.8
-7%
30.8
-0%
34.5
-12%
29.5
4%
Load Average *
31
44.25
-43%
41.7
-35%
51.1
-65%
32.8
-6%
Load Maximum *
36.6
48.72
-33%
45.4
-24%
45.1
-23%
51.3
-40%
40.8
-11%
33.4
9%

* ... im mniej tym lepiej

Temperatura

Temperatury powierzchni osiągają pod obciążeniem maksymalnie 48°C, co nie jest dużym problemem. Do tego testu używaliśmy urządzenia bez podstawki. Temperatury spadają minimalnie, gdy urządzenie jest używane z podstawką.

Zmierzone przez nas temperatury CPU i GPU są bardzo dobre. Test stresu, który symuluje ekstremalny scenariusz, zwiększa temperaturę CPU do maksymalnie 88,3°C. Wzrost temperatury GPU jest zauważalnie niższy i wynosi 77°C. Temperatura VR VDDC wzrosła natomiast do nawet 106°C. Nawet w pojedynczym teście z Furmarkiem udokumentowaliśmy 103°C. Nie wykryliśmy jednak throttlingu wydajności.

Tylko test warunków skrajnych FurMark
Tylko test warunków skrajnych FurMark
Badanie stresu Tylko Prime95
Badanie stresu Tylko Prime95
Stress test Prime95 + FurMark
Stress test Prime95 + FurMark
w stresie
 30.3 °C28.7 °C35 °C
 27.7 °C30 °C27.4 °C
 35.6 °C30.5 °C28.7 °C
maks. w ogóle: 35.6 °C
średnia: 30.4 °C
45.2 °C46.5 °C42.6 °C
46.4 °C48.2 °C42.7 °C
42.2 °C39 °C42.5 °C
maks. w ogóle: 48.2 °C
średnia: 43.9 °C
zasilacz  58.5 °C | temperatura otoczenia 24.5 °C | FIRT 550-Pocket
(+) The average temperature for the upper side under maximal load is 30.4 °C / 87 F, compared to the average of 32.2 °C / 90 F for the devices in the class Mini PC.
(+) The maximum temperature on the upper side is 35.6 °C / 96 F, compared to the average of 35.5 °C / 96 F, ranging from 26 to 69.5 °C for the class Mini PC.
(-) The bottom heats up to a maximum of 48.2 °C / 119 F, compared to the average of 36.9 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 29.3 °C / 85 F, compared to the device average of 32.2 °C / 90 F.
Góra na biegu jałowym
Góra na biegu jałowym
Góra pod obciążeniem
Góra pod obciążeniem
Dół na biegu jałowym
Dół na biegu jałowym
Dno pod obciążeniem
Dno pod obciążeniem

Pobór mocy

zasilacz o mocy 262 W
zasilacz o mocy 262 W

Kompaktowe mini PC oparte na komponentach desktopowych mają dużą przewagę pod względem zużycia energii w porównaniu z tradycyjnymi komputerami stacjonarnymi. Według naszego urządzenia pomiarowego nasz Minisforum HX90G zużywa tylko 17-18 watów na biegu jałowym. Zmierzyliśmy 82 waty podczas średniego obciążenia i do 262 watów pod maksymalnym obciążeniem. Urządzenie utrzymywało jednak tę maksymalną wartość tylko przez krótki czas. Maksymalne średnie obciążenie zostało zmierzone podczas gry, a pobór mocy wyniósł 185 W.

Zasilacz ma moc znamionową 262 watów, co jest wystarczające dla tego urządzenia. Podczas naszych testów nie zauważyliśmy żadnych problemów z zasilaniem energetycznym.

Pobór mocy
wyłączony / stan wstrzymaniadarklight 0.77 / 0.65 W
luzdarkmidlight 17.8 / 17.9 / 18.1 W
obciążenie midlight 82.1 / 262 W
 color bar
Legenda: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Minisforum Neptune Series HX90G
R9 5900HX, Radeon RX 6600M
Zotac ZBOX Magnus EN173070C
i7-11800H, GeForce RTX 3070 Laptop GPU
Lenovo Legion 5 15ACH6A-82NW0010GE
R5 5600H, Radeon RX 6600M
Minisforum NUCX i7
i7-11800H, GeForce RTX 3070 Laptop GPU
Average AMD Radeon RX 6600M

Average of class Mini PC

Power Consumption
-90%
-0%
-42%
2%
41%
Idle Minimum *
17.8
31.3
-76%
10
44%
28.2
-58%
13.7 ?(9.1 - 17.8, n=6)
23%
Idle Average *
17.9
35.1
-96%
13.2
26%
29.9
-67%
Idle Maximum *
18.1
41.6
-130%
15.6
14%
36.2
-100%
Load Average *
82.1
214
-161%
178
-117%
83.2
-1%
114.4 ?(77.2 - 190, n=6)
-39%
Load Maximum *
262
231
12%
180
31%
215.7
18%
197.8 ?(114.4 - 262, n=6)
25%
Witcher 3 ultra *
193.5
181
167

* ... im mniej tym lepiej

Power consumption with external monitor

0153045607590105120135150165180195210Tooltip
Minisforum Neptune Series HX90G; Prime95 V2810 Stress (external Monitor): Ø112.8 (101-119.4)
Minisforum Neptune Series HX90G; Cinebench R15 Multi (external Monitor): Ø117.8 (112.5-133.5)
Minisforum Neptune Series HX90G; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø174.1 (164.6-195.4)
Minisforum Neptune Series HX90G; 1920x1080 The Witcher 3 ultra (external Monitor): Ø185.6 (177.8-218)
Minisforum Neptune Series HX90G; Idle 1min (external Monitor): Ø18.2 (15-24.1)

Za

+ bardzo dobra wydajność systemu
+ szybki AMD Ryzen 9 5900HX z 8 rdzeniami i 16 wątkami
+ dedykowany układ AMD Radeon RX 6600M z 8 GB VRAM
+ solidna obudowa
+ zawsze cichy
+ do czterech wyświetlaczy jednocześnie
+ niska latencja DPC
+ duża ilość portów USB

Przeciw

- brak czytnika kart SD
- dość droga (bez rabatów)
- Porty monitorów obsługują maksymalnie 4K@60Hz

Werdykt - kompaktowy komputer do gier o rozdzielczości 1080p

Minisforum Neptune Series HX90G w recenzji: udostępnione przez Minisforum
Minisforum Neptune Series HX90G w recenzji: udostępnione przez Minisforum

Minisforum Neptune Series HX90G to bardzo kompaktowe urządzenie dla graczy, które zostało wyposażone w pełnoprawny procesor graficzny. Ze względu na swoją budowę, urządzenie bazuje na konfiguracji, którą producent wielokrotnie wykorzystywał do produkcji szybkich mini PC i dzięki temu bardzo dobrze się z nią zapoznał. Zasadniczo Minisforum poprawiło swój początkowyEliteMini HX90i rozszerzyło go o kartę graficznąAMD Radeon RX 6600M, dzięki czemu system jest bardziej dostosowany do wydajności 3D i umożliwia nieograniczoną grę w 1080p i maksymalnych detalach

Sprzęt został wpasowany w kompaktowe urządzenie z dobrą wentylacją. System chłodzenia jest dobrze zwymiarowany i umożliwia m.in.AMD Ryzen 9 5900HXoraz AMD Radeon RX 6600Mna pracę bez ograniczeń, nawet pod maksymalnym obciążeniem. Producent udowodnił już zastosowanie dobrych jednostek chłodzących w innych urządzeniach. Pewne problemy pozostają w doborze dostępnych portów. O ile liczba portów jest zadowalająca, to porty HDMI i DisplayPort niestety obsługują tylko 2160p przy 60Hz. Brak czytnika kart i wsparcia dla Thunderbolt są mniej rozczarowujące w świetle kategorii urządzenia (urządzenie do gier) i są czymś, z czym moglibyśmy żyć

Minisforum Neptune Series HX90G to atrakcyjne, kompaktowe urządzenie do gier, zapewniające bezkompromisową rozgrywkę w rozdzielczości Full HD.

Byliśmy bardzo zadowoleni z niskich wartości emisji Minisforum HX90G. Urządzenie jest nie tylko ciche, ale także oszczędne i zawsze ma pod kontrolą temperatury. Nasz egzemplarz testowy wykazał się solidną wydajnością w trakcie naszych testów bez poważnych usterek. Jego wydajność systemowa dorównuje tradycyjnym urządzeniom stacjonarnym, a wydajność w grach jest imponująca - Minisforum HX90G dorównuje porównywanym urządzeniom wyposażonym w kartę Nvidia GeForce RTX 3060

Minisforum HX90G musi konkurować z innym kompaktowym komputerem Minisforum, potężnymMinisforum NUCXi7wyposażonym w szybką Nvidia GeForce RTX 3070 LaptopgPU. Lenovo Legion 5może również utrudnić sukces HX90G. Atrakcyjny laptop zapewnia podobną łączność za jedyne 1,150 USD.

Cena i dostępność

Minisforum Neptune Series HX90G można zamówić bezpośrednio w sklepie internetowym Minisforum. Producent ma obecnie atrakcyjne zniżki na zamówienia przedpremierowe, co oznacza, że w chwili pisania tego tekstu nasza konfiguracja testowa została obniżona do nieco ponad 900 dolarów. Bez zniżki urządzenie kosztuje 1070 dolarów. Bardziej przystępny model barebone jest obecnie dostępny za 800 dolarów. Wysyłka urządzenia z Hongkongu rozpocznie się w połowie listopada. Szacowany czas dostawy: 2-3 tygodnie.

Notebookcheck otrzymał do testów Minisforum Neptune Series HX90G. Recenzja ta będzie regularnie aktualizowana o wyniki z najnowszych gier. Producent nie miał wpływu na powstanie recenzji. Ponadto producent nie otrzymał wersji gotowej recenzji przed publikacją.


Minisforum Neptune Series HX90G - 26/10/2022 v7
Sebastian Bade

Wykonanie
79 / 98 → 81%
Komunikacja
54 / 81 → 67%
Waga
70%
Wydajność w grach
98%
Wydajność w programach użytkowych
95%
Temperatura
90%
Hałas
86%
Średnio
83%
0%
Mini PC - Ważona średnia
Please share our article, every link counts!
> laptopy testy i recenzje notebooki > Laptopy > Recenzja Minisforum HX90G: Kompaktowy komputer dla graczy z procesorem AMD Ryzen 9 5900HX i kartą graficzną AMD Radeon RX 6600M
Sebastian Bade, 2022-10-31 (Update: 2022-10-31)
